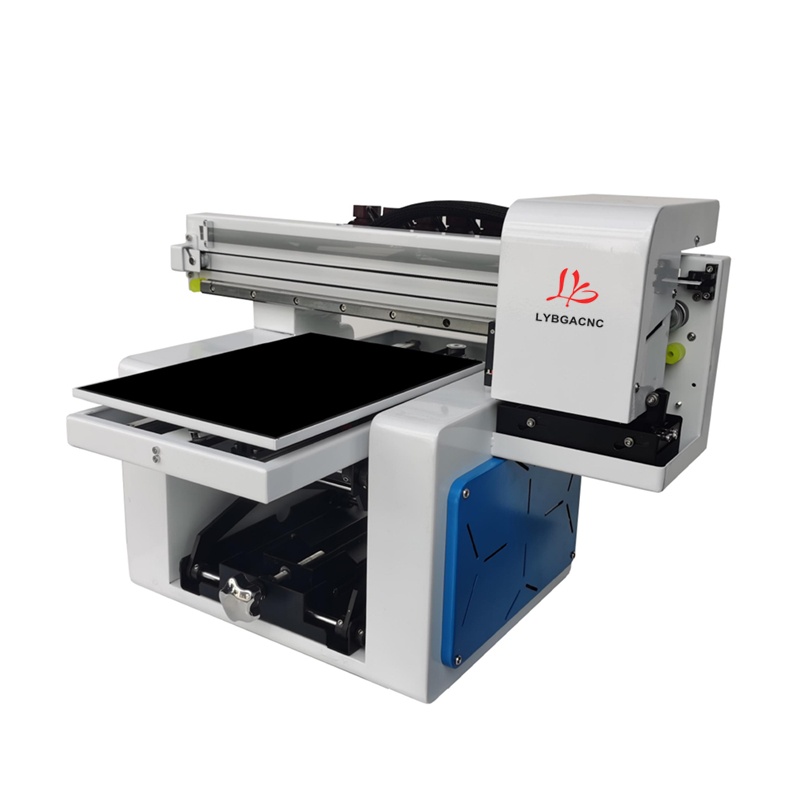

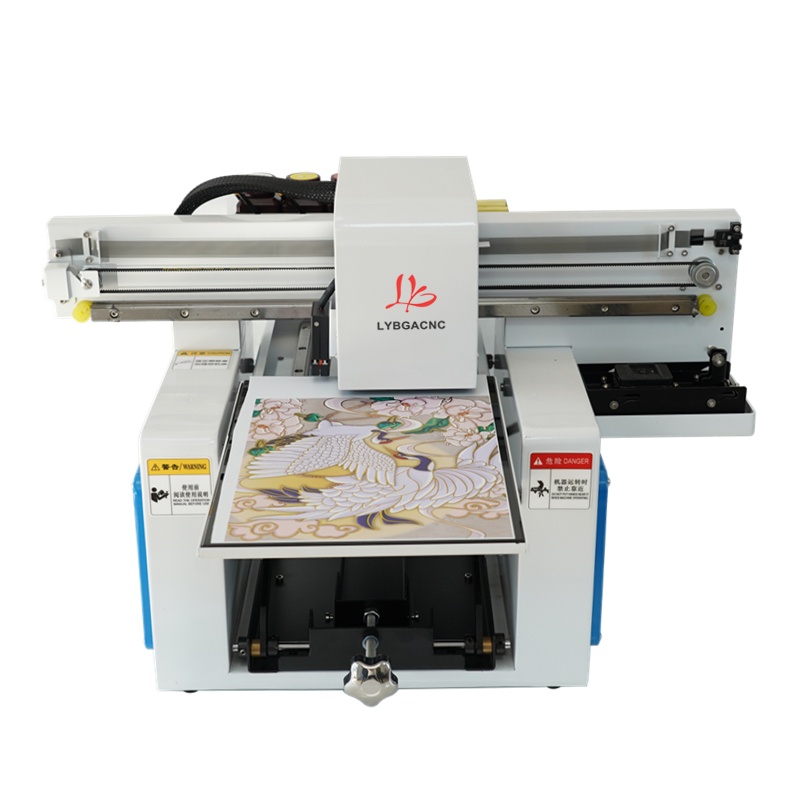

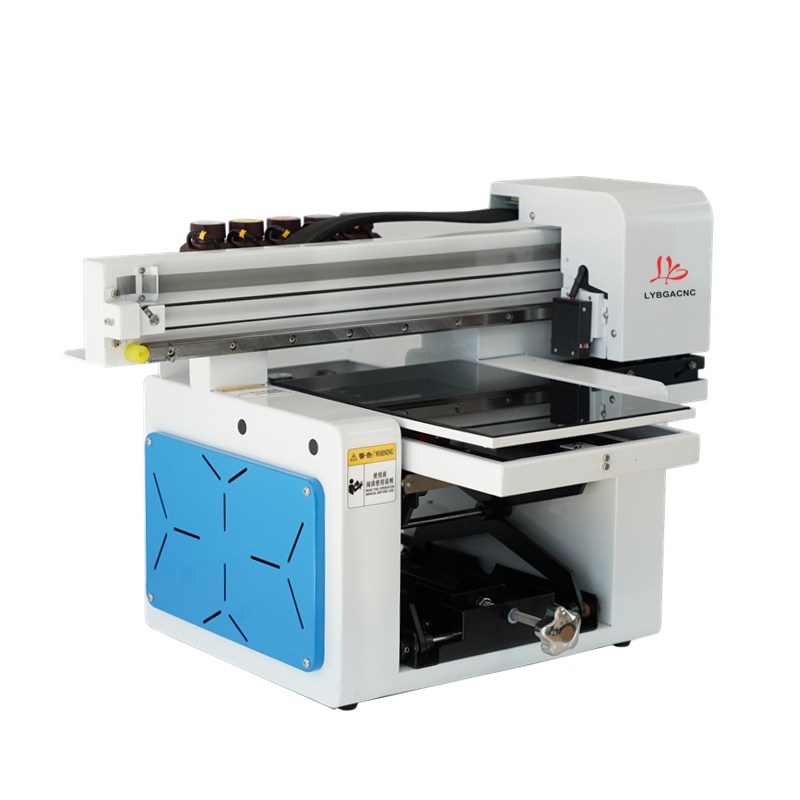

LY A4 full automatic flatbed Photo UV DTG Inkjet printer machine USB infrared ray measure max work size 200X300mm 2880 DPI printing 220V 110V

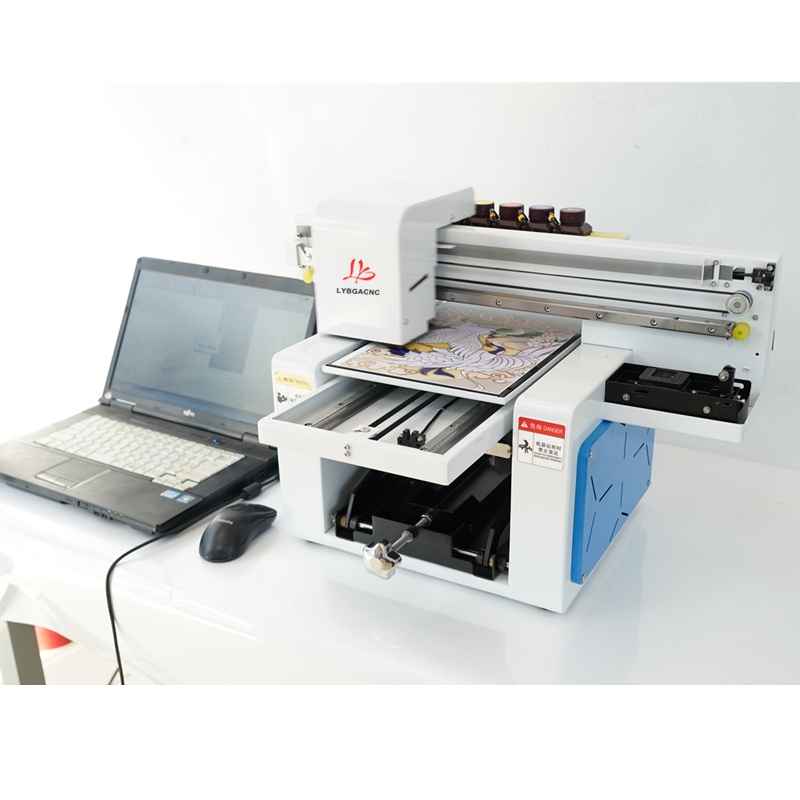

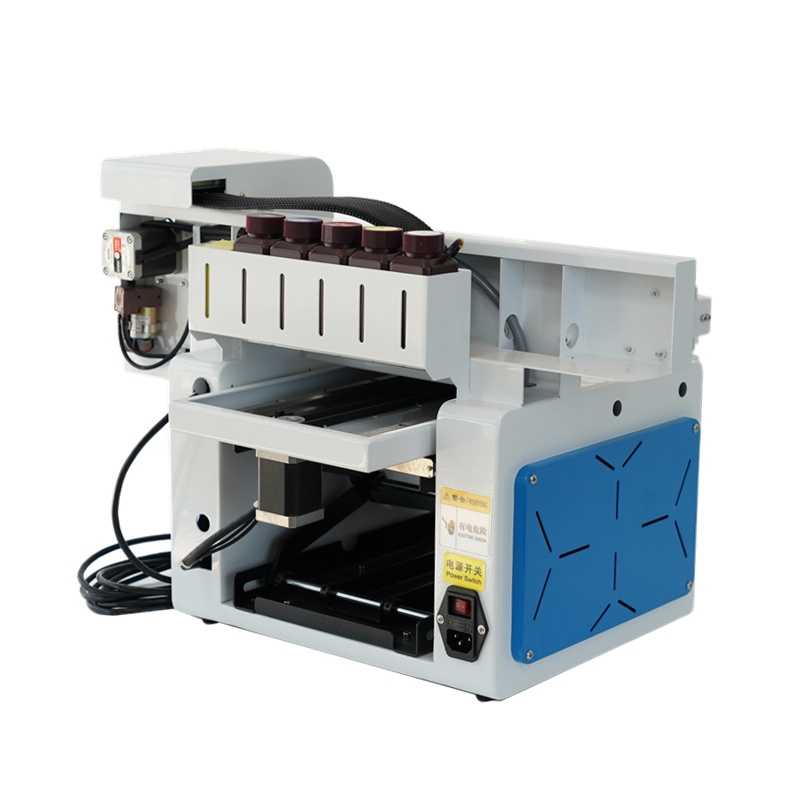

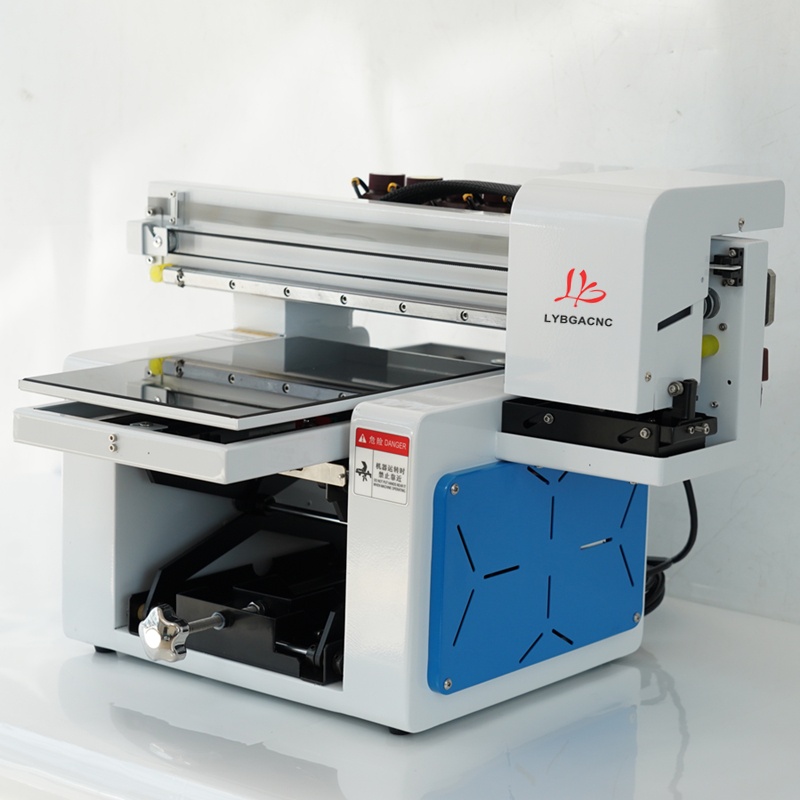

A4 UV flatbed printer is the ideal solution for DIY Customied printing on the products, which is a multi-functional LED UV flatbed printer

that created by LY and was built with industrial configuration as thicken aluminum profile, Water circulating cooling system.

Automatic detect UV curing system, 6 colors and max 2880 dpi printing resolution. Can print on all kinds of surfaces, available in 3D textured and raised printing, suitable for printing on both rigid and flexible material, like phone cases, metal ( aluminum, copper etc ), alloys, mirror, gifts packaging (wood, carbon paper, metal), tablet cover, USB sticks, DVD disc, industry signs, badge, plastic card, PVC, glass, wood, paper etc.



Main Features:

1. Fast printing speed, Only 80s for 1 pc phone case ( 1440x1440dpi).

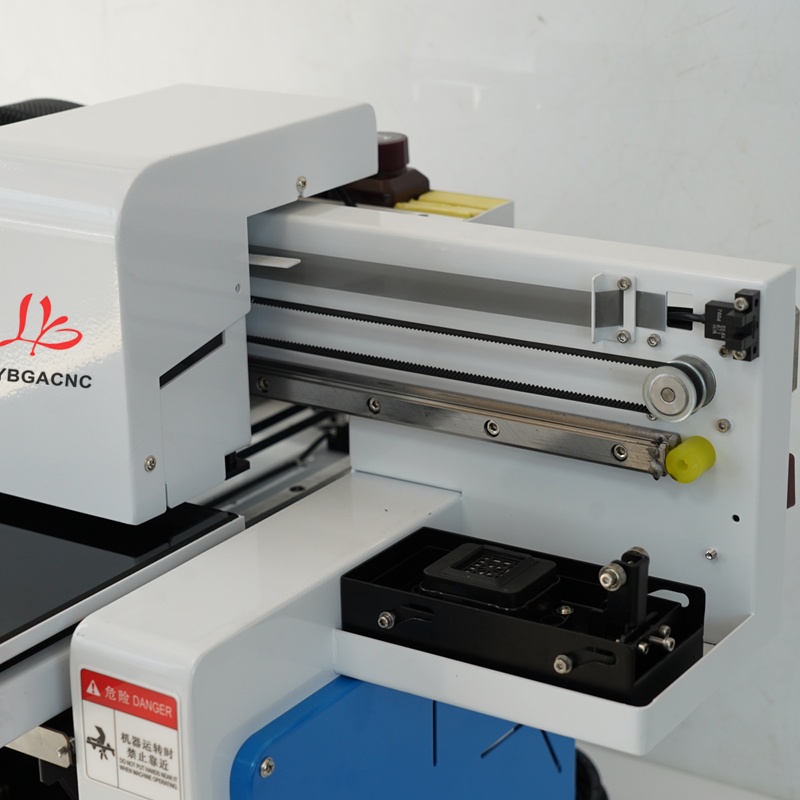

2. Automatic detect the X (carriage), Y (flatbed) motion pulse and send back the real motion data to the main-board for interpolating.

   Combine with the closed-loop structure circuit design to enhance the stability of the system and ensure the flatbed printing with one pass printing precision and repeat printing precision.

3. High Resolution Printing:

a. High color density, Wide color gamut, Instant drying.

b. Excellent adhesion to both coated and uncoated media.

c. Superior scratch and alcohol resistance.

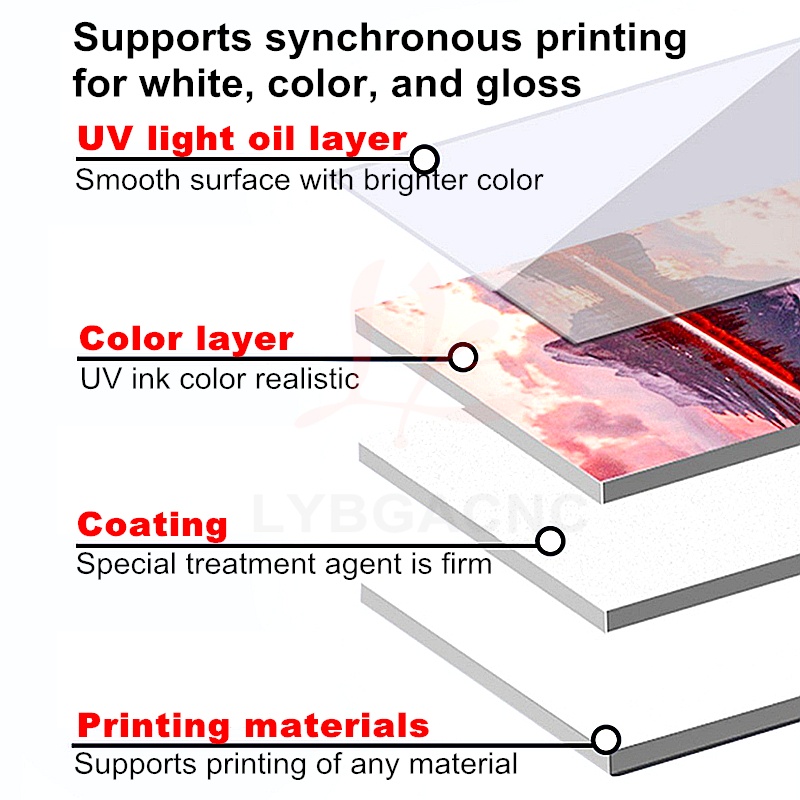

4. Can print on all kinds of surfaces, available in 3D textured and raised printing

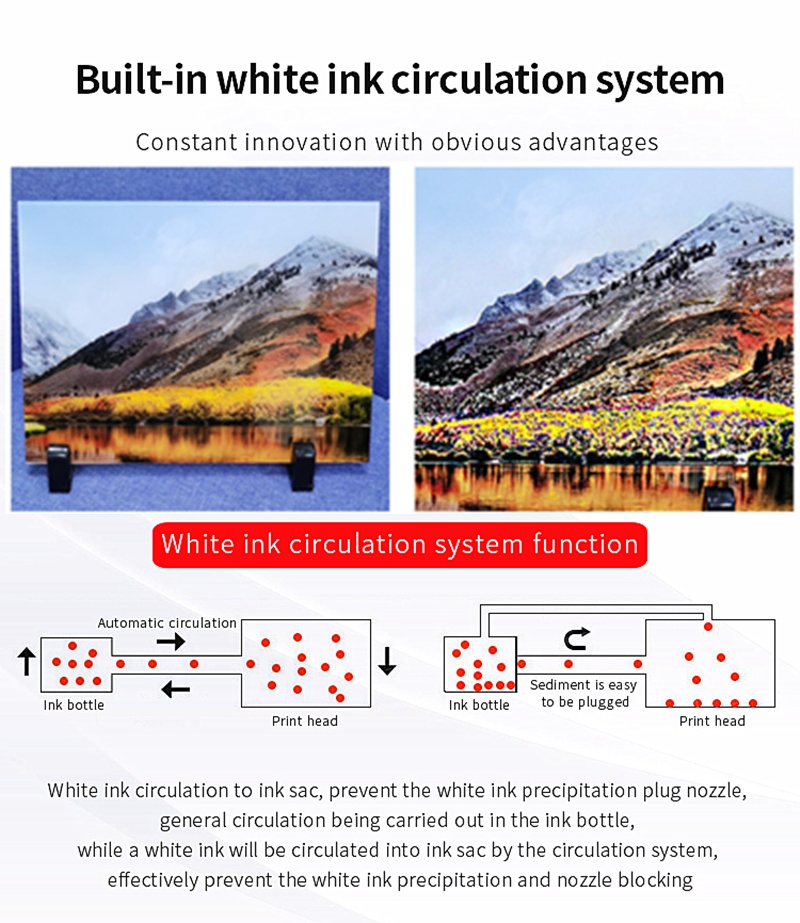

5. With White ink circulation function







Specifications:

Printer model LY A4 UV Printer
Print head Original from Epson
Print direction Unidirection / Bidirection
Print Size A4 200*300mm
Print Resolution 2880*1440dpi / 1440*1440dpi
Print Speed 90s @ A4 2880*1440dpi
Print Color 6 colors (CMYK+WW)
Max. Print Height 120mm
Max. Print Weight 10kg
Printing interface USB 2.0 & 100 Base-T Ethernet
Printing software DS Rip
Computer System All windows system
Ink type Rigid UV curing ink, soft UV curing ink
Ink certification  SGS certification
Ink Color 6 Colors (CMYK+WW)
Ink System Continuous ink supply system
Dry system UV LED instant system
UV LED wave length 395nm
UV LED lifespan 50000hours
Printing Precision small then 0.1mm
Cool system Water circulation + Fan cooling system
Print Head Height Smart sensor Automatic Adjustment
Control Hand press key control panel
Printer Dimension L580*W370*H360mm
Net weight 23kg
Gross weight 45kg
Machine size L600*W500*H400mm
Work Voltage AC100-240V 50-60hZ



Packing List:

1* A4 UV printer

1* Accessories tools

5* 250ML UV ink (C/M/Y/K/WT) [optional]
