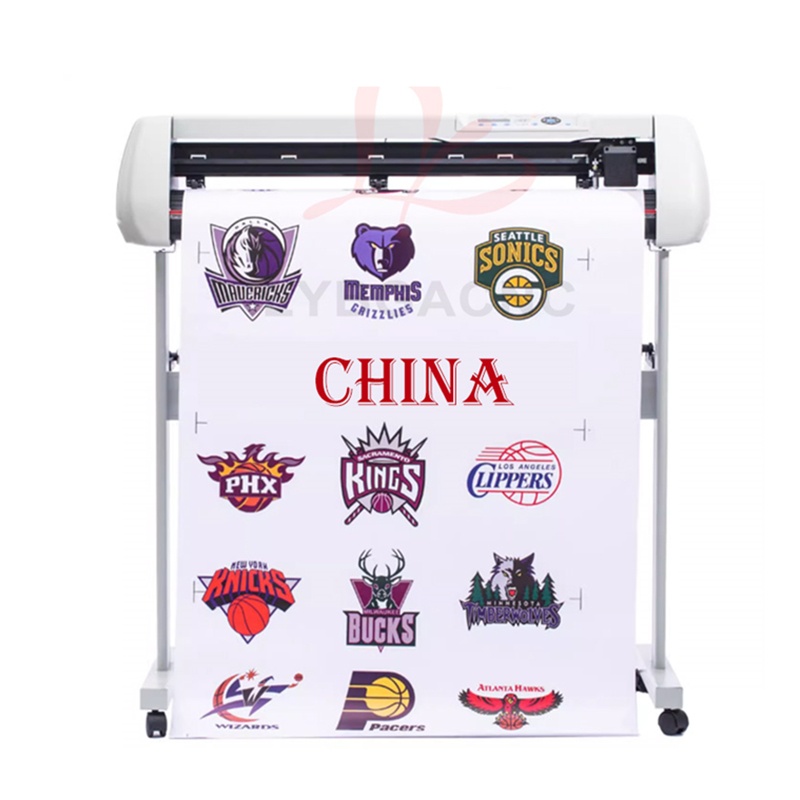

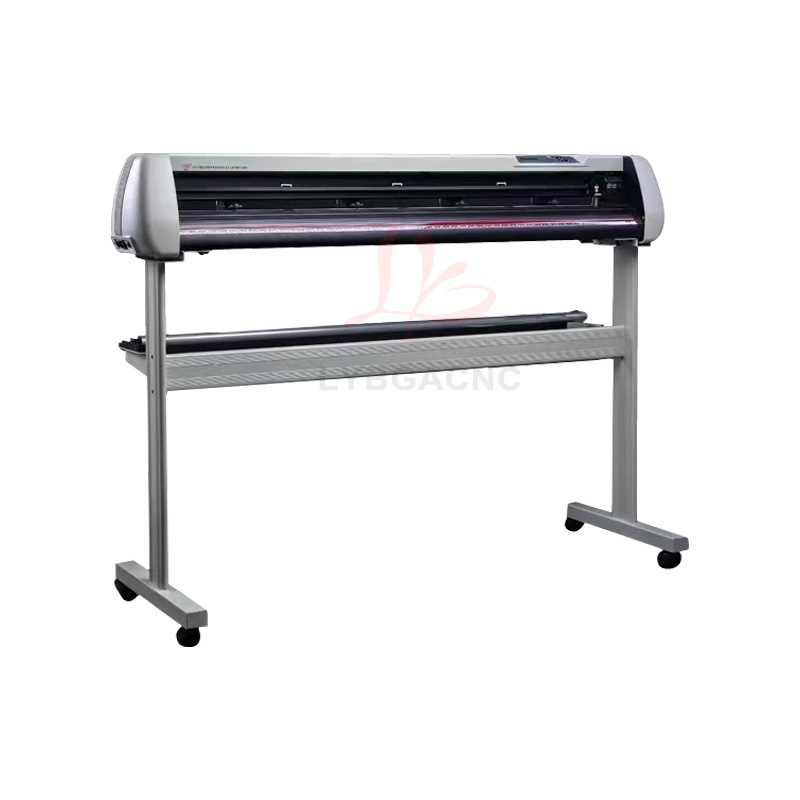

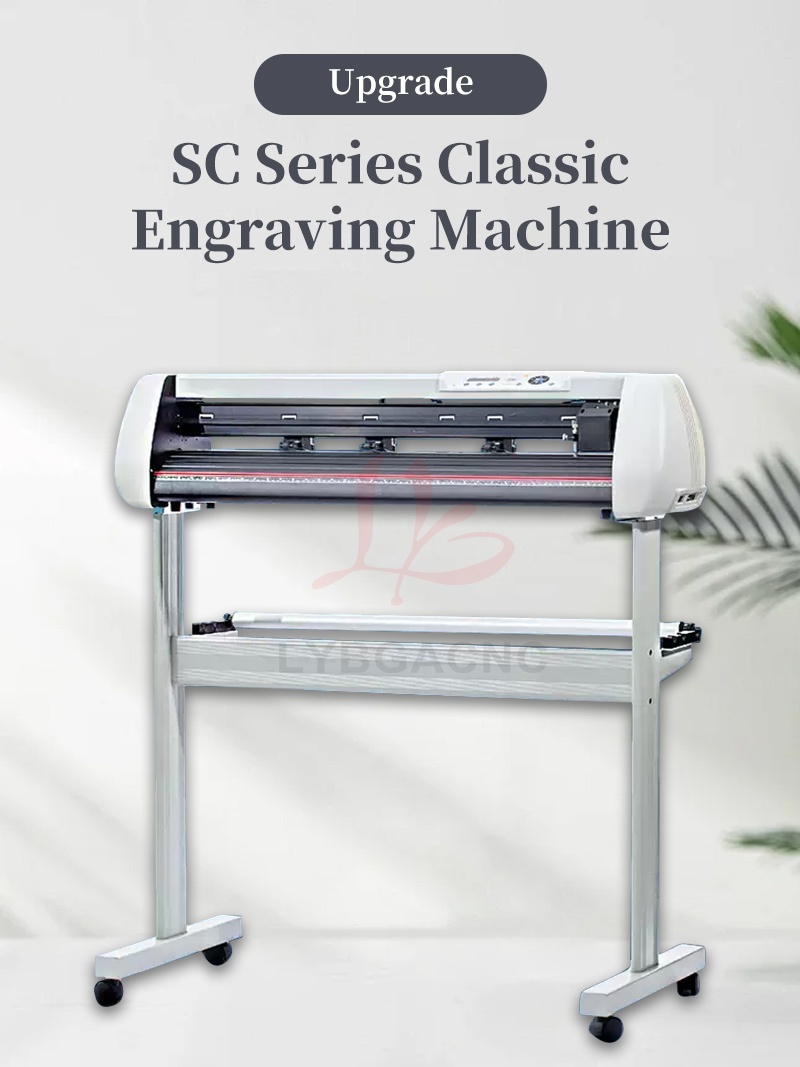

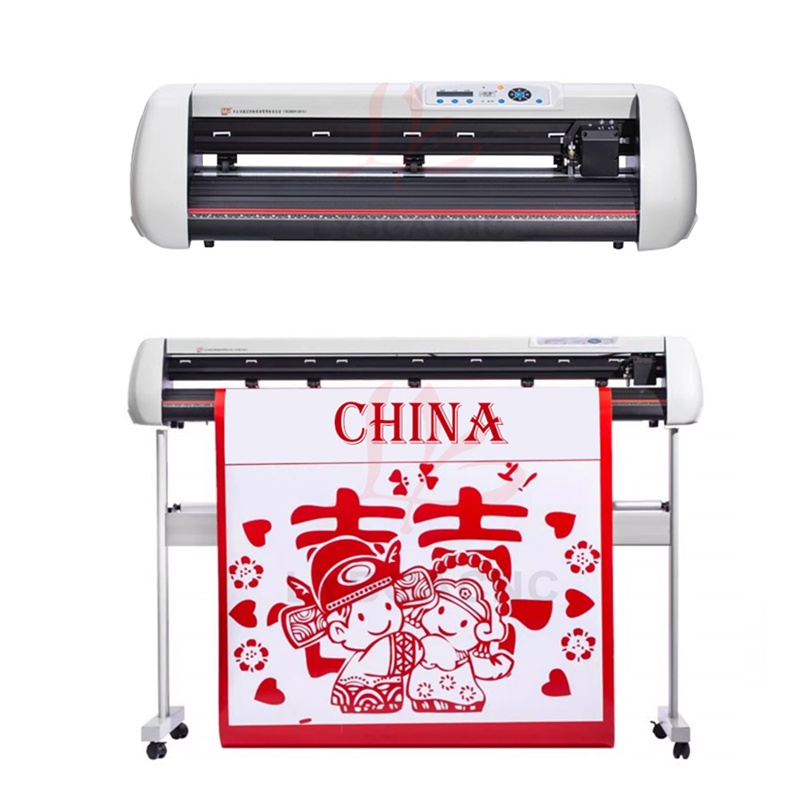

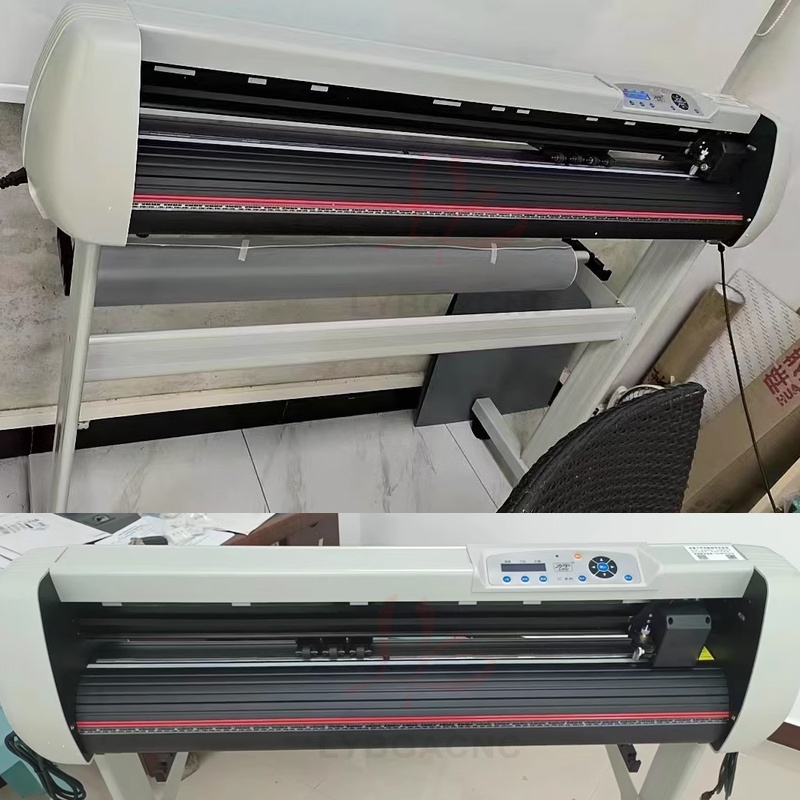

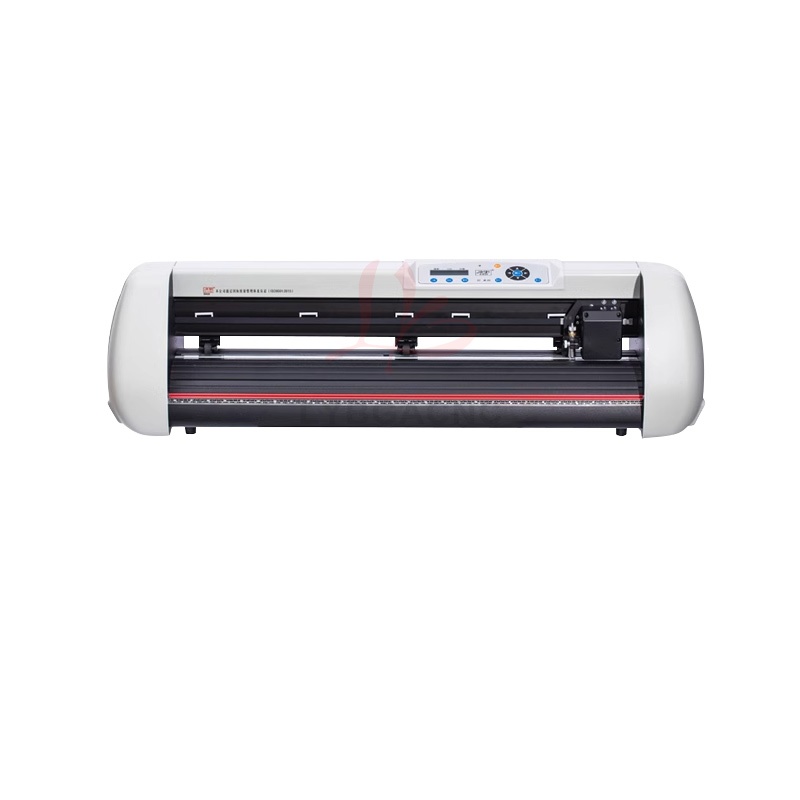

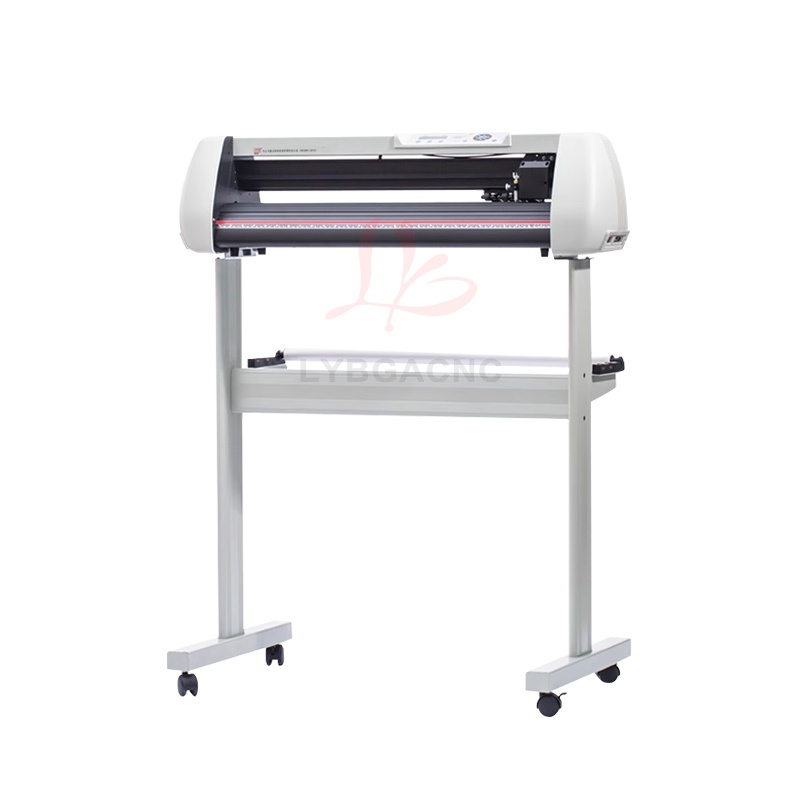

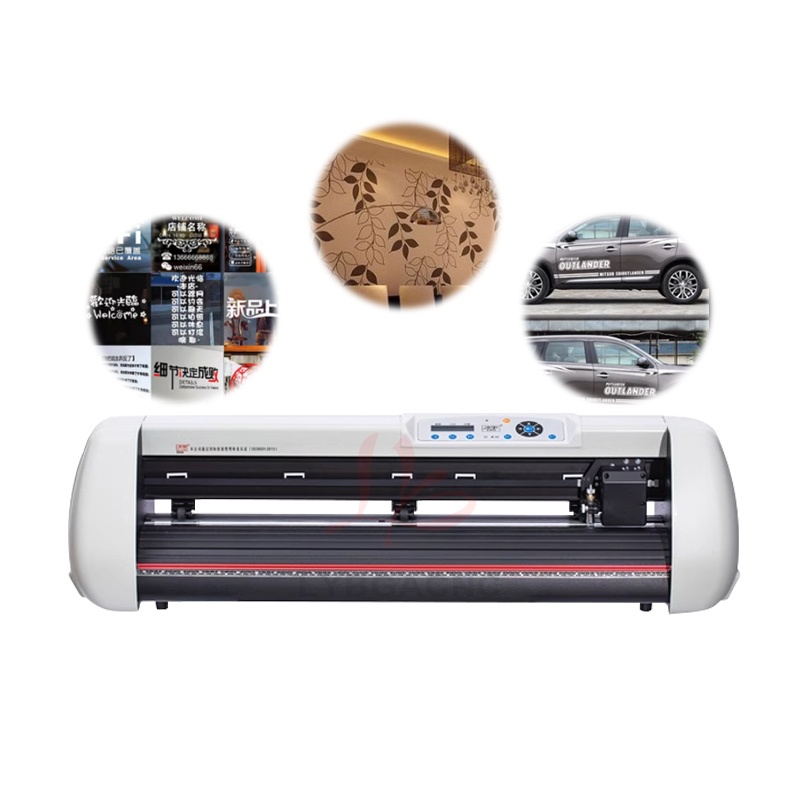

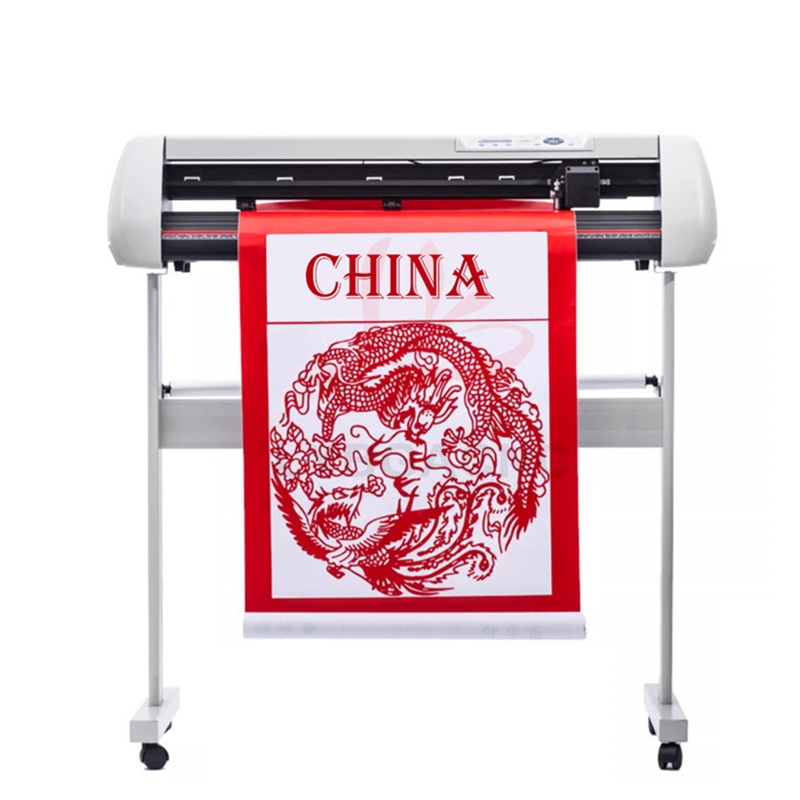

LY Advertising Engraving Die – cutting Lettering Machine with Edge Patrol Function Stand USB Disk Dual Interface Supporting Offline Control

Technical Parameters

Model               SC631-AU    SC801-AU   SC1041-AU    SC1261-AU

Engraving             600mm     780mm     1020mm      1260mm

Feed width            710mm     880mm     1120mm      1340mm

Maximum edge patrol    560mm    730mm      970mm       970mm

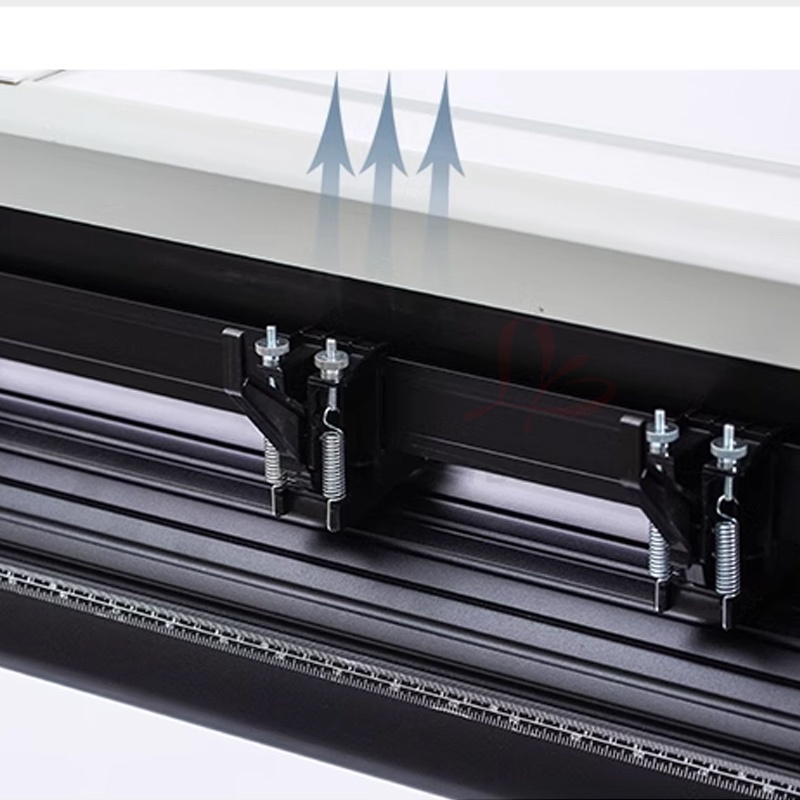

Number of platens       3－sets    3－sets      4－sets        4－sets

Bracket               Optional     Optional    Optional        Optional

Edge cutting          Full-automatic contour cutting (optional)

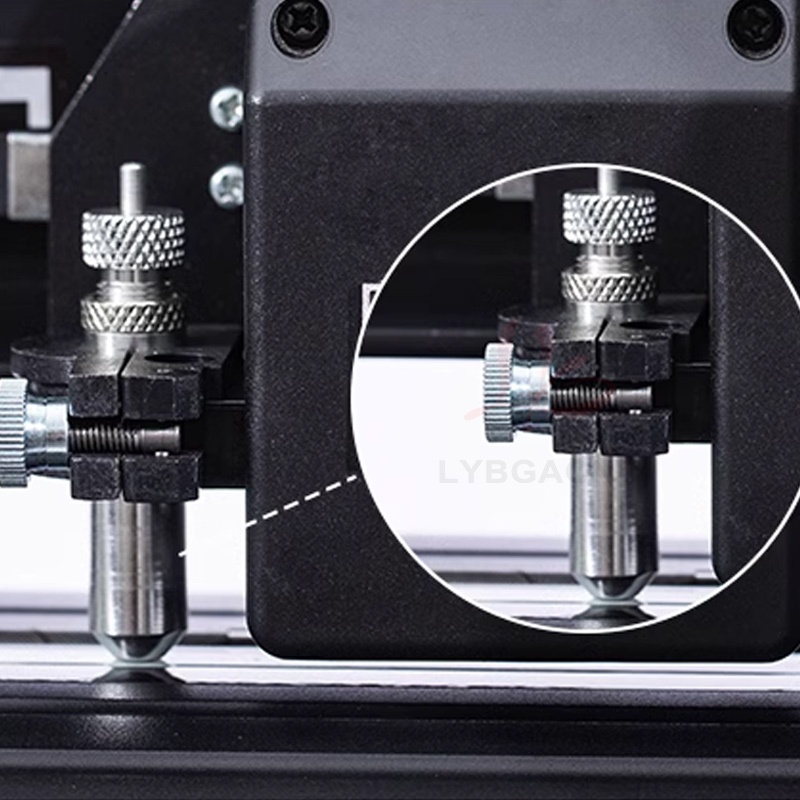

Knife pressure                 1－500g

Engraving speed                 100-800mm/s

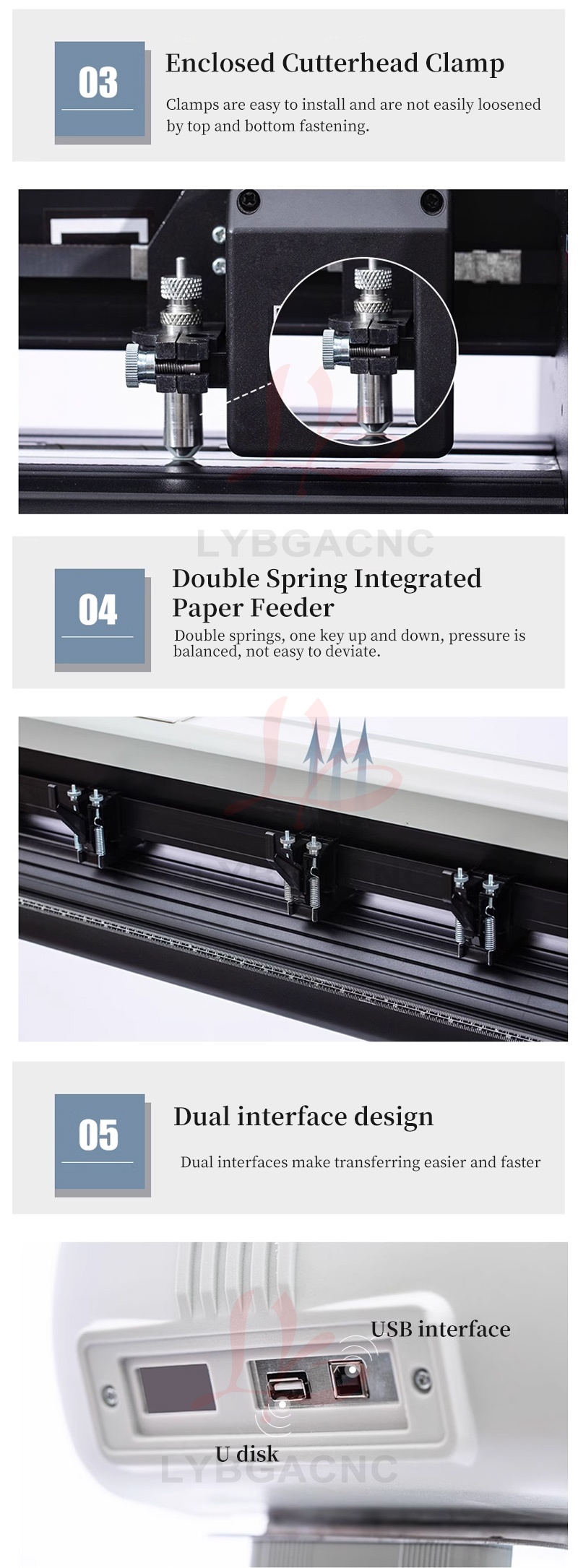

Communication interface        USB 2.0&U disk

Memory                         1GB

Mechanical resolution            0.0254mm/step

Repeatability                     0.127mm

Motor                    High speed stepper motor

Command format                    DM-PL、HP-GL

Power supply                   AC100-240V/50-60Hz/3A

Working environment            Relative humidity:35~95%

Model         Machine size          Gross weight           Packing Size

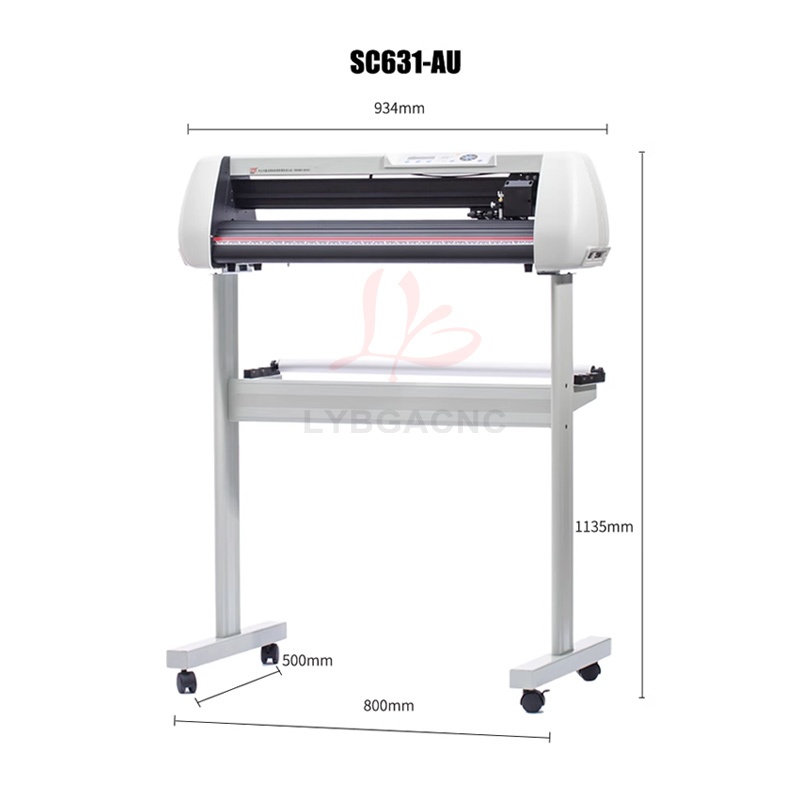

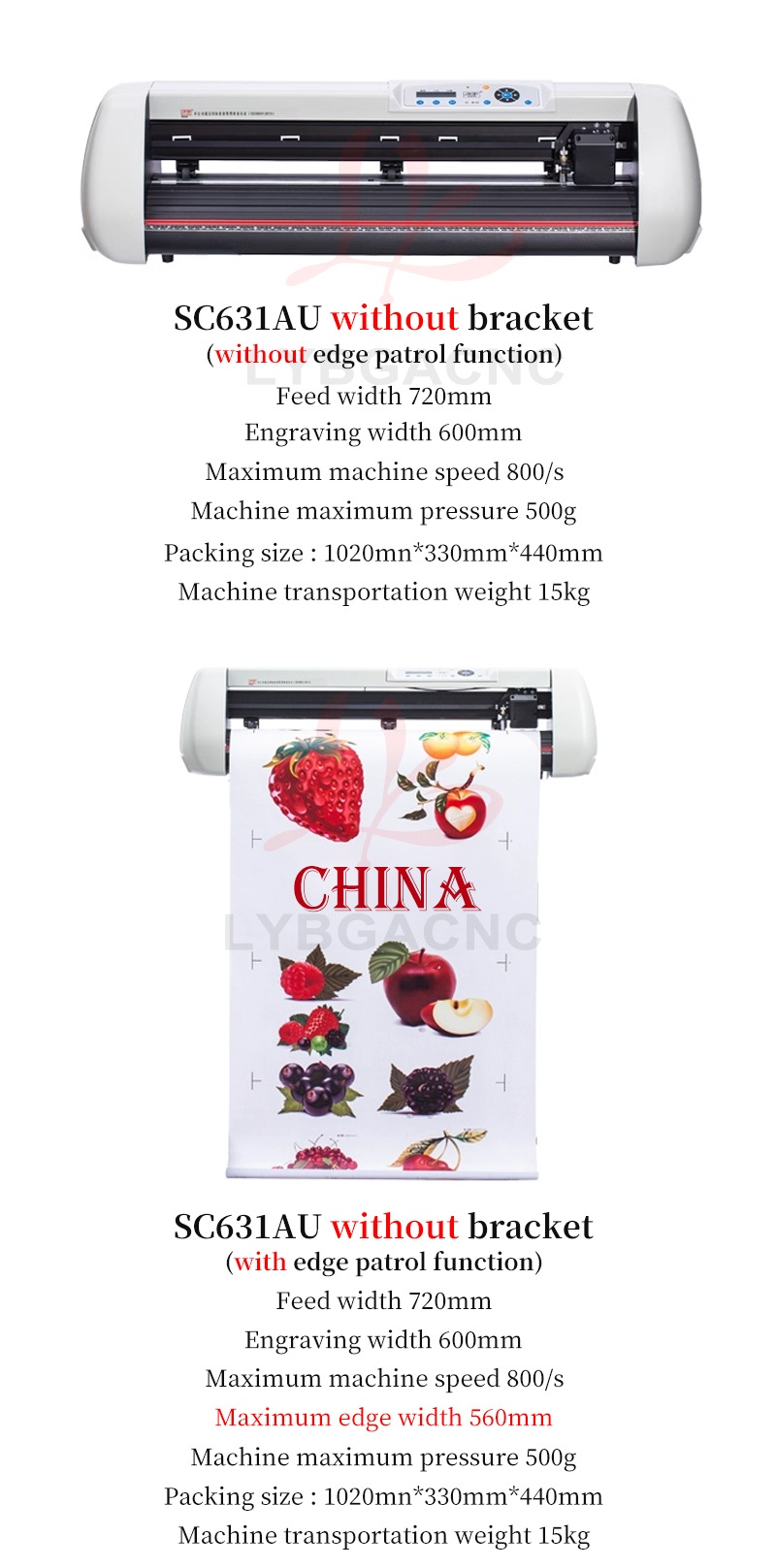

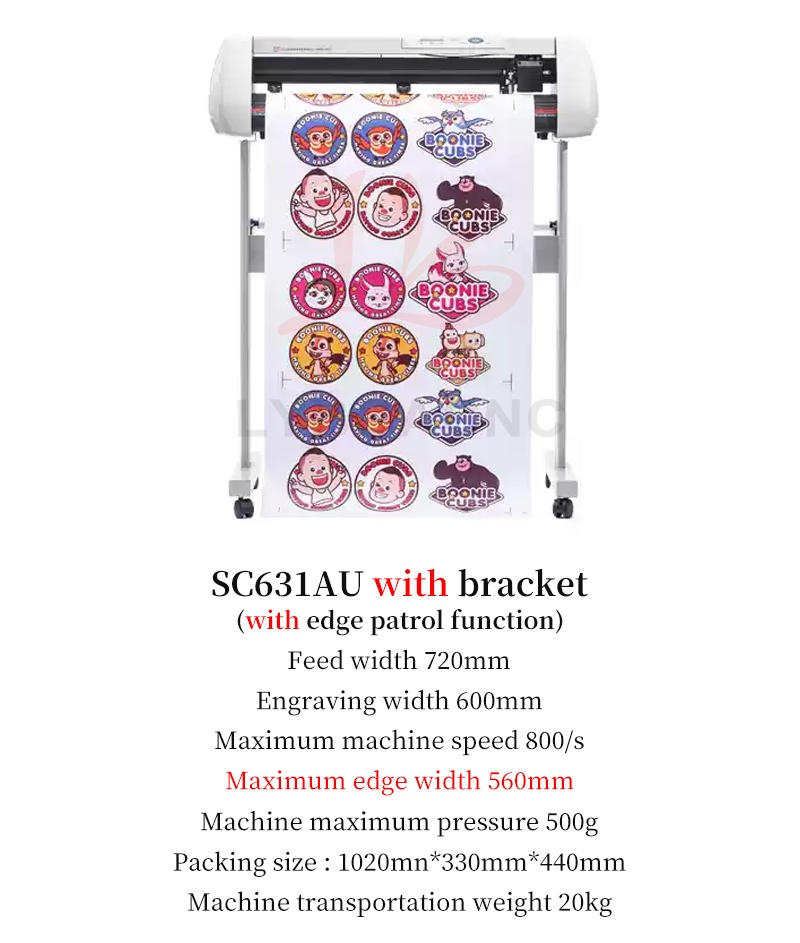

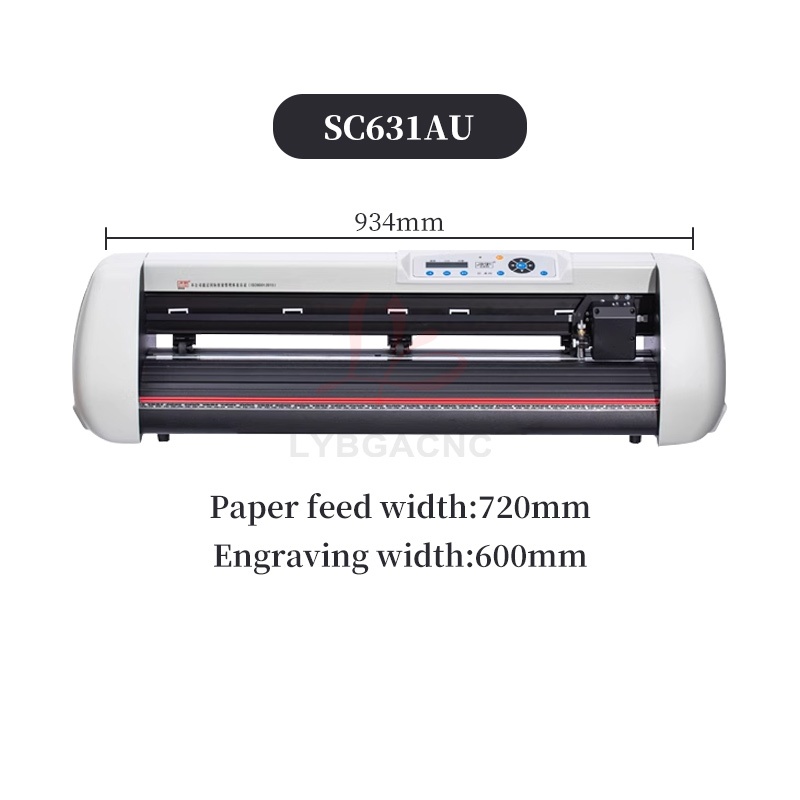

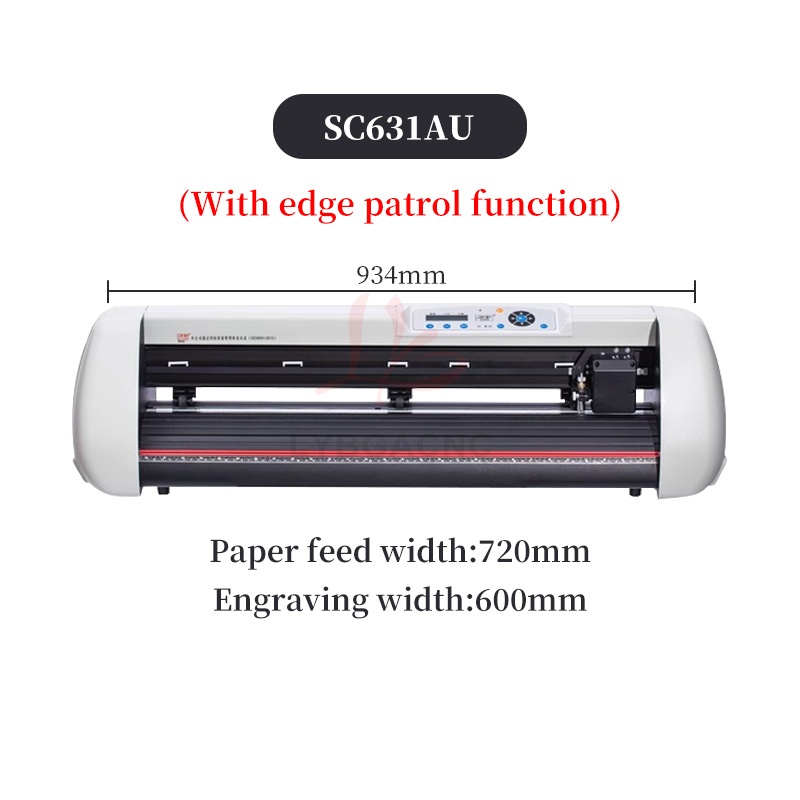

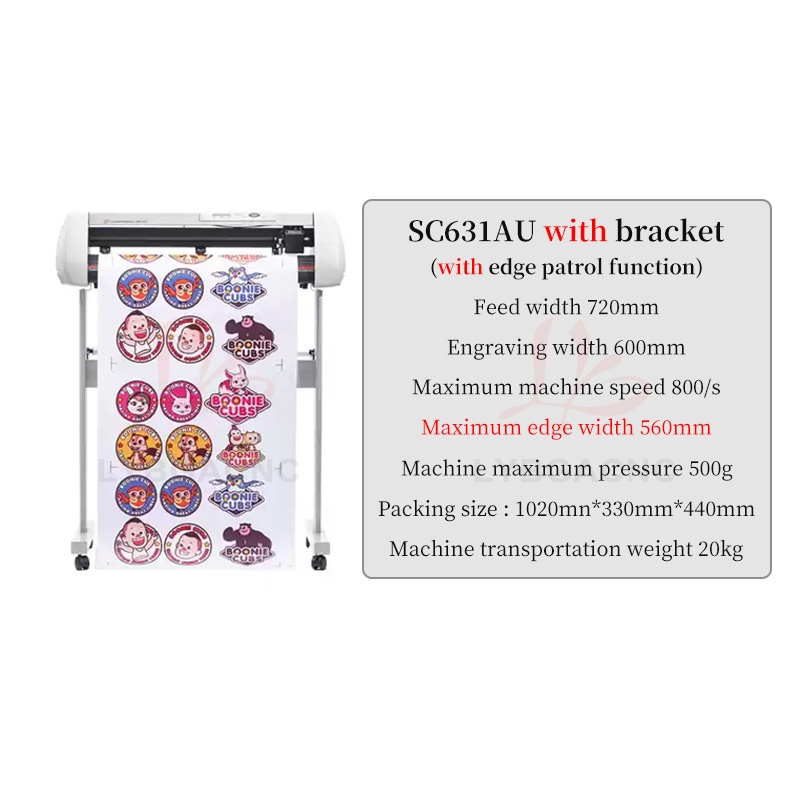

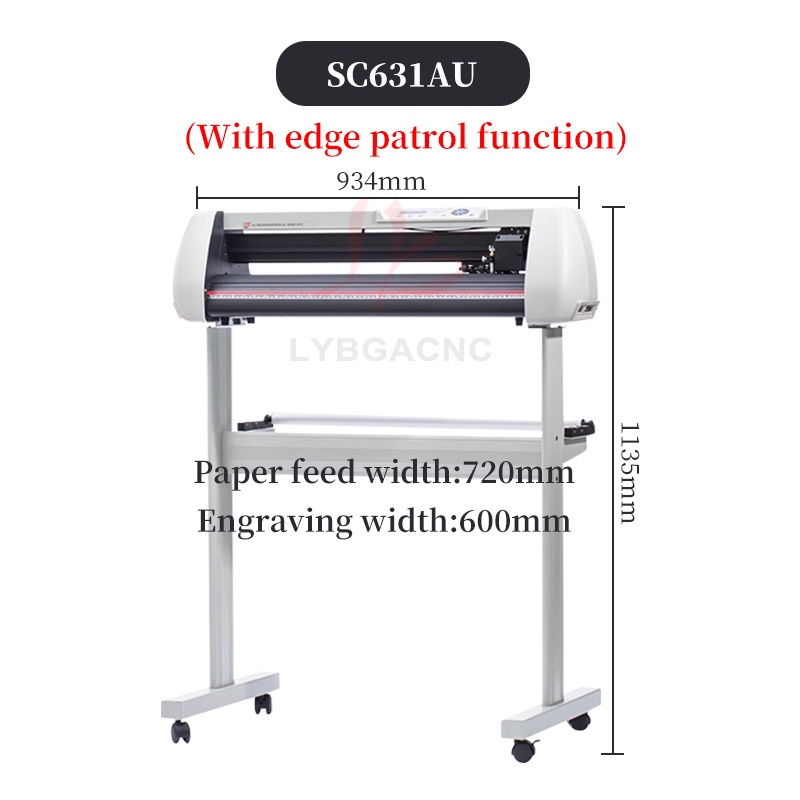

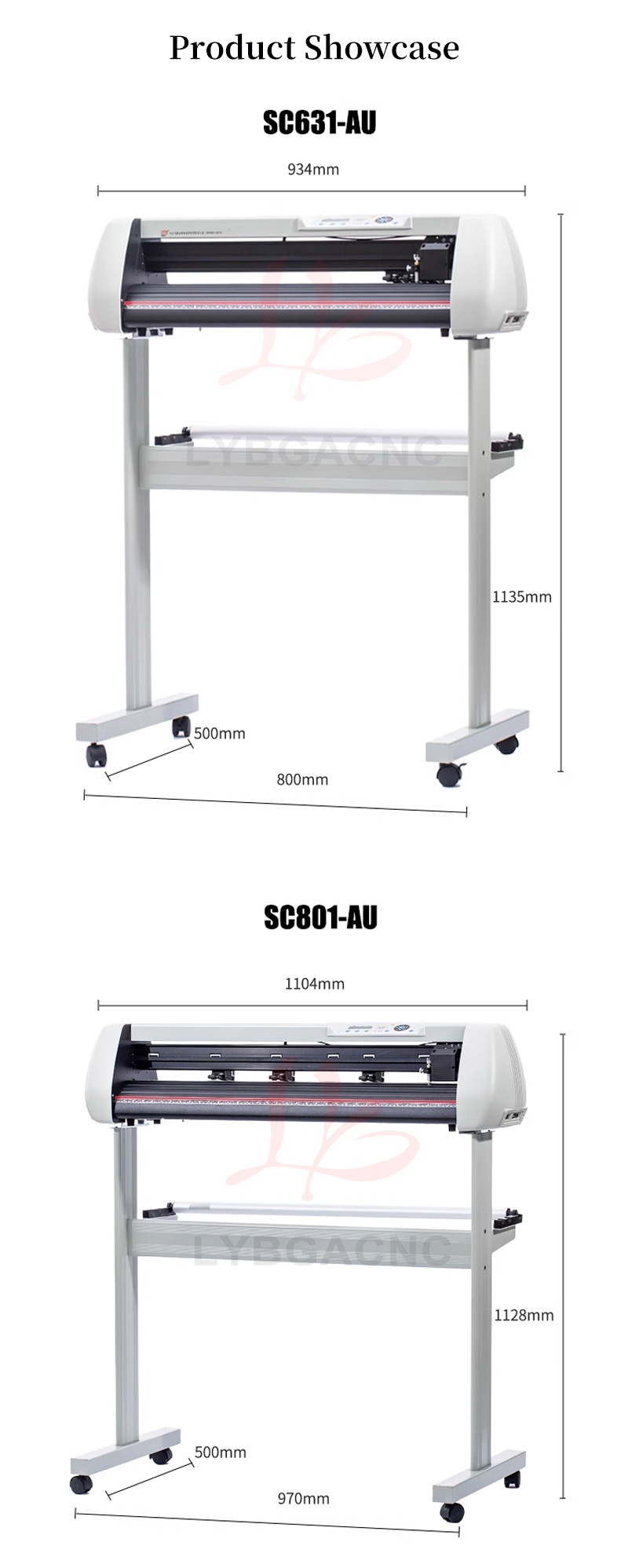

SC631-AU   934mm*256mm*286mm     20kg            1020*330*400mm

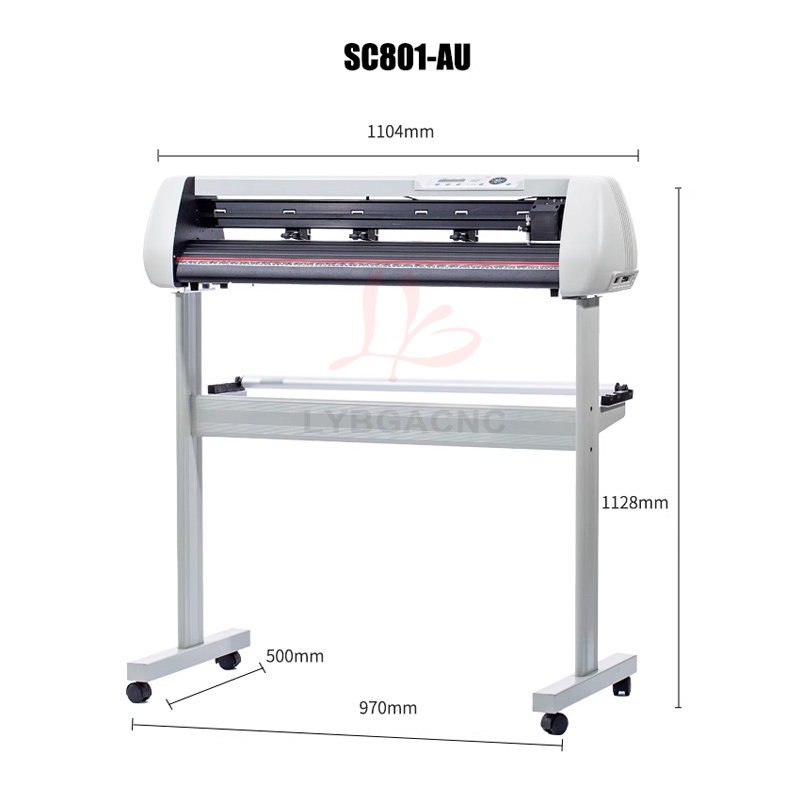

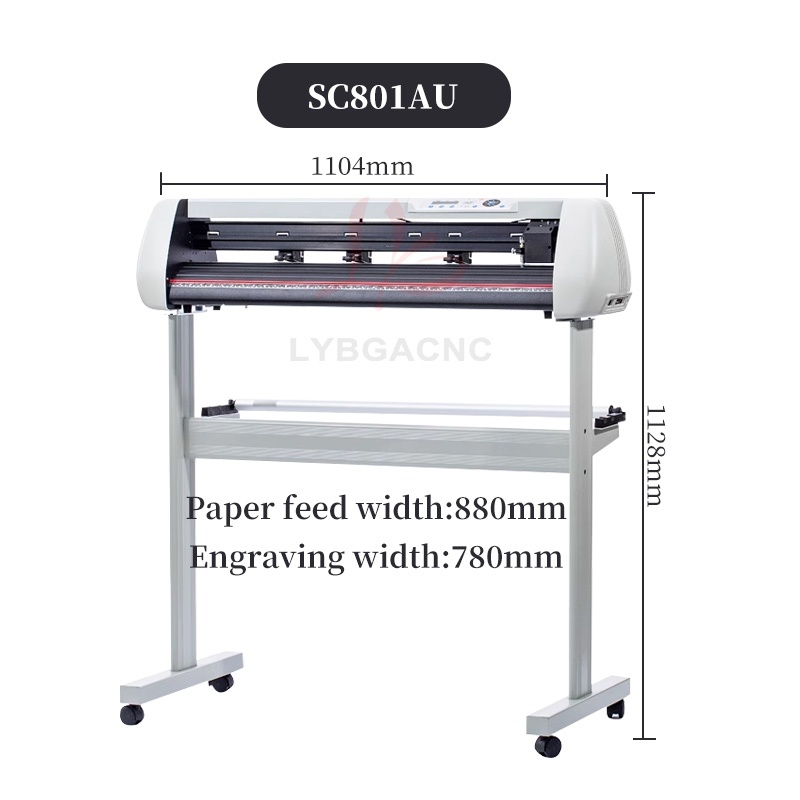

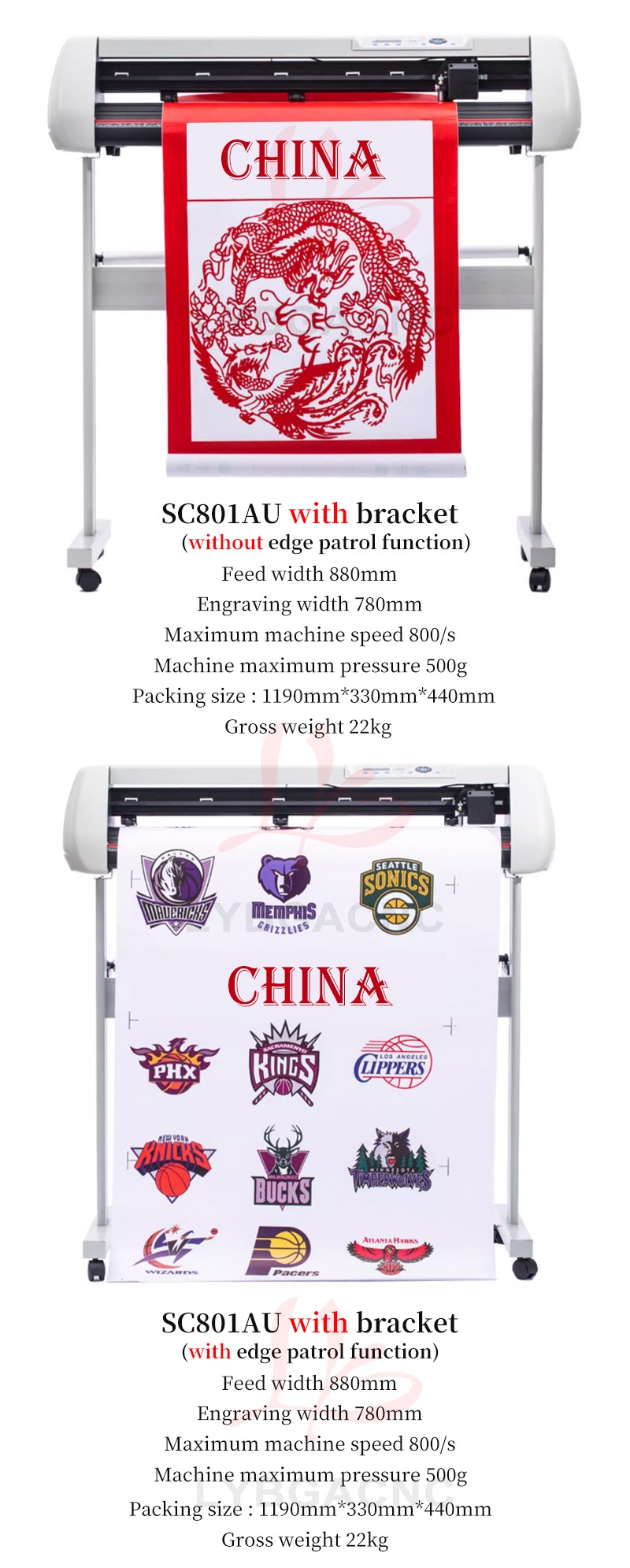

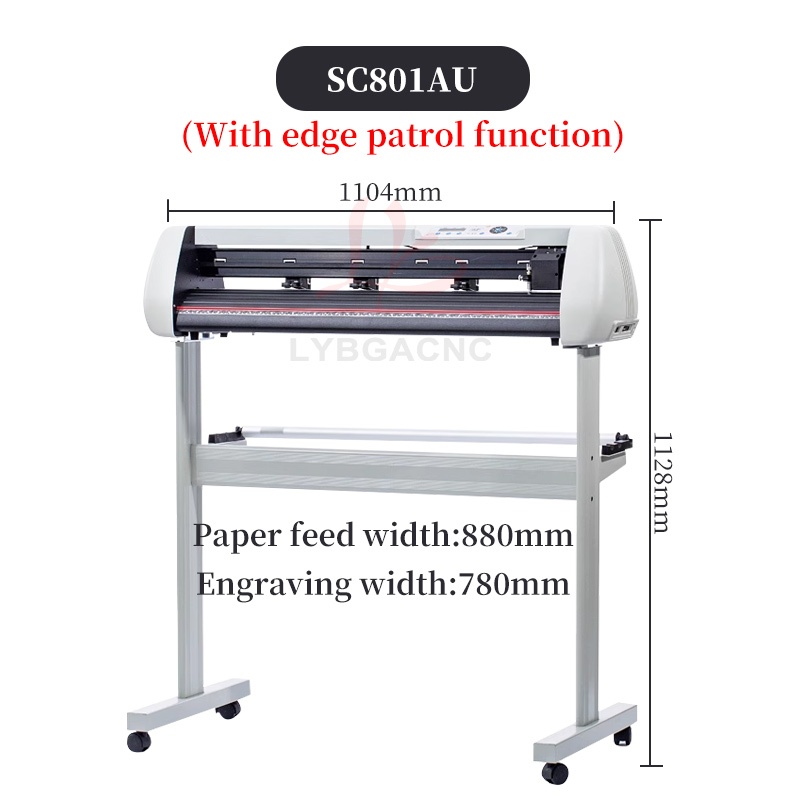

SC801-AU   1190mn*330mm*440mm     22kg            1190*330*400mm

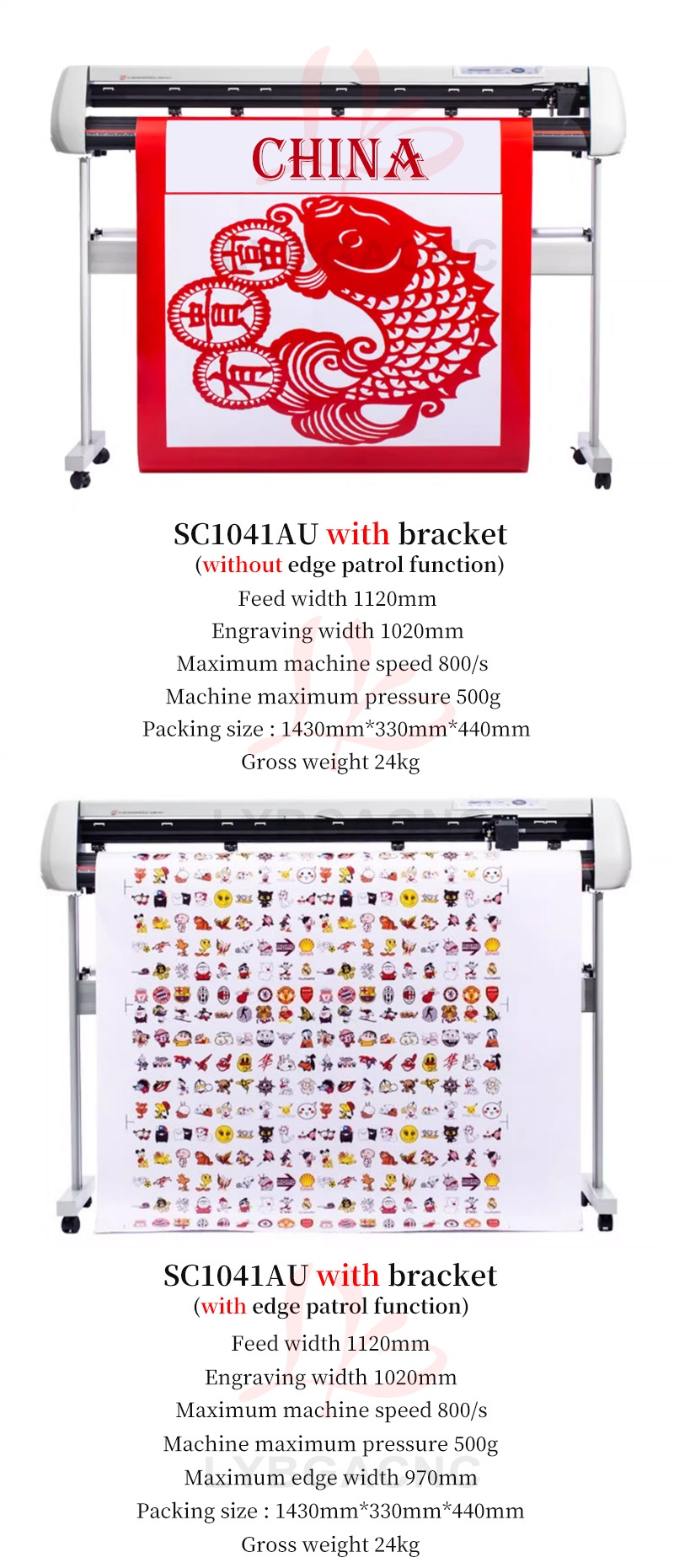

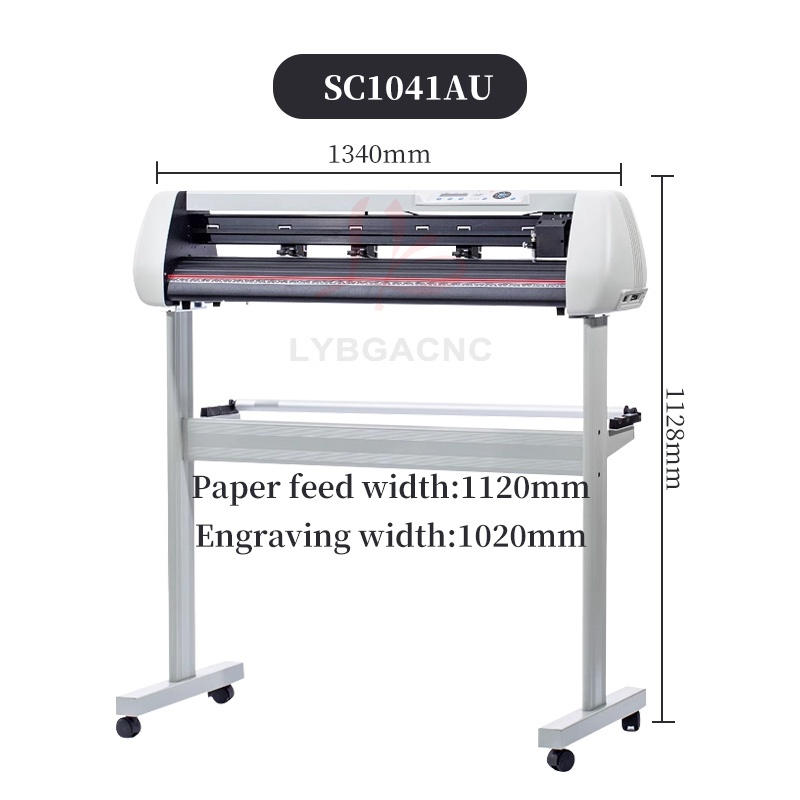

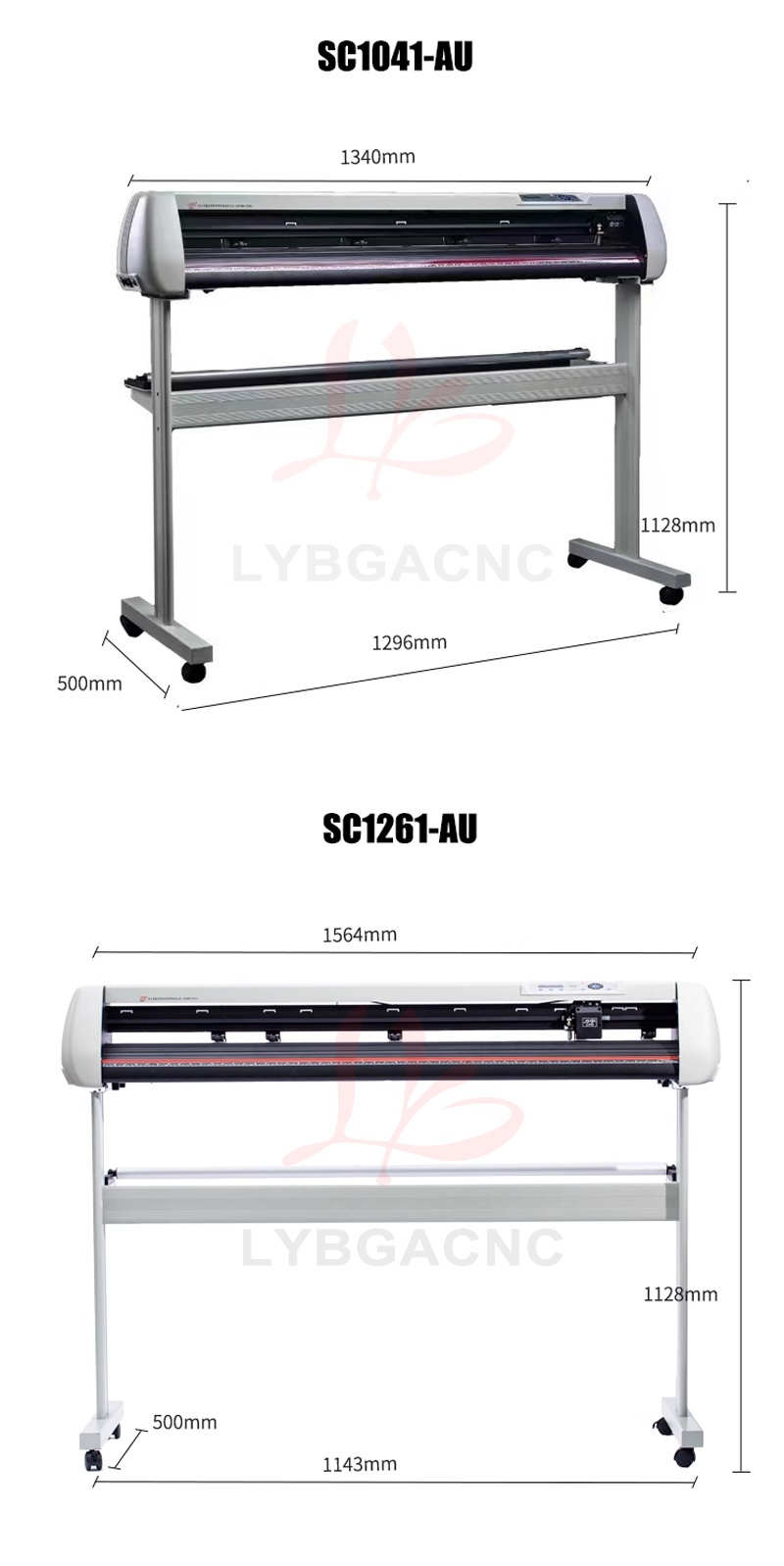

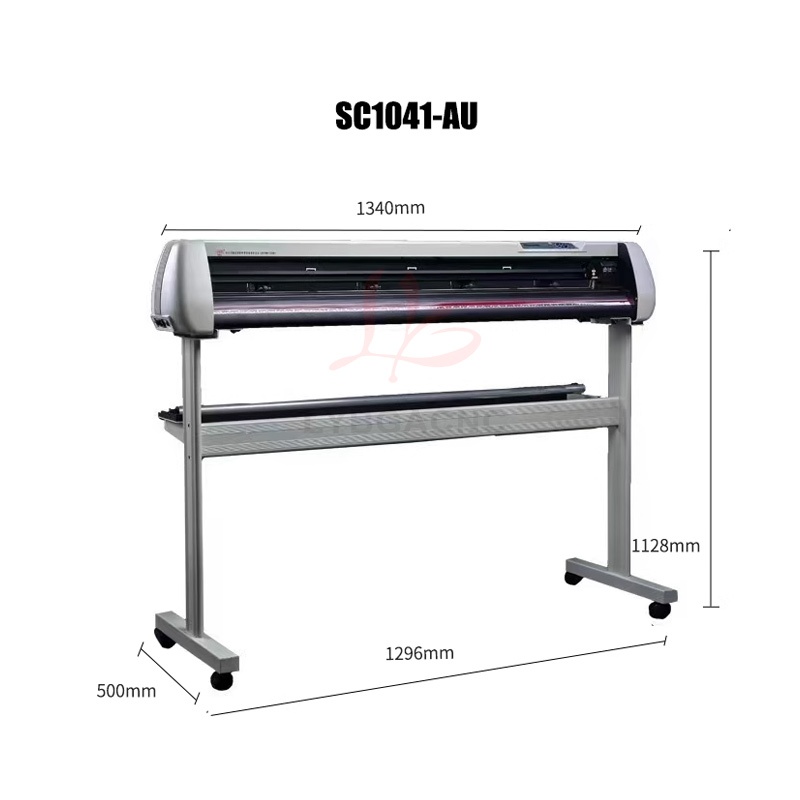

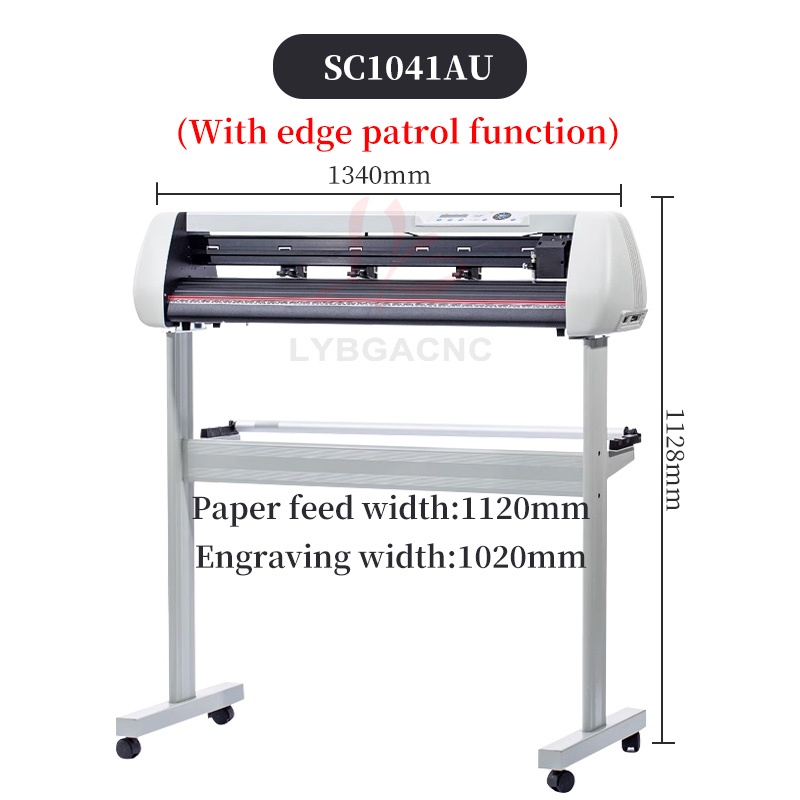

SC1041-AU   1340mm*256mm*286mm    24kg           1430*330*400mm

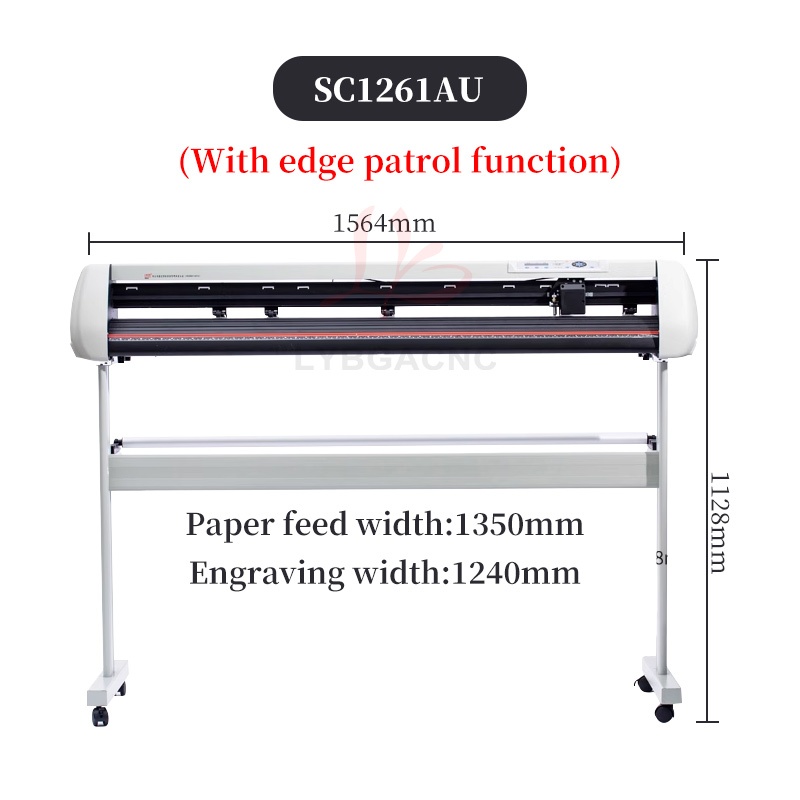

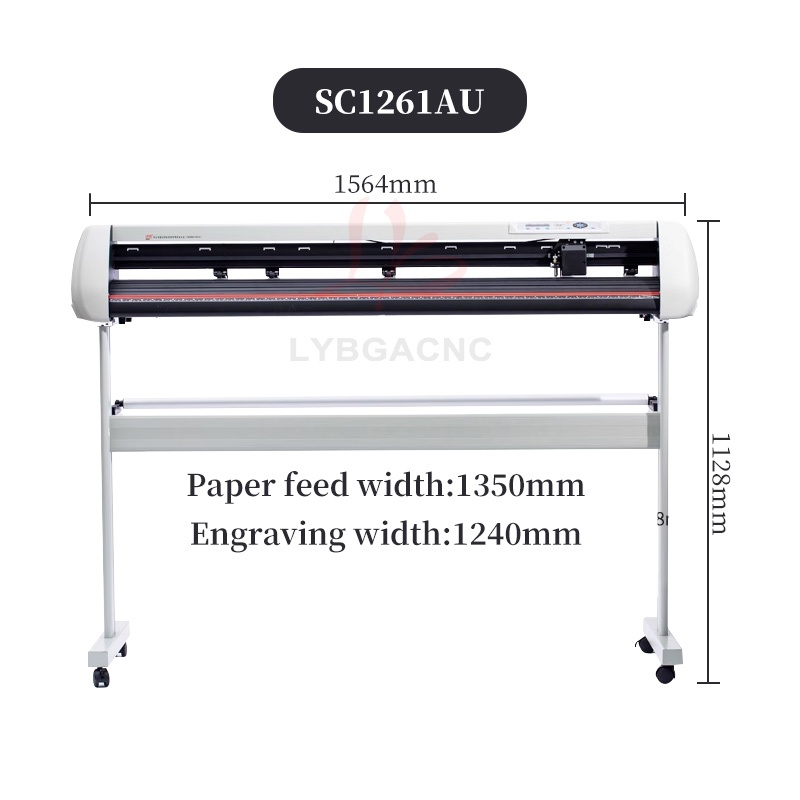

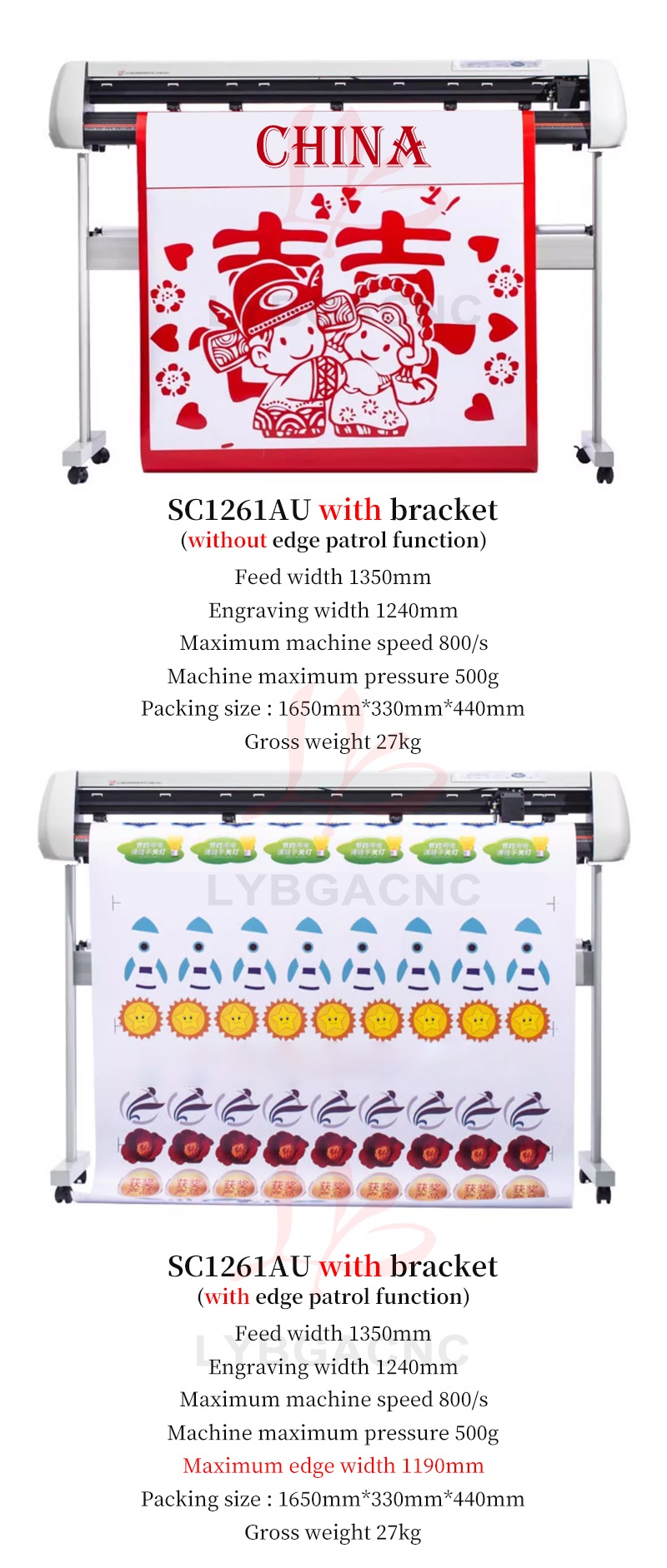

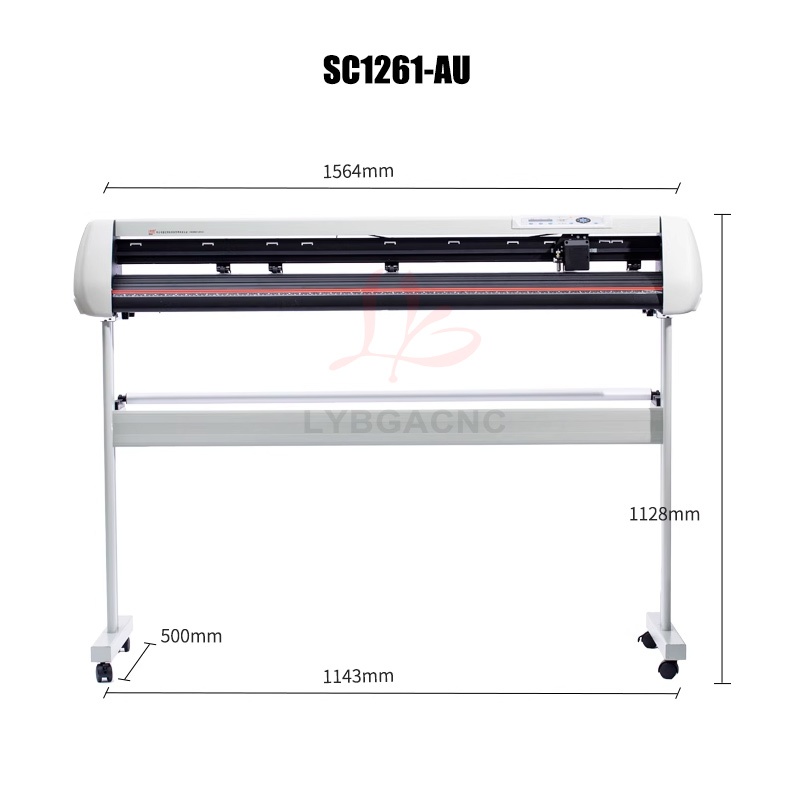

SC1261-AU   1564mm*256mm*286mm    27kg           1650*330*400mm
