LY APL-01 Full automatic plane labeling machine 220V with conveyor belt 200mm optional ink code printer universal electric eye

LY APL-01 Full automatic plane labeling machine 220V with conveyor belt 200mm optional ink code printer universal electric eye

item ID: 66711
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$7000 USD$5925 (% off)
Payment

Product Detail

Product Tags

LY APL-01 Full automatic plane labeling machine 220V with conveyor belt 200mm optional ink code printer universal electric eye

This labeling machine is compatible with flat,curved and square bottles,paper,PE bags,books,cards ect.





1.According to your requirements to recommend suitable type of  labeling machine .









2.Quote item The machine is mainly based on customers request to do, and the pictures are just applied to refer.







3.Technology parametersAccording to customer request, detailed parameters can be customized.



1

Labeling accuracy ±1mm (without products, and label error)

2

Labeling speed 40~100pcs / min(related to the size of label and products)

3



Applicable diameter Length: 40mm -400mm; width: 40mm-450mm;
height: 0.2mm-5mm

4

Applicable label size Length: 6mm-150mm; width (bottom paper width): 15mm-130mm

5

Size of this machine About 1600mm × 850mm × 1400mm (L × W × H)

6

Applicable power supply 220V/50HZ

7

Weight of this machine About 180Kg



8

Package SIZE

2000*1500*900mm

9

Gross Weigth

260KG

4. Details of standard configurations The following is standard configuration, customer can chose what they really needSome customized machine will increase the amount of accessory, according to completed machine to confirm.



The main component configurations The main electrical configurations

Name

Amount

Main material

Electric name

Amount

Type specification

Labeling head

1 set

Aluminum, stainless steel, Acrylic

label-tested electric eye

1 set

SICK

Adjustment stand

1 set

Aluminum, brass, stainless steel

PLC

1 set

Panasonic

Transfer component

1 set

stainless steel

touch screen

1 set

Samkoon  7.0 Inch

Bottom paper receiver

1 set

stainless steel

Traction motor

1 set

STONKER

Adjustment framework

1 set

Aluminum, stainless steel

Traction motor drive

1 set

STONKER

Labeling framework

1 set

Aluminum, stainless steel, rubber bar

Labeling motor

1 set

OUBANG 120W

Electric framework

1 set

Aluminum, stainless steel

Object-tested electric eye

1 set

SUNX

Guider

1 set

stainless steel

Convey motor

1 set

OUBANG 180W

Traction component

1 set

Aluminum, plastic packets shaft

Conveyor motor speed controller

1 set

OUBANG

Label putting tray

1 set

Aluminum, Acrylic



























Remark

1.Payment way:After the contract is signed, the buyer pays the 50% fees of the contract as earnest money,and the supplier begins to manufacture the equipment. When the equipment is finished, the customer can come to factory to check and accept the machine or confirm by video.After confirming the machine ,the buyer need to pay the rest 50% fees,then the supplier delivers the machine.

2.Delivery date:After receiving the  payment ,deliver in 15 workdays .

3.Delivery methodParty A send the equipment to Party B’s logistics station (limit to domestic),Party B receive with proof of identity.

4.After-sales service:

(1)Machine has 1 year warranty.The parts that identified as quality problems can be replaced for free.Vulnerable parts are not in warranty.

(2)Equipment has lifetime maintenance charge for repair fee after warranty.Lifelong supply of spare parts and technical support.

(3)The equipment is strictly tested before delivery to ensure that once receiving equipment you can put into production.Every single equipment datum is recorded into the ERP system.After sales engineers will follow up the situation of use regularly. At the same time we provide seven twenty-four hours service to accept the maintenance information and help you solve the problem according to the situation to ensure the labeling machine runs normally.



Optional

No.

Name

Function

Qty

Unit

Price

1

Industrial Ink code printer

Print produce date, Series number ect. ectect.

1

SET

$800

2

Universal electric eye

Detect crystal,gold,silver sticker.

1

SET

$1000

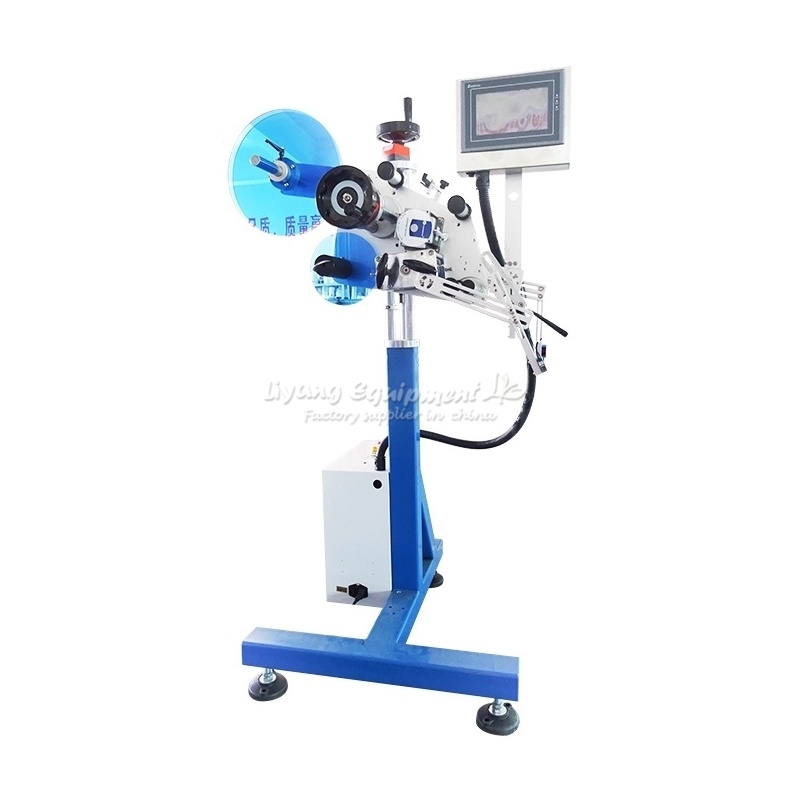

LY APL-02 Full automatic plane labeling machine 220V with separated conveyor belt 200mm optional ink code printer universal electric eye

Basic use:

Can be matched to the assembly line, the flow of the product, on the plane, cambered labeling, to achieve online unmanned labeling, such as matching to the code jet conveyor belt, the flow of the object labeling.

Scope of application:

(1) applicable labels: sticker, adhesive film, electronic supervision code, bar code, etc.

(2) applicable products: it can be matched with pillow packing machine, automatic assembly line and printing machine to realize online labeling.

(3) application industry: widely used in packaging, food, toys, daily chemicals, electronics, medicine and other industries.



This labeling head is provided for cumstomers who have transfer belt originally and it’s compatible with flat,curved and square bottles,paper,PE bags,books,cards ect.



Specs:

1

Labeling accuracy ±1mm (without products, and label error)

2

Labeling speed 40~150pcs / min(related to the size of label and products)

3



Applicable product Size No requirement (depending on the parameters of production line)

4

Applicable label size Length: 6mm-250mm; width (bottom paper width): 6mm-130mm

5

Size of this machine About 1100mm × 700mm × 1000mm (L × W × H)

6

Applicable power supply 220V/50HZ

7

Weight of this machine About 70Kg
8 Conveyor belt 200mm witdh,2000mm length
9 Package size 1200mmx850mmx1100mm / Gross weight 120KG



Details:

The main component configurations The main electrical configurations

Name

Amount

Main material

Electric name

Amount

Type specification

Labeling head

1 set

Aluminum, stainless steel, Acrylic

label-tested electric eye

1 set

SICK

Adjustment stand

1 set

Aluminum, brass, stainless steel

PLC

1 set

Panasonic

Bottom paper receiver

1 set

stainless steel

touch screen

1 set

Samkoon7.0Inch

Adjustment framework

1 set

Aluminum, stainless steel

Traction motor

1 set

STONKER

Labeling framework

1 set

Aluminum, stainless steel, rubber bar

Traction motor drive

1 set

STONKER

Electric framework

1 set

Aluminum, stainless steel

Labeling motor

1 set

OUBANG 120W

Guider

1 set

stainless steel

Object-tested electric eye

1 set

SUNX

Label putting tray

1 set

Aluminum, Acrylic



Optional

No.

Name

Function

Qty

Unit

Price

1

Industrial Ink code printer

Print produce date, Series number ect. ectect.

1

SET

$800

2

Universal electric eye

Detect crystal,gold,silver sticker.

1

SET

$1000
