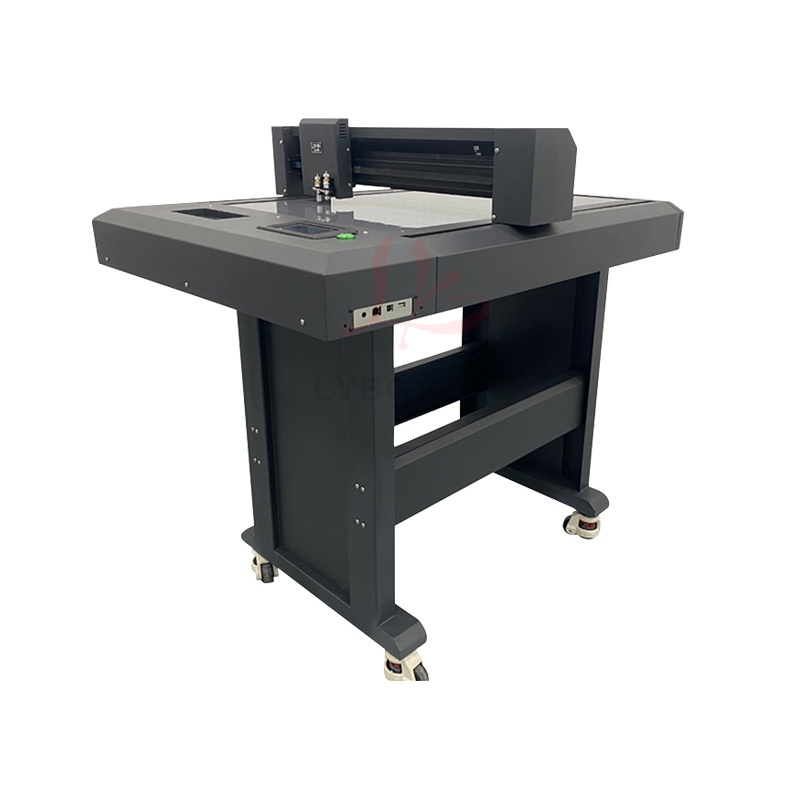

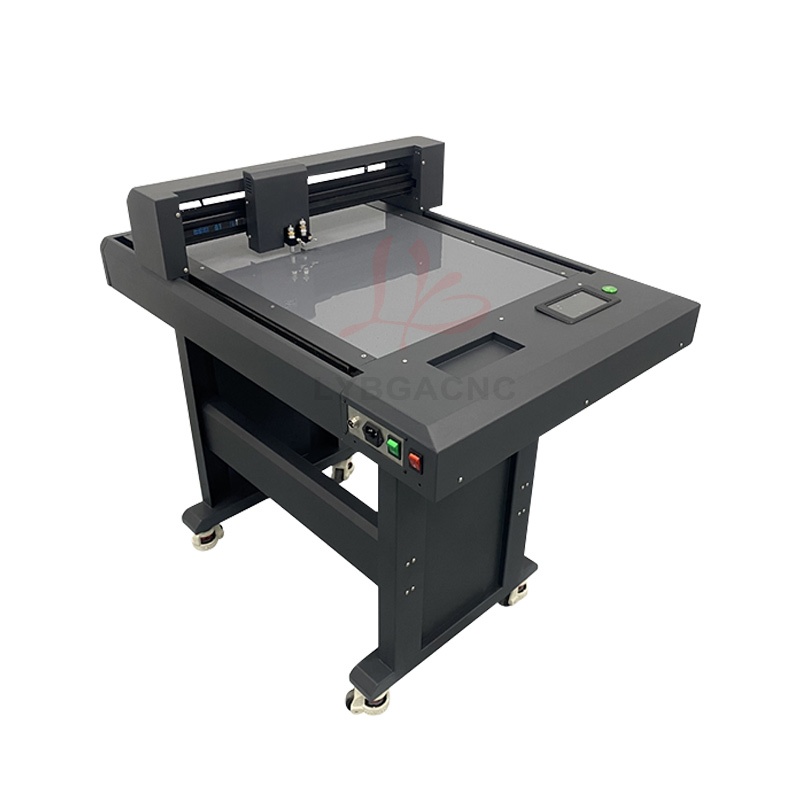

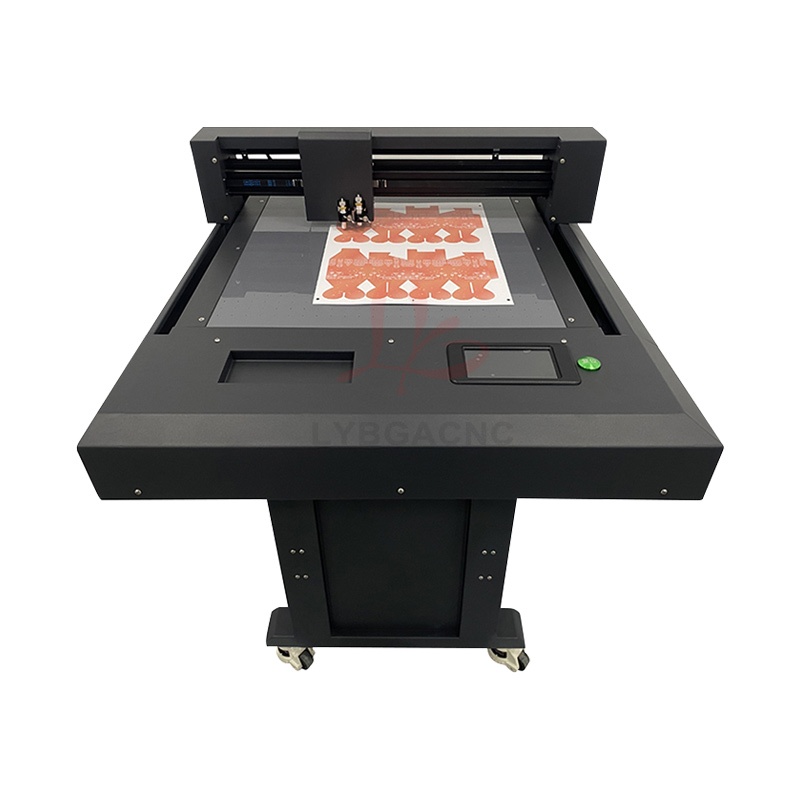

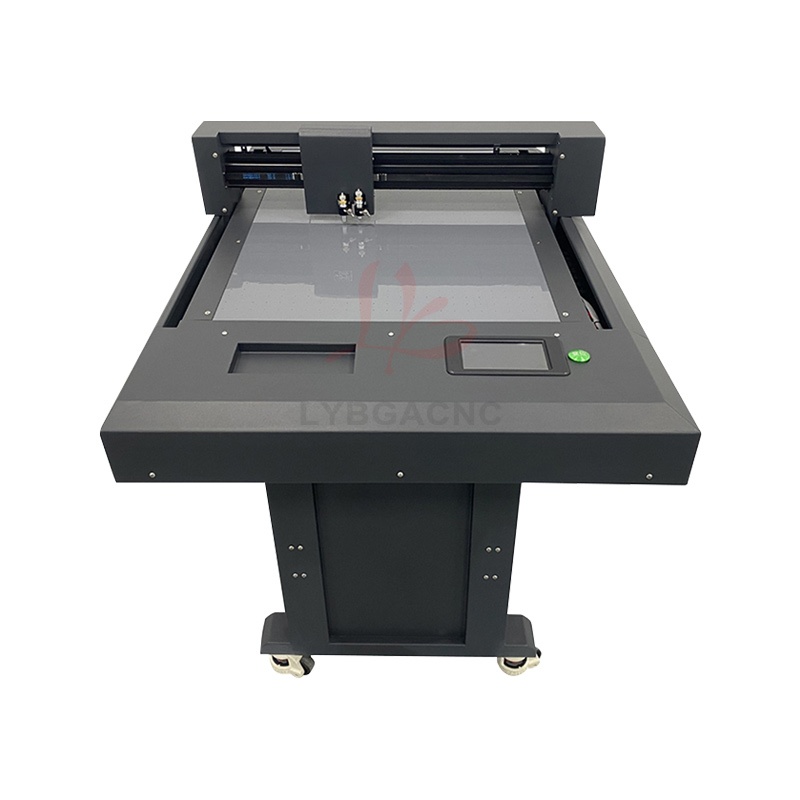

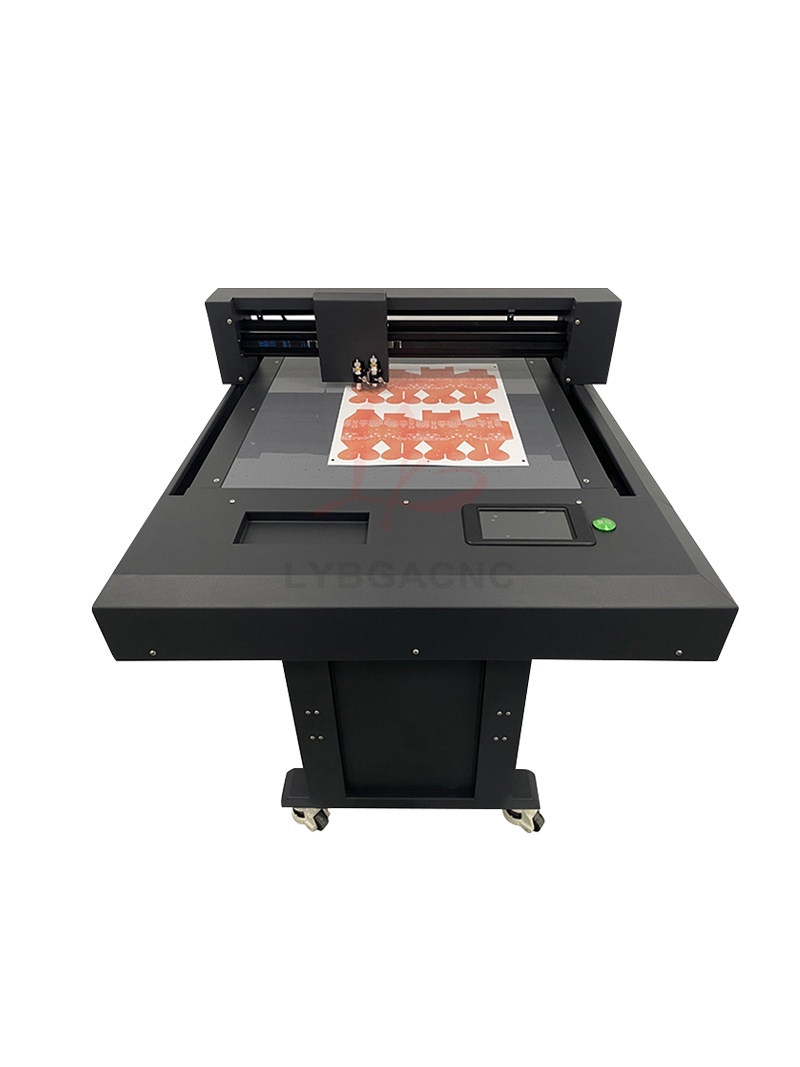

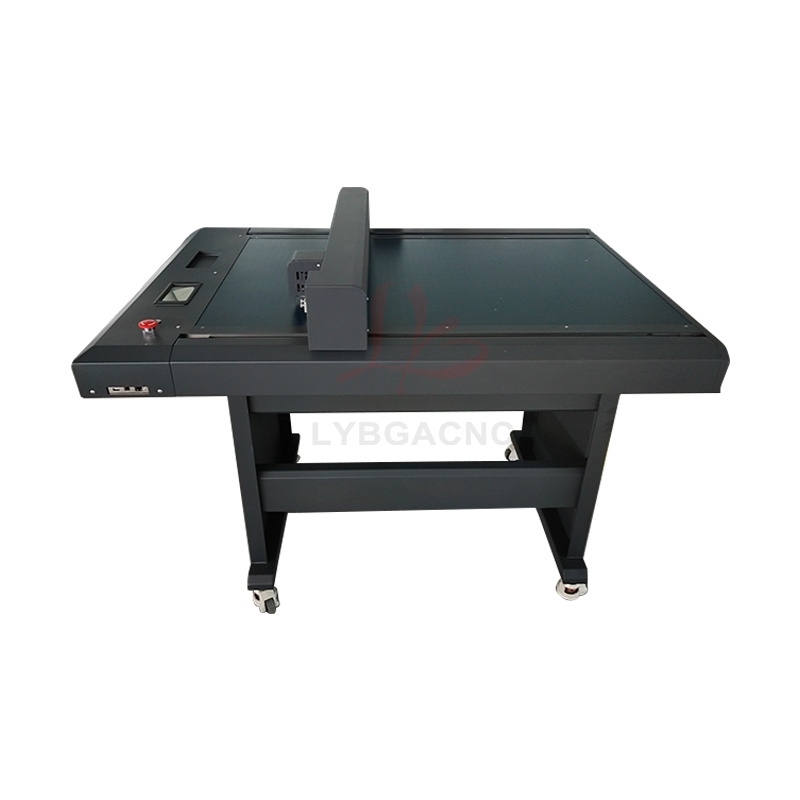

LY D4060 D6090 Flatbed Die-cutting Machine Multifunctional Digital U disk USB Network Port Servo System Dual-head Design XY-axis Running

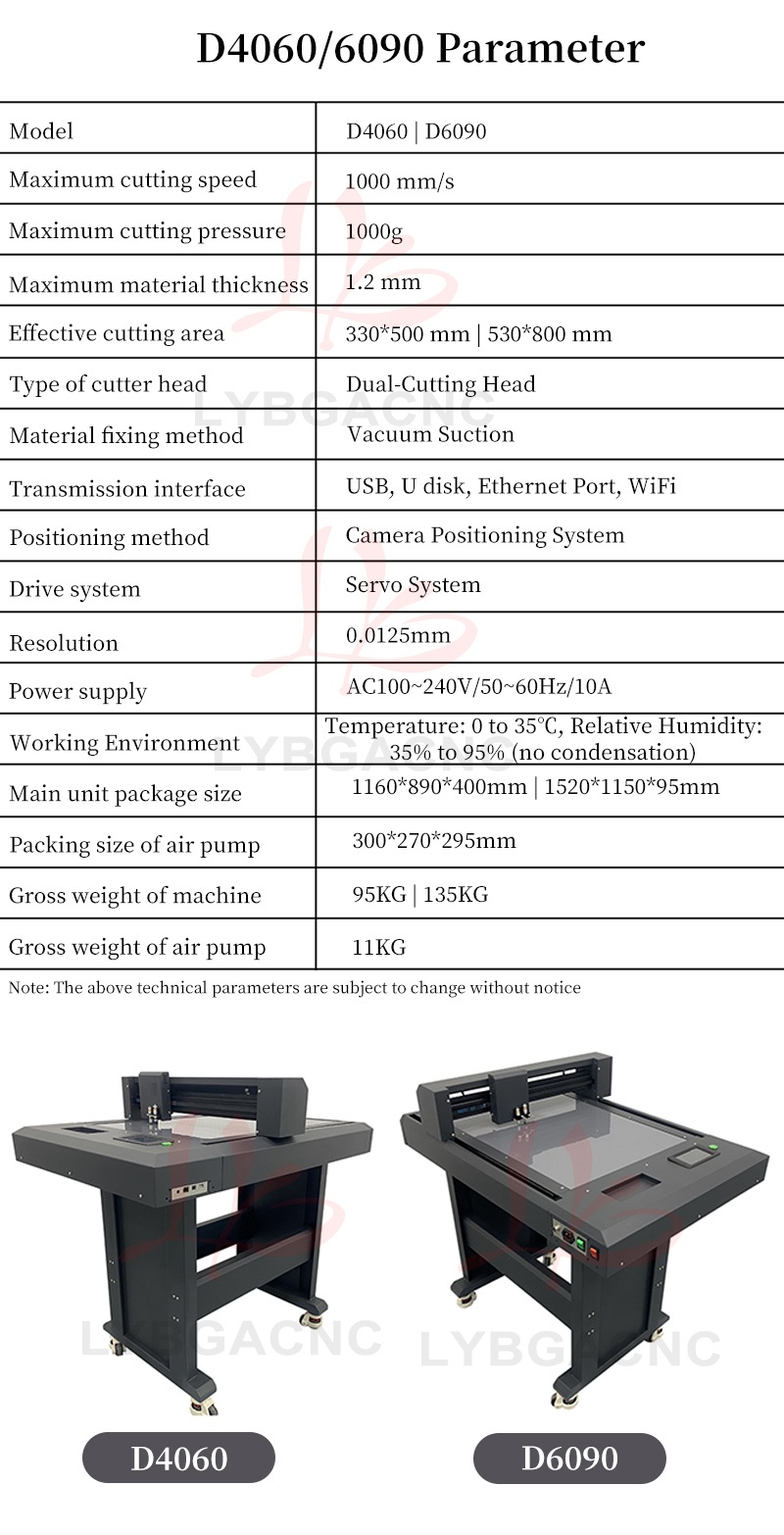

D4060/6090 Parameter

Model  D4060 | D6090

Maximum cutting speed  1000 mm/s

Maximum cutting pressure  1000g

Maximum material thickness    1.2 mm

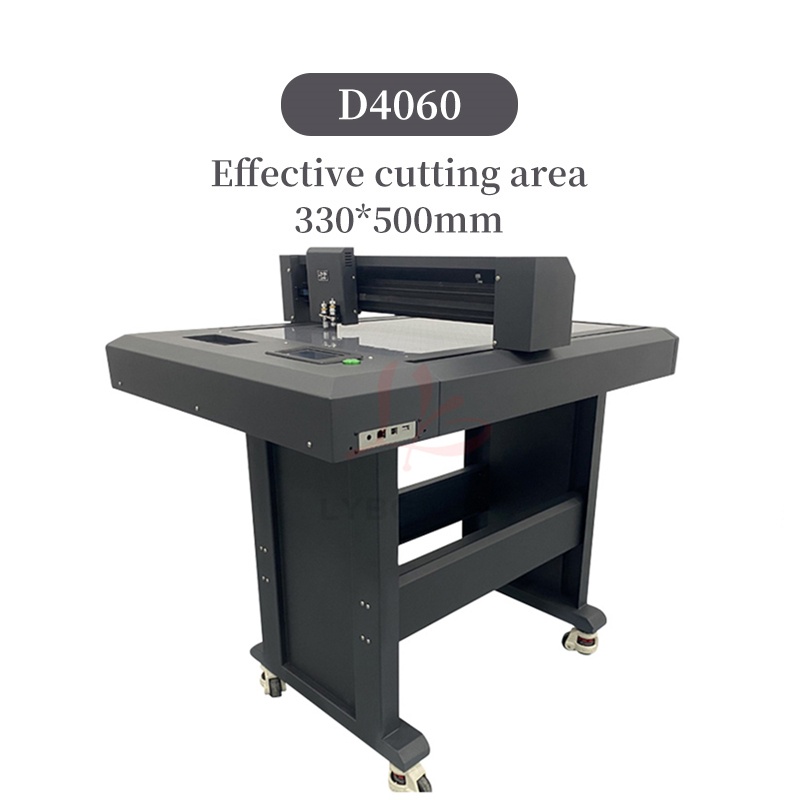

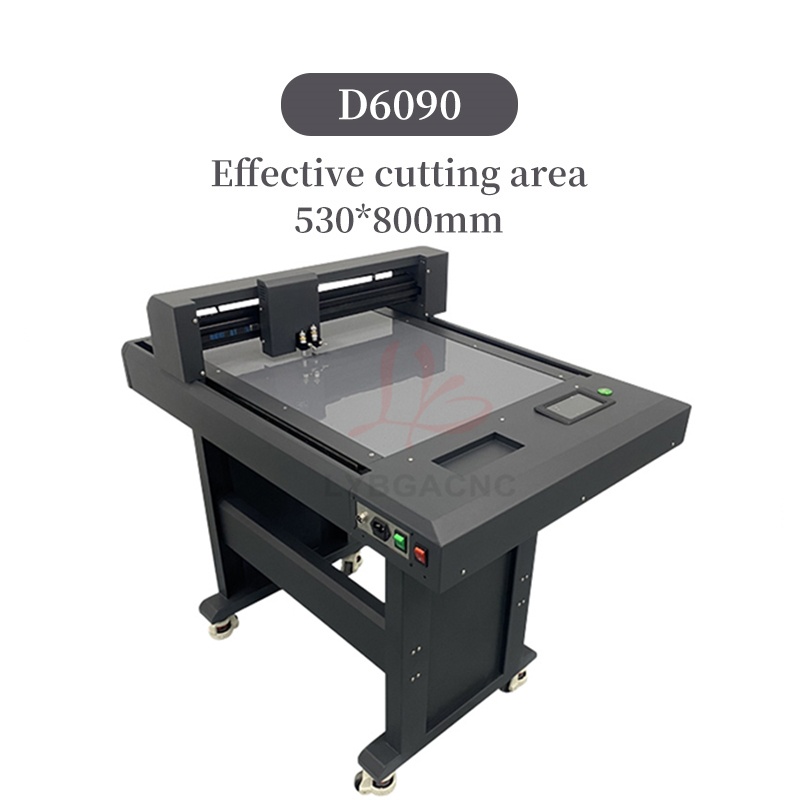

Effective cutting area     330*500 mm|530*800 mm

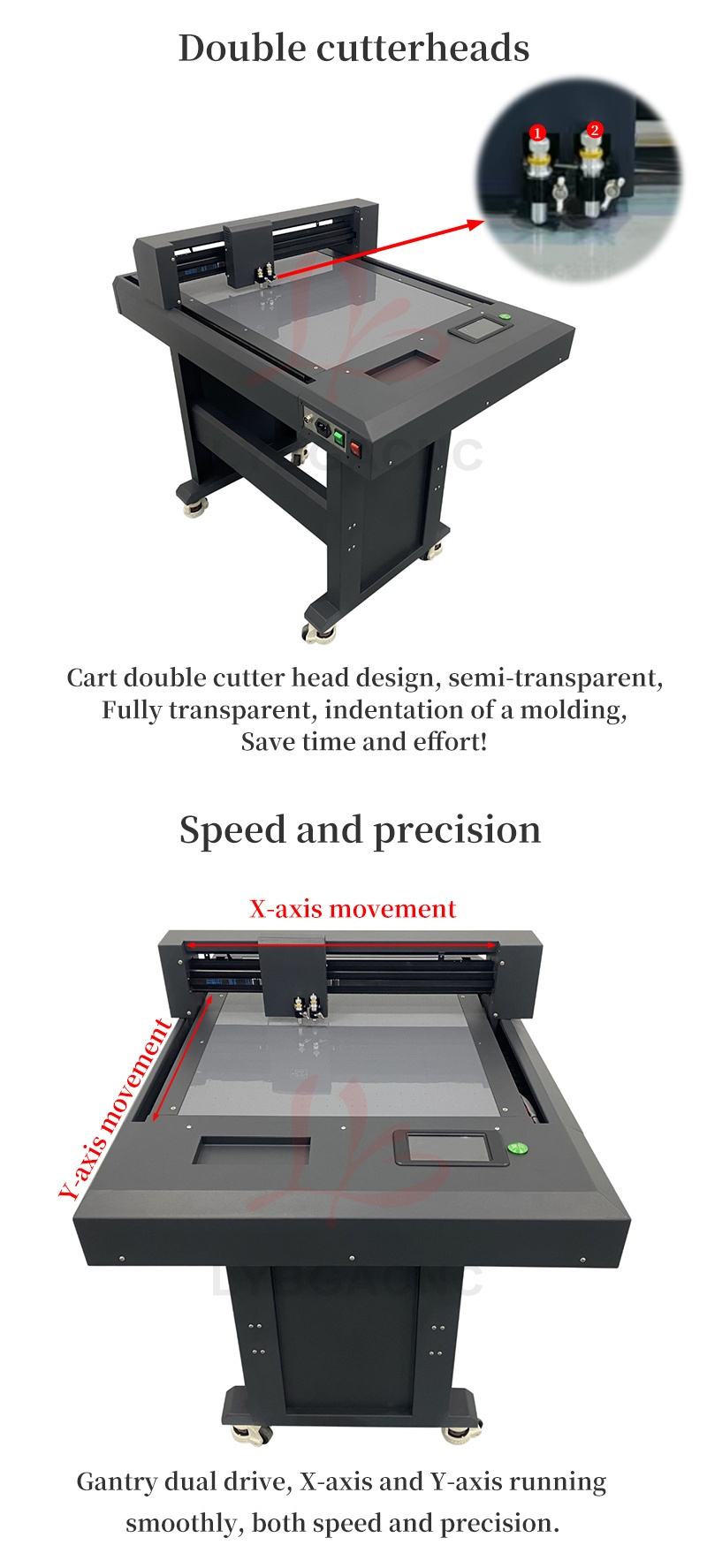

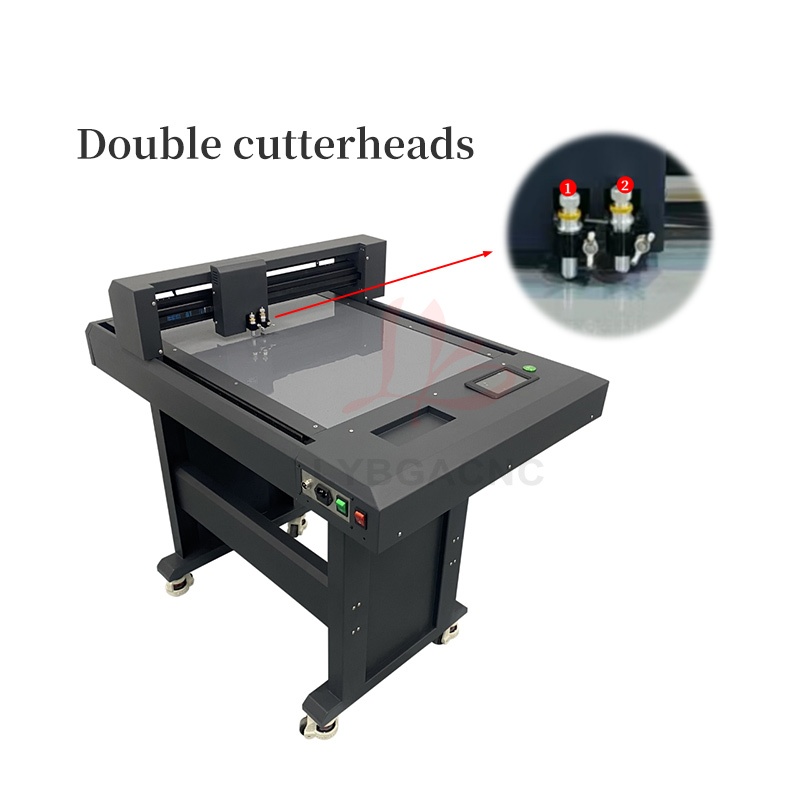

Type of cutter head    Dual-Cutting Head

Material fixing method   Vacuum Suction

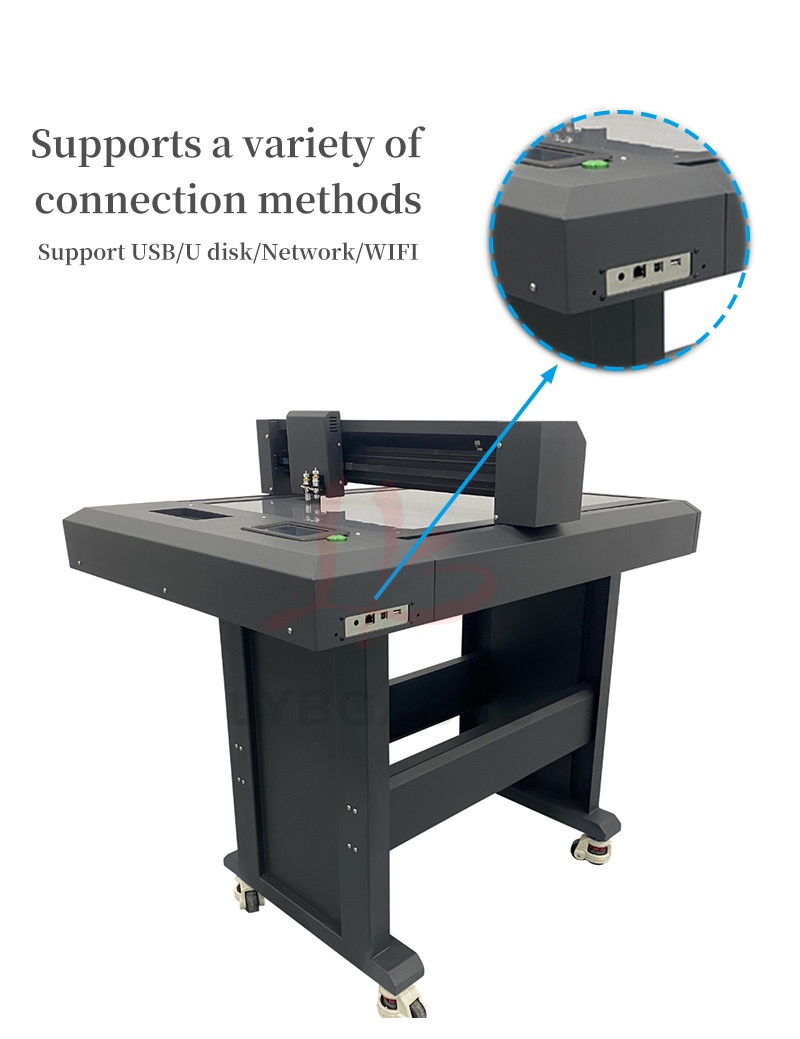

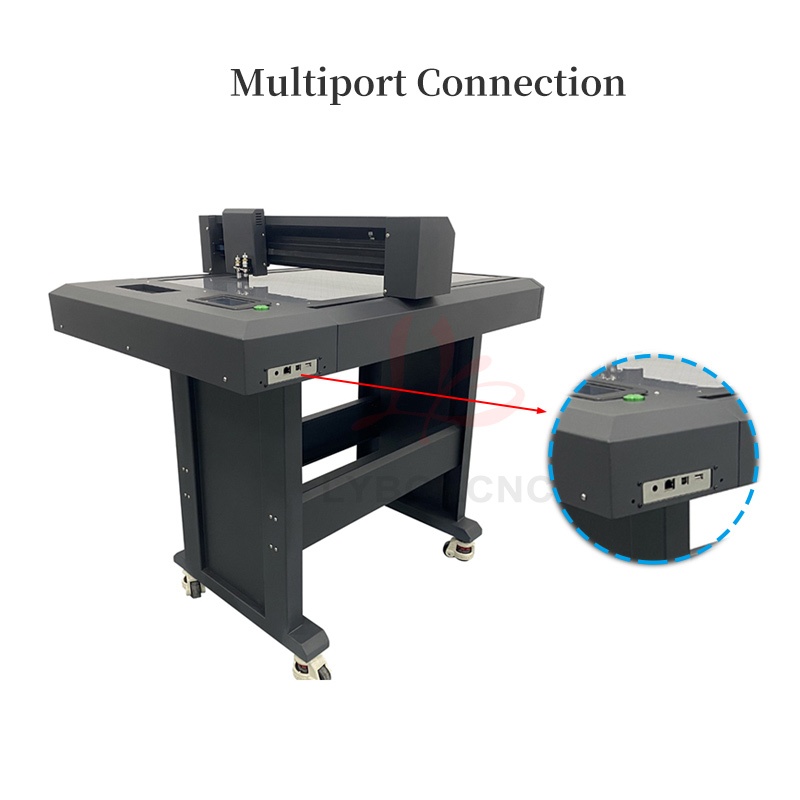

Transmission interface           USB, U disk, Ethernet Port, WiFi

Positioning method           Camera Positioning System

Drive system         Servo System

Resolution           0.0125mm

Power supply             AC100~240V/50~60Hz/10A

Working Environment      Temperature: Temperature: 0 to 35°C, Relative Humidity:

35%to95%(no condensation)

Main unit package size     1160*890*400mm|1520*1150*95mm

Packing size of air pump      300*270*295mm

Gross weight of machine  95KG |135KG

Gross weight of air pump           11KG

Note: The above technical parameters are subject to change without notice

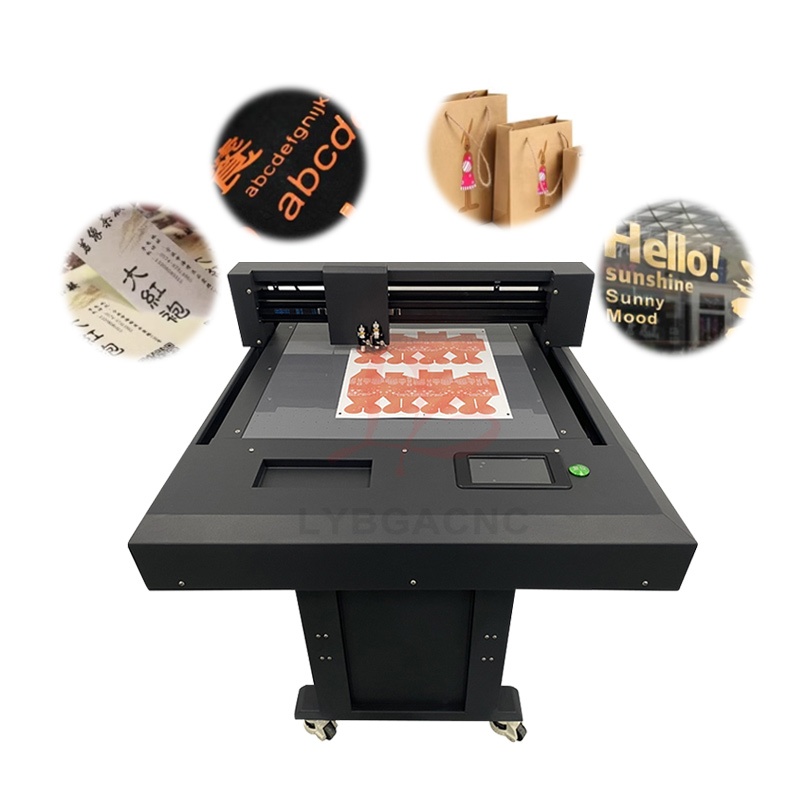

Wide range of applications

1.Cardboard Processing

2.Self-adhesive application

3.Product decoration

4.Thermal transfer industry

5.Signposts

6.Store Decoration
