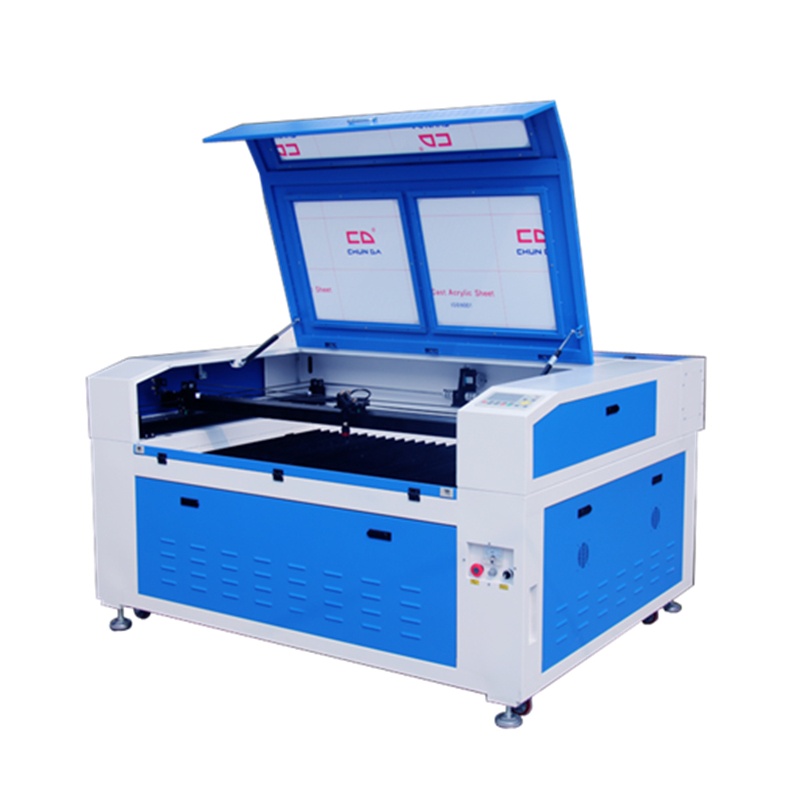

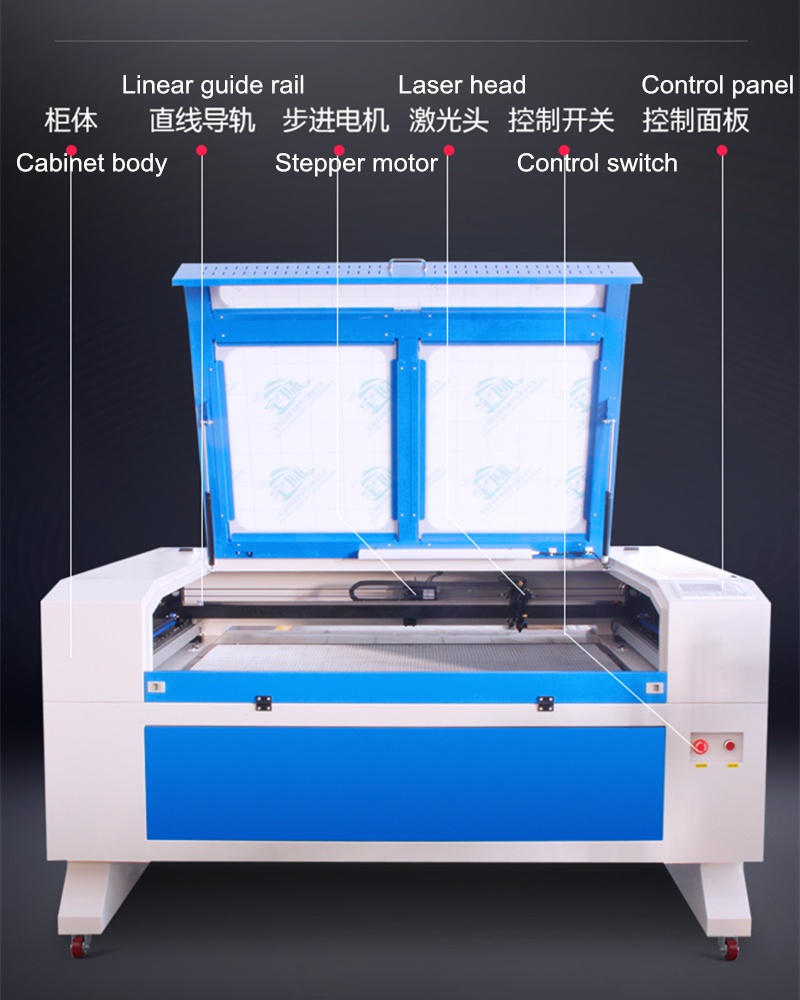

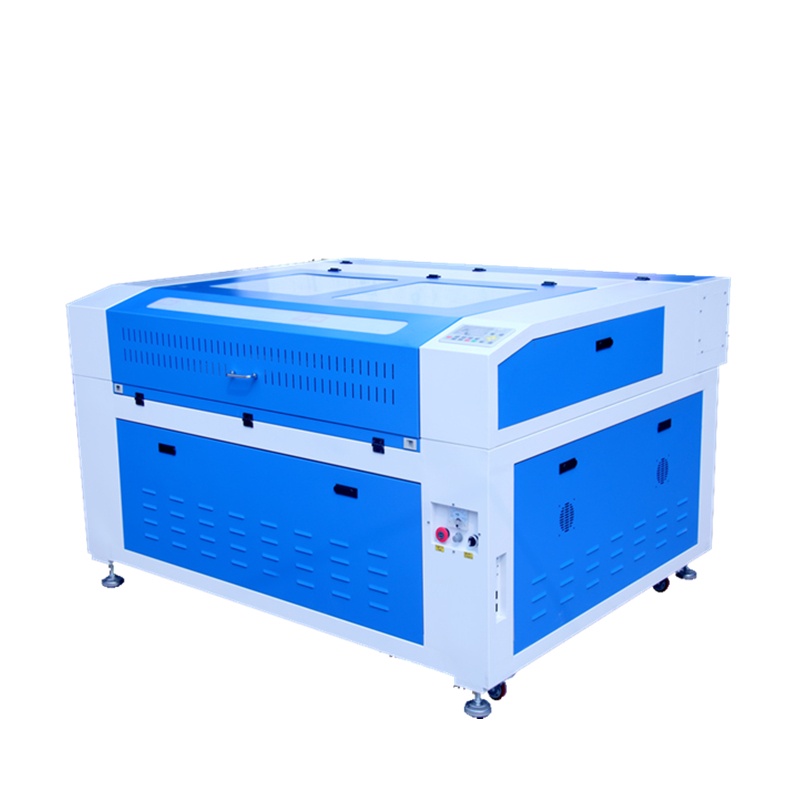

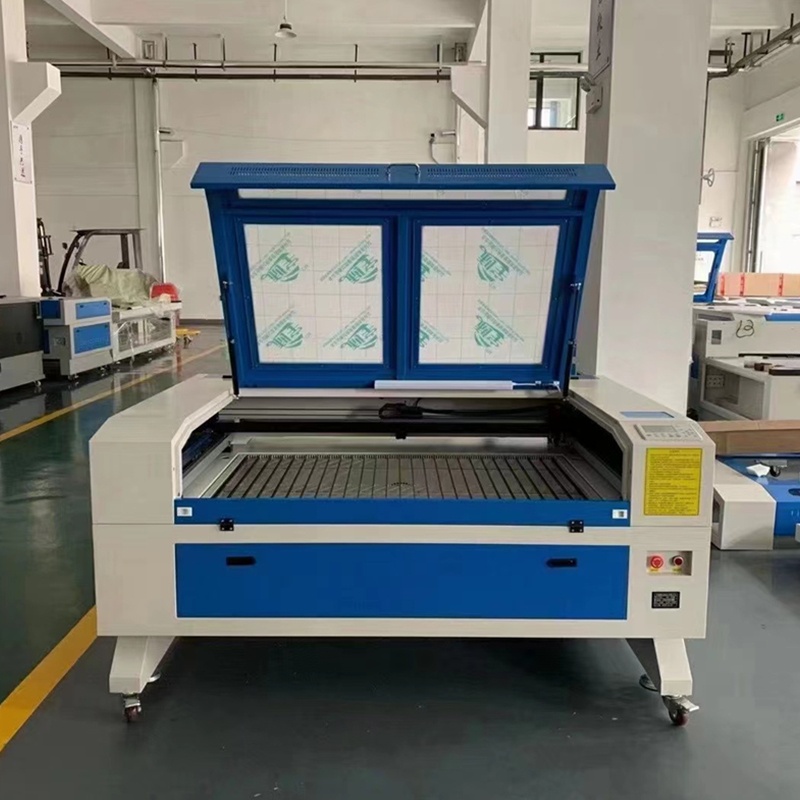

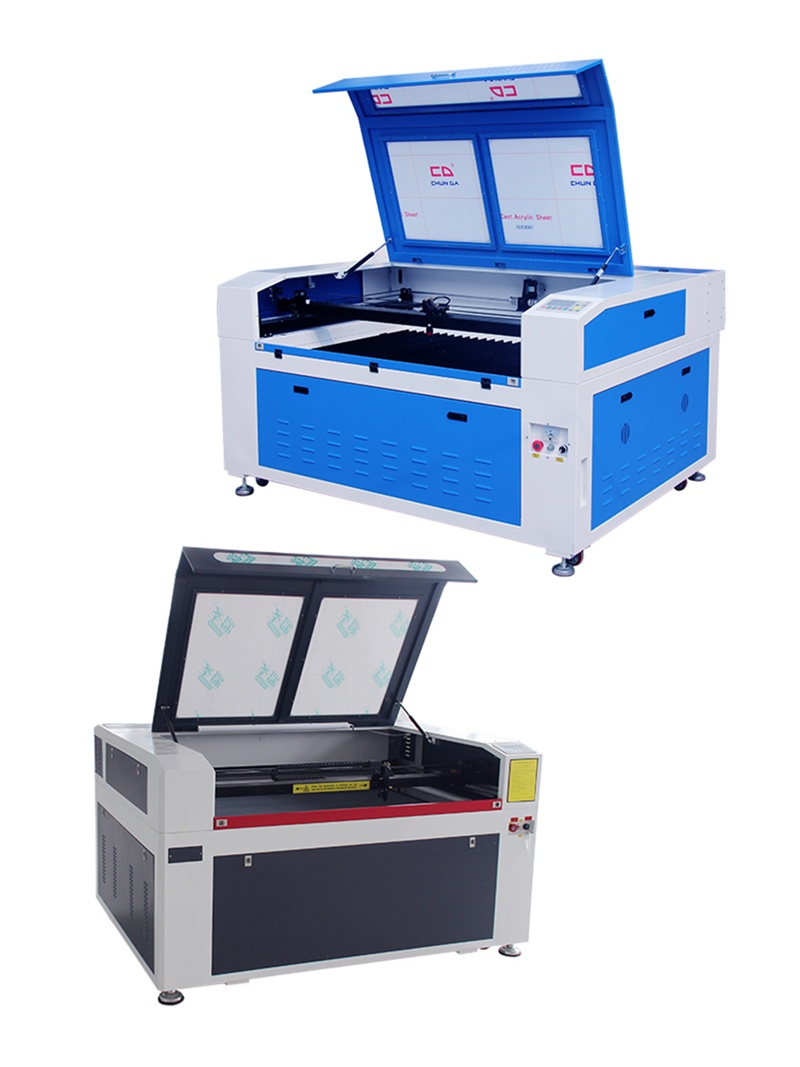

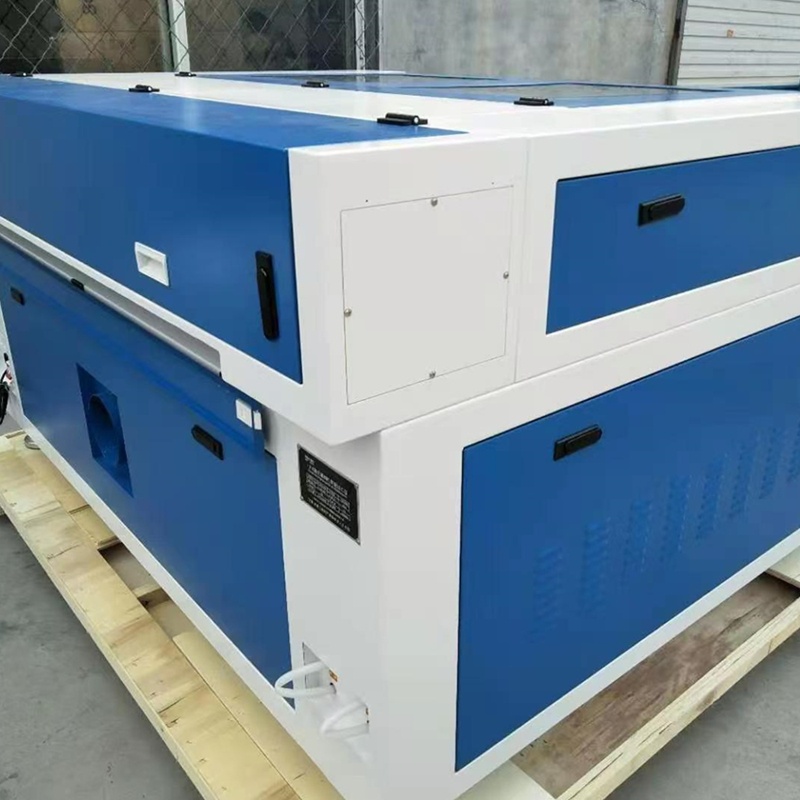

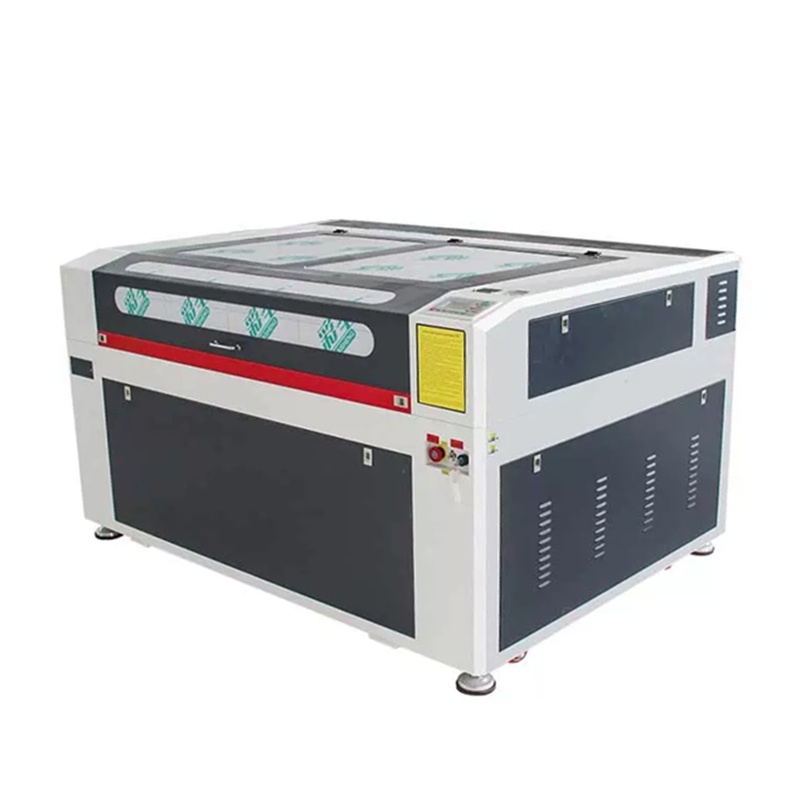

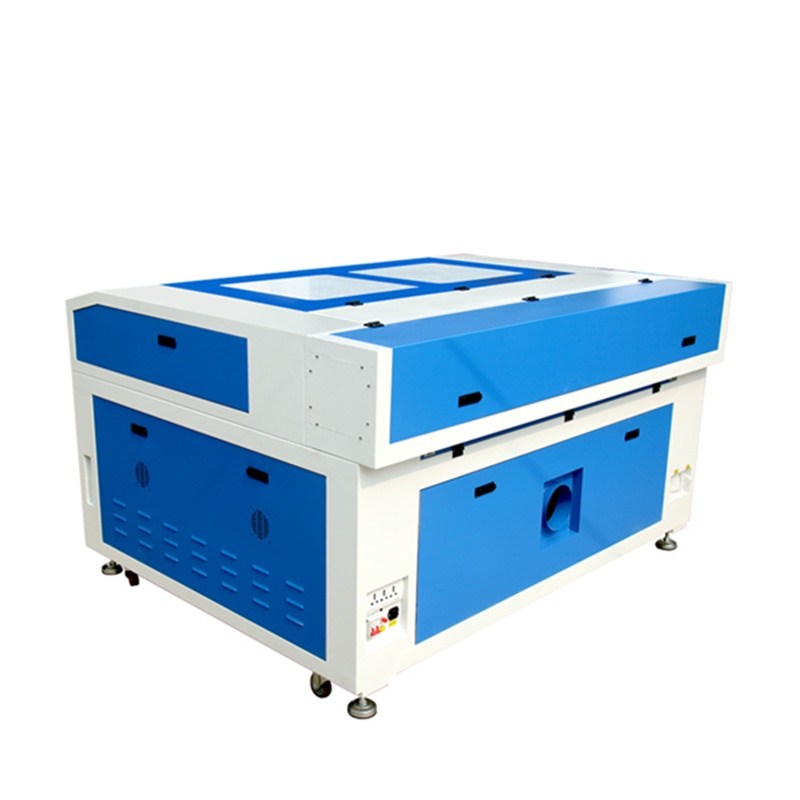

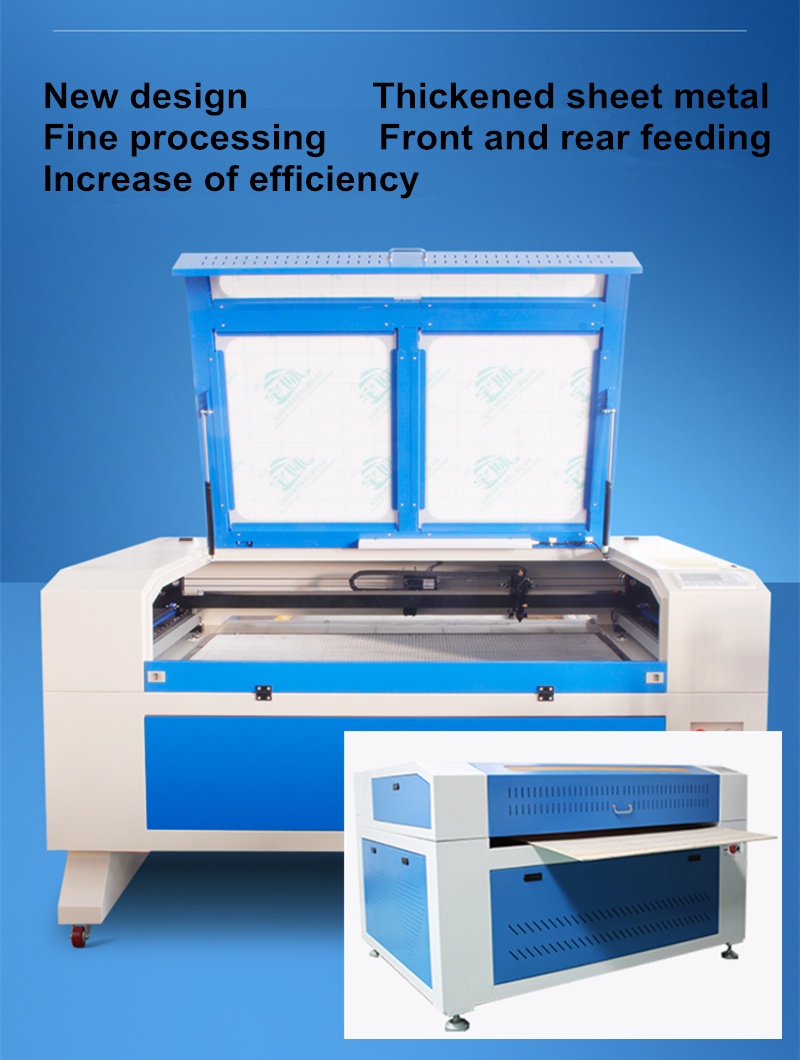

LY DSP1390 USB CO2 Laser Engraving Cutting Machine RUIDA RDC6445G Touchscreen Offline System Optional CW3000 CW5000 Water Chiller Auto – Focus Linear Guide Rotary Axis Support

Why buy from us?

*We order all our products directly from factory, no agents,no middle man, which guarantee the lowest prices for our customers.
*We have some stocks in Ontario ,Dallas ,New Jersey warehouse
*We are looking for distributors USA, Australia ,EU countries and some area around the world, contact us for more detail.
*For group buy for schools and club purchases up to a certain amount, we will offer a great discount.
*Customers can choose to join our membership program for reward points or discounts and we offer VIP sales or events for our members.

Feature：

• NEW! 60/80/100/130/150/180W Laser tube, More power for working!!!
• NEW! 1300*900MM working area, Meet the requirements of different size materials!!!
• NEW! Water Chiller w/pump CW-3000/5000 keeps water flowing thru CO2 Tube at ambient temperature!!!

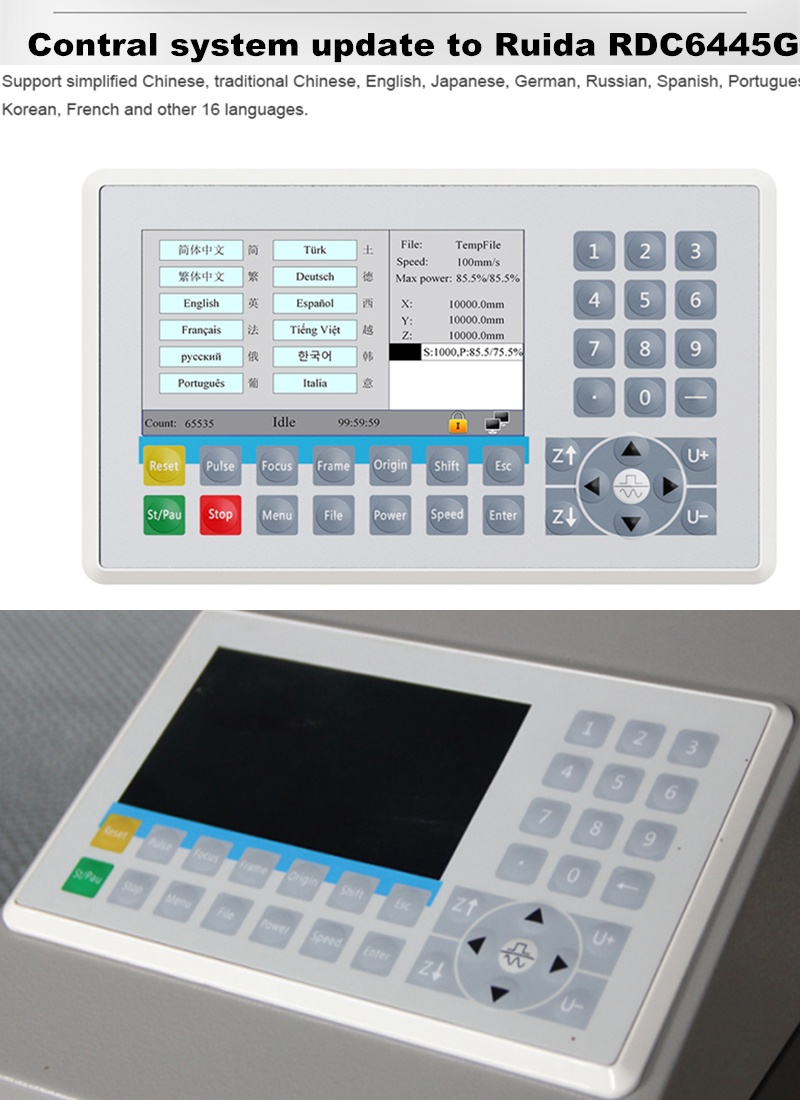

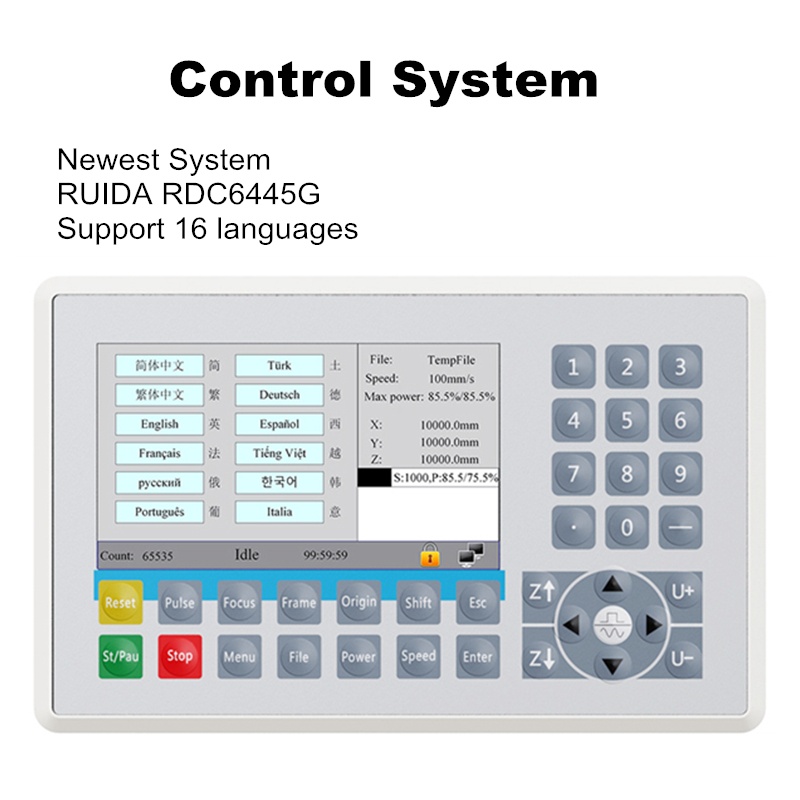

• NEW! System upgraded toRDC6445G Touch screen 5 inch control

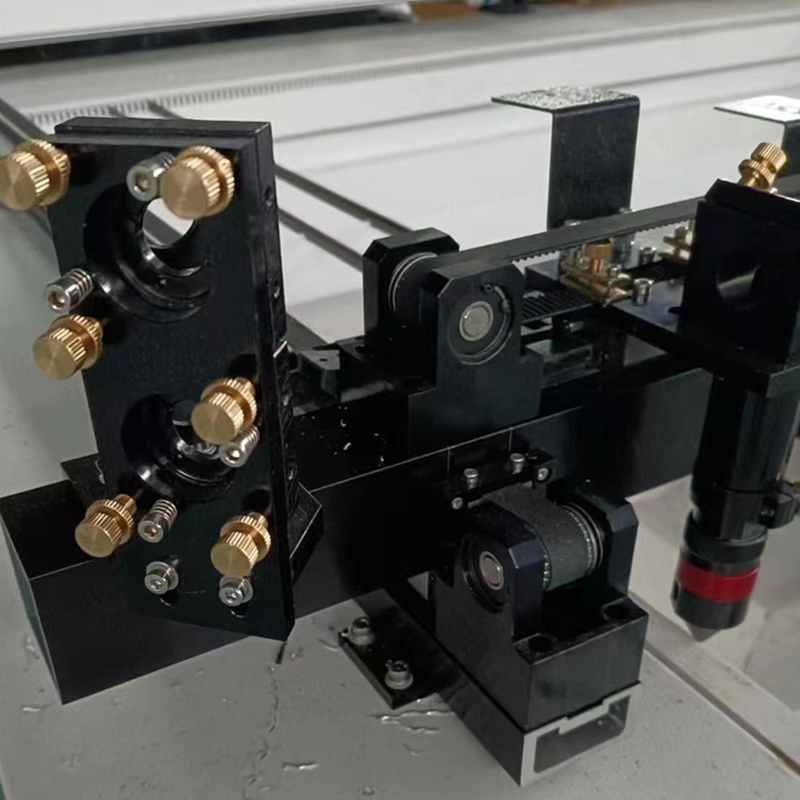

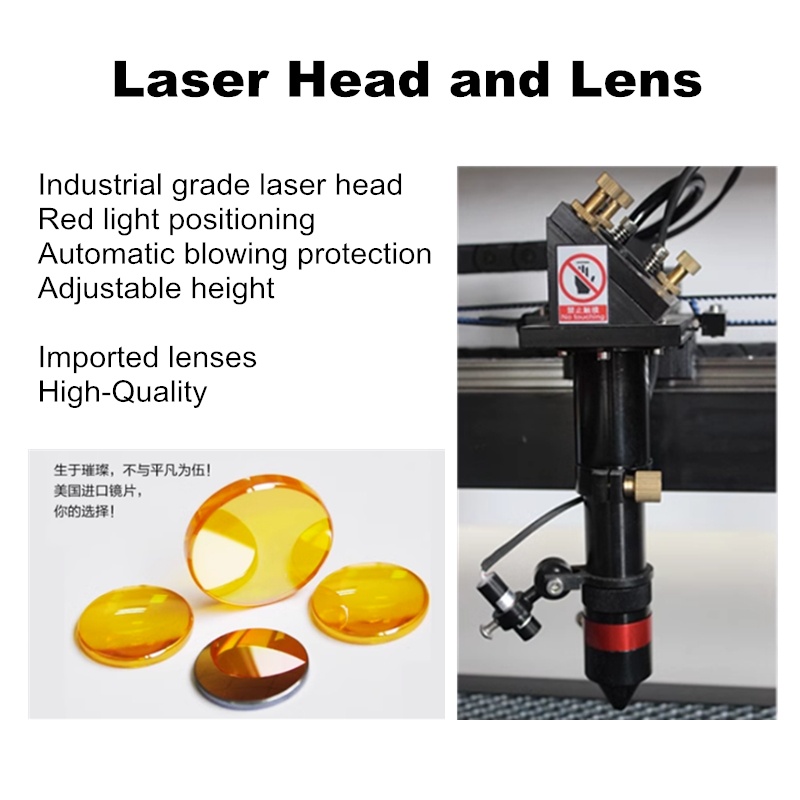

• NEW! Inline Beam Combiner precisely illuminates a red dot over the material for improved accuracy and alignment!!!
• NEW! Emergency Stop Button!!!

• More friendly control panel with Color Screen
• Separation of cutting up to 256 Colors

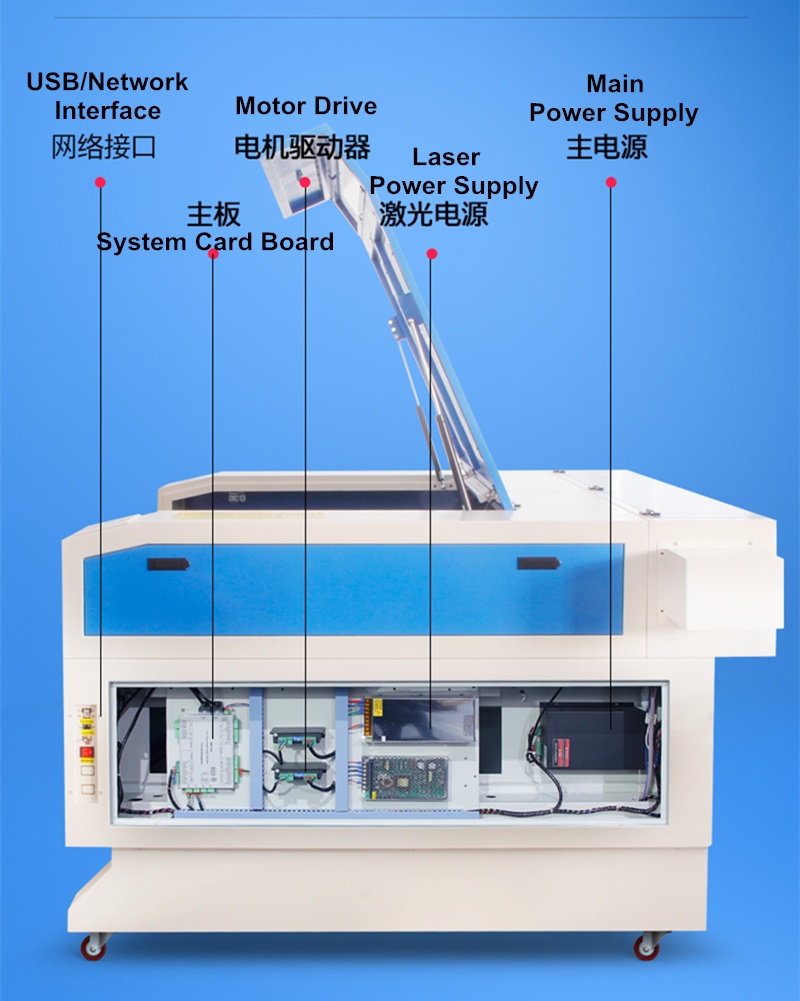

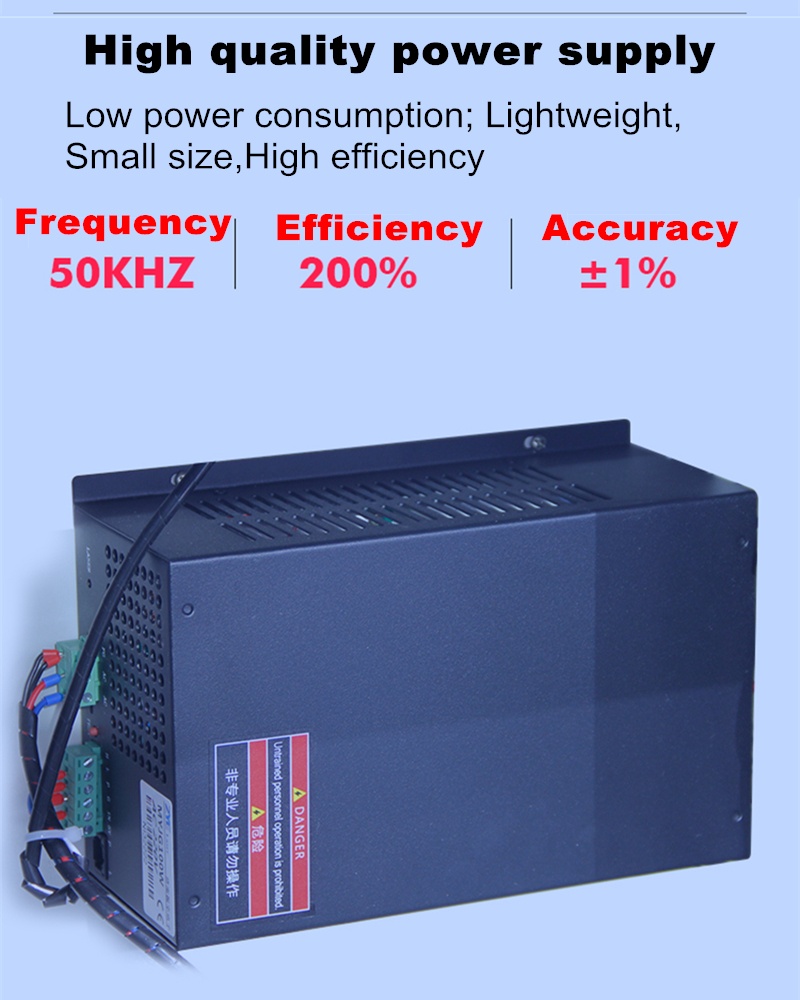

• Adopt advanced DSP digital control system, international standard laser power supply, integrated framework style
• Illuminated LCD panel for automated laser head control
• Motorized Z-Table lowers for larger materials
• Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
• USB Interface, U-Flash Disk Supported, Machine will read files from memory stick, you can work even without a PC.
• Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
• Embedded Exhaust Fan, Easier install, Safer transport.

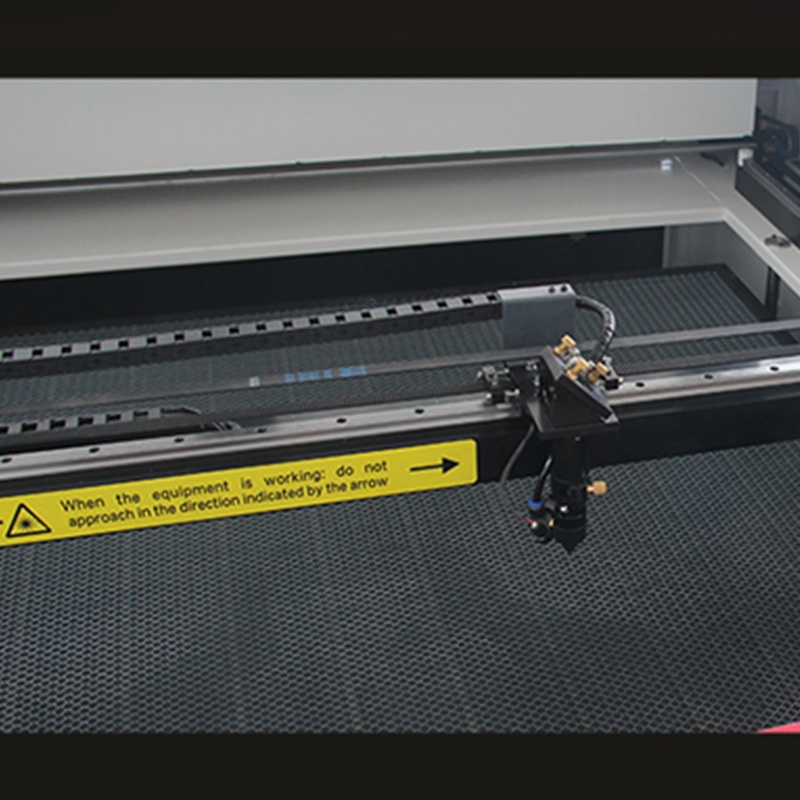

• Drag – and – chain transmission line

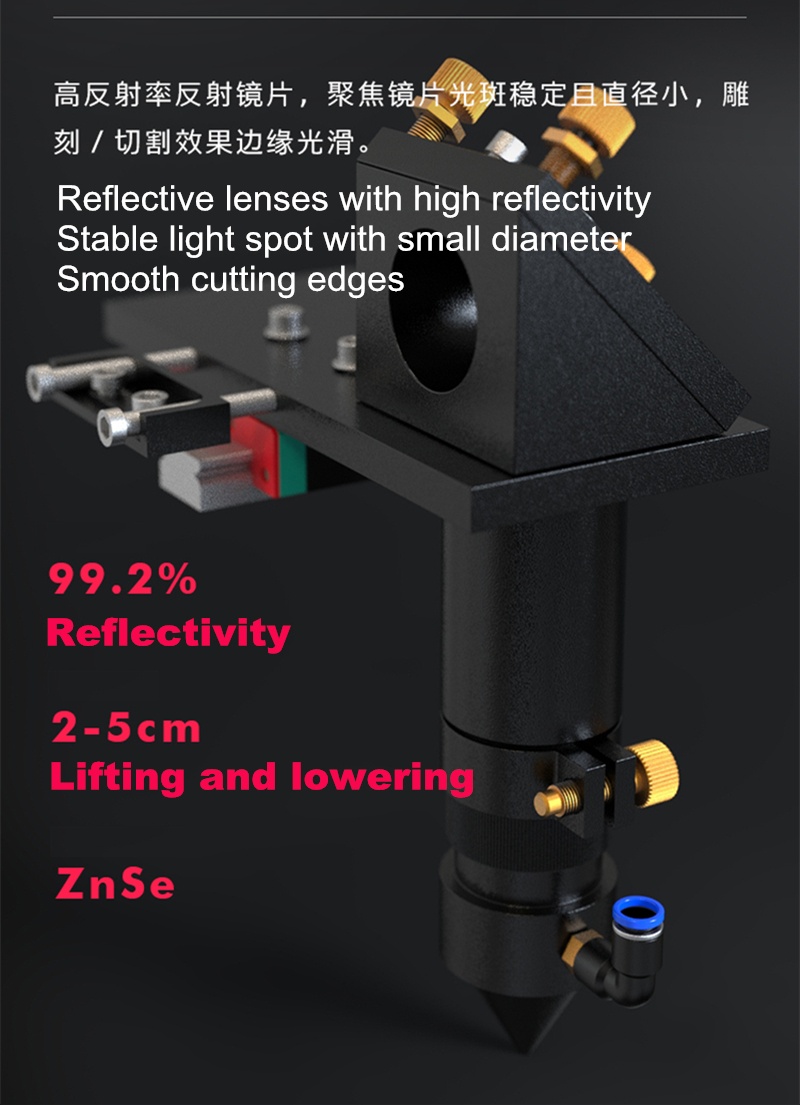

• Laser focal length: 5CM

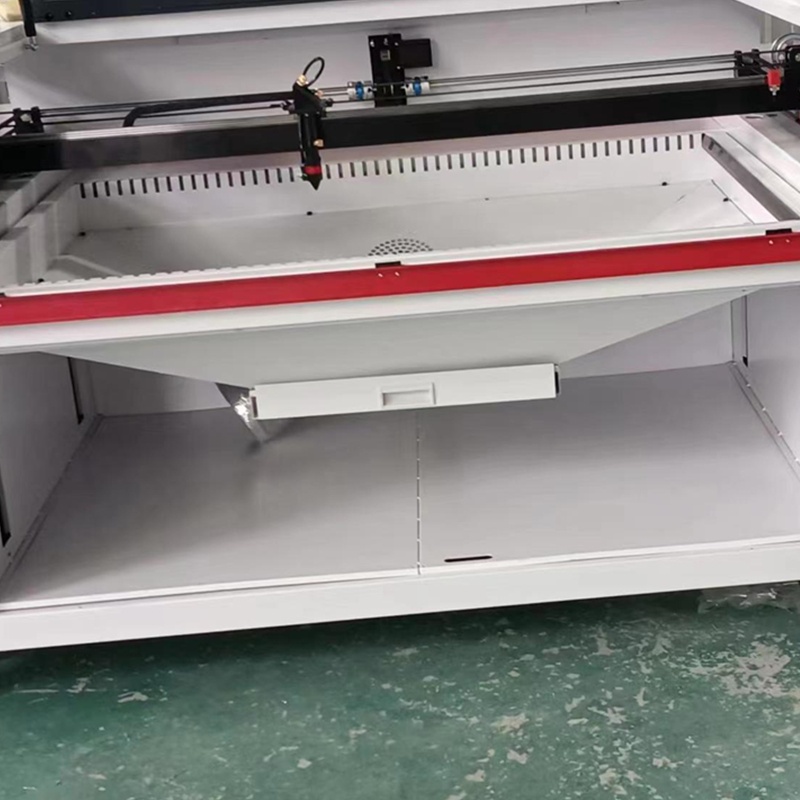

• Convenient vacuum table under the Z-table collects finished product into sliding tray
• Aluminum knife platform included for securing maximum material capacity
• Machined parts in stock for long term service and reliability
• Roller attachment for etching cylindrical objects
• Dedicated technical support from qualified service technicians and engineers
• Free Lifetime Tech Support via. phone, email, chat, or remote computer access
• Machine service life: 7200H at least for laser tube, 5-8 years for machine body
• 1-Year Warranty covers parts replacement

Parameter:

Laser type :CO2 laser engraving machine

Total power <1000W
Laser power : 60W/80W/100W/130W/150W/180W

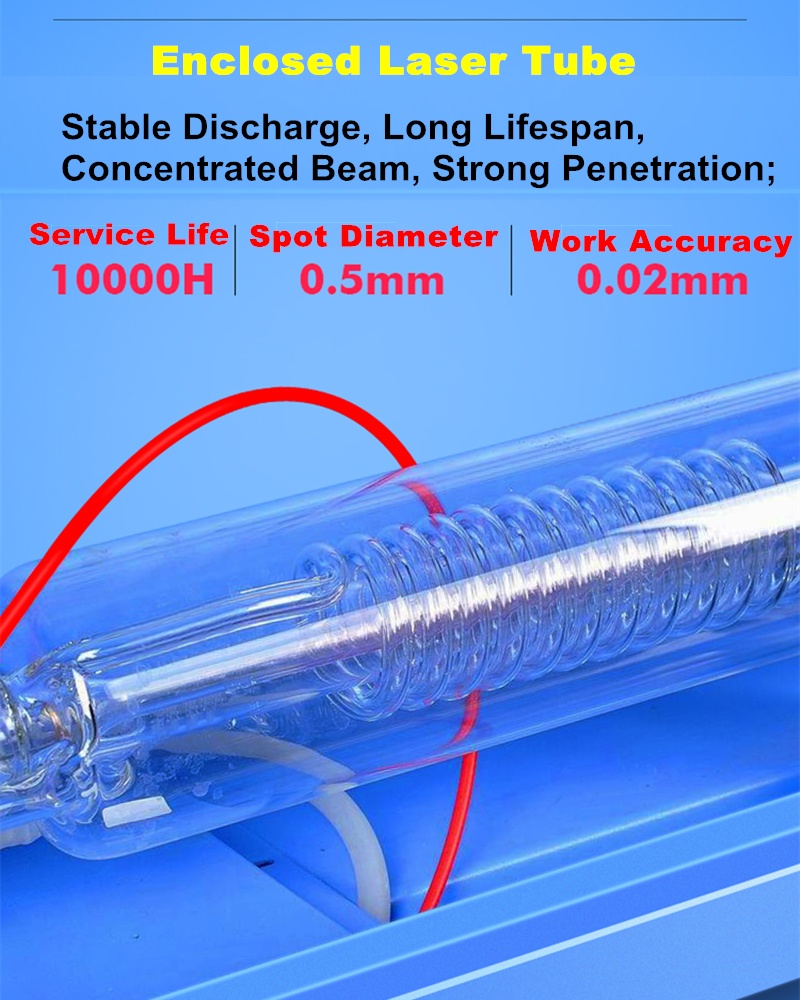

Laser tube working time :7000-10000 hour
Power supply : AC 220V/110V
Working area :900*1300 mm
Engraving depth :0-30 mm (different material differ)
Cutting depth :0-20 mm (different material differ)
Engraving speed :0-1000mm/s (different material differ)

Cutting speed :0-300mm/s (different material differ)
Lifting platform :0-200 mm Honeycomb Worktable
Locating precision :± 0.1mm
Min shaping character Character: 1mm
Working temperature :5℃-45℃
Working humidity :5%-98%
Cooling : Optional Water Cooling and protection system with CW3000/CW5000 chiller
Graphic Format :Supported BMP,PLT,DST,DXF,Al

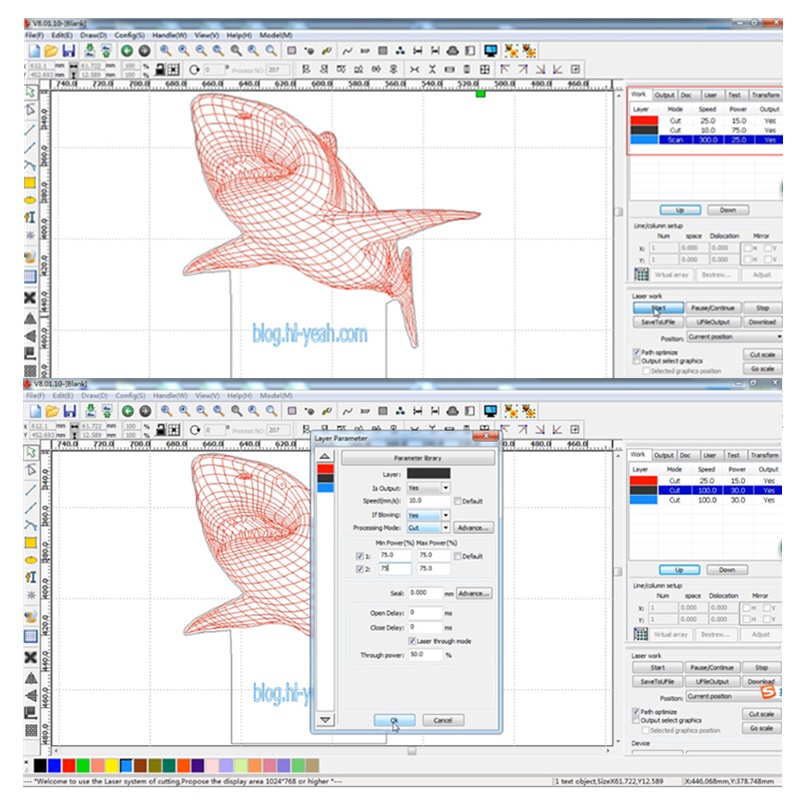

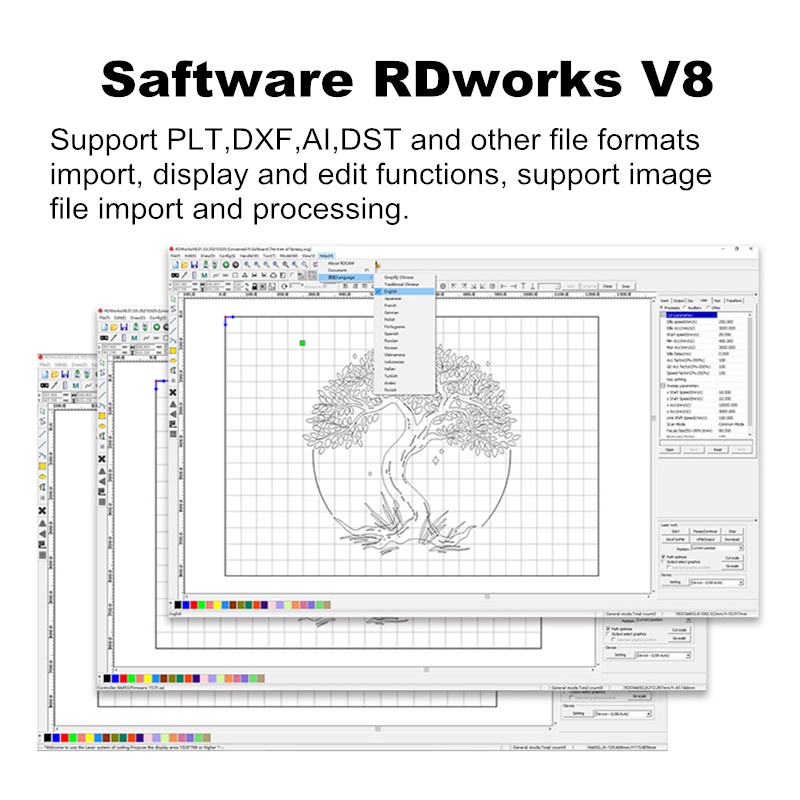

Work software :RUIDA works (RDworks)
Color separation :Yes
Auto-focus: Optional
Protection :Emergency stop button and Stop working when water broken

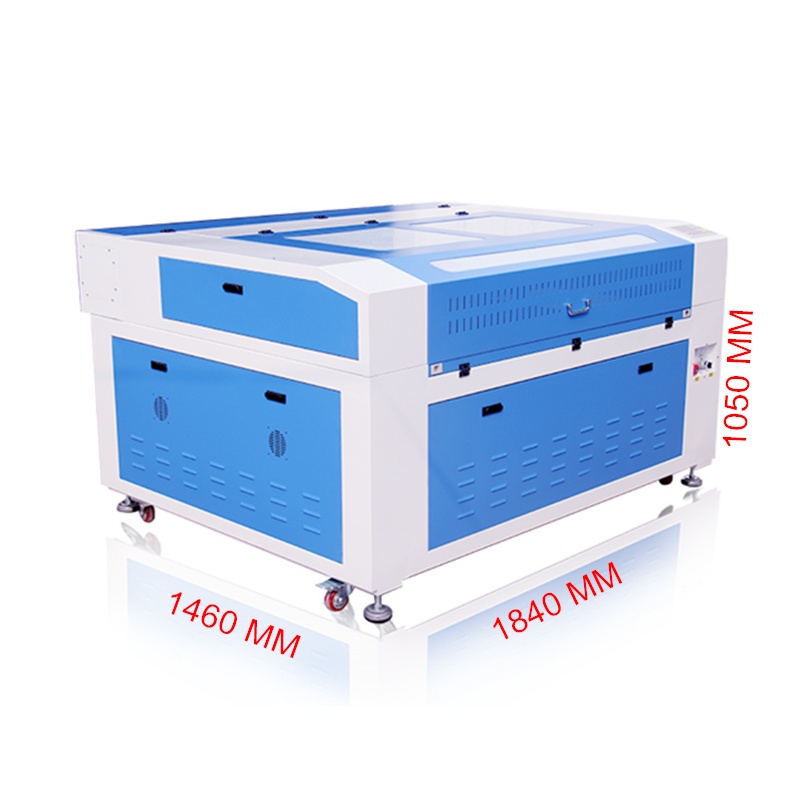

Machine Dimensions :1840*1460*1050 mm

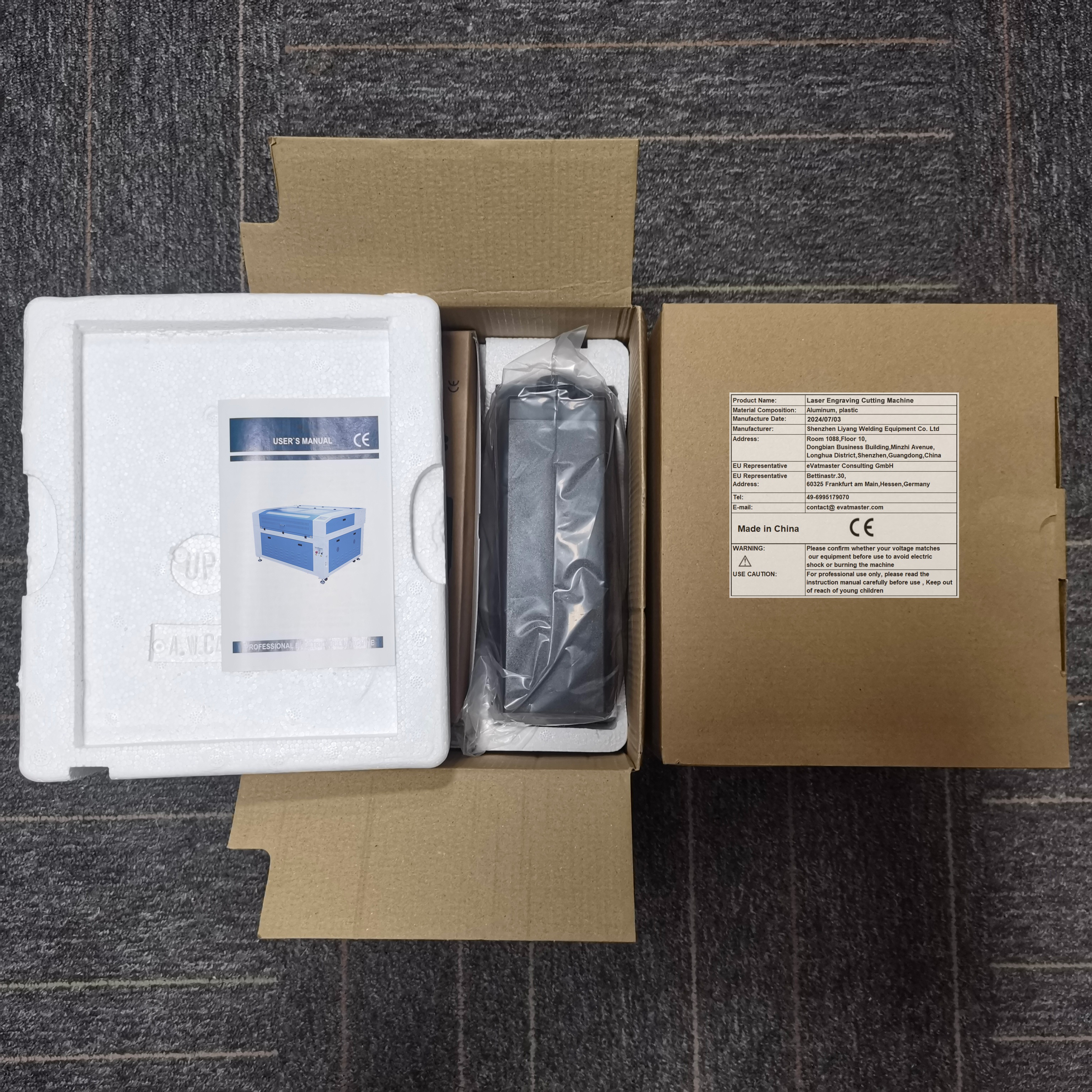

Machine Package :Wooden box with foam inside
Package Dimension :210*155*125cm
Gross weight :380KG
CW-3000/5000 Chiller Package :Carton box with foam inside
Package dimension :63*53*35CM
Package weight :30KG

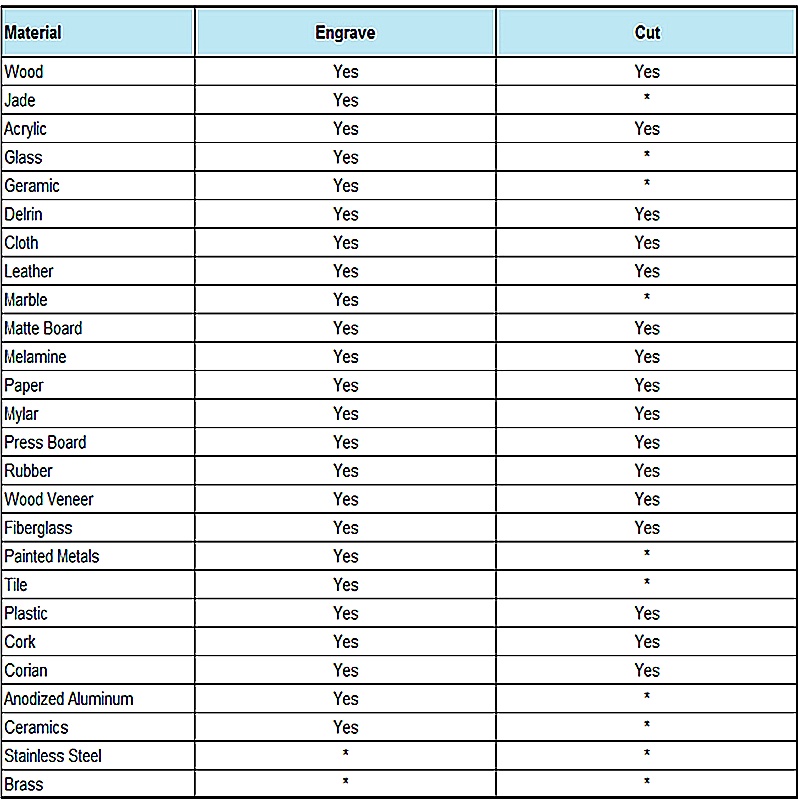

About the material ( “*”means you have to use a spray called “thermark” to spray the surface of the material and then you can mark on)
