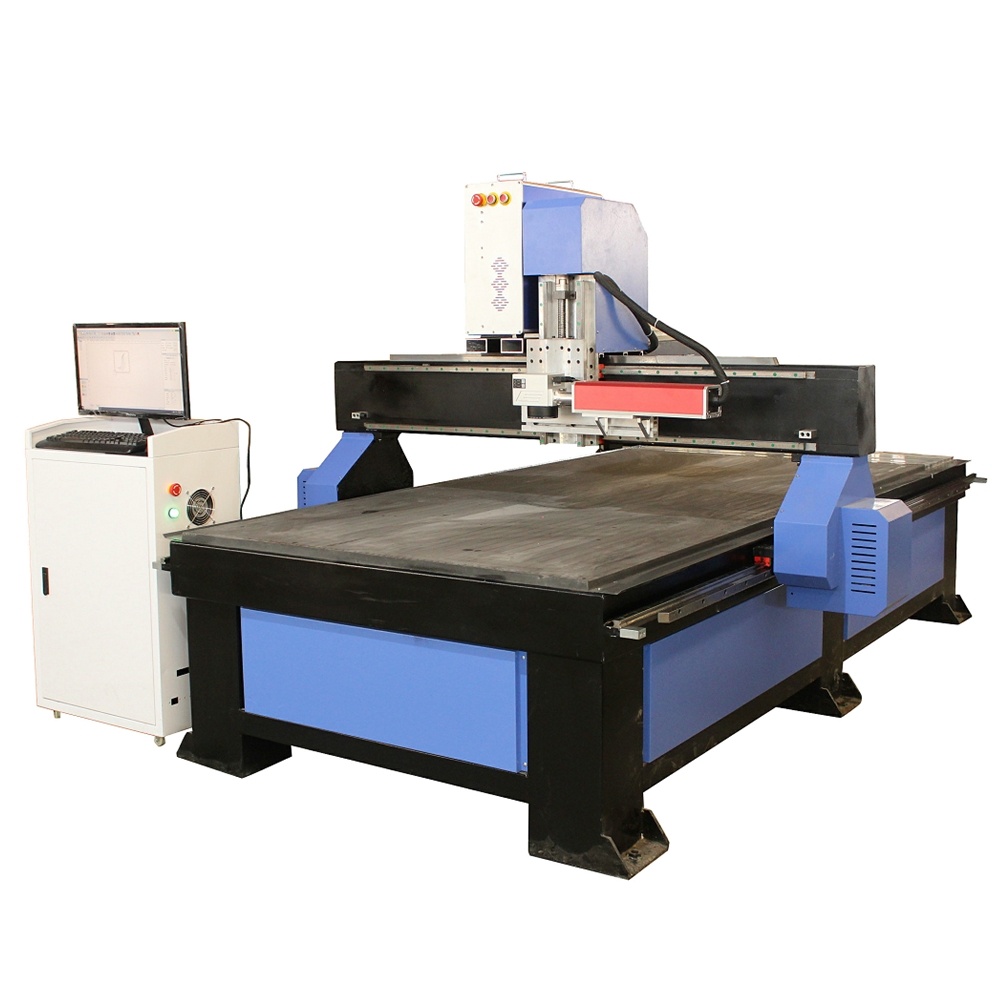

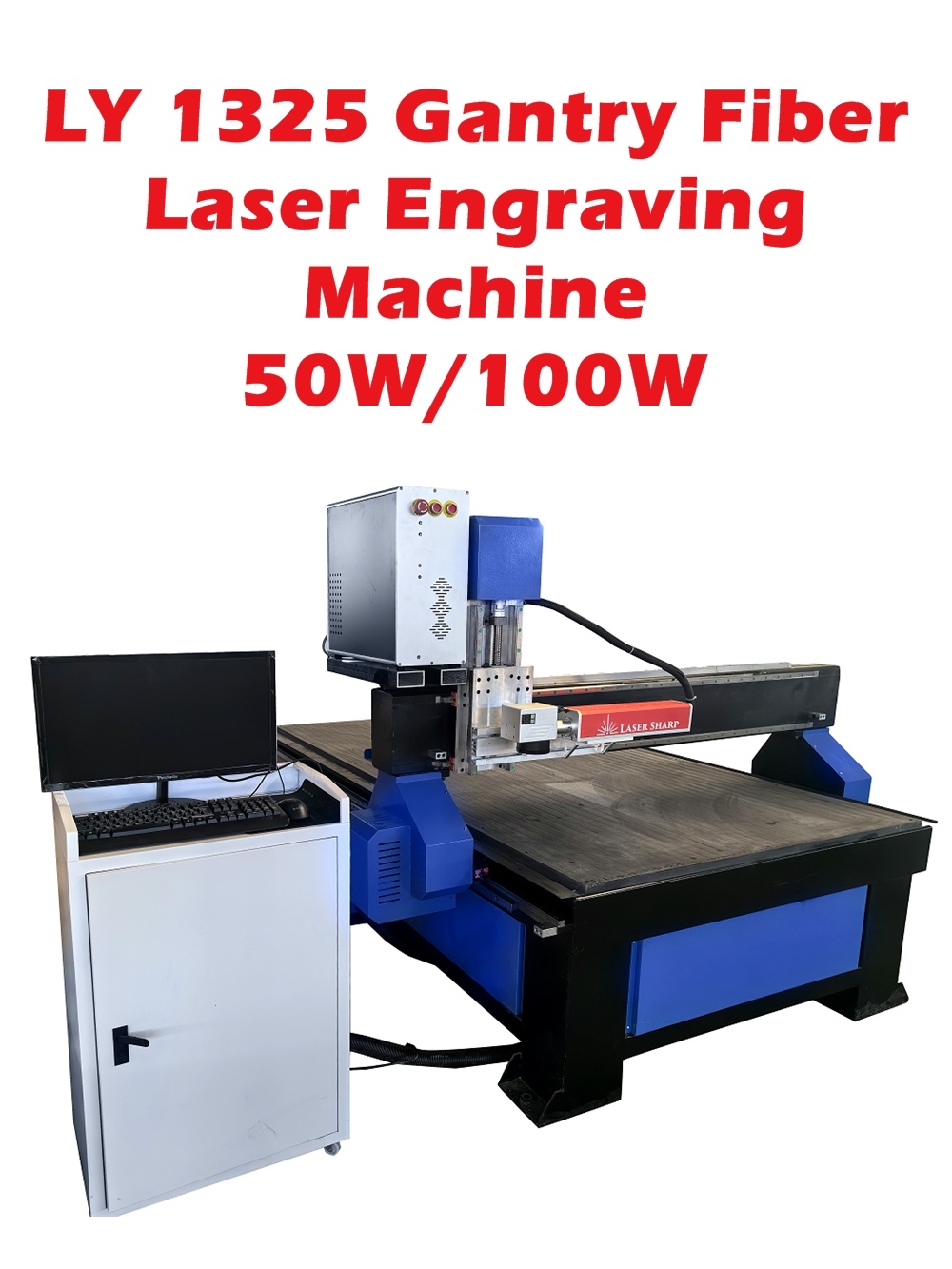

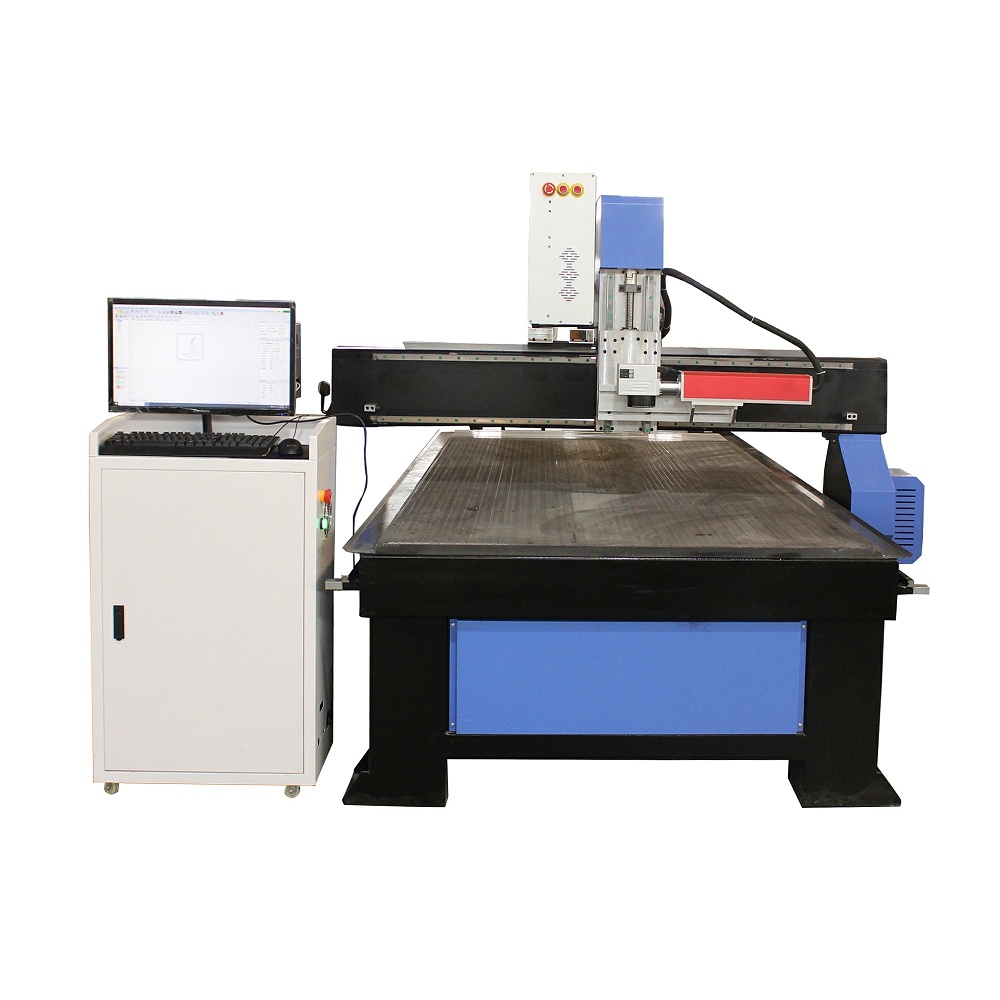

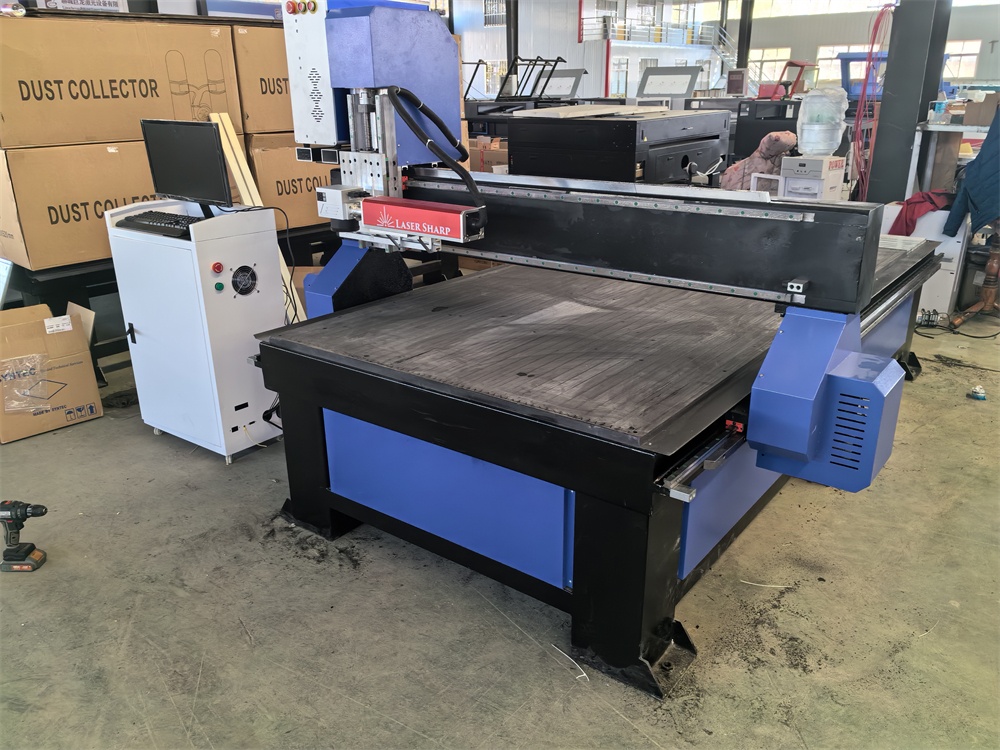

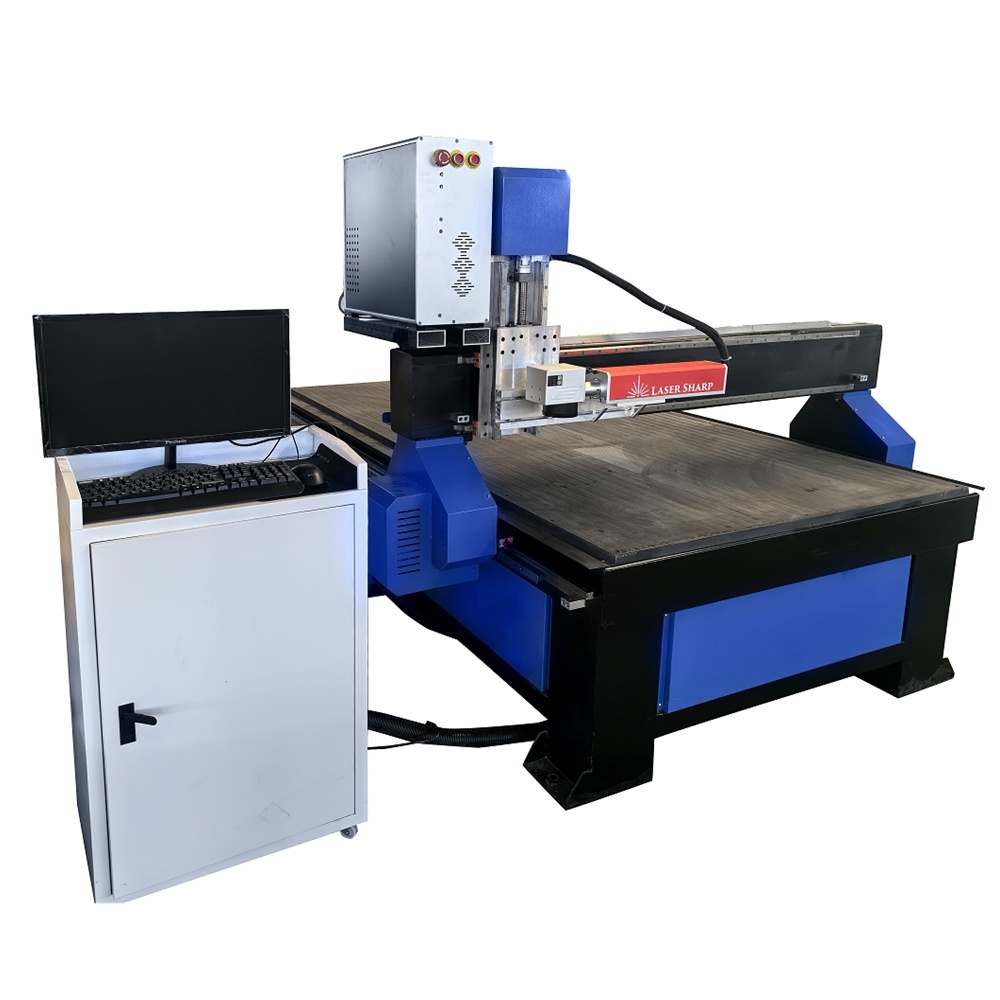

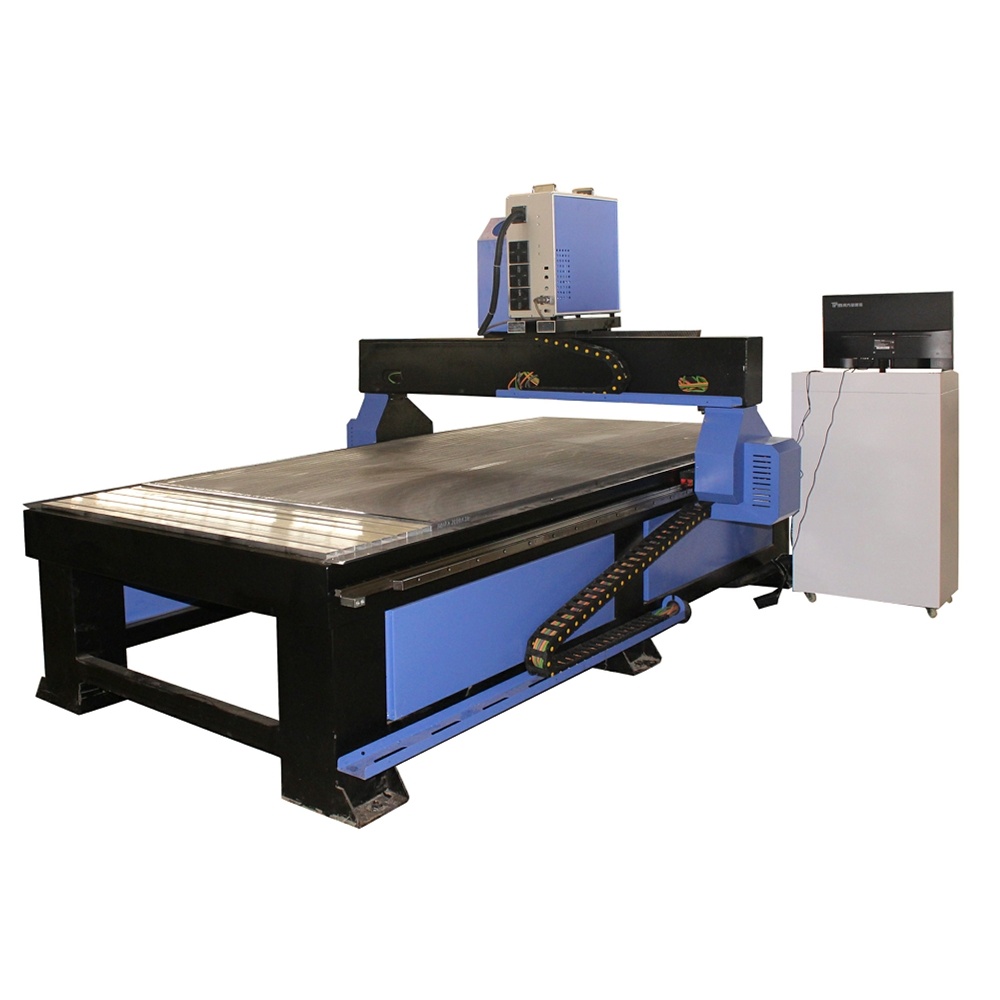

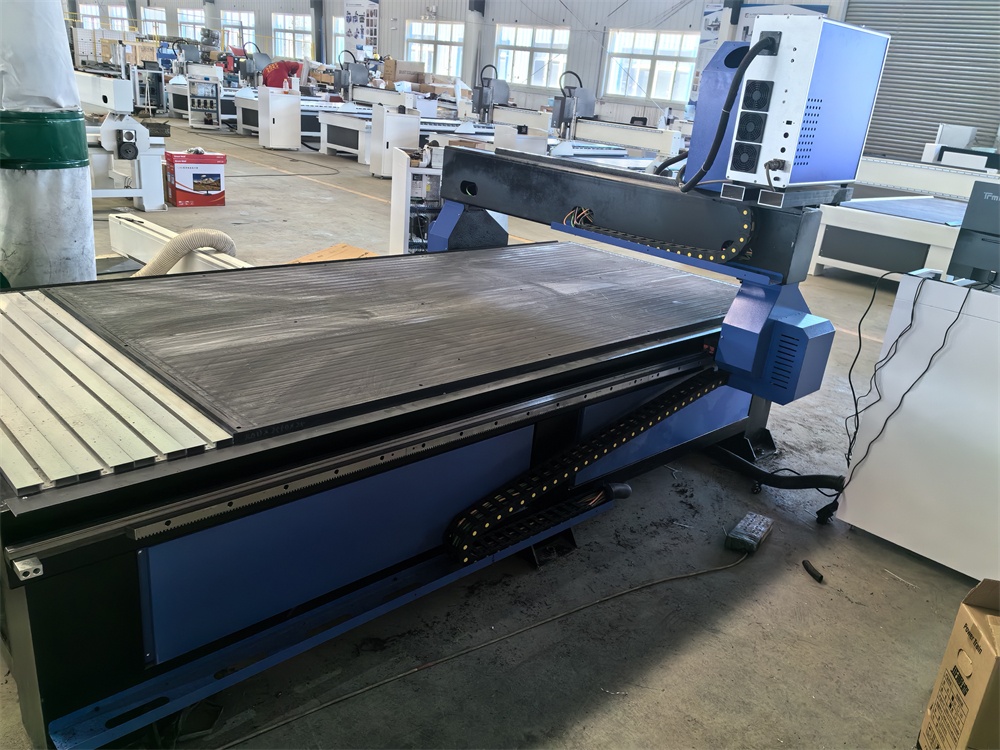

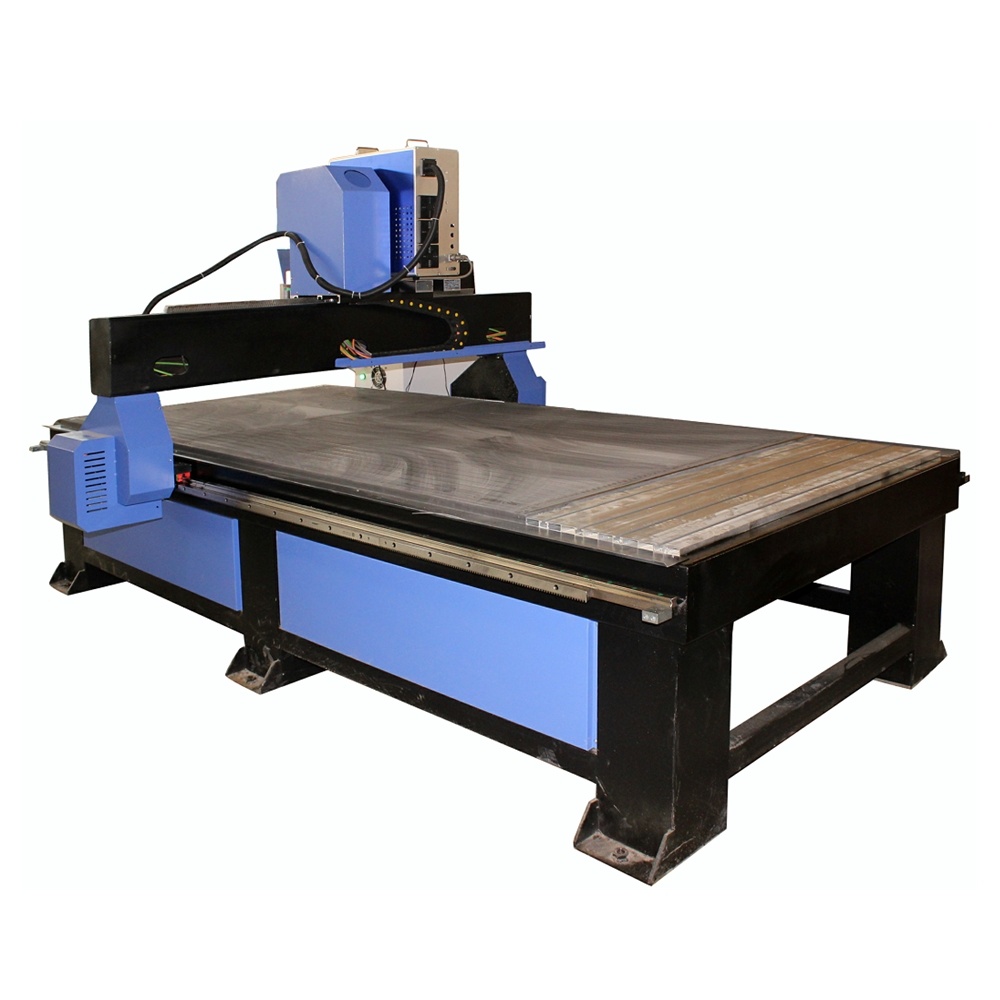

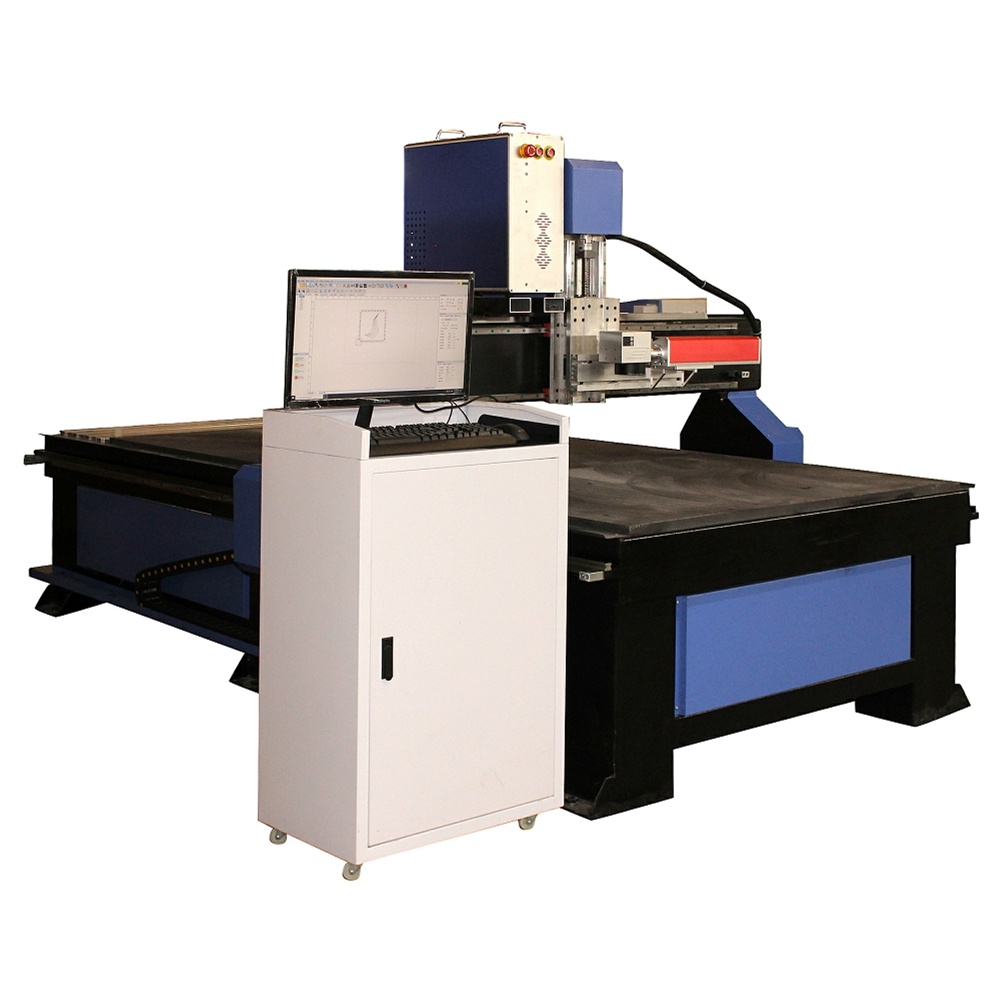

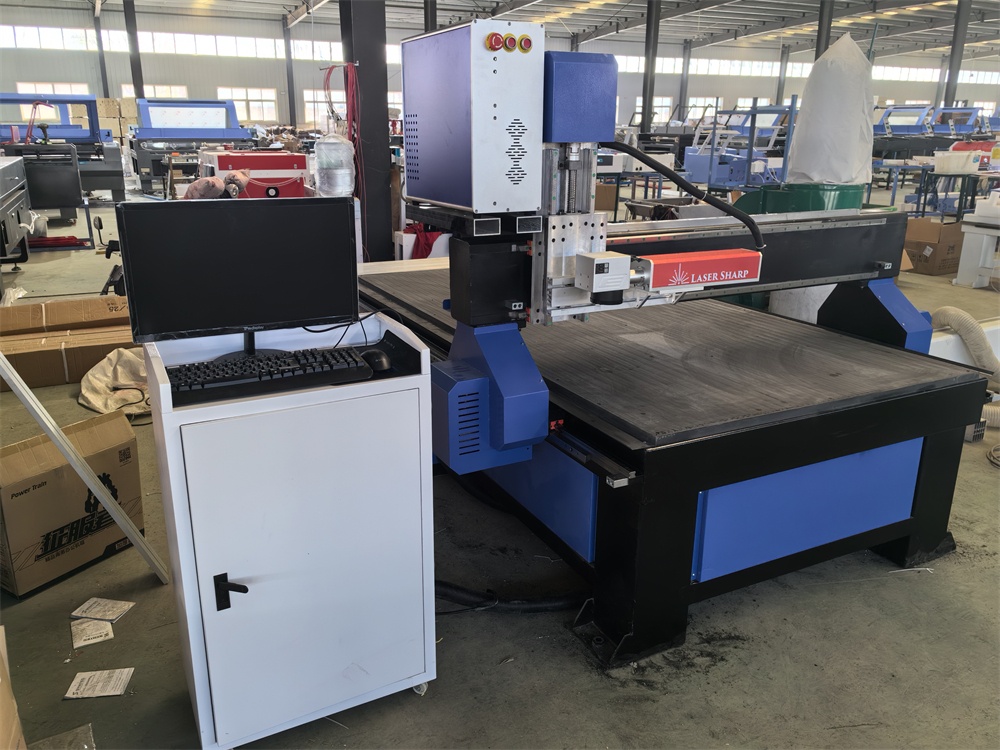

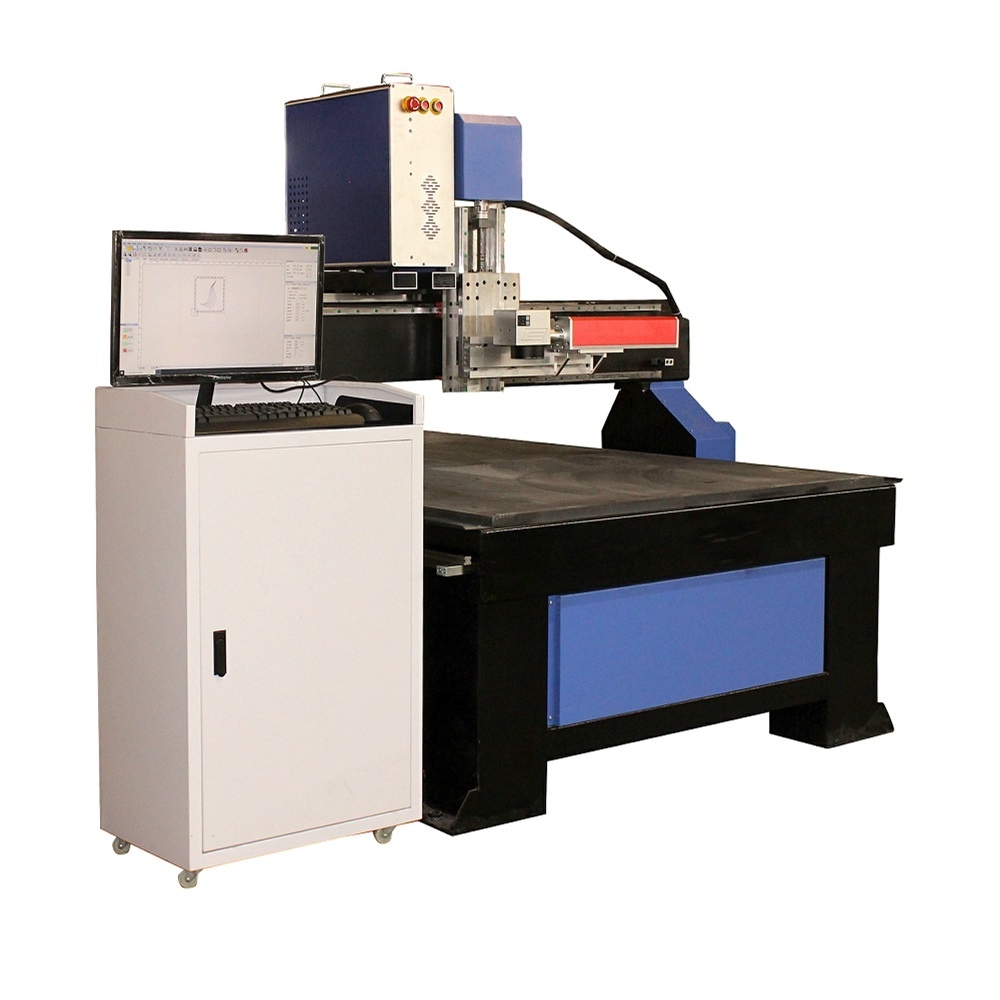

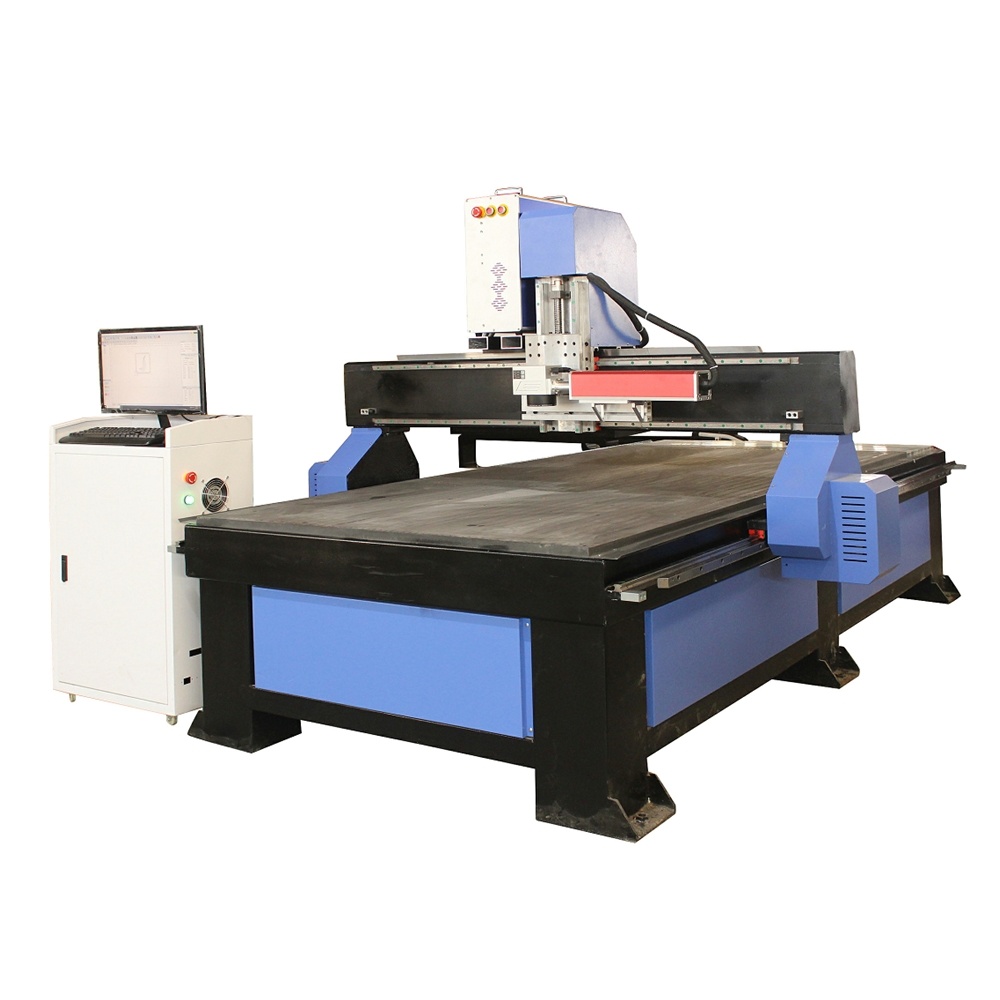

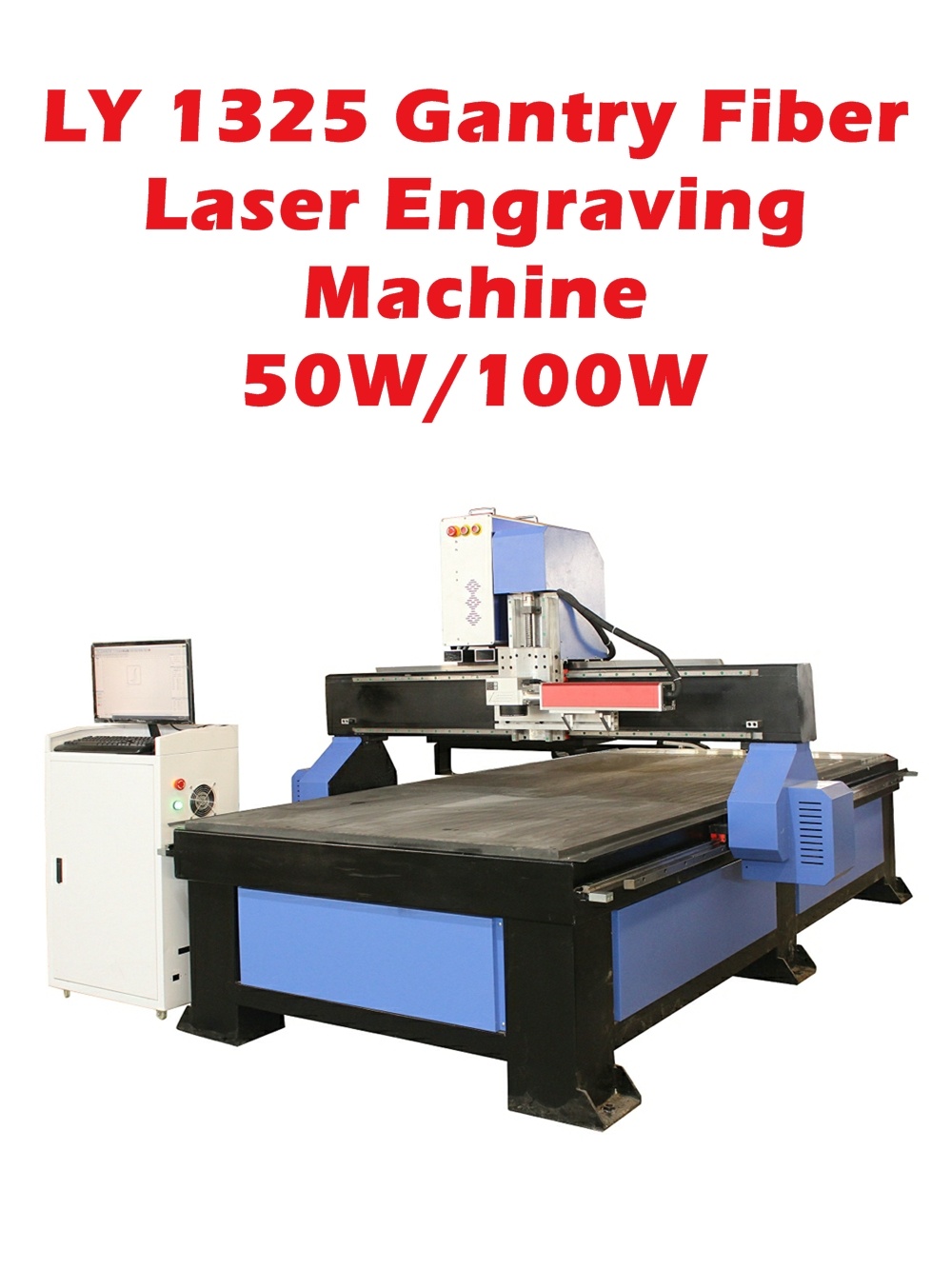

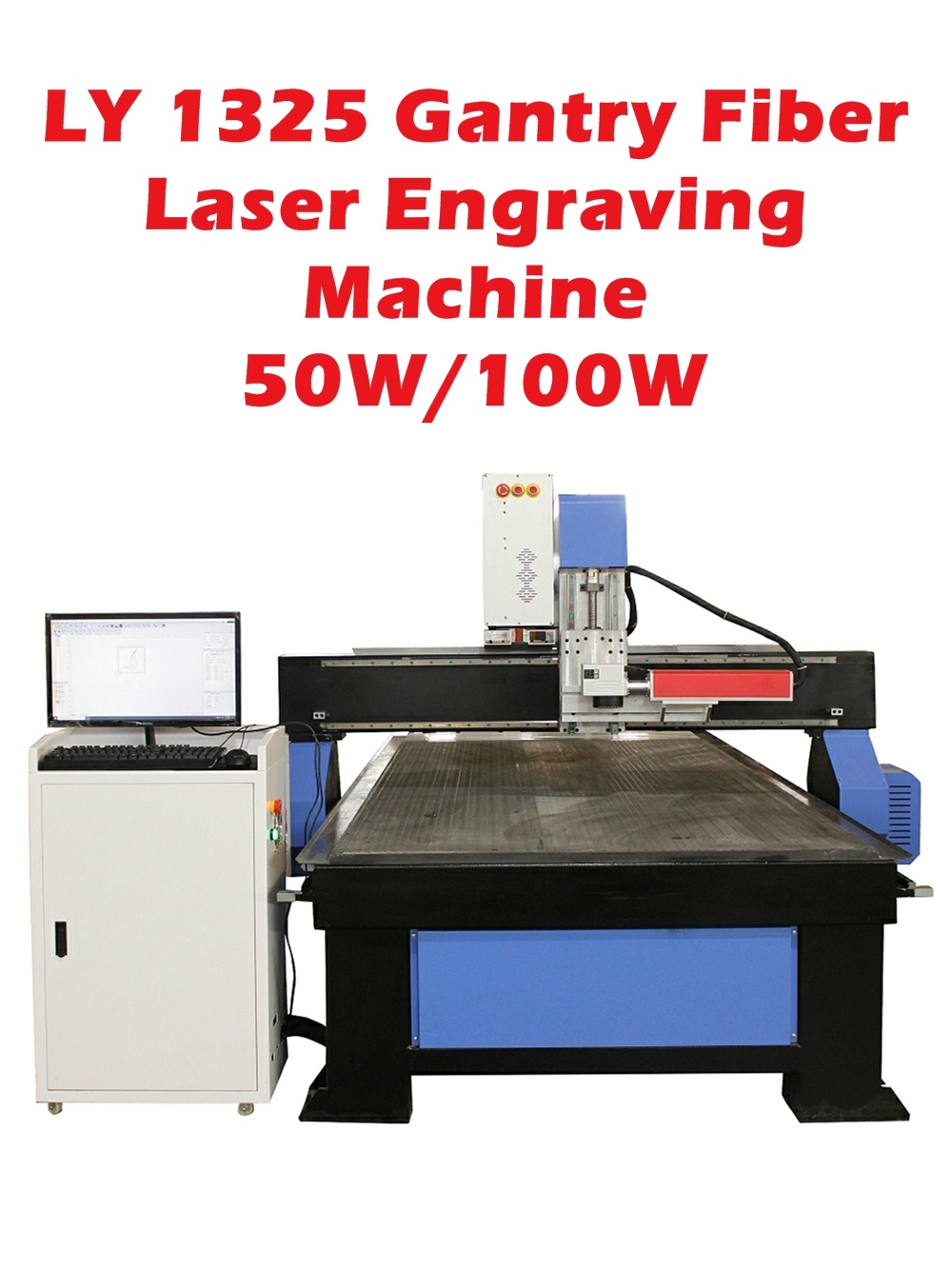

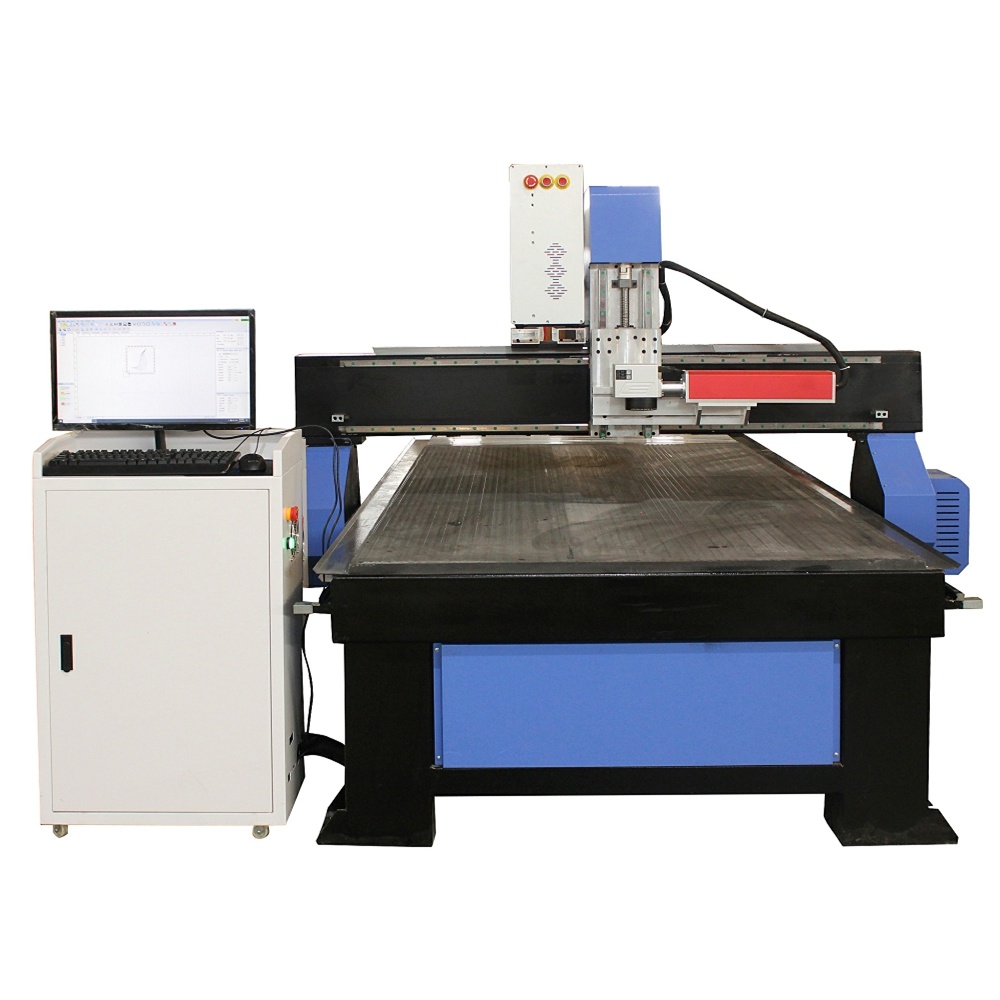

LY Large Area Sport Moving Gantry CNC Fiber 1325 1300*2500MM 50W MAX Raycus JPT Fiber Laser Engraver for Mirrors Metal PVC Stuffs Marking Cutting Machine with 100W Option

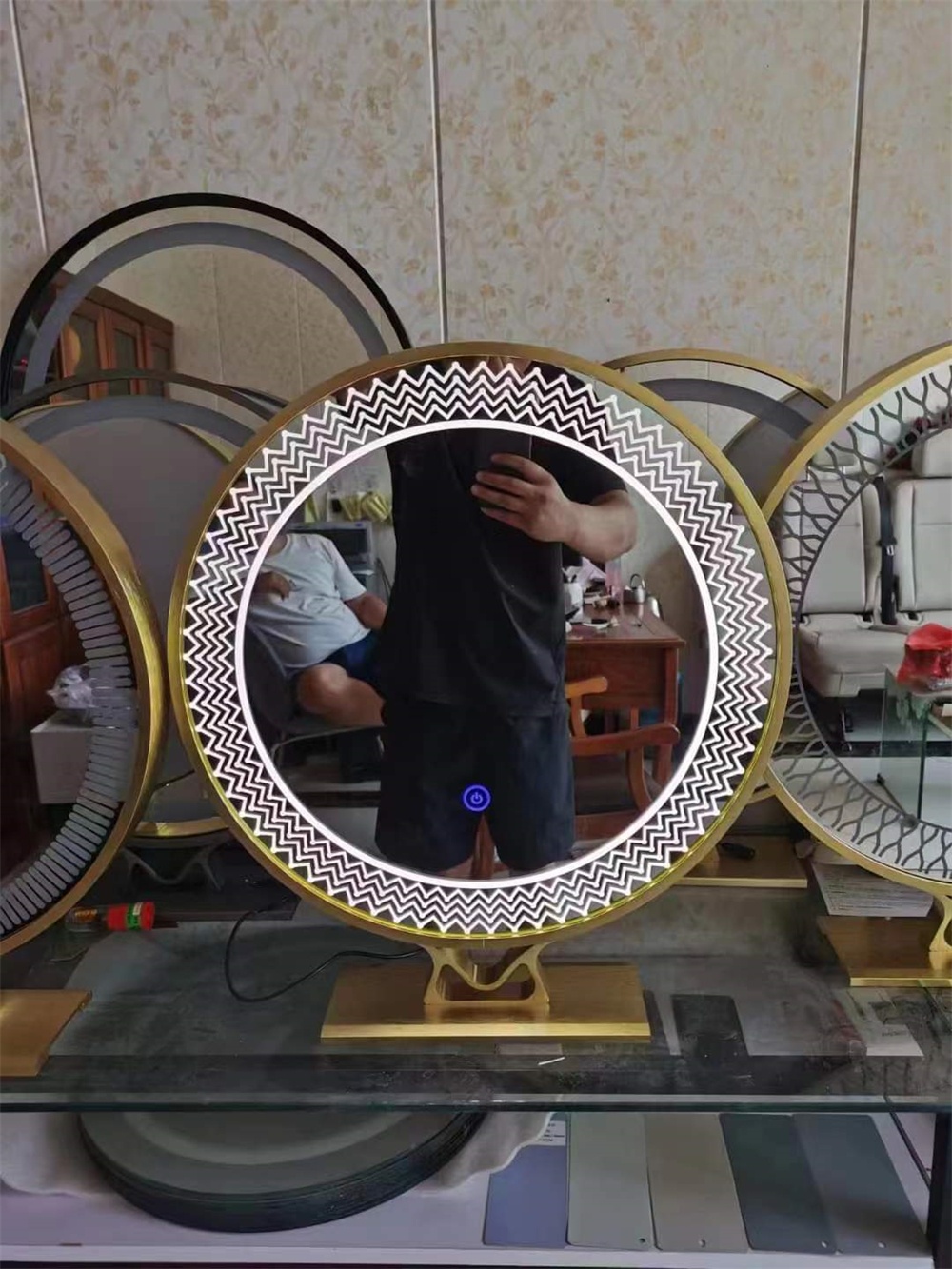

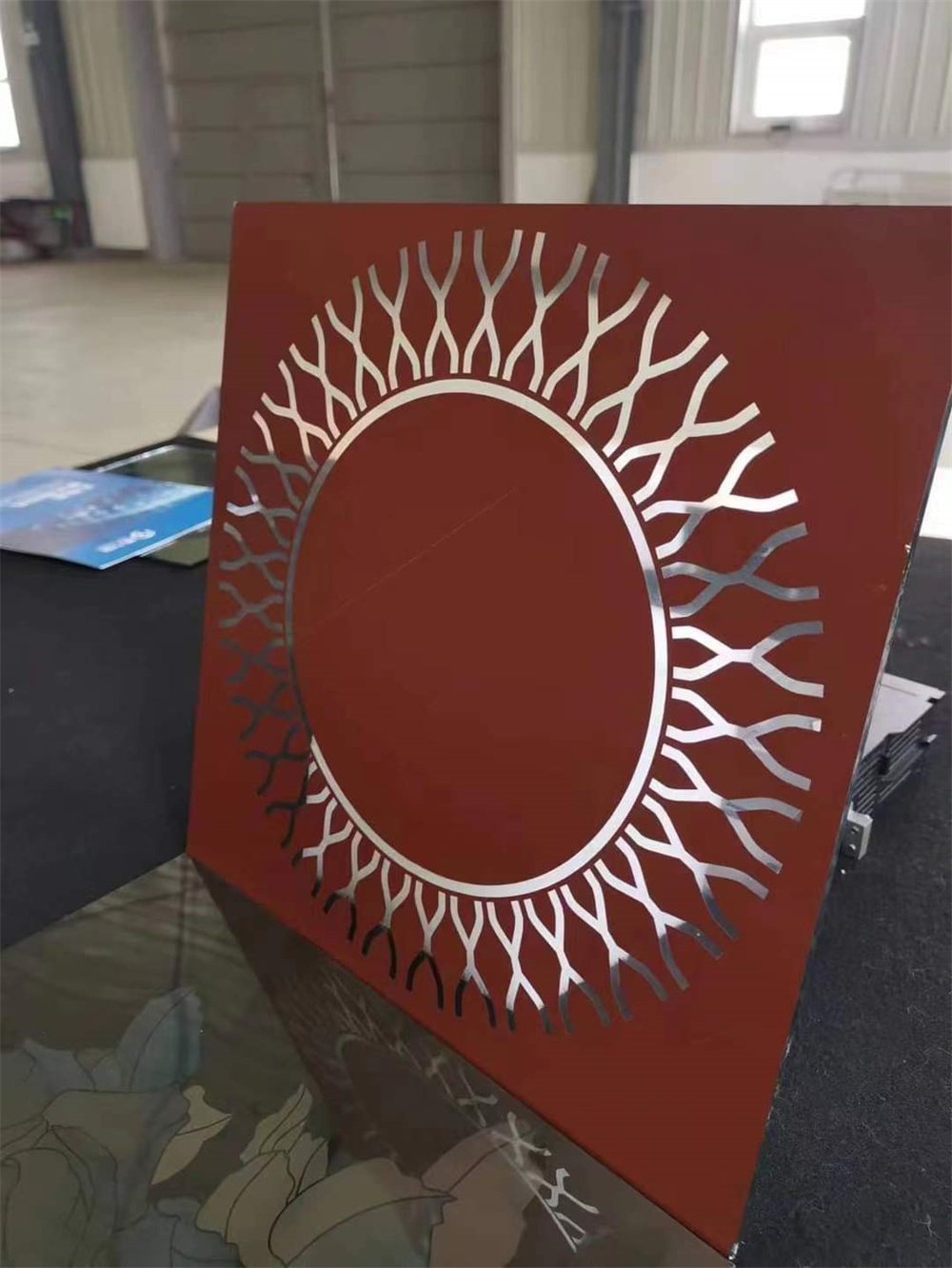

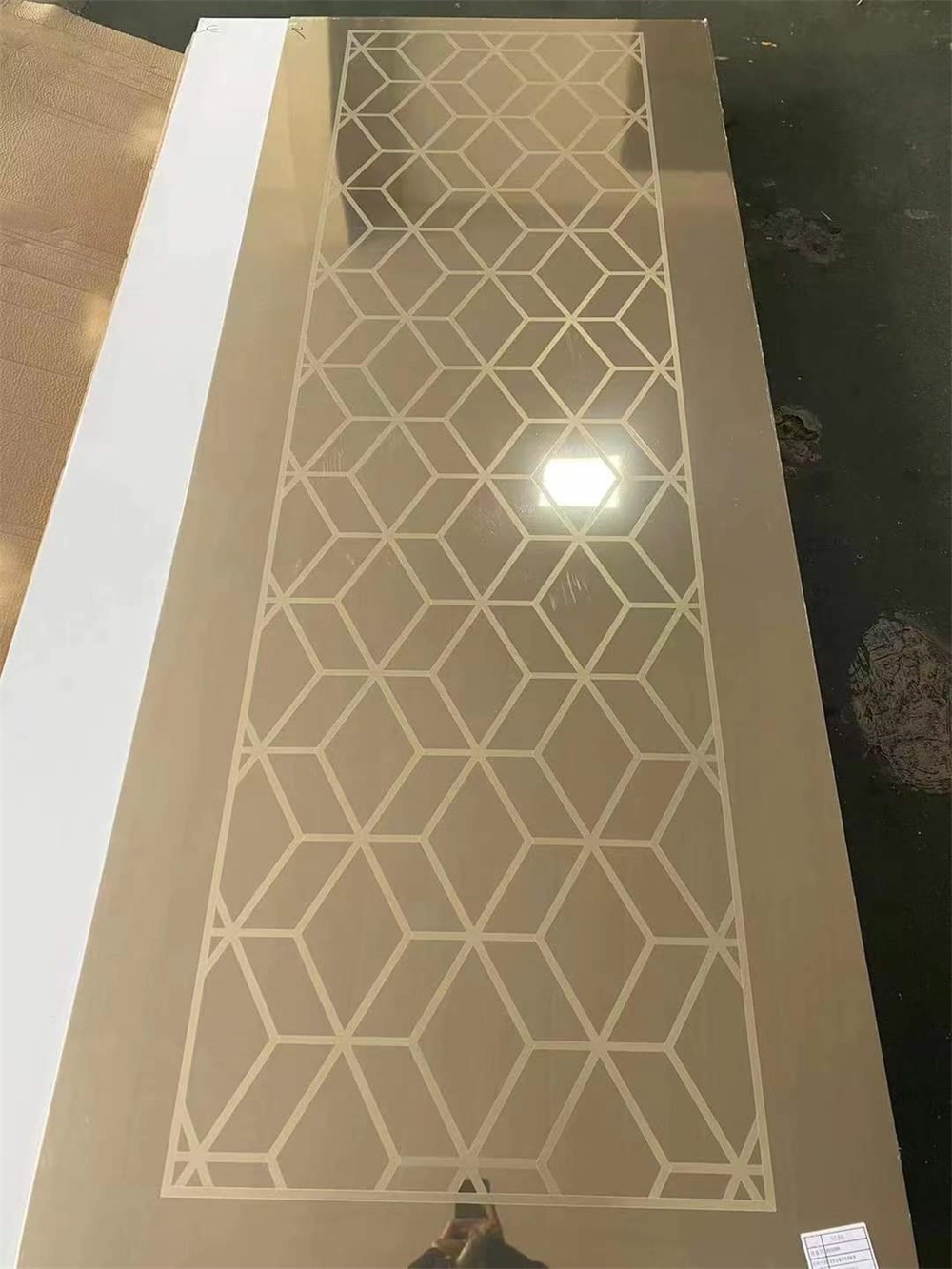

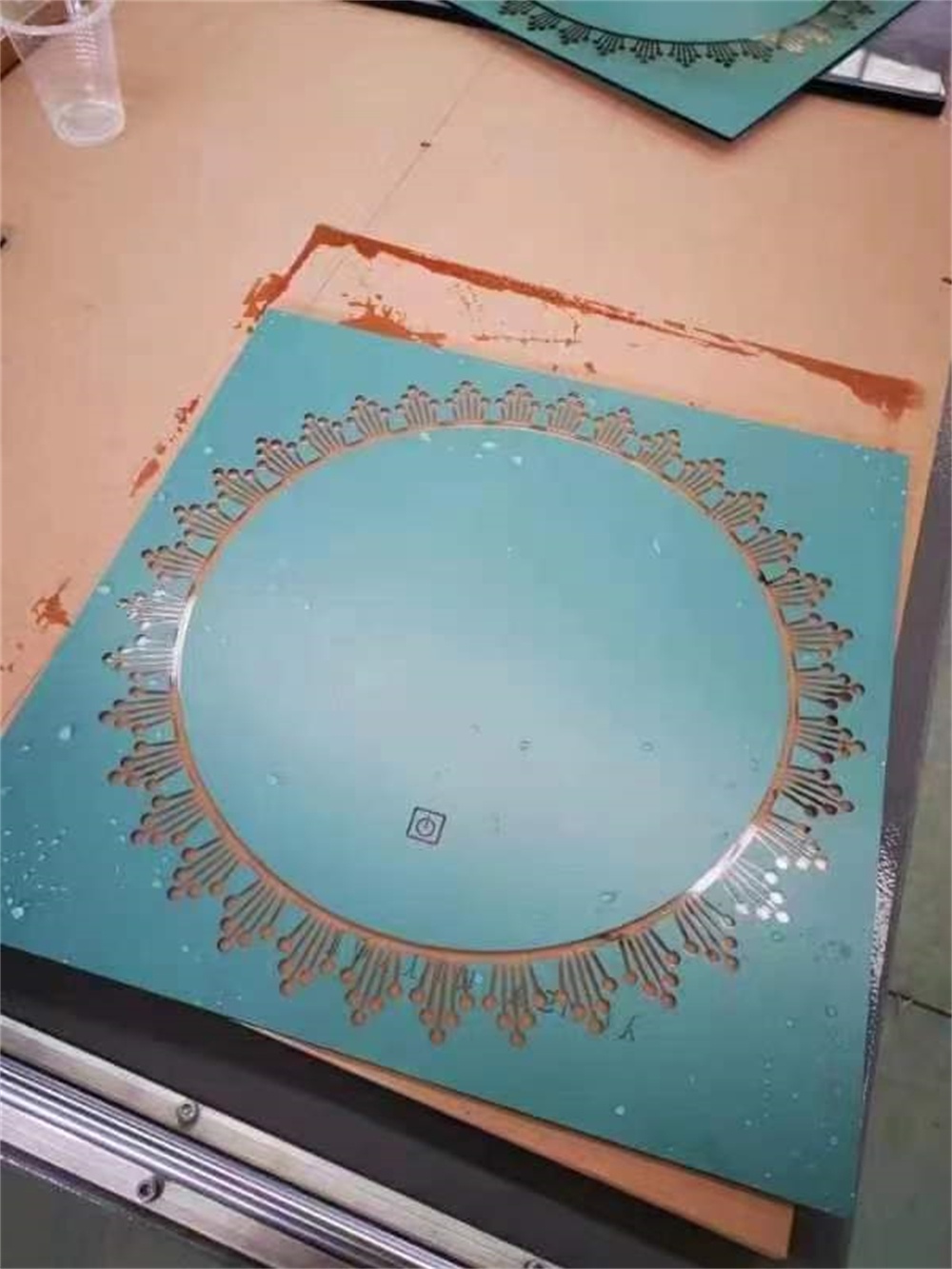

Suitable for large area fiber engraving works, for example mirrors, big metal plate, metal door, so ect, one time completed, no need separated works.

Videos:

https://youtu.be/SWx72qXSTxc

https://youtu.be/LNPM_A0xZCY

Specification:

XYZ working stroke 1300 * 2500 * 200mm

Repeated positioning accuracy ± 0.02mm

Gantry: Steel

Machine Weight: 700KG

Absolute value limit of bed

safety system for welding square tubes on the bed body

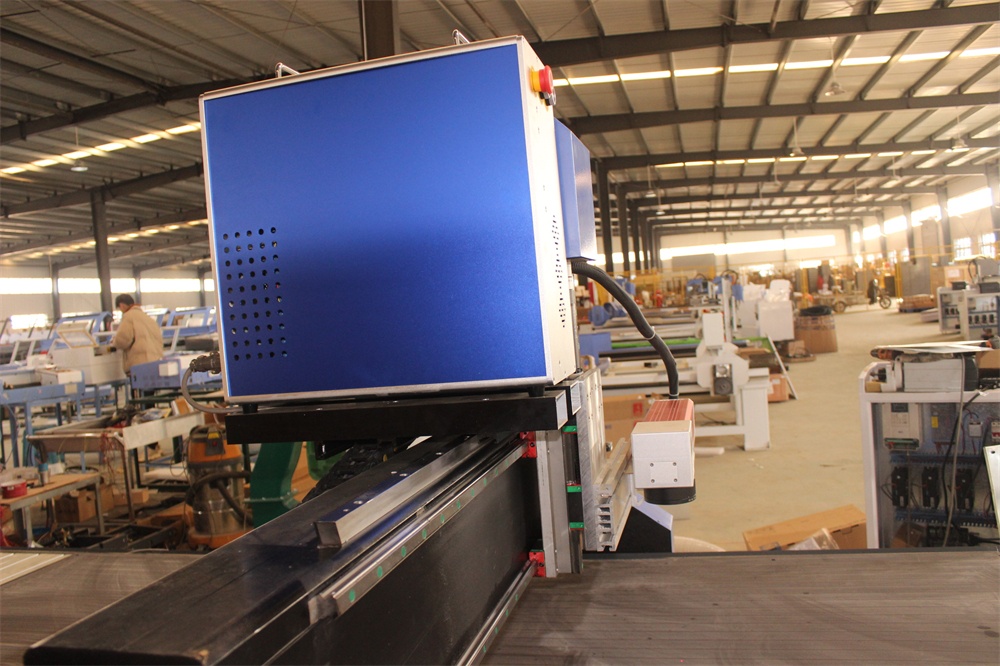

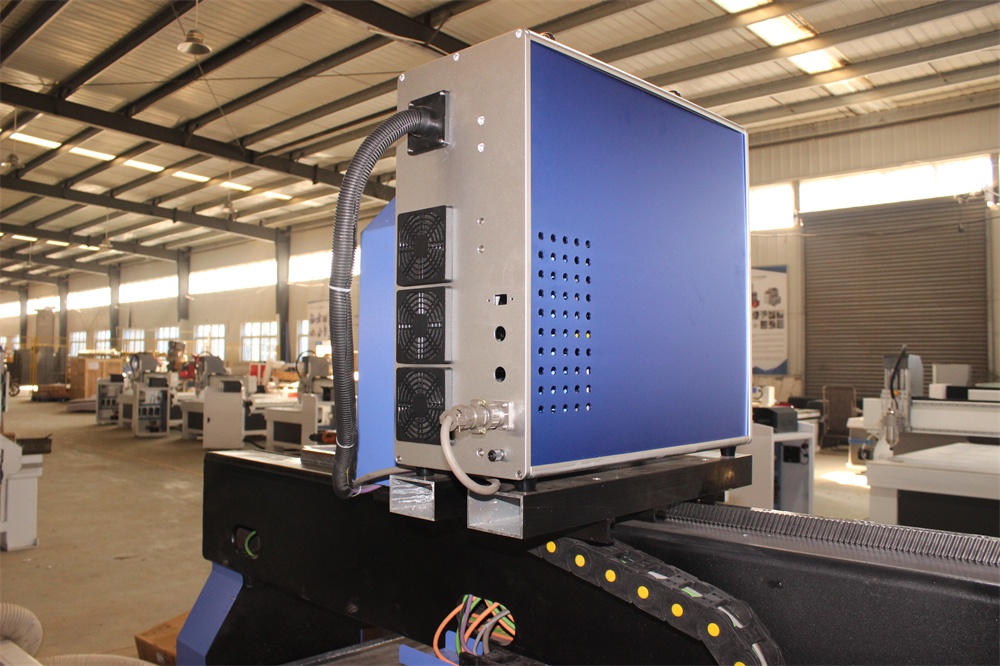

Laser power 50W Raycus laser (Support JPT 100W upgraded)

Computer system Win10 professional version( Computer Included, Directly use when get.)

Motor driver: 4 pcs 750W new generation pure servo motors+ drive

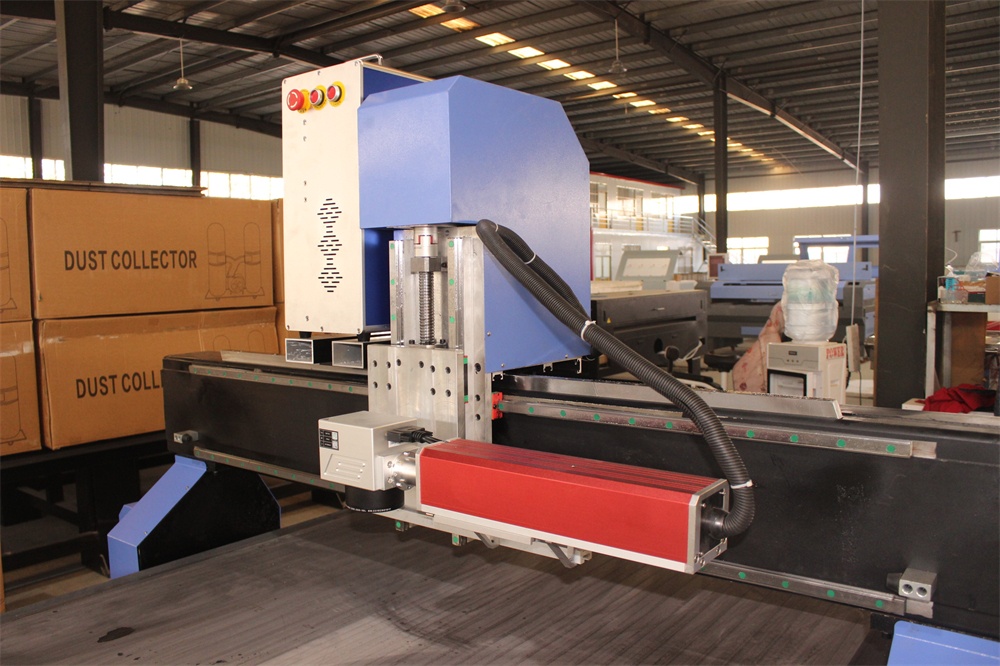

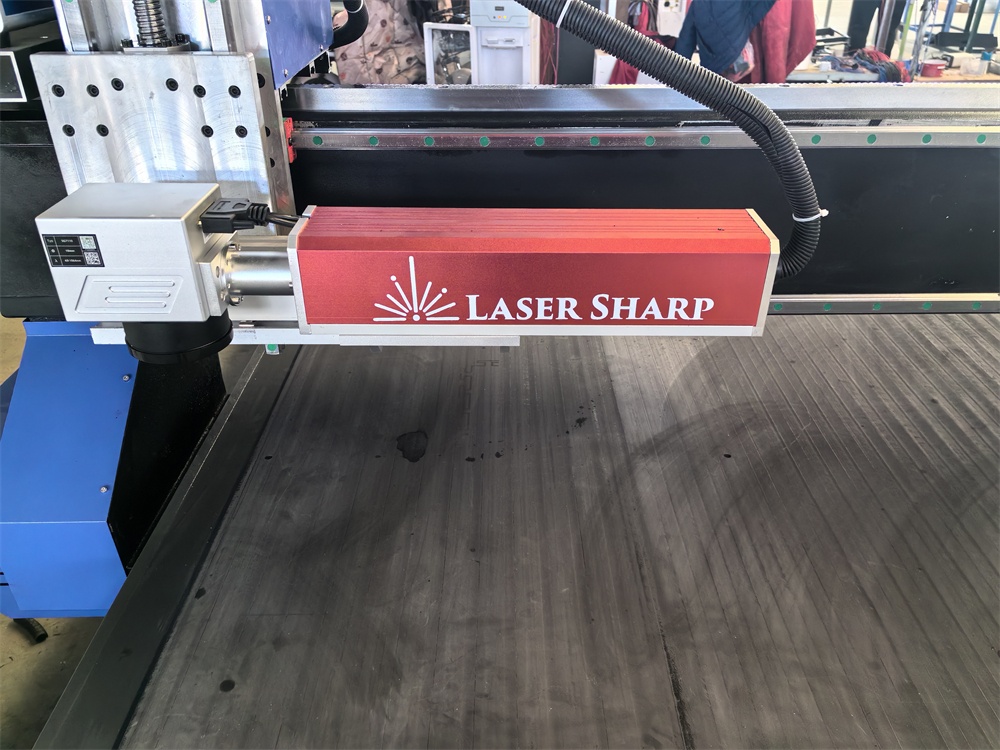

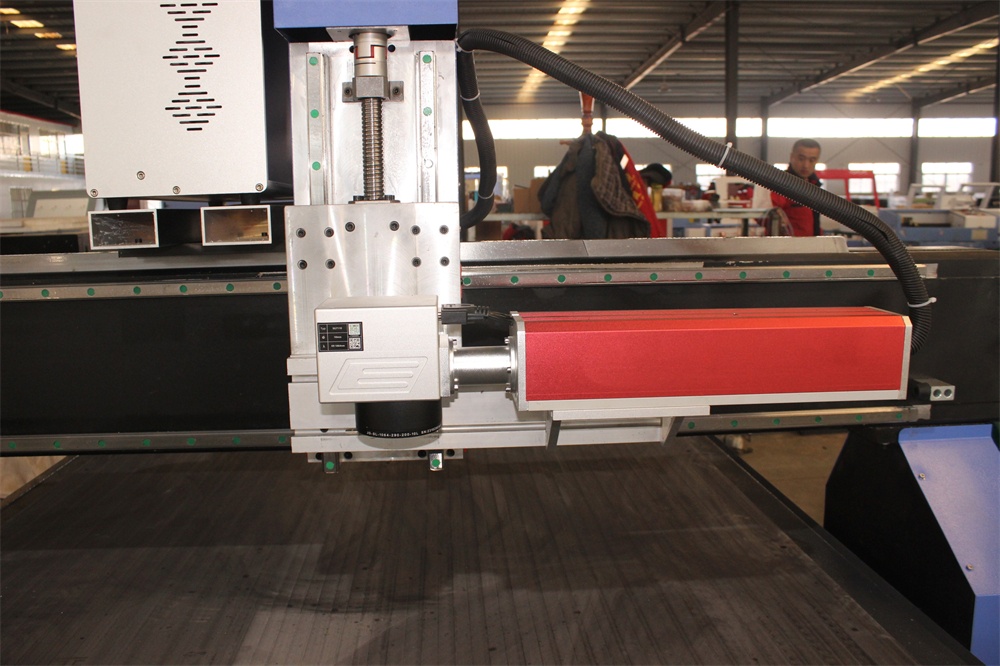

Galvanometer Sino-Galvo RC7110

Field lens 200*200mm

Gearbox information protection 1 to 10 times gearbox

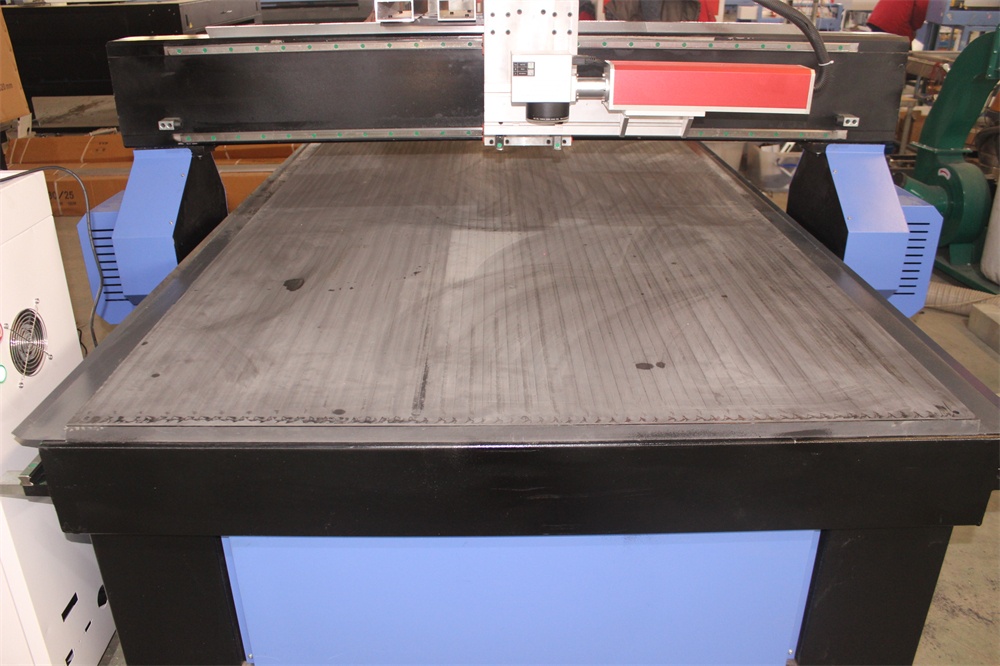

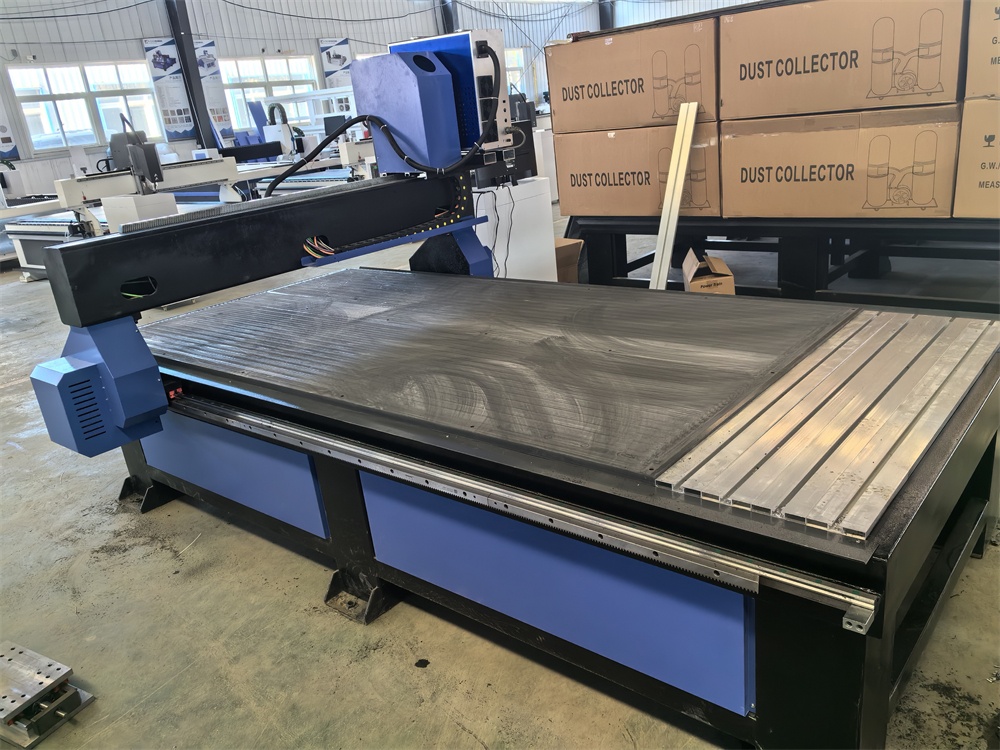

Platform: PVC high-density milling flat tabletop

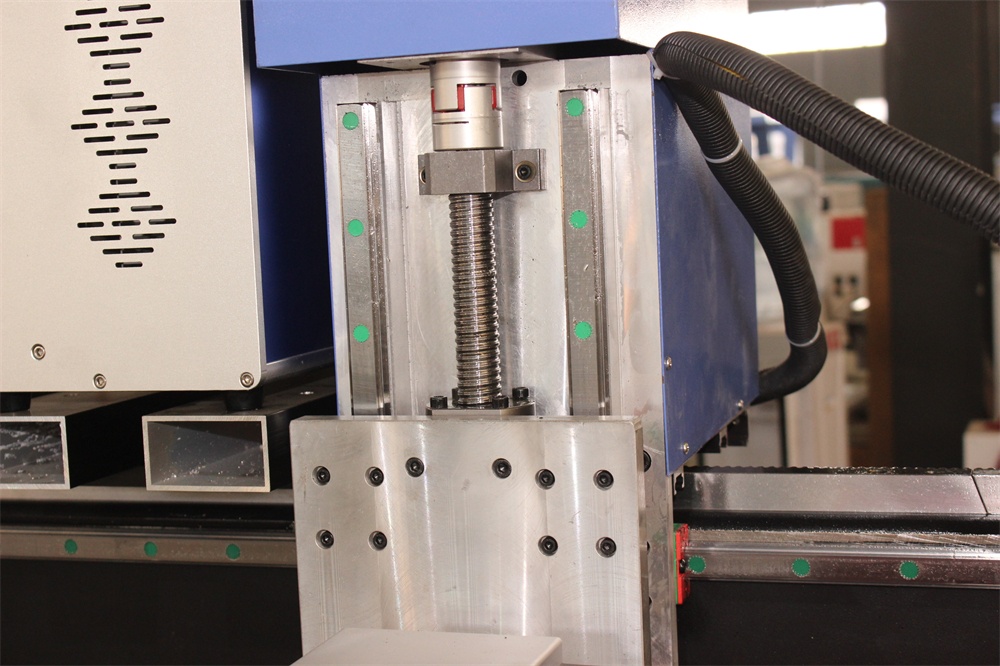

Transmission mode: high-precision grinding of helical teeth on the XY axis+high-precision TBI screw transmission on the Z axis

Guide rail: Taiwan high-precision 20 linear square rail

New generation customized cables for equipment cables

Control System New Generation Control System

Working voltage AC220V/50HZ

Software runtime environment Windows 98 XP 32-bit

Compatible with new generation control software, CAD drawing, CDR, precision carving, Wentai

Cabinet independent control cabinet ( Inlcuded)

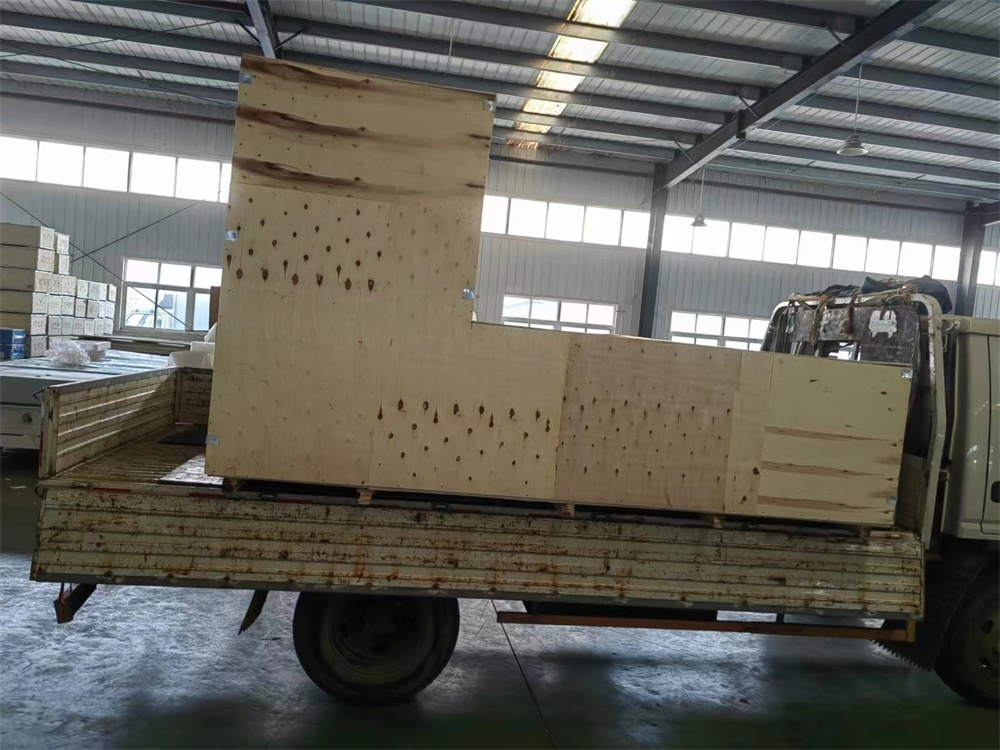

Package size: L type Woodern box / 341*224*183CM
