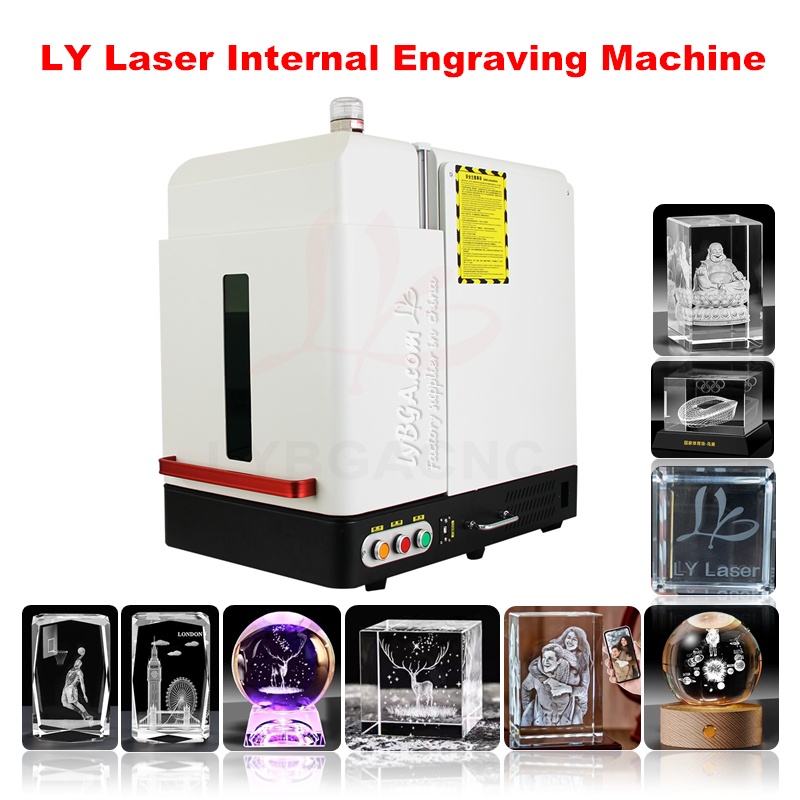

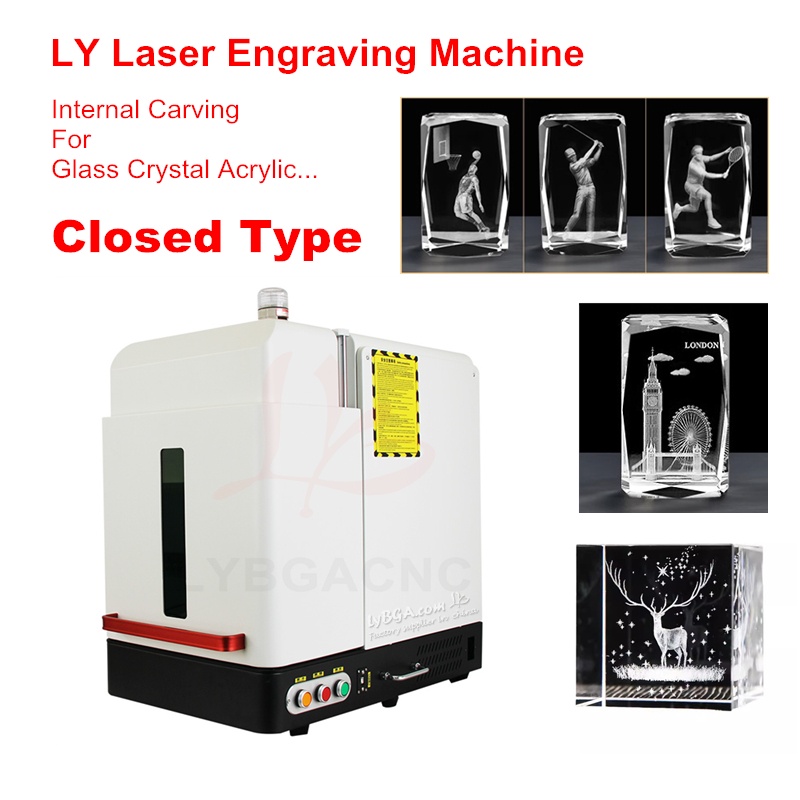

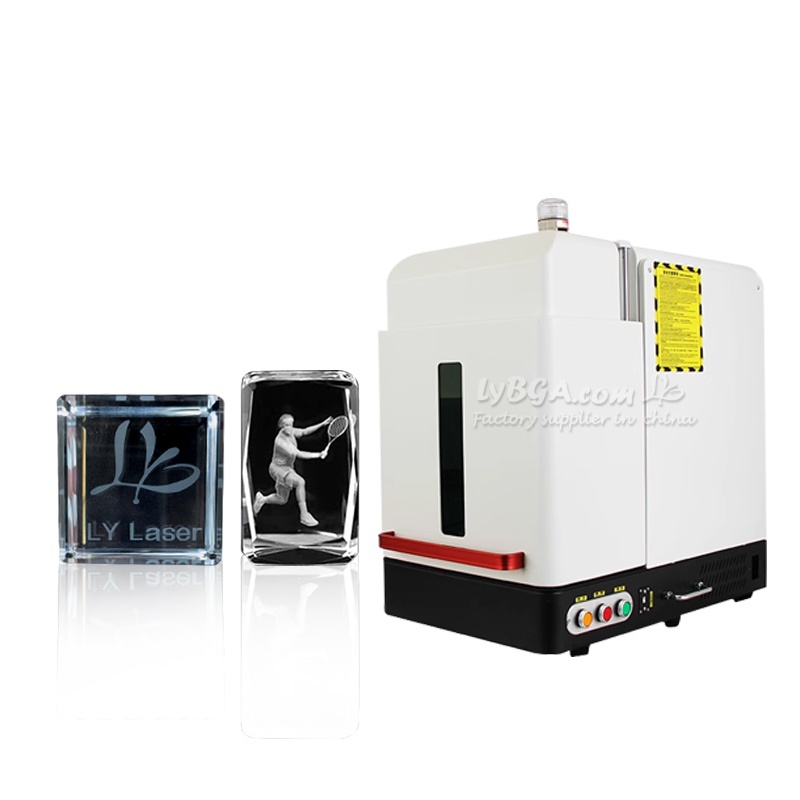

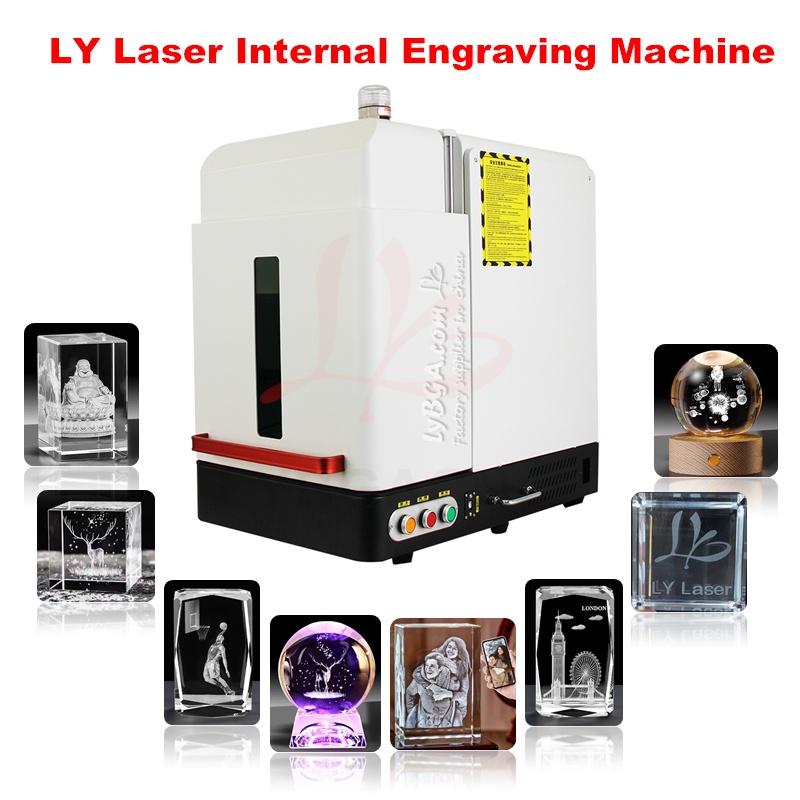

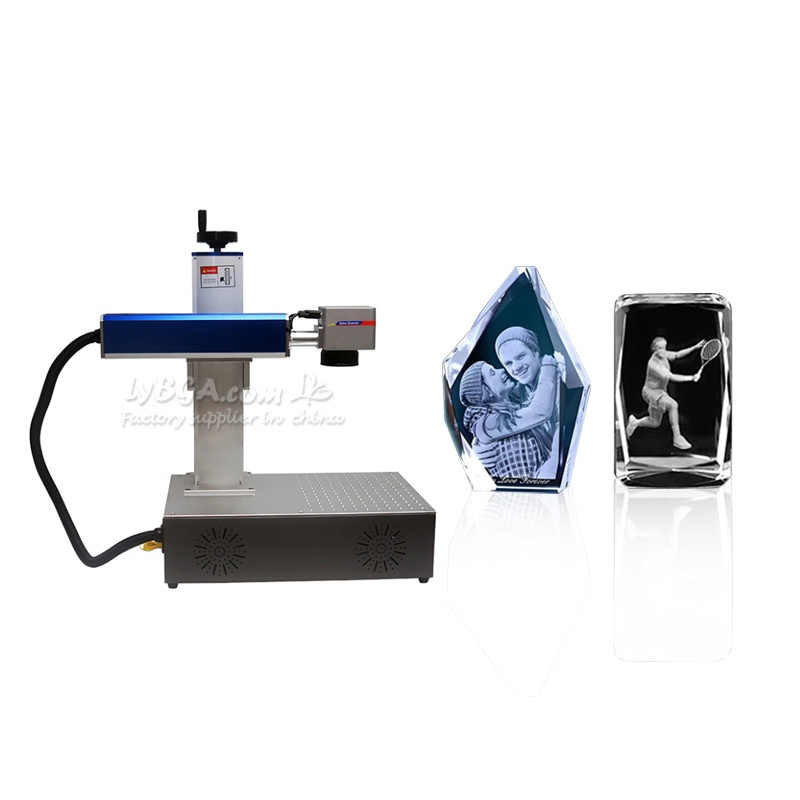

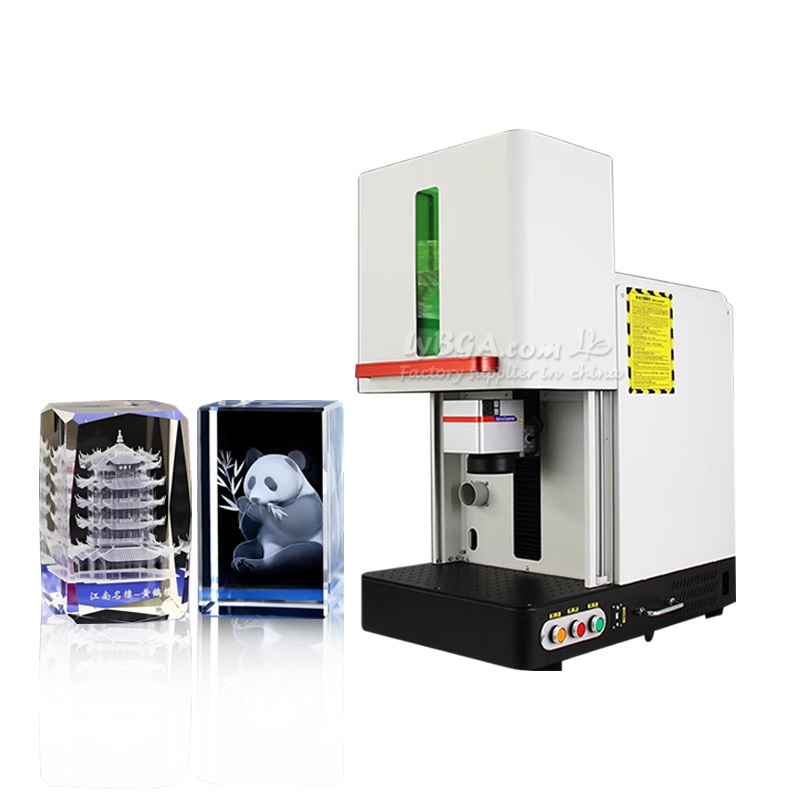

LY Laser Desktop Portable Mini 3D Glass Crystal Internal Carving 5W UV Purple Cold Light Laser Marking Machine 220V 110V
Reviews(0)
Product Detail
Product Tags
Product features:

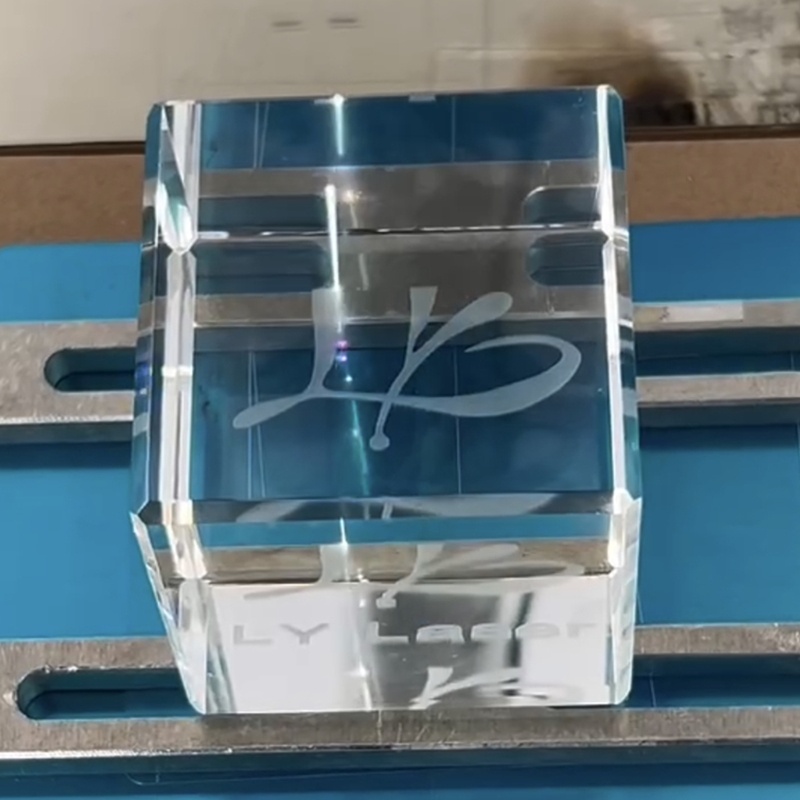

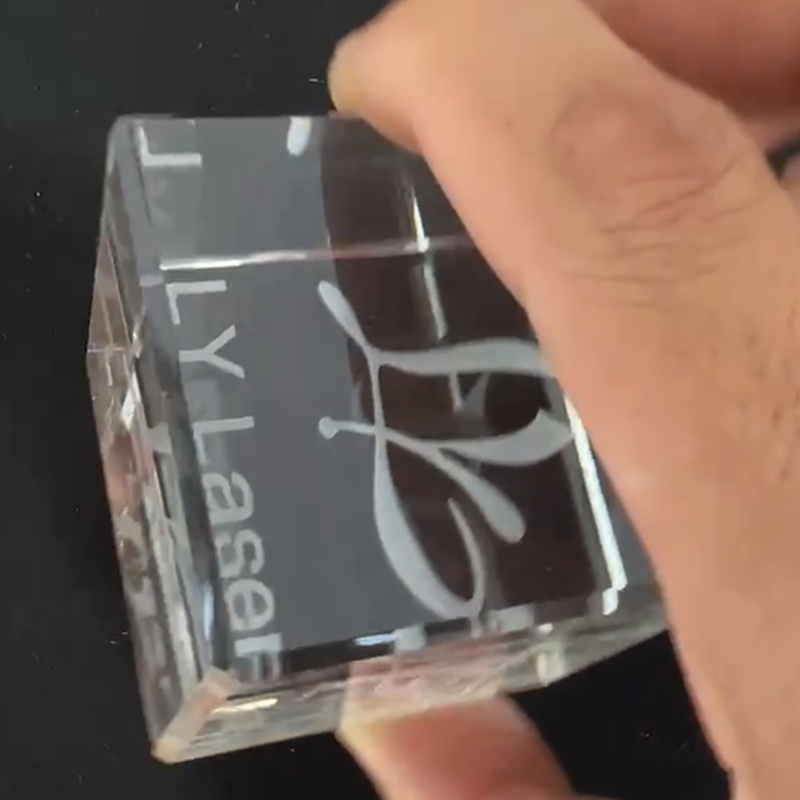

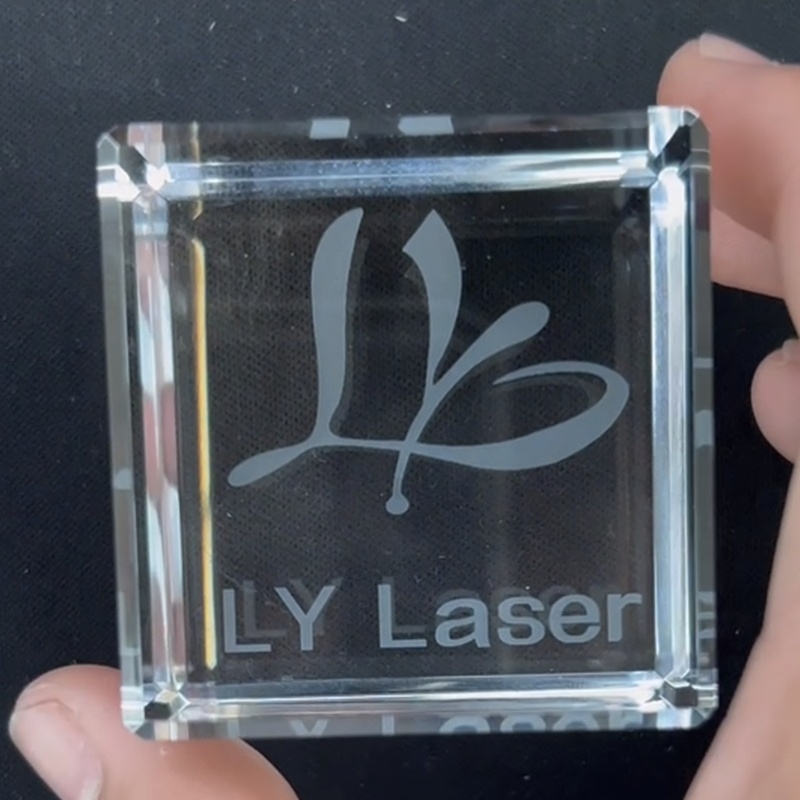

LY Laser independently developed high integration, high peak power laser can not only be used for internal carving of crystals or glass, but also for carving in most transparent materials;

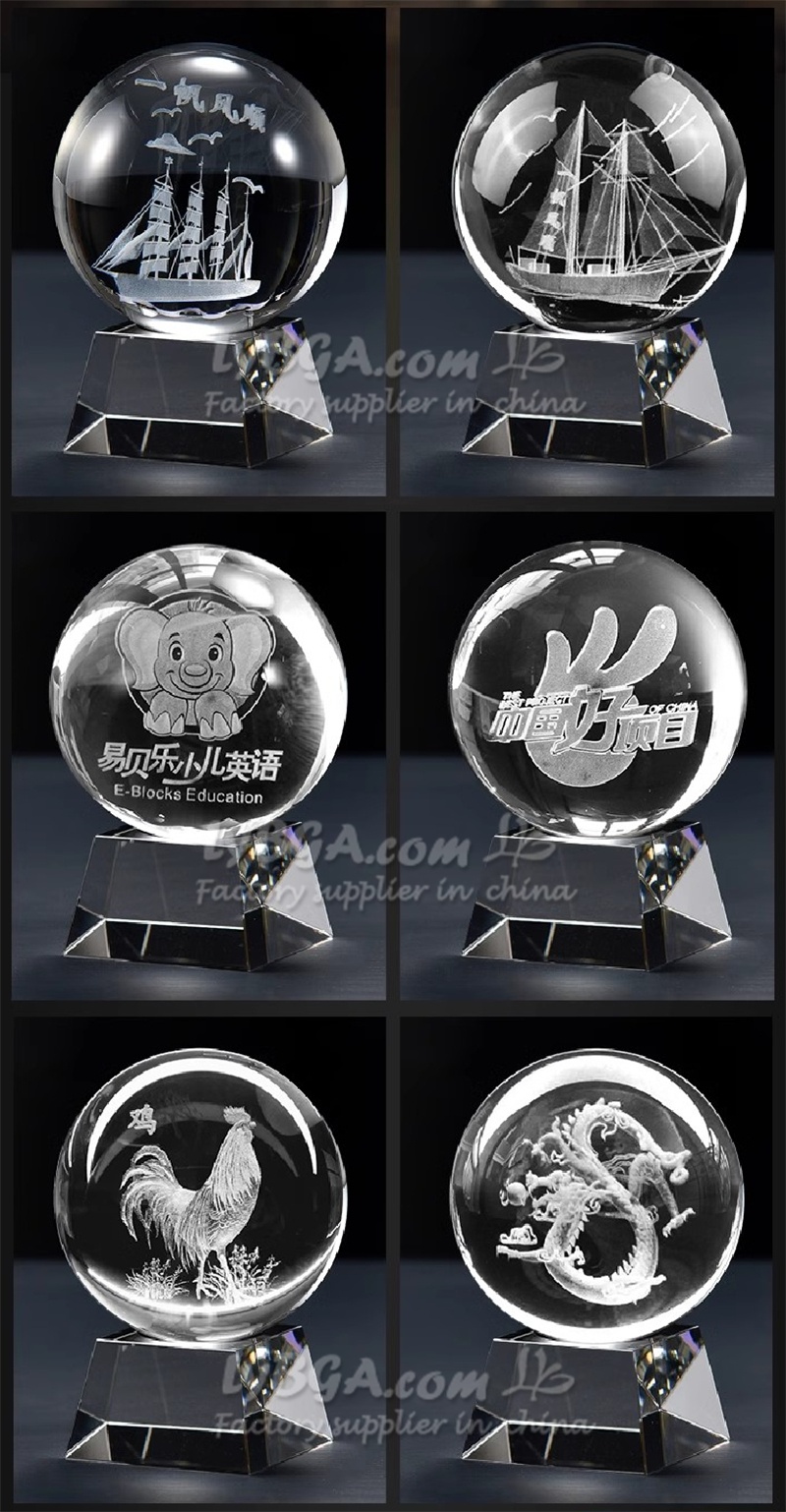

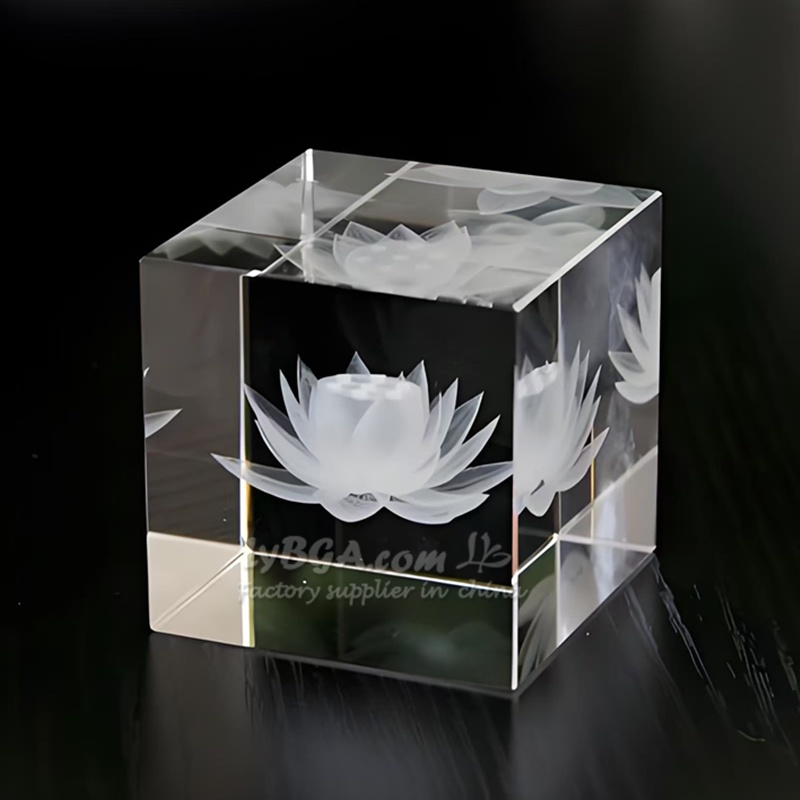

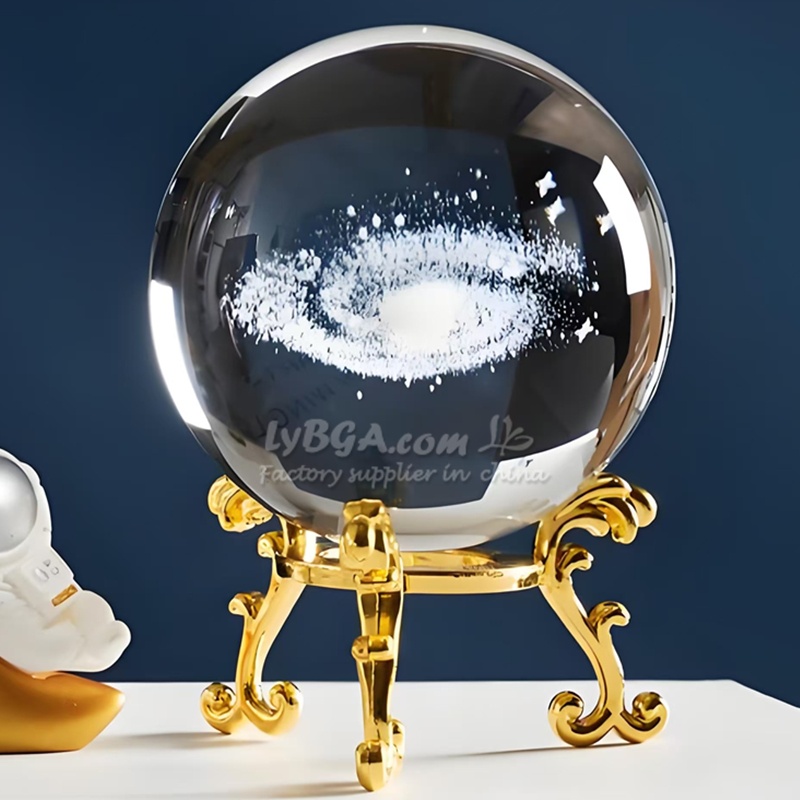

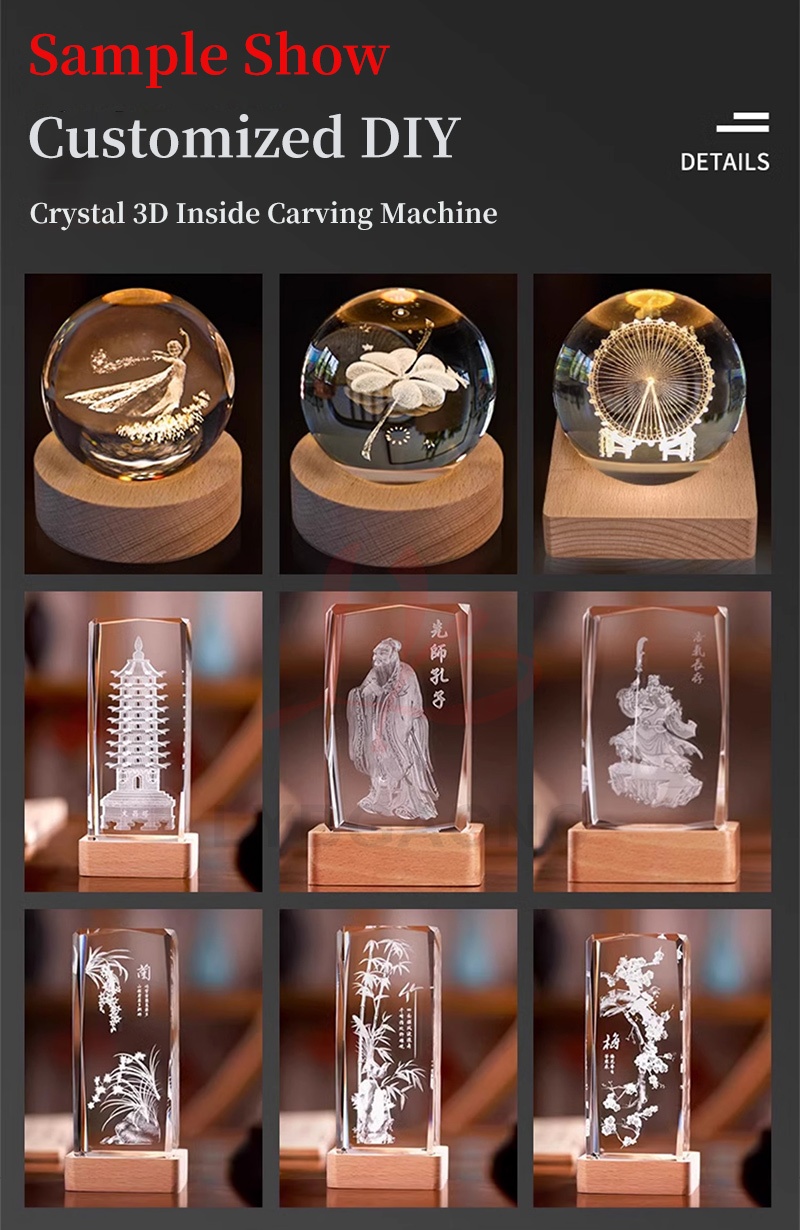

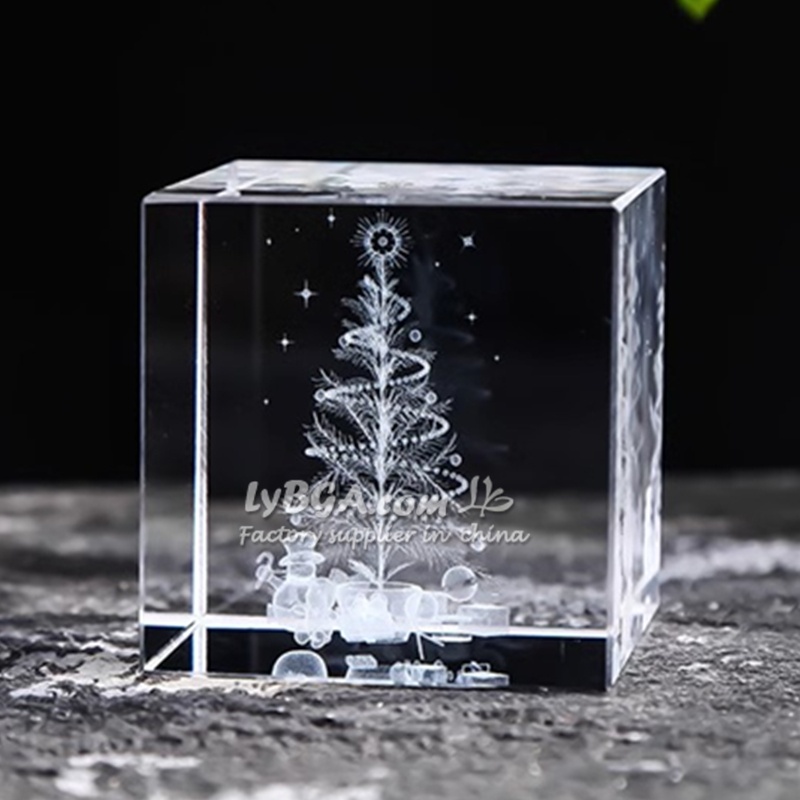

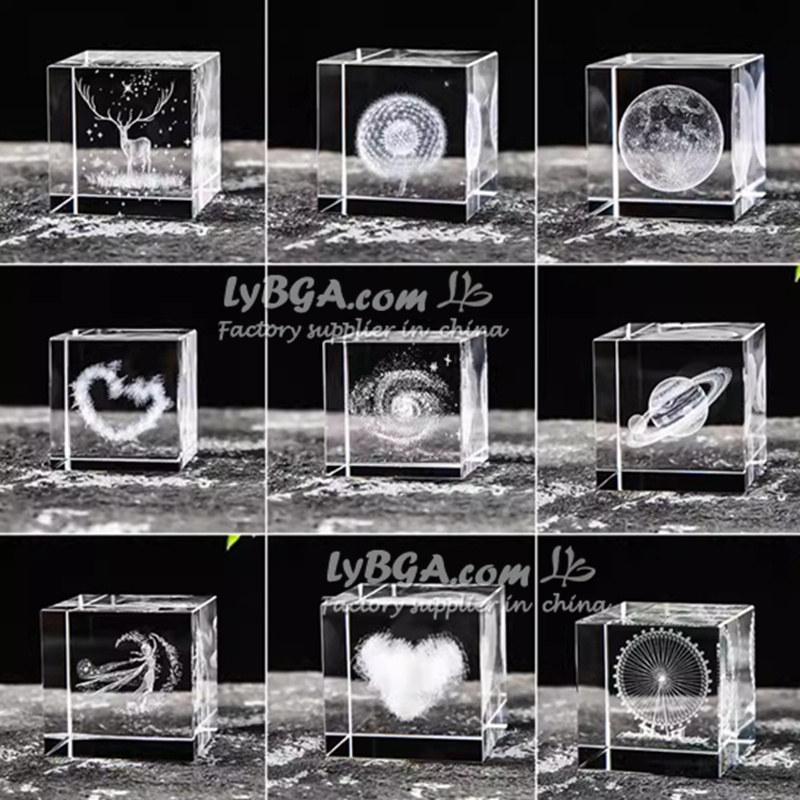

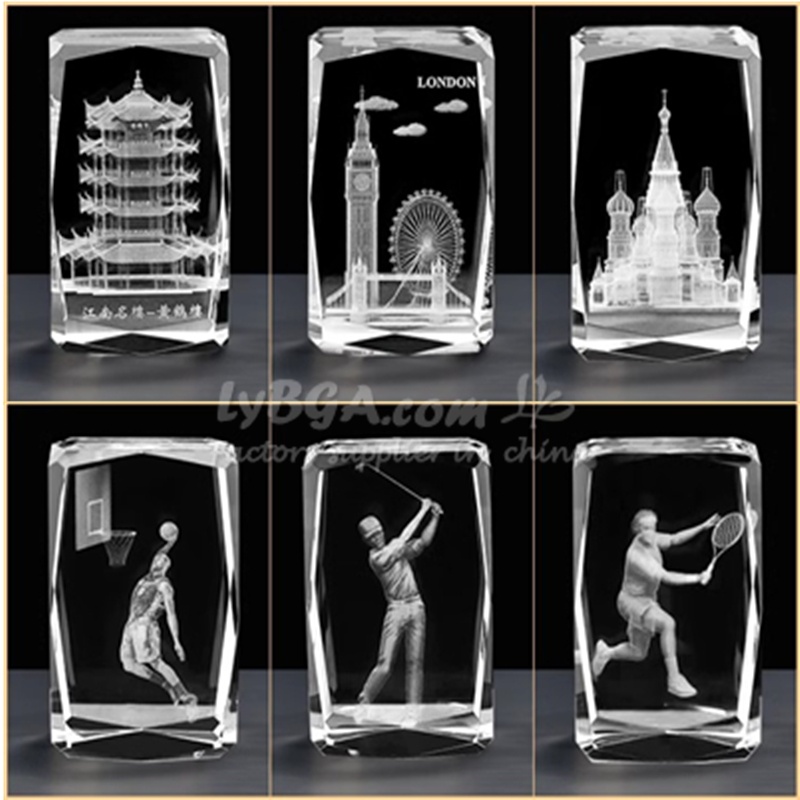

It can be widely used for internal carving of products such as crystals and glass, as well as surface marking of metal, non-metal and other materials.
We can customize equipment for customers according to their needs.

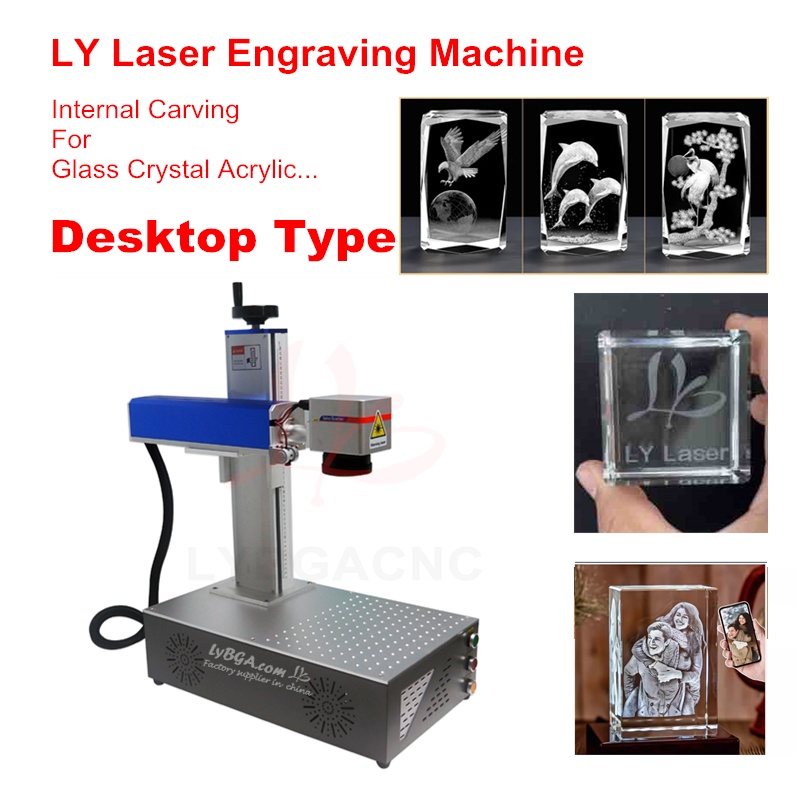

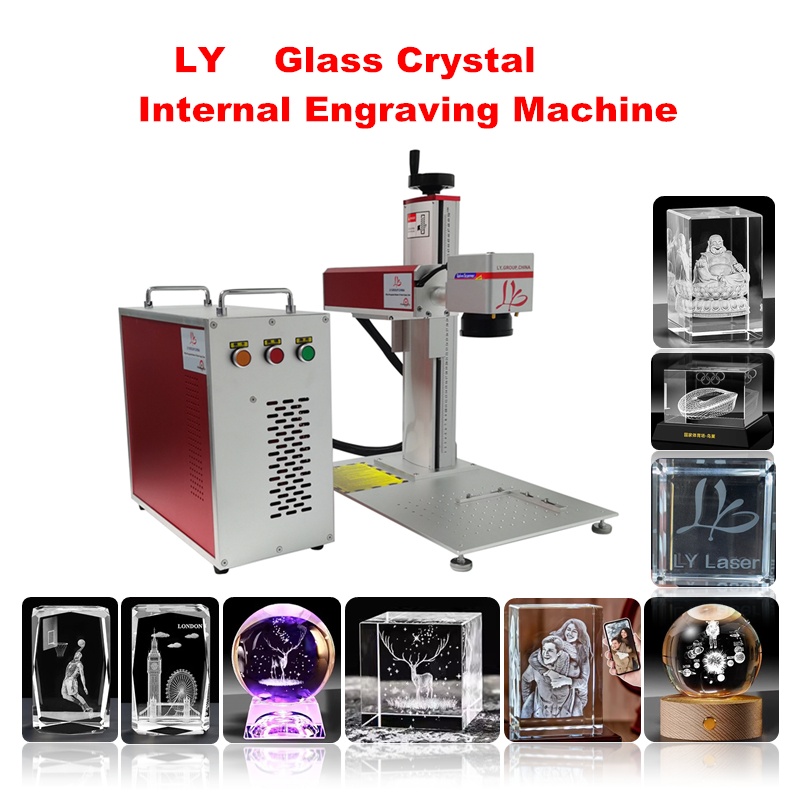

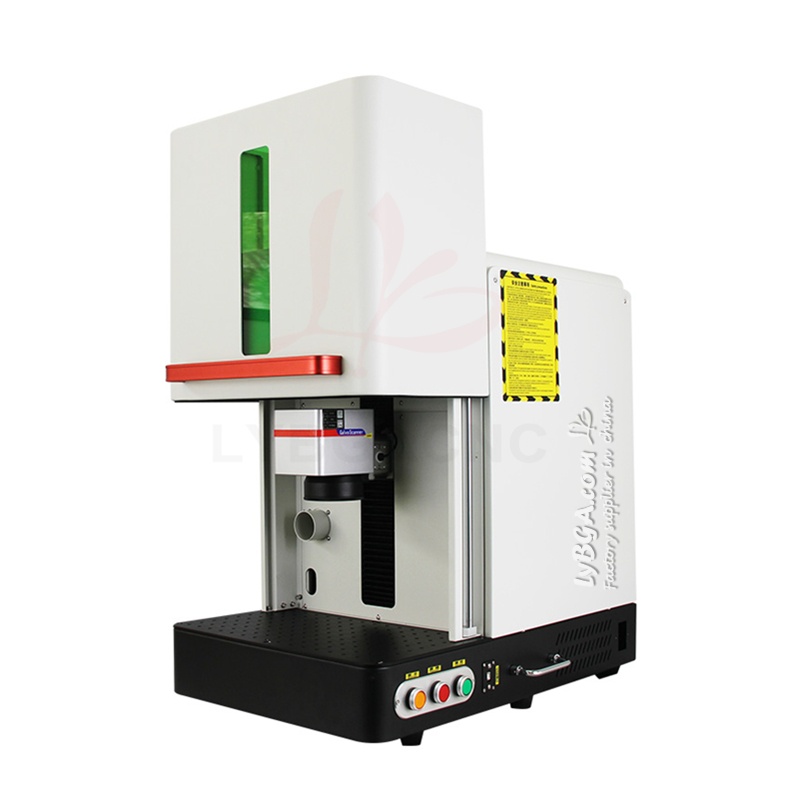

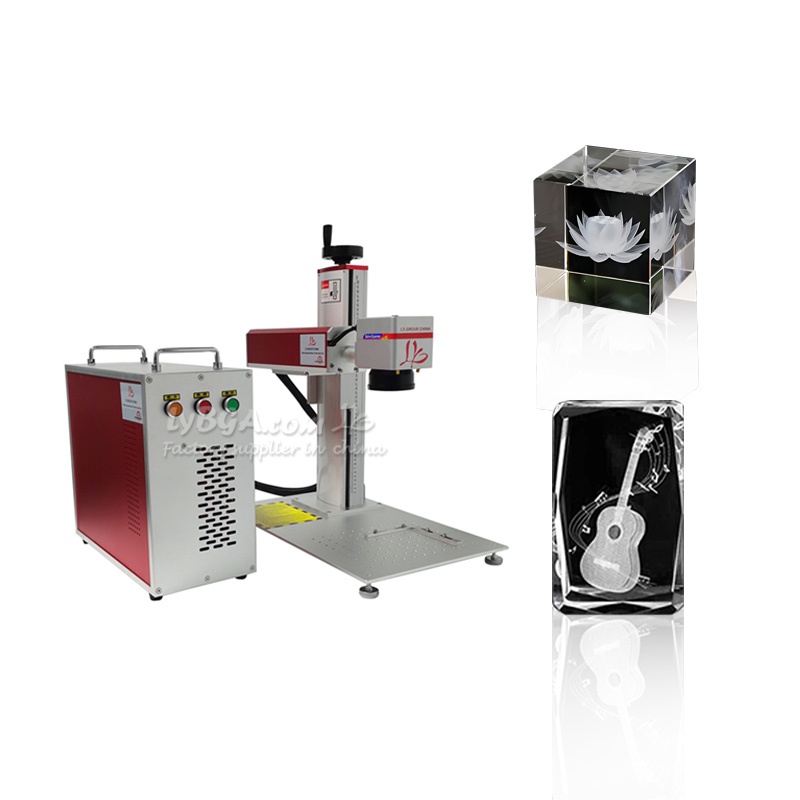

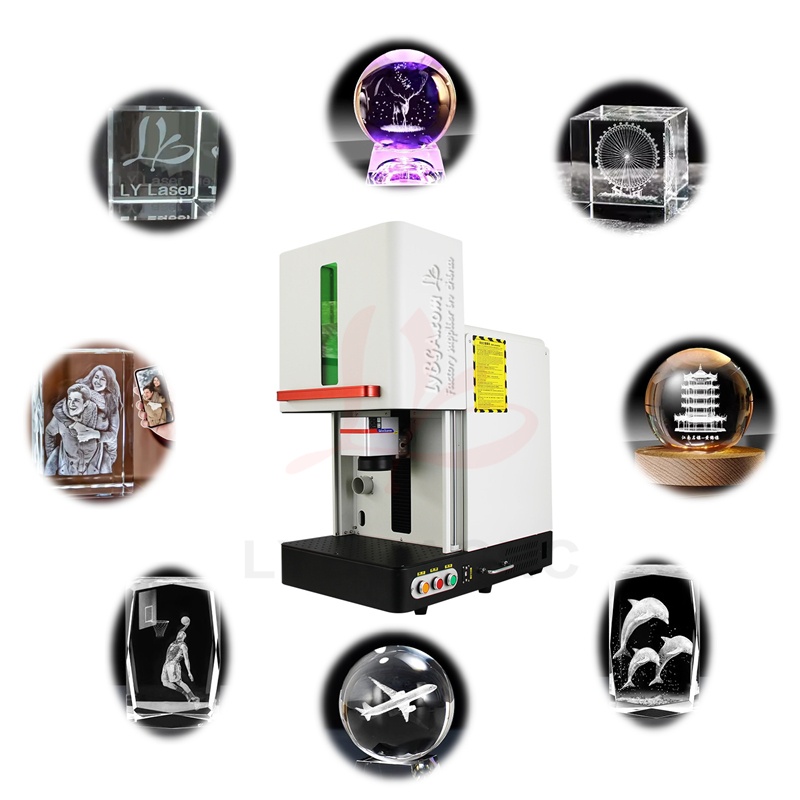

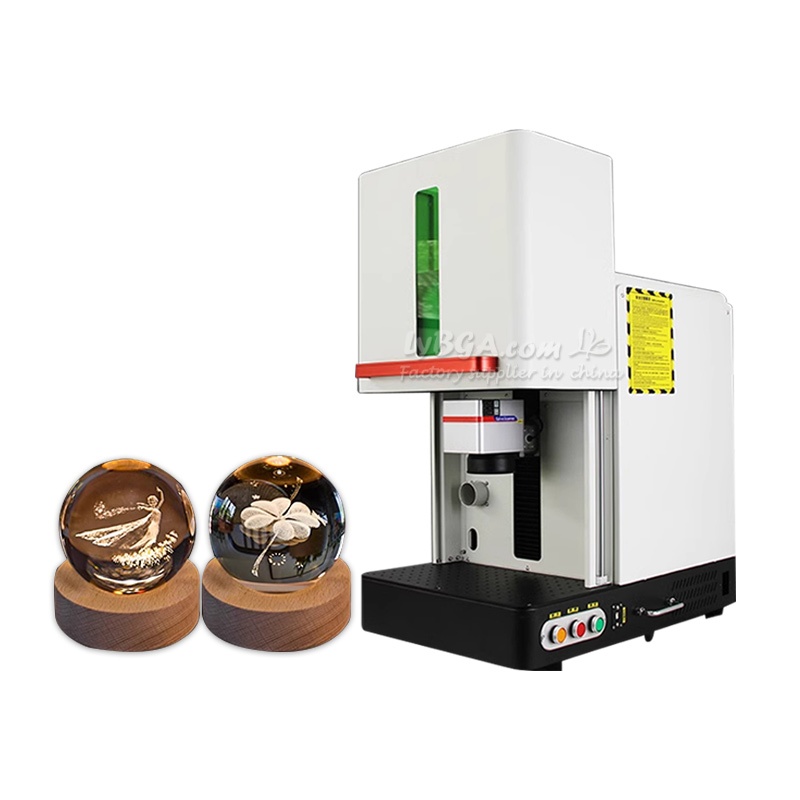

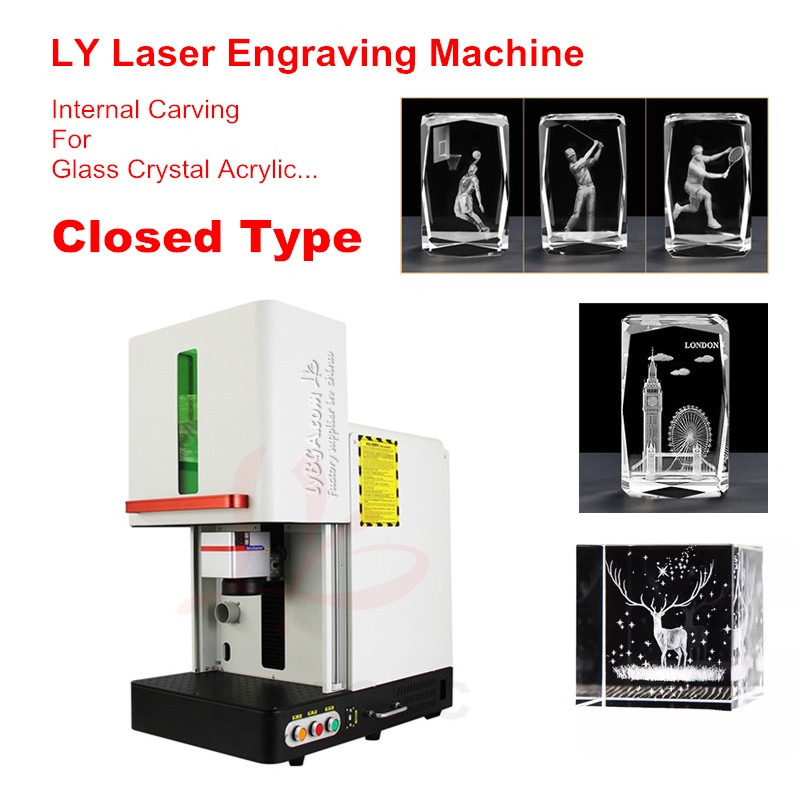

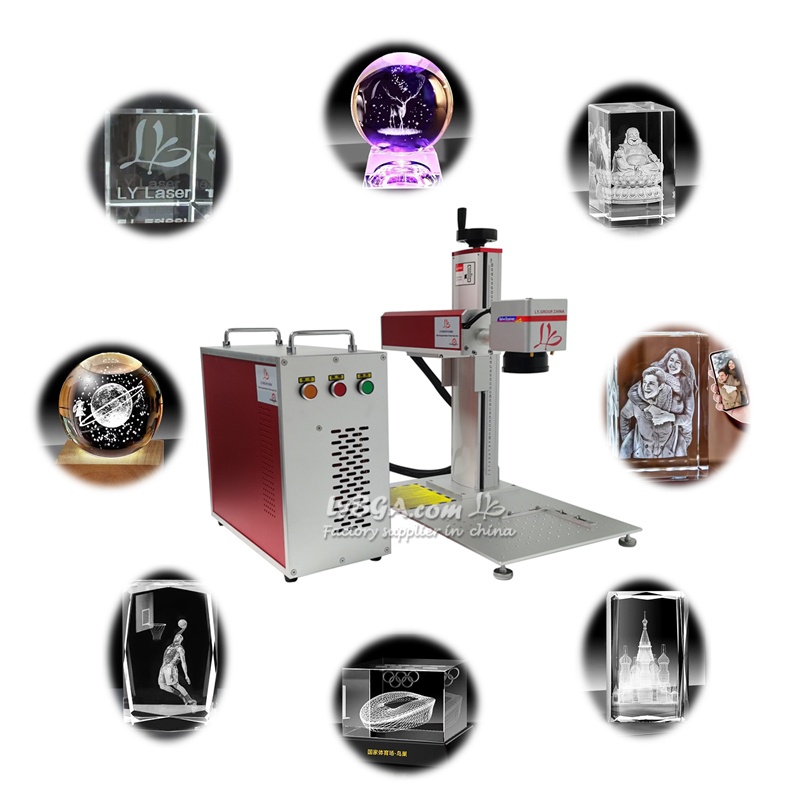

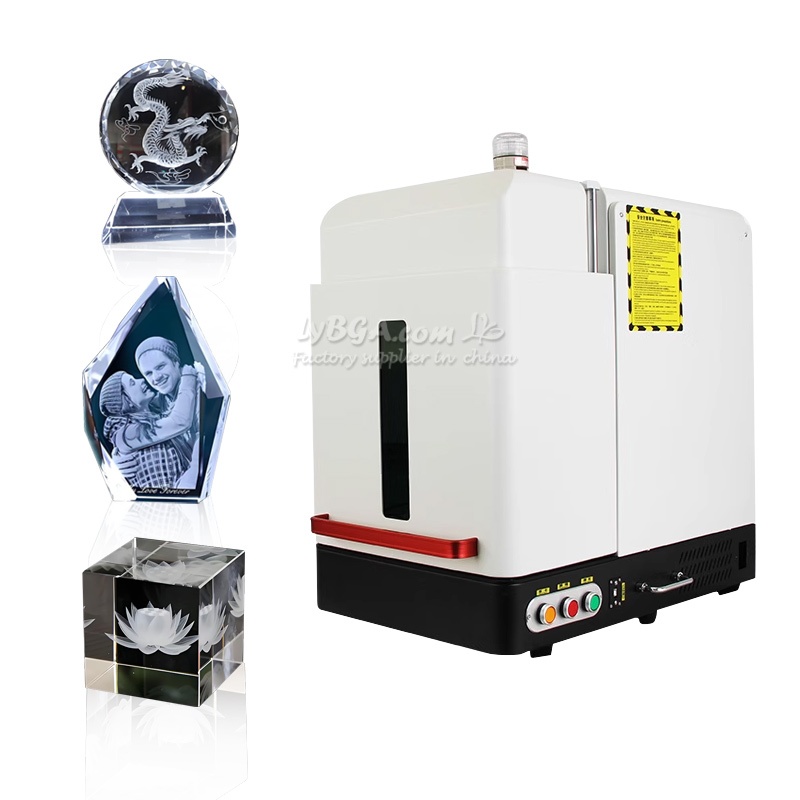

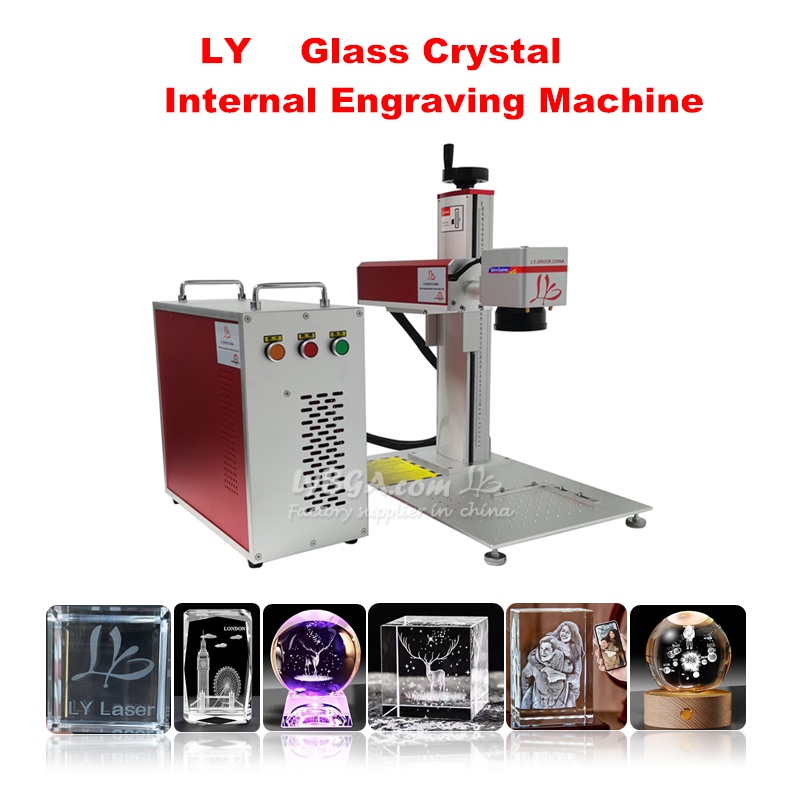

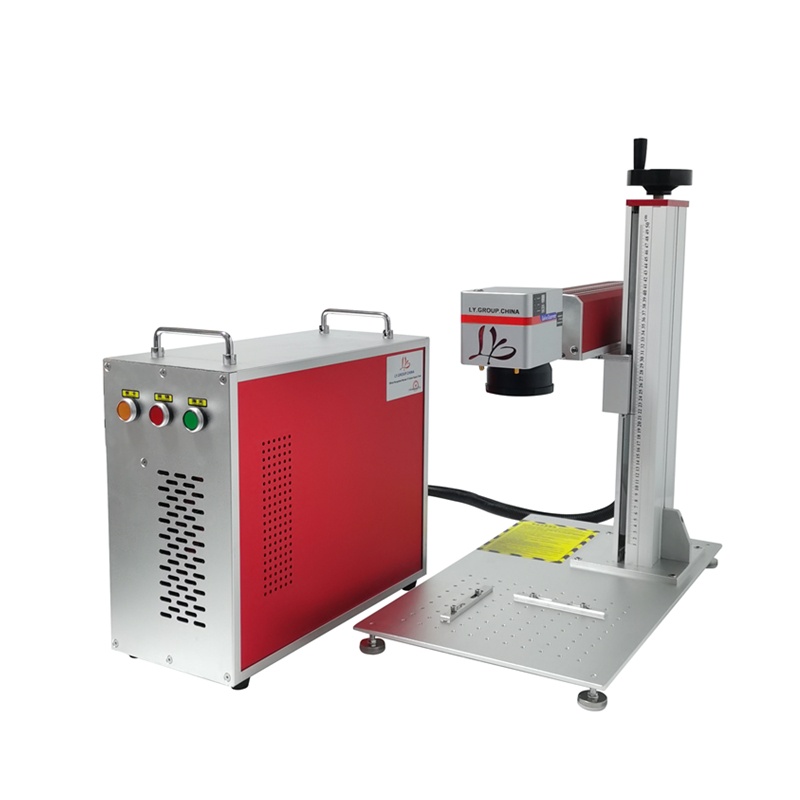

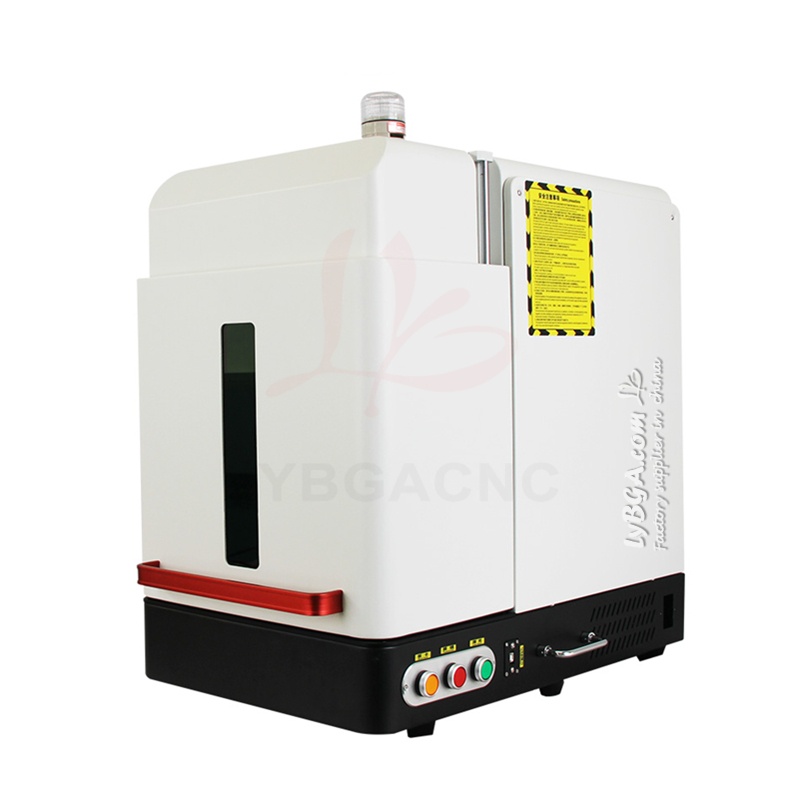

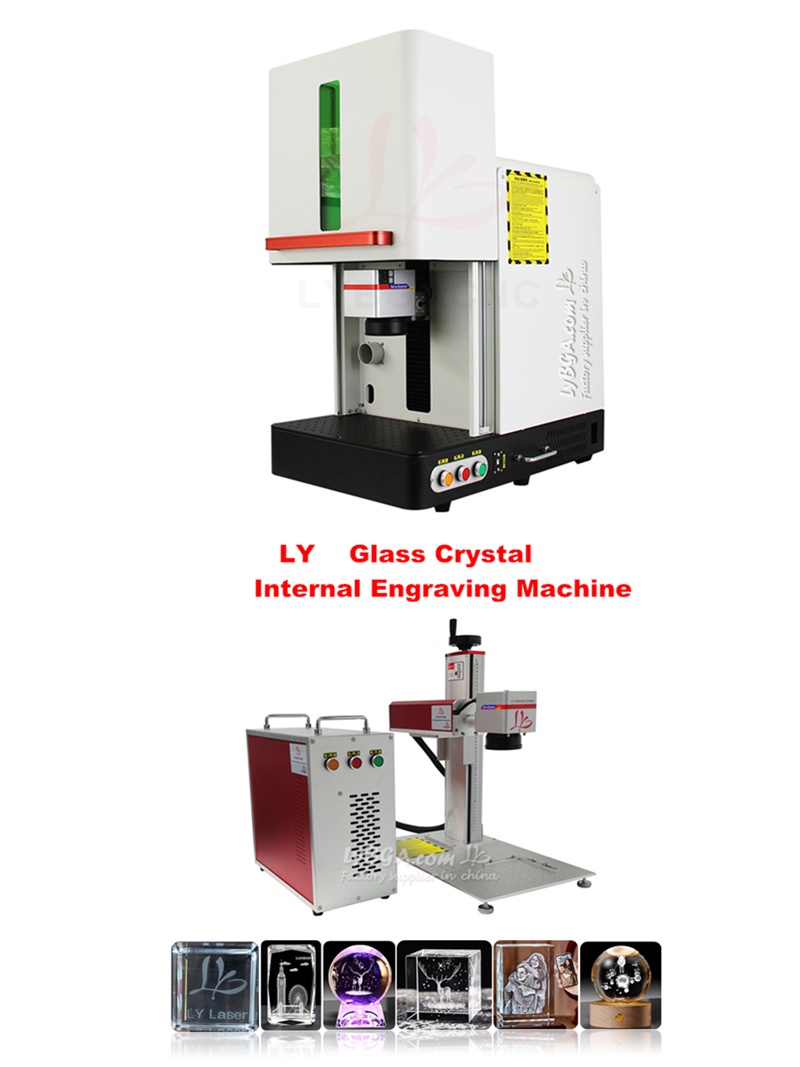

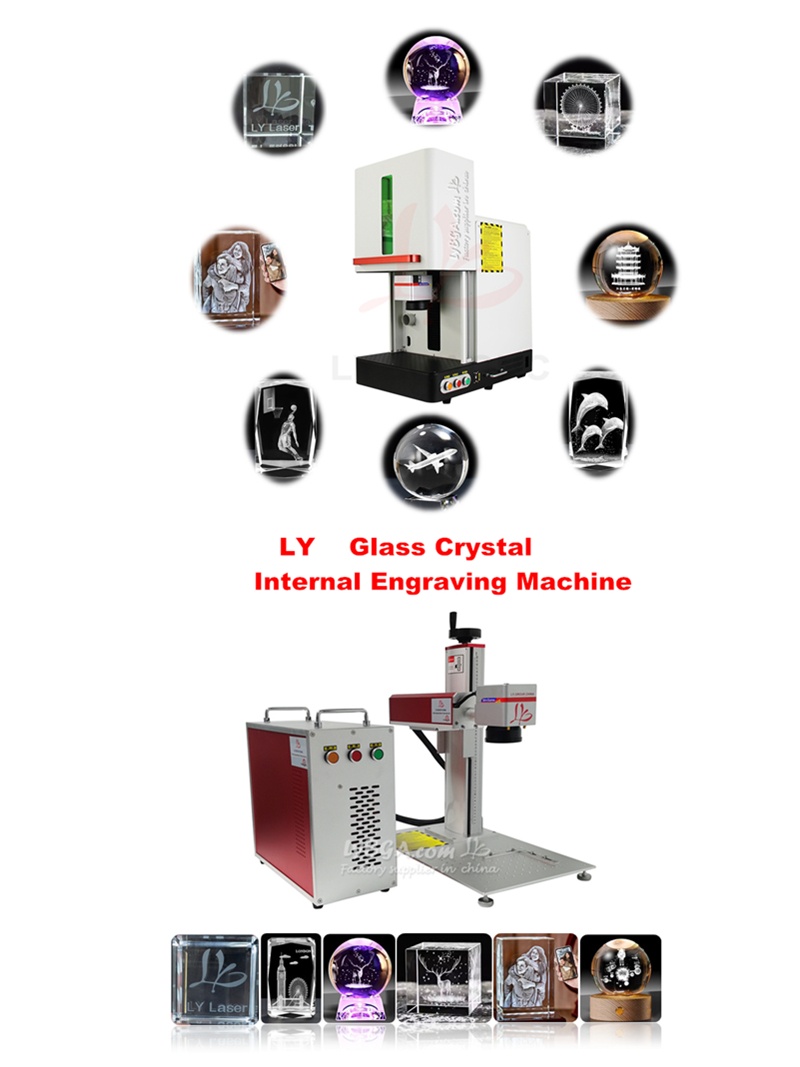

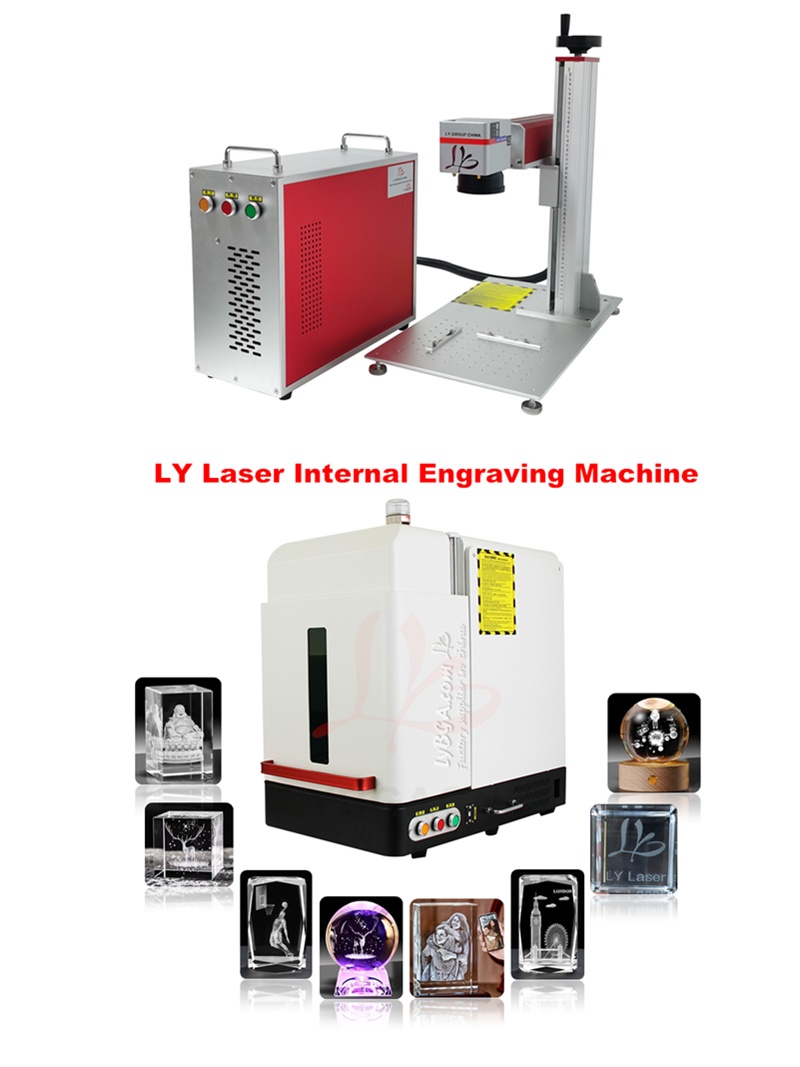

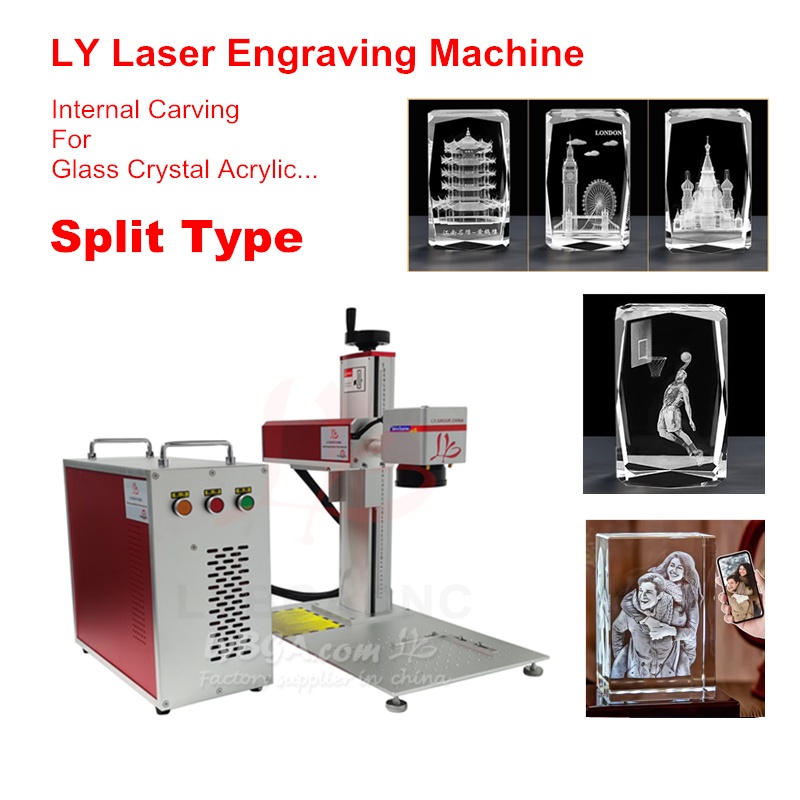

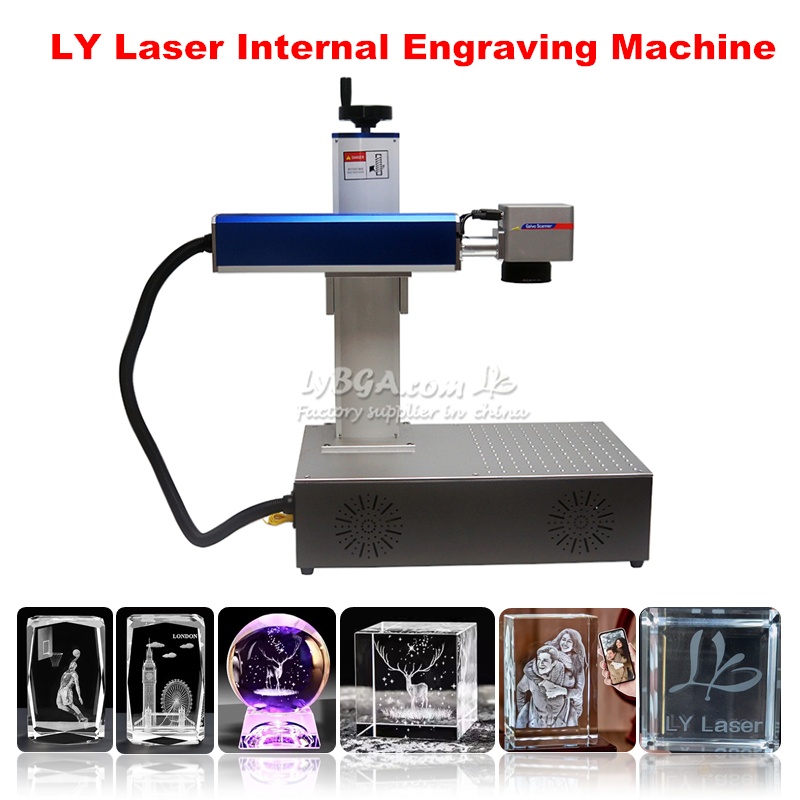

LY Laser Glass Crystal 3D Internal Carving Machine :
| Power | 5W /10W |
| Engraving area | 70*70mm (Optional less than 110mm) |
| Wavelength | 355nm |
| Beam quality | m2<1.2(TEMOO) |
| Laser output power | 0-100% successive use |
| Align | Double Red point auto focus |
| Marking type | Dynamic/Static |
| Engraving depth | <=0.4mm |
| Engraving speed | <=10000MM/S |
| Minimum width | 0.1MM |
| Minimum character | 0.15MM |
| Pulsh width | 13-82NS |
| Power stability | <+-2%RMS |
| Repeat frequency | 20KHZ-150KHZ |
| Light diameter | <0.6MM |
| Marking speed | 800 characters/second |
| Mini width | <0.005mm |

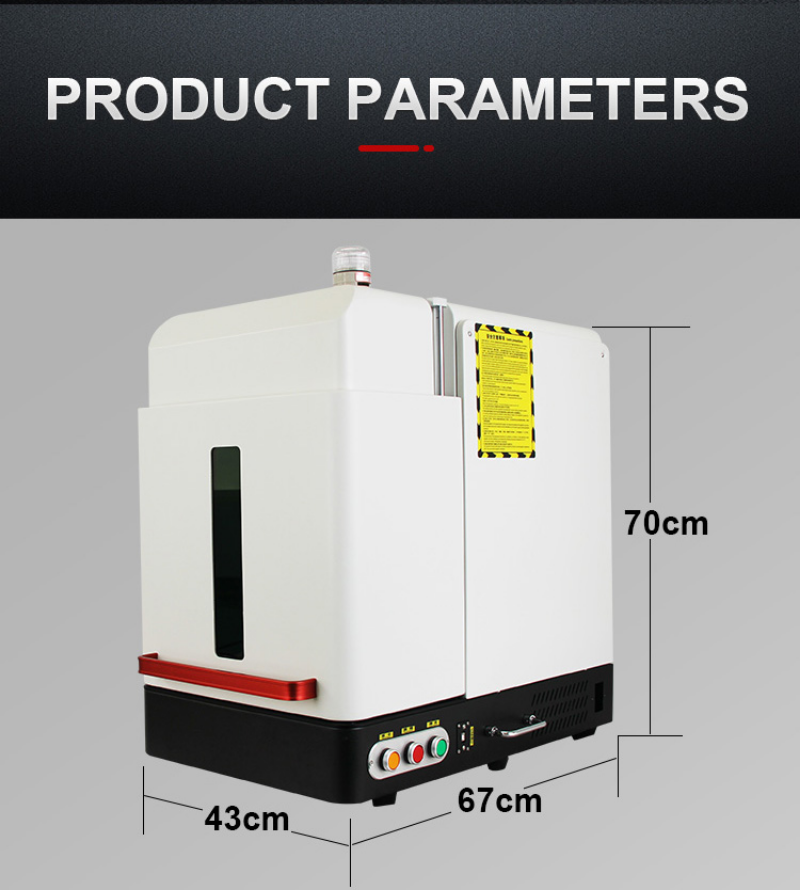

| Out size | |
| Gross weight | 60~100KG |
| Laser head | Solid violet fiber laser (Brand: PulseX) |
| Cooling | Water cool |
| Work circumstance | Win XP |
| Connect way | USB |
| Power | 220V / 110V |
| Laser module lifetime | 50K hours |
RE: We are high recommend customer to buy machine with special UV marking machine use cool chiller together, water cool is better for tube maintenance, air cool cannot last working for long time, and other model cool chiller also cannot get best effect.
Thanks for your order!

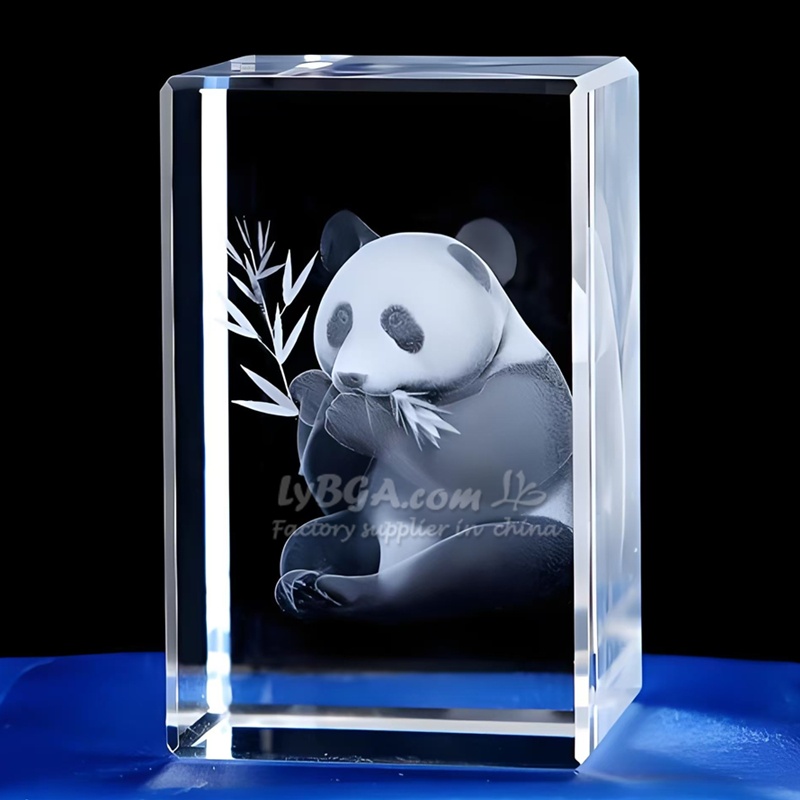

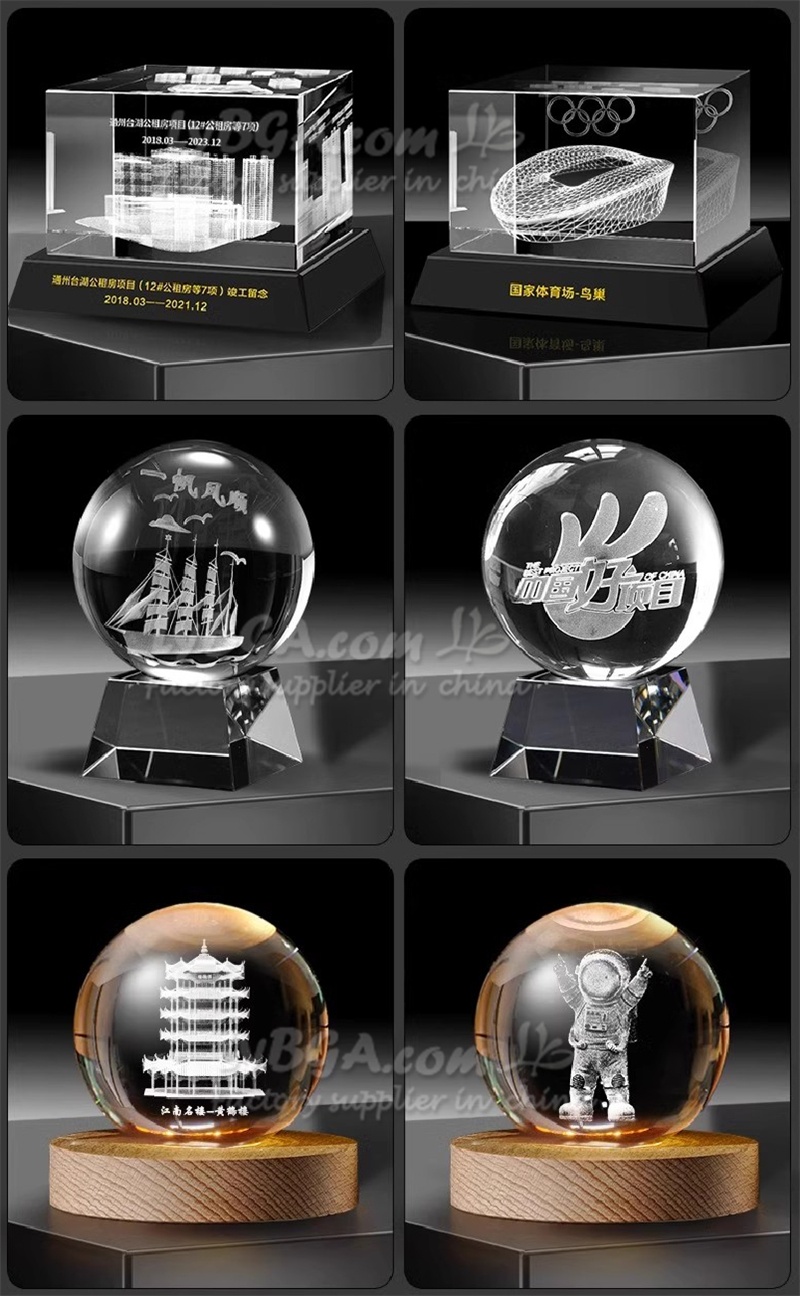

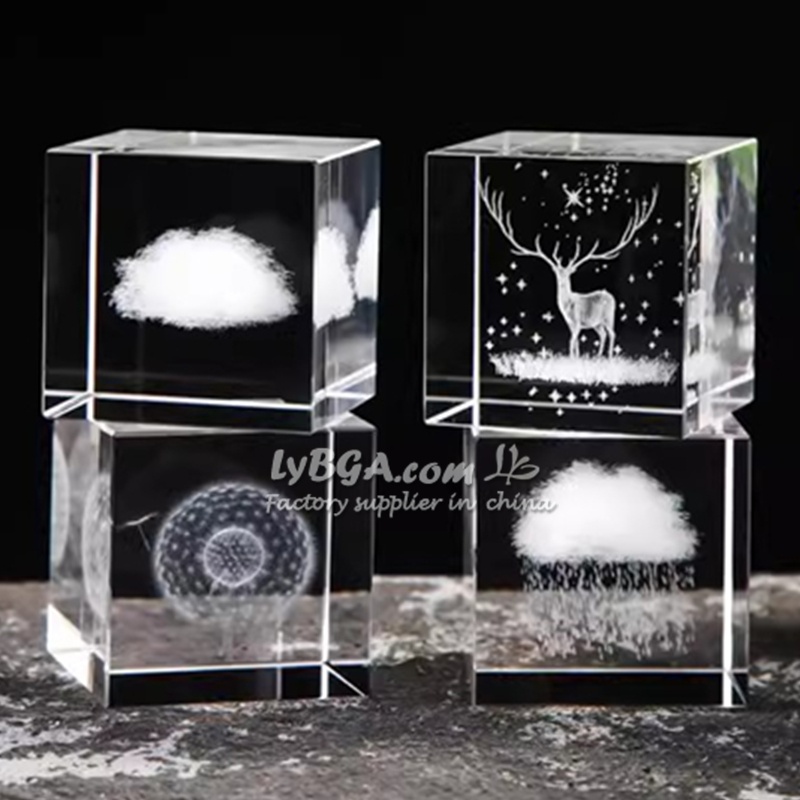

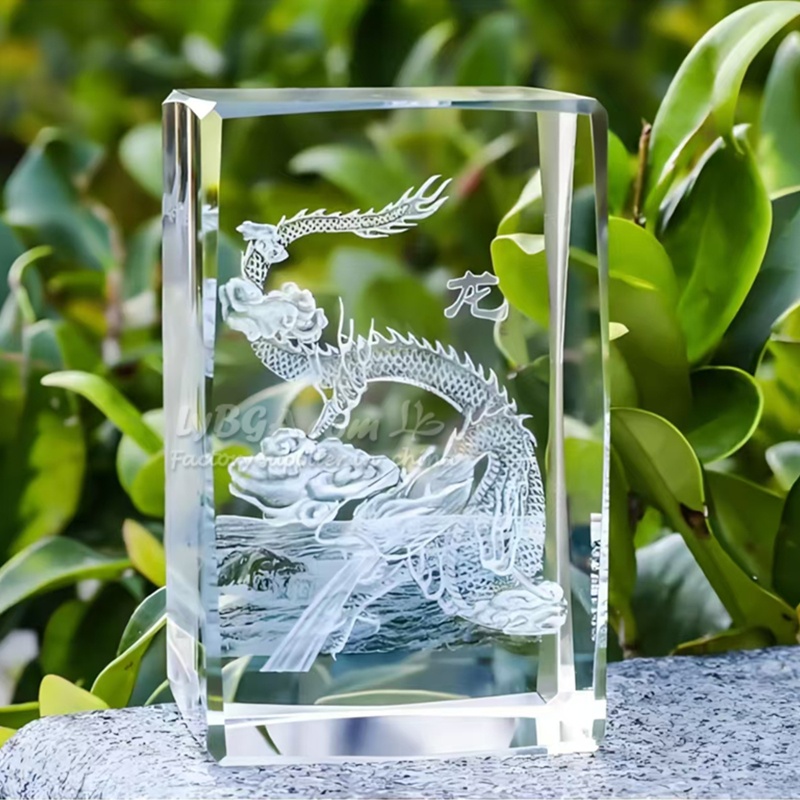

Product Pictures
