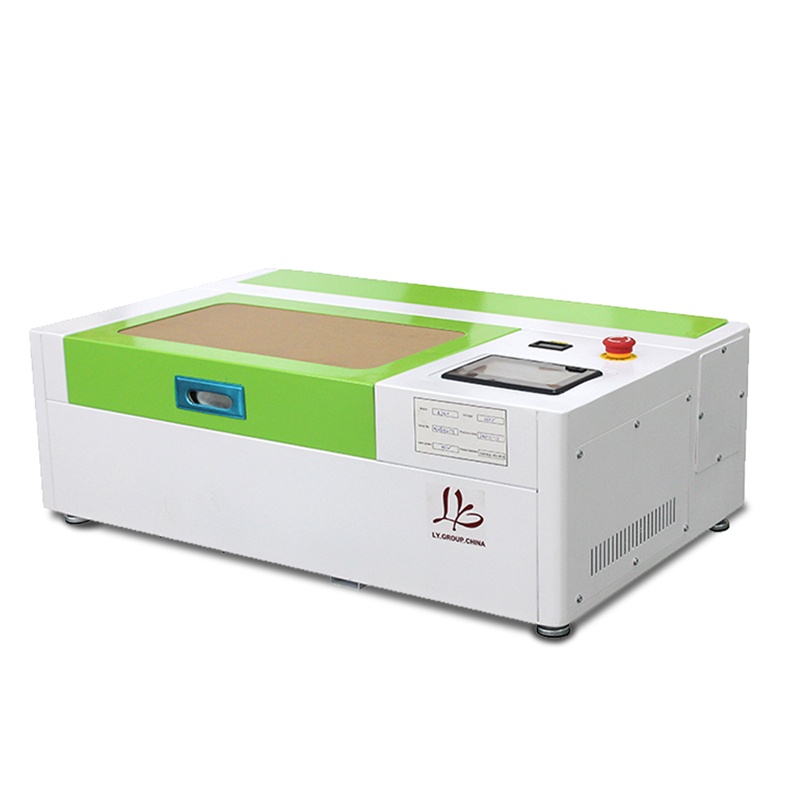

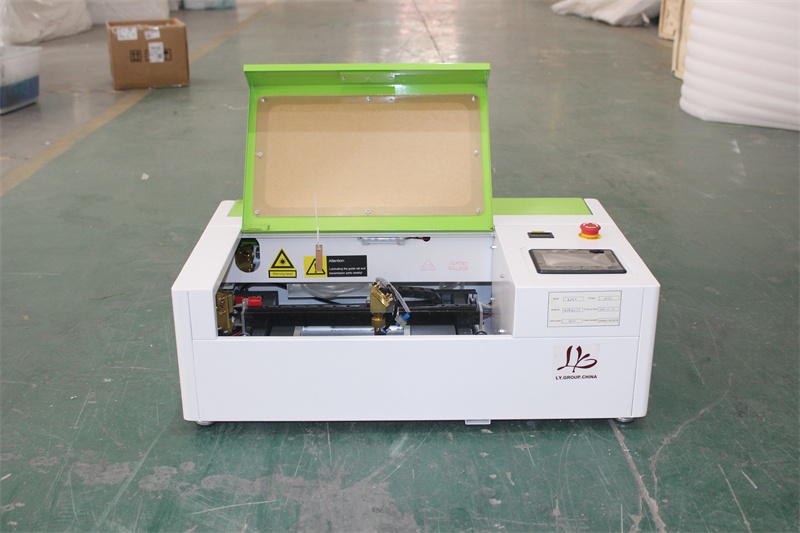

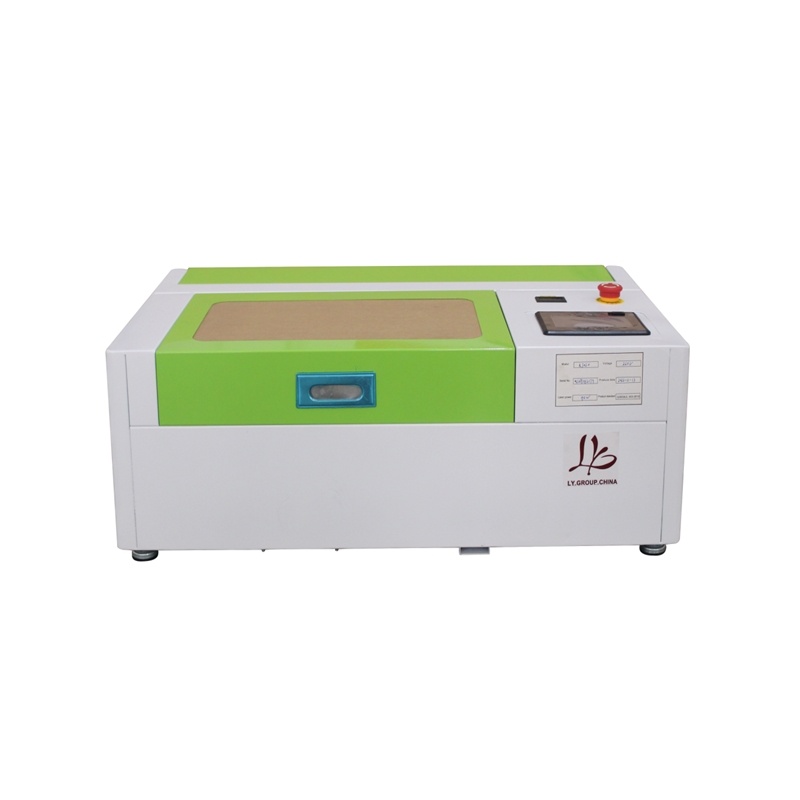

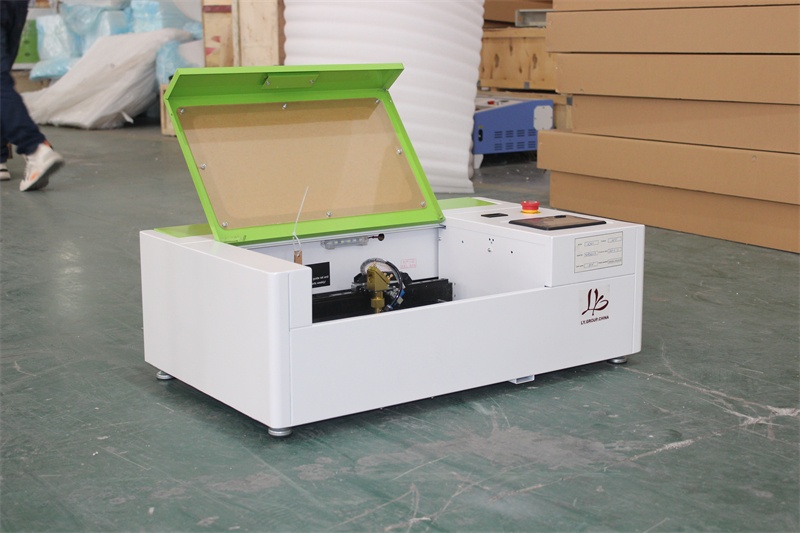

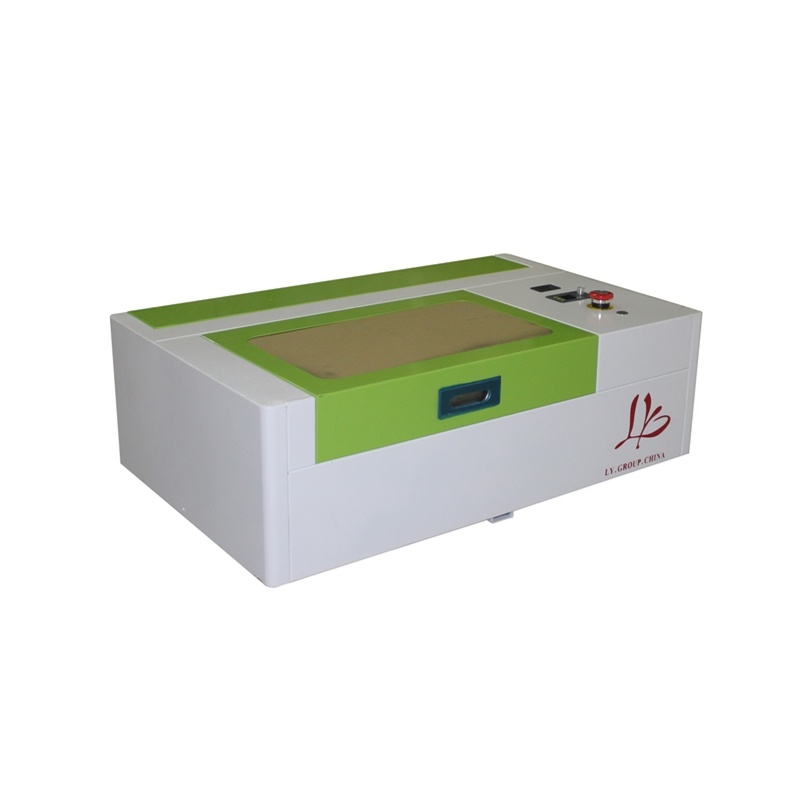

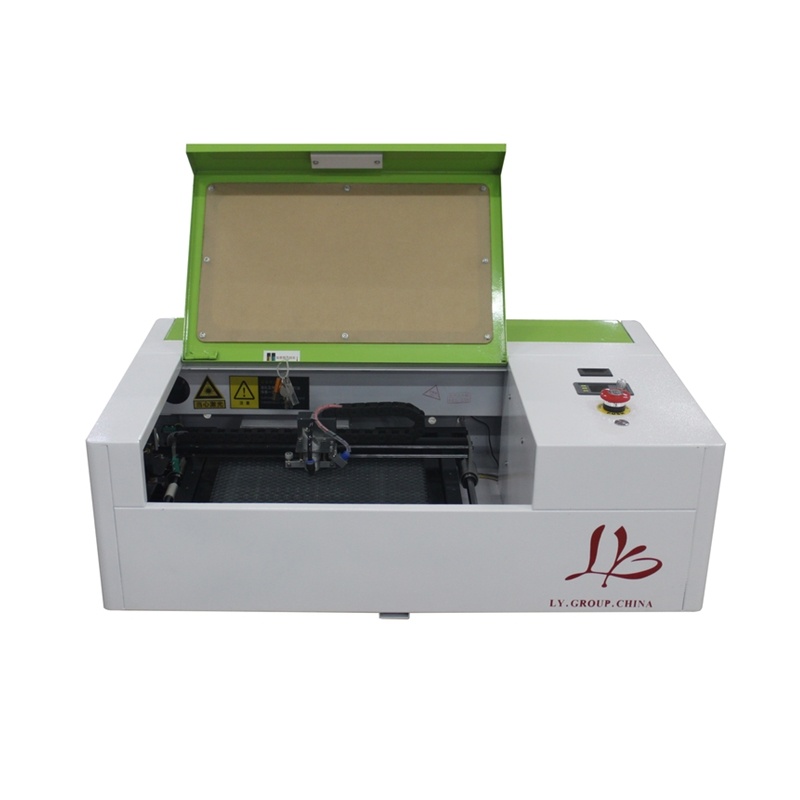

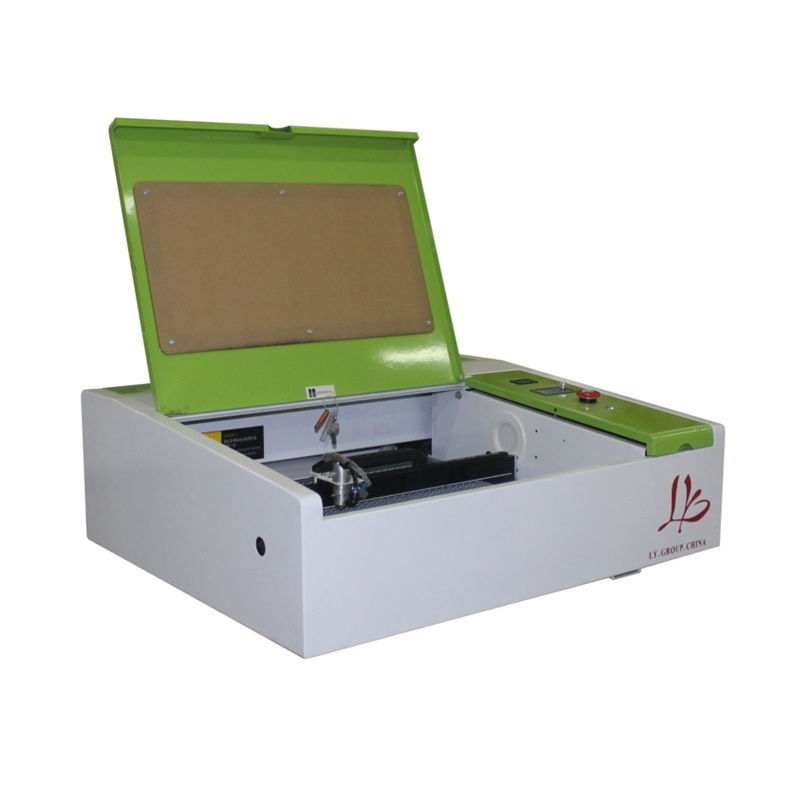

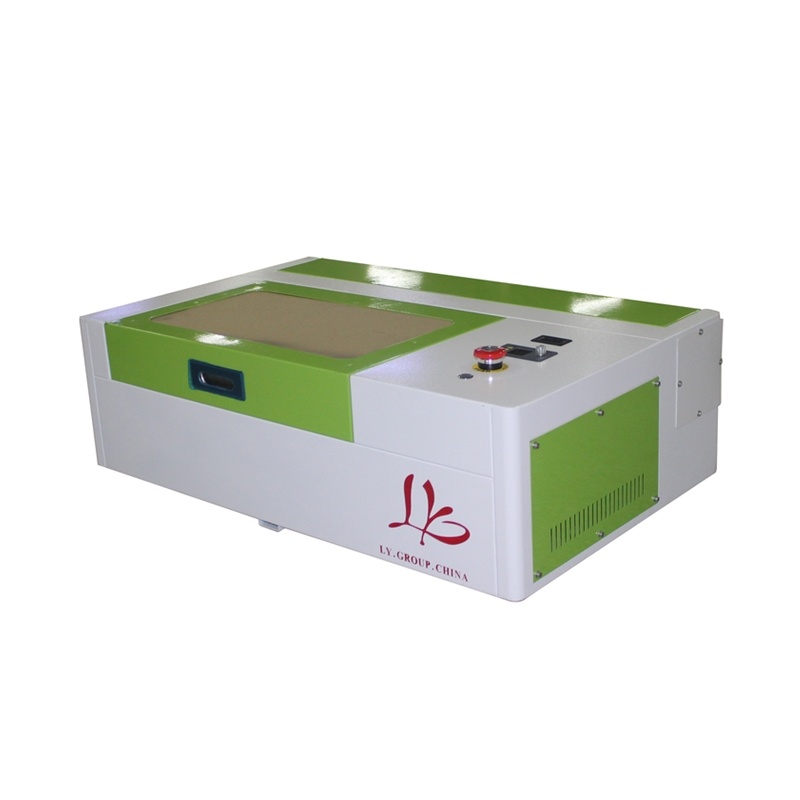

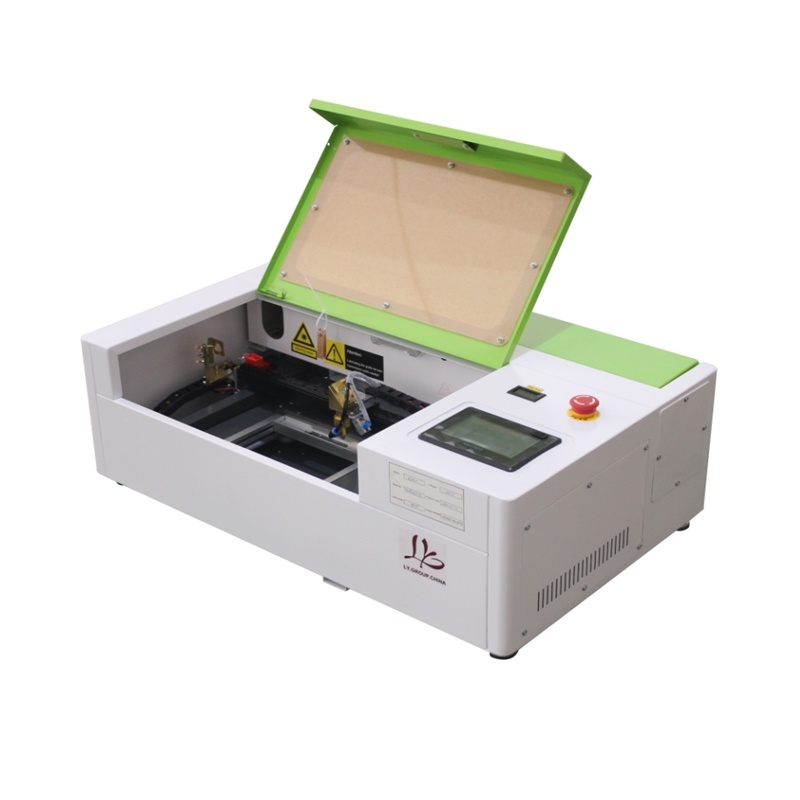

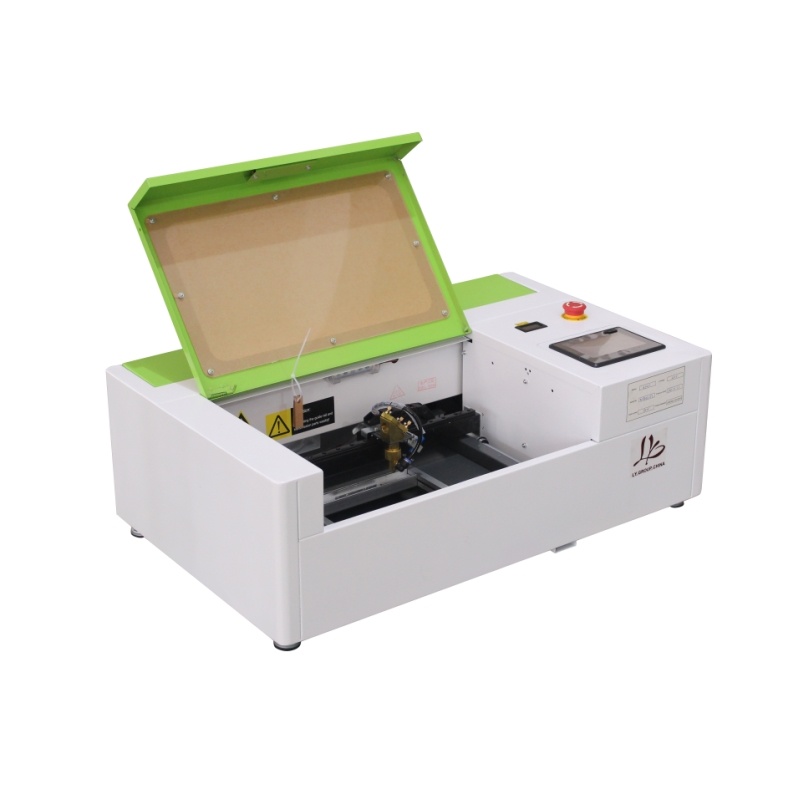

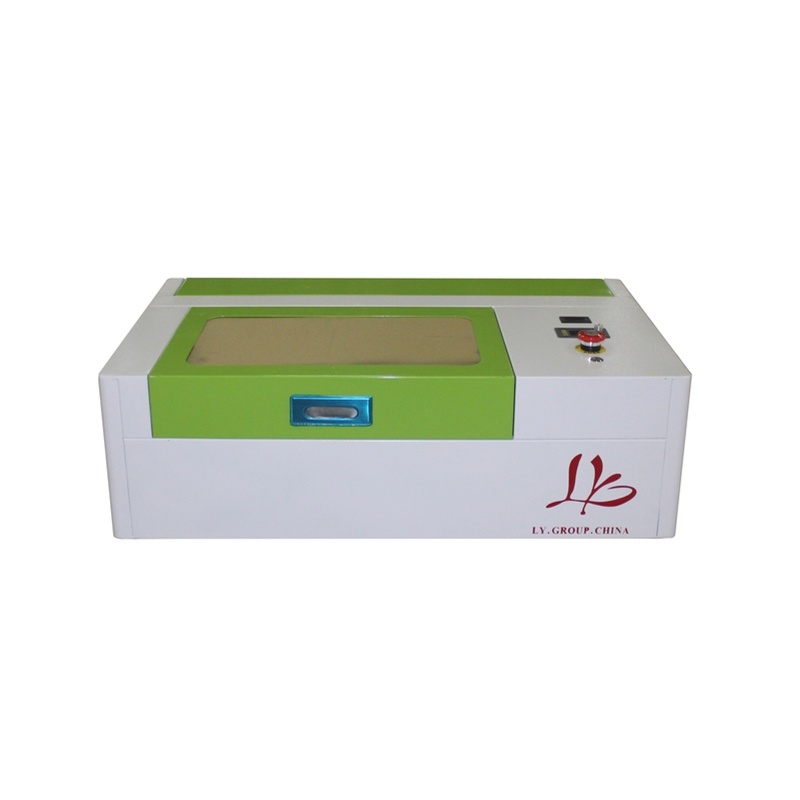

LY Mini Laser 3020/2030 40W CO2 Laser Engraver Engraving Cutting Machine Kit With LCD Control Panel And Honeycomb Board Work Size 300*200mm Optional DSP Off-Line Version

LY Mini Laser 3020/2030 40W CO2 Laser Engraver Engraving Cutting Machine Kit With LCD Control Panel And Honeycomb Board Work Size 300*200mm Optional DSP Off-Line Version

item ID: 69686
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$1200 USD$866 (% off)
Payment

Product Detail

Product Tags

LY Mini Laser 3020/2030 40W CO2 Laser Engraver Engraving Cutting Machine Kit With LCD Control Panel And Honeycomb Board Work Size 300*200mm Optional DSP Off-Line Version

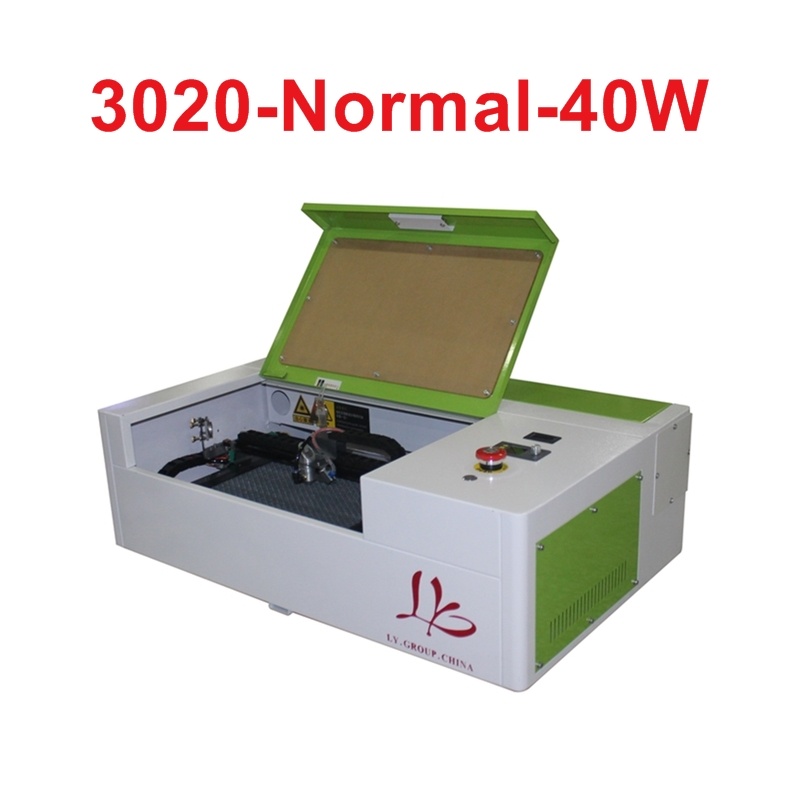

Optional: 3020-40W

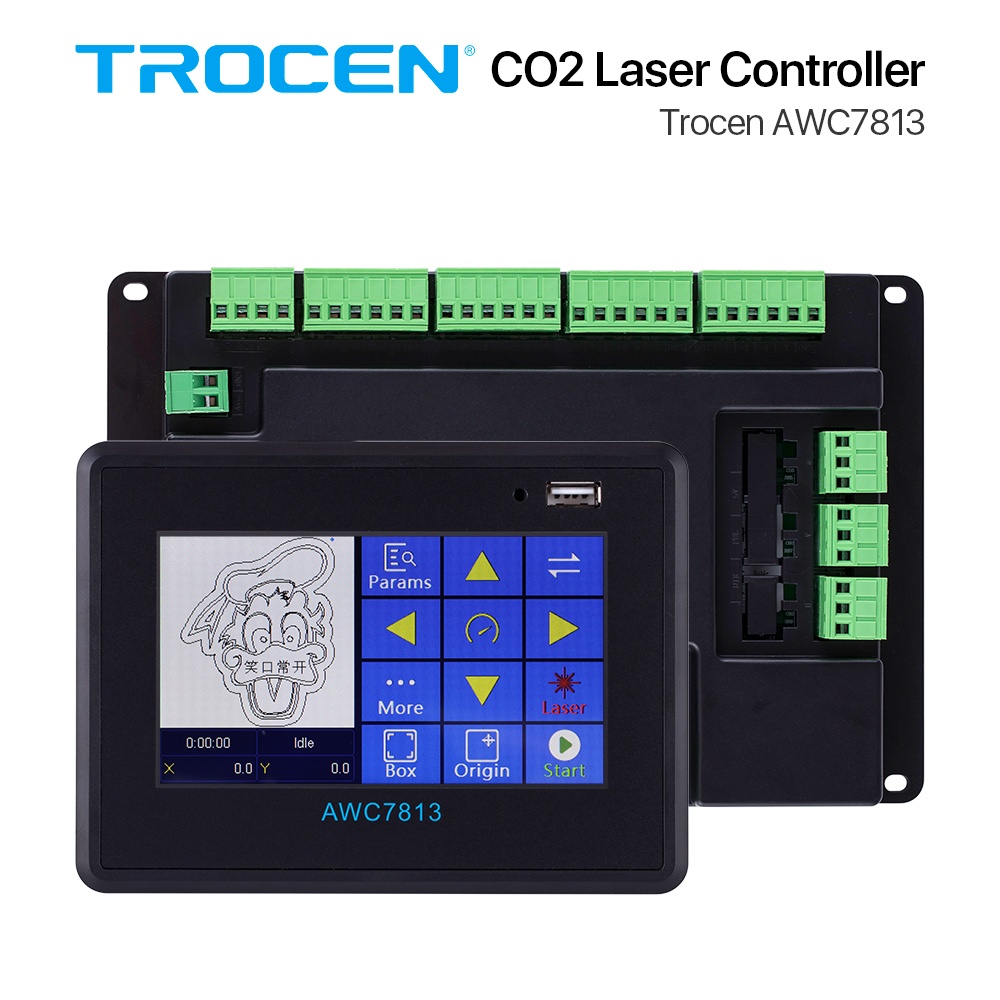

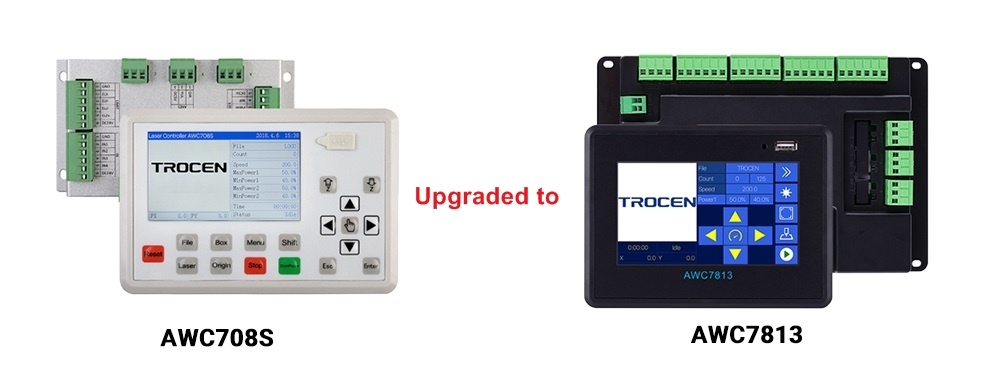

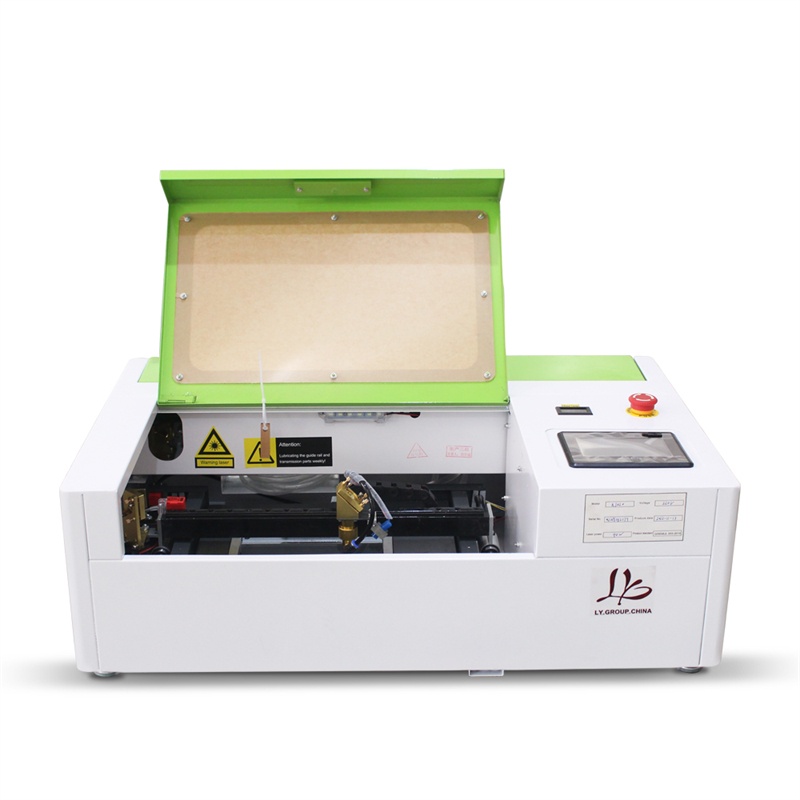

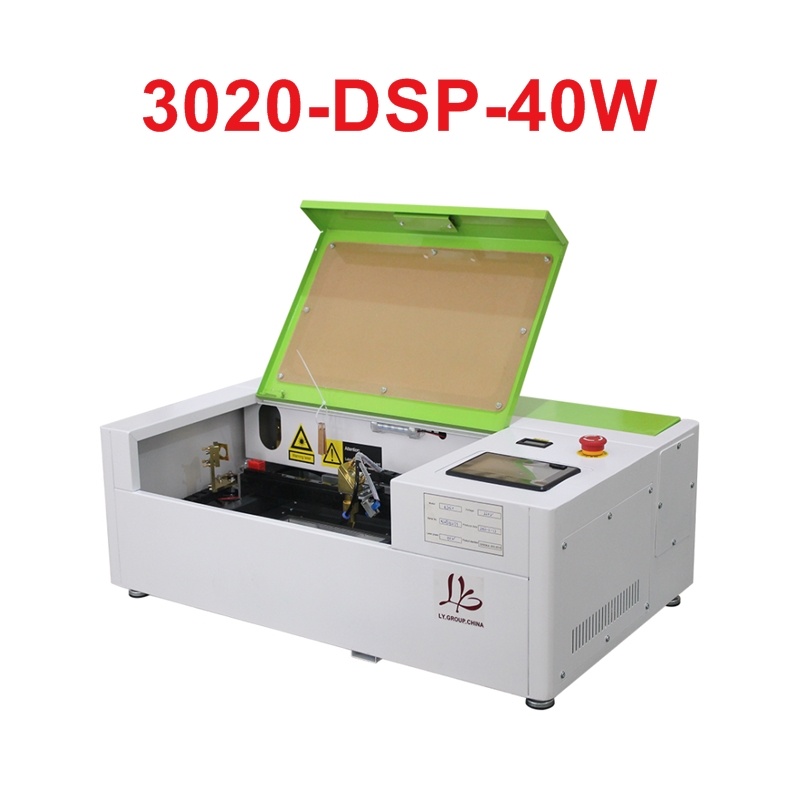

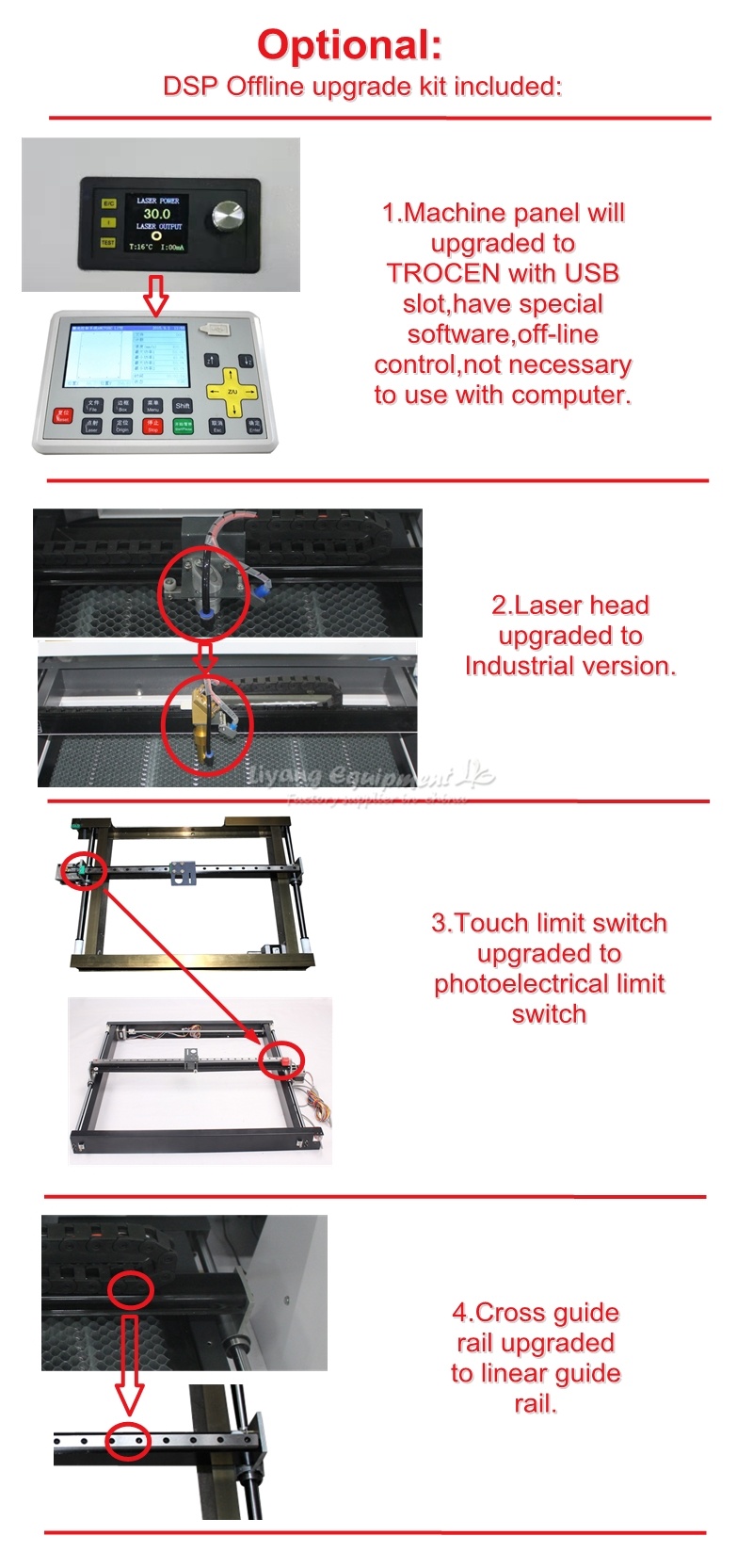

Normal version / DSP Version

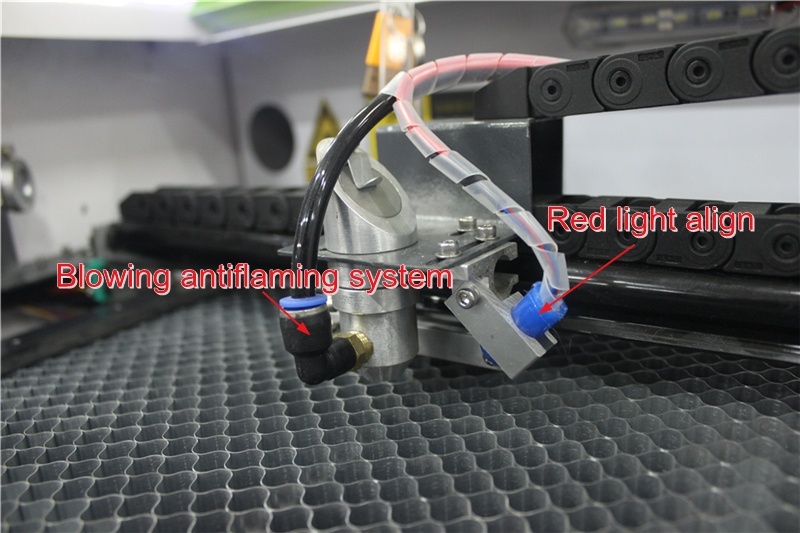

110/220V 40W 300*200mm Mini CO2 Laser Engraver Engraving Cutting Machine 3020 Laser with USB Sport blowing anti-flaming system red light alignment



300*200 mm Mini CO2 Laser Engraver Engraving Cutting Machine

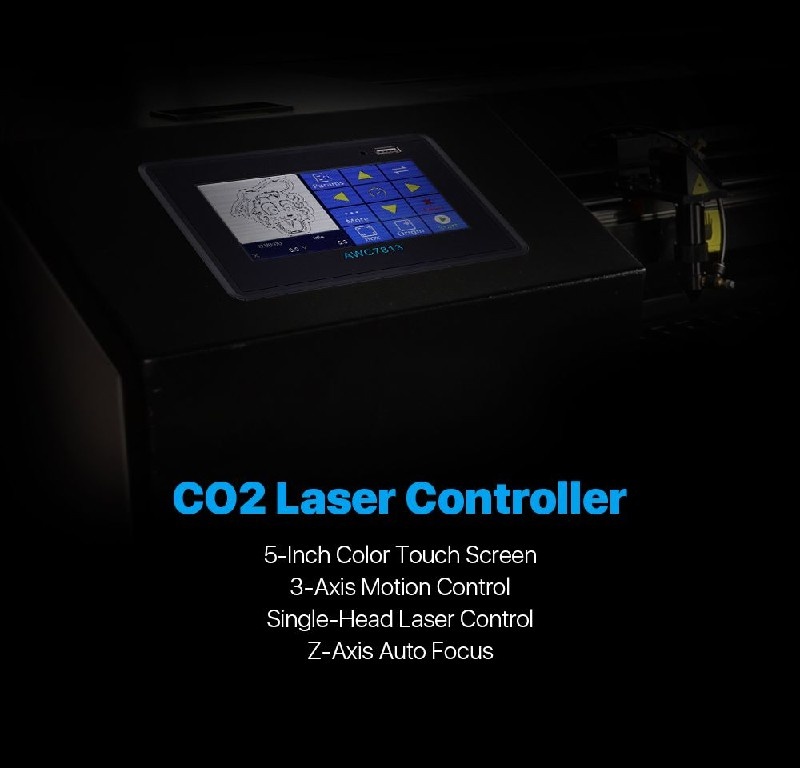

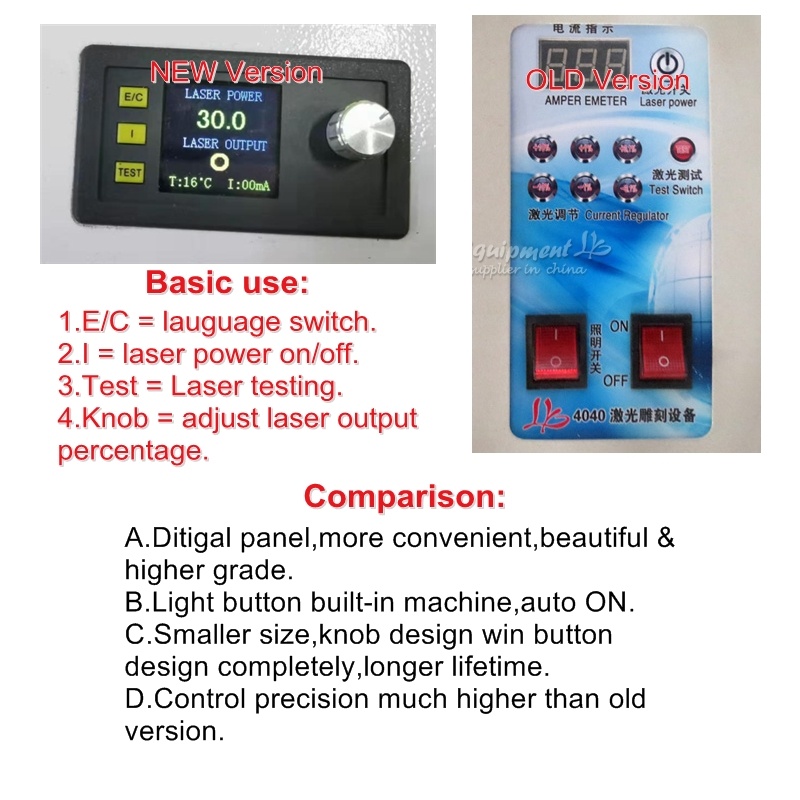

3020 Laser with USB Sport LCD panel



Secification:

  • Communication Interface: USB Port /
  • CE Certification: Yes
  • ISO9001 Quality Certification: Yes
  • Laser Type: CO2 Gas
  • Tube Trigger Volt: 20KV
  • Tube Operating Volt: 15KV
  • Current: 18~22mA
  • Engraving Area: 12x8in.(30x20cm)
  • Maximum Item Size to Engrave: 10.25W x 8.75L x 2.85H in.
  • Laser Tube (life hours): 1000-1300 Hours
  • Laser Power: 40W
  • Engraving Speed: 0-200mm/s (0-7 in./s)
  • Cutting Speed: 0-20mm/s (0-0.7 in./s)
  • Minimum Shaping Character: 1 X 1mm (0.04 X0.04)in.
  • Resolution Ratio: 0.026mm / 0.001 in. (1000dpi)
  • Power Supply:110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item.
  • Resetting Positioning: 0.01mm (0.0004 in.)
  • Motor Type: Stepper Motor
  • Software Supported: CorelLASER 2013,LaserDRW
  • Power Consumption: 250W
  • Operating Temperature: 32-113F (0-45C)
  • Graphic Format Supported: PLT/DXF/BMP/JPG/GIF/PGN/TIF
  • Water Cooling: Water Pump include
  • Recommended Spare Parts/Consumables: Laser Tube, Focal lens, Reflection lens

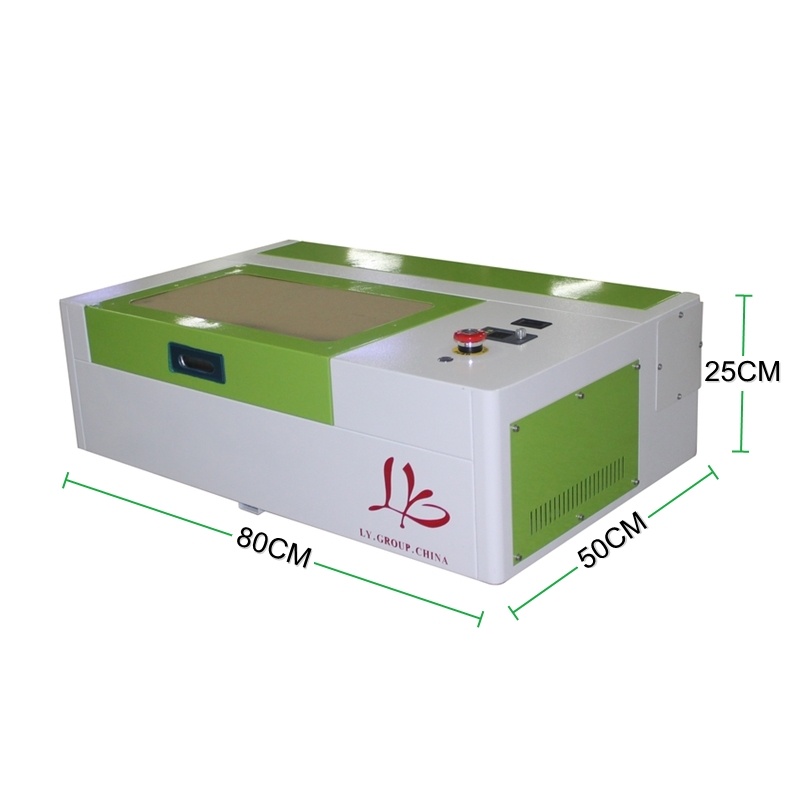

  • Product Dimensions:31.4 X 19.6 X 9.8in.(800x500x250mm)
  • Product Weight: 32Kg/67lb (shipping 38kg/80lb)
  • One year warranty

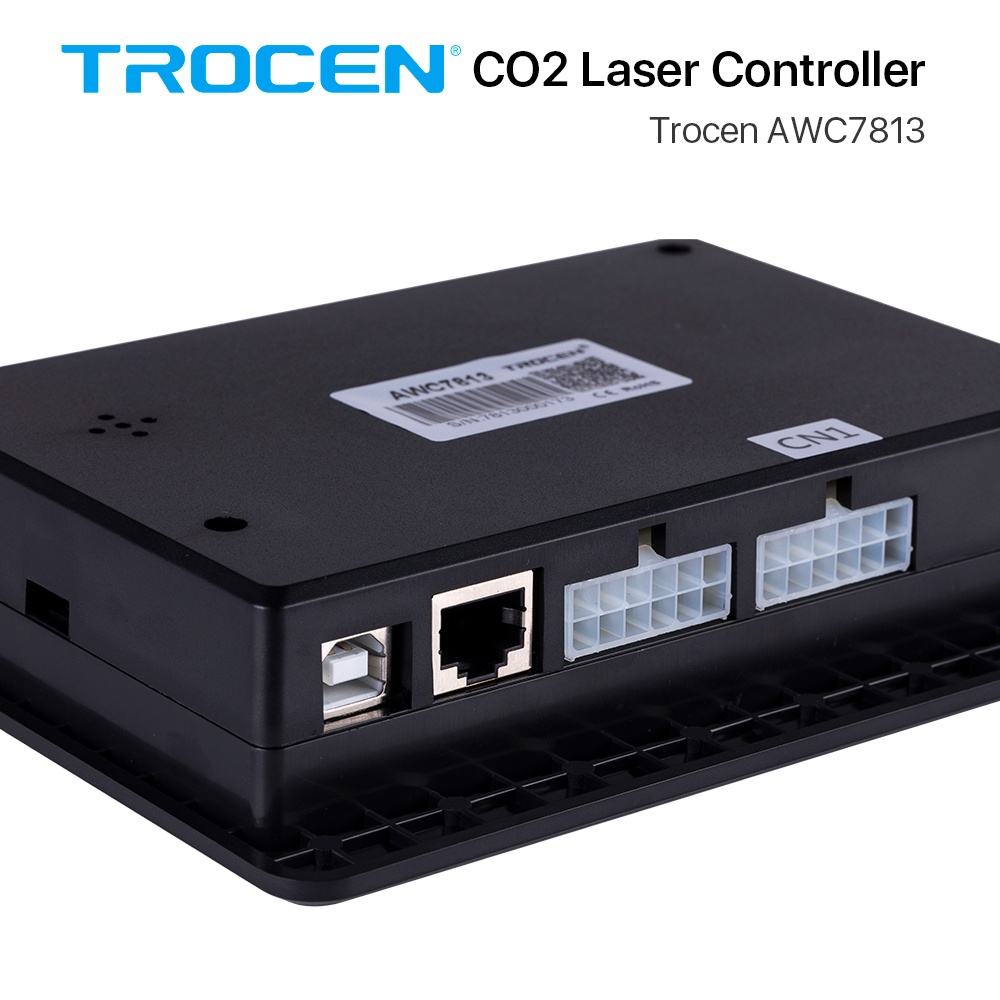

Communication Interface USB Port Or Off-Line Control
FDA Compliant Yes
CE Certification Yes
ISO9001 Quality Certification Yes
Laser Type CO2 Gas
Tube Trigger Volt 20KV
Tube Operating Volt 15KV
Current 18~22mA
Engraving Area 12x8in.(30x20cm)
Maximum Item Size to Engrave 10.25W x 8.75L x 2.85H in.
Laser Tube (life hours) 1000-1300 Hours
Laser Power 40W
Engraving Speed 0-200mm/s (0-7 in./s)
Cutting Speed 0-20mm/s (0-0.7 in./s)
Minimum Shaping Character 1 X 1mm (0.04 X0.04)in.
Resolution Ratio 0.026mm / 0.001 in. (1000dpi)
Power Supply 110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item.
Resetting Positioning 0.01mm (0.0004 in.)
Motor Type Stepper Motor

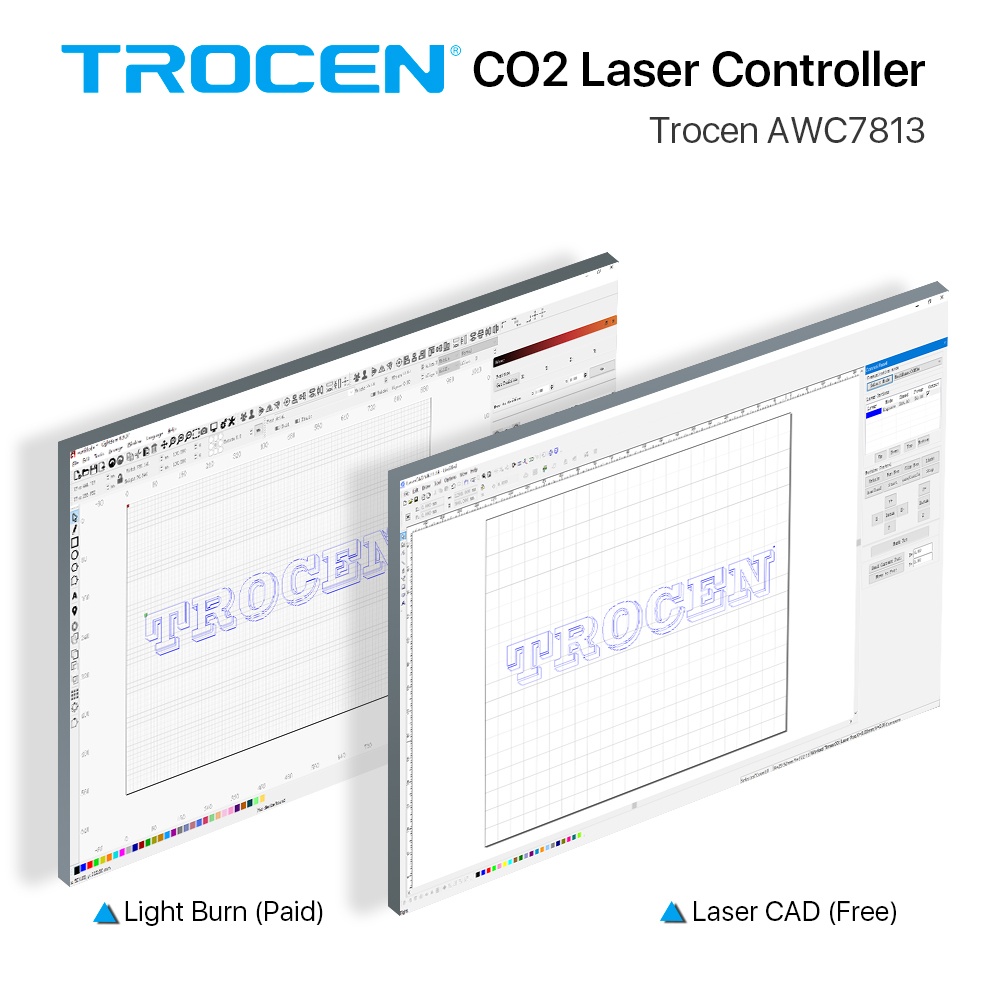

Software Supported CorelLASER 2013,LaserDRW / DSP Version have special software
Power Consumption 250W
Operating Temperature 32-113F (0-45C)
Graphic Format Supported PLT/DXF/BMP/JPG/GIF/PGN/TIF
Water Cooling Water Pump include
Recommended Spare Parts/Consumables Laser Tube, Focal lens, Reflection lens
Product Dimensions 31.4 X 19.6 X 9.8in.(800x500x250mm)
Product Weight 32Kg/67lb (shipping 38kg/80lb)
Warranty One year

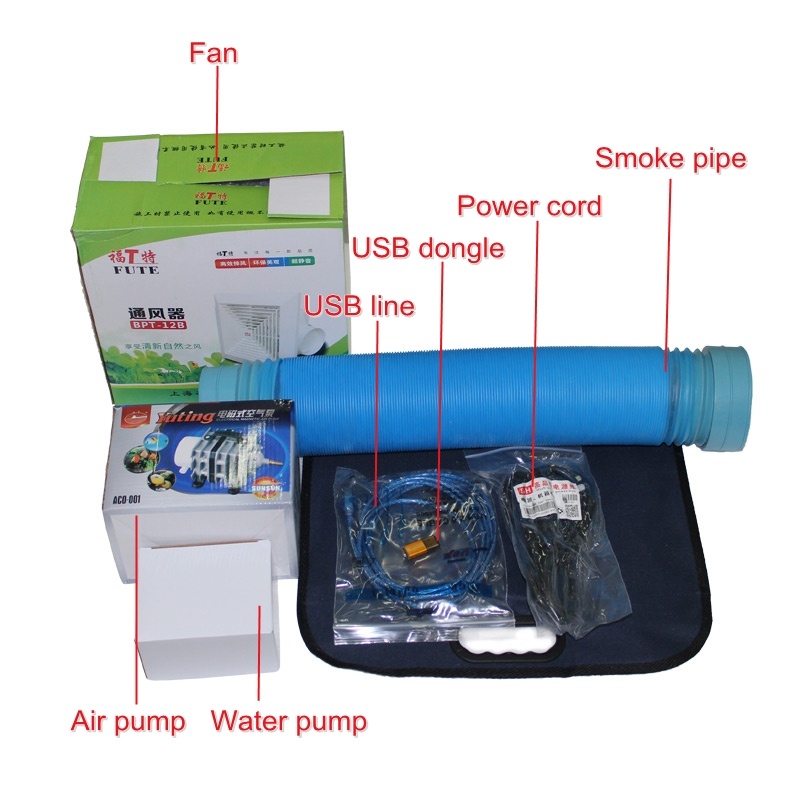

Packing list :

(RE: Maybe not upgrade in time, so we have final explanation rights for any changes.)

1.laser 3020 Engraving machine 40W Normal or DSP Version

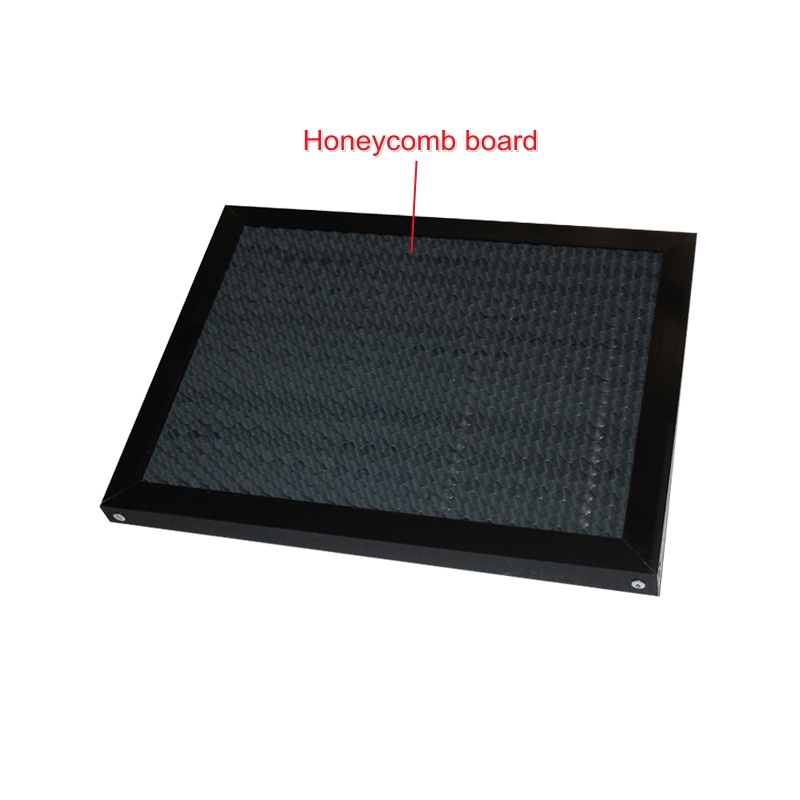

2.Honey comb board 300*200mm

3.USB date line

4.Power line

5.USB dongle (DSP version not with)

6.Smoke pipe

7.Water pump

8.Air pump

9.Smoke fan





Thanks for your order!
