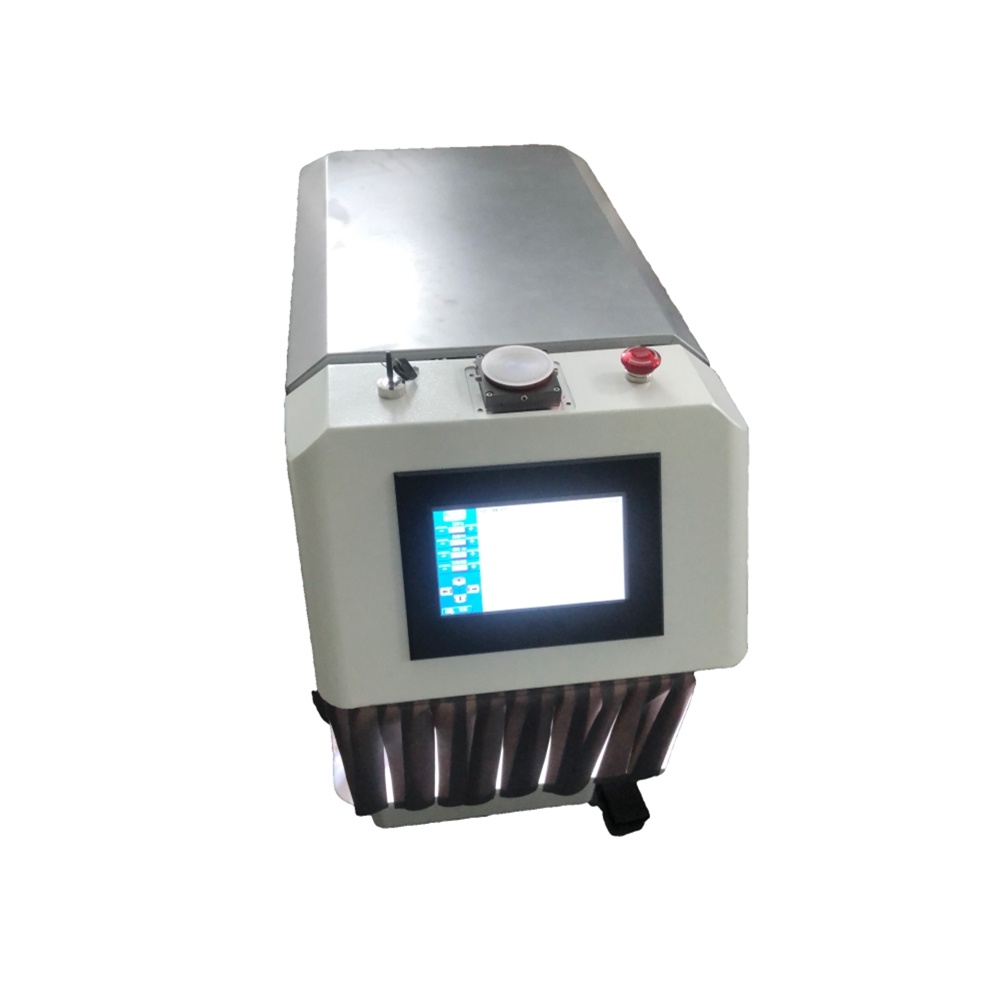

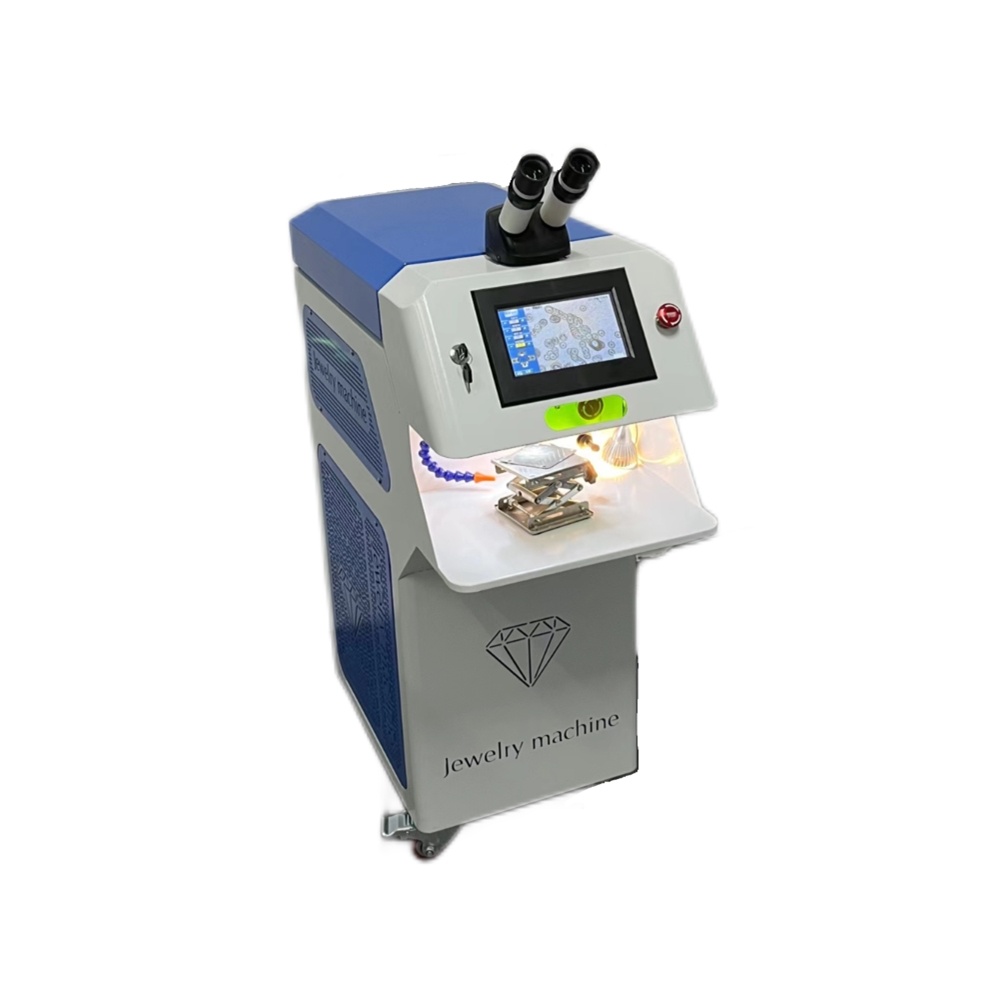

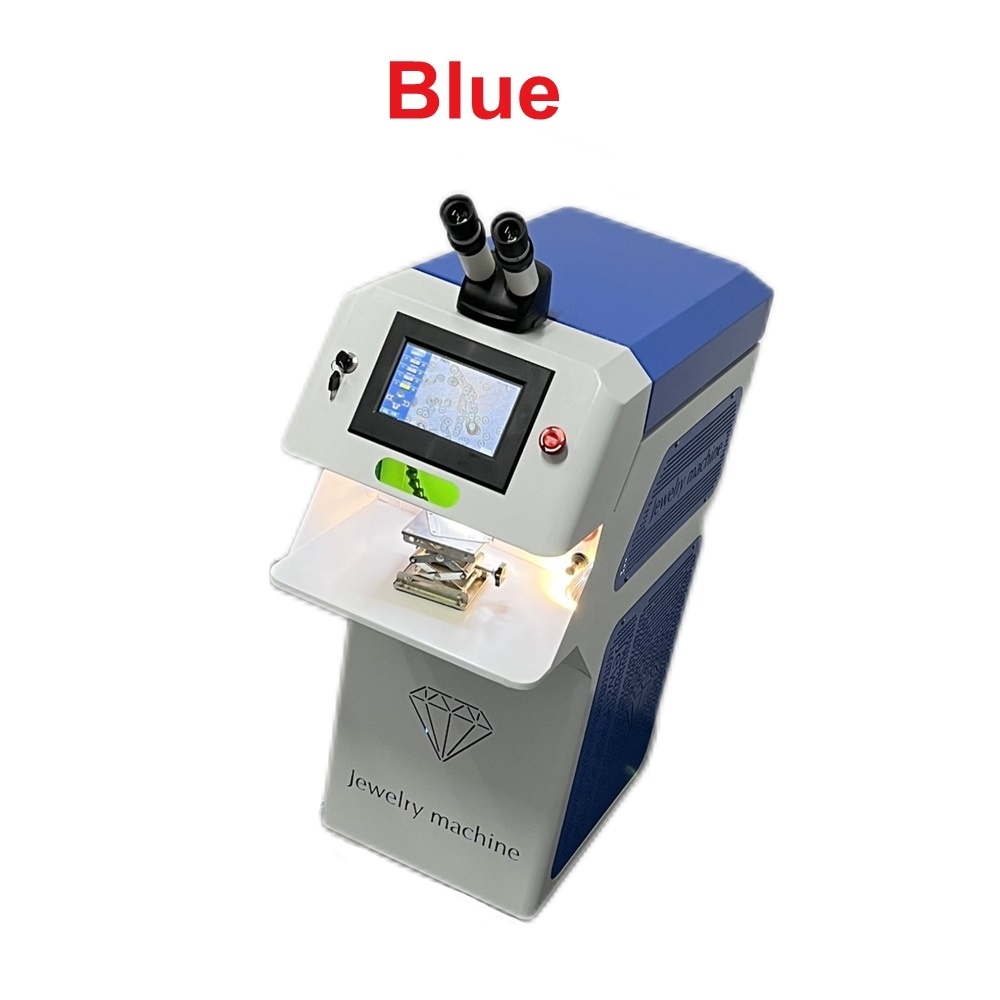

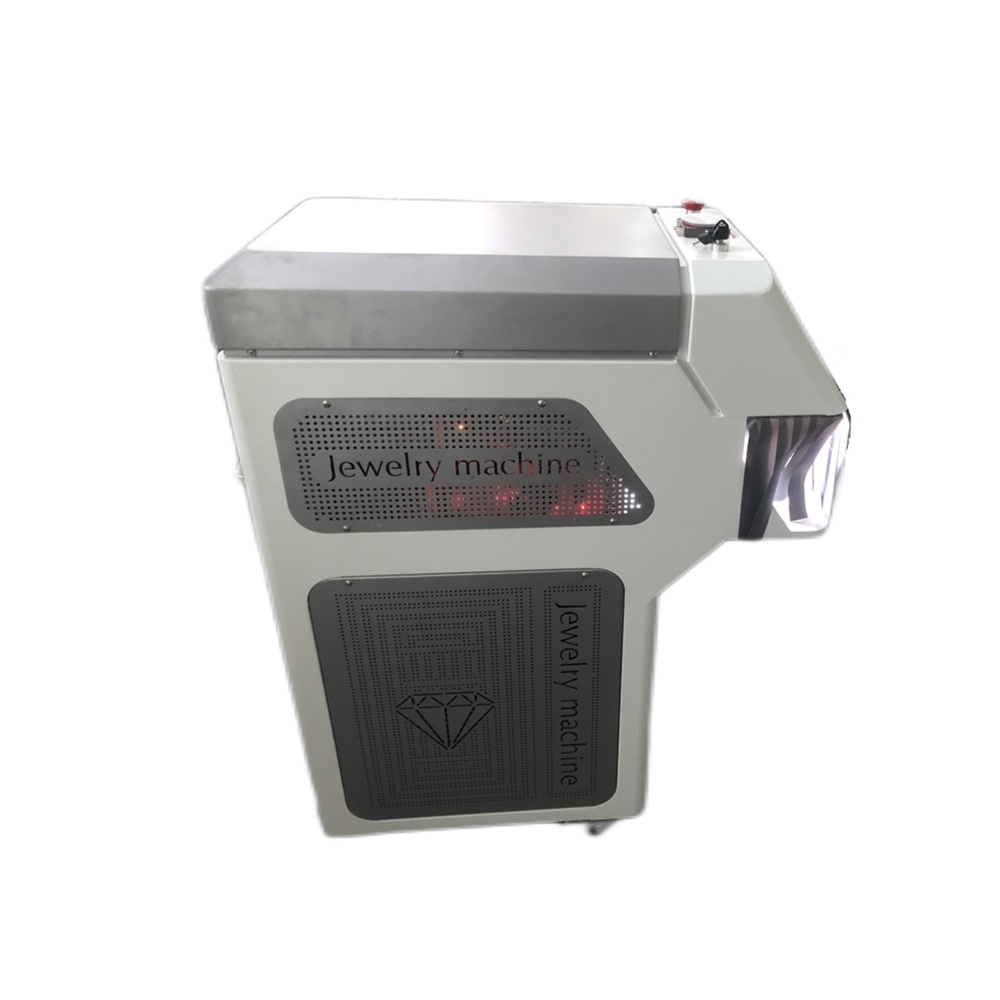

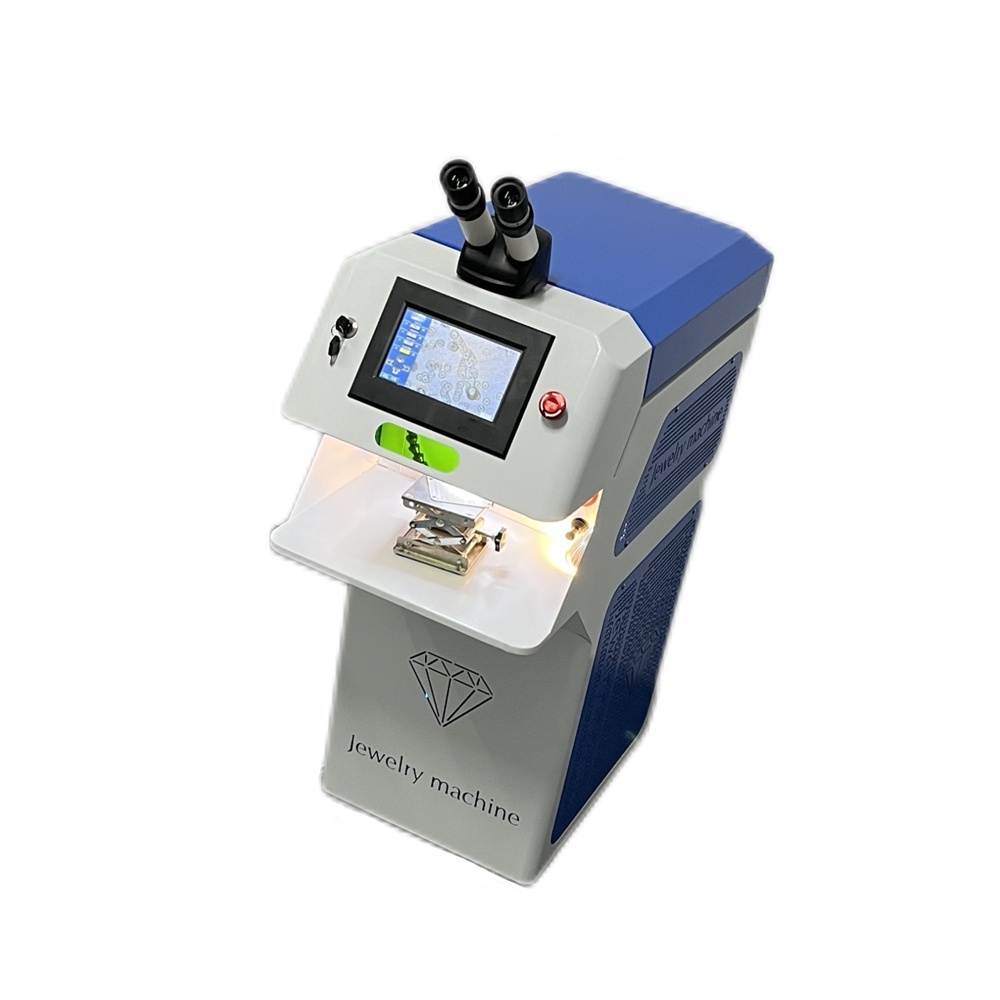

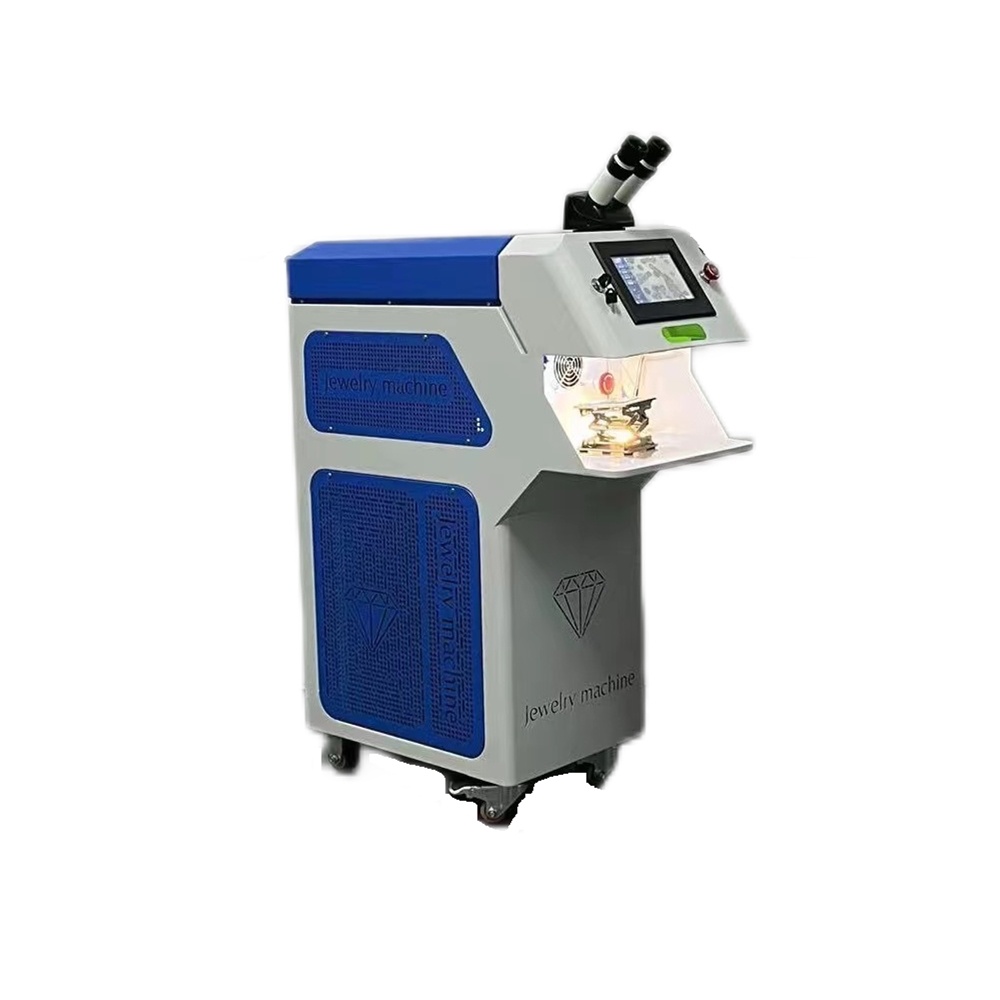

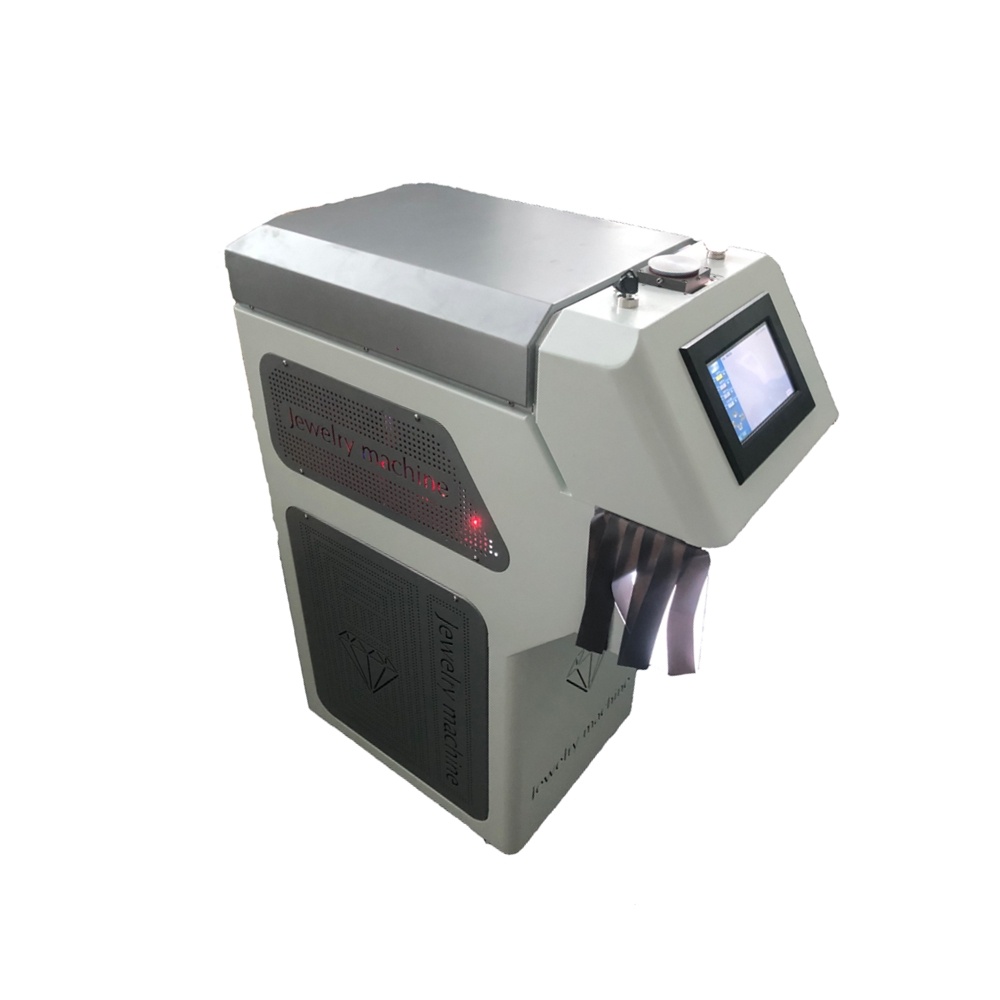

LY Mini YAG Laser 300W Super Power 150J Touch Screen Jewelry Spot Welding Machine Micro laser Soldering For Gold Silver Chain Ring Pendant Denture With HD CCD Microscope Built-in Air Cooling System

LY Mini YAG Laser 300W Super Power 150J Touch Screen Jewelry Spot Welding Machine Micro laser Soldering For Gold Silver Chain Ring Pendant Denture With HD CCD Microscope Built-in Air Cooling System

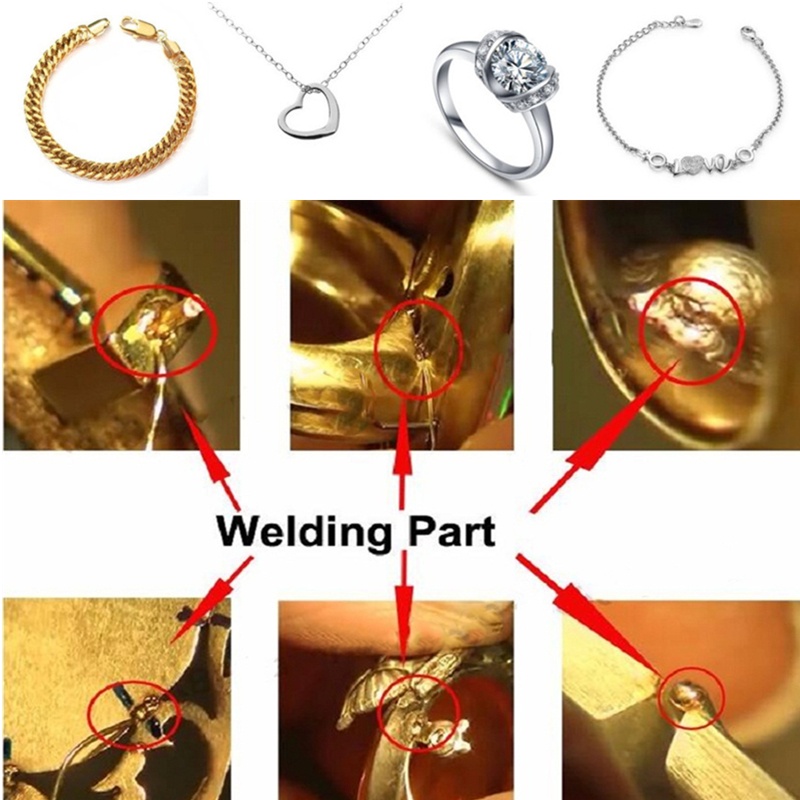

The jewelry laser welder is specifically for jewelry laser welding of a product, mainly used in gold and silver ornaments of the hole and spot welding blisters. Laser spot welding machine is one of the important aspects of the application of laser material processing technology. The jewelry laser welding machine’s process is heat conduction. That is, laser radiation heats the surface of the work piece. The heat of the surface spreads through the heat conduction to the interior. By controlling the width, energy, peak power and repetition of laser pulse Frequency and other parameters, the work piece melting, forming a specific pool.

Because of jewelry laser welding machine’s unique advantages, has been successfully applied to gold and silver jewelry processing and micro, small parts welding.

Specification

Laser medium

Nd 3+ :YAG

Laser Wavelength 1064nm

Output power 300W

Pulse width 0.1~20ms adjustable

Pulse Repeated Frequency 1~20Hz adjustable

Spot size: 0.1-3mm

Laser distance F120

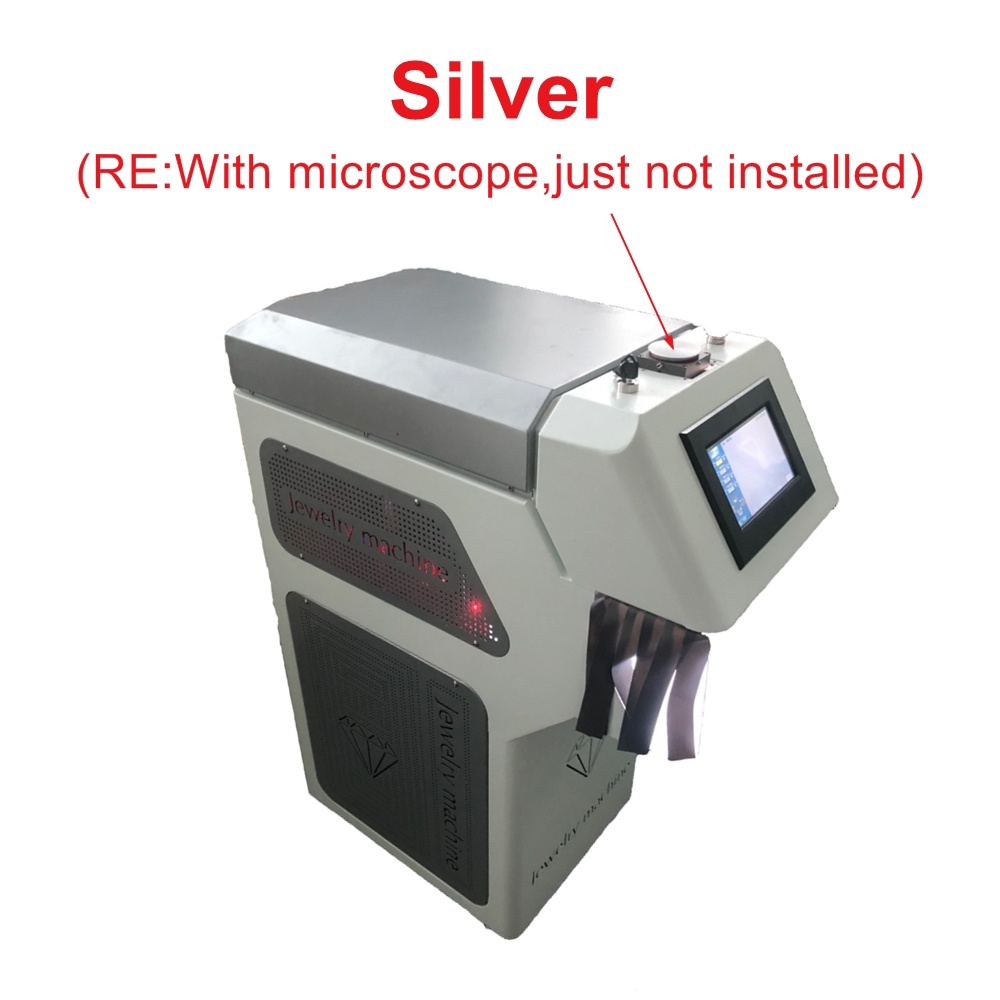

HD CCD System

Maximum single pulse power  150J

Cooling : Built-in Air cool system

Maximum input power 7KW

Net weight: 80KG

Gross weight:110KG

Voltage: 220V/50HZ/3KVA  (If 110V country need to use with transformer)

Thanks for your order!
