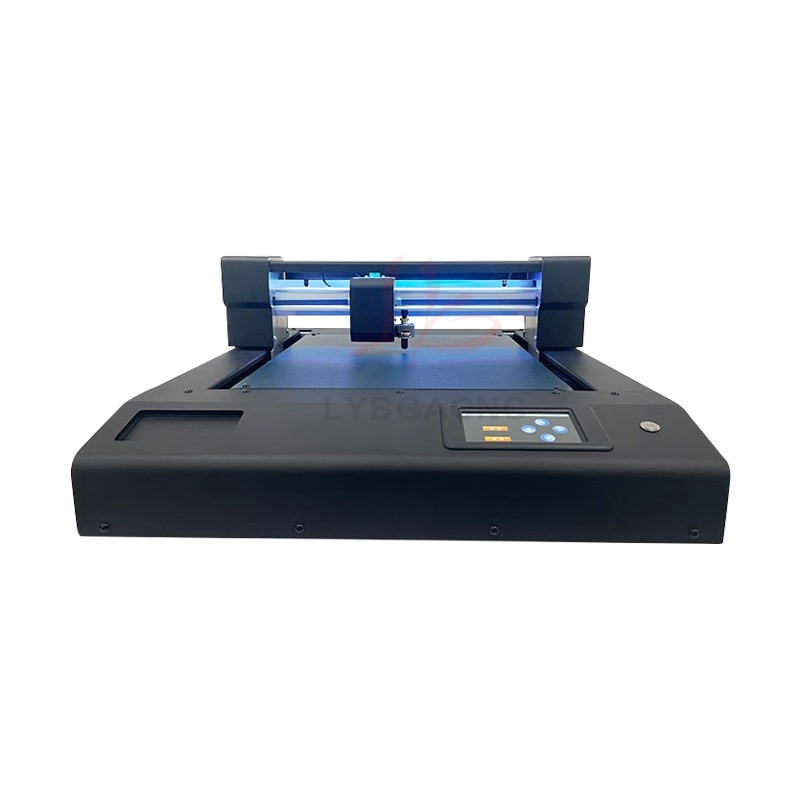

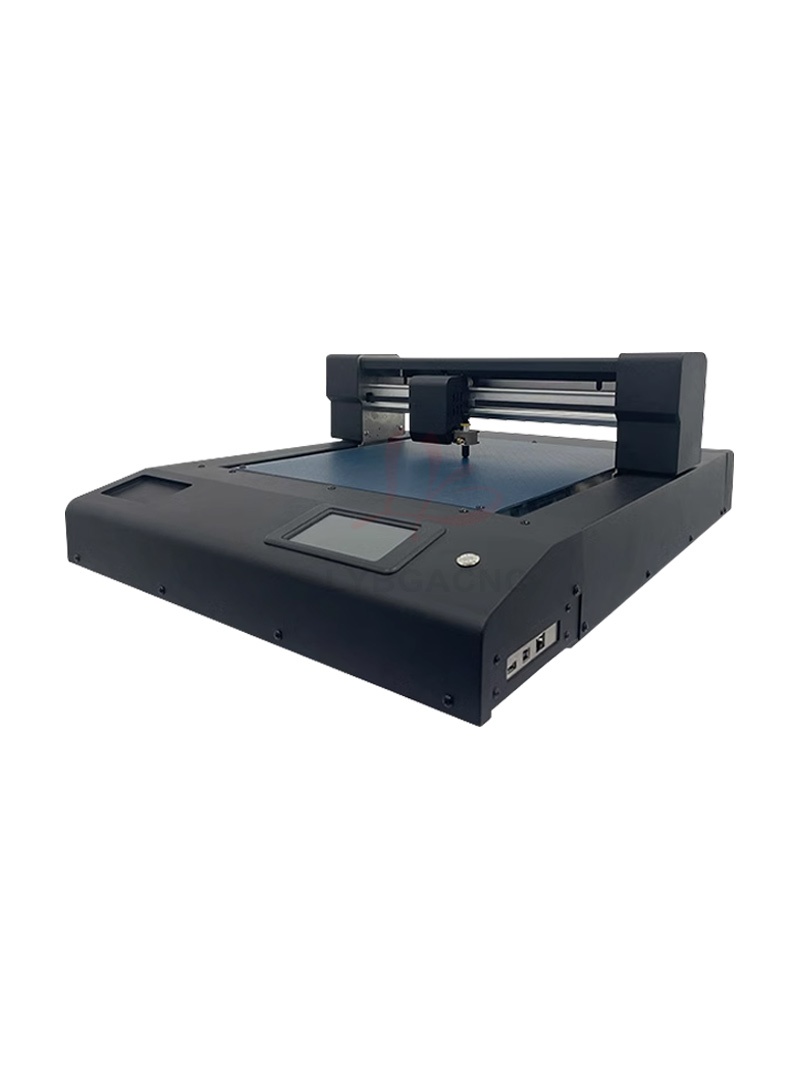

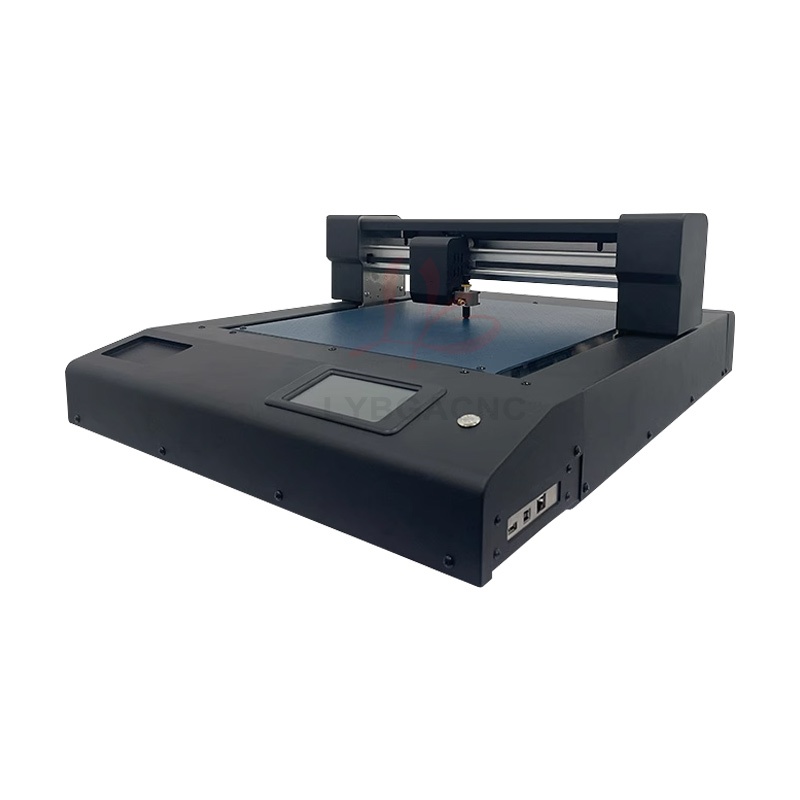

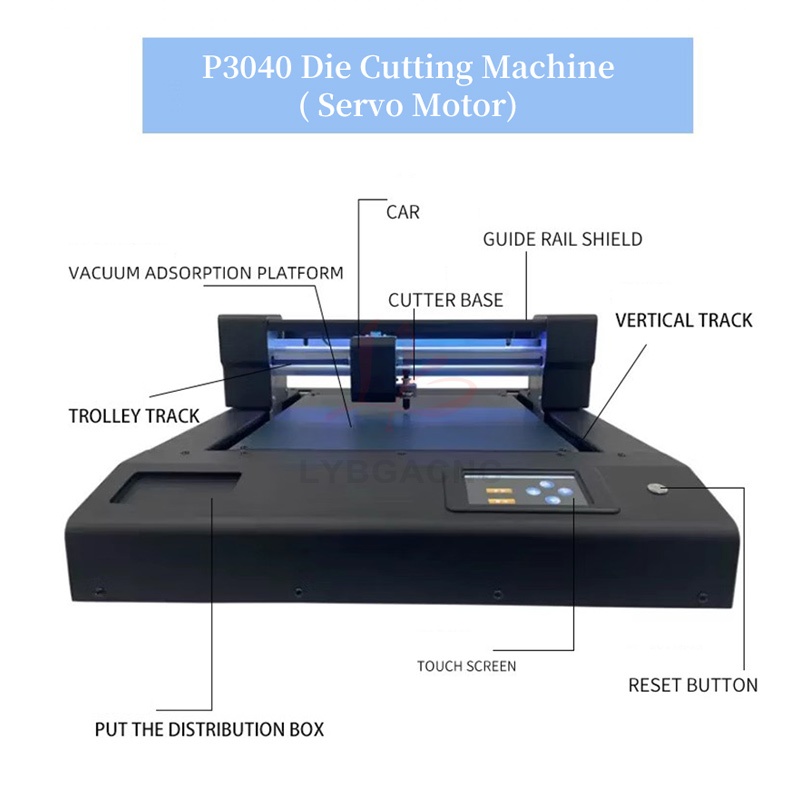

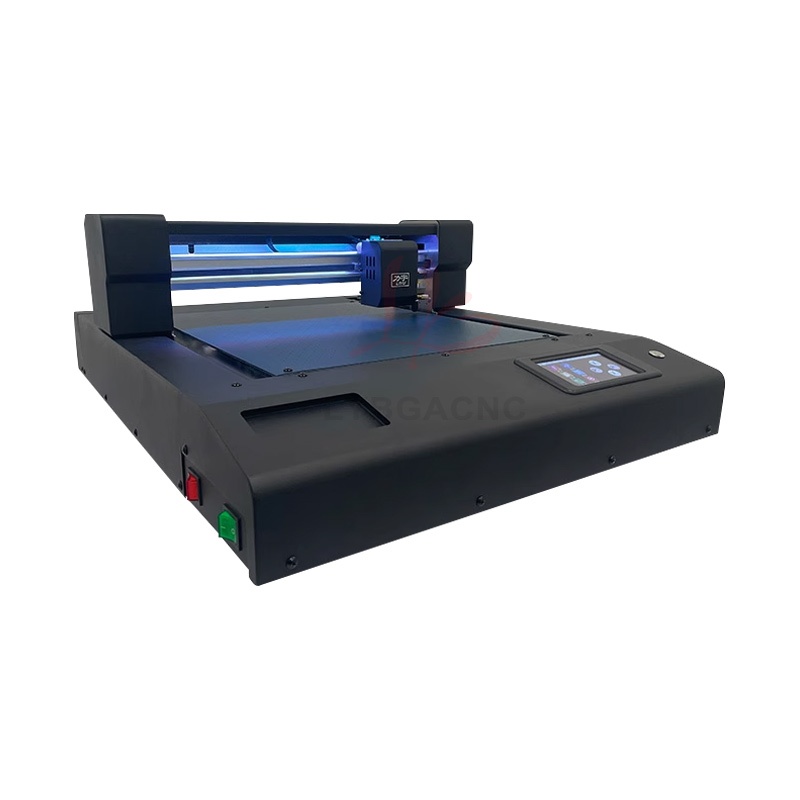

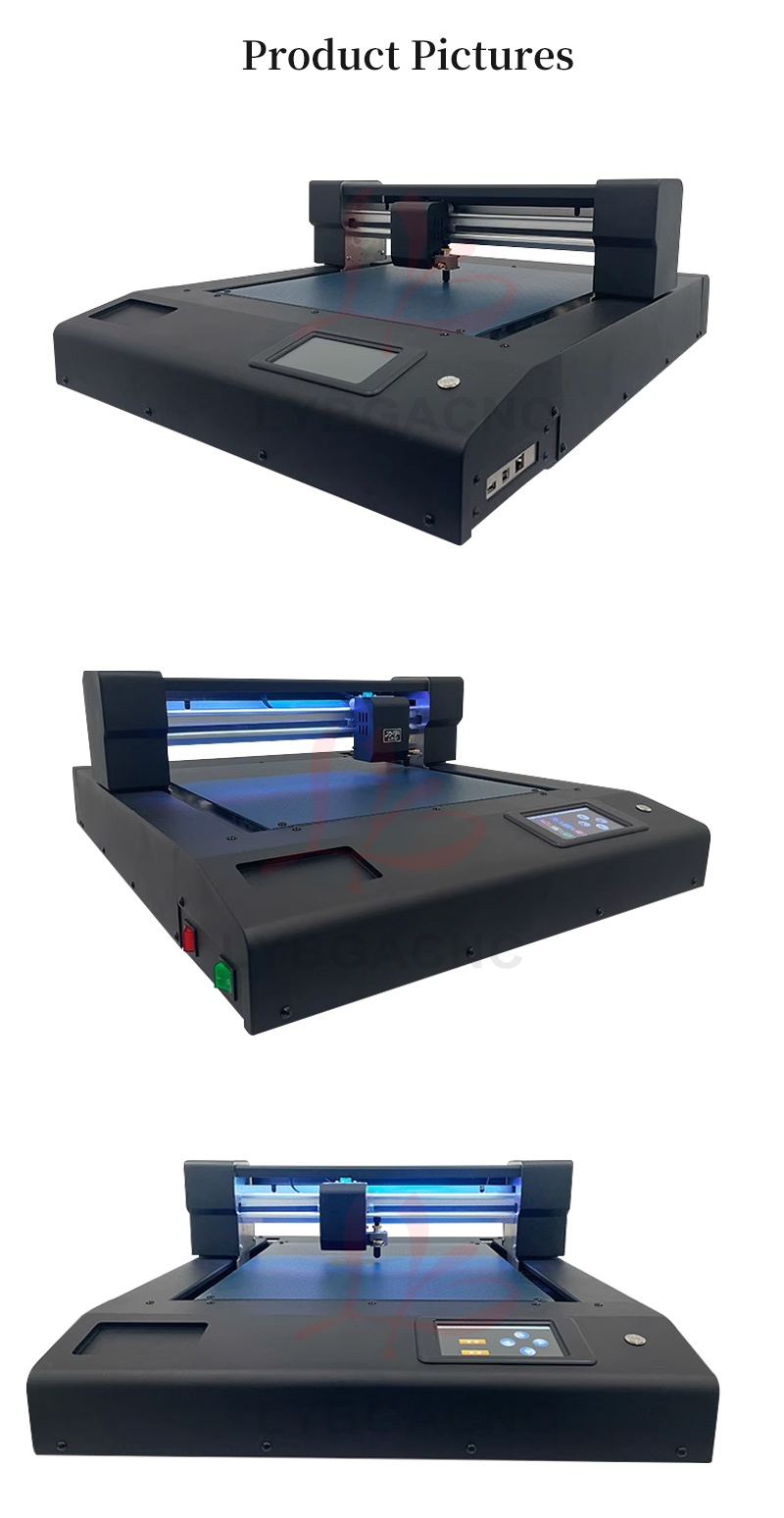

LY P3040 Multi-function Digital Flatbed Engraver U disk USB Network Port Servo System Applicable to Self-adhesive Items Store Decoration

P3040 Parameters

Machine Model       P3040

Maximum cutting speed     450 mm/s

Maximum cutting pressure           1000g

Maximum Material Thickness            1mm

Effective cutting area         300x420mm

Effective cutting area          Vacuum adsorption

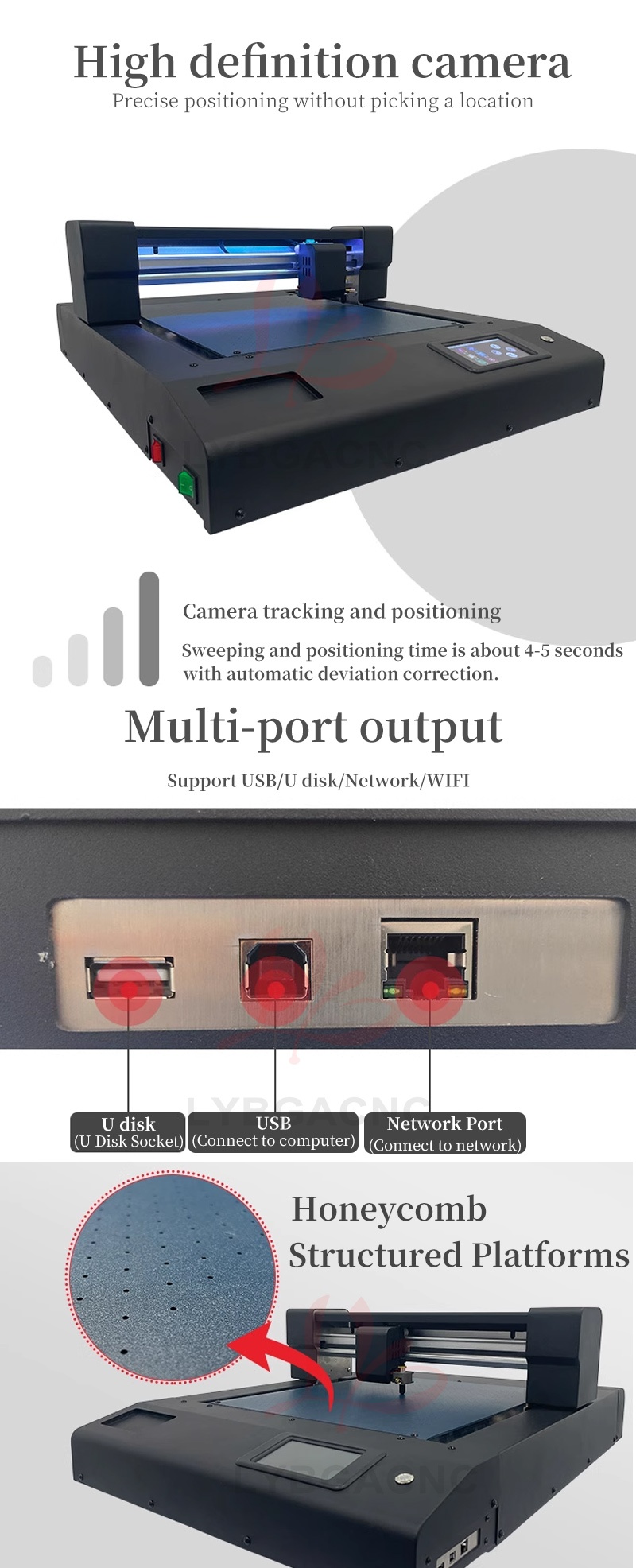

Transmission interface           USB, USB disk, network port, WiFi

Positioning method            Camera positioning system

Drive system                Servo control system

Mechanical resolution              0.0125 mm/step

Repeatability             0.125mm

Memory               1Gb

Control Panel            5.0 Capacitive Touch Panel

Power supply             AC100~240V/50~60Hz/10A

Noise (including fan)        70 dB(A)

Working Environment  Temperature:0to35°CRelative Humidity:35%~95%(No condensation)

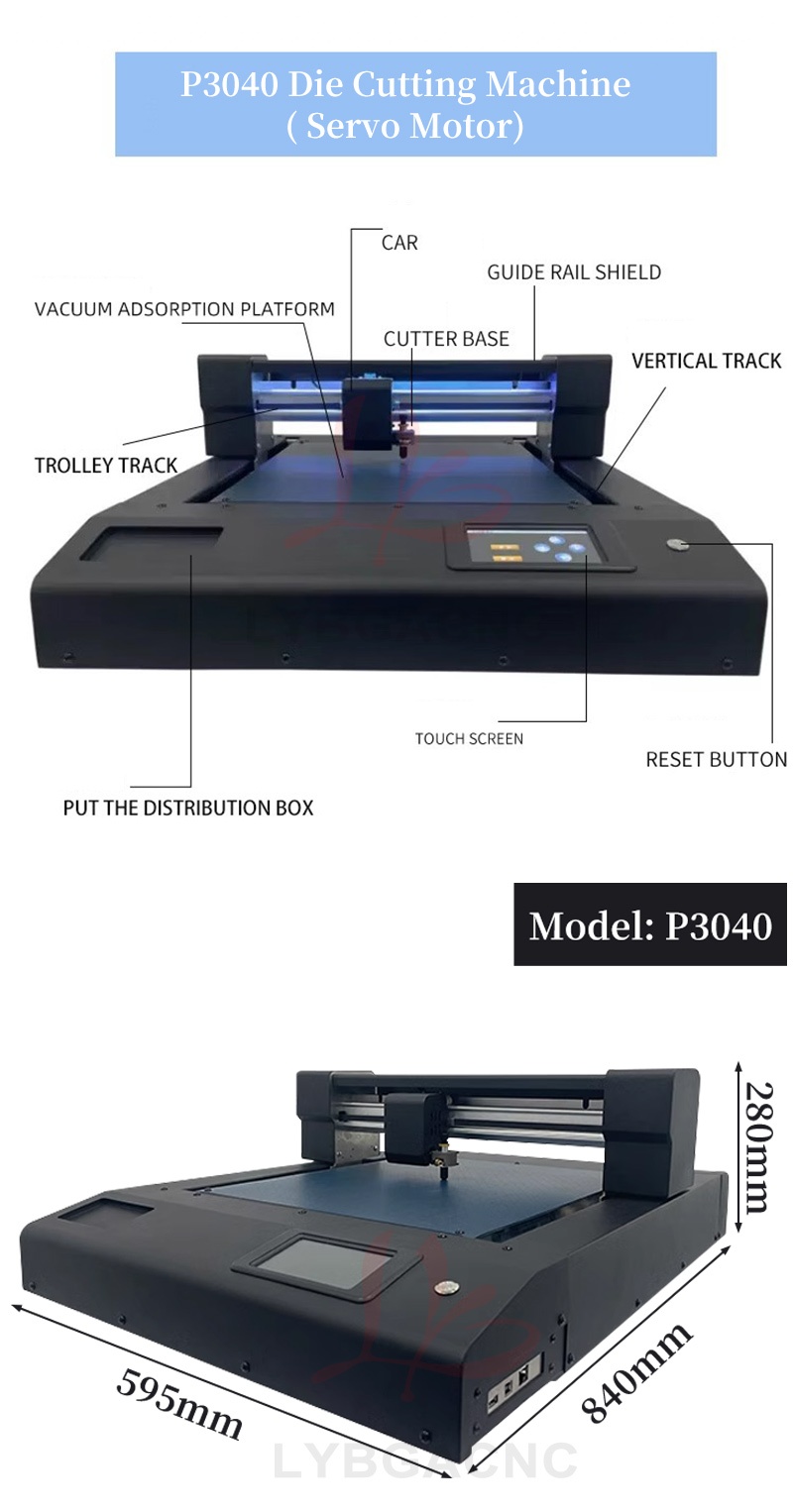

Dimension(L*W*H)           840x600x260mm

Net weight                       33 Kg

Packing size of main machine(L*W*H)         890x700x370mm

Gross weight of machine(without fan)           37 Kg

Gross weight of fan                     11 Kg

Note: The above technical parameters are subject to change without notice

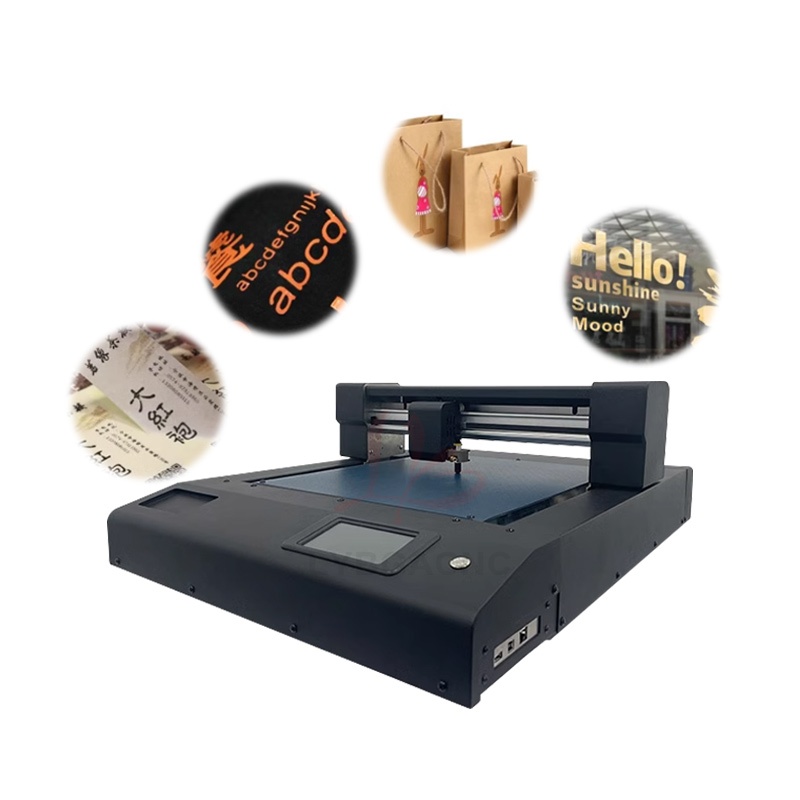

Wide range of applications

1.Cardboard Processing

2.Self-adhesive  application

3. Product Decoration

4. Thermal transfer industry

5.Signposts

6. Store Decoration

7.Fluorescent Logo

8.Traffic Signs
