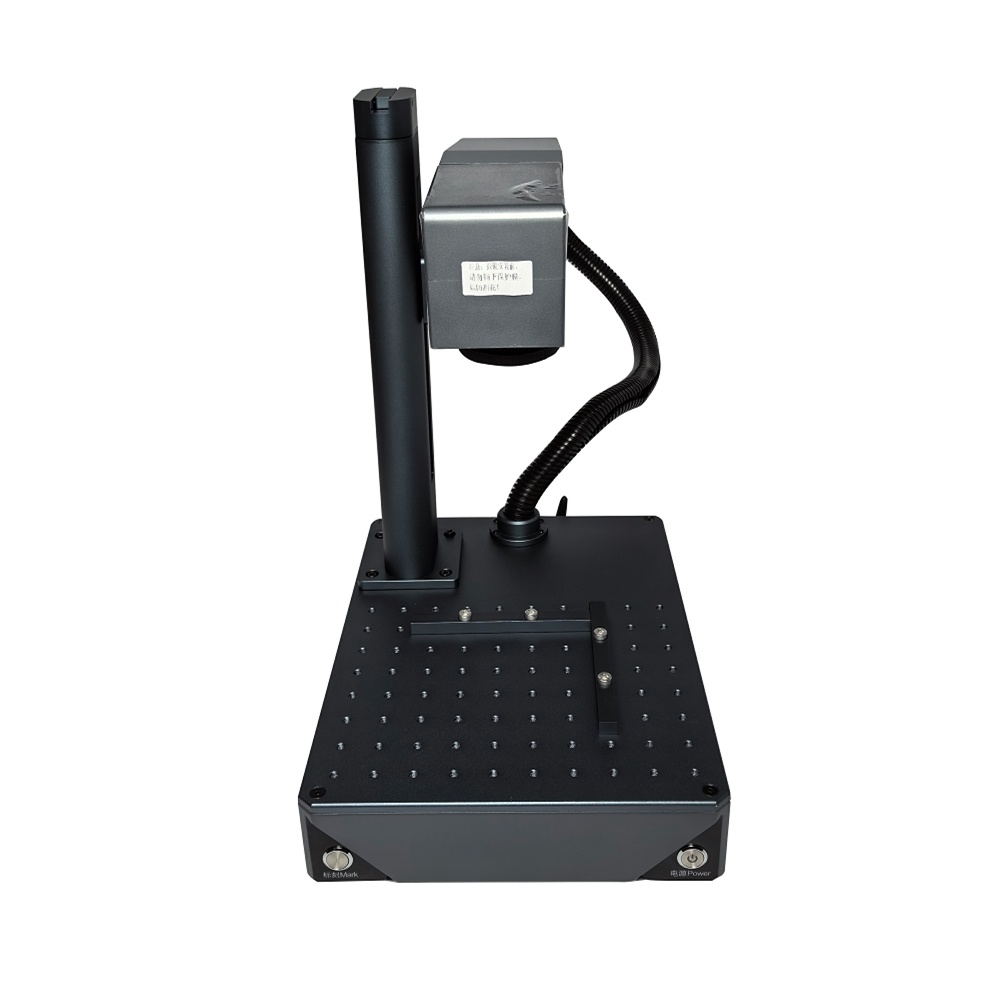

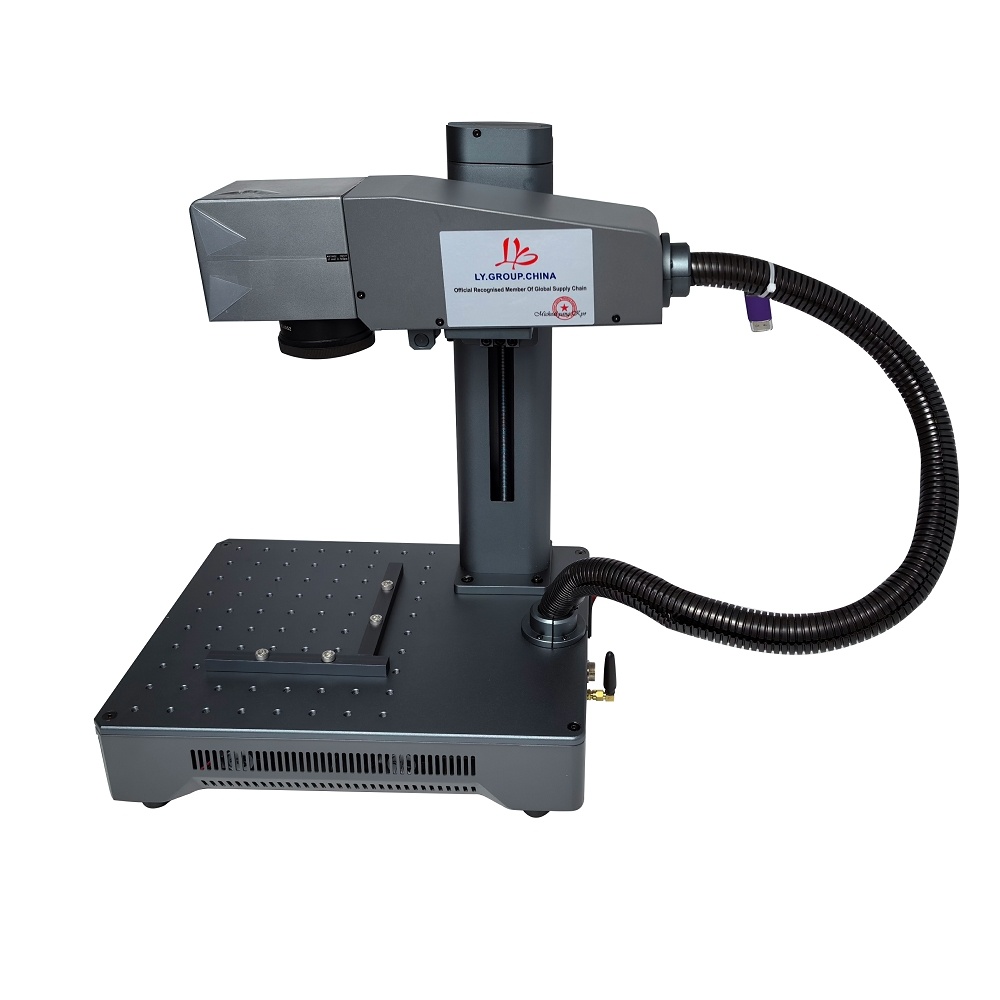

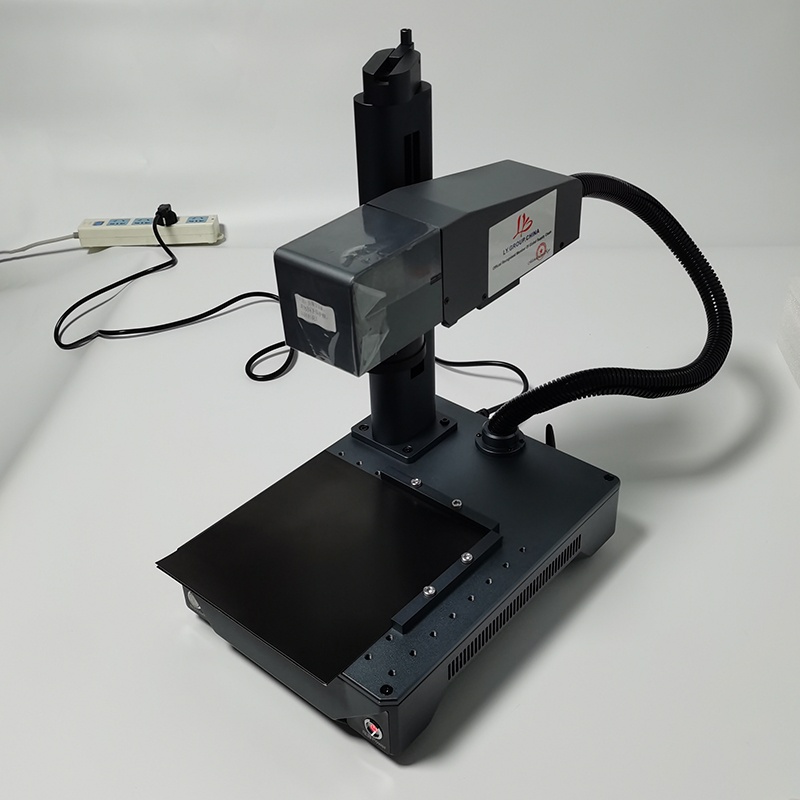

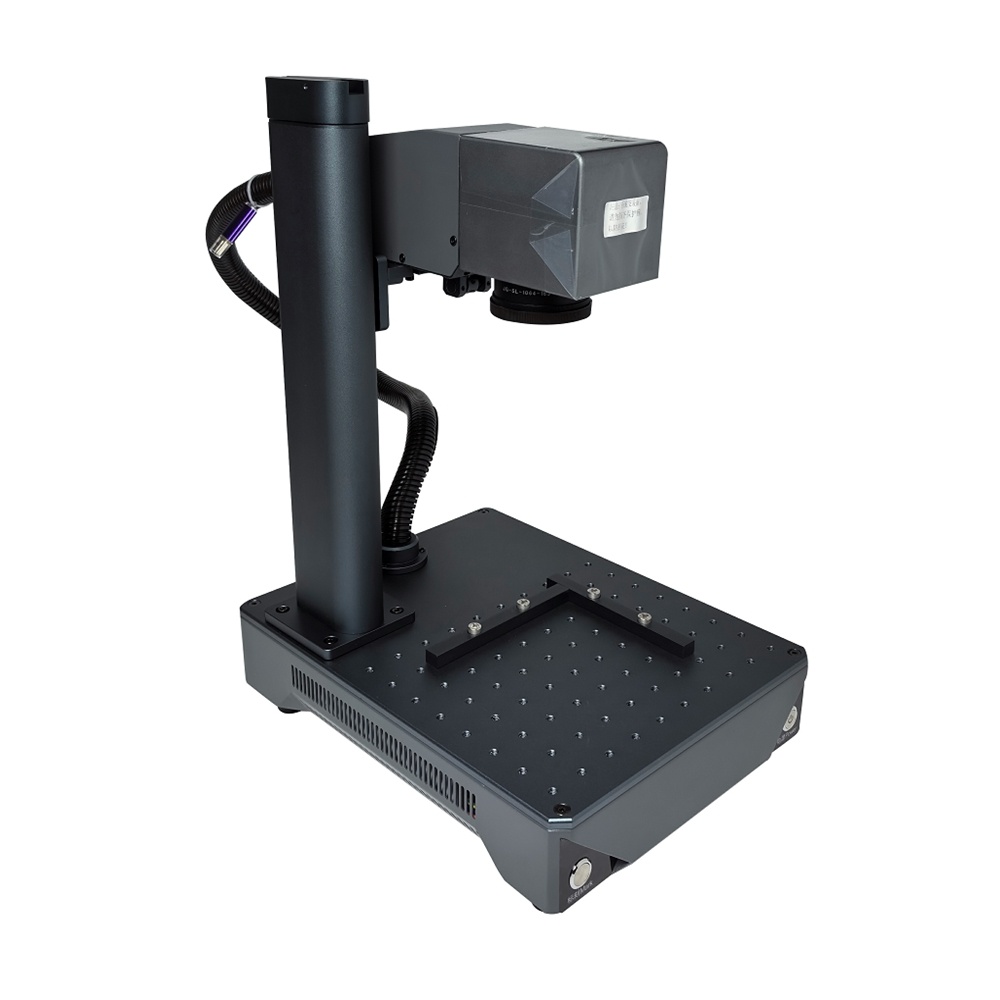

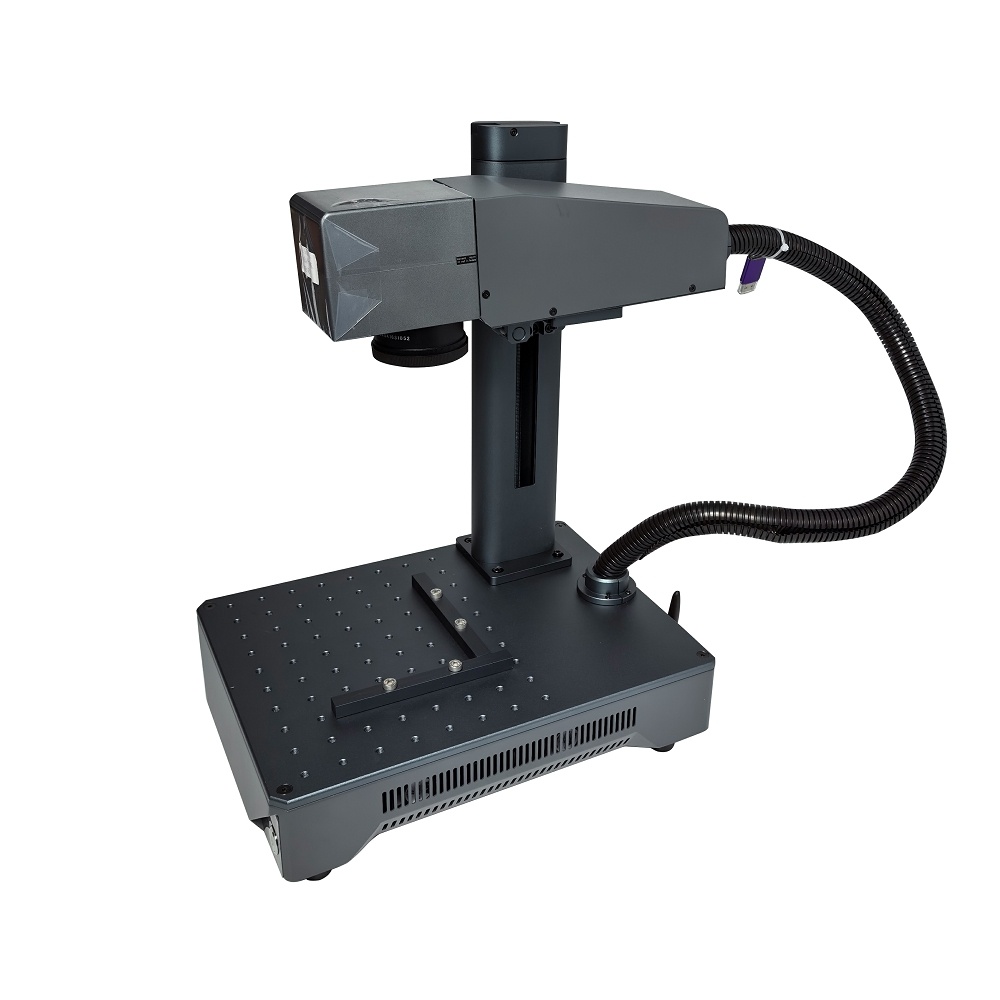

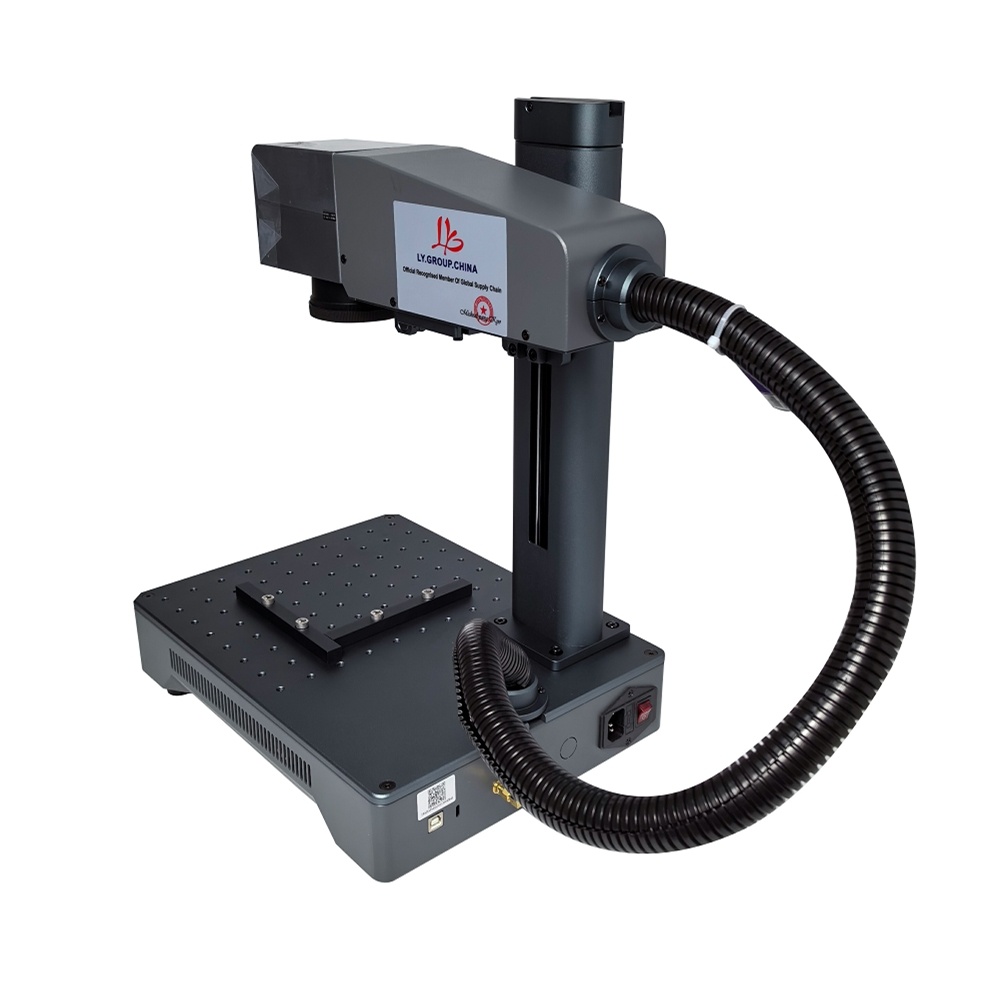

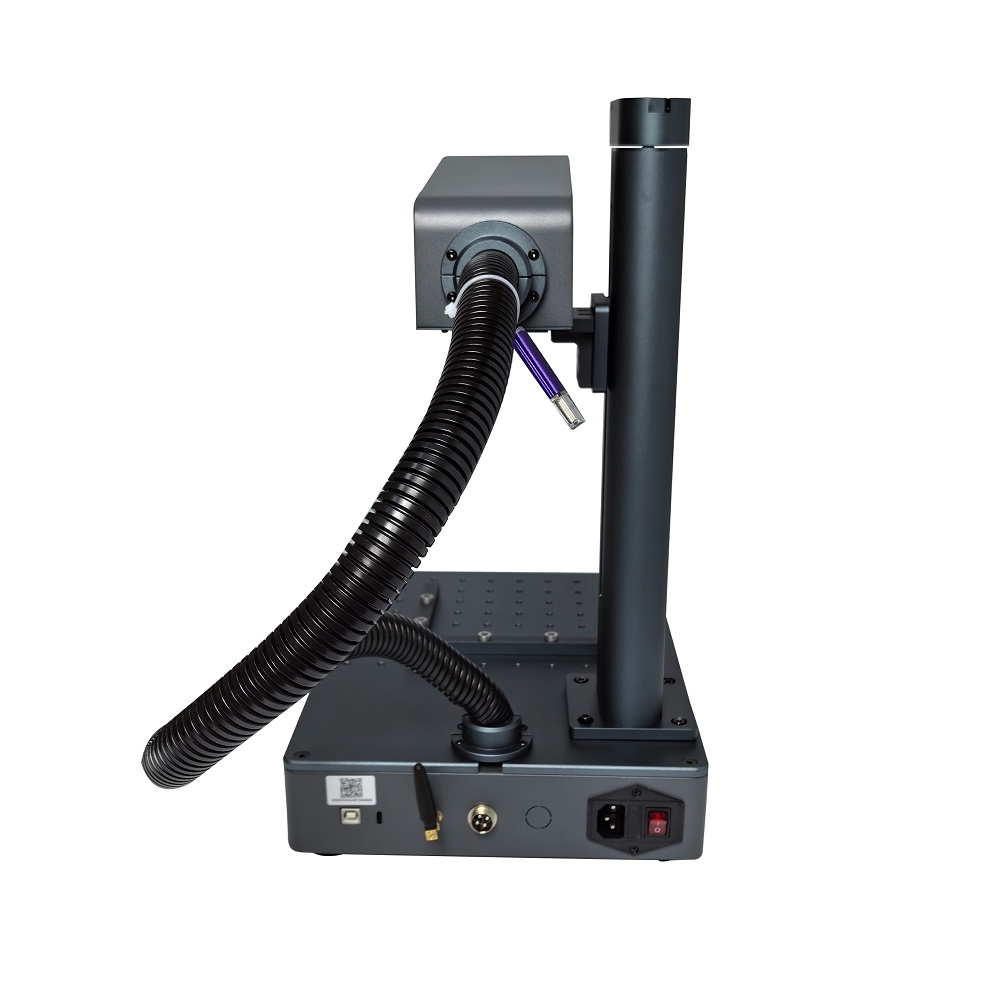

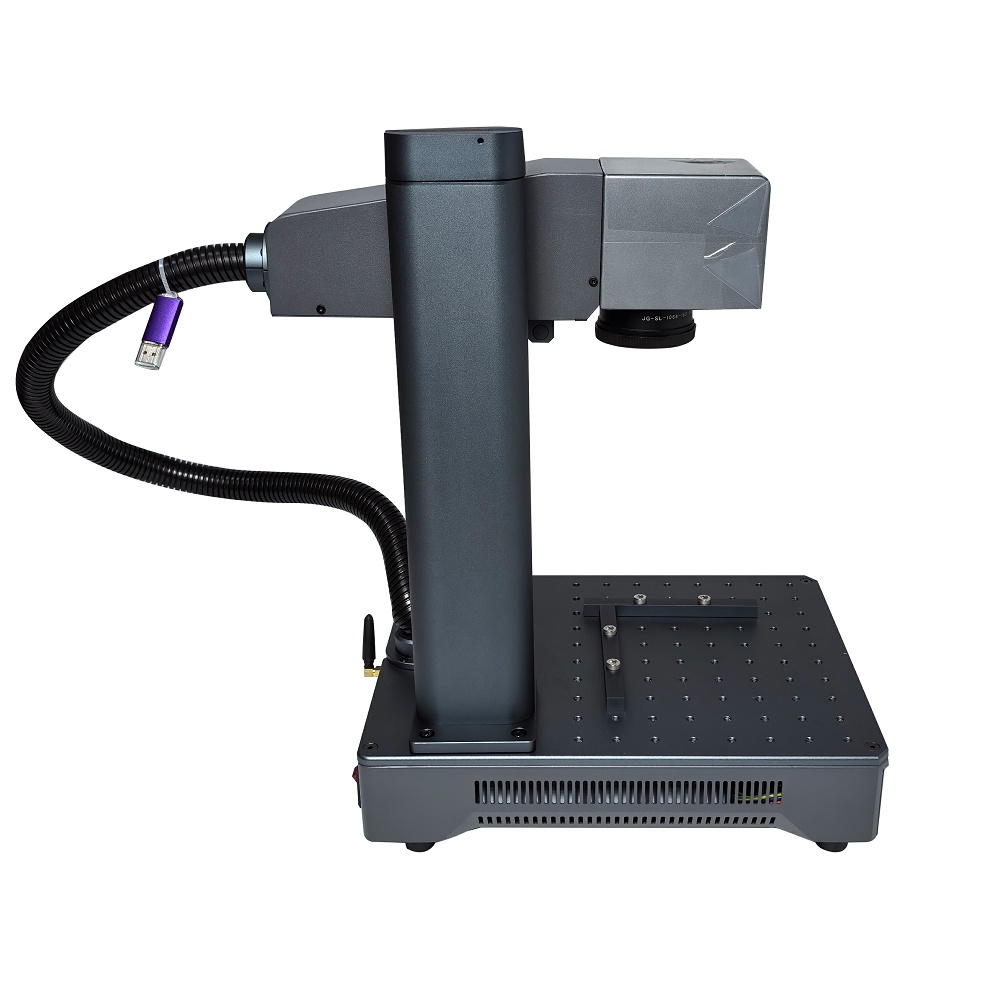

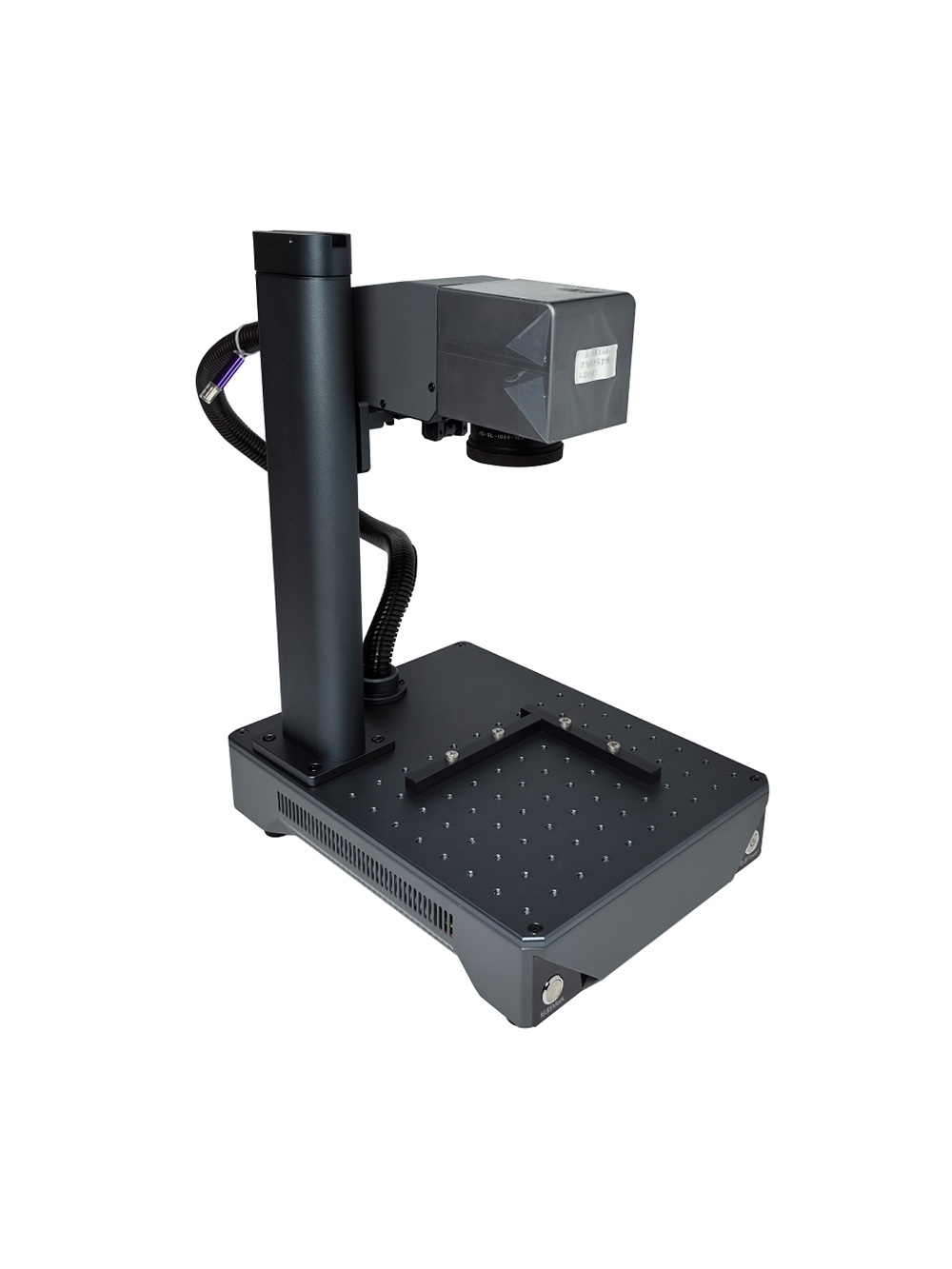

LY Super Mini Desktop 20W 30W Fiber Laser Nameplate Marking Machine for Metal PVC Plastic Stainless Steel Engraving BSL Software Mobile APP Computer Dual Use 220V 110V

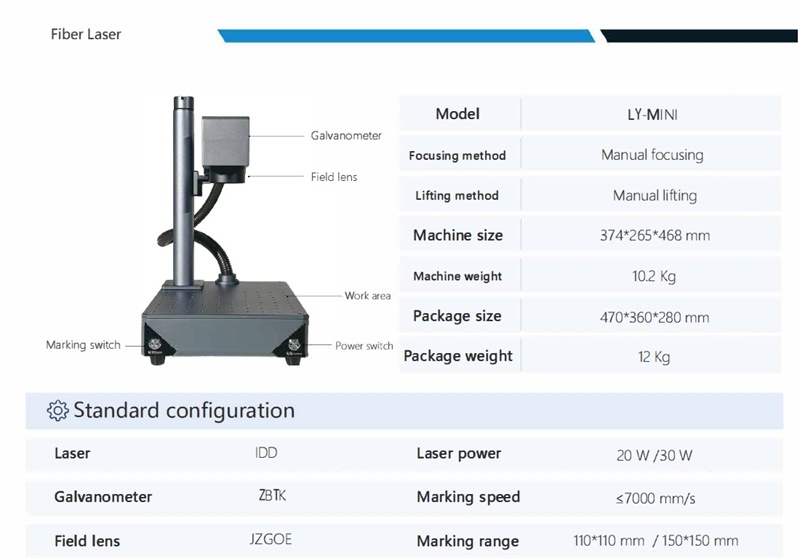

Technical Parameter

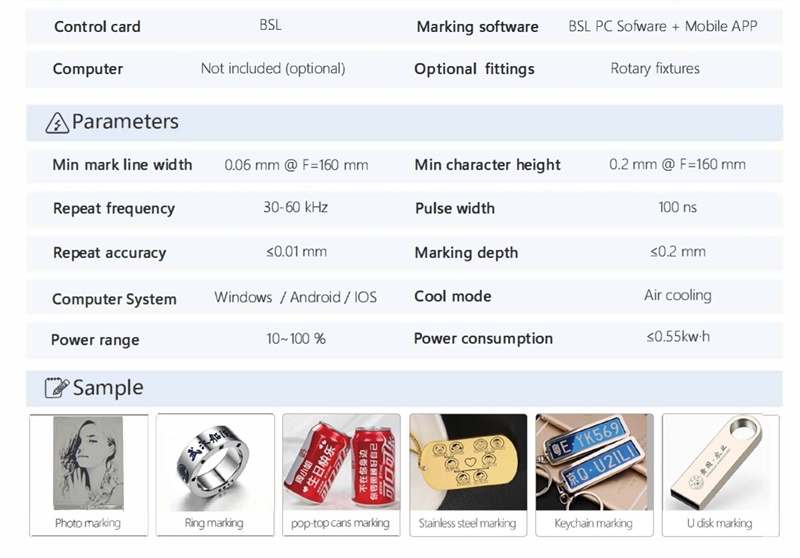

Parameters:

Laser power: 20W/30W(Optional)

Laser type: fiber laser

Laser wavelength: 1064nm

Repetition frequency: 30-60KHz

Cooling method: air cooling

Marking range: 110*110mm(20W) / 150*150mm(30W)

Focal distance: 163mm

Marking speed: 7000mm/s

Minimum line width: 0.06mm (depending on material difference)

Minimum character: 0.2mm

Supported formats: PLT/DXF/AI/DST/JPG/GIF/BMP, etc

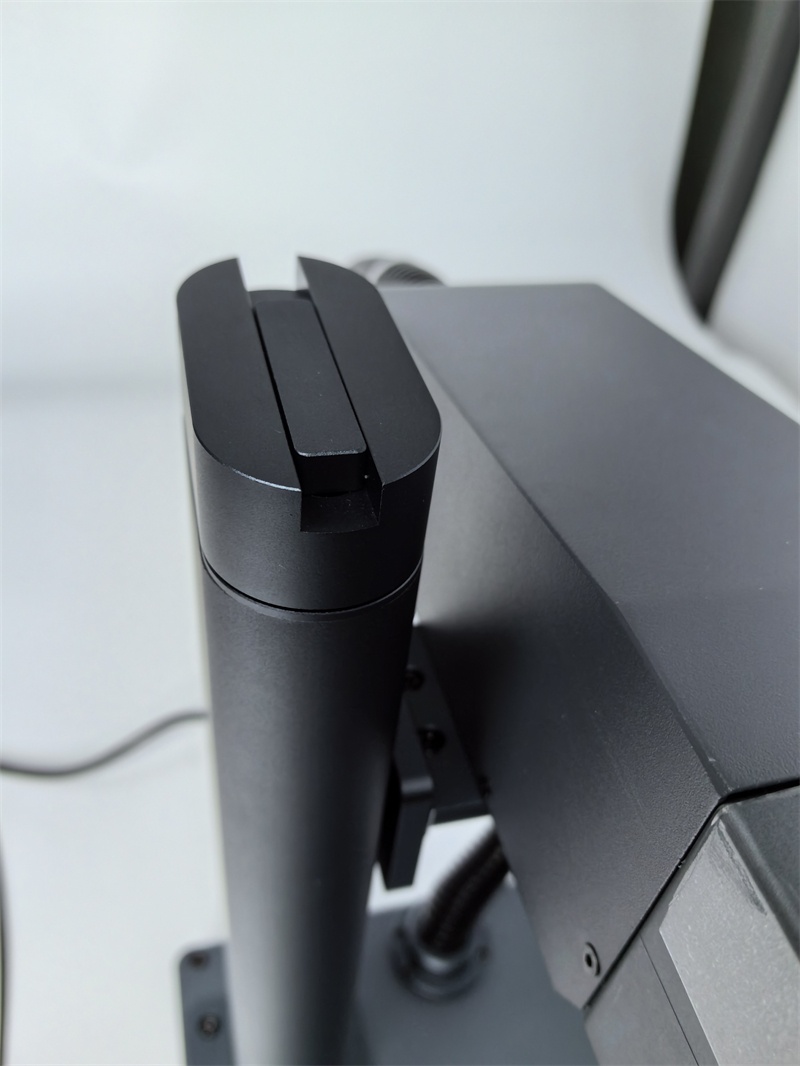

Lifting method: Manual lifting

Focusing method: Dual red light focusing

Laser: IDD

Galvanometer: ZBTK

Control card: IDD

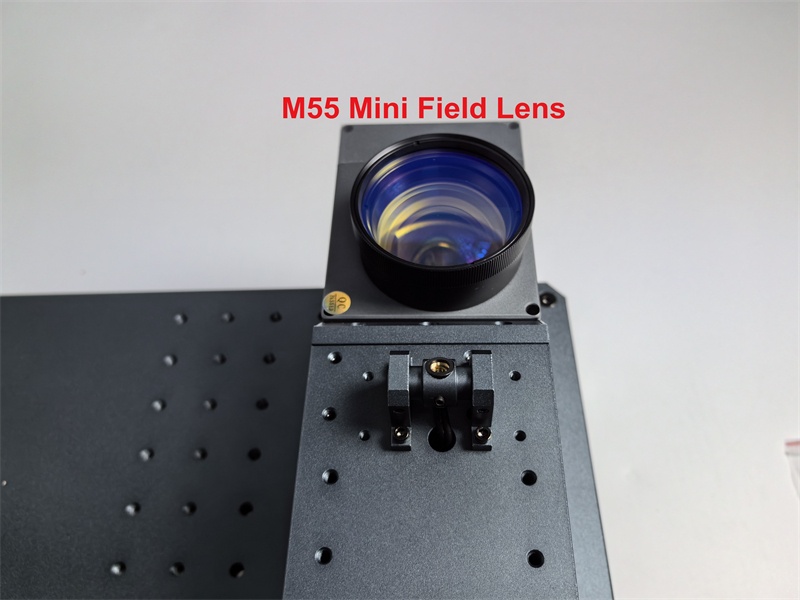

Field mirror: JGZOE

Power supply: Meanwell

Computer: Not included

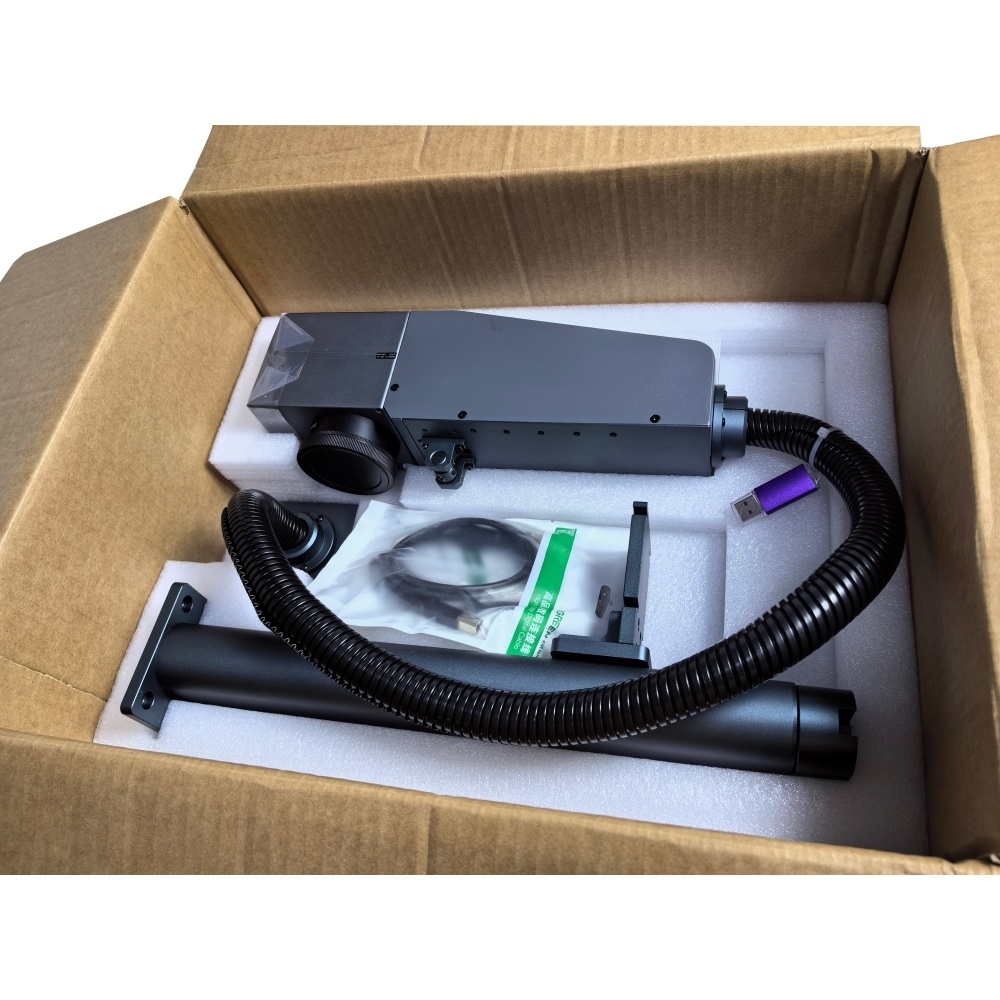

Standard configuration: focusing lens, calibration paper, USB flash drive, ruler, positioning bar, hexagonal wrench

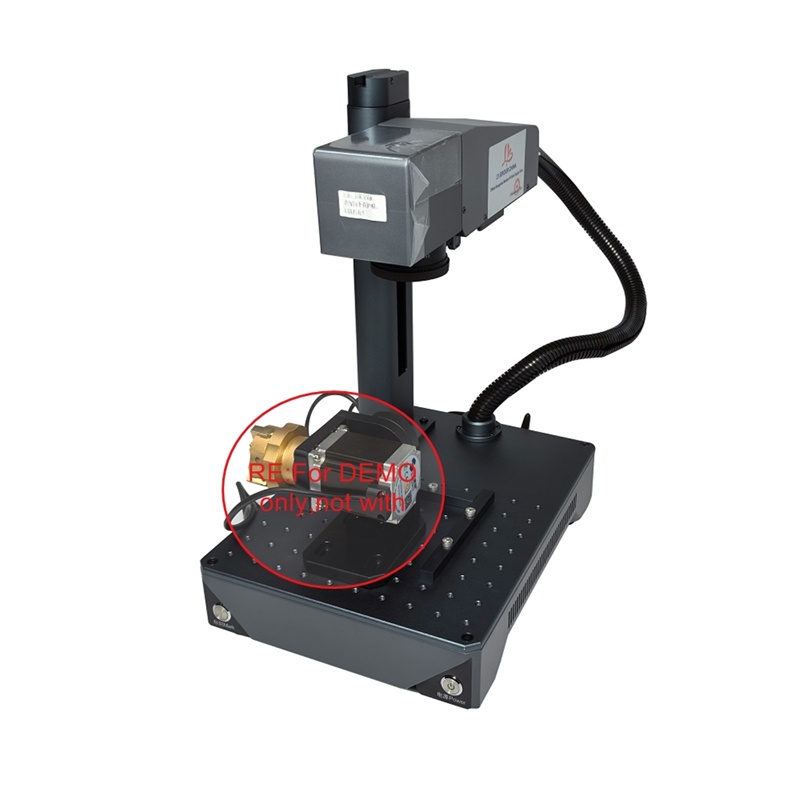

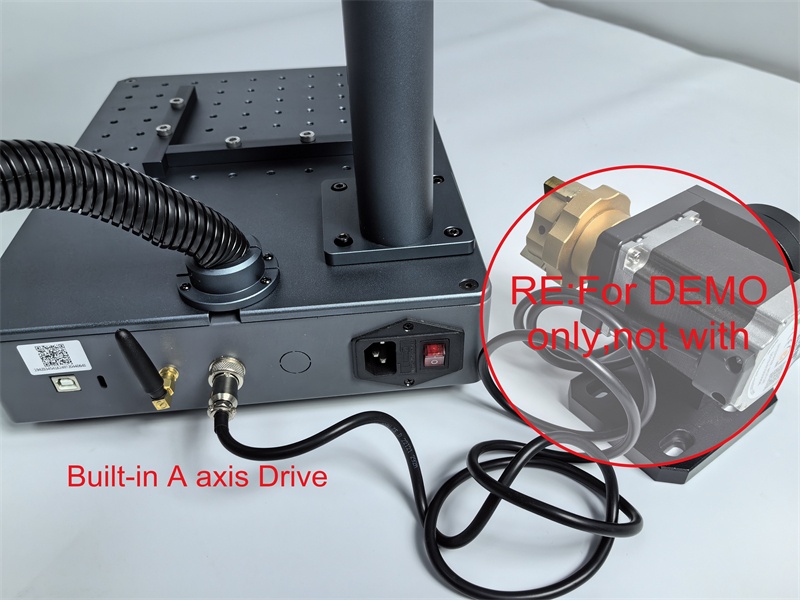

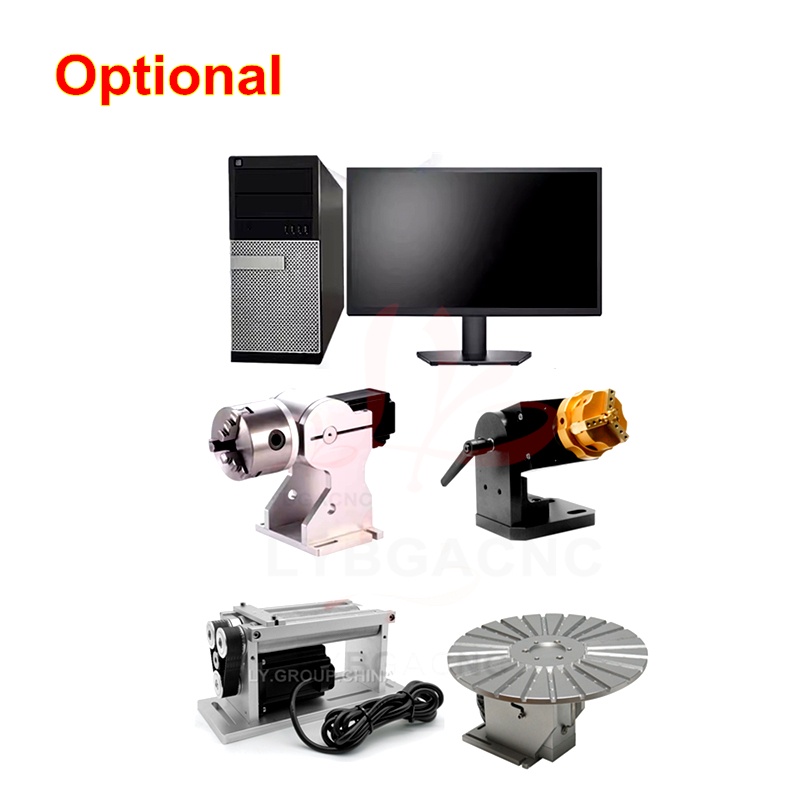

Optional: Rotating fixture, smoke purifier

Power supply voltage: 110-220V (5%) 50Hz -60Hz (5%)

Power consumption:≤500W, one and a half hours of electricity

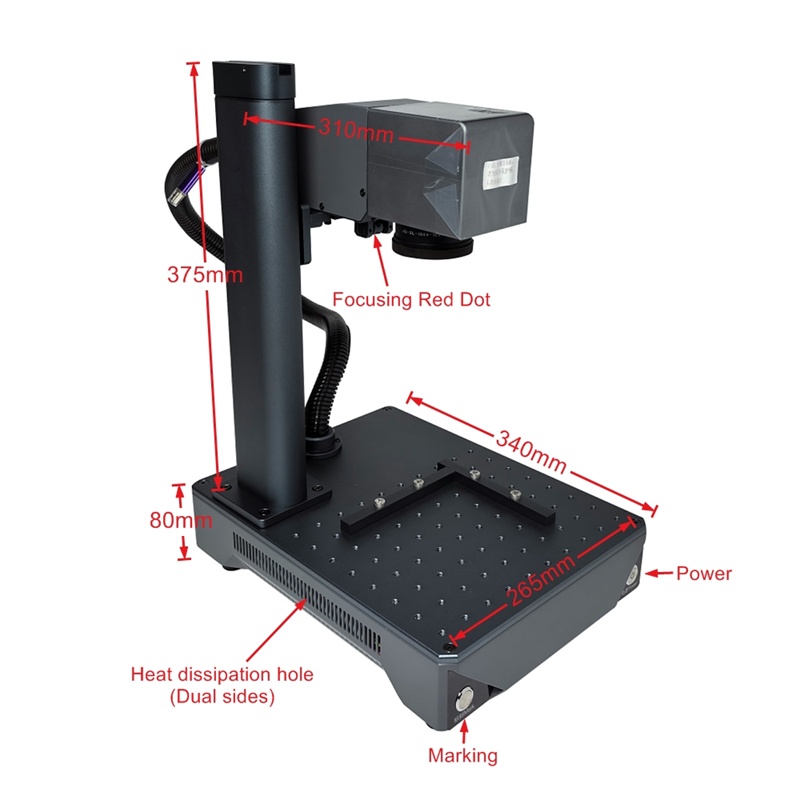

Cartoon size: 470*360*290mm

Weight: 12.3KG ( Without Rotary axis.)
