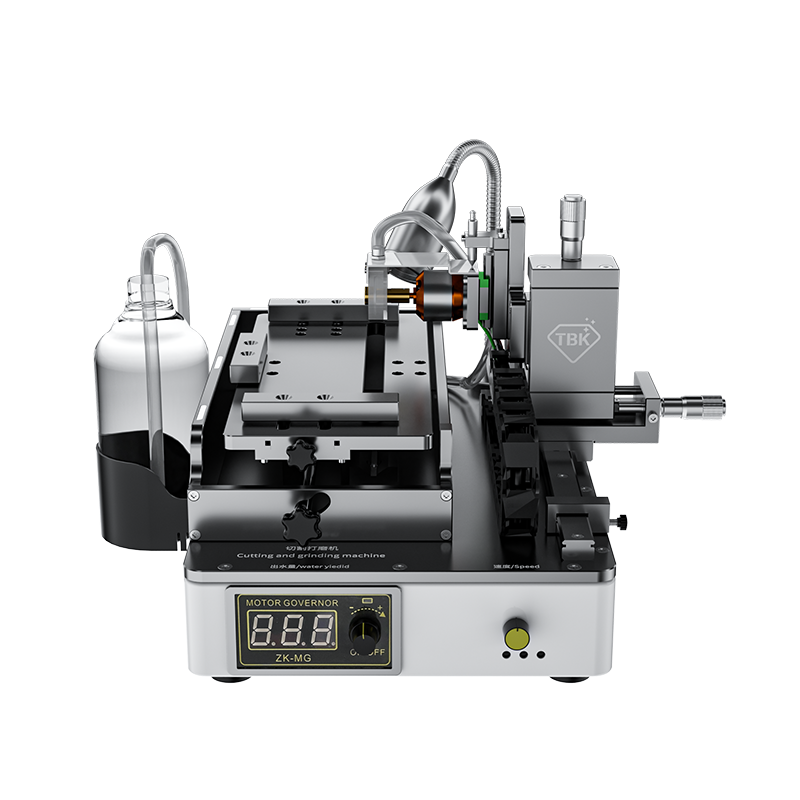

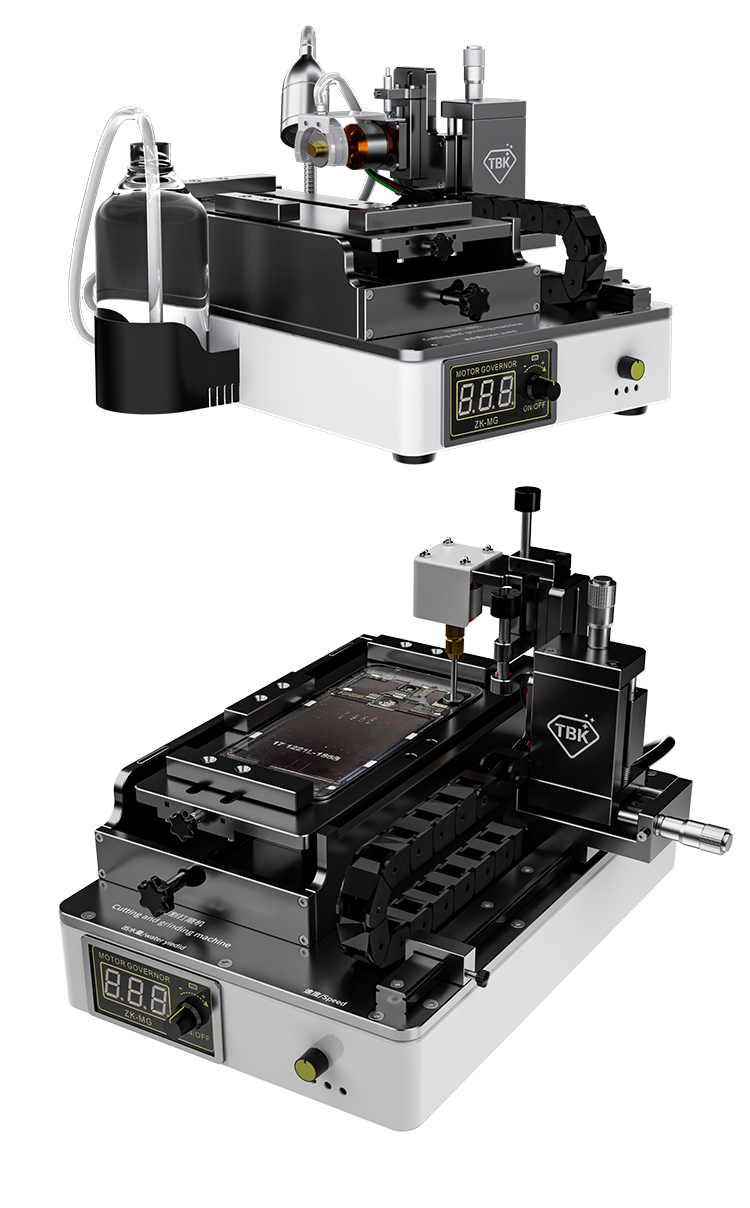

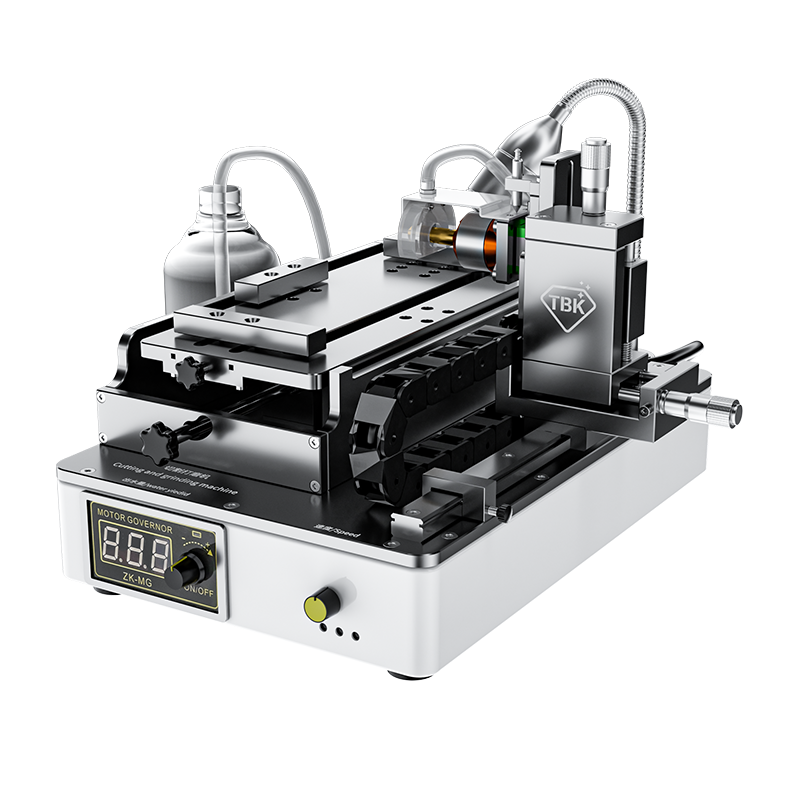

LY-TBK 918 Smart Cutting Grinding Machine For Mobile Phone Repair Cutting Curved Screen For Glass Polishing Of Rear Cover 100W

LY-TBK 918 Smart Cutting Grinding Machine For Mobile Phone Repair Cutting Curved Screen For Glass Polishing Of Rear Cover 100W

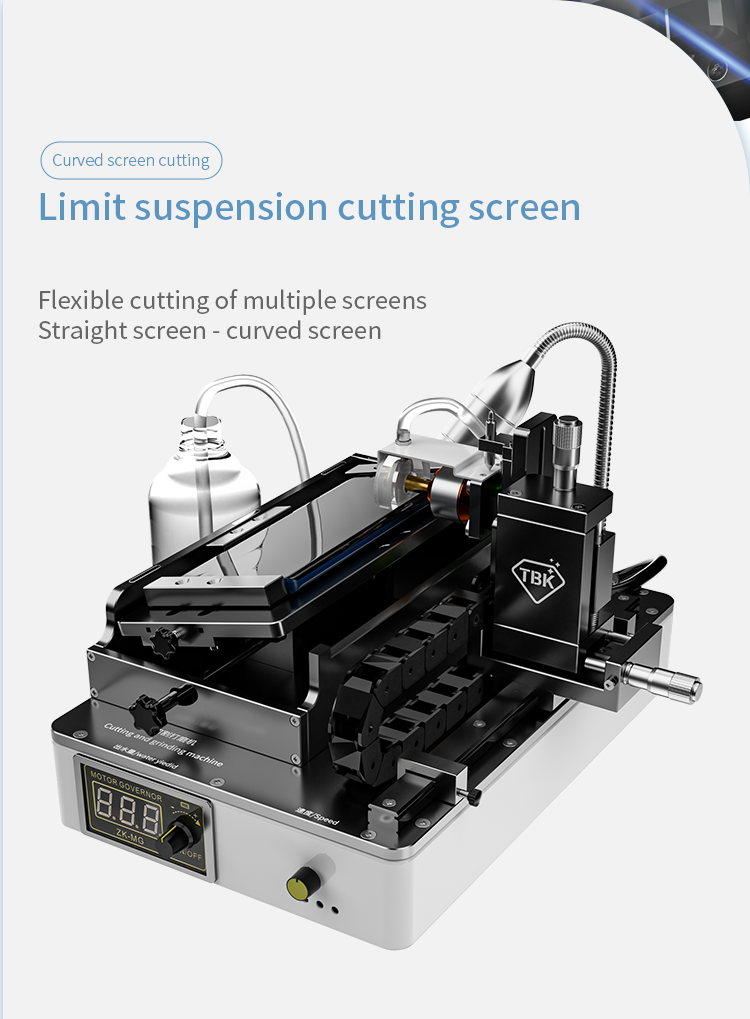

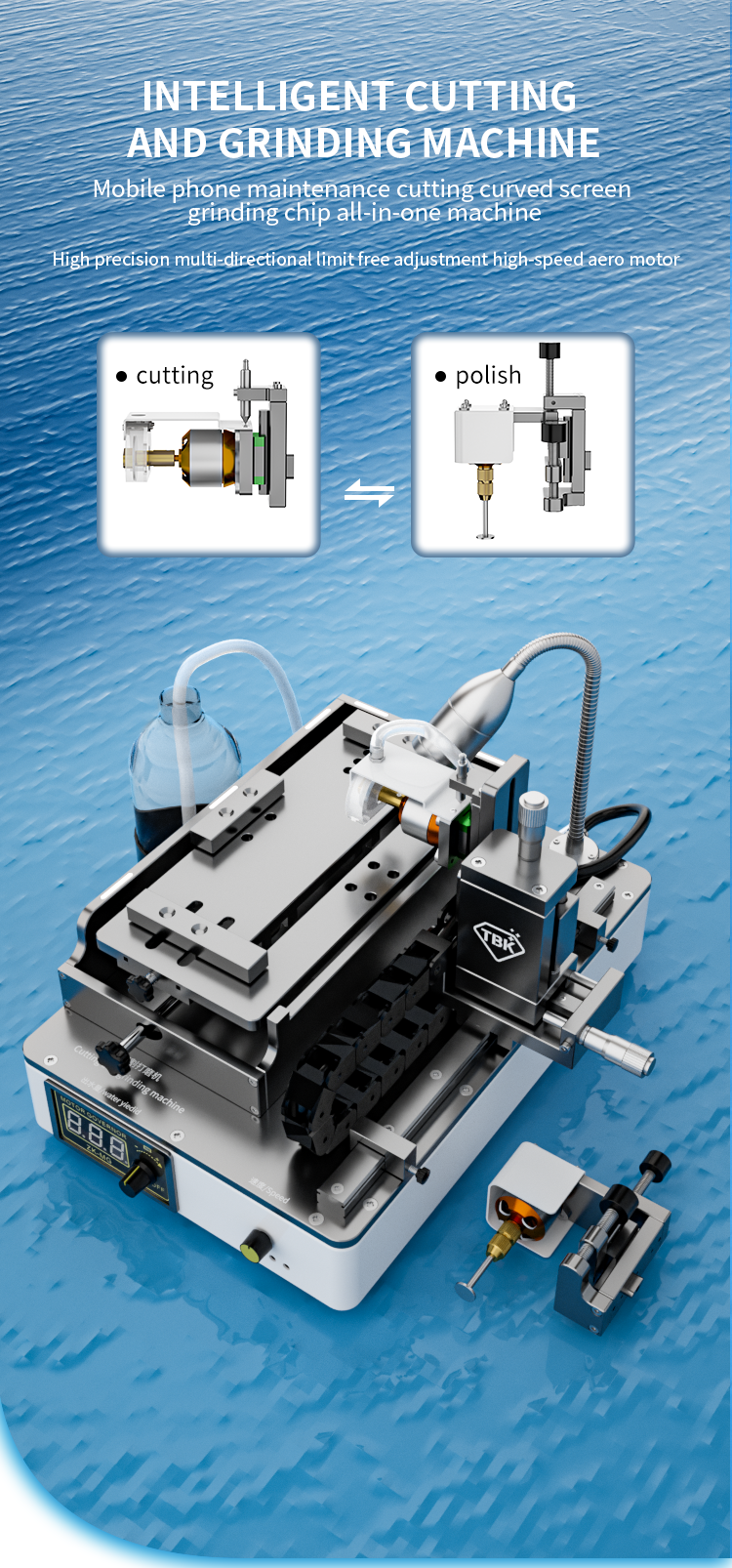

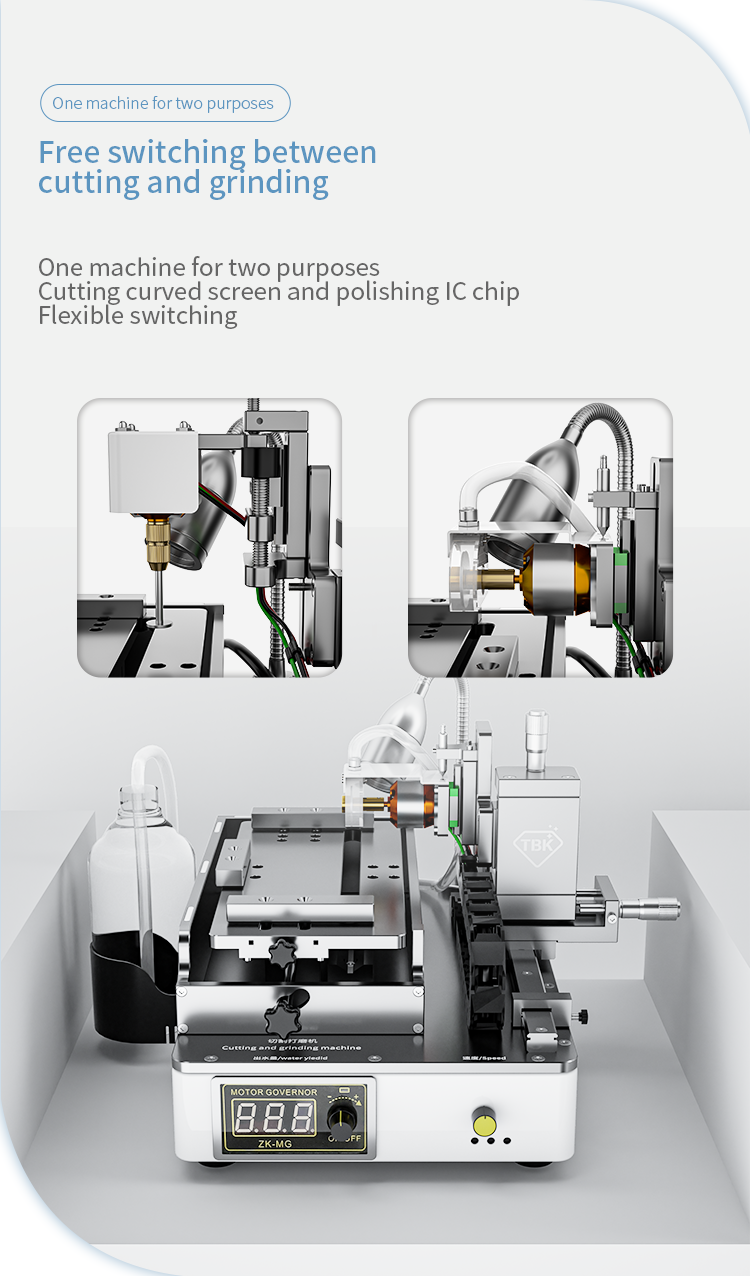

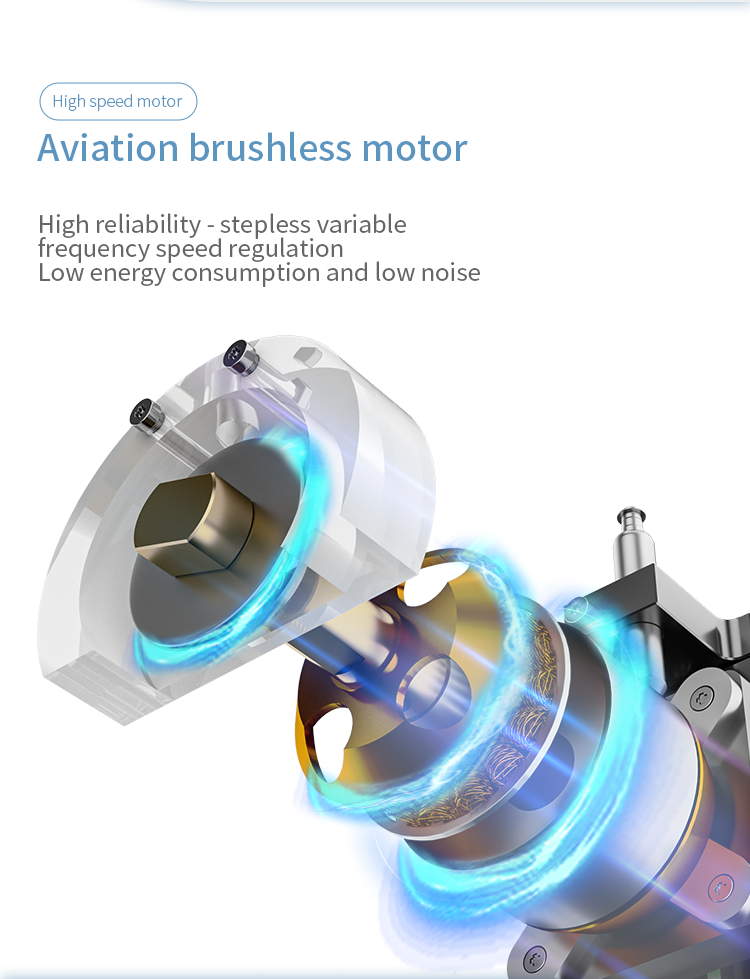

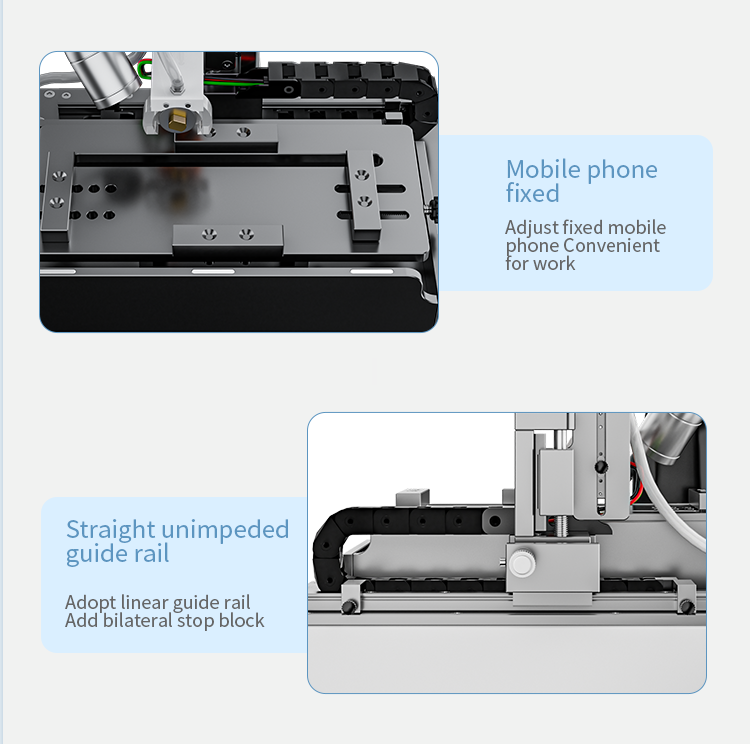

New intelligent cutting and grinding machine, (curved screen, straight screen) adaptive limit suspension cutting, cutting water design, reduce dust flying Increase cutting and heat dissipation, polish the mobile phone cable IC, motherboard IC, camera frame and back cover glass. Multi directional adjustment and control, linear unimpeded guide rail Add bilateral limit blocks, aviation brushless motor, powerful, one machine, simple operation, good helper for maintaining mobile phones!

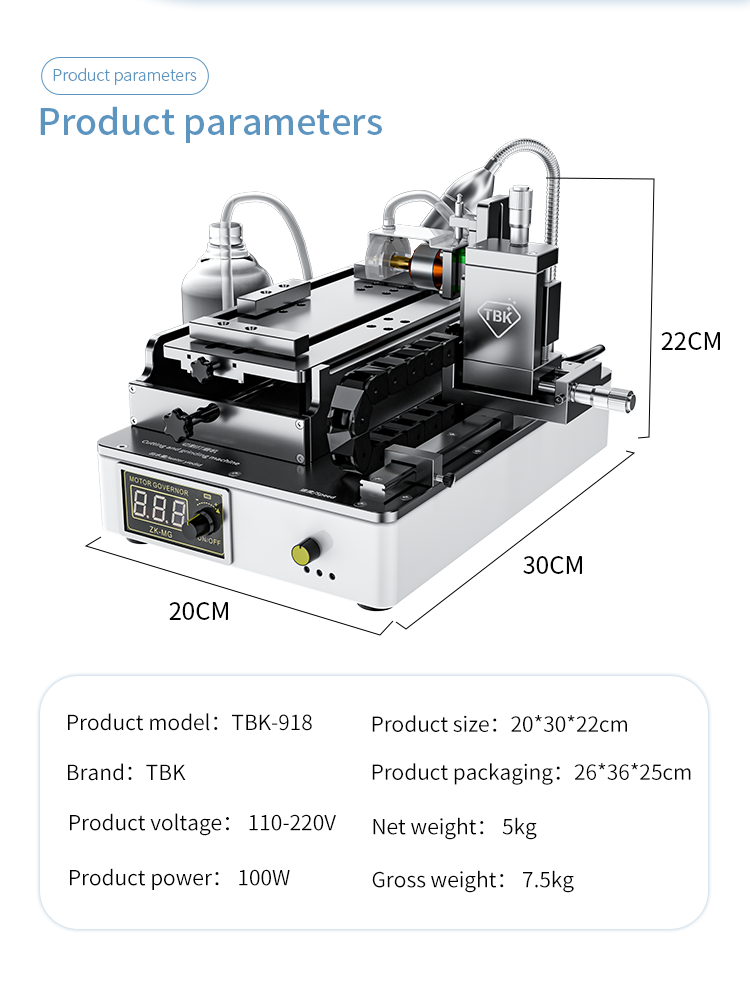

Parameters:

Product model: 918

Product size: 200*300* 220mm

Brands: TBK

Product size: 260*360* 250mm

Voltage: 110-220V

Net weight: 5kg

Power: 100W

Package weight: 7.5kg

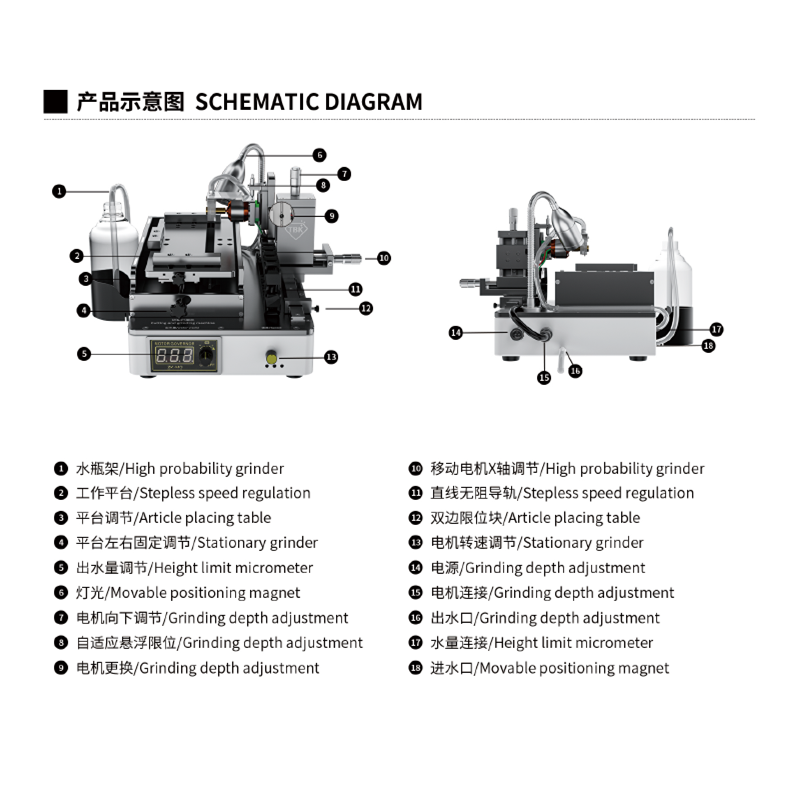

Operations:

Cutting

1. Connection (power line, motor line, water interface)

2. Install the cutting motor

3. Put the mobile phone into the working platform (adjust the tilt and fix the mobile phone)

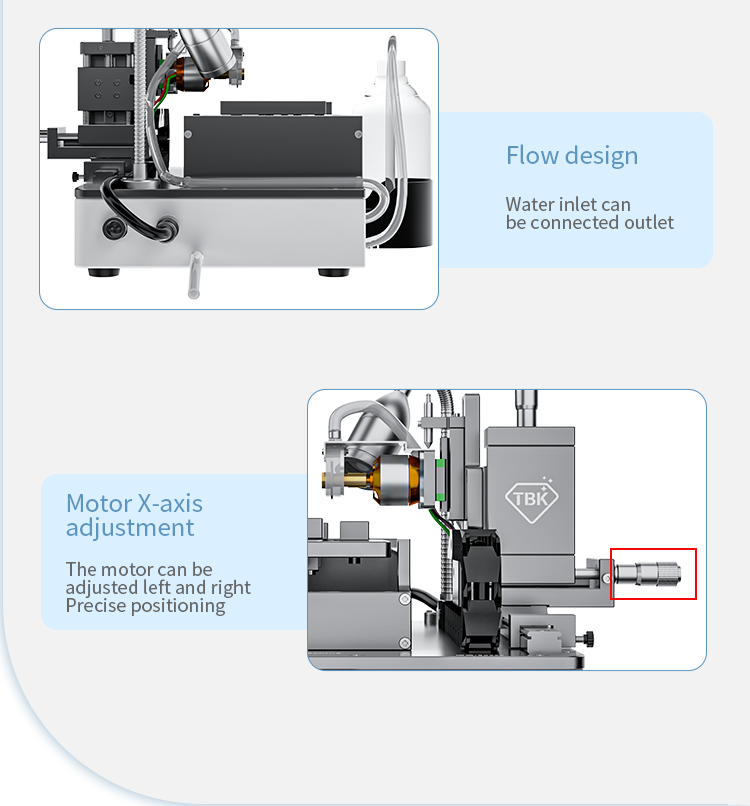

4. Adjust the position of the mobile motor (adjust the motor downward and the x-axis to make the mobile motor reach the corresponding cutting position)

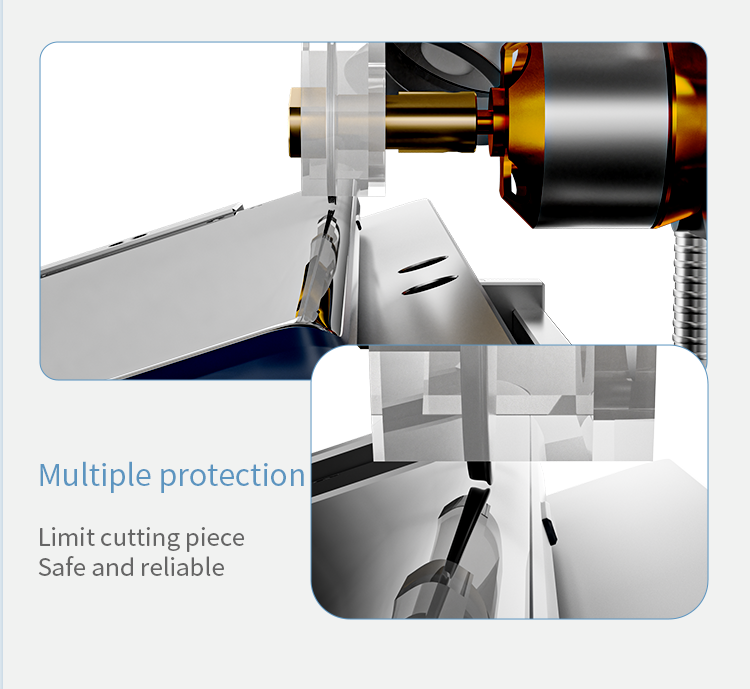

5. Adjust the bilateral limit block (limit the working range of the mobile motor according to the length of the mobile phone)

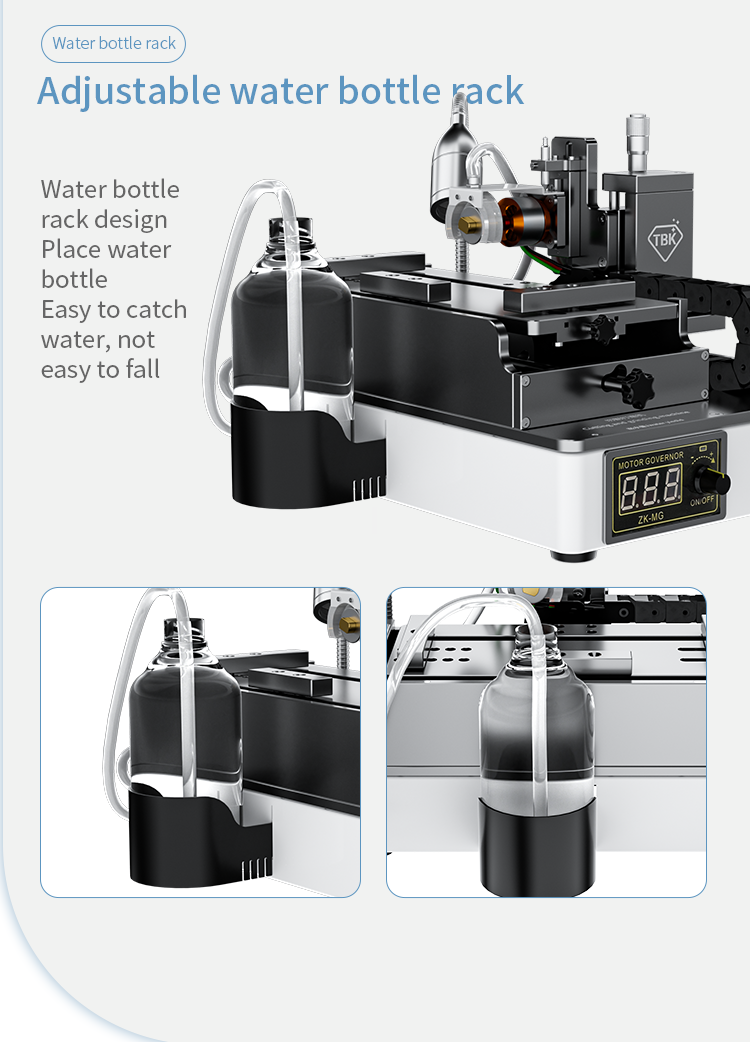

6. Put the mineral water bottle on the water bottle rack (connect three water volume corresponding interfaces)

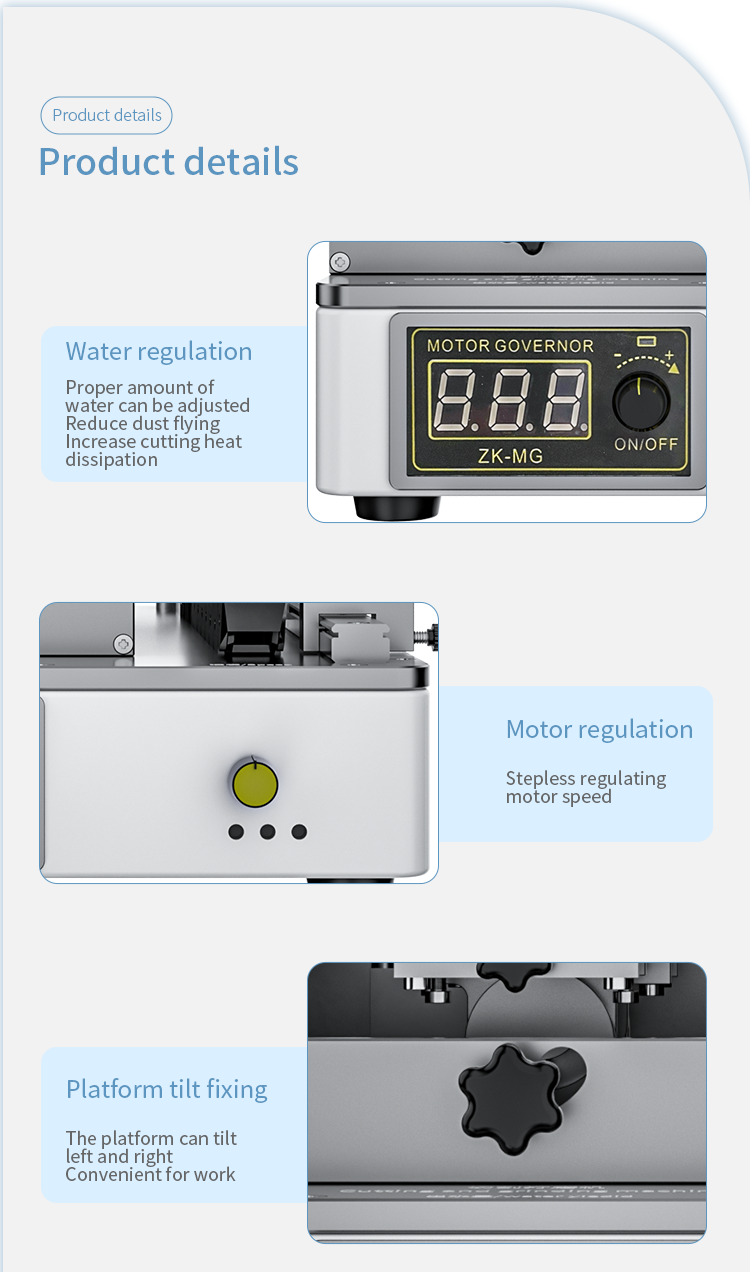

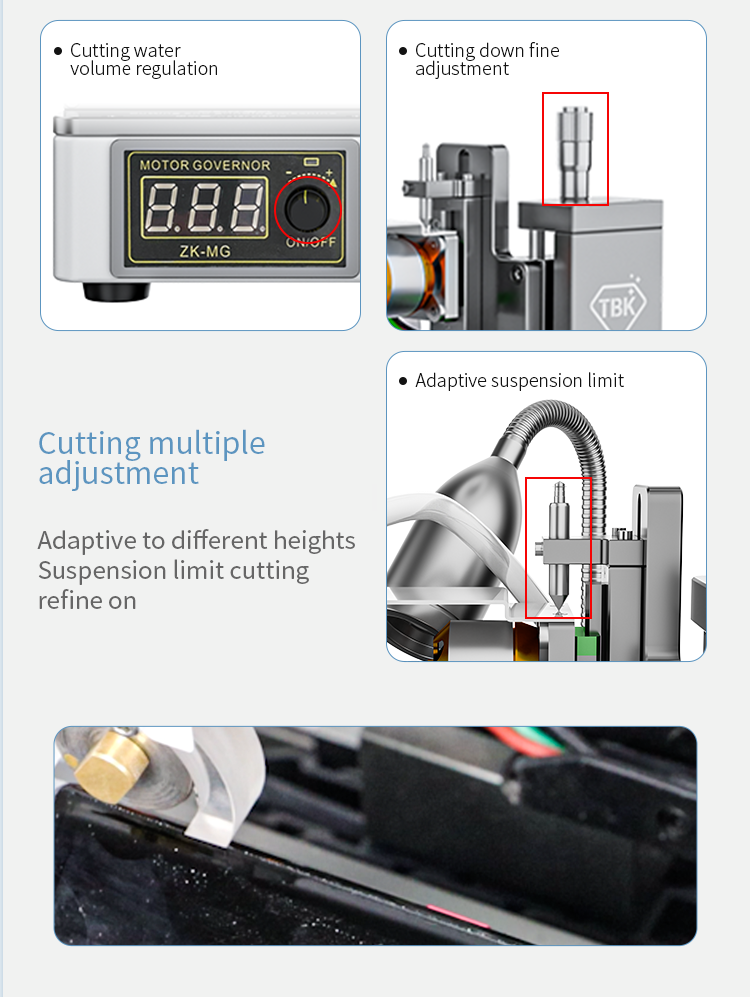

7. Turn the water volume switch and motor switch

8. Move the motor to work (if you can’t see clearly, you can turn on the light switch)

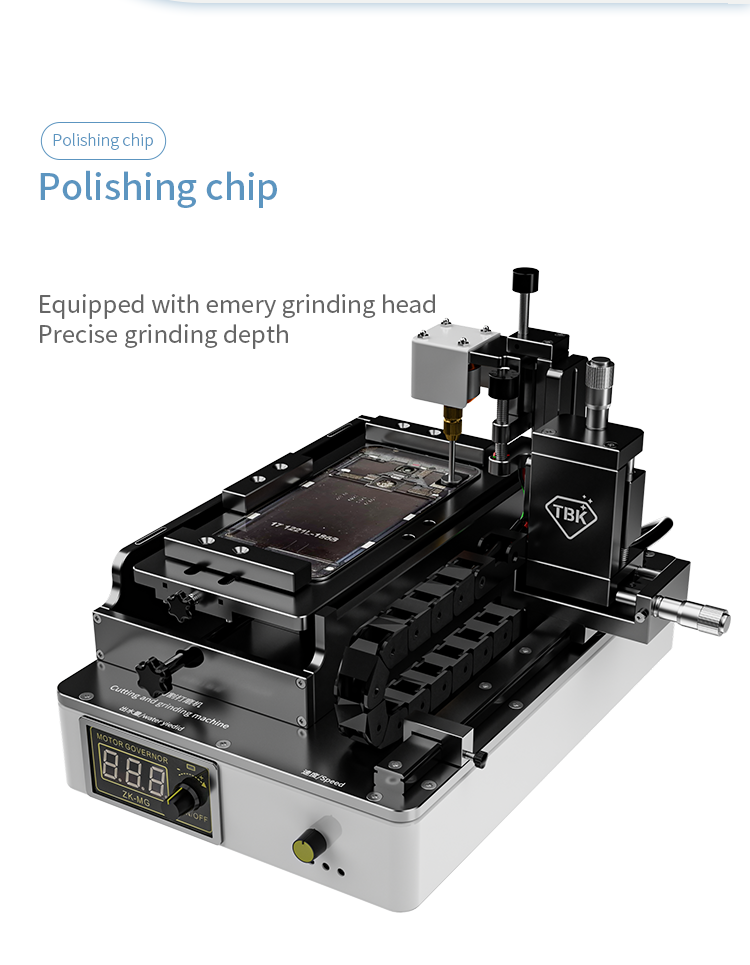

Polish

1. Connection (power line, motor line)

2. Install the grinding motor

3. Put the mobile phone into the working platform (adjust and fix the mobile phone)

4. Measure the depth to be polished

5. Adjust the position of the mobile motor (adjust the motor downward and the x-axis to make the mobile motor reach the corresponding grinding position)

6. Adjust the bilateral stop block (limit the working range of the mobile motor according to the grinding length)

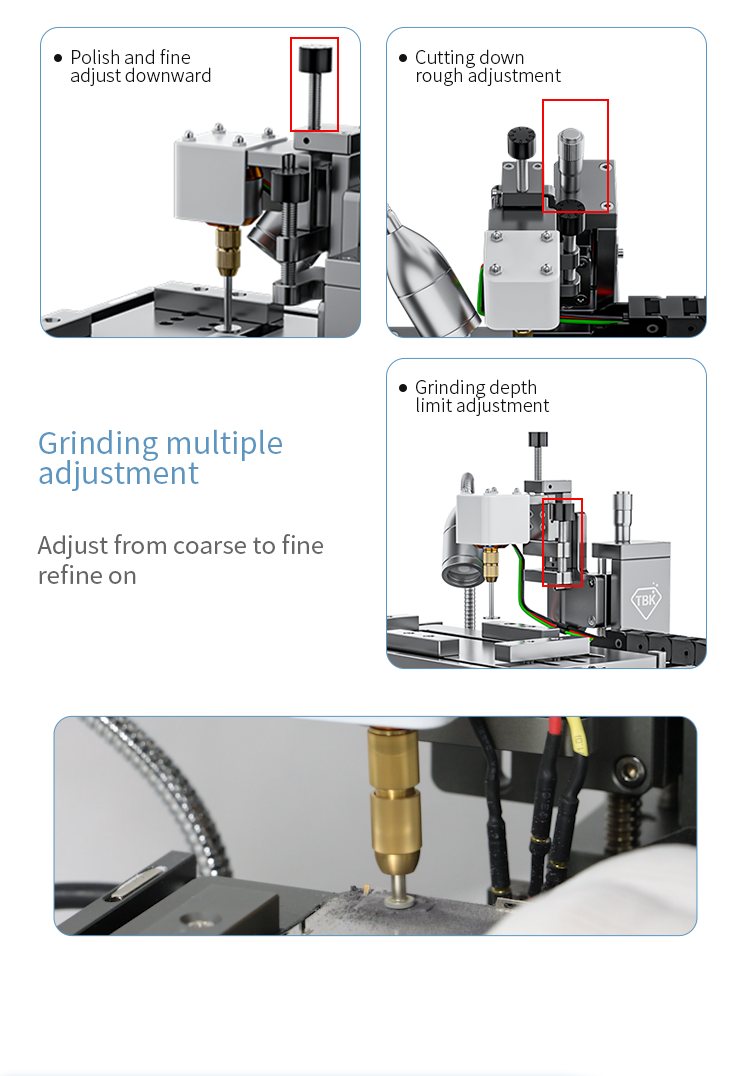

7. Adjust the grinding depth limit (for the depth measured in front, take the corresponding feeler gauge size limit)

8. Turn the motor switch

9. The mobile motor starts to work ( if you can’t see clearly, you can turn on the light switch)
