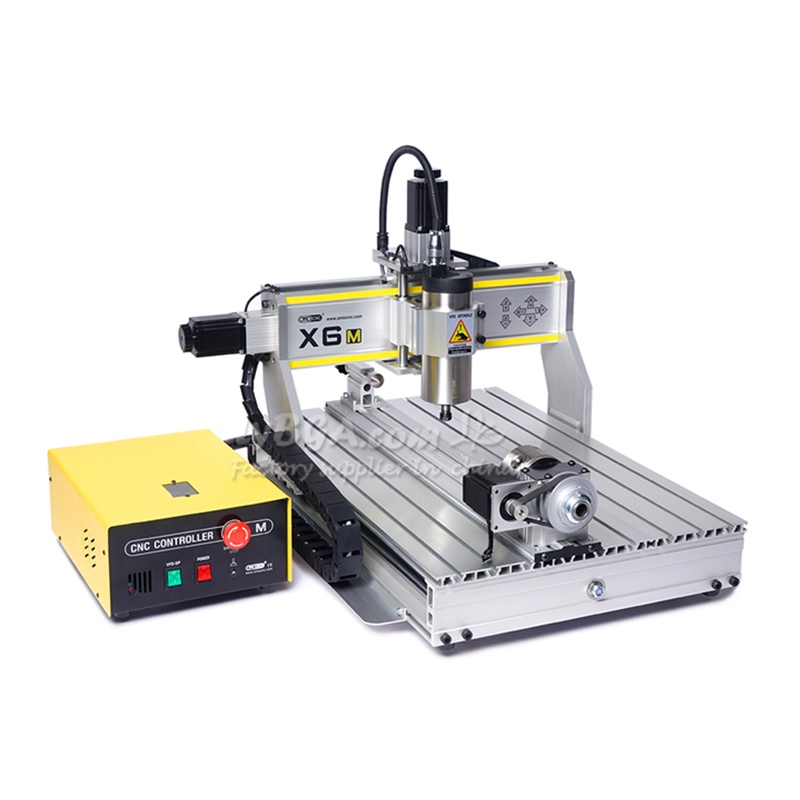

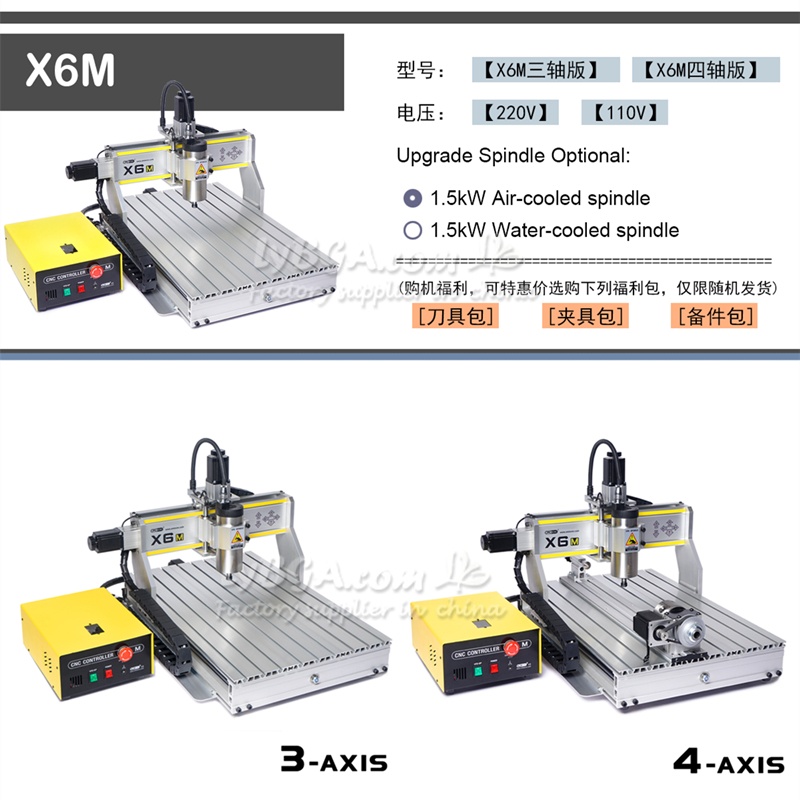

CNC Engraving And Cutting Machine LY X6m Customized Diy Cutting Optional 1.5kw Water-Cooled/Air-Cooled Spindle Er11 Collet
Reviews(0)
Product Detail
Product Tags

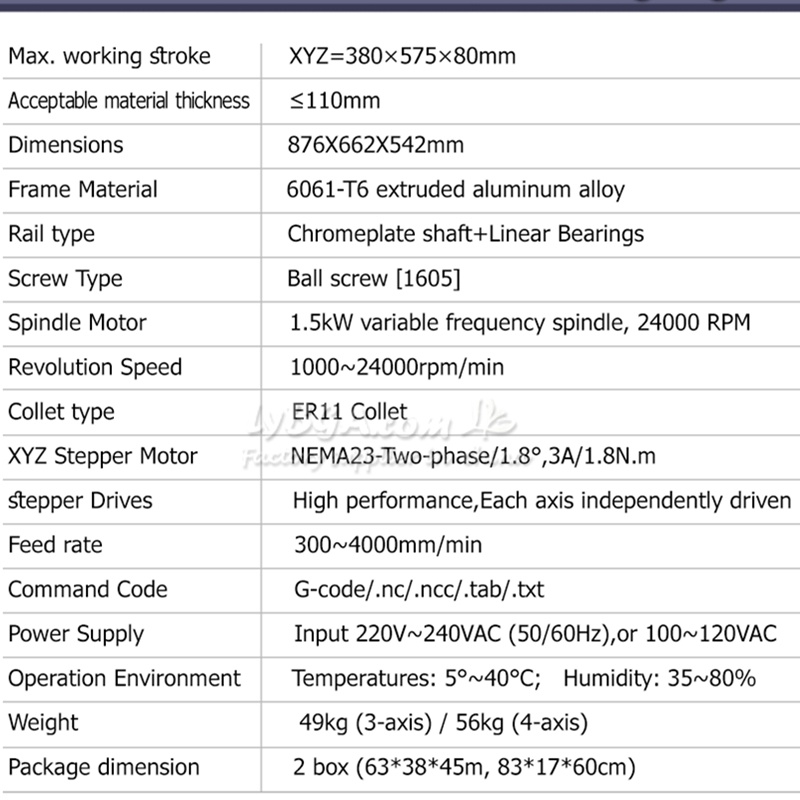

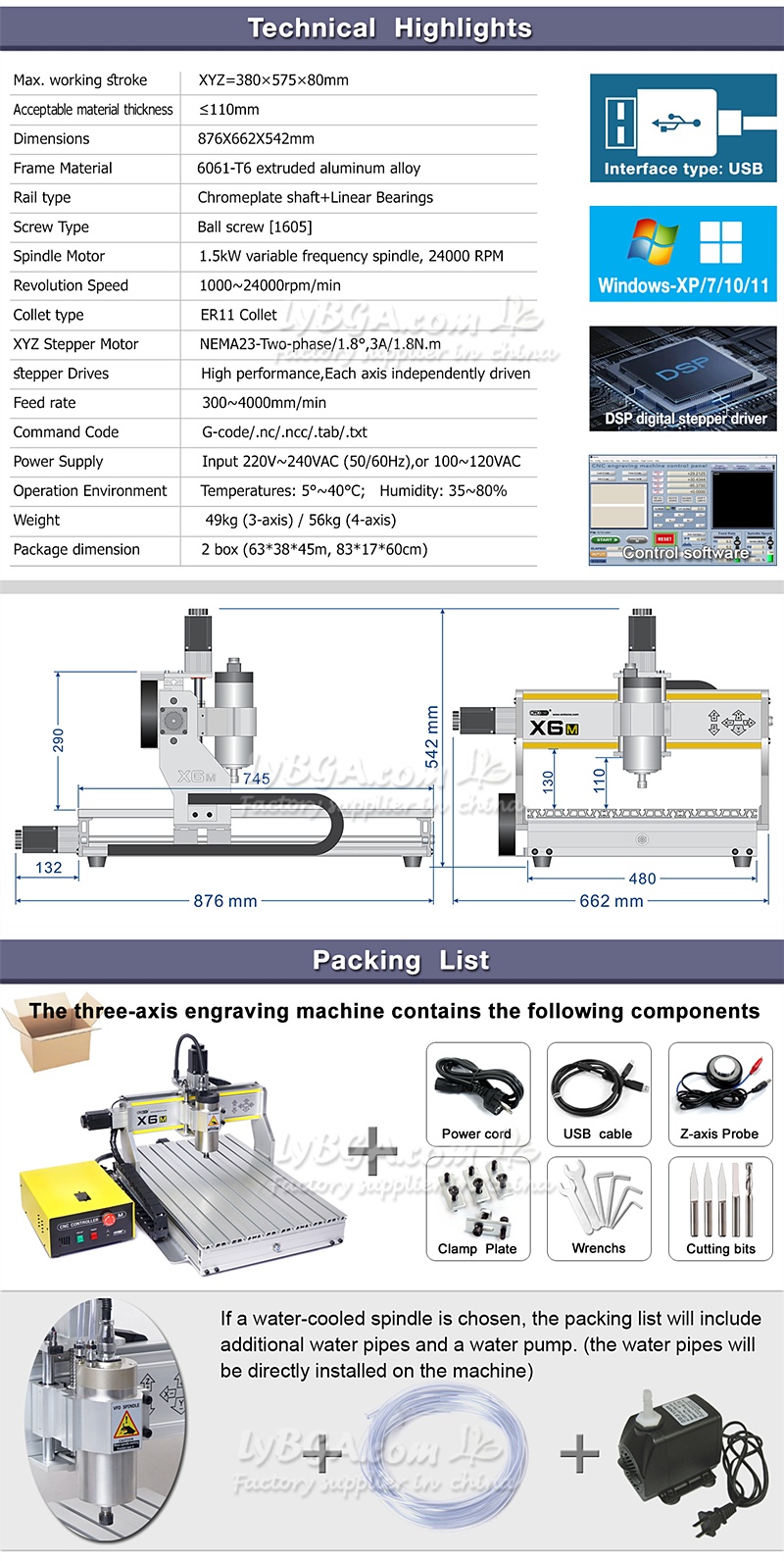

Technical Parameters
|
Max. working stroke |
XYZ=380*575*80mm |
|
Acceptable material thickness |
≤110mm |
|

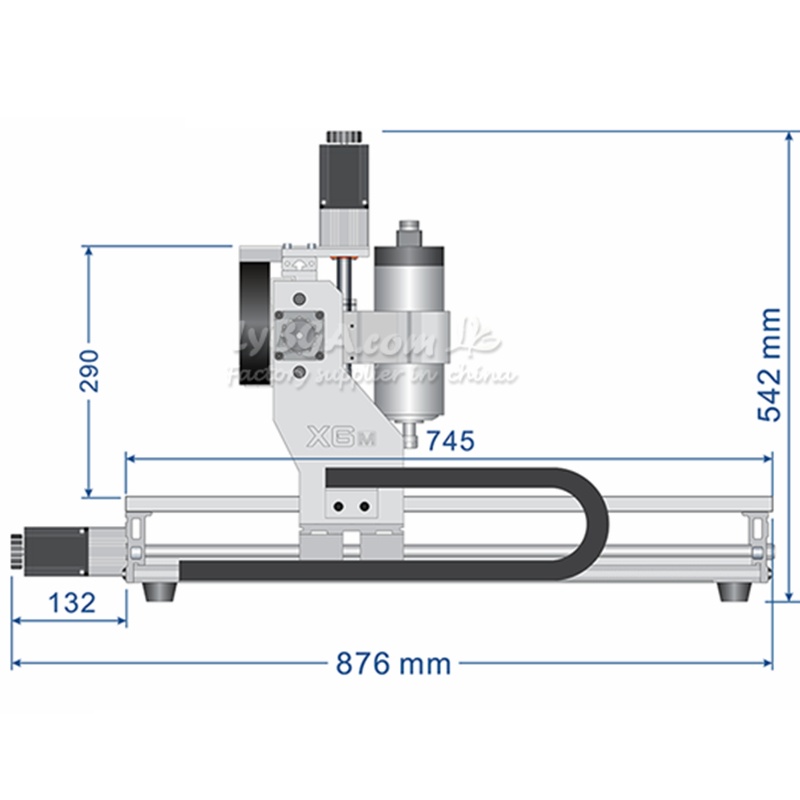

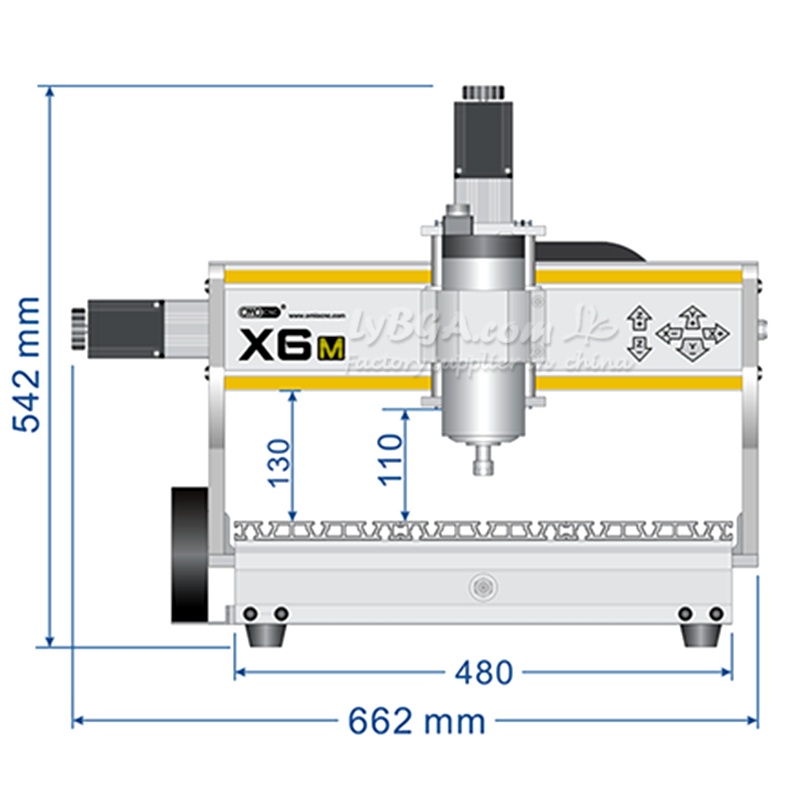

Dimensions |
876*662*542mm |
|
Frame Material |
6061-T6 extruded aluminum alloy |
|
Rail type |
Chrome plate shaft + Linear Bearings |
|
Screw Type |
Ball screw [1605] |
|
Spindle Motor |
1.5kW variable frequency spindle, 24000 RPM |
|
Revolution Speed |
1000~ 24000rpm/min |
|
Collet type |
ER11 Collet |
|
XYZ Stepper Motor |
NEMA23-Two-phase/1 .89,3A/1.8N.m |
|
Stepper Drives |
High performance, Each axis independently driven |
|
Feed rate |
300~4000mm/min |
|
Command Code |
G-code/.nc /.ncc / .tab/.txt |
|
Power Supply |
Input 220V~240VAC (50/60Hz),or 100~ 120VAC |
|
Operation Environment |
Temperatures: 5°~40°C; Humidity: 35~80% |
|
Weight |
49kg (3-axis) / 56kg (4-axis) |
|
Package dimension |
2 box (63*38*45m, 83* 17*60cm) |
Detailed page text

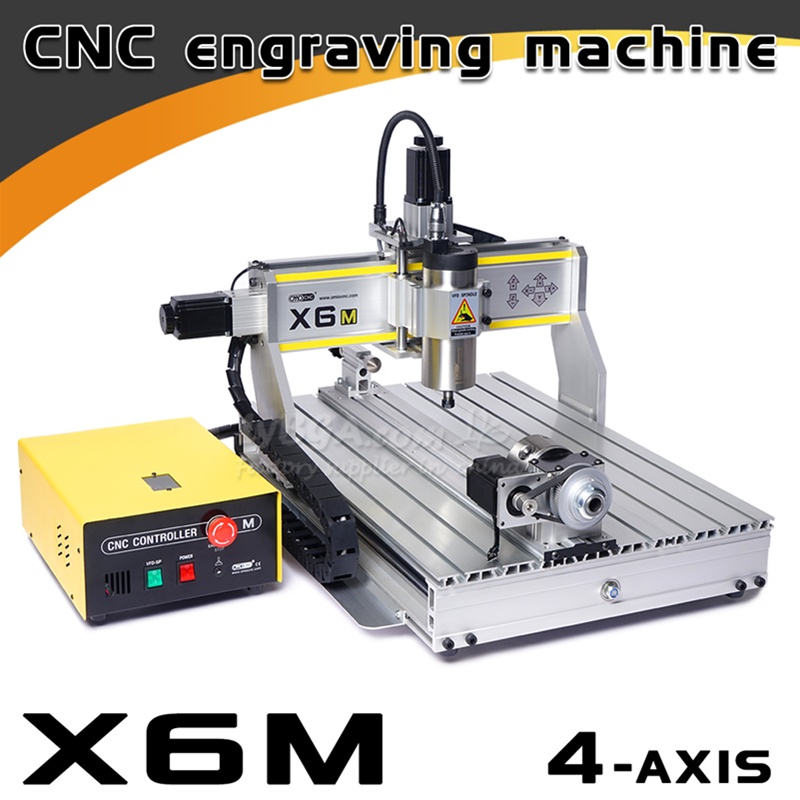

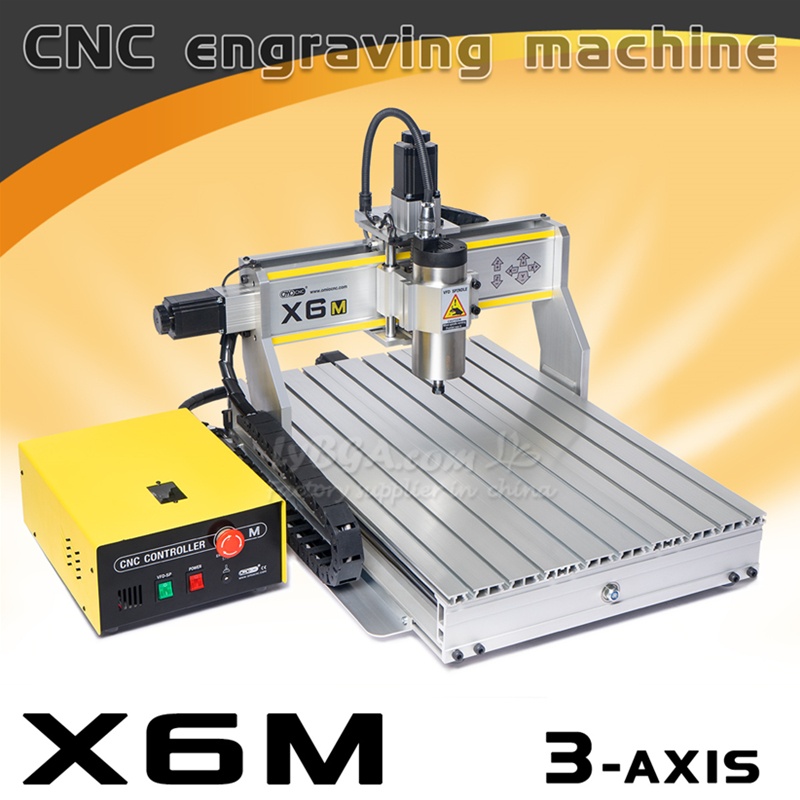

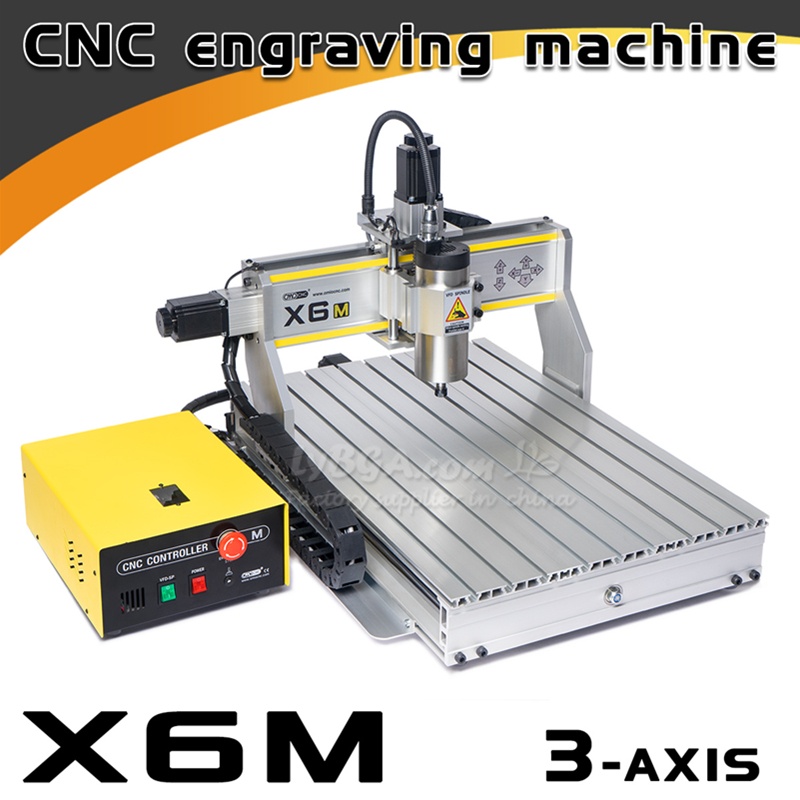

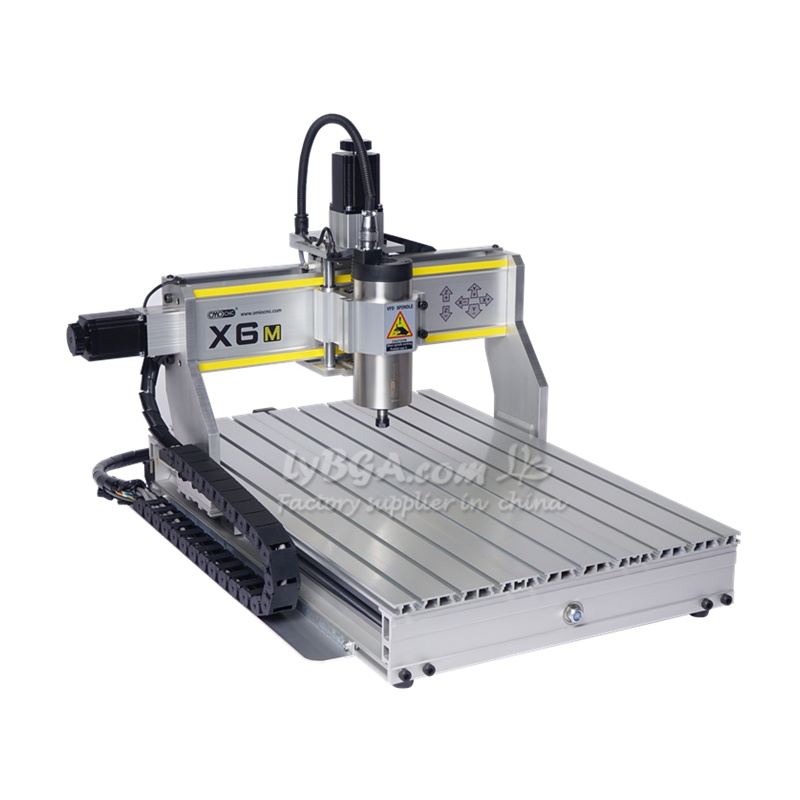

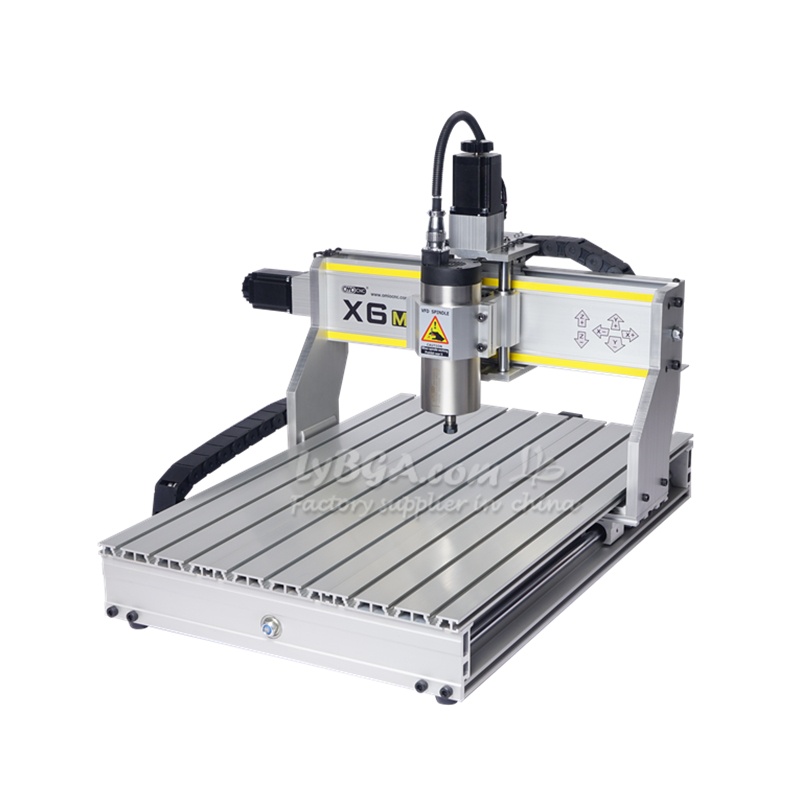

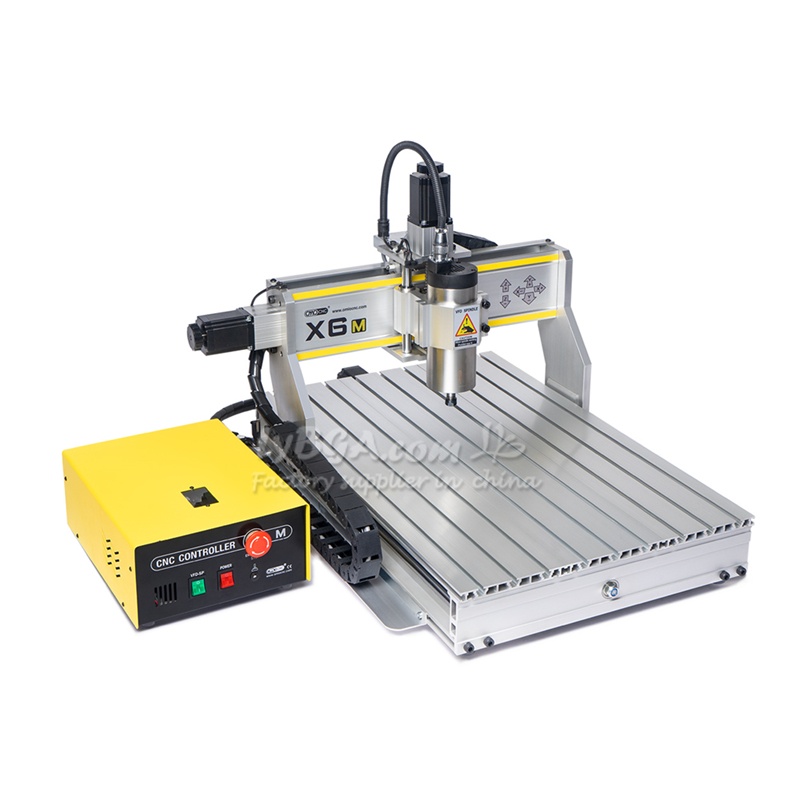

X6M CNC Engraving Machine
1500W Variable frequency spindle
Travel ranges of 395*285* 70 mm
Packing List

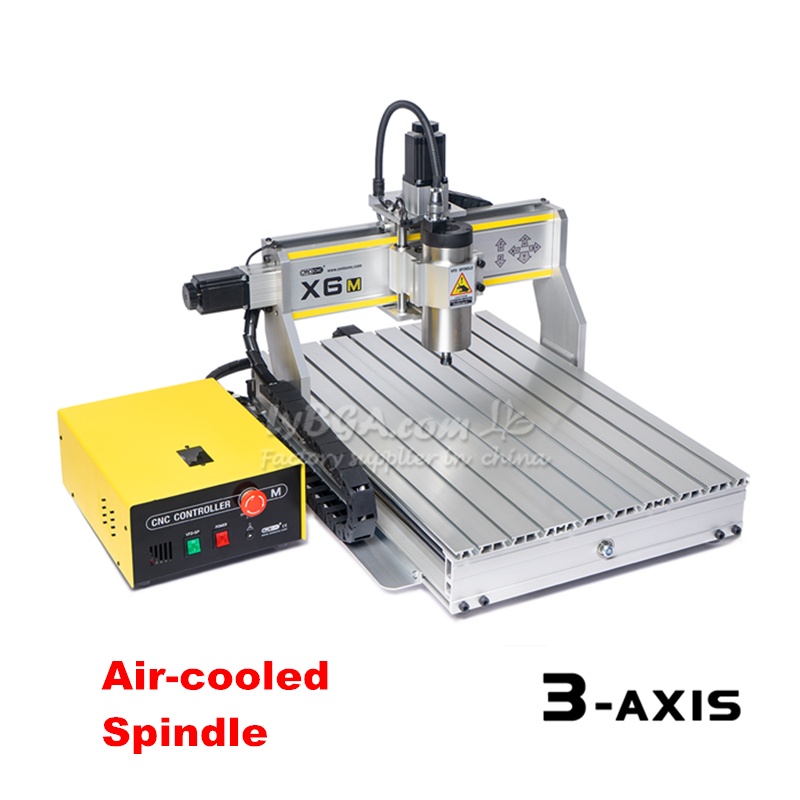

The three-axis engraving machine contains the following components
Machine
Power cord
USB cable
Z-axis Probe

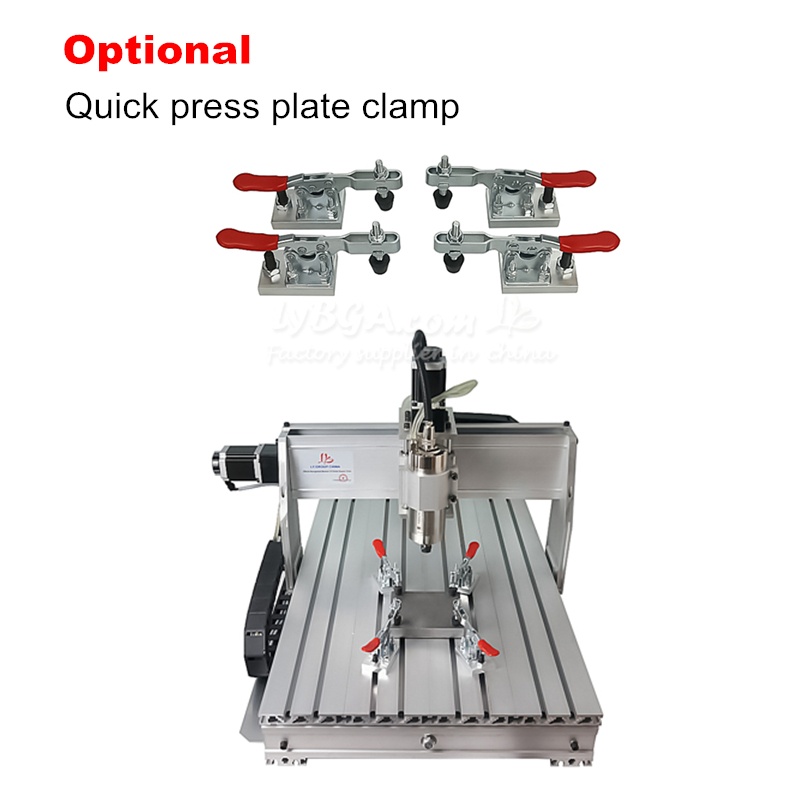

Clamp Plate
Wrench
Cutting bits

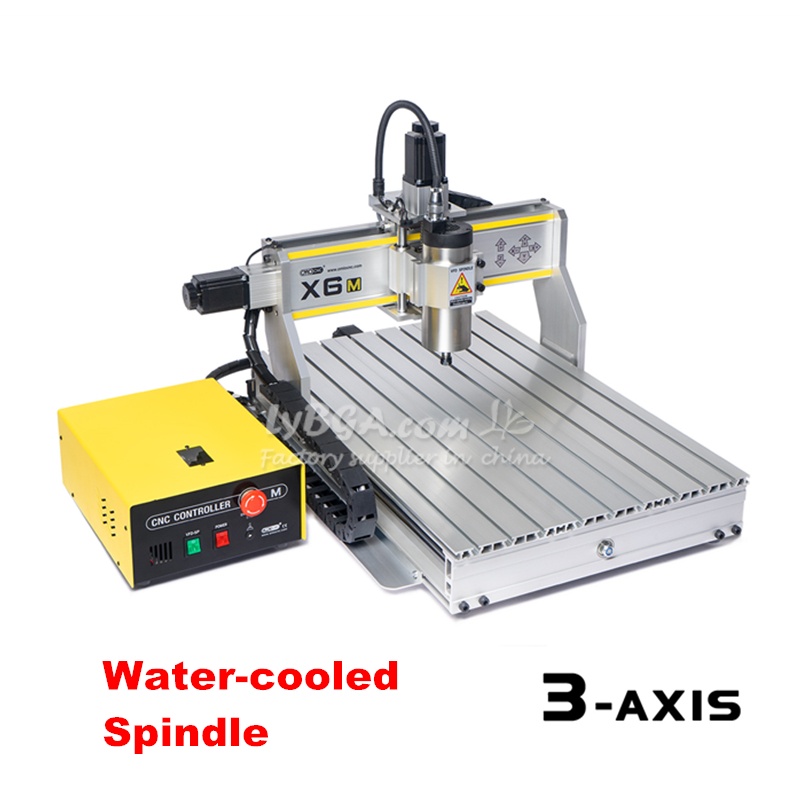

If a water-cooled spindle is chosen, the packing list will include additional water pipes and a water pump. (The water pipes will be directly installed on the machine)

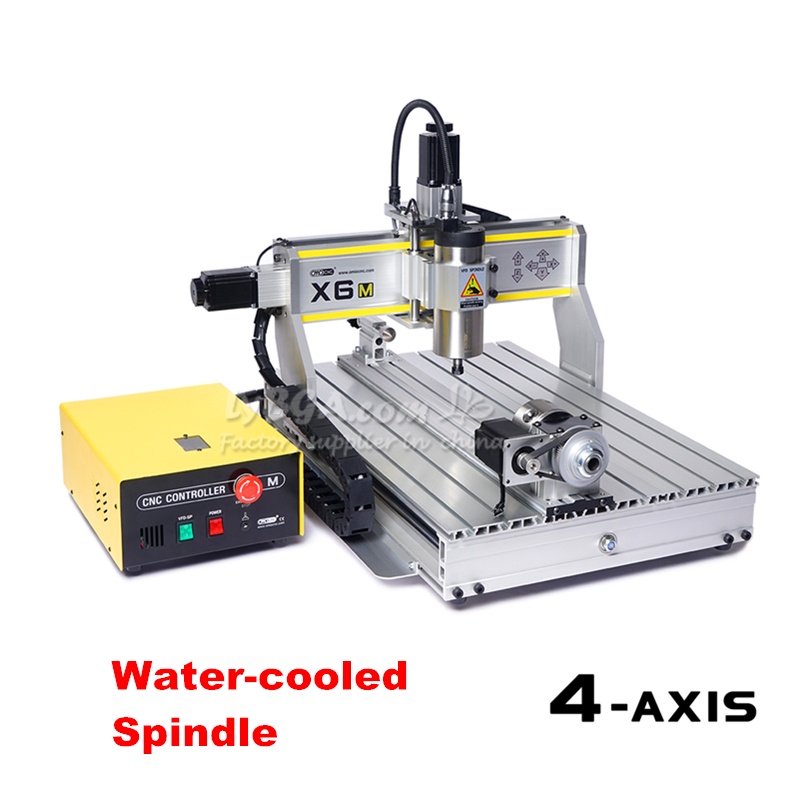

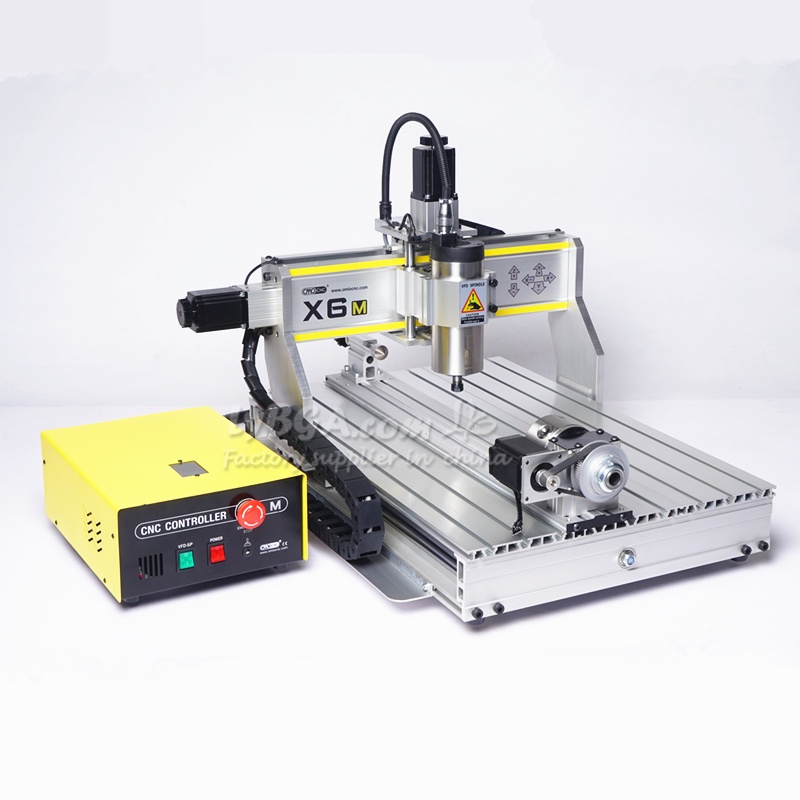

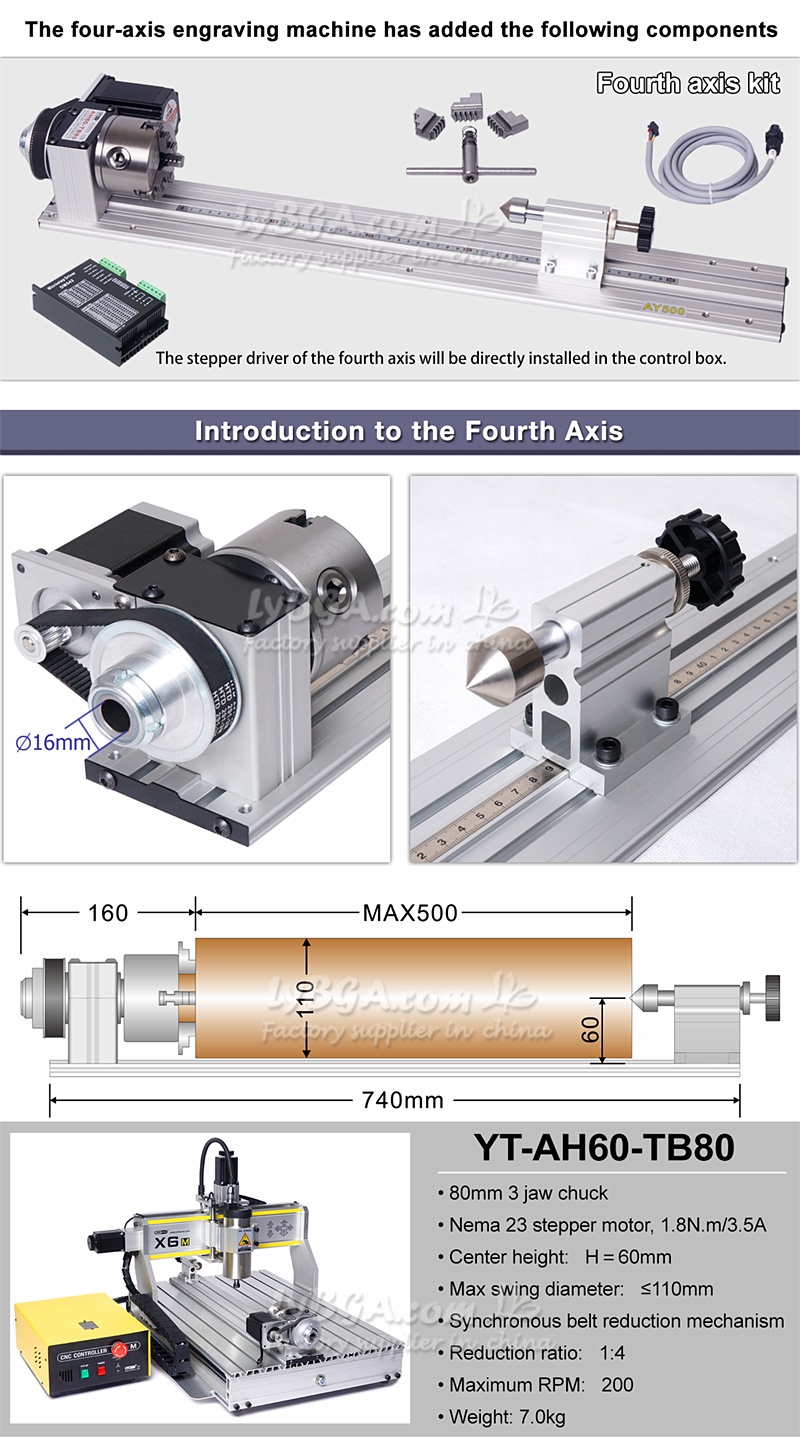

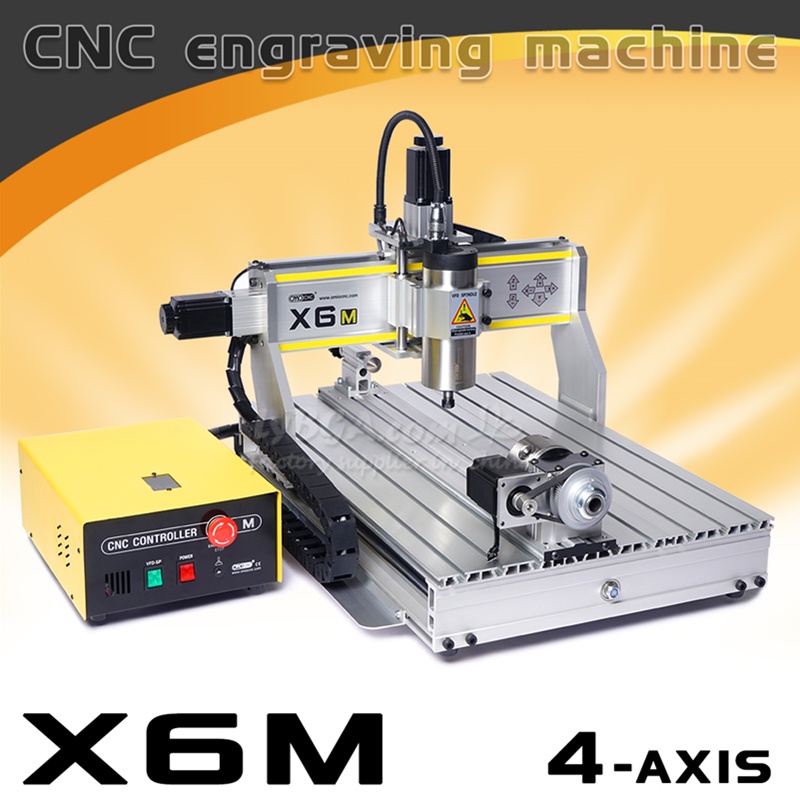

The four-axis engraving machine has added the following components

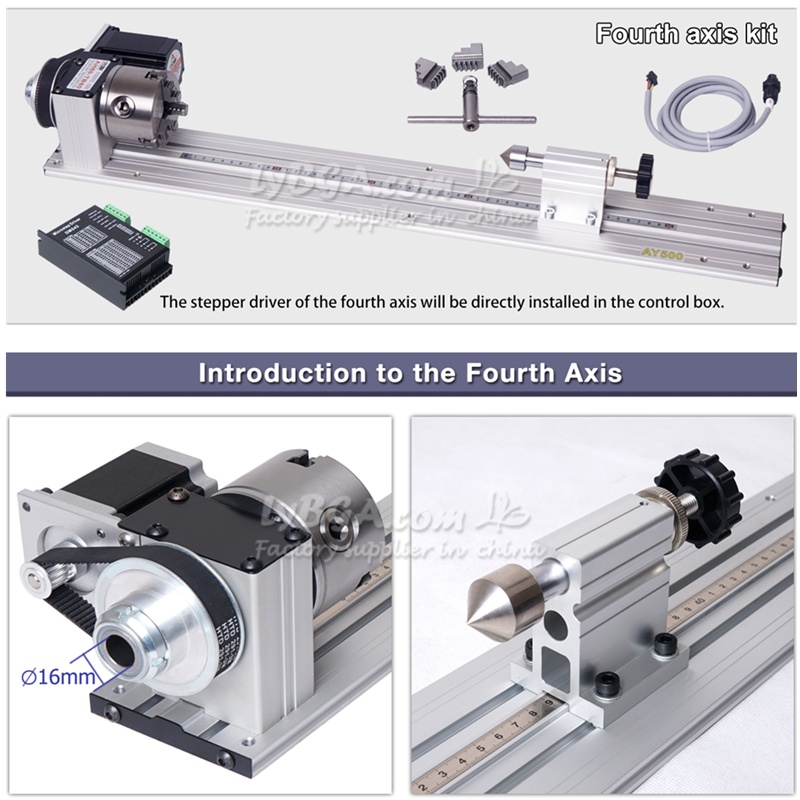

Fourth axis kit
The stepper driver of the fourth axis will be directly installed in the control box.
Introduction to the Fourth Axis
YT-AH60-TB80
●80mm 3 jaw chuck
●Nema 23 stepper motor, 1.8N.m /3 5A
●Center height: H = 60mm
●Max swing diameter: S110mm
●Synchronous belt reduction mechanism
●Reduction ratio: 1:4
●Maximum RPM: 200
●Weight: 7.0kg

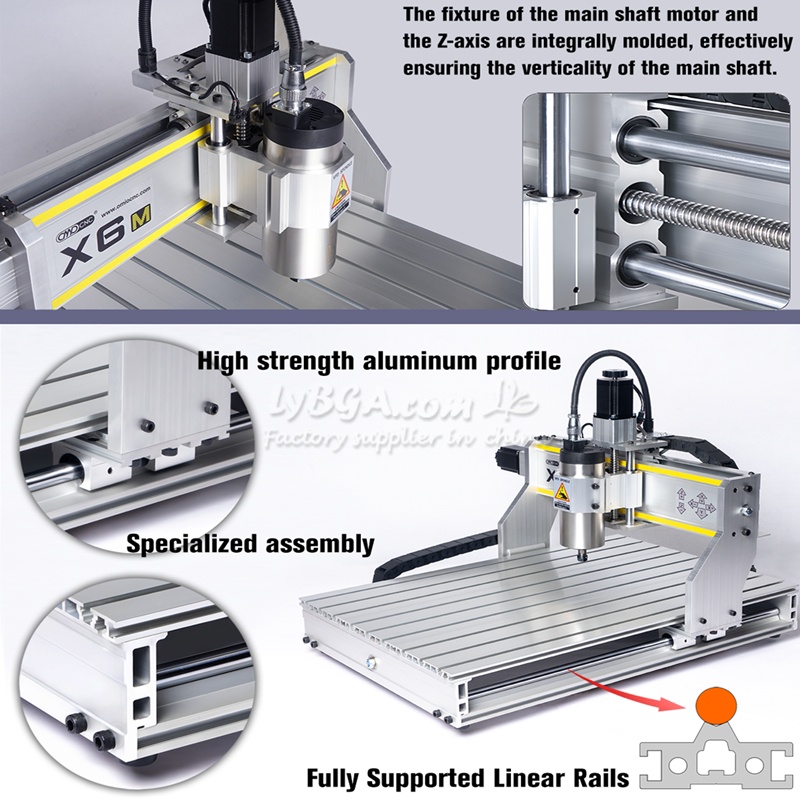

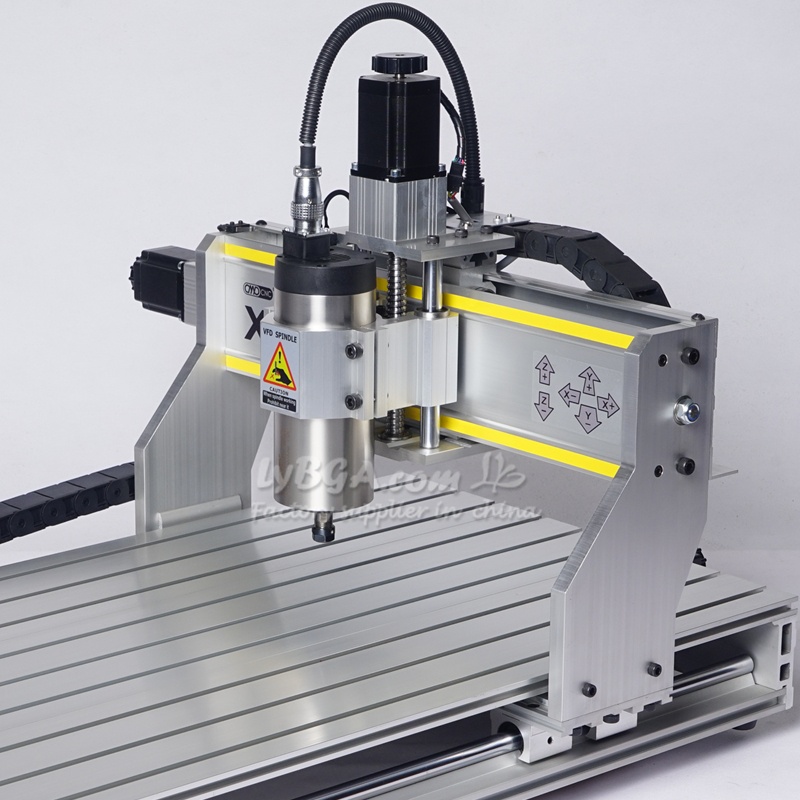

The fixture of the main shaft motor and the Z-axis are integrally molded, effectively ensuring the verticality of the main shaft.
High strength aluminum profile
Specialized assembly
Fully Supported Linear Rails

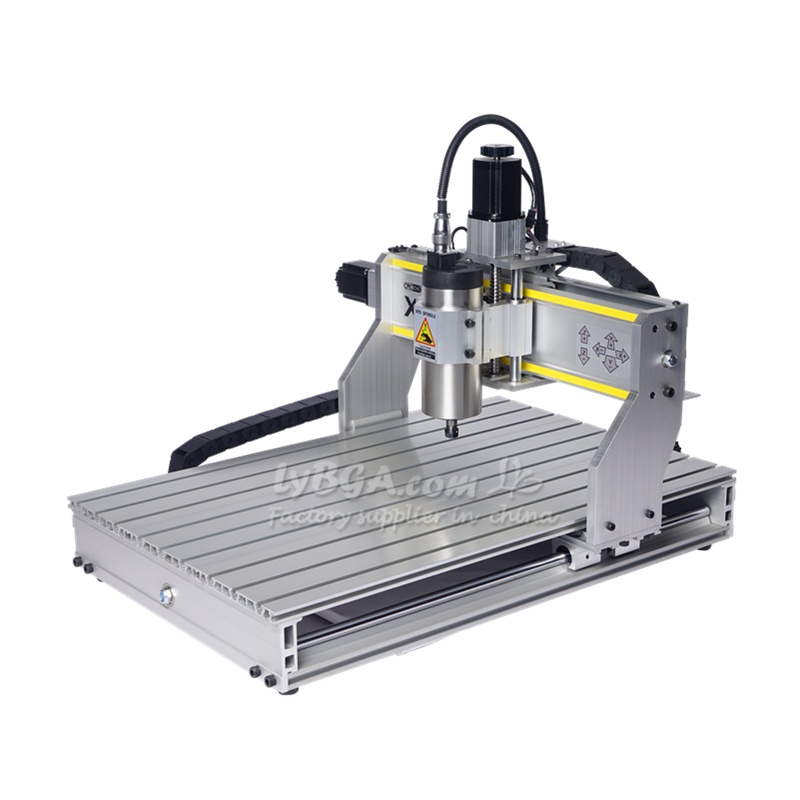

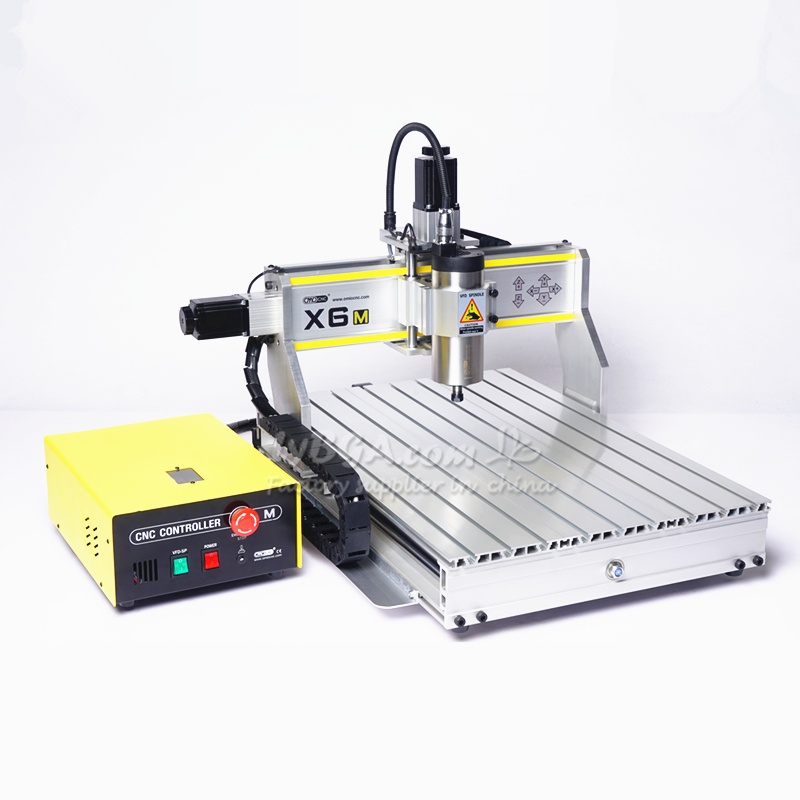

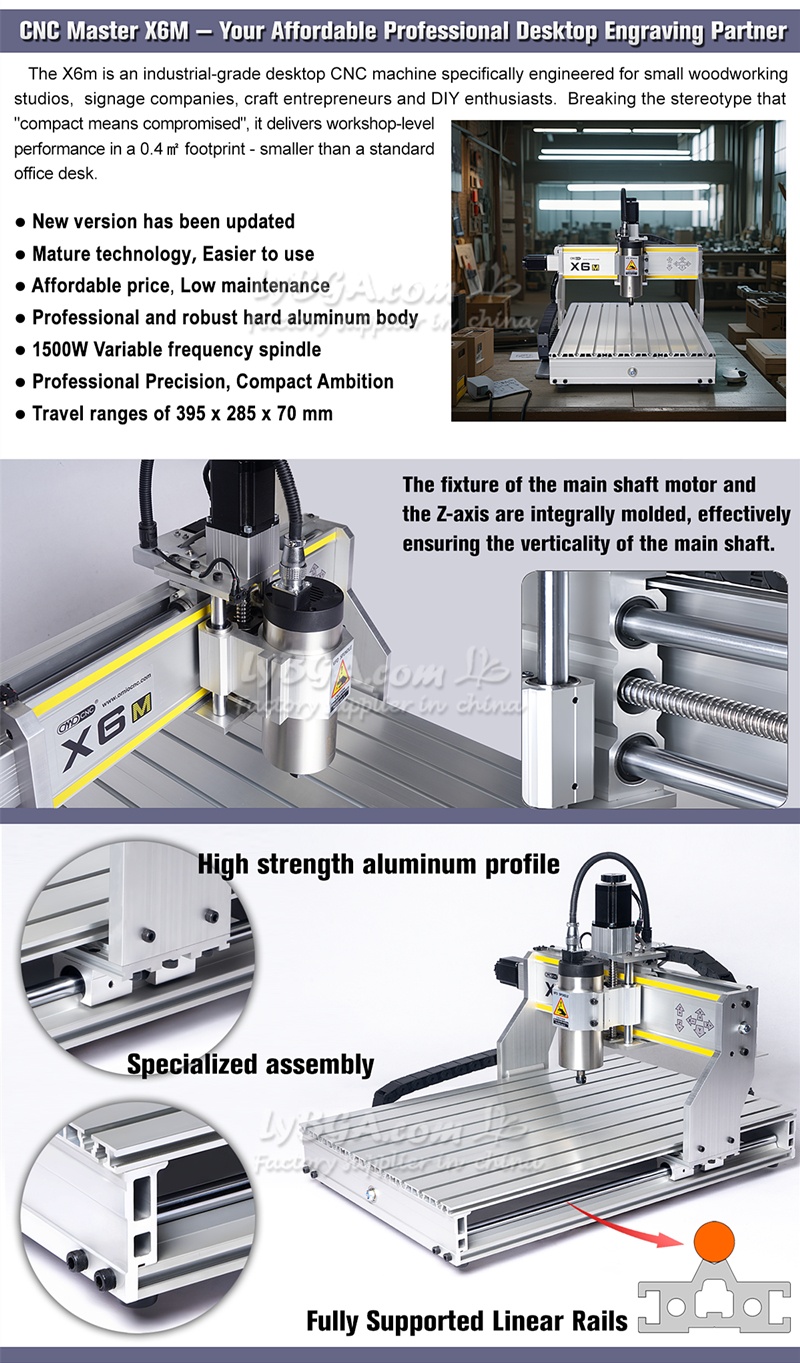

CNC Master X6M—Your Affordable Professional Desktop Engraving Partner
The X6m is an industrial-grade desktop CNC machine specifically engineered for small woodworking studios, signage companies, craft entrepreneurs and DIY enthusiasts. Breaking the stereotype that “compact means compromised”, it delivers workshop-level performance in a 0.4 m² footprint – smaller than a standard office desk.
●New version has been updated
●Mature technology, Easier to use
●Affordable price, Low maintenance
●Professional and robust hard aluminum body
●1500W Variable frequency spindle
●Professional Precision, Compact Ambition
●Travel ranges of 395*285*70 mm

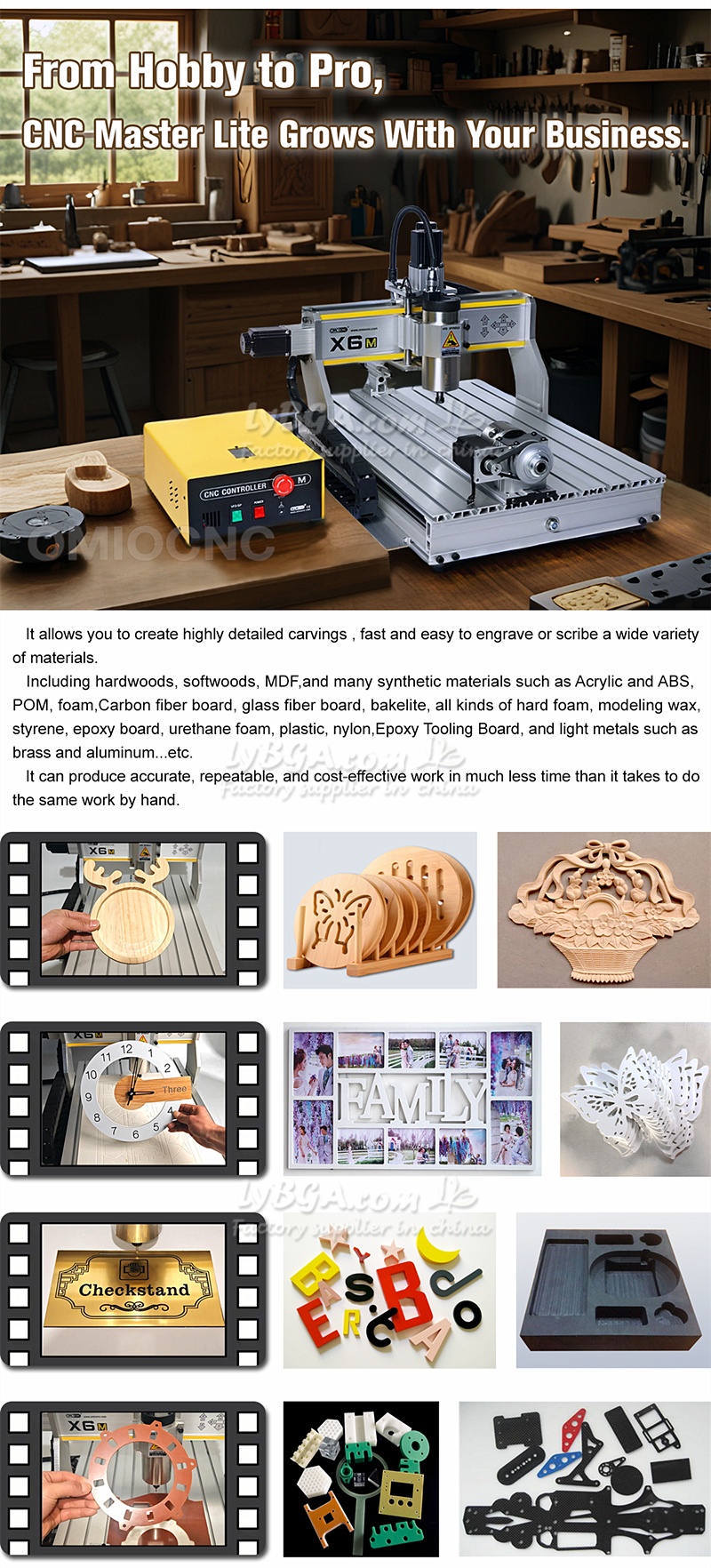

From Hobby to Pro, CNC-Master Lite Grows With Your Business.

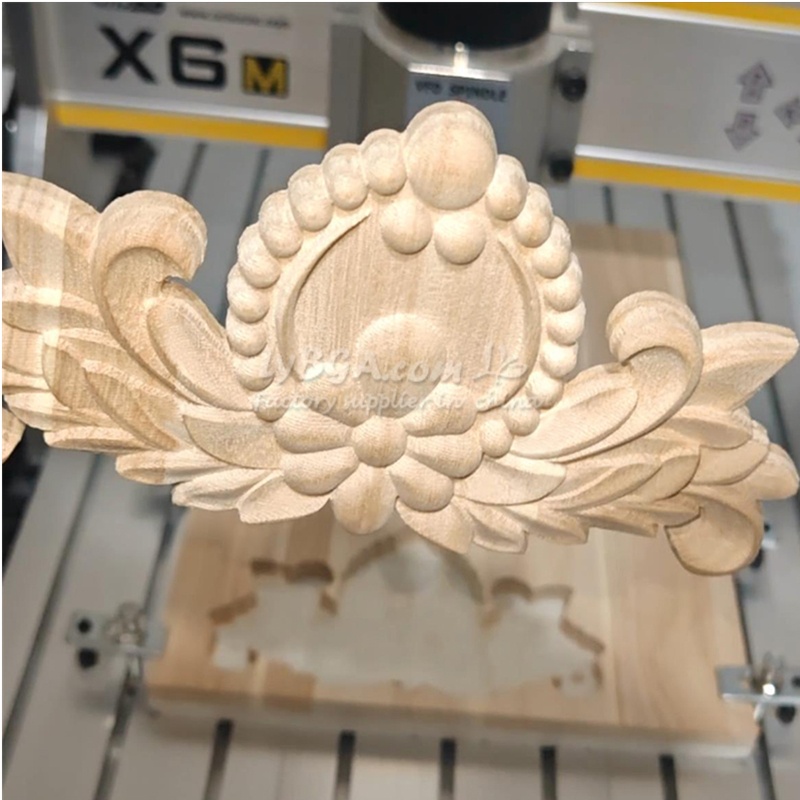

It allows you to create highly detailed carvings, fast and easy to engrave or scribe a wide variety of materials.

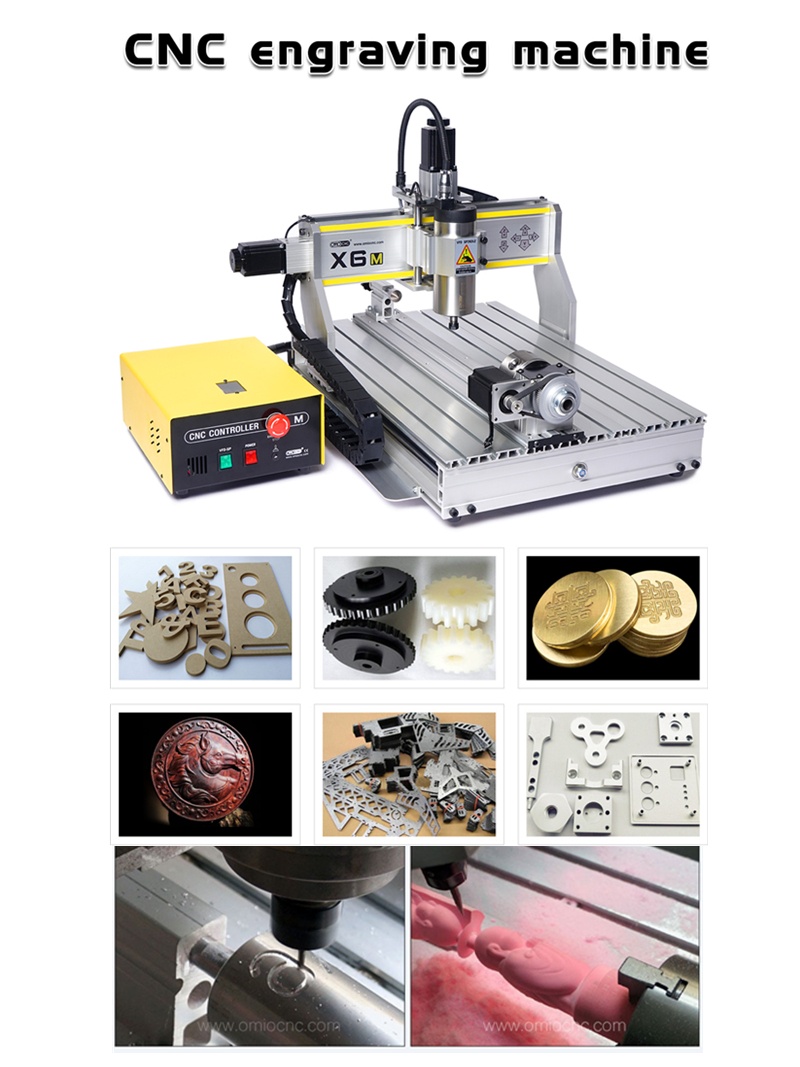

Including hardwoods, softwoods, MDF and many synthetic materials such as Acrylic and ABS, POM, foam, Carbon fiber board, glass fiber board, Bakelite, all kinds of hard foam, modeling wax, styrene, epoxy board, urethane foam, plastic, nylon, Epoxy Tooling Board, and light metals such as brass and aluminum…etc.
It can produce accurate, repeatable, and cost-effective work in much less time than it takes to do the same work by hand.
