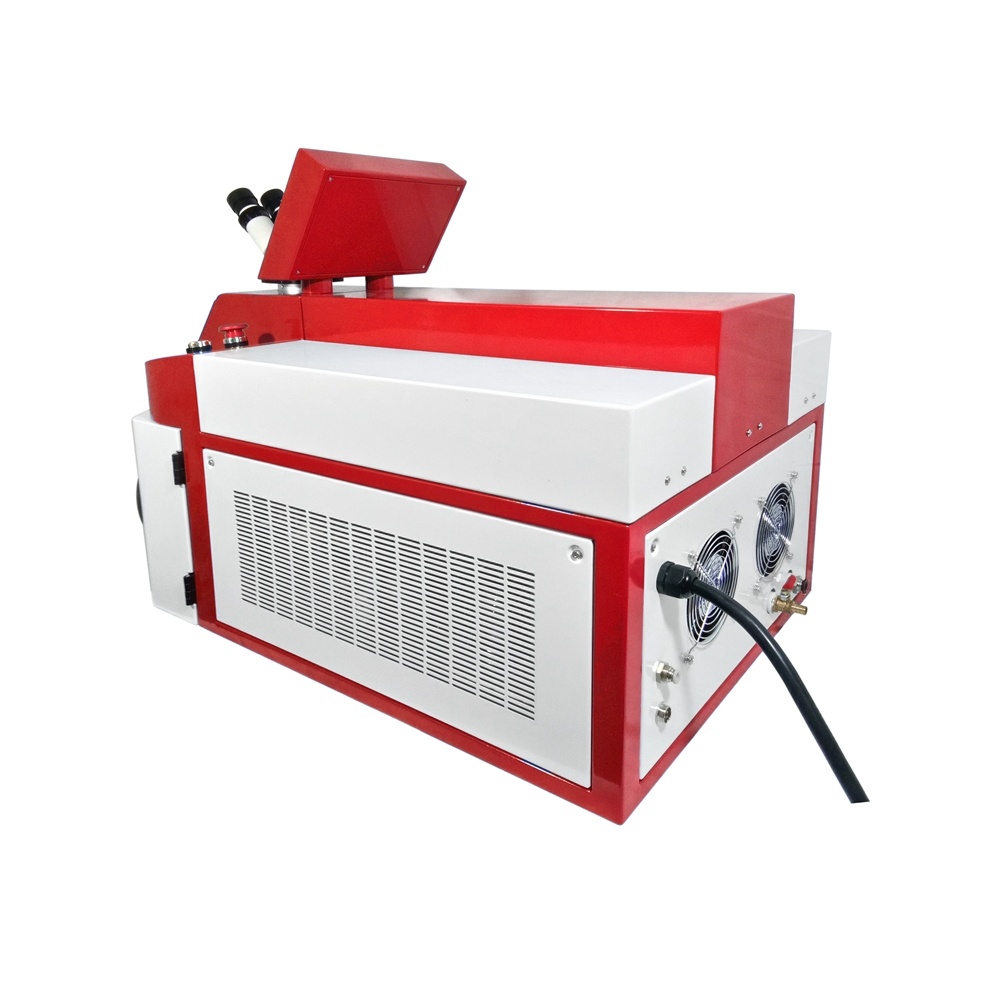

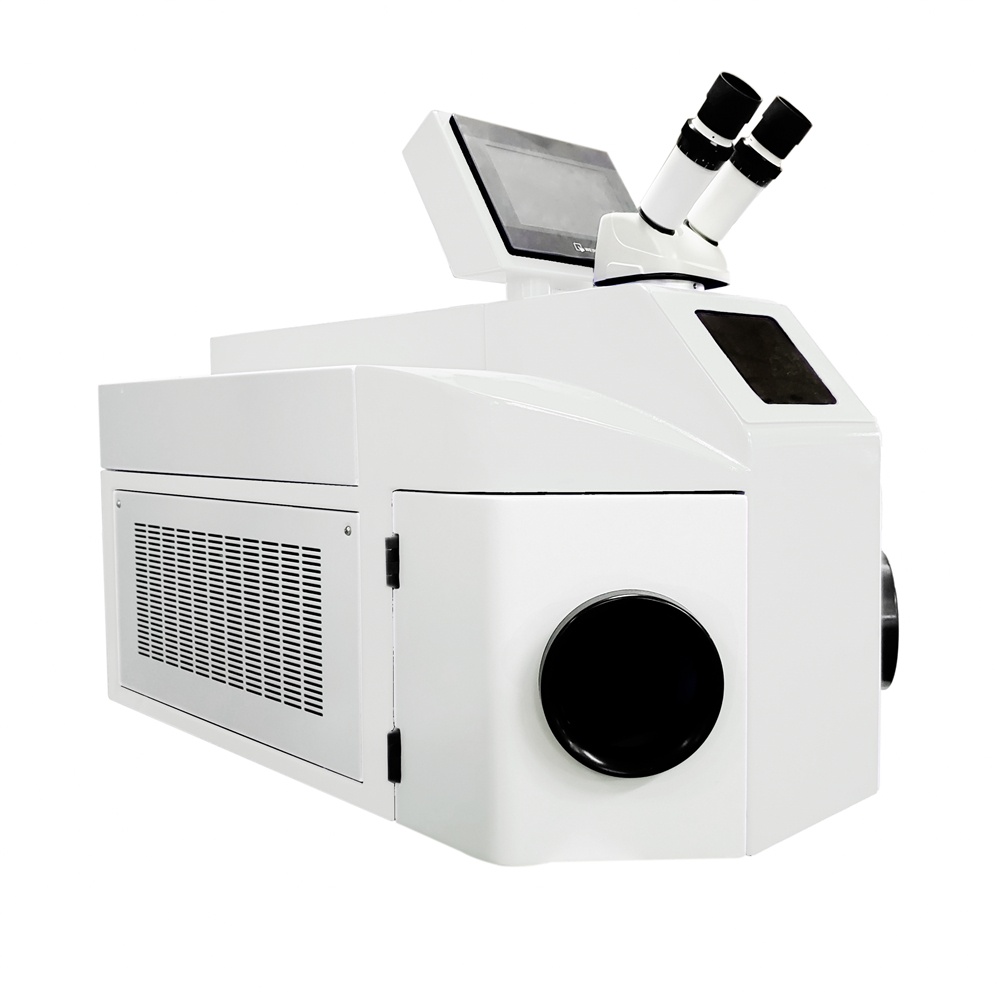

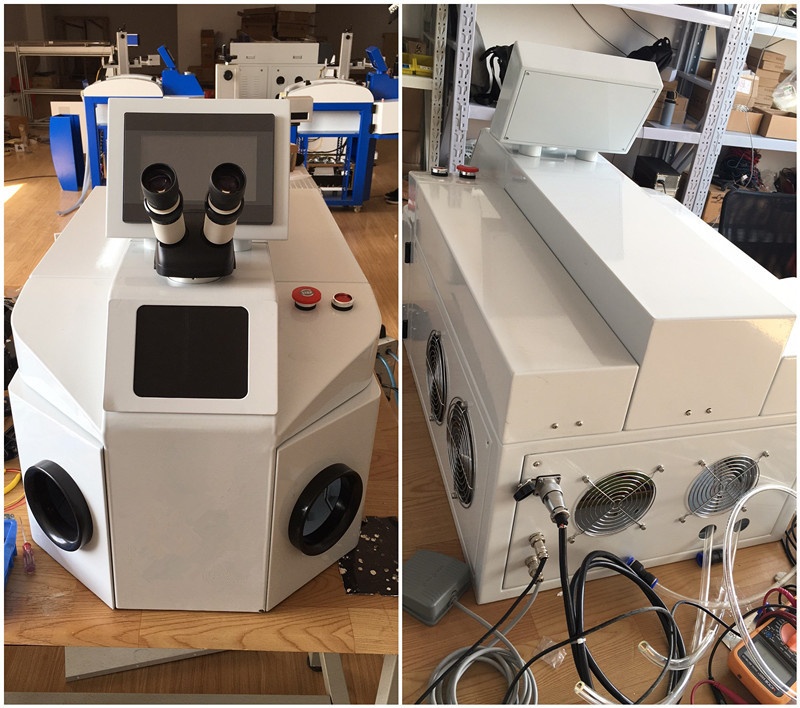

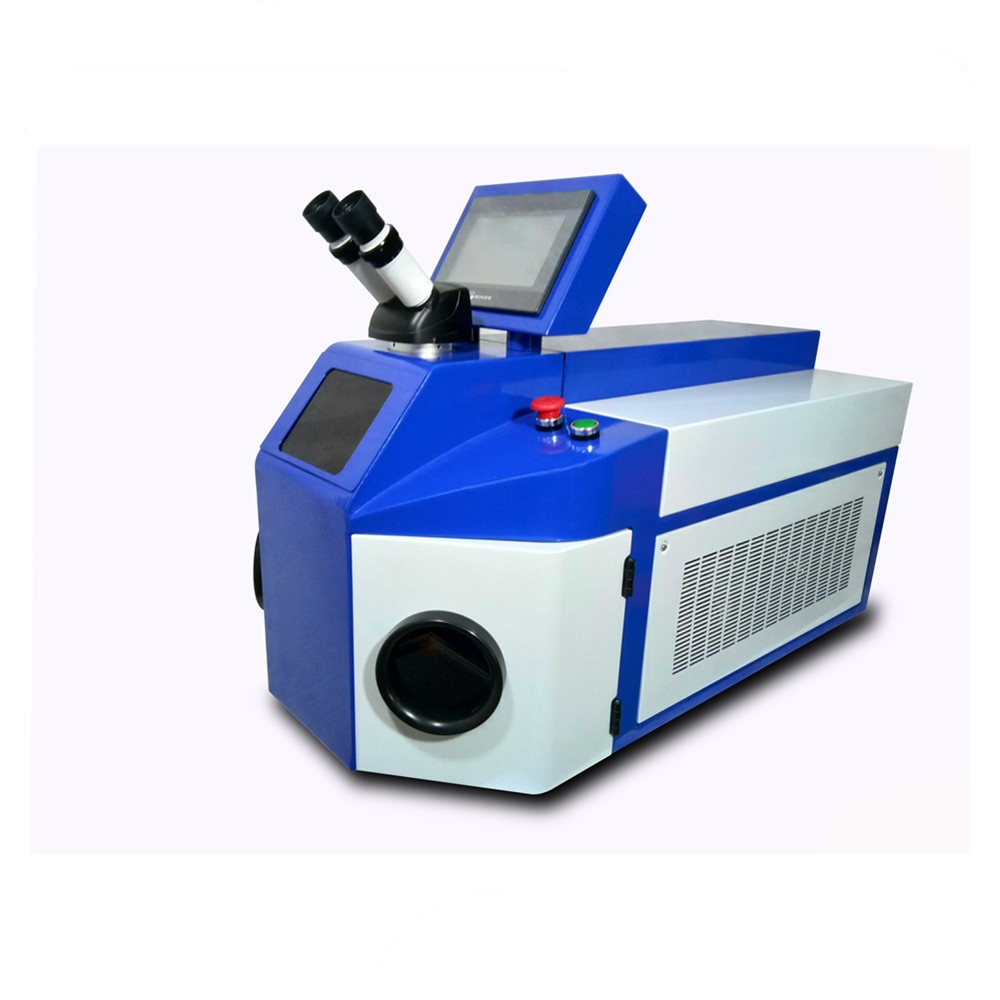

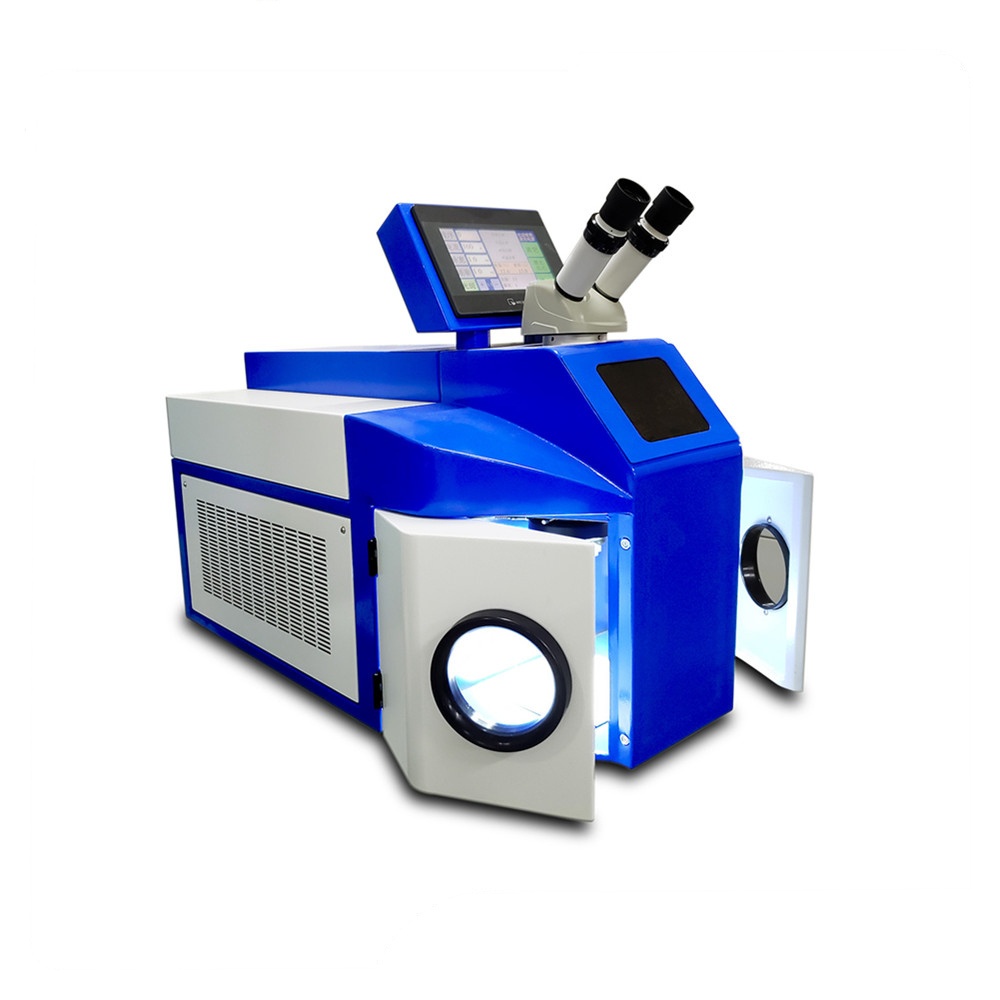

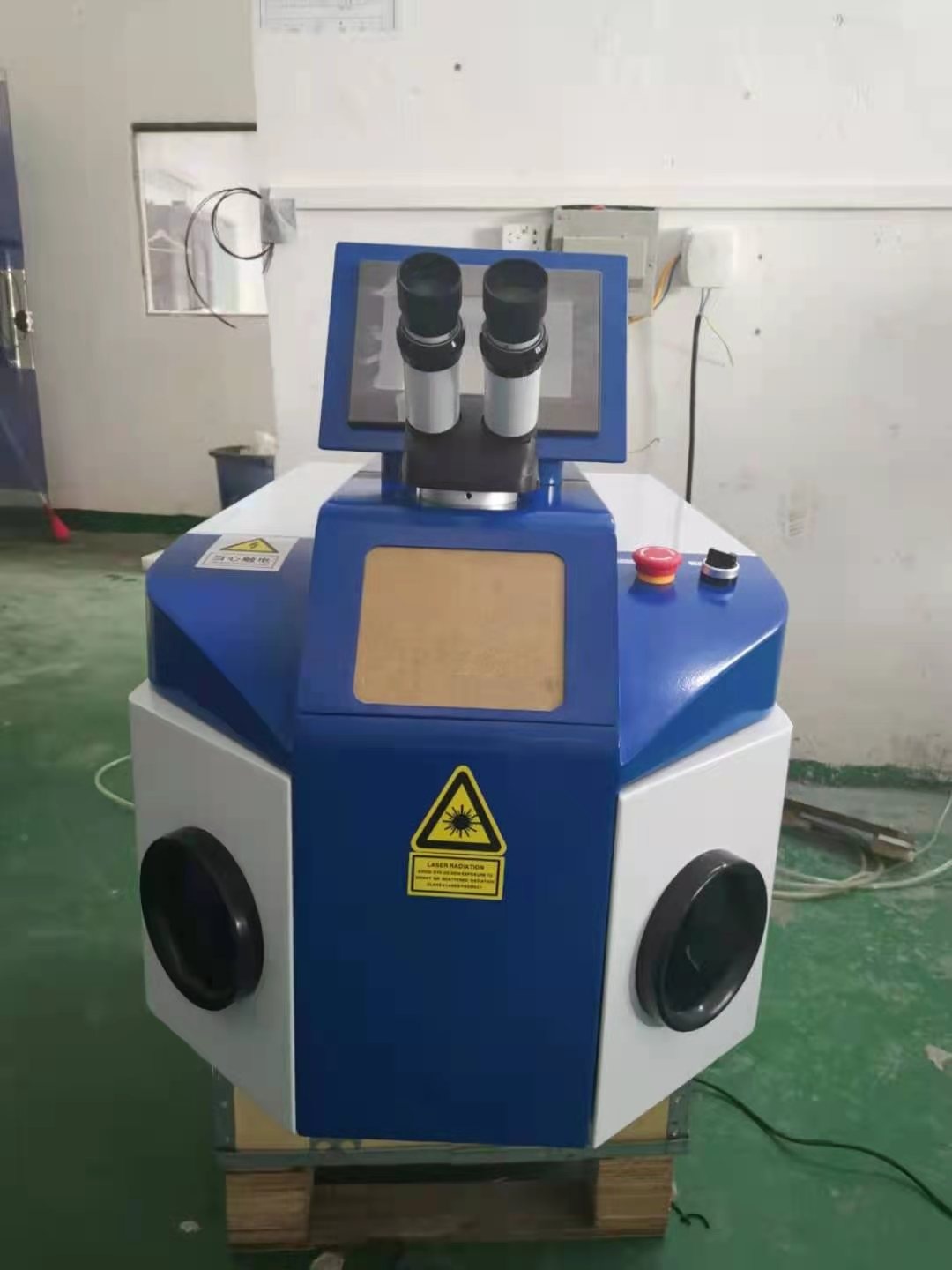

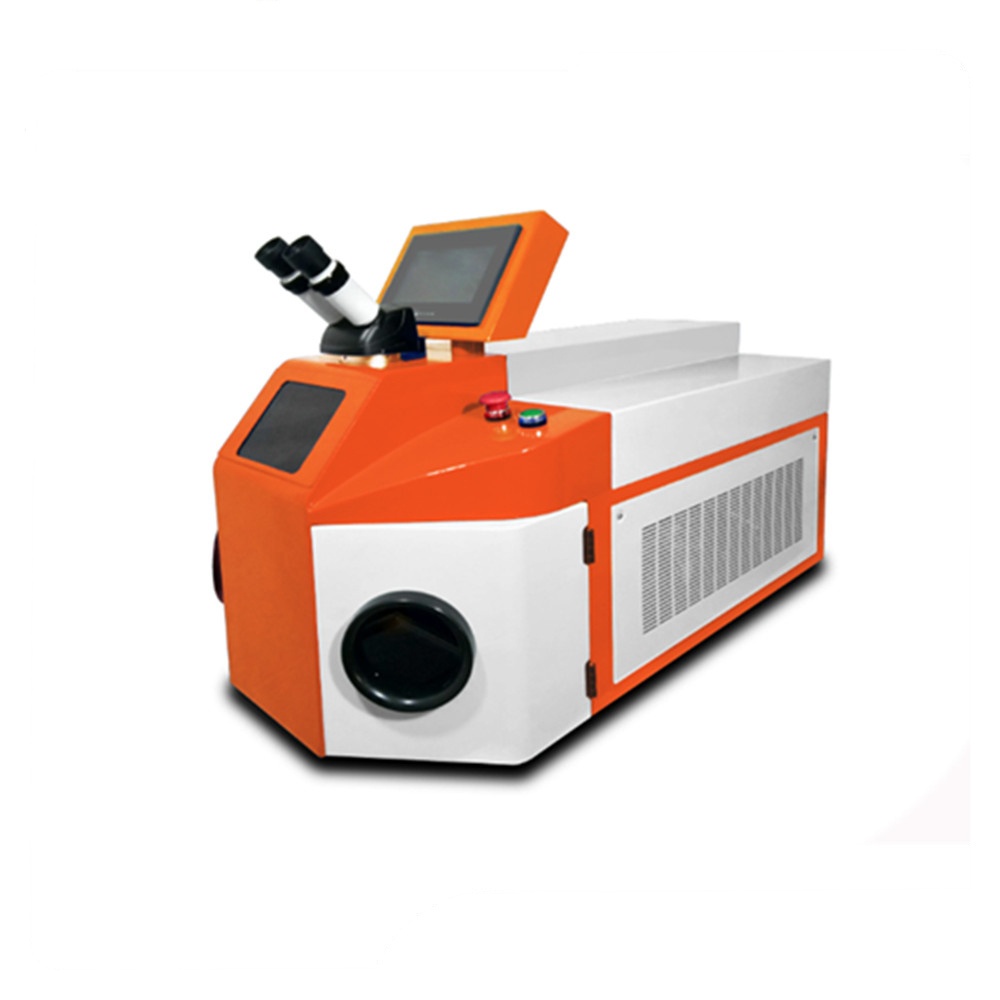

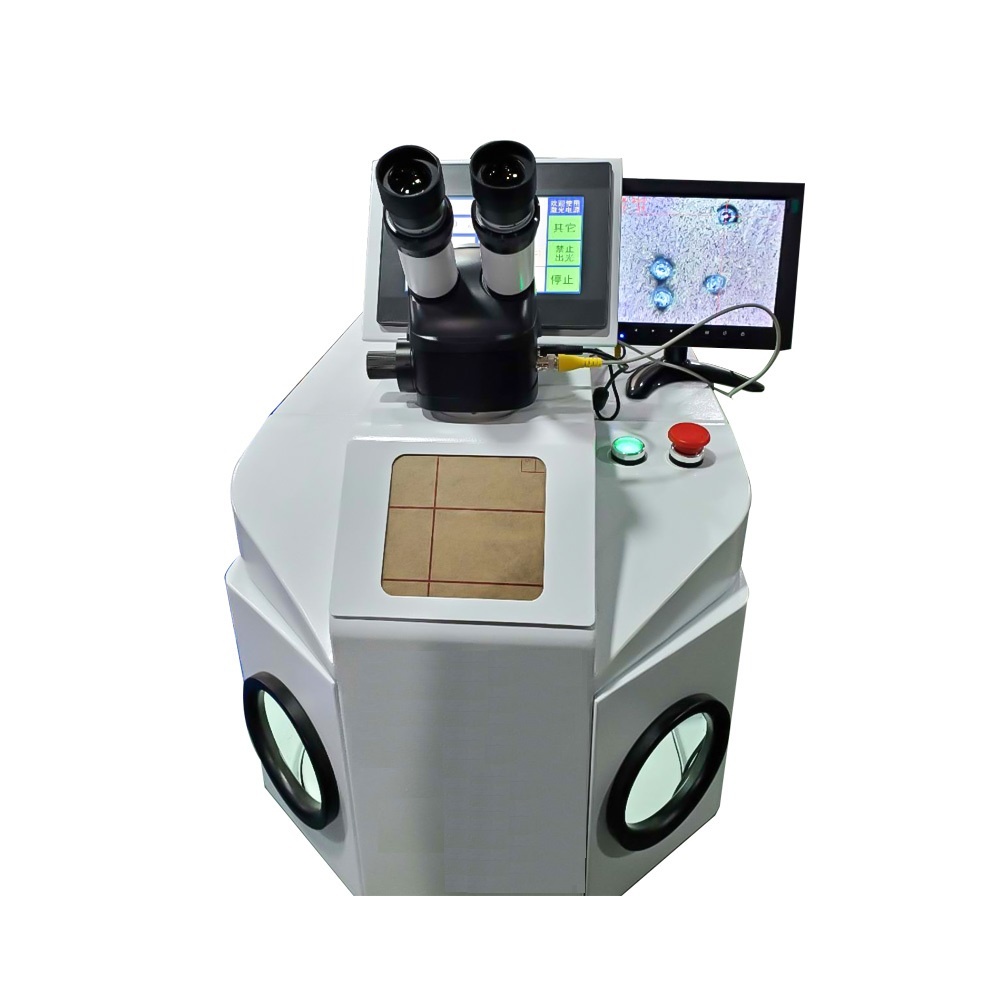

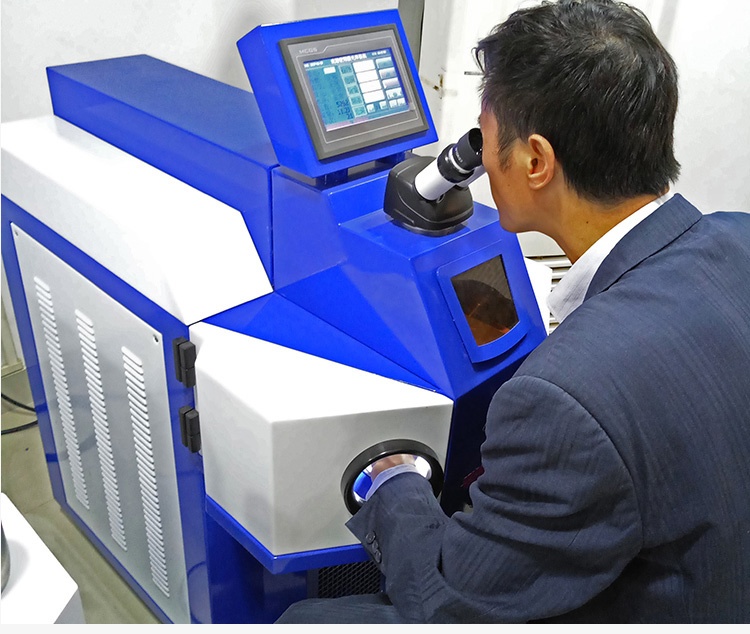

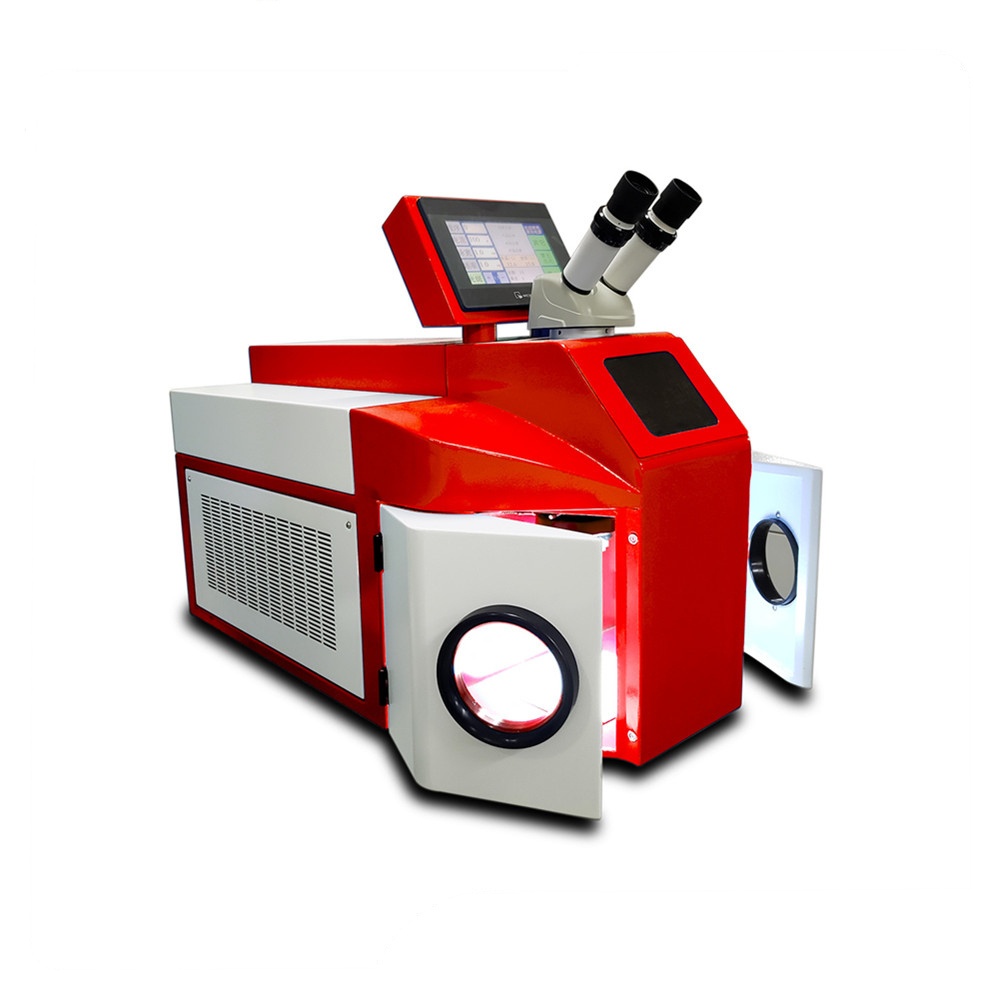

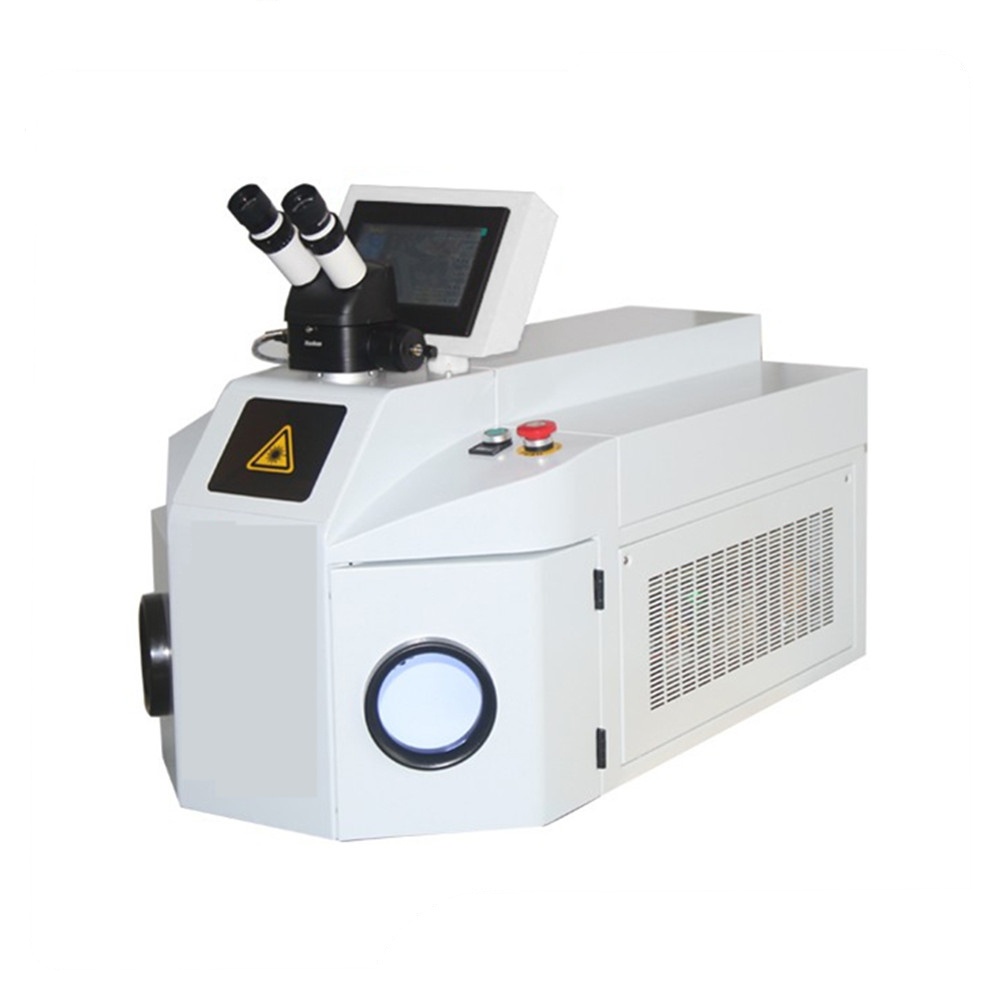

LY YAG Laser 200W Touch Screen Control Jewelry Spot Welding Machine Micro laser Soldering For Gold Silver Chain Ring Pendant Denture With CCD Microscope Built-in Cooling System Many Colors As Option

LY YAG Laser 200W Touch Screen Control Jewelry Spot Welding Machine Micro laser Soldering  For Gold Silver Chain Ring Pendant Denture With CCD Microscope Built-in Cooling System Many Colors As Option

(RE: If no designated color, we will send white color as default.)

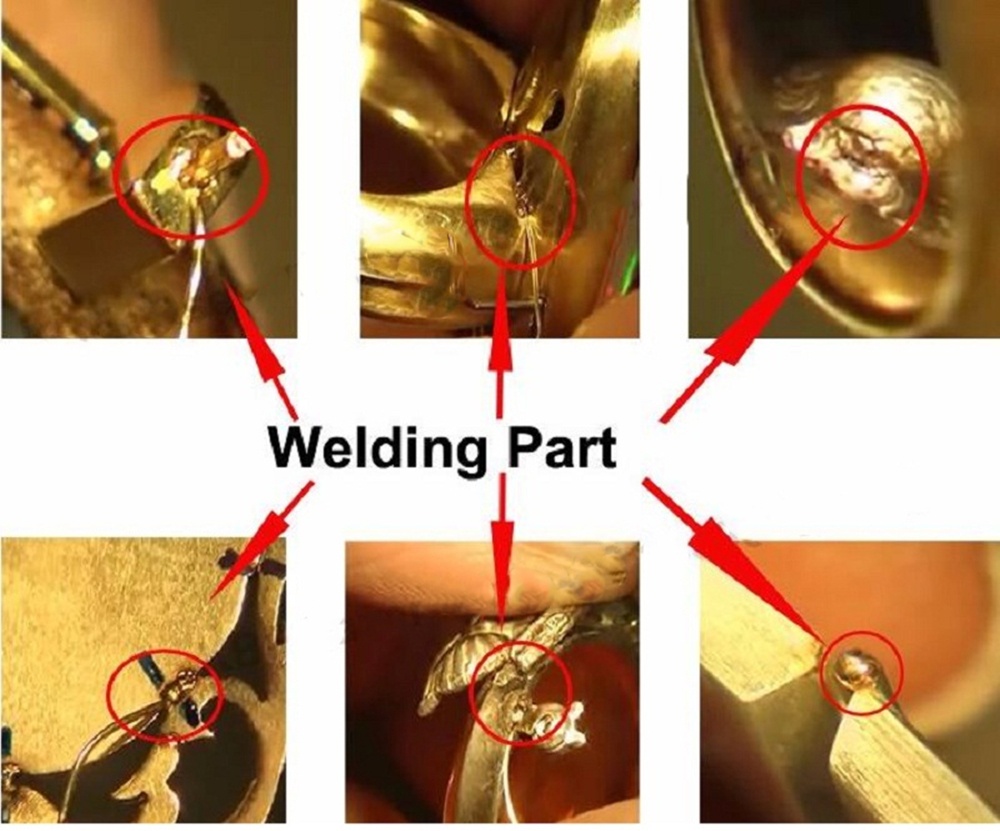

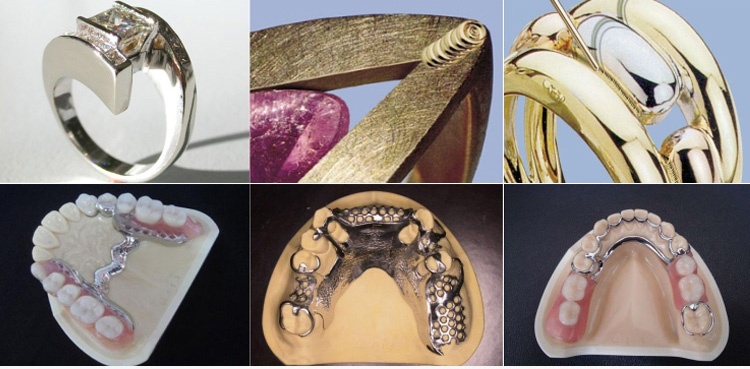

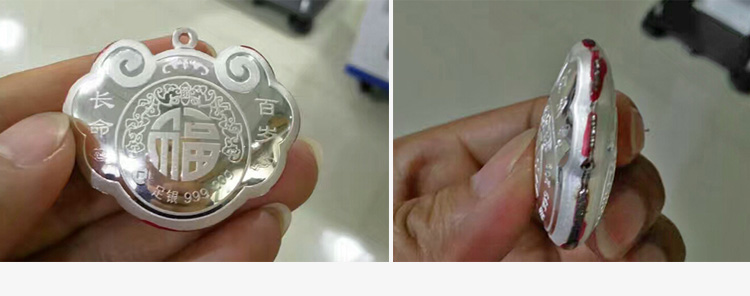

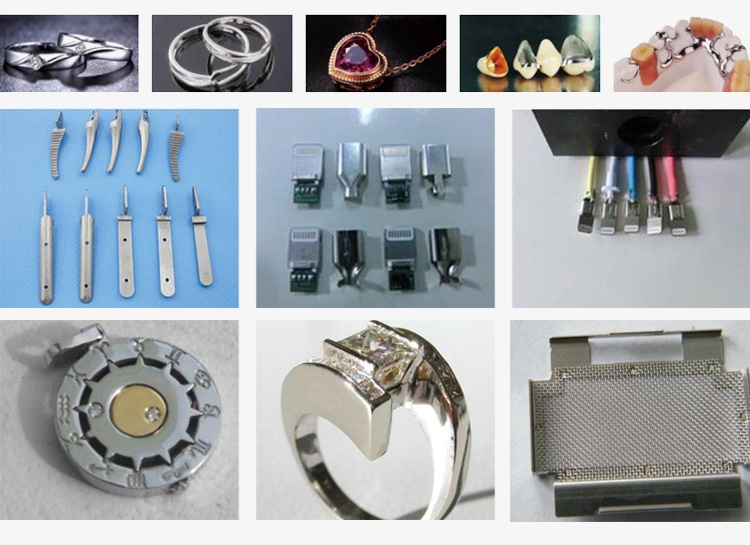

The jewelry laser welder is specifically for jewelry laser welding of a product, mainly used in gold and silver ornaments of the hole and spot welding blisters. Laser spot welding machine is one of the important aspects of the application of laser material processing technology. The jewelry laser welding machine’s process is heat conduction. That is, laser radiation heats the surface of the work piece. The heat of the surface spreads through the heat conduction to the interior. By controlling the width, energy, peak power and repetition of laser pulse Frequency and other parameters, the workpiece melting, forming a specific pool. Because of jewelry laser welding machine’s unique advantages, has been successfully applied to gold and silver jewelry processing and micro, small parts welding.

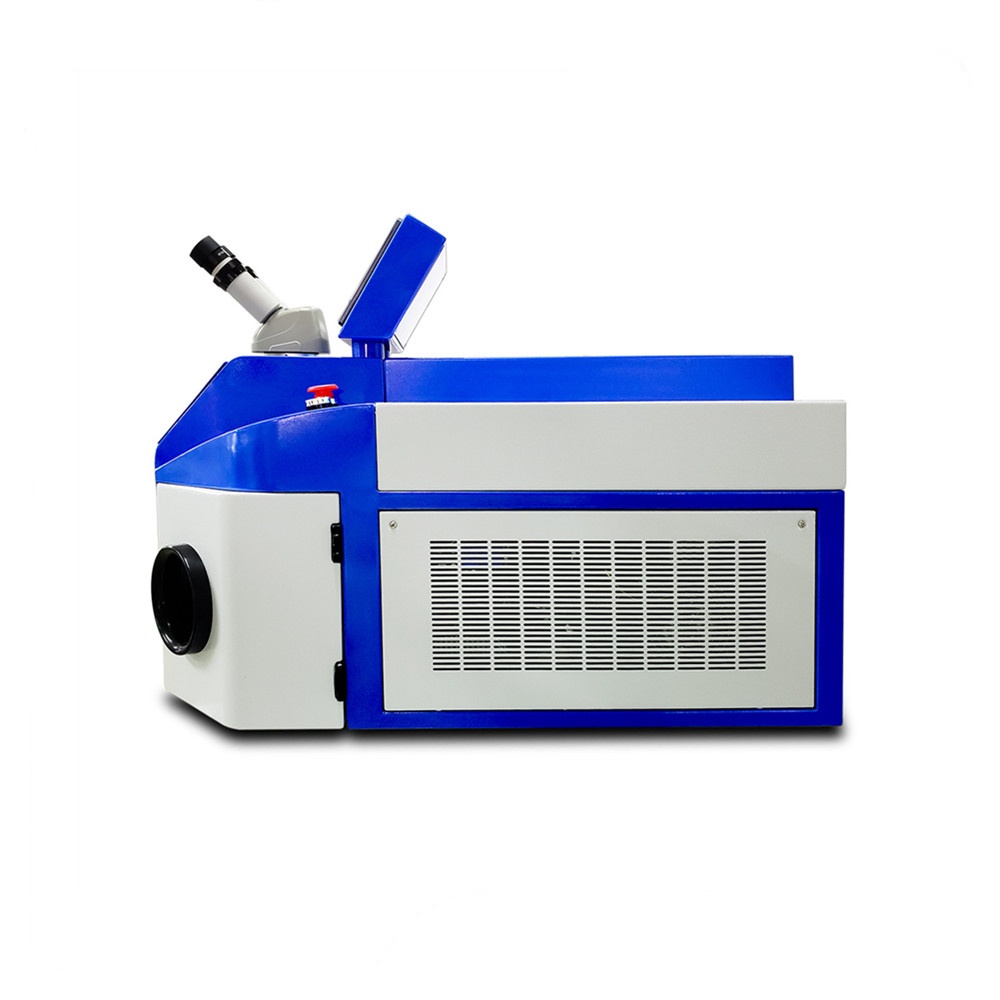

200W desktop integrated laser

welding machine manual

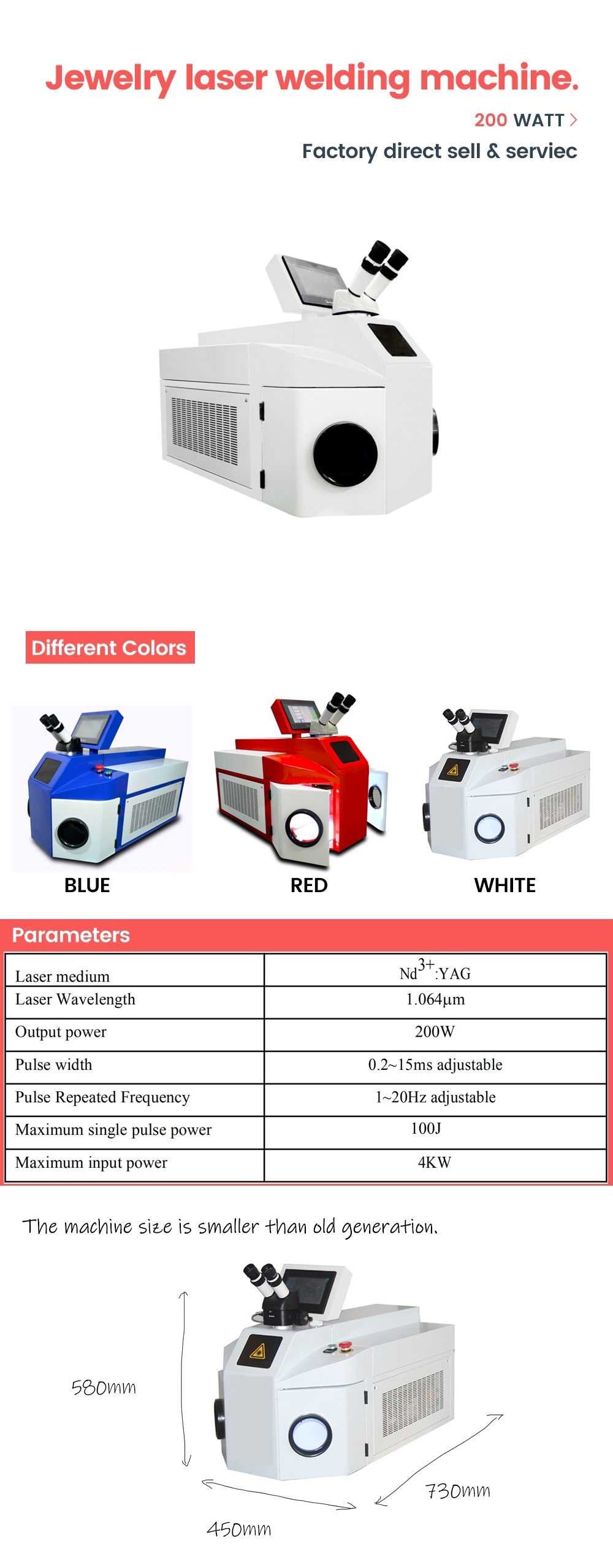

Specification

Laser medium

Nd 3+ :YAG

Laser Wavelength 1.064m

Output power 200W

Pulse width 0.2~15ms adjustable

Pulse Repeated Frequency 1~20Hz adjustable

Maximum single pulse power 100J

Maximum input power 6KW

Voltage:220V (If 110V country need to use with transformer)
