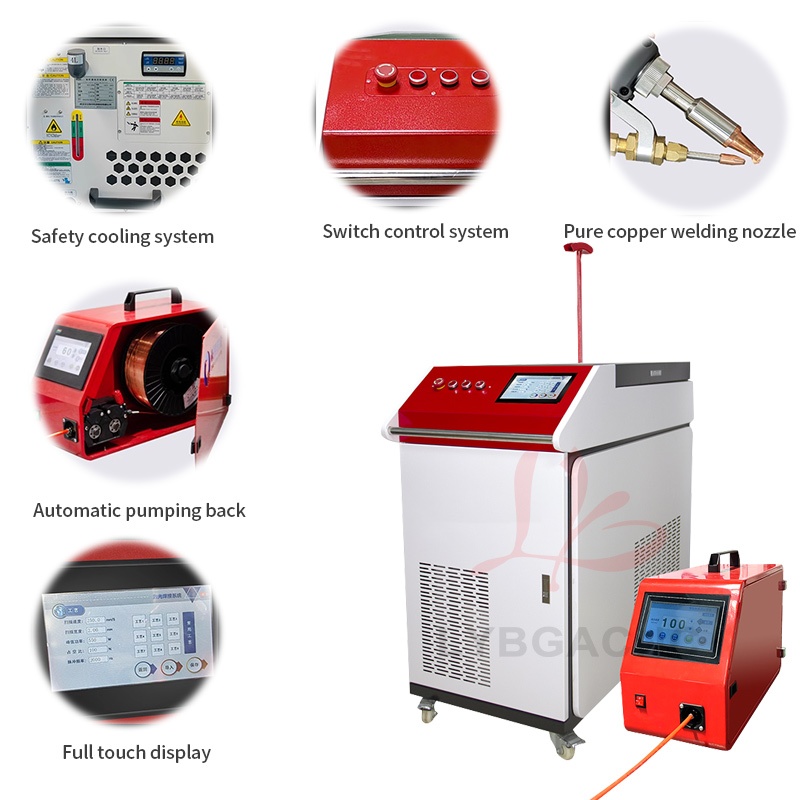

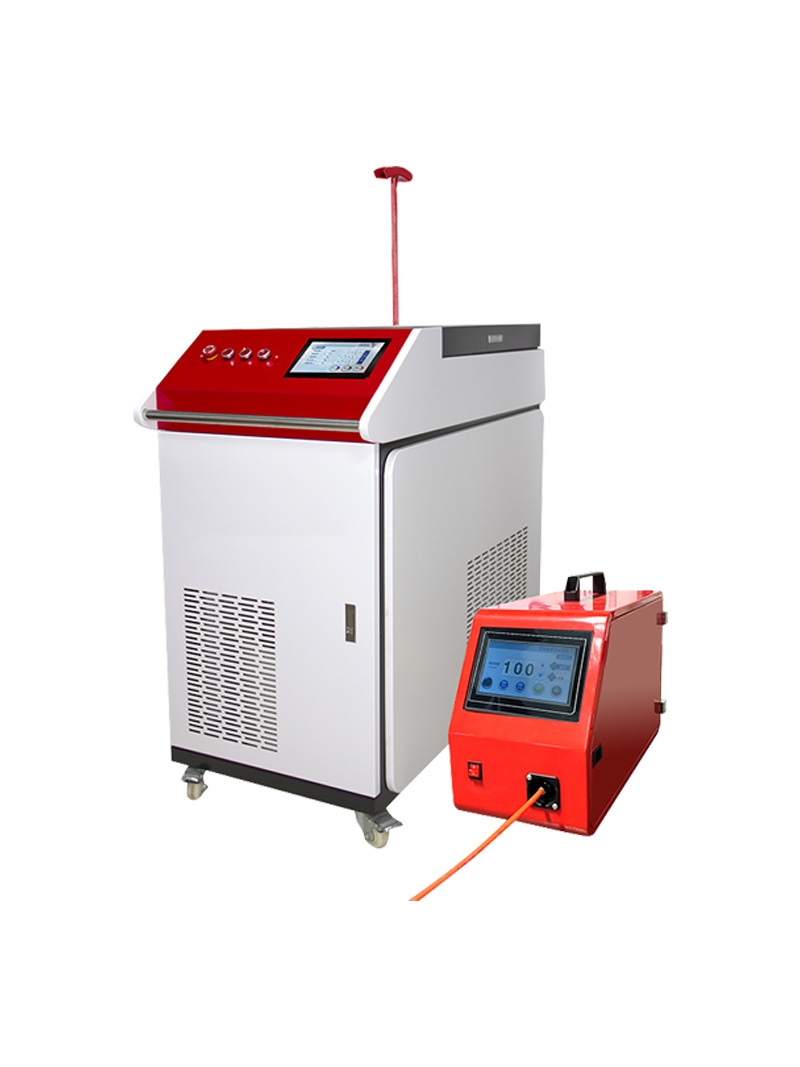

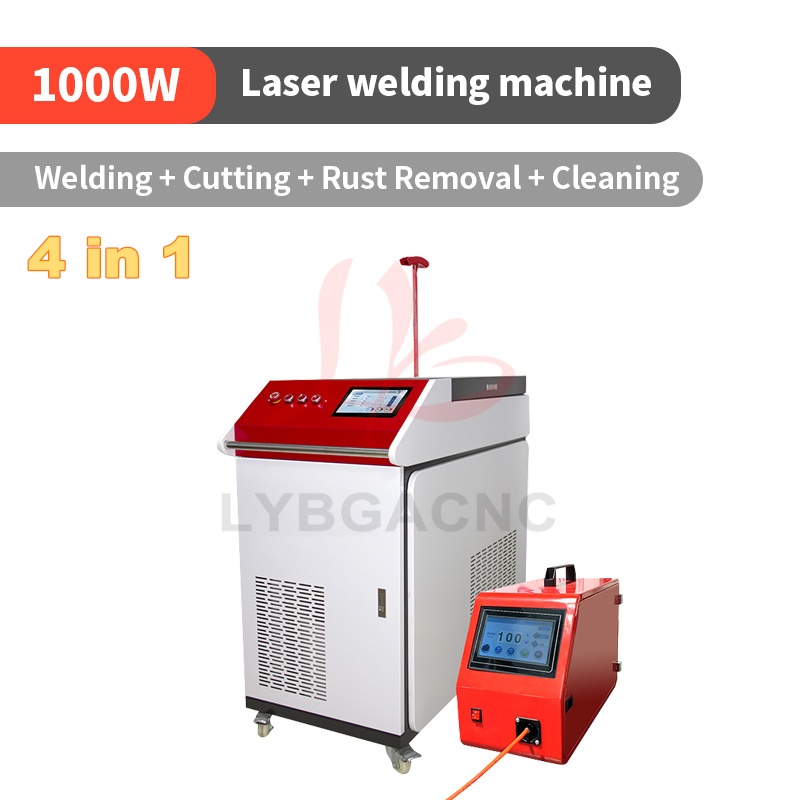

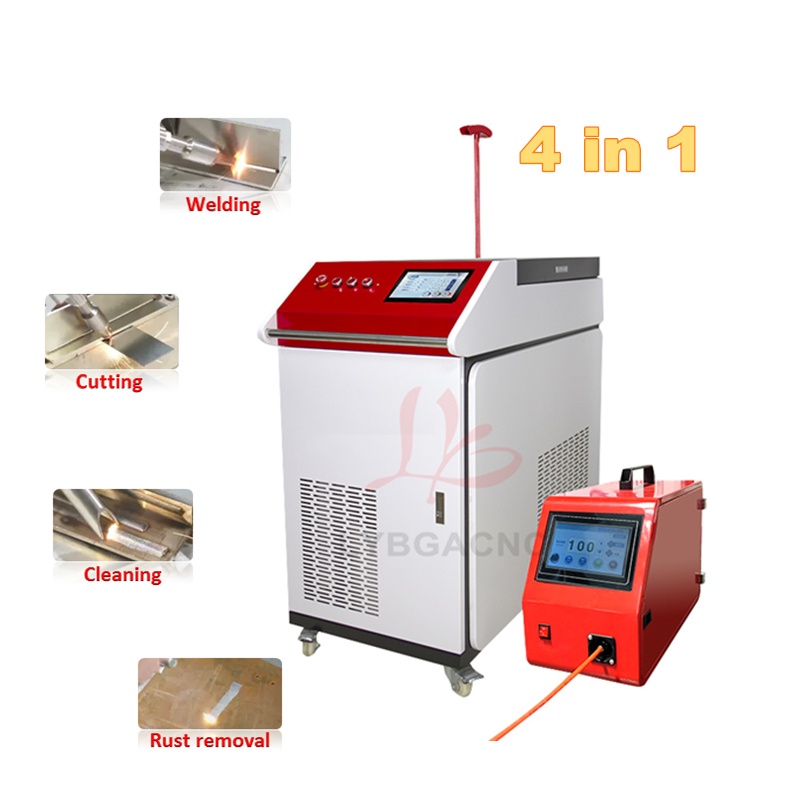

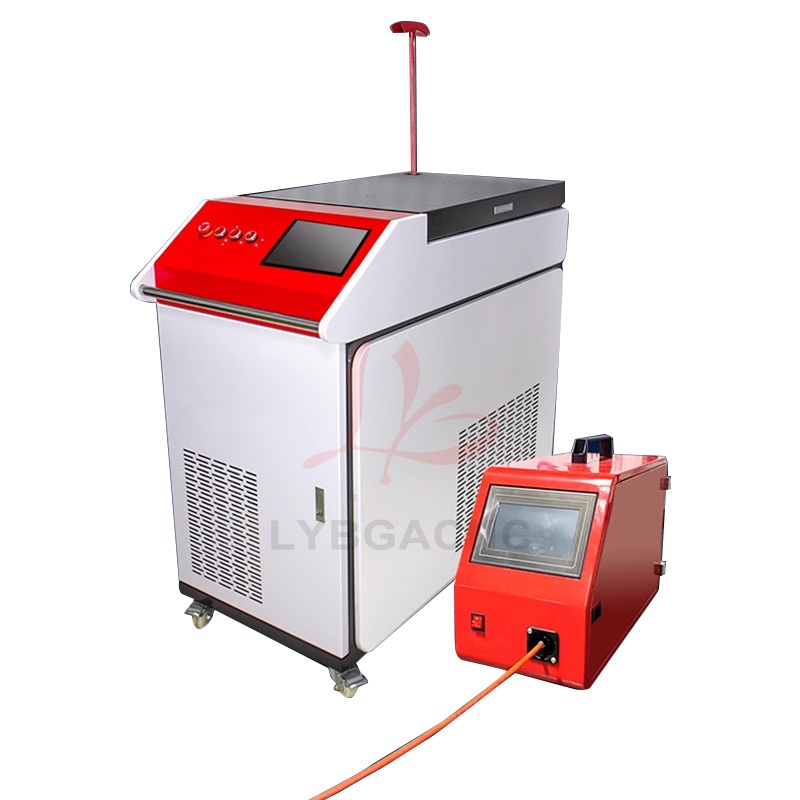

LYBGACNC Handheld 4-in-1 Fiber Laser Machine: 3000W/2000W/1500W for Cleaning, Welding, Cutting – Raycus BWT Laser for Metal Surfaces

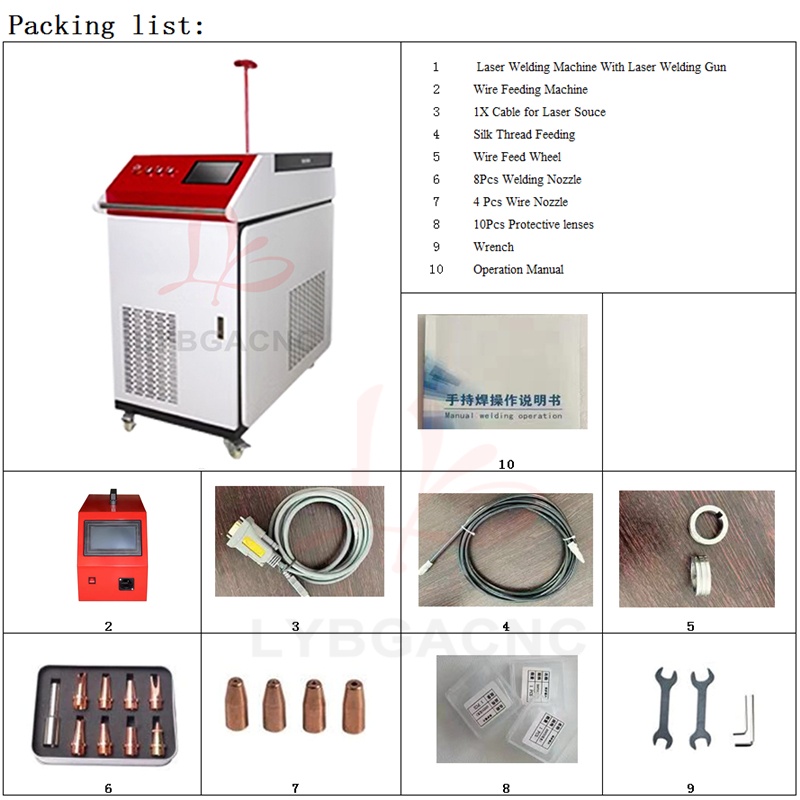

Packing list:

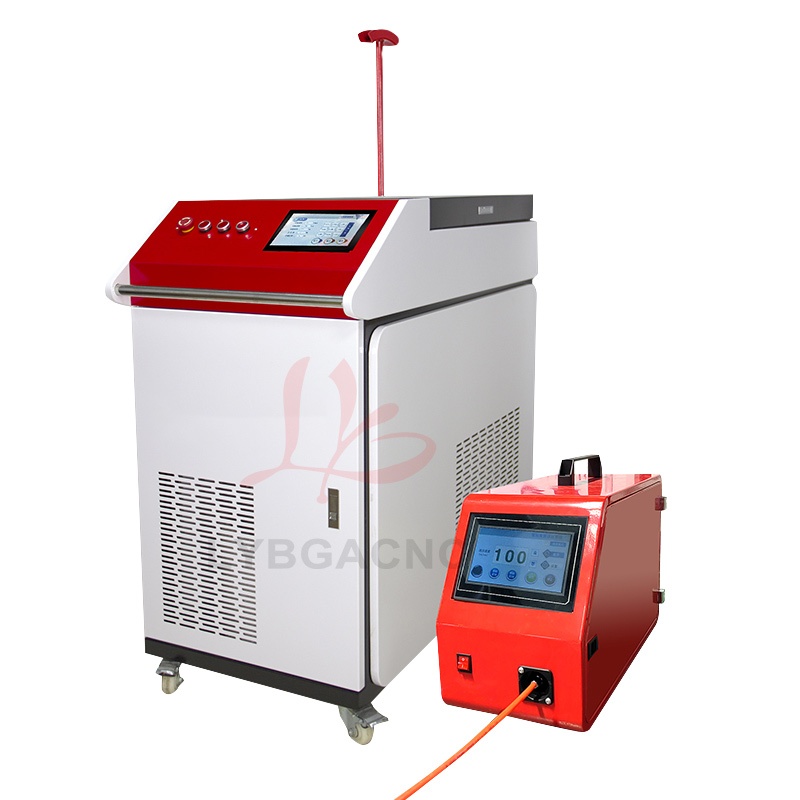

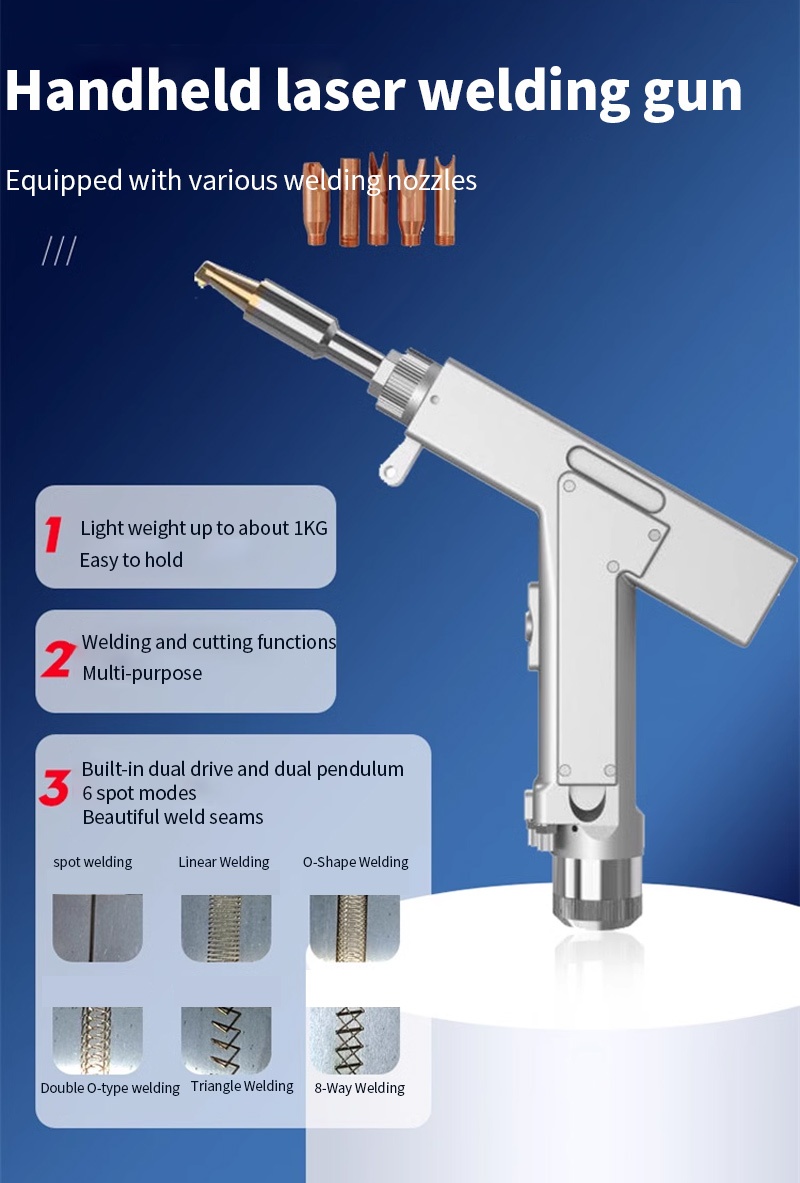

1  Laser Welding Machine With Laser Welding Gun

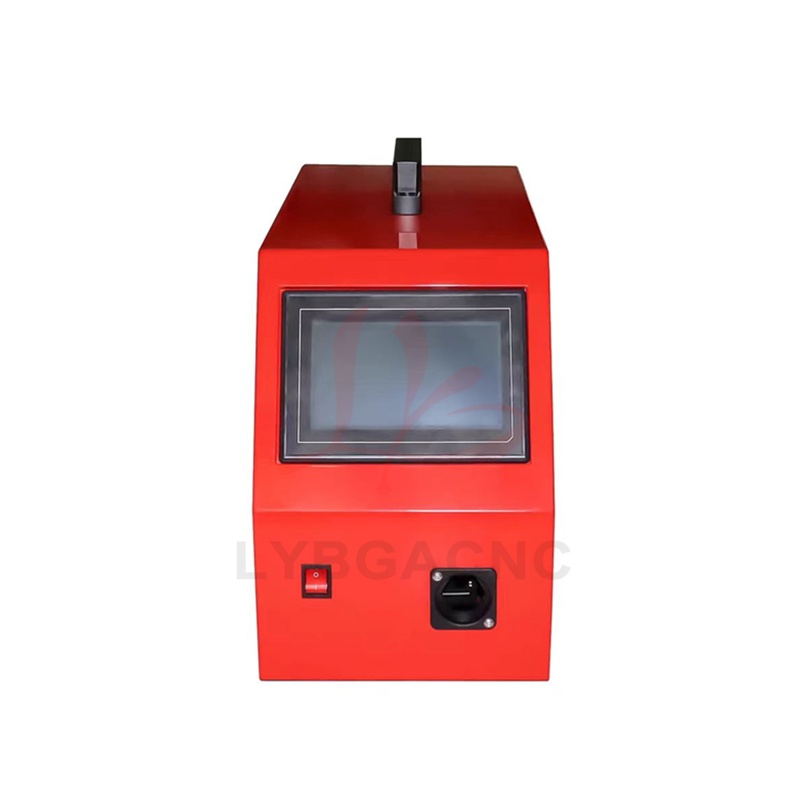

2 Wire Feeding Machine

3  1X Cable for Laser Souce

4  Silk Thread Feeding

5  Wire Feed Wheel

6  8Pcs Welding Nozzle

7  4Pcs Wire Nozzle

8  10Pcs Protective lenses

9  Wrench

10   Operation Manual

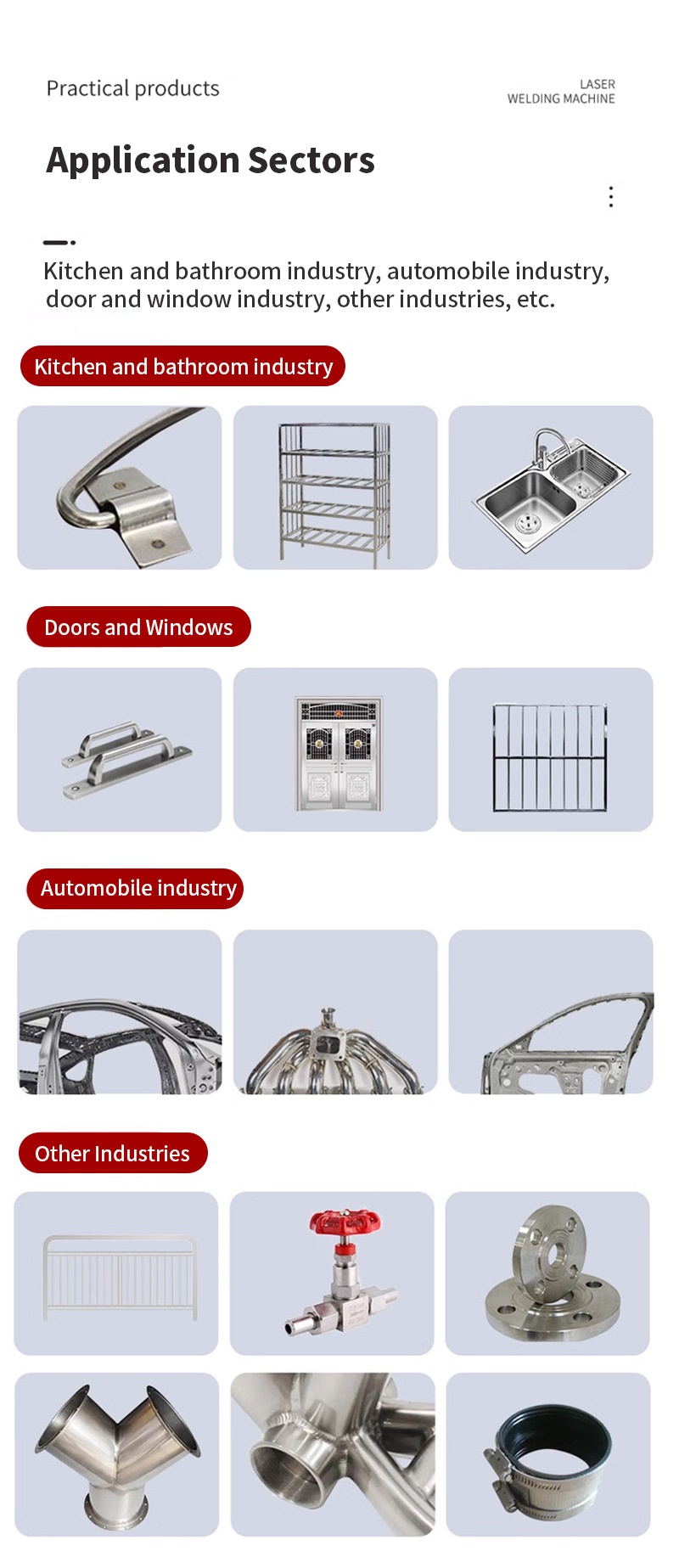

Application Sectors

Kitchen and bathroom industry, automobile industry,door and window industry, other industries, etc.

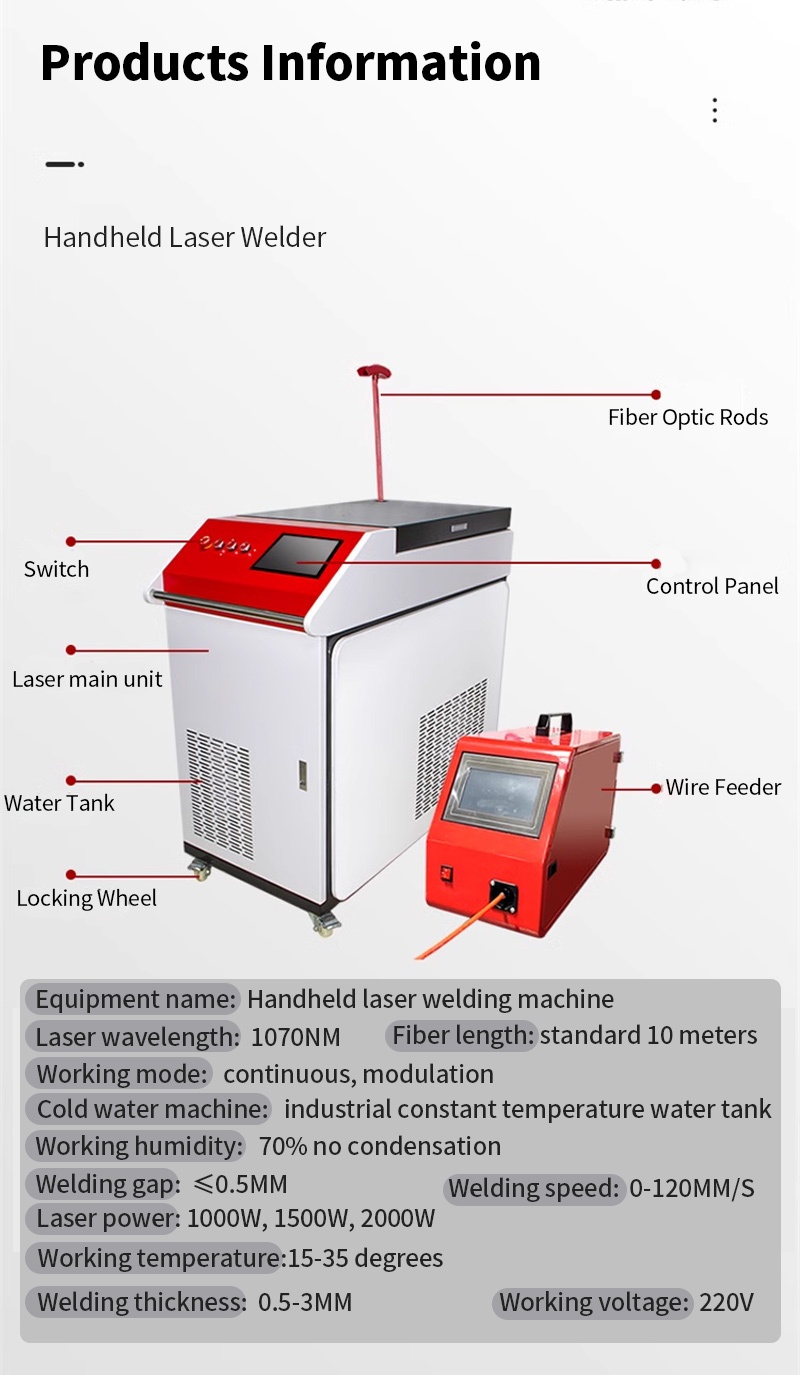

Product Parameters:

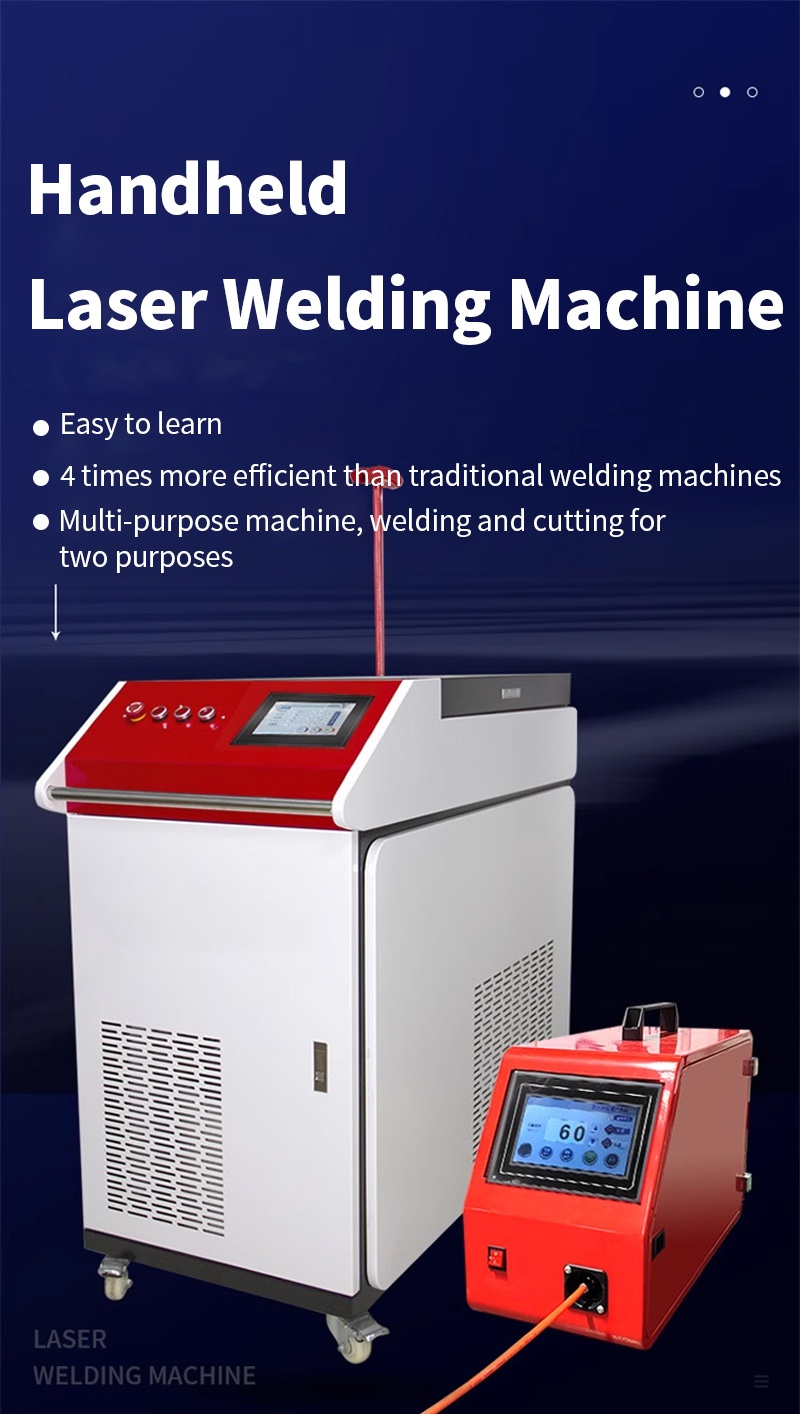

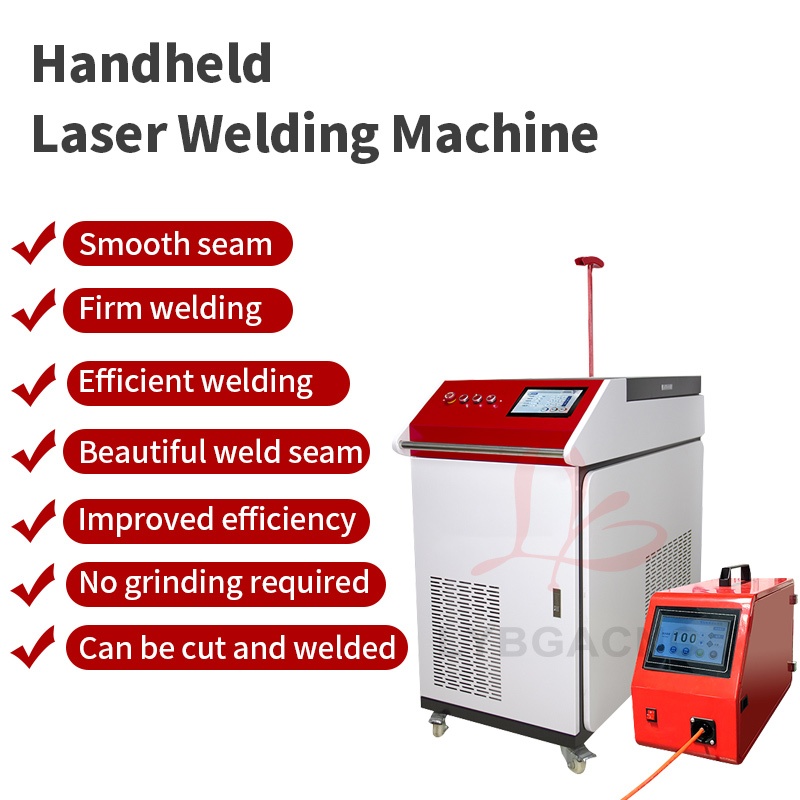

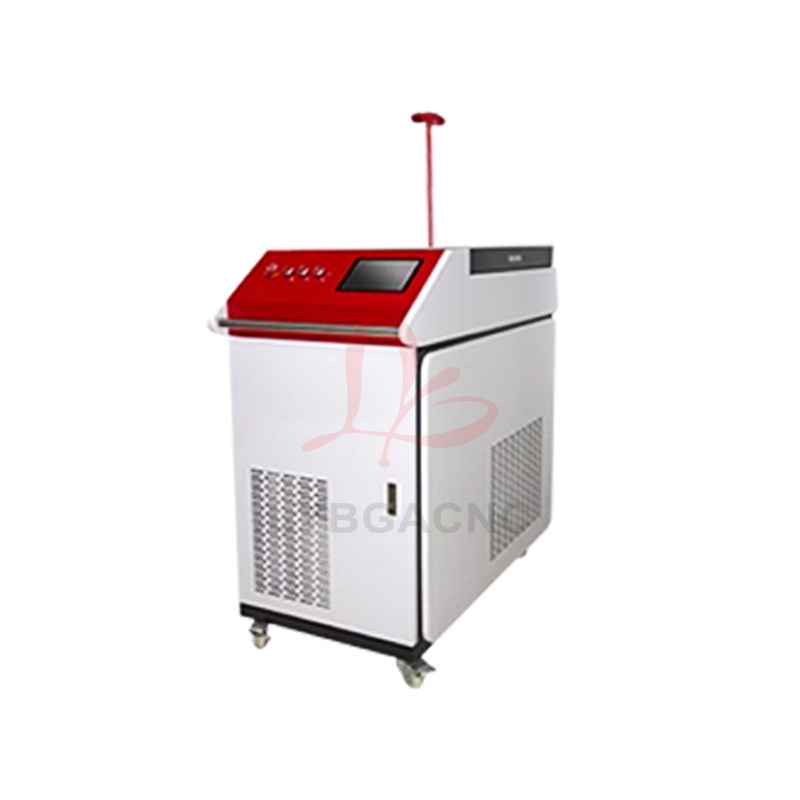

Equipment name: Handheld laser welding machine

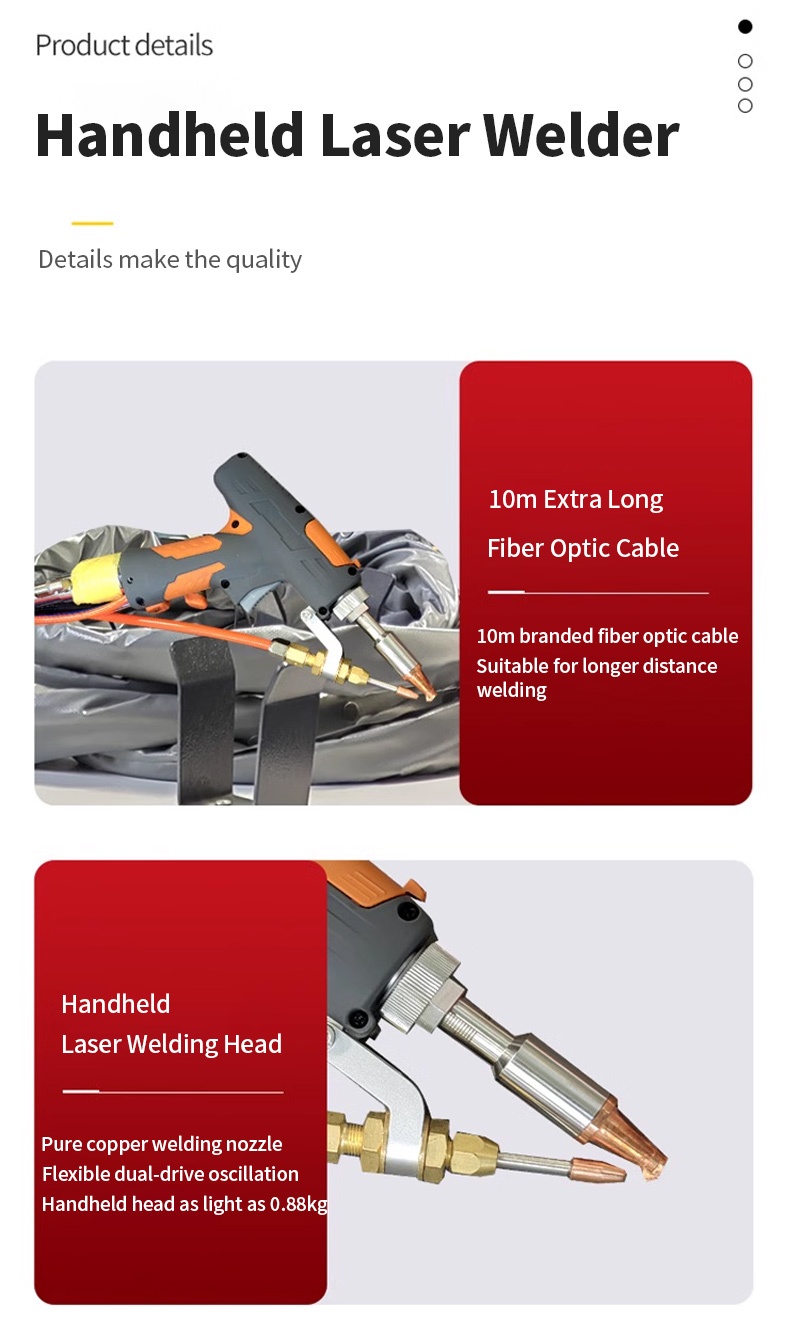

Laser wavelength:1070MM        Fiber length:standard 10 meters

Working mode:continuous,modulation

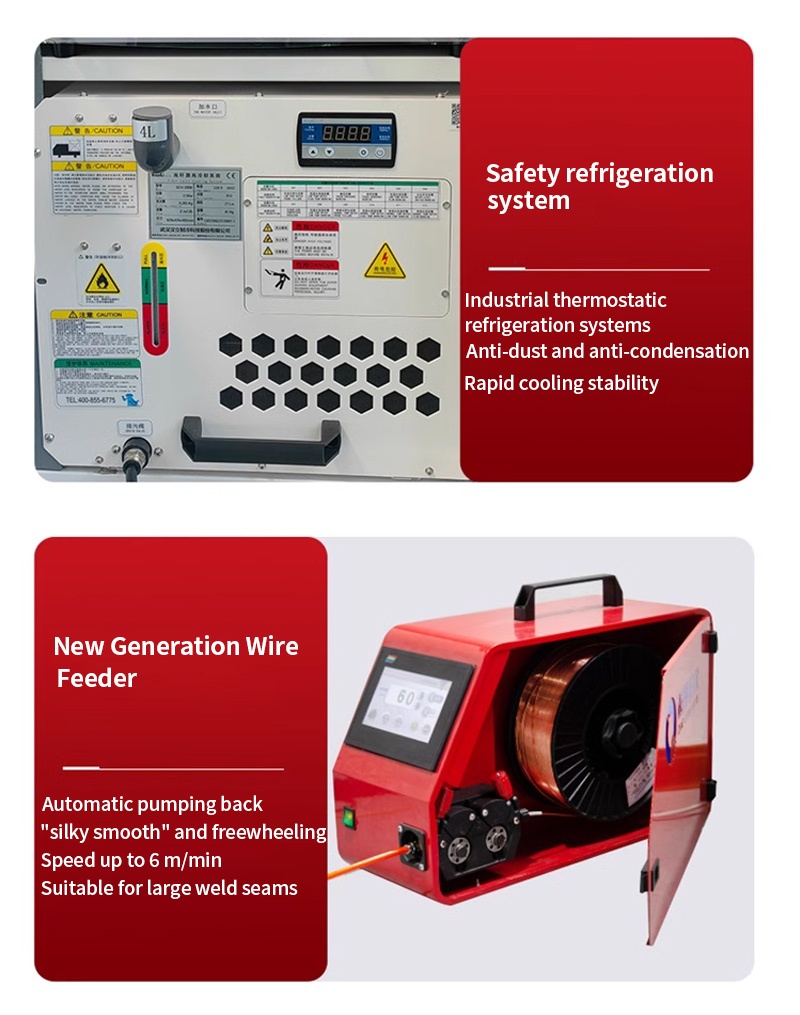

Cold water machine: industrial constant temperature water tank

Working humidity: 70% no condensation

Welding gap:<=0.5MM

Welding speed: 0-120MM/S

Laser power:1000w,1500w,2000w

Working temperature:15-35 degrees

Welding thickness:0.5-3MM

Workingvoltage:220V

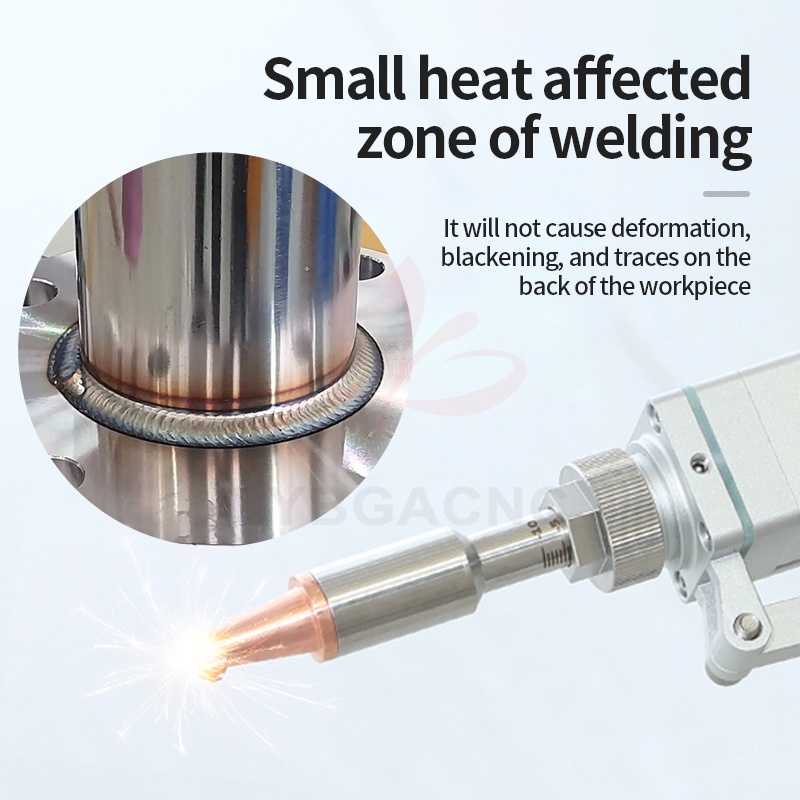

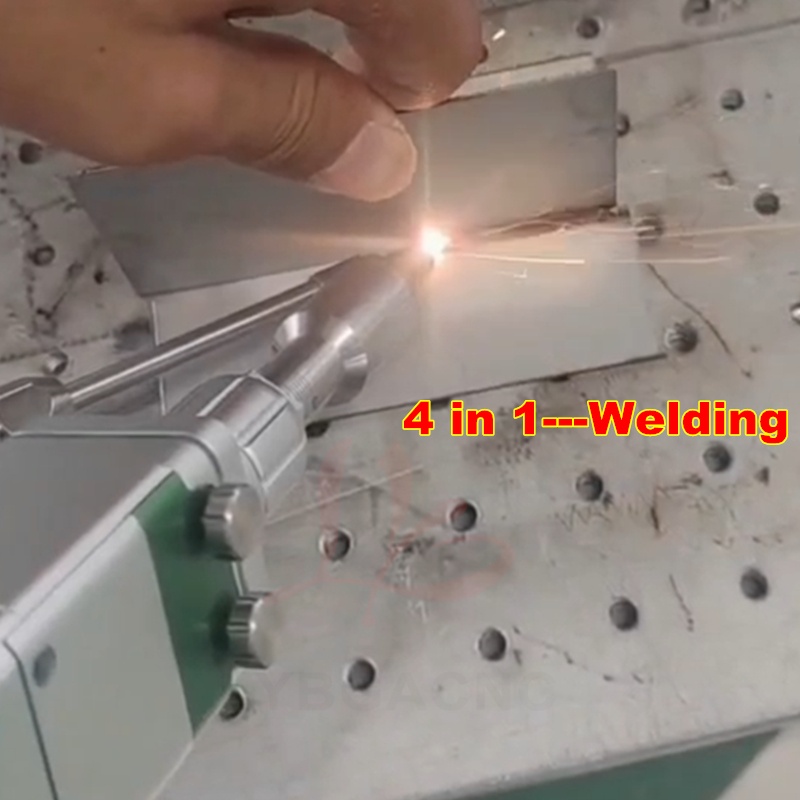

welding

Notice:

1.   Within the recommended power range, the smaller the power, the brighter the weld seam.

2.   The swing width needs to consider the actual weld width and wire diameter

3.    The diameter of the welding wire needs to consider the actual weld width and stacking height requirements

4.   Welding speed is directly related to wire feeding speed

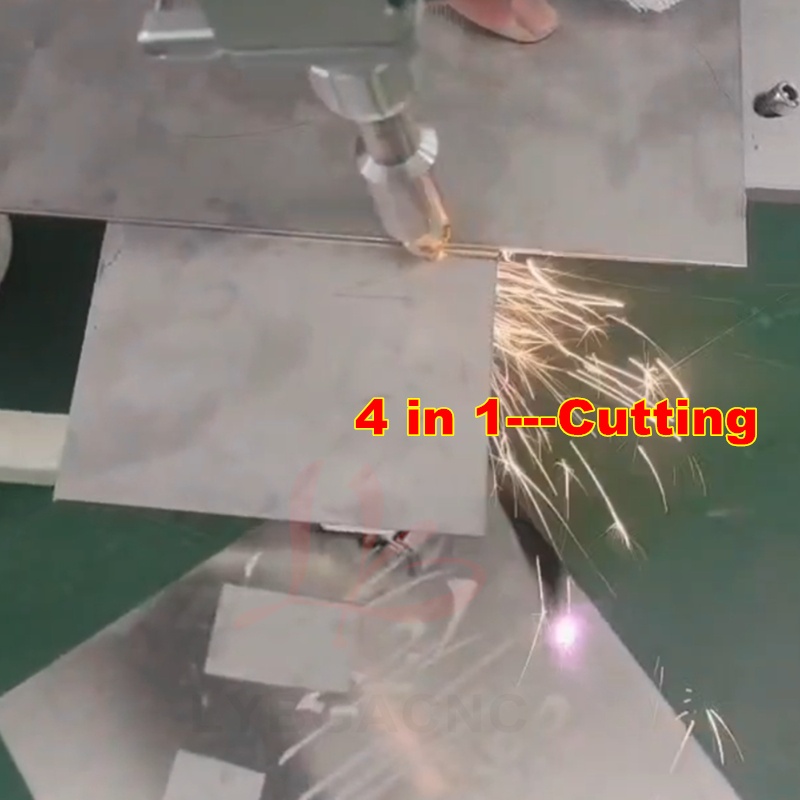

cutting

Notice:

1.    it is recommended to use compressed ar as the

protective gas.    The high pressure makes it easier to blow

off welding slag

2.   Ensure that all red light is emitted from the mouth of the

copper nozzle to avoid burning it out

3.   The cutting nozzle is perpendicular to the surface of the

material, which will have a better cutting effect

4.   Mark the surface of the material or use a backing to make

the cutting path more accurate

5.   lt Is recommended to set the maximum power to Improve

cutting efficiency

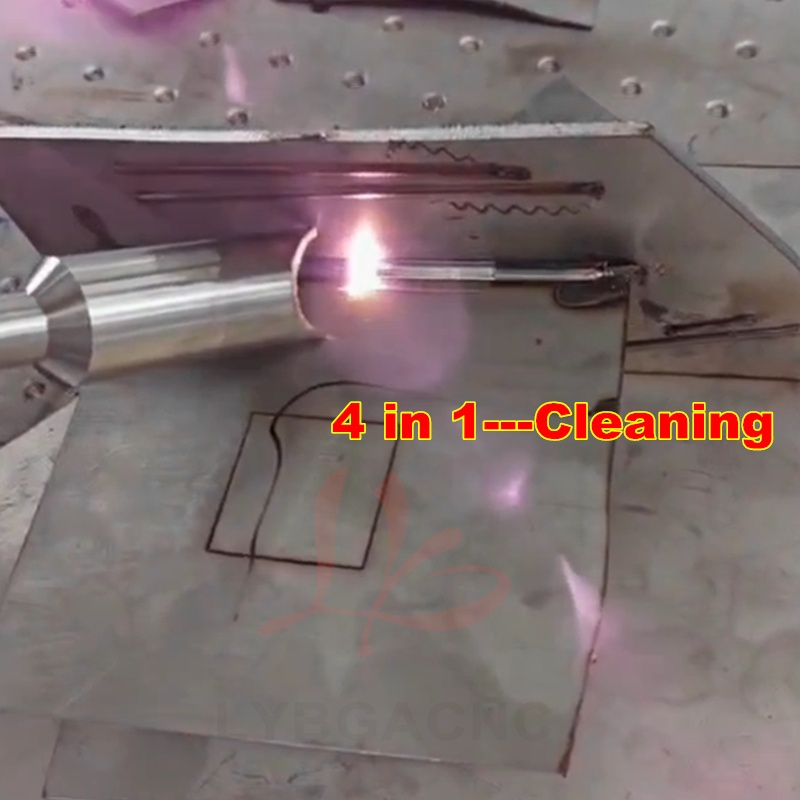

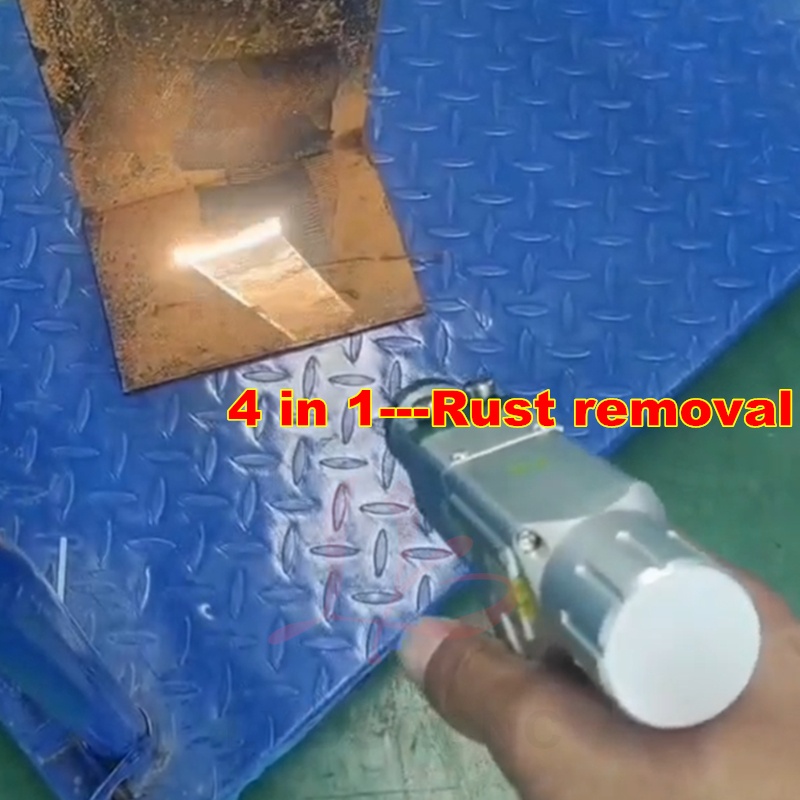

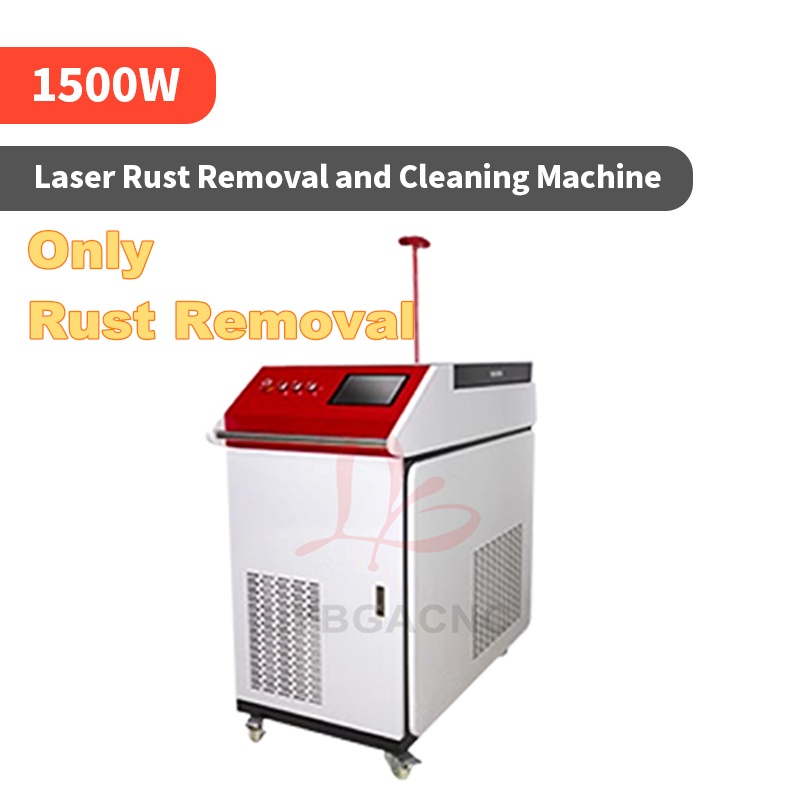

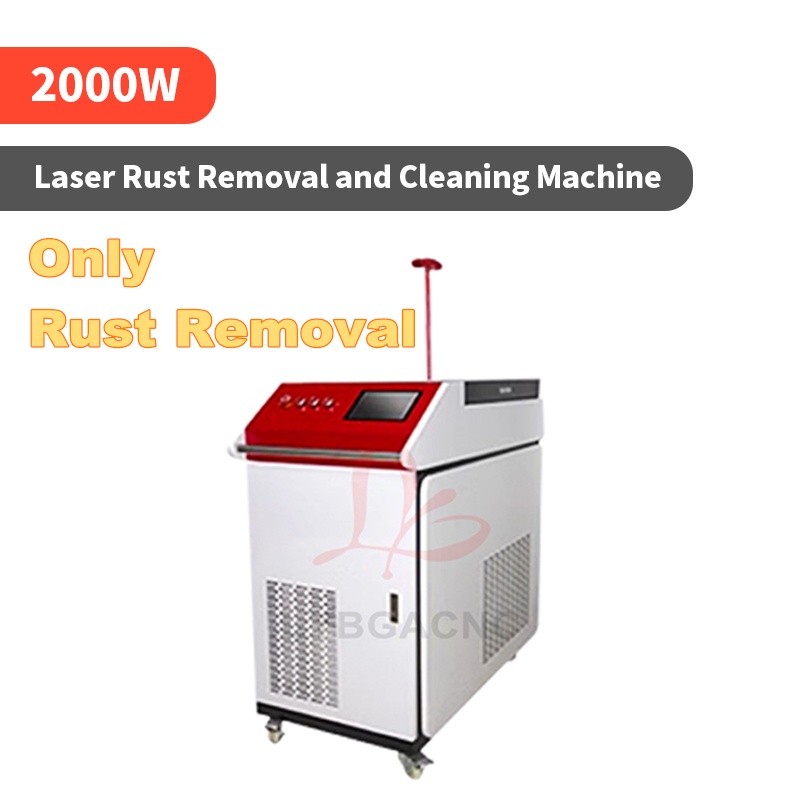

cleaning (Air-cool)/(Water-cool)

Notice:

1.   When in cleaning mode,it is necessary to remove the

stainless steei tube at the front of the gun head

2.   lt is necessary to clamp the safety clip onto the wire feed

bracket of the gun head

3.   The main function of this gun head is welding, and

cleaning is an auxiliary function.    If you need to achieve

better cleaning results, you can choose our company’s

dedicated laser cleaning machine

Thanks for your order!
