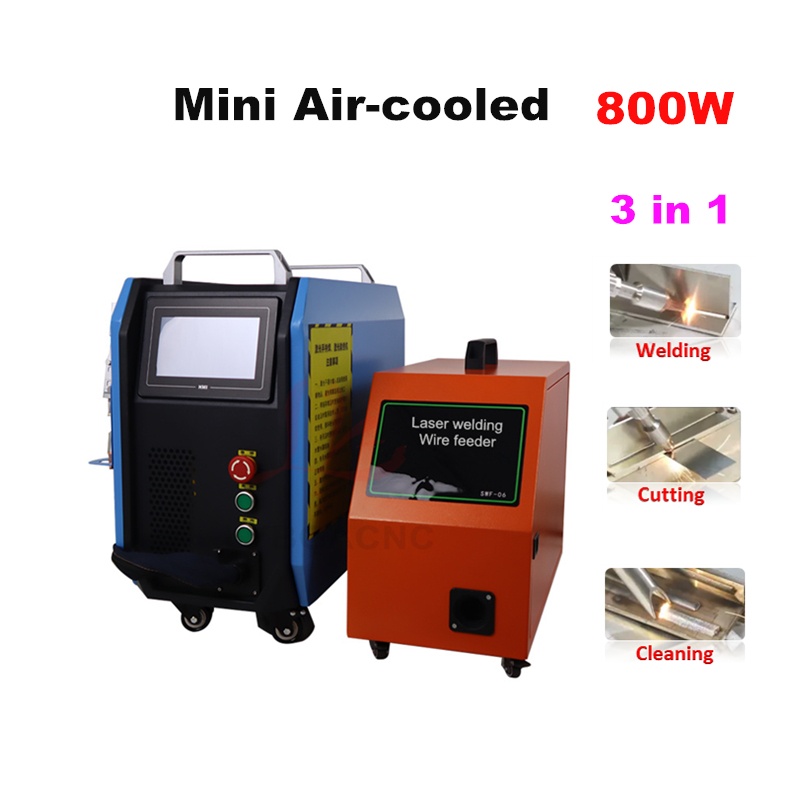

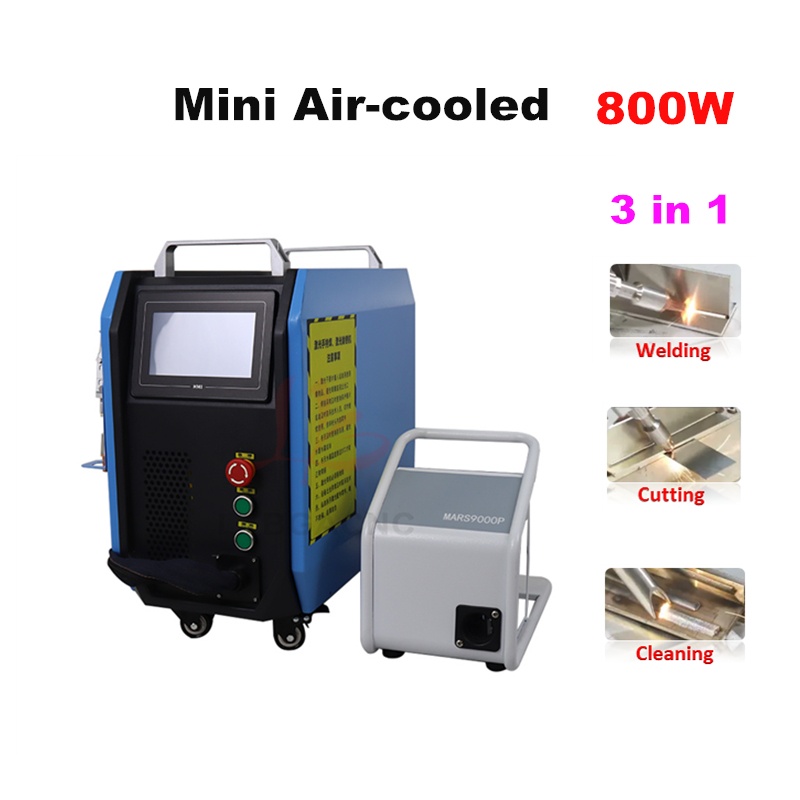

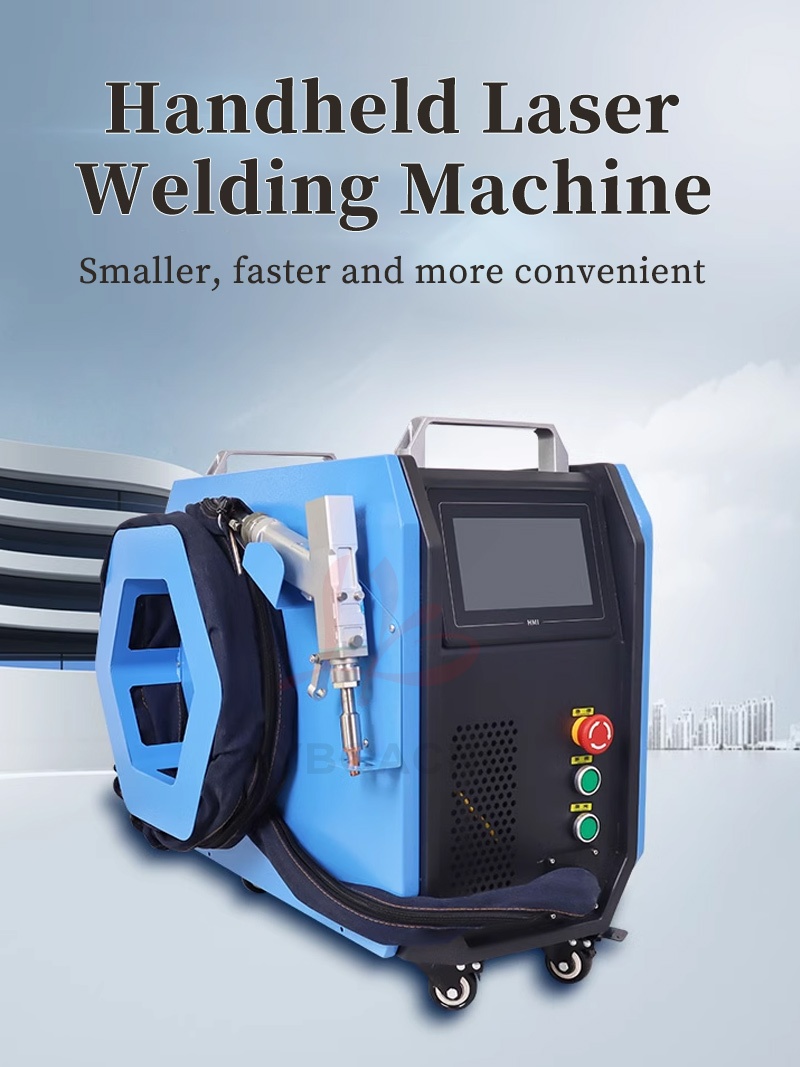

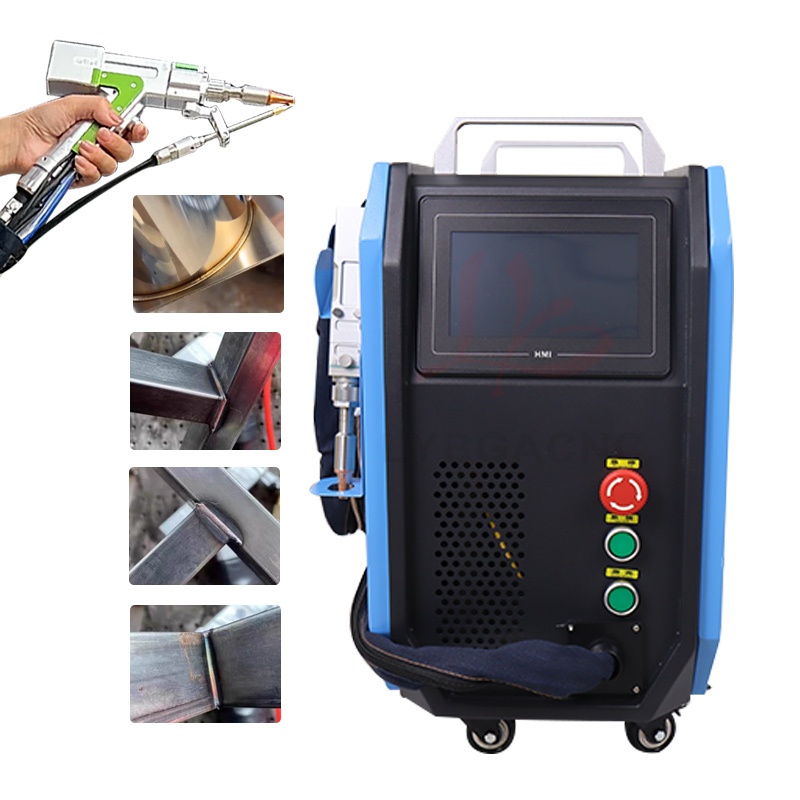

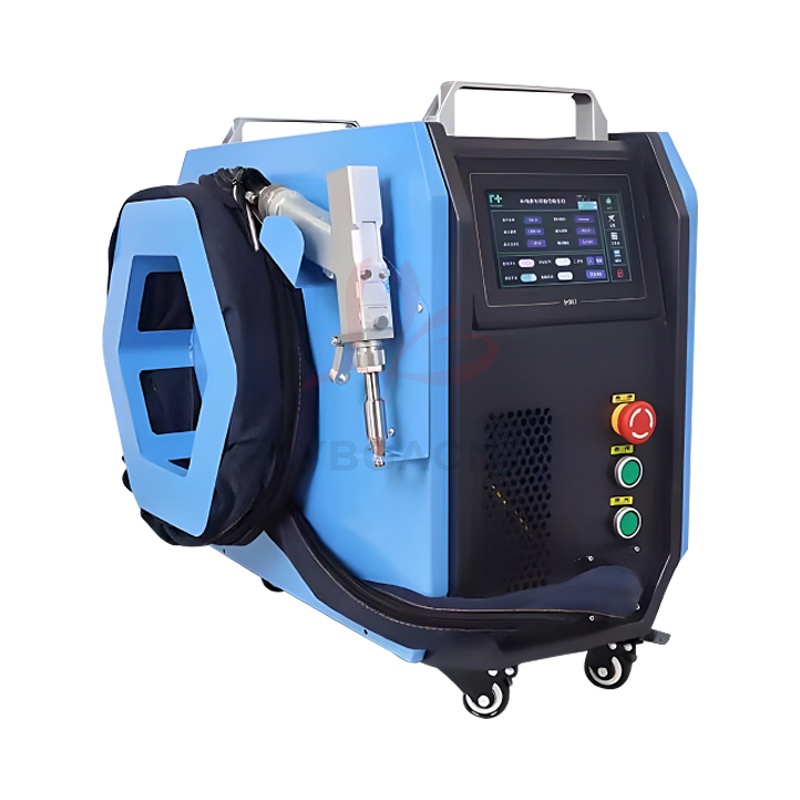

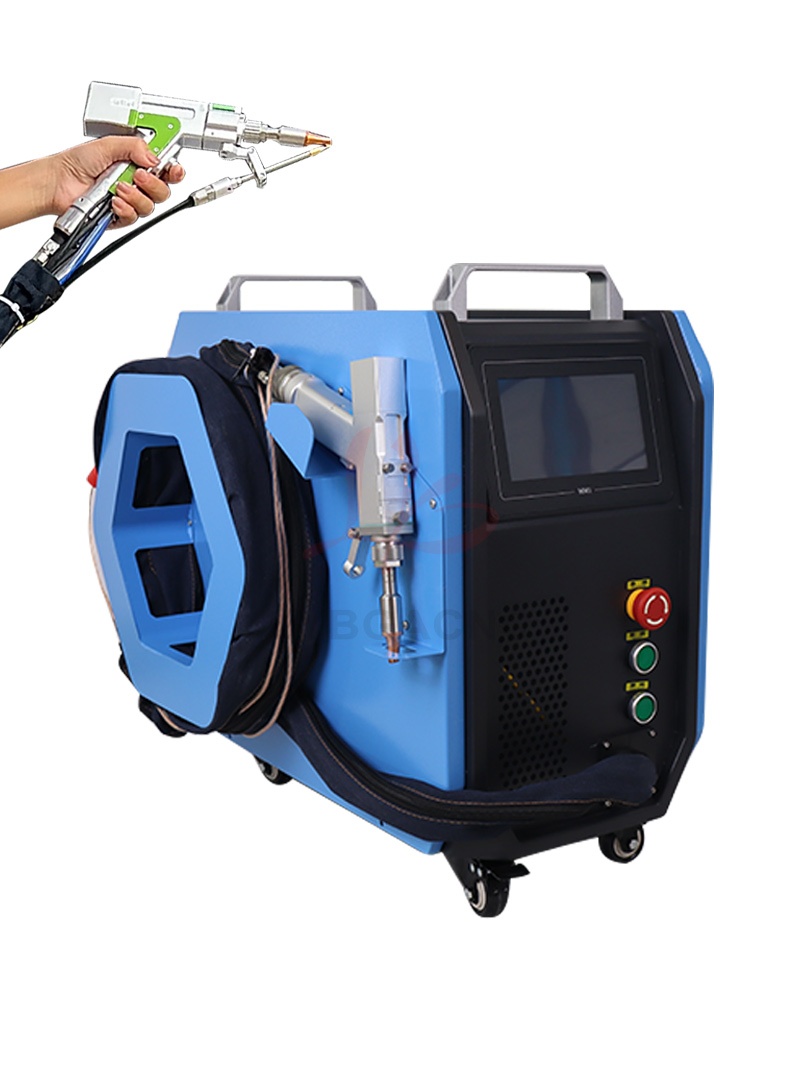

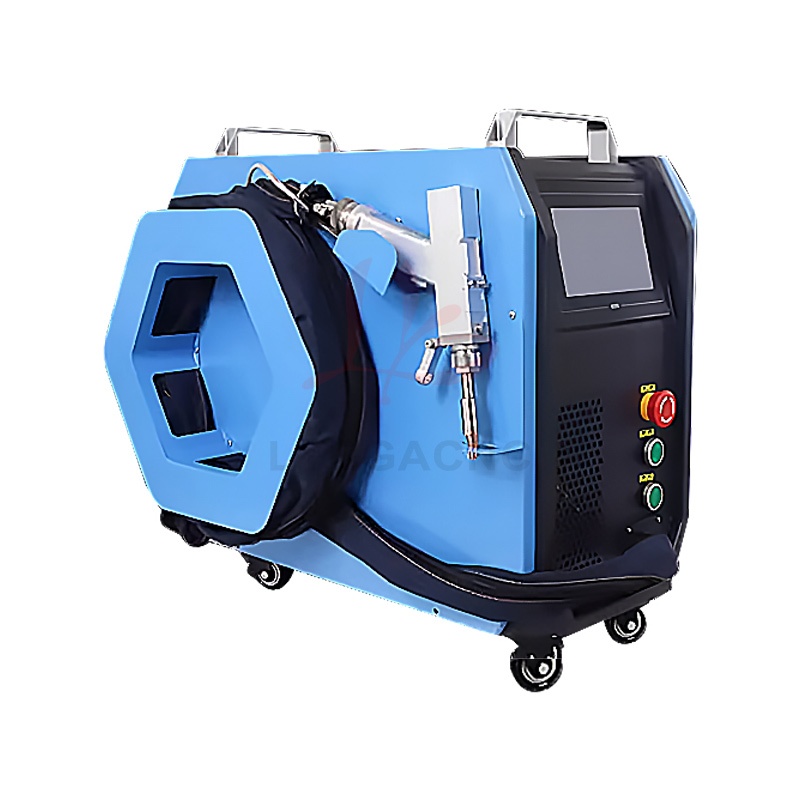

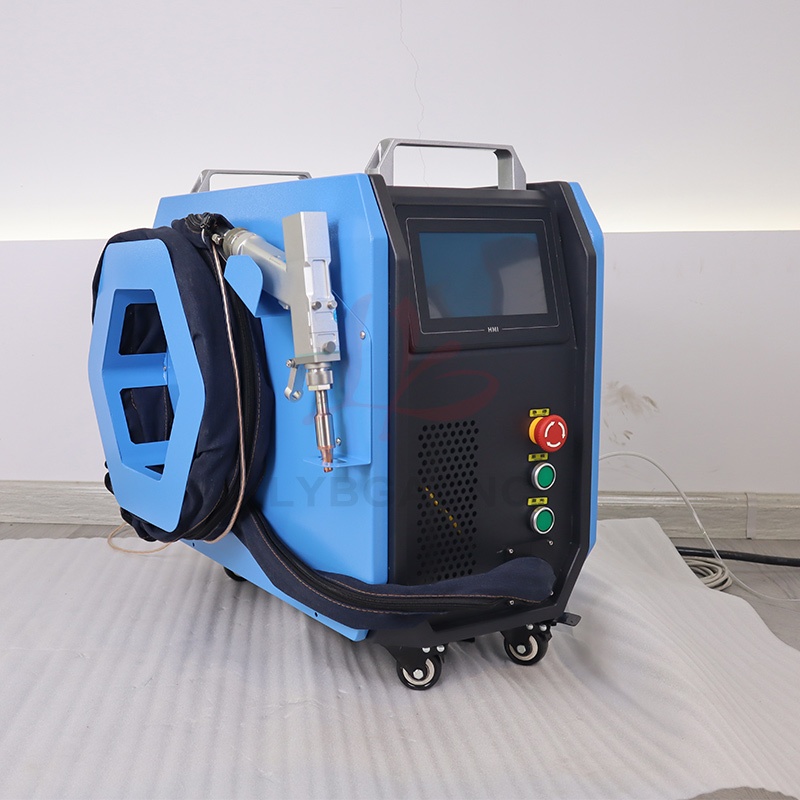

LYBGACNC Mini Air-cooled Handheld 3-in-1 Laser Welder (800W/1200W) – Weld, Clean, Cut & Solder. Ideal for Stainless Steel, Aluminum Alloy, Brass & Copper; Removes Rust Effortlessly

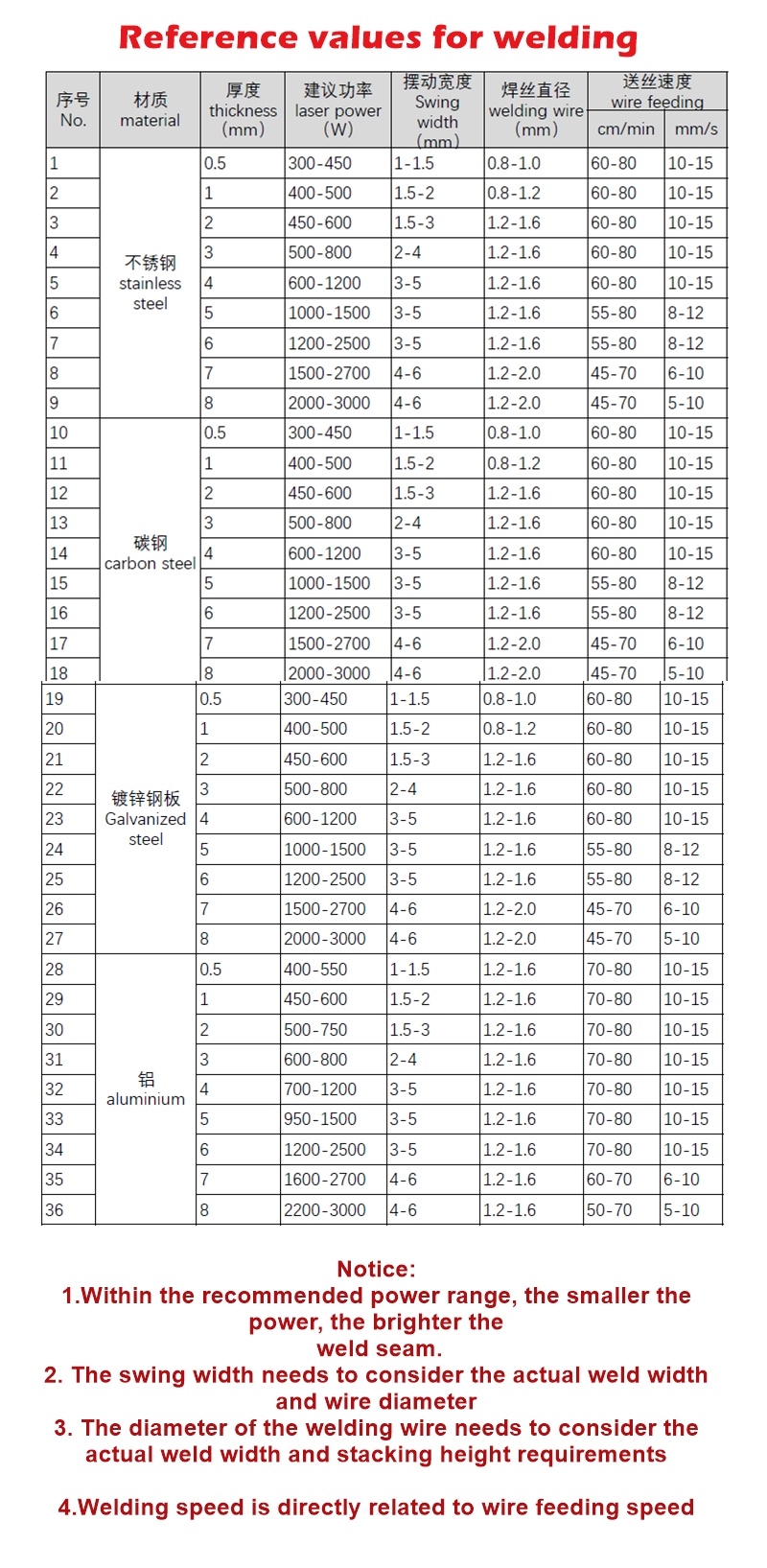

welding
Notice:
1. Within the recommended power range, the smaller the power, the brighter the weld seam.
2. The swing width needs to consider the actual weld width and wire diameter
3. The diameter of the welding wire needs to consider the actual weld width and stacking height requirements
4. Welding speed is directly related to wire feeding speed

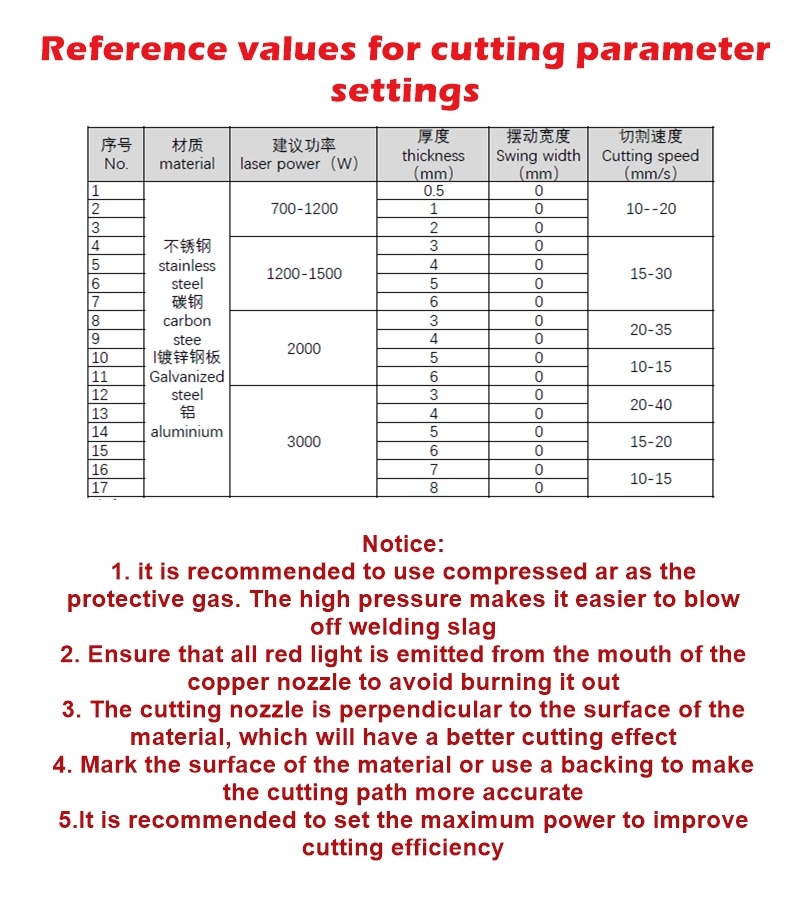

cutting
Notice:
1. it is recommended to use compressed ar as the
protective gas. The high pressure makes it easier to blow
off welding slag
2. Ensure that all red light is emitted from the mouth of the
copper nozzle to avoid burning it out
3. The cutting nozzle is perpendicular to the surface of the
material, which will have a better cutting effect
4. Mark the surface of the material or use a backing to make
the cutting path more accurate
5. lt Is recommended to set the maximum power to Improve
cutting efficiency

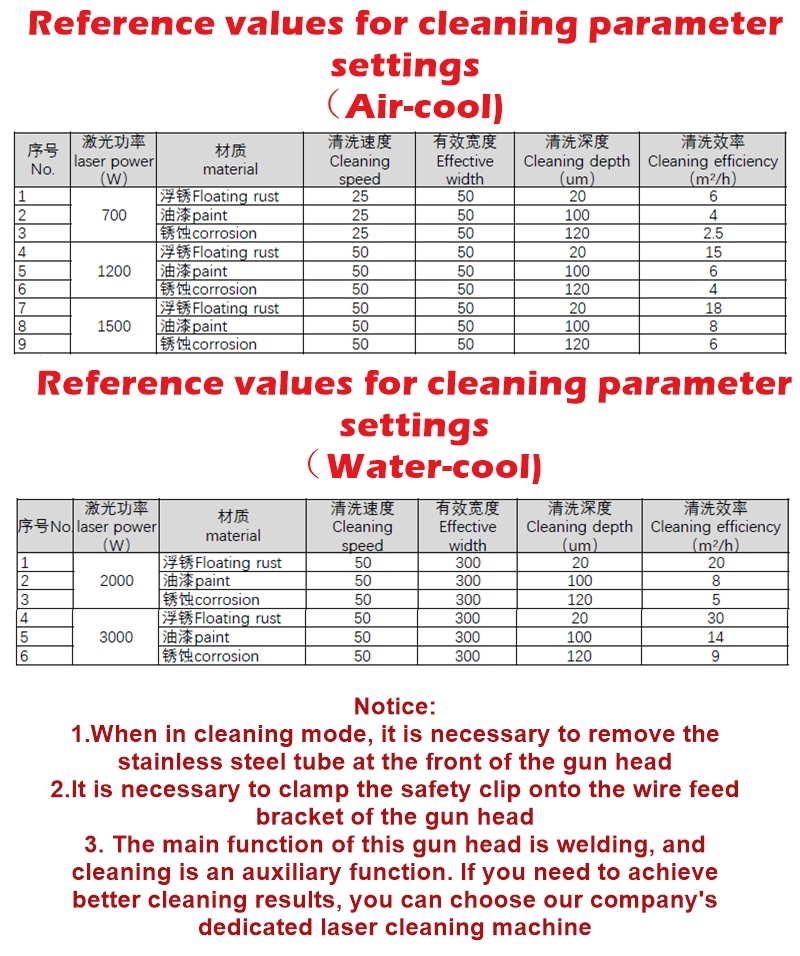

cleaning (Air-cool)/(Water-cool)
Notice:
1. When in cleaning mode,it is necessary to remove the
stainless steei tube at the front of the gun head
2. lt is necessary to clamp the safety clip onto the wire feed
bracket of the gun head
3. The main function of this gun head is welding, and
cleaning is an auxiliary function. If you need to achieve
better cleaning results, you can choose our company’s
dedicated laser cleaning machine

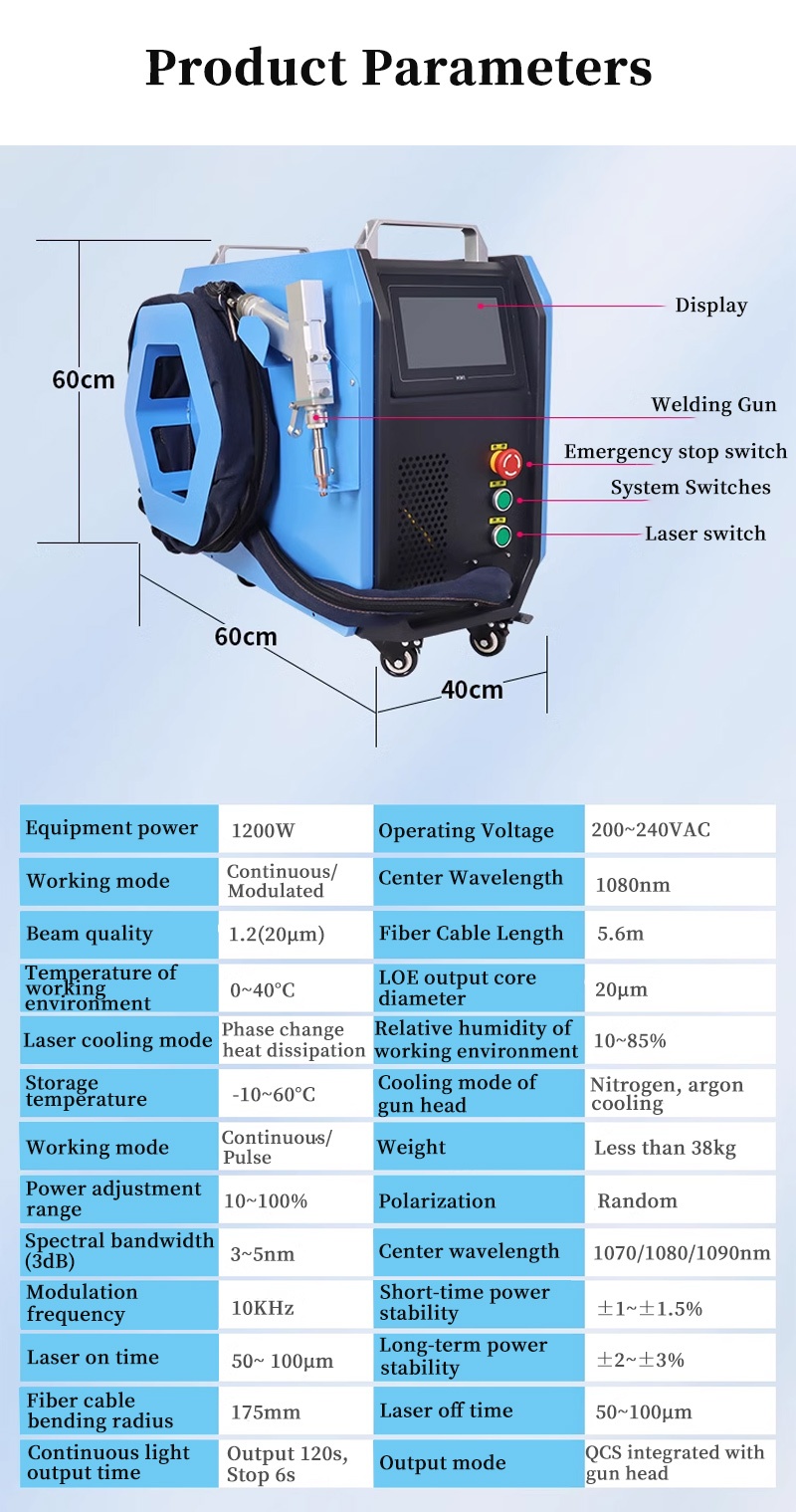

Product Parameters:
Equipment power 1200W
Operating Voltage 200~240VAC
Working mode Continuous/Modulated
Center Wavelength 1080nm
Beam quality 1.2(20μm)
Fiber Cable Length 5.6m
Temperature of working emvroninent 0~40°C
LOE output core diameter 20μm
Laser cooling mode Phase change heat dissipation
Relative humidity of working environment 10~85%
Storage temperature -10~60°C

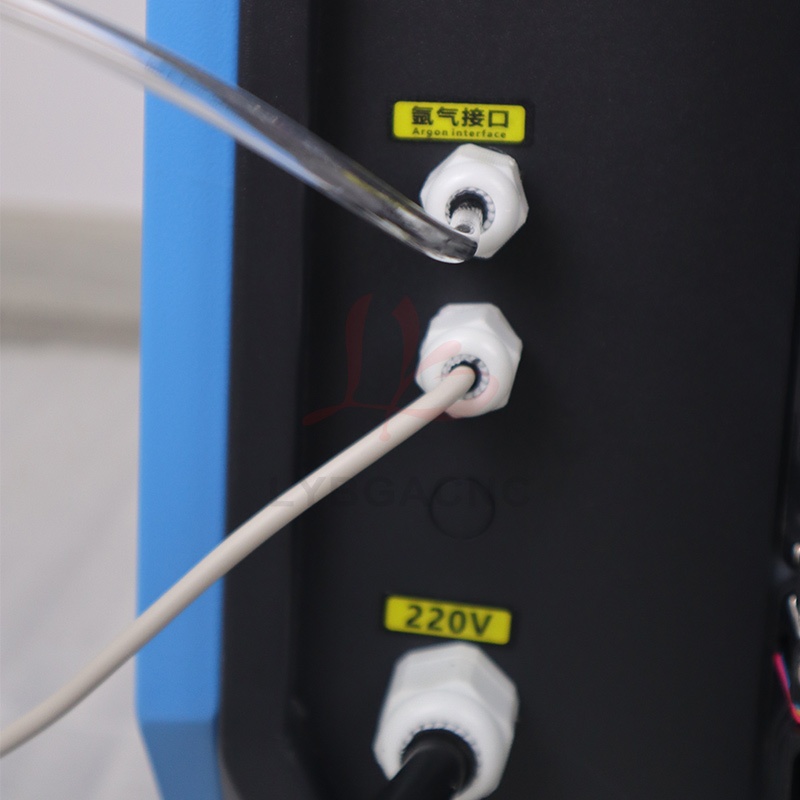

Cooling mode of gun head Nitrogen, argon cooling
Working mode Continuous/Pulse
Weight Less than 38kg
Power adjustment range 10~100%
Polarization Random
Spectral bandwidth(3dB) 3~5nm
Center wavelength 1070/1080/1090nm
Modulation frequency 10KHz
Short-time power stability 士1~士1.5%
Laser on time 50~100μm
Long-term power 士2~士3%
Fiber cable bending radius 175mm
Laser off time 50~100μm
Continuous light output time Output 120s, Stop 6s
Output mode QCS integrated with gun head
