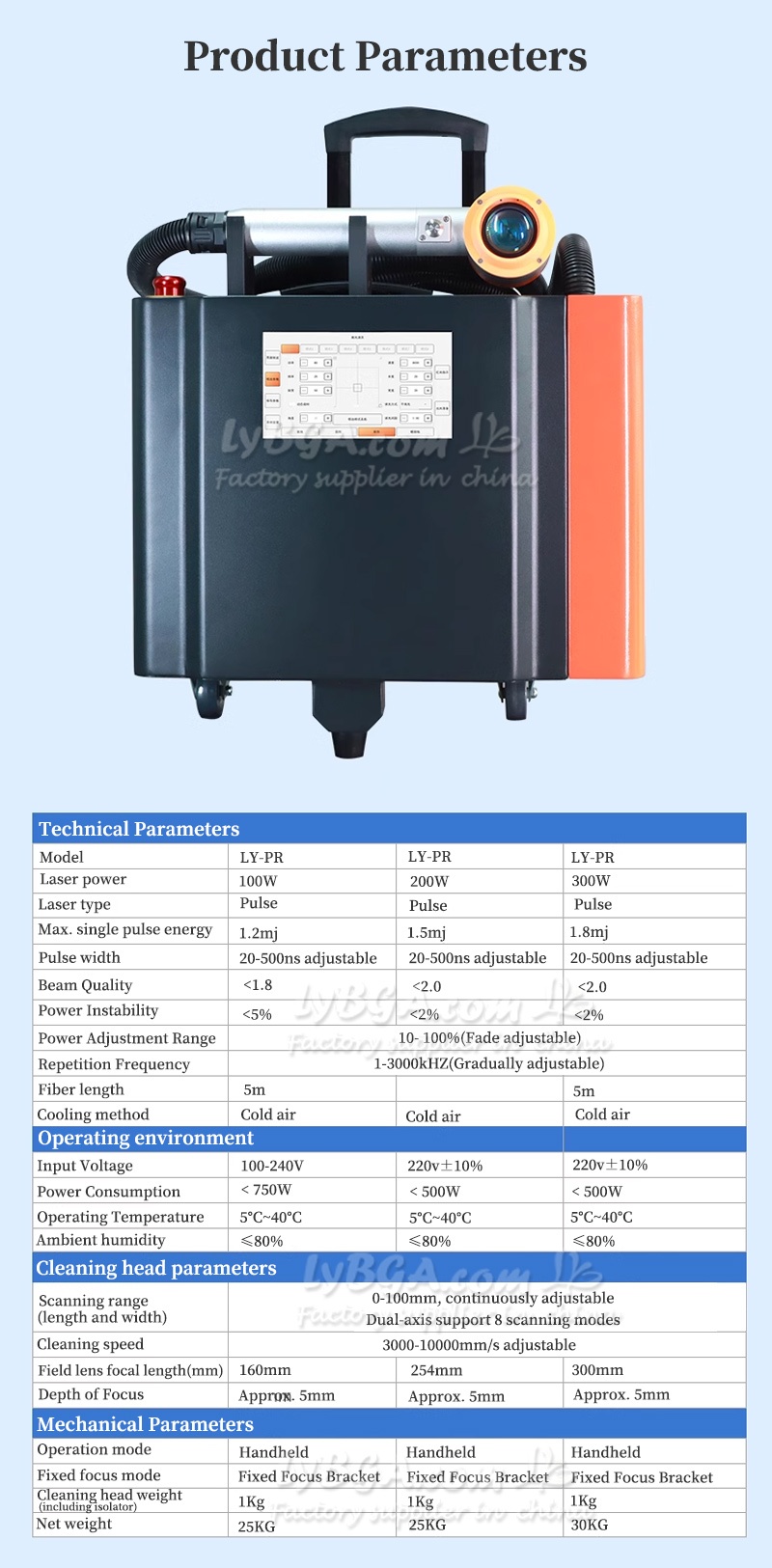

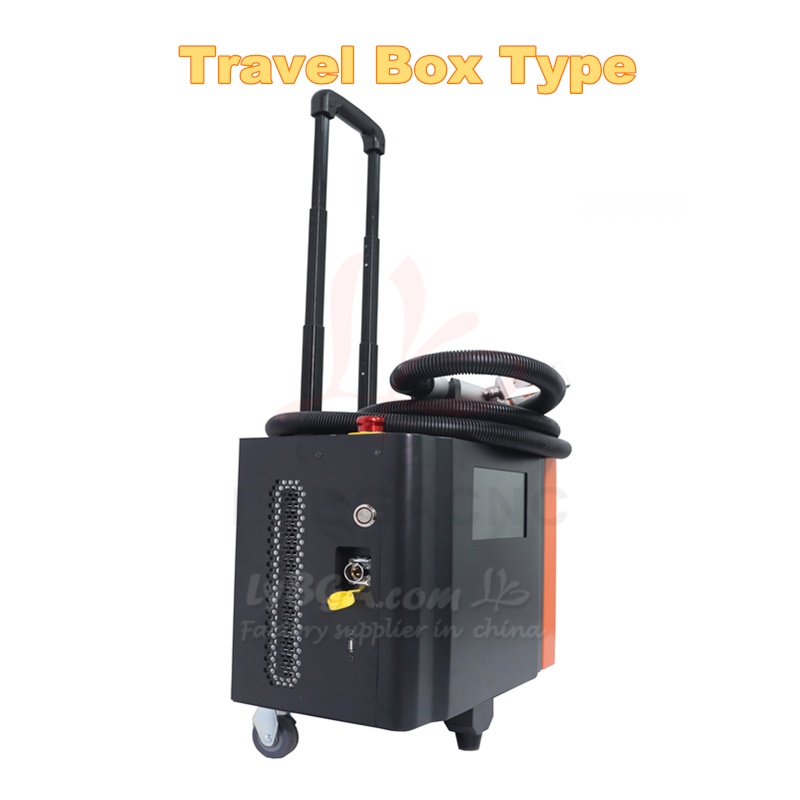

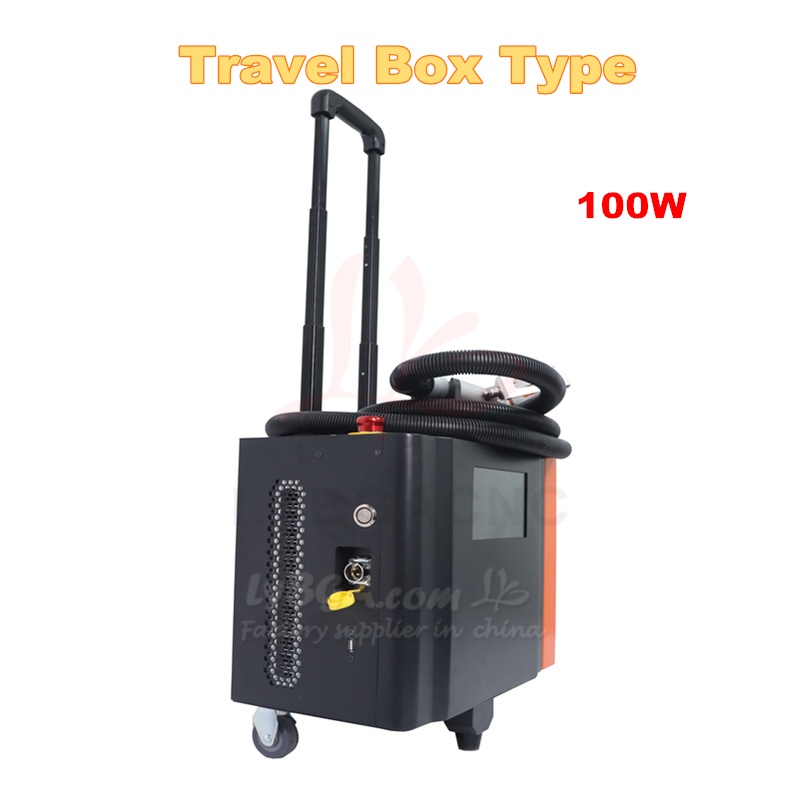

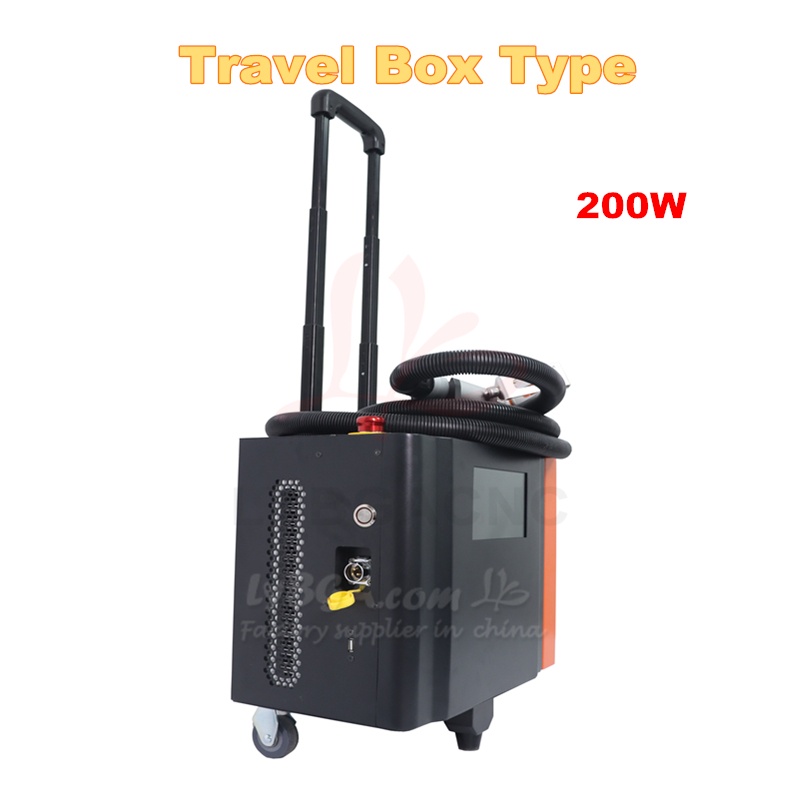

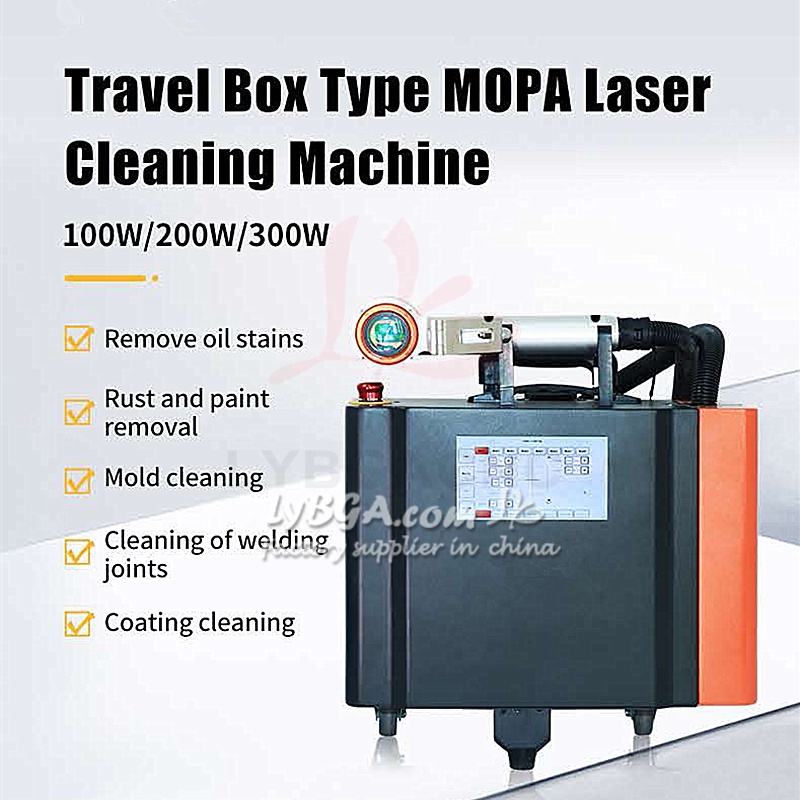

Travel Box Type Pulse Laser Cleaning Machine Product Parameter
|
Technical Parameters |
|||
|
Model |
LY-PR |
LY-PR |
LY-PR |
|
Laser power |
100W |
200W |
300W |
|
Laser type |
Pulse |
Pulse |
Pulse |
|
Maximum single pulse energy |
1.2mj |
1.5mj |
1.8mj |
|
Pulse width |
20-500ns adjustable |
||
|
Beam Quality |
< 1.8 |
<2.0 |
<2.0 |
|
Power Instability |
<5% |
<2% |
<2% |
|
Power Adjustment Range |
10-100%(Fade adjustable) |
||
|
Repetition Frequency |
1-3000kHZ(Gradually adjustable) |
||
|
Fiber length |
5m |
|
5m |
|
Cooling method |
Cold Air |
||
|
Operating environment |
|||
|
Input Voltage |
100-240W |
220v±10% |
220v±10% |
|
Power consumption |
< 750W |
< 500W |
< 500W |
|
Temperature |
5°C~40°C |
5°C~40°C |
5°C~40°C |
|
Humidity |
≤80% |
≤80% |
≤80% |
|

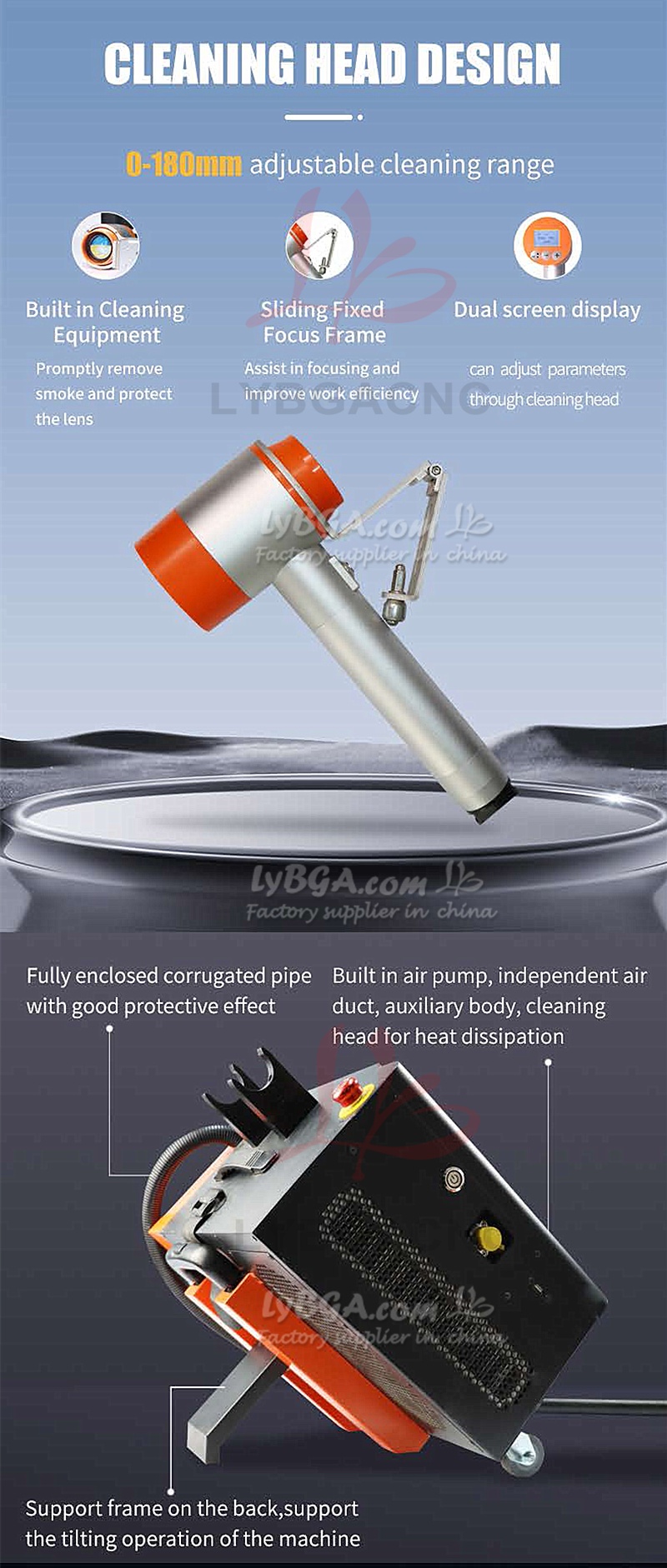

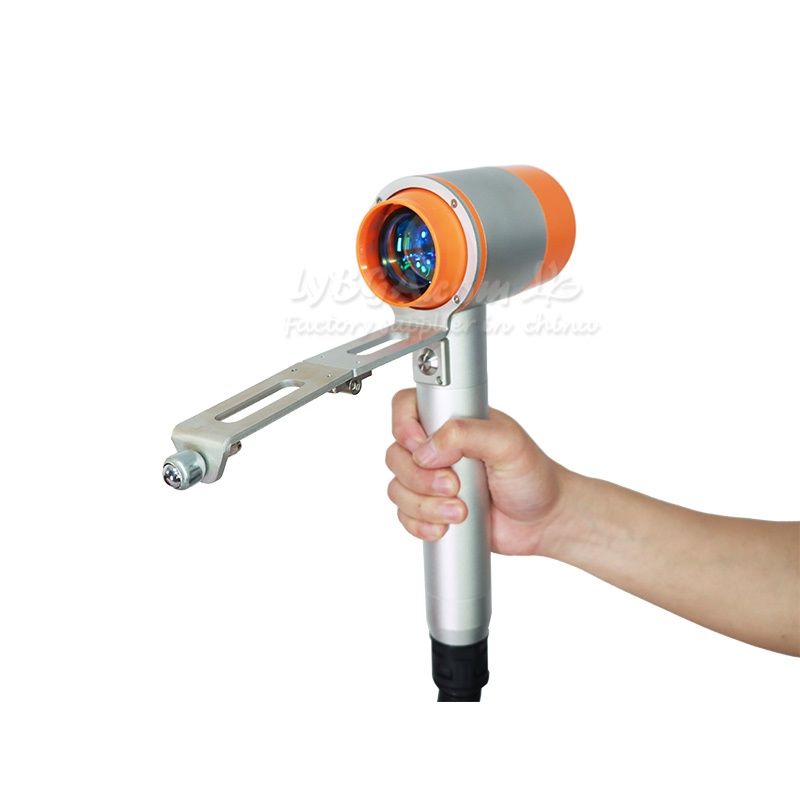

Cleaning head parameters |
|||
|
Scanning range (length. width) |
0-100mm, continuously adjustable |
||
|
Dual-axis support 8 scanning modes |
|||
|
Cleaning speed |
3000-10000mm/s adjustable |
||
|
Focal length of field lens(mm) |
160mm |
254mm |
300mm |
|
Depth of Focus |
Approx. 5mm |
Approx. 5mm |
Approx. 5mm |
|
Mechanical Parameters |
|||
|
Operation mode |
Handheld |
||
|
Fixed focus mode |
Fixed Focus Bracket |
Fixed Focus Bracket |
Fixed Focus Bracket |
|
Cleaning head weight (including isolator) |
1Kg |
1Kg |
1Kg |
|
Net weight |
25kg |
25kg |
25kg |

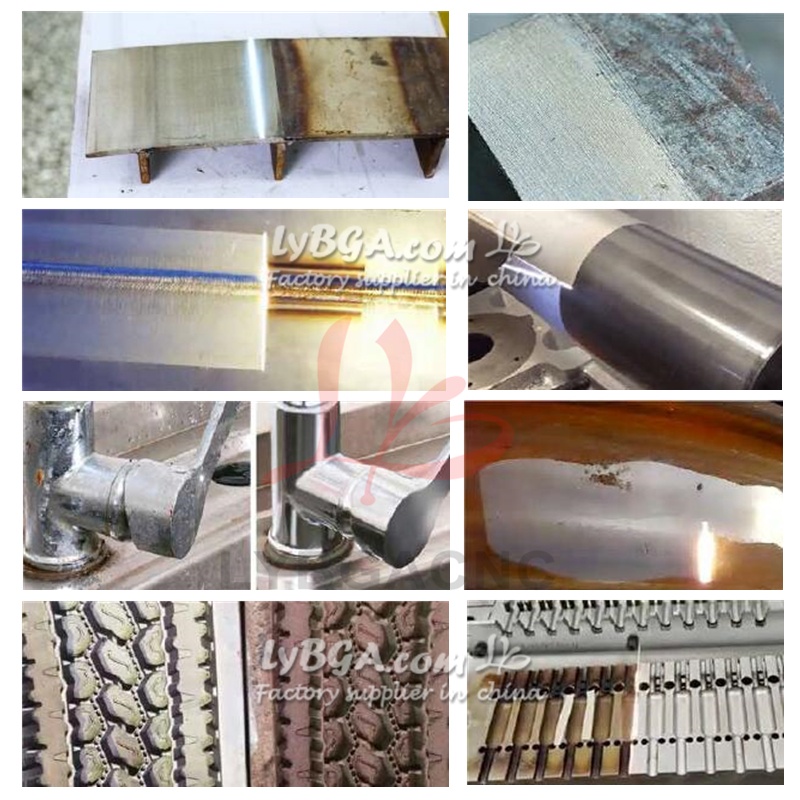

Rust, dirt, oil and oxidation removal, all in one machine
The MOPA fiber laser provides maximum protection for materials during contaminant cleaning.
Rust Removal
Paint Layer Removal
Saw Blade Paint Removal
Shoe Mold Cleaning
Greasy dirt removal
APPLICABLE TO :
Application in shipping industry, auto parts, rubber mold, high-end machine tools, tire mold, rail, environmental protection industry, weapons and equipment industry and other industries.
Laser Oil Removal
Laser Weld
Laser Rust Removal
Laser Coating
Laser Dioxide
Laser Paint
Six Product Advantages:
NO consumables
No pollution, high efficiency and environmental protection
Long service life
Can be used for more than 10w hours
Precise position
Size-selective cleaning

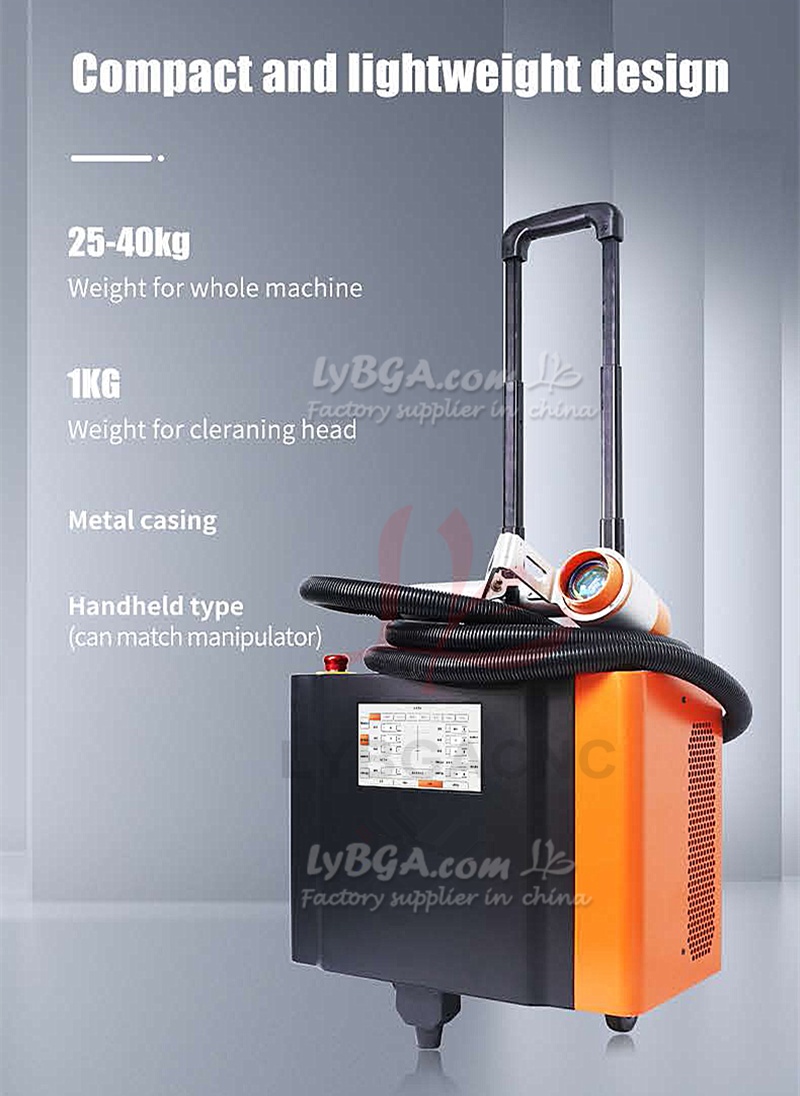

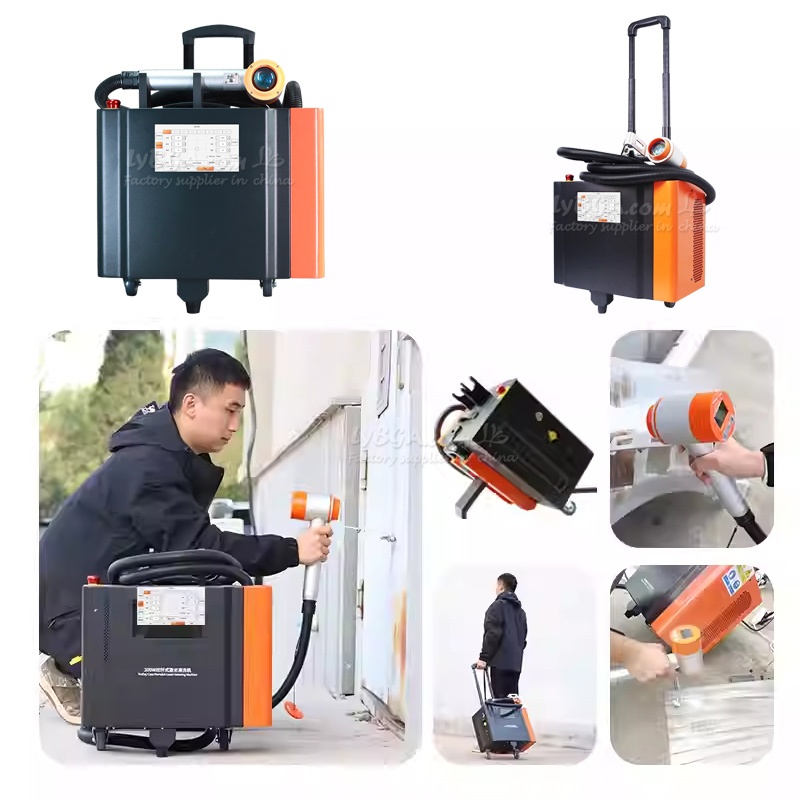

Portable and compact
Easy to move and work
Simple operation
Five minutes to get started
Efficient cleaning
Rust/oxide/grease removal
Large LCD touch screen one key operation is easy to get started
Self-developed LINUX software system, easy to grasp the operating skills
With self-start stop function
More power saving
Fiber optic cable length 3m
Wider cleaning range
Power instability < 5%
High stability
Thanks for your order!

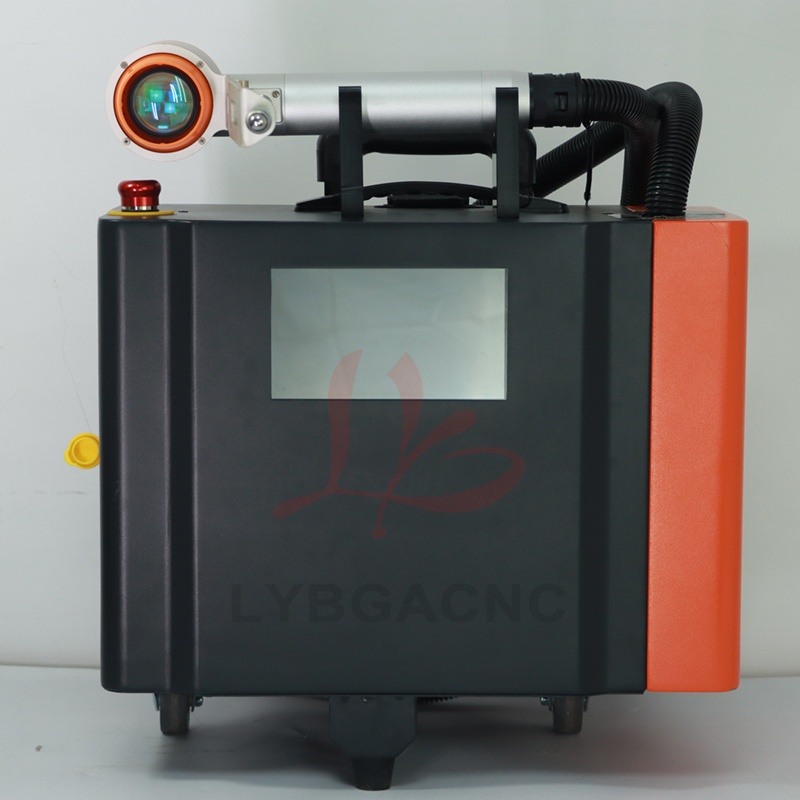

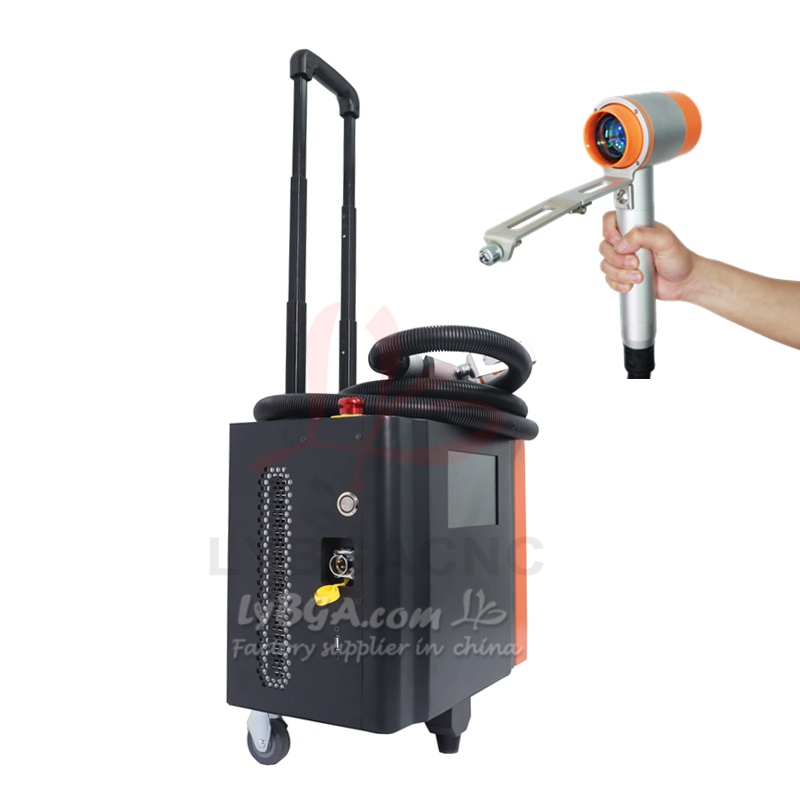

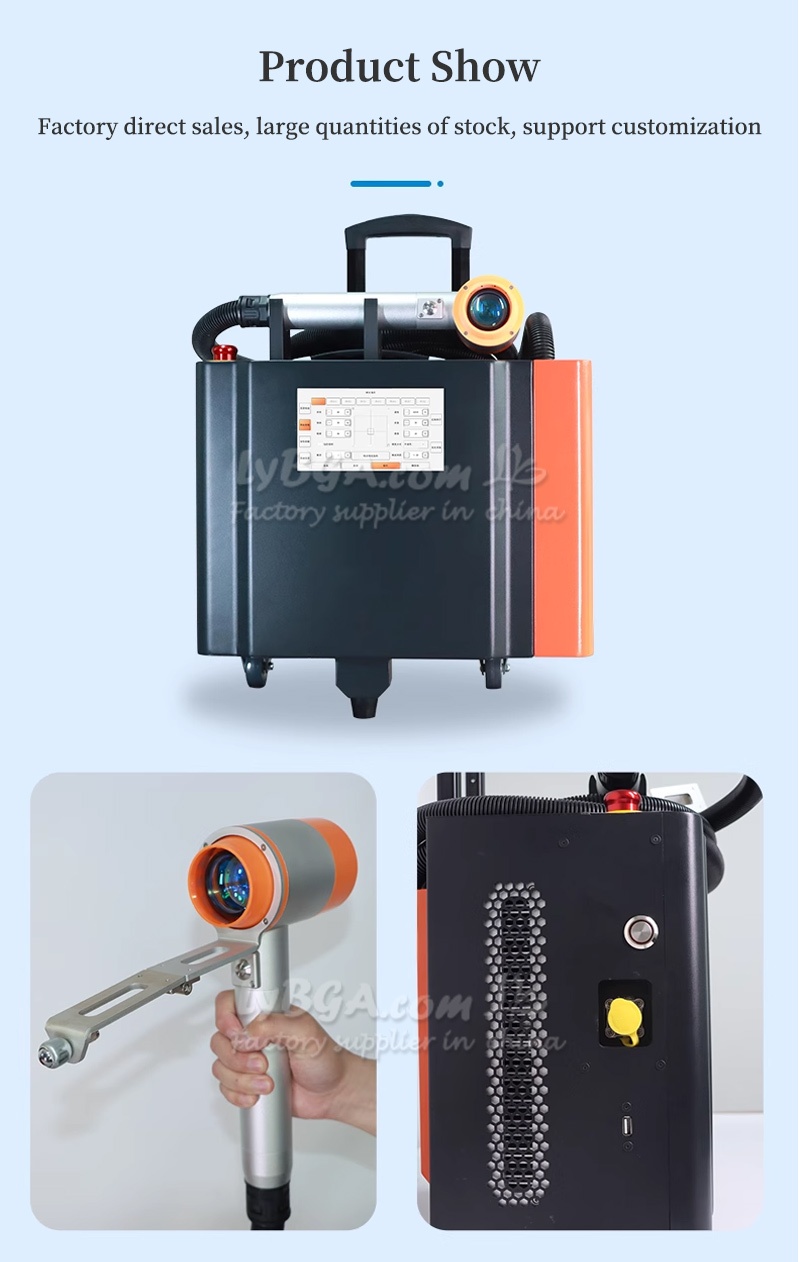

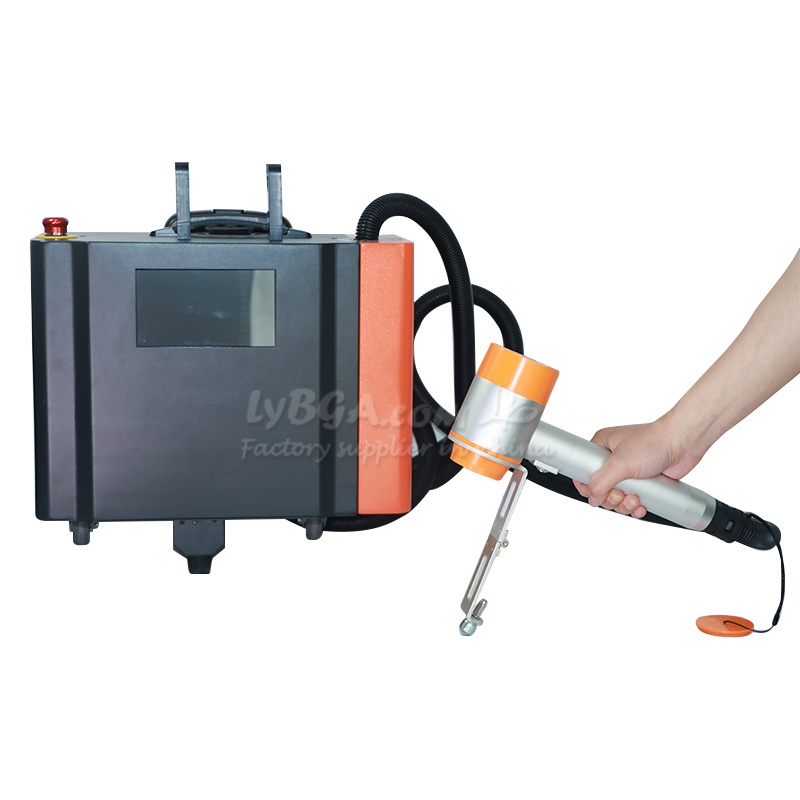

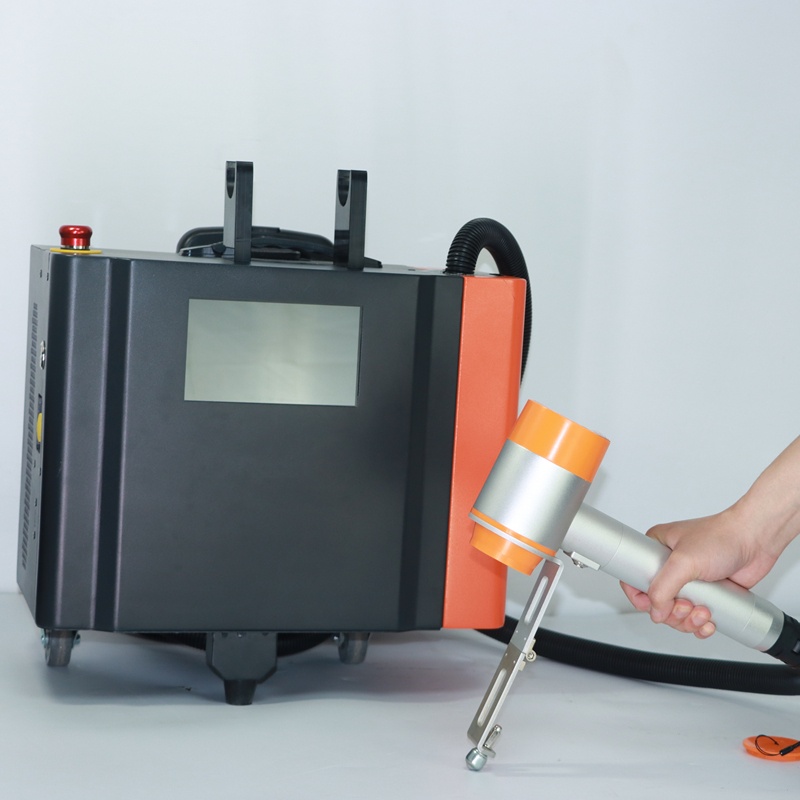

Product Pictures
