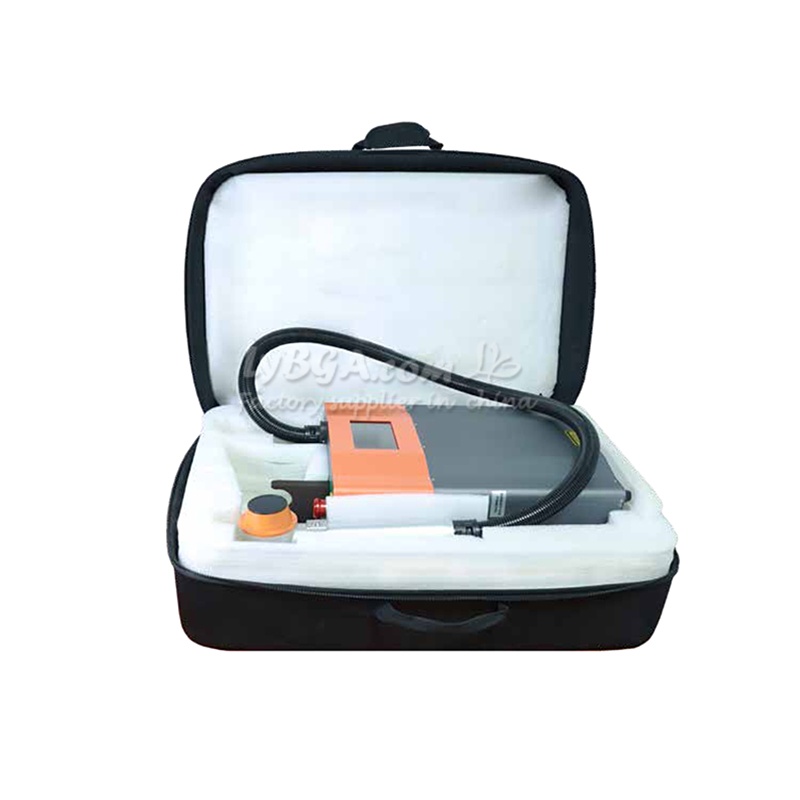

LYBGACNC Mini Pulse Handheld Noncontact 100W Laser Cleaning Machine No Substrate Damage Travel Box Backpack Cabinet Types Aircooled
Reviews(0)
Product Detail
Product Tags

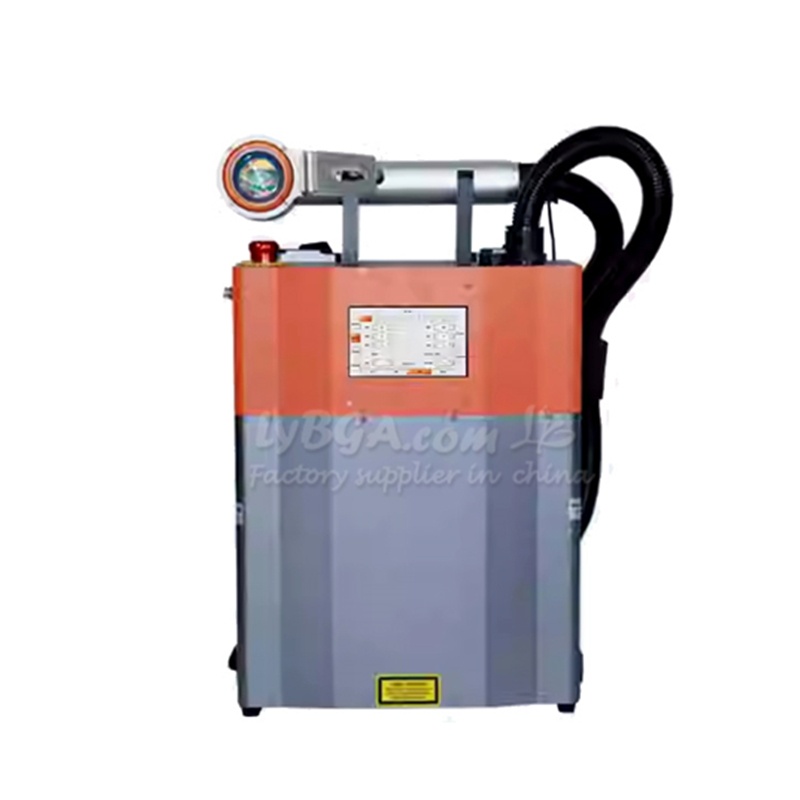

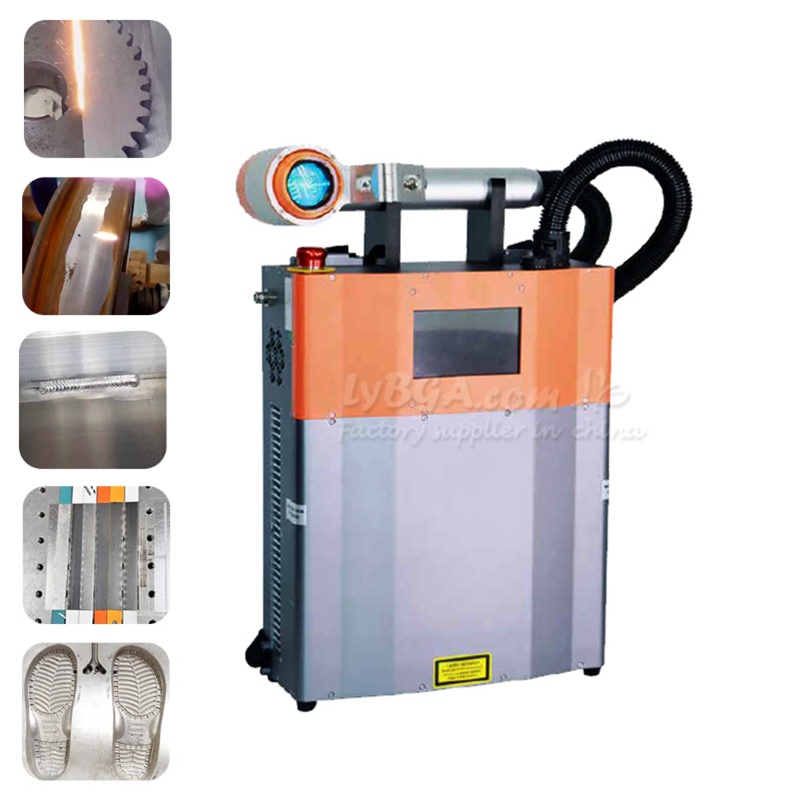

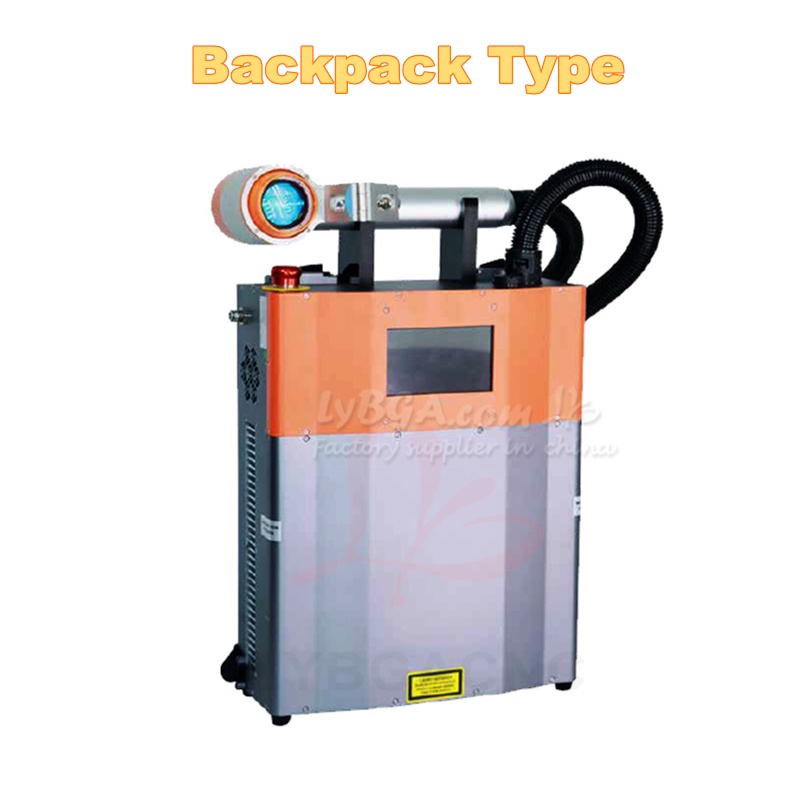

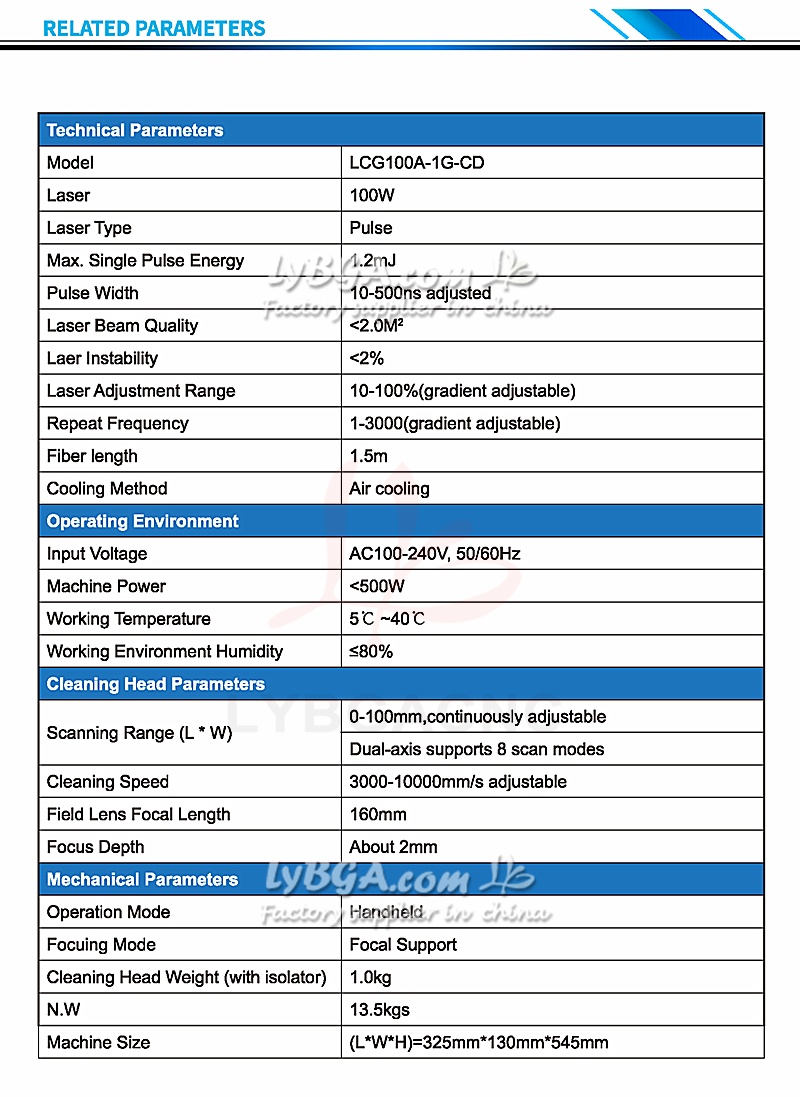

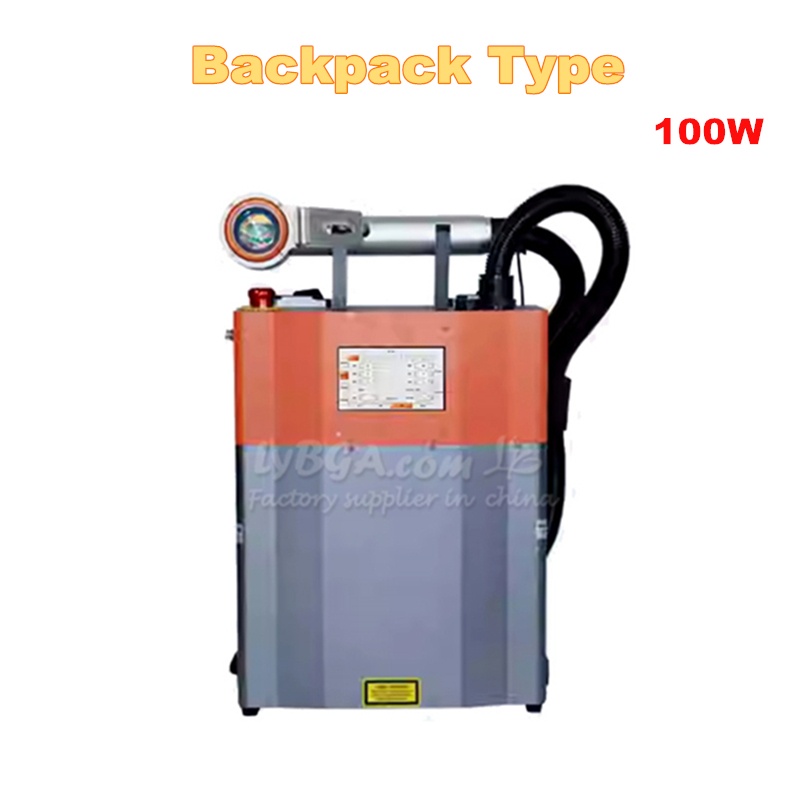

Backpack type pulse laser cleaning machine Product Parameter:
|
Technical Parameters |
|
|
Model |
LCG100A-1G-CD |
|
Laser |
100W |
|
Laser Type |
Pulse |
|
Max. Single Pulse Energy |
1.2mJ |
|
Pulse Width |
10- 500ns adjusted |
|
Laser Beam Quality |
<2.0M² |
|
Laser Instability |
<2% |
|
Laser Adjustment Range |
10-100%(gradient adjustable) |
|
Repeat Frequency |
1-3000(gradient adjustable) |
|
Fiber length |
1.5m |
|
Cooling Method |
Air cooling |
|
Operating Environment |
|
|
Input Voltage |
AC100-240V, 50/60Hz |
|
Machine Power |
<500W |
|
Working Temperature |
5°C~40°C |
|
Working Environment Humidity |
≤80% |
|
Cleaning Head Parameters |
|
|
Scanning Range (L * W) |
0-100mm,continuously adjustable |
|
Dual-axis supports 8 scan modes |
|
|
Cleaning Speed |
3000-10000mm/s adjustable |
|
Field Lens Focal Length |
160mm |
|
Focus Depth |
About 2mm |
|
Mechanical Parameters |
|
|
Operation Mode |
Handheld |
|
Focusing Mode |
Focal Support |
|
Cleaning Head Weight (with isolator) |
1.0kg |
|
N.W |
13.5kgs |
|

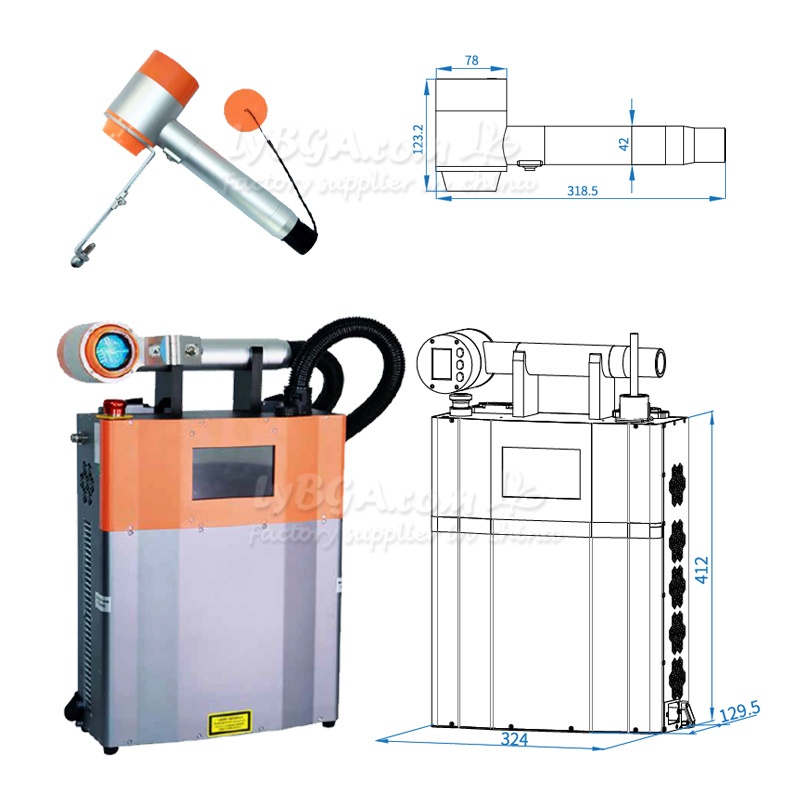

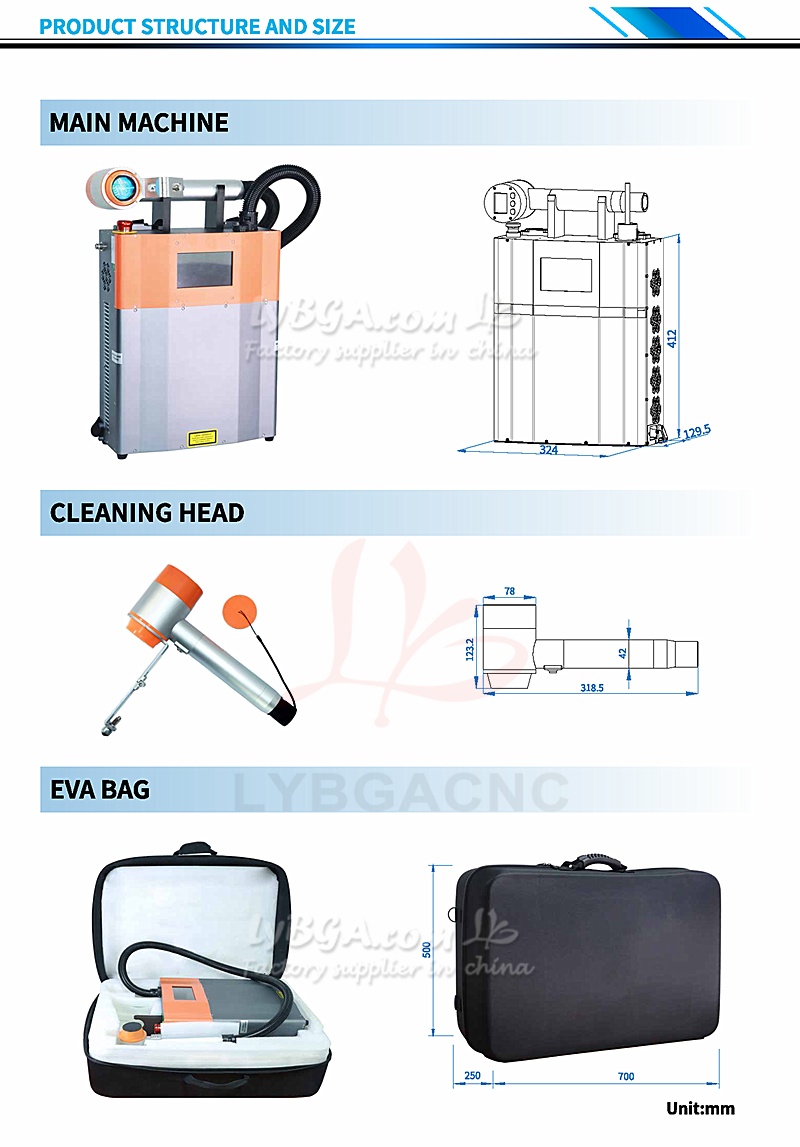

Machine Size |
(L*W*H)=325mm*130mm*545mm |

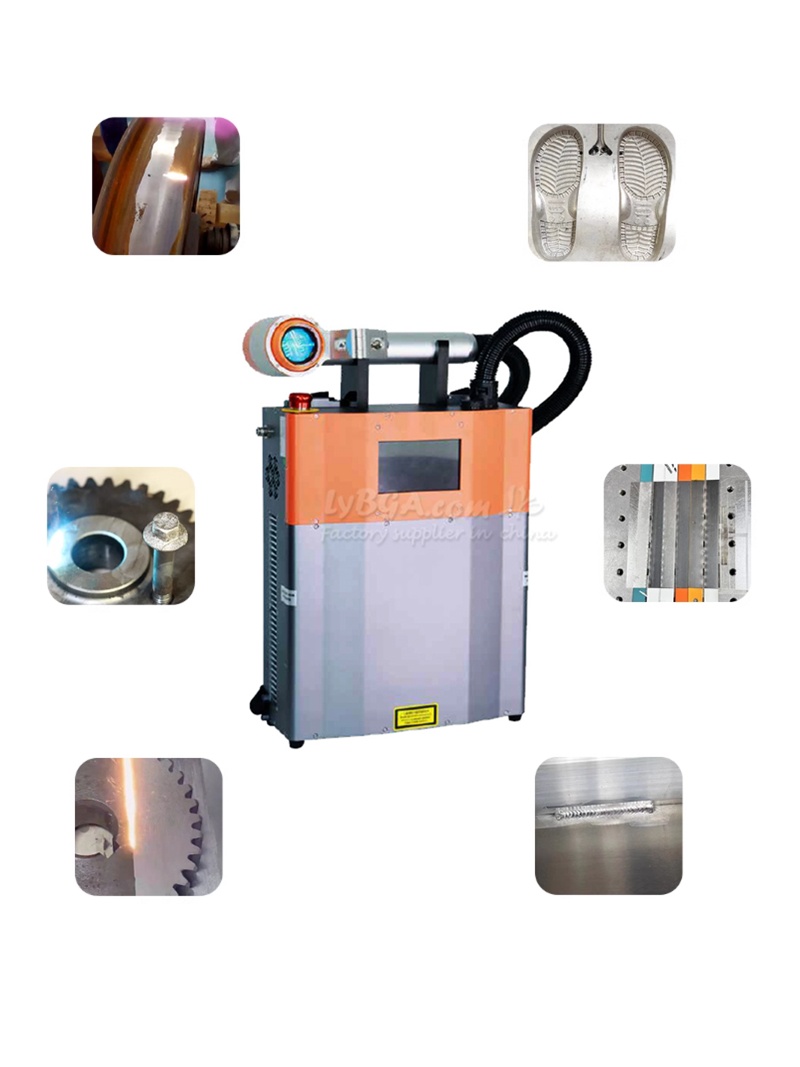

Rust, dirt, oil and oxidation removal, all in one machine
The MOPA fiber laser provides maximum protection for materials during contaminant cleaning.
Rust Removal
Paint Layer Removal
Saw Blade Paint Removal
Shoe Mold Cleaning
Greasy dirt removal
APPLICABLE TO :
Application in shipping industry, auto parts, rubber mold, high-end machine tools, tire mold, rail, environmental protection industry, weapons and equipment industry and other industries.

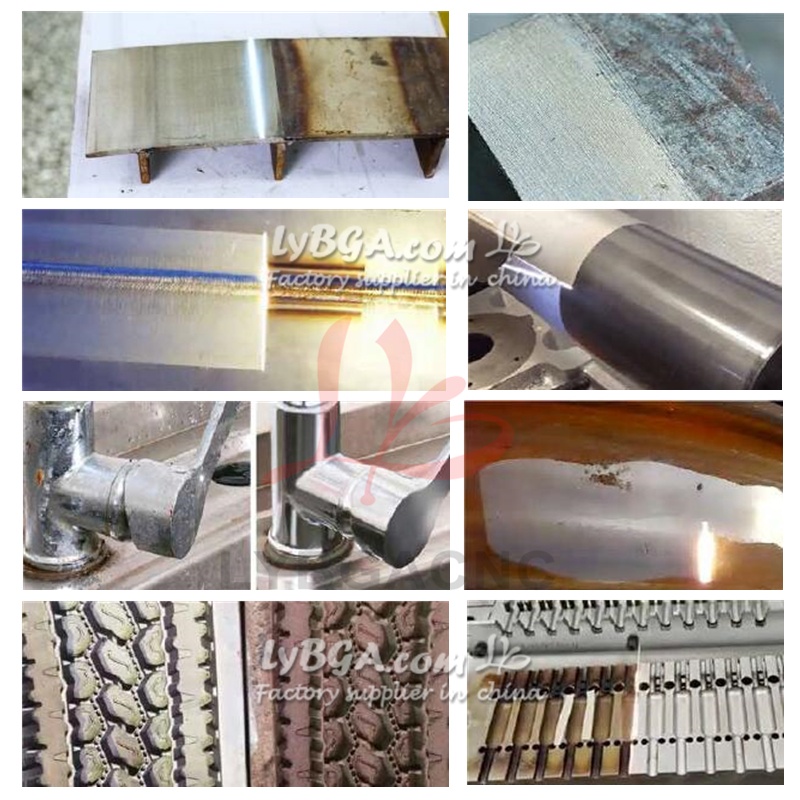

Laser Oil Removal
Laser Weld
Laser Rust Removal
Laser Coating
Laser Dioxide
Laser Paint

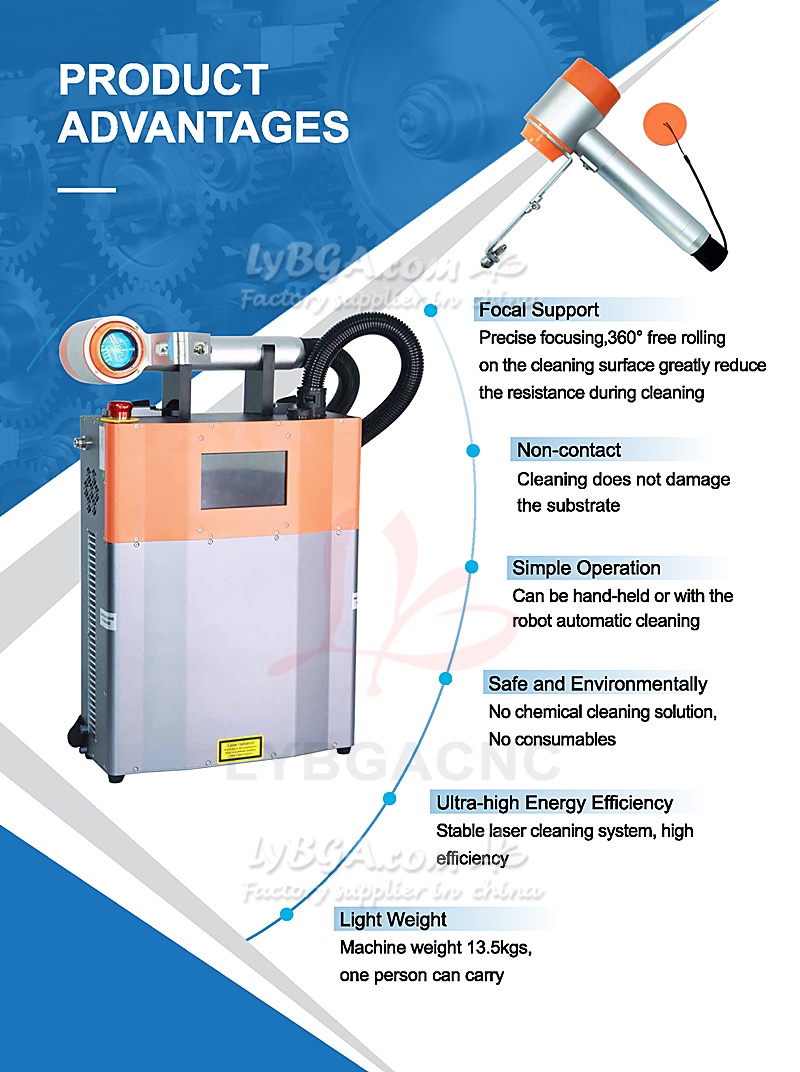

Six Product Advantages:
NO consumables
No pollution, high efficiency and environmental protection
Long service life
Can be used for more than 10w hours
Precise position
Size-selective cleaning
Portable and compact
Easy to move and work
Simple operation
Five minutes to get started
Efficient cleaning
Rust/oxide/grease removal
Large LCD touch screen one key operation is easy to get started
Self-developed LINUX software system, easy to grasp the operating skills
With self-start stop function
More power saving
Fiber optic cable length 3m
Wider cleaning range
Power instability < 5%
High stability
