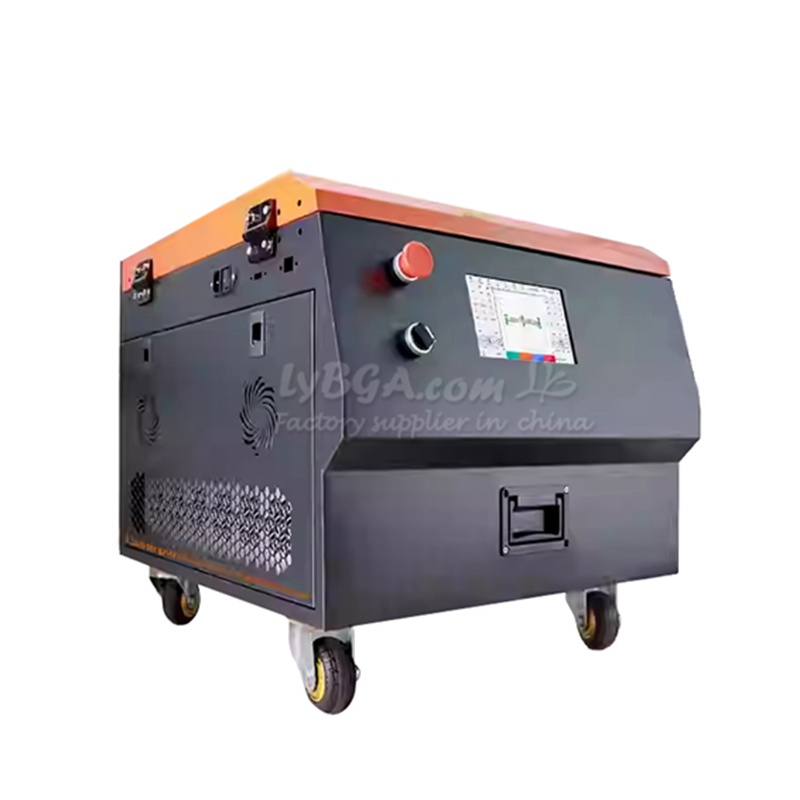

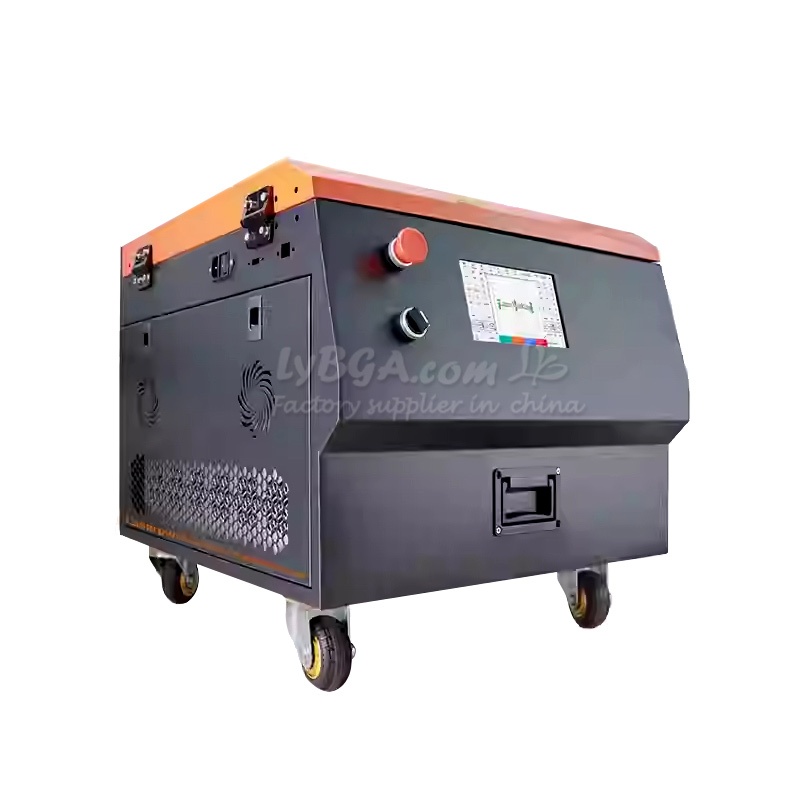

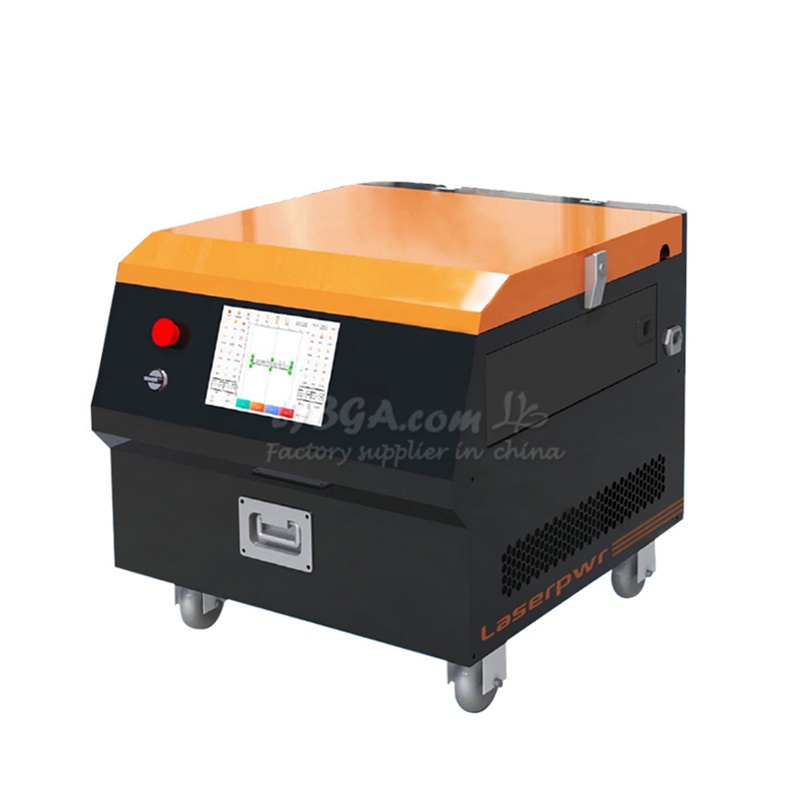

LYBGACNC Mini Pulse Laser Handheld Noncontact Cleaning Machine 200W No Substrate Damage Travel Box Backpack Cabinet Type Aircooled Pulsed Laser Cleaning
Reviews(0)
Product Detail
Product Tags

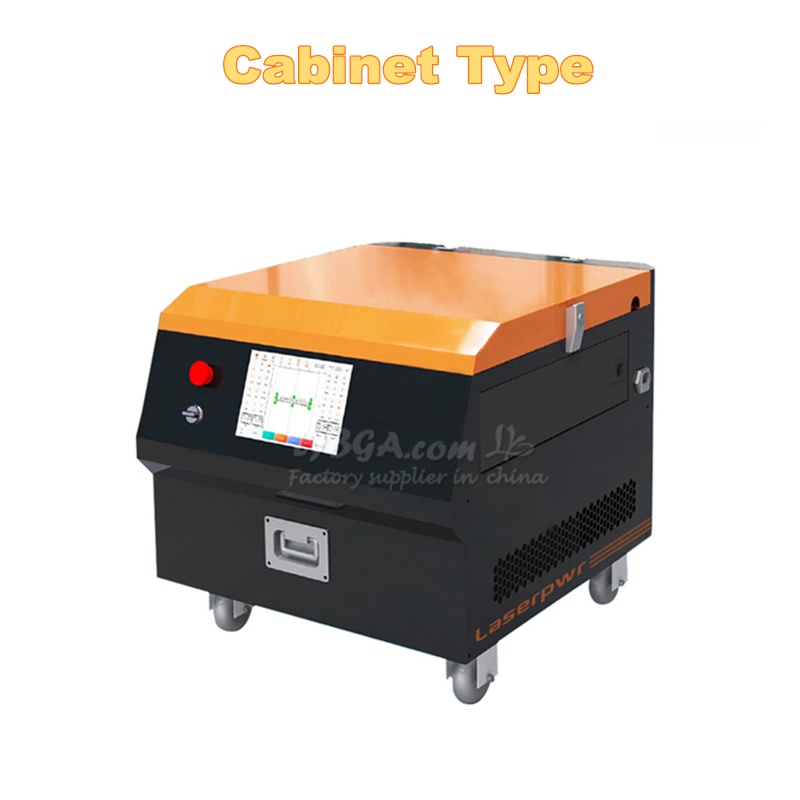

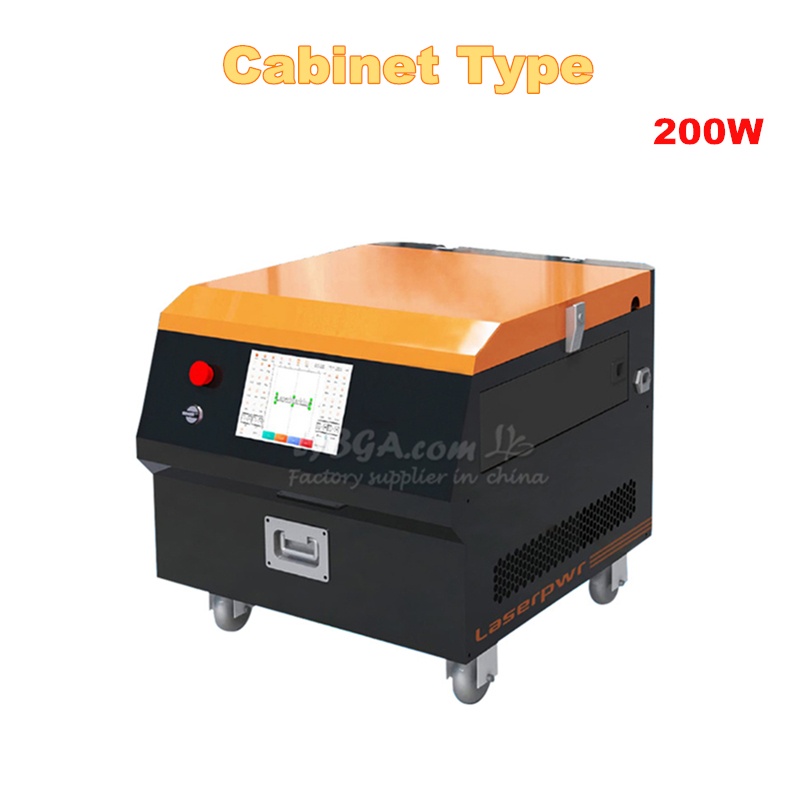

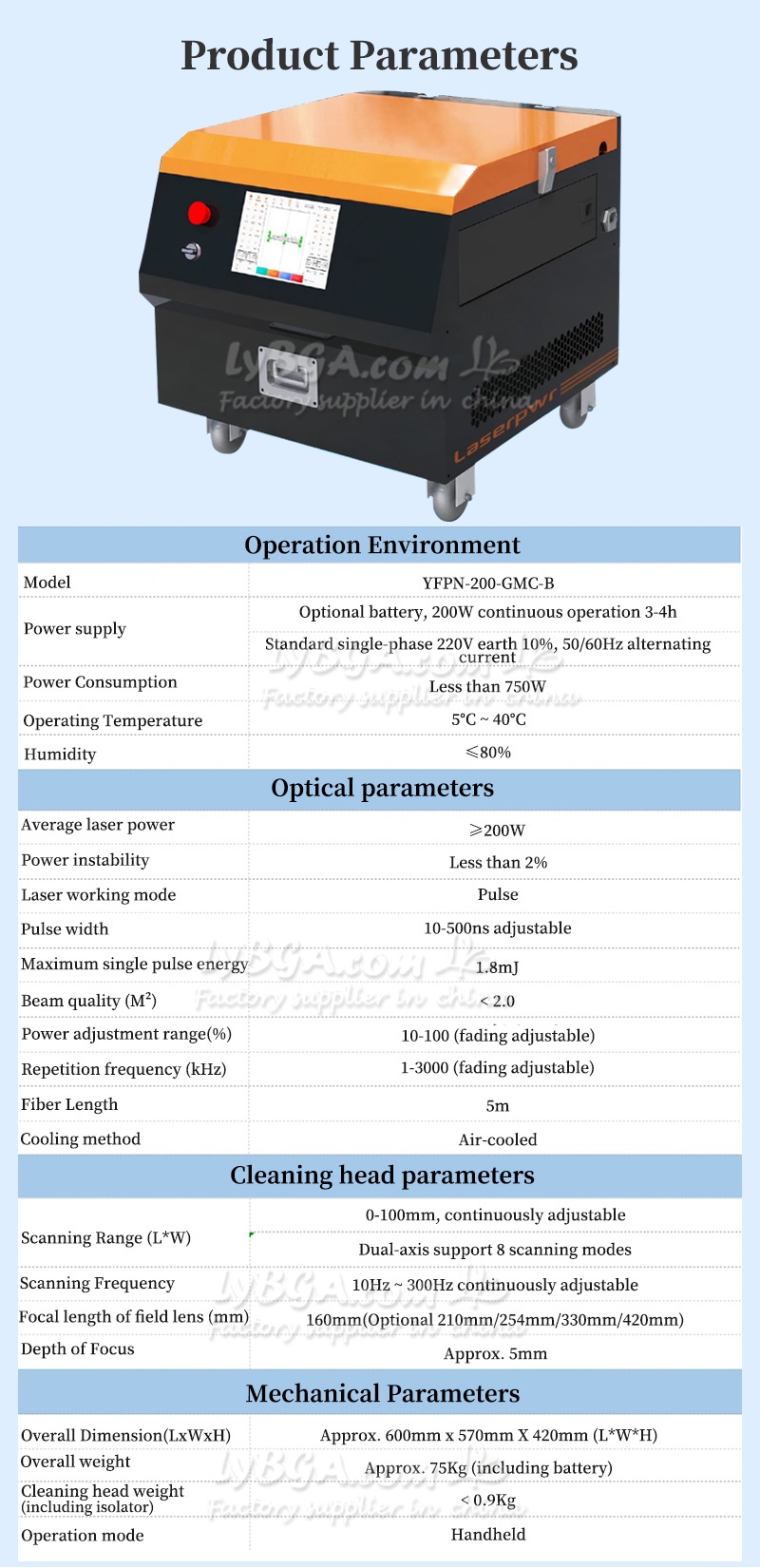

Cabinet Type Pulse Laser Cleaning Machine Product Parameter
|
Operating Environment |
|
|
Model |
YFPN-200-GMC-B |
|
Power supply |
Optional battery, 200W continuous operation 3-4h |
|
Standard single-phase 220V±10%, 50/60Hz AC power |
|
|
Power Consumption |
Less than 750W |
|
Operating Temperature |
5°C ~ 40°C |
|
Humidity |
≤80% |
|
Optical parameters |
|
|
Average laser power |
≥200W |
|
Power instability |
Less than 2% of the total |
|
Laser working mode |
Pulse |
|
Pulse width |
1 0- 500ns adjustable |
|
Maximum single pulse energy |
1.8mJ |
|
Beam quality (M²) |
< 2.0 |
|
Power adjustment range (%) |
10-100 (fading adjustable) |
|
Repetition frequency (kHz) |
1- 3000 (fading adjustable) |
|
Fiber length |
5m |
|
Cooling method |
Air Cooling |
|
Cleaning head parameters |
|
|
Scanning range (L*W) |
0-1 00mm, continuously adjustable. |
|
Dual-axis support for 8 scanning modes. |
|
|
Scanning frequency |
10Hz ~ 300Hz continuously adjustable |
|
Focal length of field lens(mm) |
160mm(Optional 210mm/254mm/330mm/420mm) |
|
Depth of focus |
Approx. 5mm |
|

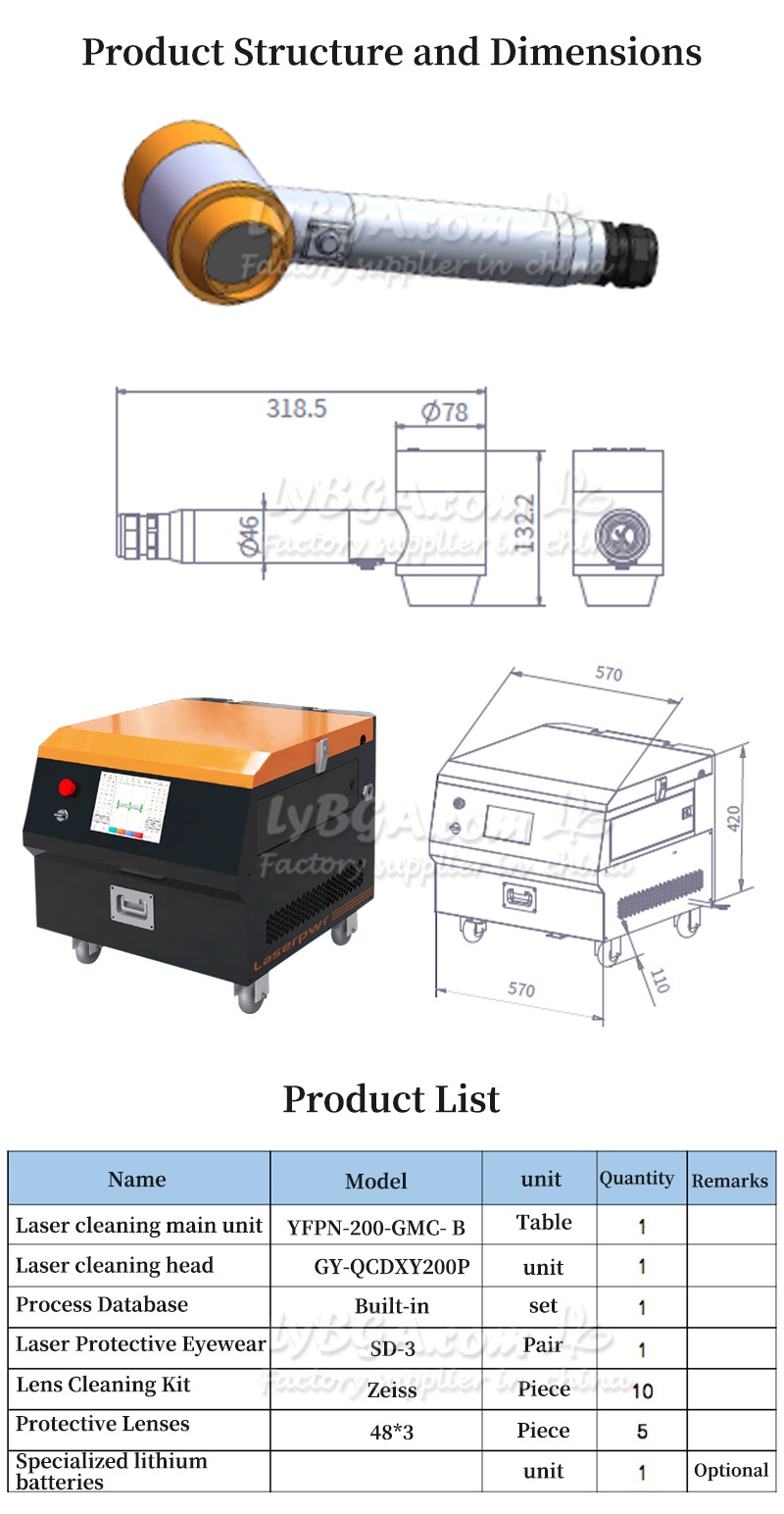

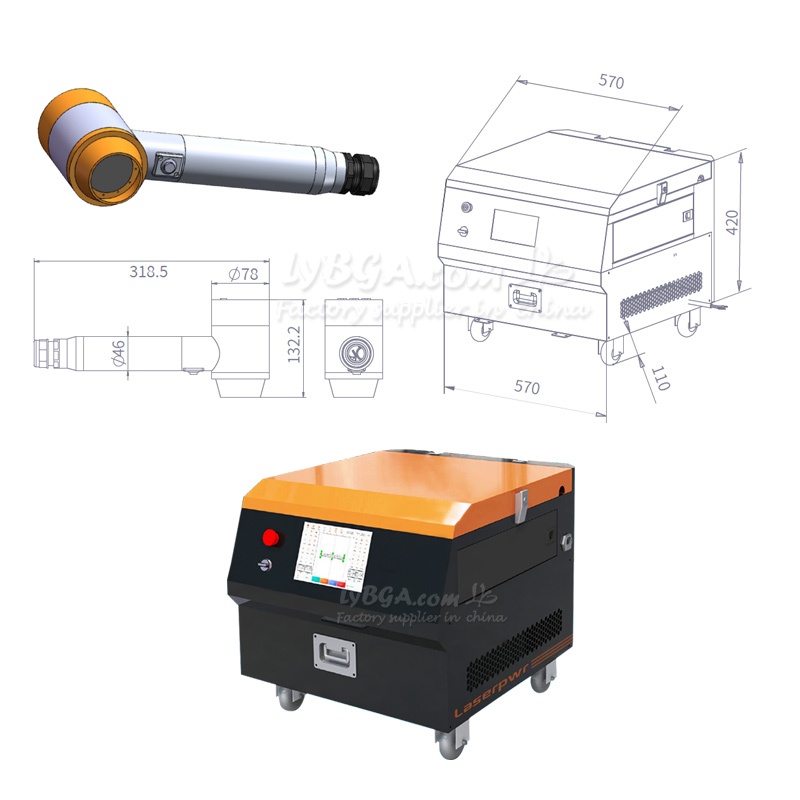

Mechanical parameters |
|
|
Dimension(L*W*H) |
Approx. 600mm X 570mm X 420mm (L*W*H) |
|
Overall weight |
Approx. 75Kg (including battery) |
|
Cleaning head weight (including isolator) |
< 0.9Kg |
|
Operation mode |
Handheld |

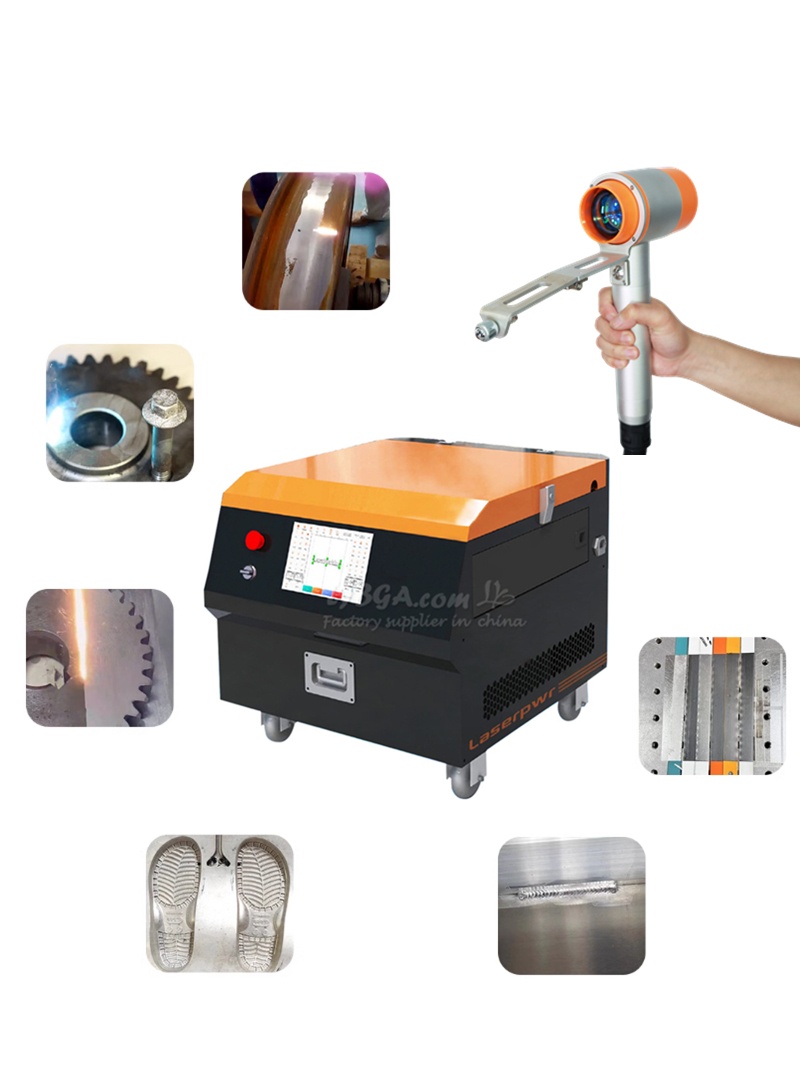

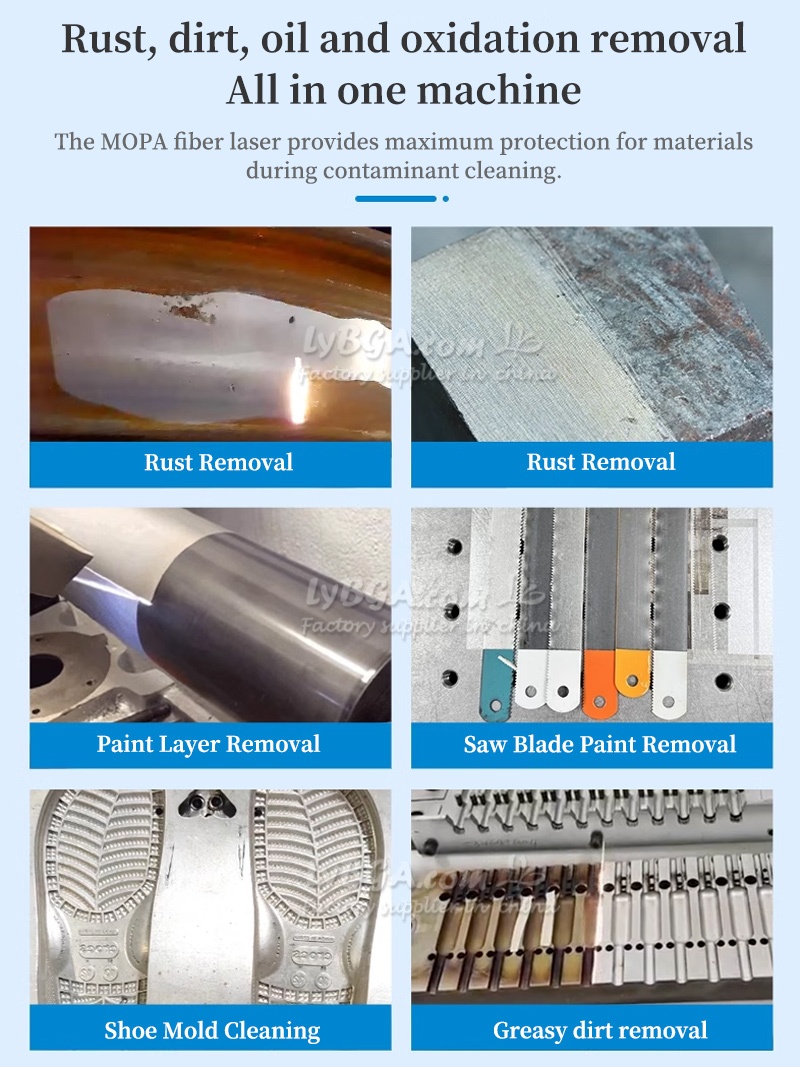

Rust, dirt, oil and oxidation removal, all in one machine
The MOPA fiber laser provides maximum protection for materials during contaminant cleaning.
Rust Removal
Paint Layer Removal
Saw Blade Paint Removal
Shoe Mold Cleaning
Greasy dirt removal
APPLICABLE TO :
Application in shipping industry, auto parts, rubber mold, high-end machine tools, tire mold, rail, environmental protection industry, weapons and equipment industry and other industries.

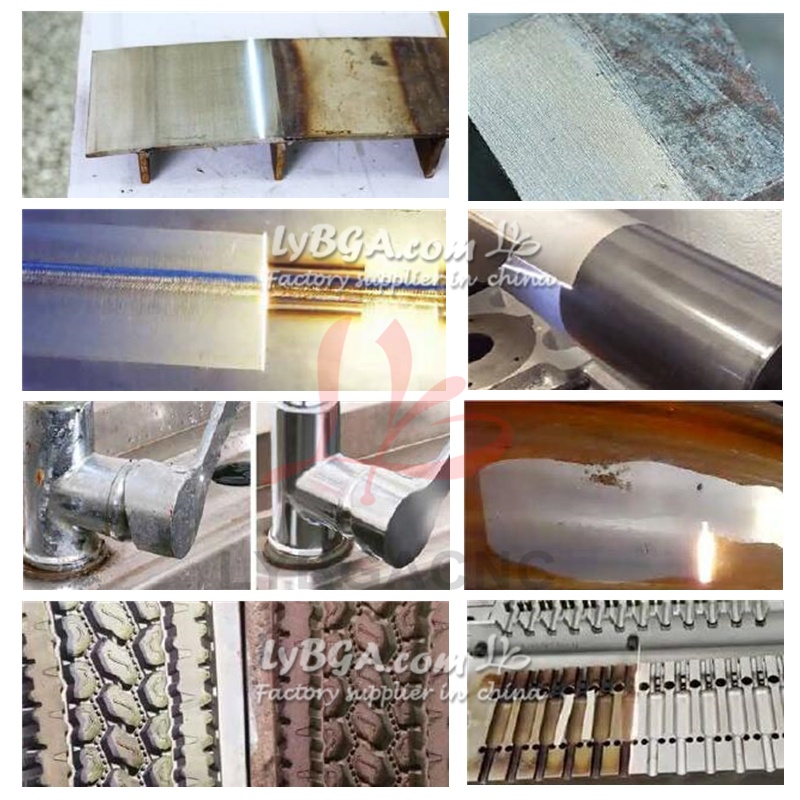

Laser Oil Removal
Laser Weld
Laser Rust Removal
Laser Coating
Laser Dioxide
Laser Paint
Six Product Advantages:
NO consumables
No pollution, high efficiency and environmental protection
Long service life
Can be used for more than 10w hours
Precise position
Size-selective cleaning
Portable and compact
Easy to move and work
Simple operation
Five minutes to get started
Efficient cleaning
Rust/oxide/grease removal
Large LCD touch screen one key operation is easy to get started
Self-developed LINUX software system, easy to grasp the operating skills
With self-start stop function
More power saving
Fiber optic cable length 3m
Wider cleaning range
Power instability < 5%
High stability
