M3-M16 CNC Automatic Pneumatic Tapping Machine Air Threading Machine Pneumatic Tapper Tool Universal Head With Chucks

M3-M16 CNC Automatic Pneumatic Tapping Machine Air Threading Machine Pneumatic Tapper Tool Universal Head With Chucks

item ID: 64048
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$800 USD$501 (% off)
Payment

Product Detail

Product Tags

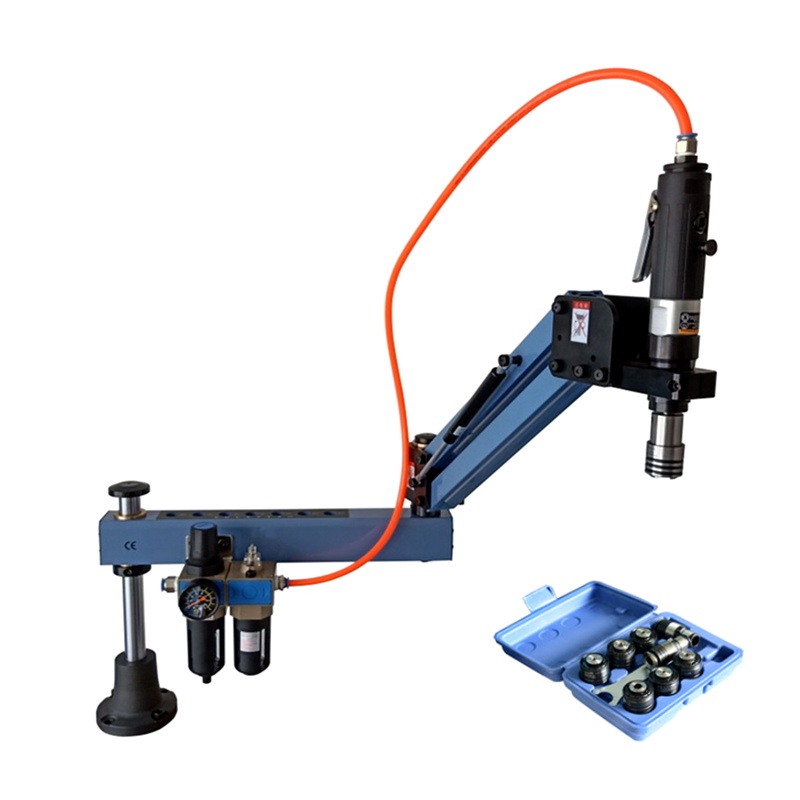

M3-M16 CNC Automatic Pneumatic Tapping Machine Air Threading Machine Pneumatic Tapper Tool Universal Head With Chucks

Pneumatic tapping machine is applicable to all machinery manufacturing industry, machine tool, mould machinery, plastic machinery, printing machinery, packaging machinery manufacturers, engineering machinery, automobile motorcycle parts, aviation engines, rolling stock, tobacco machinery and general machinery and other industries.



Pneumatic tapping machine for workpiece materials: electric tapping machine can be in the lead, copper, A3 steel, cast iron, cast iron, Q235, 45#steel, S136 steel, 718 steel, ace, NAK80 die steel and other metal materials for easy tapping operations.



 Machine features:

1.The tapping motor of the tapping machine is balanced and perpendicular to the suspension support frame, which can keep the tapping motor moving to any position and can be kept perpendicular to the workbench.

2.The tap of the tapping machine is equipped with overload protection device. With the clamping head of overload protection device, the safety clutch can be adjusted when the tapping exceeds the rated torque, and can avoid damage to the tap.

3. It has the advantage of high cost performance, lower price and more function than the domestic and international model machines, and many inventions surpass other brands.

4. Advanced mechanical design, all kinds of processes are used in moulding production, with low cost and beautiful appearance.

5. Simple and flexible operation, able to quickly locate and accurately process complicated and bulky work.

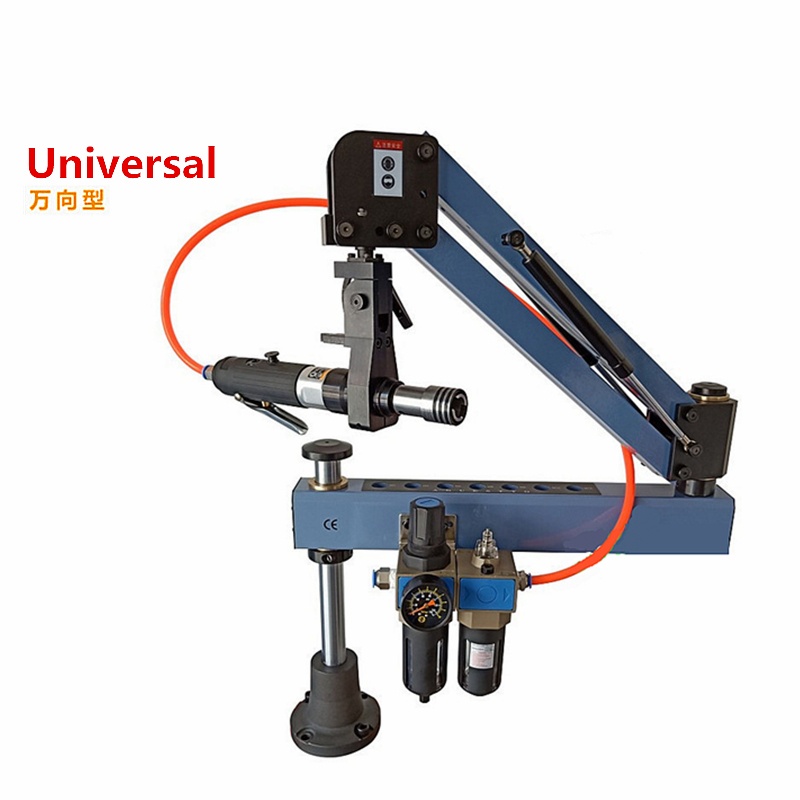

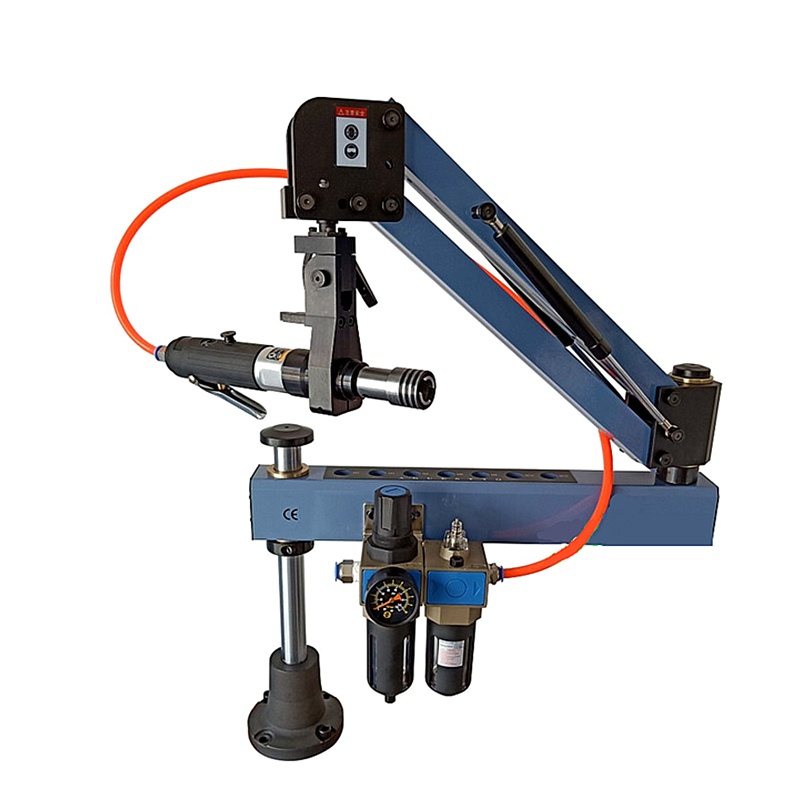

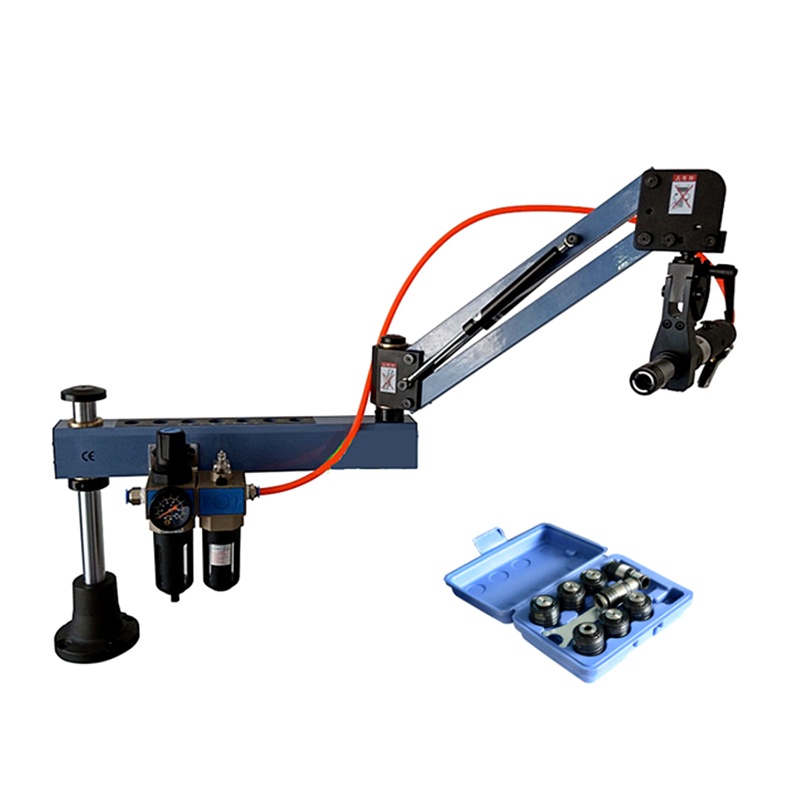

6. Can (optional) universal head, the work head can adjust at any Angle, vertical, horizontal, lateral, high and low can tap the silk.

7. The taper sleeve has an overload protection device to ensure that it does not damage the tap, the load balance in the tapping process, the high precision of the screw processing, and the protection of the torsion force.





Parameters:

Model:  M3-M6

Rotation speed: 0-1200/RPM

Working radius: 1000mm

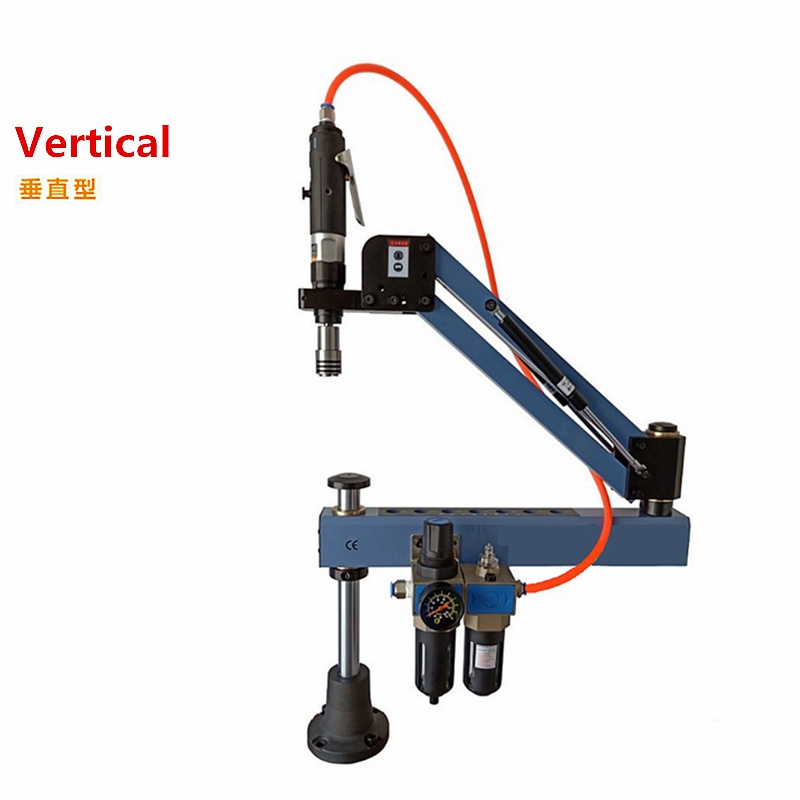

Working angle: Vertical / Universal type

Atmosheric pressure:6~8KG

Chuck type: M3 M4 M5 M6

Tap capacity: M3-M6

Weight: 18kg



Model:  M3-M8

Rotation speed: 0-700/RPM

Working radius: 1000mm

Working angle: Vertical / Universal type

Atmosheric pressure:6~8KG

Chuck type: M3 M4 M5 M6/M8

Tap capacity: M3-M8

Weight: 18kg



Model:  M3-M12

Rotation speed: 0-400/RPM

Working radius: 1000mm

Working angle: Vertical / Universal type

Atmosheric pressure: 6~8KG

Chuck type: M3 M4 M5 M6/8 M10 M12

Tap capacity: M3-M12

Weight: 20kg



Model:  M3-M16

Rotation speed: 0-250/RPM

Working radius: 1000mm

Working angle: Vertical / Universal type

Atmosheric pressure:6~8KG

Chuck type: M3 M4 M5 M6/8 M10 M12 M14 M16

Tap capacity: M3-M16

Weight: 25kg

 Packing Includes:

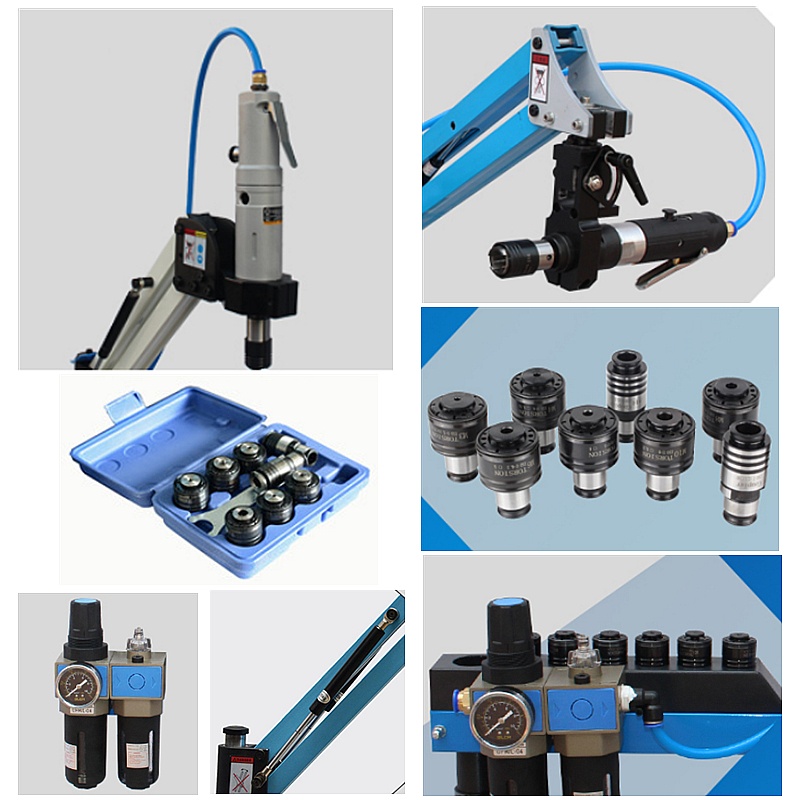

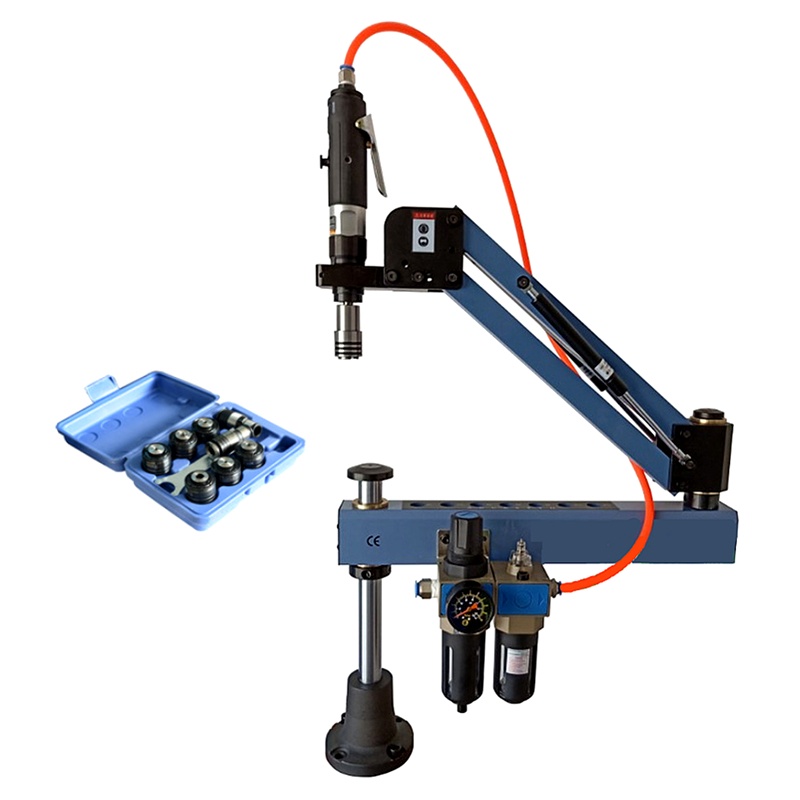

Tapping Machine +Chucks +Arms +Air Pipes +Water filter

Don’t including the work table!!!



Warm Tips:

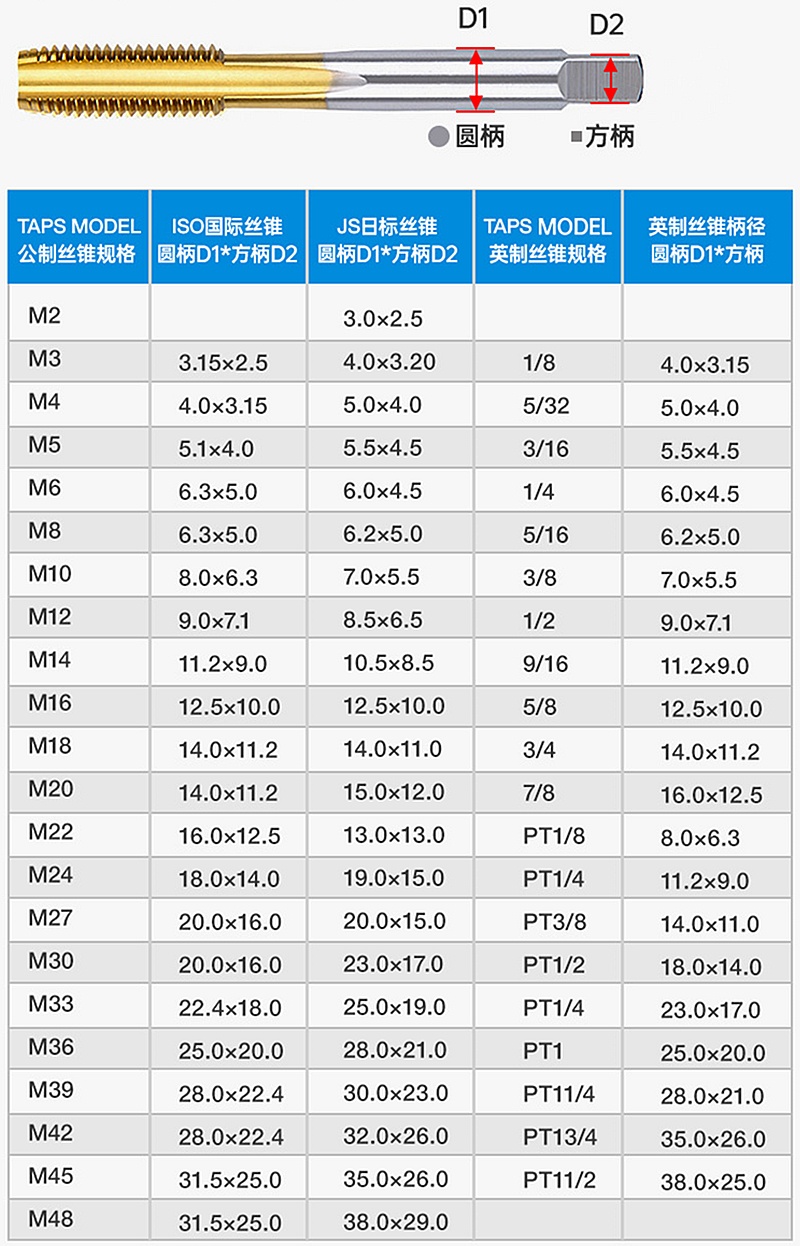

  1. The Chuck standard ISO Chuck, If You need JIS or DIN, please message us;

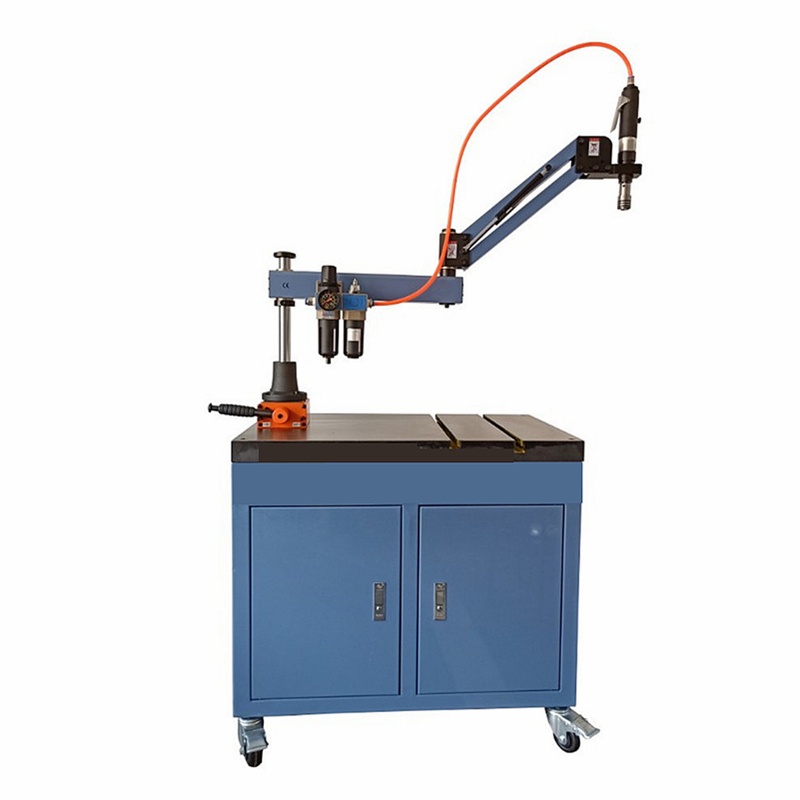

  2. The tapping machine does not contain bottom mounting table

Because mounting table is made of cast iron, very heavy, freight is very expensive,

so we suggest that customer can make it by themself or buy it in local

Thank you very much!
