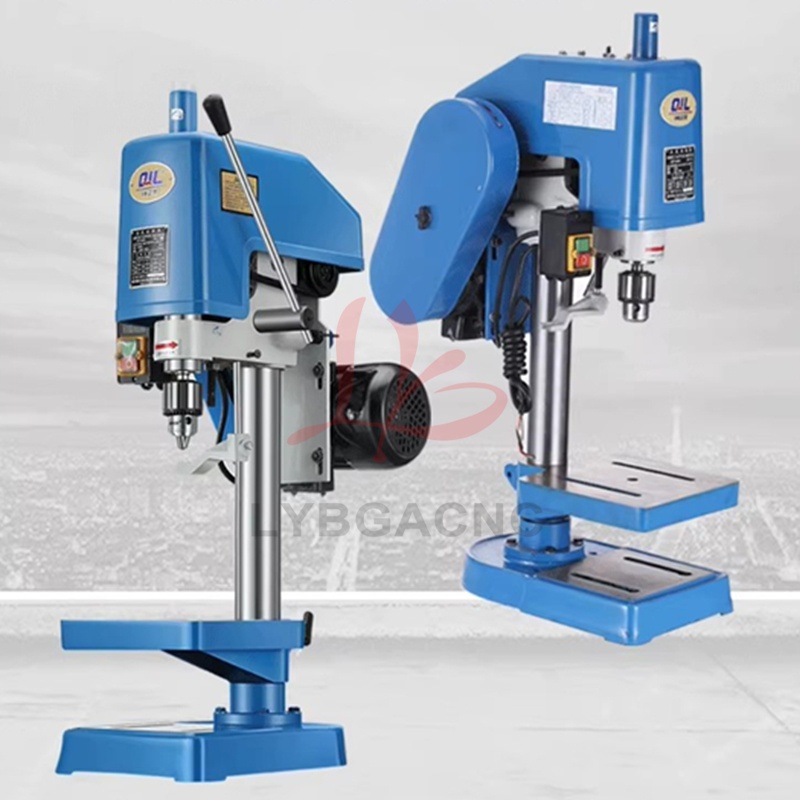

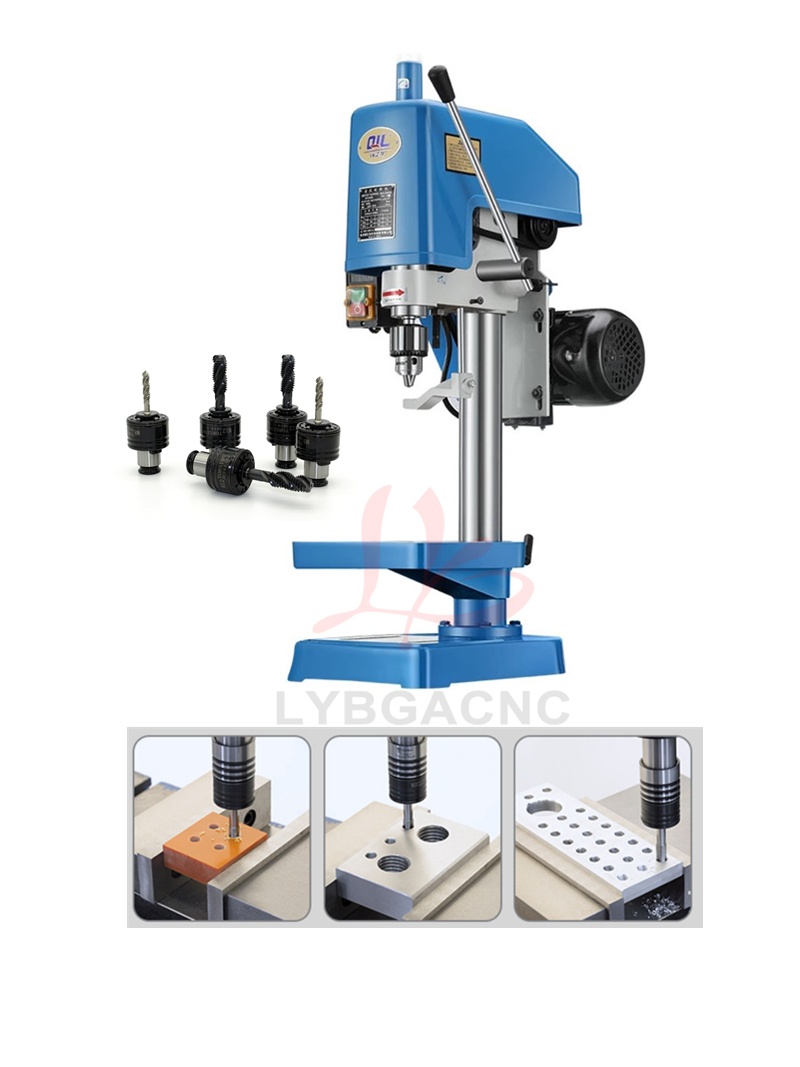

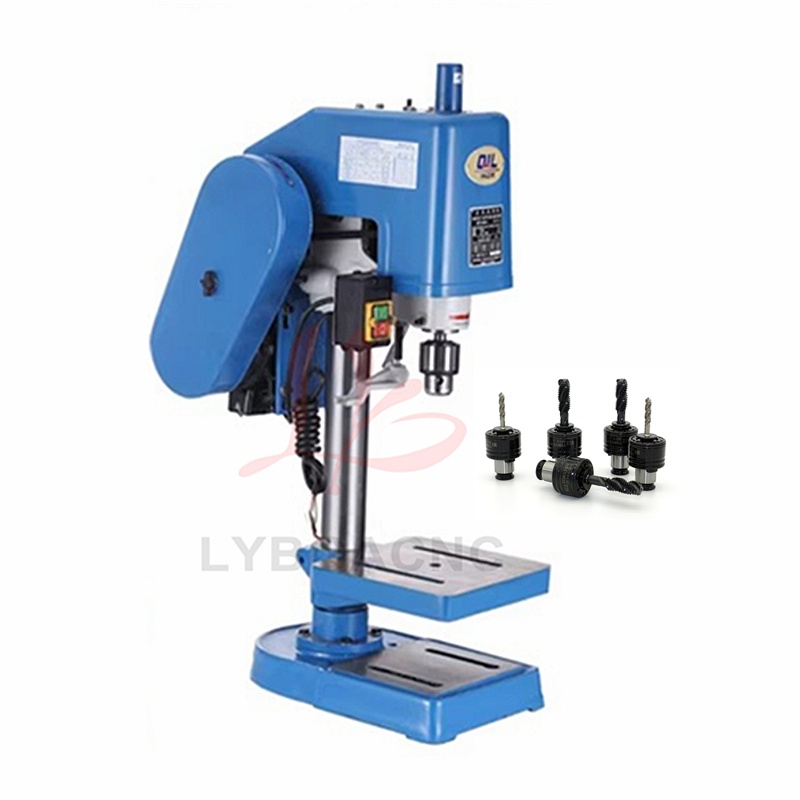

M3 – M8 M3 – M13 M16 CNC Electric Tapping Machine with Servo Motor Electric Tapper Drilling Chucks and Easy Arm for Threading

Electric tapping machine is applicable to all machinery manufacturing industry, machine tool, mould machinery, plastic machinery, printing machinery, packaging machinery manufacturers, engineering machinery, automobile motorcycle parts, aviation engines, rolling stock, tobacco machinery and general machinery and other industries.

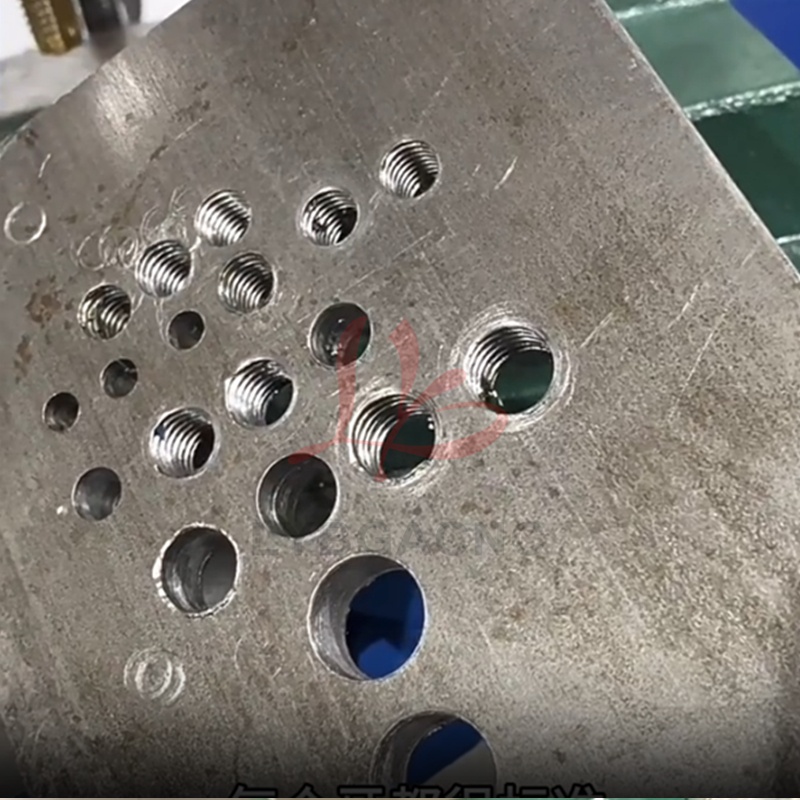

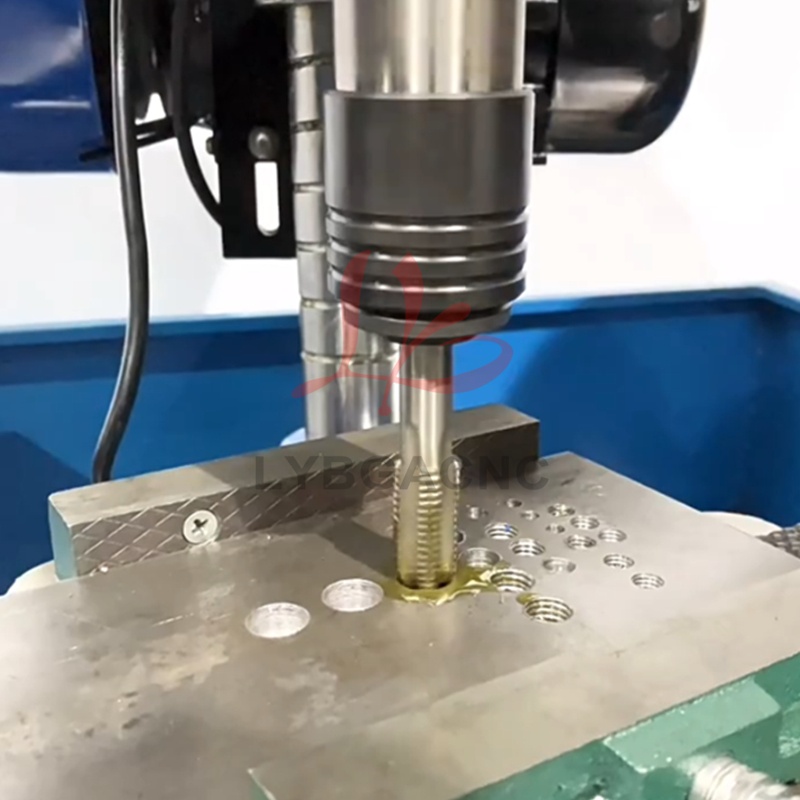

Electric tapping machine for workpiece materials: electric tapping machine can be in the lead, copper, A3 steel, cast iron, cast iron, Q235, 45#steel, S136 steel, 718 steel, ace, NAK80 die steel and other metal materials for easy tapping operations.

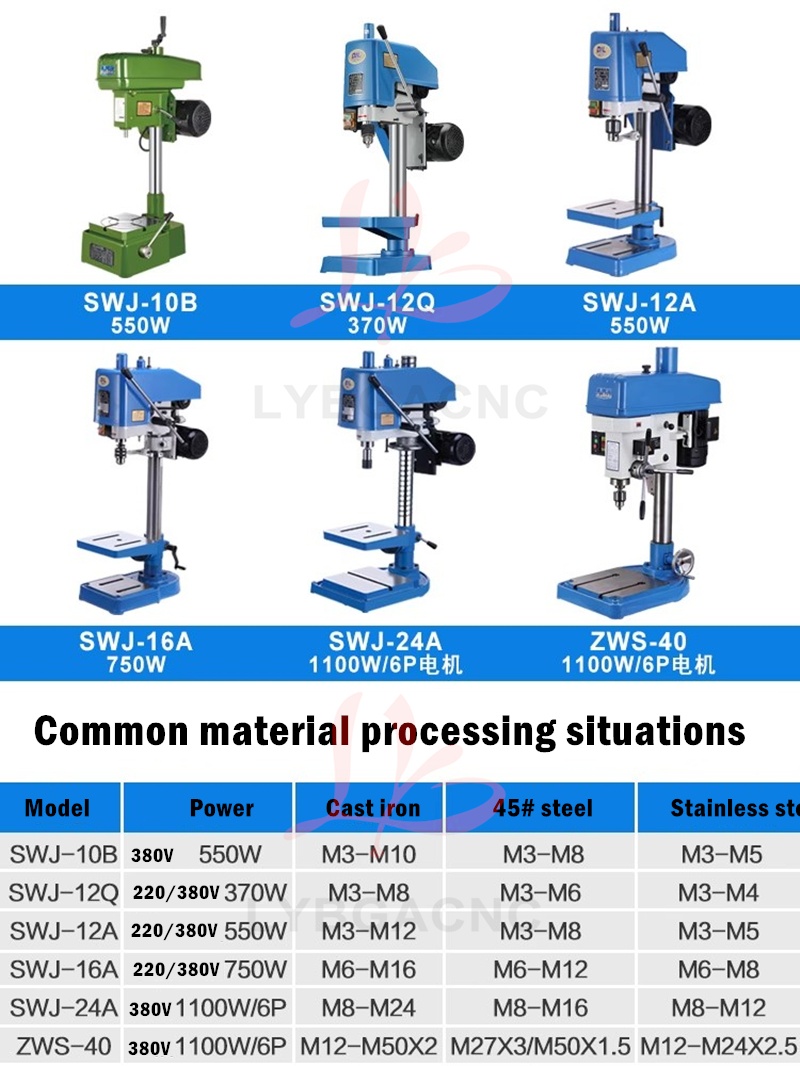

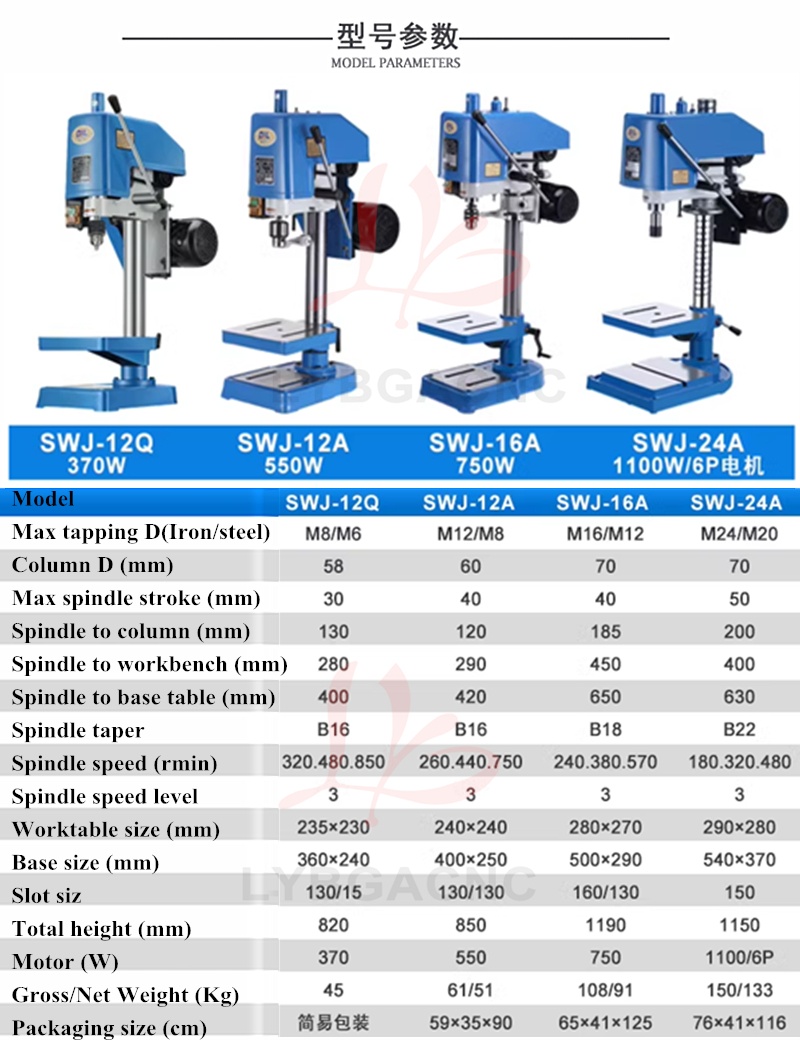

Parameters:

Model:  SWJ12Q

Voltage: 220V/380V

Motor Power: 370W

Electric current: 50HZ/60HZ

Spindle speed: 320/480/850/RPM

Chuck type: M3 M4 M5 M6/8 M10 M12(Torque chuck)

Tap capacity: M3-M8 (cast iron)

Tap capacity: M3-M6 (45# steel)

Tap capacity: M3-M4  (Stainless steel)

Packing size: 55CM*35CM*80CM

Weight: 45kg

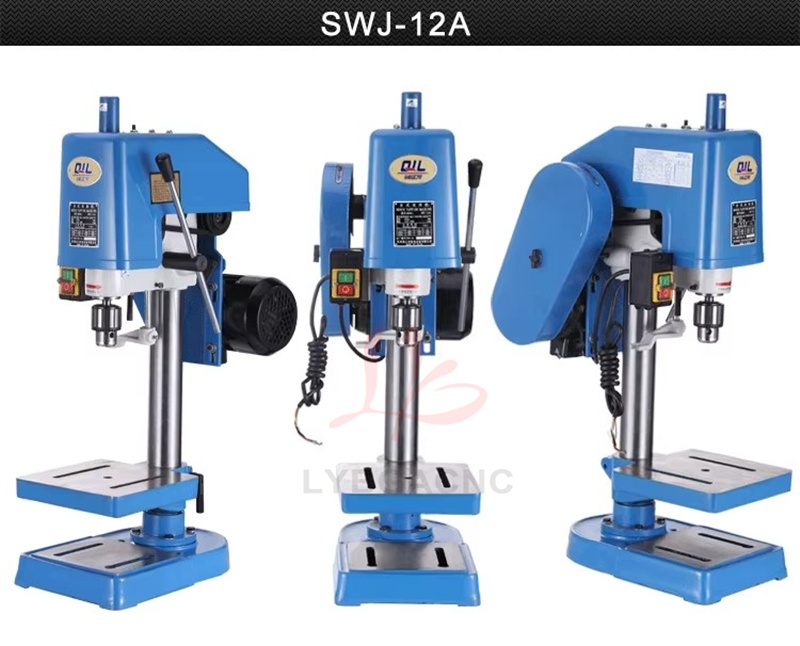

Model:  SWJ12A

Voltage: 220V/380V

Motor Power: 550W

Electric current: 50HZ/60HZ

Spindle speed: 260/440/750/RPM

Chuck type: M3 M4 M5 M6/8 M10 M12(Torque chuck)

Tap capacity: M3-M12 (cast iron)

Tap capacity: M3-M8 (45# steel)

Tap capacity: M3-M5  (Stainless steel)

Packing size: 59CM*35CM*90CM

Weight: 60kg

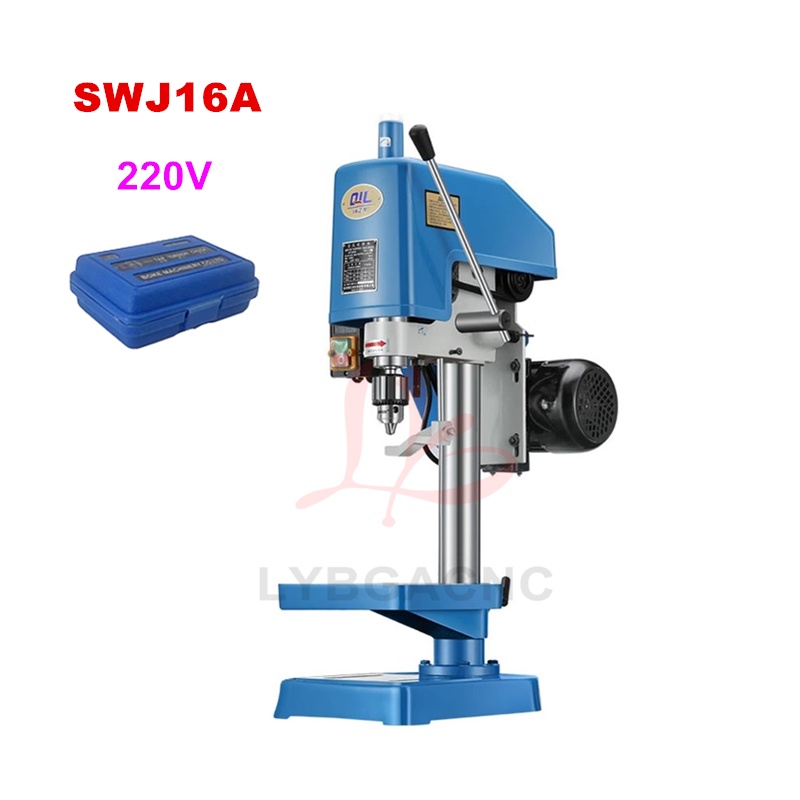

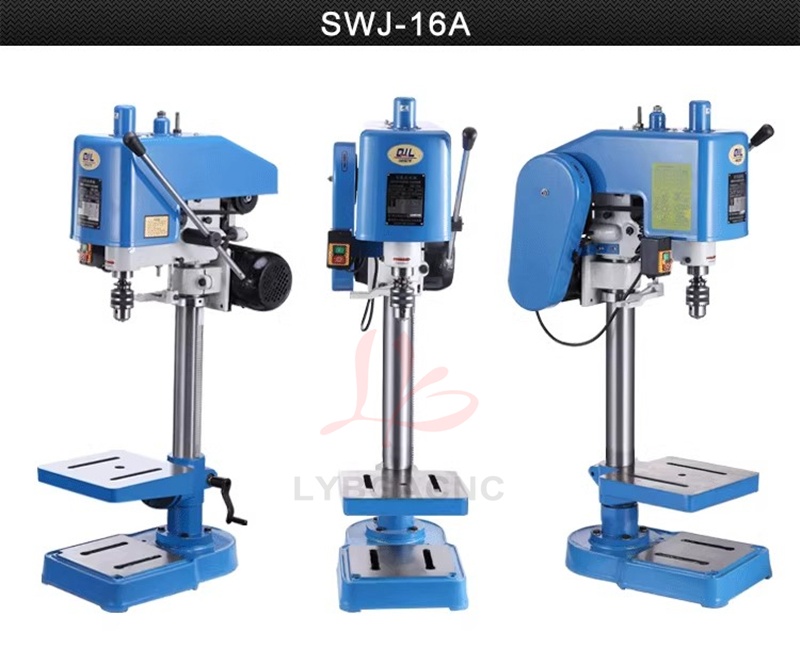

Model:  SWJ16A

Voltage: 220V/380V

Motor Power: 750W

Electric current: 50HZ/60HZ

Spindle speed: 240/380/570/RPM

Chuck type:  M5 M6/8 M10 M12 M14 M16 (Torque chuck)

Tap capacity: M6-M16 (cast iron)

Tap capacity: M6-M12 (45# steel)

Tap capacity: M6-M8  (Stainless steel)

Packing size: 65CM*41CM*125CM

Weight: 110kg

Warm Tips:

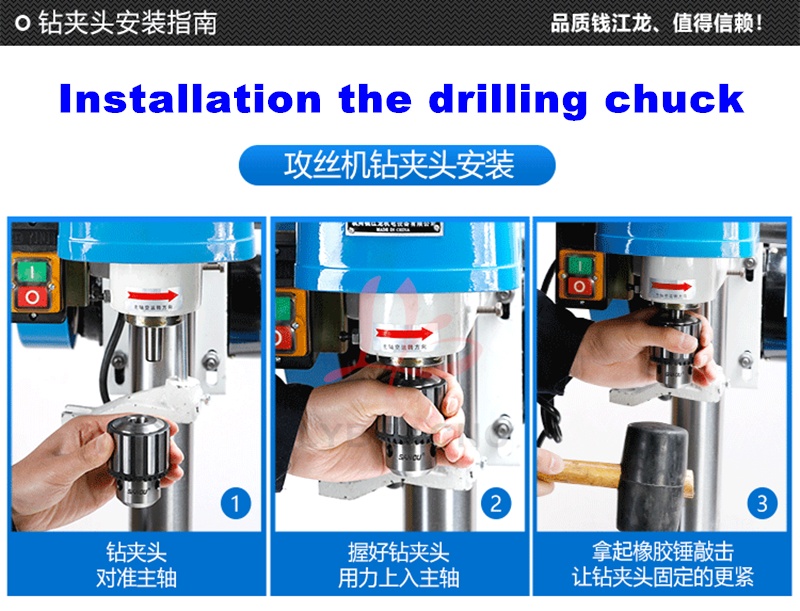

1. The Chuck standard ISO Chuck, If You need JIS or DIN, please message us;
