MEASALL Distributor LY.GROUP.CHINA KC901V KC-901V Handheld Vector Network Analyzer Antenna RF Spectrum

Field Multi-meter SWR Standing Wave Testing 7GHz VNA

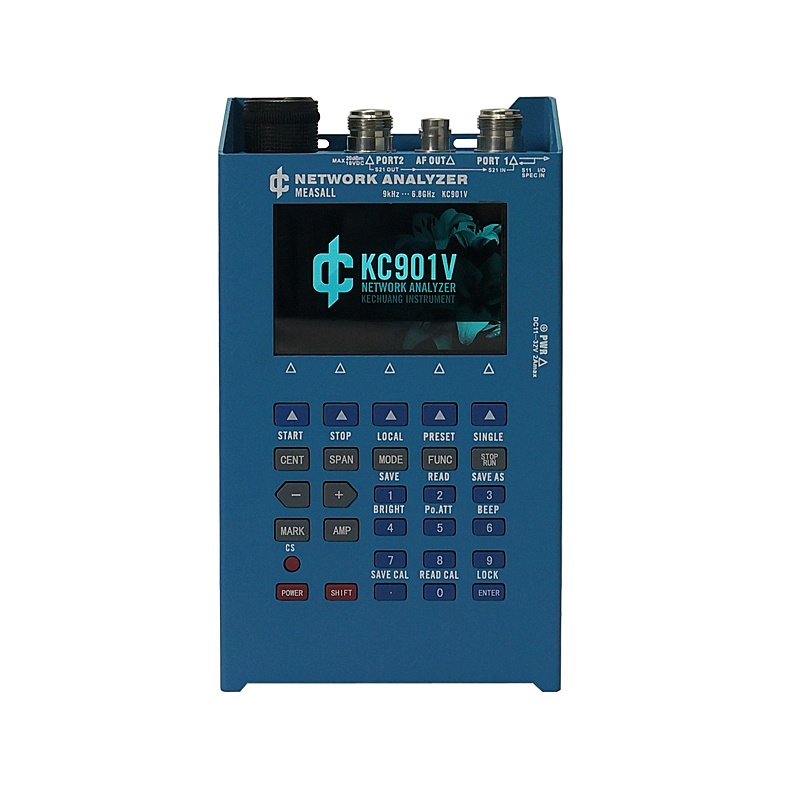

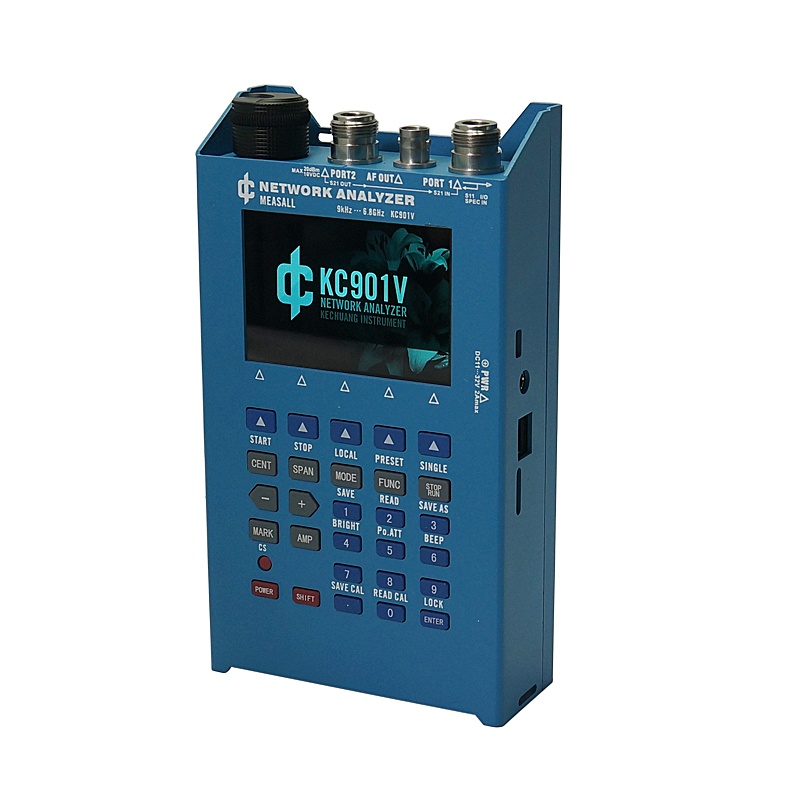

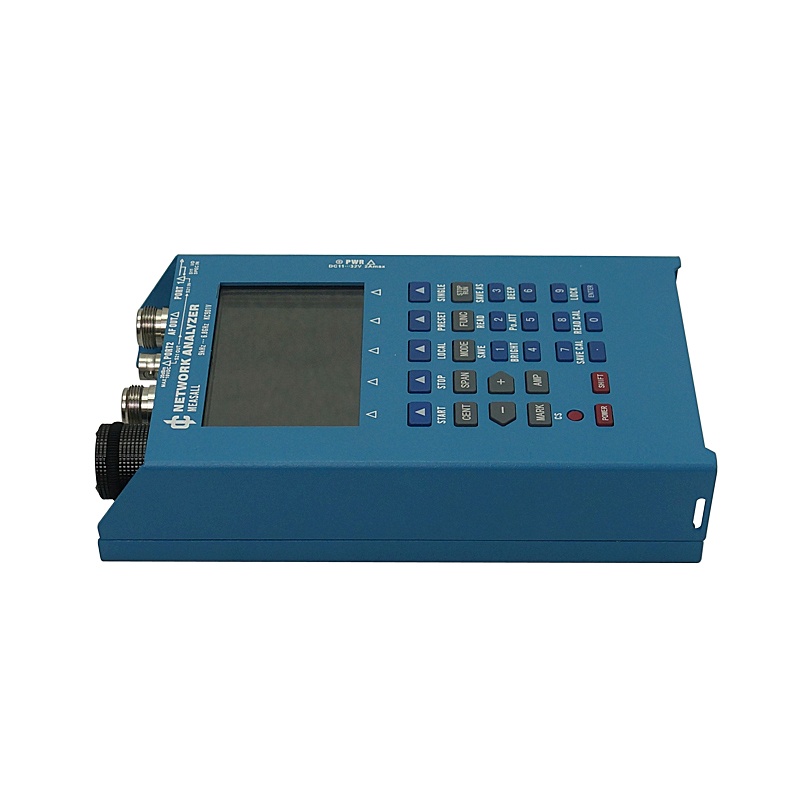

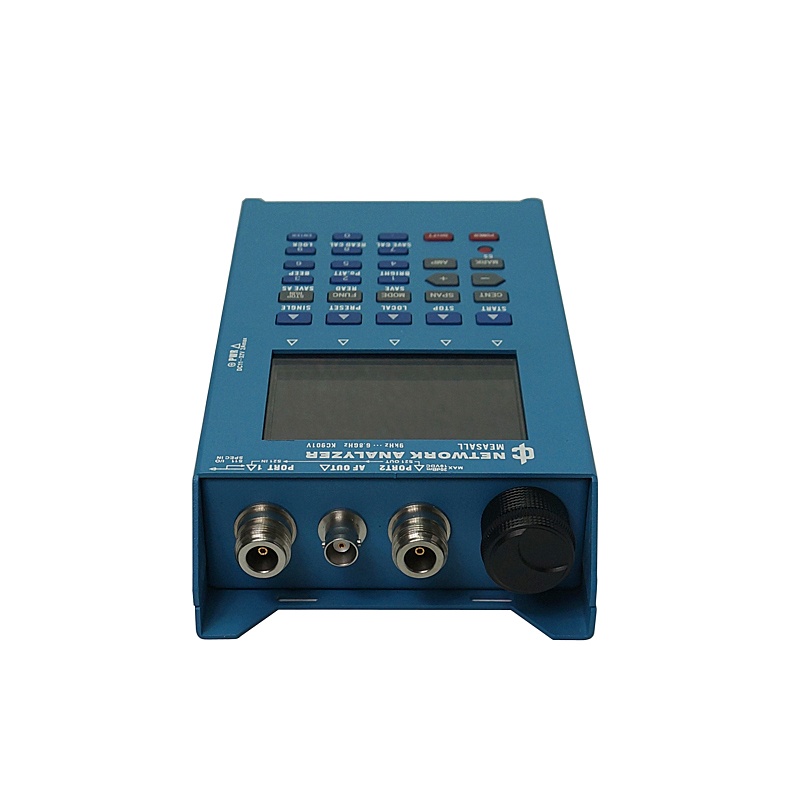

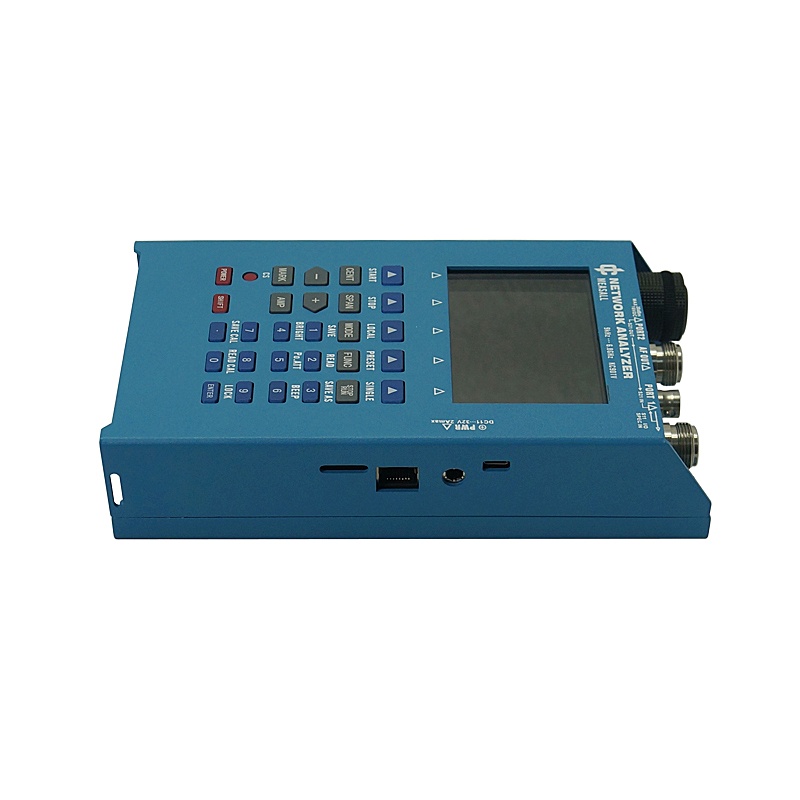

KC901V is a multipurpose RF instrument integrating a VNA (vector network analyzer), spectrum analyzer, field strength meter, and an extra low-frequency signal source. It can do complete single port vector measurement and 2-ports simple vector network analyzing.



Main Features

  • Vector network analyzing up to 6.8GHz
    1Hz frequency step
  • Good accuracy and anti-interference ability
  • Abundant functions and easy to carry
  •

Main Functions

  • Transmission measurement (Filter adjustments, measuring amplifiers, verifying
    directivity of antennas)
  • Reflection measurement (Impedance matching network adjustment, antenna
    feeding system quality evaluation)
  • RF source plus an extra audio signal source
  • Spectrum display and field strength observation (potentially used for inspecting
    a radio station’s emission performance, or for searching for the interference sources)
  •

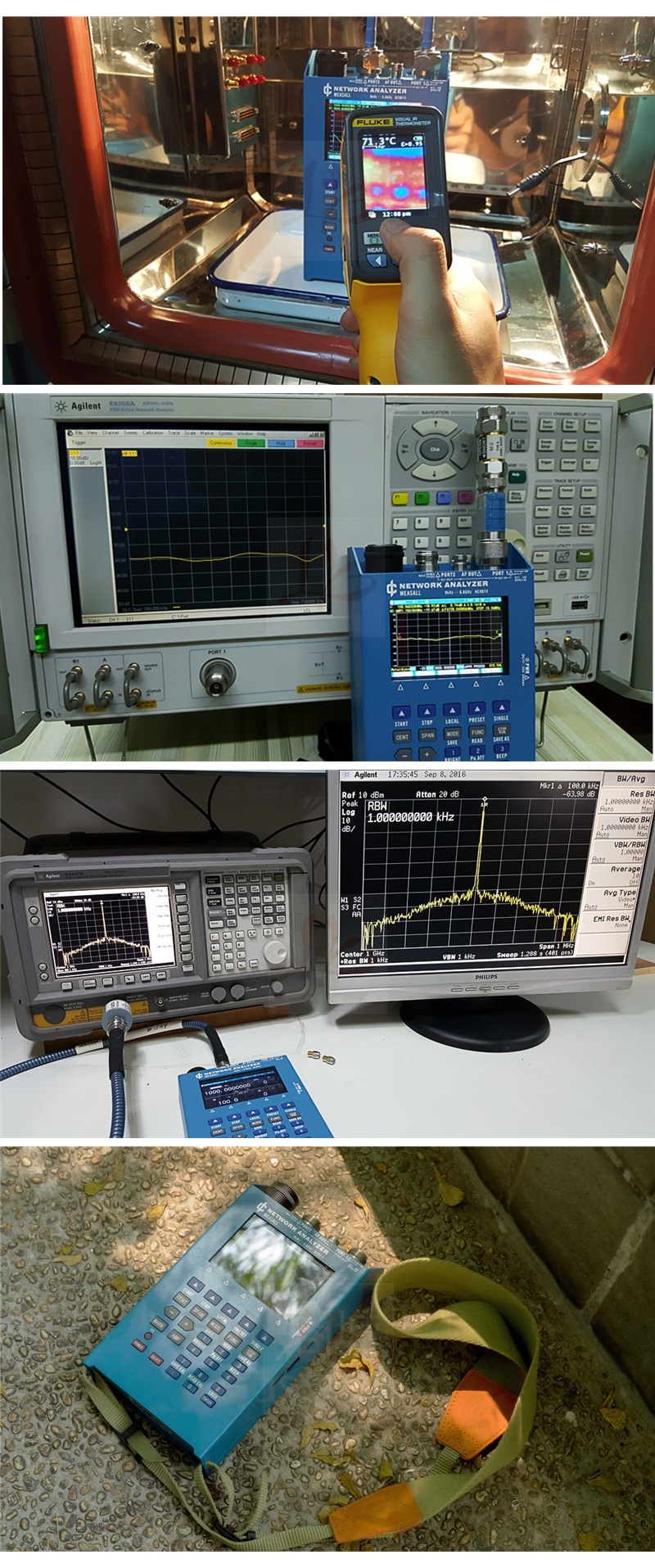

Recommended Applications

The KC901V is mainly used for adjusting various RF circuits, such as filters, amplifiers, splitters, combiners; testing input/output impedance, evaluating antenna feeding system and detecting equipment’s signal amplitudes at all levels. It can also do field strength measurement, which is useful for checking  the correct operation of low powered devices with integrated antennas and when searching for interference sources etc.

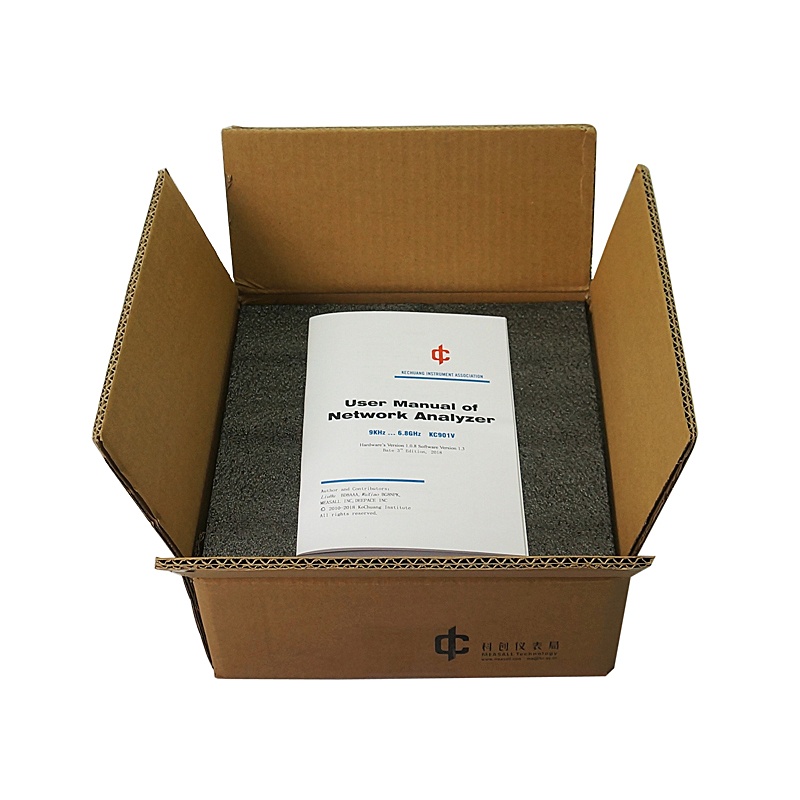

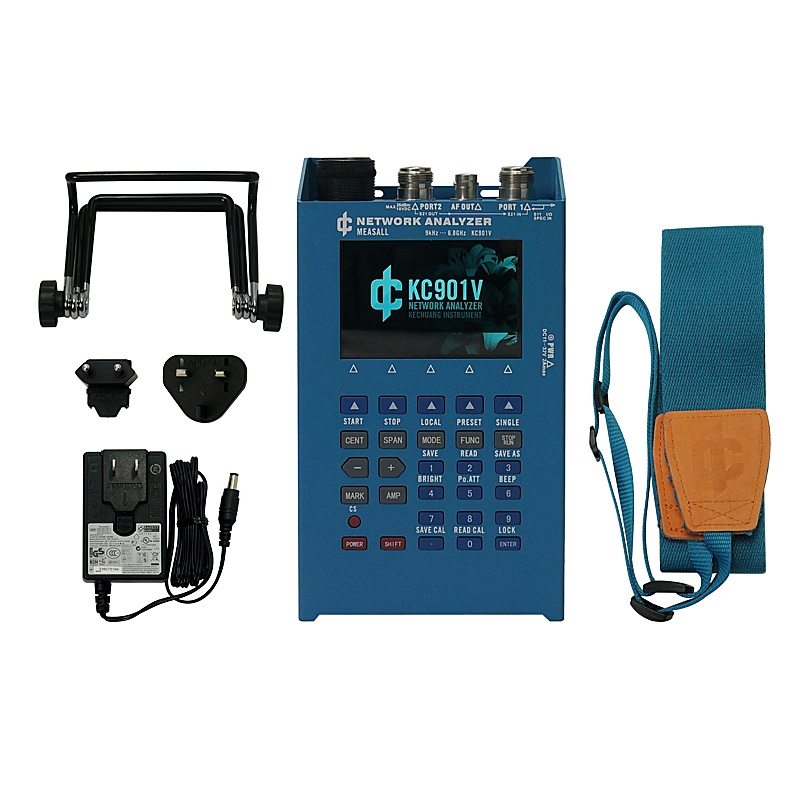

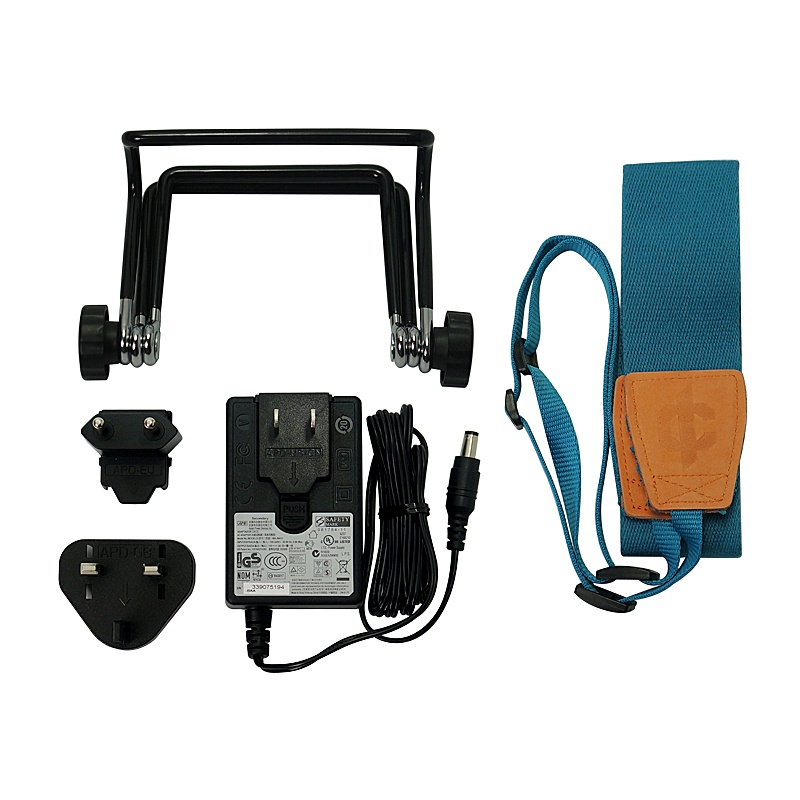

Packing List:

KC901V 1
Charger 1
Shoulder Strap 1
User manual 1
Desktop Stand 1



Specifications (for reference only)

project

Test Conditions

parameter

Remarks

lowest

typical

highest

Frequency range is valid

9KHz



6.8 GHz(Actual 7GHZ)

SPEC mode can be set

Lt; / RTI & gt;

7 GHz

Scanning Range

1 kHz

6.8 GHz(Actual 7GHZ)

Number of scanning points

450pt

3150pt



Local operation

Frequency resolution All scanning class function 1Hz spectrum analyzer

All single frequency function 0.1Hz signal source and so on

Level resolution of 0.01dB

Phase resolution of 0.01 °

The scanning speed RBW = 30KHz, every point 1.2ms

RBW = 10 kHz, 1.5 ms per point

RBW = 3 kHz, 2 ms per point

RBW = 1 kHz, 3 ms per point

RBW = 30K, 450pt each screen 0.5s

Output level 1MHz-5GHz -10dBm 0dBm 6dBm 1 port

1MHz-5GHz 0dBm 6dBm 10dBm 2 ports

5 GHz – 6.8 GHz – 20 dBm 0 dBm 1 port

5 GHz – 6.8 GHz – 10 dBm 6 dBm 2 ports

Output attenuation 0dB 25dB

55dB 2 ports

1 port

Sensitivity 1MHz-5GHz -107dBm 1 port RBW = 1KHz

5 GHz to 6.8 GHz to 94 dBm

Available dynamic range for transmission measurements 1MHz to 500MHz 100dB Equivalent to the transmit and receive channel isolation

500MHz-2GHz 70dB

2GHz-6.8GHz 50dB

Transmission Measurement Uncertainty in Series 10dB Attenuator After Pass-Through Calibration, 0.3 + 0.05L at Insertion Loss <40dB

Insertion of the zero-drift compensation of the existing insertion loss L <30dB 0.05dB preheat 5min, every 5 minutes

The absolute orientation of the bridge 9kHz-1MHz 18dB 90% confidence interval

1MHz-6.8GHz 20dB

S11 relative directional 9kHz-3GHz 45dB after calibration, 90% confidence interval

3GHz-6GHz 40dB

6GHz-6.8GHz 35dB

Uncertainty of return loss After pass-through calibration, 1.0 + 0.1RL when 3dB <RL <25dB

Phase uncertainty 100kHz-1GHz 2 ° reflection coefficient ρ> 0.25

1 GHz to 3 GHz

3GHz-6.8GHz 8 [deg.]





project

Test Conditions

parameter

Remarks

lowest

typical

highest



Port VSWR port 2,1MHz-6GHz 1.5 Static value

Port 1,1 MHz-6 GHz 2.0

Local oscillator leakage port 1 -60dBm

-10dBm



IF feed-through rejection is 30dB

Frequency stability, per year

1 ppm

Power supply voltage charging interface

11V



32V



AC power adapter

105V



230V



Built-in battery

6.5V



8.4V



Temperature range for normal use

0 & gt; C

45 ° C

Note 2

Allowed

-40 °C

65 °C



Humidity range of continuous power-on state 0%

95%



Note 3

Damage level

All ports DC15V, +20 dBm



Dimensions

200 × 114 × 46mm (length × width × thickness)



Quality host (including battery) 1.2kg

Standard configuration of the entire package 2.0kg

Note 1: Unless otherwise noted, the specifications are measured at medium speed mode with an analysis bandwidth (RBW) of 10 kHz, an output attenuation of 0, a temperature of 25 ° C and a user calibration. A small number of accidental or permanent abnormal data segments may be outside the scope of the specification.

Note 2: The battery temperature range depends on the battery temperature characteristics. In the range of more than 0 … 45 ℃, the device should be re-calibrated after the preheat stability. Especially in the -40 … -20 ℃ range, should be at least 5 minutes of preheating (and the need to keep running). Due to the heat of the device itself, the shell temperature may be higher than the ambient temperature of 20 ℃, more than 45 ℃ in the environment, should avoid burns. When used in an environment close to 65 ° C, the battery must be removed, otherwise the battery temperature may exceed 85 ° C and cause danger.

Note 3: Use only. In the humidity above 80% of the local long-term storage, must be moisture-proof measures.



Weight:2.5KG
