Pneumatic Electric High Accuracy Desktop Portable Inductive Type Wire Peeling Stripping Cutting Machine 3-4 Square mm

Pneumatic Electric High Accuracy Desktop Portable Inductive Type Wire Peeling Stripping Cutting Machine 3-4 Square mm

item ID: 71656
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$1600 USD$822 (% off)
Payment

Product Detail

Product Tags

Pneumatic Electric High Accuracy Desktop Portable Inductive Type Wire Peeling Stripping Cutting Machine 3-4 Square mm

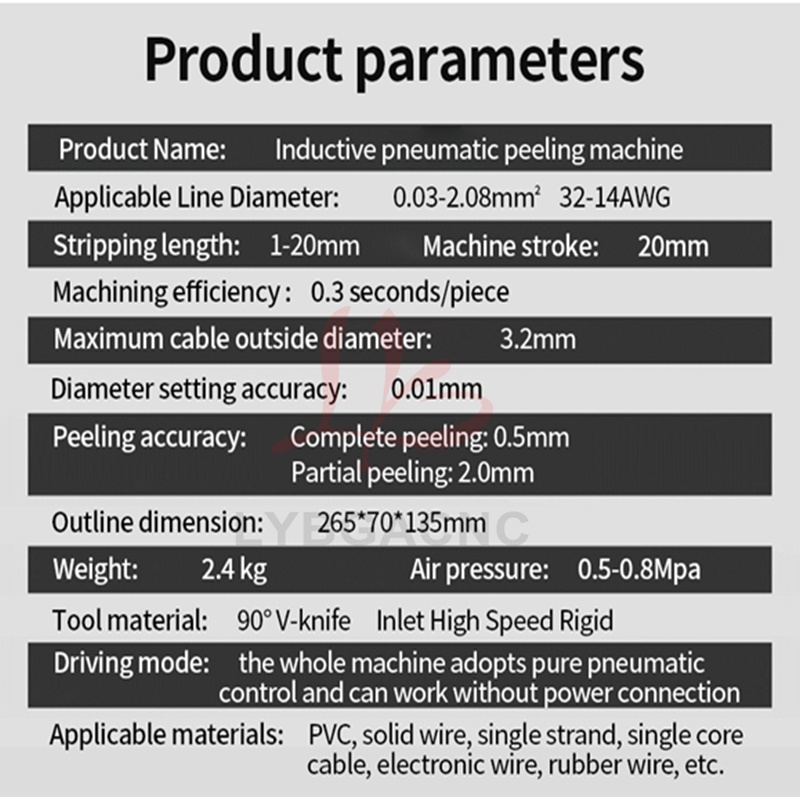

Product parameters:

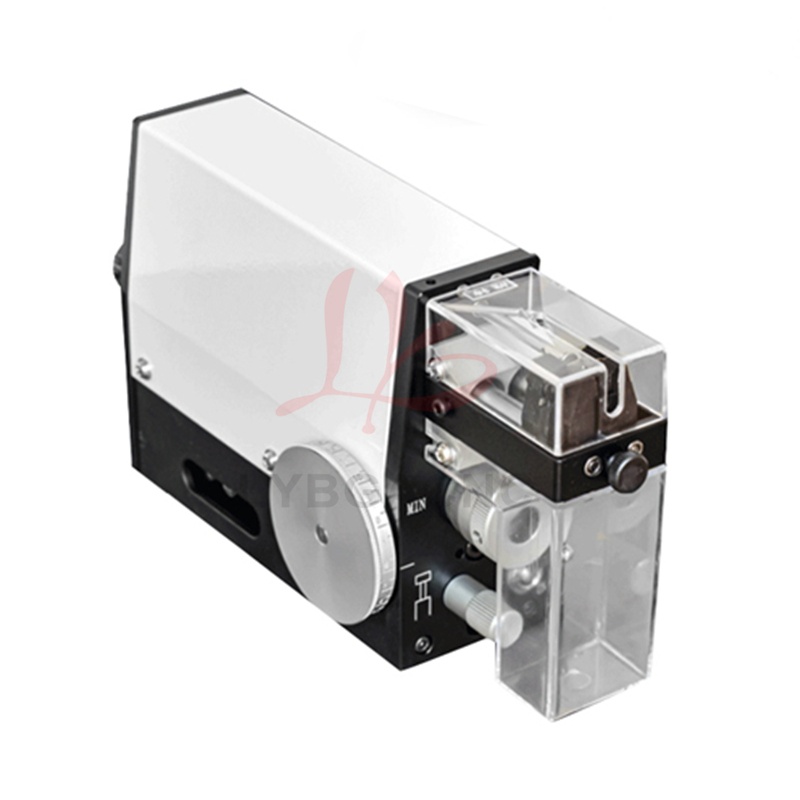

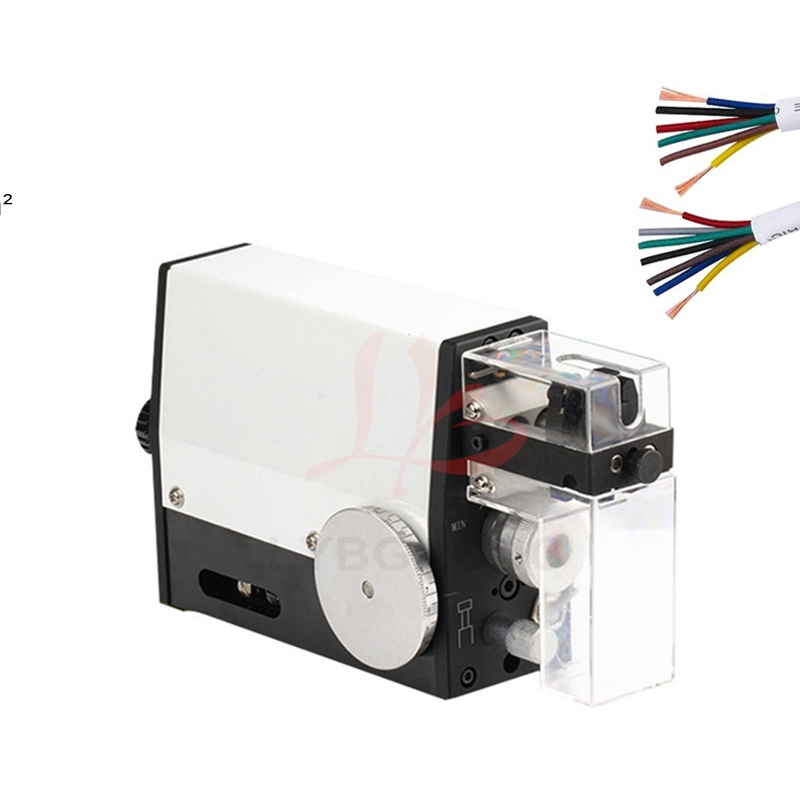

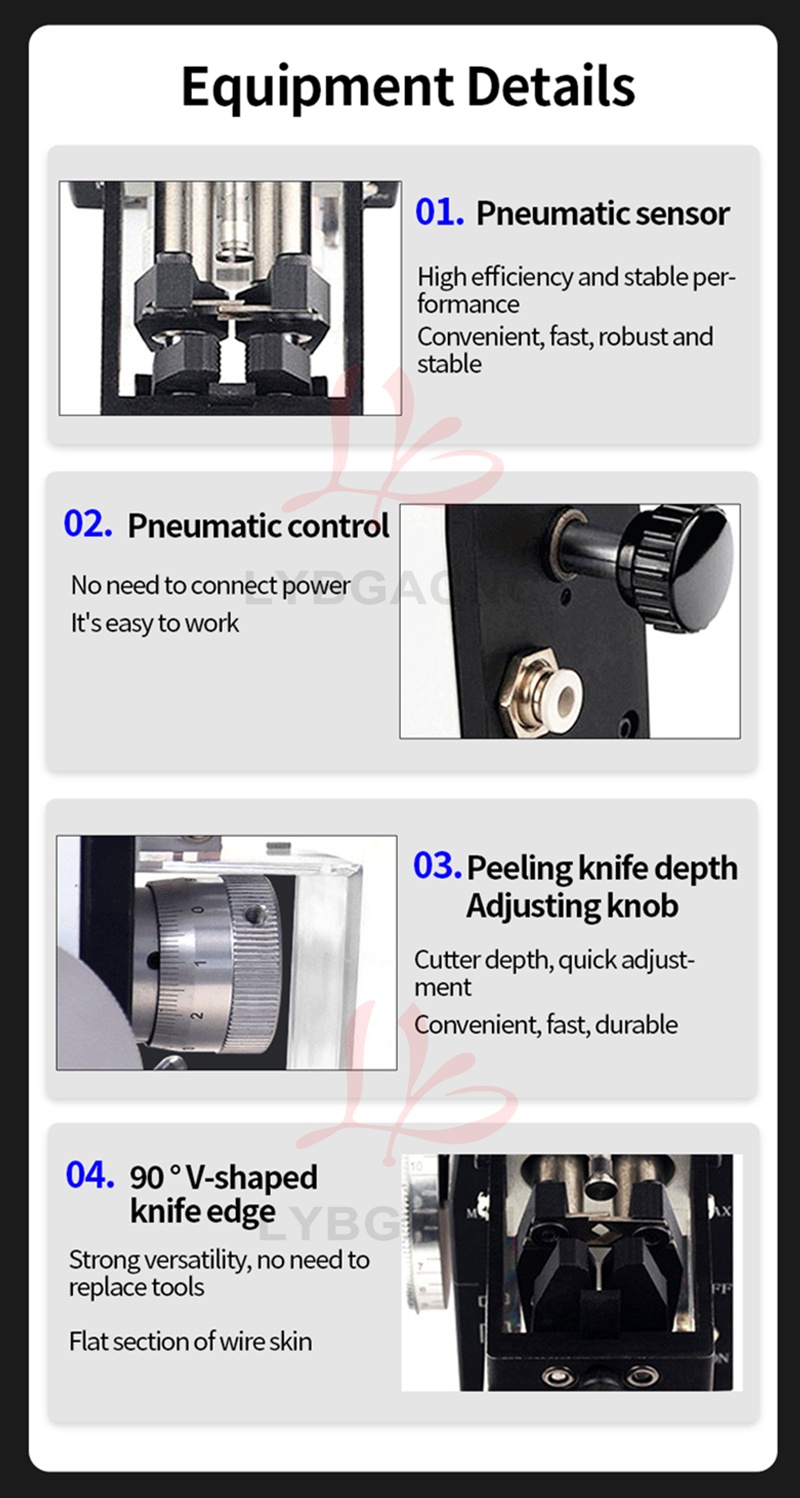

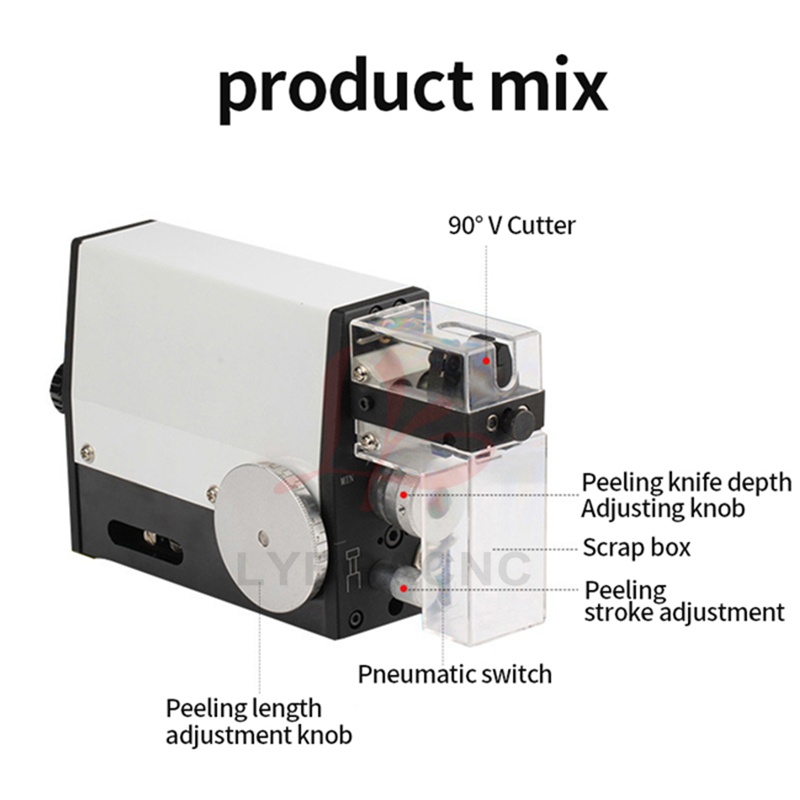

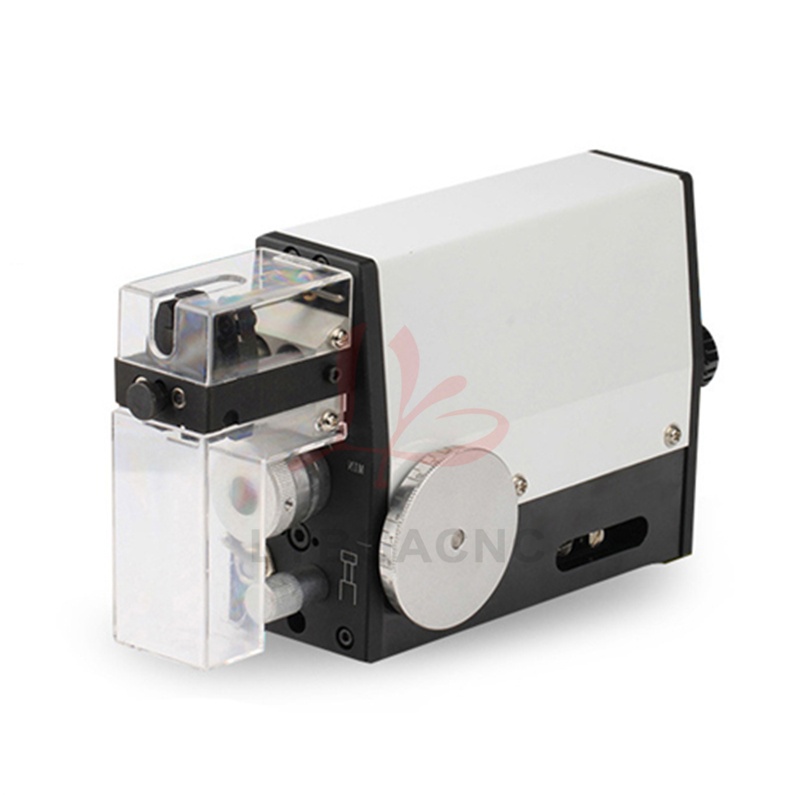

Pneumatic Version

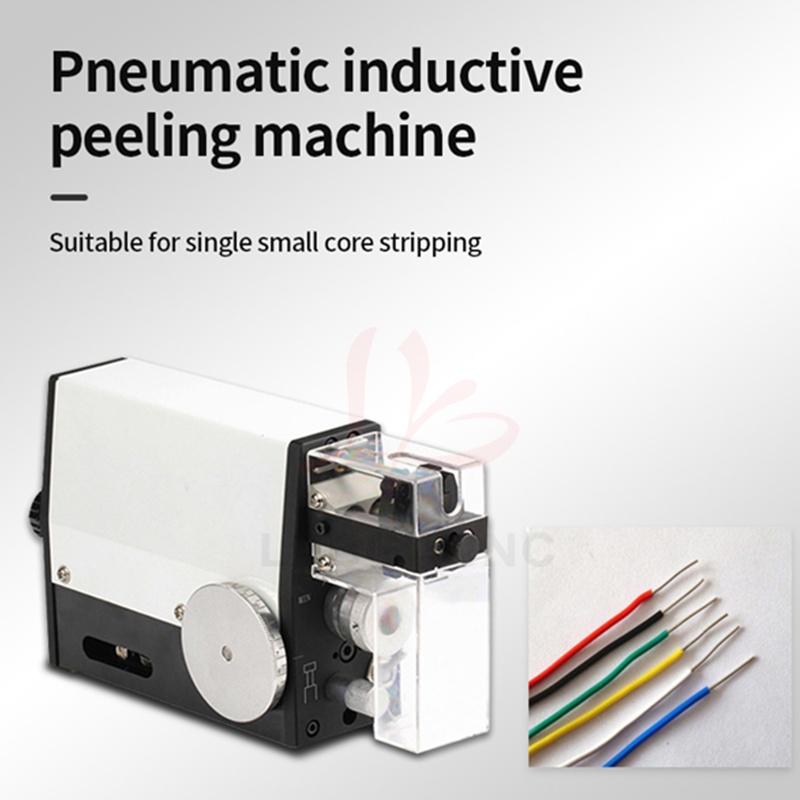

Product Name: Inductive pneumatic peeling machine

Model: LYP02

Applicable Line Diameter: 0.03-2.08mm² 32- 14AWG

Stripping length: 1-20mm

Machine stroke: 20mm

Machining efficiency: 0.3 seconds/piece

Maximum cable outside diameter: 3.2mm

Diameter setting accuracy: 0.01mm

Peeling accuracy:

Complete peeling: 0.5mm

Partial peeling: 2.0mm

Outline dimension: 265*70* 135mm

Weight: 2.4 kg

Air pressure: 0.5-0.8Mpa

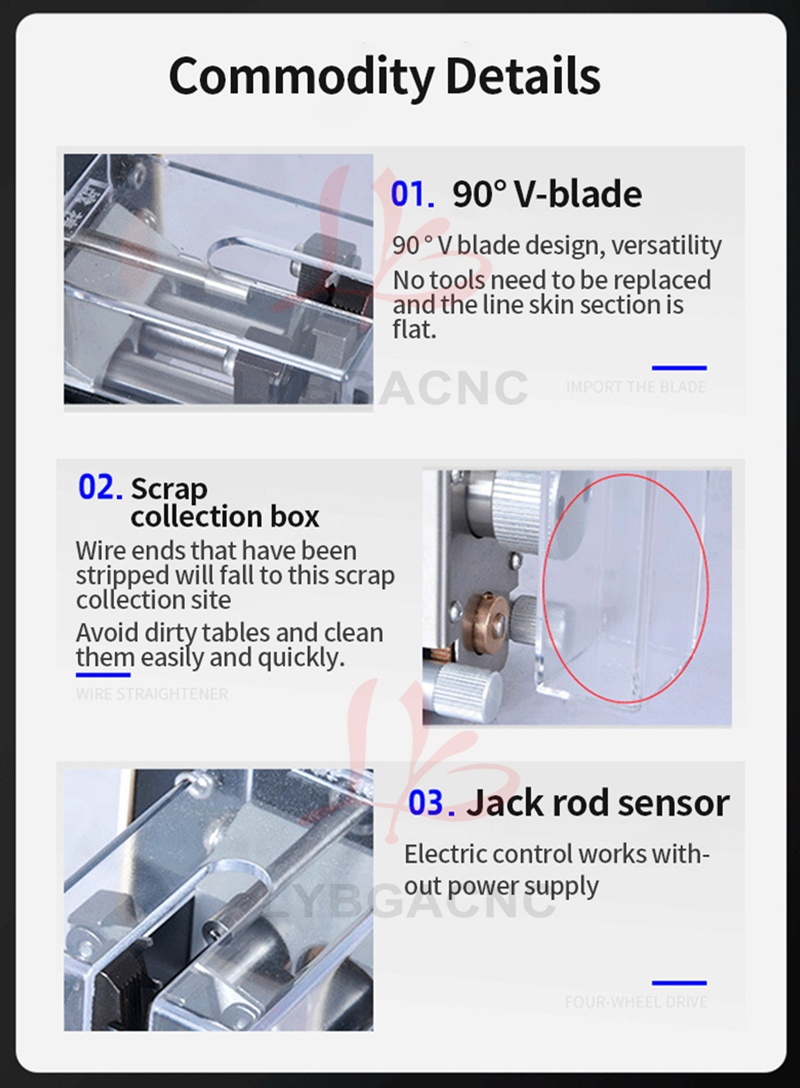

Tool material: 90° V-knife Inlet High Speed Rigid

Driving mode: the whole machine adopts pure pneumatic control and can work without power connection

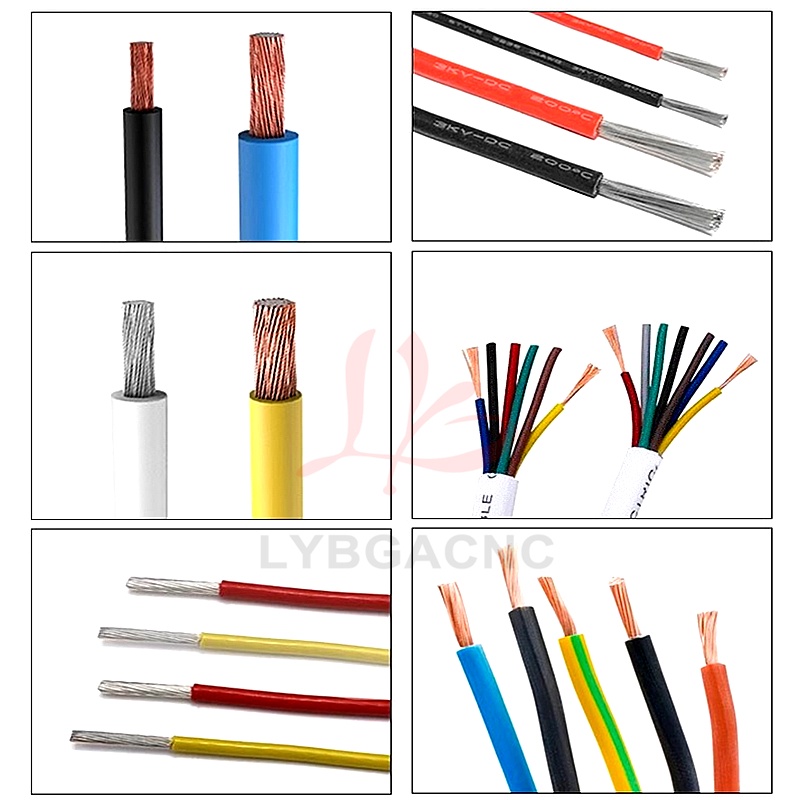

Applicable materials: PVC, solid wire, single strand, single core cable, electronic wire, rubber wire, etC.

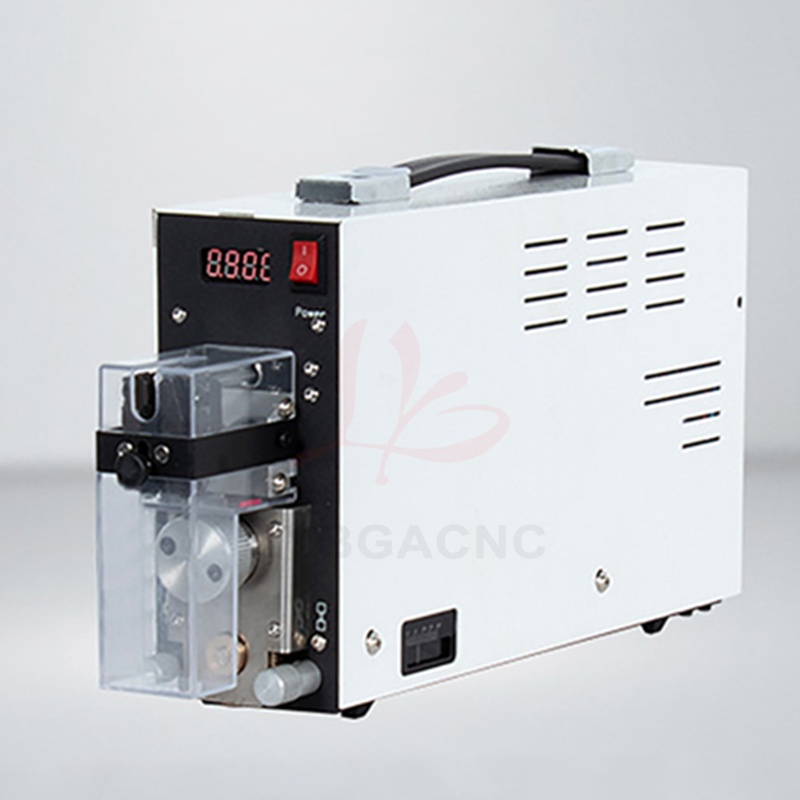

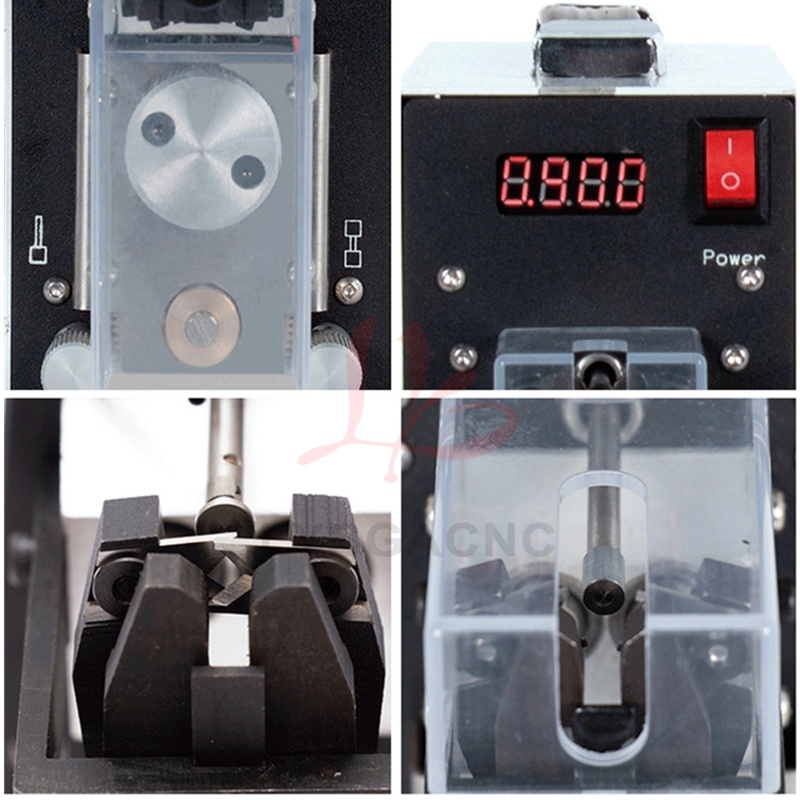

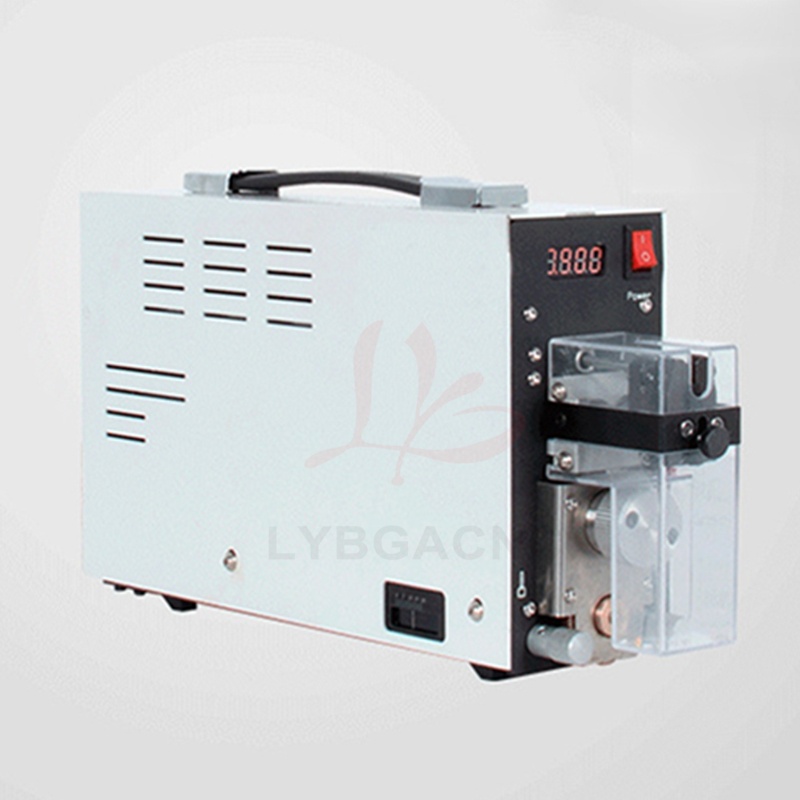

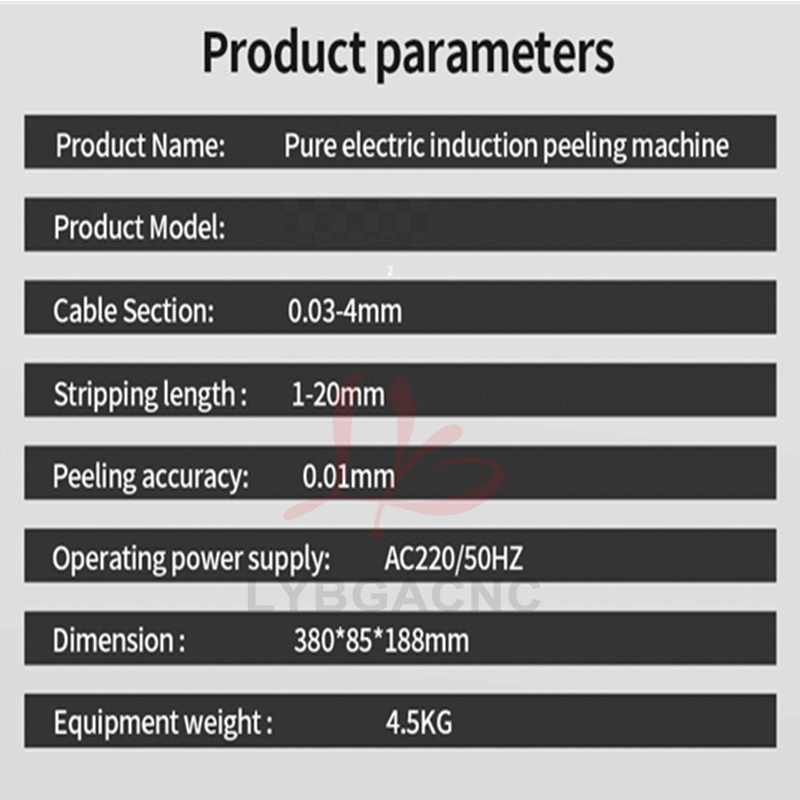

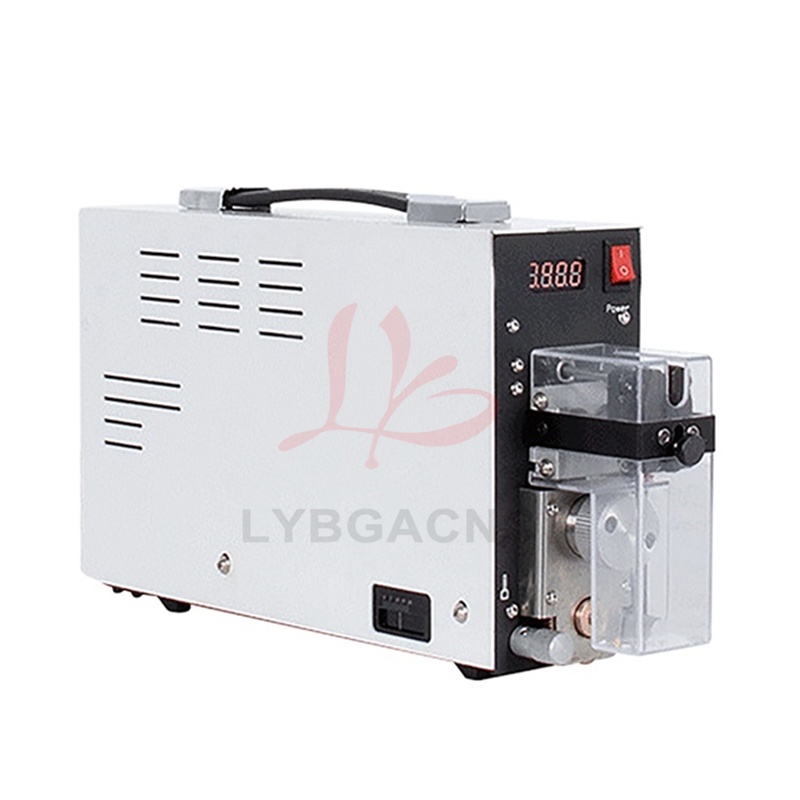

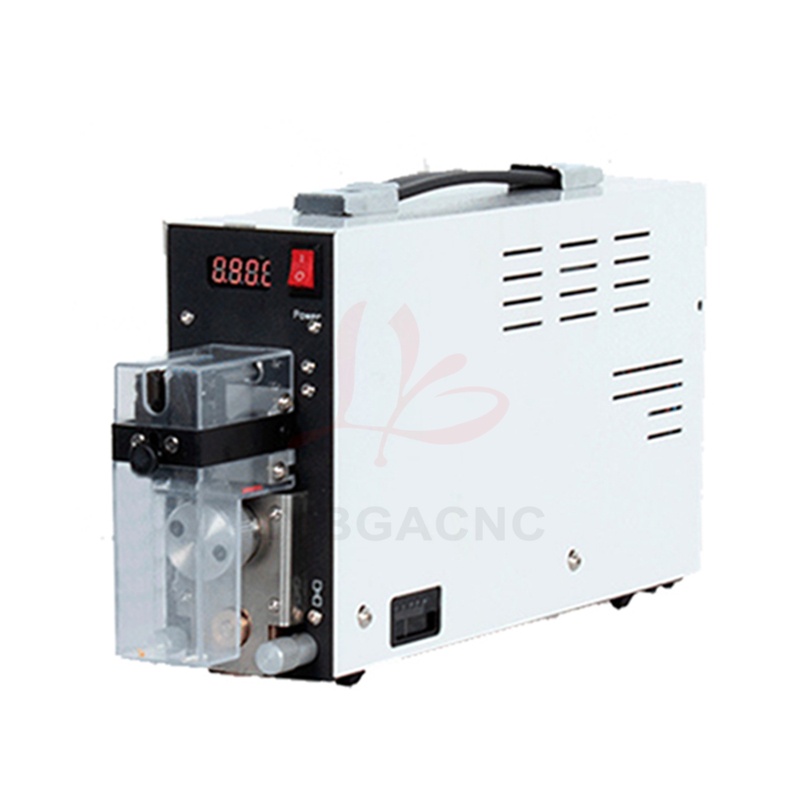

Electric Version

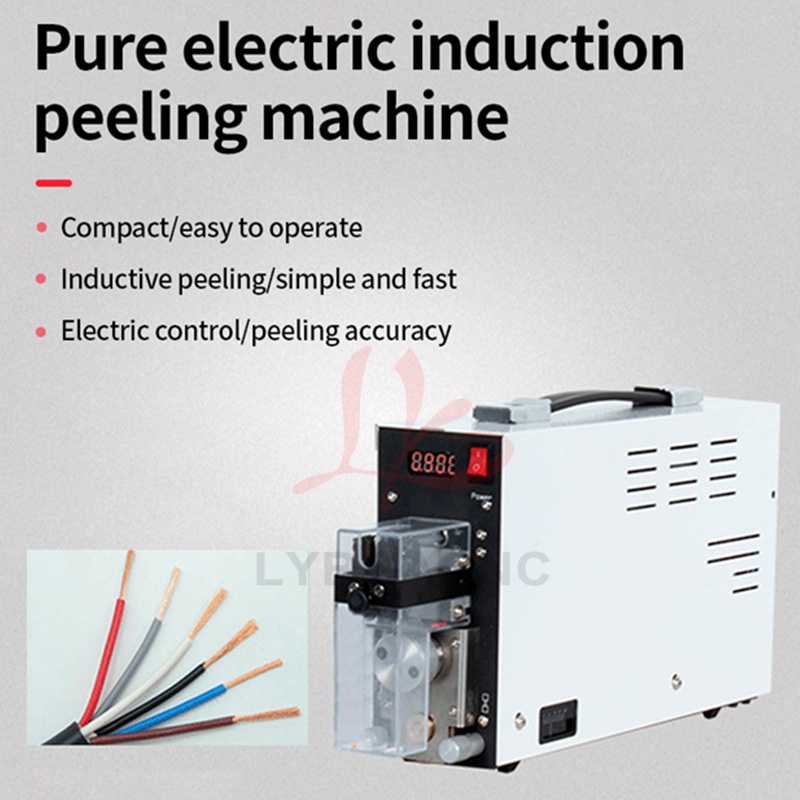

Product Name: Pure electric induction peeling machine

Product Model: LYP04

Cable Section: 0.03- 4mm

Stripping length: 1-20mm

Peeling accuracy: 0.01mm

Operating power supply: AC220/50HZ

Dimension: 380X85X188mm

Equipment weight: 4.5KG

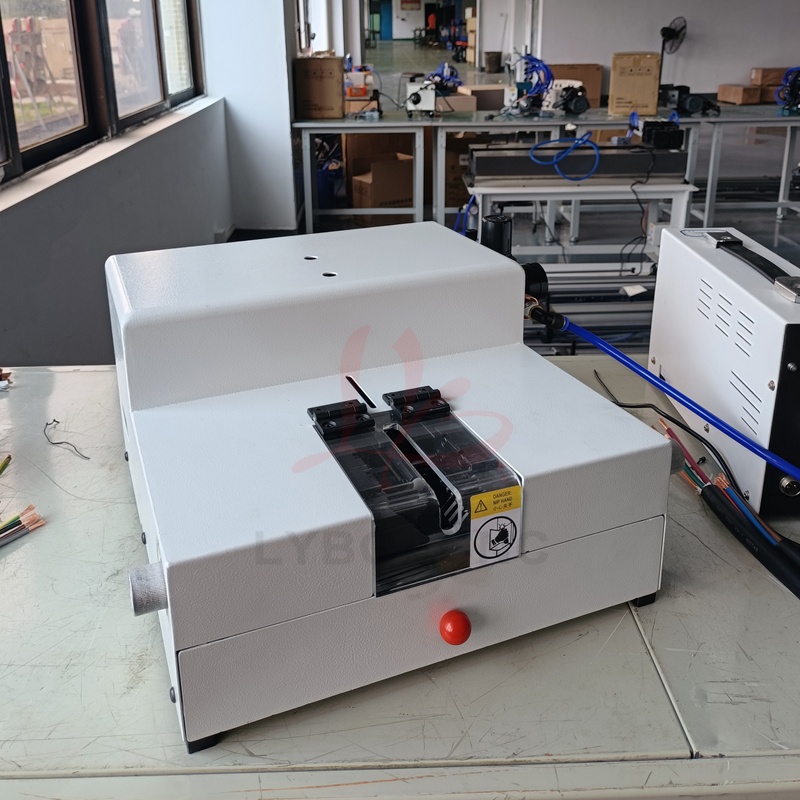

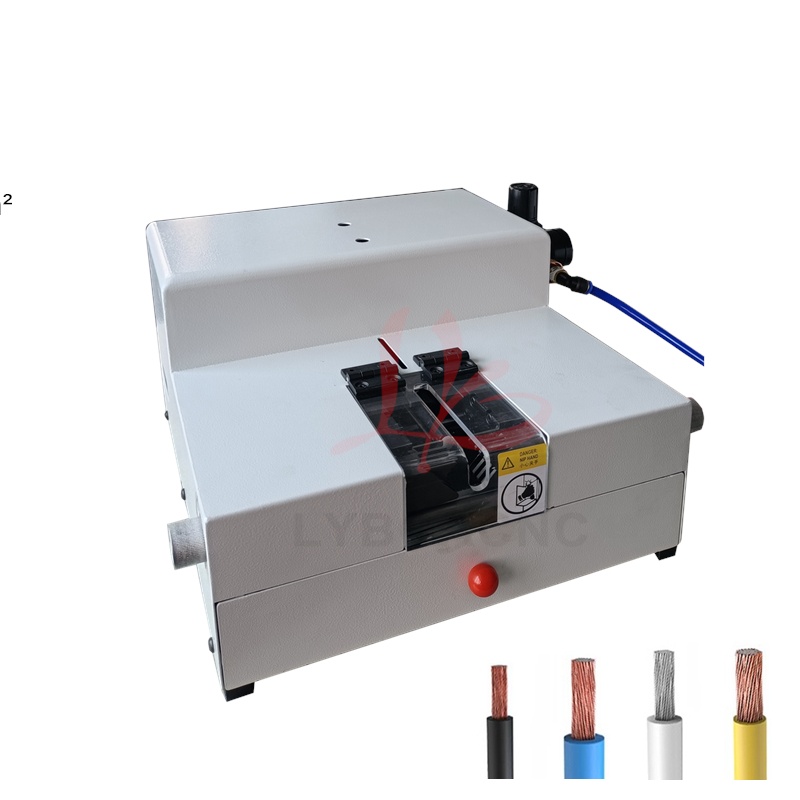

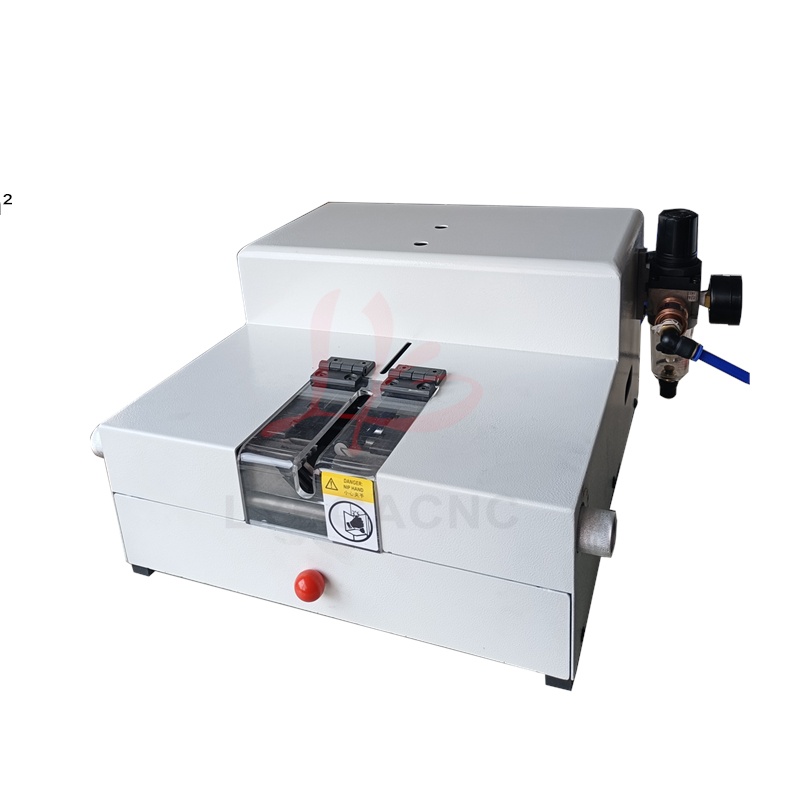

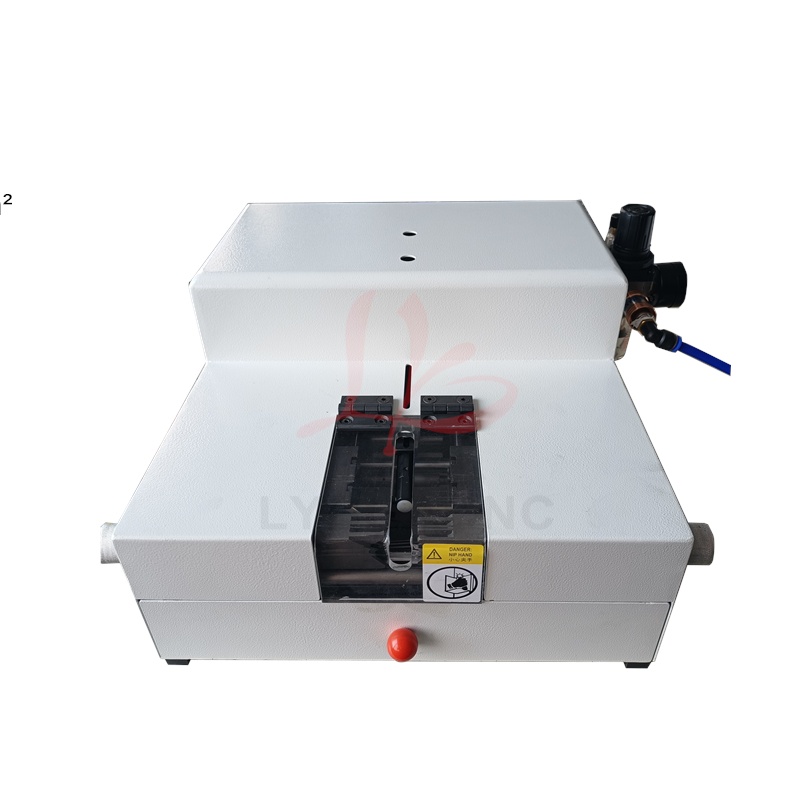

Pneumatic Version

Product Name: No need to change knife peeling machine

Product model: LYP10

Applicable wire: 0.5-10 mm2

Peeling length: 2-50mm

Production capacity: 1500-2000 pcs/hour

Working pressure: 0.4MPa-0.6MPa

|Weight: 24KG

Machine Size: 400X370x200mm
