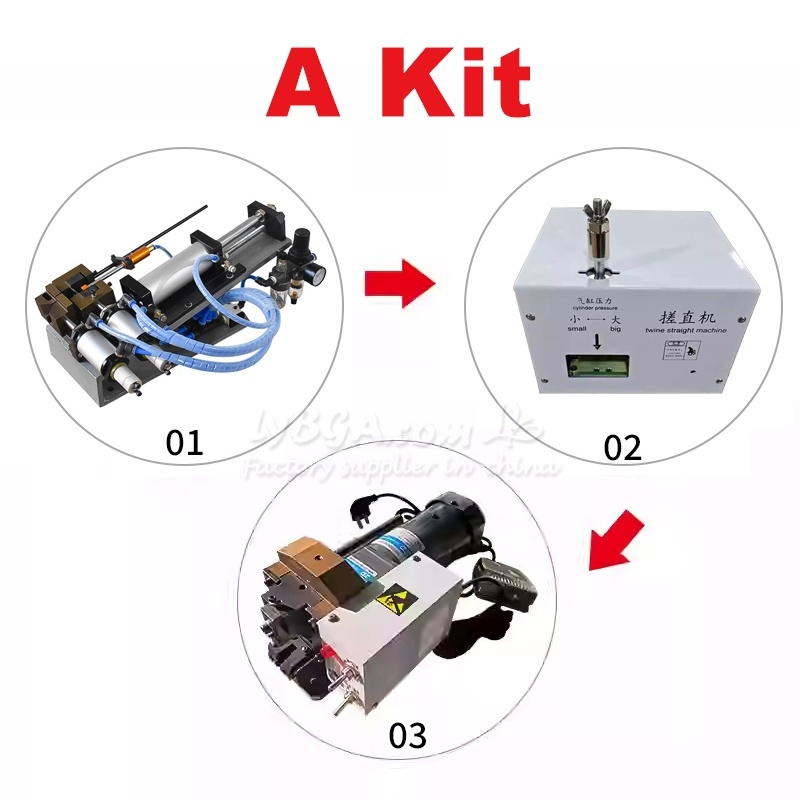

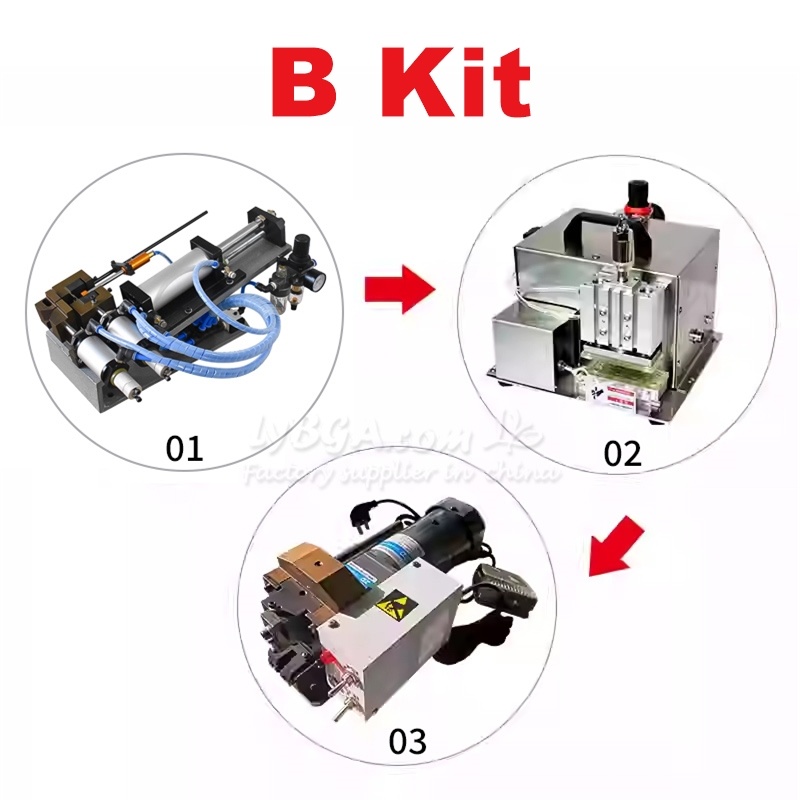

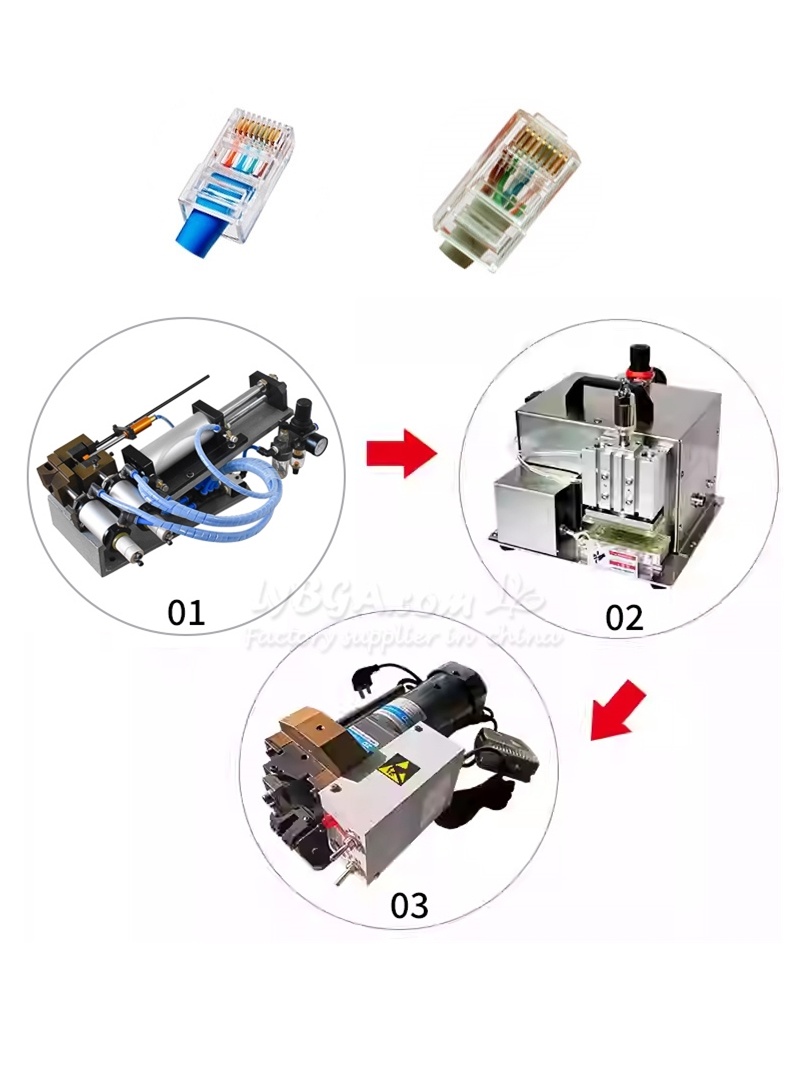

Pneumatic Stripping/Wire Straightening/Network Wire Crystal Head Crimping Machine 3 In 1 Kit LY Optional A B Pack 220V 110V

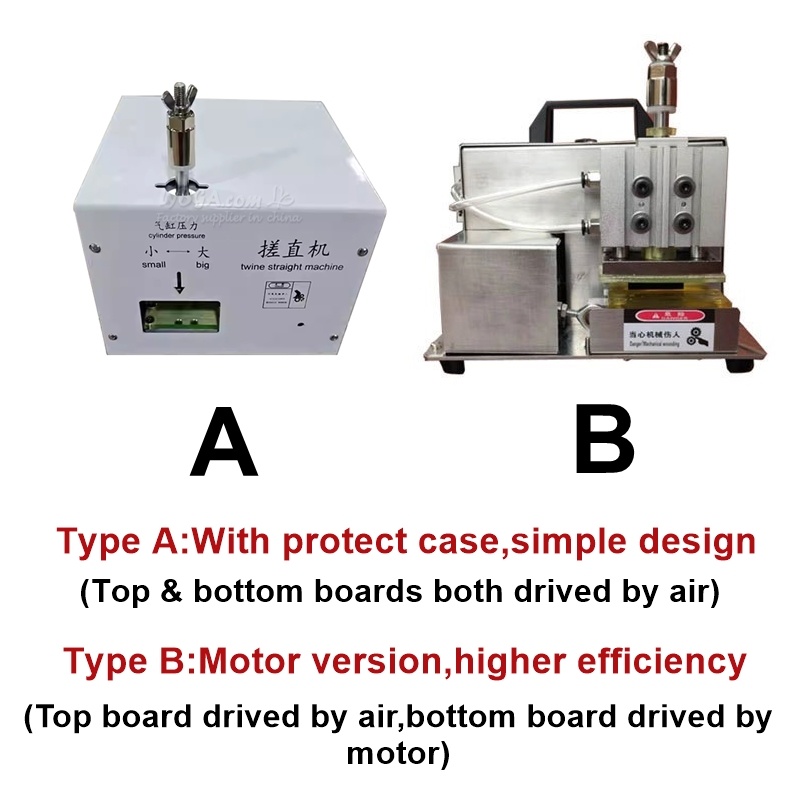

Main difference between A/B Straightening Machine:
Type A: With protect case, simple design
(Top & bottom straighten boards both drived by air)

Type B: Motor version, higher efficiency
(Top straighten board drived by air, bottom straighten board drived by motor)

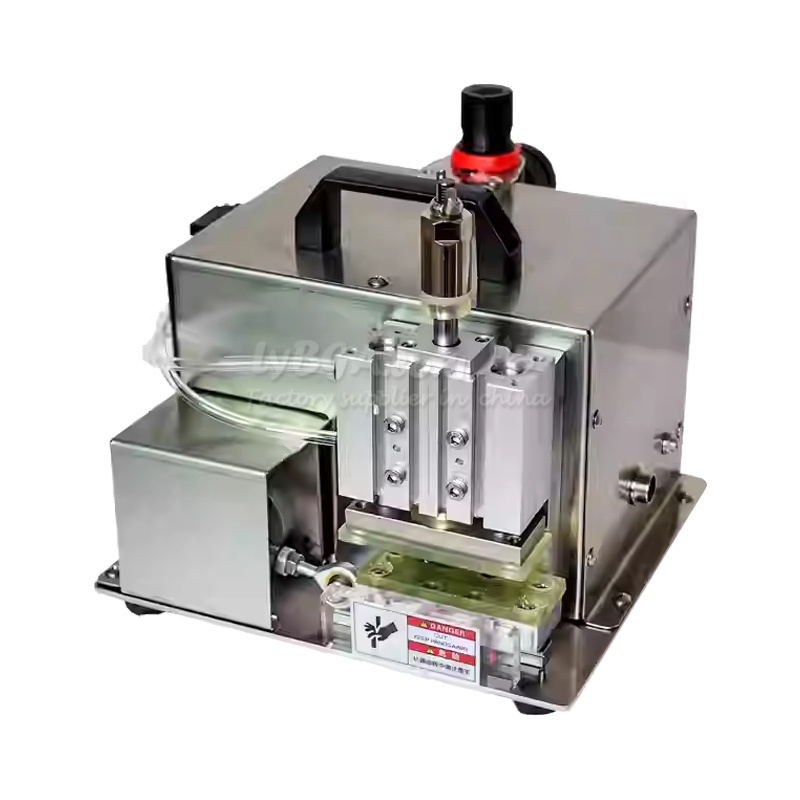

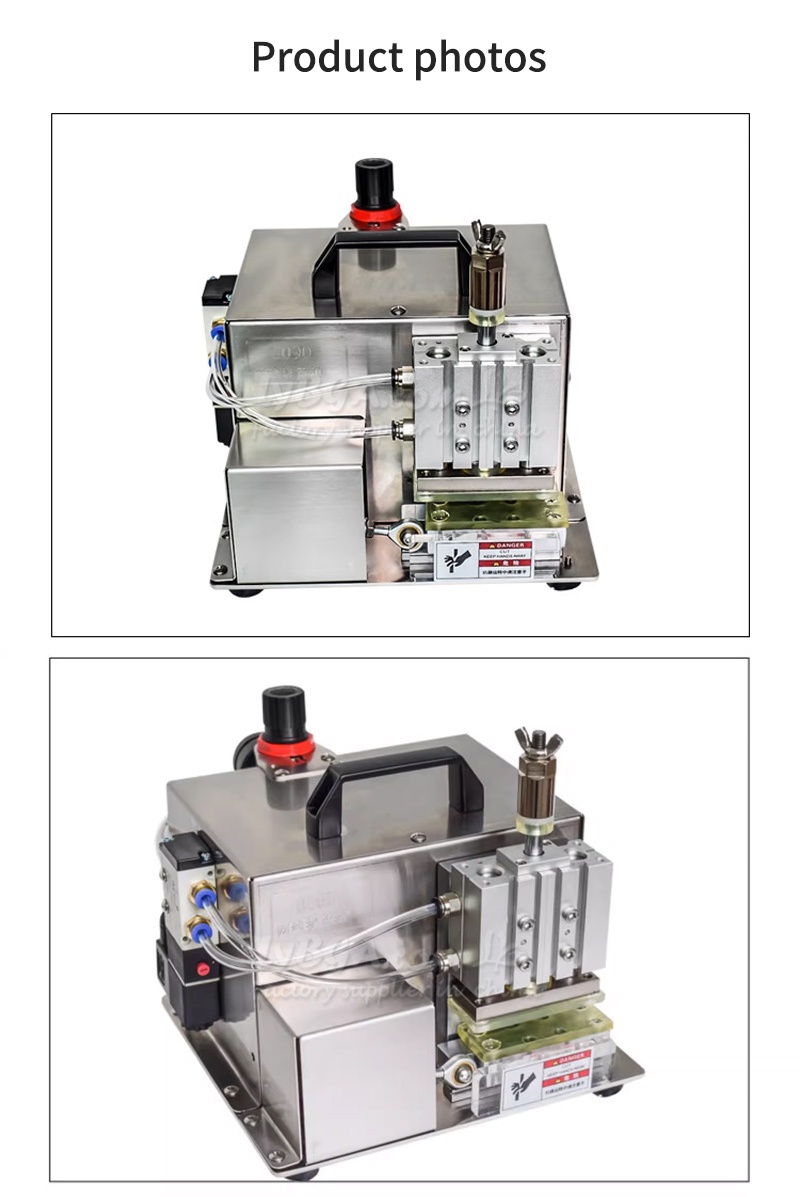

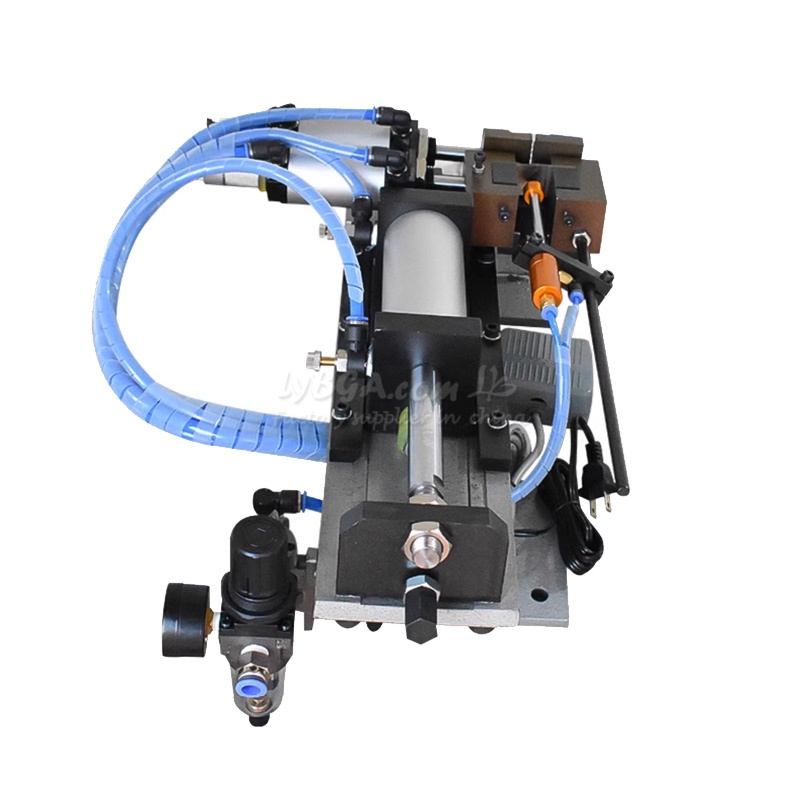

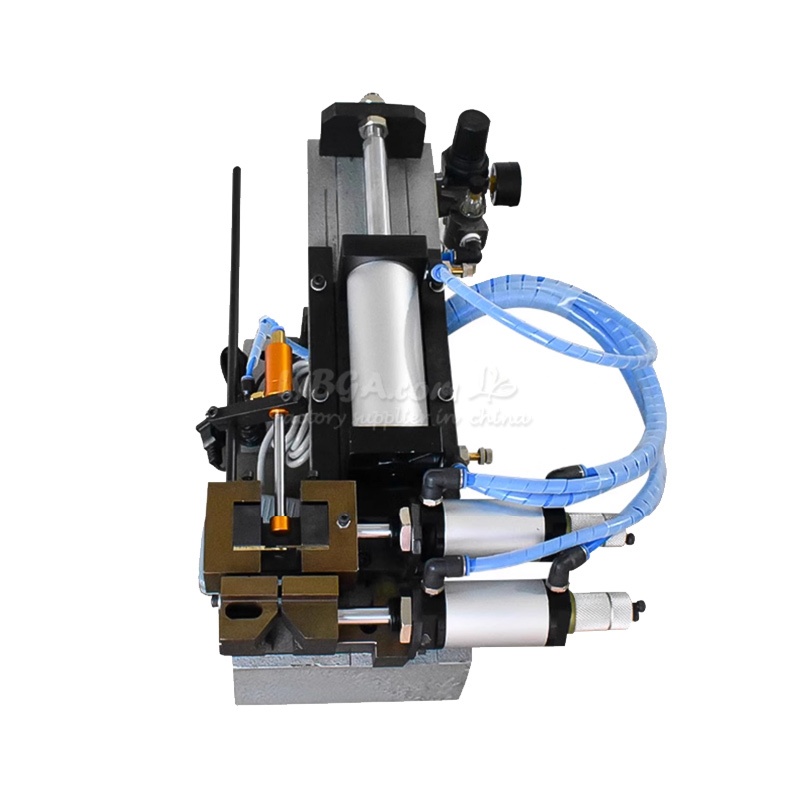

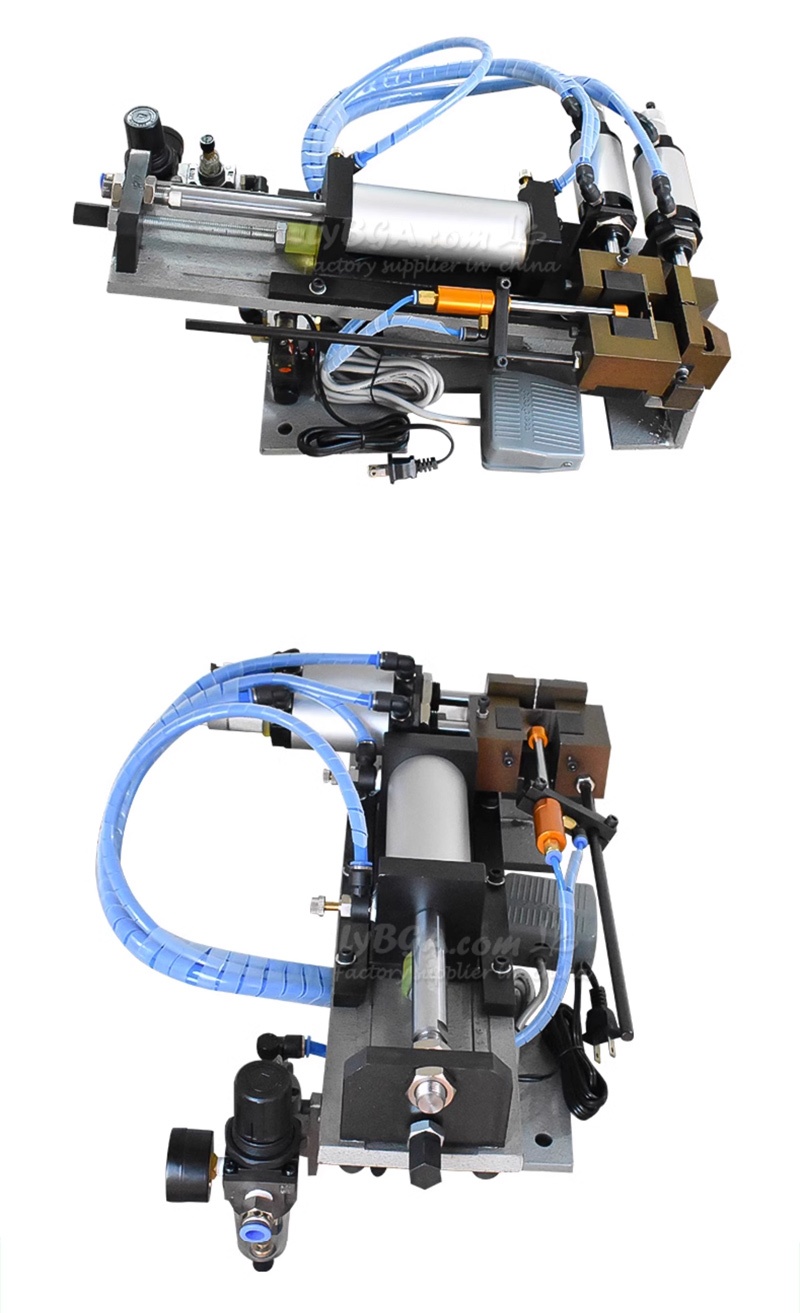

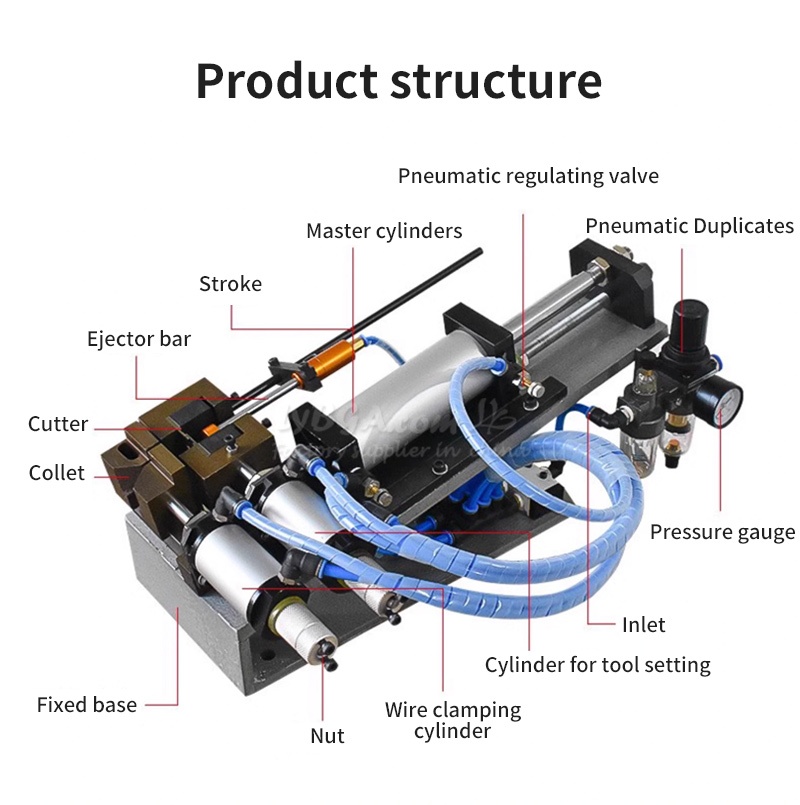

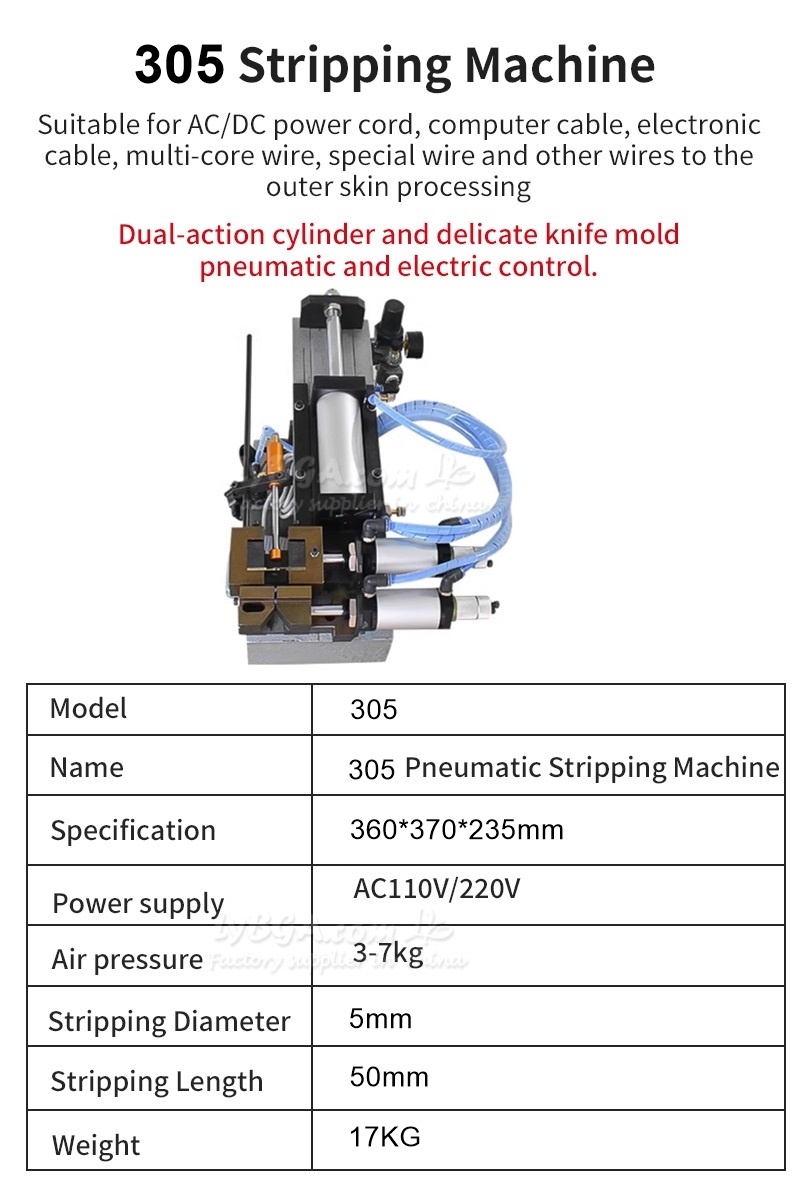

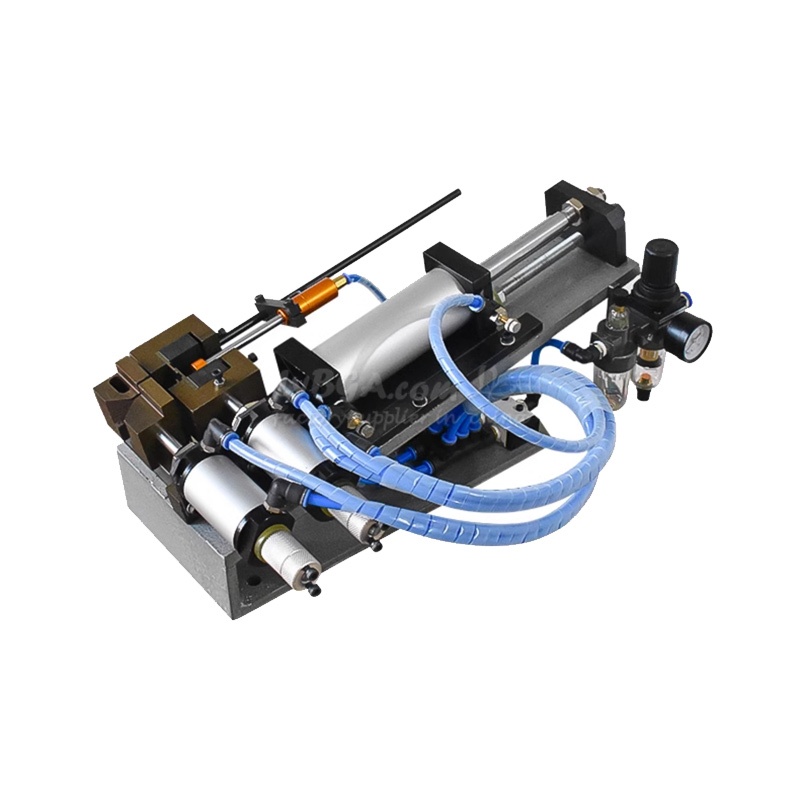

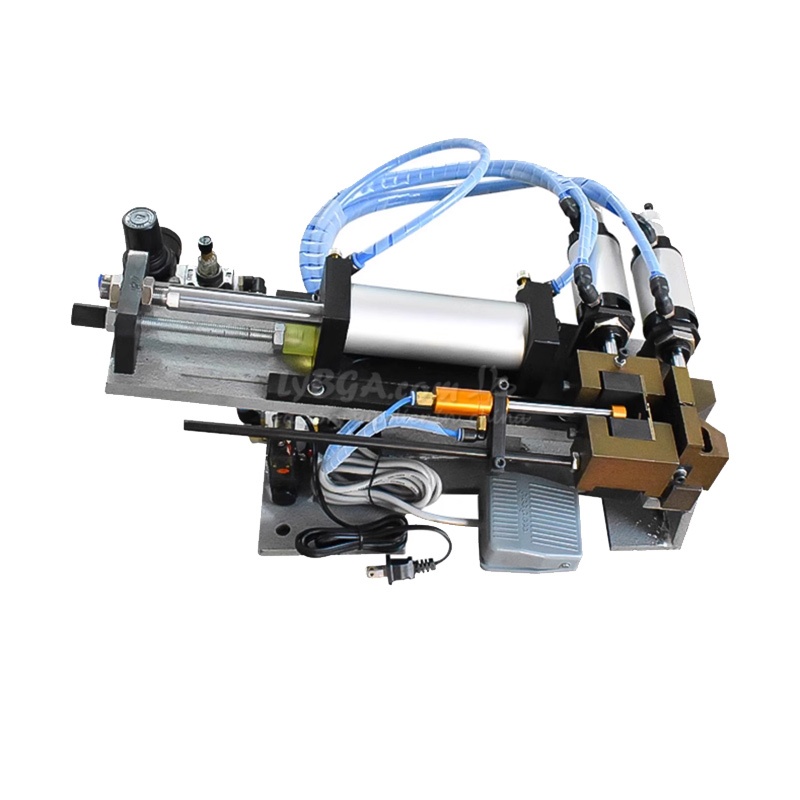

Model LY-305

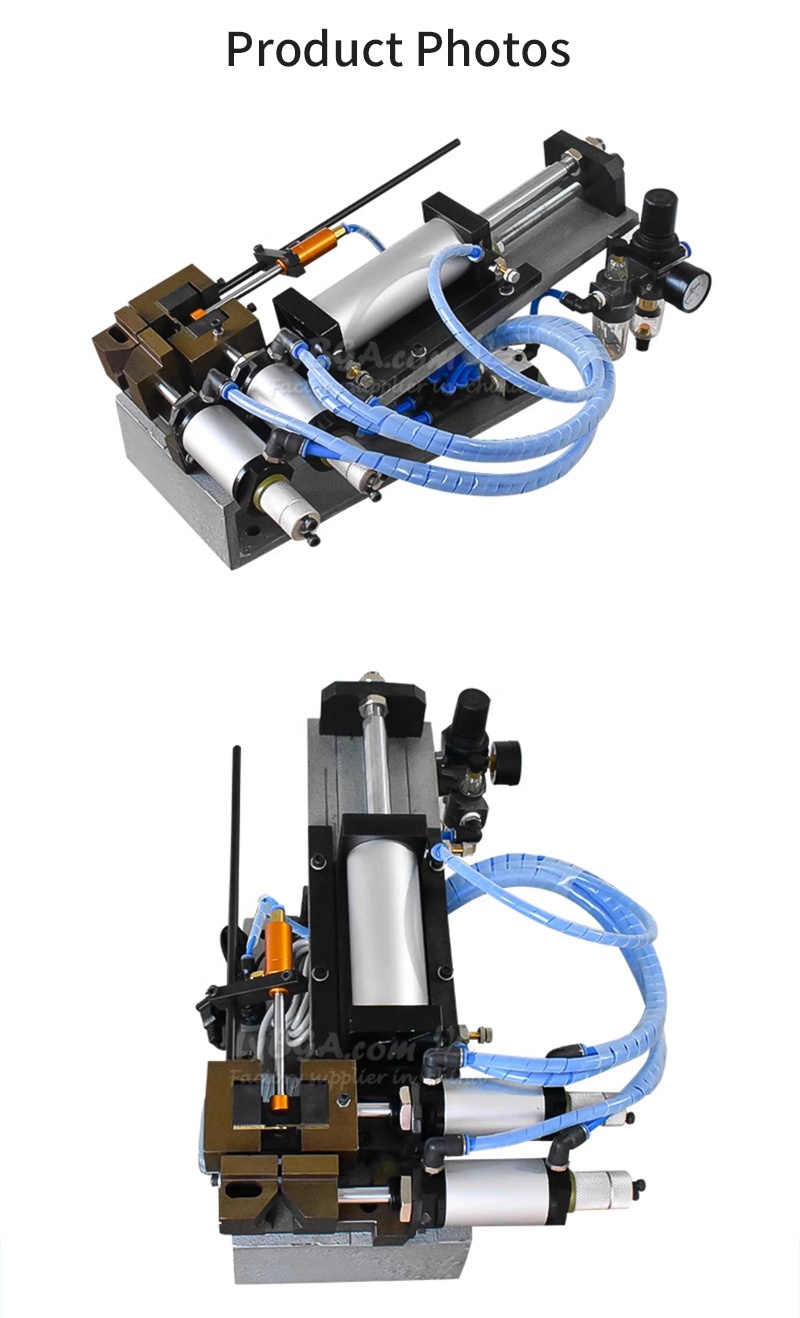

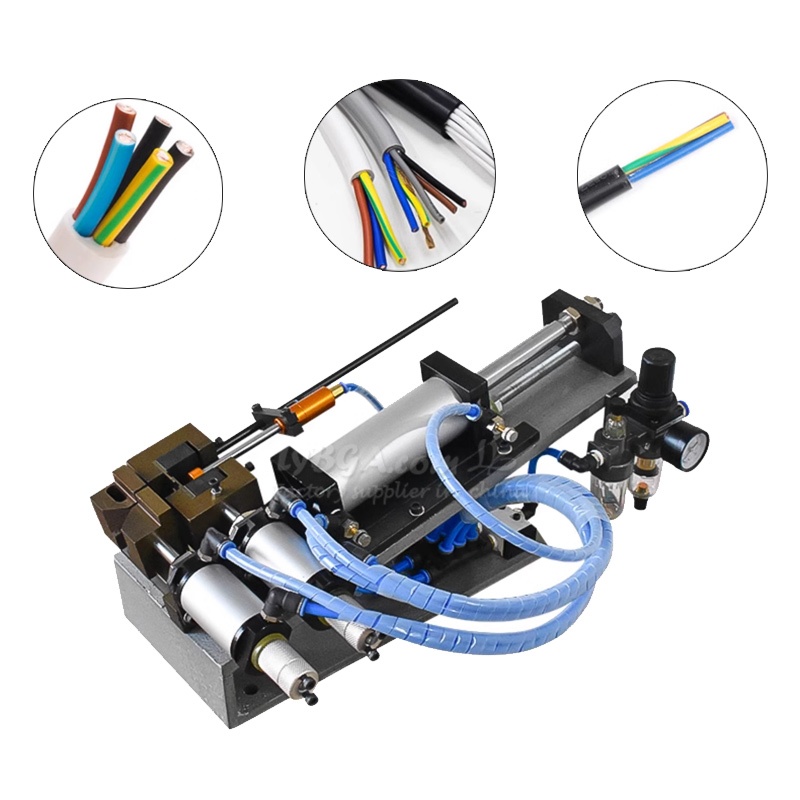

Name 305 Pneumatic Stripping Machine
Specification 360*370*235mm
Power supply AC110V/220V
Air pressure 3-7kg
Stripping Diameter 5mm
Stripping Length 50mm
Weight 17KG

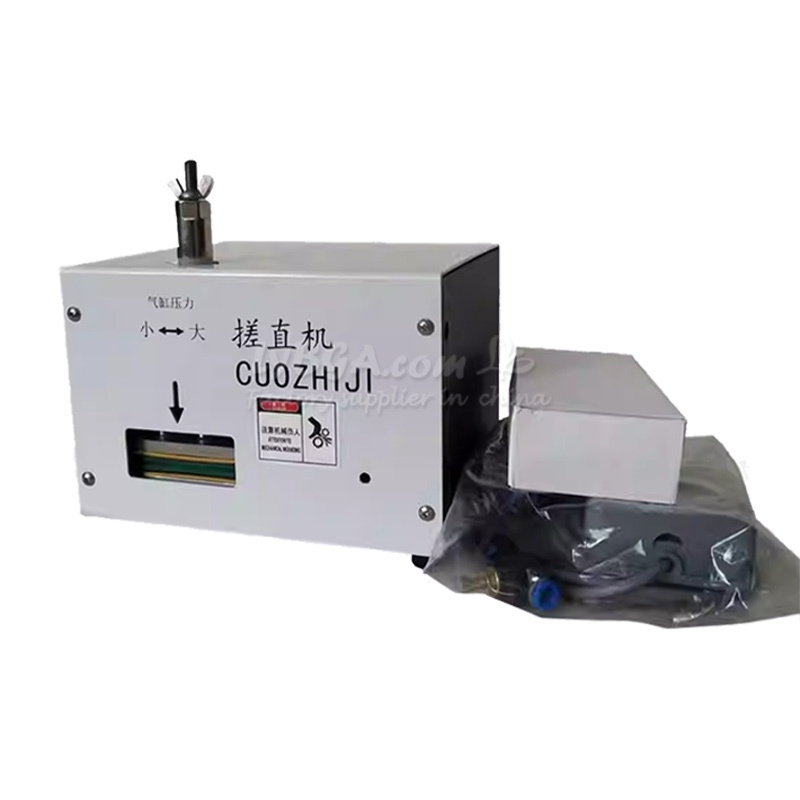

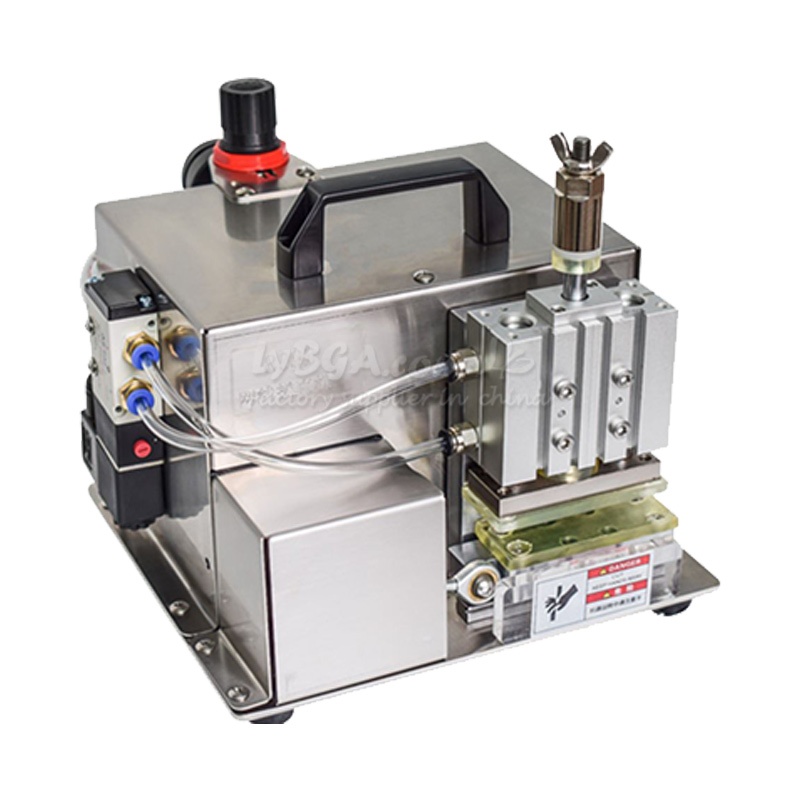

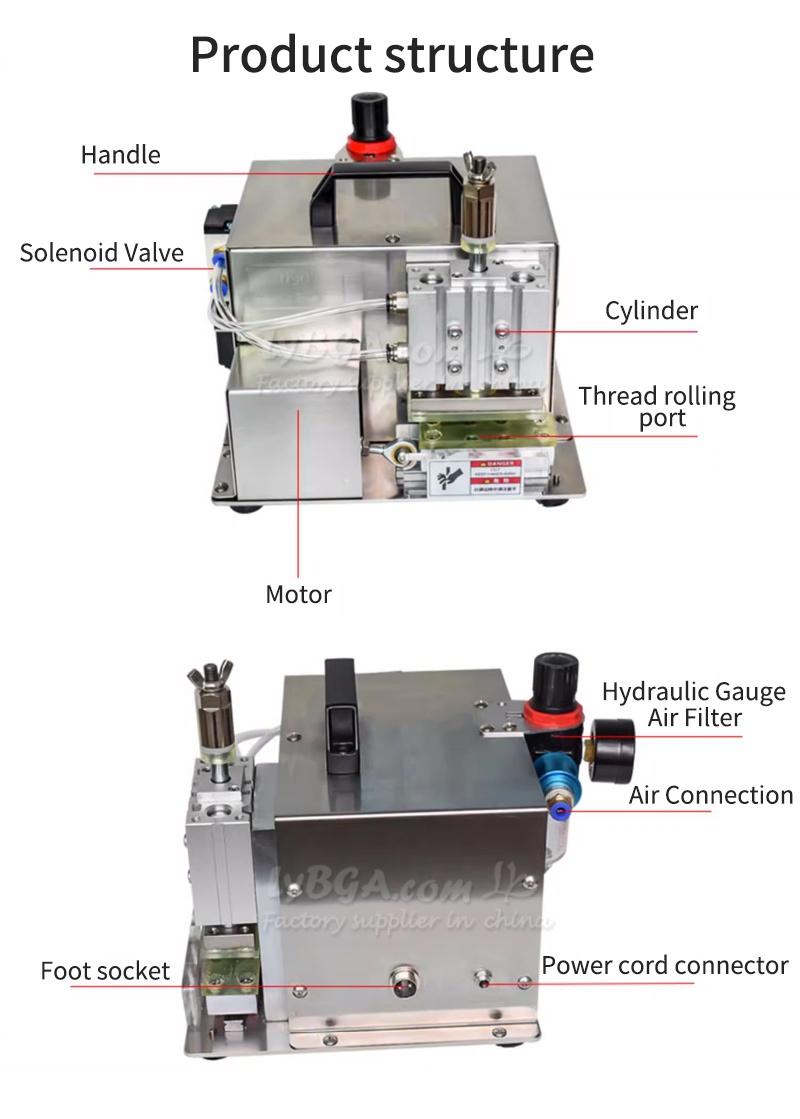

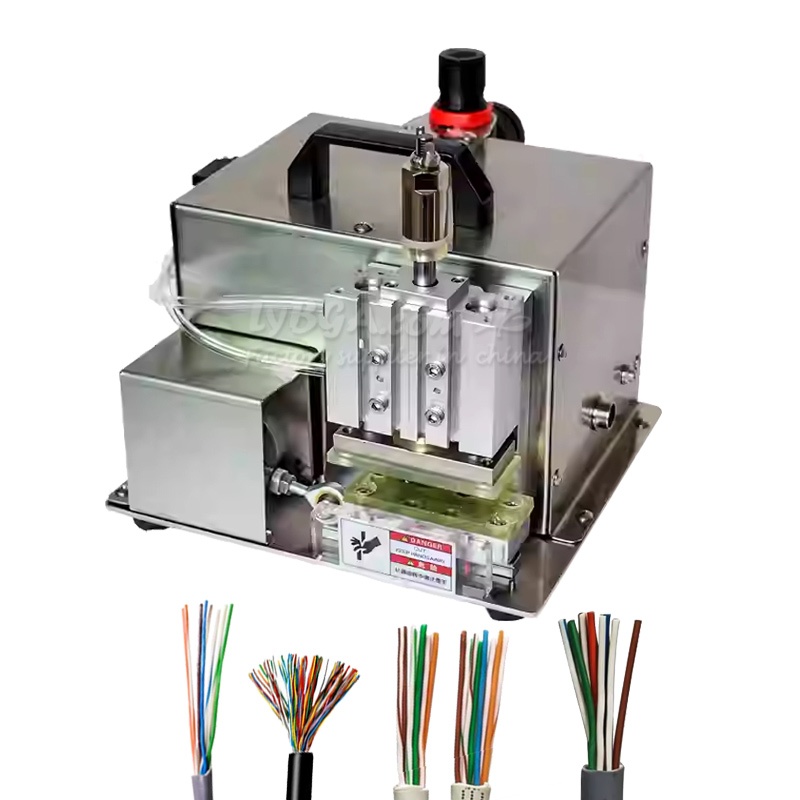

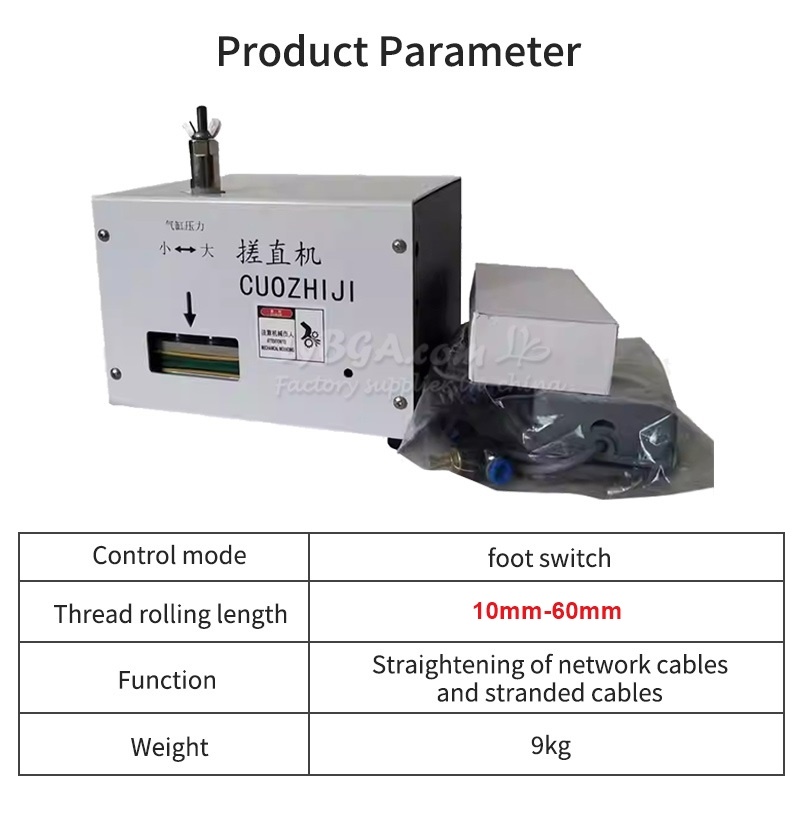

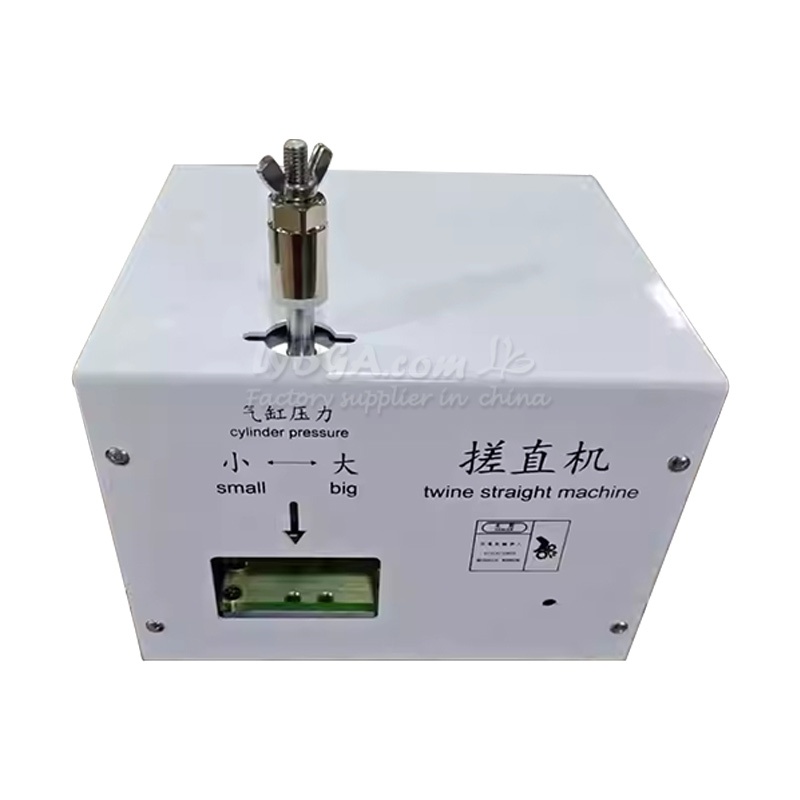

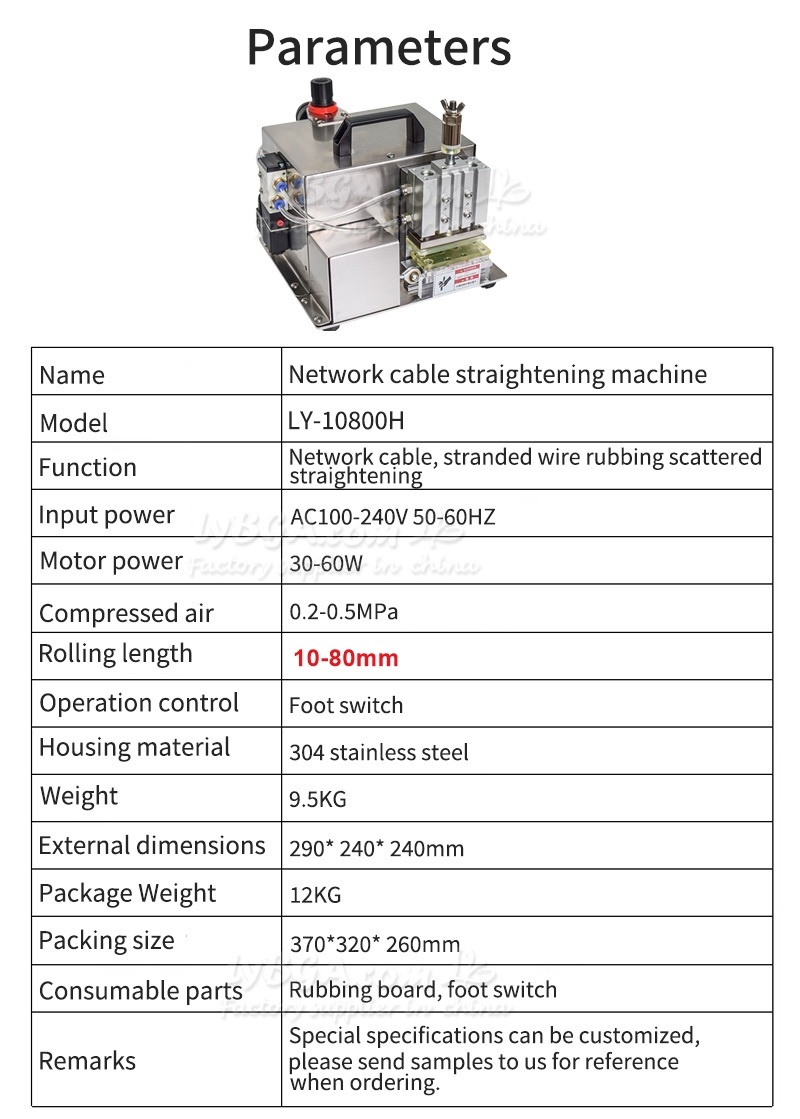

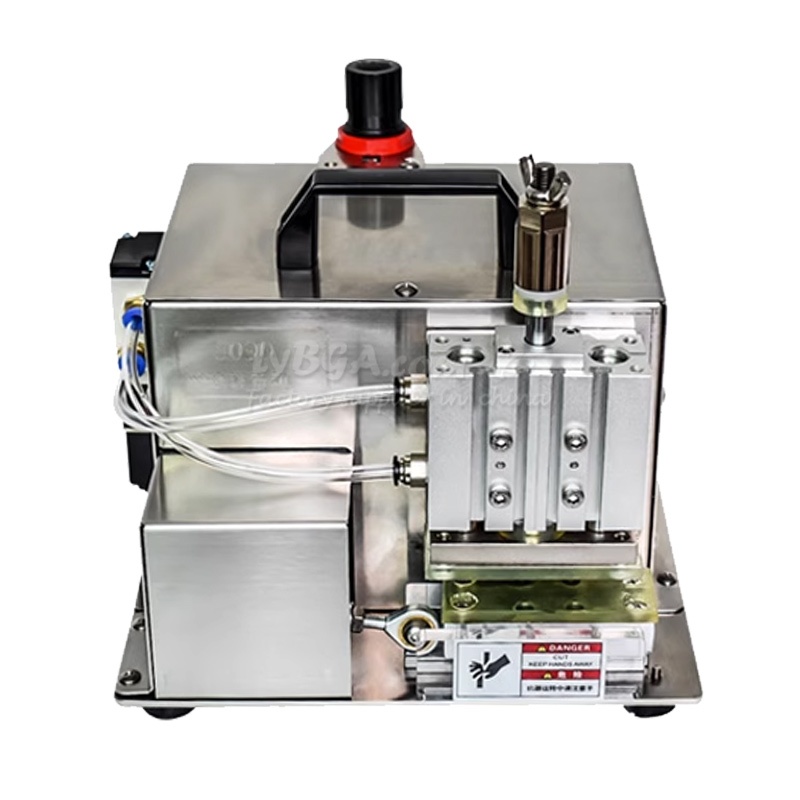

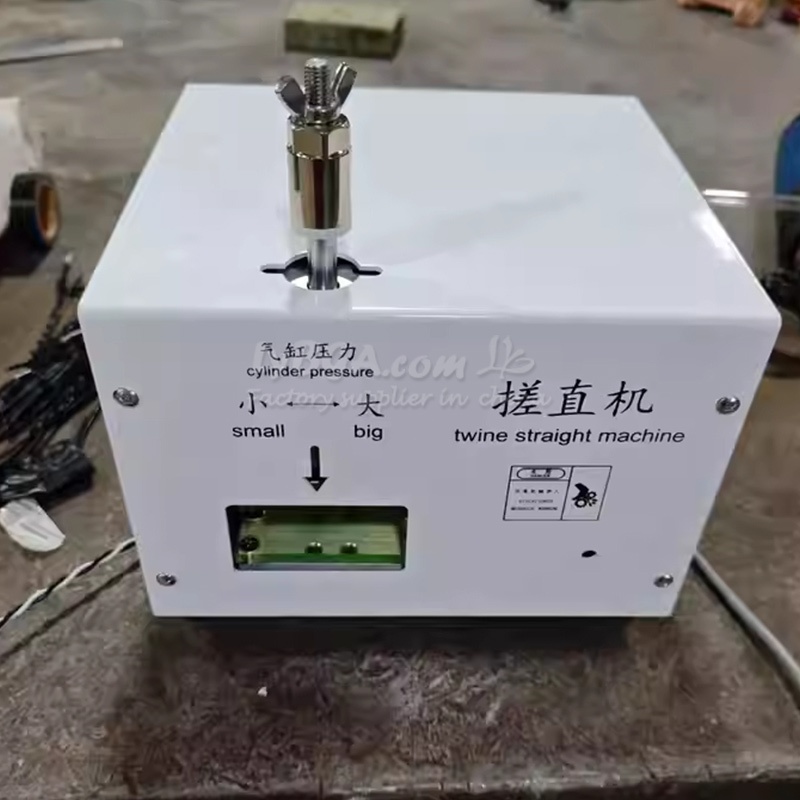

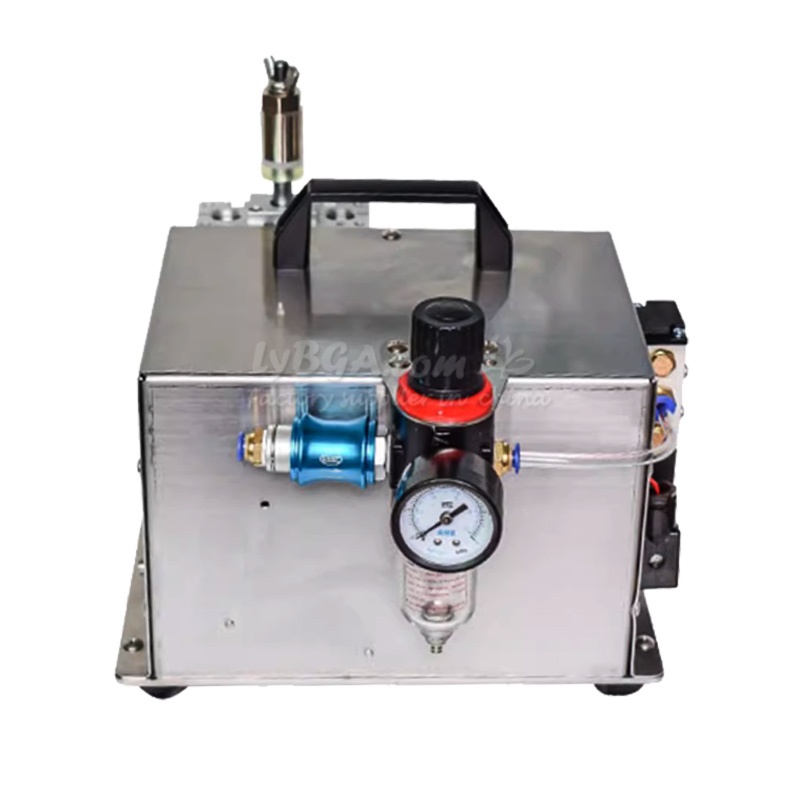

LY Network Cable Straightening Machine (Optional)
Name Network Cable Straightening Machine
Model A/B Optional

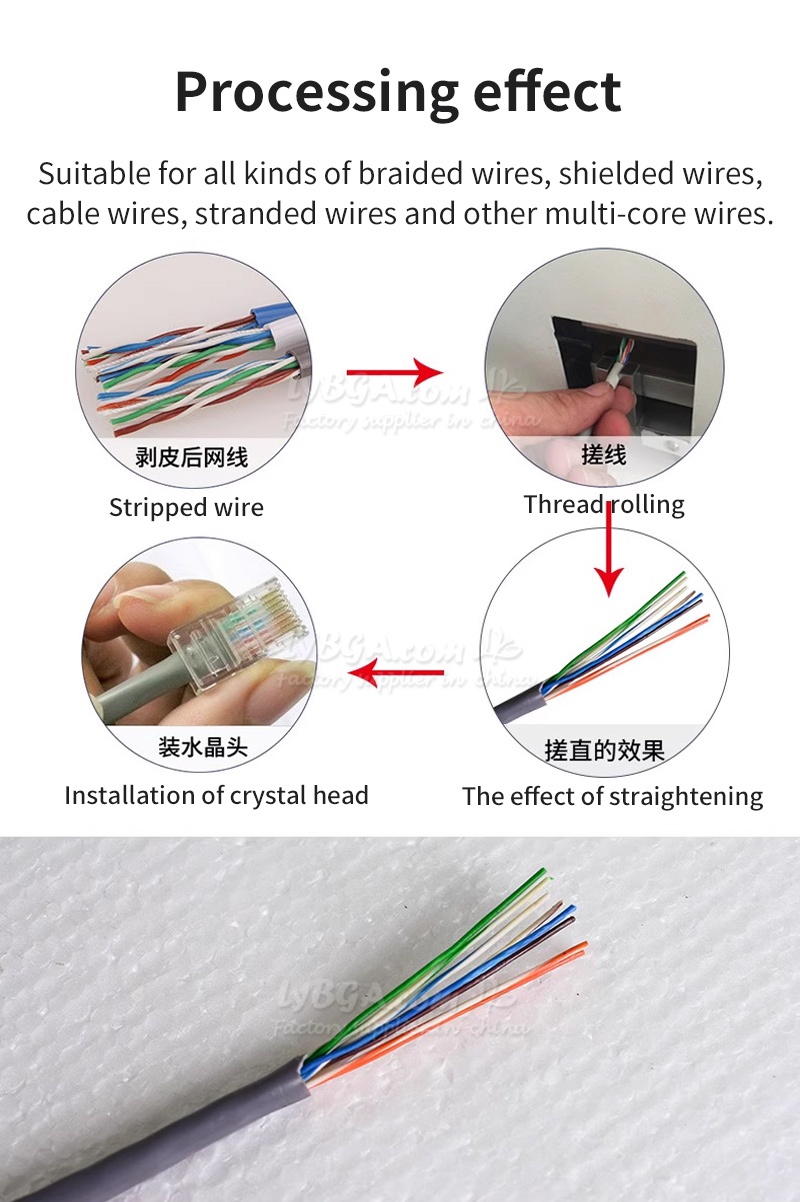

Function Network cable, stranded wire rubbing scattered straightening
Input power AC100-240V 50-60HZ
Motor power 30-60W
Compressed air 0.2-0.5MPa
Rolling length 10-60mm/10-80mm
Operation control Foot switch
Housing material 304 stainless steel
Weight 9.5KG
External dimensions 290* 240* 240mm
Package Weight 12KG
Packing size 370*320* 260mm
Consumable parts Rubbing board, foot switch
Remarks Special specifications can be customized, please send samples to us for reference when ordering.

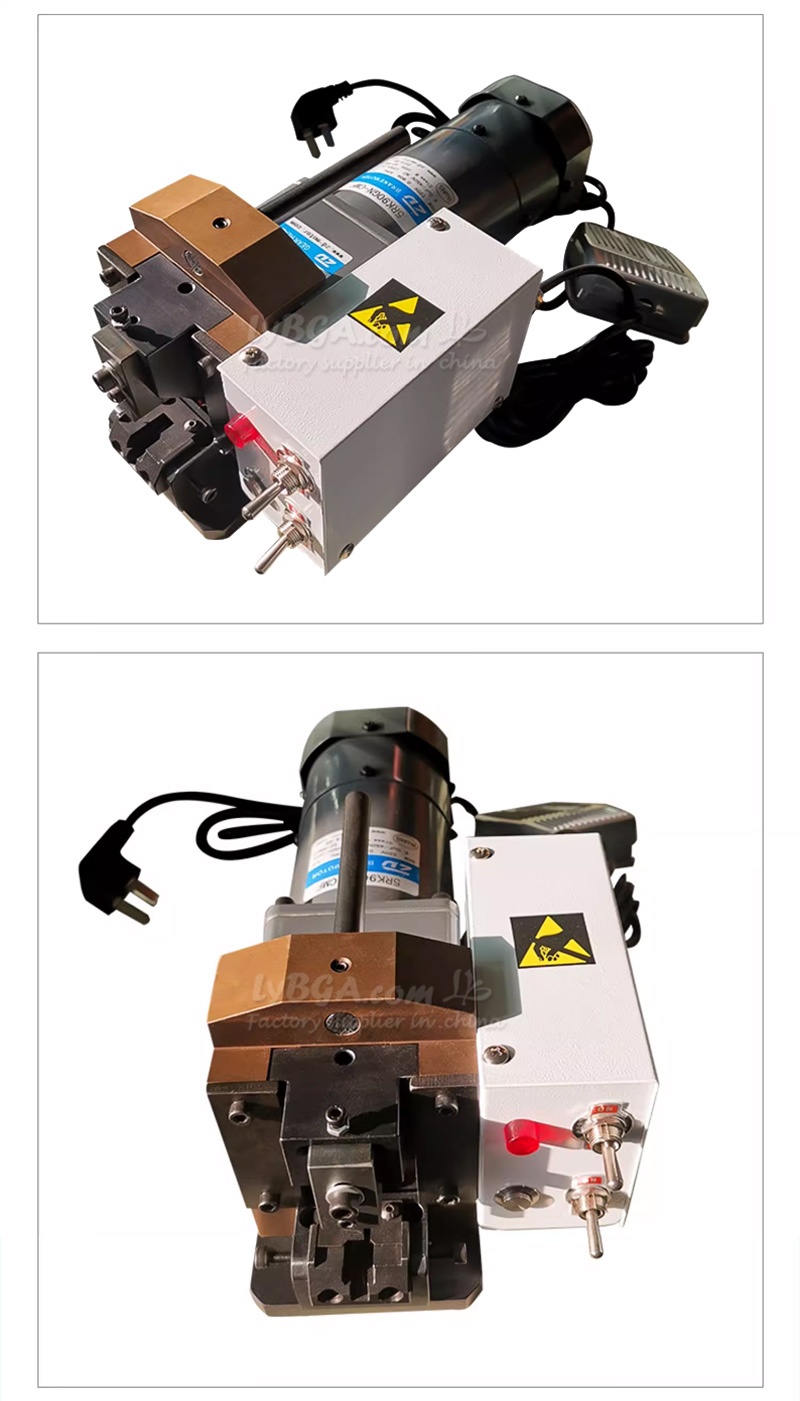

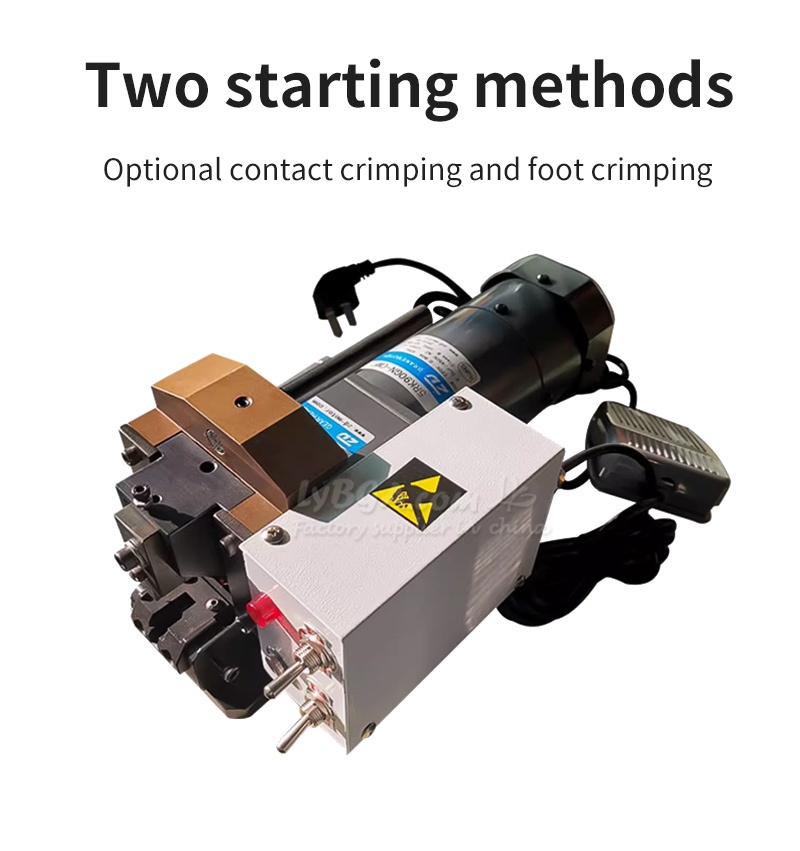

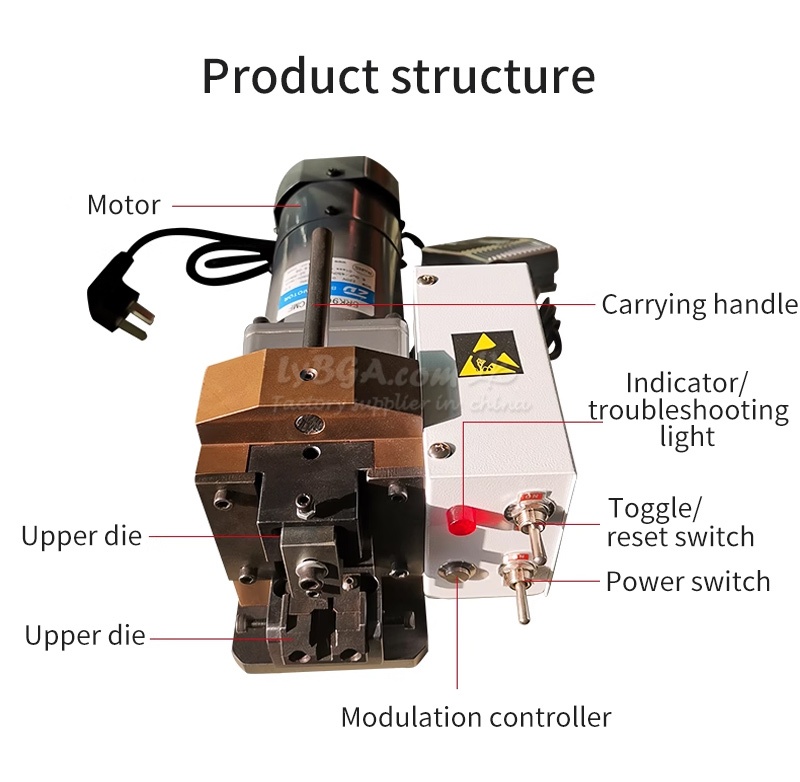

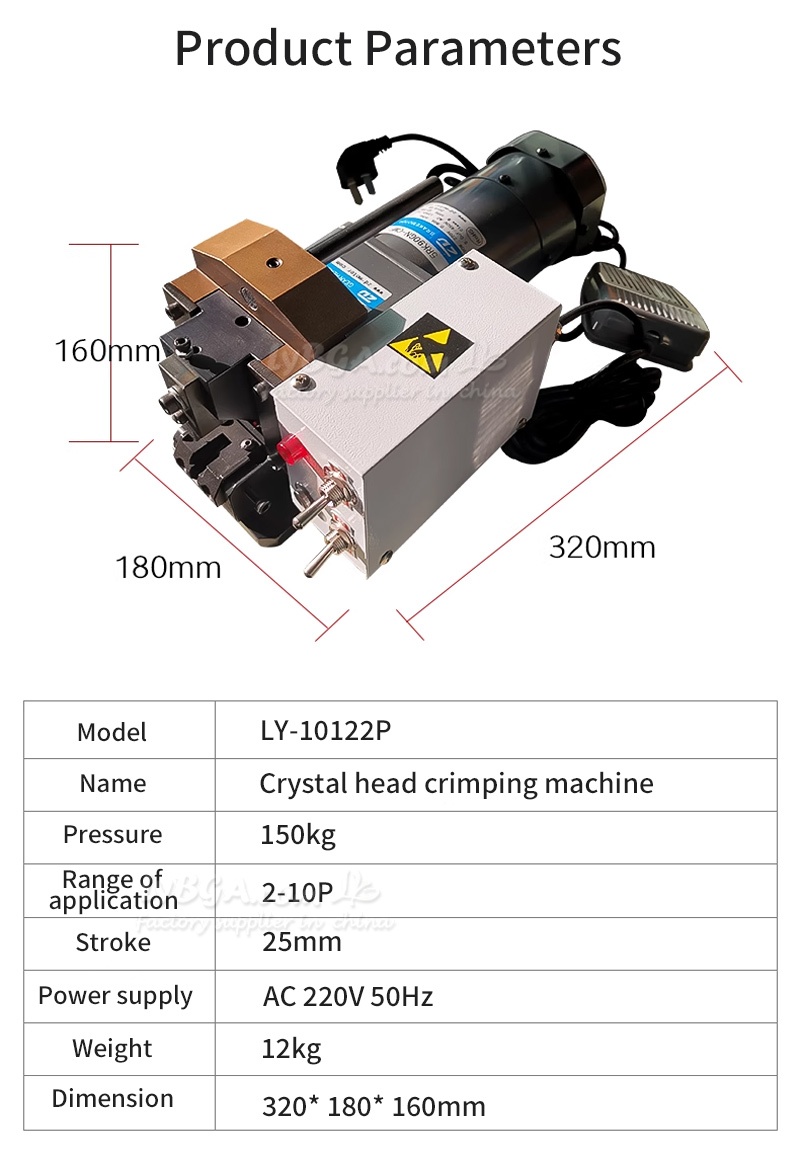

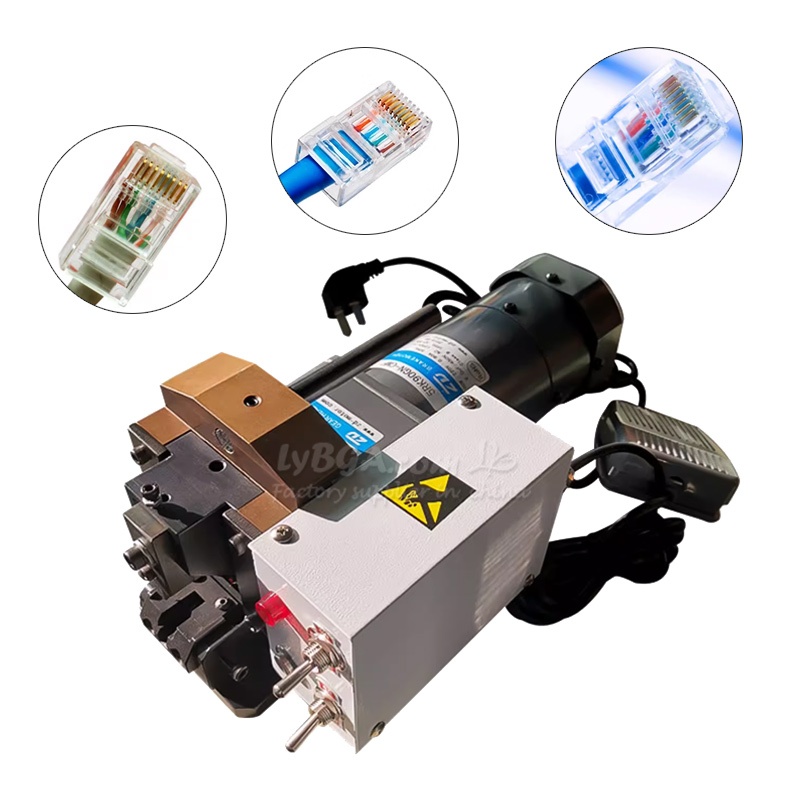

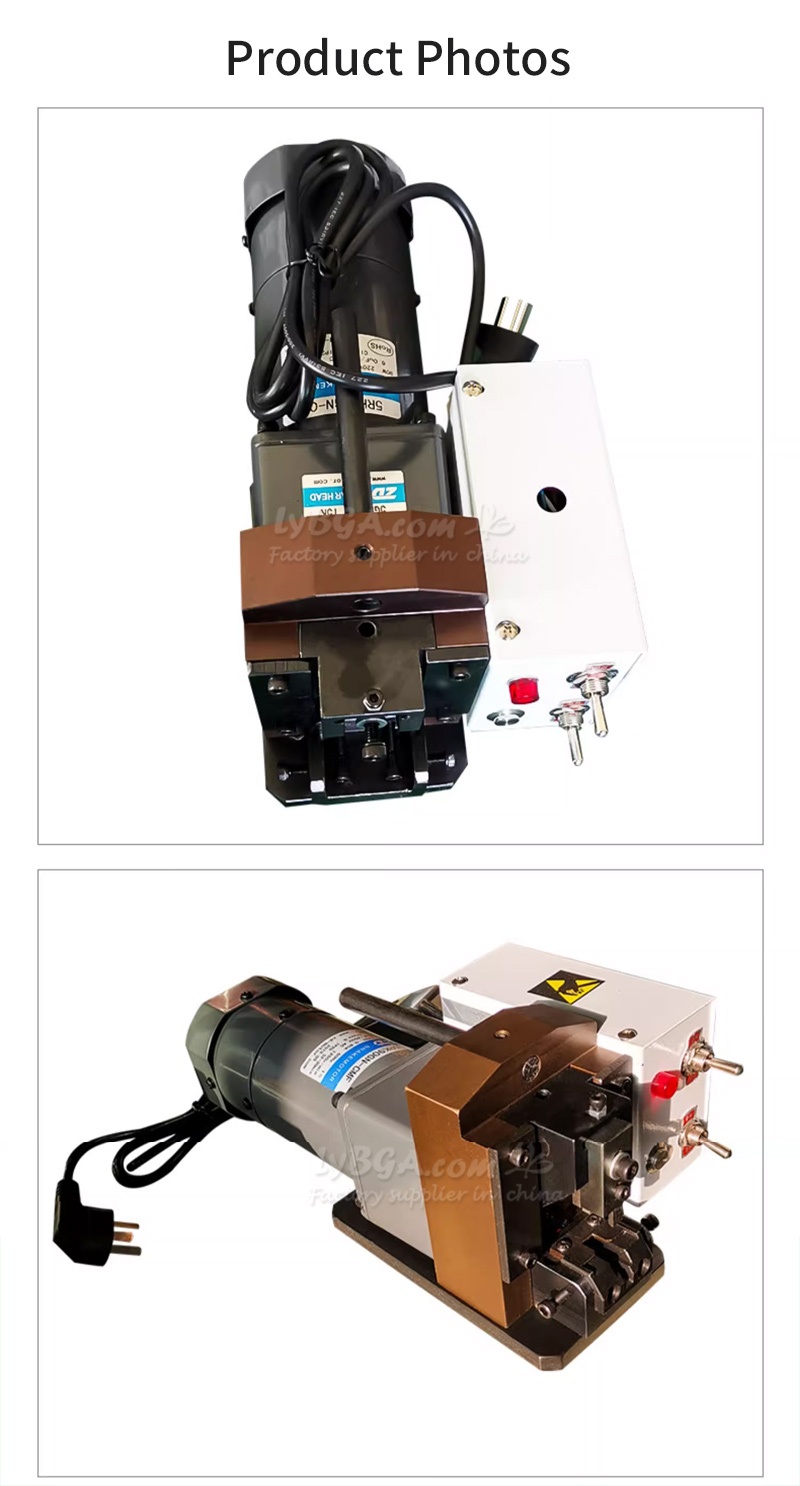

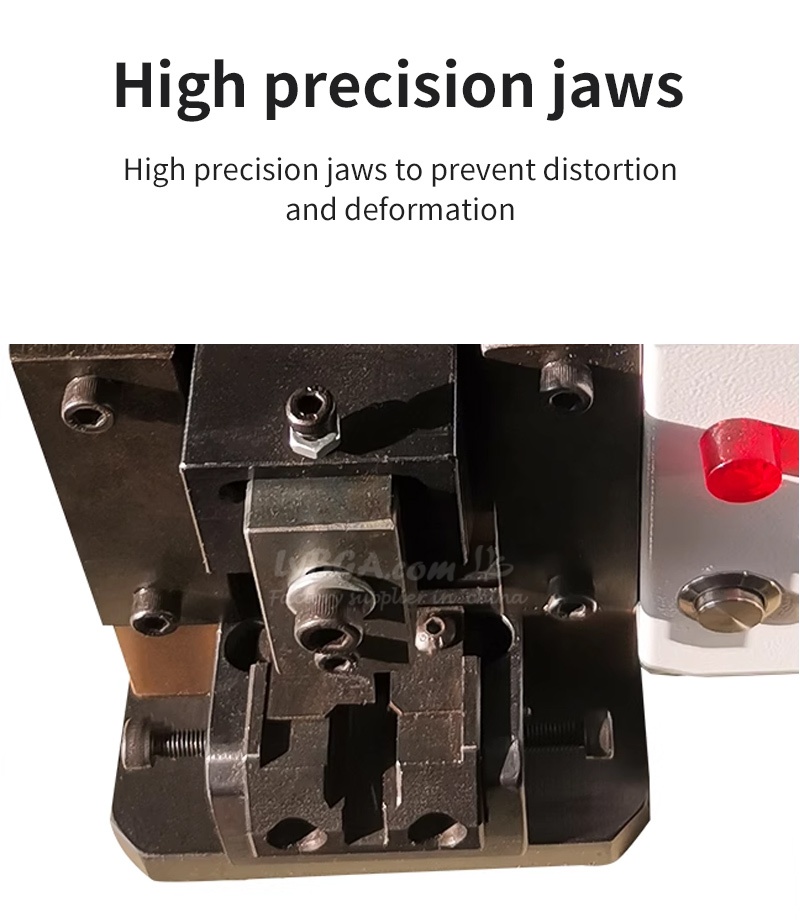

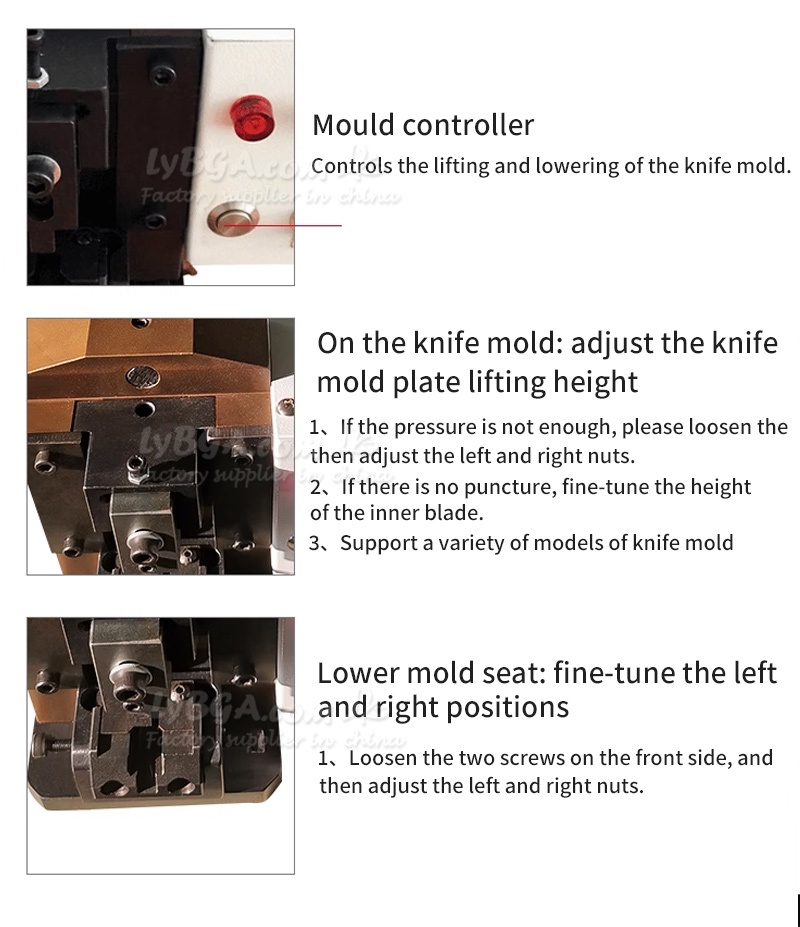

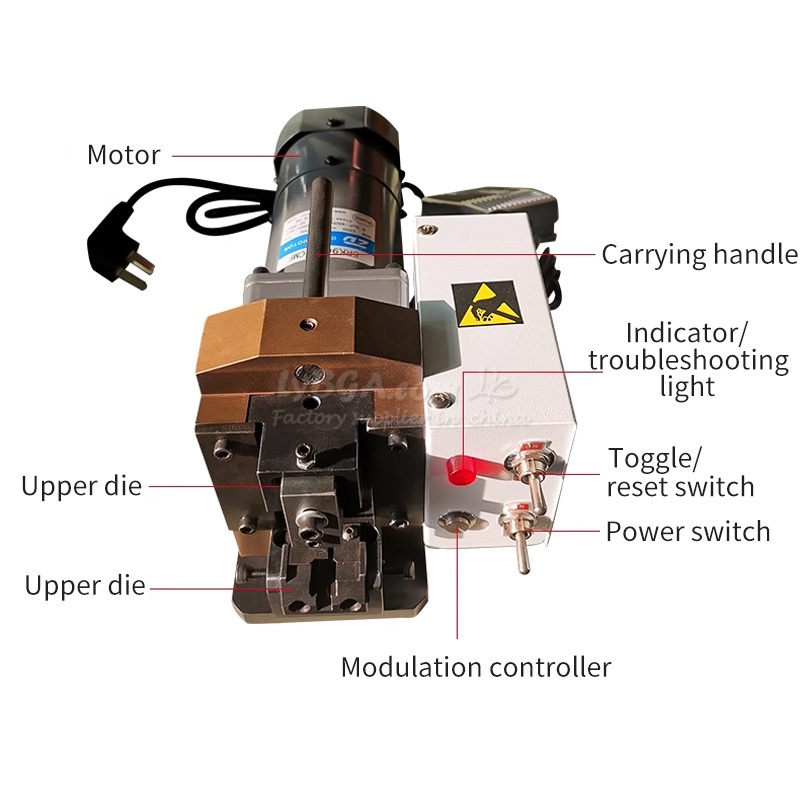

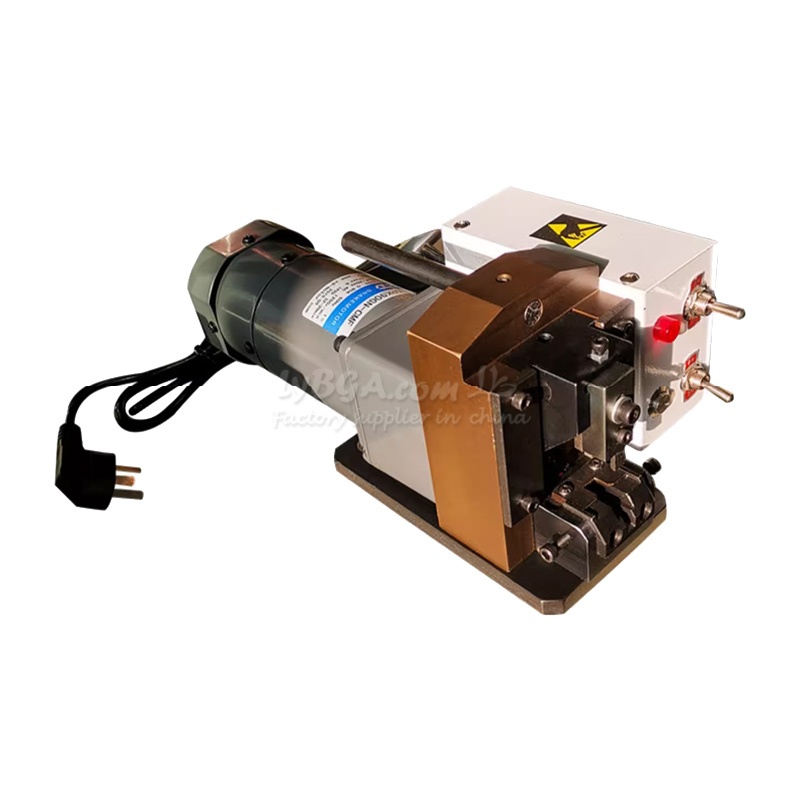

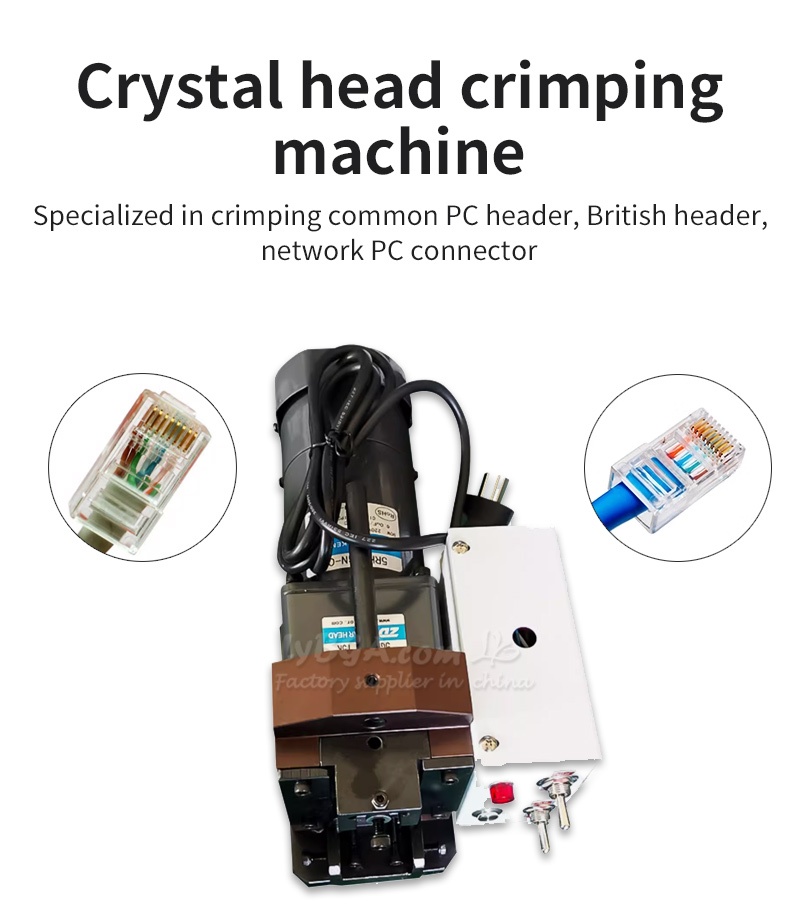

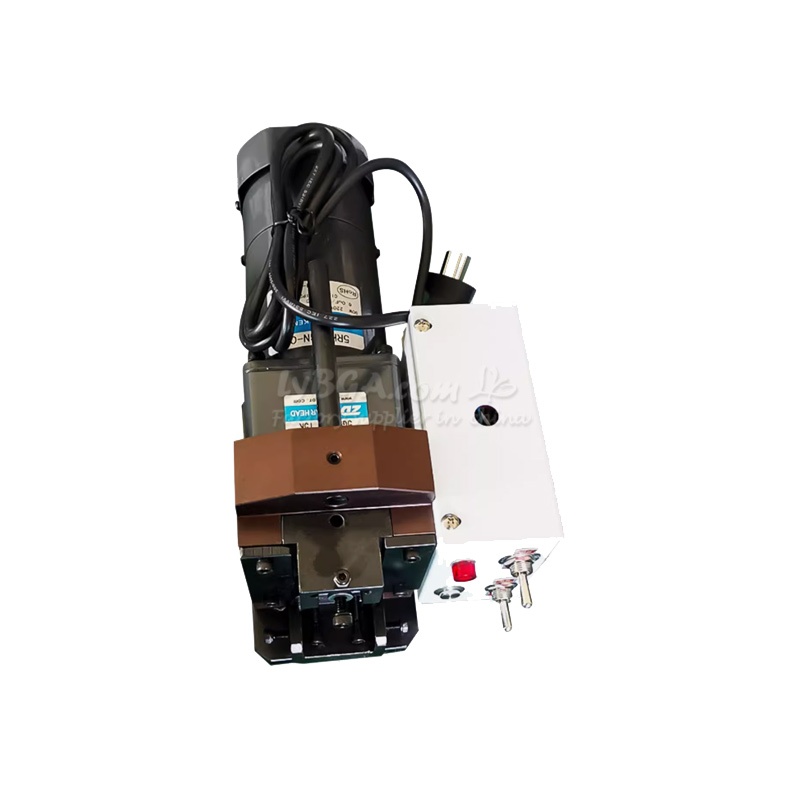

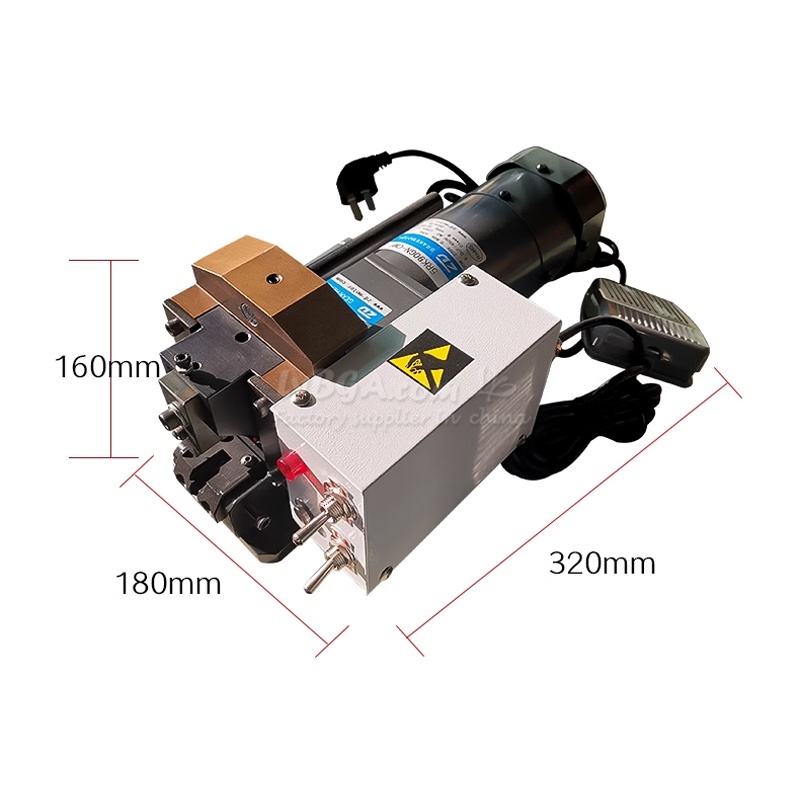

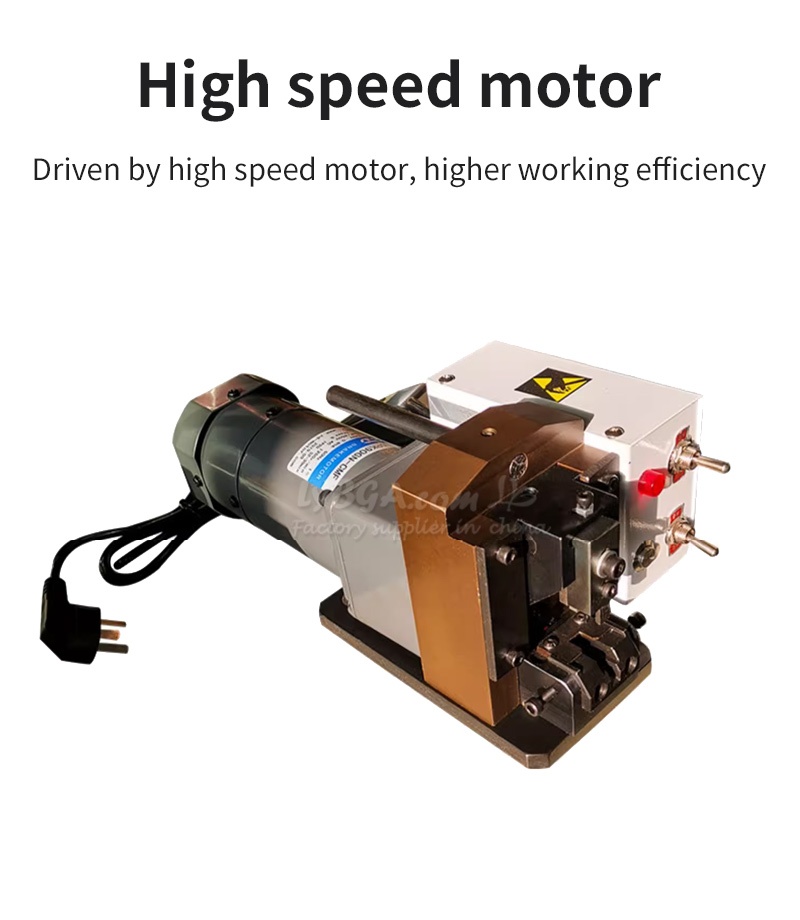

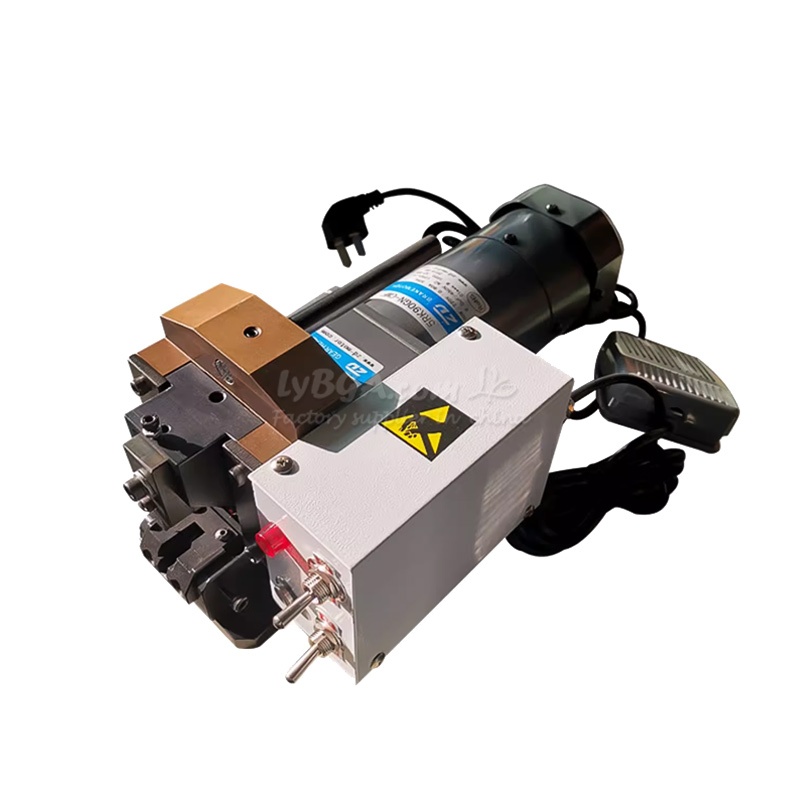

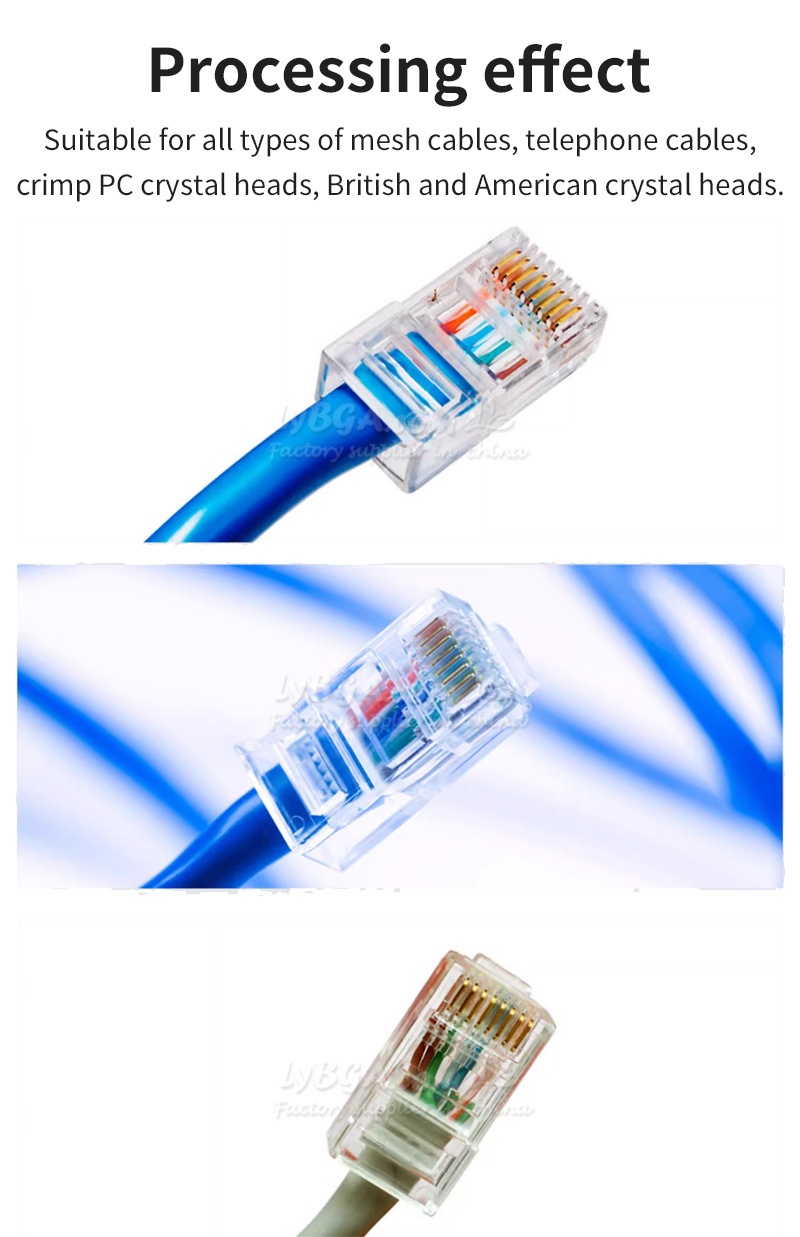

LY Crystal head crimping machine Parameter
Model LY-10122P
Name Crystal head crimping machine
Pressure 150kg

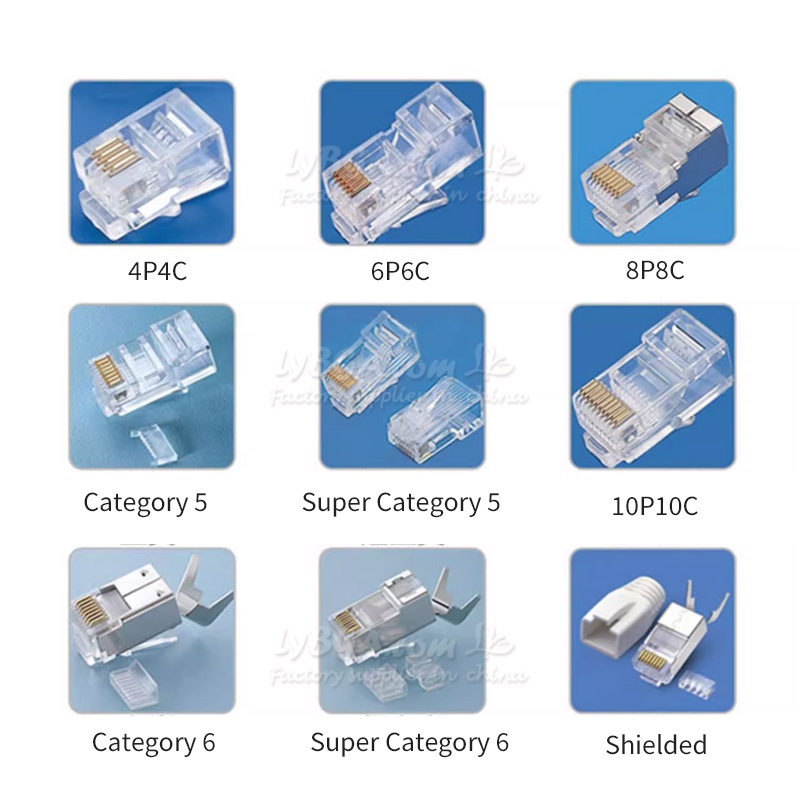

Range of application 2-10P
Stroke 25mm
Power supply AC 220V 50Hz
Weight 12kg
Dimension 320* 180* 160mm
