Pulse Laser Cleaning Machine 300W 200W 100W Industrial Rust Removal Device Backpack Type Does not Damage The Substrate Cleaner For Oil Wood Metal Gold Coatings Rust
Reviews(0)
Product Detail
Product Tags

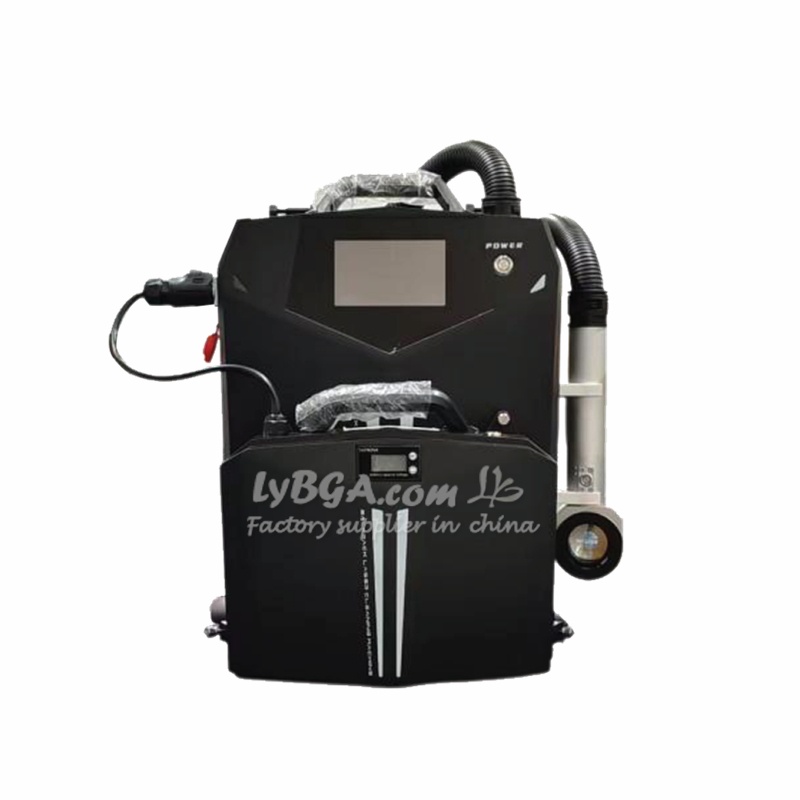

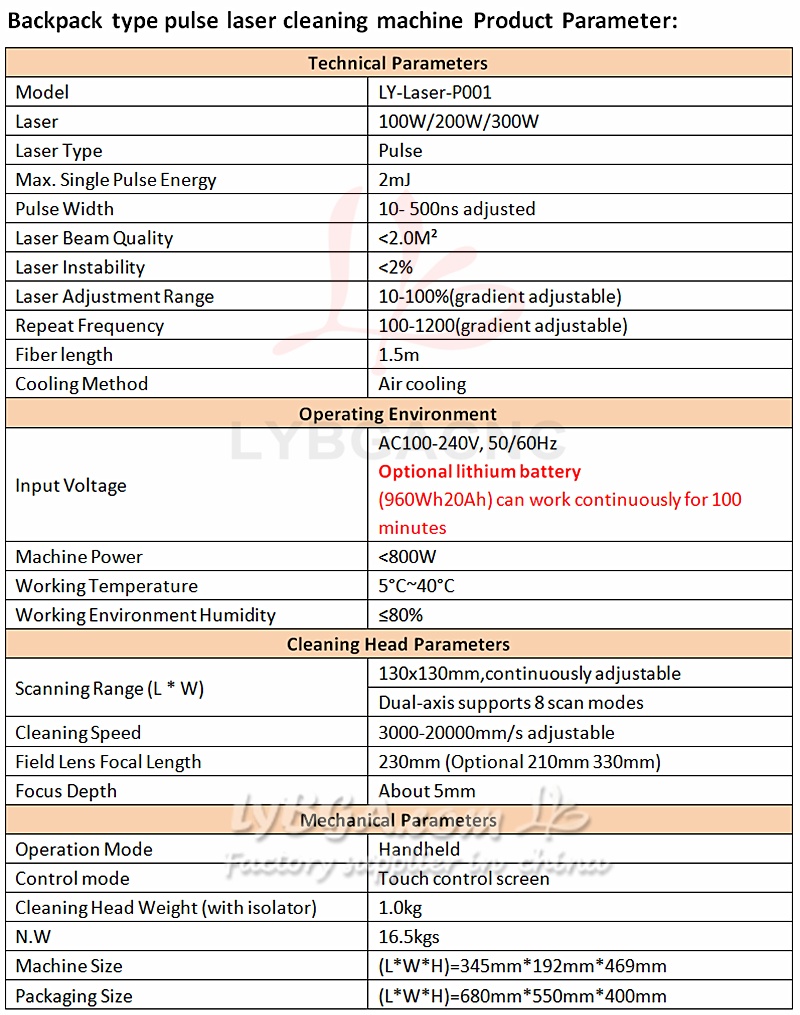

Backpack type pulse laser cleaning machine Product Parameter:
|
Technical Parameters |
|
|
Model |
LY-Laser-P001 |
|
Laser |
100W/200W/300W |
|
Laser Type |
Pulse |
|
Max. Single Pulse Energy |
2mJ |
|
Pulse Width |
10- 500ns adjusted |
|
Laser Beam Quality |
<2.0M² |
|
Laser Instability |
<2% |
|
Laser Adjustment Range |
10-100%(gradient adjustable) |
|
Repeat Frequency |
100-1200(gradient adjustable) |
|
Fiber length |
1.5m |
|
Cooling Method |
Air cooling |
|
Operating Environment |
|
|
Input Voltage |
AC100-240V, 50/60Hz Optional lithium battery (960Wh20Ah) can work continuously for 100 minutes |
|
Machine Power |
<800W |
|
Working Temperature |
5°C~40°C |
|
Working Environment Humidity |
≤80% |
|

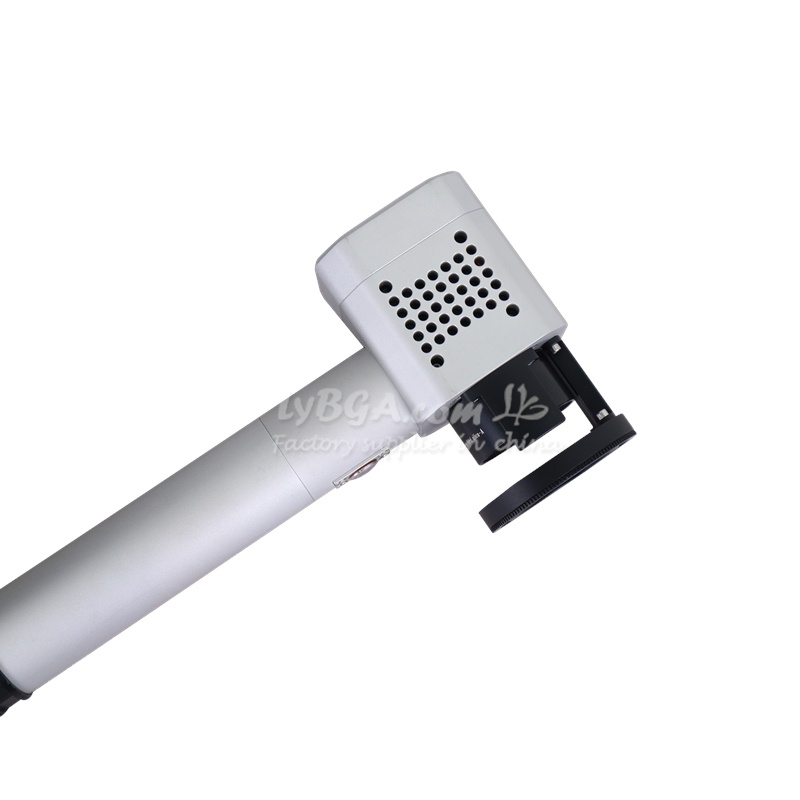

Cleaning Head Parameters |
|
|
Scanning Range (L * W) |
130x130mm,continuously adjustable |
|
Dual-axis supports 8 scan modes |
|
|
Cleaning Speed |
3000-20000mm/s adjustable |
|
Field Lens Focal Length |
230mm (Optional 210mm 330mm) |
|
Focus Depth |
About 5mm |
|
Mechanical Parameters |
|
|
Operation Mode |
Handheld |
|

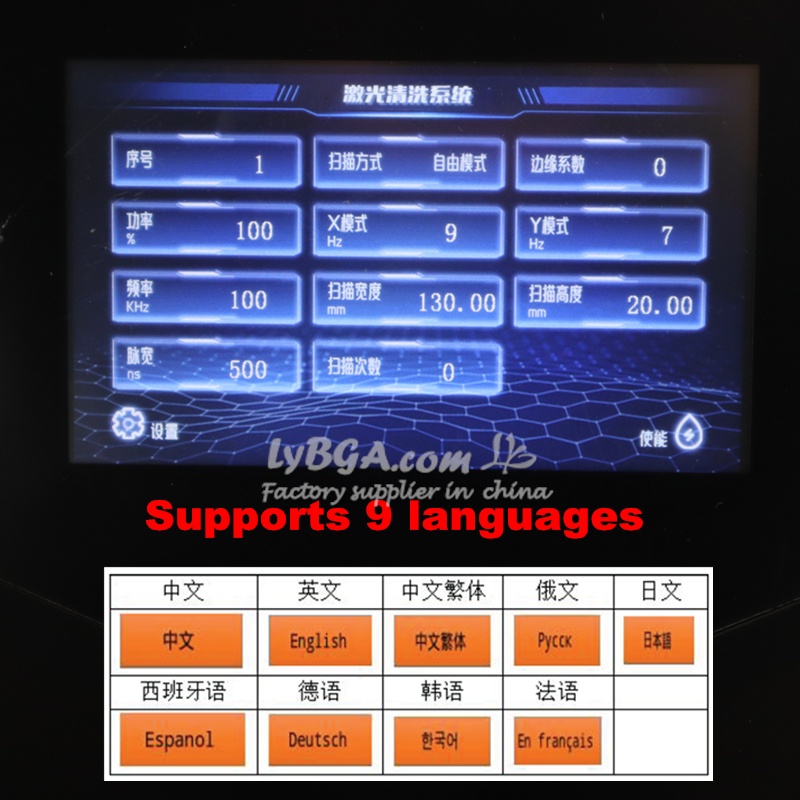

Control mode |
Touch control screen |
|
Cleaning Head Weight (with isolator) |
1.0kg |
|
N.W |
16.5kgs |
|

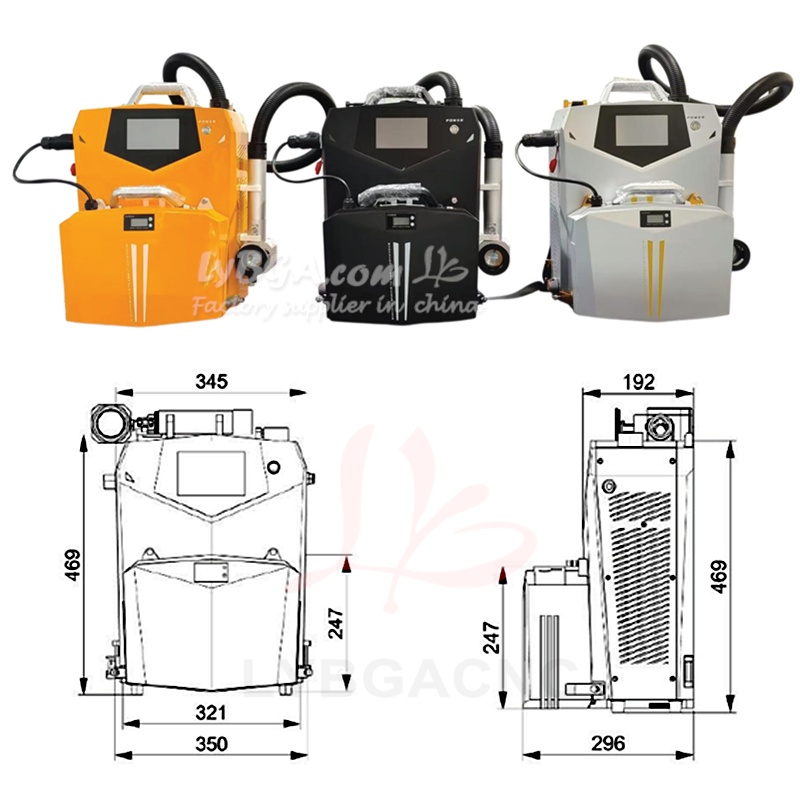

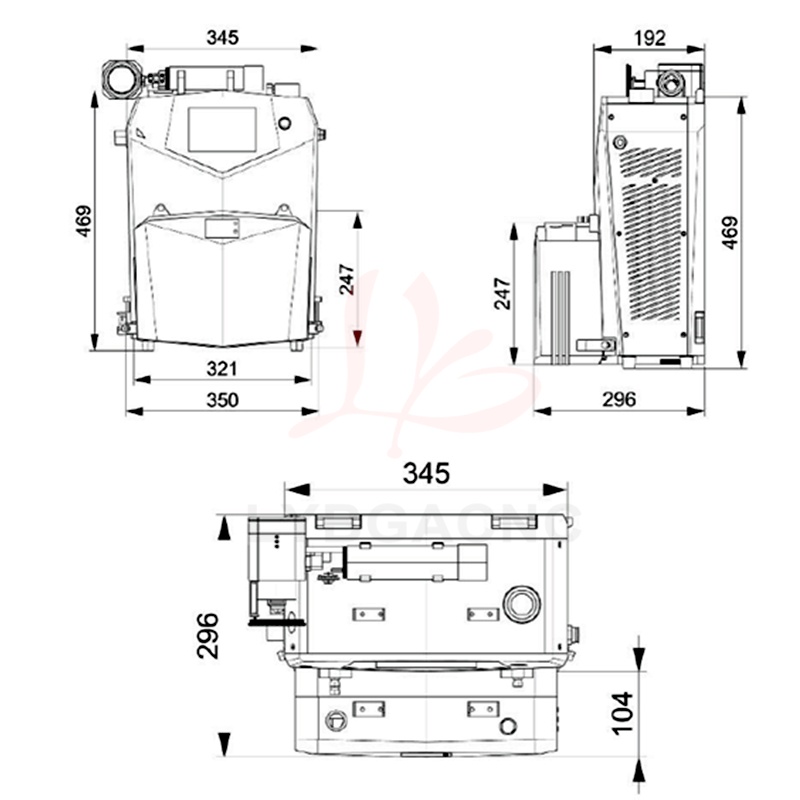

Machine Size |
(L*W*H)=345mm*192mm*469mm |
|
Packaging Size |
(L*W*H)=680mm*550mm*400mm |

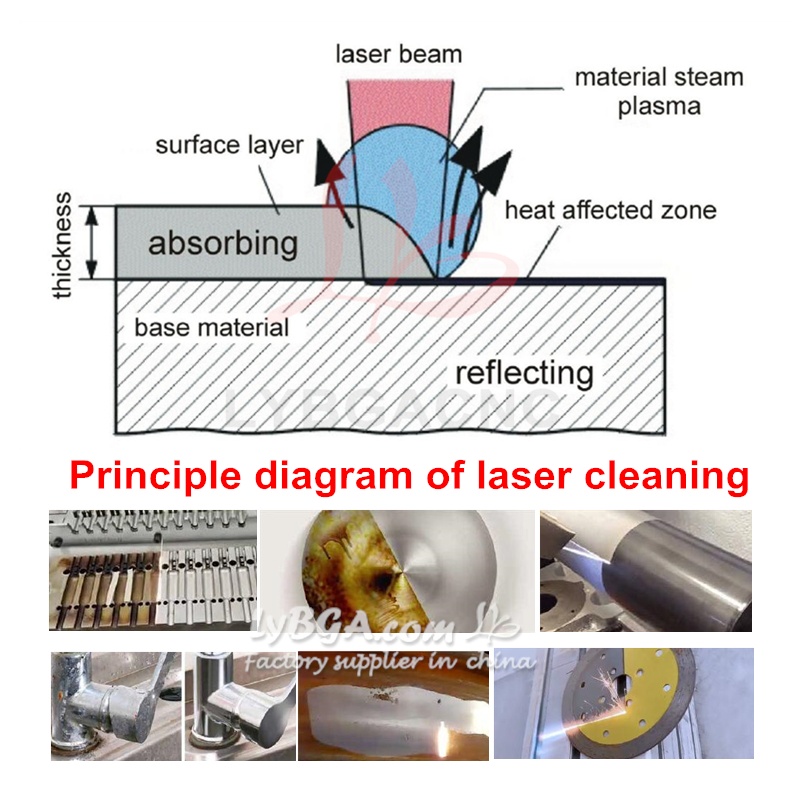

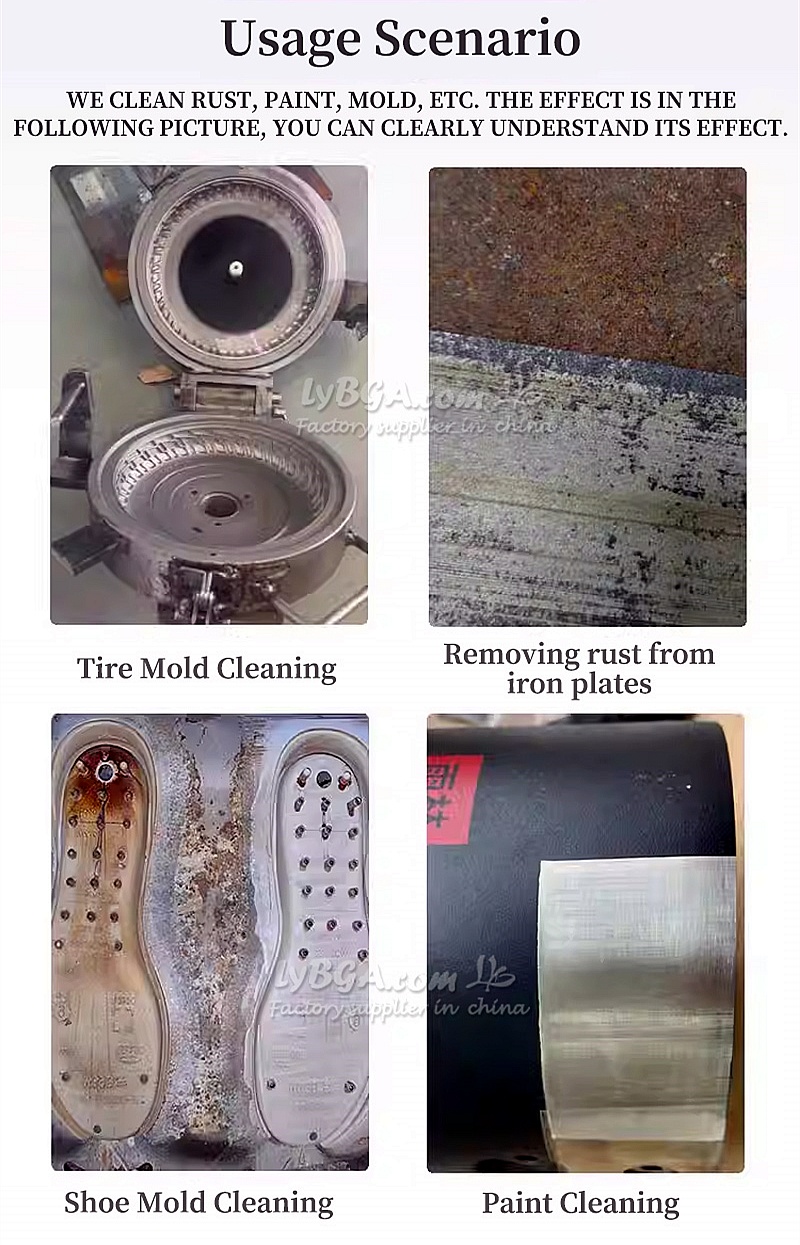

Rust, dirt, oil and oxidation removal, all in one machine

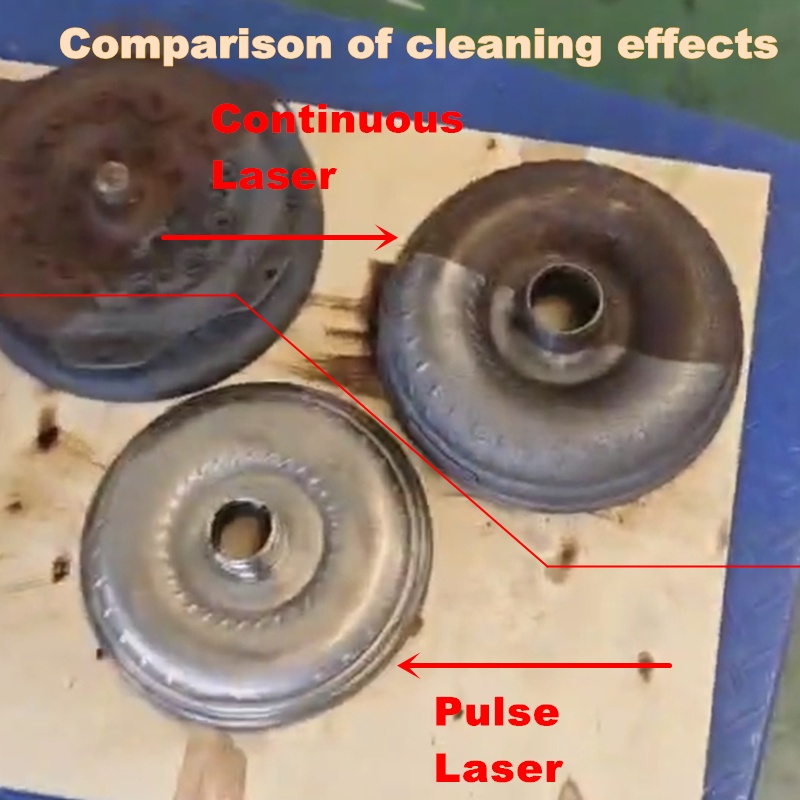

The MOPA fiber laser provides maximum protection for materials during contaminant cleaning.

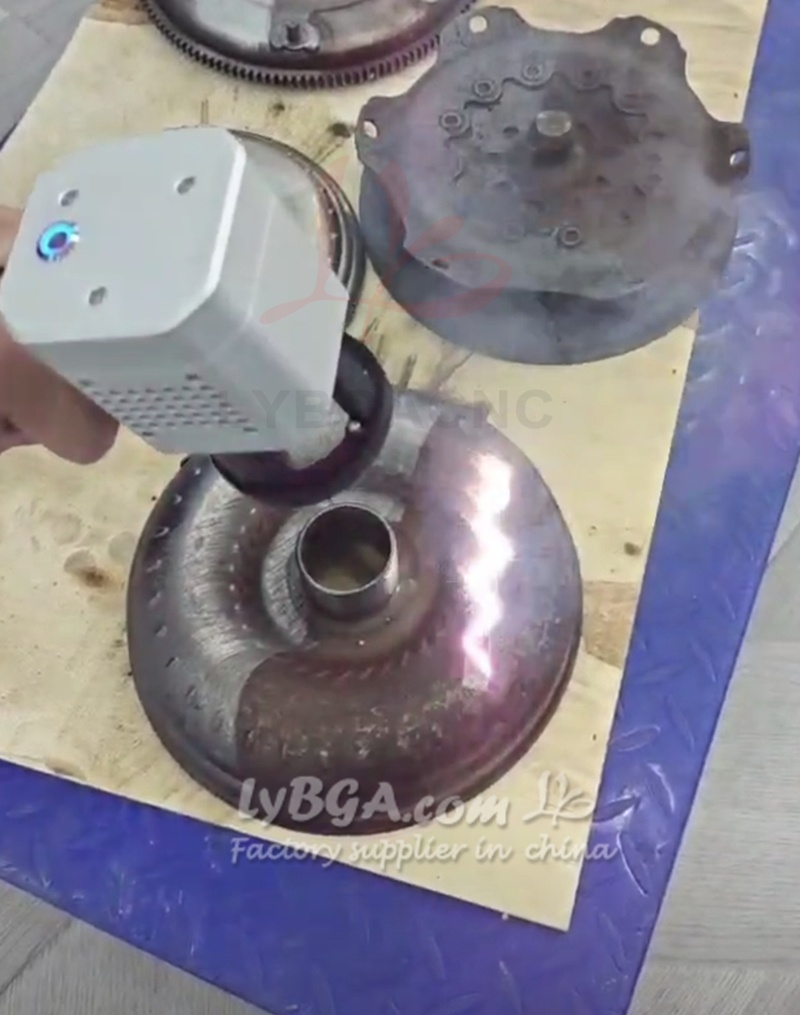

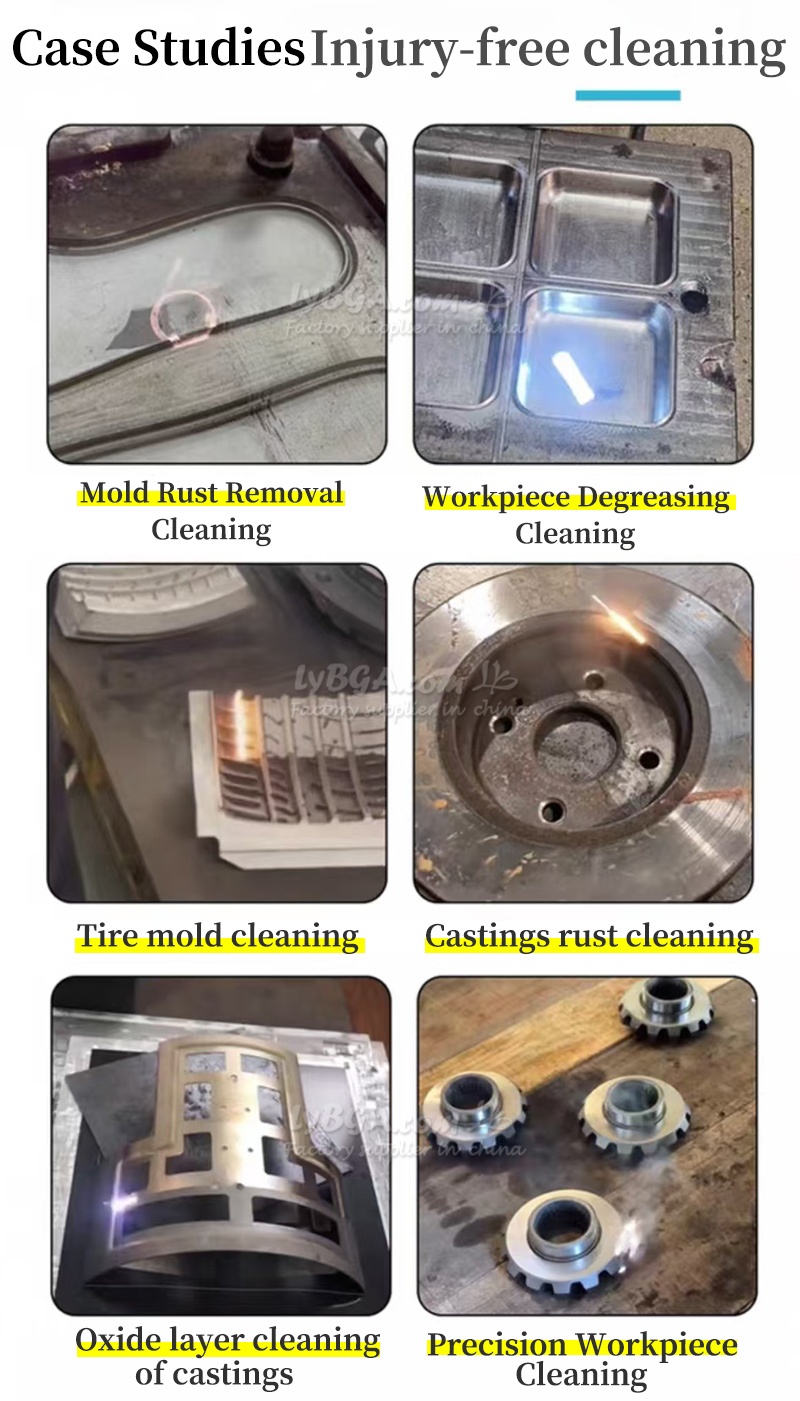

Rust Removal
Paint Layer Removal
Saw Blade Paint Removal
Shoe Mold Cleaning
Greasy dirt removal
APPLICABLE TO :
Application in shipping industry, auto parts, rubber mold, high-end machine tools, tire mold, rail, environmental protection industry, weapons and equipment industry and other industries.
Laser Oil Removal
Laser Weld
Laser Rust Removal
Laser Coating
Laser Dioxide
Laser Paint
Six Product Advantages:
NO consumables
No pollution, high efficiency and environmental protection
Long service life
Can be used for more than 10w hours
Precise position
Size-selective cleaning
Portable and compact
Easy to move and work
Simple operation
Five minutes to get started
Efficient cleaning
Rust/oxide/grease removal
Thanks for your order!

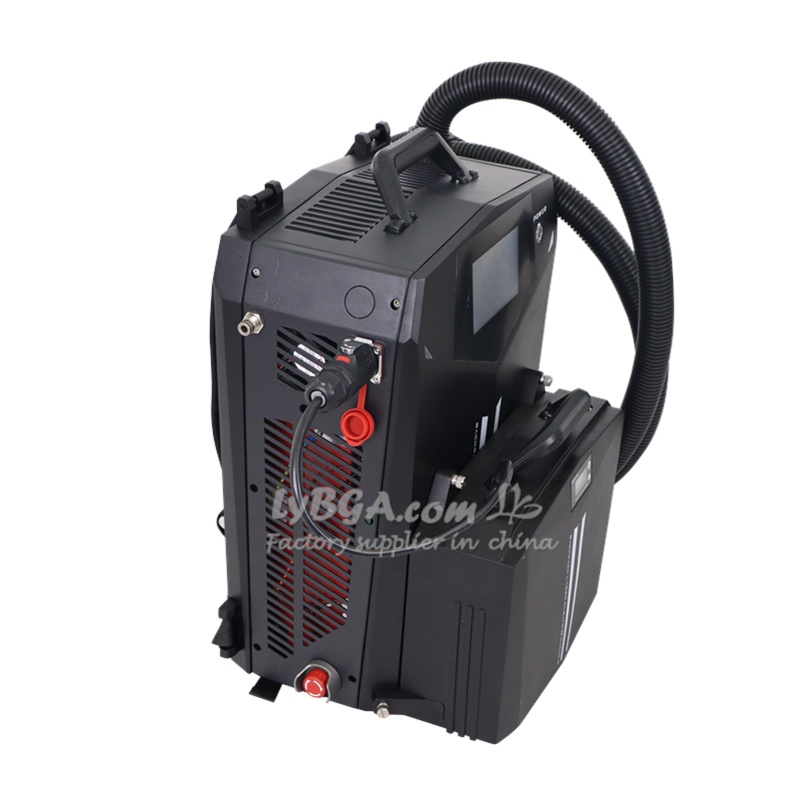

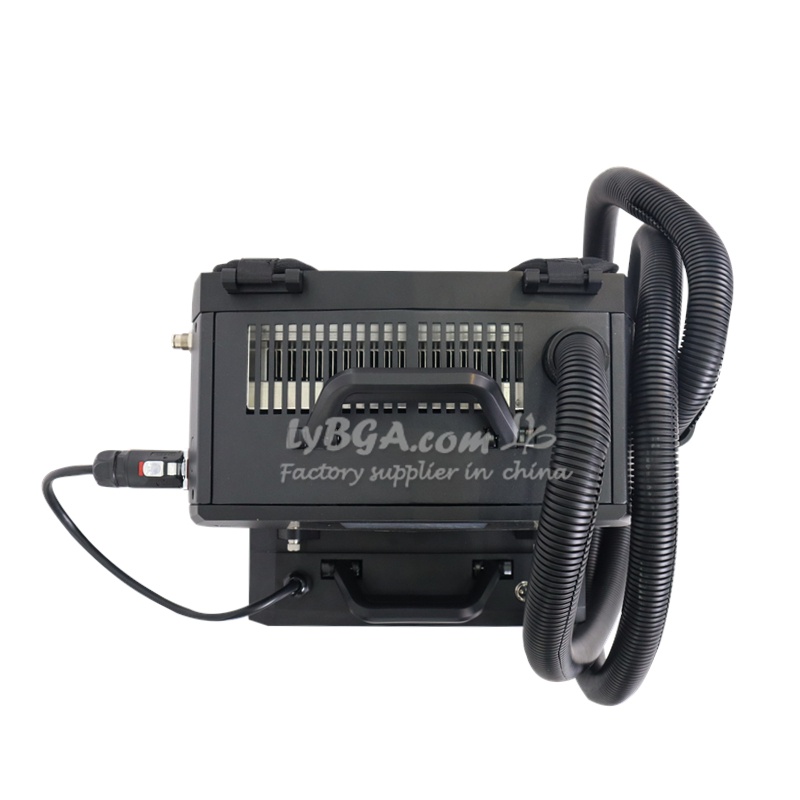

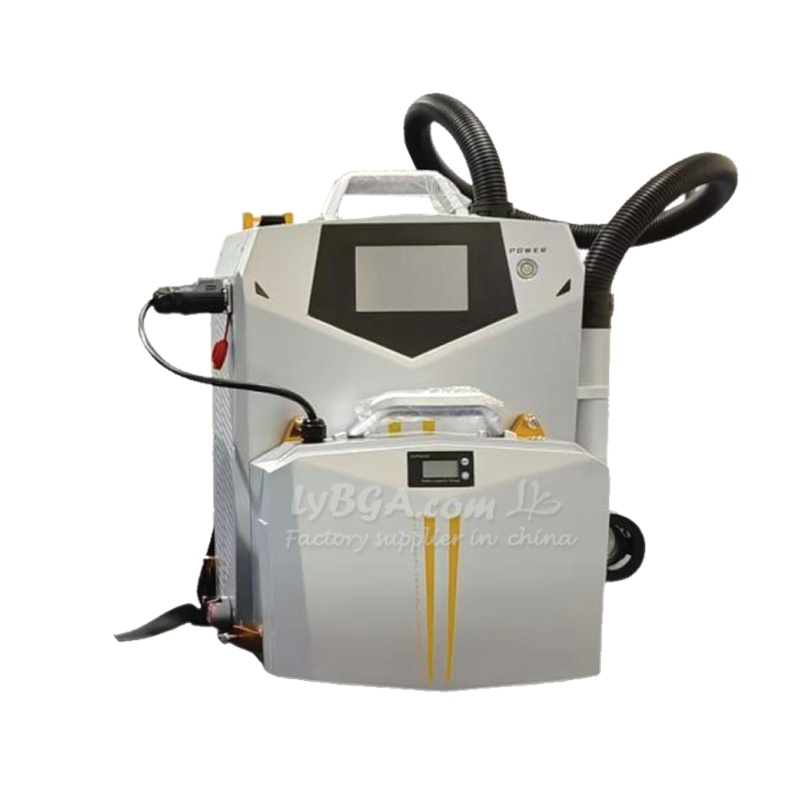

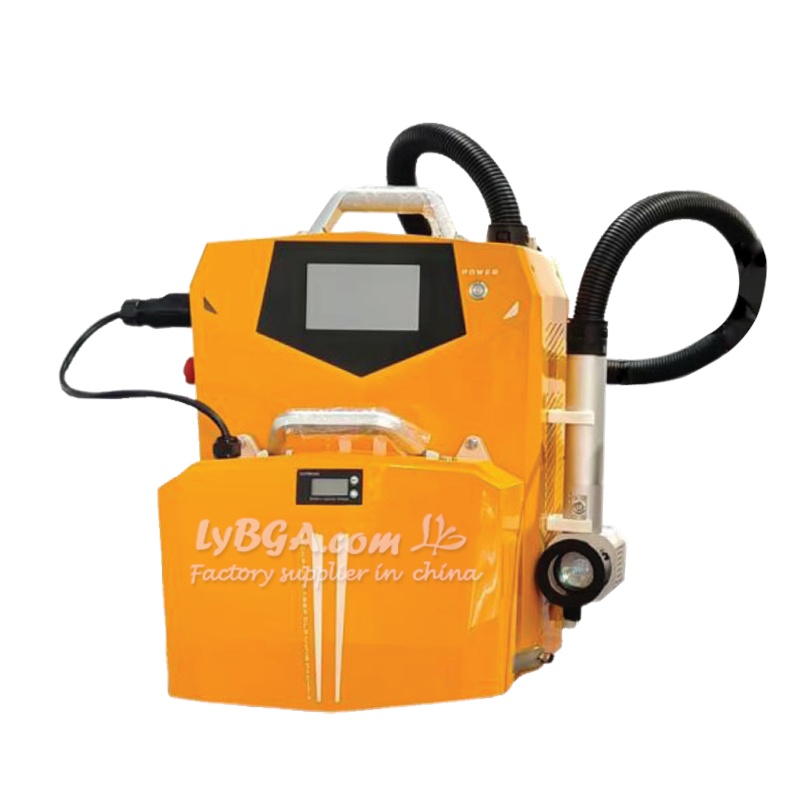

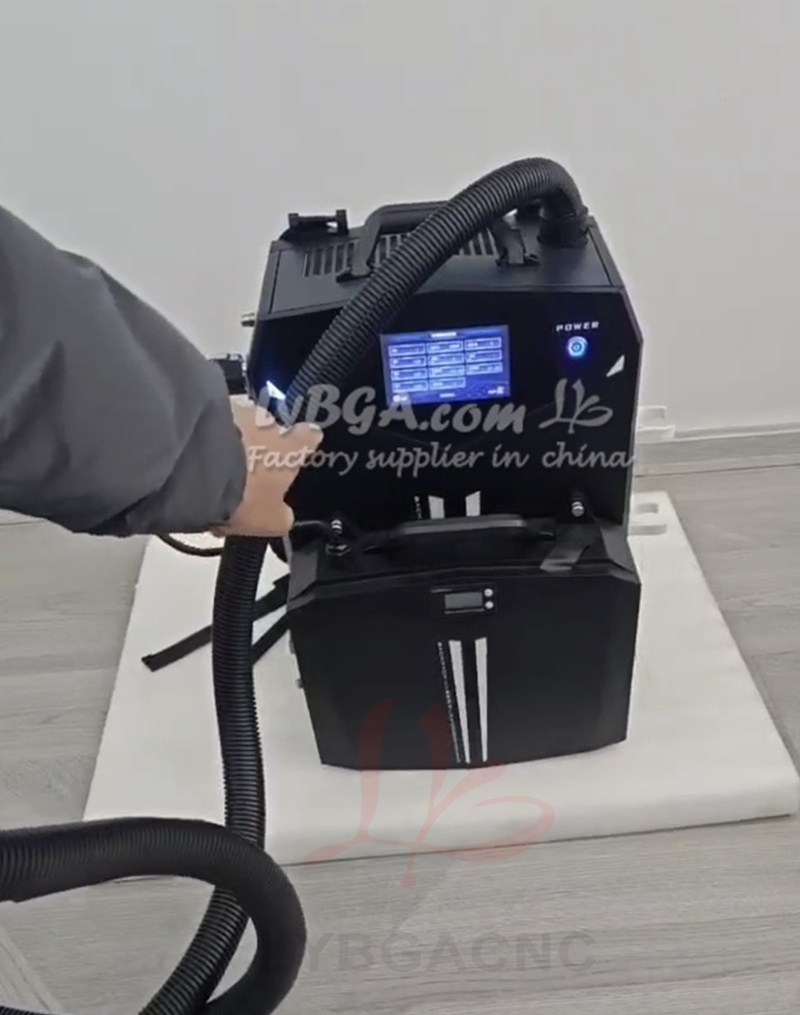

Product Pictures
