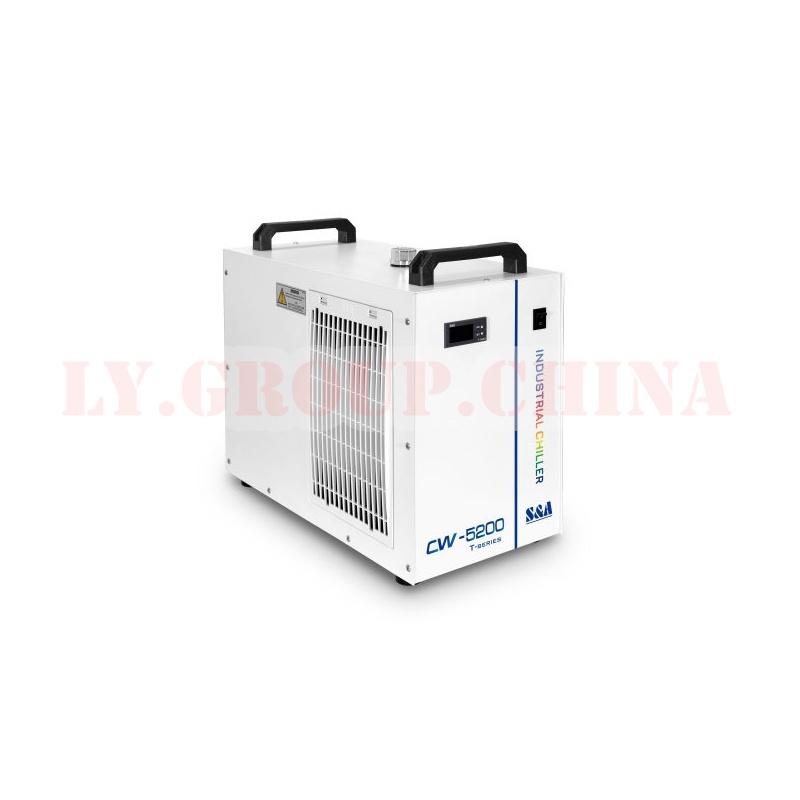

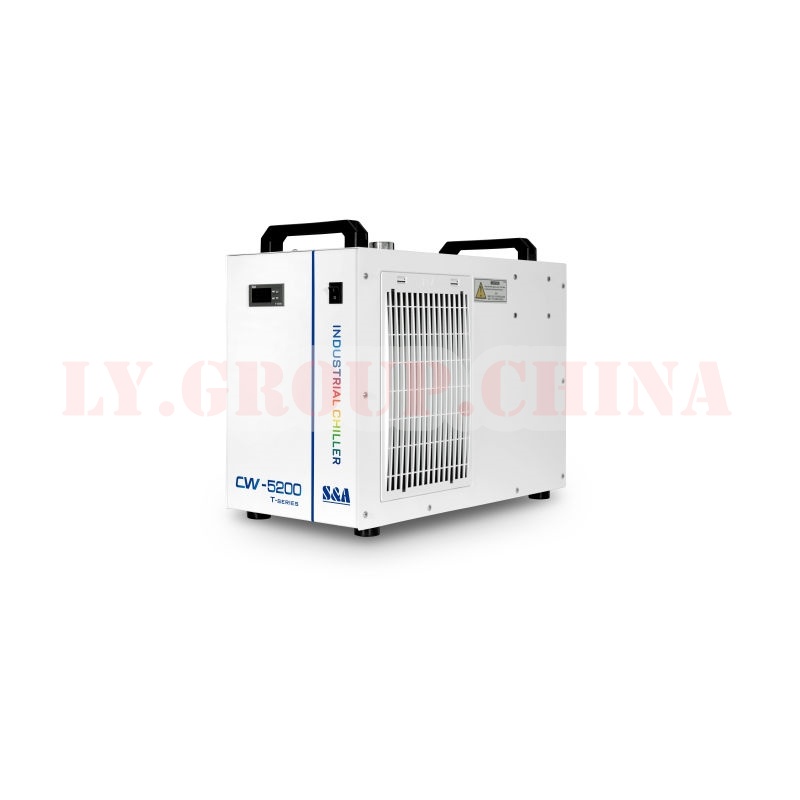

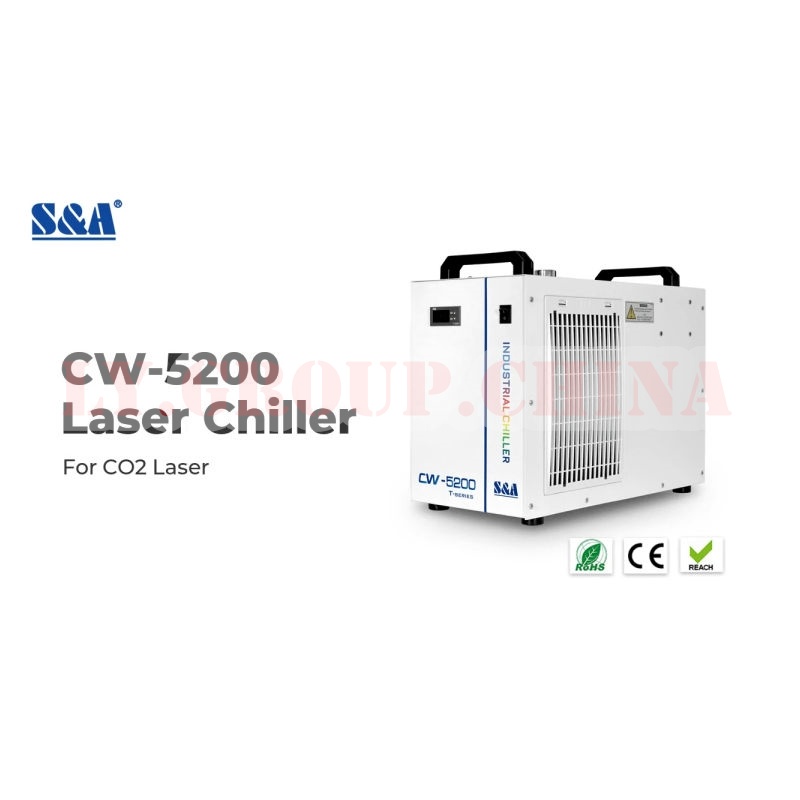

S&A CW-5200 Series Cool Chiller for CO2 Laser Engraving Machine Thermolysis 130W Industrial Water Cooler for CO2 Glass Tube CNC Spindle Cooling

With water chiller CW 5200, your CO2 laser can be properly cooled. Up to 130W DC CO2 laser or 60W RF CO2 laser, this mini water chiller unit can offer highly reliable cooling. It has temperature stability of ±0.3°C  as well as cooling capacity up to 1400W. With compact design, CW 5200 chiller takes up less floor space for CO2 laser cutter engraver users. Multiple choices of pumps are available and the whole chiller system conforms to CE, RoHS and REACH standards. Heater is optional to help rising water temperature quickly in winter. UL certified version is available.

Model: CW-5200

Machine Size: 58 X 29 X 47cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Cooling Capacity: 1400W

* Active cooling

* Temperature stability: ±0.3°C

* Temperature control range: 5°C ~35°C

* Refrigerant:R-407c or R-410a

* Compact, portable design and quiet operation

* High efficiency compressor

* Top mounted water fill port

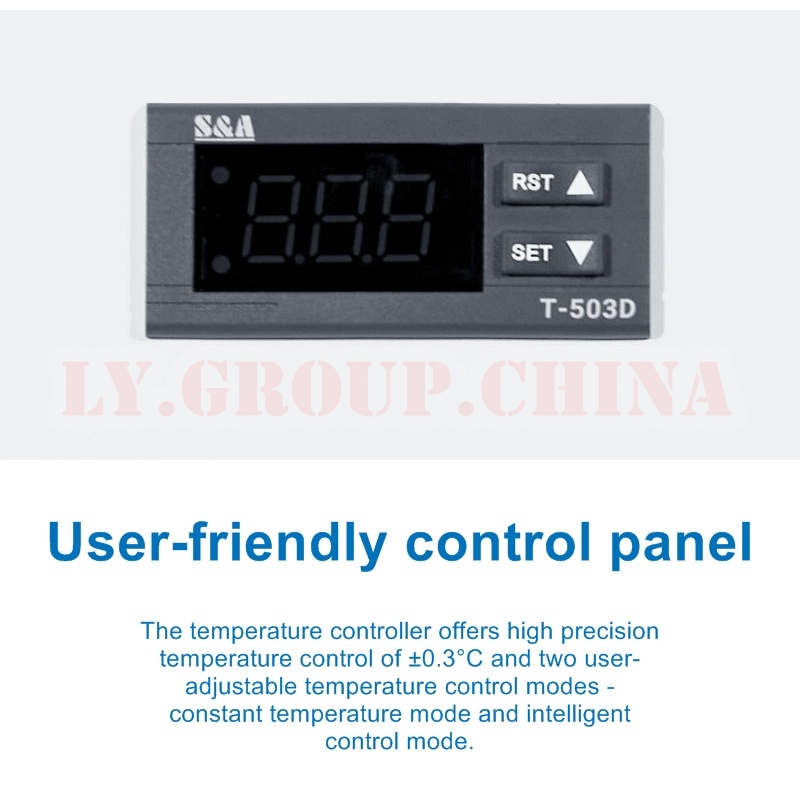

* Integrated alarm functions

* Low maintenance and high reliability

* 50Hz/60Hz dual-frequency compatible available

* Optional dual water inlet & outlet

* UL certified version available

FAQ

Is S&A Chiller a trading company or a manufacturer?

We are professional industrial chiller manufacturer since 2002.

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the chiller?

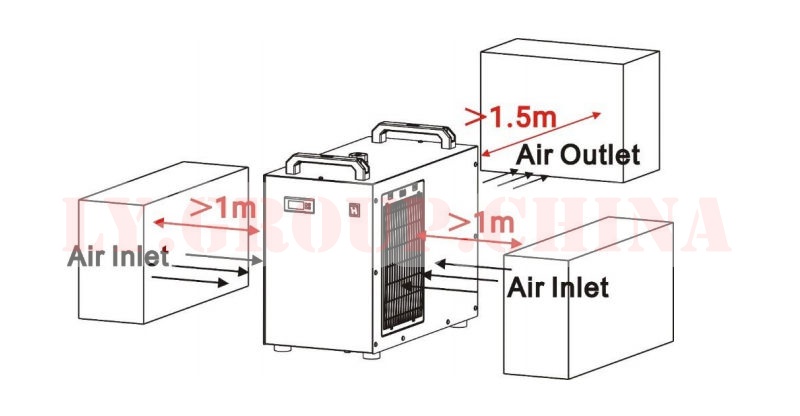

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller.
