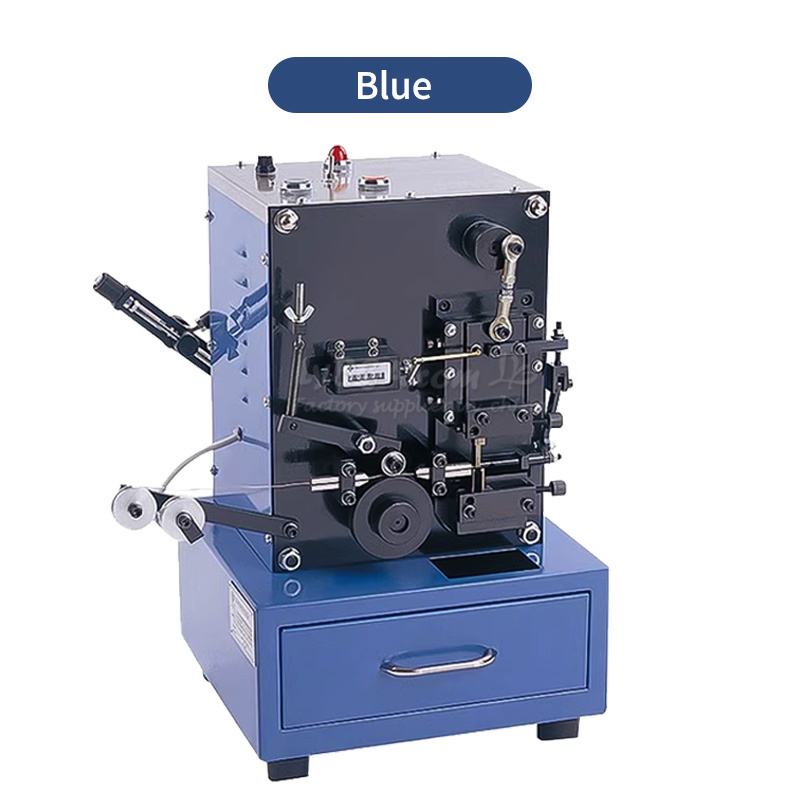

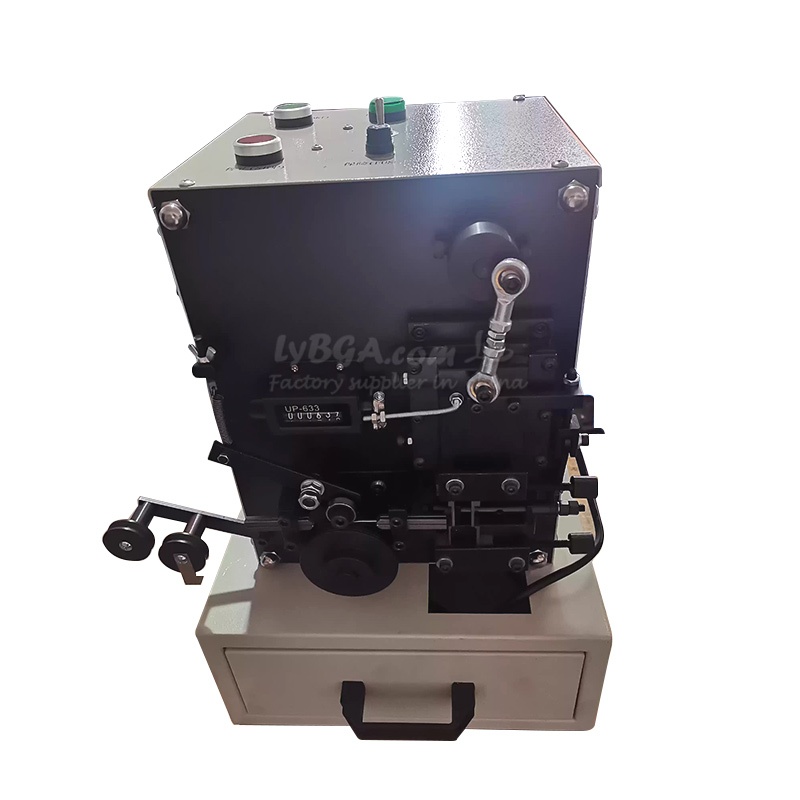

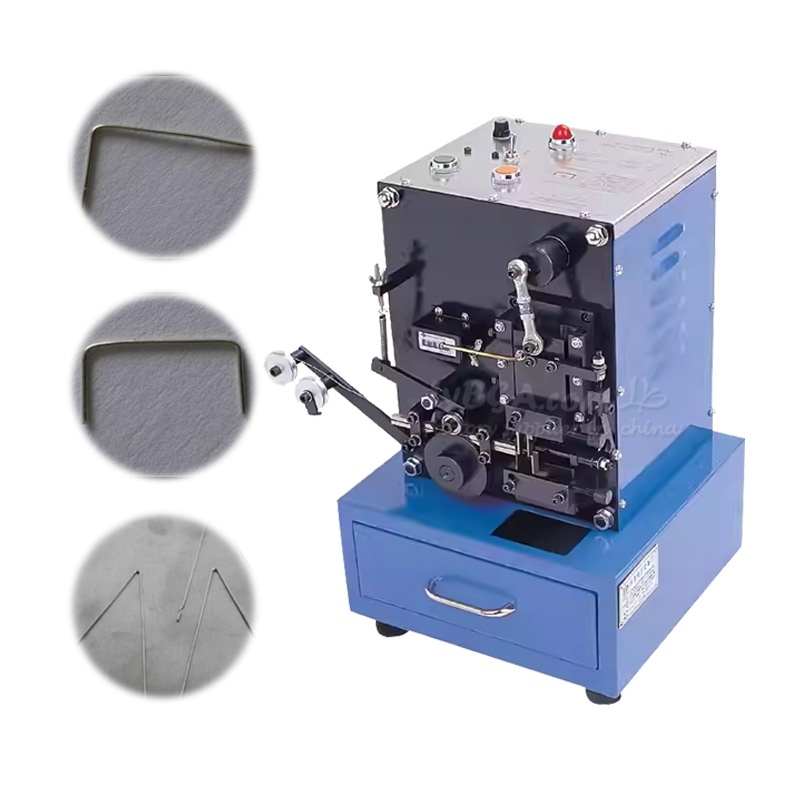

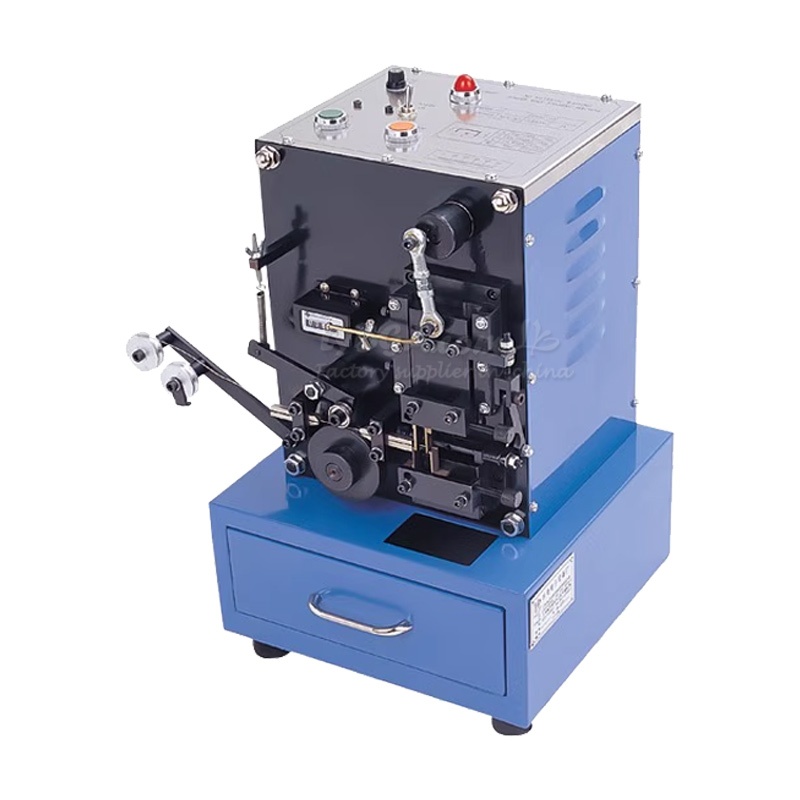

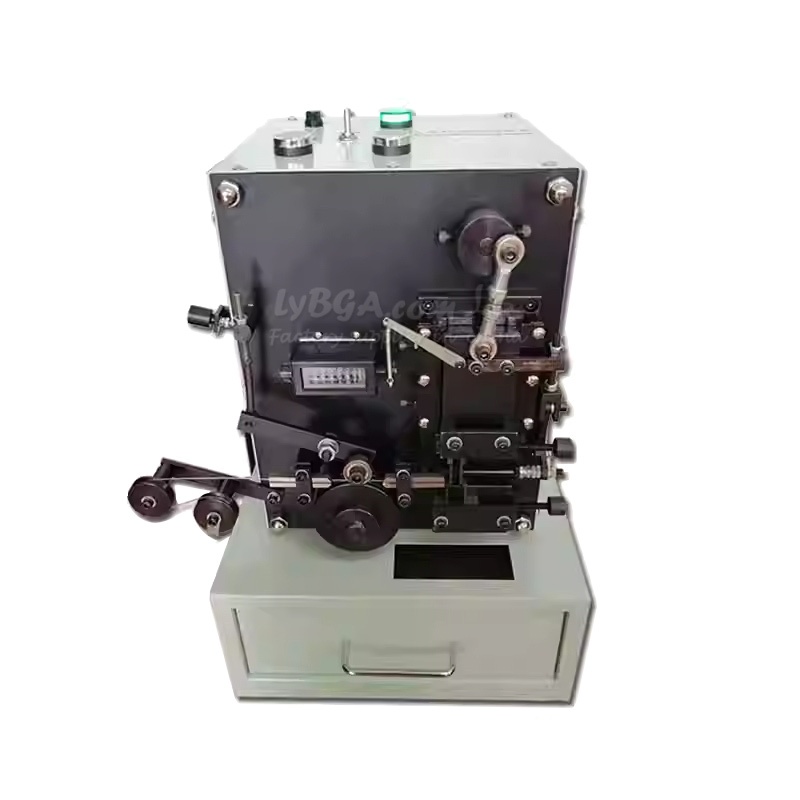

Scrap Free Jumper Forming Machine LY-802 Automatic Feeding Cutting And Molding In One Go Speed 7500pcs/H Smooth Running

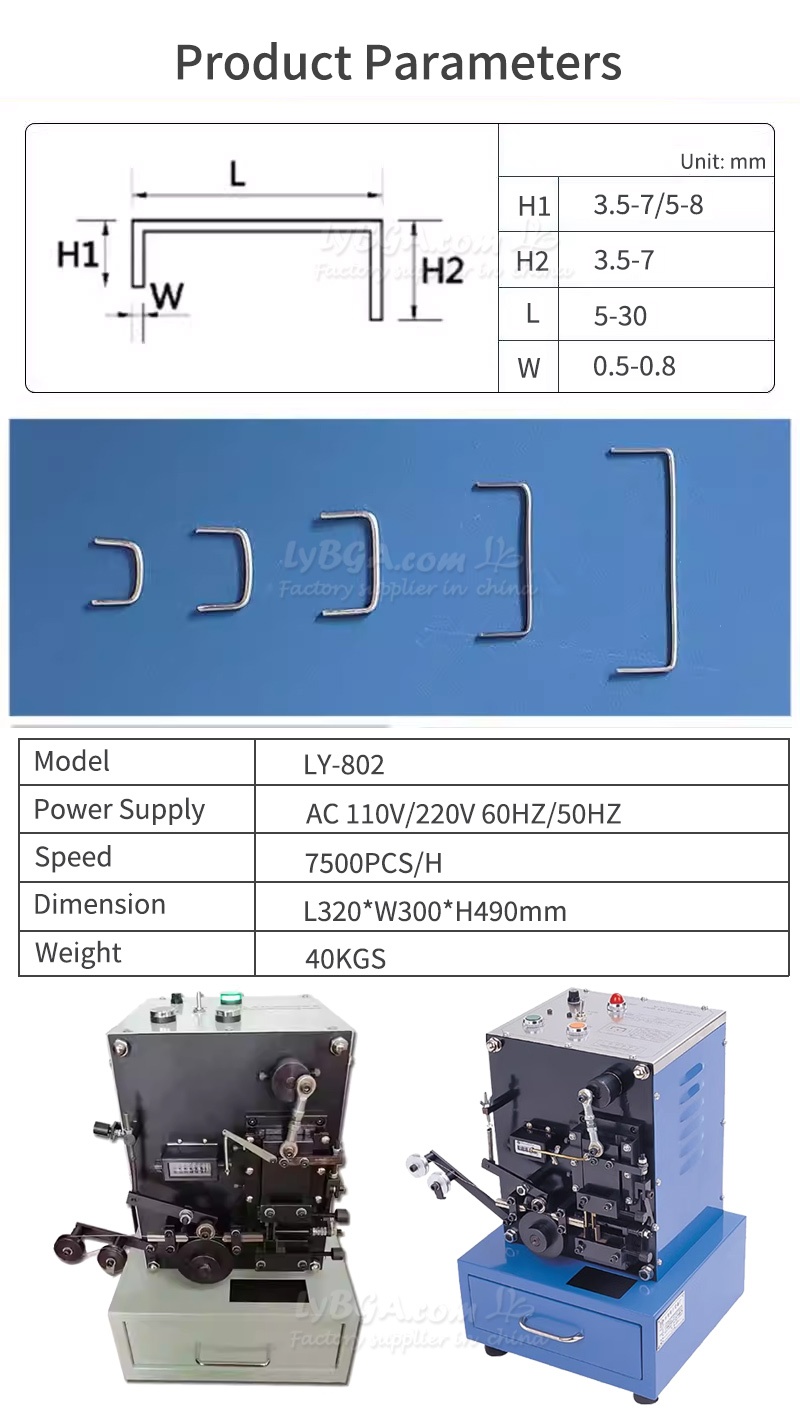

Equipment parameters
Model LY-802
H1 foot length 3.5-7/5-8MM
H2 foot length 3.5-7MM
L foot width 5-30MM
W wire diameter 0.5-0.8MM
Power Supply AC 110V/220V 60HZ/50HZ
Speed 7500PCS/H

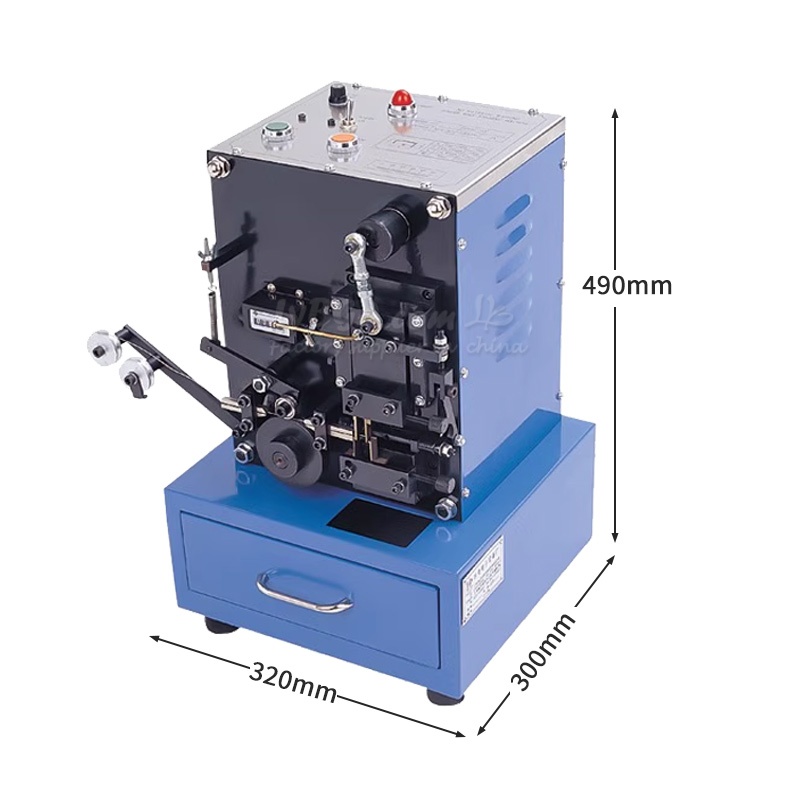

Dimension L320*W300*H490mm
Weight 40KGS

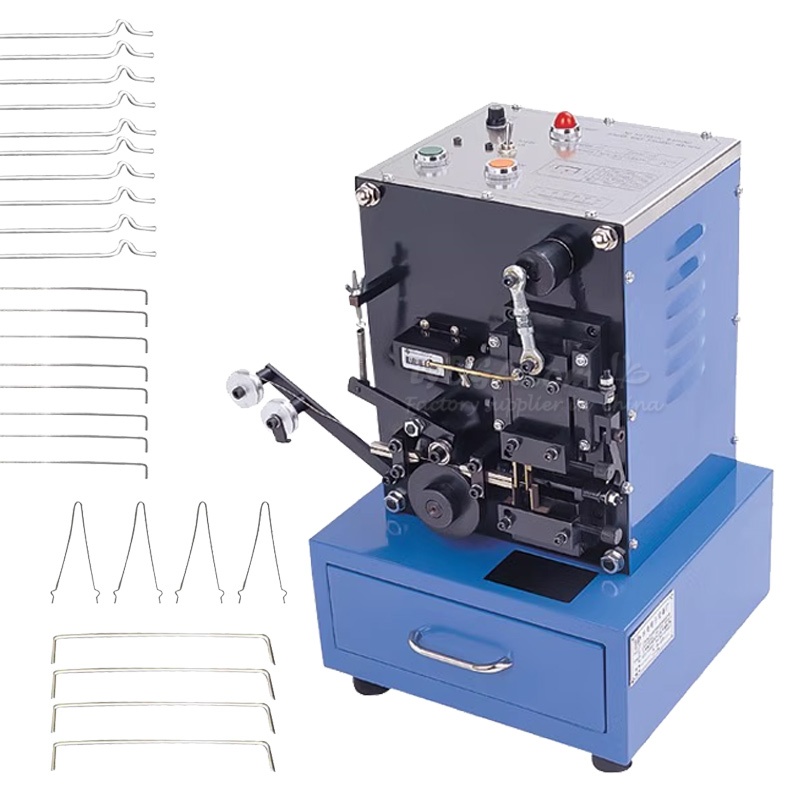

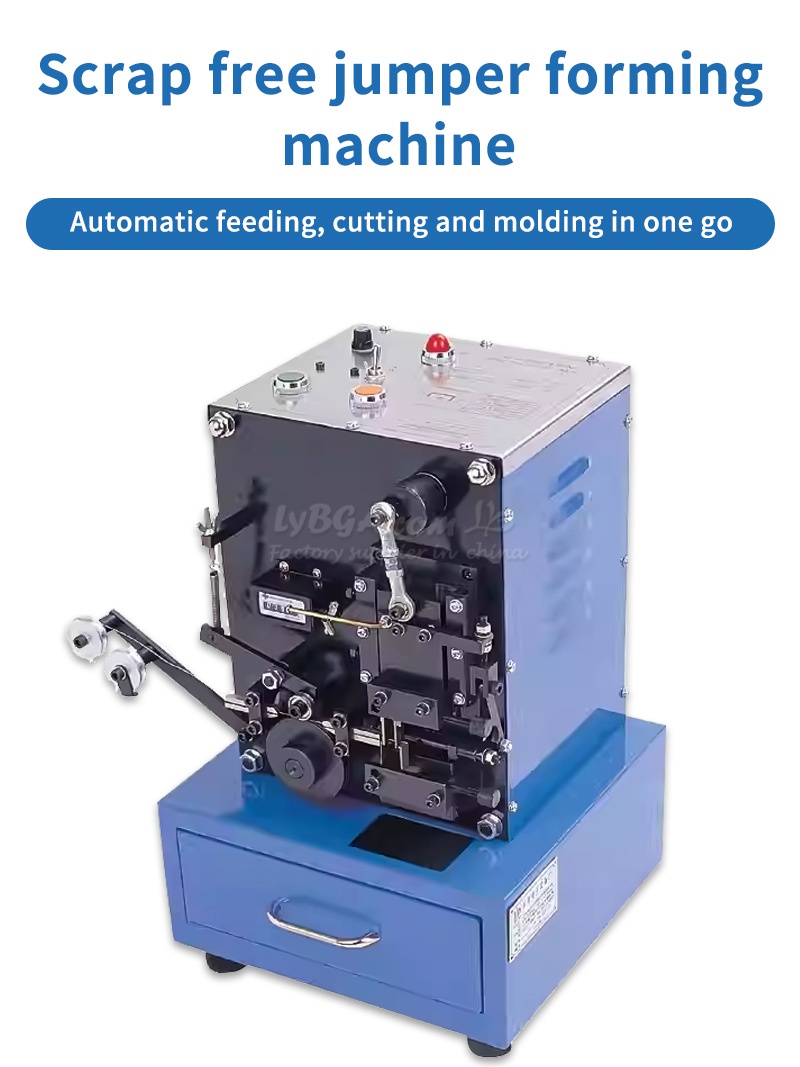

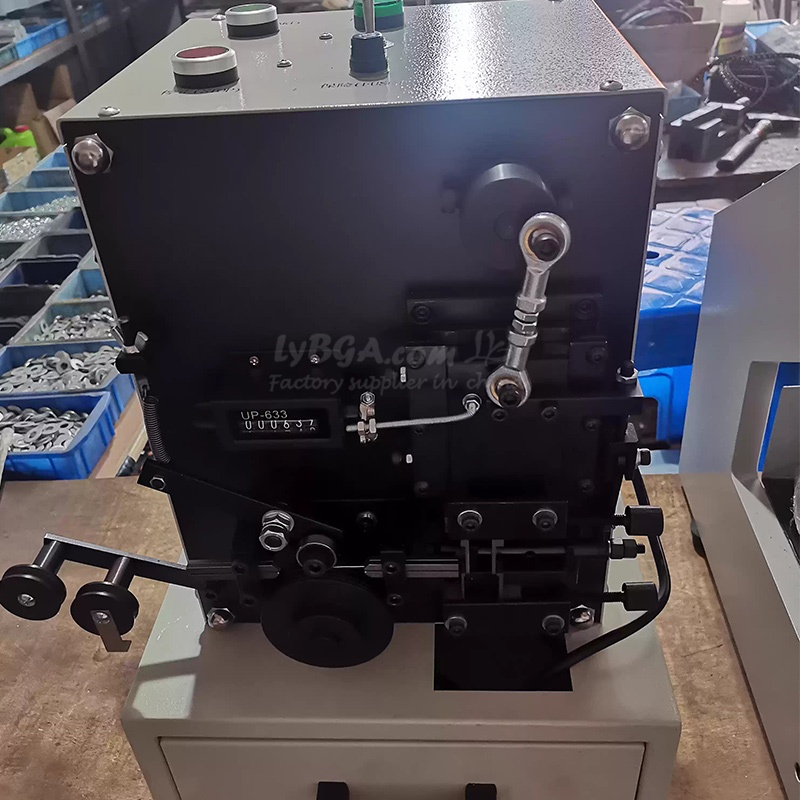

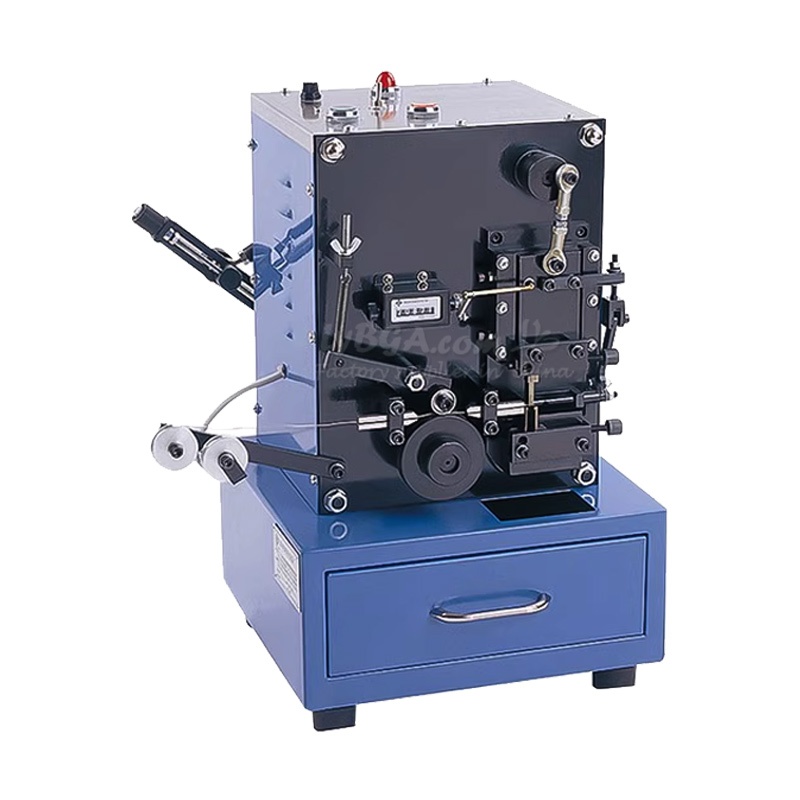

Scrap free jumper forming machine
Automatic feeding, cutting and molding in one go

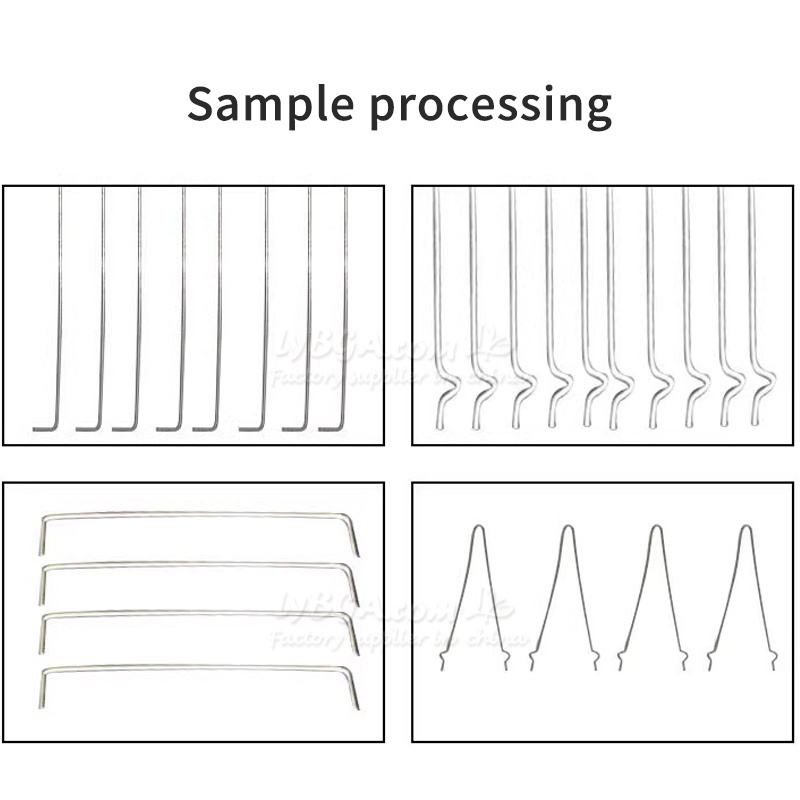

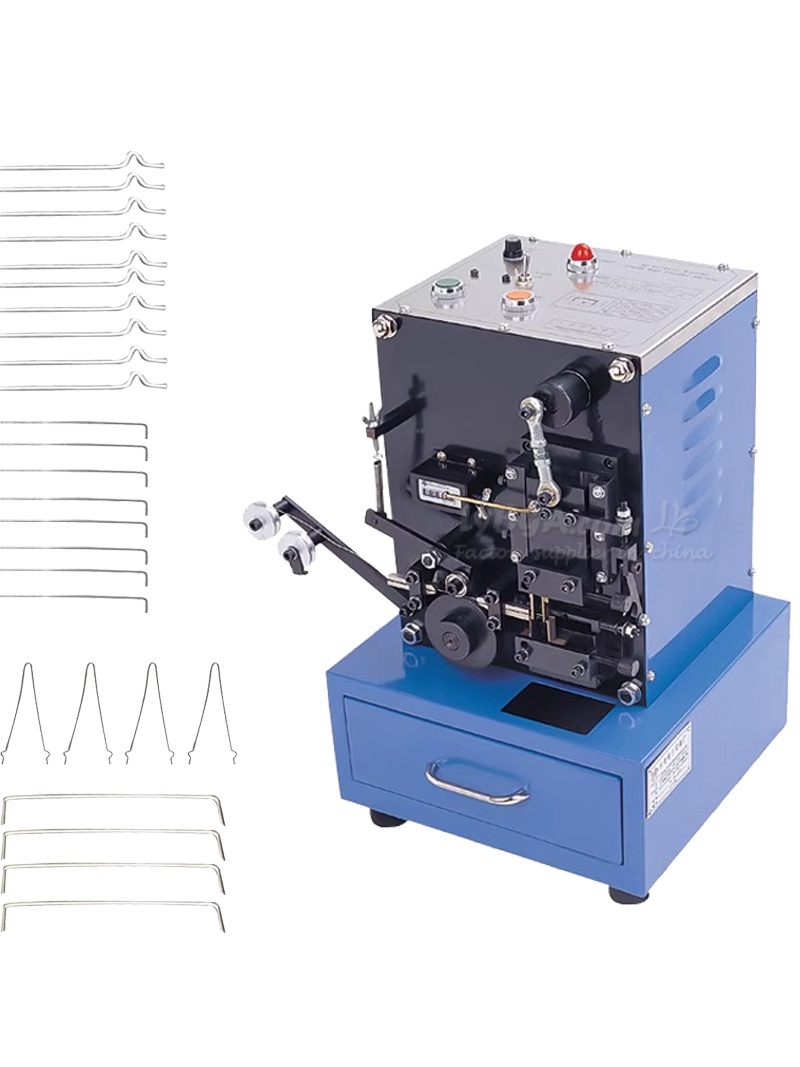

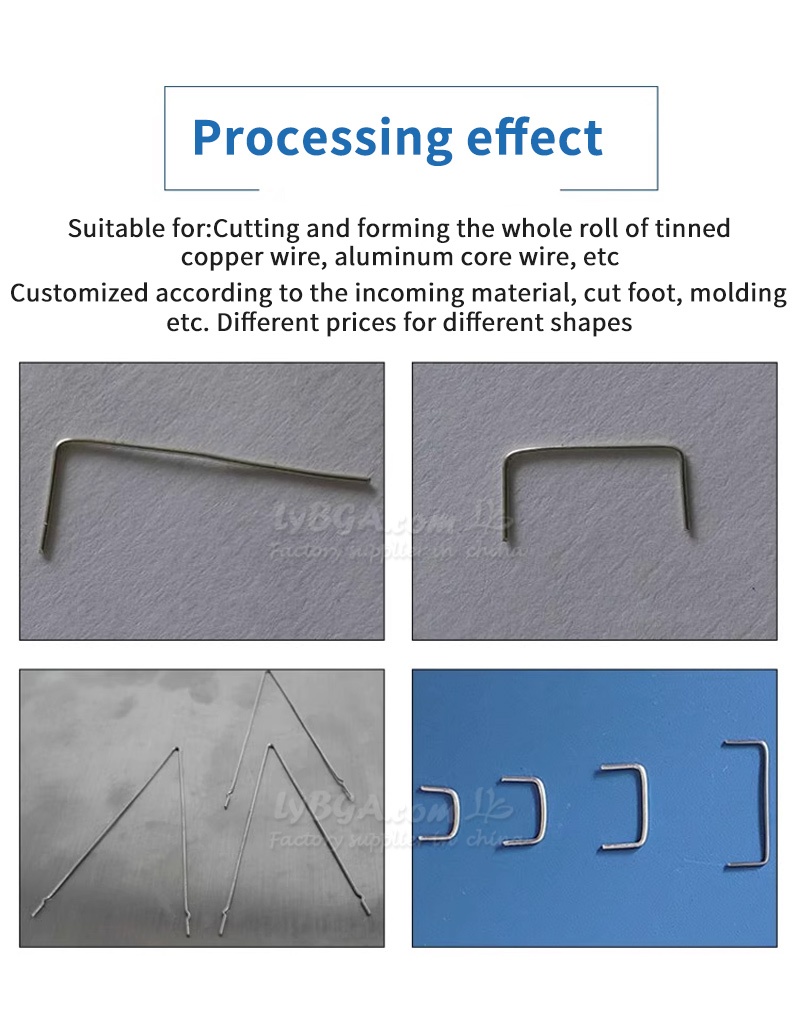

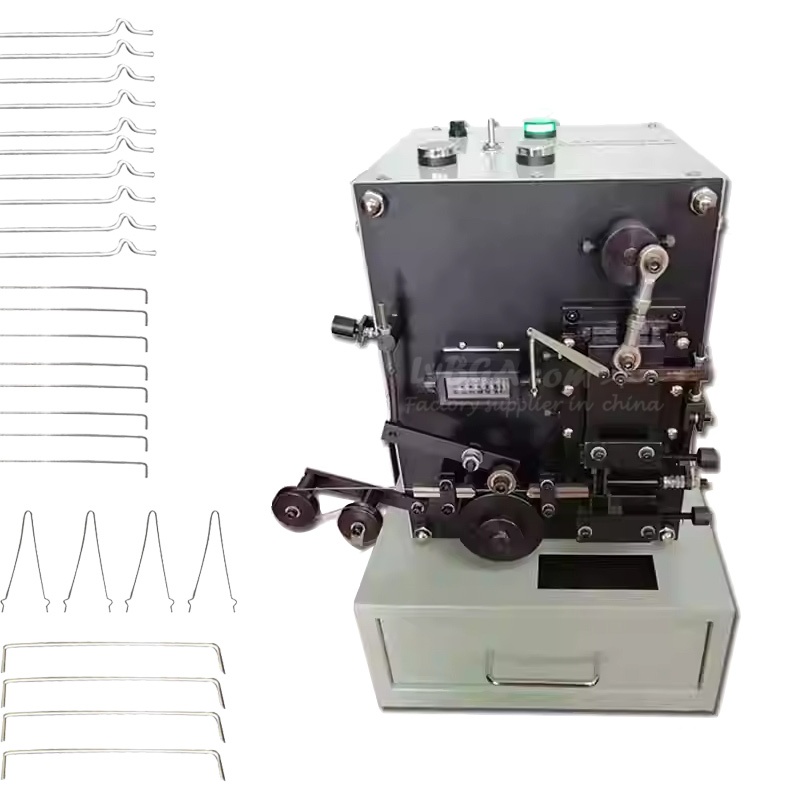

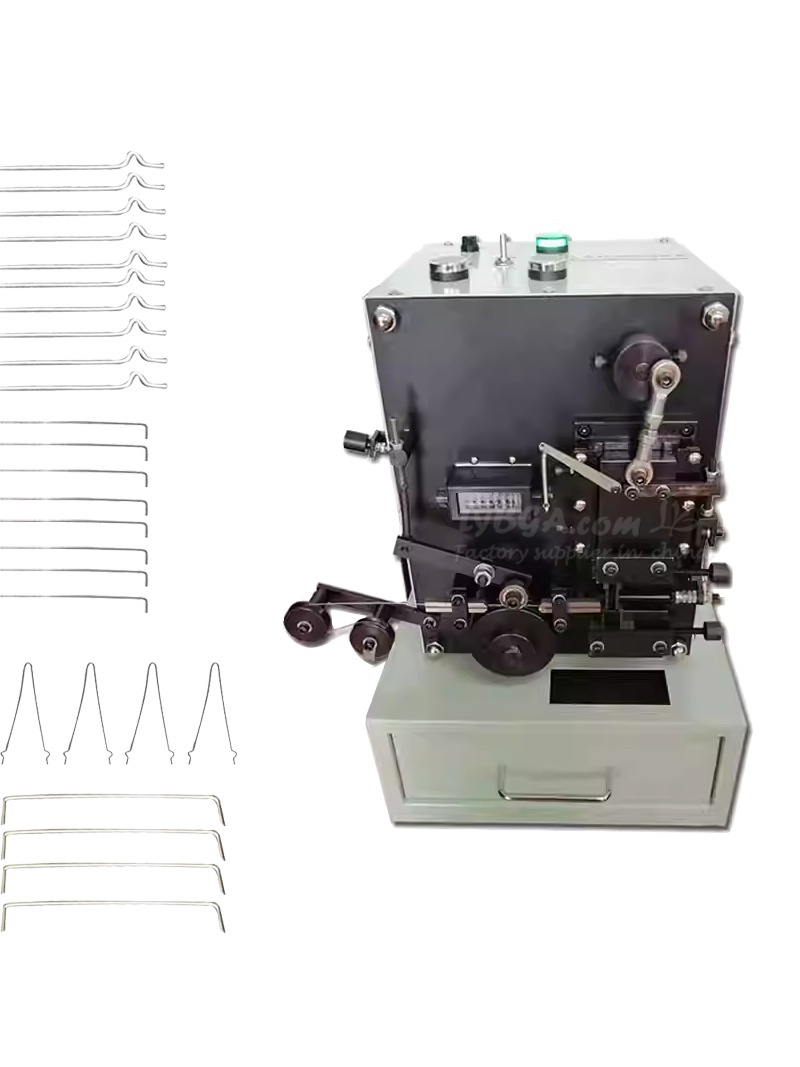

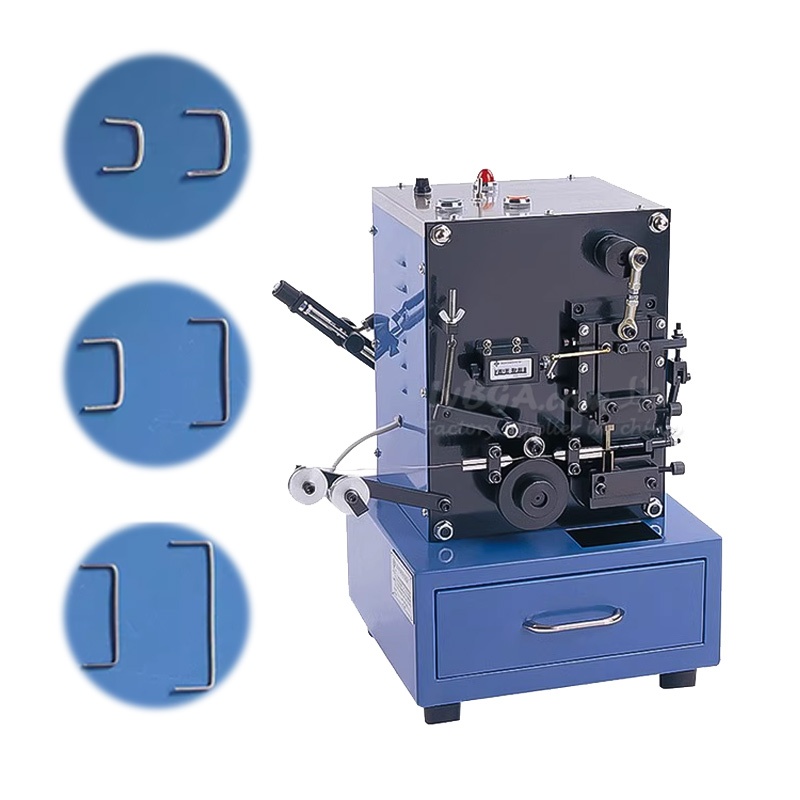

Processing effect
Suitable for: cutting and forming the whole roll of tinned copper wire, aluminum core wire, etc.
Customized according to the incoming material, cut foot, molding etc. Different prices for different shapes.

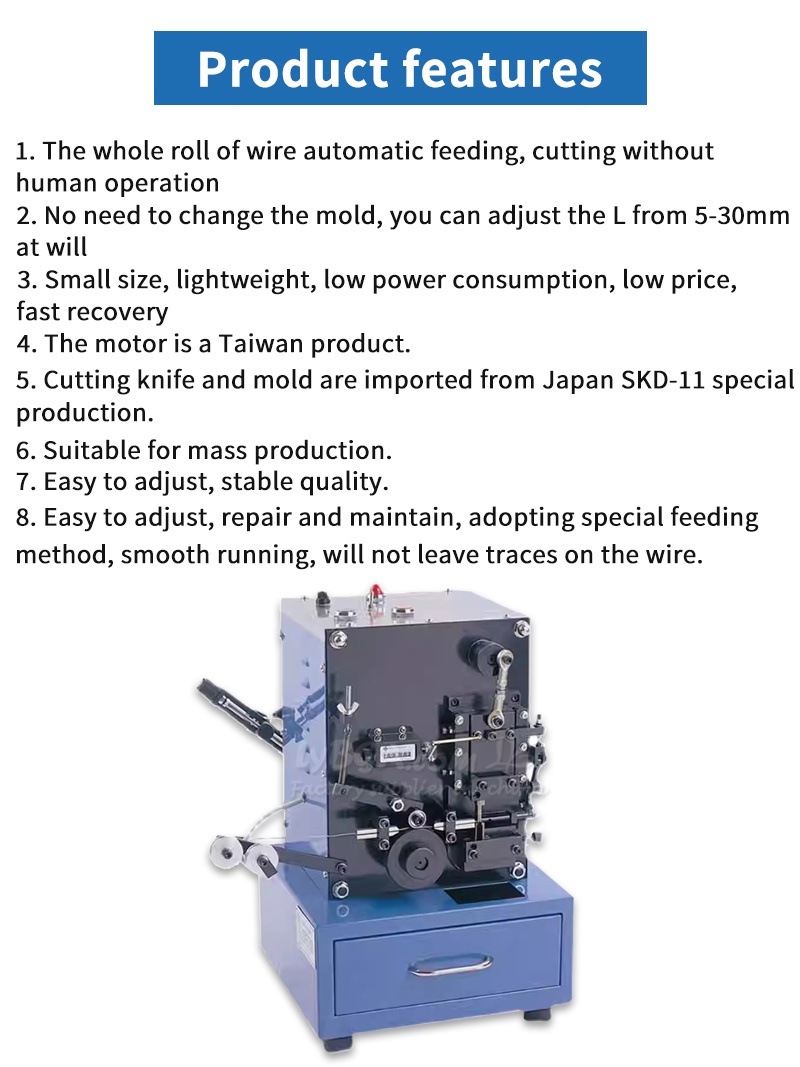

Product features
1. The whole roll of wire automatic feeding, cutting without human operation.
2. No need to change the mold, you can adjust the L from 5-30mm at will.
3. Small size, lightweight, low power consumption, low price, fast recovery.
4. The motor is a Taiwan product.
5. Cutting knife and mold are imported from Japan SKD-11 special production.
6. Suitable for mass production.
7. Easy to adjust, stable quality.
8. Easy to adjust, repair and maintain, adopting special feeding method, smooth running, will not leave traces on the wire.

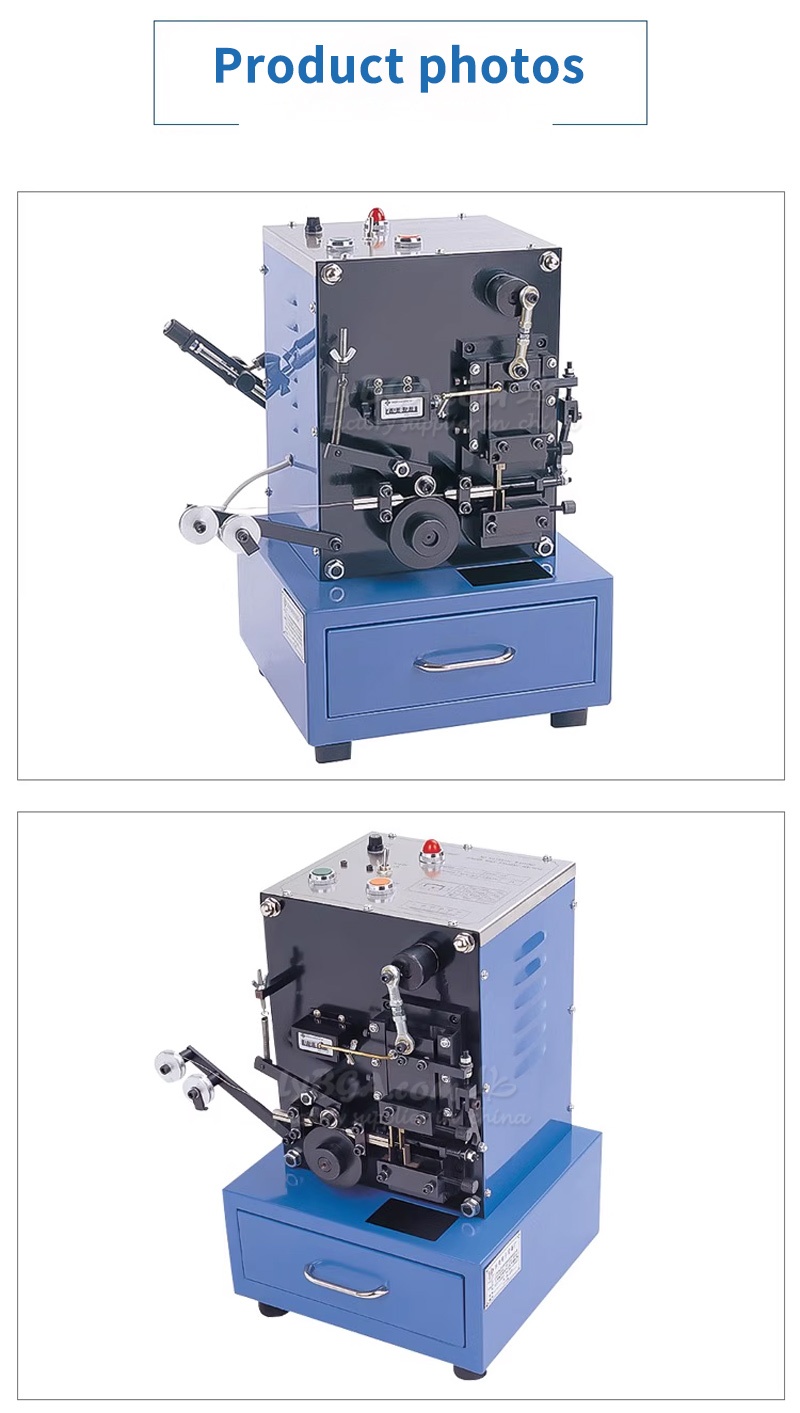

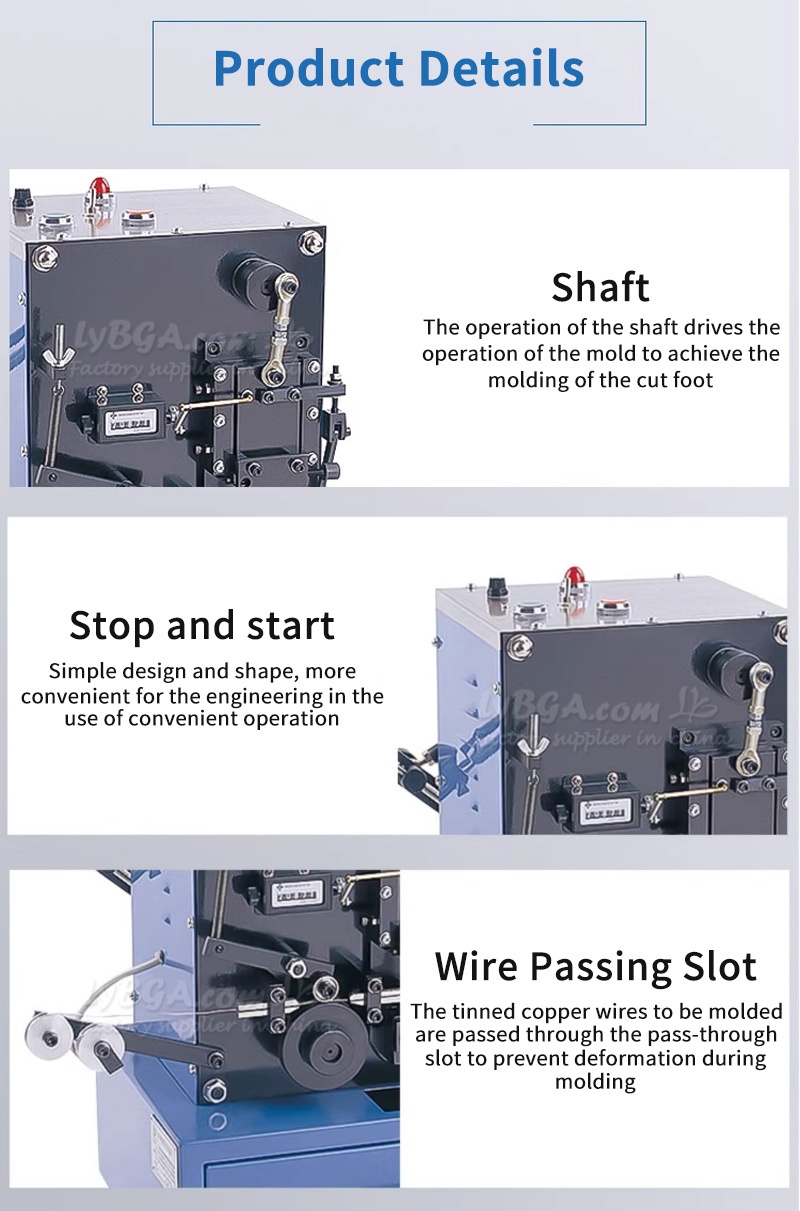

Product Details

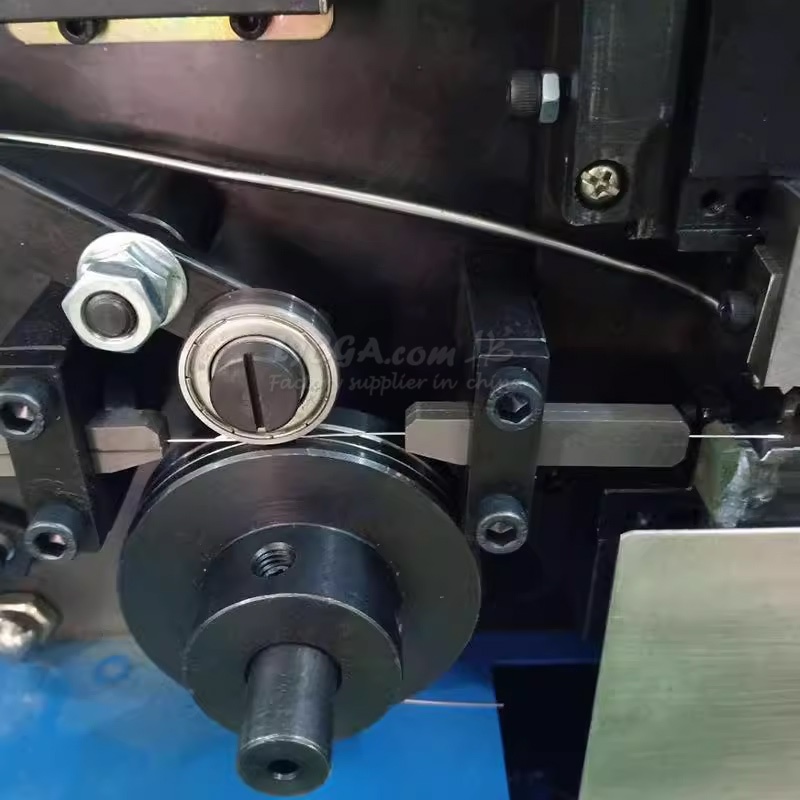

Shaft
The operation of the shaft drives the operation of the mold to achieve the molding of the cut foot.
Stop and start
Simple design and shape, more convenient for the engineering in the use of convenient operation
Wire Passing Slot
The tinned copper wires to be molded are passed through the pass-through slot to prevent deformation during molding.

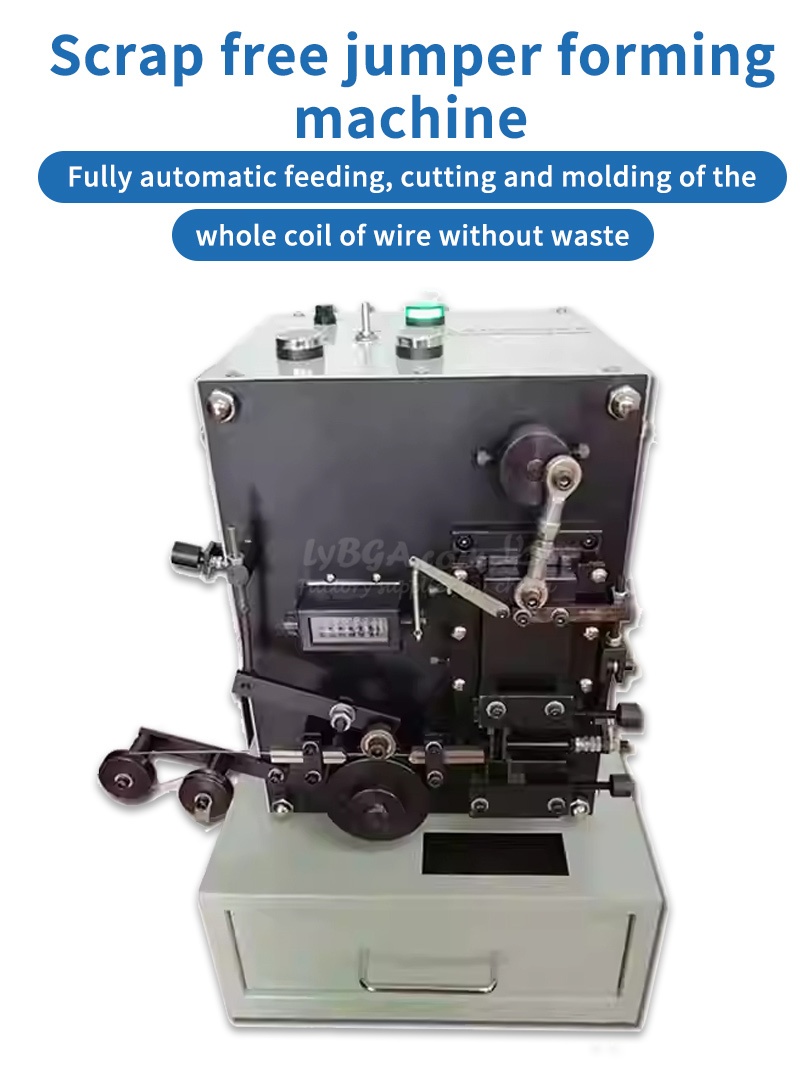

Scrap free jumper forming machine
Fully automatic feeding, cutting and molding of the whole coil of wire without waste

Four advantages of the product
Automatic feeding
No need to change molds
Good molding effect
No waste
