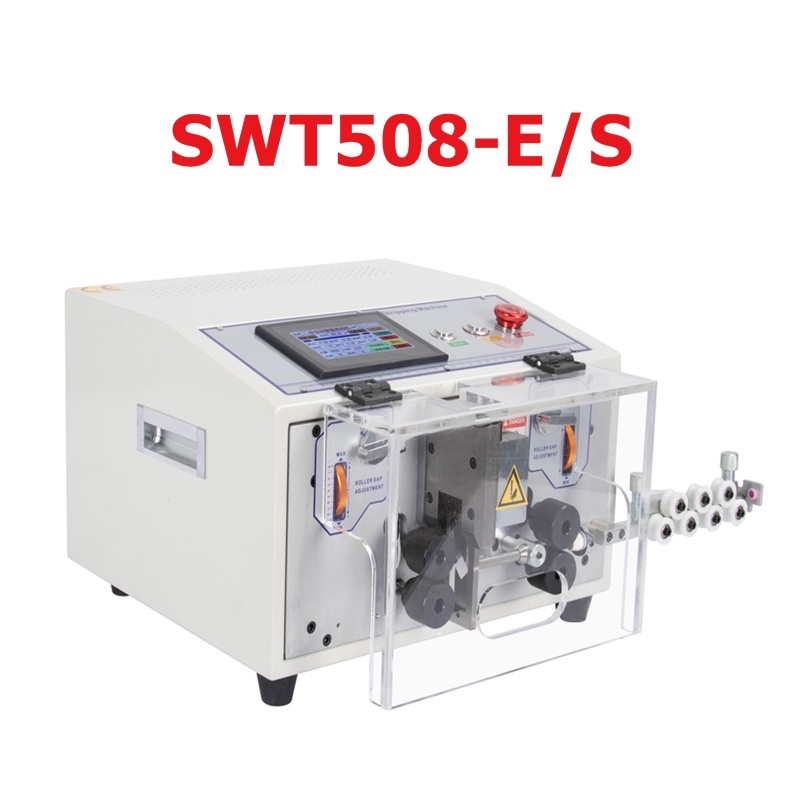

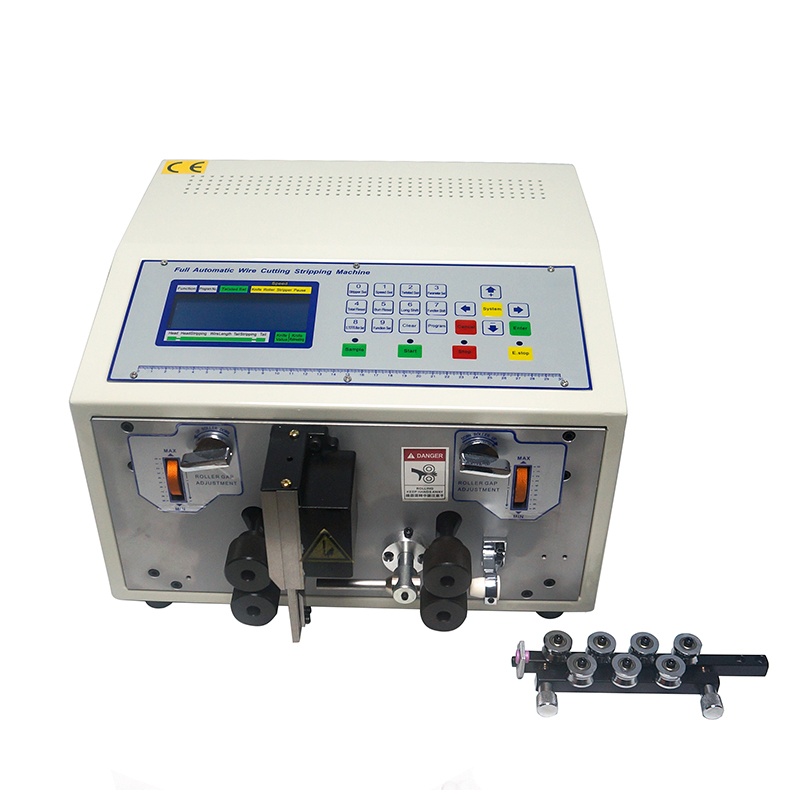

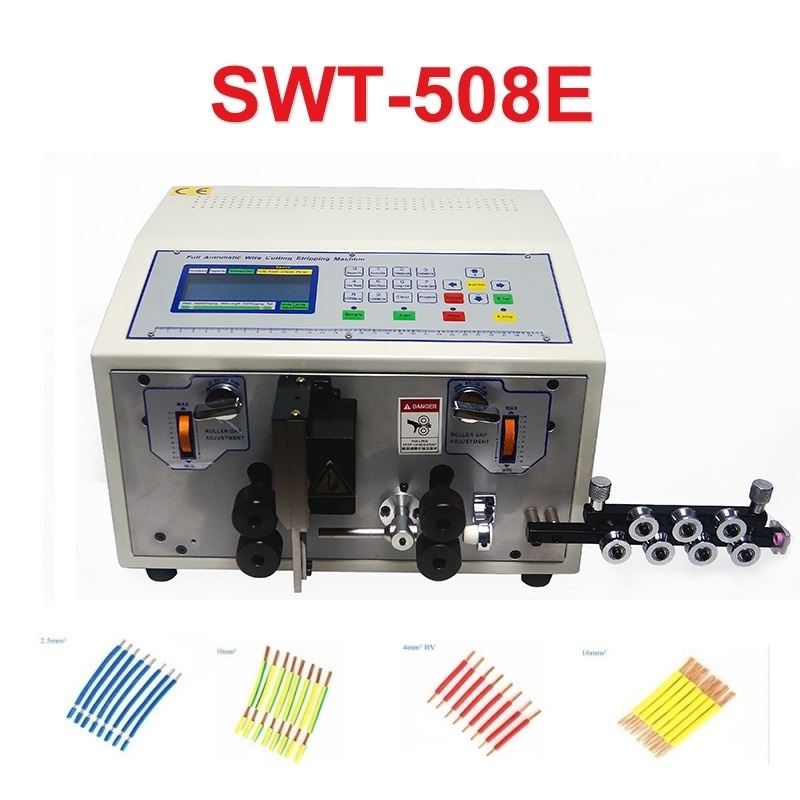

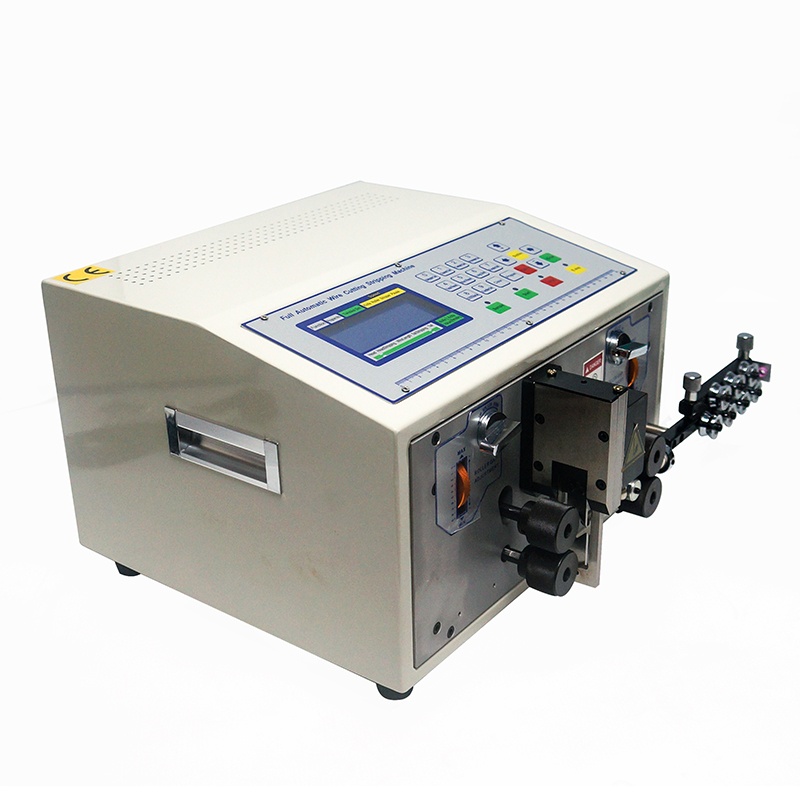

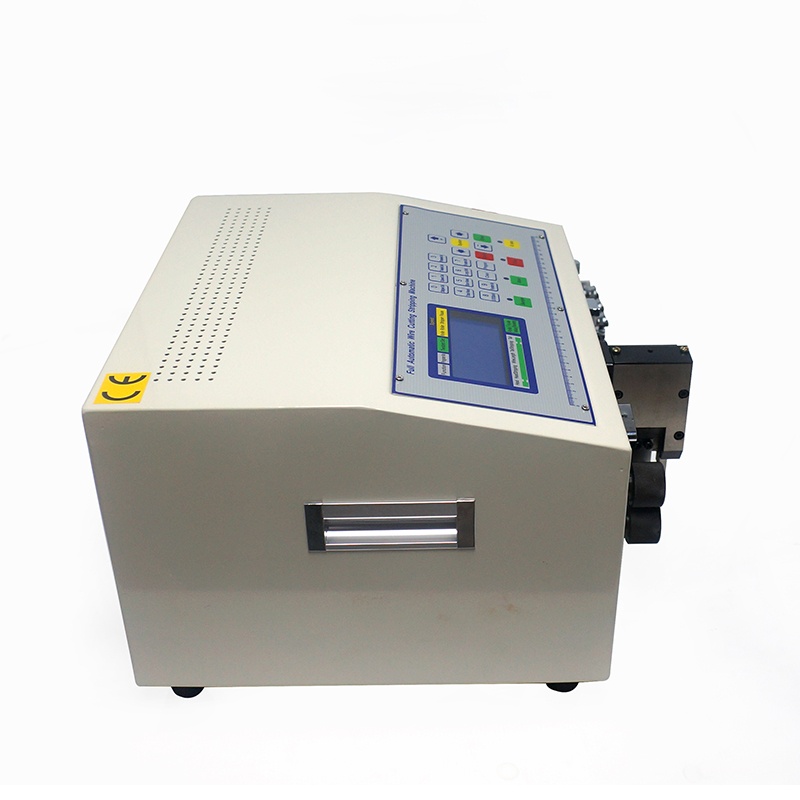

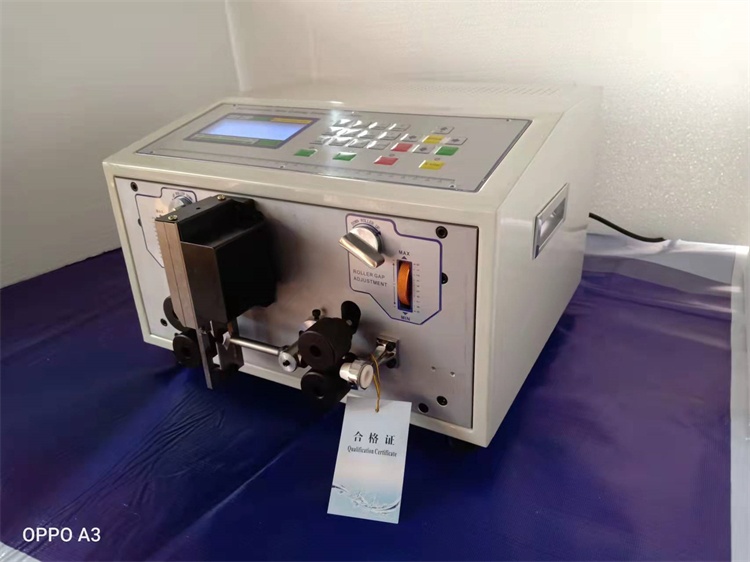

SWT-508E ES Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 0.1 to 8mm2 AWG28-AWG8 220V 110V Optional Touch Screen Control

SWT-508E ES Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 0.1 to 8mm2 AWG28-AWG8 220V 110V Optional Touch Screen Control

item ID: 62616
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$1400 USD$817 (% off)
Payment

Product Detail

Product Tags

SWT-508E   ES Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 0.1 to 8mm2 AWG28-AWG8 220V 110V Optional Touch Screen Control

(RE:

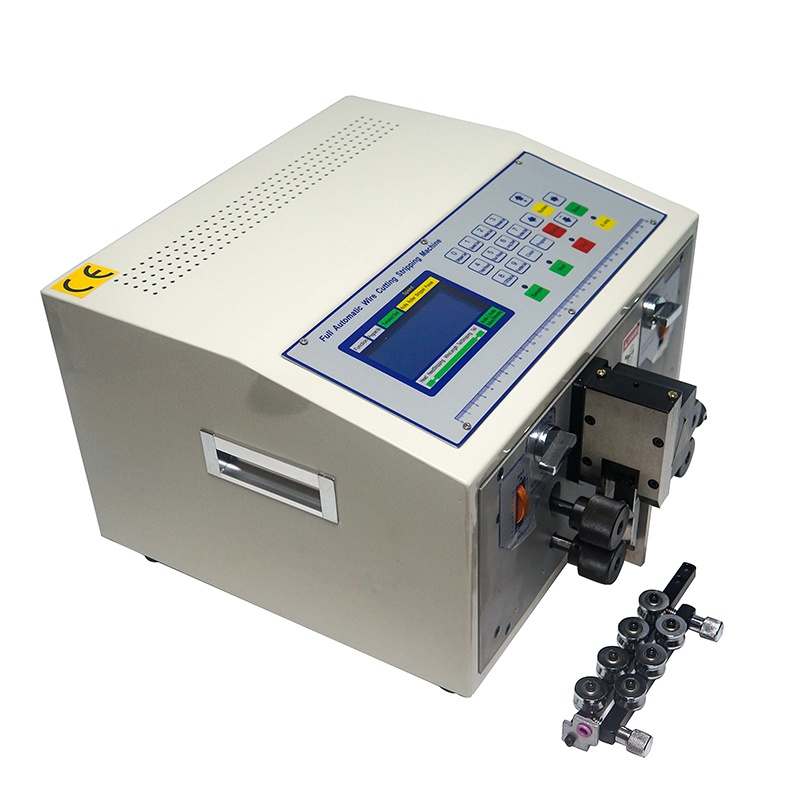

1.C / E/ SD/ SDB / SDB2/ JE / JE2 / ZW16 / ZW25 / YHT2 / NX2 above models with Wire Cable Straightener only, other models need to buy extra.

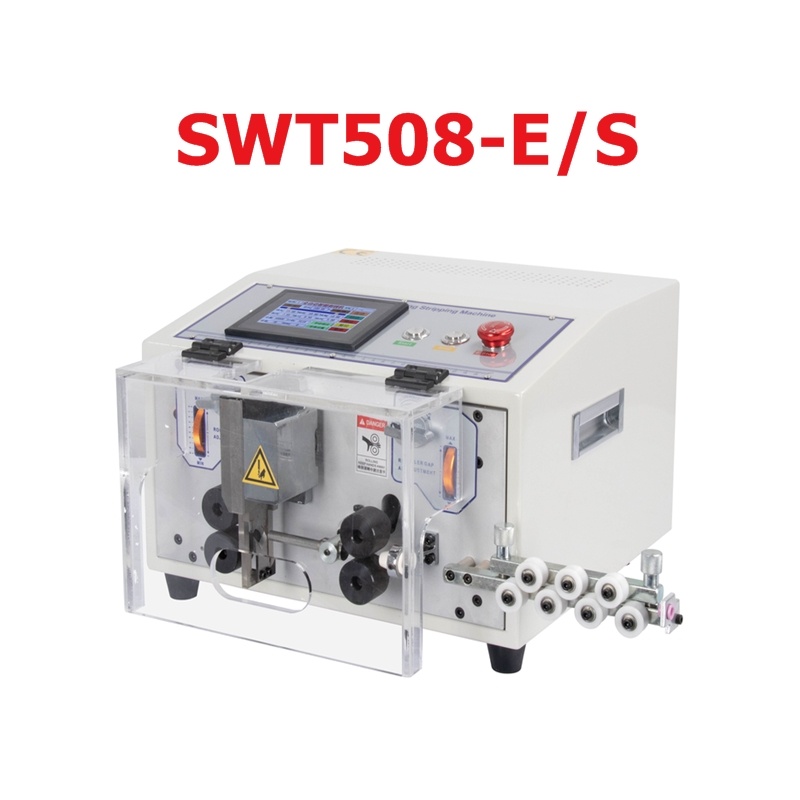

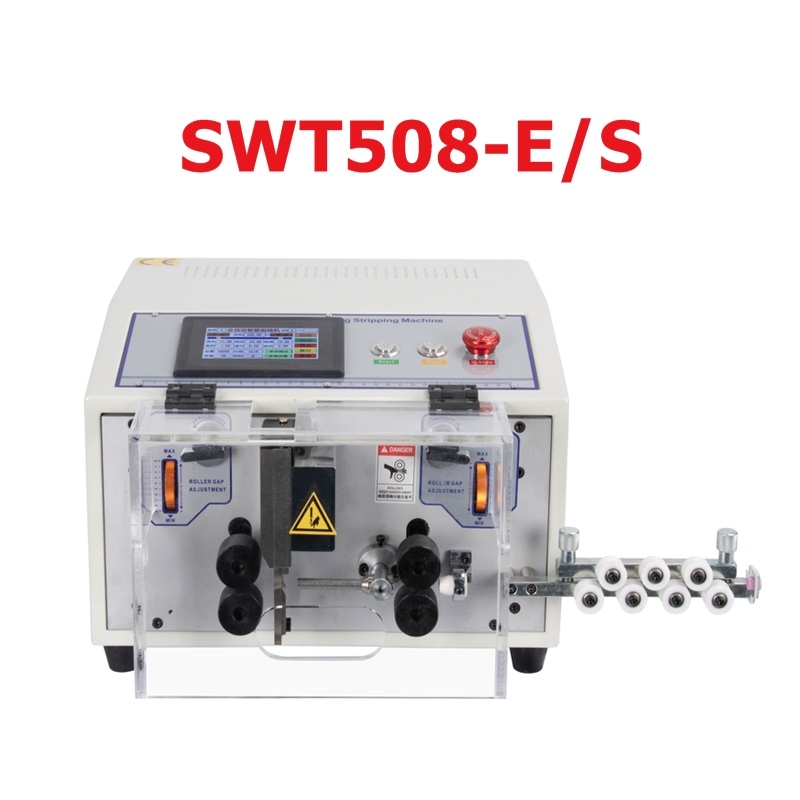

2.Such as E/S, SD/S, DB2/S, JE/S, JE2/S, MAX1-4S, HT2/S are touch screen panel models.

3. Crystal Protect case not included, if need please leave message to seller.

4. Wire collector not included, if need please leave message to seller.)



The product function characteristics:

Collection and integration, the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment. Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.

Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc.

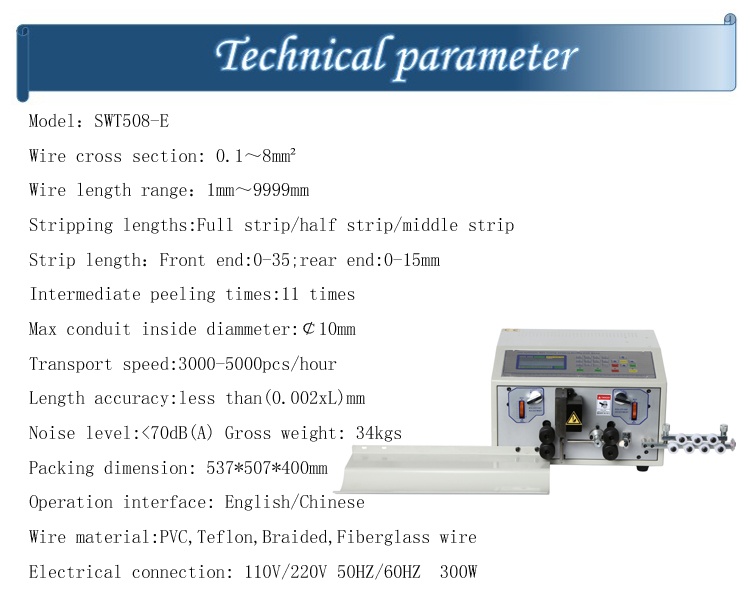

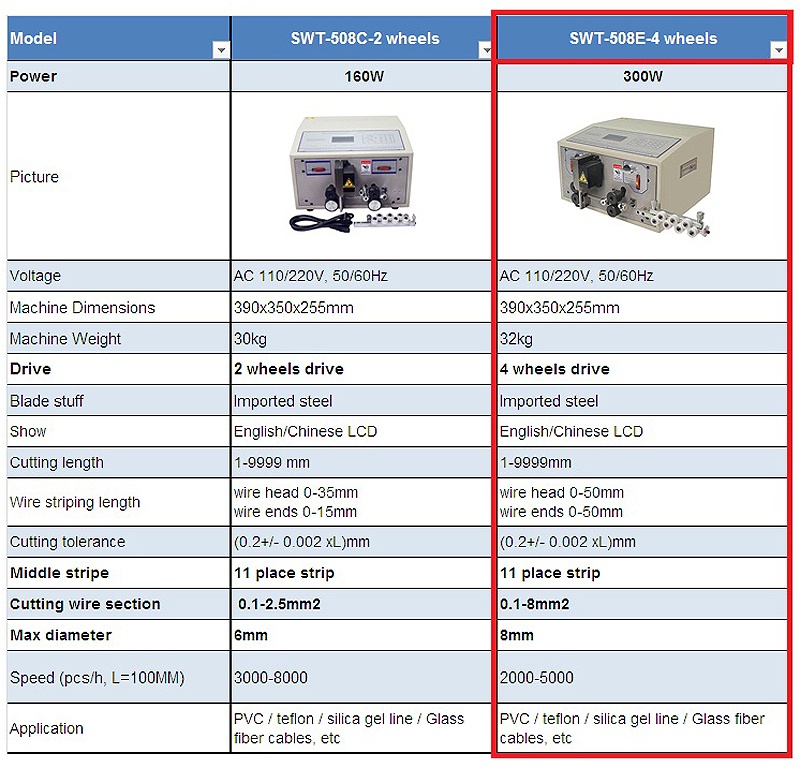

Technical parameters:

Model SWT508E/ES
Voltage AC 110V/220V/50/60 Hz
Dimensions 537x507x400mm
Display mode LCD liquid crystal display in Chinese and English interface
Weight 34(KG)
Power 300(W)
Cutting length 1-9999mm
Cutring tolerance (0.2±0.002×L)mm
Cutting tolerance correction
Stripping length head 0-50mm, end 0-50mm
 Intermediate stripping eleven place strip
Wire cross section 0.1~8mm2(AWG28 – AWG8)
Maximum diameter of tube ¢10
Suitable wire stripping PVC/PTFE/silicone cable/fiber glass wire
Blade material rigid steel
Wire speed (pcs/h) 3000-5000
Drive four wheel drive
