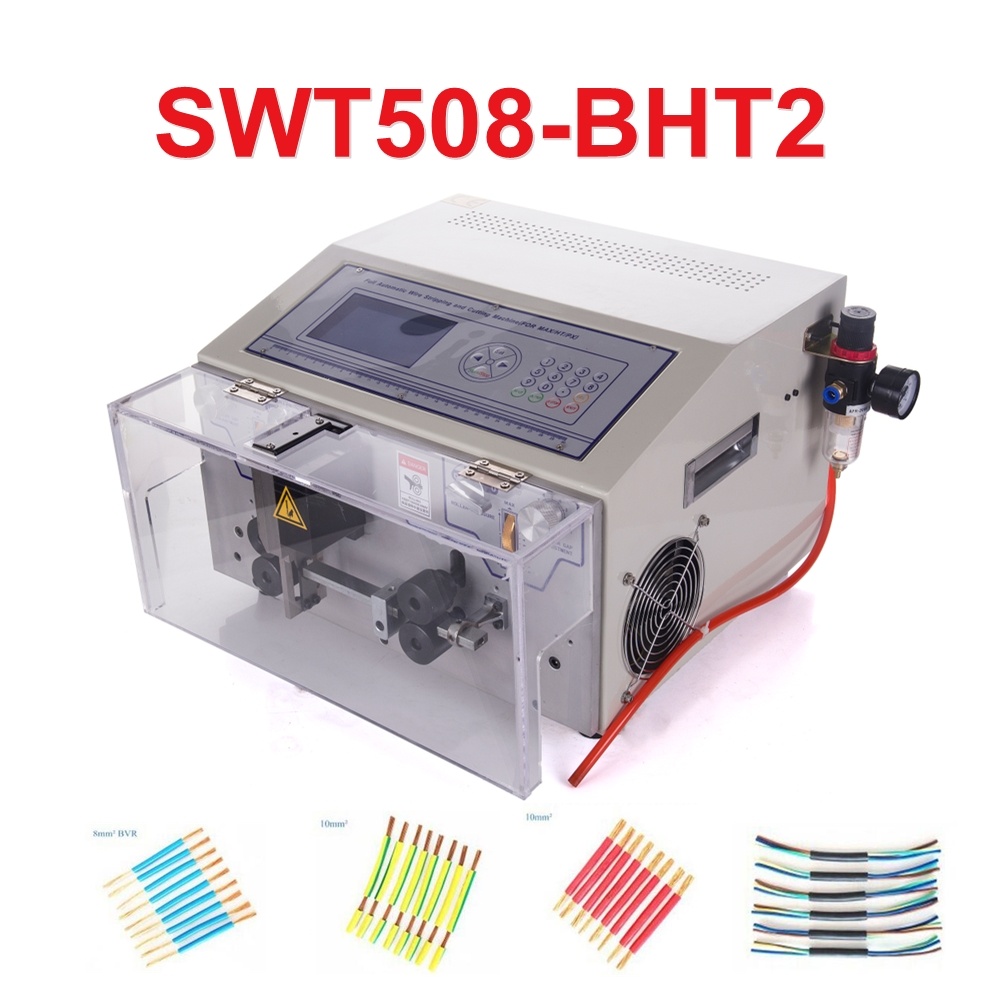

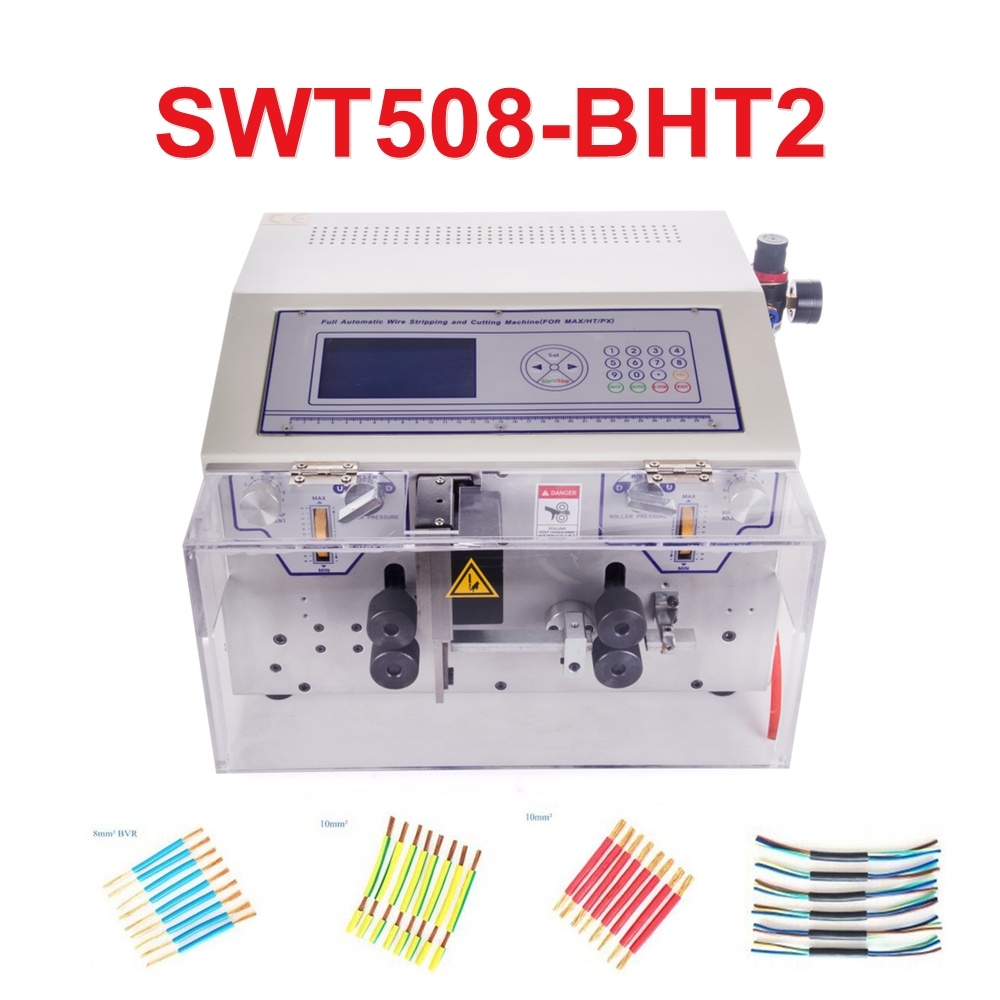

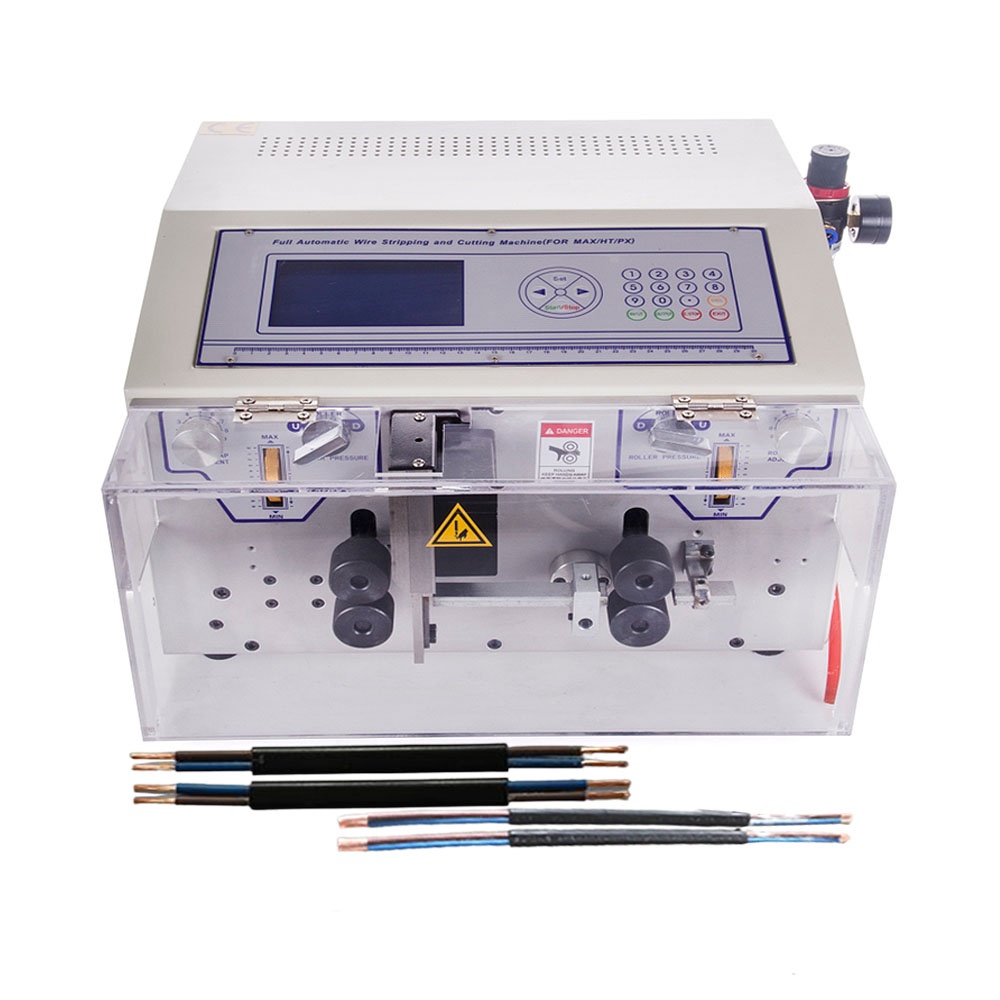

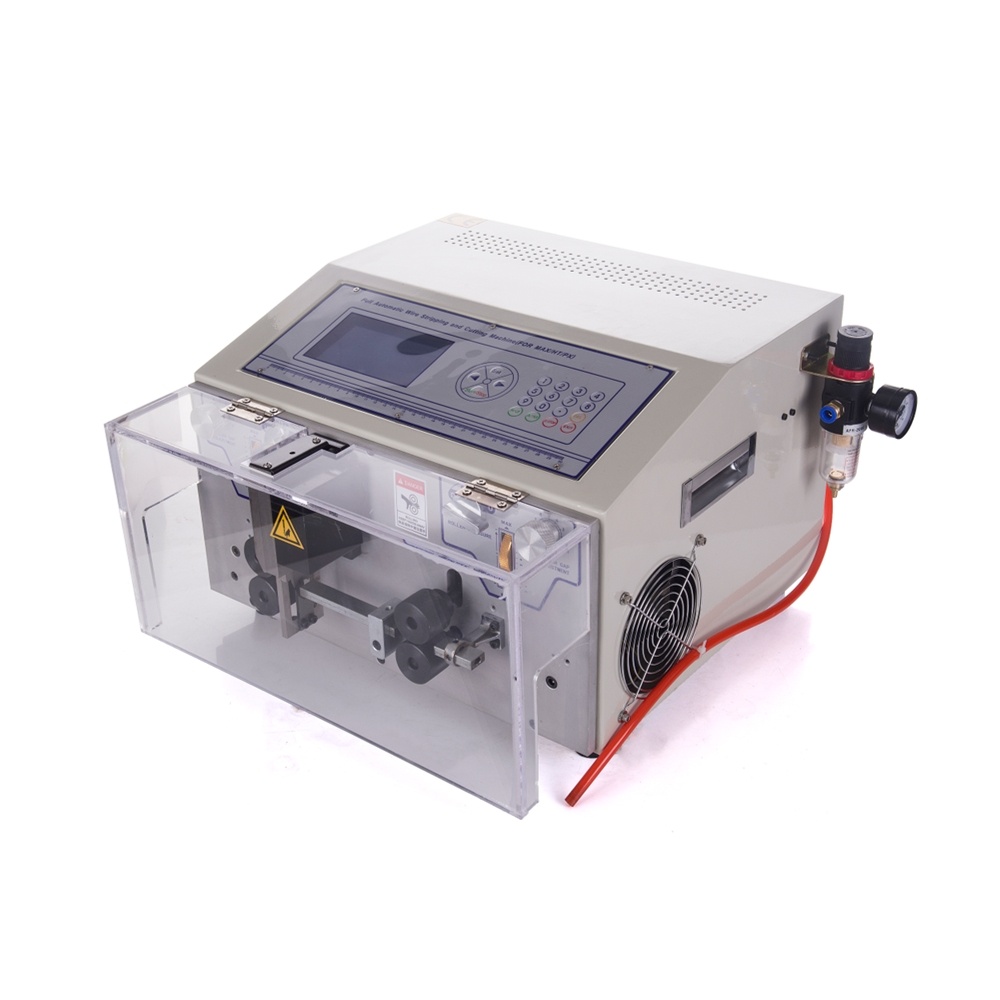

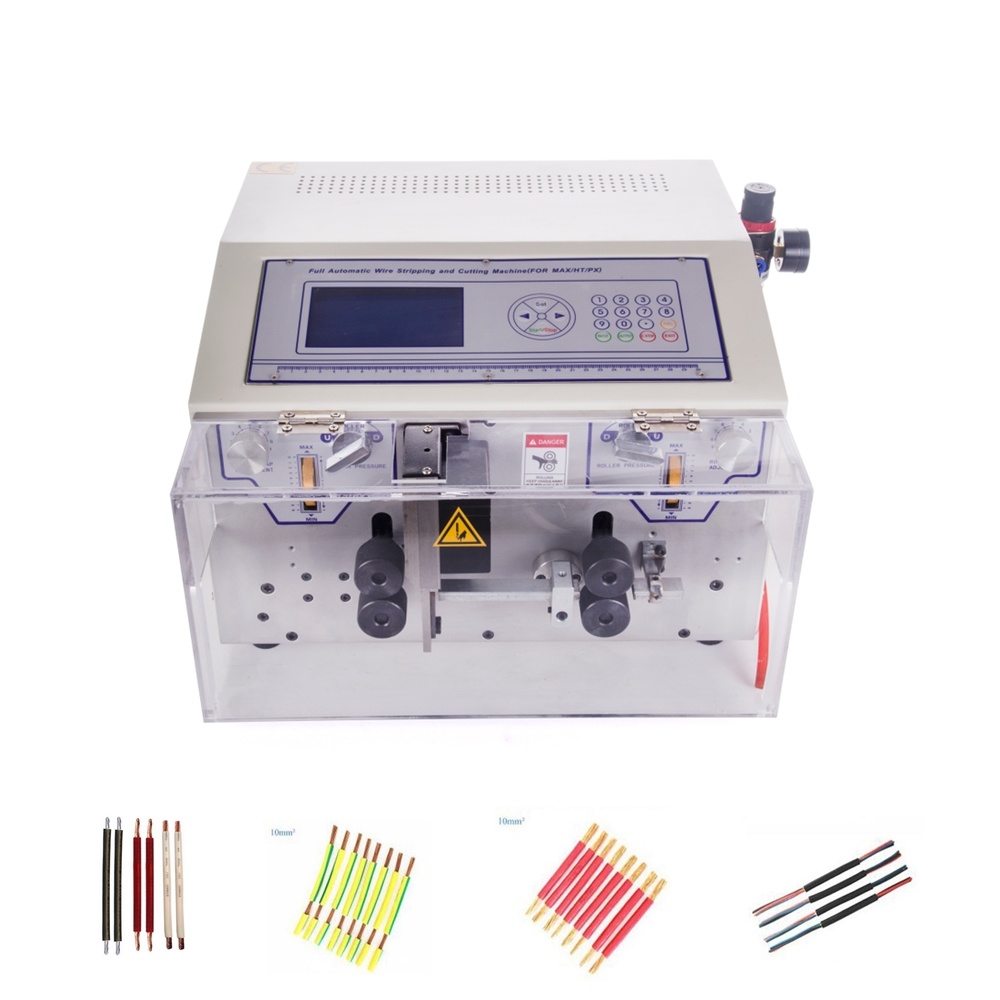

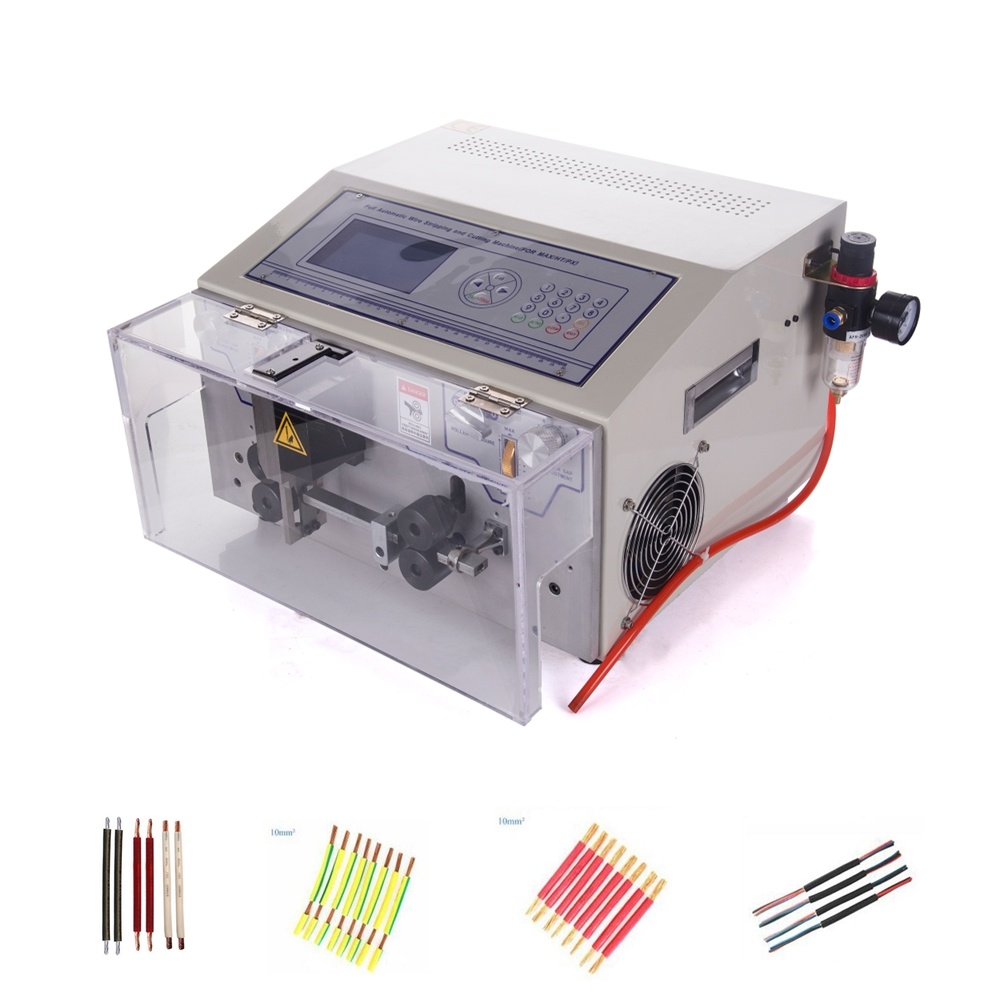

SWT508-BHT2 Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 0.1-4.5mm2 AWG10-AWG28 220V 110V

SWT508-BHT2 Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 0.1-4.5mm2 AWG10-AWG28 220V 110V

item ID: 62797
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$1383
Payment

Product Detail

Product Tags

SWT508-BHT2 Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 0.1-4.5mm2 AWG10-AWG28 220V 110V

(RE:

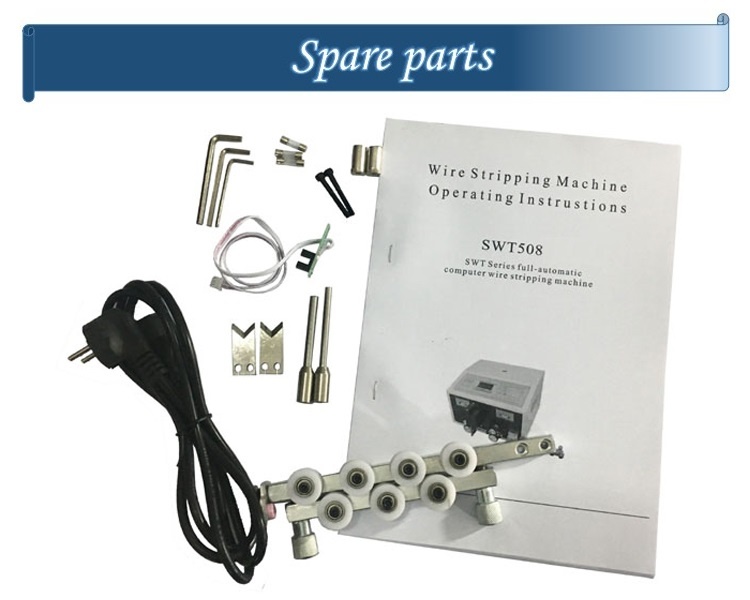

1.C / E/ SD/ SDB / SDB2/ JE / JE2 / ZW16 / ZW25 / YHT2 / NX2 above models with Wire Cable Straightener only, other models need to buy extra.

2.Such as E/S, SD/S, DB2/S, JE/S, JE2/S, MAX1-4S, HT2/S are touch screen panel models.

3. Crystal Protect case not included, if need please leave message to seller.

4. Wire collector not included, if need please leave message to seller.)





Product Description



The product function characteristics:

 Collection and integration, the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.

 Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc. Function



Applications:

 Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.

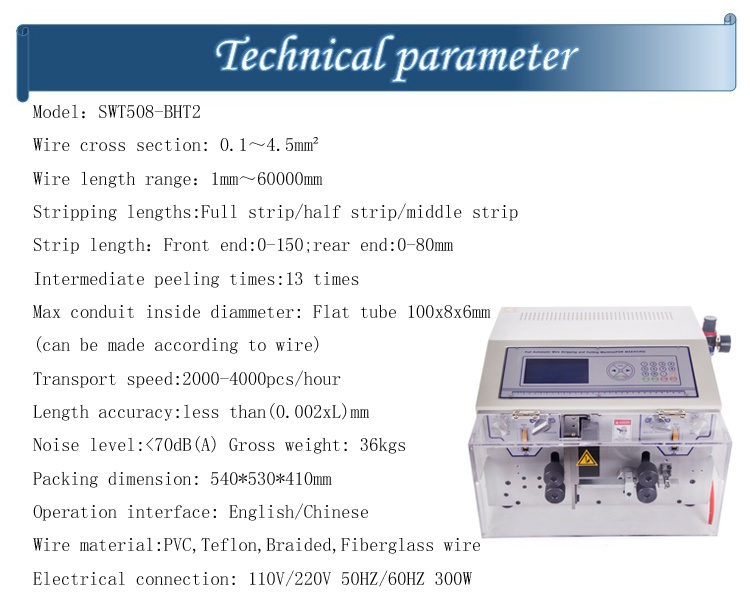

 Technical parameters:

Model

SWT508-BHT

SWT508-BHT2

Power

AC 220V/110V  50/60 Hz

POWER

300W

Cutting length

1-60000 mm

Cutting tolerance

(0.2+/- 0.002 by L) mm

Cut off the error

can be modified

Stripping length

Front end 0-50mm,Rear end 0-50 mm

Front end 0-150mm, Rear end  0-100 mm

Middle strip cut

13 place strip

Cutting wire core section

0.1-4.5mm2 was the (AWG10 #-AWG28 #)

Max cut diameter

Flat tube 80*7*5mm

Flat tube 100*8*6mm

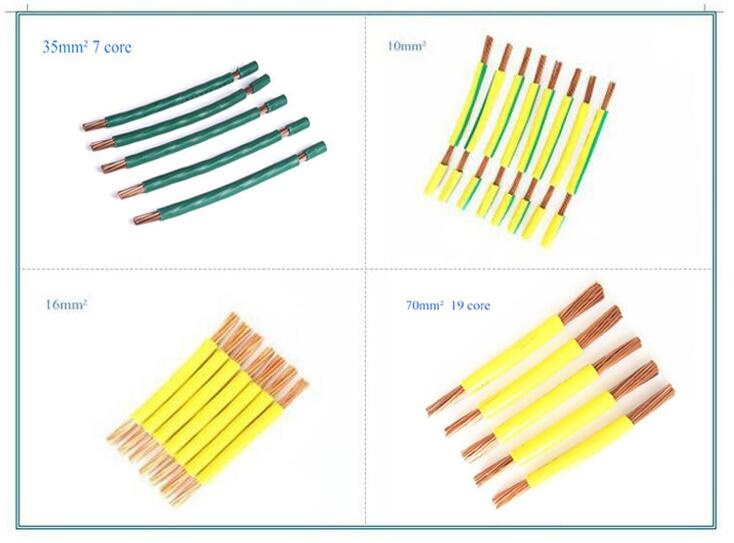

Optimal stripped wire

PVC/teflon/silica gel line /. Glass fiber cables, etc

The blade material

hard tungsten steel (import BaiGang optional)

Peel linear velocity (a/hour)

L = 100 mm, 4000-10000 PCS/h (high yield)

L = 100 mm, 4000-7000 PCS/h (high yield)

Driving way

4 wheels drive

Envelop dimensions

540*530*410

Weight

36KG

Showing the way

Chinese and English LCD interface

Warranty

12 months

Noise level

<70dB(A)
