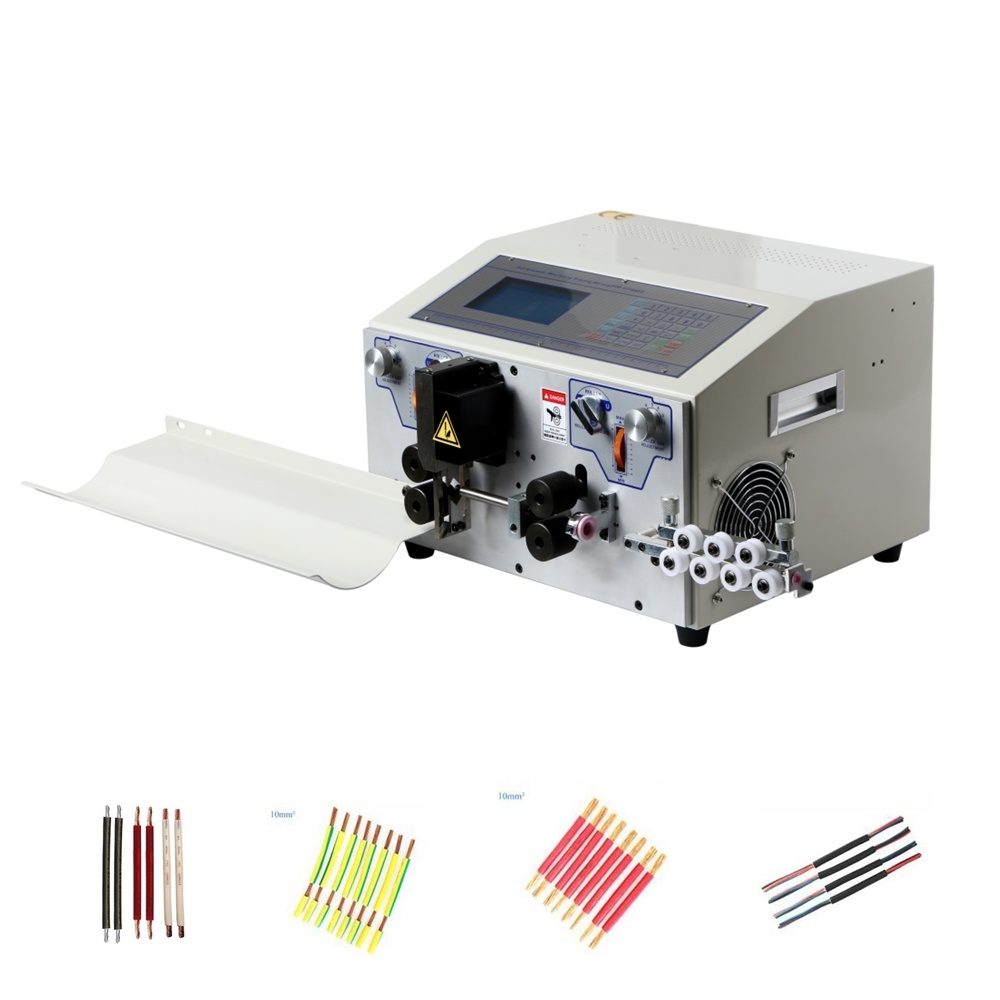

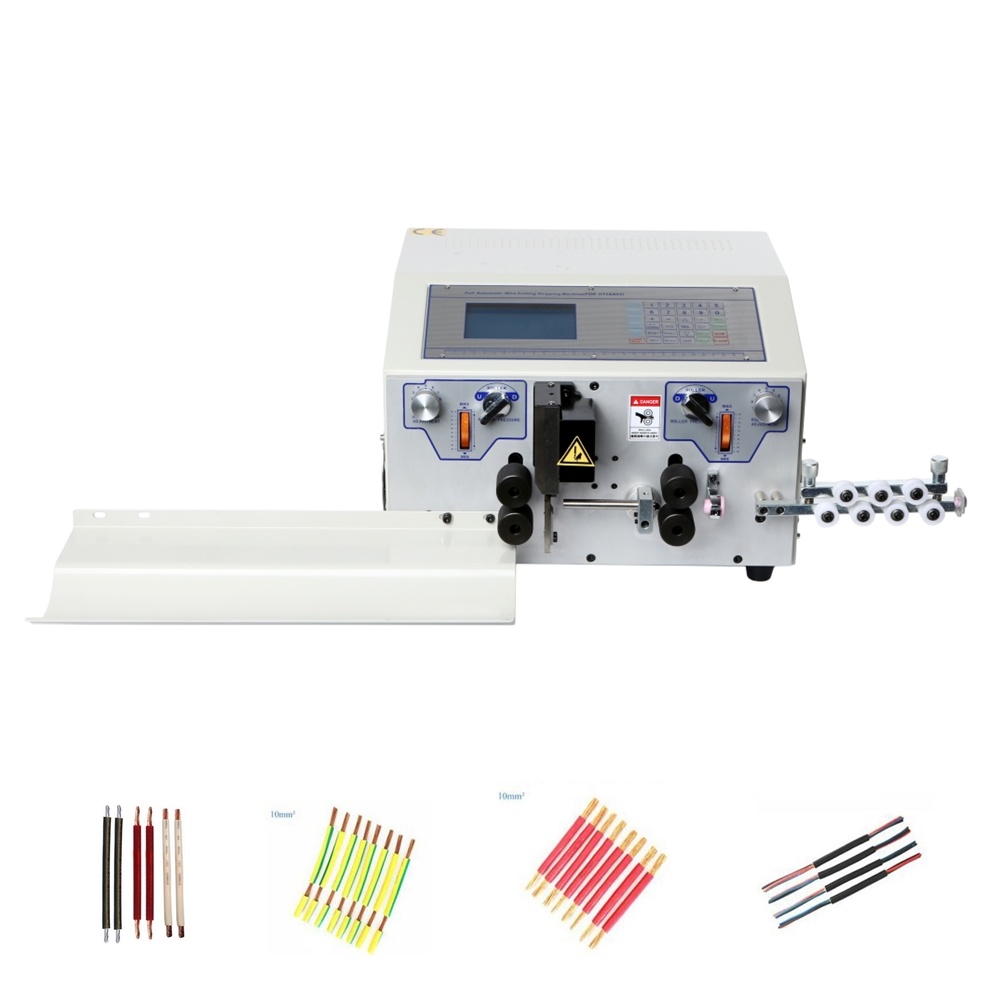

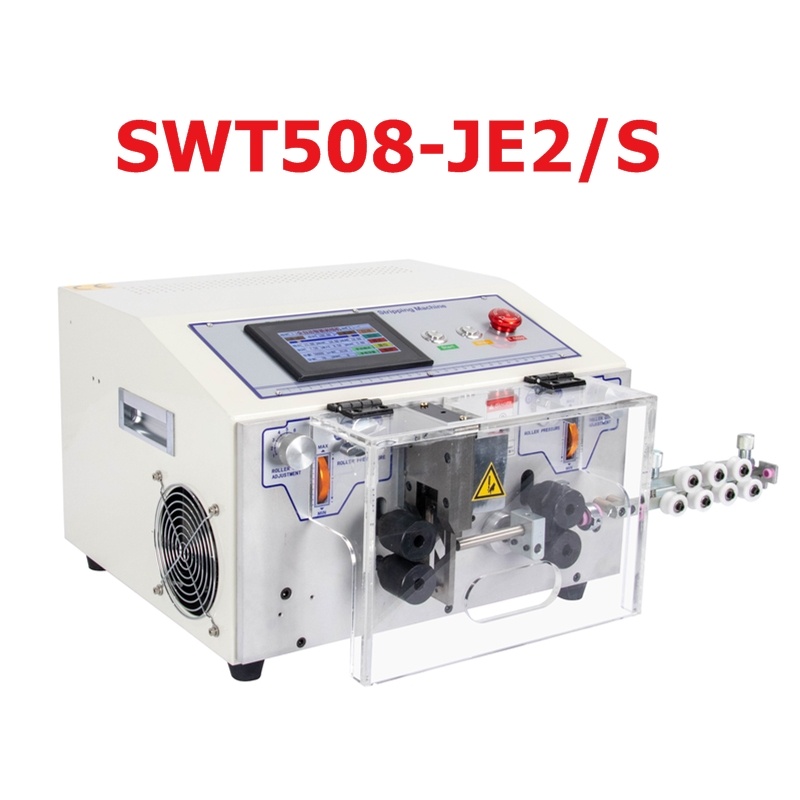

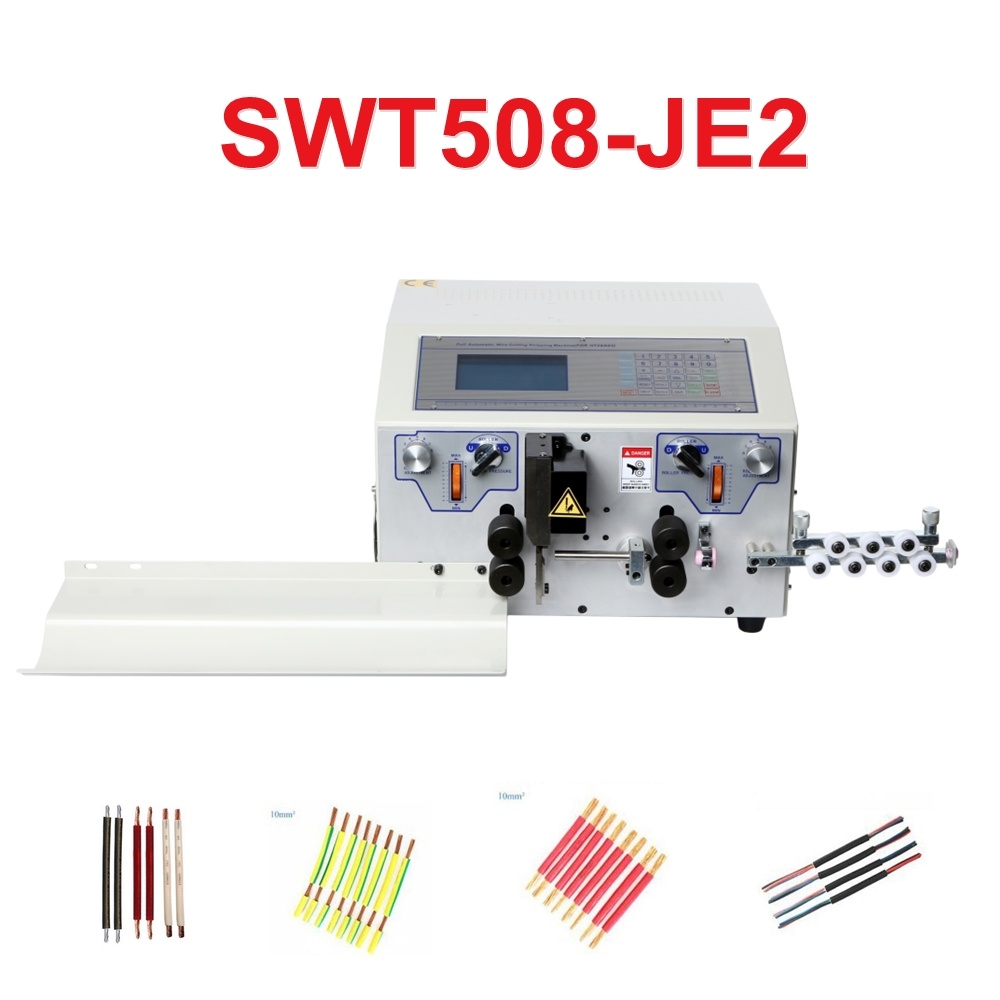

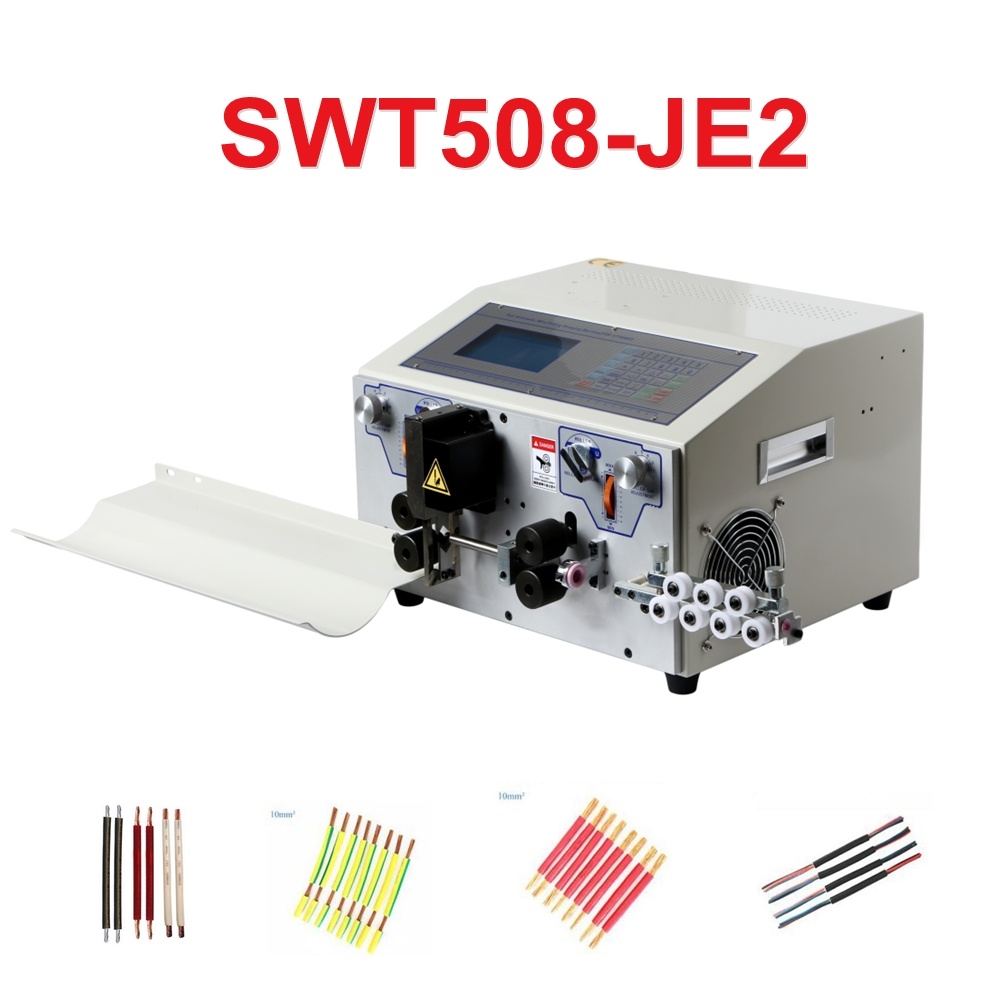

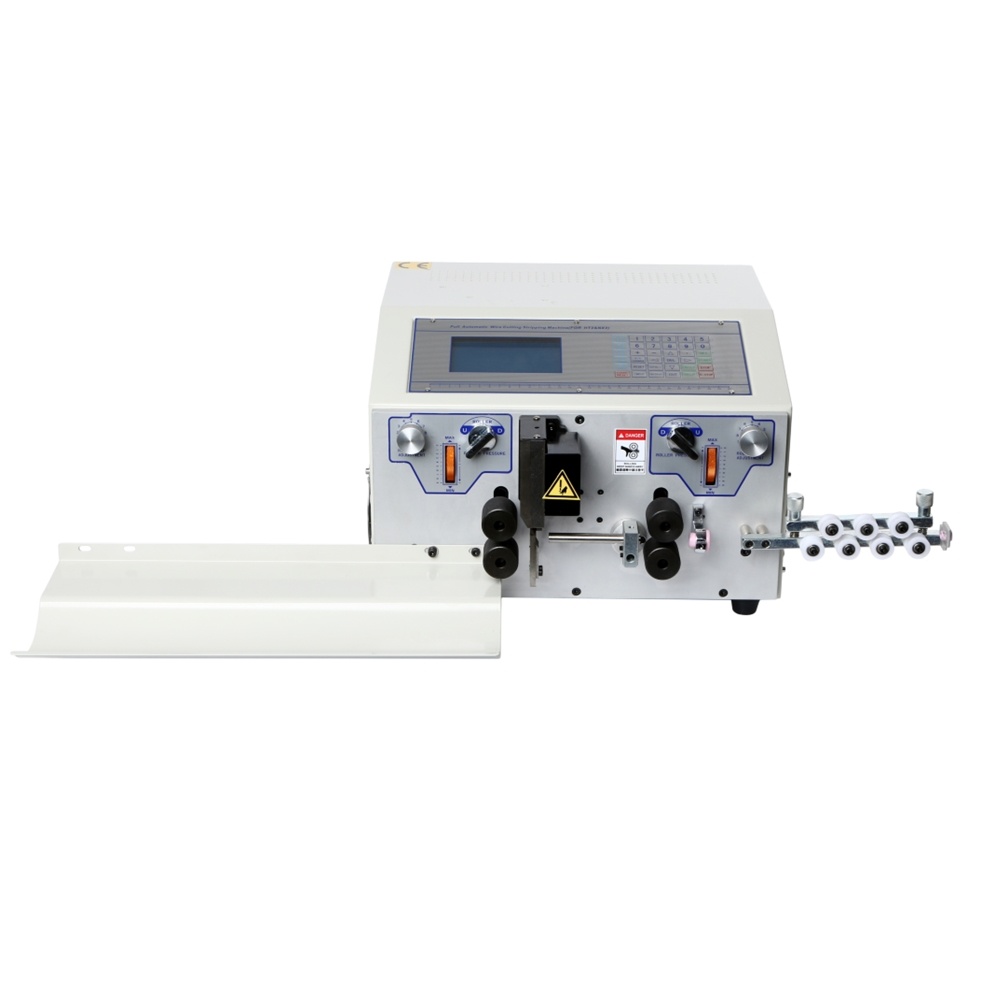

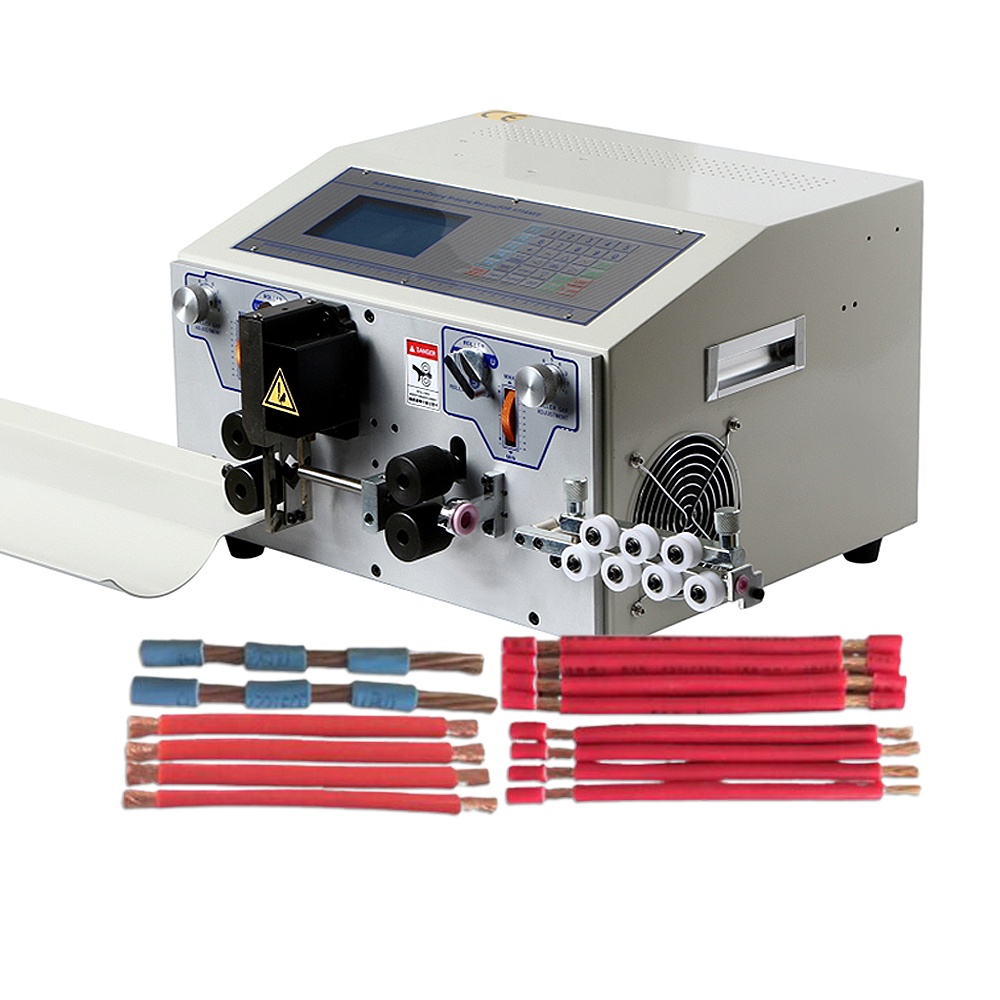

SWT508-JE2 JE2S Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 0.1-10mm2 AWG7-AWG28 220V 110V Optional Touch Screen Control

SWT508-JE2 JE2S Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 0.1-10mm2 AWG7-AWG28 220V 110V Optional Touch Screen Control

item ID: 62715
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$2000 USD$1226 (% off)
Payment

Product Detail

Product Tags

SWT508-JE2 JE2S Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 0.1-10mm2 AWG7-AWG28 220V 110V Optional Touch Screen Control

(RE:

1.C / E/ SD/ SDB / SDB2/ JE / JE2 / ZW16 / ZW25 / YHT2 / NX2 above models with Wire Cable Straightener only, other models need to buy extra.

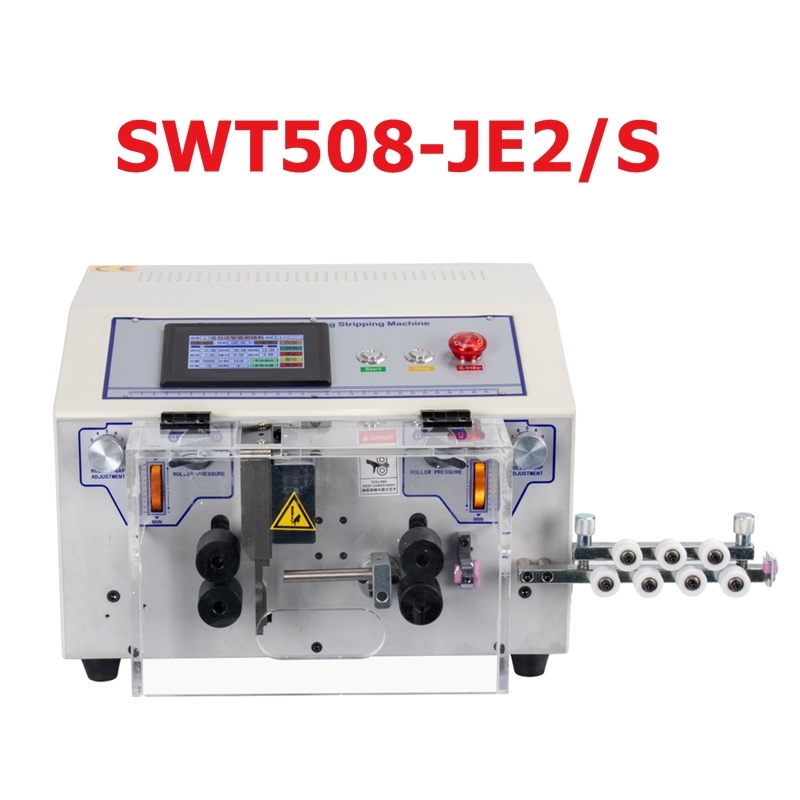

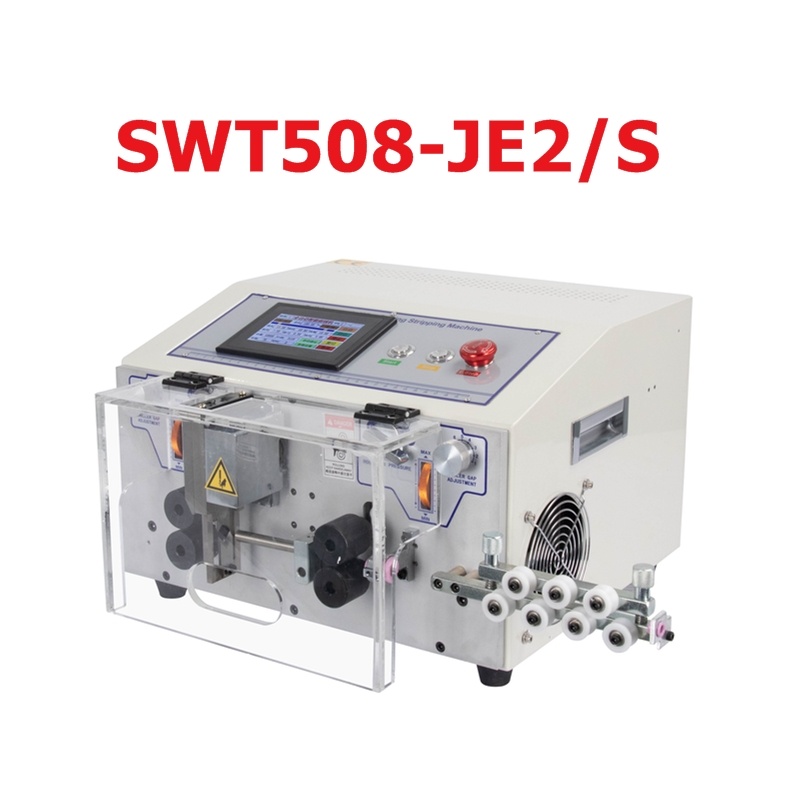

2.Such as E/S, SD/S, DB2/S, JE/S, JE2/S, MAX1-4S, HT2/S are touch screen panel models.

3. Crystal Protect case not included, if need please leave message to seller.

4. Wire collector not included, if need please leave message to seller.)





Product Description



 The product function characteristics:

 Collection and integration, the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.

 Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc. Function



Applications:

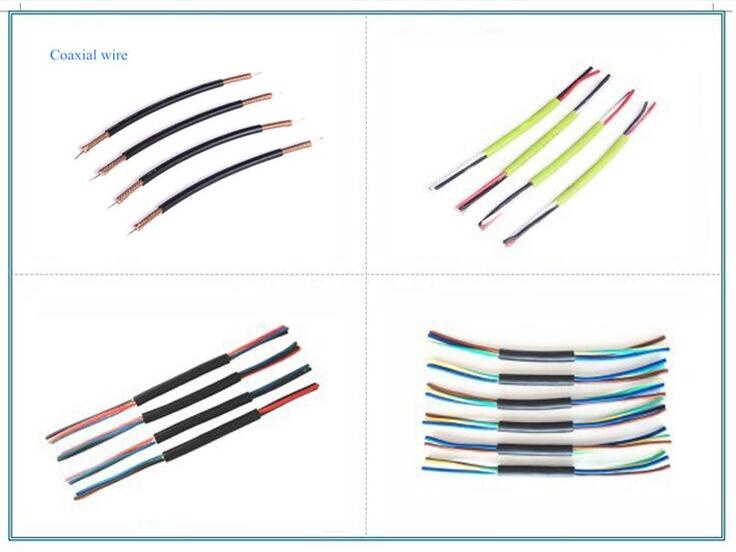

 Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.

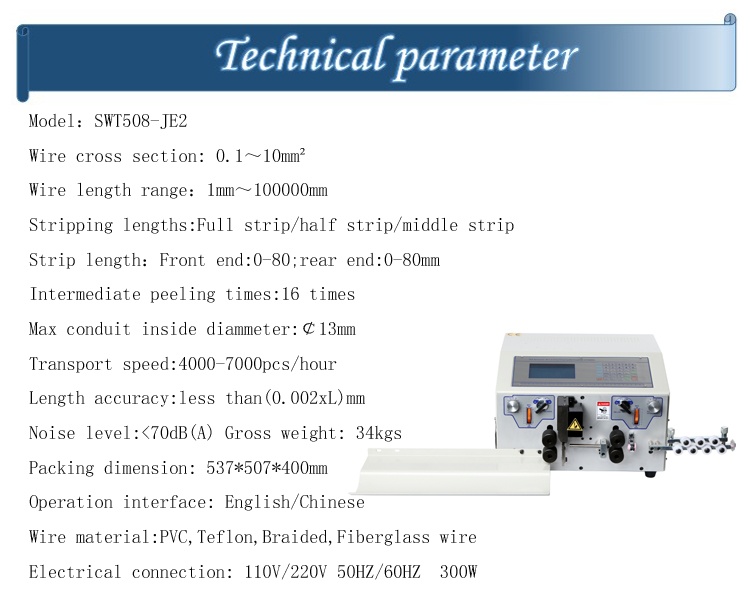

 Technical parameters:

Model

 SWT508-JE/JES

SWT508-JE2/JE2S

Voltage

 AC 220V/110V  50/60 Hz

Power

 300W

Cutting length

 1-9999 mm

1-100000 mm

Cutting tolerance

 (0.2+/- 0.002 by L) mm

Cut off the error

Can be modified

Stripping length

 Front end 0-50mm,Rear end 0-50 mm

Front end 0-80mm,Rear end 0-80 mm

Middle strip cut

 11 place strip

16 places strip

Cutting wire core section

 0.1-8mm2 (AWG8 #-AWG28 #)

0.1-10mm2 (AWG7 #-AWG28 #)

Max cut diameter

 ¢10

¢13

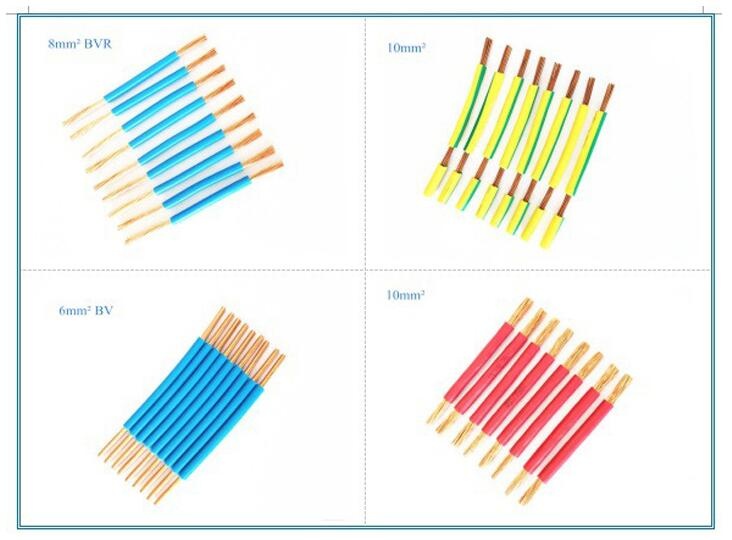

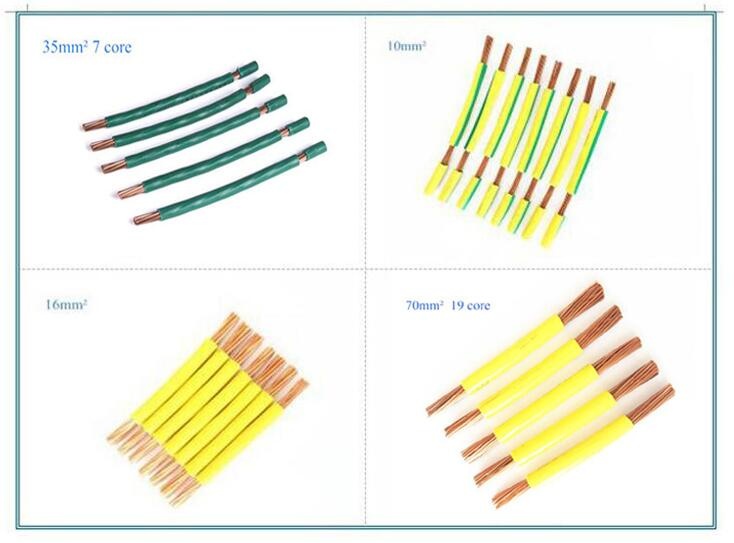

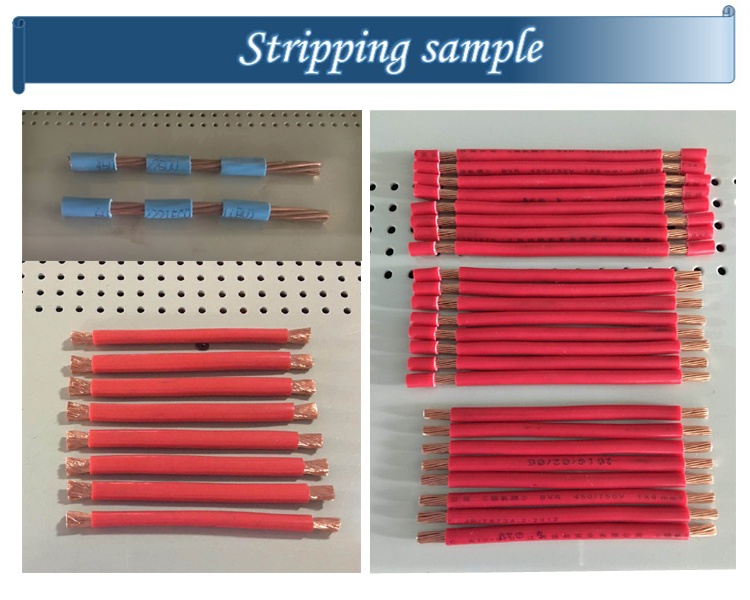

Optimal stripped wire

For PVC/teflon/silica gel line /. Glass fiber cables, etc

The blade material

Hard tungsten steel (import BaiGang optional)

Peel linear velocity (a/hour)

 L = 100 mm, 3000-5000 PCS/h (high yield)

L = 100 mm, 4000-7000 PCS/h (high yield)

Driving way

 4 wheels drive

Envelop dimensions

 537*507*410

Weight

 36KG

Showing the way

 Chinese and English LCD interface

Warranty

 12 months

Noise level

 <70dB(A)
