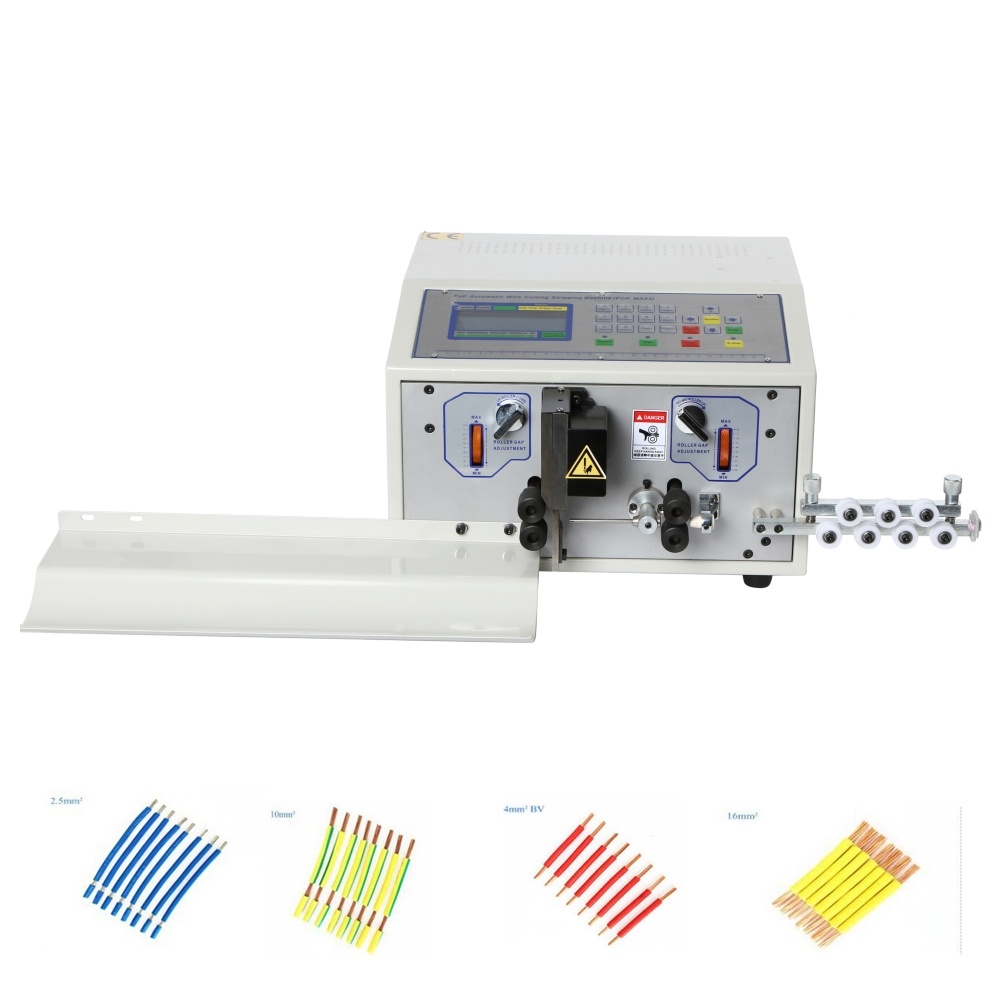

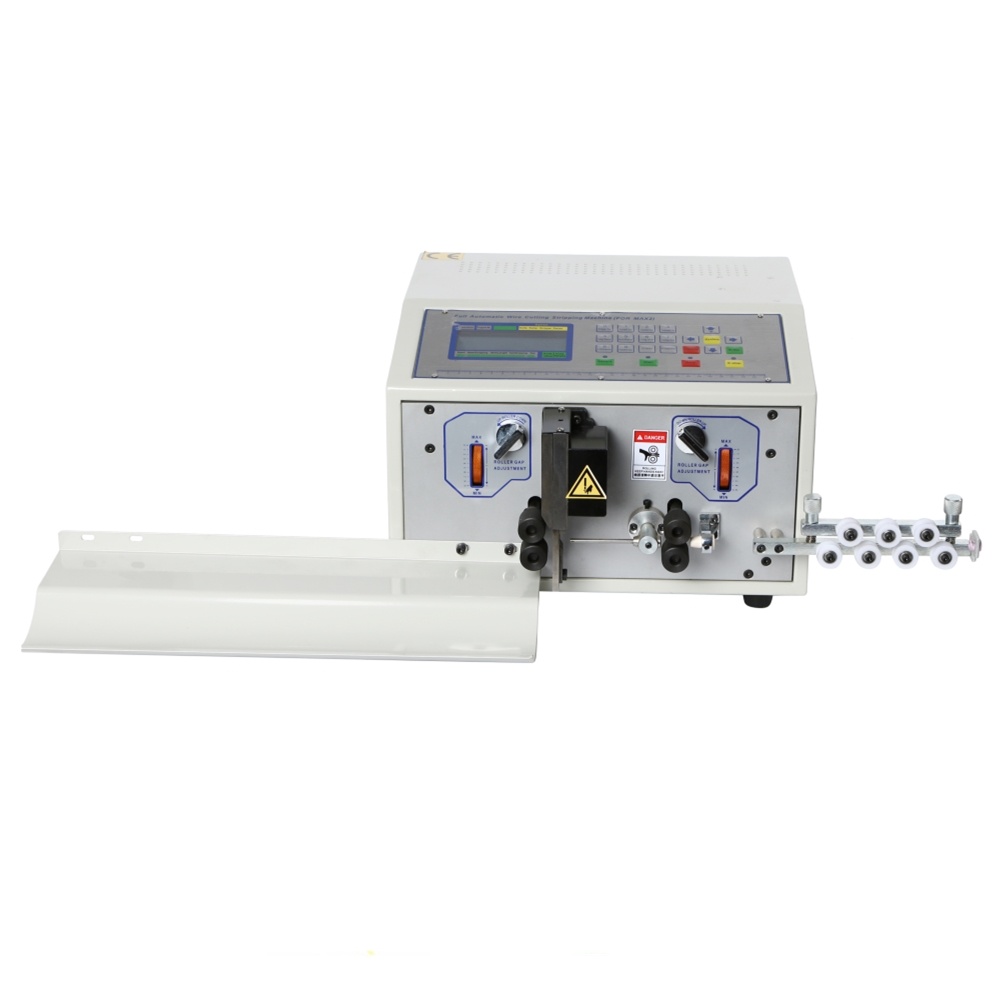

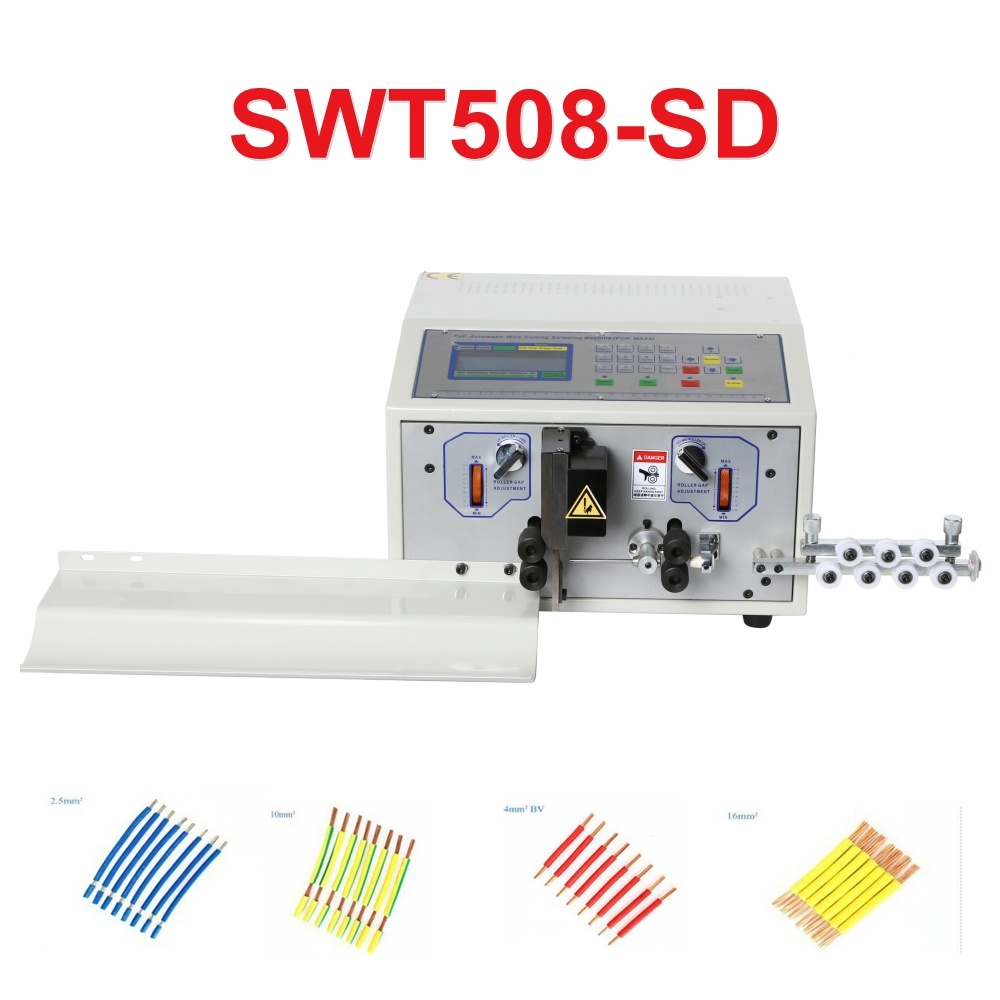

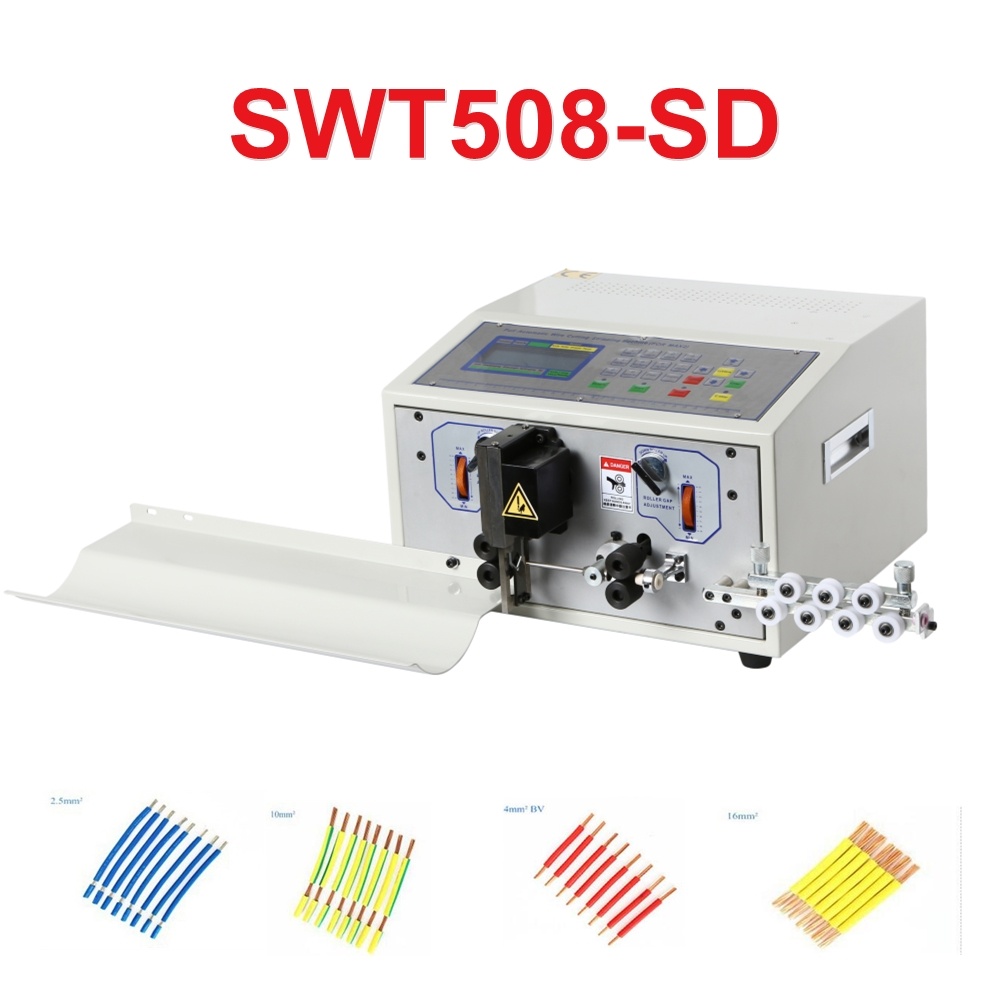

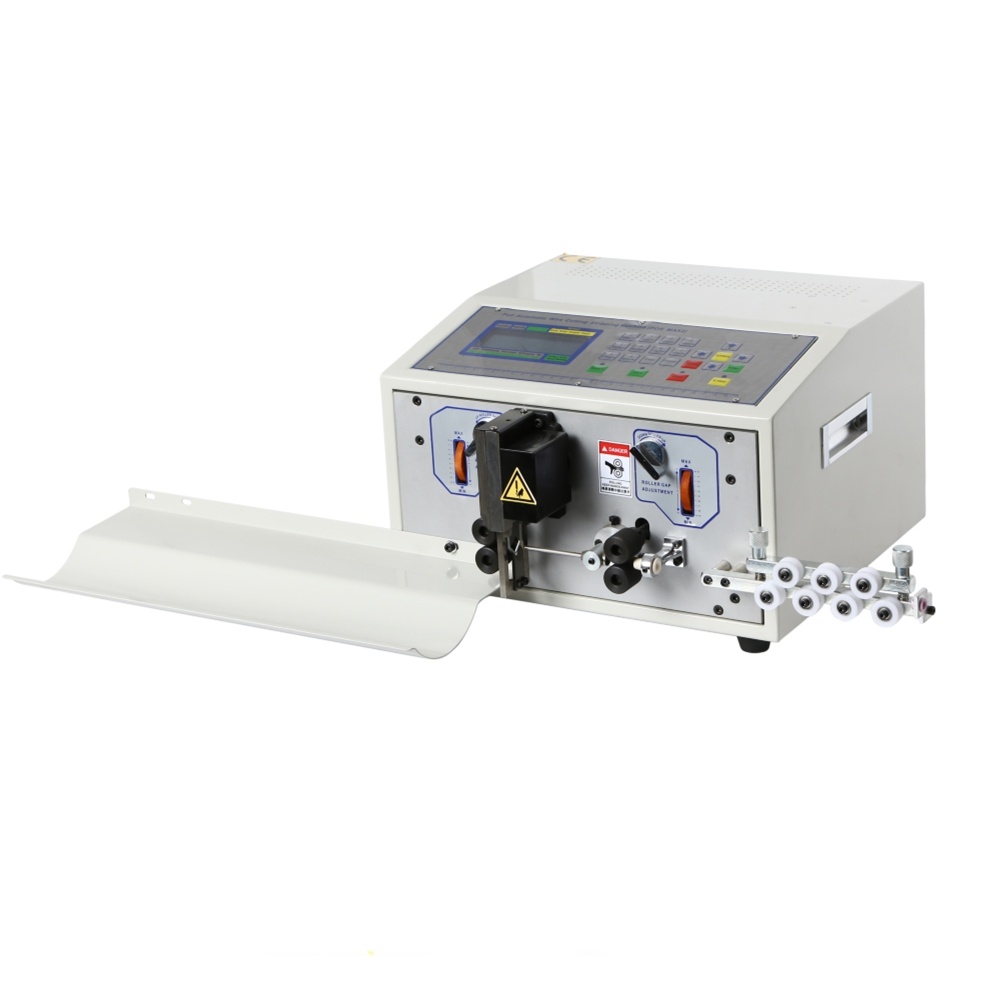

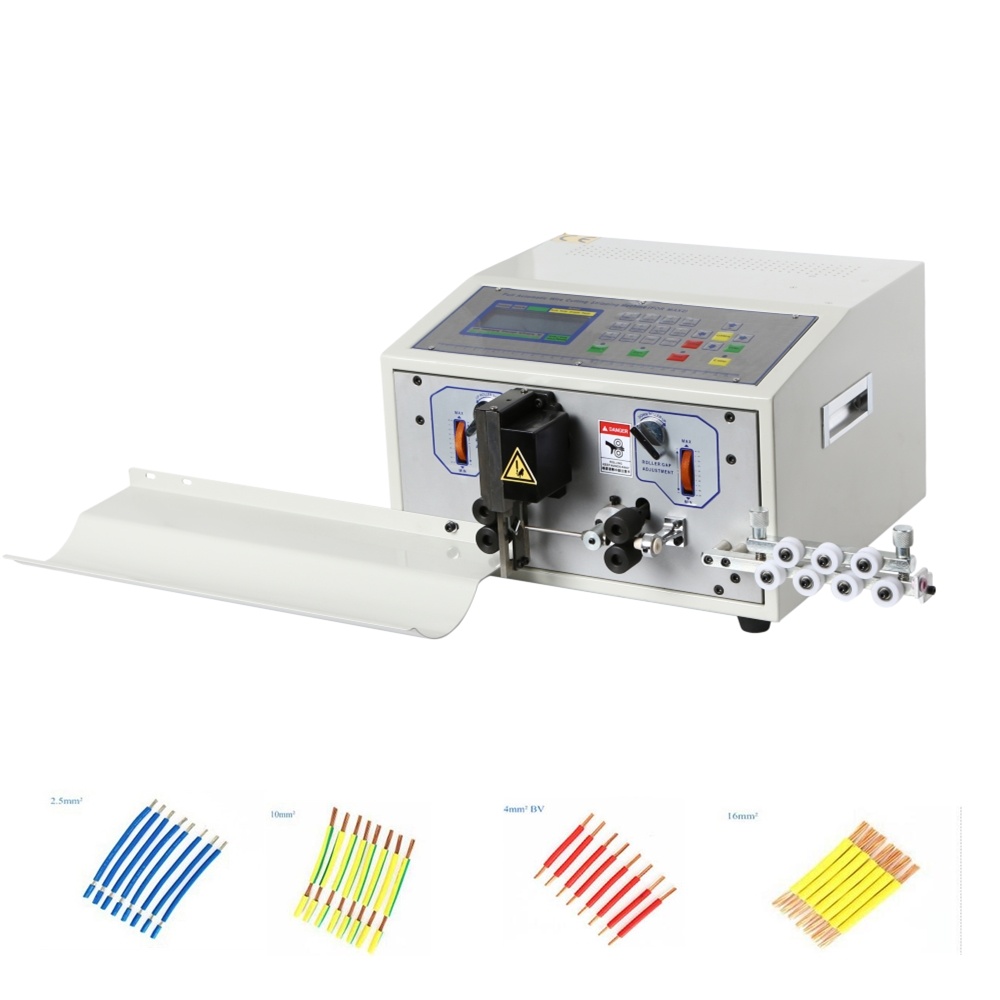

SWT508-SD SDS Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 0.1-6mm2 AWG10-AWG28 220V 110V Optional Touch Screen Control

SWT508-SD SDS Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 0.1-6mm2 AWG10-AWG28 220V 110V Optional Touch Screen Control

item ID: 62656
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$1200 USD$752 (% off)
Payment

Product Detail

Product Tags

SWT508-SD SDS Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 0.1-6mm2 AWG10-AWG28 220V 110V Optional Touch Screen Control

(RE:

1.C / E/ SD/ SDB / SDB2/ JE / JE2 / ZW16 / ZW25 / YHT2 / NX2 above models with Wire Cable Straightener only, other models need to buy extra.

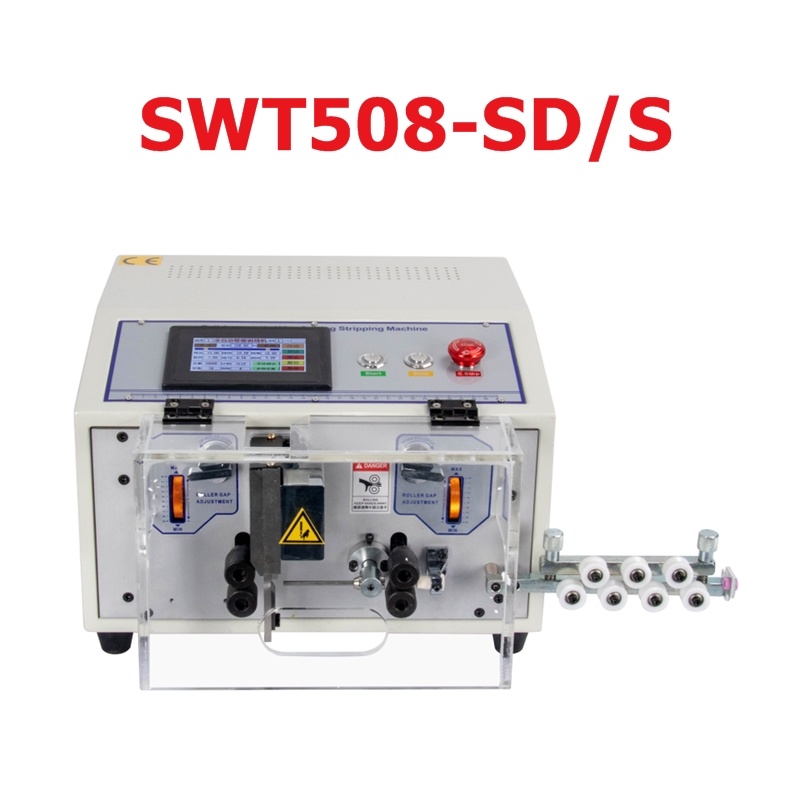

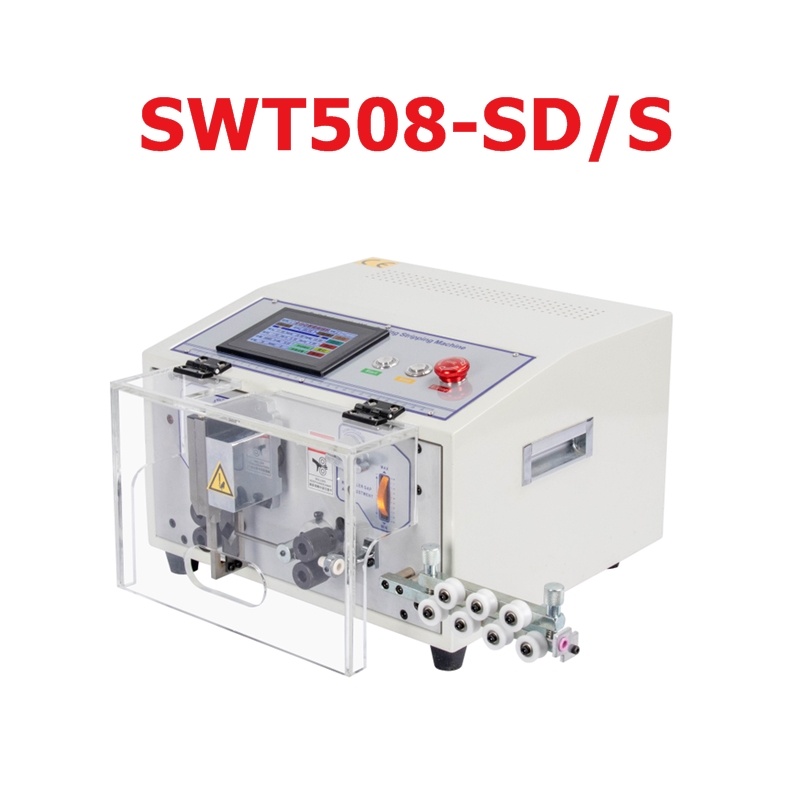

2.Such as E/S, SD/S, DB2/S, JE/S, JE2/S, MAX1-4S, HT2/S are touch screen panel models.

3. Crystal Protect case not included, if need please leave message to seller.

4. Wire collector not included, if need please leave message to seller.)





Product Description



 The product function characteristics:

 Collection and integration, the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.

 Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc. Function



Applications:

 Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.

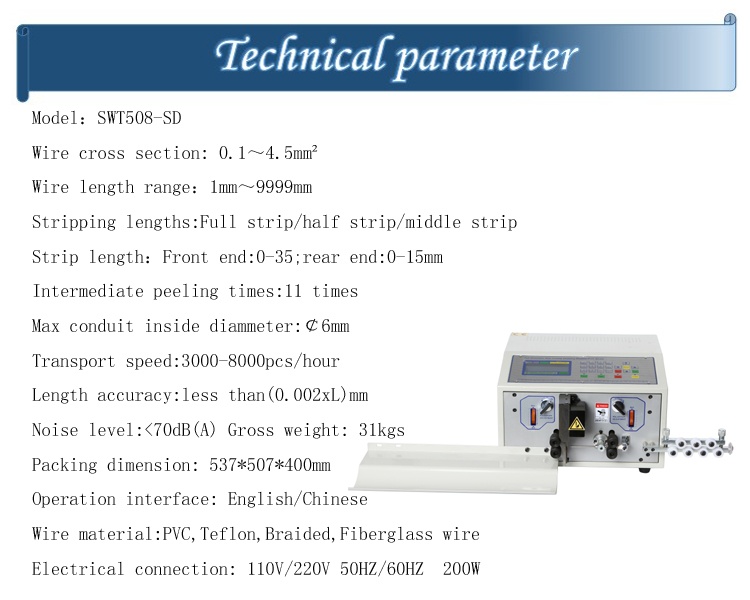

 Technical parameters:



Model

SWT508- SD/SDS

SWT508 -SDB

Wire cross section

0. 1~4.5mm2

single line 0. 1~4.5mm2 ;two line 0. 1~2. 5mm2

Wire length range

1mm~ 999mm

Stripping lengths

Full strip/half strip/middle strip

Strip length

Front end 0 – 35;rear end 0- 15mm .

Intermediate peeling times

11 times

Max conduit inside diamneter

¢6mm

Transport speed

3000- 8000pcs/ hour

5000- 10000pcs/hour

Length accuracy

less than (0.002xL) mm

Noise level

<70dB(A)

Gross weight

31kgs

Packing dimens ion

537*507*400mm

Operation interface

English/Chinese

Wire material

For PVC, Teflon, Braided, Fiberglass wire

Electrical connection

110V/220V 50HZ/60HZ     200W
