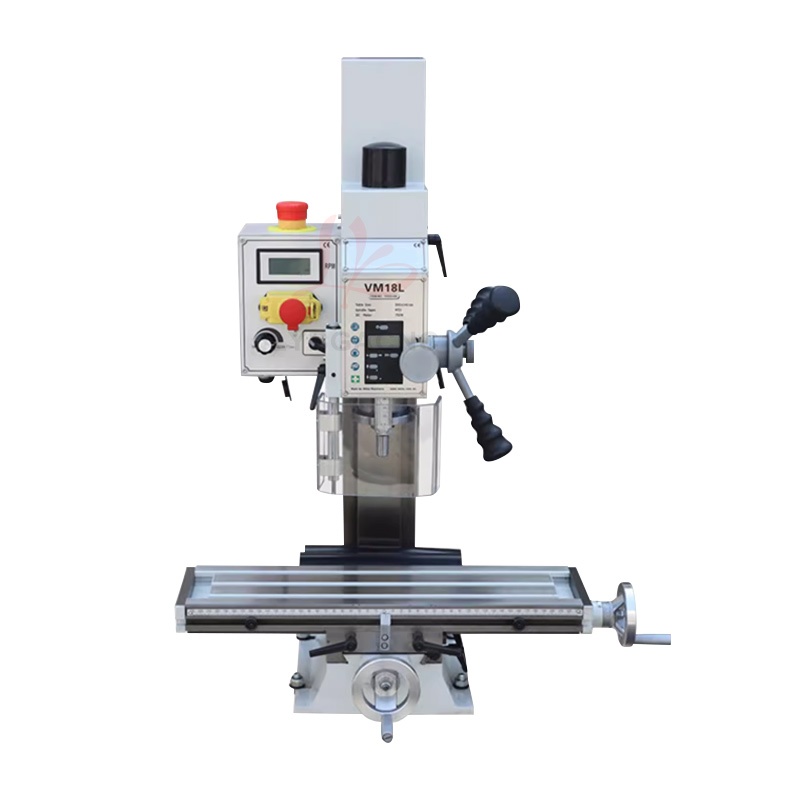

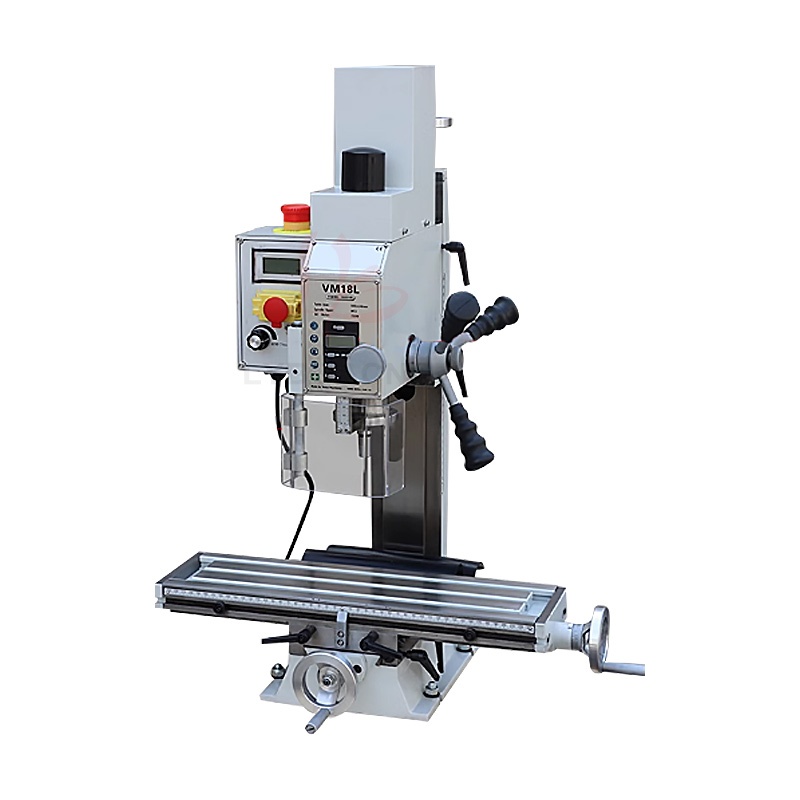

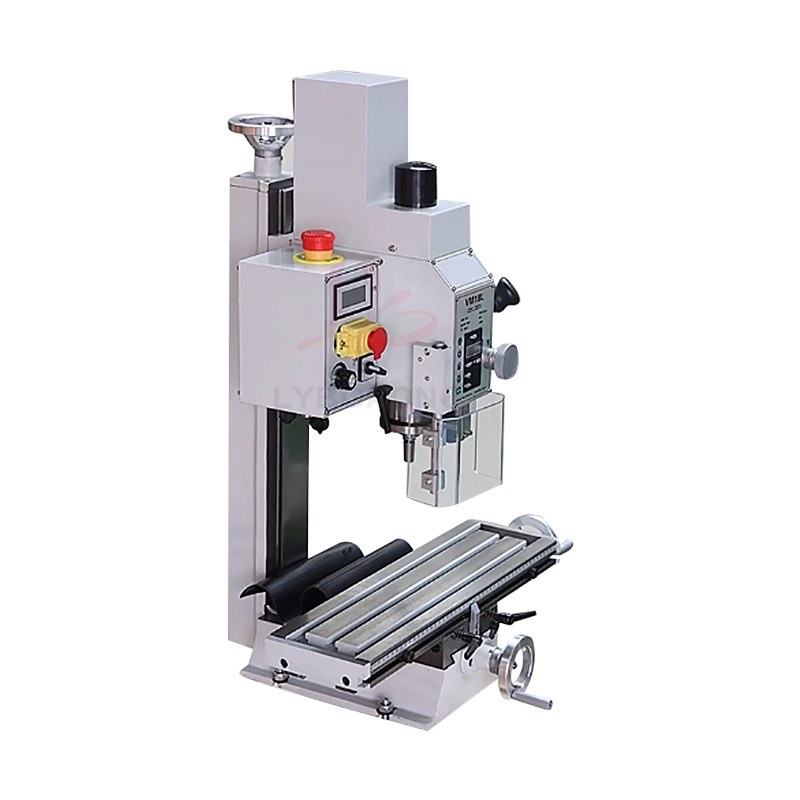

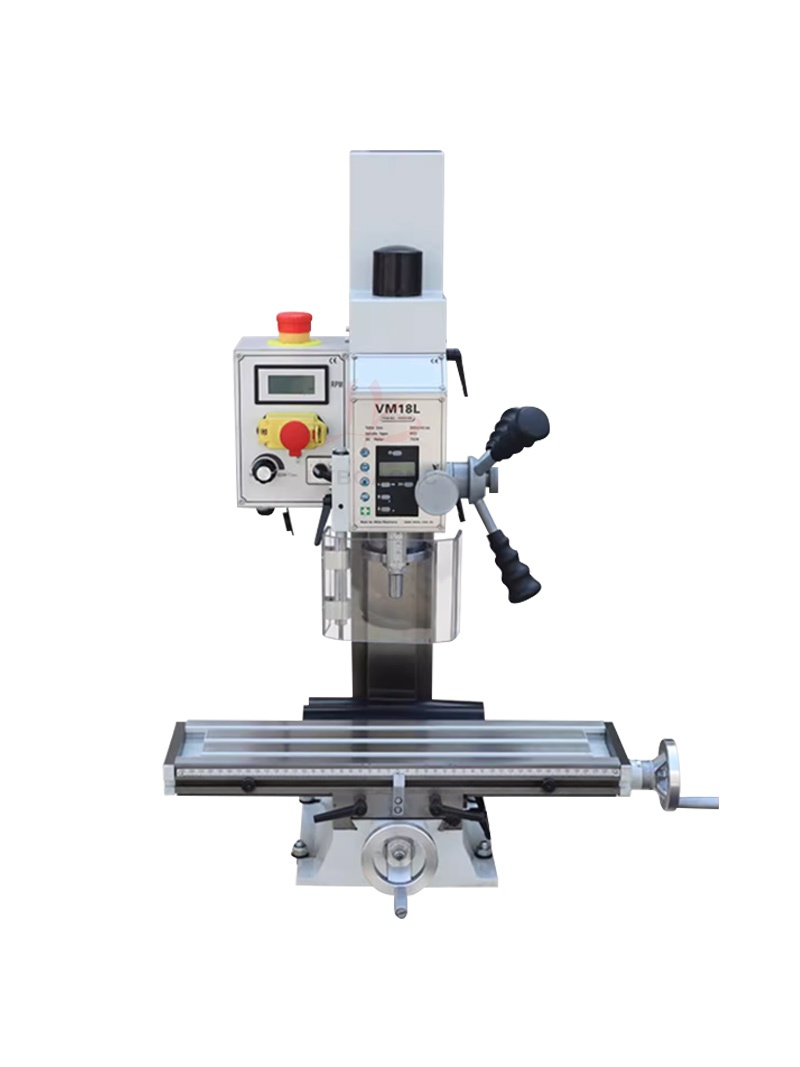

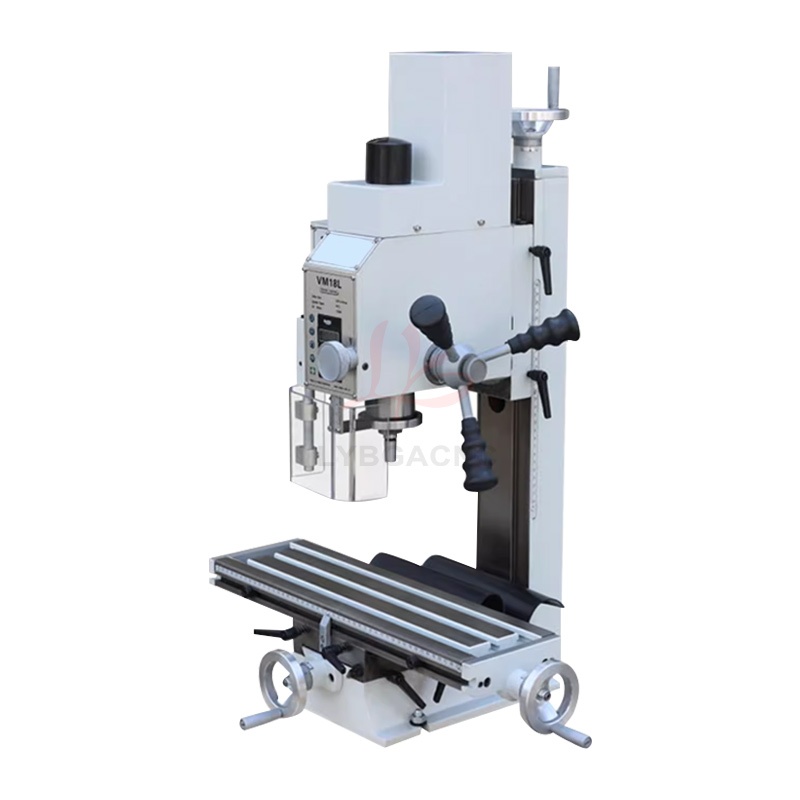

VM18L Multi-functional Drilling and Milling Machine: Infinitely Variable Speed Digital Small Milling Machine with Spindle Box Tilting 90° Left and Right

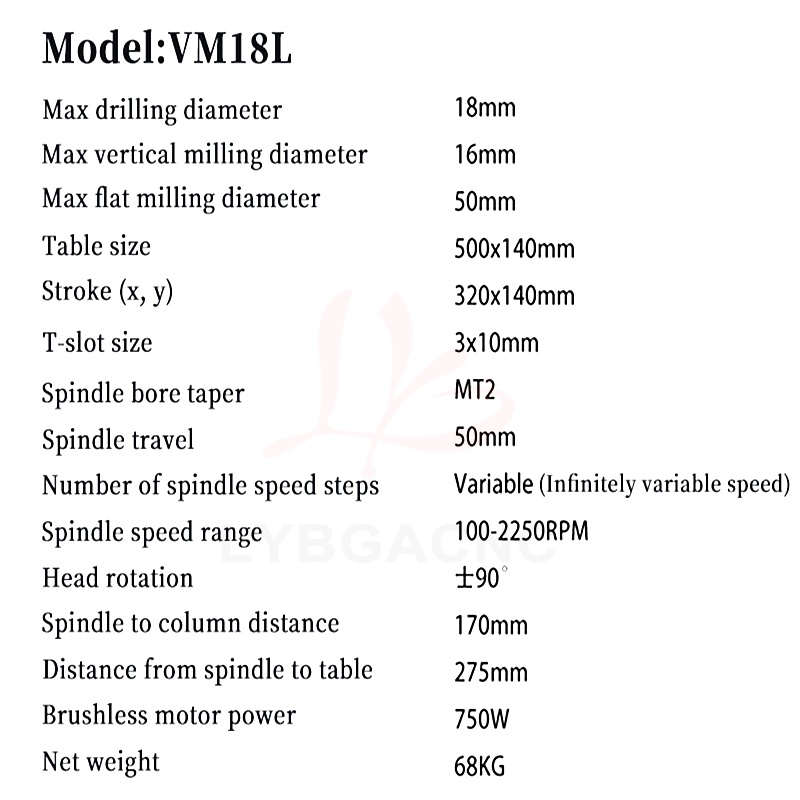

Model:VM18L

Max drilling diameter 18mm
Max vertical milling diameter 16mm
Max Surface milling diameter 50mm

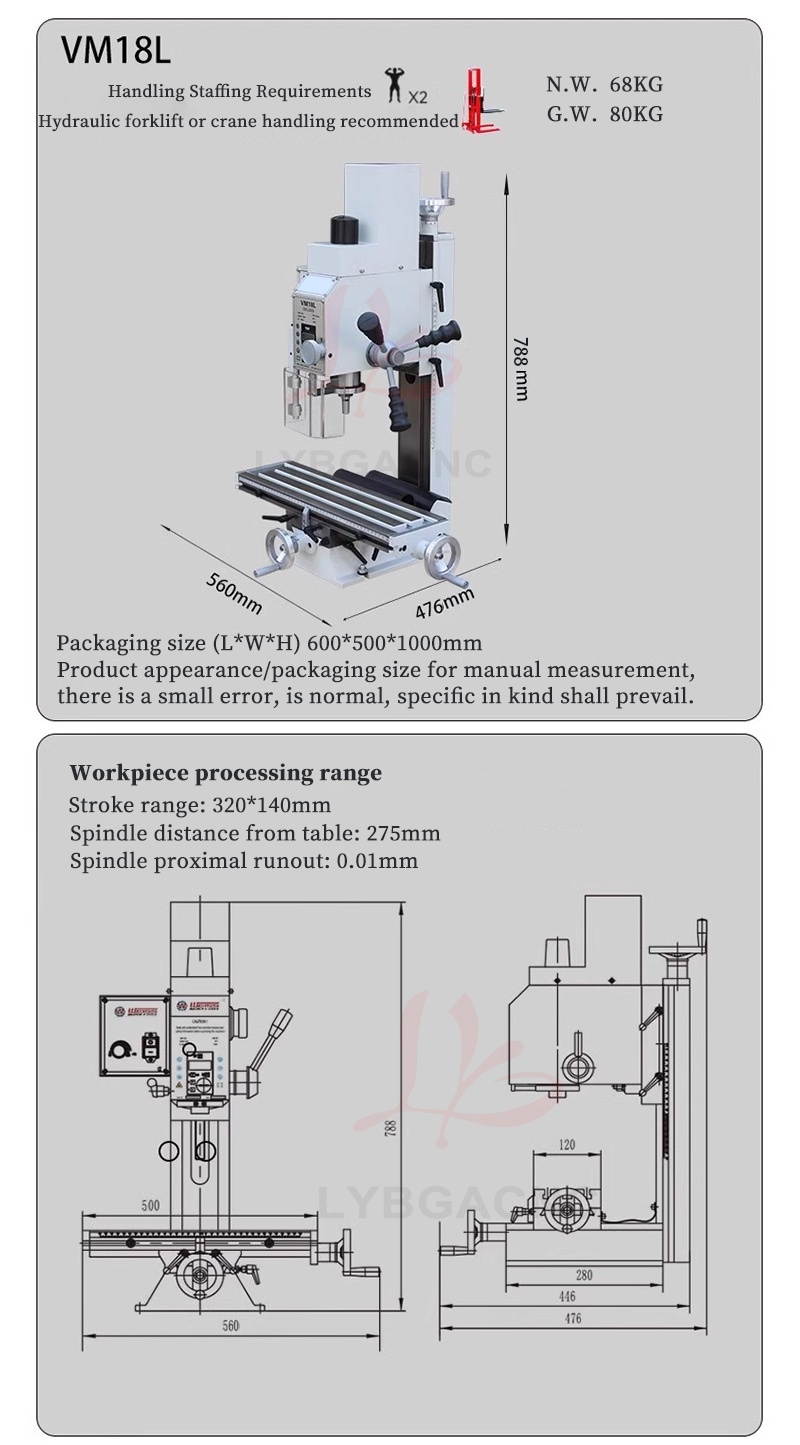

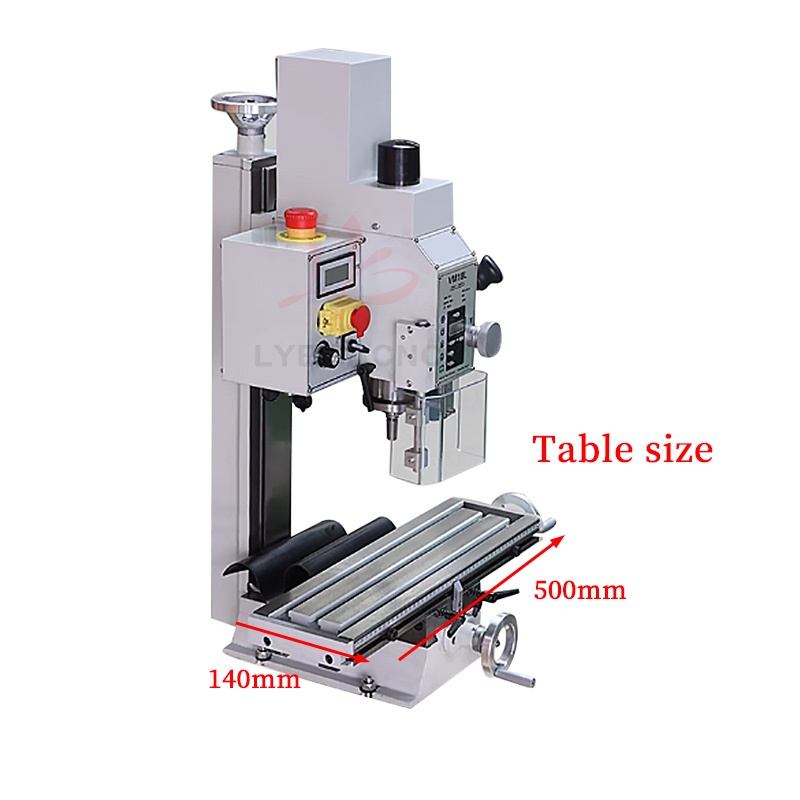

Table size 500x140mm
Table travel (X,Y) 320x140mm
T-slot size 3x10mm
Spindle taper MT2
Spindle travel 50mm
Number of spindle speed steps Variable(Infinitely variable speed)
Spindle speed range 50-2250rpm

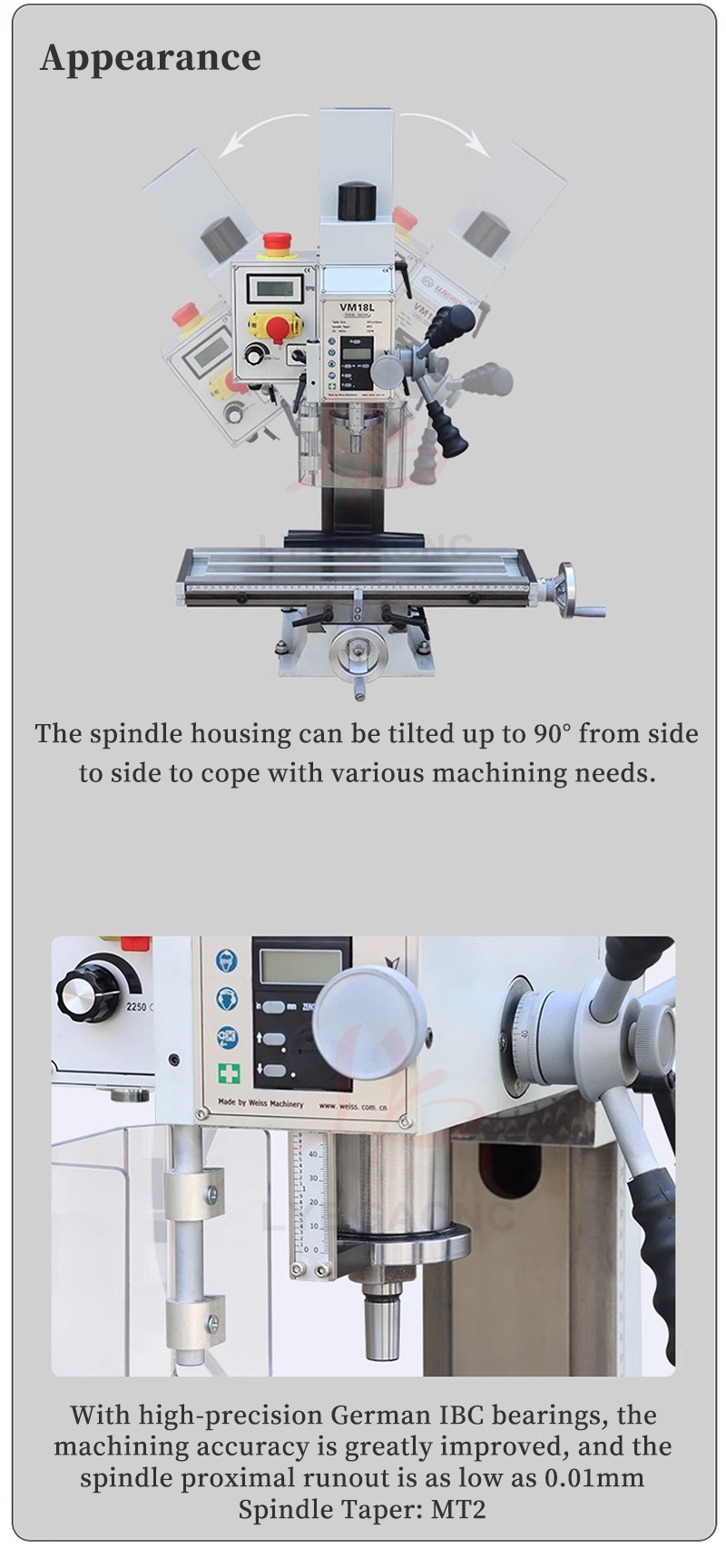

Head rotation 士90°
Spindle to column distance 170mm
Distance from spindle to table 275mm
Brushless motor power 750W
Net weight 68kg

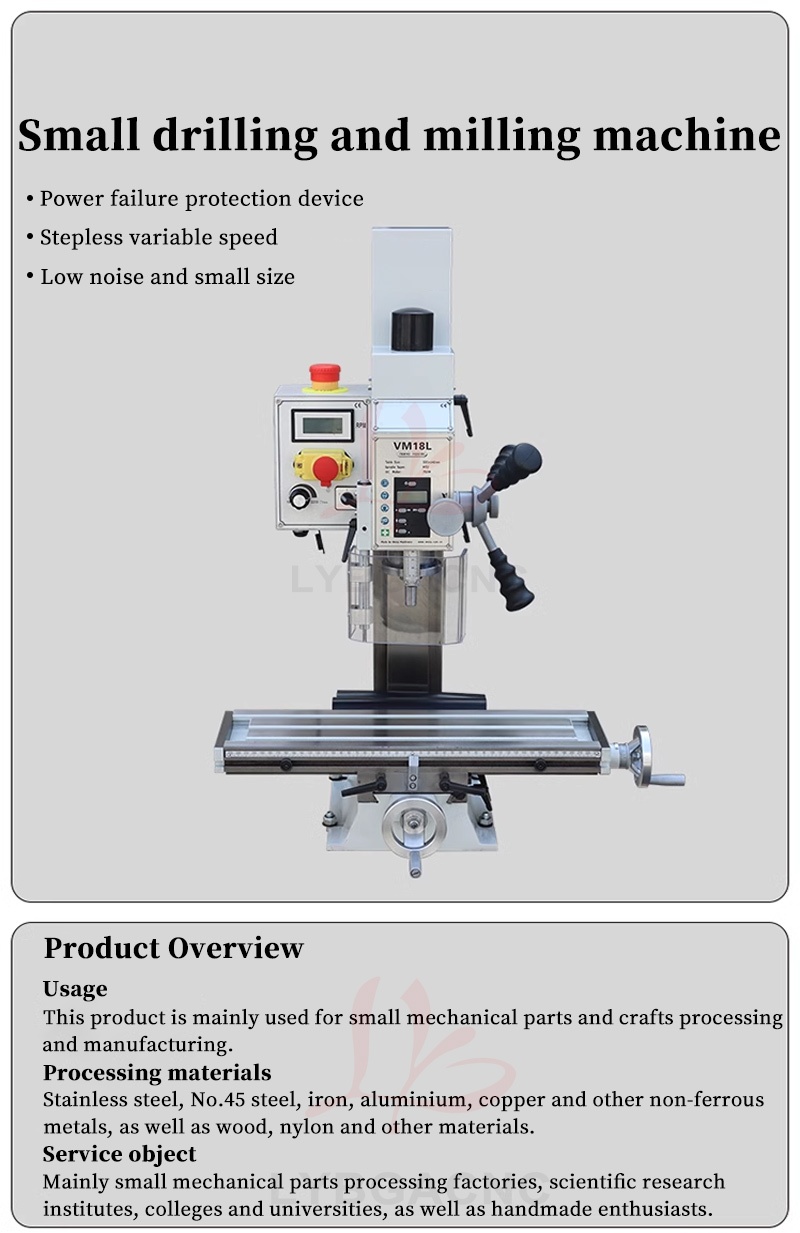

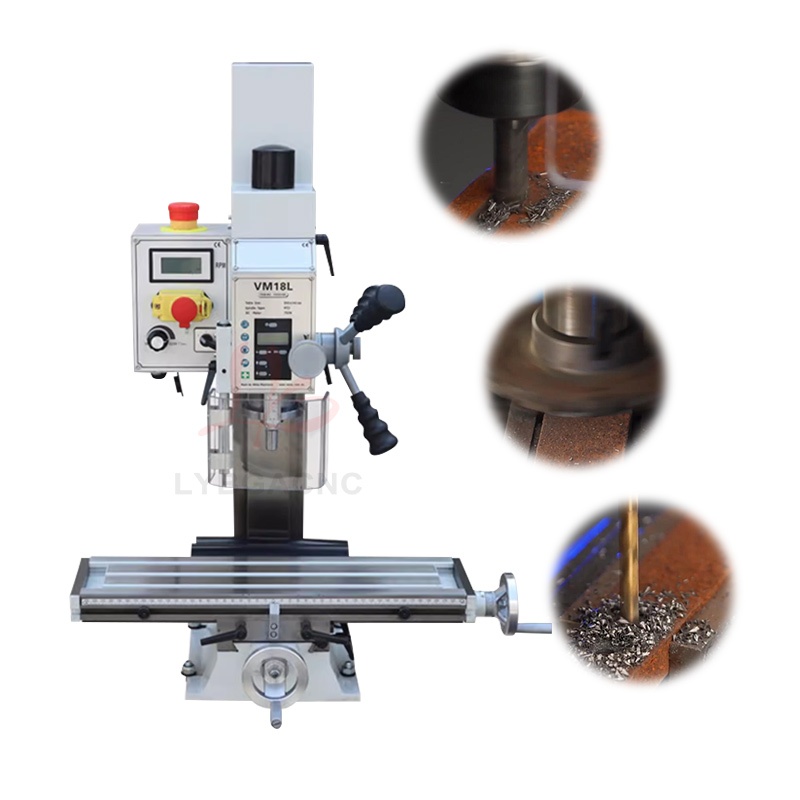

Small drilling and milling machine
· Power failure protection device
· Stepless variable speed
· Low noise and small size

Product Overview

Usage
This product is mainly used for small mechanical parts and crafts
processing and manufacturing.

Processing materials
Stainless steel, No.45 steel, iron, aluminium, copper and other
non-ferrous metals, as well as wood, nylon and other materials.

Service object
Mainly small mechanical parts processing factories, scientific research
institutes, colleges and universities, as well as handmade enthusiasts.

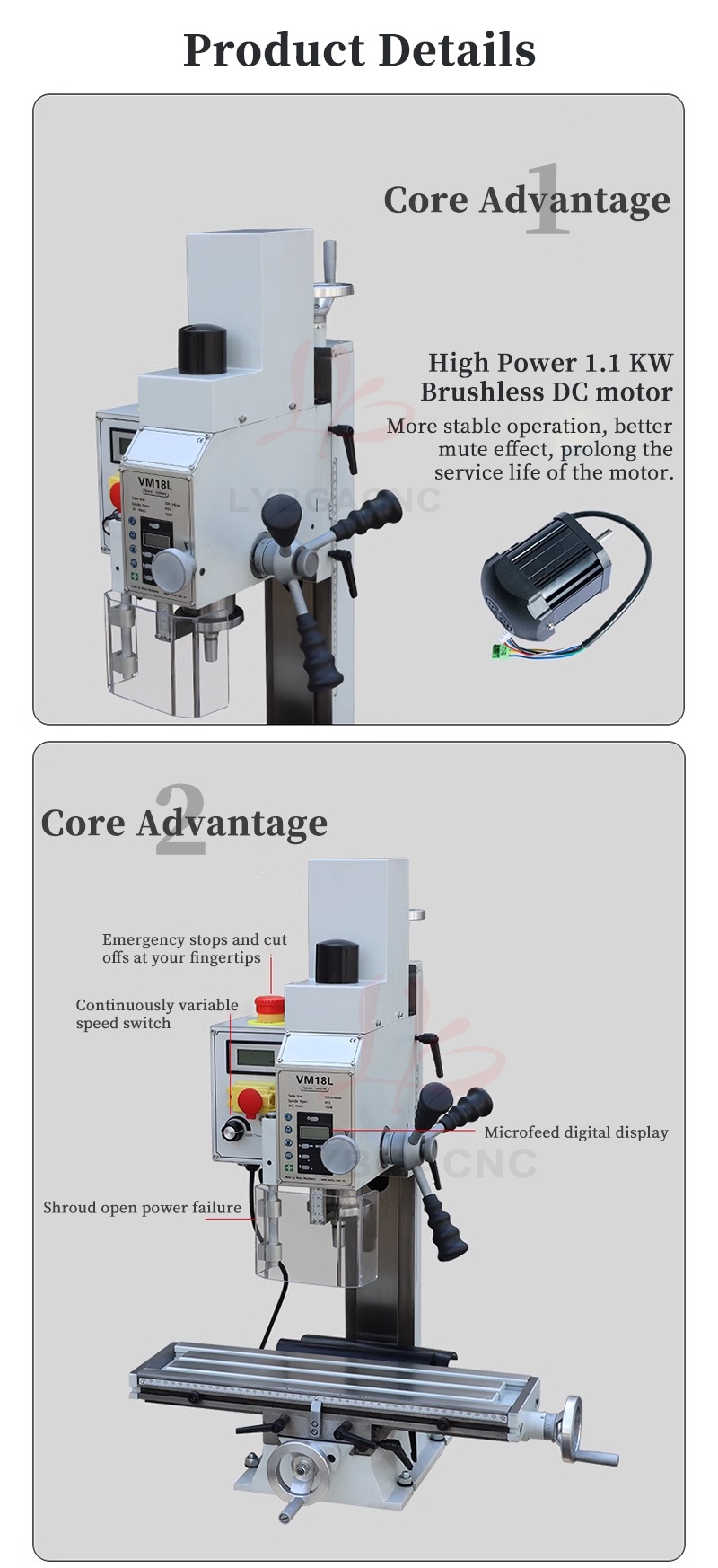

Core Advantage
1.High Power l.1 KW
Brushless DC motor
More stable operation, better mute effect, prolong the service life of the motor.

2.Emergency stops and cut offsat your fingertips
Continuously variable speed switch

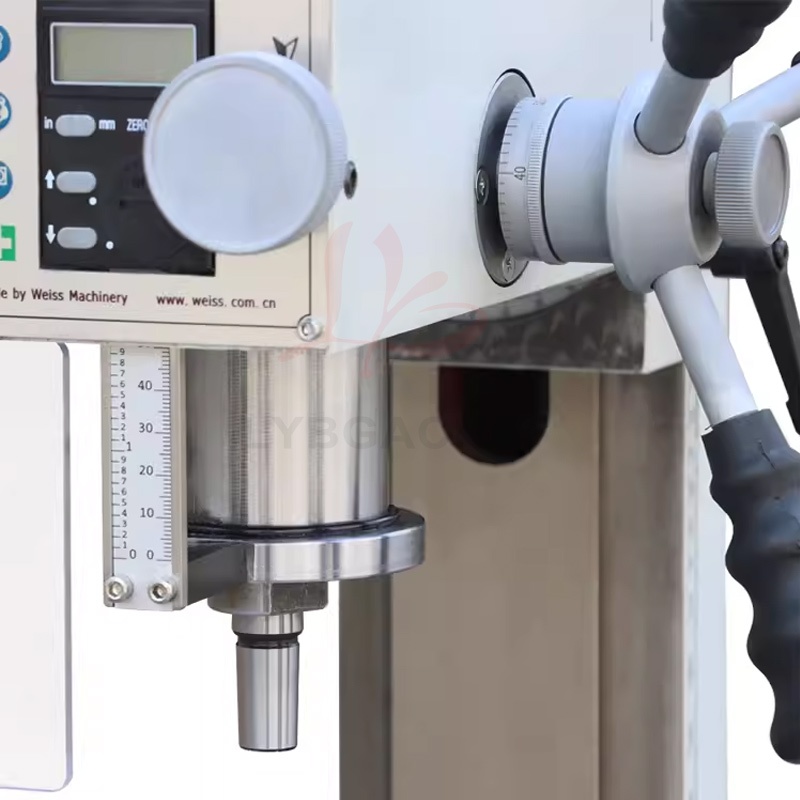

Microfeeddigital display
Shroud open power failure

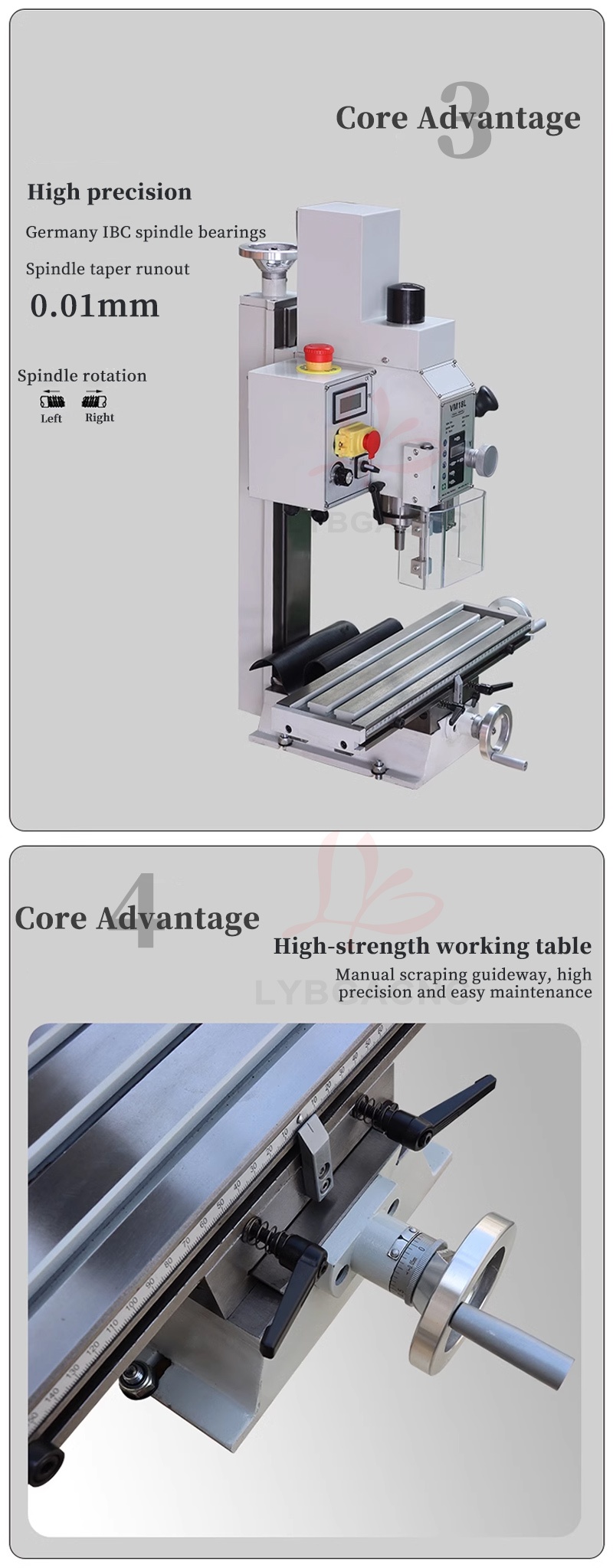

3.High precision
Germany IBC spindle bearings
Spindle taper runout
0.01mm

Spindle rotation
Left Right

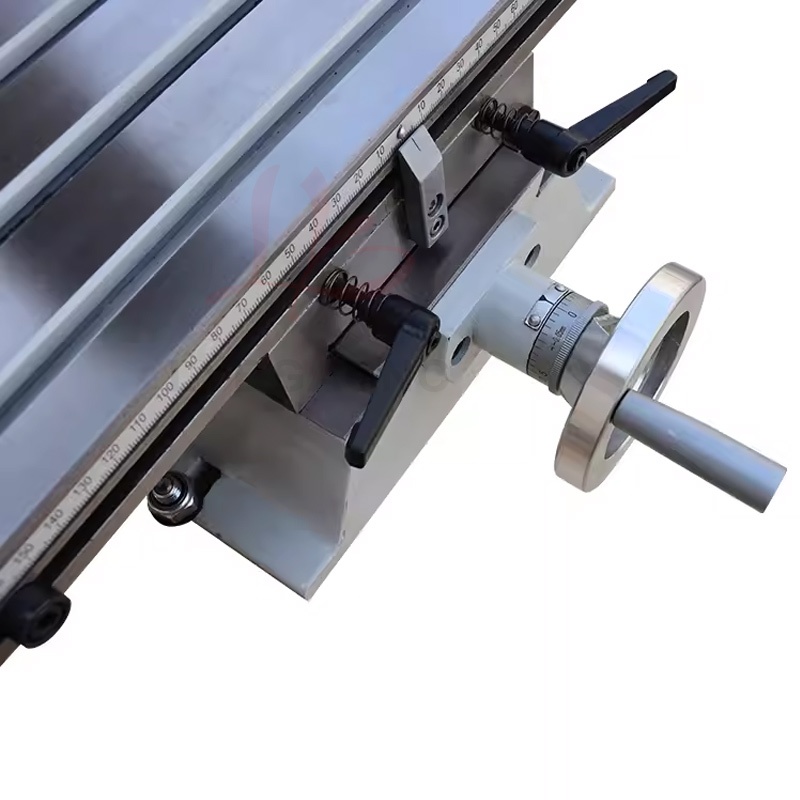

4.High-strength working table
Manual scraping guideway, high
precision and easy maintenance

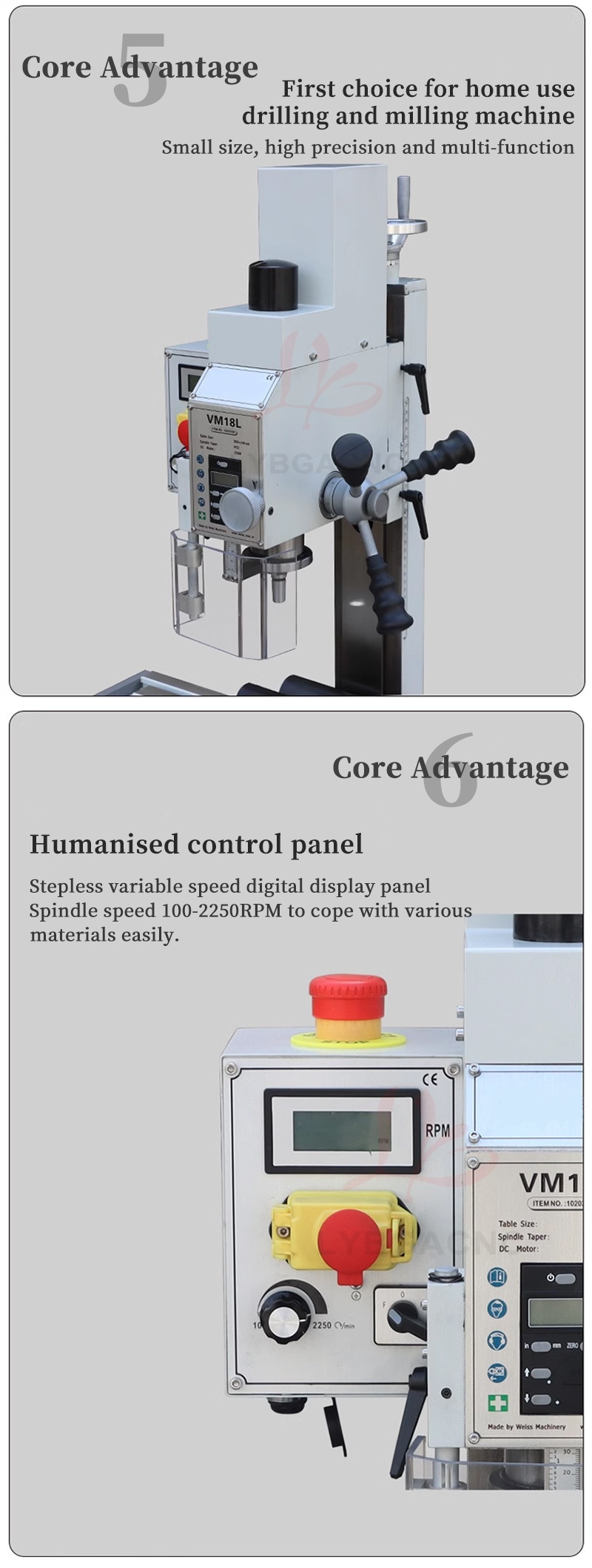

5.First choice for home use
drilling and milling machine
Small size, high precision and multi-function

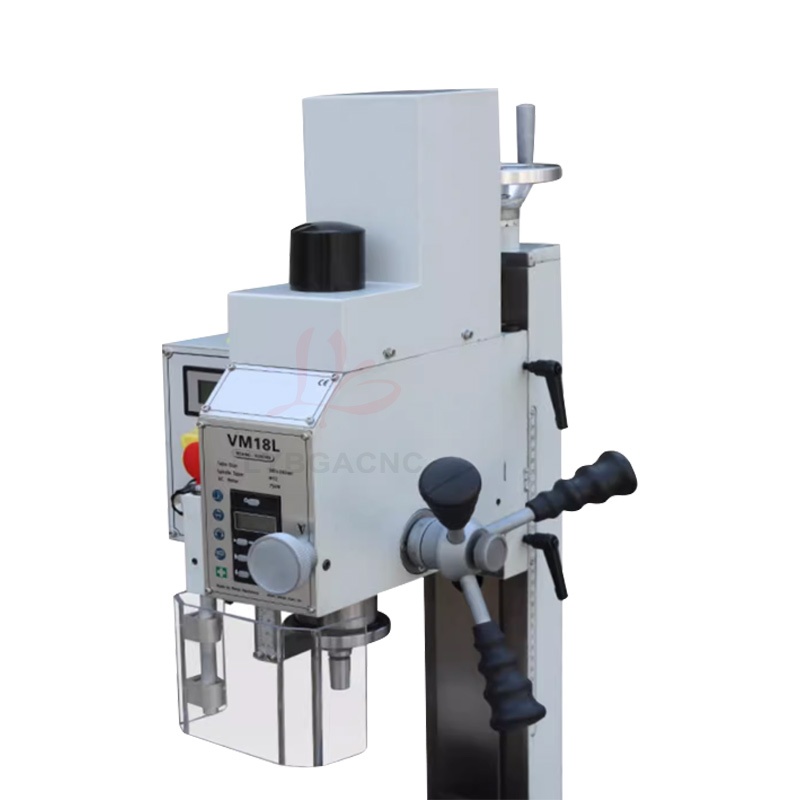

6.Humanised control panel
Stepless variable speed digital display panel
Spindle speed 100-2250RPM to cope with various materials easily.
