VM28L All – in – One Multifunctional Digital Drilling and Milling Machine with Ball Screws, Small – sized, Spindle Box Tilts 90° Left or Right

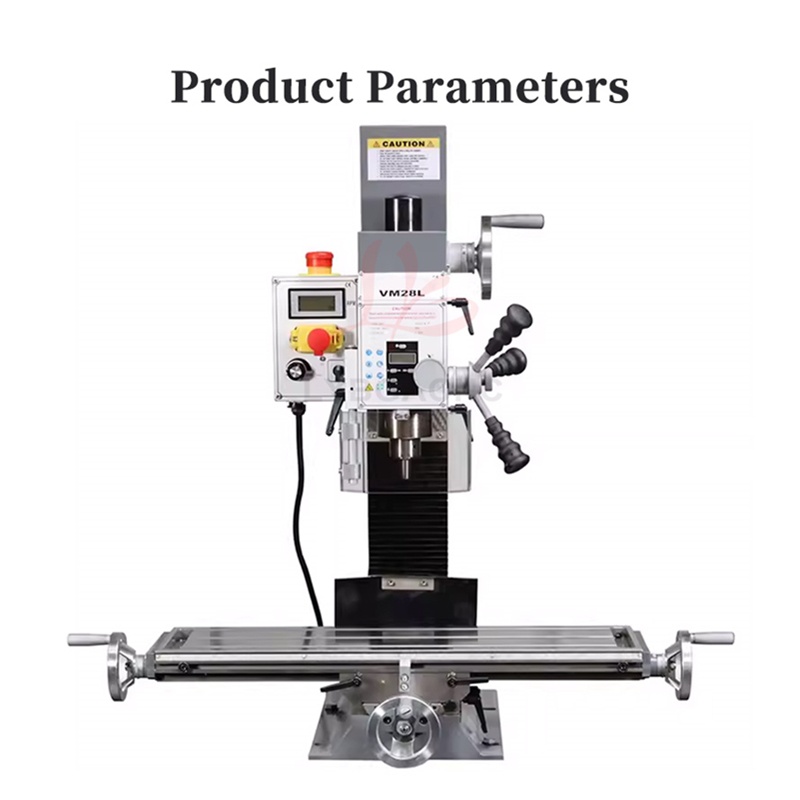

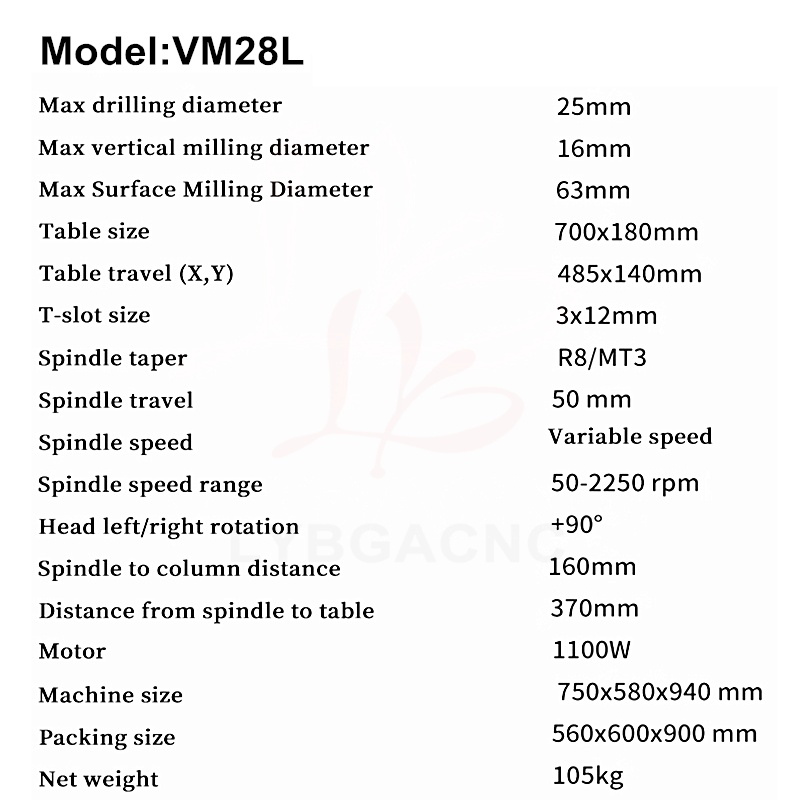

Model:VM28L

Max drilling diameter 25mm
Max vertical milling diameter 16mm
Max Surface milling diameter 63mm

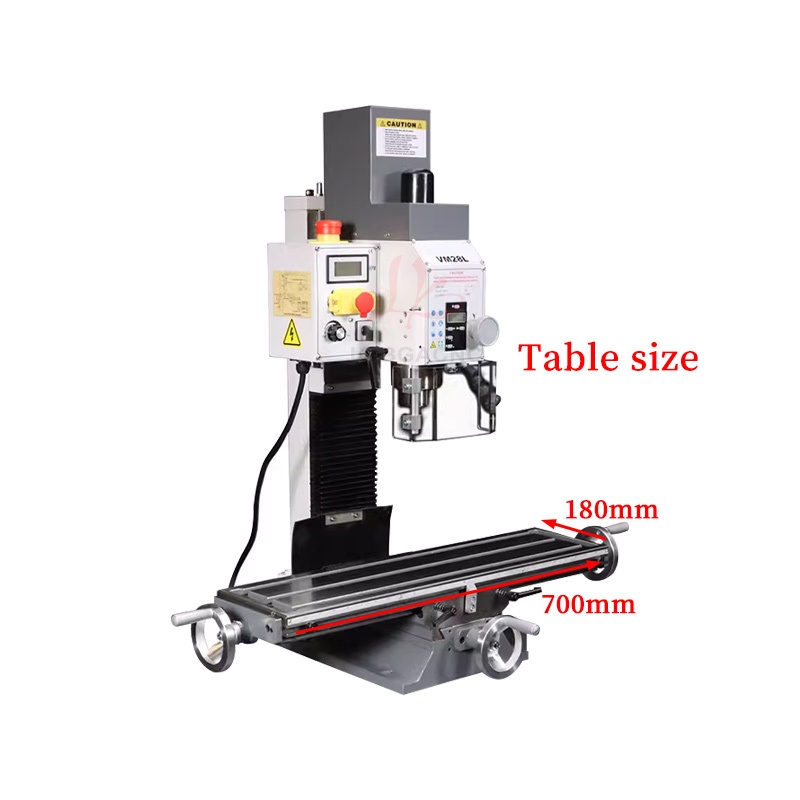

Table size 700x180mm
Table travel (X,Y) 485x140mm
T-slot size 3x12mm
Spindle taper R8/MT3
Spindle travel 50mm
Spindle speed Variable speeed
Spindle speed range 50-2250rpm

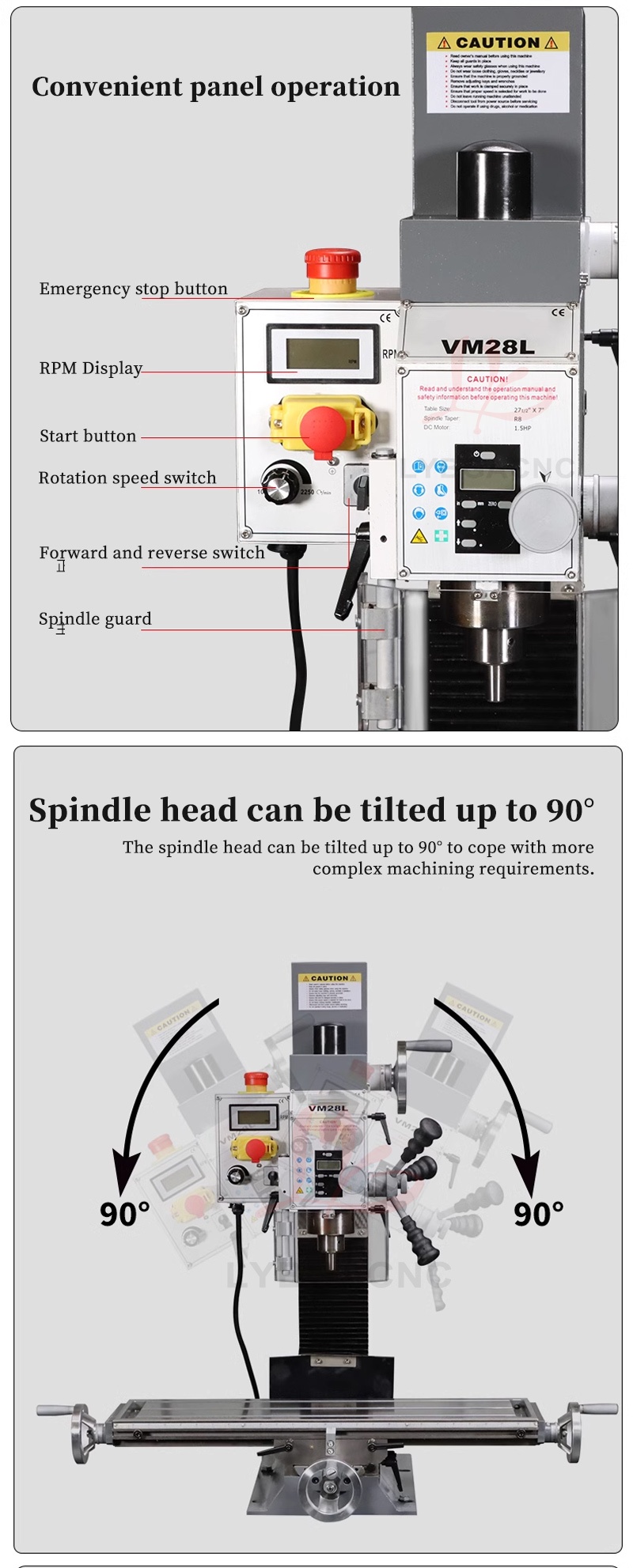

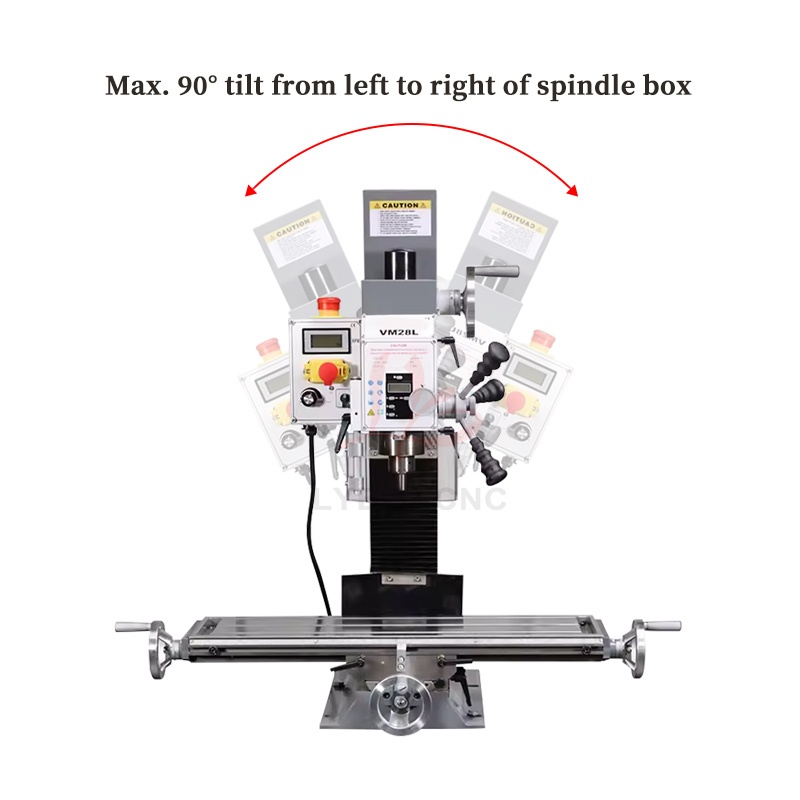

Head left/right rotation +90°
Spindle to column distance 160mm
Distance from spindle to table 370mm

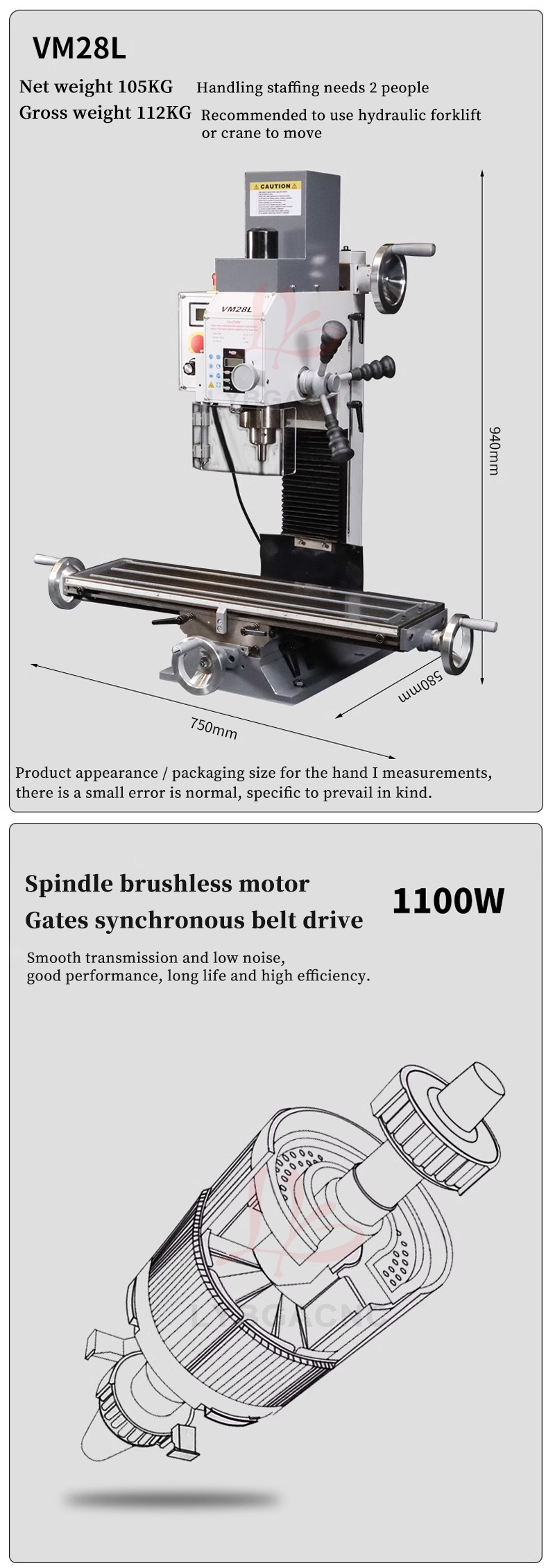

Motor 1100W

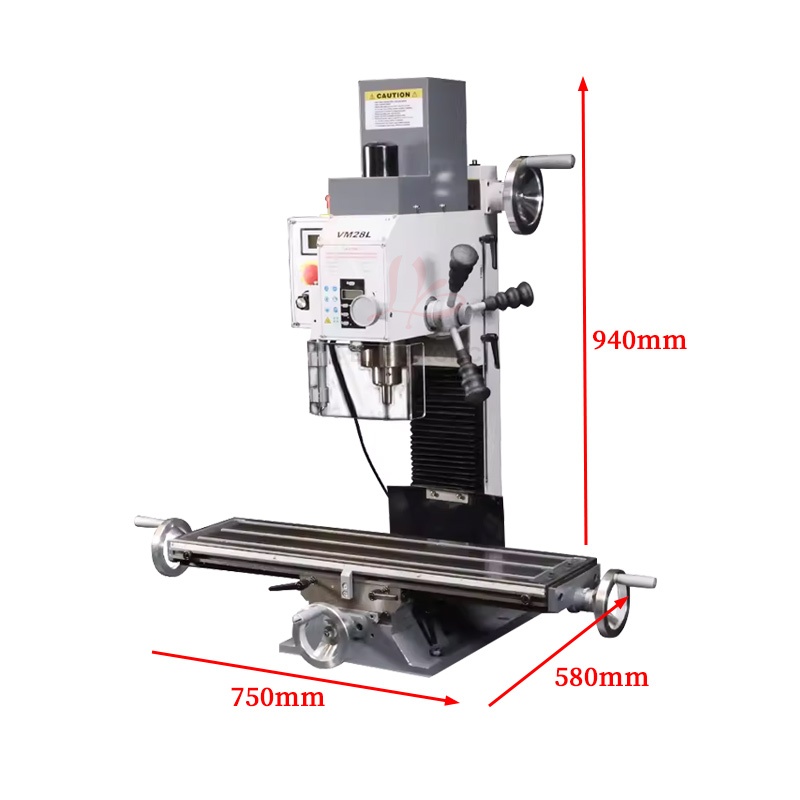

Machine size 750x580x940mm
Packing size 560x600x900mm
Net weight 105kg

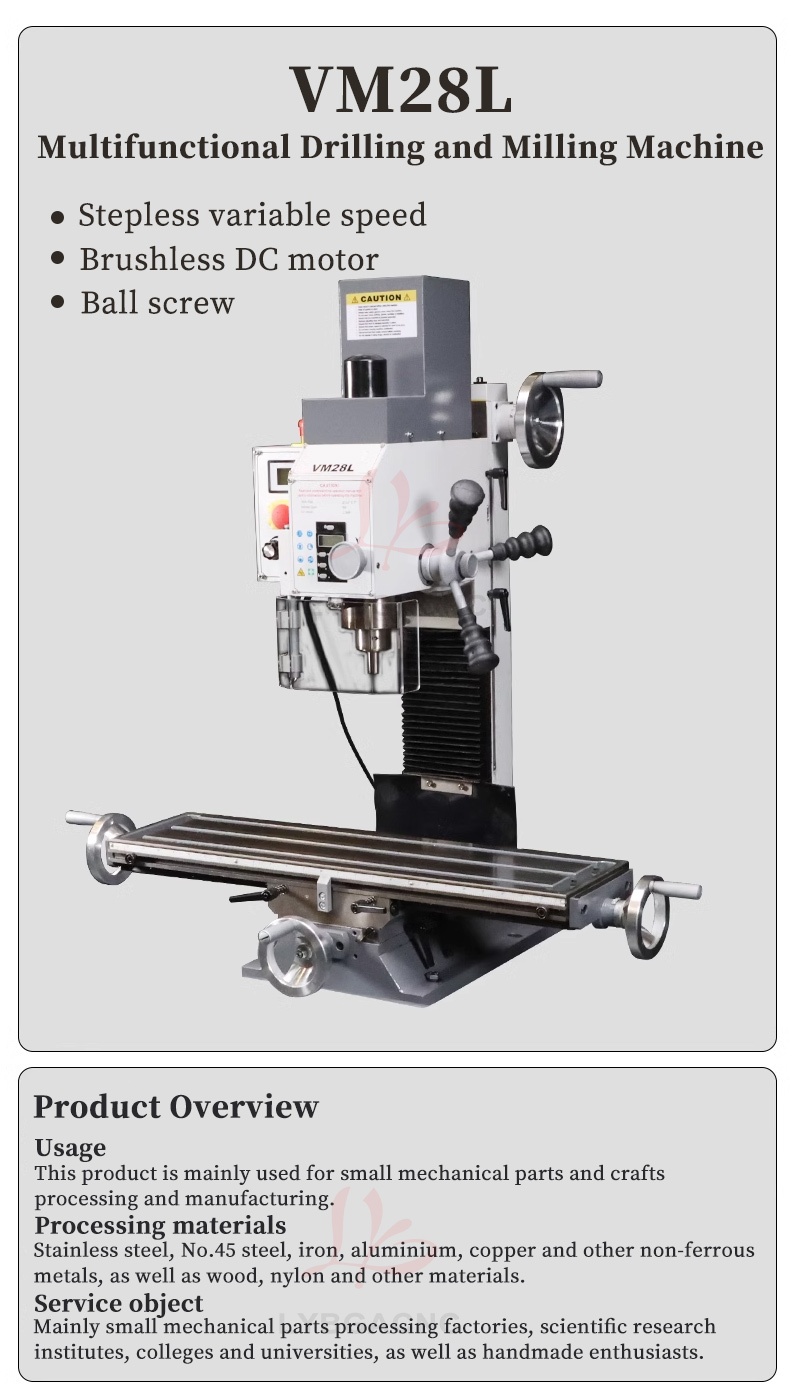

VM28L
Multifunctional Drilling and Milling Machine
Stepless variable speed
Brushless DC motor

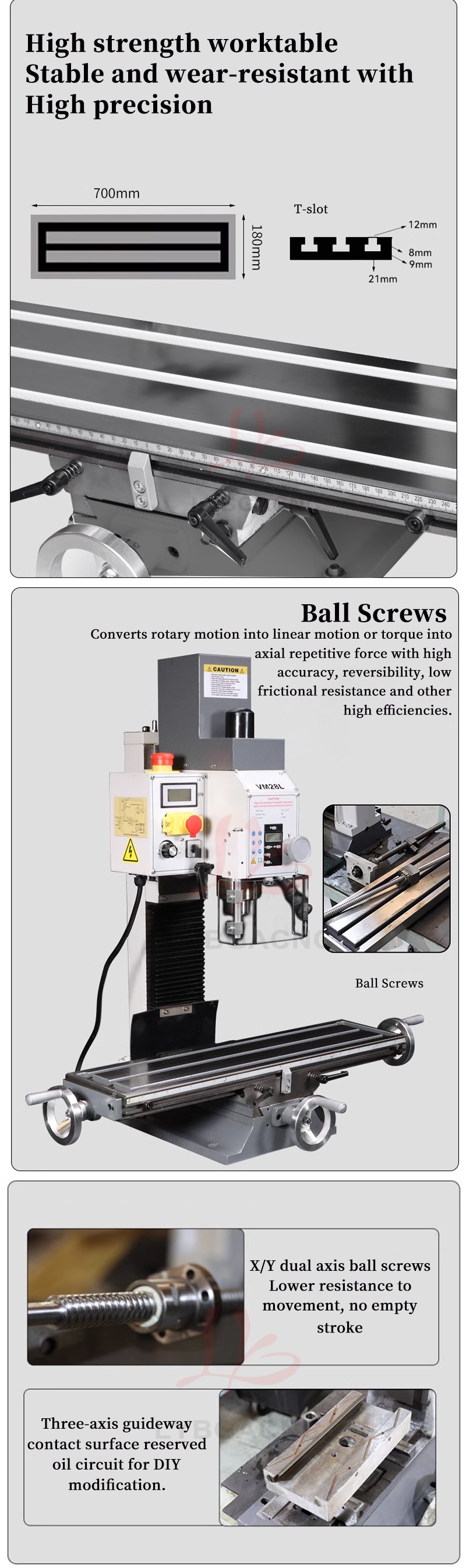

Ball screw

Product Overview

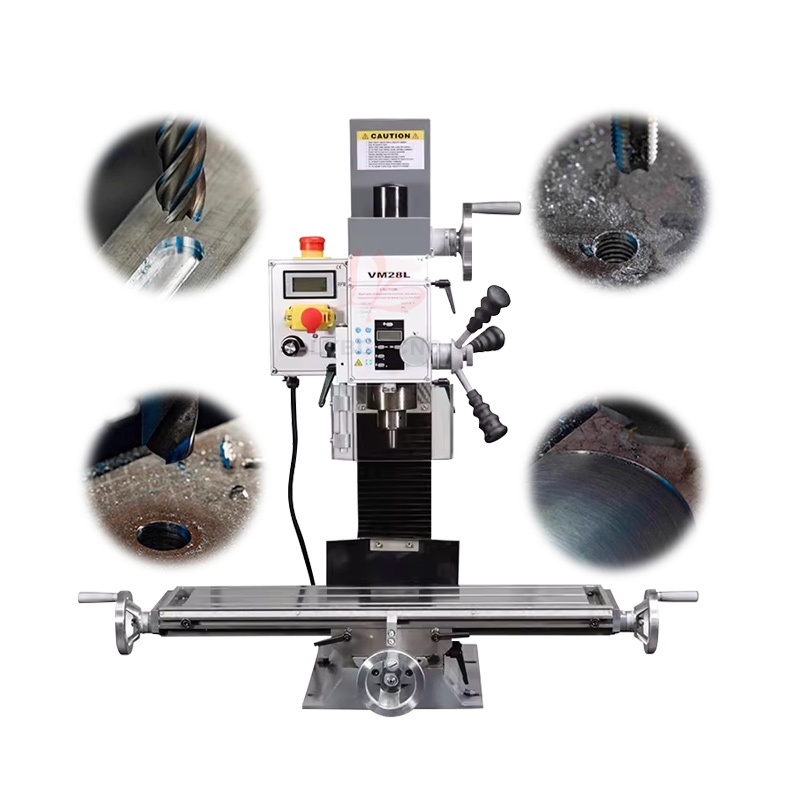

Usage
This product is mainly used for small mechanical parts and crafts
processing and manufacturing.

Processing materials
Stainless steel, No.45 steel, iron, aluminium, copper and other
non-ferrous metals, as well as wood, nylon and other materials.

Service object
Mainly small mechanical parts processing factories, scientific research
institutes, colleges and universities, as well as handmade enthusiasts.
