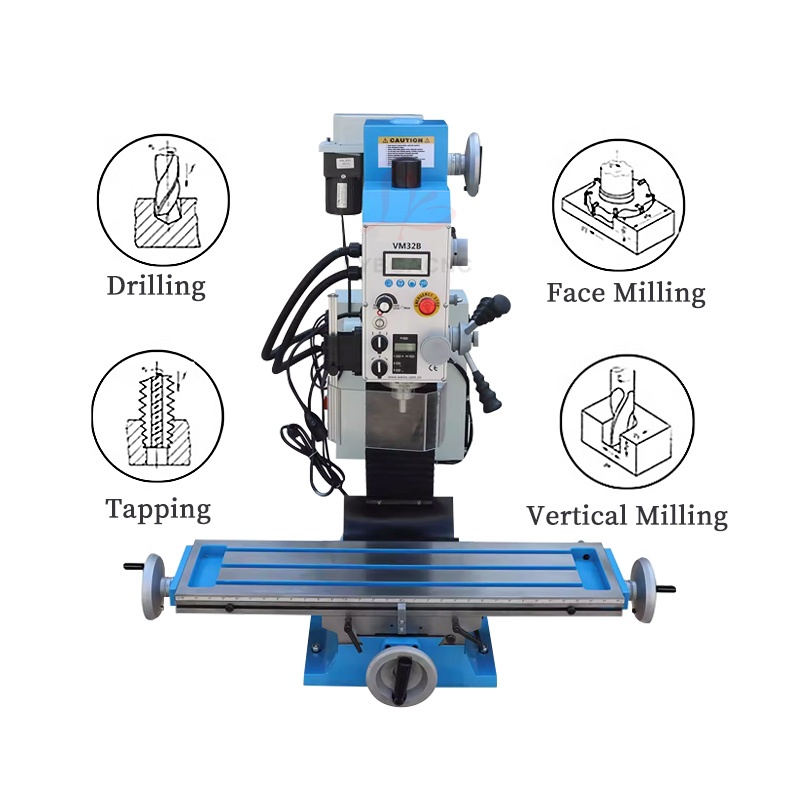

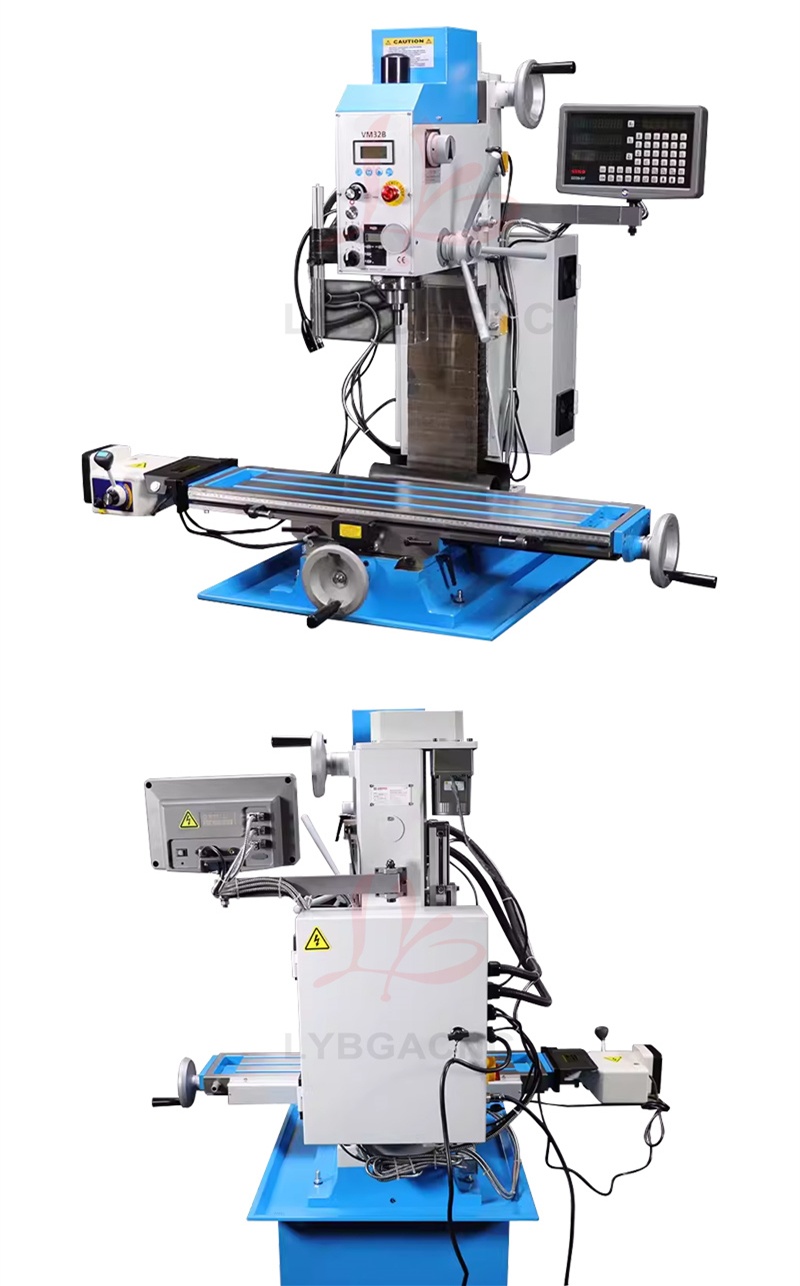

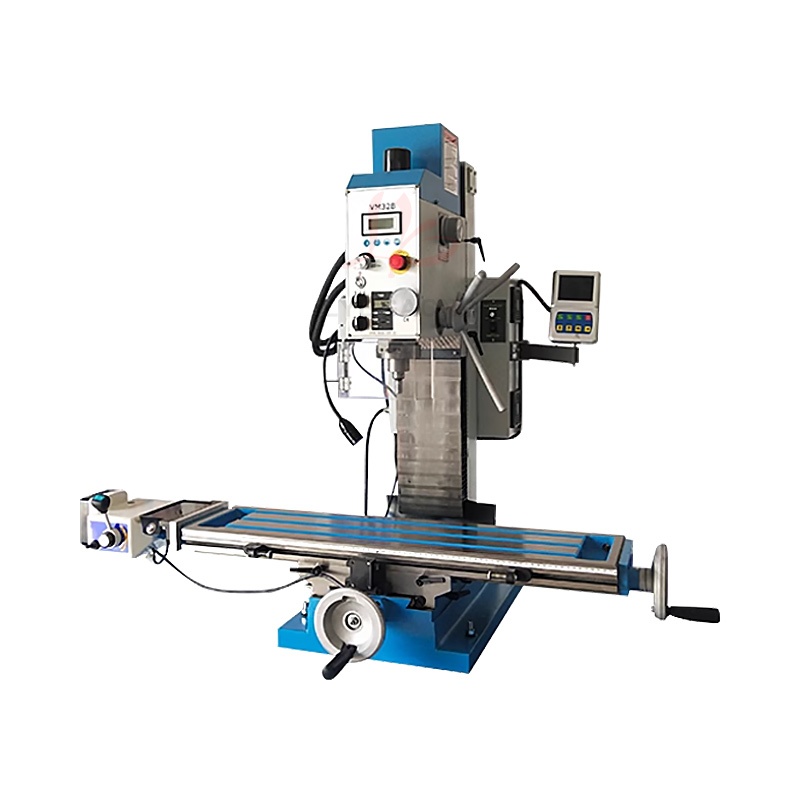

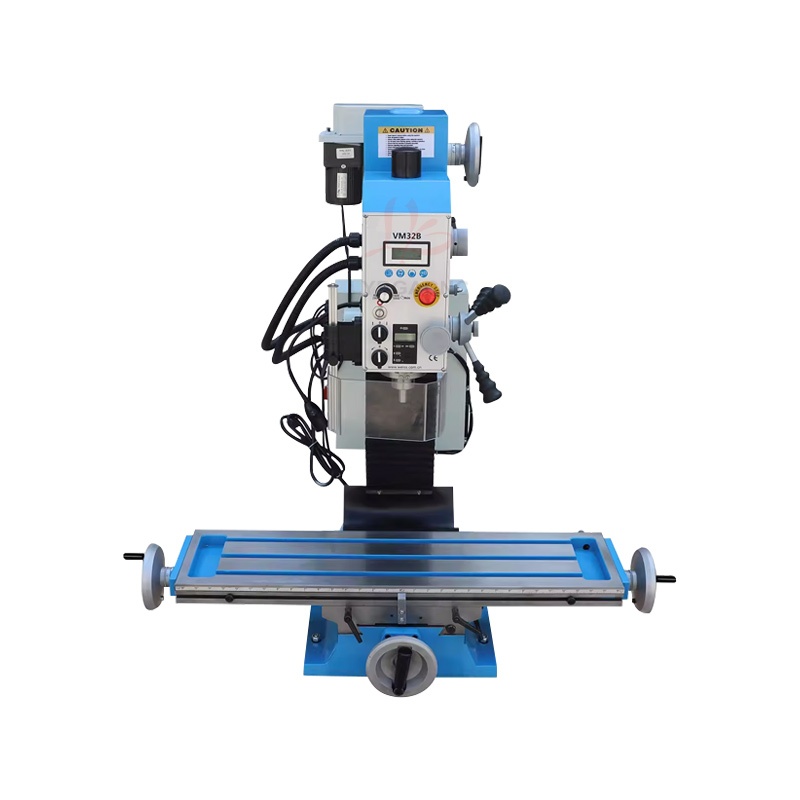

VM32B All – in – One Multi – functional CNC Drilling and Milling Machine, Small Size with Stepless Variable Speed DC Brushless Motor (5000RPM). Spindle Box Tilts 90° Left/Right, for Drilling, Tapping, Vertical & Face Milling

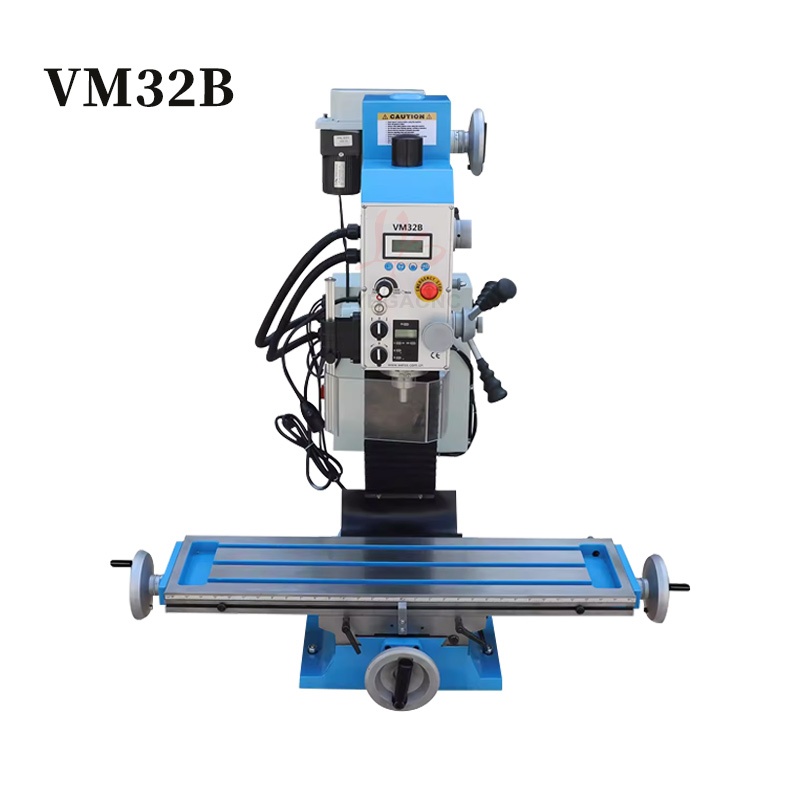

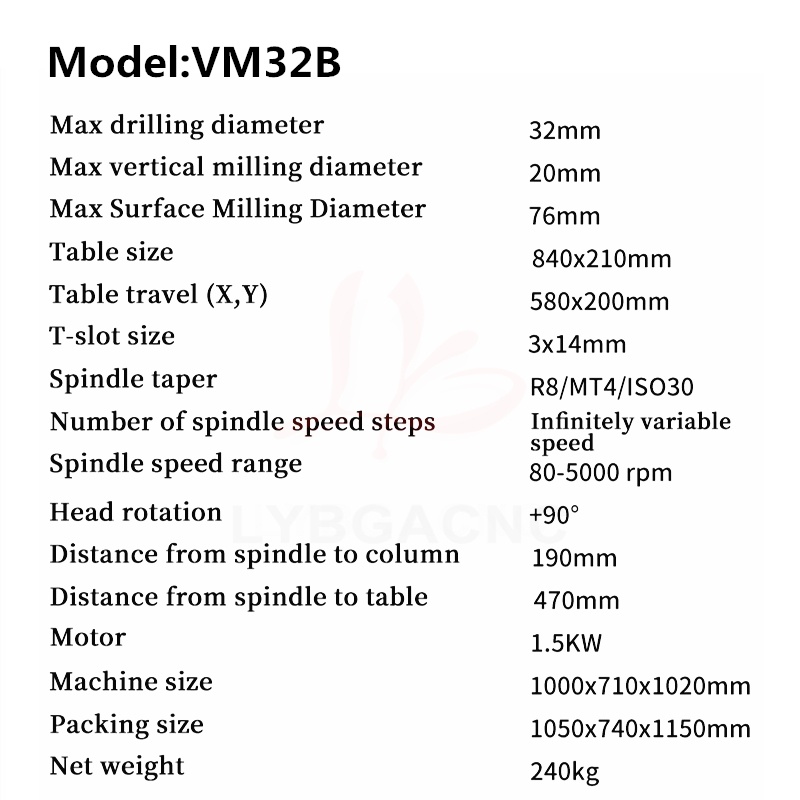

Model:VM32B

Max drilling diameter 32mm
Max vertical milling diameter 20mm
Max Surface milling diameter 76mm

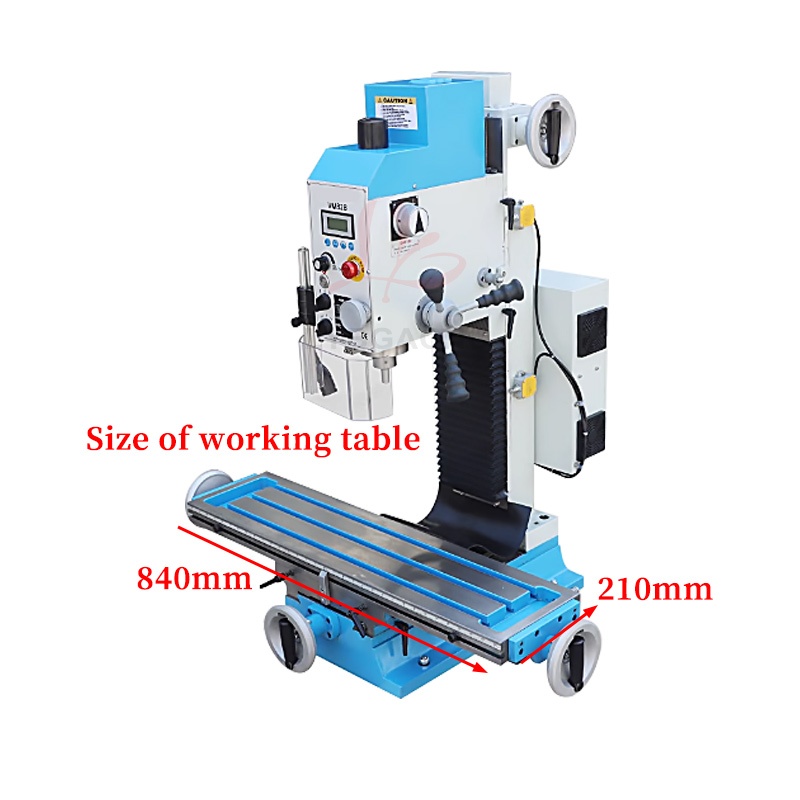

Table size 840x210mm
Table travel (X,Y) 580x200mm

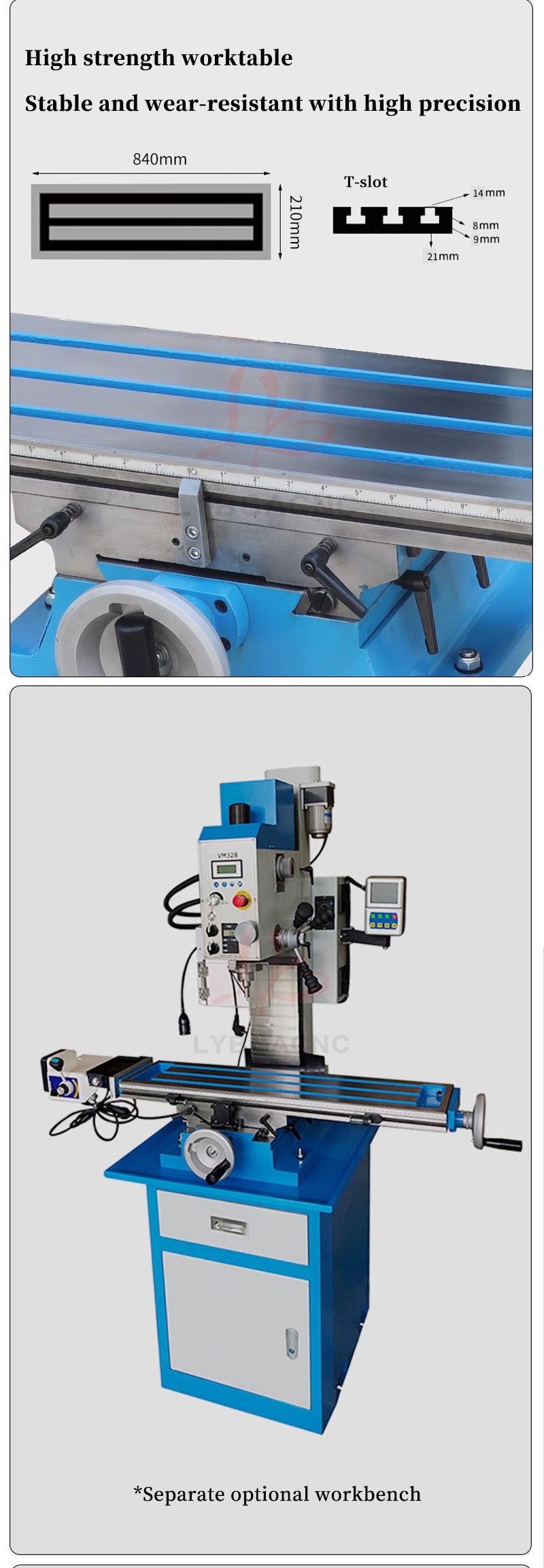

T-slot size 3x14mm
Spindle taper R8/MT4/ISO30
Number of spindle speed steps Infinitely variable speeds
Spindle speed range 80-5000 rpm

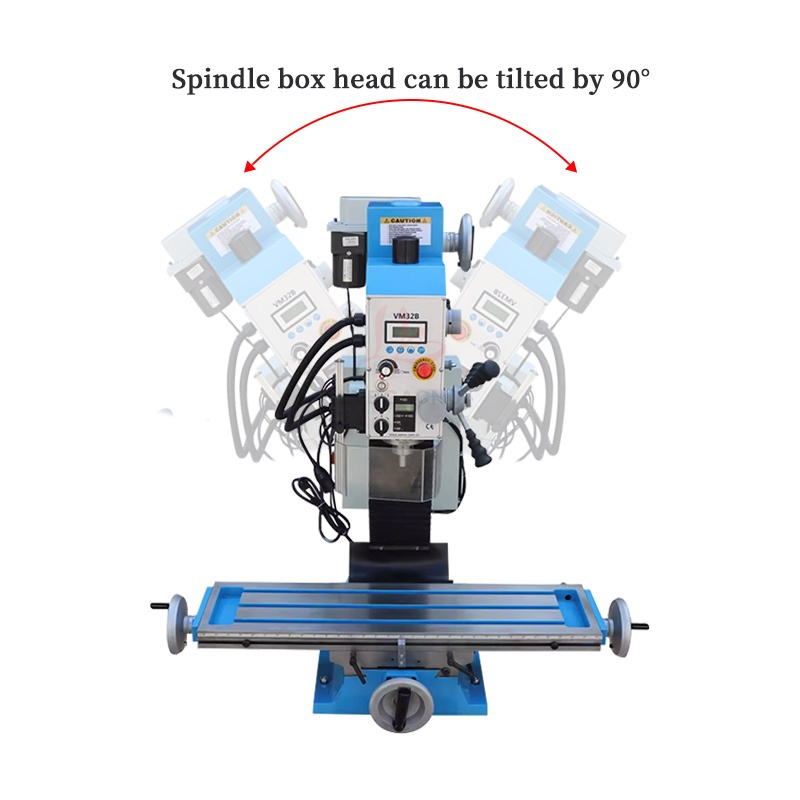

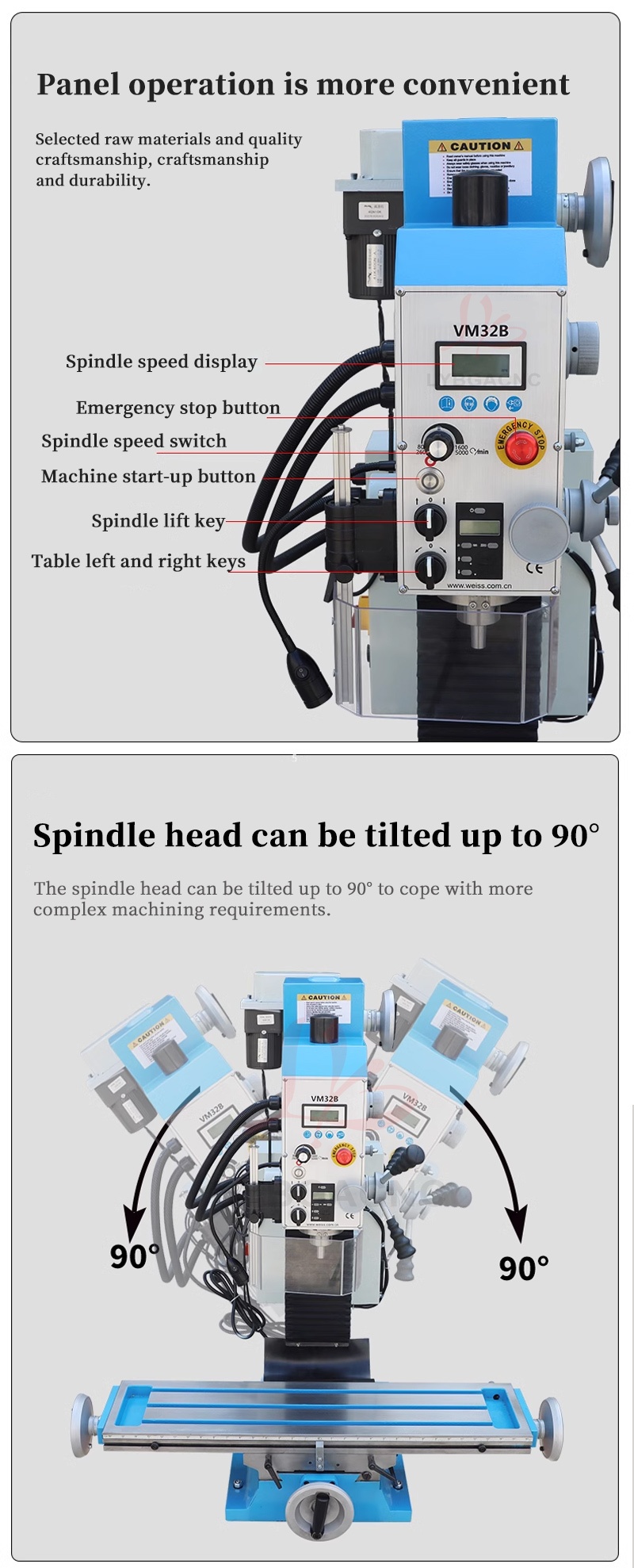

Head rotation +90°
Distance from spindle to column 190mm
Distance from spindle to table 470mm

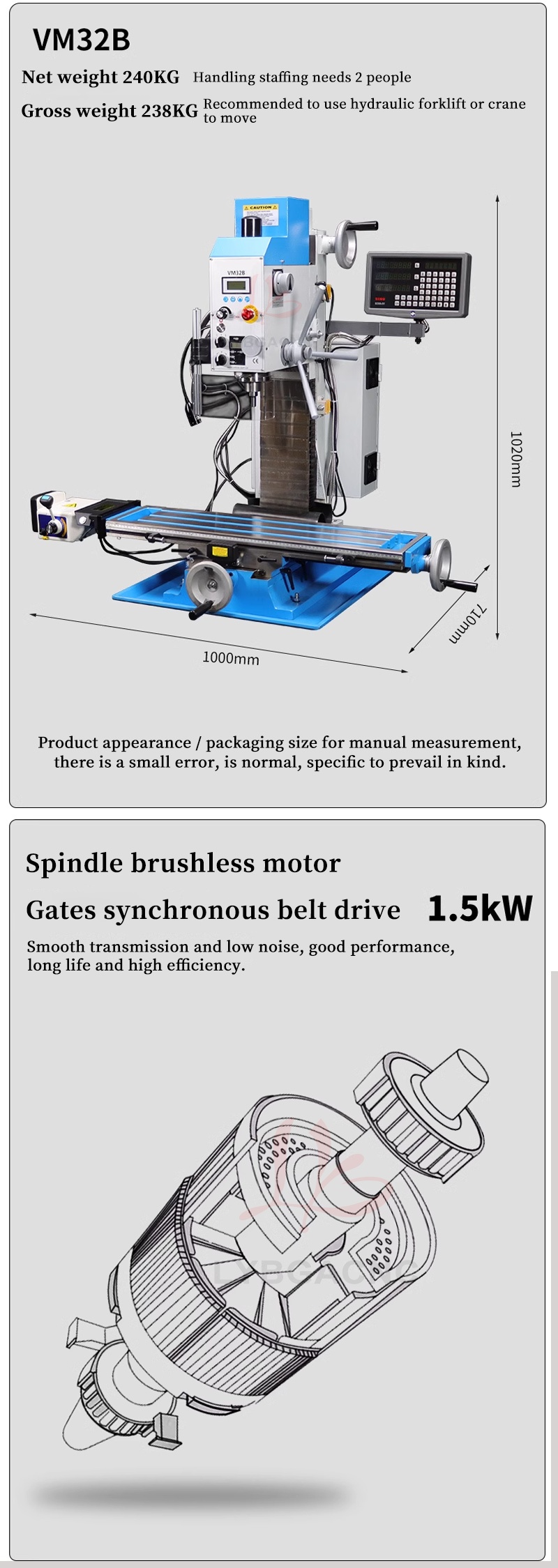

Motor 1.5KW

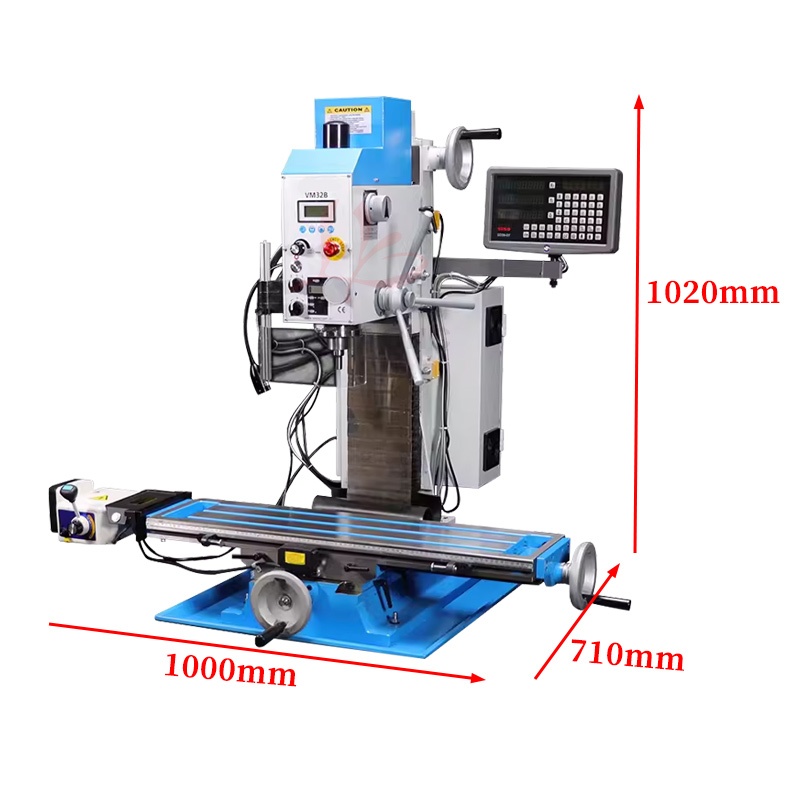

Machine size 1000x710x1020mm
Packing size 1050x740x1150mm
Net weight 240kg

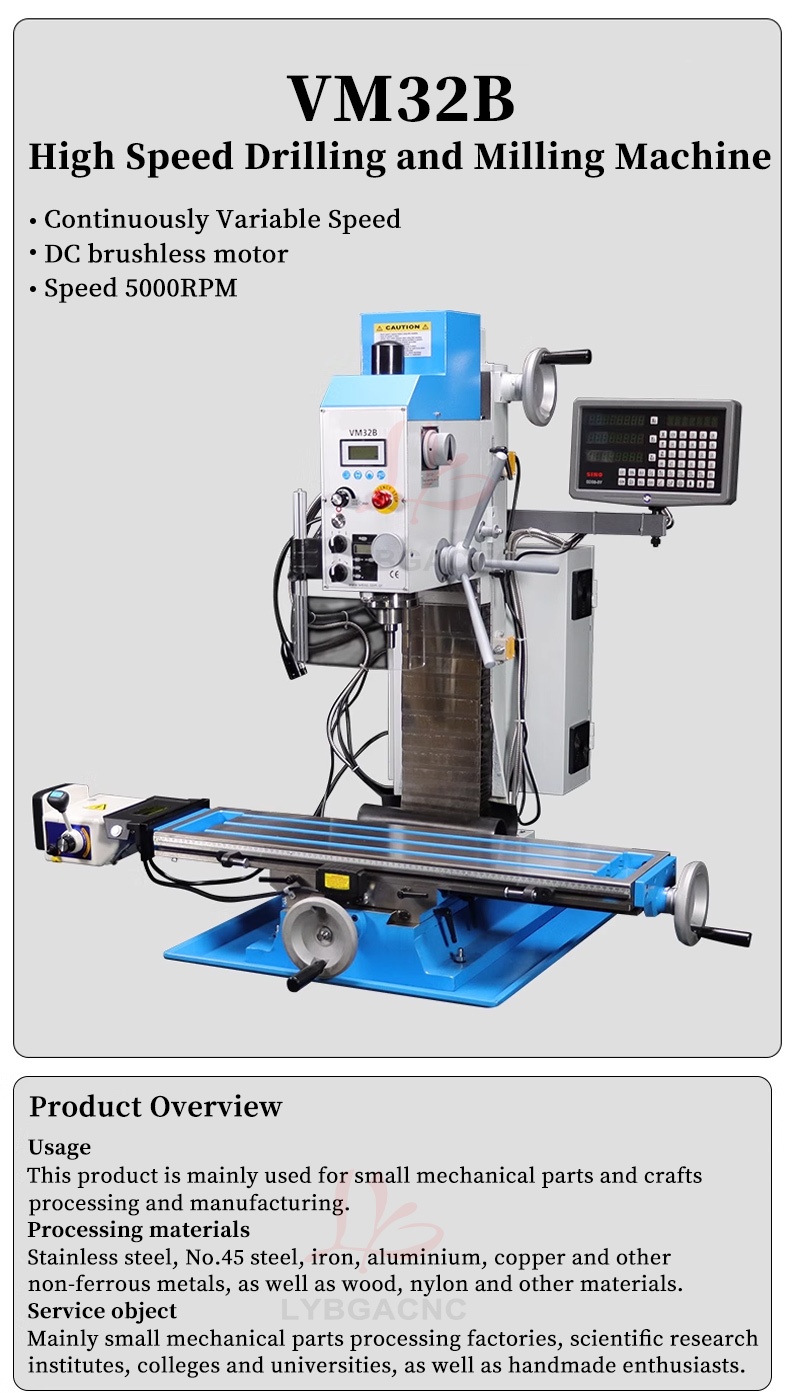

VM32B
High Speed Drilling and Milling Machine
. Continuously Variable Speed
· DC brushless motor
. Speed 5000RPM

Product Overview

Usage
This product is mainly used for small mechanical parts and crafts
processing and manufacturing.

Processing materials
Stainless steel, No.45 steel, iron, aluminium, copper and other
non-ferrous metals, as well as wood, nylon and other materials.

Service object
Mainly small mechanical parts processing factories, scientific research
institutes, colleges and universities, as well as handmade enthusiasts.
