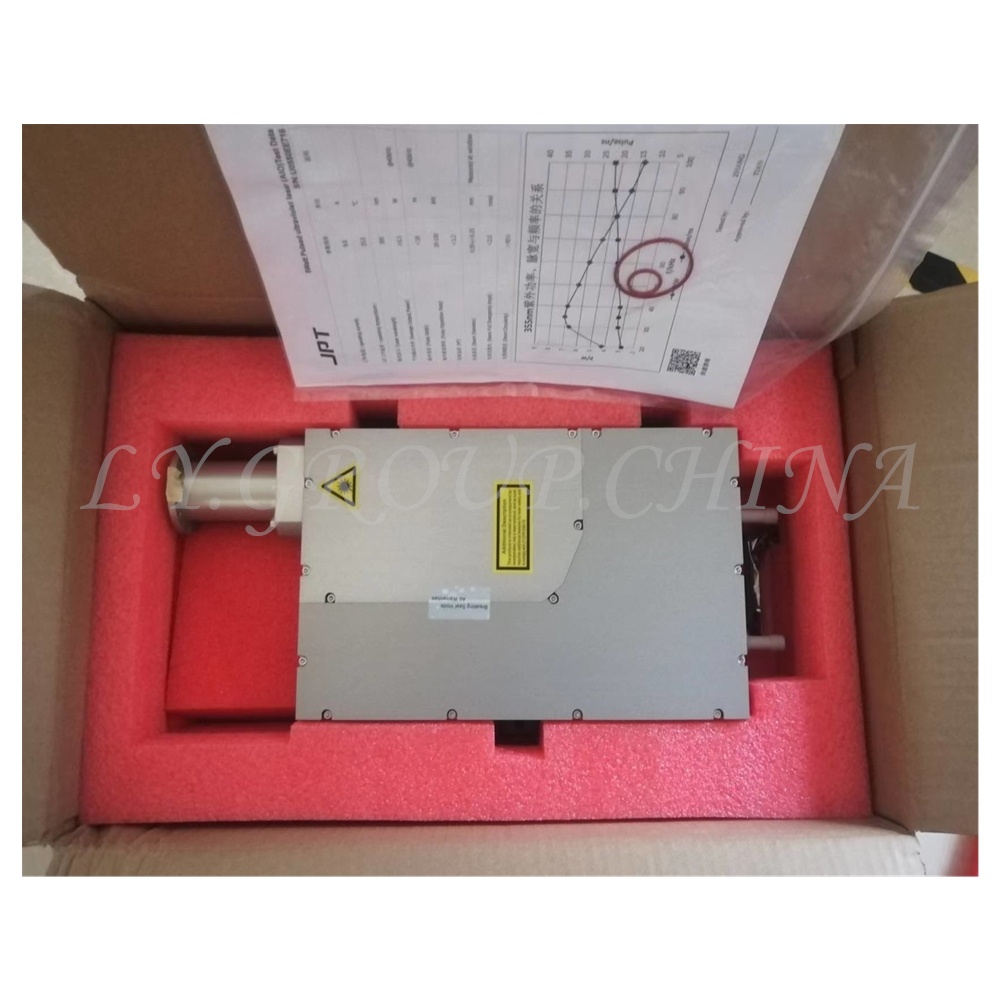

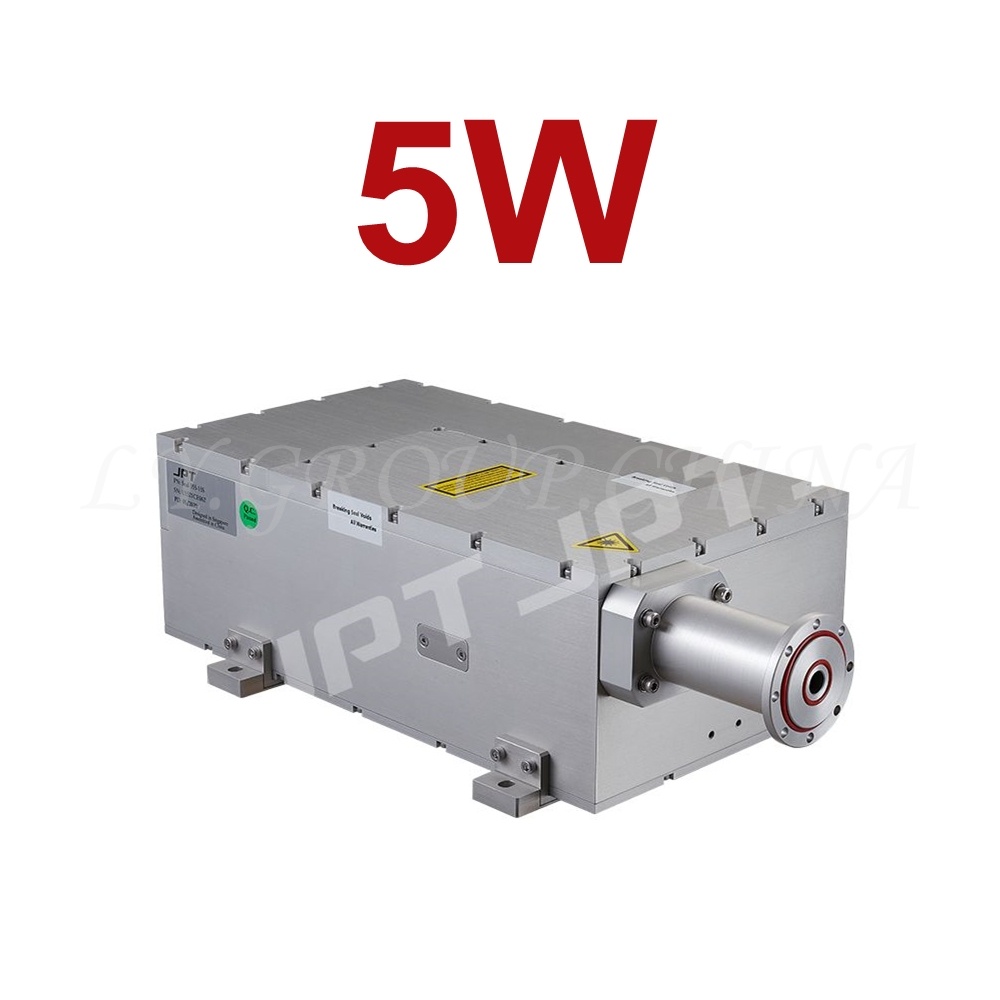

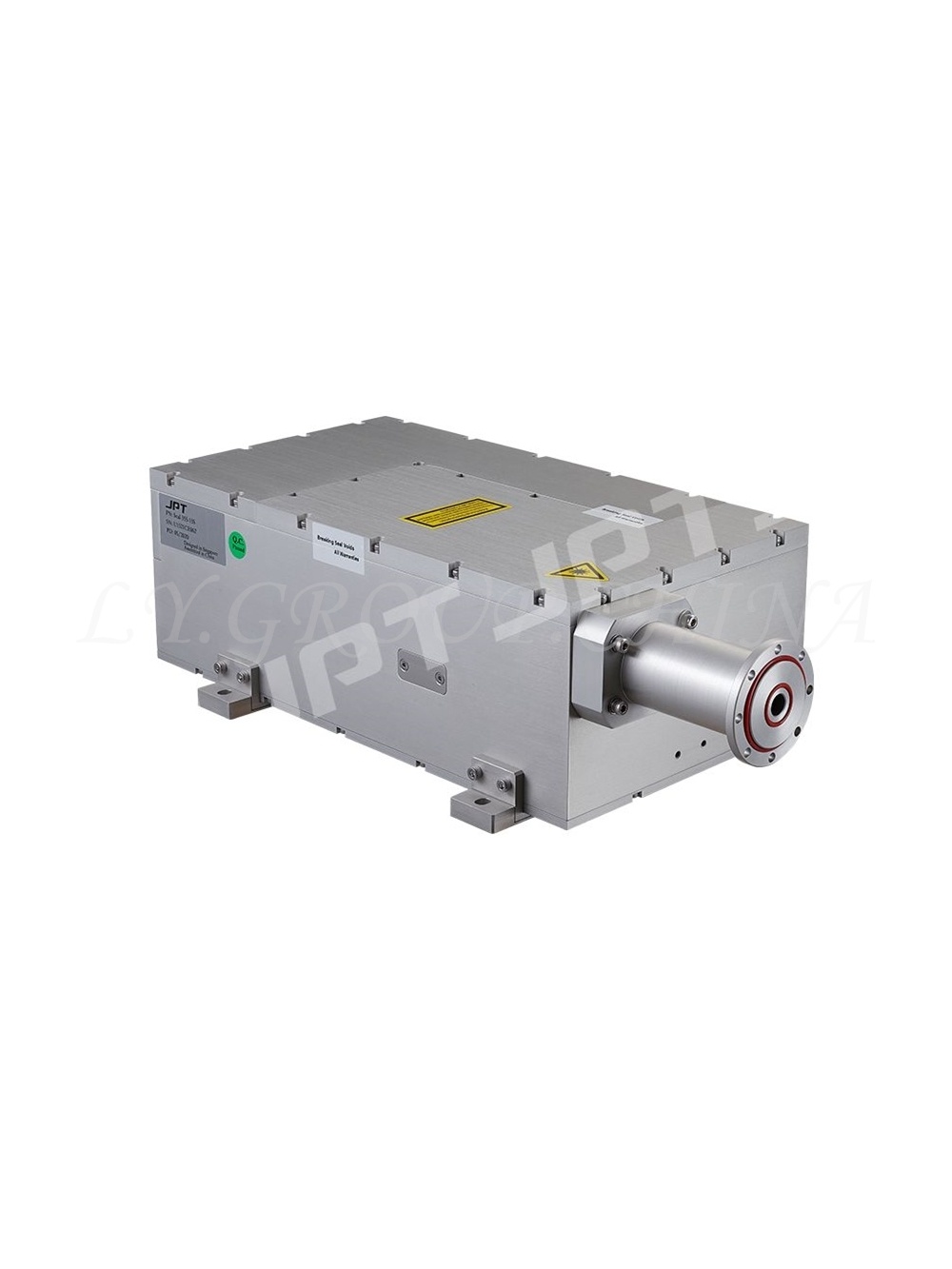

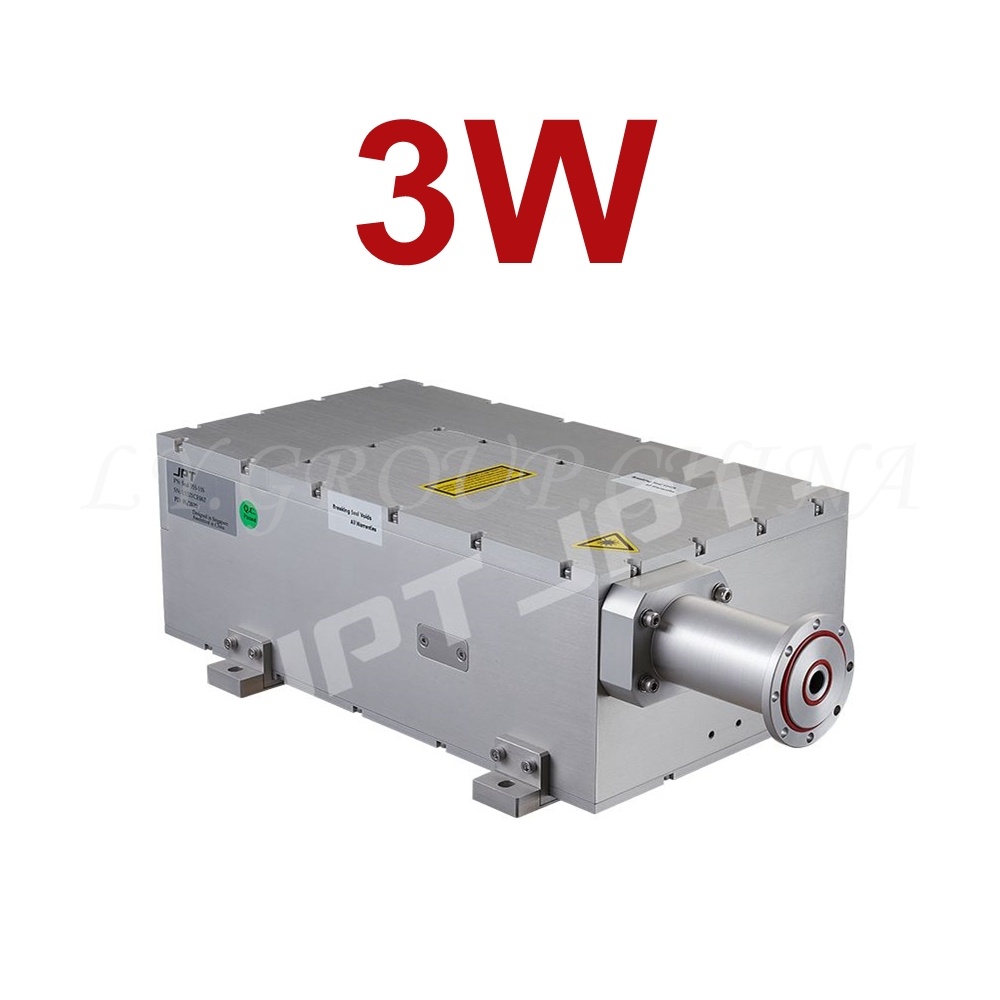

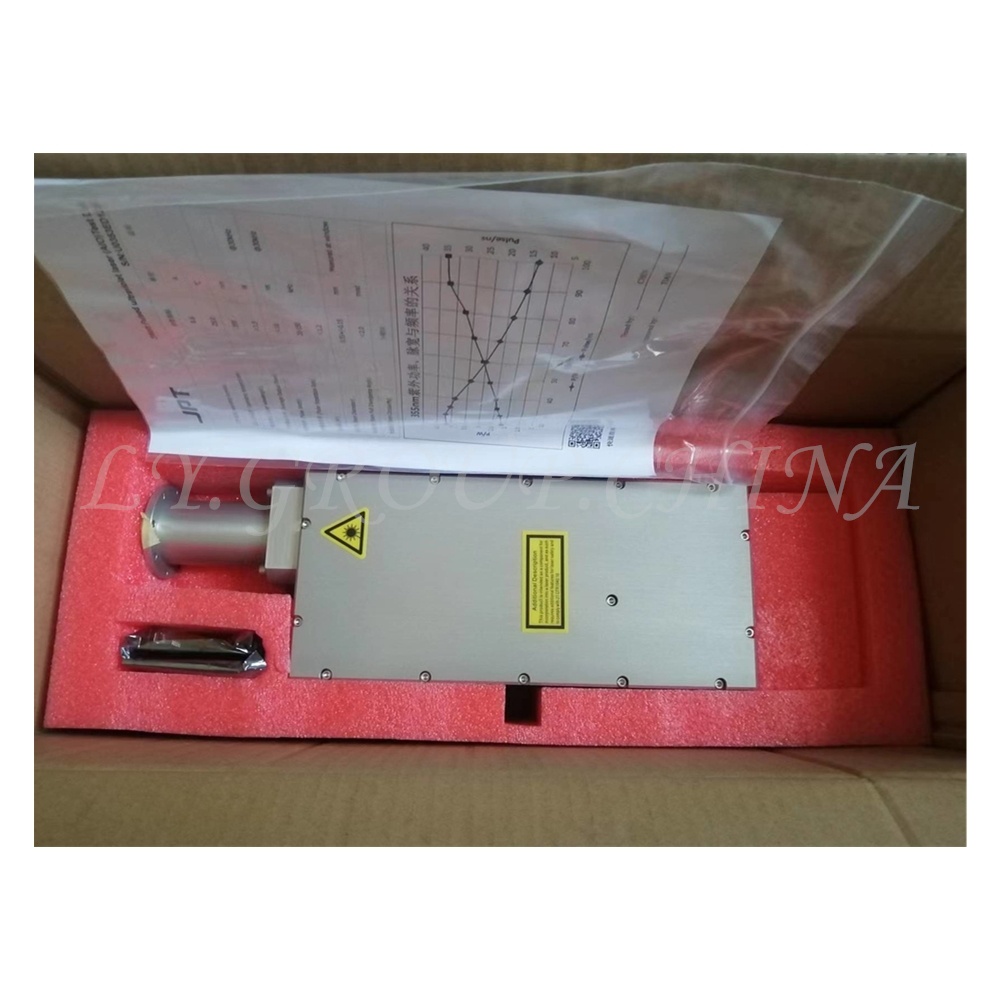

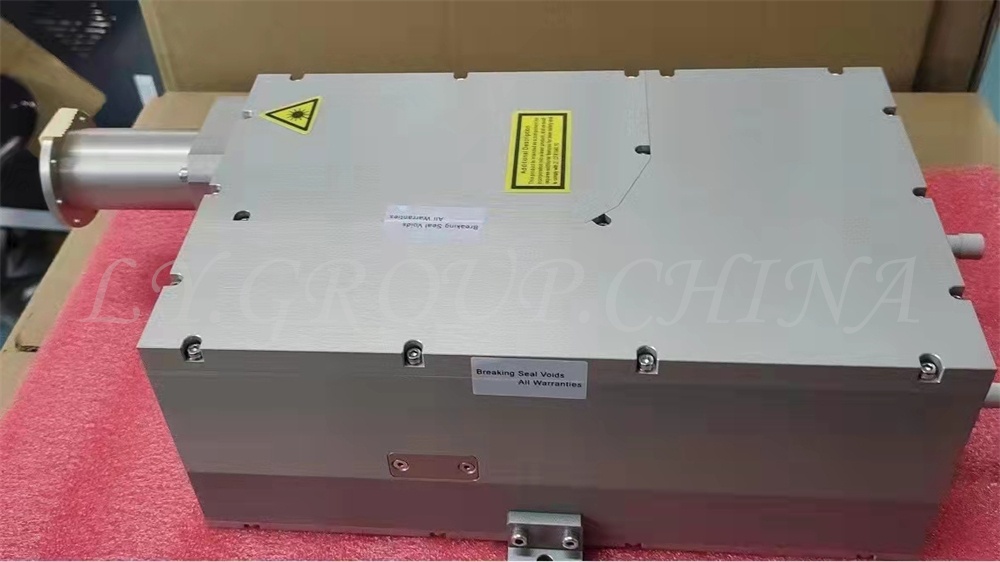

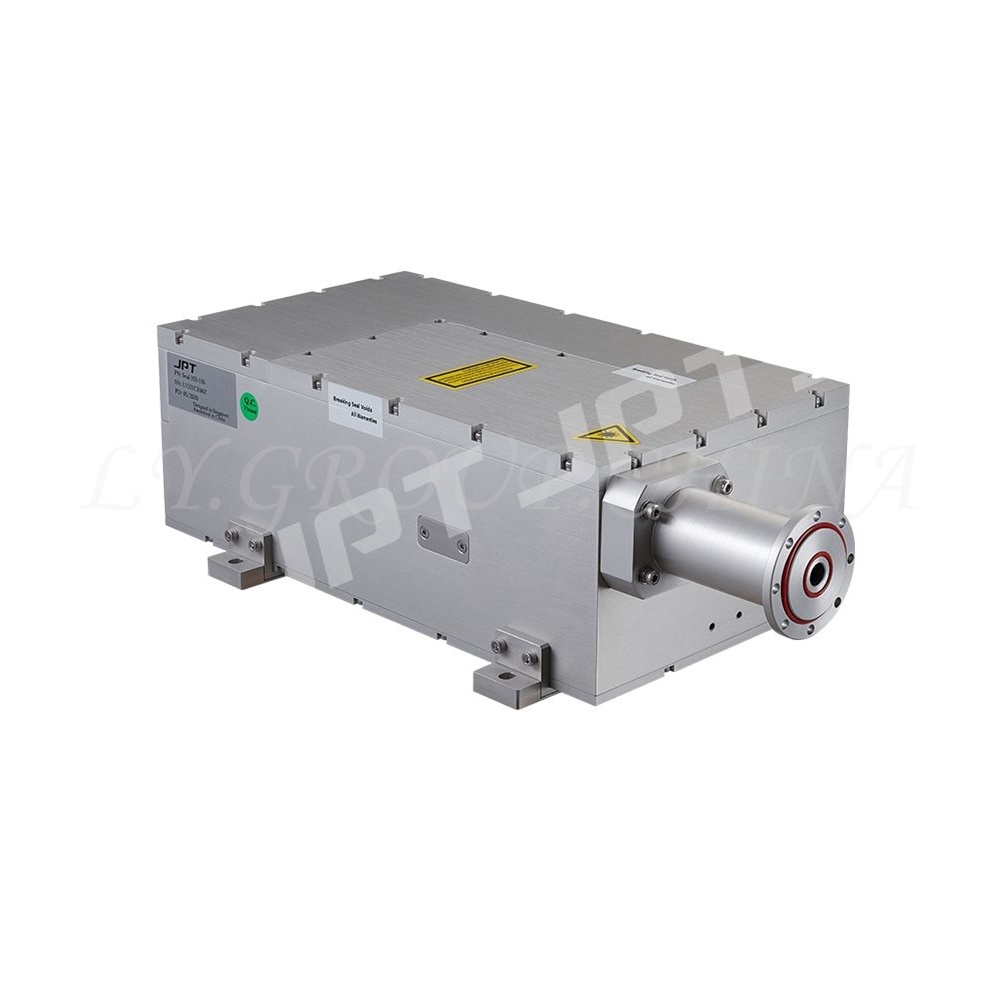

Ultraviolet Ray Purple Cold Light JPT Seal 355 Model For UV Laser Machine Use Universal Stuff Marking Available 3W 5W

Model: JPT-3SE/5SE

If need 3E/5E Or 3C/5C please send enquiry by message.

Compare with optical fiber & CO2 laser

Optical fiber laser marking machine long wavelength 1064nm,is limited to all metal materials and plastic rubber, spraying materials, electroplating materials.

CO2 laser marking machine is limited to leather, cloth, paper, bamboo and wood products, acrylic, glass, resin and other non-metallic materials.

Ultraviolet ray UV laser marking machine than the general laser marking machine,use short 355nm wavelength, light spot is cold and very small, make the heating area of the material is smaller, easy to heat deformation; Lower power; Marking effect is more detailed ,limited to the ultra-fine marking environment, food and medicine packaging, Glass,Crystal, Ceramic plates,electronic components, metal jewelry marking.

Application Advantages

Photoelectric Integration, Anti-interference, One-button Start

Fully sealed structure, dust-proof, moisture-proof

Intracavity self-purification with longer lifetime

Compact size, saving installation space

High power ultraviolet series in Seal family includes 10W narrow pulse width ultraviolet and 15W narrow pulse width ultraviolet. The output laser of this series has excellent beam quality (M2 < 1.2) and perfect spot characteristics (spot ellipticity is greater than 90%). The whole machine adopts an integrated structure design, which combines optical path and external driving circuit, making the product series have strong anti-interference ability. Optimize and upgrade the fully sealed structure to effectively prevent the entry of external dust. At the same time, the isolation of external water molecules makes the whole machine have a strong anti-moisture characteristics, making the Seal series can adapt to a more harsh industrial environment. In addition, the service life can be greatly prolonged by introducing an intracavity self-cleaning system. As an upgraded version of DPSSLP-UV-10/15-AIO, the output laser of Seal-355-10/15S series ultraviolet solid-state lasers has very short pulse width (<10ns@90KHZ) and excellent pulse stability (<3% RMS@90KHZ) at medium and high repetition rates. The repetition frequency range has been extended (30KHZ~300KHZ), and the efficiency has been greatly improved.

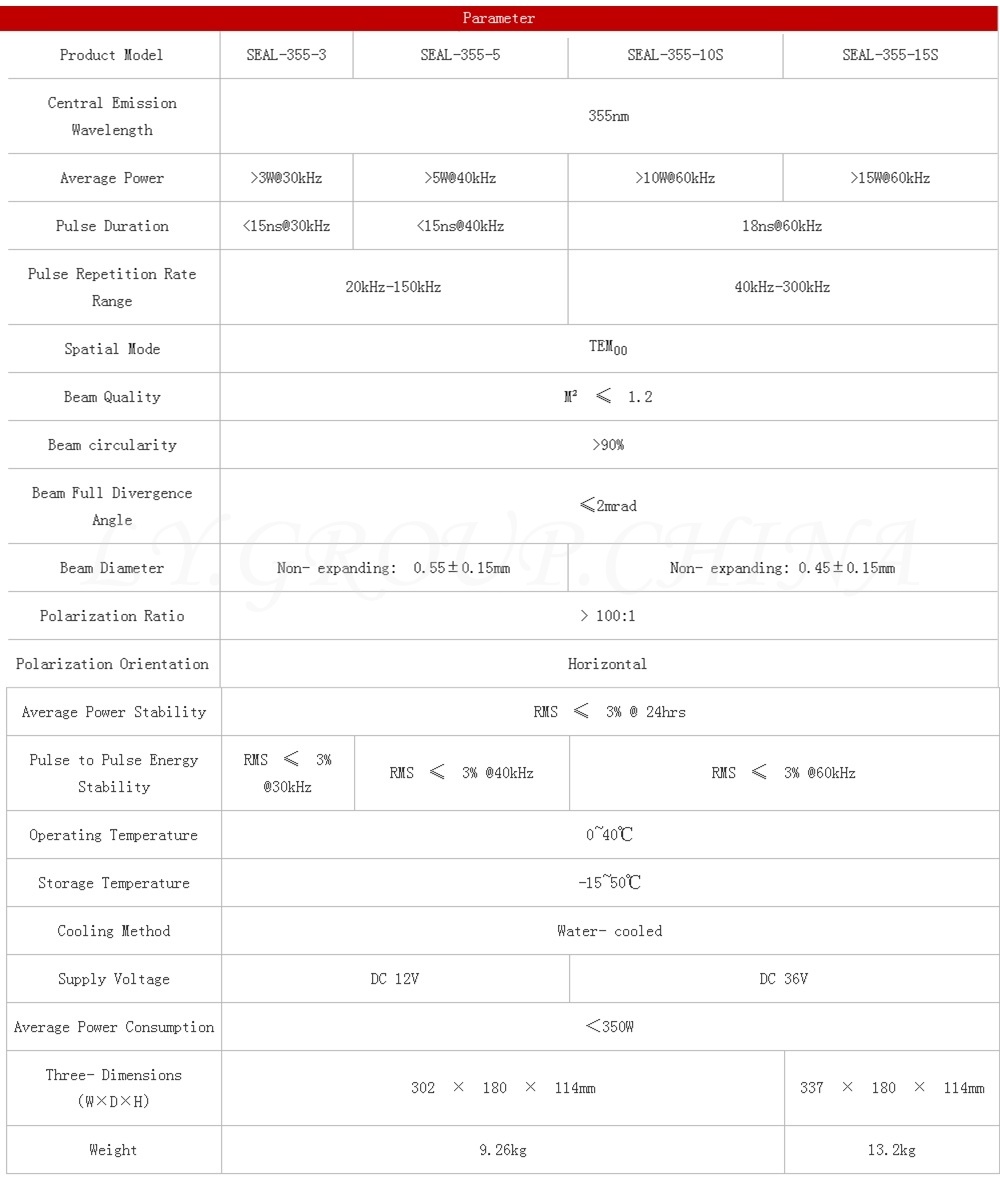

Parameters
