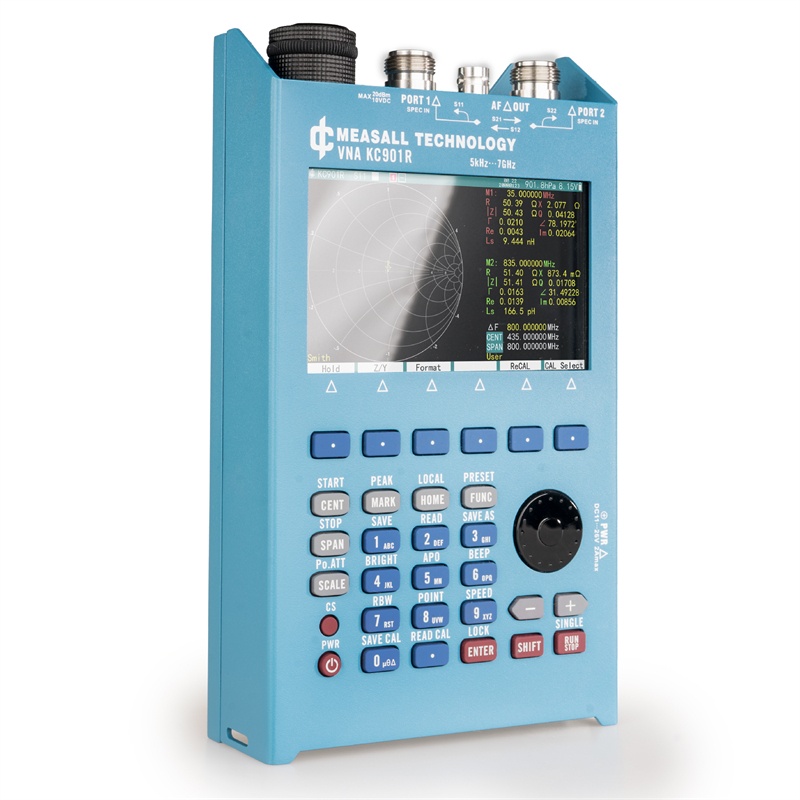

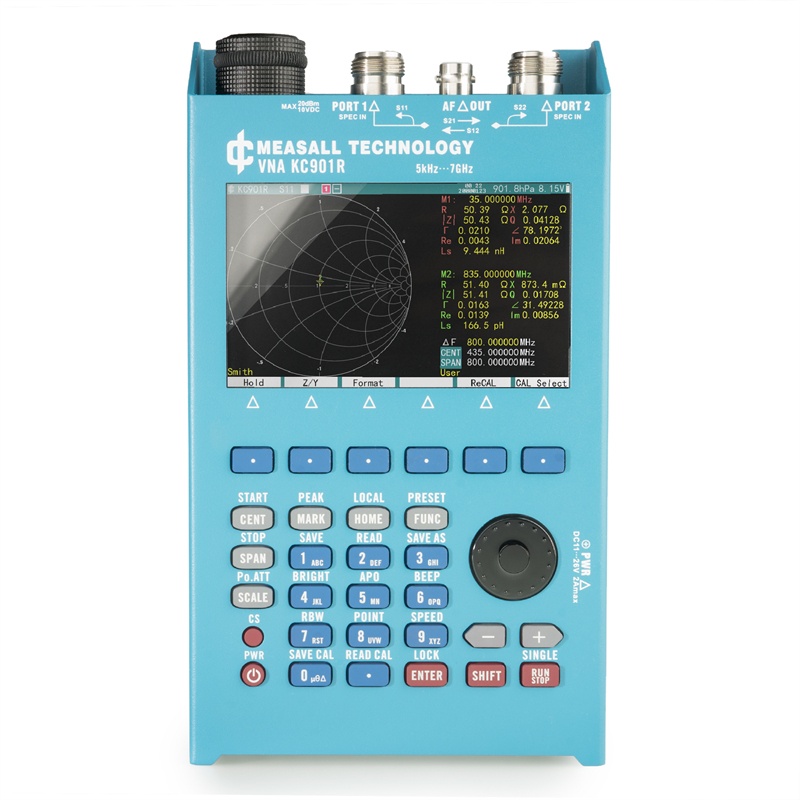

KC901R KC-901R Handheld Vector Network Analyzer Antenna RF Spectrum Field Multi-meter SWR Standing Wave Testing 7GHz VNA

KC901R is a multipurpose RF instrument integrating a Network Analyzer, spectrum analyzer, field strength meter, and a signal generator. It can measure the level and phase change of signals through the device under test.

• Powerful and accurate
• High dynamic range
• 1Hz step
• Immune to heavy interference
• Transmission measurement
• Reflection measurement
• Handheld and durable

Main Features

• Up to 7GHz frequency range
• 1Hz frequency stepping
• Ideal accuracy and stability
• Dual conversion, good anti-interference ability
• Abundant functions and easy to carry
• Transmission measurement (Measure phase and level difference)
• Reflection measurement (External coupler required)
• RF source and extra audio signal source
• Spectrum display and field strength observation (potentially used for inspecting
  a radio station’s emission performance, or for searching for the interference
  sources)

Main Functions

Recommended Applications

The KC901R is mainly used for adjusting various RF circuits, such as filters, amplifiers, splitters, combiners; With suitable external coupler, it can test input/output impedance, evaluate antenna feeding system and detect equipment’s signal amplitudes. It can also execute field strength measurement, which is useful for checking the correct operation of low powered devices with integrated antennas and when searching for interference sources etc.

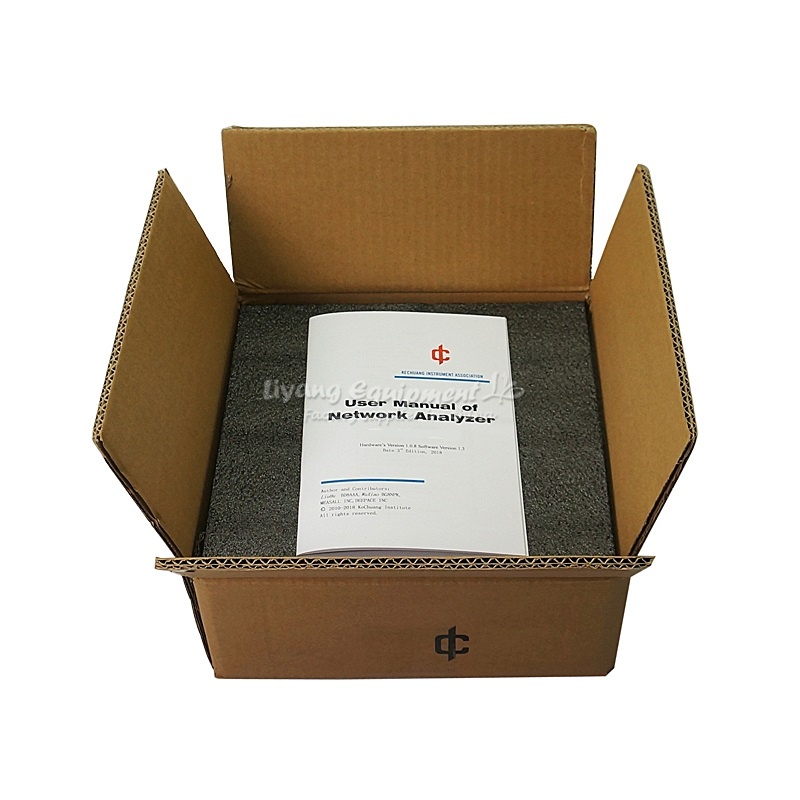

What in Package

KC901R 1
Charger 1
Shoulder Strap 1
User manual 1
Desktop stand1
