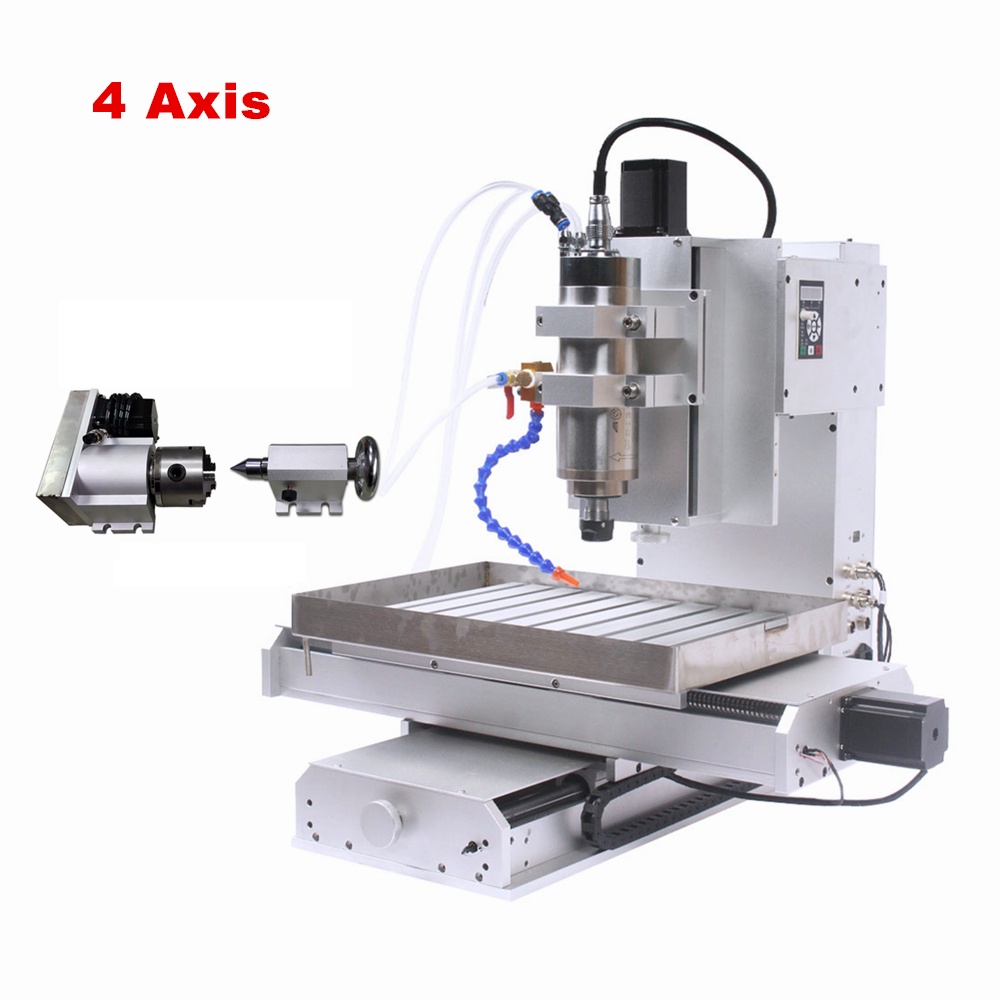

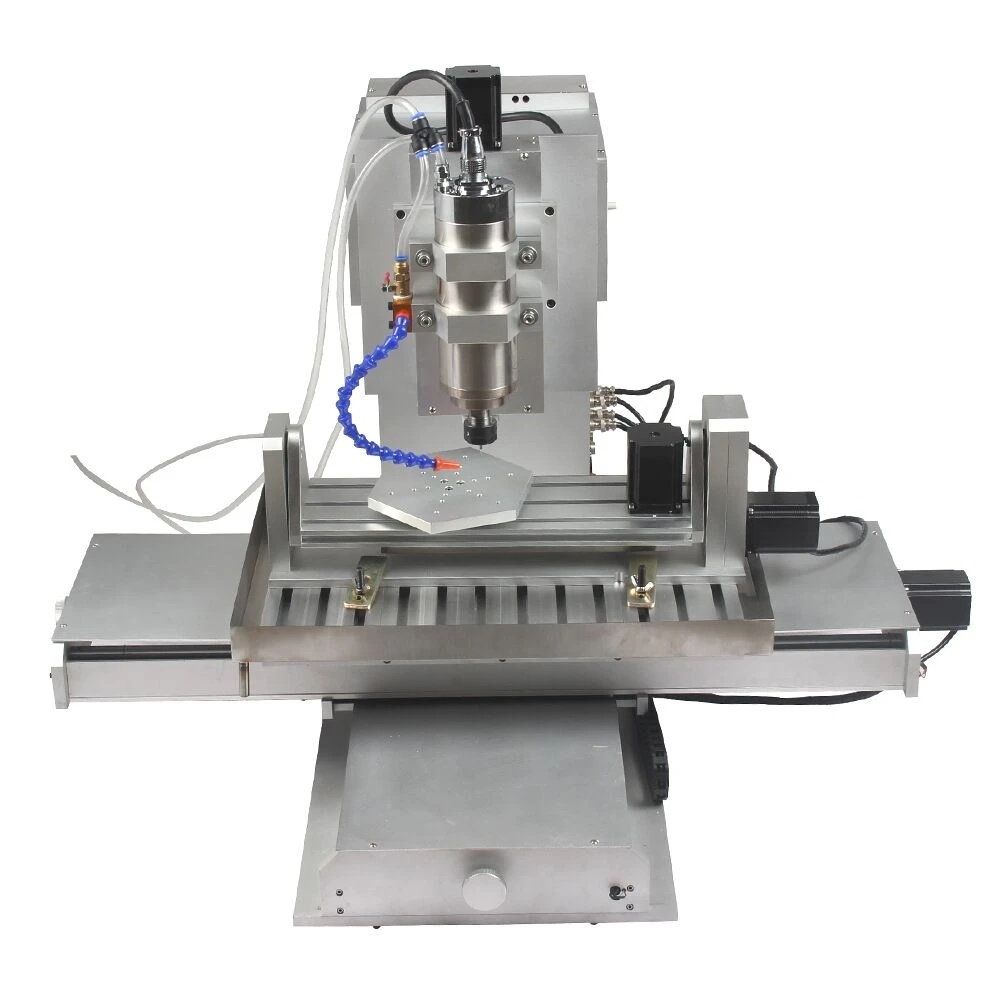

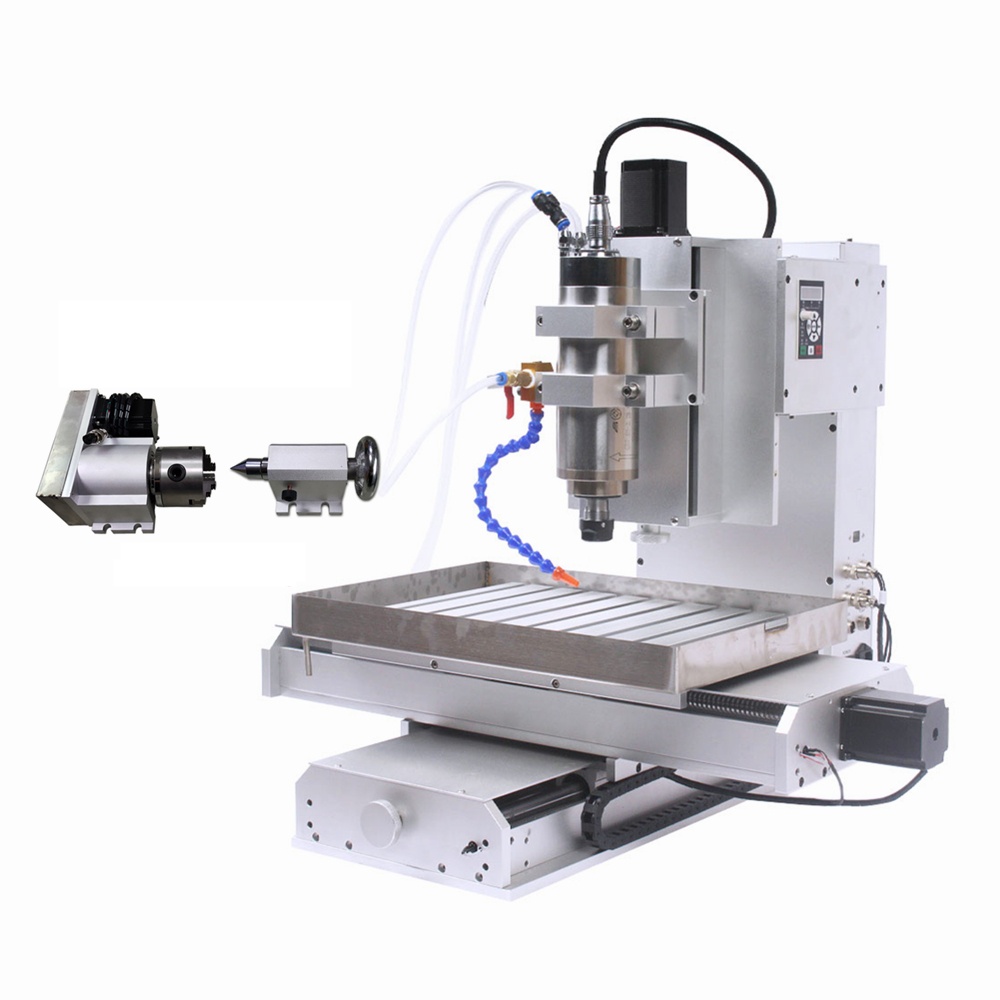

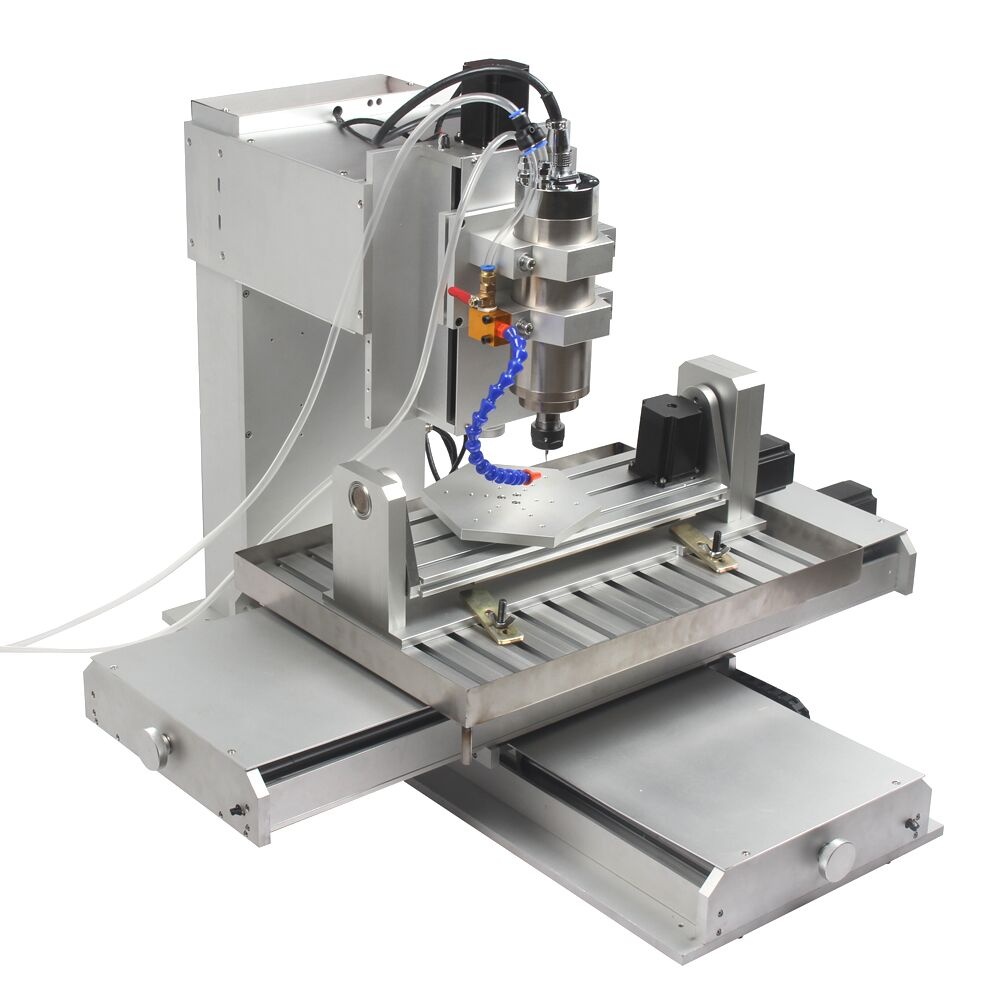

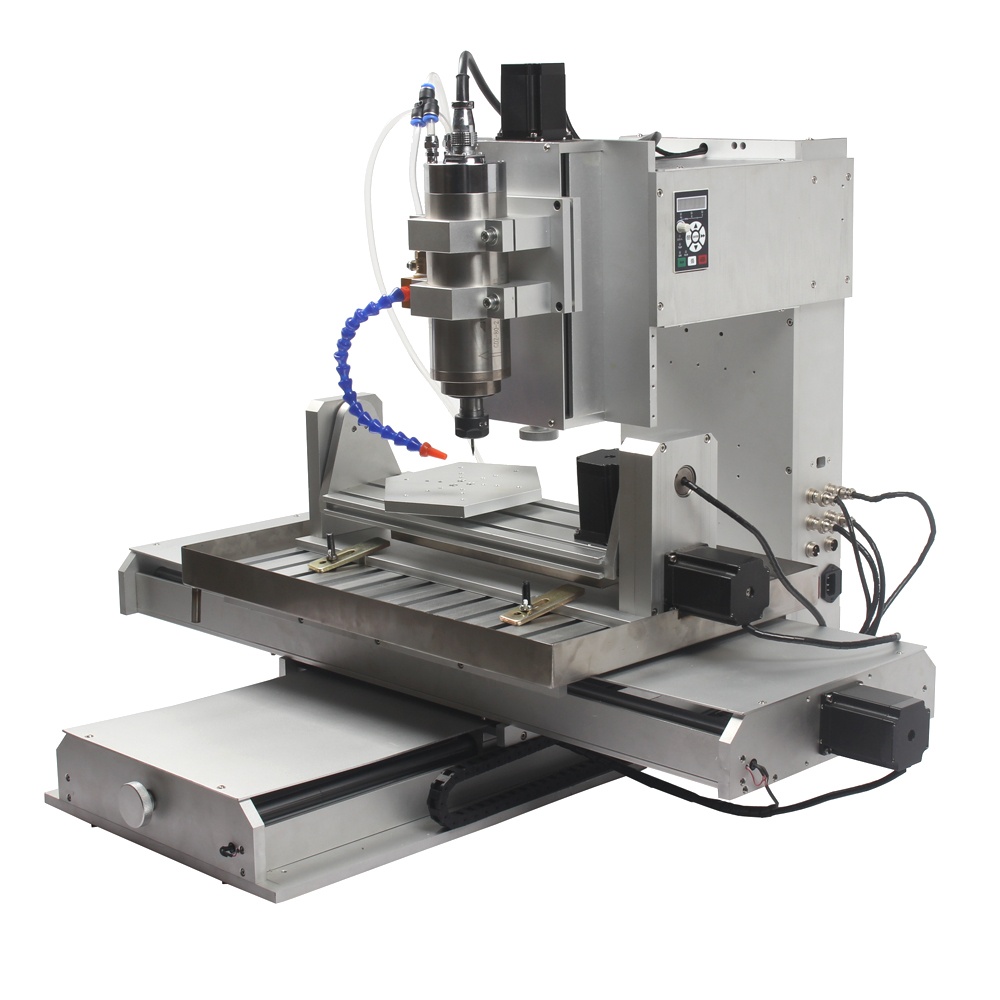

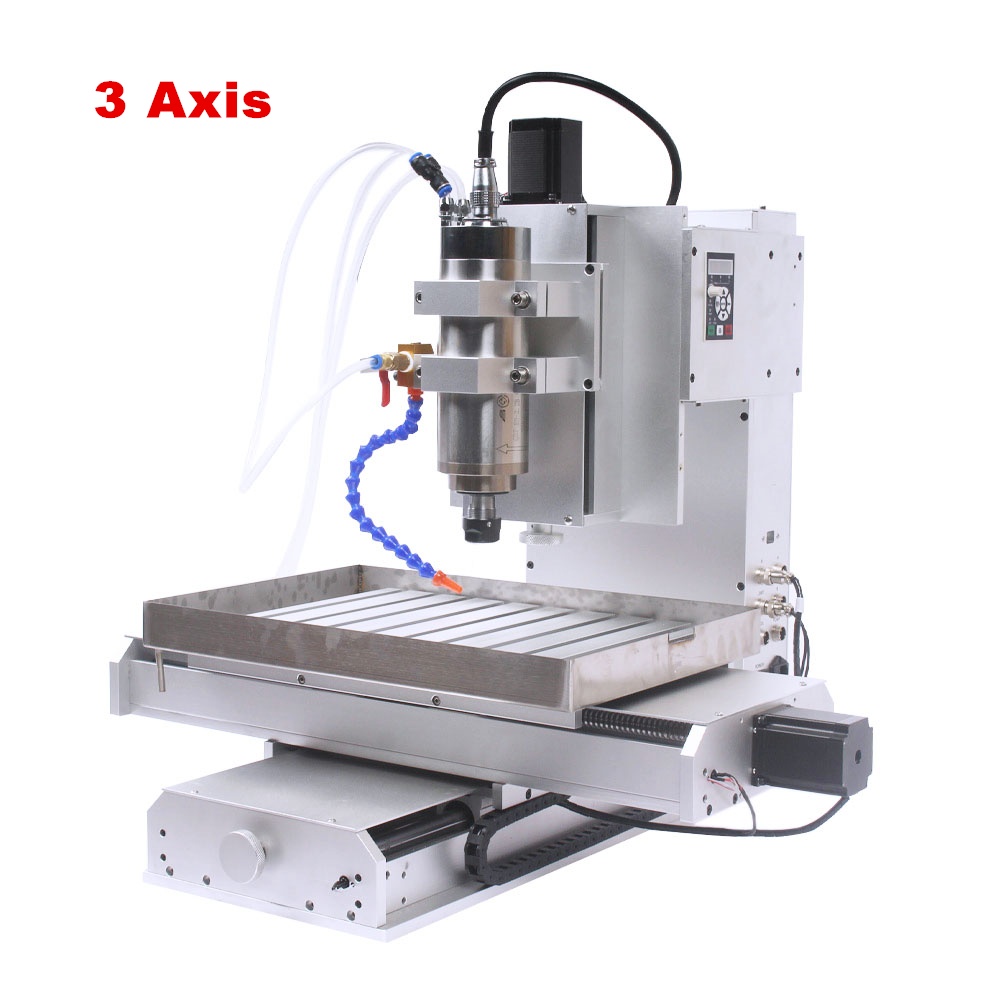

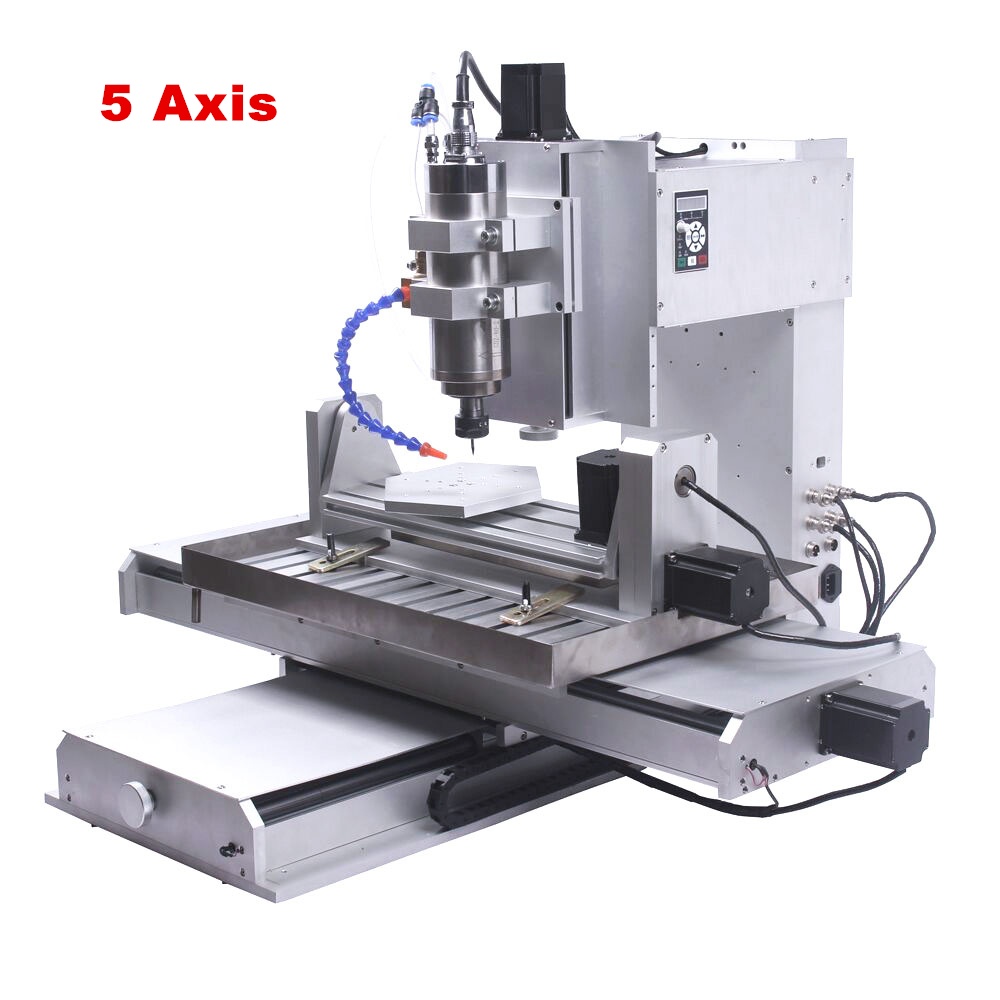

CNC 6040 Vertical 2.2KW 5 Axis Wood Engraving Carving Cutting Machine 4060 Metal Engraver Cutter 4 Axis

Effective working travel
583(x)mm*420(x)mm²150(z)mm

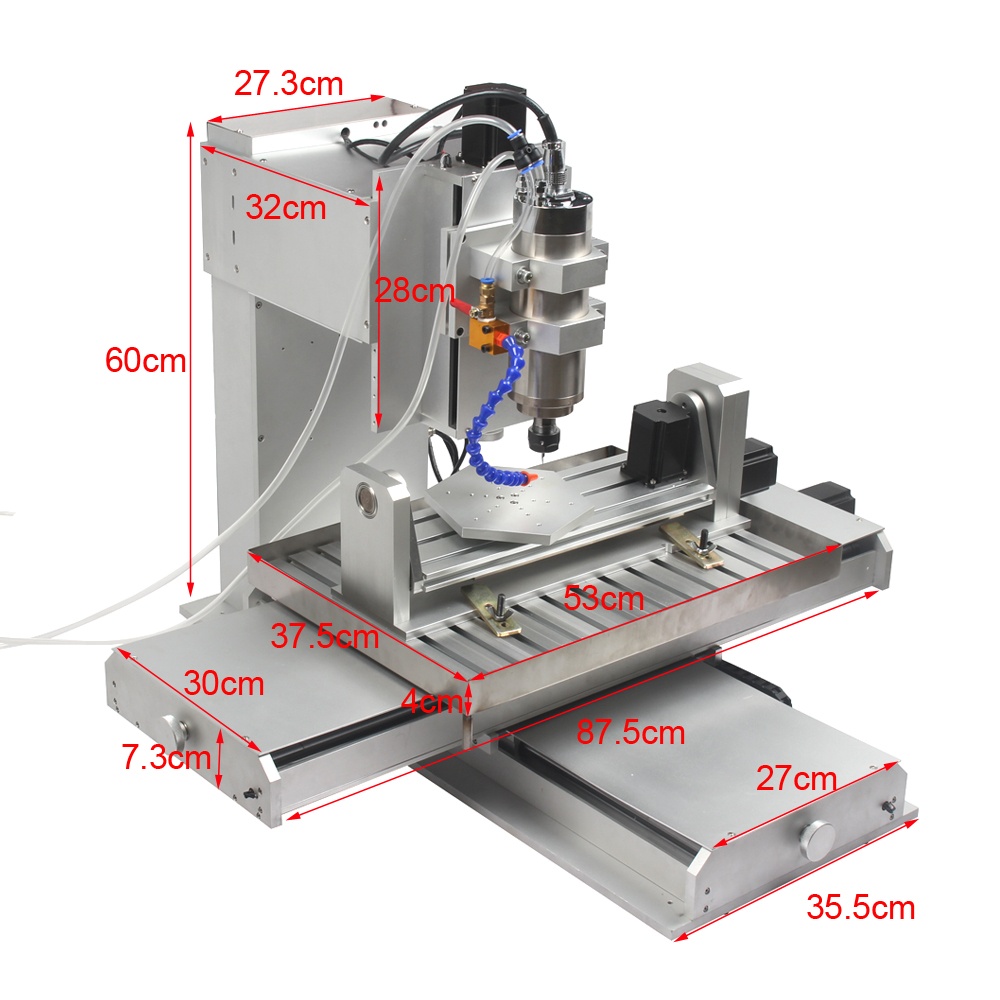

Shape dimension
355(L)mm*875(W)mm*600(H)mm
Aluminumalloy6063and6061theuniqueanddedicatedmoldextrusion
Frame materials
profiles.letcounterfeitersdwarfs
acceptable material thickness
k240mm
krYizaxis
SFUR1605-DFC7-P0 ball screw
X axis
Driving units
pia.20mm chrome plate shafts
[Sliding units
Y axis
pia.16mm chrome plate shafts
Zaxis
Dia.13mm chrome plate shafts
X.Y.ZAxis Stepping motor type
57 two-phase 3A 180N.cm 76mm length
4th,5th Axis Stepping motor type
57 two-phase4A 180N.cm 112mm length

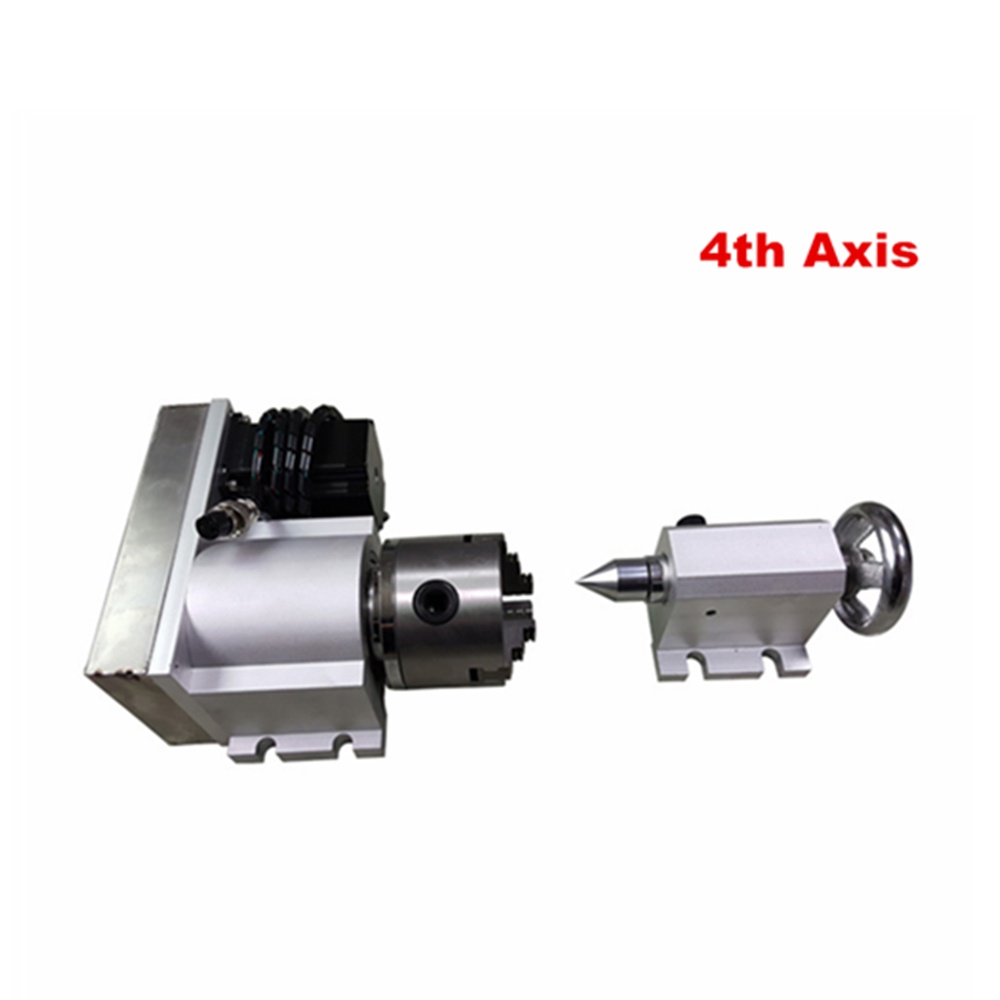

4″ Axis maximum clamping
Center height 65mm,3 Jaw 80mm Chuck,Maximum clamping 125mm,Tailstock
diameter
maximum expansion length 50mm,Maximum clamping weight 30kg

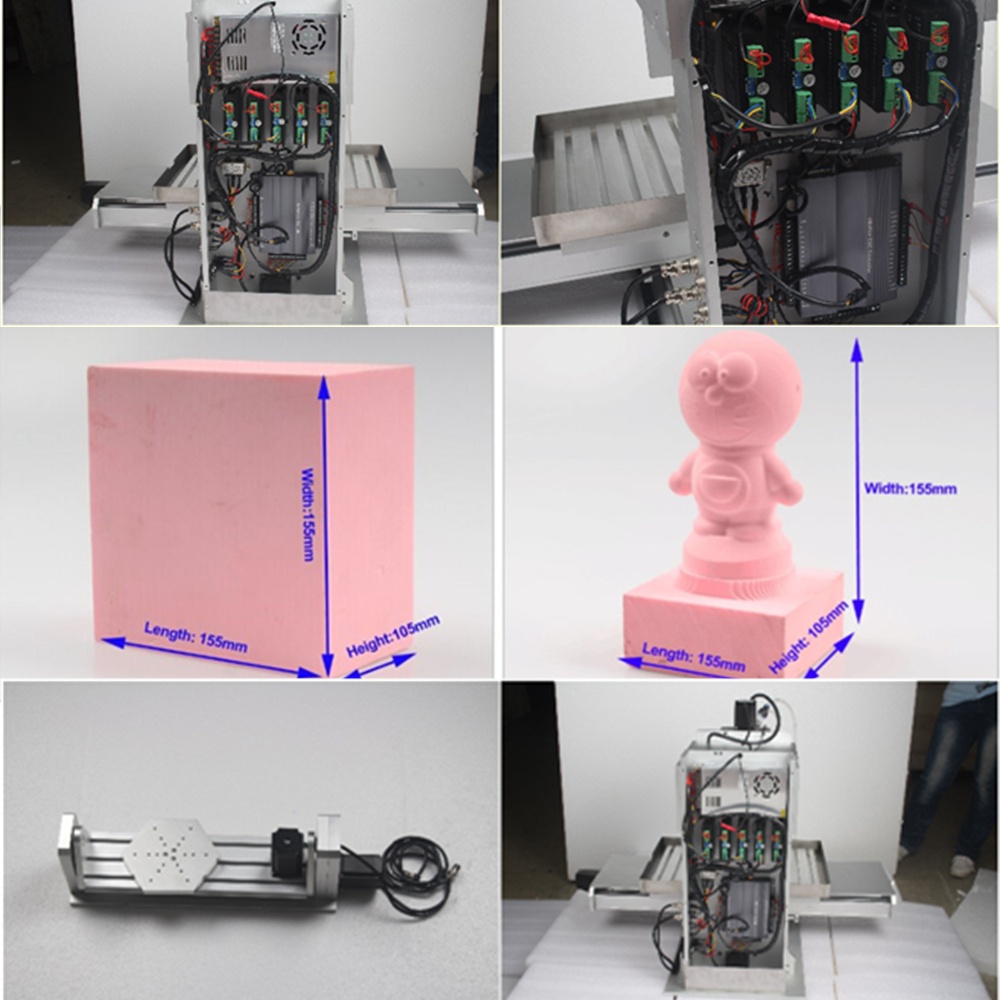

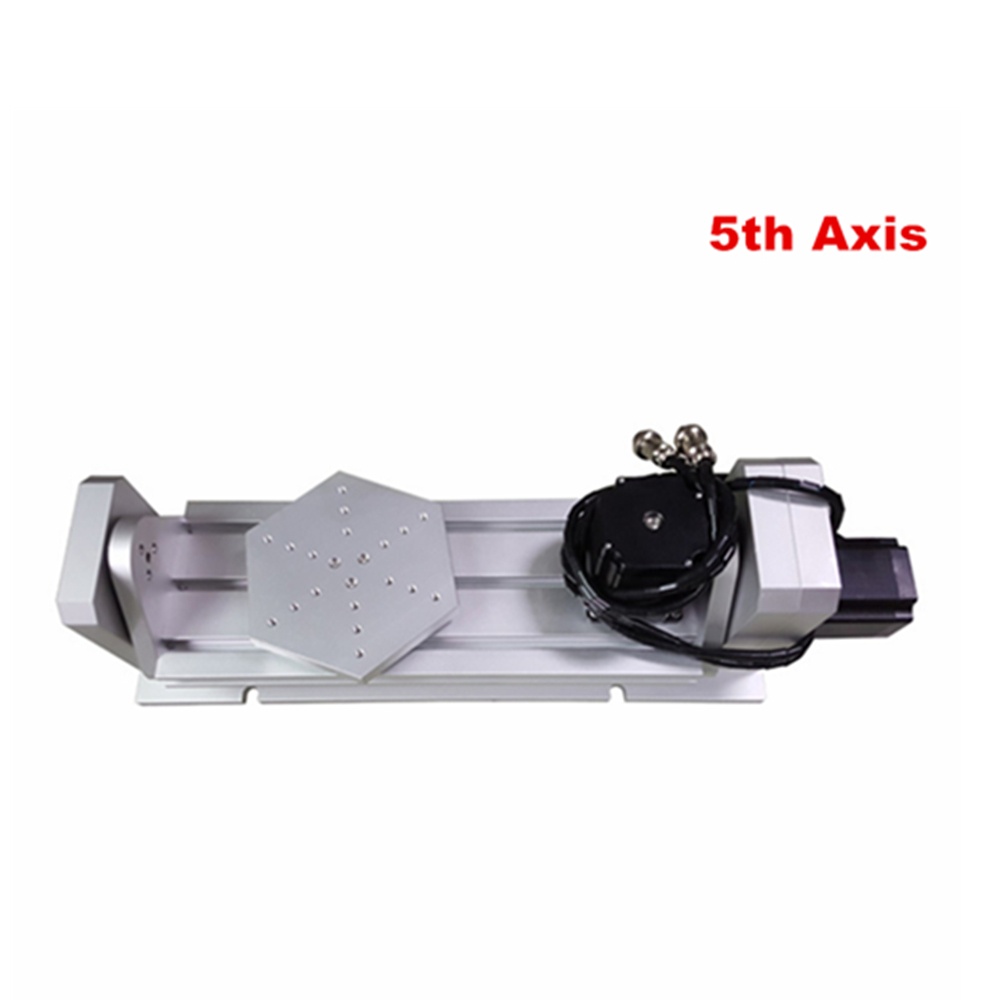

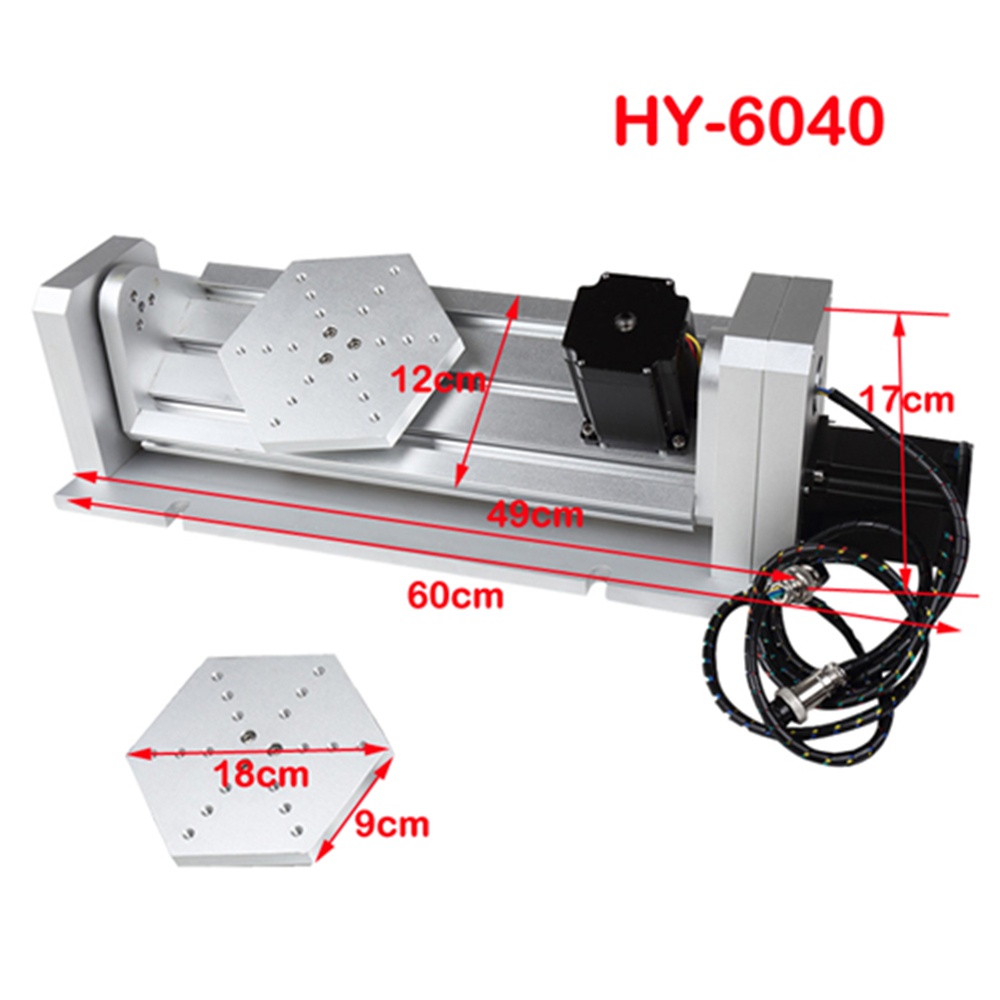

[S” axis working travel
155(xX)mm*155(Y)mm’105[{z) 360 degree 30-90 degreesuggested
Plate dia,180mm
Spindle motor
Srand new 2200Wwater cooling spindle,24000RPM
Principal axis collet
ER-20 1-13mm
Repeat accuracy
p.05mm
Spindle precision
radialbeataccuracy 0.03mm
JOperating system
Win10 and below
Maximum speed
p-4000mm/min

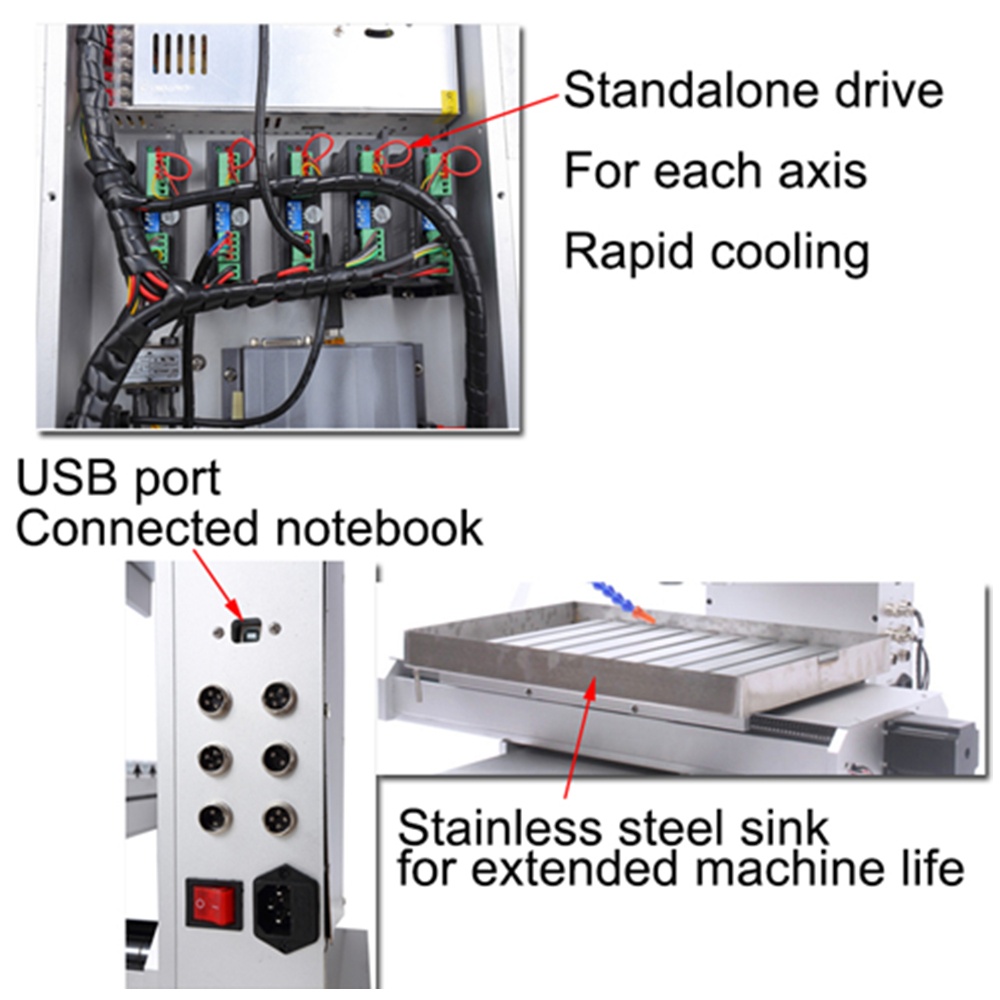

Control unit
nMotionUSBmotioncard,higherccuracy,betterquality
Computer connection
USBport
Command code
G code,nc,ncc,txt, tap
Operating Voltage
AC220V/110V
Accessories
bits,tool kits etc.
warranty
1 Year, 3months for the spindle
Package size
One wooden box,109*91*56cm
Gross weight
114KG
