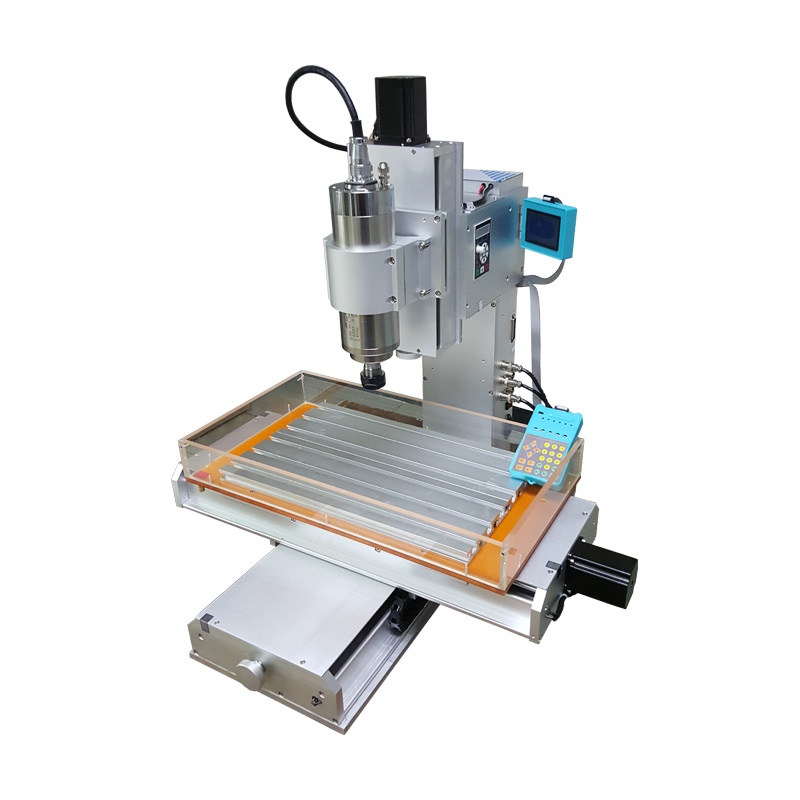

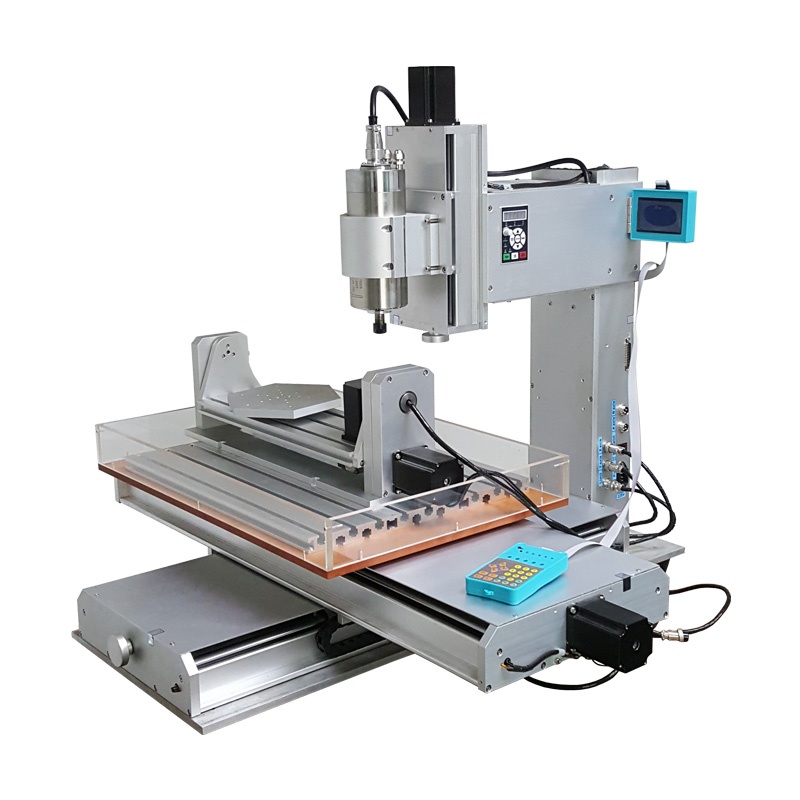

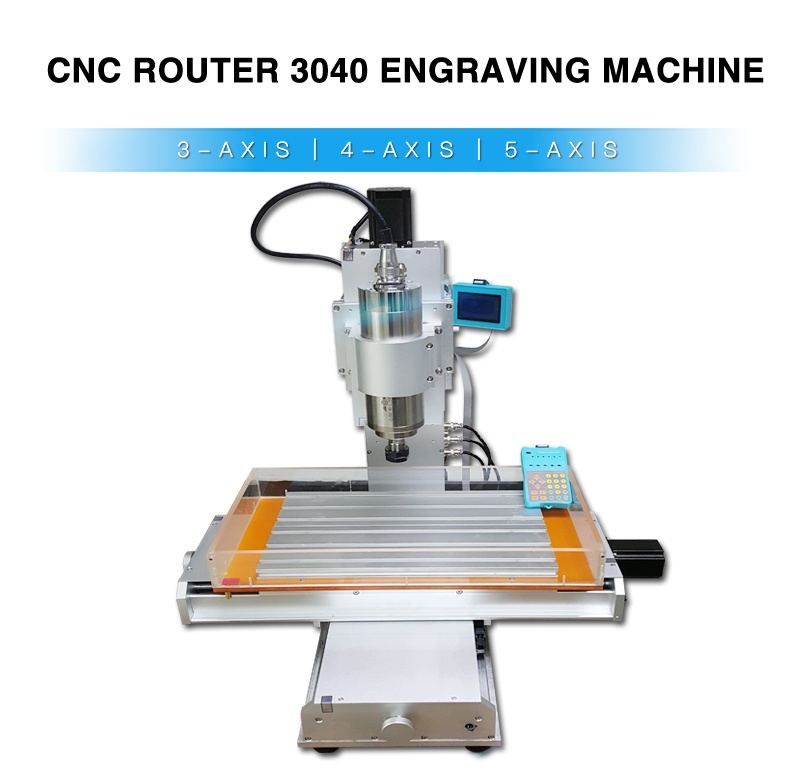

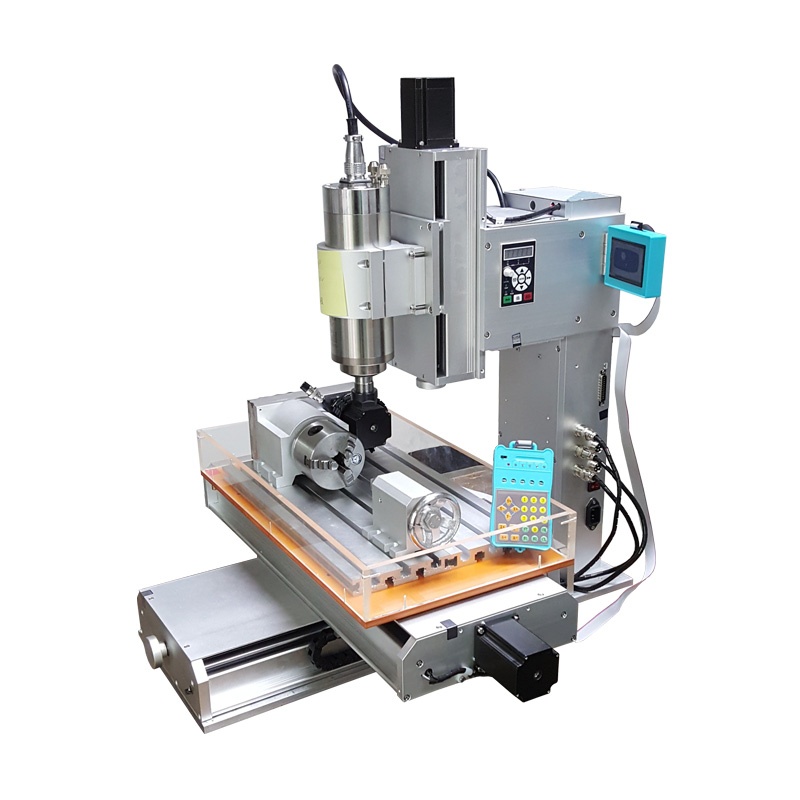

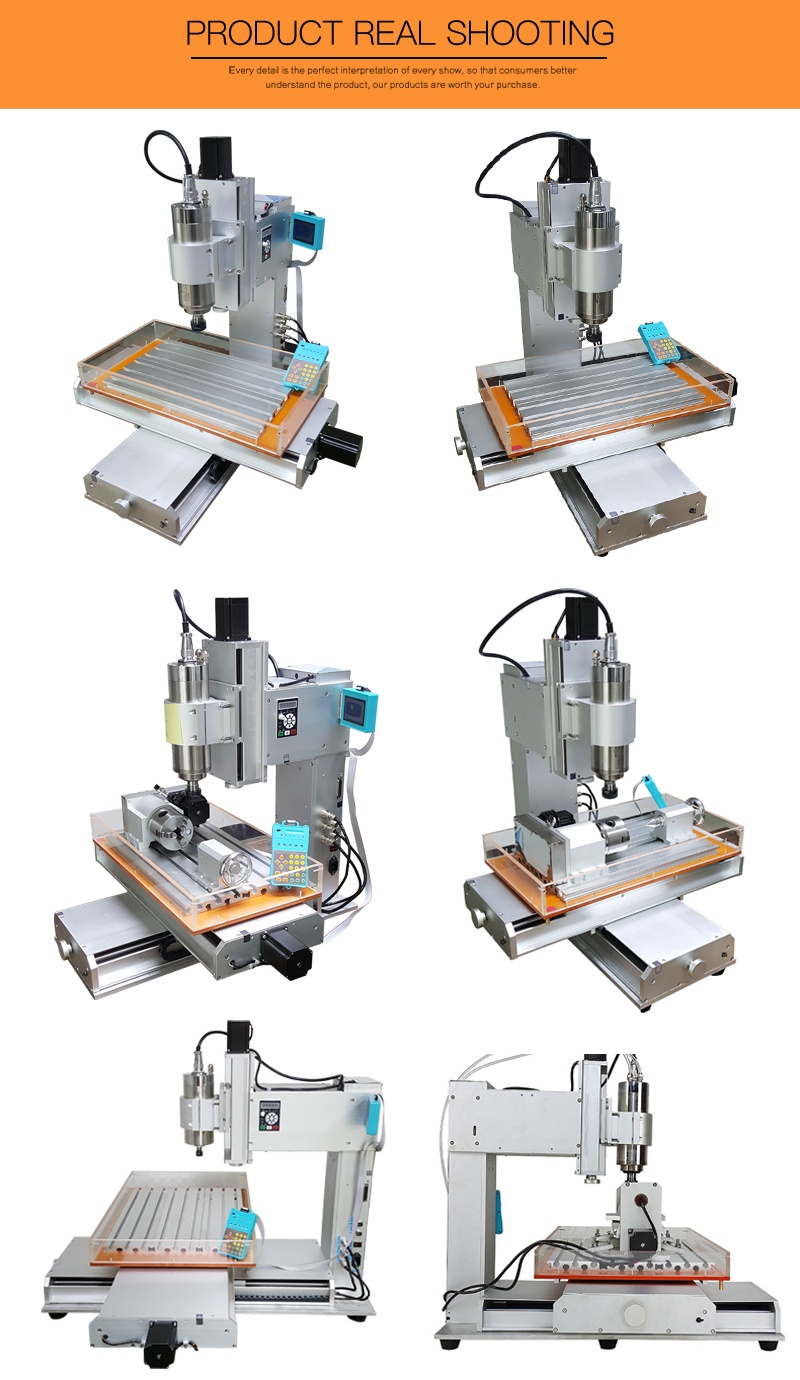

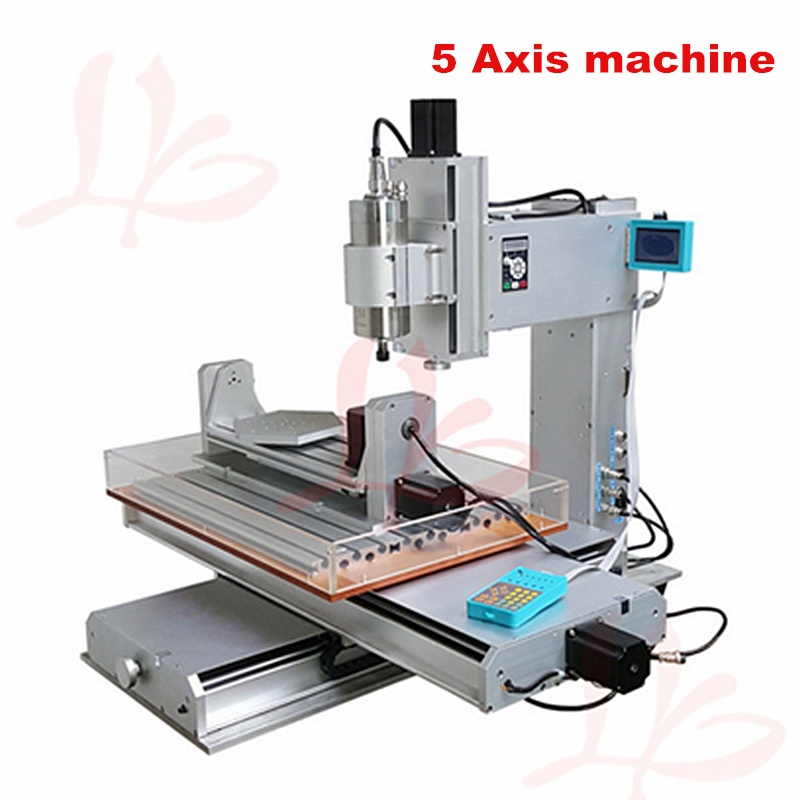

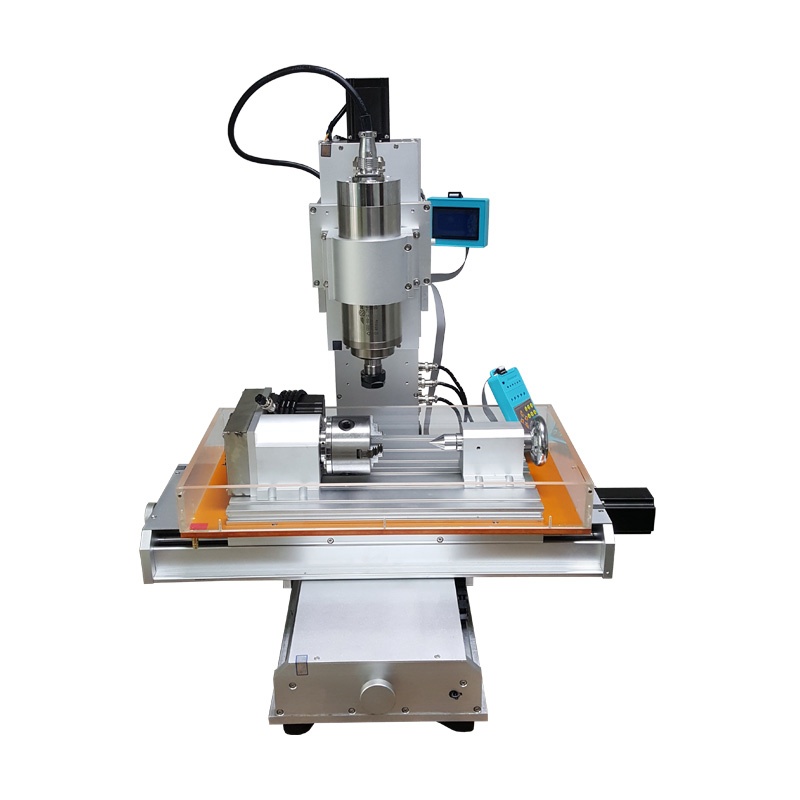

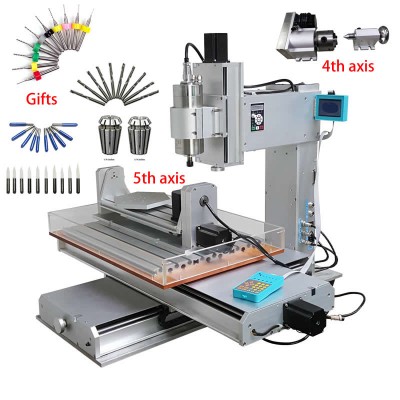

CNC Router 5 Axis CNC 6040 Engraving Machine USB Pillar Type Wood Aluminum Copper Metal Milling Machine 3040 with Water Tank

CNC Router 5 Axis CNC 6040 Engraving Machine USB Pillar Type Wood Aluminum Copper Metal Milling Machine 3040 with Water Tank

item ID: 60754
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$3000 USD$2188 (% off)
Payment

Product Detail

Product Tags

CNC 3040 2.2KW  (2)

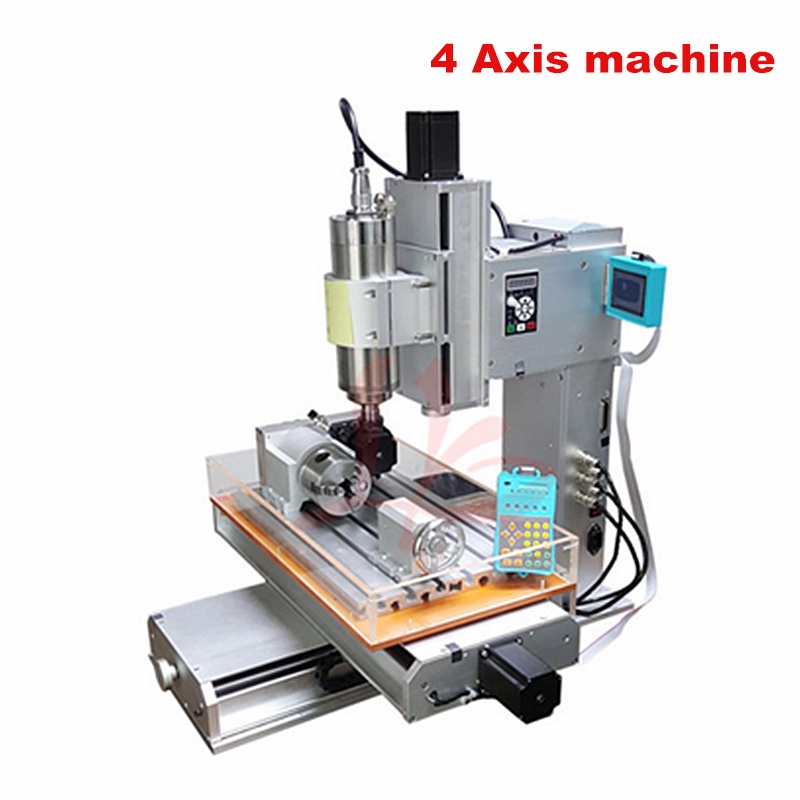

cnc 3040/6040 3/4/5 axis CNC Router Engraving Machine 1500W/2200W with Ball Screw CNC Pillar Type CNC Wood Aluminum Copper Metal Milling Machine CNC

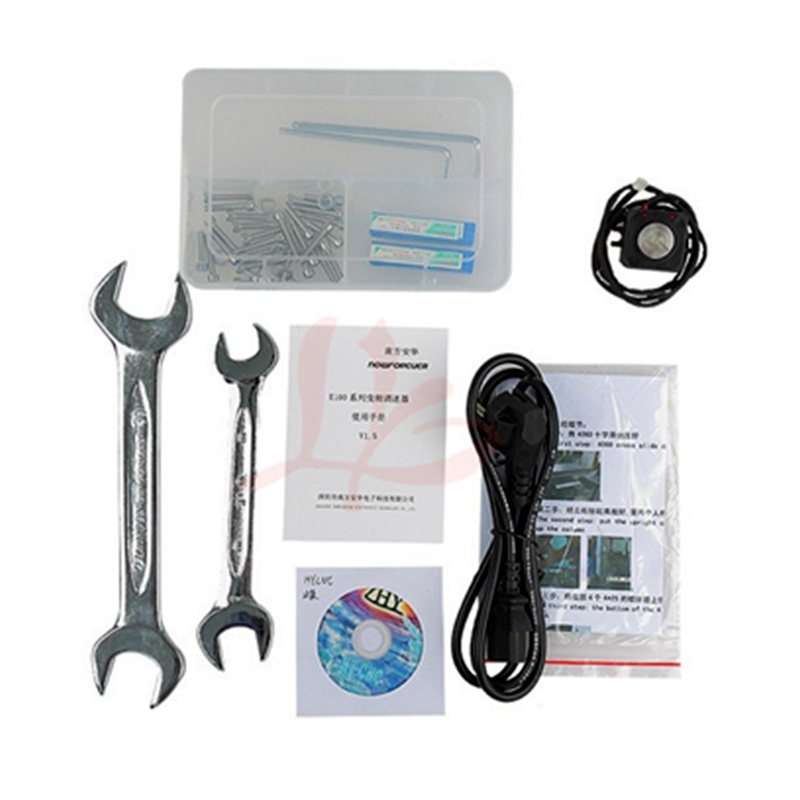

Our package has CD ,CD include Mach3 software and detail english manual ,pls see it !

LY vertical CNC 3 axis drill hole on stainless steel :

https://youtu.be/Ld4dHDQvwR8

LY vertical cnc test resonance rigidity stability with coin :

https://youtu.be/5vNeyNkCxlw

LY vertical CNC 3 axis work with stainless steel video :

https://youtu.be/wF4gHl1OrxA

LY vertical CNC 3 axis work with aluminum stuff materials:

https://youtu.be/DAfay44AHxA

LY vertical CNC 3 axis work with wood stuff and ABS stuff materials:

https://youtu.be/DyocbPUcWUg

LY vertical CNC 4 axis engraving dragon on aluminum poles:

https://youtu.be/t3Ay1eLZYFo

Specifications:

Model

3040/6040  3/4/5 Axis CNC Machine

Product demention
3040
6040

520*660*580mm
970*810*790 mm

Effective work area
3040
6040

300x400x(150)mm
600x400x(150)mm

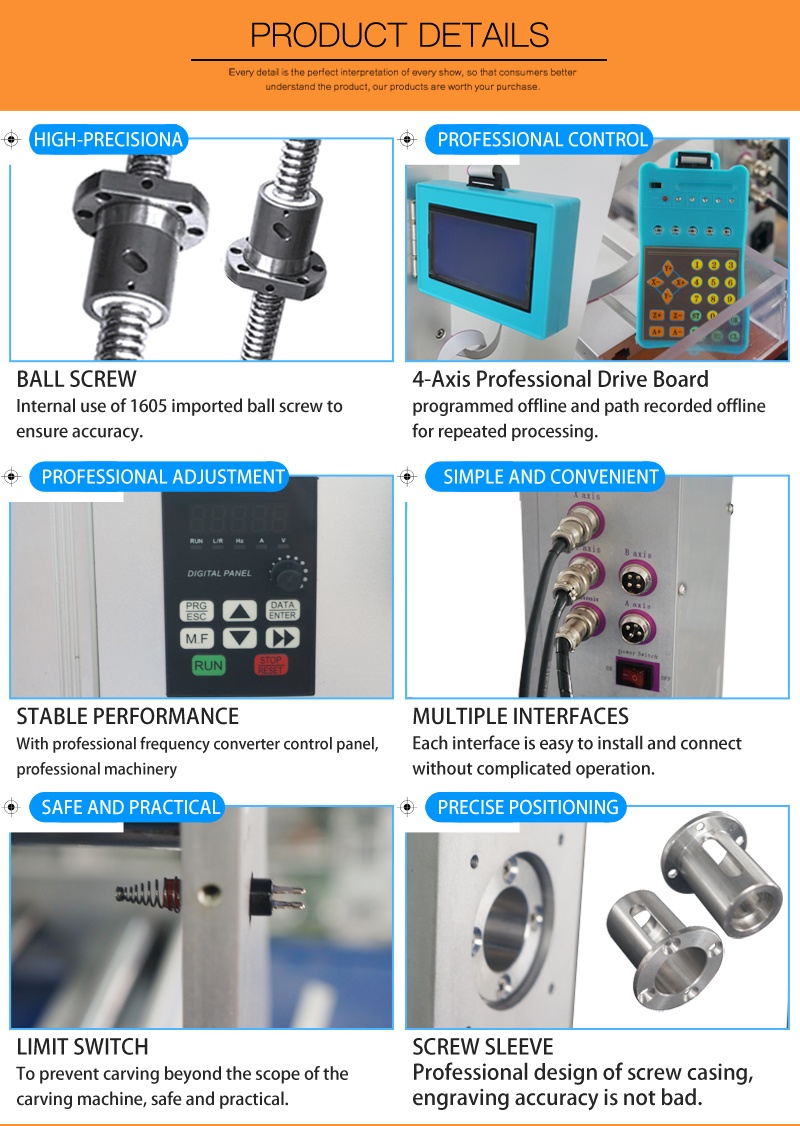

Precision ballscrew

1605

XYZ rail material

Hard chrome shaft

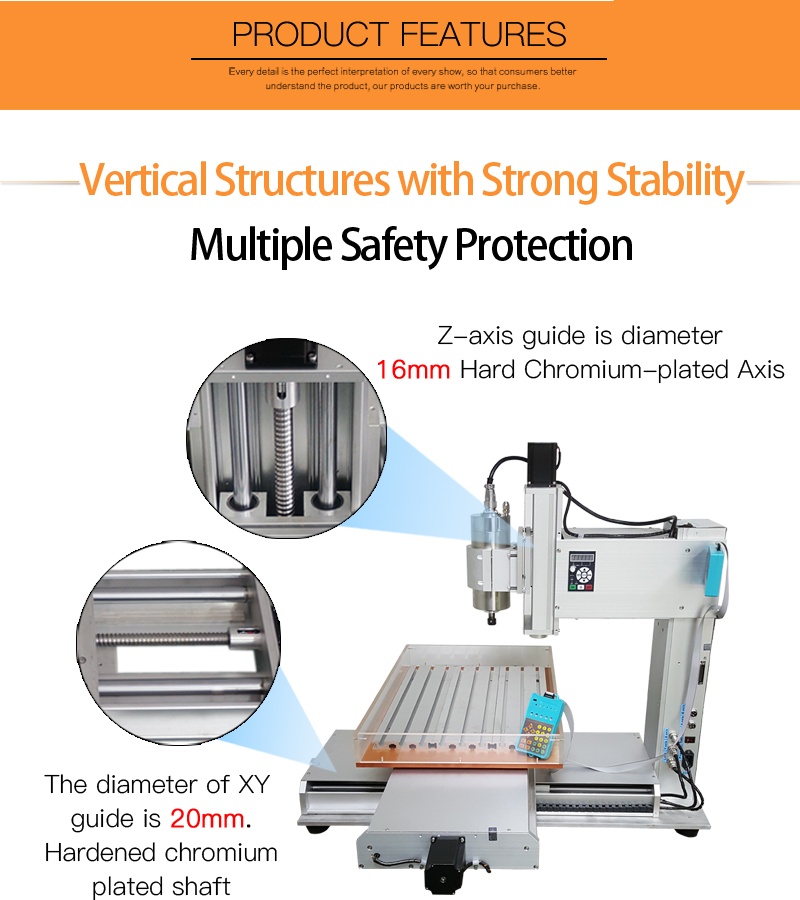

XY rail diameter

20mm

Z rail diameter

16mm

XYZ axis torque

57*78  250 OZ/IN (2.2N/CM)

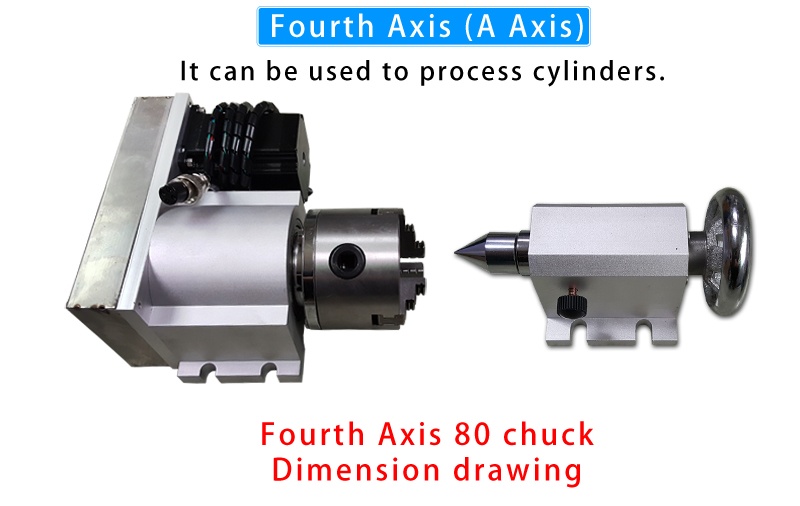

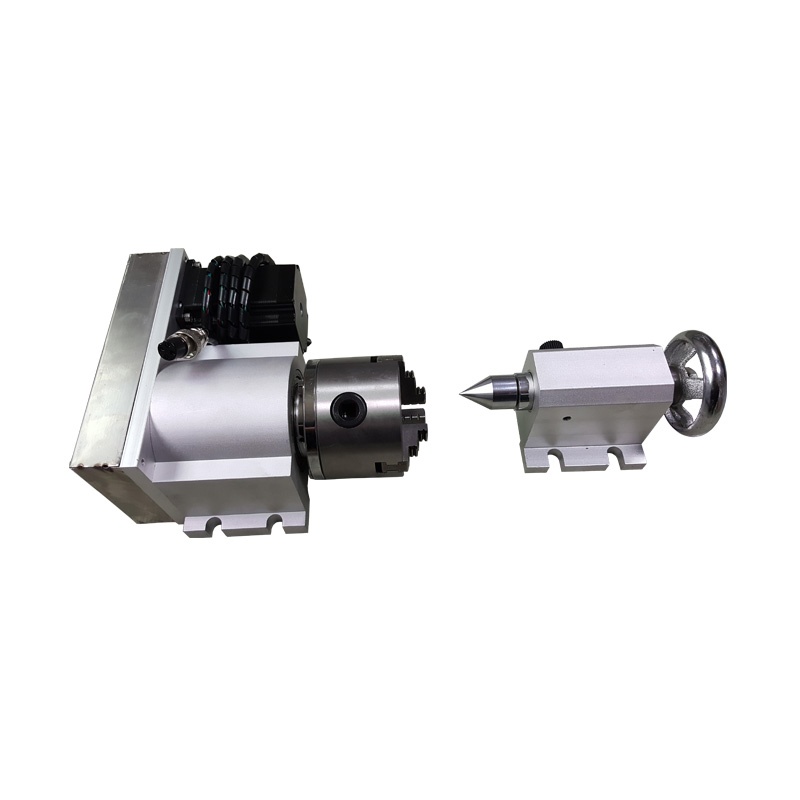

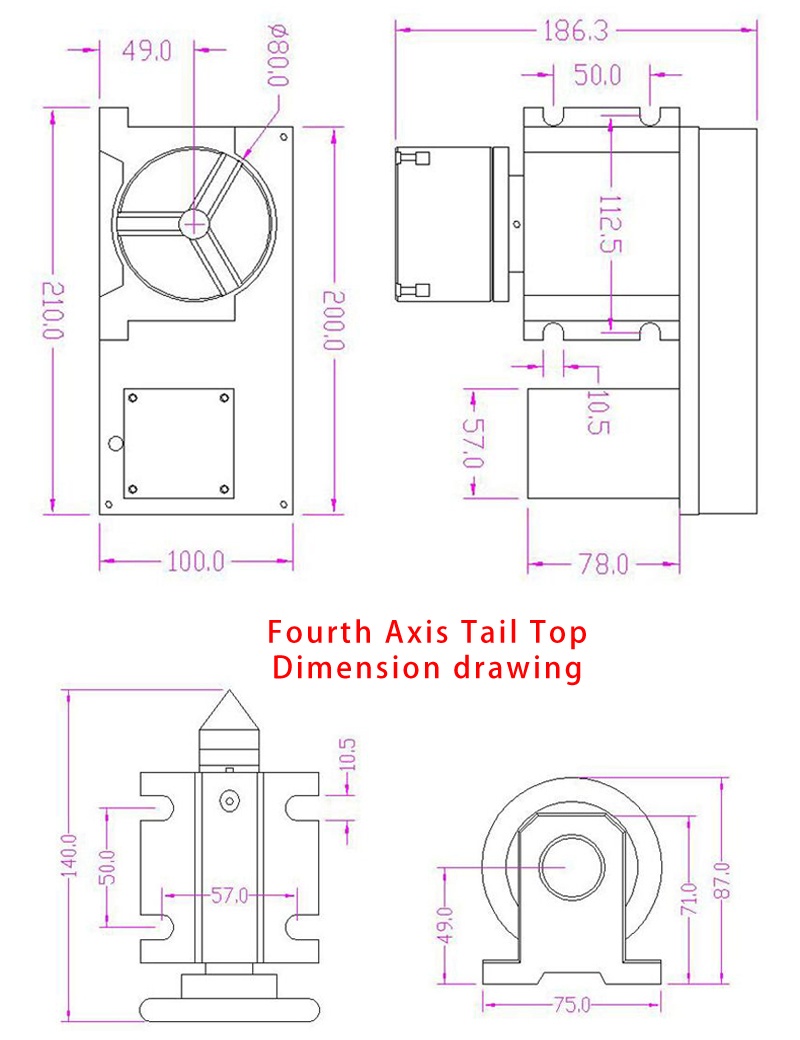

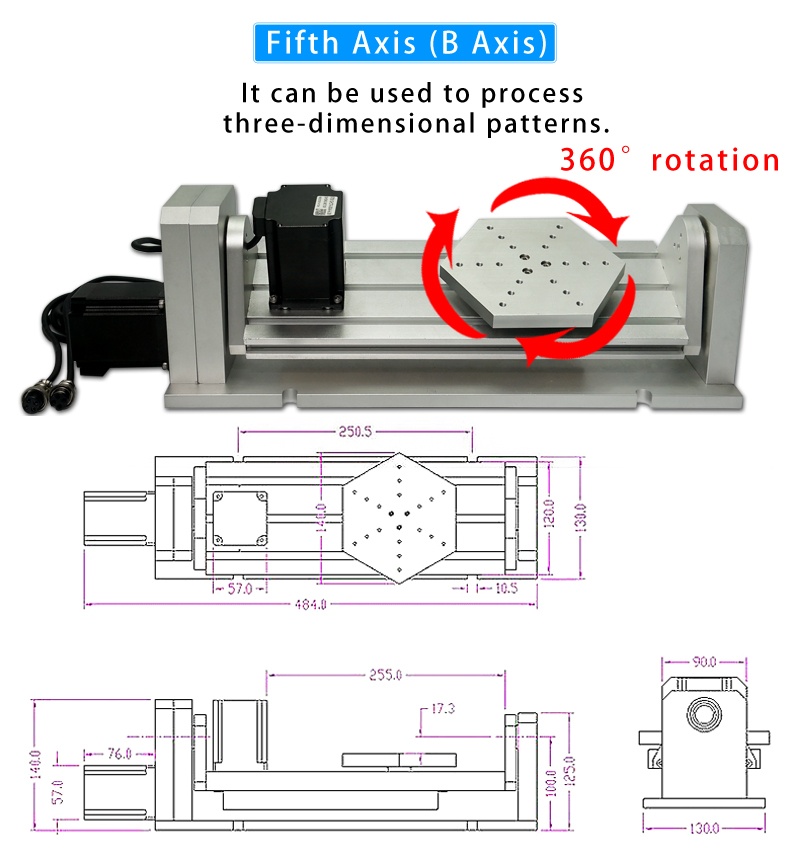

4th and 5th

57*56

4th and 5th transmission ratio

1:6

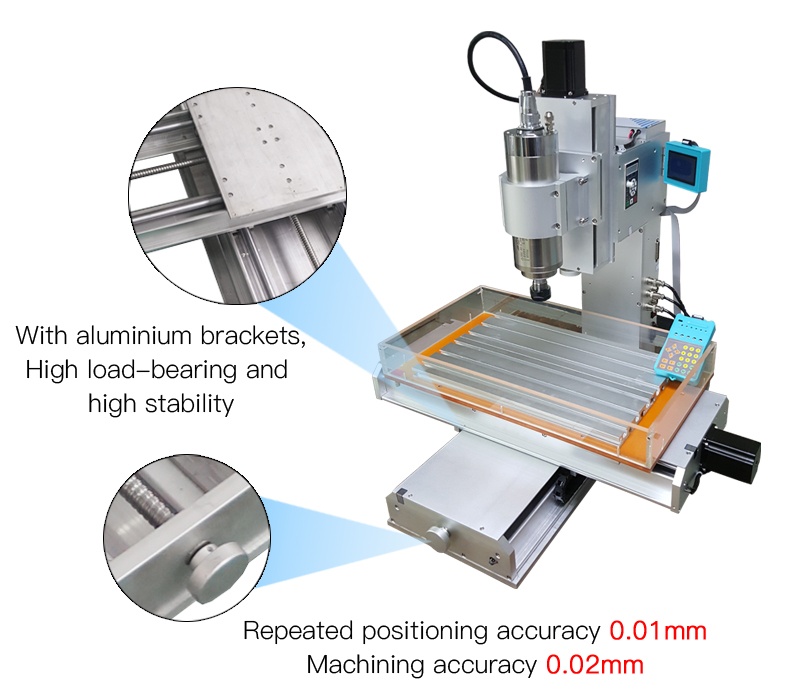

Repeat positioning accuracy

0.01mm

Working precision

0.02mm

Processing speed

0-4000 mm/Min

A-axis B-axis rotation speed

0-180 rpm/min

XY table maximum load

50kg

XY+A+B axis table maximum load

15kg

Tailgate material

Stainless steel

Switching Power Supply

Integrated 24V 350W

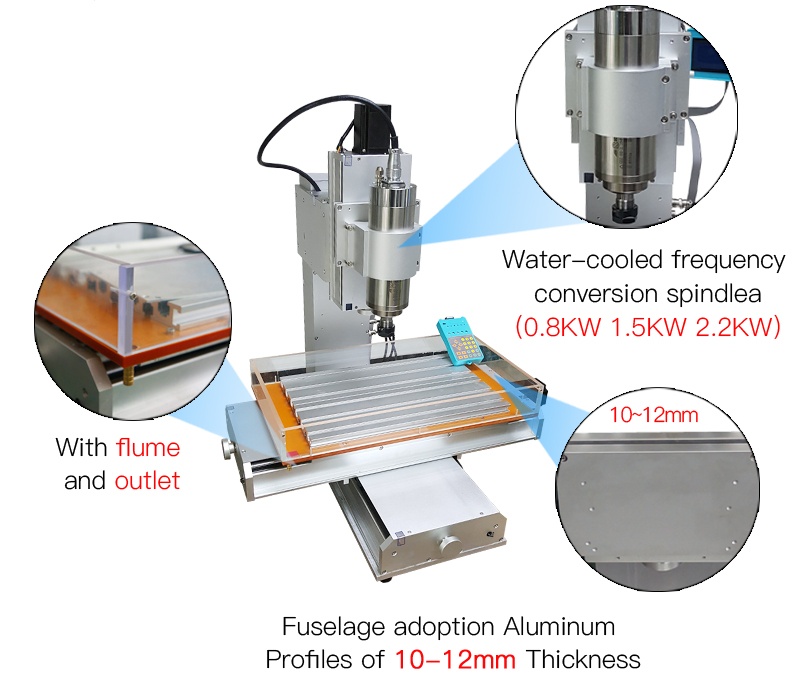

Spindle power

1500/2200 W water-cooled frequency spindle

Spindle converter

1500/2200W

Input Power

220V / 110V power supply

Output Current

Drive 4.5A (peak 5A)

Drive motor

57*78 stepper motors (two-phase 4 wire)

Net Weight

55KG/75kg

Gross Weight

85KG/120kg

Outside packing
3040
6040

76*88*54(cm)
110*90*85 (cm)

Collet Type                                                        1500W IS ER11/2200W IS ER20
