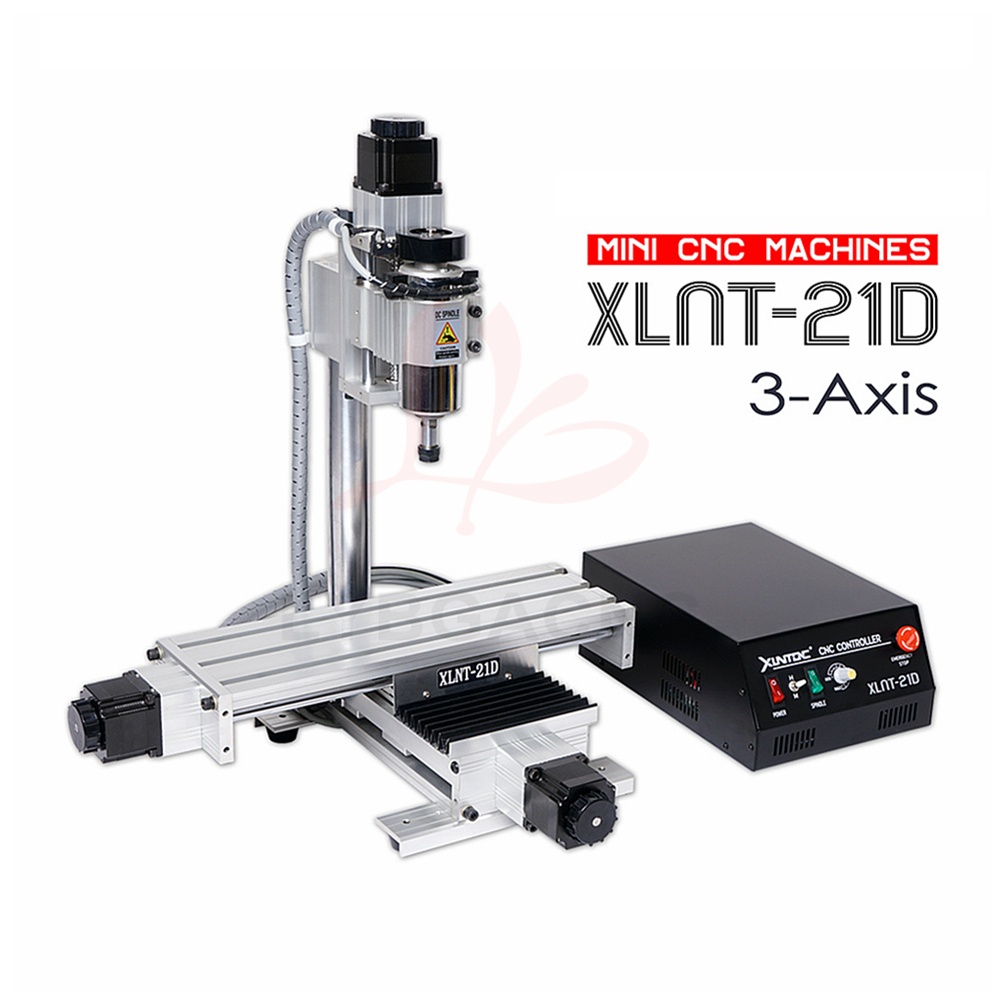

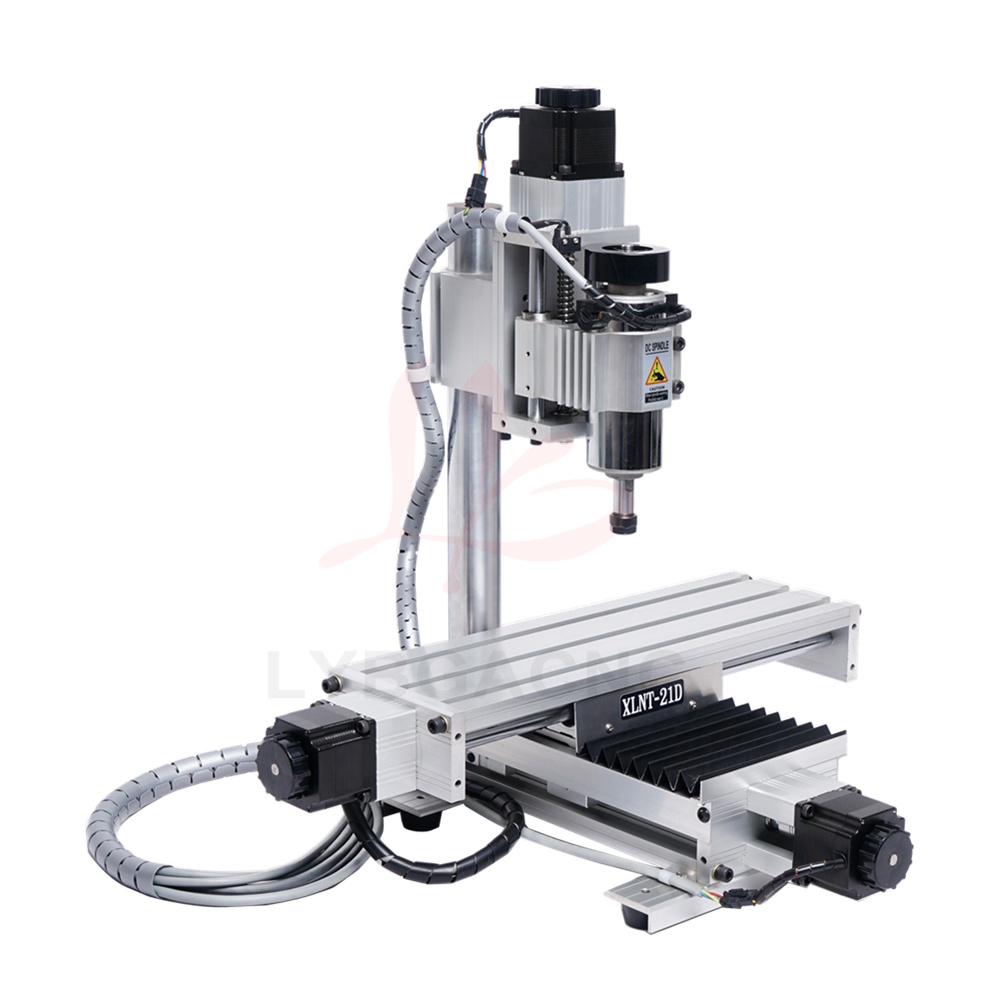

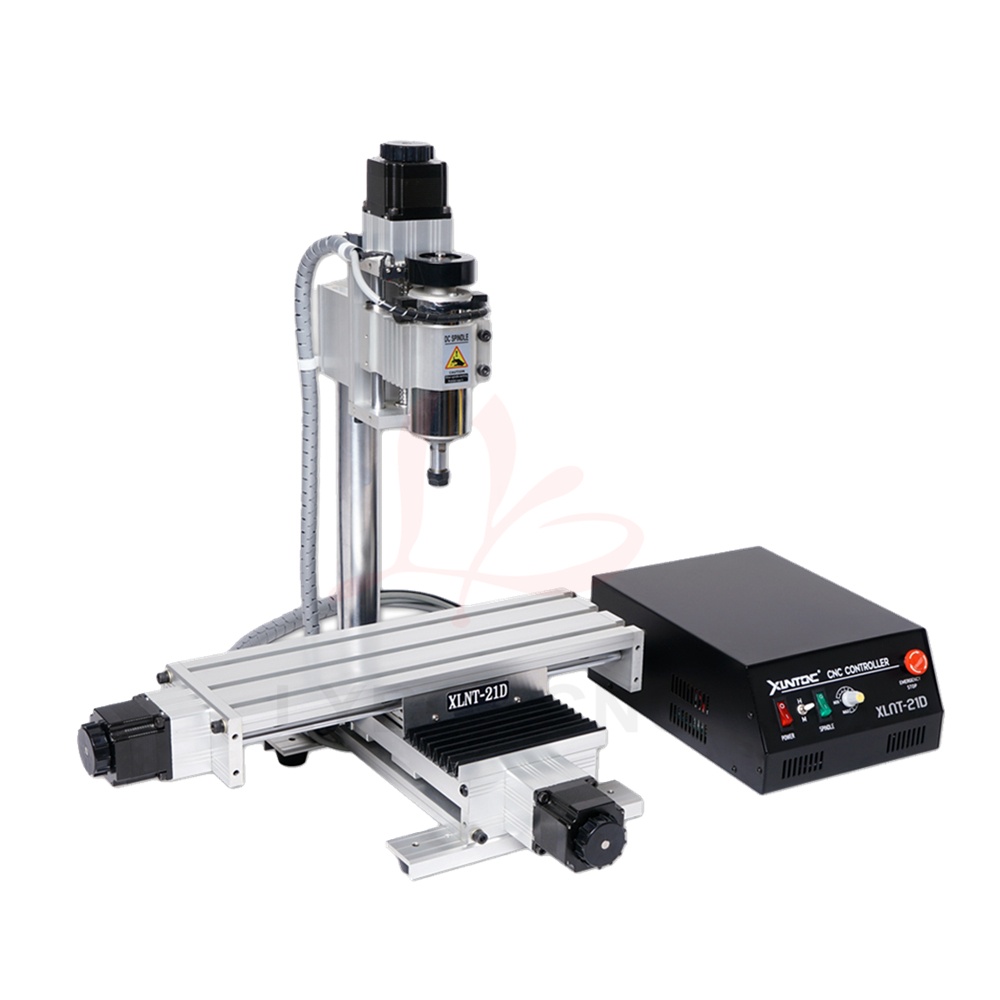

Engraving Drilling and Milling Machine USB LYBGACNC XLNT-21D

Engraving Drilling and Milling Machine USB LYBGACNC XLNT-21D

item ID: 68450
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$1500 USD$830 (% off)
Payment

Product Detail

Product Tags

Engraving Drilling and Milling Machine USB LYBGACNC XLNT-21D

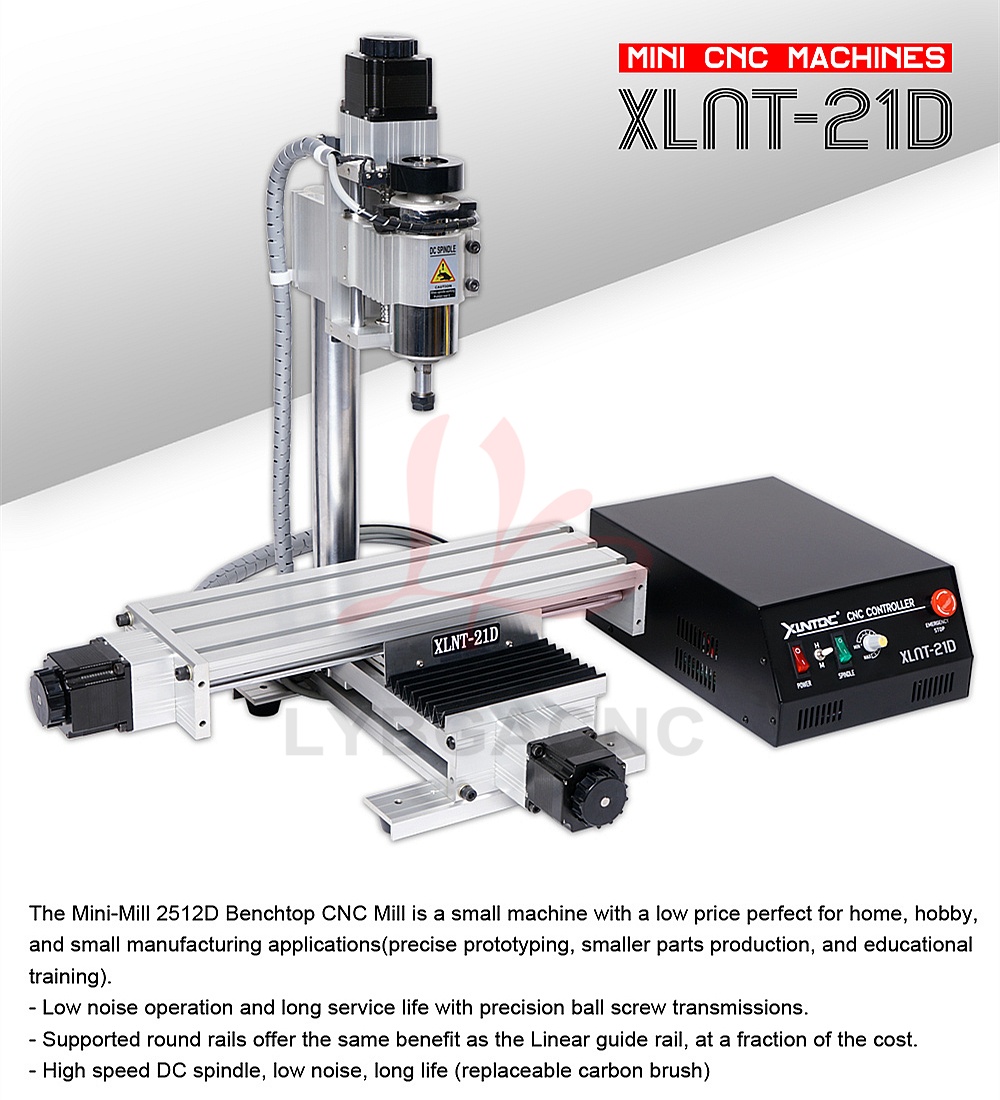

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

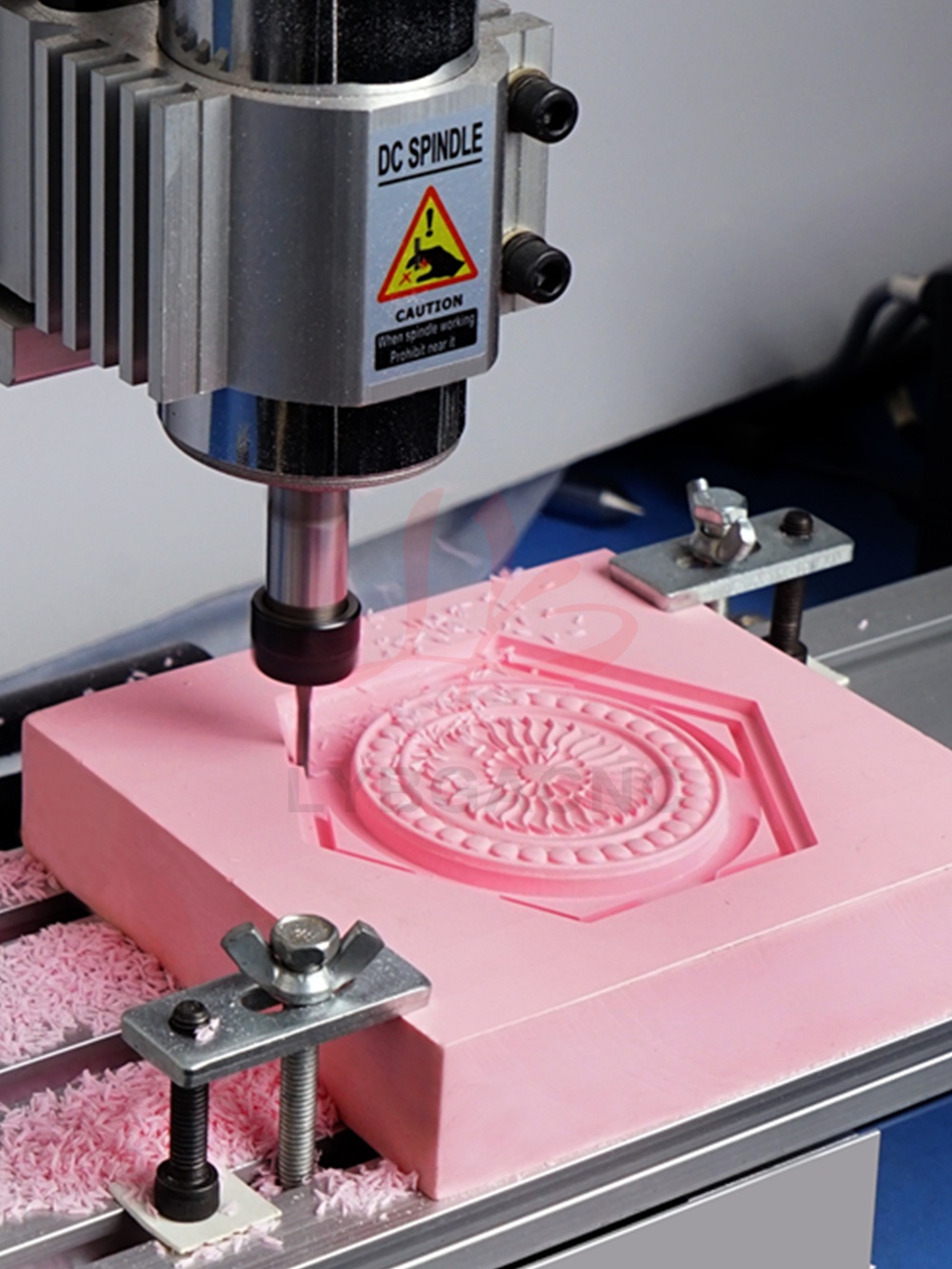

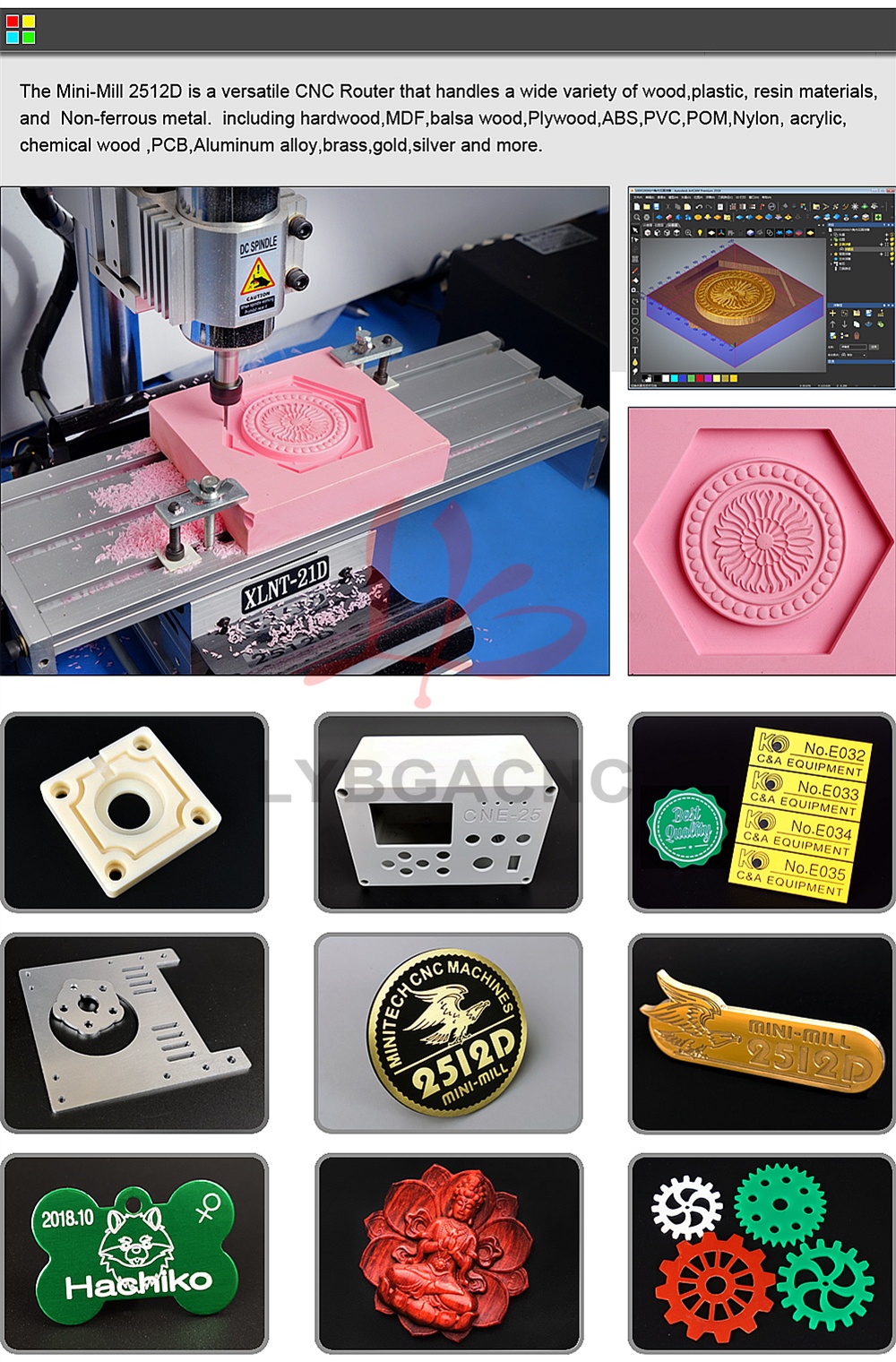

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

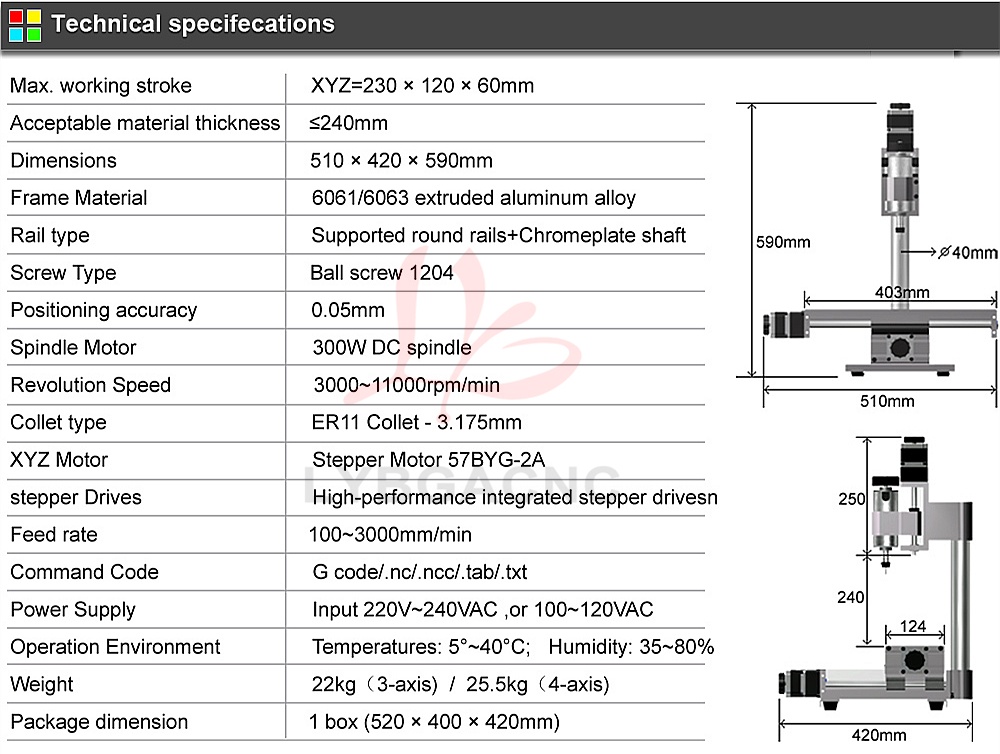

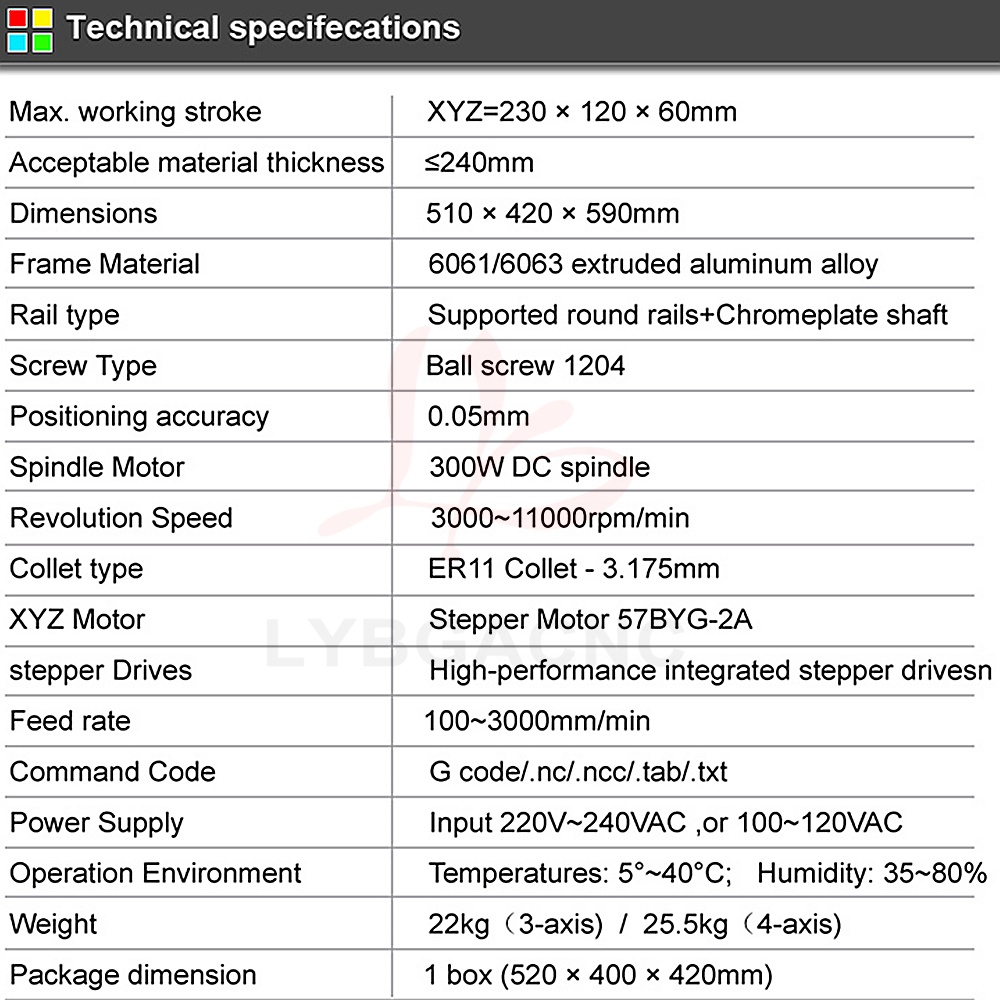

Model and Technical Parameters:

MODEL         XLNT-21D

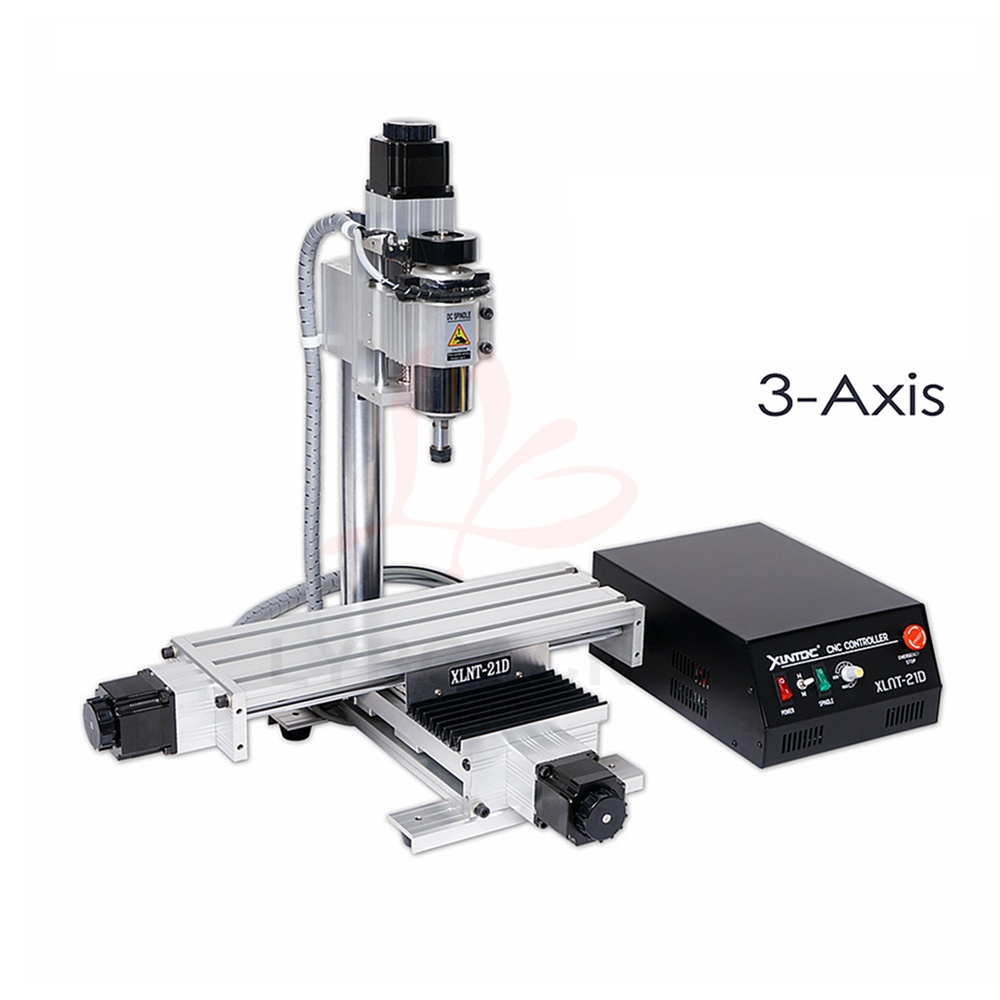

Attribute 3axis   4axis
Axis 3axis   4axis
Interface USB port   USB port
Tool auto-checking Yes   Yes
Spindle Motor: 300W DC Motor   300W DC Motor
Type of screw Ball screw   Ball screw
Weigh 22   26

Package dimension

1 box (520 X 400 X 420mm)

Machine Dimensions:

510X420X590mm

Rack material:

6061 and 6063 Extruded aluminum alloy

Engraving area:

230X120mm

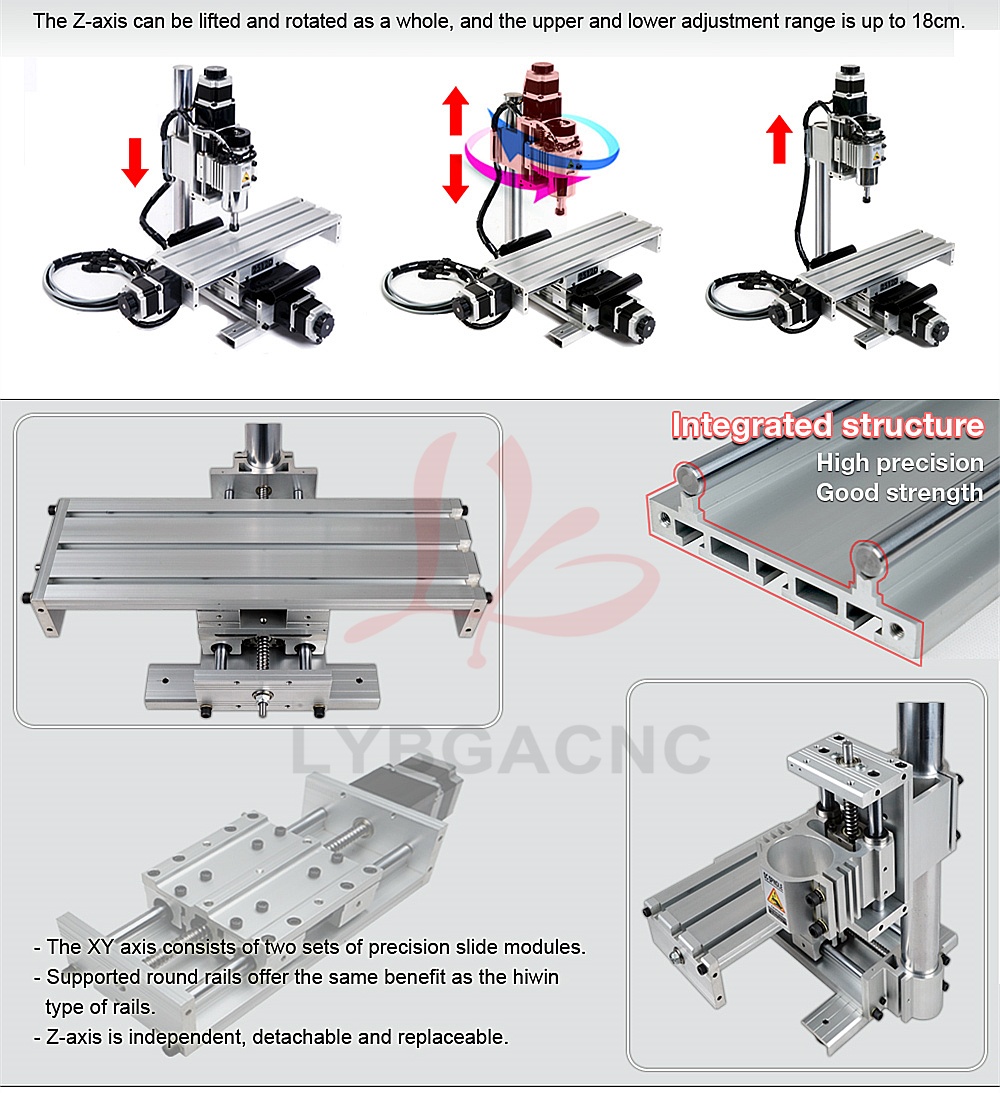

Z-Axis Stroke:

60mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

≤240mm

Rail type:

Supported round rails + Chromeplate shaft

Type of screw:

Ball screw 1204, Pitch 4mm

Spindle motor: 300W/11000r/min((Very small noise))

Collet type:

ER11,1/8″(3.175mm) Collet

Stepper motor and drive:

Stepping motor 57BYG-2A High-performance integrated stepper drivesn

Revolution Speed:

100~3000mm/min

Repeat positioning Accuracy:

0.05mm

Software Compatability:

Mach3/Emc2/Kcam (Type3,Wentai, ArtCAM, coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

Power Supply Input 220V~ 240VAC (50/60Hz) or 100~ 120VAC
Operation Environment Temperatures: 5°~40°C; Humidity: 35~80%

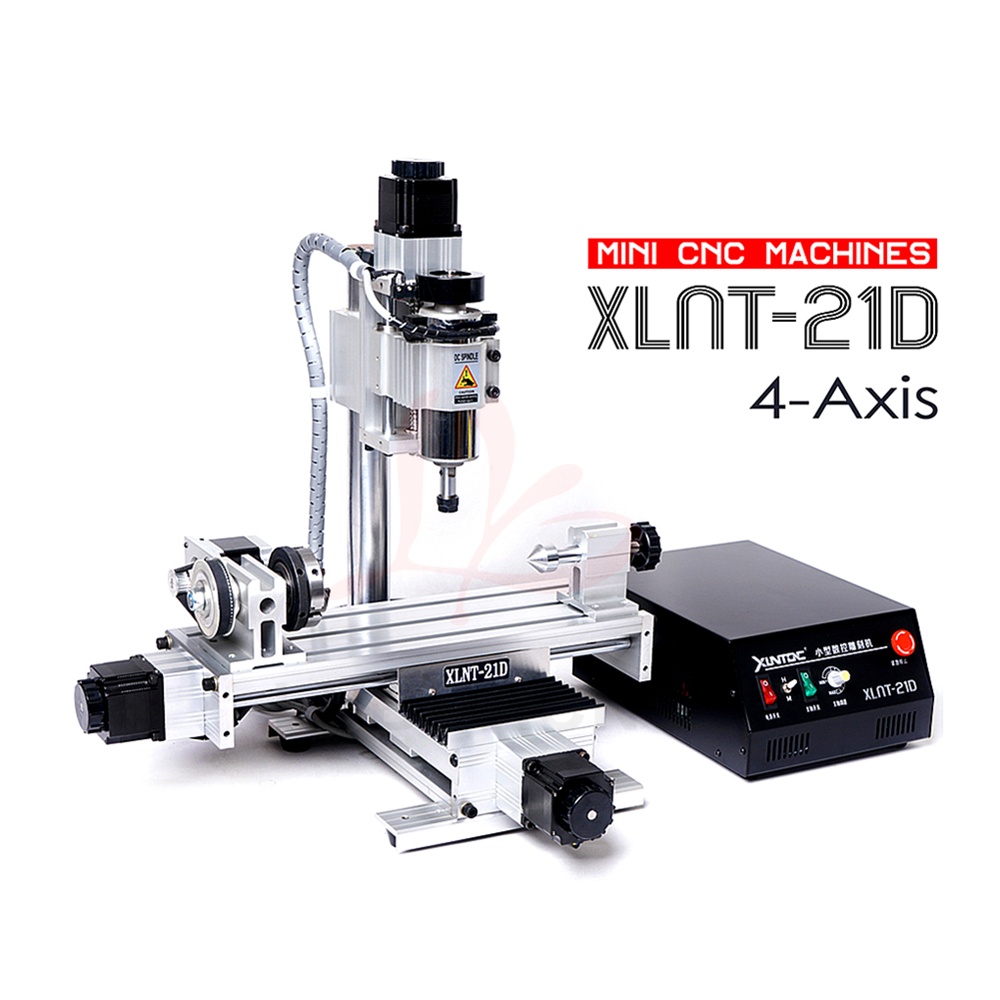

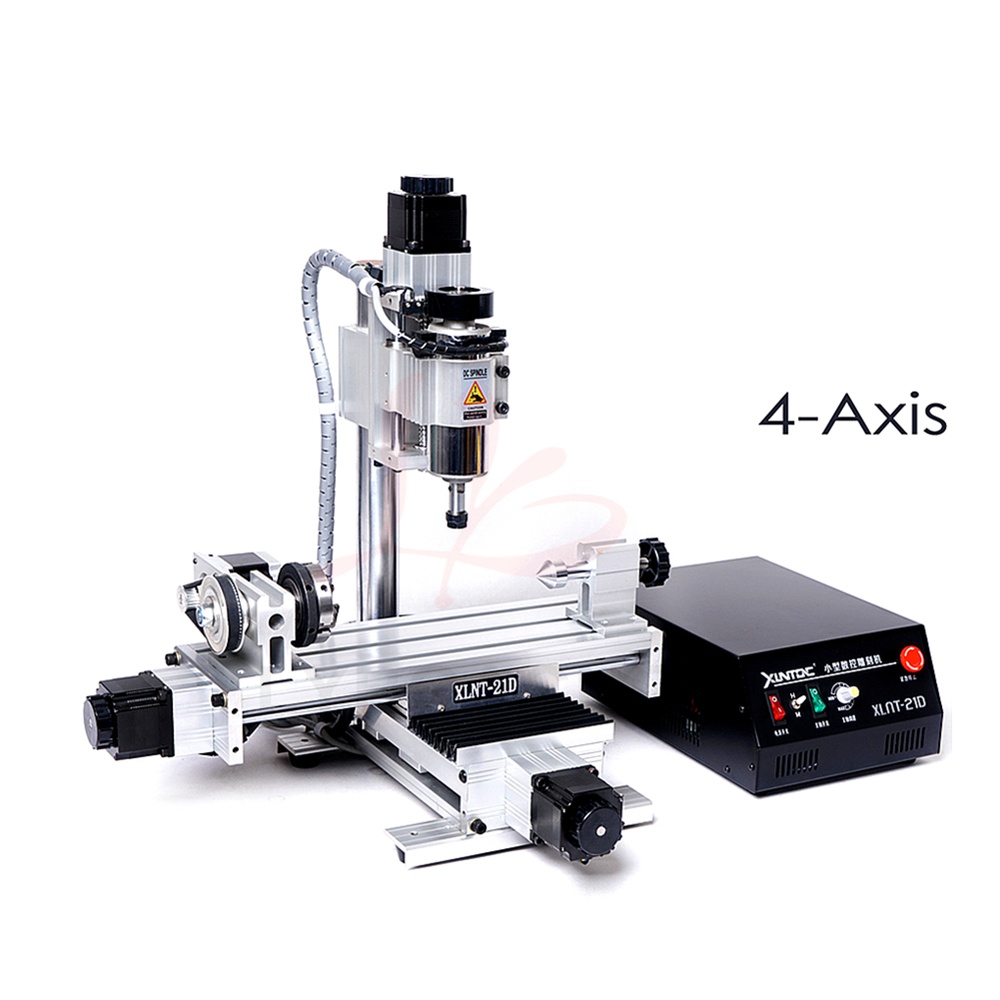

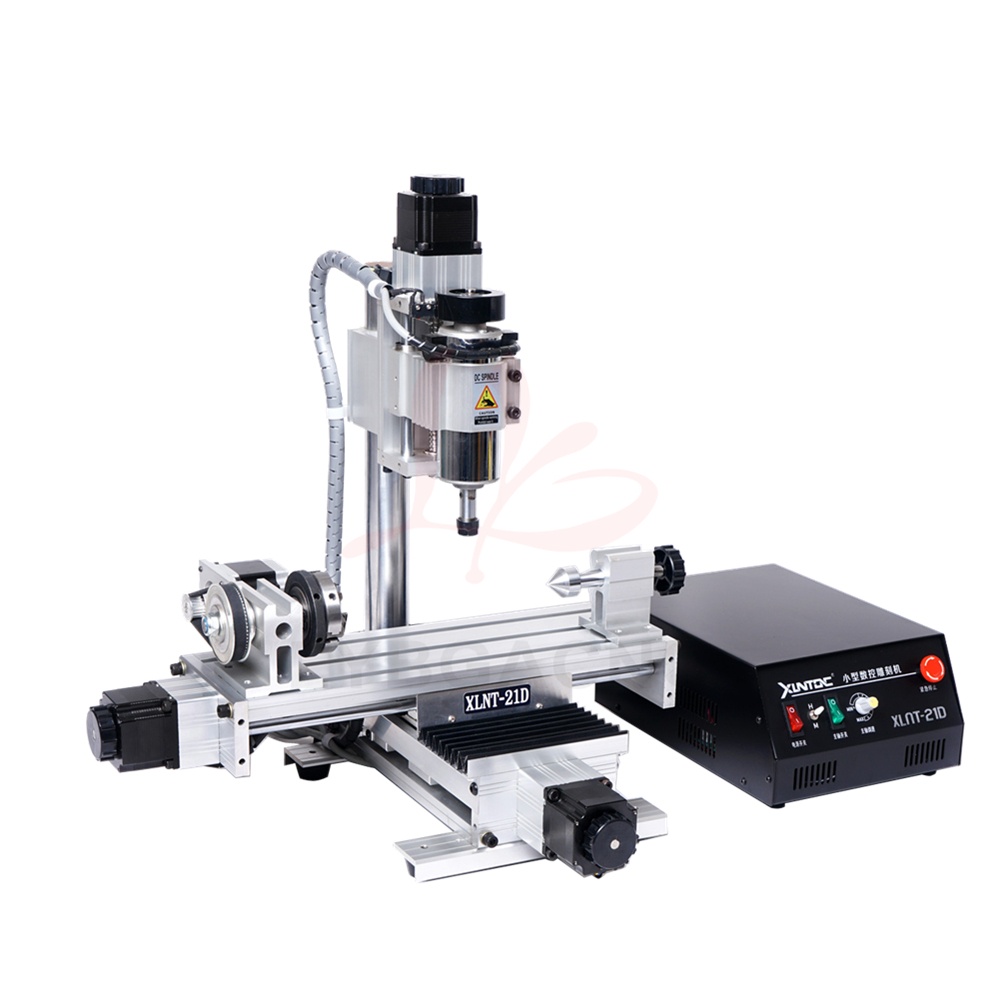

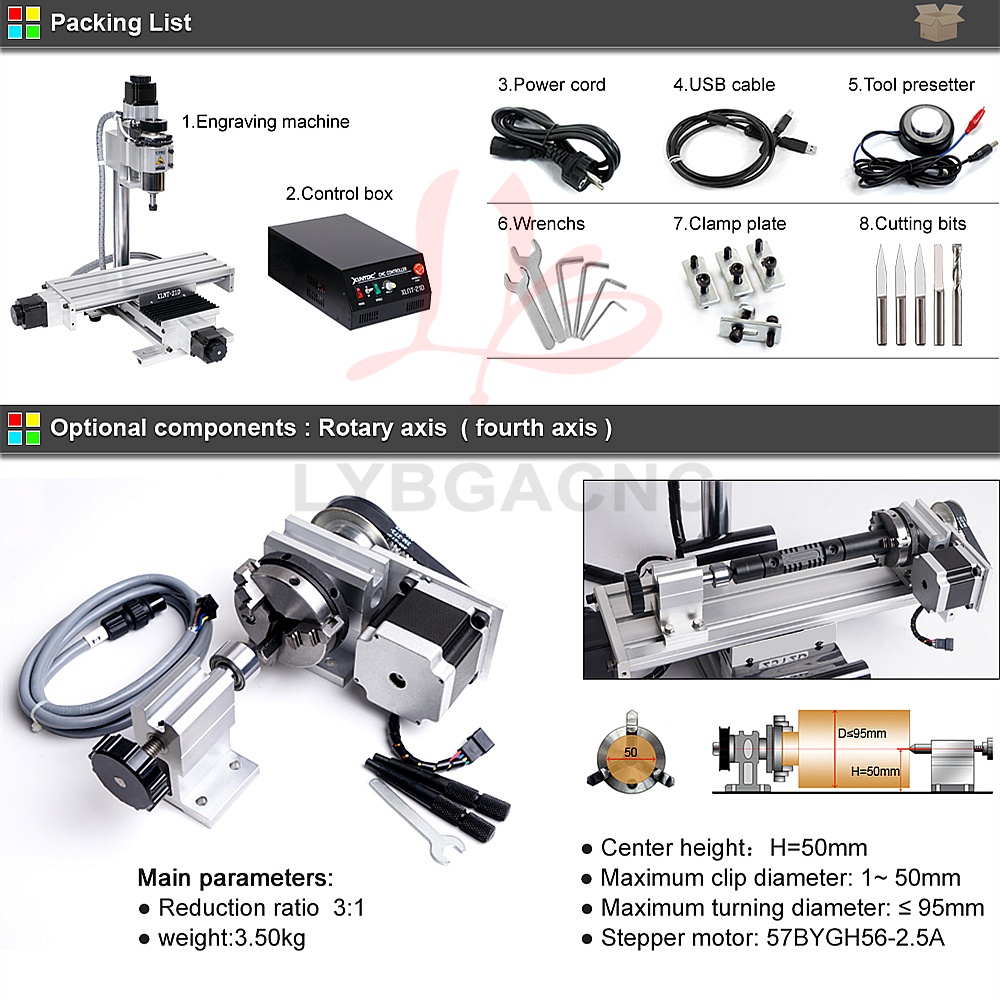

Rotation Axis (4th Axis)

Description:

Center height: H = 50mm

Maximum turning diameter: ≤95mm

Deceleration ratio: 3:1

Stepper motor: NEMA23-2.5A

Weight: 3.5KG
