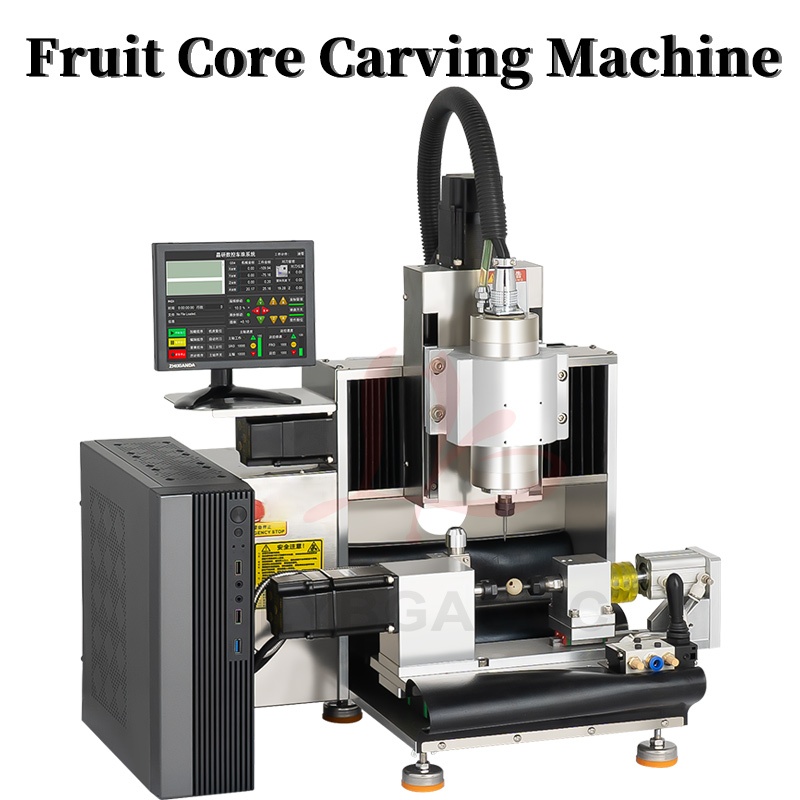

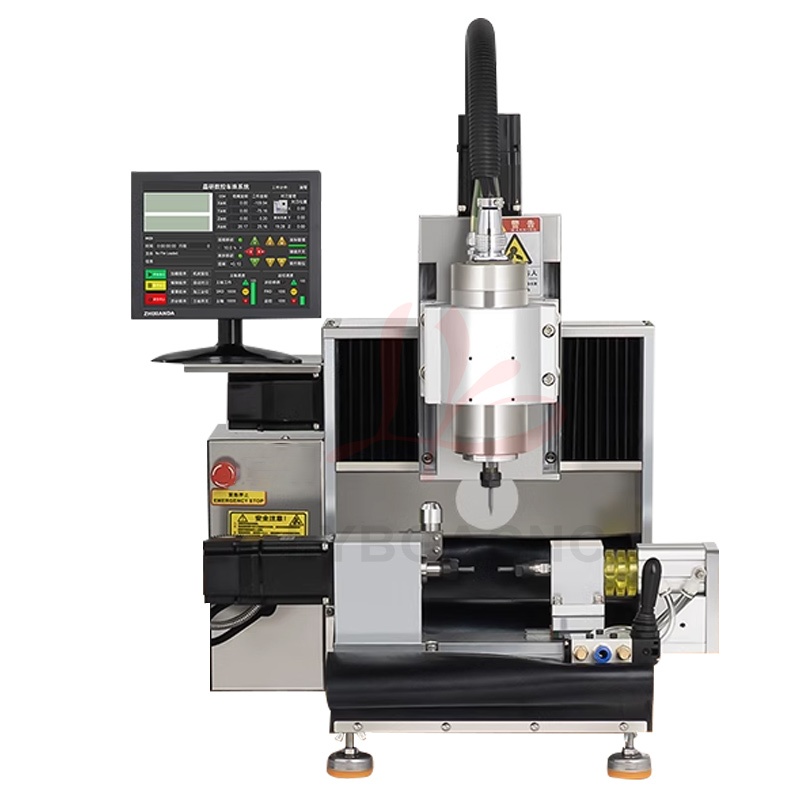

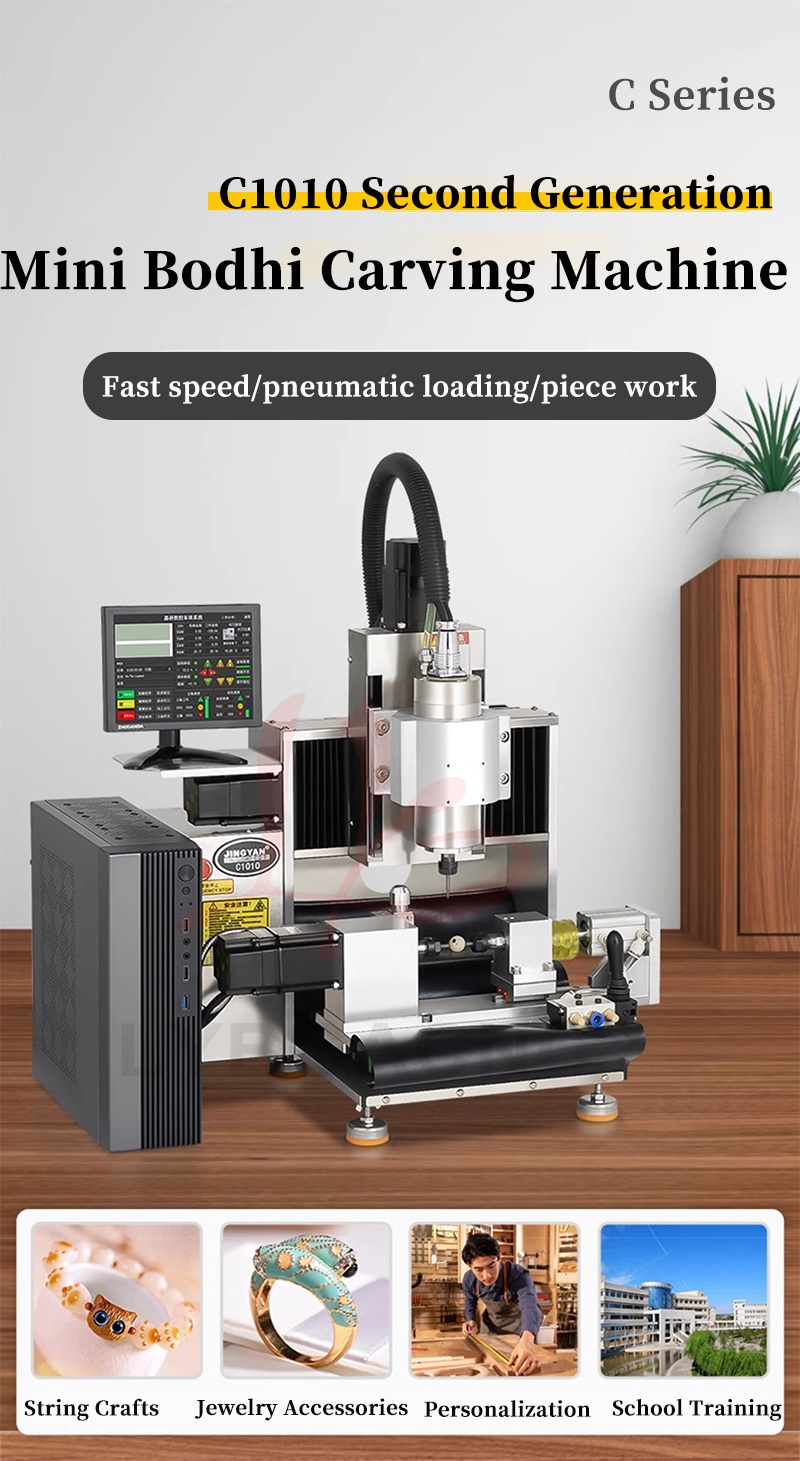

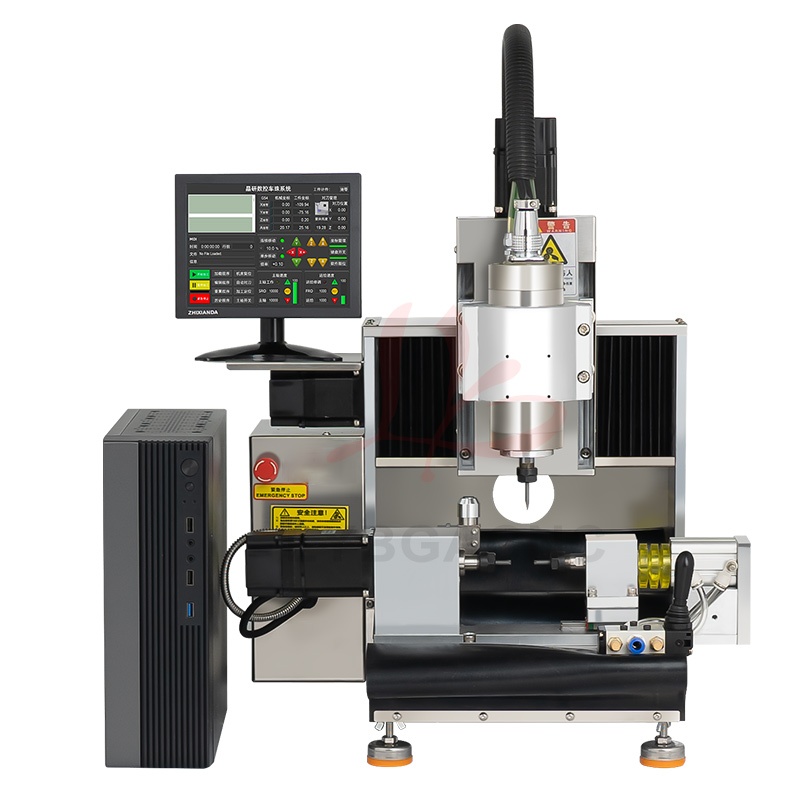

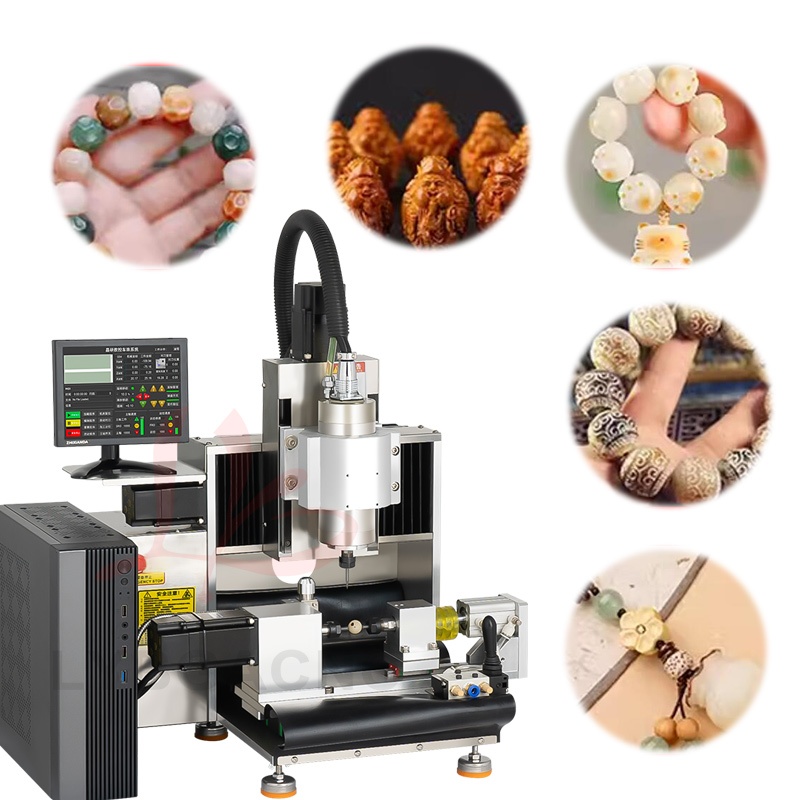

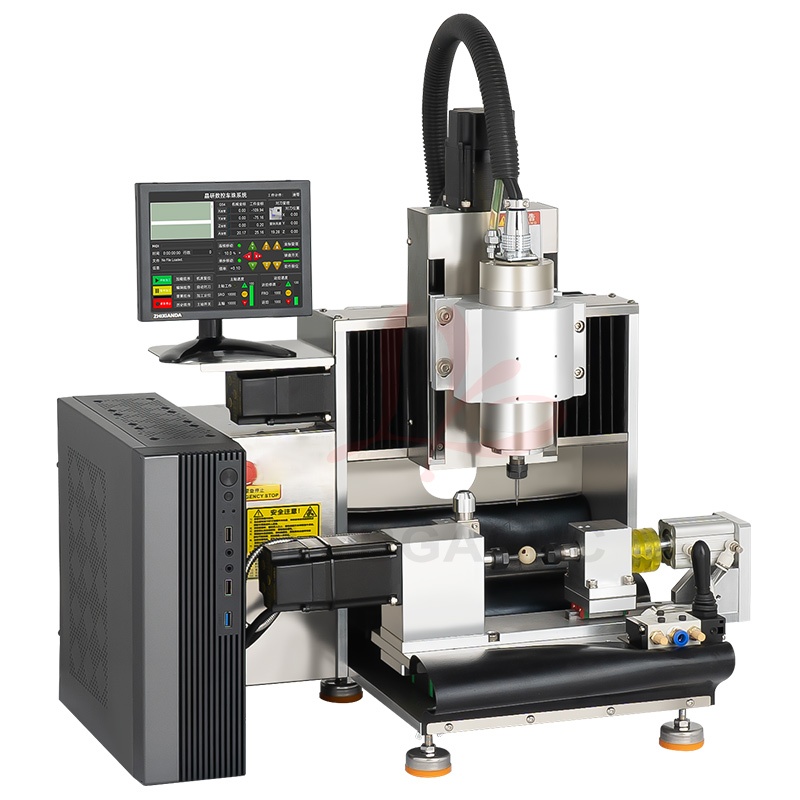

LY C1010 Desktop Small Bodhi Seed Fruit Core CNC Carving Engraving Machine 4 Axis For Wood Carving Jewelry Tooth Handle Grinding Device Craft Works 800W Optional Protective Case

LY C1010 Desktop Small Bodhi Seed Fruit Core CNC Carving Engraving Machine 4 Axis For Wood Carving Jewelry Tooth Handle Grinding Device Craft Works 800W Optional Protective Case

item ID: 72497
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$4500 USD$2724 (% off)
Payment

Product Detail

Product Tags

LY C1010 Desktop Small Bodhi Seed Fruit Core CNC Carving Engraving Machine 4 Axis For Wood Carving Jewelry Tooth Handle Grinding Device Craft Works 800W Optional Protective Case

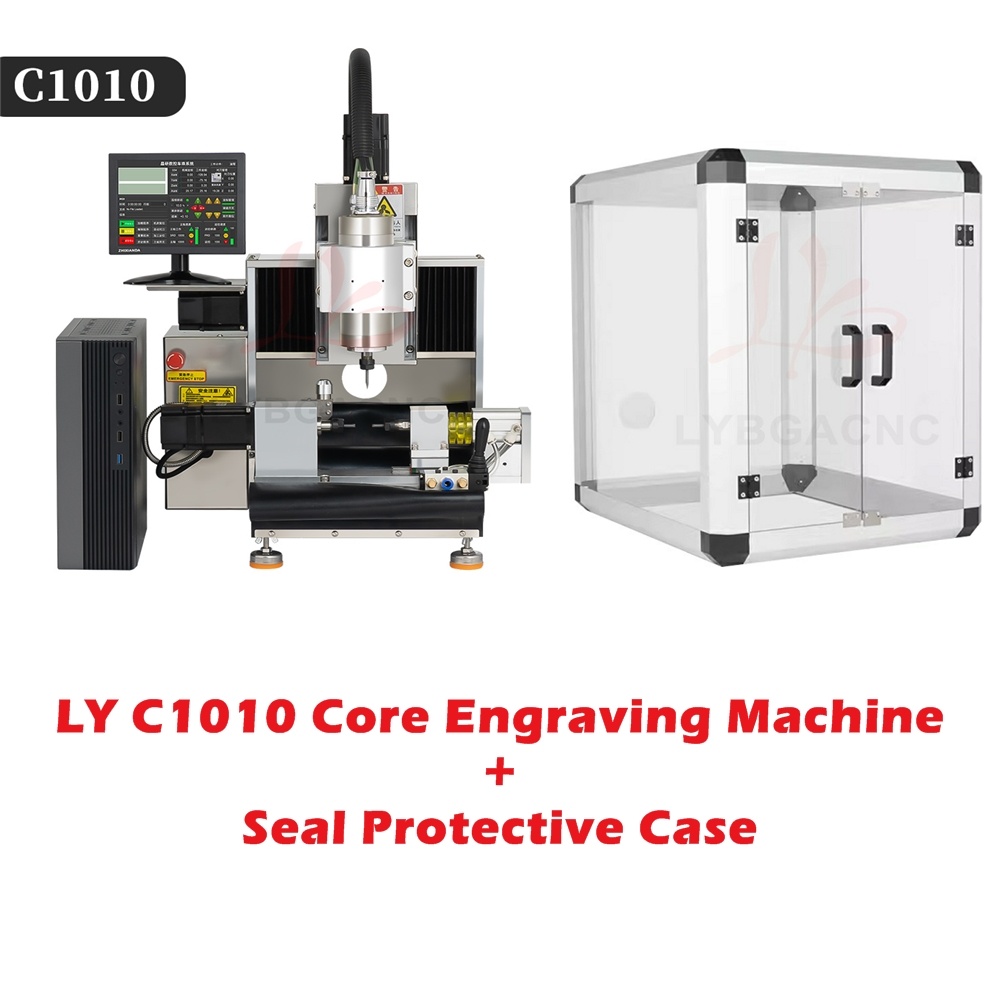

Options: C1010 machine Single kit / C1010 machine with Protect case Kit

( RE: Due to water coolant is liquid not easy to ship by express, so customer need to add it in local when got machine before first time use. )

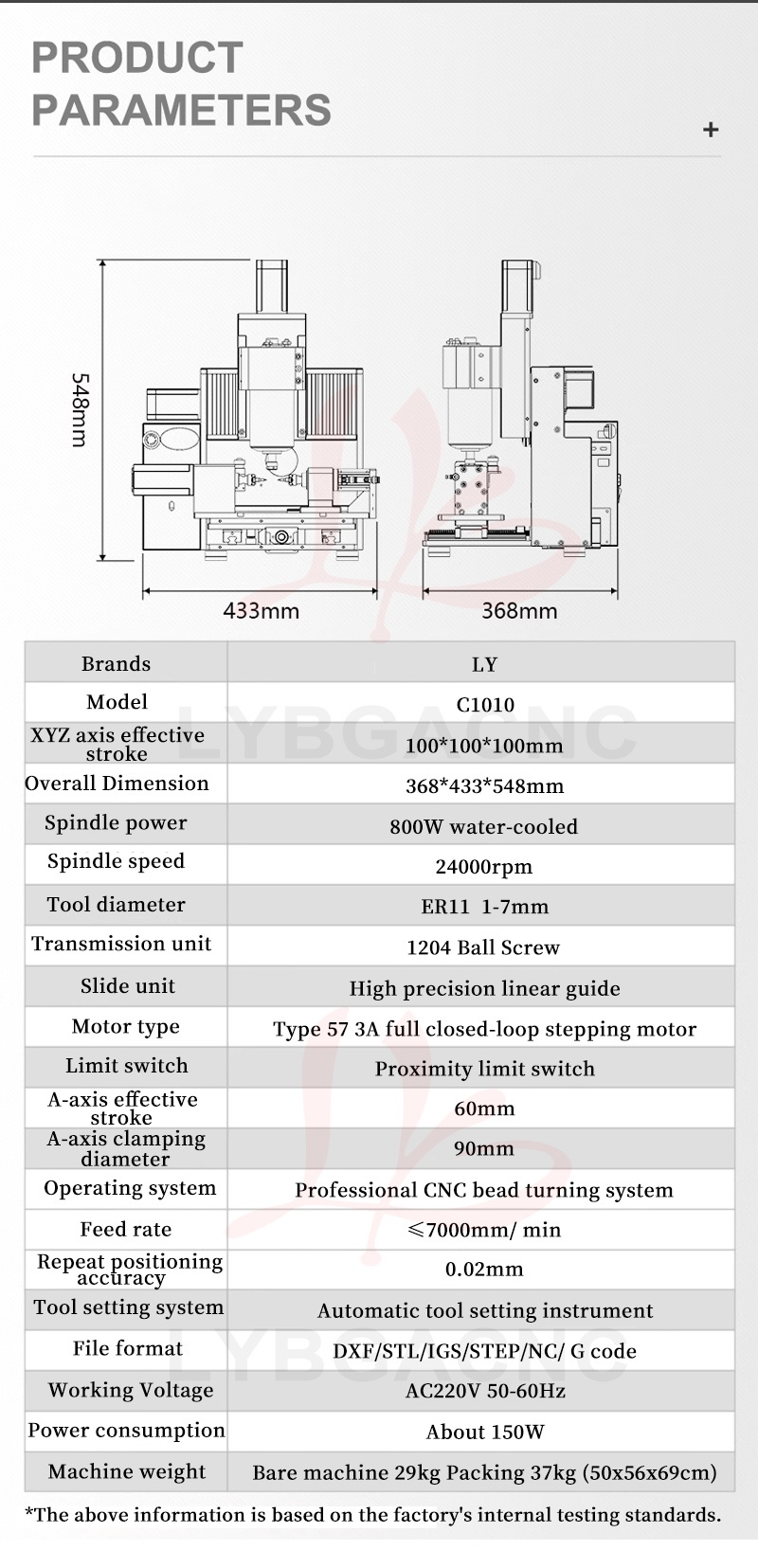

Brand: LY

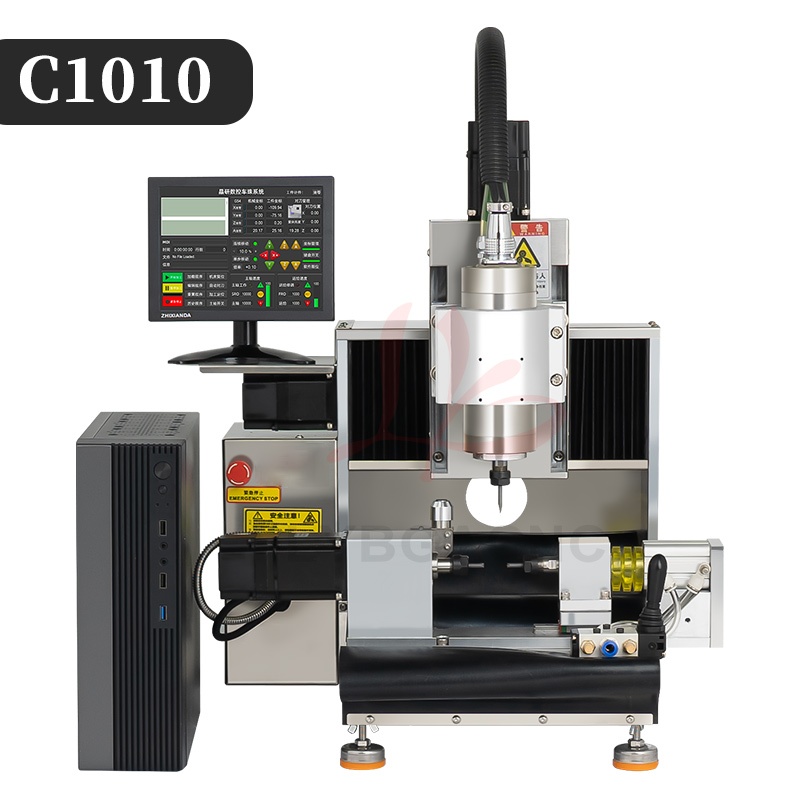

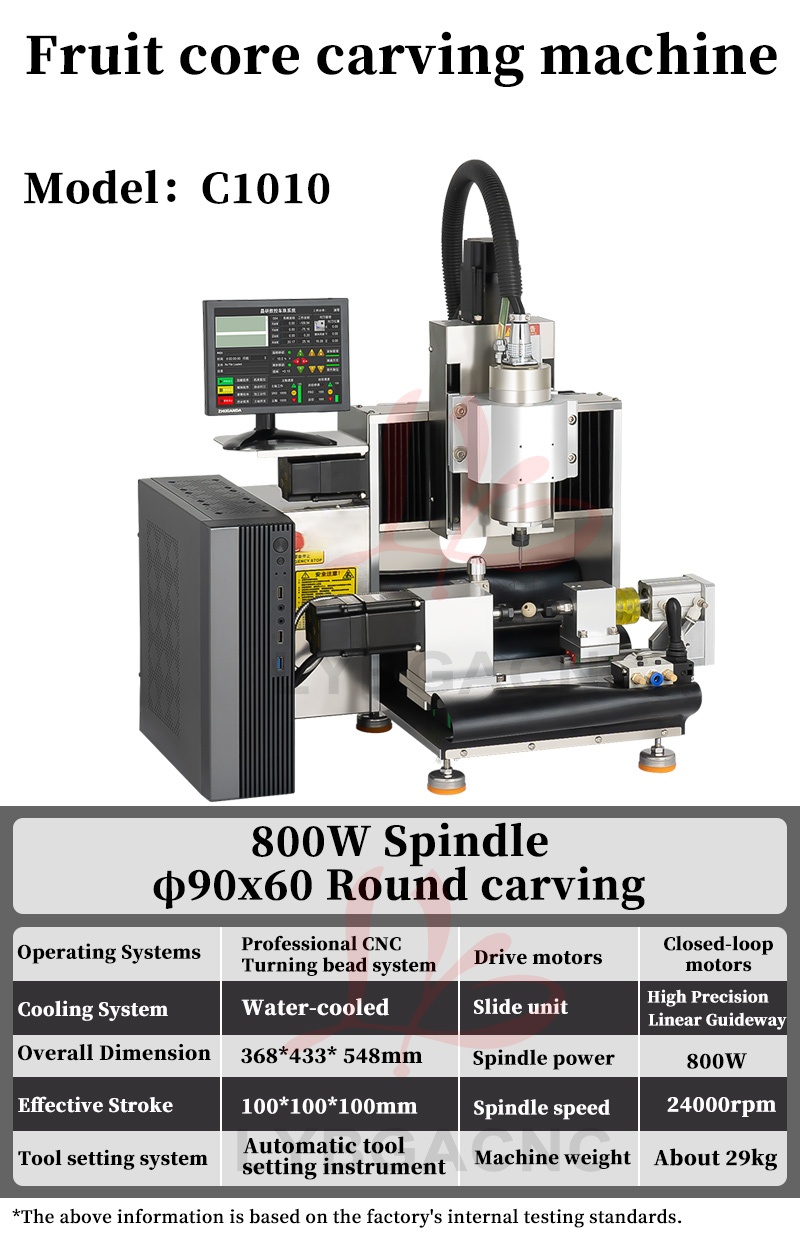

Model:C1010.

XYZ axis effective stroke: 100*100*100mm

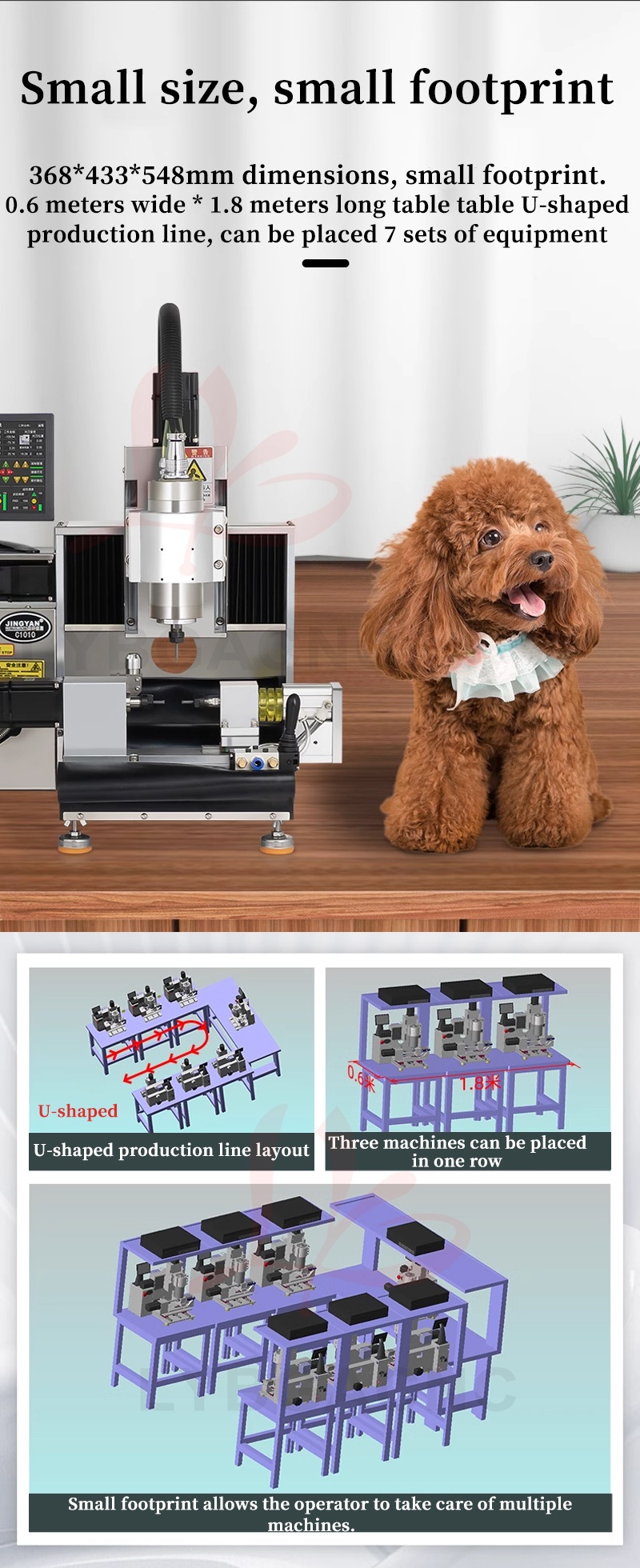

Overall Dimension: 368*433* 548mm

Spindle power: 800W water-cooled

Spindle speed: 24000rpm

Tool diameter: ER11 1-7mm

Transmission unit: 1204 Ball Screw

Slide unit: High precision linear guide

Motor type: Type 57 3A full closed-loop stepping motor

Limit switch: Proximity limit switch

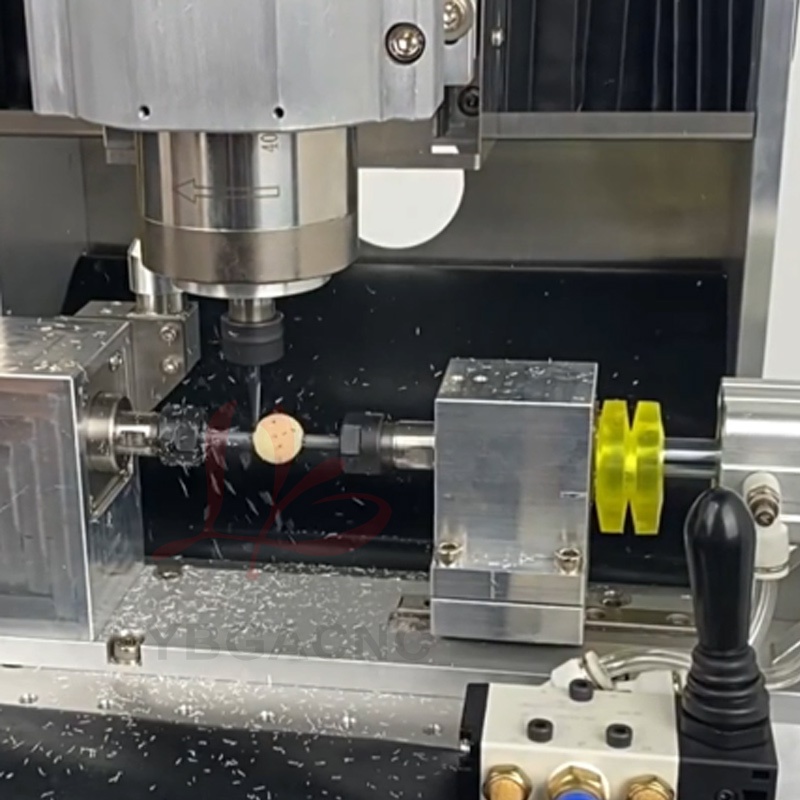

A-axis effective stroke: 60mm

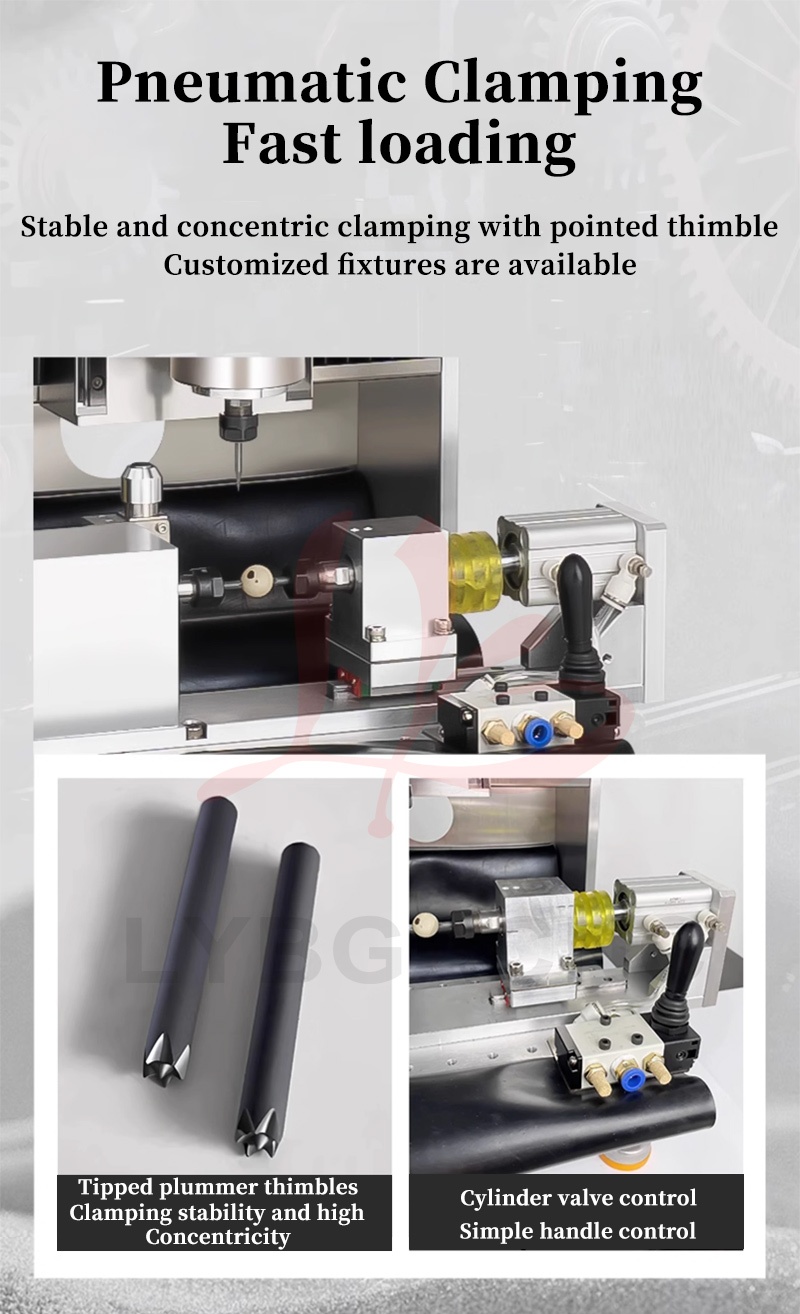

A-axis clamping diameter:90mm

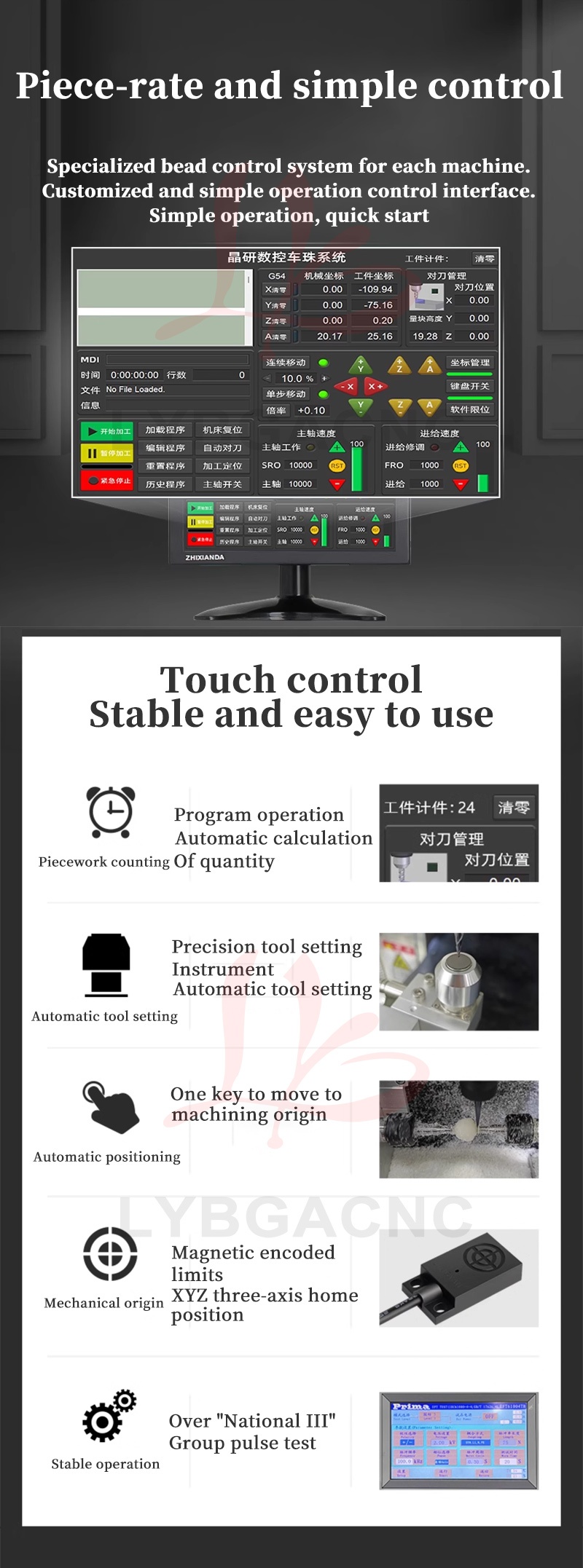

Operating system: Professional CNC bead turning system

Feed rate : ≤7000mm/ min

Repeat positioning accuracy: 0.02mm

Software: MACH3 OEM Version

Tool setting system: Automatic tool setting instrument

File format: DXF/STL/IGS/STEP/NC/ G code

Working Voltage: AC220V 50-60Hz

Power consumption: About 150W

Machine weight: Net Weight 30kg Gross Weight 40kg (50x56x69cm)

Machine with Protective case: N.W 40KG G.W 50KG

*Protective case stuff: PC (Optional)

*Protective case Size: 74*57*71CM ( Optional, Will disassembled delivery with machine.)
