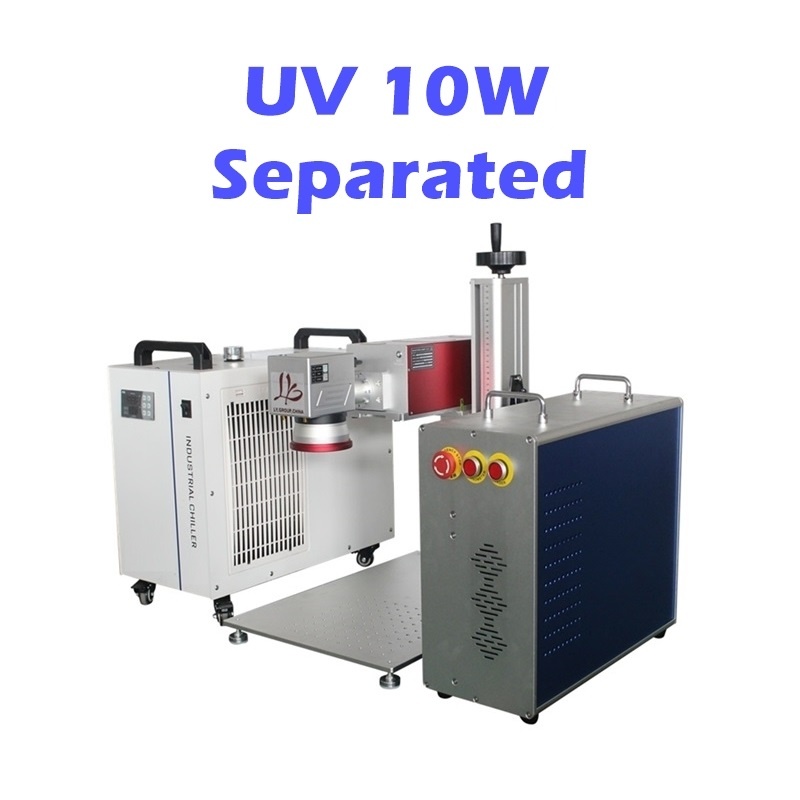

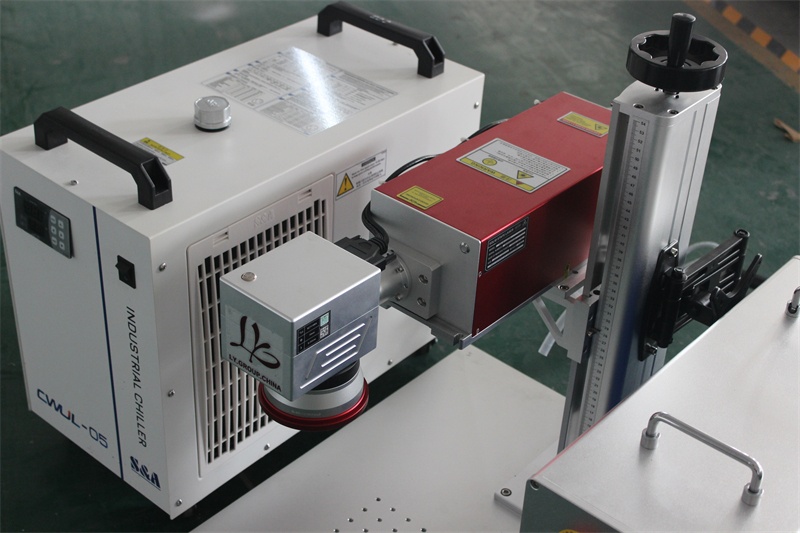

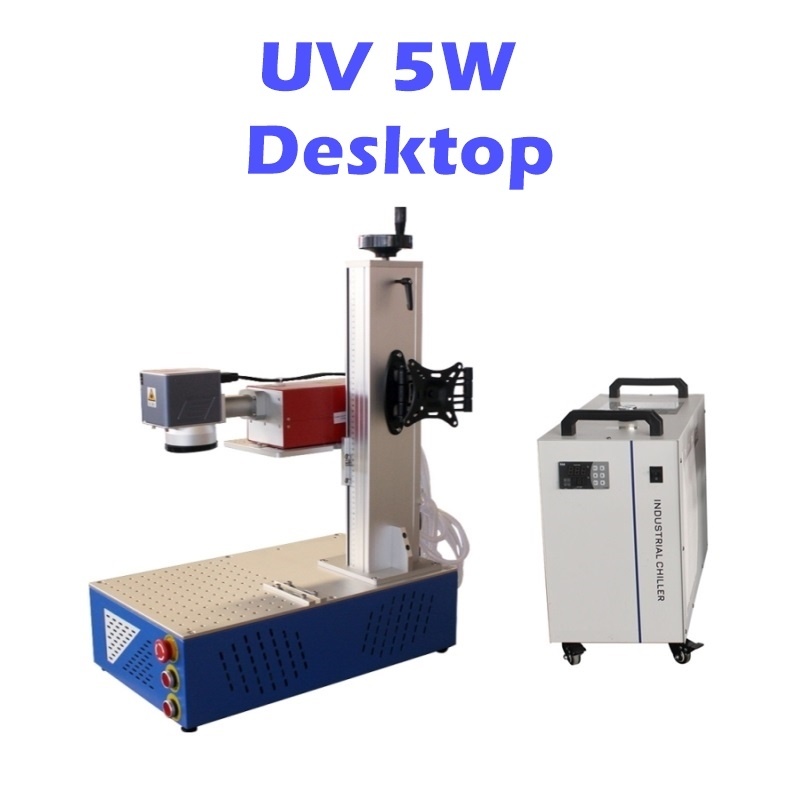

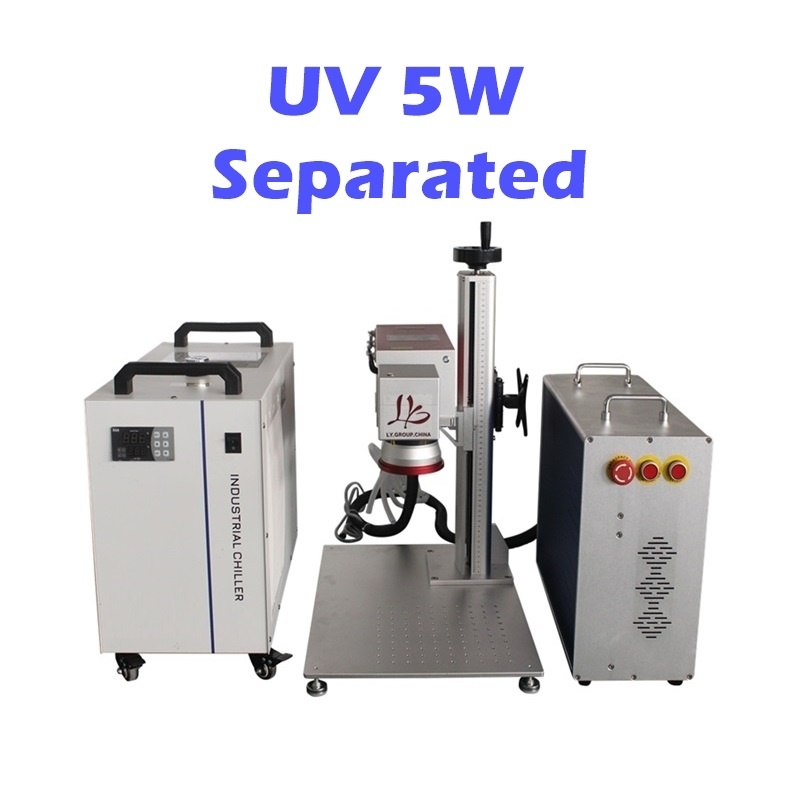

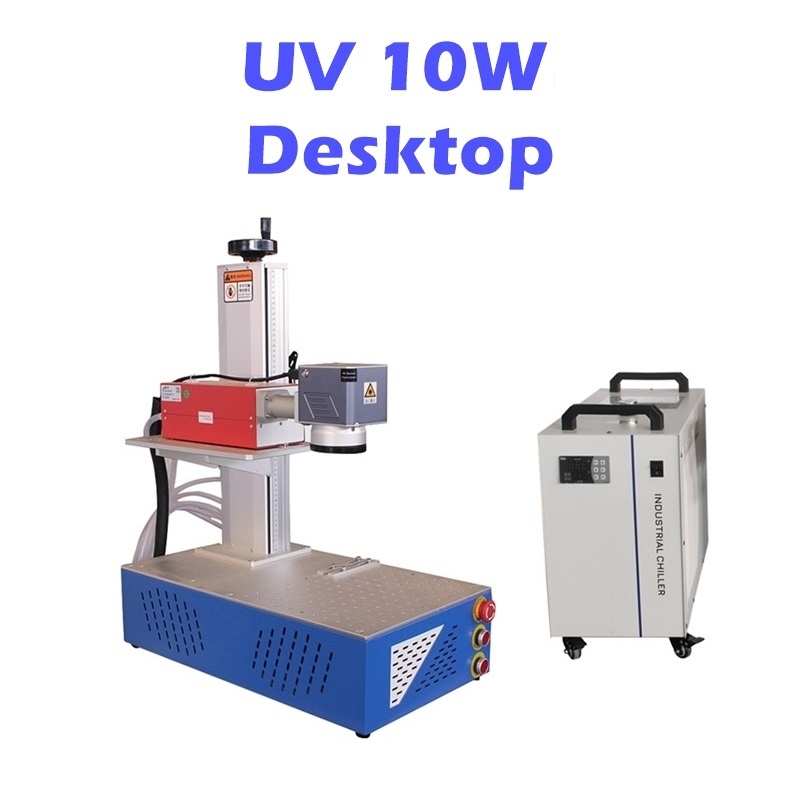

5W 10W Laser Marking Machine UV with Water Chiller Ultraviolet Ray Purple Cold Light Laser Marker Engraver for Glass Carving
item ID: 82984
Reviews(0)
Reviews(0)
Product Detail
Product Tags

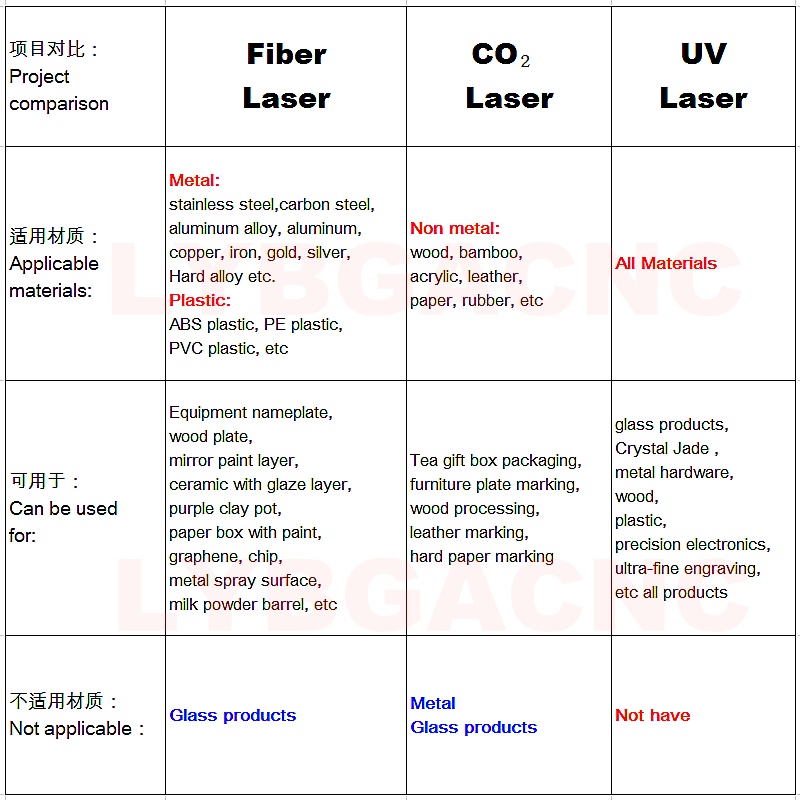

Ultraviolet ray UV laser marking machine use short 355nm wavelength, light spot is cold and very small, make the heating area of the material is smaller, easy to heat deformation; Lower power; Marking effect is more detailed ,limited to the ultra-fine marking environment, food and medicine packaging, Glass,Crystal, Ceramic plates,electronic components, metal jewelry marking. So ect.
| Products name | LY UV laser marking machine |
| Power | 5W/ 10W (KRS Brand Seal-355 Water Cool Series) |
| Work size | Default 200*200mm (If need other size can leave message to sales, range <=300MM) |
| Wavelength | 355nm |
| Beam quality | M2<1.2(TEMOO) |
| Laser output power | 0-100% successive use |
| Align | Double Red point focus |
| Marking type | Dynamic/Static |
| Engraving depth | <=0.4mm |
| Engraving speed | <=10000MM/S (Sino-Galvo SG7110) |
| Minimum width | 0.1MM |
| Minimum character | 0.15MM |
| Pulse width | 13-82NS |
| Power stability | <+-2%RMS |
| Repeat frequency | 20KHZ-150KHZ |
| Light diameter | <0.6MM |
| Marking speed | 800 characters/second |
| Mini width | <0.005mm |
| Out size | 850*650*150mm |
| Gross weight | Machine 55KG, Chiller 35KG |

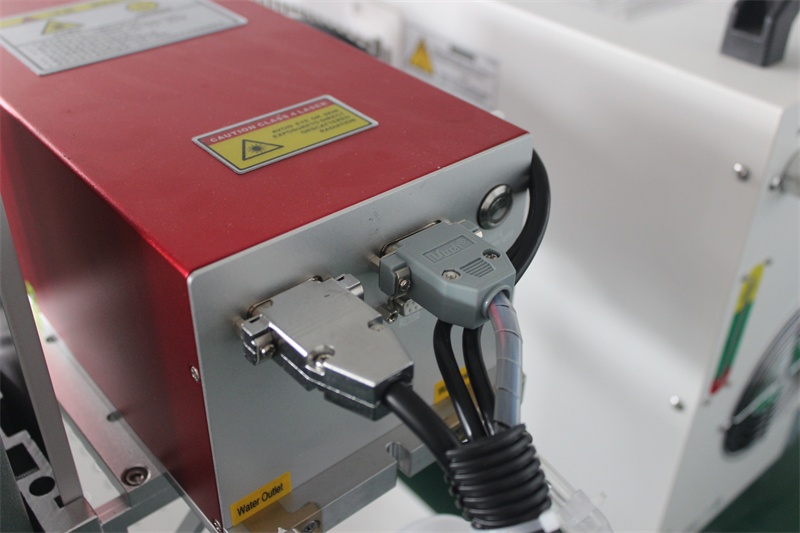

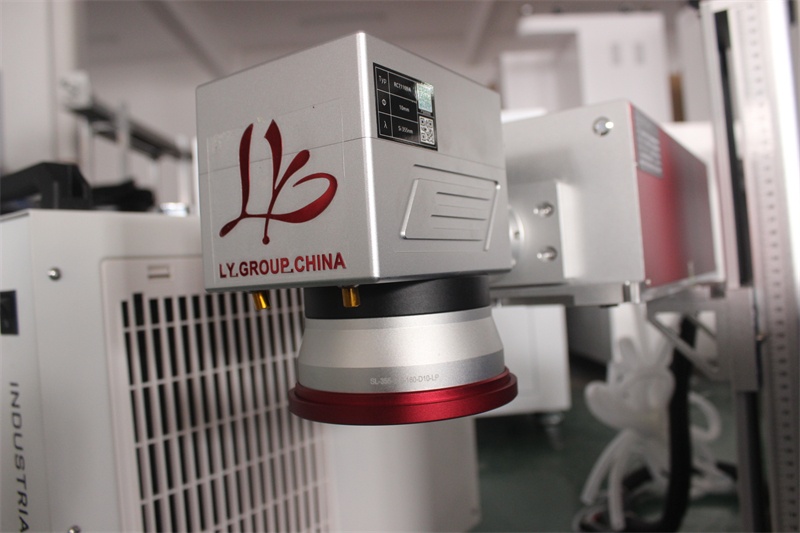

| Laser head | Solid violet fiber laser |
| Cooling | Water cool (JPT) |
| Work circumstance | Windows |
| Connect way | USB |
| Power | 220V / 110V |
| Laser module lifetime | 50K hours |
Packing list:
1.5W/10W UV Marking machine (Plywood box x 1 Or Cartoon boxes x 2) 50KG

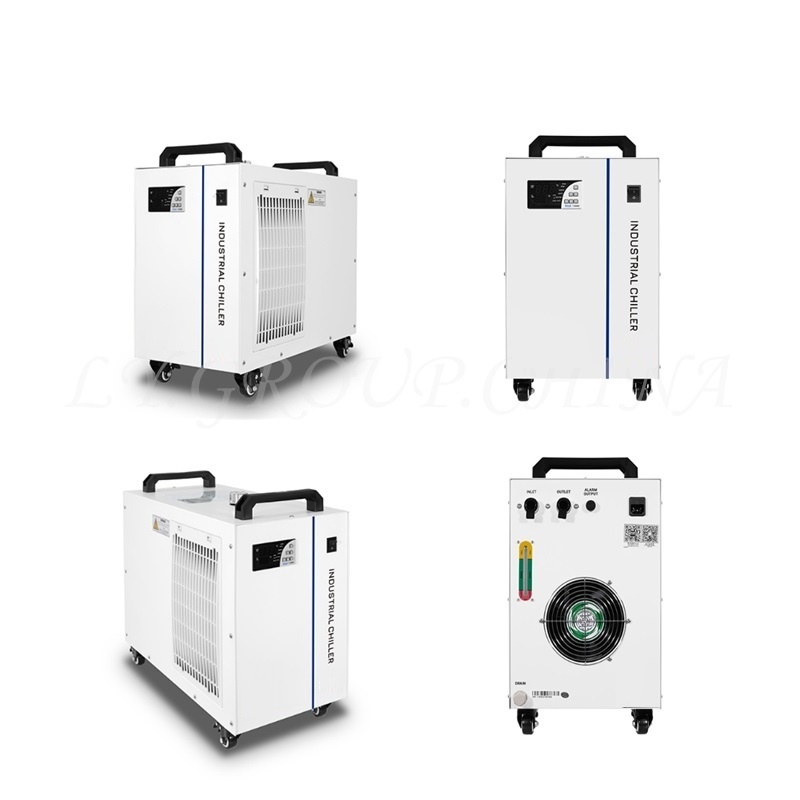

2. UV Cool Chiller (Cartoon box x 1) 30KG
