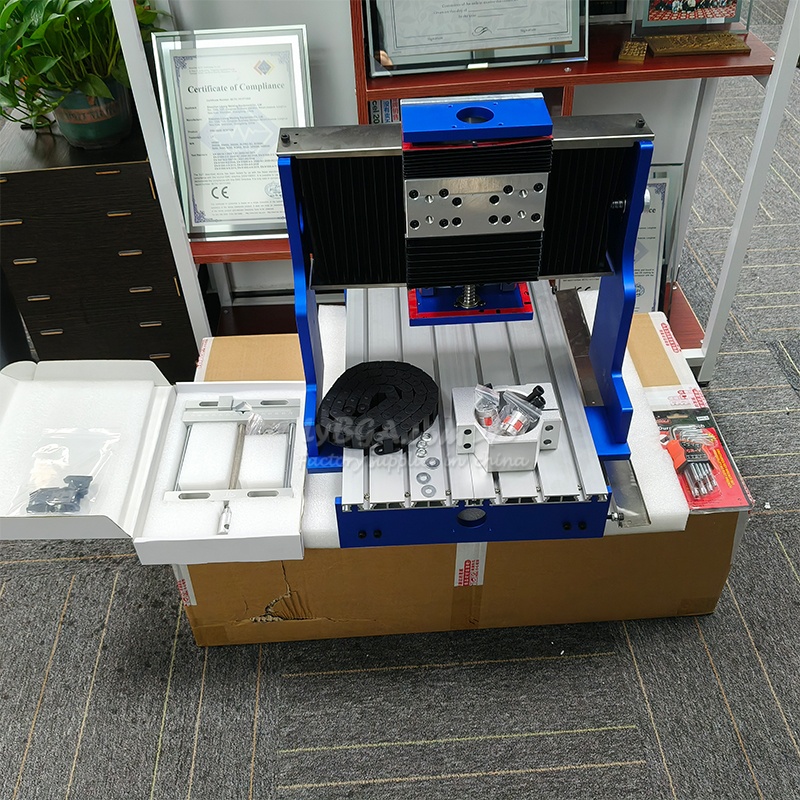

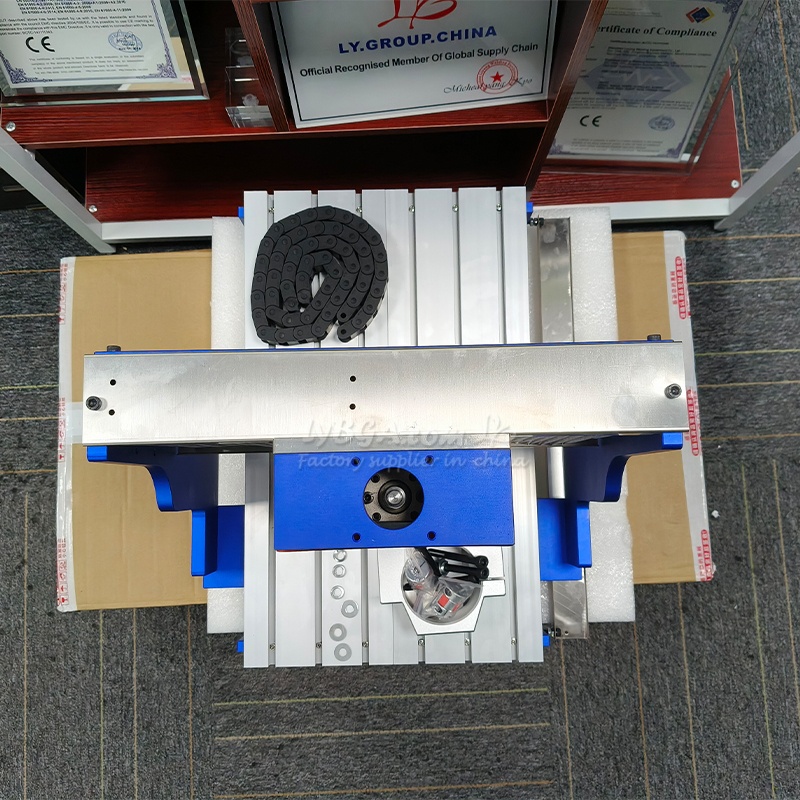

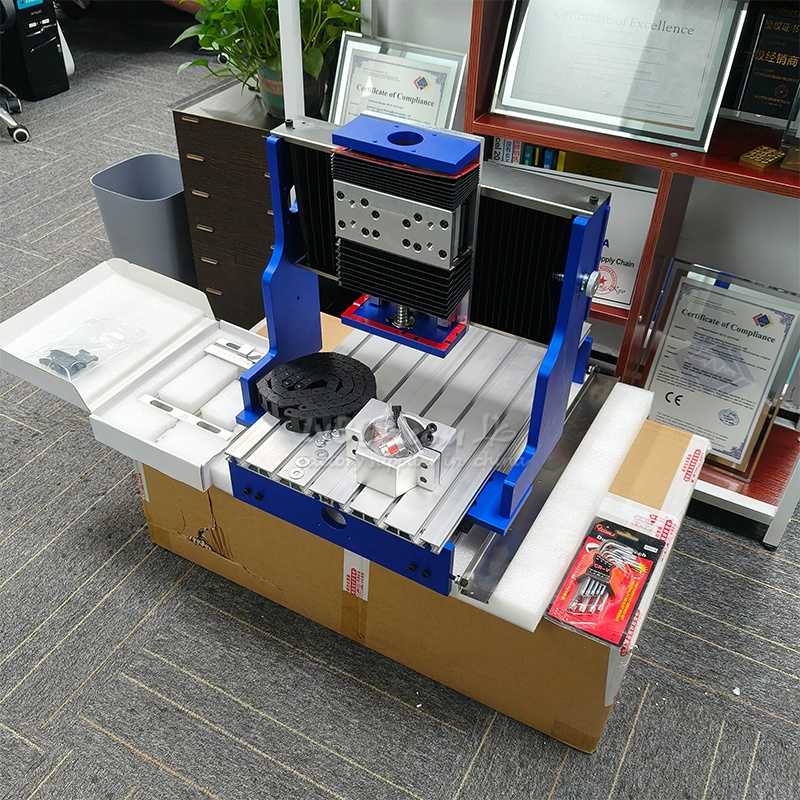

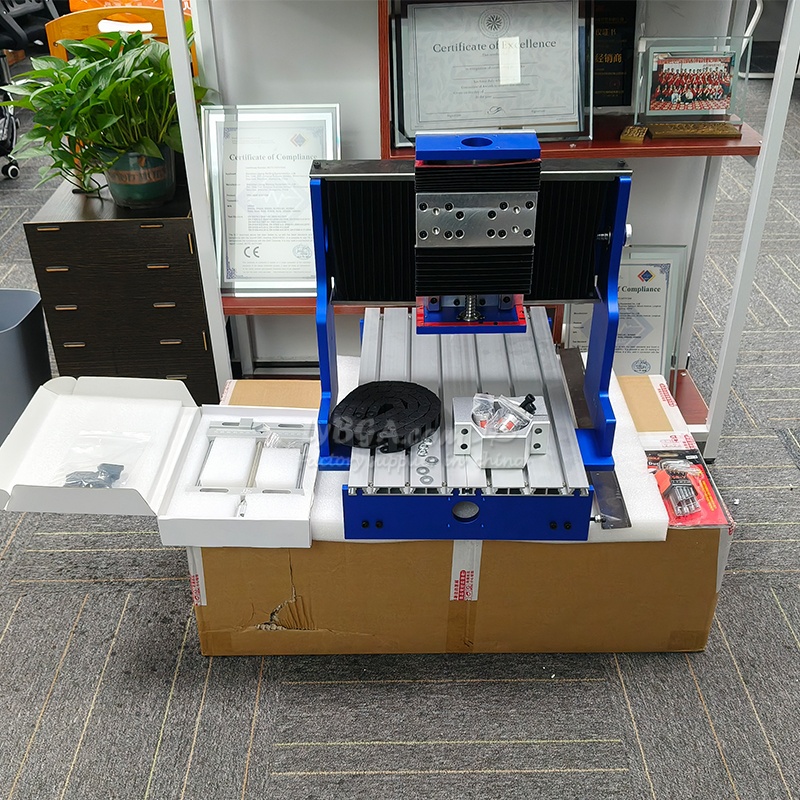

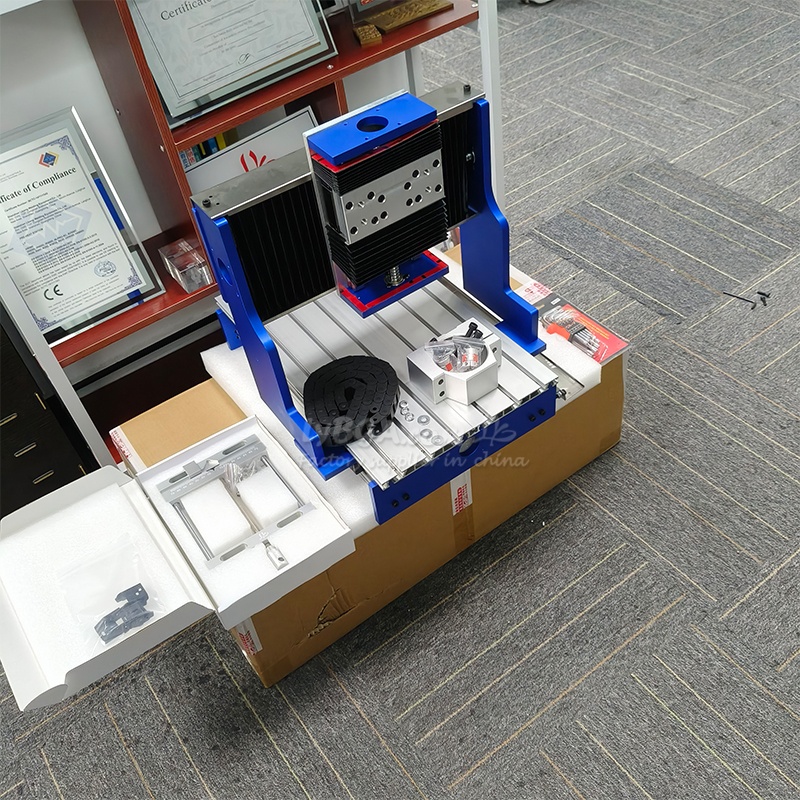

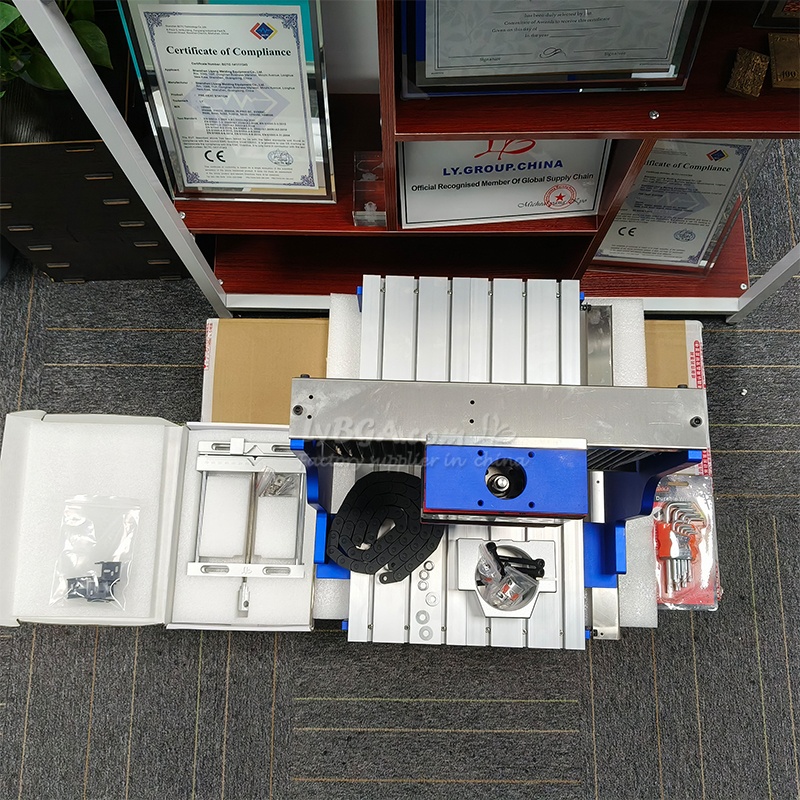

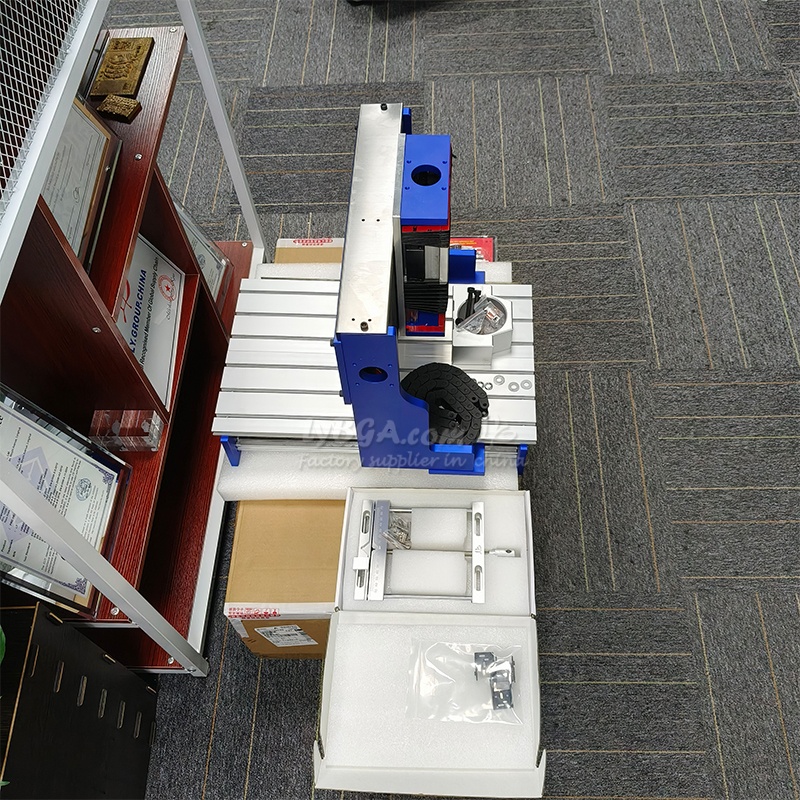

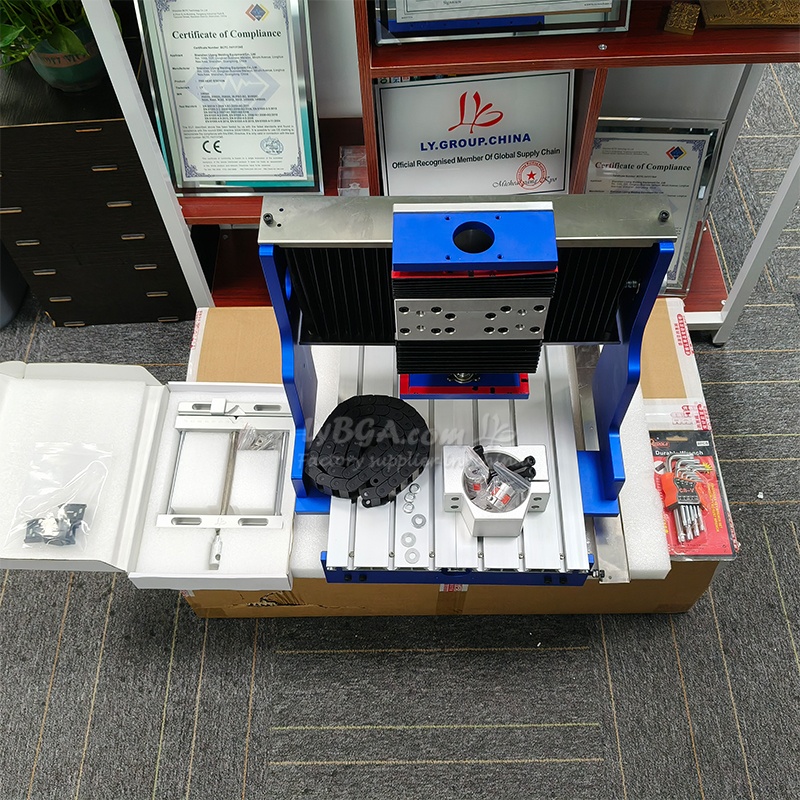

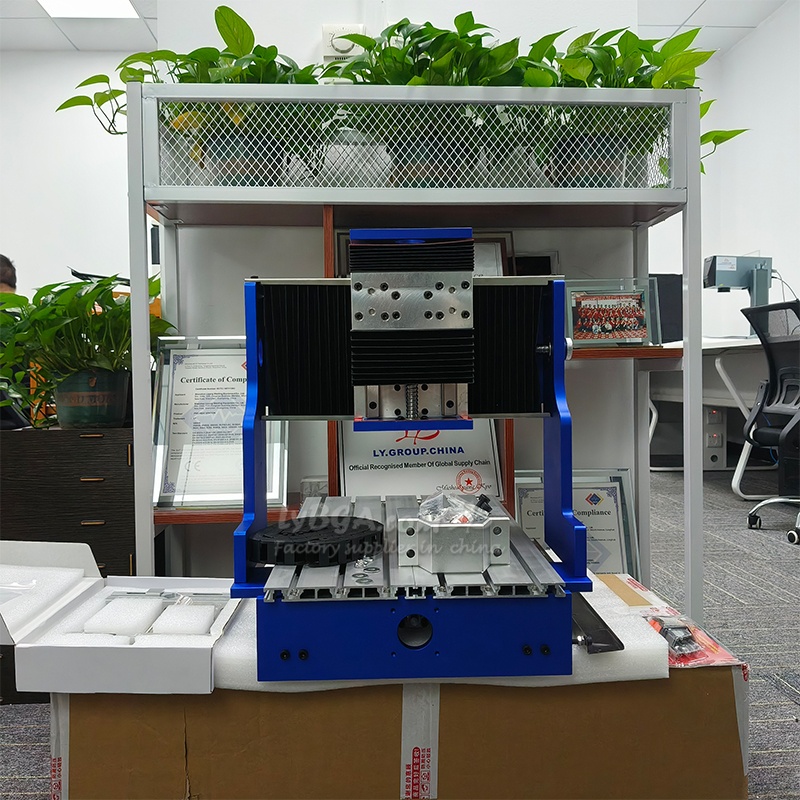

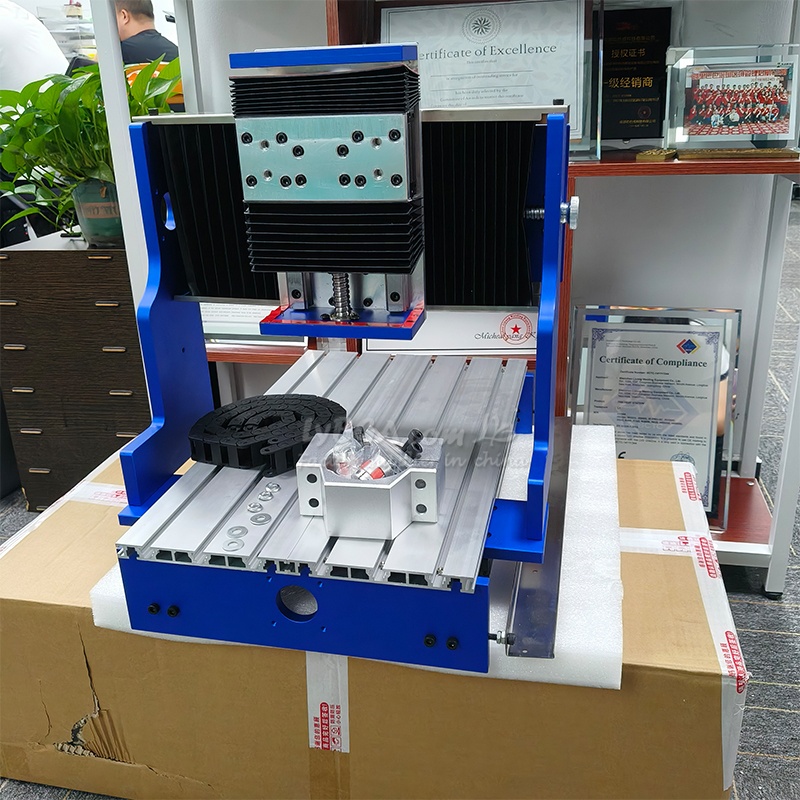

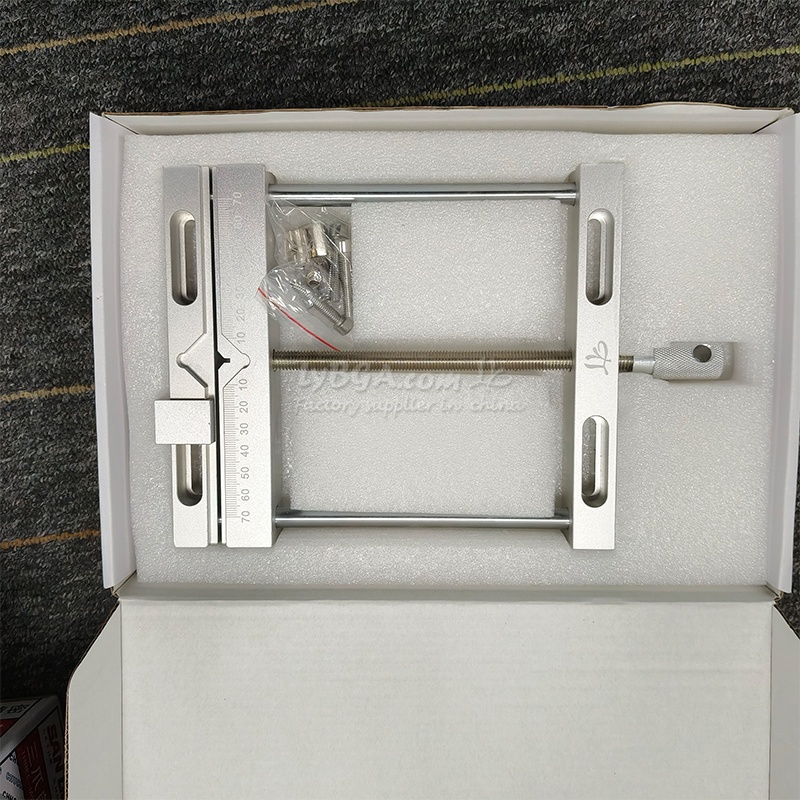

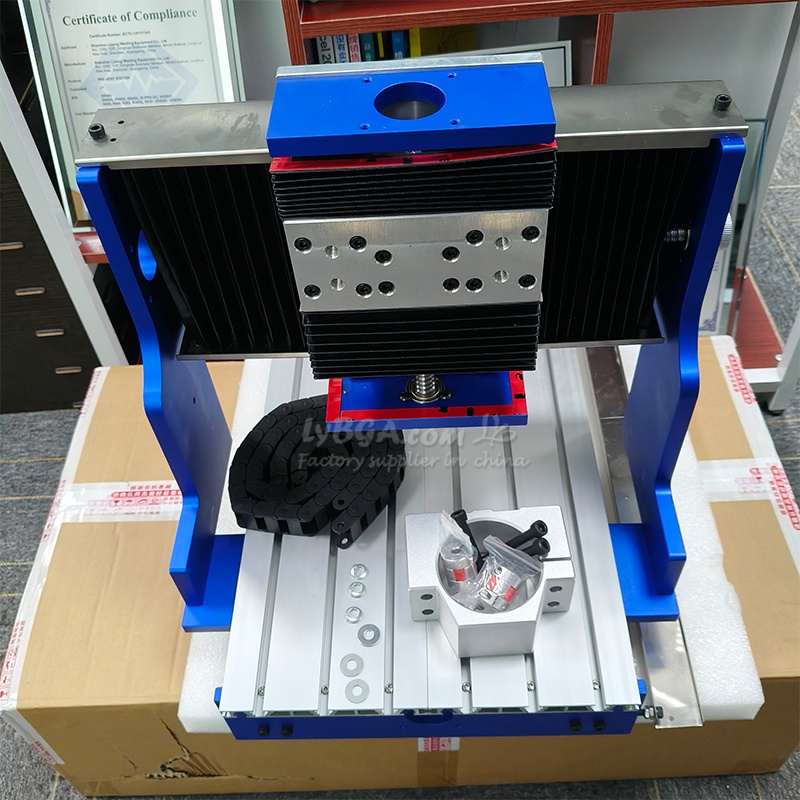

3 Axis Linear Rail CNC Router Frame DIY Kit 3040L 4060L, Complete Framework With Motors, Bench Vise and Wrenches, DIY CNC Machine Frame for Wood Aluminum Engraving Carving
Reviews(0)
Product Detail
Product Tags
| MODEL | CNC Frame 6040L | |||
| Attribute |
3 axis Without Motor |
3 axis With Motor |
4 axis Without Motor |
4 axis With Motor |
| Axis | 3axis | 3axis | 4axis | 4axis |
| Have motor? | No | Yes | No | Yes |
| Have 4th axis? | No | No | Yes | Yes |
| Weigh | 45 | 48 | 48 | 51 |
| Rack material: |
6061 and 6063 Hard aluminum alloy |
|||

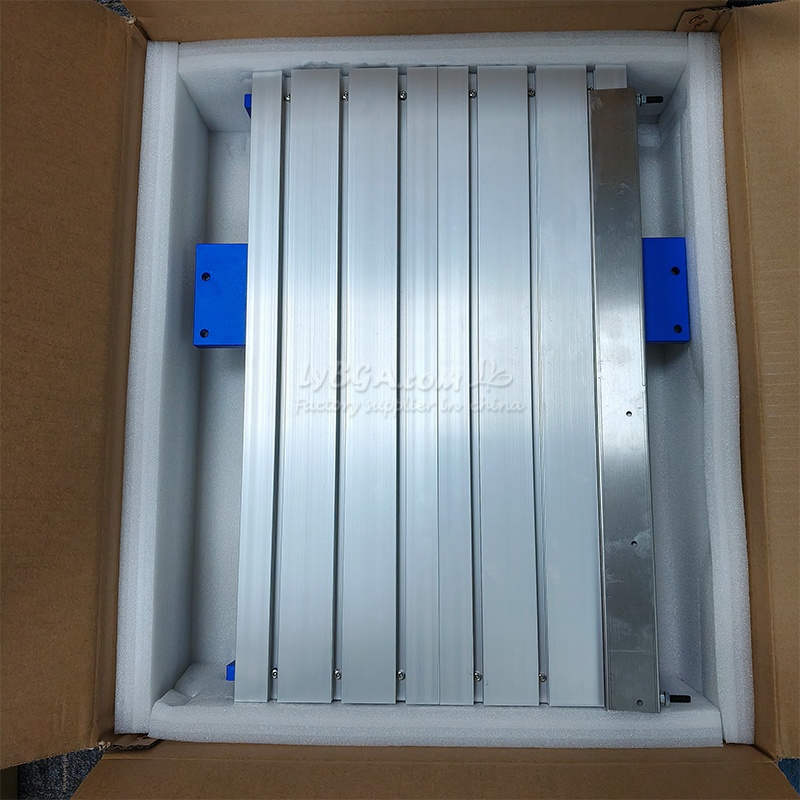

| Table material: |
740 * 480mm (20mm aluminum alloy T table) |
|||
|
Engraving area： |
360*570*120mm |
|||
|

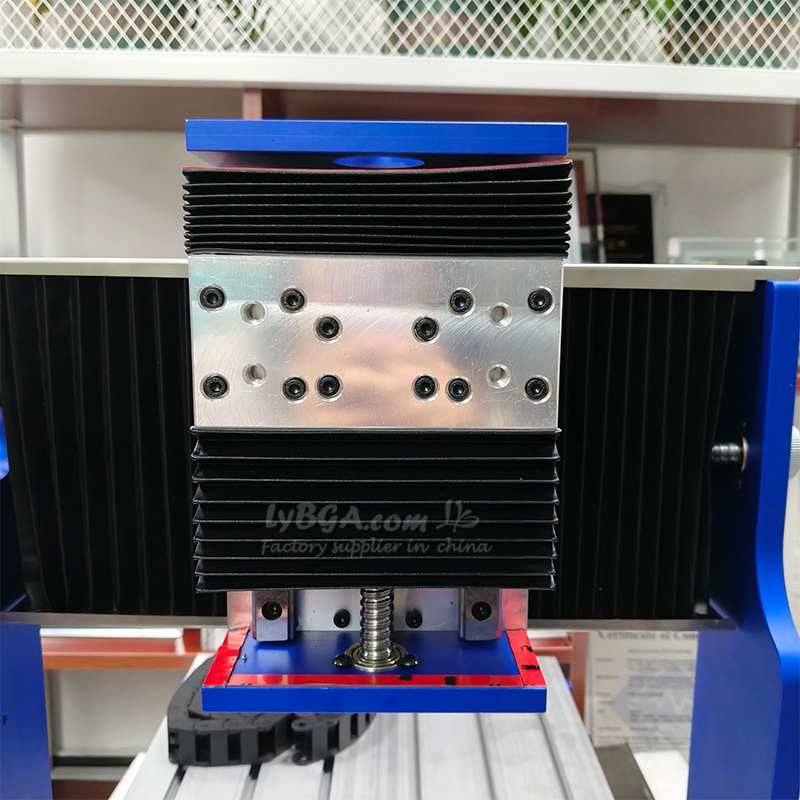

Z-Axis Stroke： |
120mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness： |
≤ 140mm |
|||
|
Rail type： |
Square line rail track TRH20, three-axis is 20 mm square wire track, high precision, high strength, top configuration. |
|||
|
Type of screw： |
Ball screw 1605 |
|||
| Diameter of Spindle motor: | 80mm | |||
| Motor | Nema 23 (57*76mm) | |||
| Rotation Axis (4th Axis)
Description: |
Chuck: 65MM 4-jaw chuck
Center height: 54MM Speed reducing ratio: 4:1 Stepper motor: Two phase 42 stepper motor |
|||
| MODEL | CNC Frame 3040L | |||
| Attribute |
3 axis Without Motor |
3 axis With Motor |
4 axis Without Motor |
4 axis With Motor |
| Axis | 3axis | 3axis | 4axis | 4axis |
| Have motor? | No | Yes | No | Yes |
| Have 4th axis? | No | No | Yes | Yes |
| Weigh | 30 | 34 | 33 | 37 |
| Rack material: |
6061 and 6063 Hard aluminum alloy |
|||
| Table material: |
320 * 520mm (20mm aluminum alloy T table) |
|||
|
Engraving area： |
260*380*110mm |
|||
|
Z-Axis Stroke： |
110mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness： |
≤ 135mm |
|||
|
Rail type： |
Square line rail track, three-axis is 20 mm square wire track, high precision, high strength, top configuration. |
|||
|
Type of screw： |
Ball screw 1605 |
|||
| Diameter of Spindle motor: | 80mm | |||
| Motor | Nema 23 (57*76mm) | |||
| Rotation Axis (4th Axis)
Description: |
Chuck: 65MM 4-jaw chuck
Center height: 54MM Speed reducing ratio: 4:1 Stepper motor: Two phase 42 stepper motor |
|||
