LY-TBK 808A All In One Integrated Vacuum OCA Laminator Debubble Machine For iPad 13 Inch Mobile Phone Screen Tablet Flat Front Glass LCD Repair

LY-TBK 808A All In One Integrated Vacuum OCA Laminator Debubble Machine For iPad 13 Inch Mobile Phone Screen Tablet Flat Front Glass LCD Repair

item ID: 70460
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$2000 USD$1028 (% off)
Payment

Product Detail

Product Tags

LY-TBK 808A All In One Integrated Vacuum OCA Laminator Debubble Machine For iPad 13 Inch Mobile Phone Screen Tablet Flat Front Glass LCD Repair

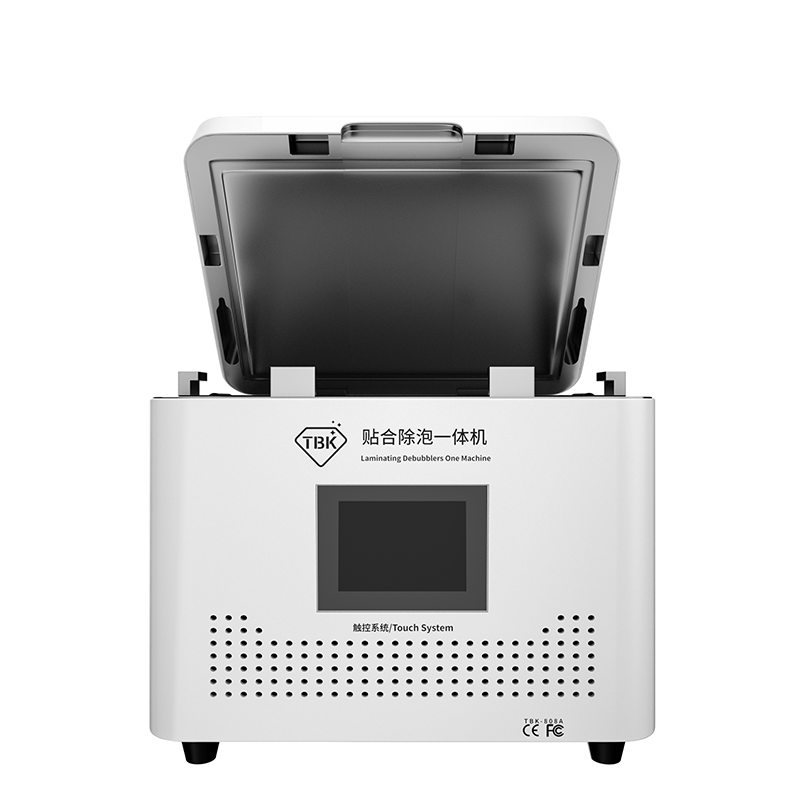

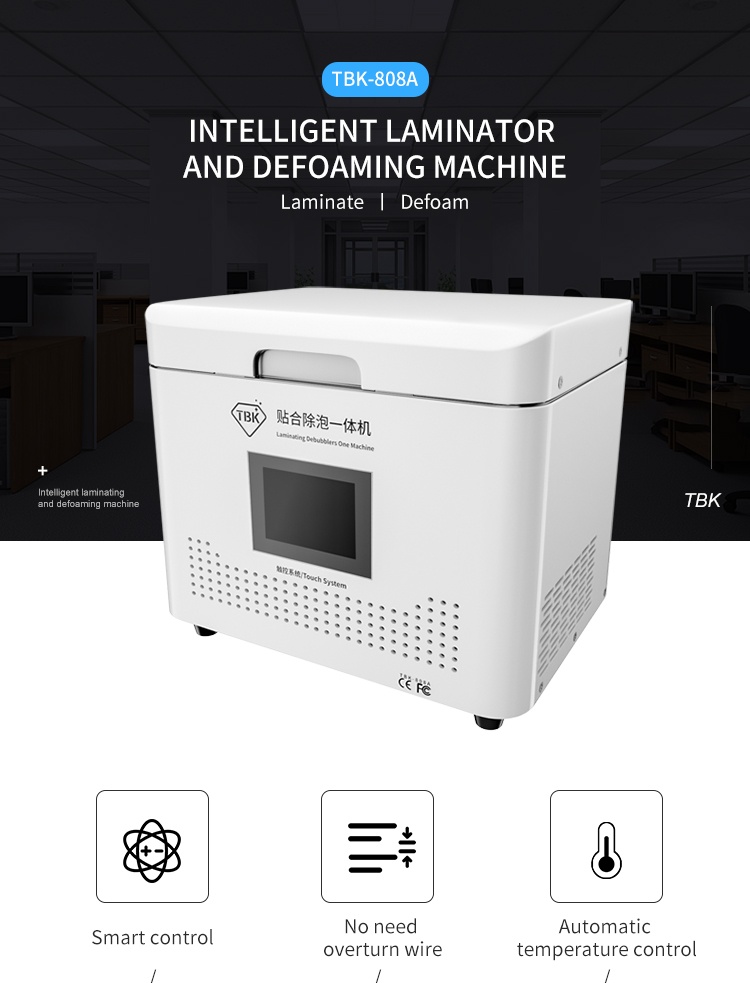

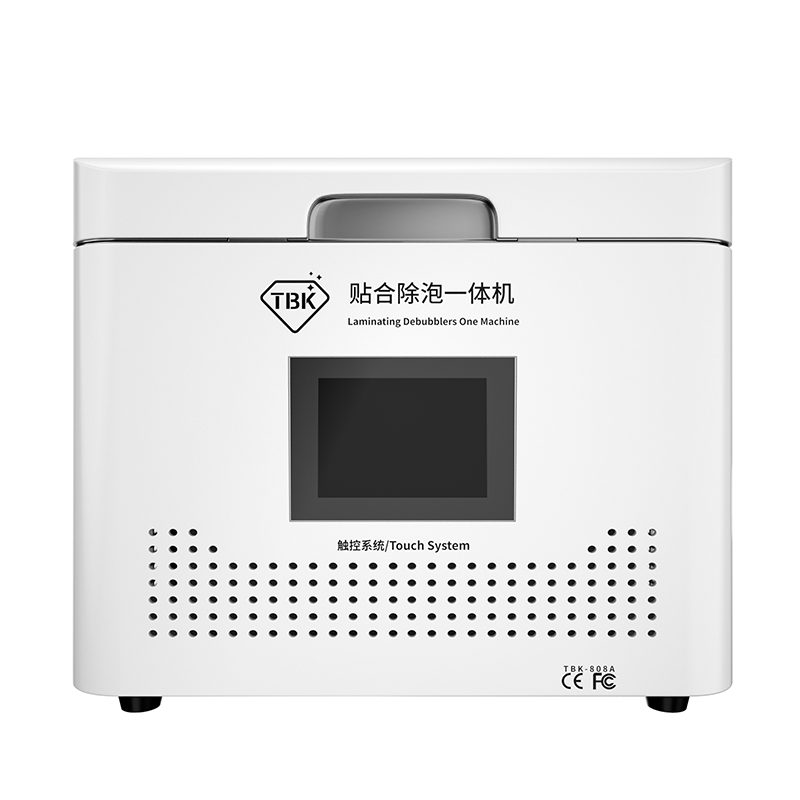

This is an automatic air-lock Laminating and Defoaming integrated machine suitable for 13″ screens.

The laminating machine needn’t be equipped with external air compressor or vacuum pump. It automatically vacuums, can laminate and defoam, and automatically locks the door at one time, perfect performance without bubbles.

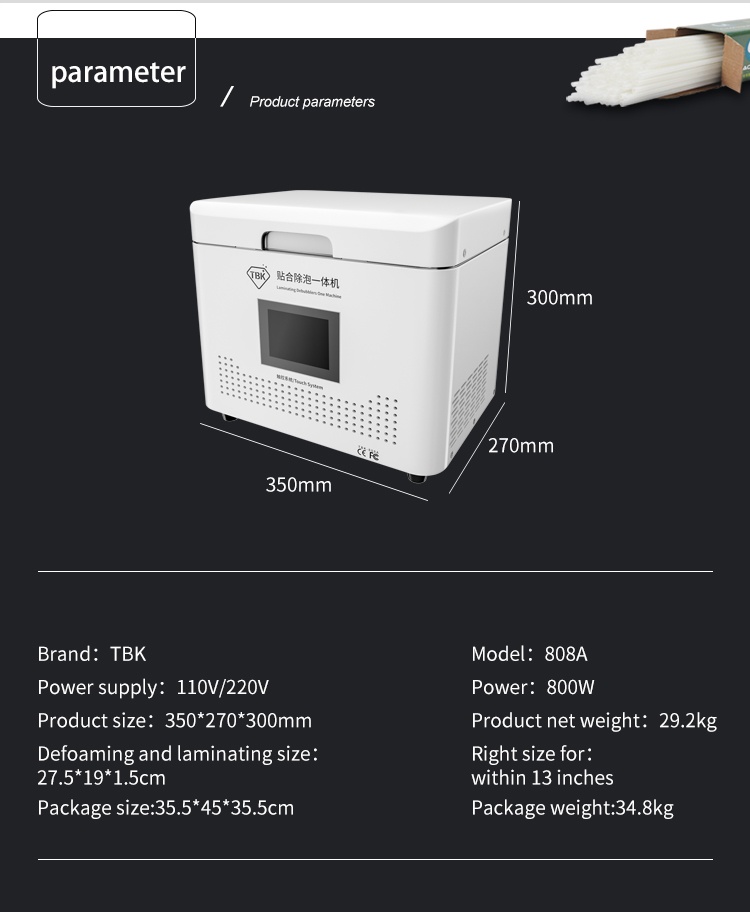

Parameter:

MODEL:TBK 808A

SUPPLY 110V/220V

POWER 800W

SIZE 270*350*300MM

PACKAGING 355*450* 405MM

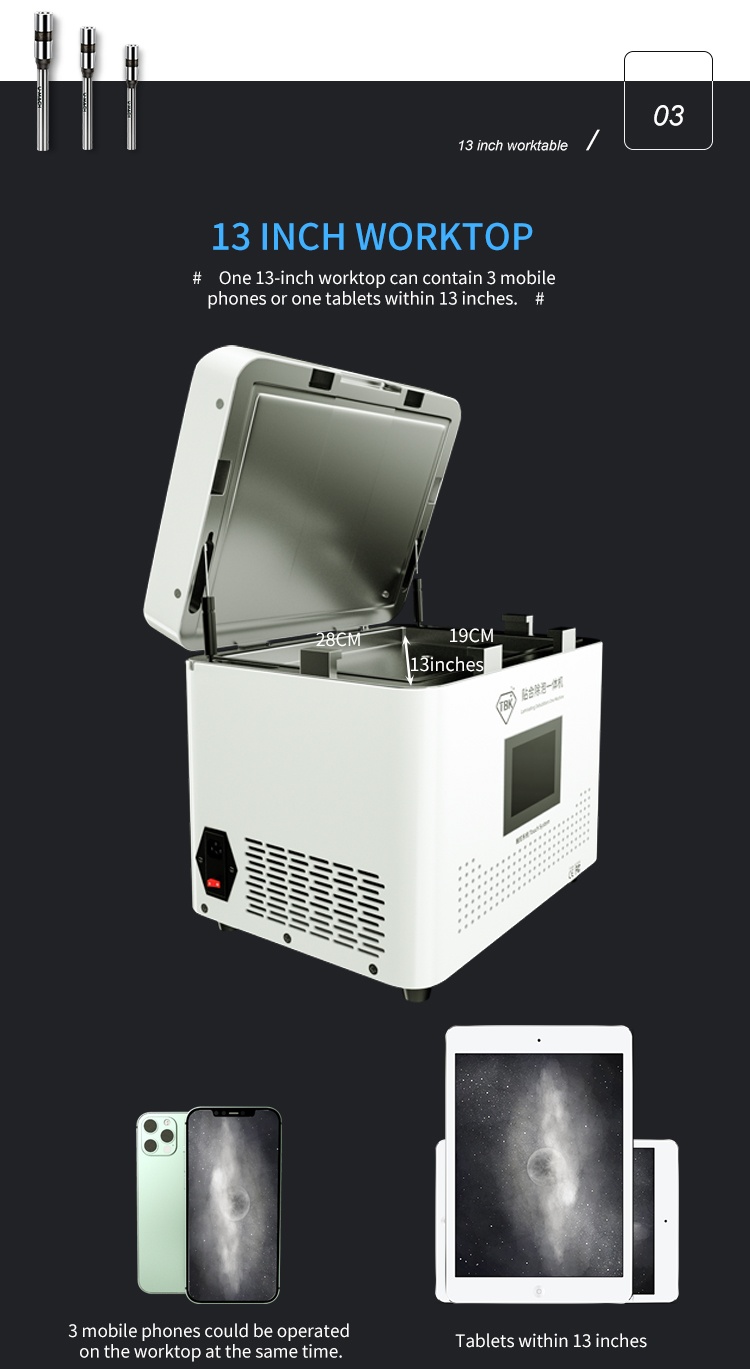

Laminate &  Defoam  275*190* 15MM

NET WEIGHT 29.2KG

GROSSWEIGHT 34.8KG



Operation:

1. First, set the vacuum value of 95kpa, bonding for 50s, defoaming for 5-10min and

temperature of45° C

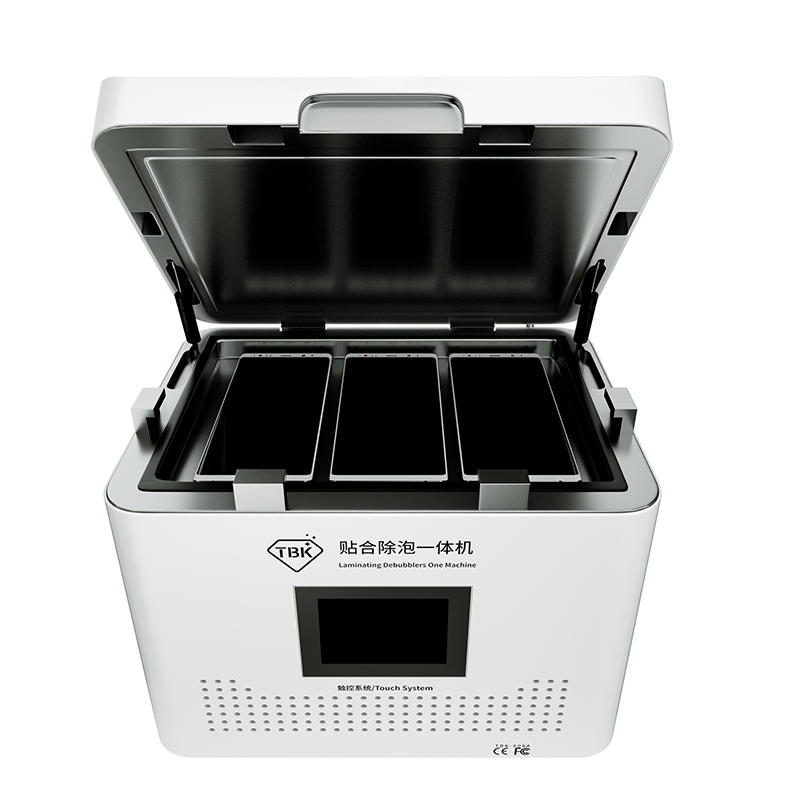

2.Open the cover of lamination housing

3.Remove the protective film of LCD screen and place LCD in the positioning mold

4.Gently place the cover with the bracket on the LCD

5.After aligning the LCD position, make a gentle tap on the middle of the mold

6.Place the lamination on the LCD

7.The corners of the LCD screen shall be torn to expose a bit to prevent the corners from

being crushed

8.Put LCD screen(s) facing down and place neatly in the lamination area

9.Close the cover and press the “Start” button

10.After the set-time of defoaming finished, the machine will automatically exhaust

11.Open the door of lamination housing, take out the screen(s), then operation completes
