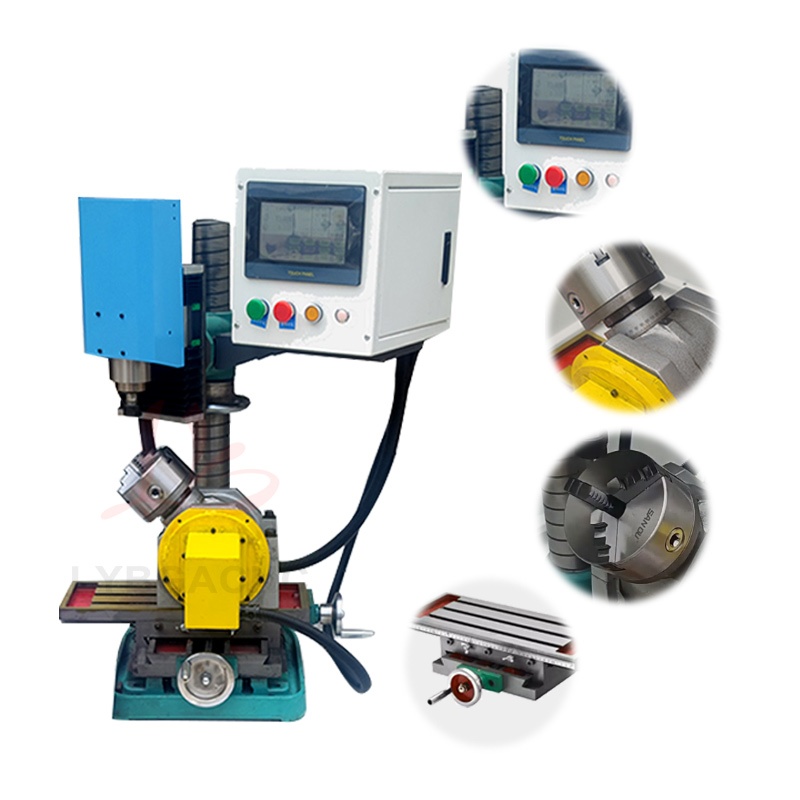

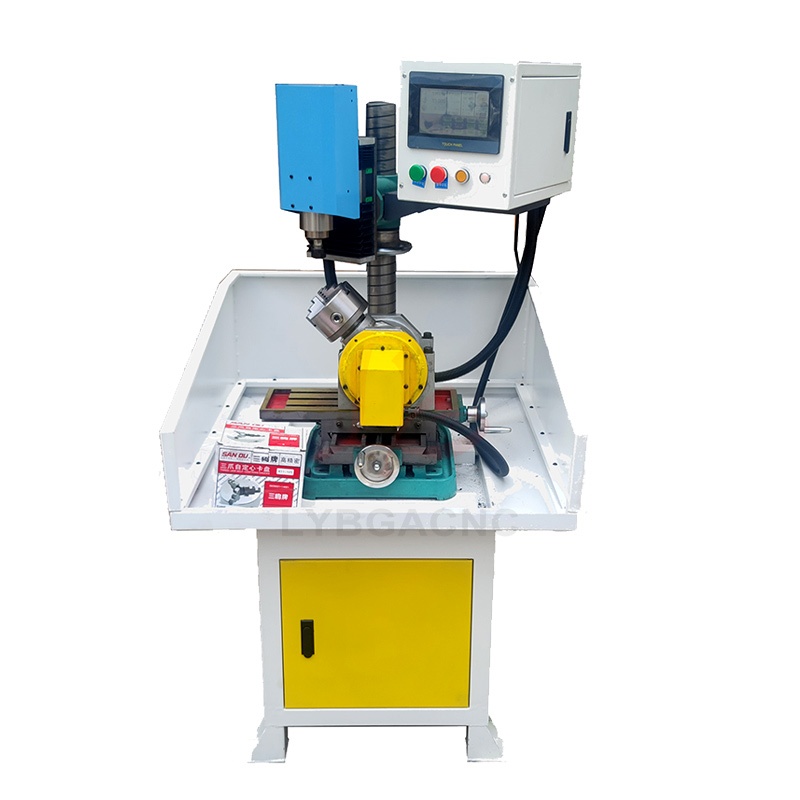

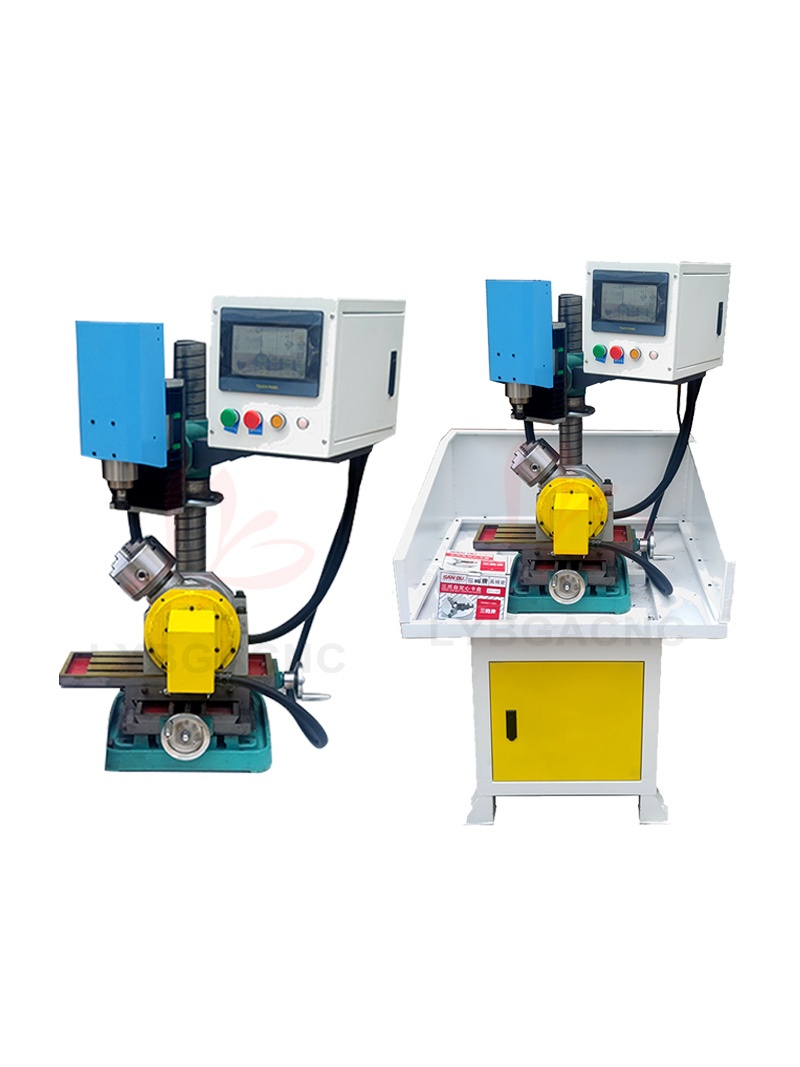

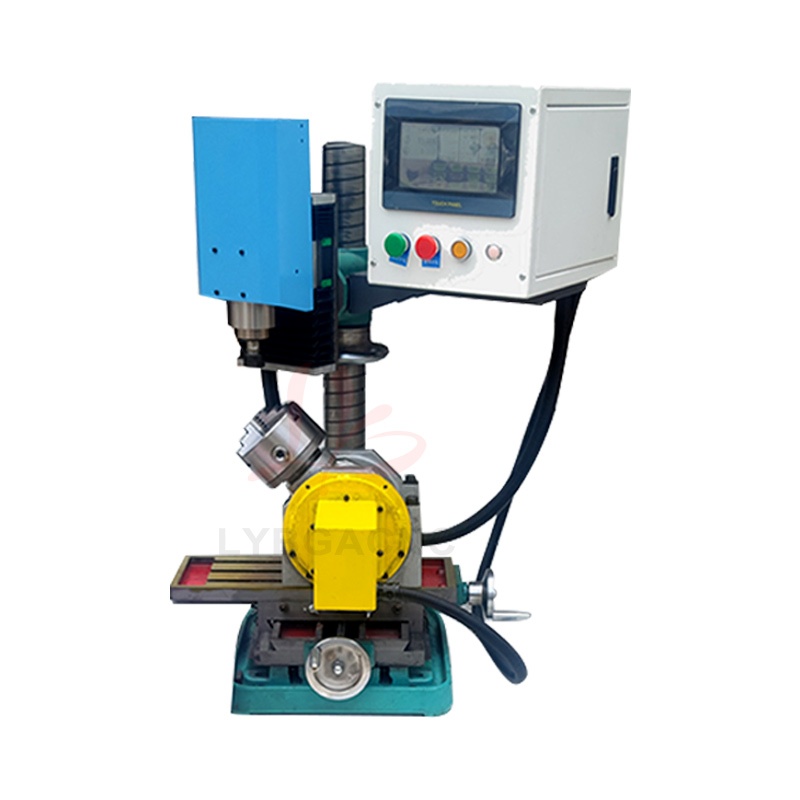

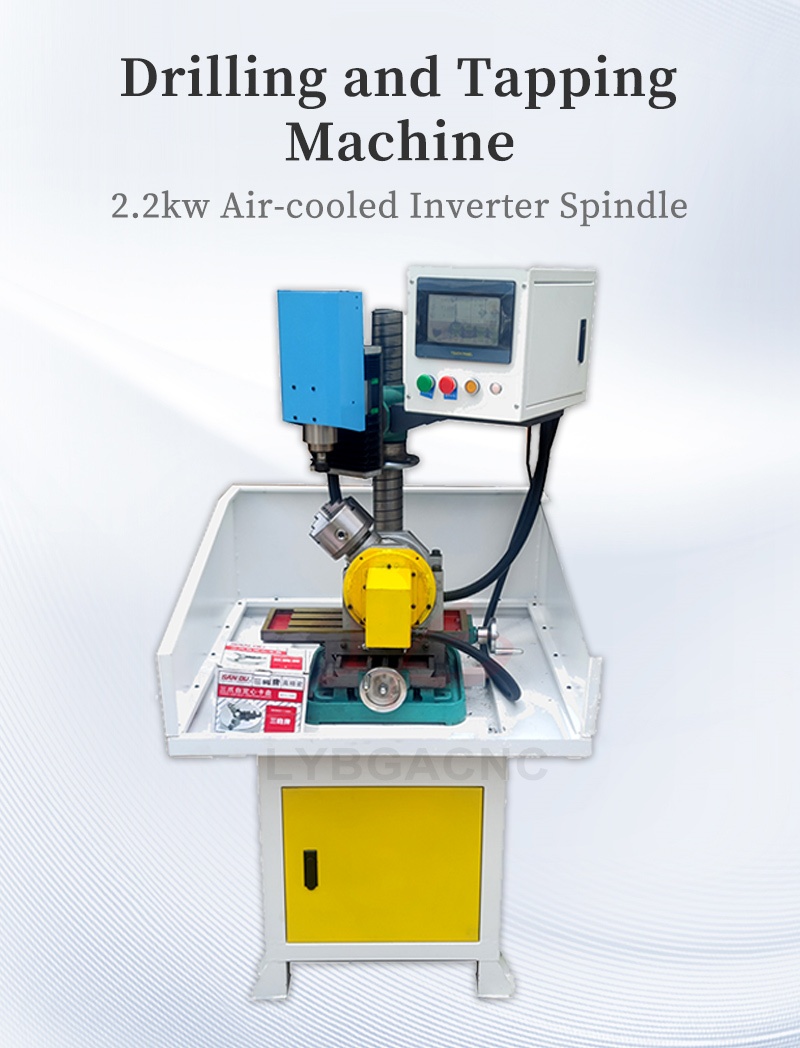

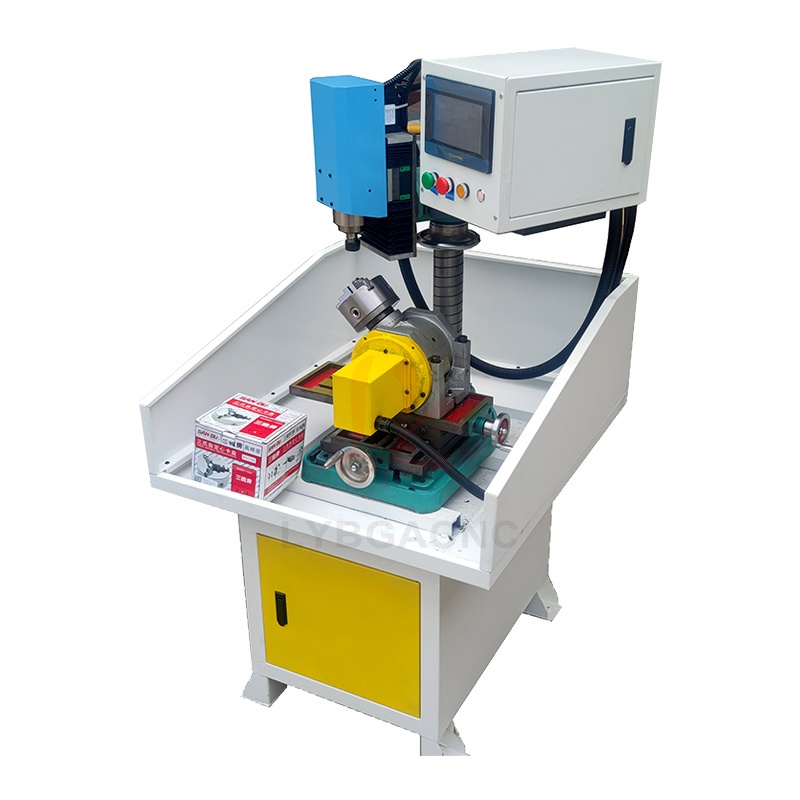

220V CNC Indexing Drilling and Tapping Machine with Hole Diameter Range 0.5-6mm, 2.2kw Air-cooled Inverter Spindle, Manual Slide Table, Cross Slide Table and Base Table
Reviews(0)
Product Detail
Product Tags
Equipment Parameters
|
Model |
High speed inverter spindle |
|
Drilling spindle power |
2200W inverter motor |
|
Frequency converter |
Top drive industrial frequency converter |
|
Drilling diameter |
0.5-6mm |
|
Cross slide travel |
Manual sliding table |
|
Indexing head motor |
750W servo |
|
Angle indexing head |
Center height 100, chuck 125, (0-90°adjustable) |
|
Column diameter |
72mm |
|
Column height |
0.8 meter |
|
Maximum travel of 2 axes |
1400 mm |
|
Feeding method |
16 Ball screw |
|
Feed motor |
400W AC servo |
|
Distance from spindle center to column |
200 mm |
|
Distance from spindle end to table |
350 mm |
|
Spindle taper |
ER20 Collet |
|
Spindle speed range |
4000-2400 (Customized 400-4500rpm) |
|

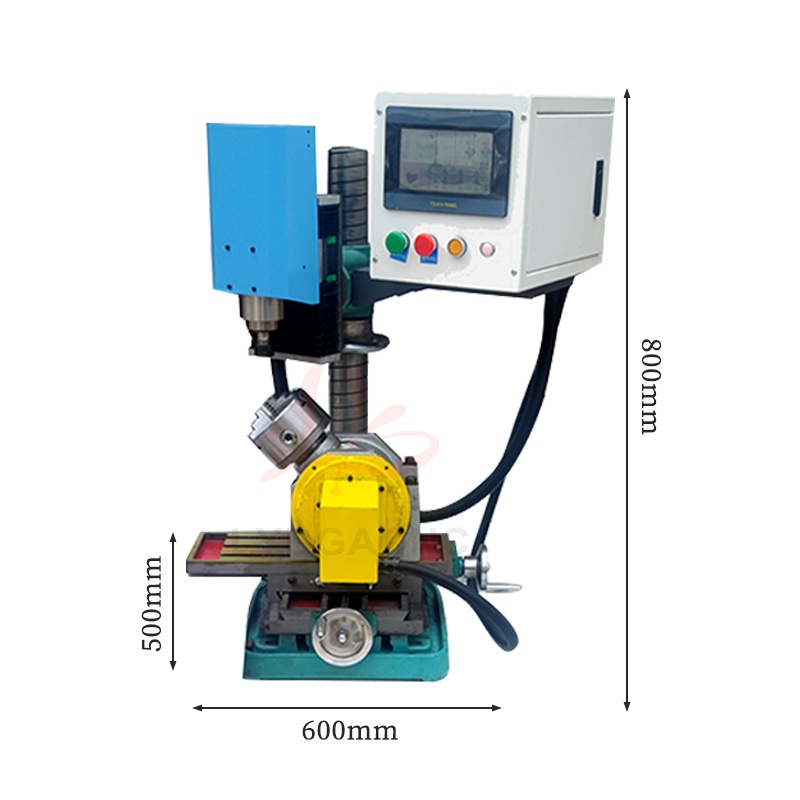

Overall Dimension |
500*600*800 |
|
Overall weight |
120kg |
|
Power input |
220V single-phase power |
|
Numerical control system |
7-inch touch screen control system |
|
Alarm light |
Three colors (standby, running, alarm) |

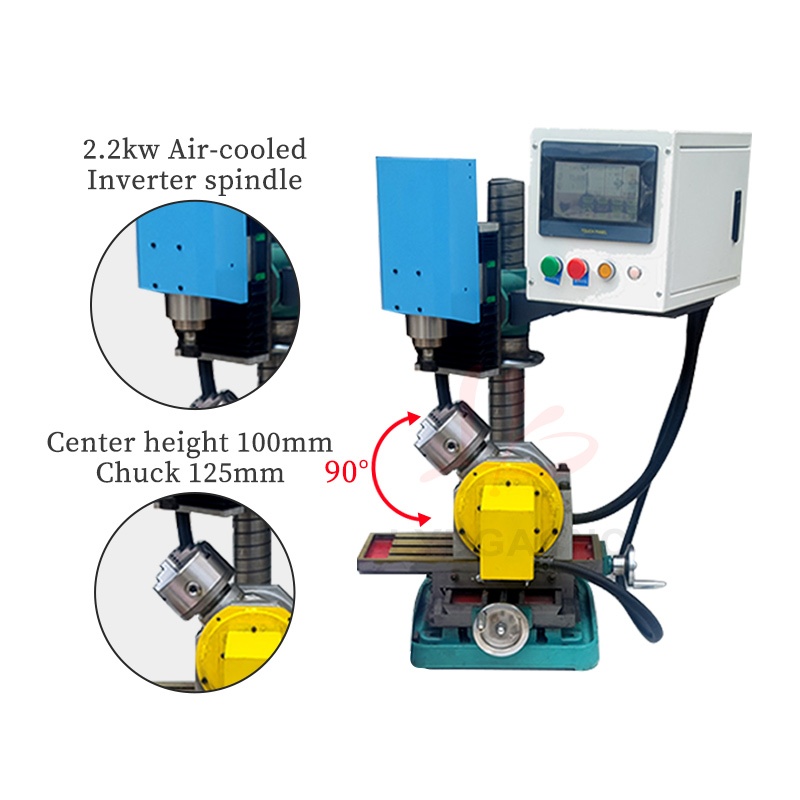

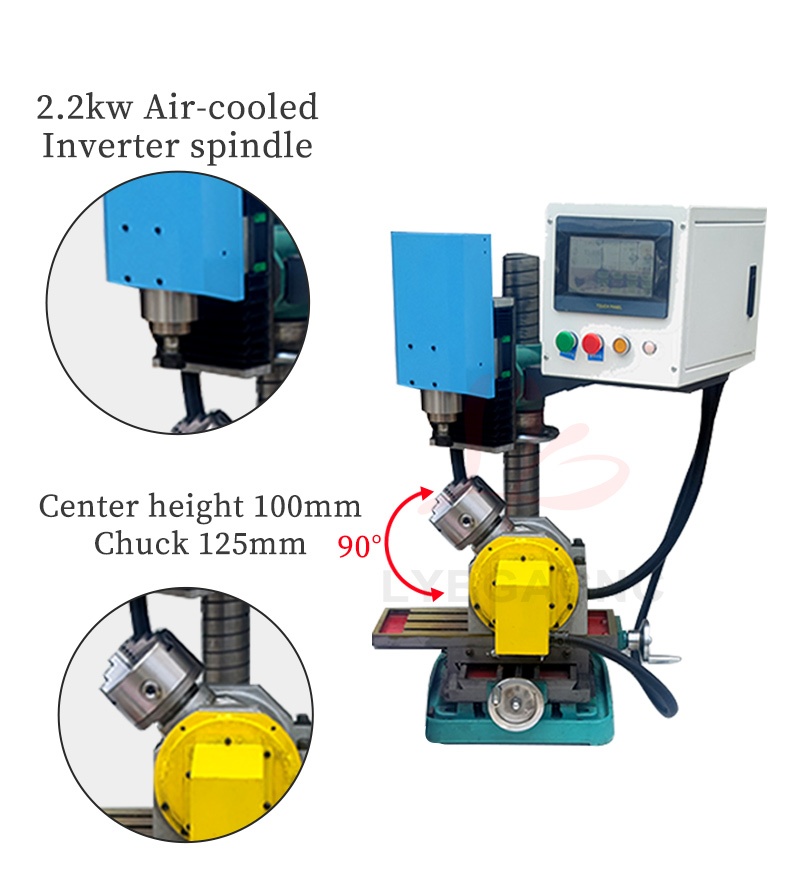

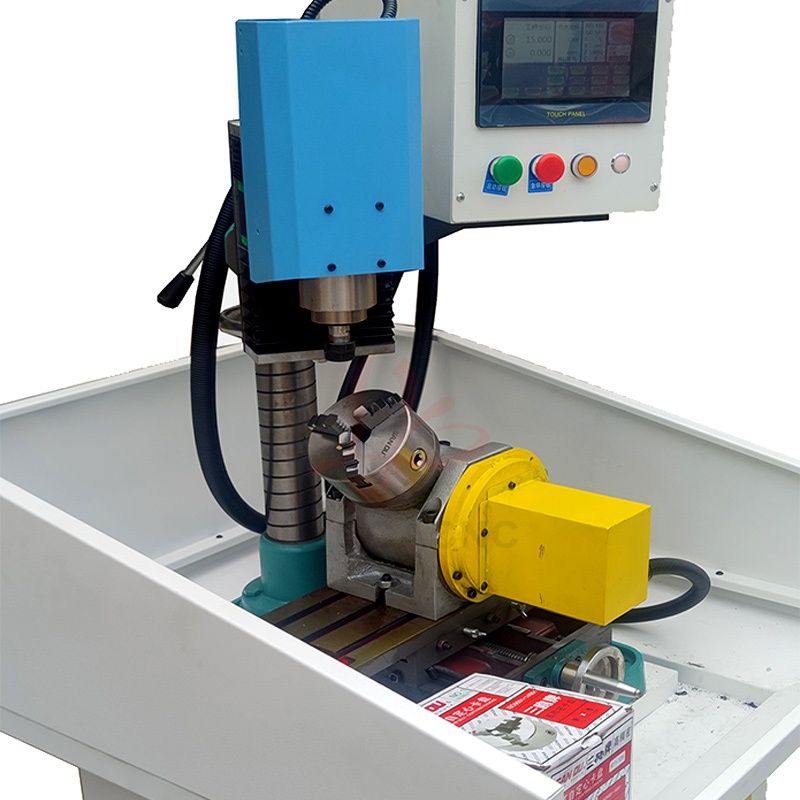

2.2kw Air-cooled Inverter spindle

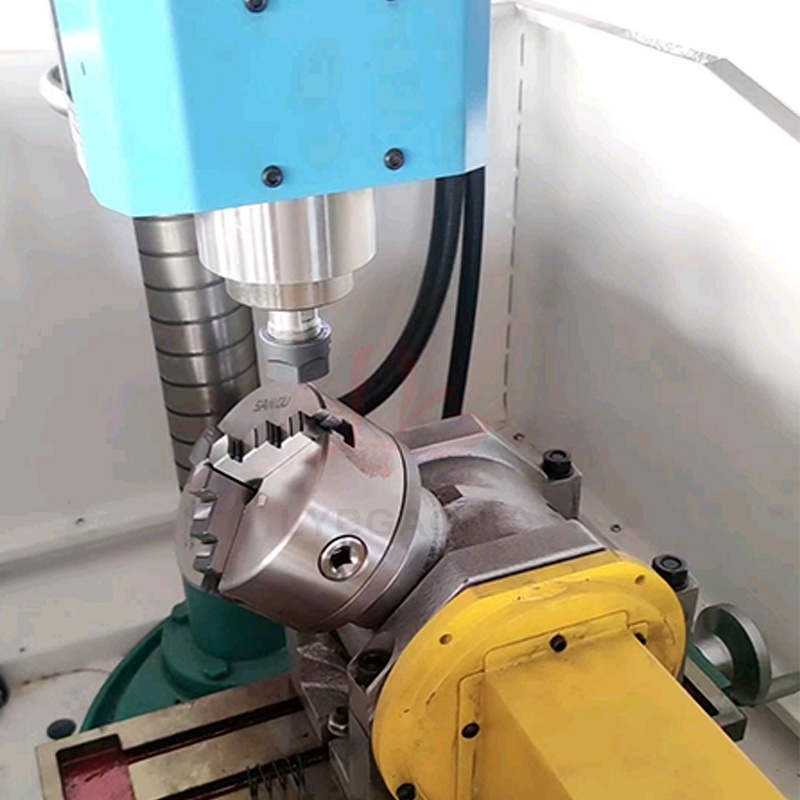

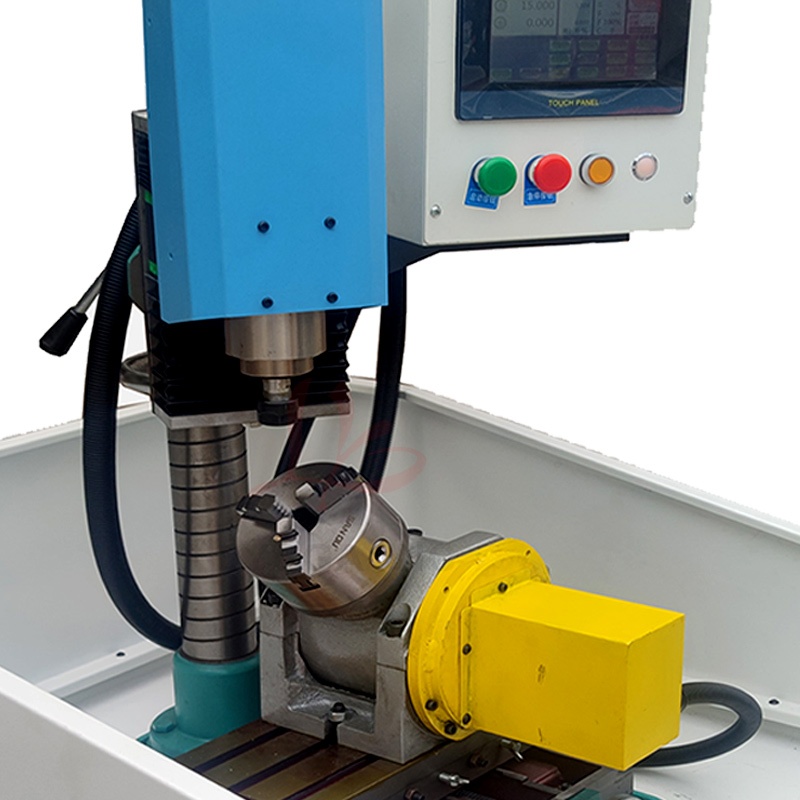

Center height 100mm Chuck 125mm

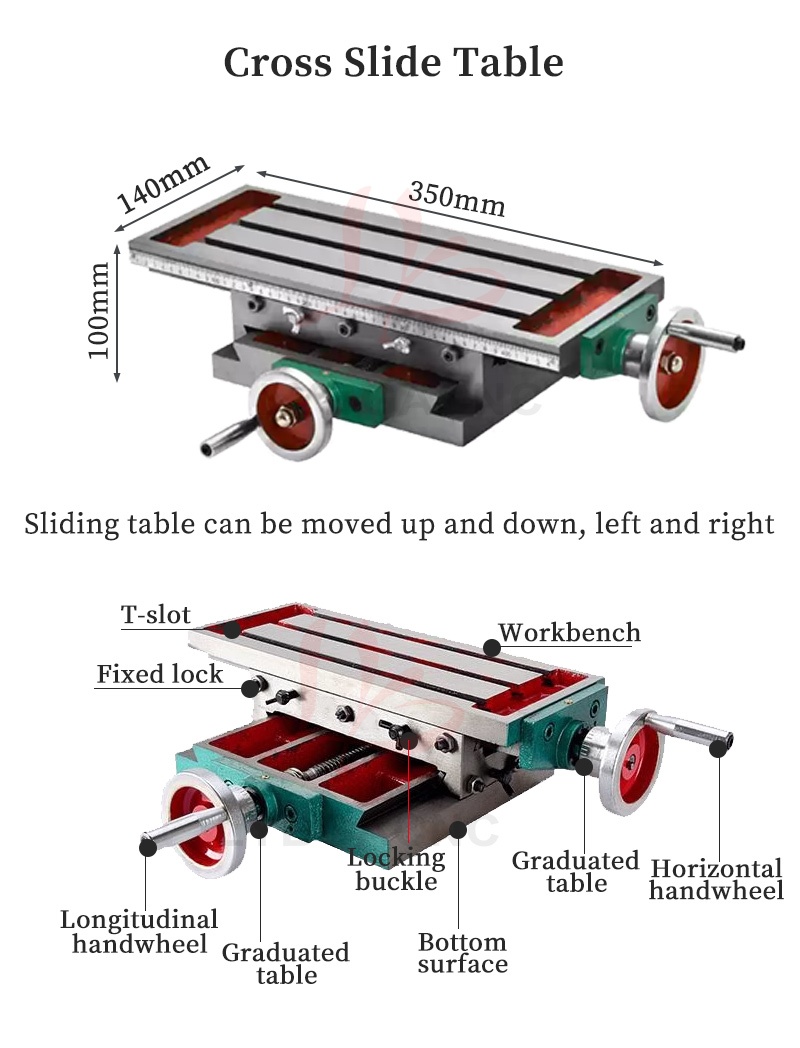

Sliding table can be moved up and down, left and right

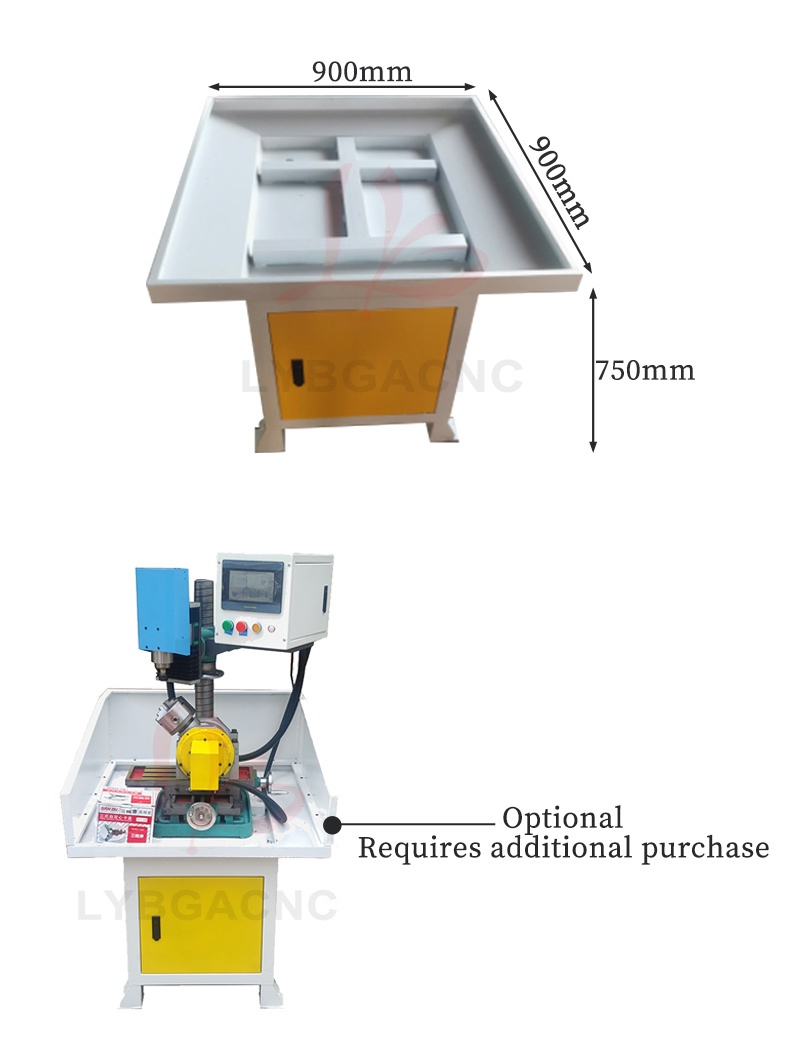

Optional requires additional purchase

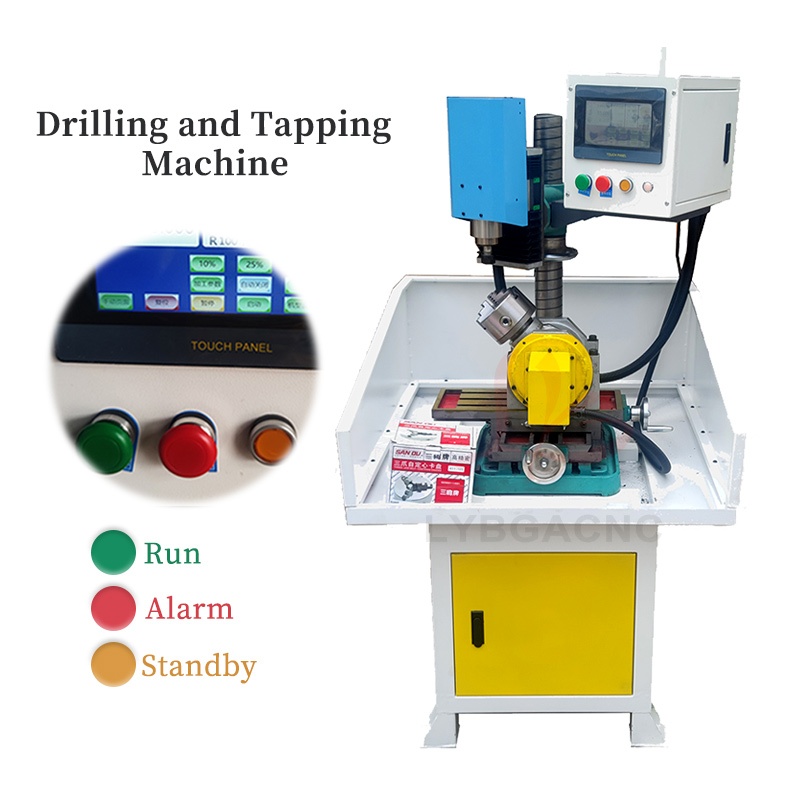

Alarm light：Three colors (Run, Alarm, Standby)
Thanks for your order!

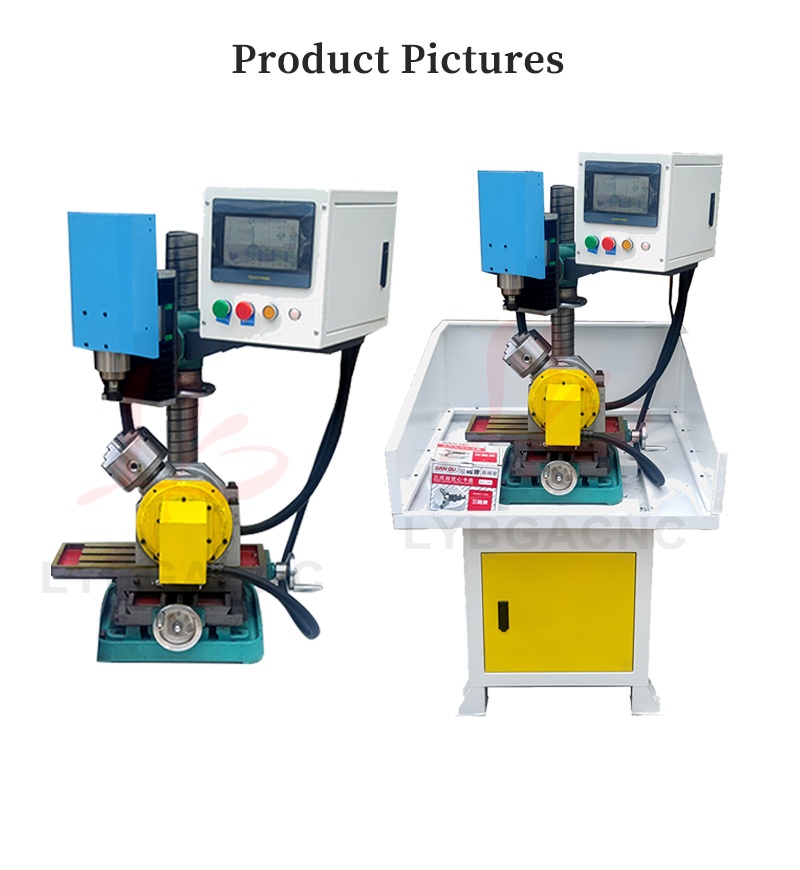

Product Pictures
