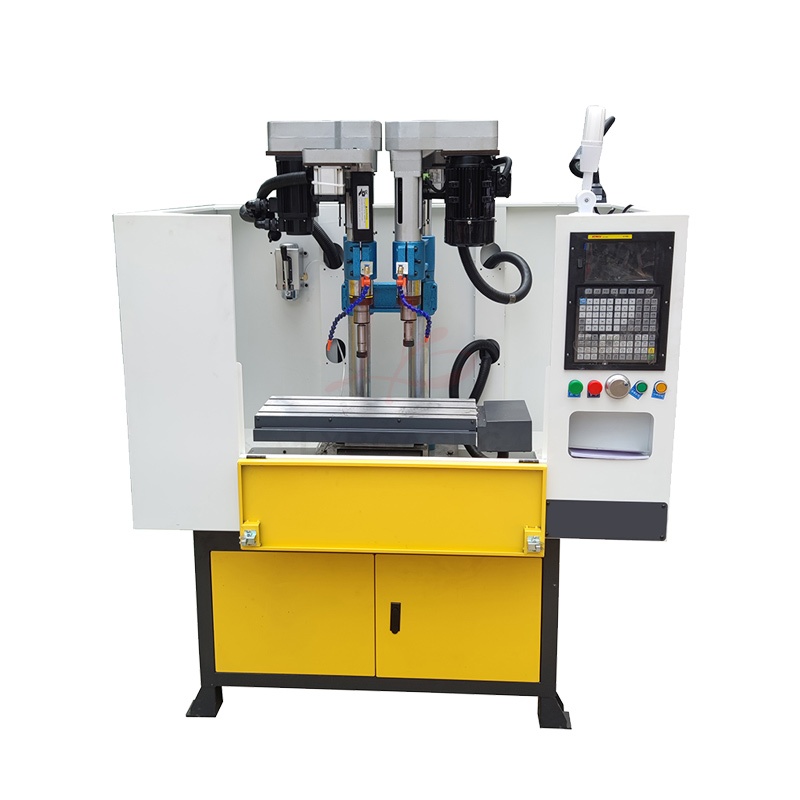

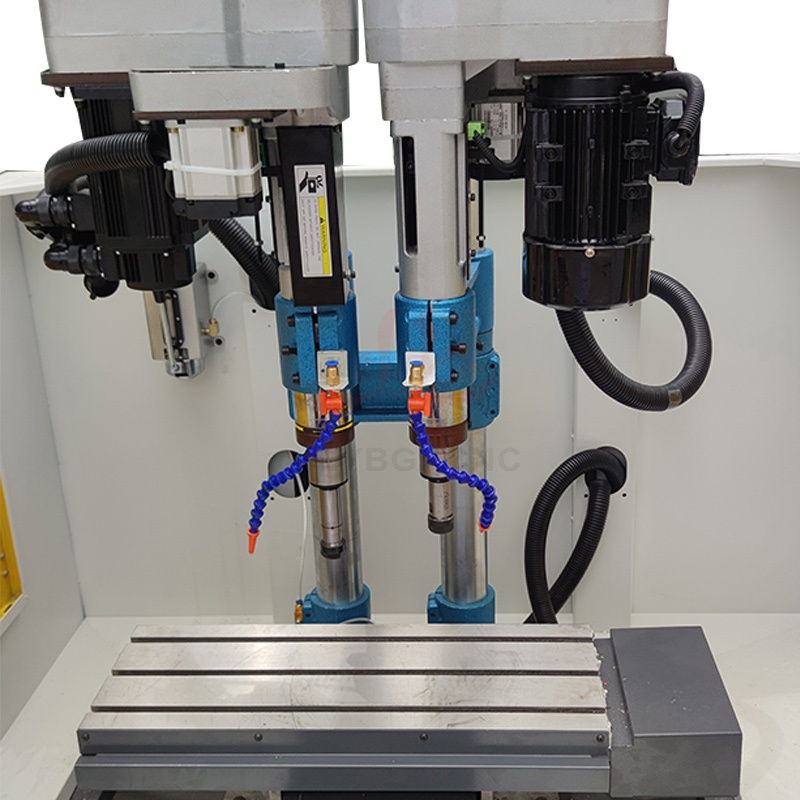

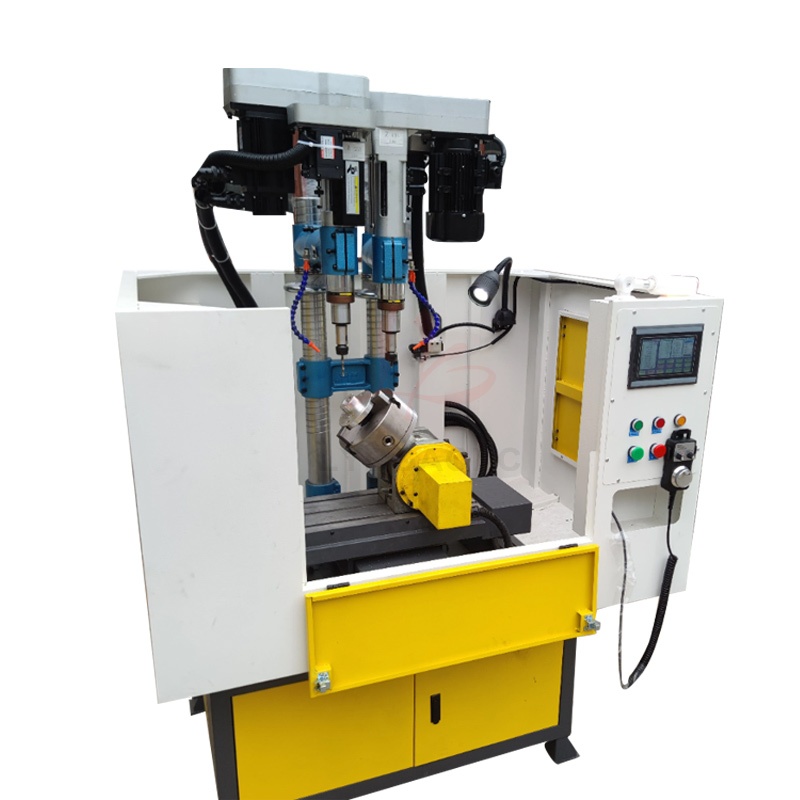

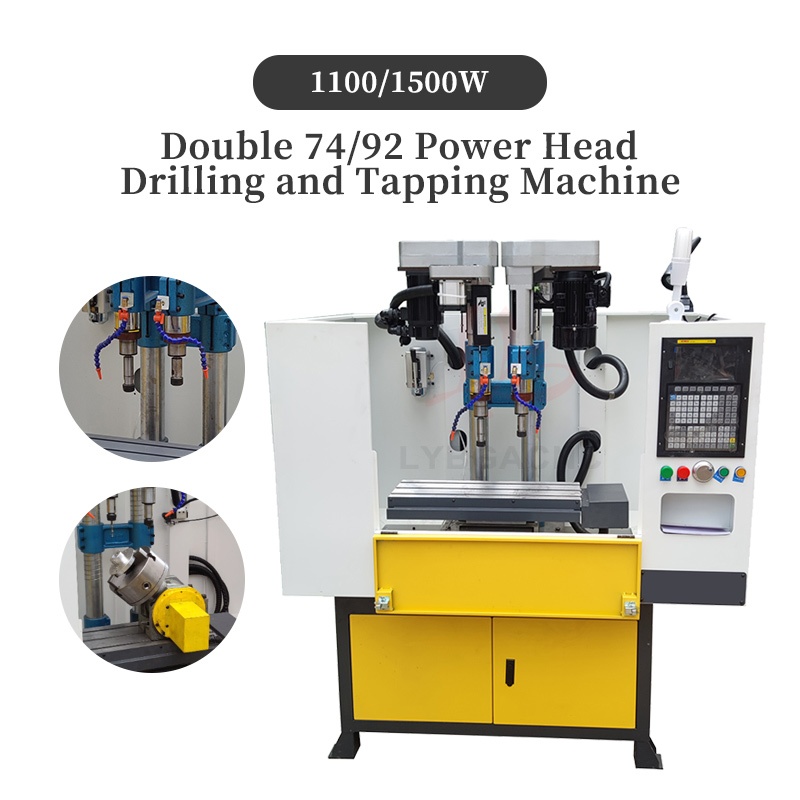

380V CNC Automatic Multi – hole Drilling Machine with Servo Feeder, Drilling Diameters 16mm, 20mm, 25mm, Sheet Metal Frame Base
Reviews(0)
Product Detail
Product Tags
Equipment Parameter
|
Product Parameter |
|||
|
Model |
Type 16 |
Type 20 |
Type 25 |
|
Bench drill model |
516B |
Z4120 |
Z4125 |
|
Maximum drilling diameter |
16 mm |
20mm |
25 mm |
|
Column diameter |
70 mm |
85mm |
85 mm |
|
Maximum Stroke |
100 mm |
120mm |
120mm |
|
Distance from spindle center to column |
193 mm |
240mm |
240mm |
|
Distance from spindle end to table |
550 mm |
630mm |
630mm |
|
Spindle taper |
MT2 |
MT2 |
MT3 |
|
Spindle speed range |
480-4100 |
365-3150 |
365-3150 |
|
Number of spindle speed stages |
5 |
5 |
5 |
|
Belt type |
A |
B |
B |
|
Motor power |
550 W Class 4 |
1100W Class 4 |
1100 W Class 4 |
|
Base size |
520*360mm |
590*375mm |
590*375mm |
|
Overall weight of single spindle |
110 kg |
175 kg |
180 kg |
|
Power input |
Three-phase 380V |
Three-phase 380V |
Three-phase 380V |
|
Single-axis control box |
7-inch touch screen system |
7-inch touch screen system |
7-inch touch screen system |
|
Numerical control motor |
750W single-turn absolute servo |
750W single-turn absolute servo |
750W single-turn absolute servo |
Six Advantages
1. CNC Control System
2. Servo motor
3. All-copper motors
4. Belt pulleys
5. Precision ground spindles

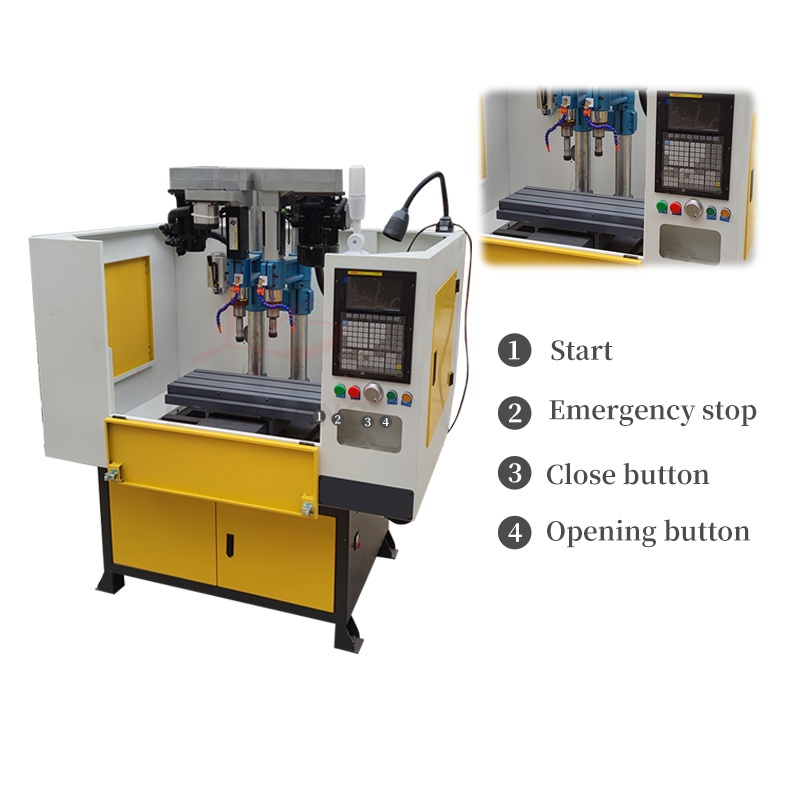

6. Simple operation
Thanks for your order!

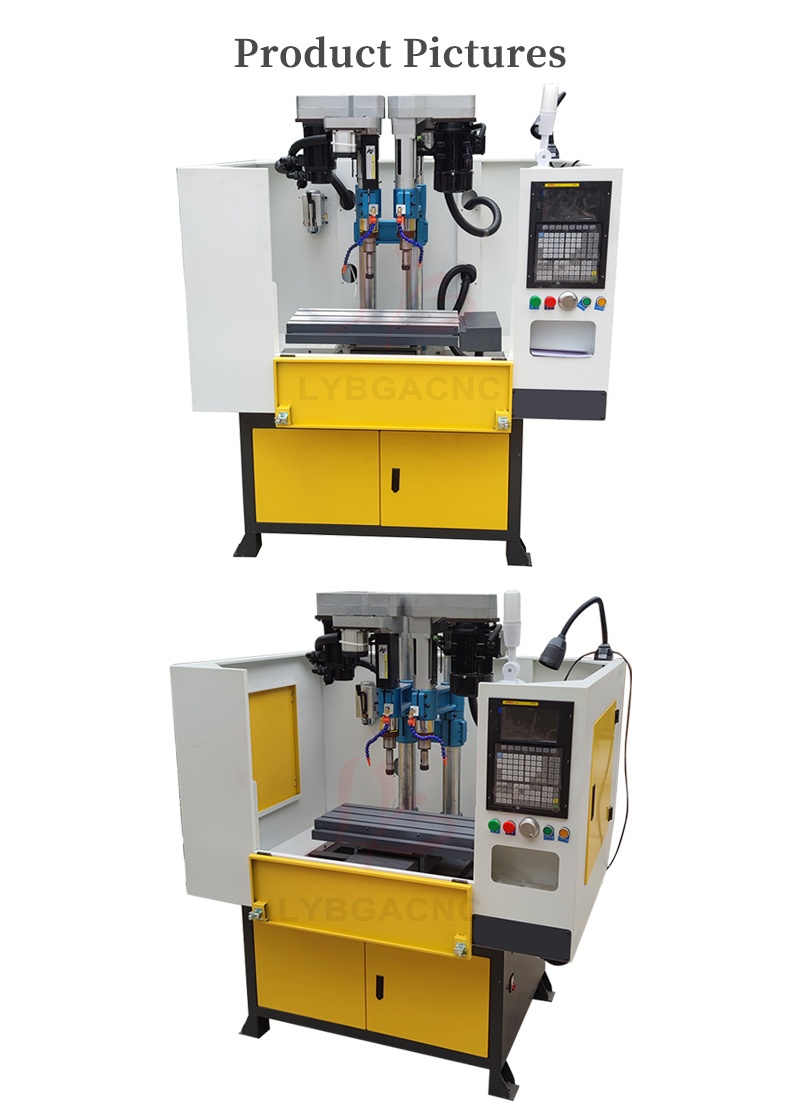

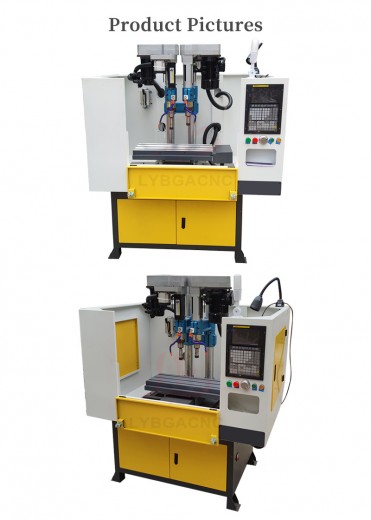

Product Pictures
