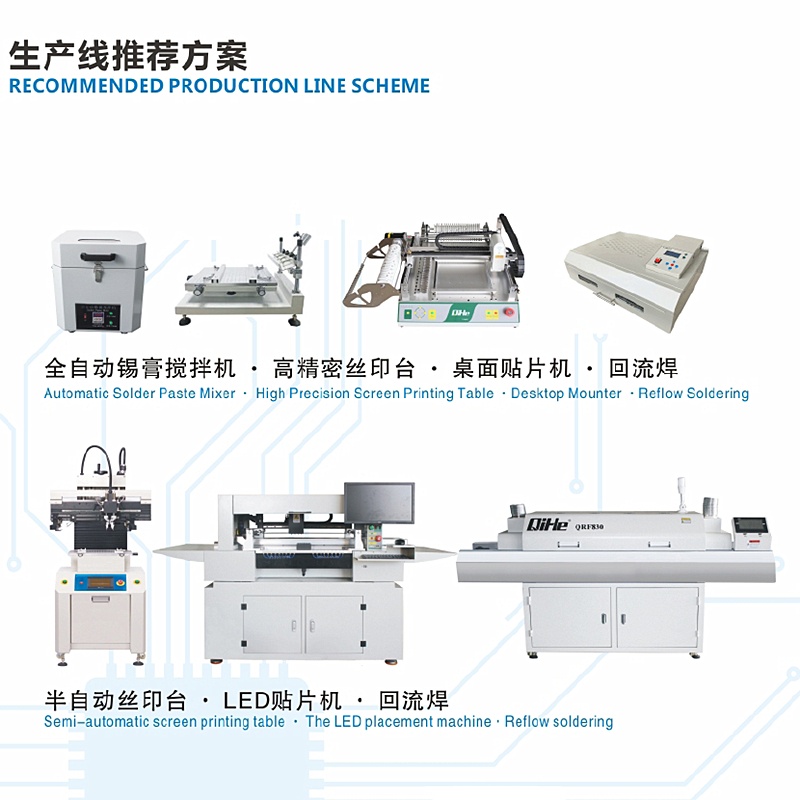

Full Automatic 4 headed Pick Place Machine With 2Cameras Visual system TVM925 SMT Machine For LED Production Line BGA PCB Assembly Line

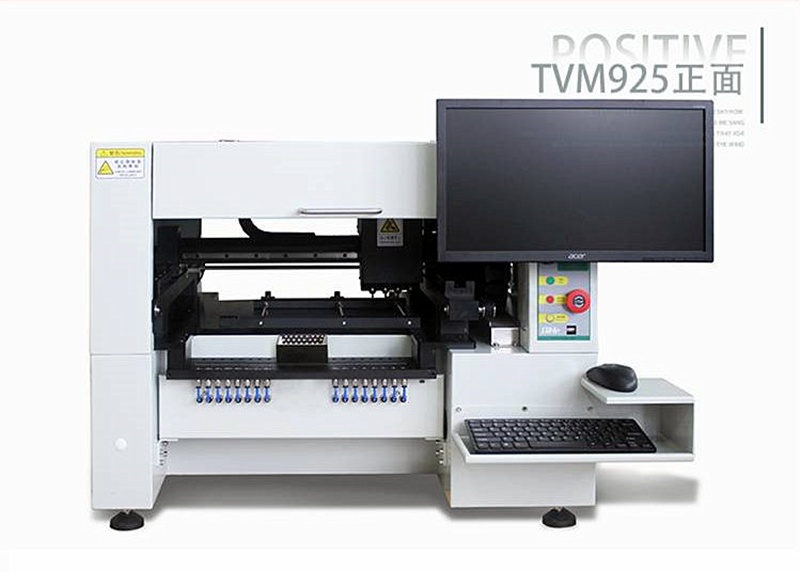

TVM925 Intrduction

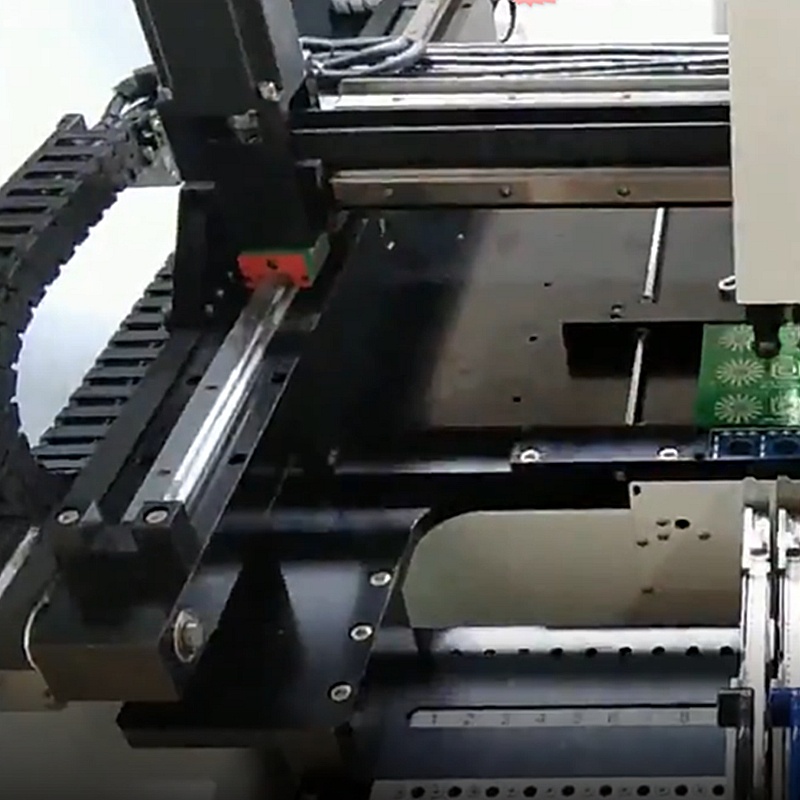

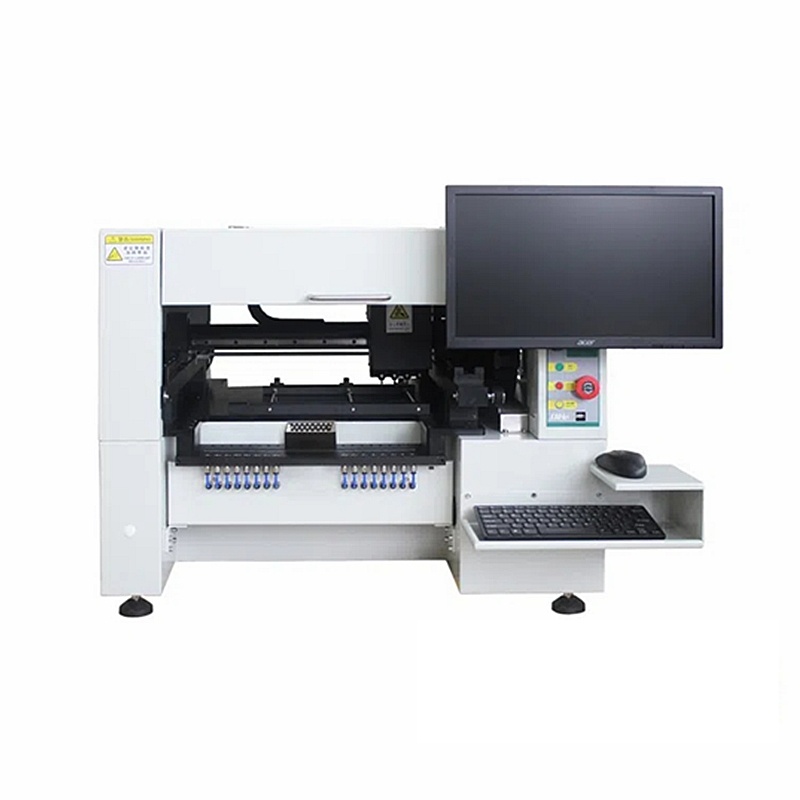

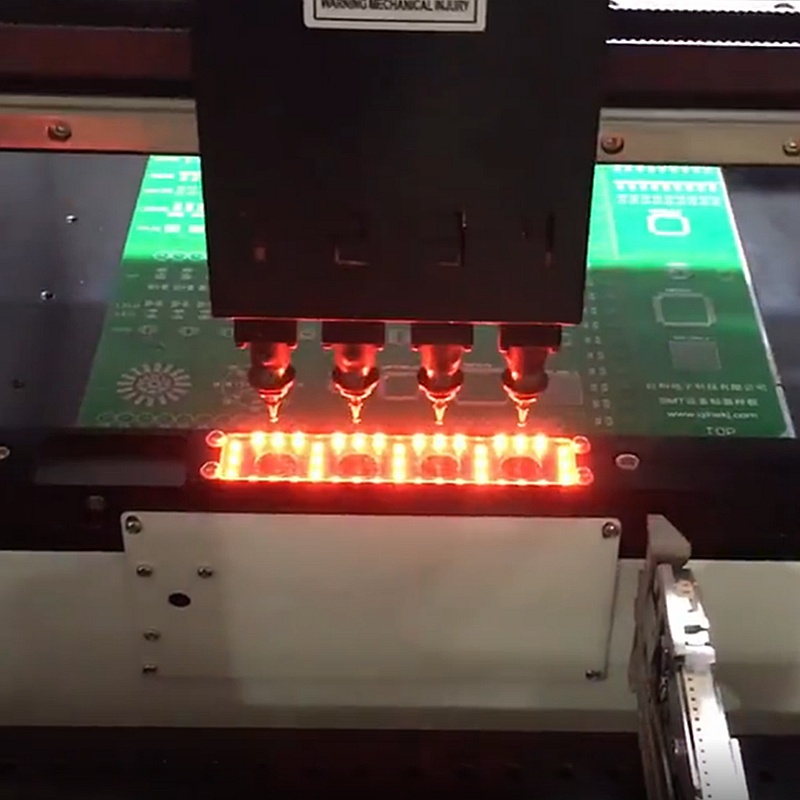

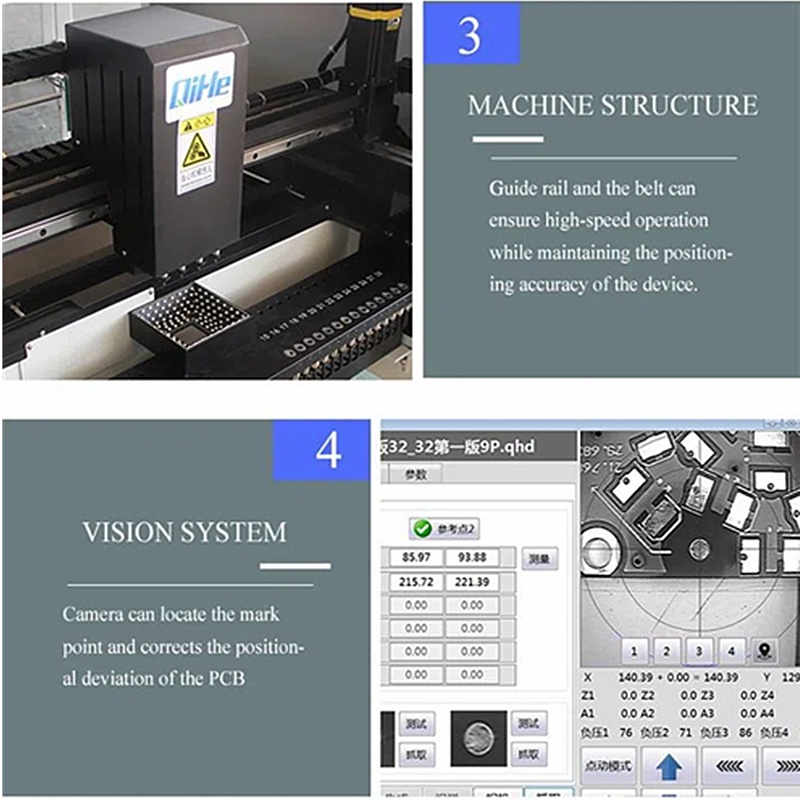

 Pick and place machine TVM925 is a new bench top machine which upgrades from TVM920.X-axis, Y-axis and Z-axis use high-precision straight slide . They make the positioning more accurate.



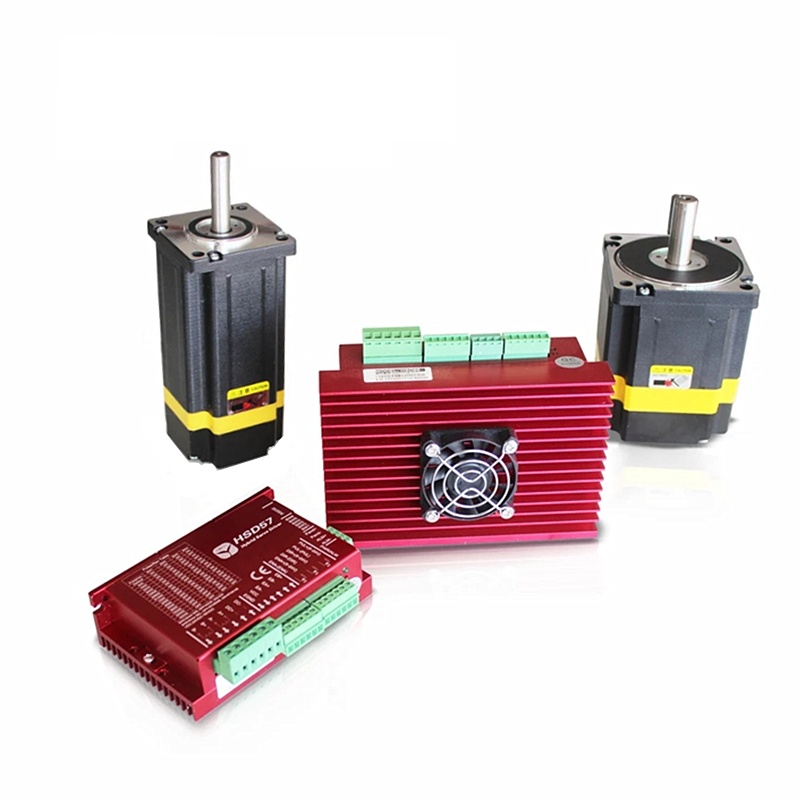

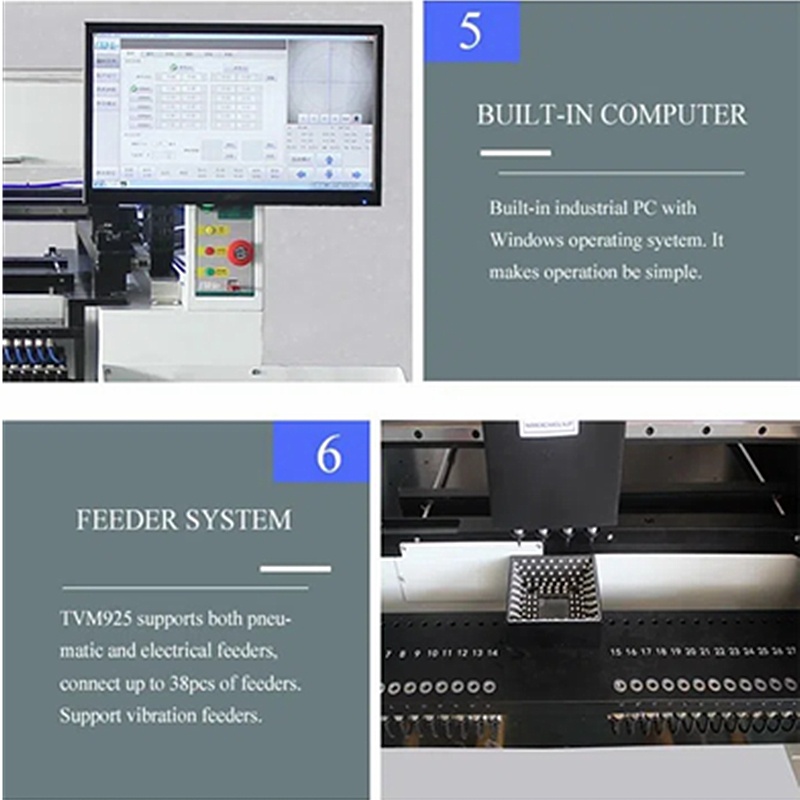

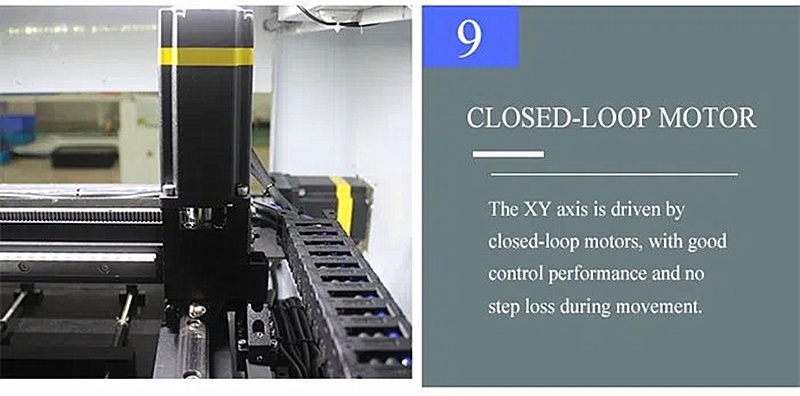

Re-integrate the internal structure of the fuselage. To make the fuselage more compact and save space. It is convenient to transportation and handling. The particular structural design of TVM925 is dual motors portal frame, can connect 38 pieces of 8mm feeders. TVM925 uses closed-loop servo system. Humanized operating software and bottom motion control system make the placement easier and more stable.



The TVM925 software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.



The TVM925 machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands)



TVM925 Part List

1) Pick and Place Machine TVM925: 1 set (Include Monitor, Mouse and Keyboard)

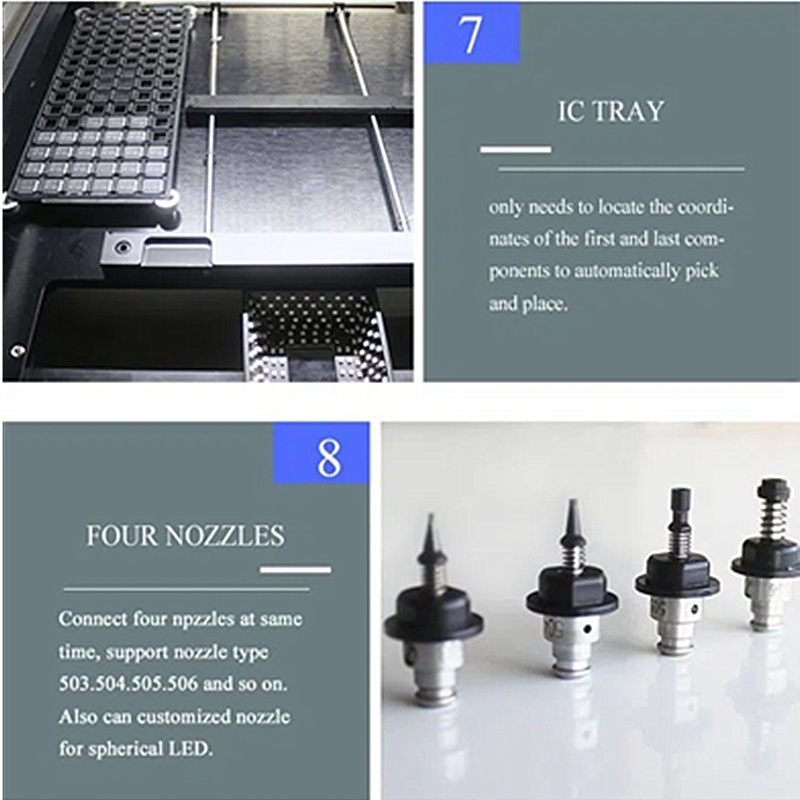

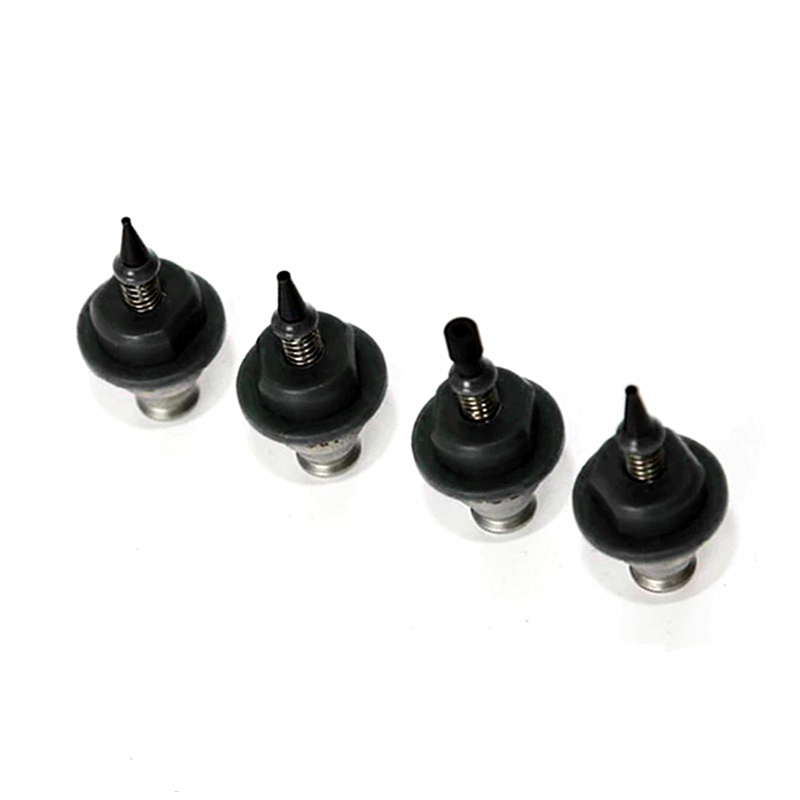

2) 4 types of nozzle: Total 6pcs (503type-2pcs,504type -2pcs,505type -1pcs,506type -1pcs)

3) Power cord: 1pc

4) Grease: 1pc

5) Test PCB: 1pc

6) M4 hex screwdriver: 1 set

7) M5 hex screwdriver: 1 set

8) IC Tray: 1pc

9) Computer screen: 1pc

10) Display screen bracket: 1 set

11) Keyboard drag: 1 set

12) Screw: several pcs

13) Handle: 2pcs

14) U disk: 1pc

15) User manual: 1pc

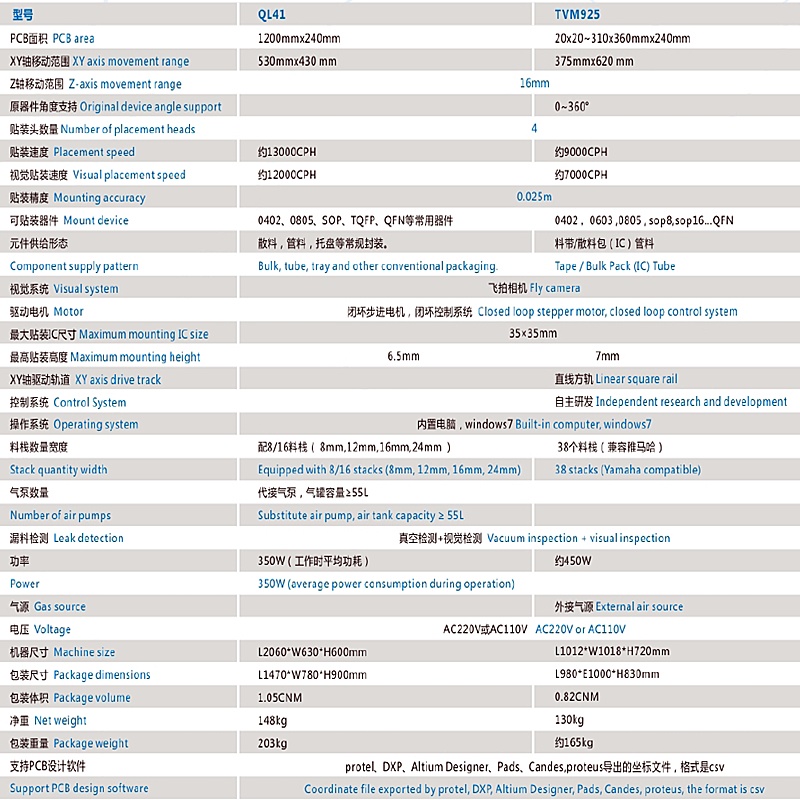

Specification

 Name

 TVM925

 Max applicable PCB

20*20mm~310*360mm

 Max XY Moving area

375*620mm

 Max Z Moving area

 16mm

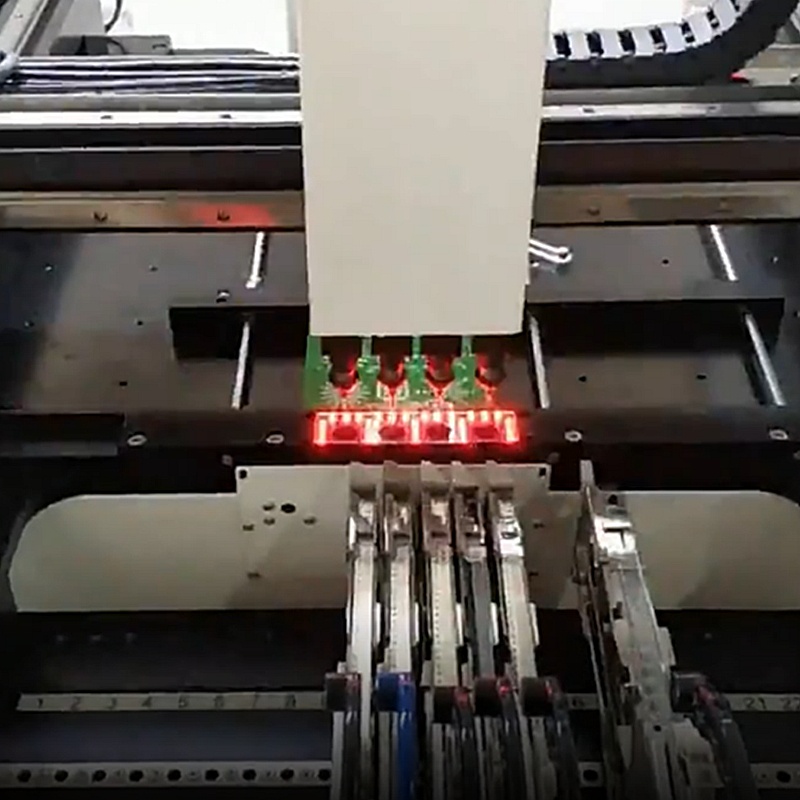

 Placement head quantity

 4

 Positioning accuracy

 0.025mm

 Max mounting capability

 9000 pcs/h

 Max capability with cision

 7000 pcs/h

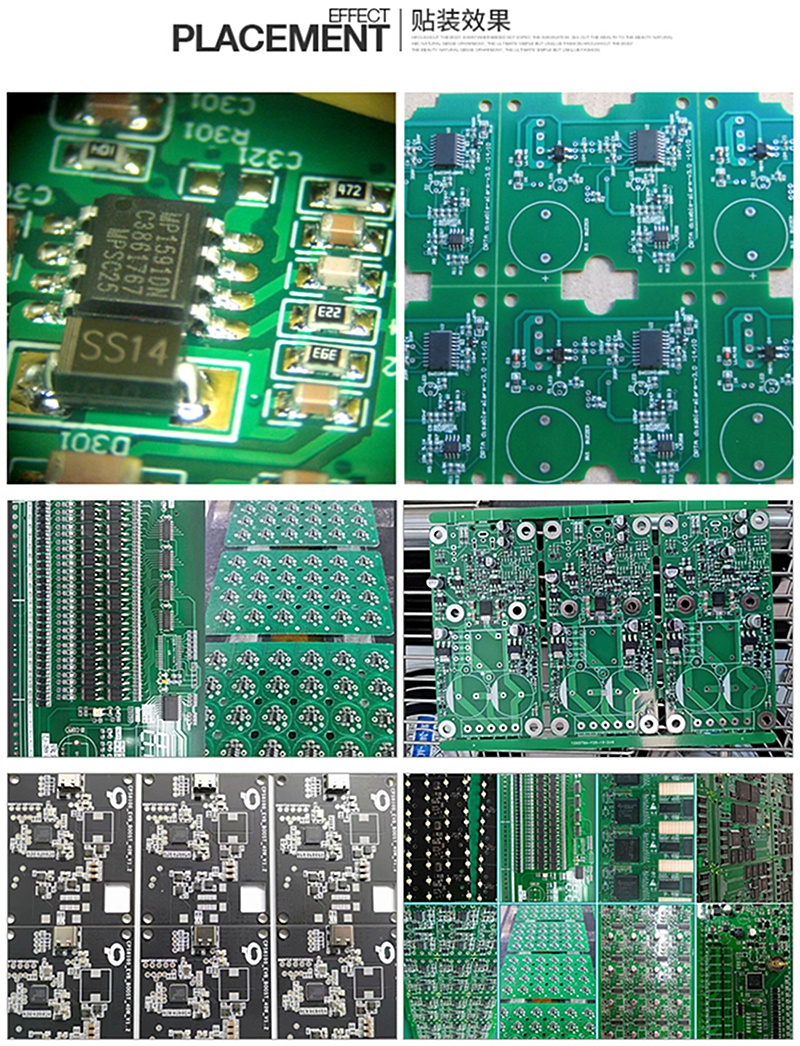

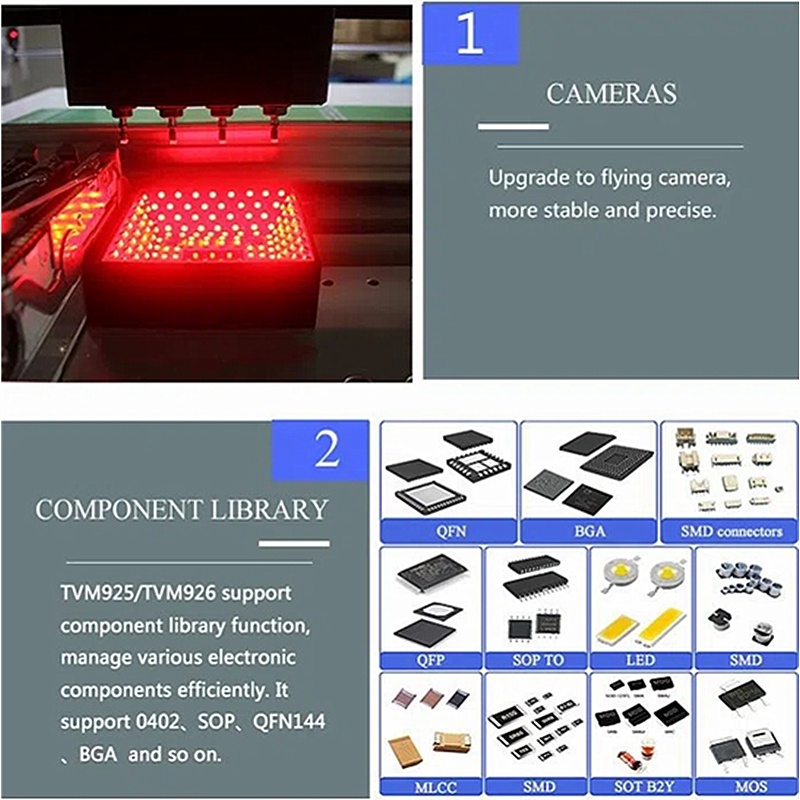

 Applicable Components

 0402–5050, SOP, TQFP, QFN ,BGA

 Components supply configuration

 Tape reel, Vibration, Tray

 Tape width

 8mm, 12mm, 16mm, 24mm

 Vibration feeders

 Max 8 Vibration feeders

 Tape reel feeders

 Max 38 feeders

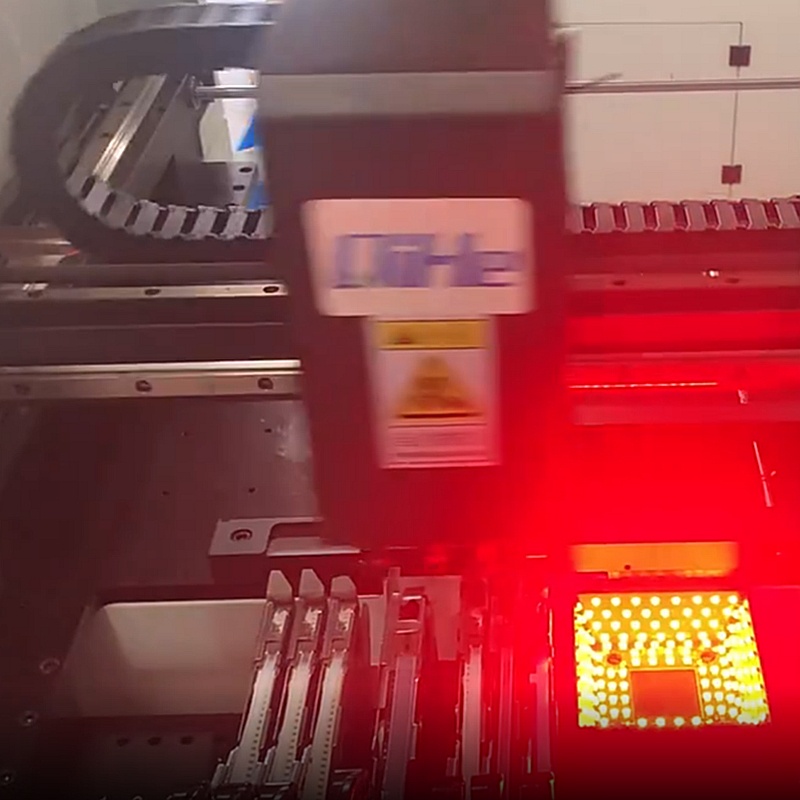

 Visual system

1 PCB inspection camera,1 Flying camera

 Down looking Visual system

Automatic identify the mark point

 UP looking Visual system

Automatic adjust the offset

 Air source

 External connection 0.6MP-0.8MP

 Power Supply

 AC220V / AC 110V

 Power

 350W

 Machine size

 L845*W865*H650mm

 Gross Weight

 170kg

 Net Weight

 130kg

 Volume

 0.82CBM

 Support PCB design software

 Protl99/Altium Designer/Eagle/Pads/proteus/Allege Ect
