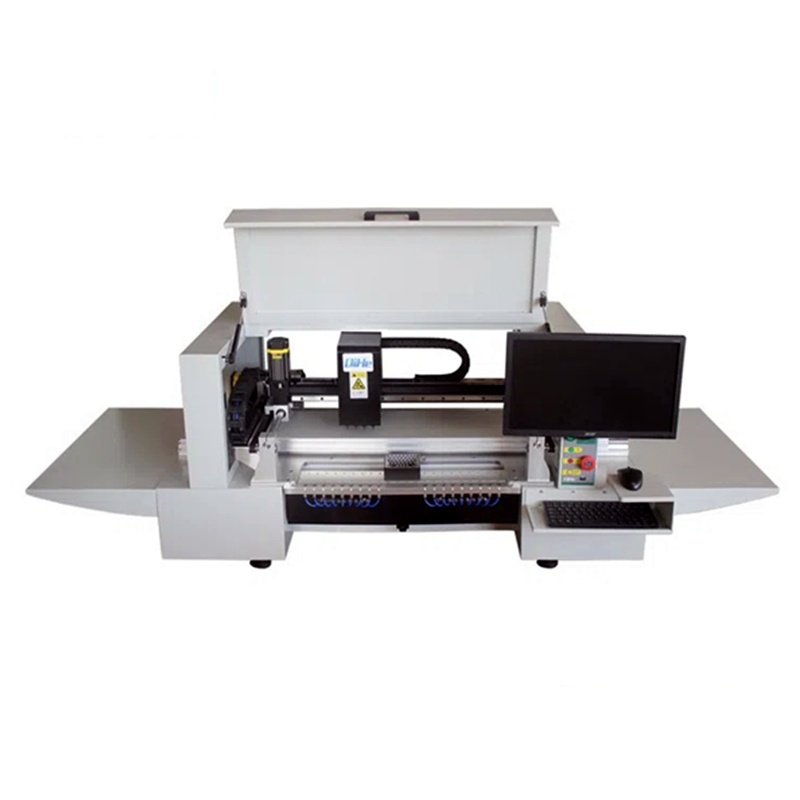

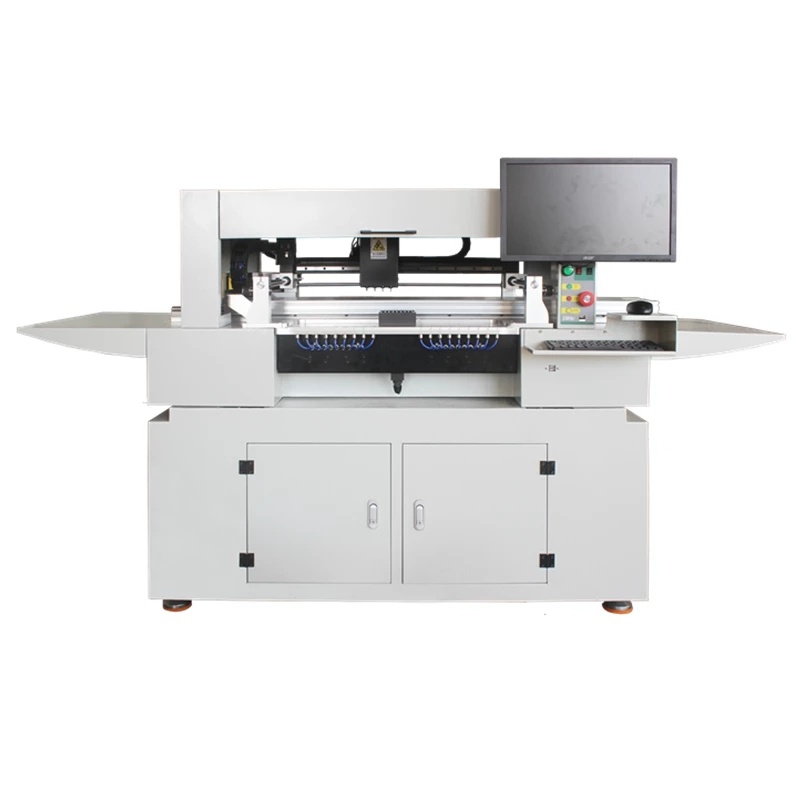

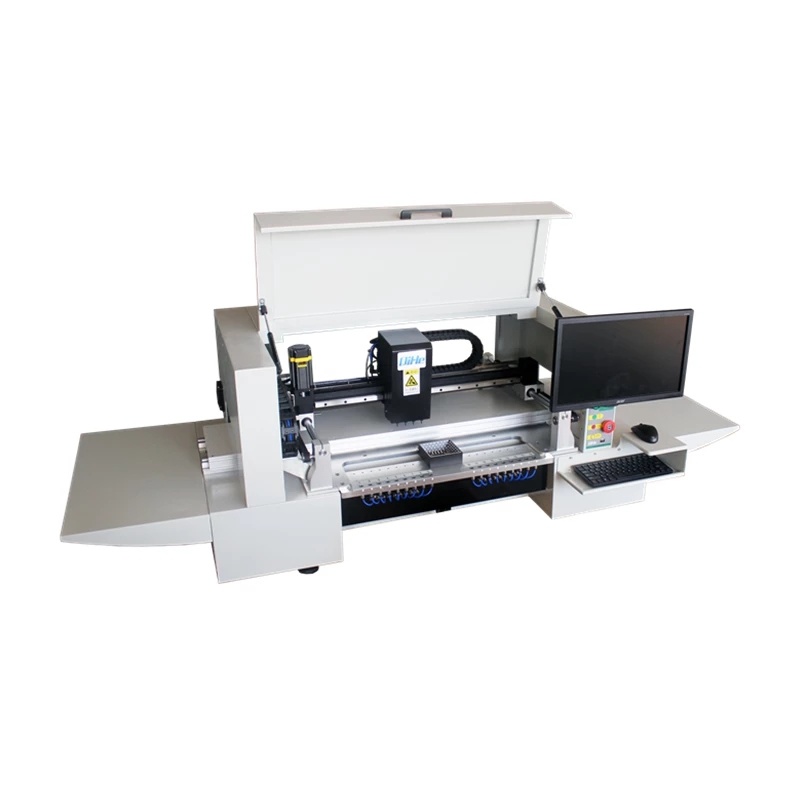

Full Automatic 4 headed Pick Place Machine With Cameras Visual system QL41 SMT Machine For LED Production Line BGA PCB Assembly Line

Full Automatic 4 headed Pick Place Machine With Cameras Visual system QL41 SMT Machine For LED Production Line BGA PCB Assembly Line

item ID: 65862
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$17000 USD$10072 (% off)
Payment

Product Detail

Product Tags

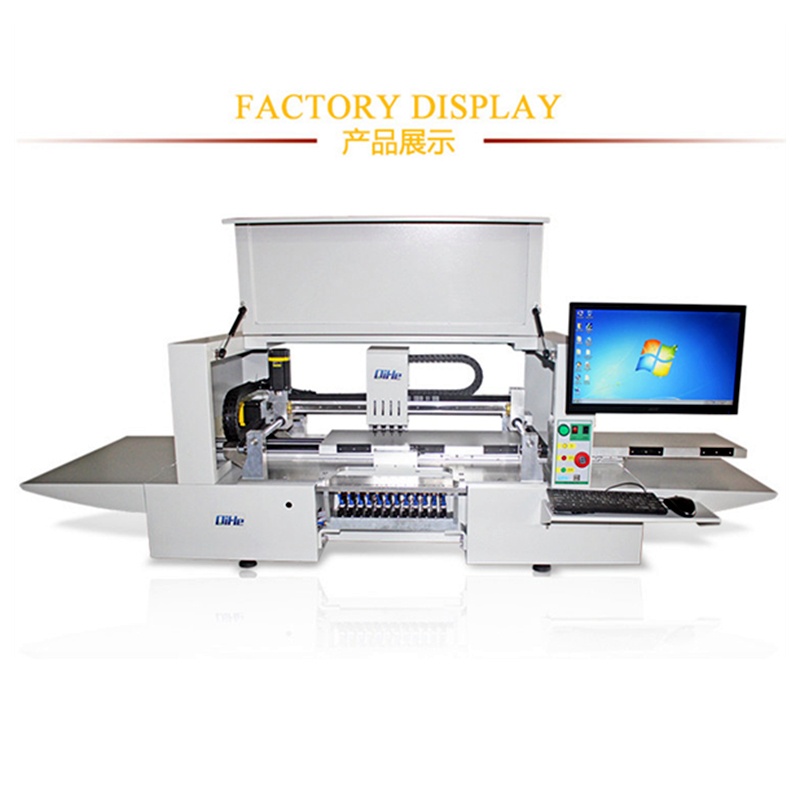

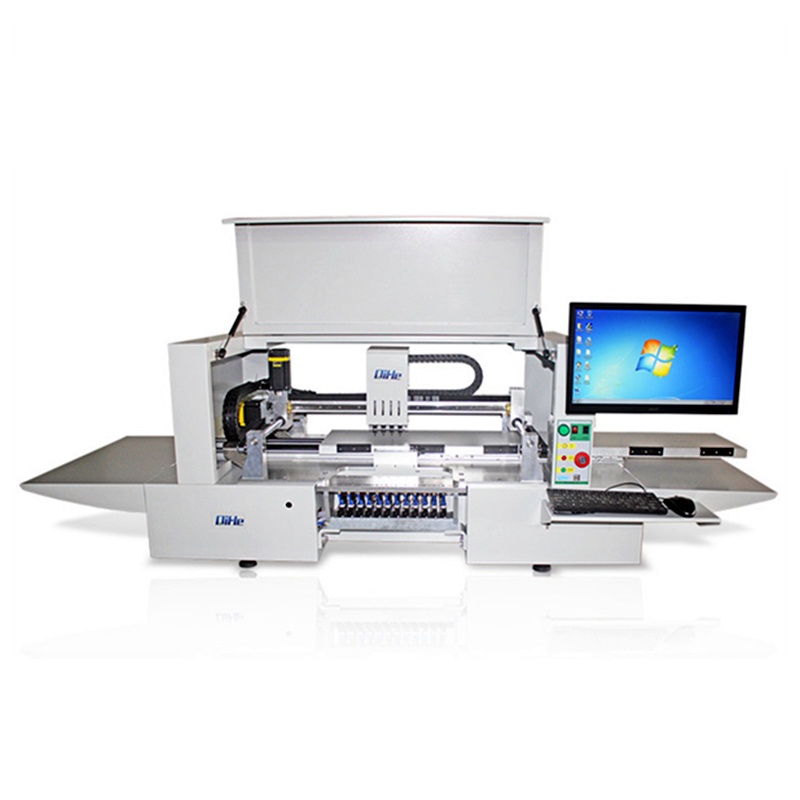

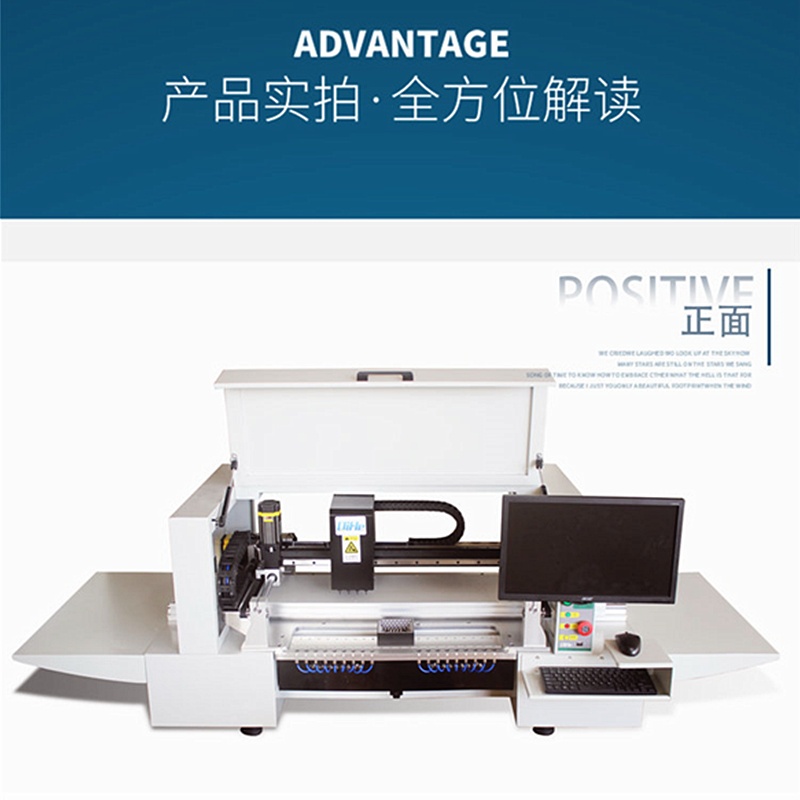

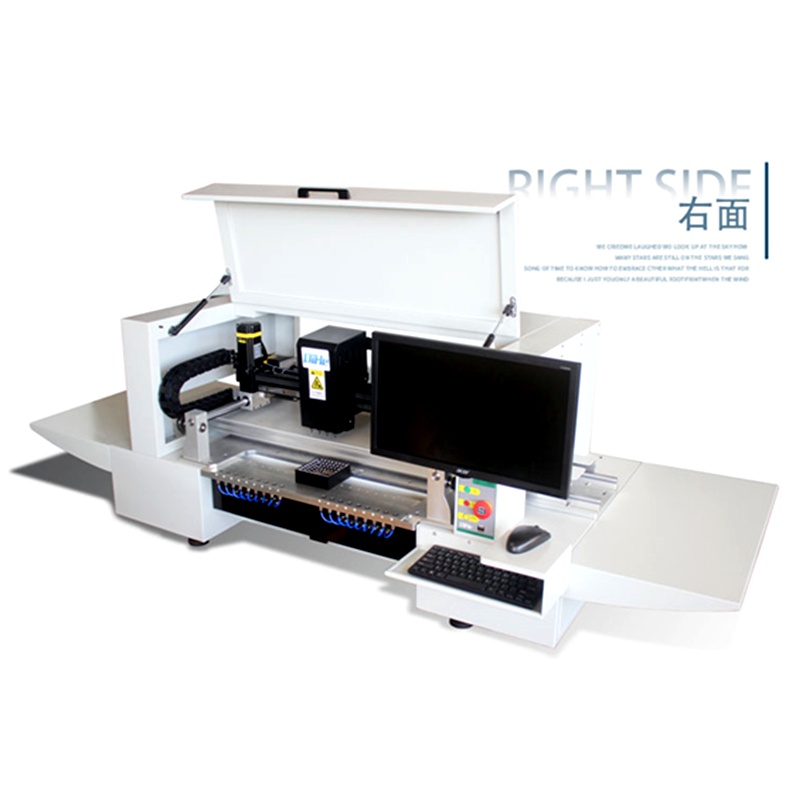

Full Automatic 4 headed Pick Place Machine With Cameras Visual system QL41 SMT Machine For LED Production Line BGA PCB Assembly Line

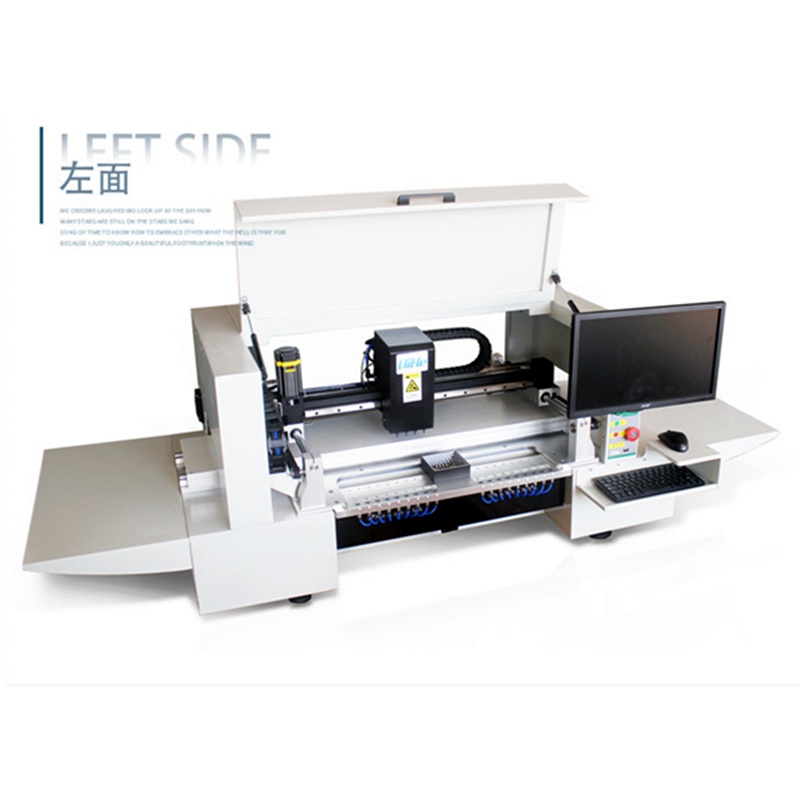

QL41 Intrduction:

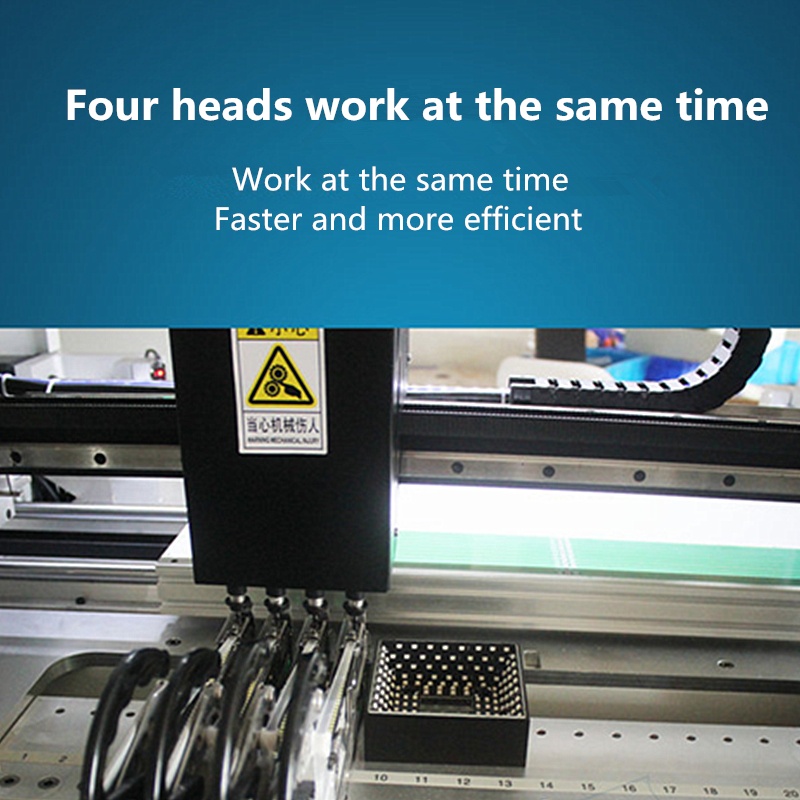

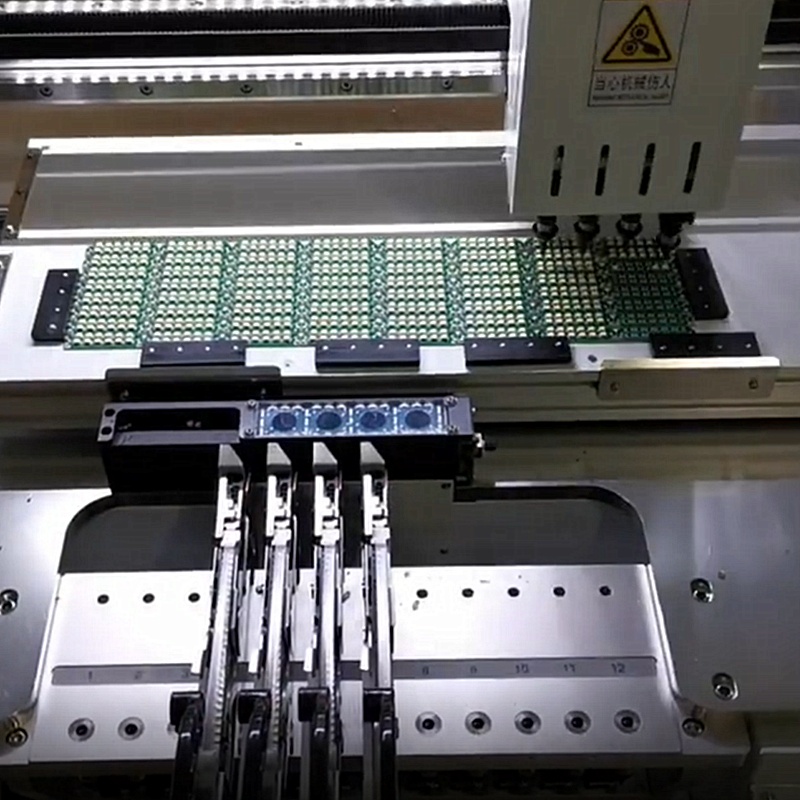

QL41 has 4 mounting heads , can pick 4 materials and pass the vision at the same time.

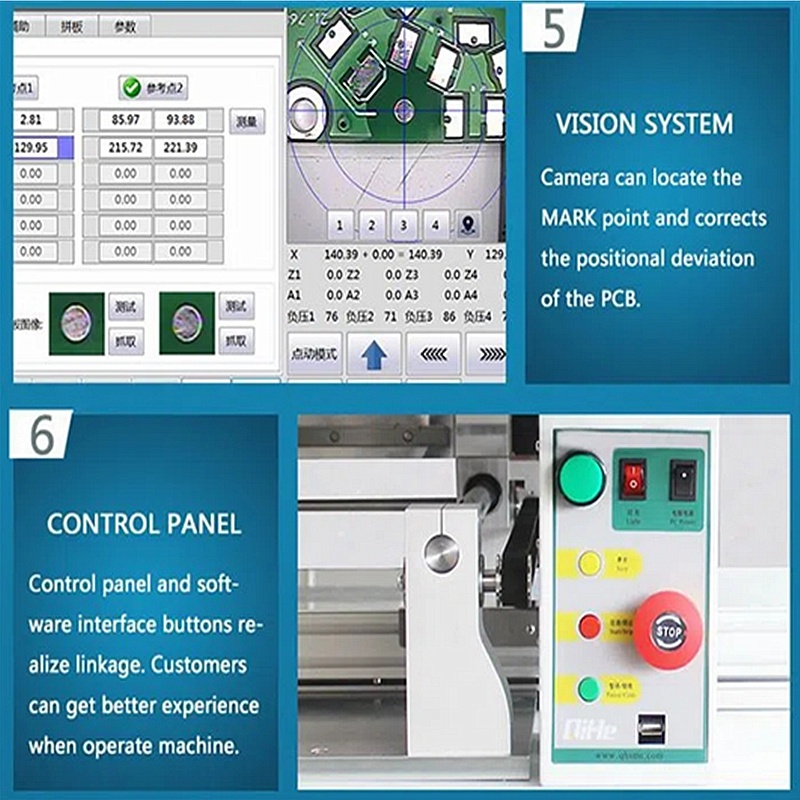

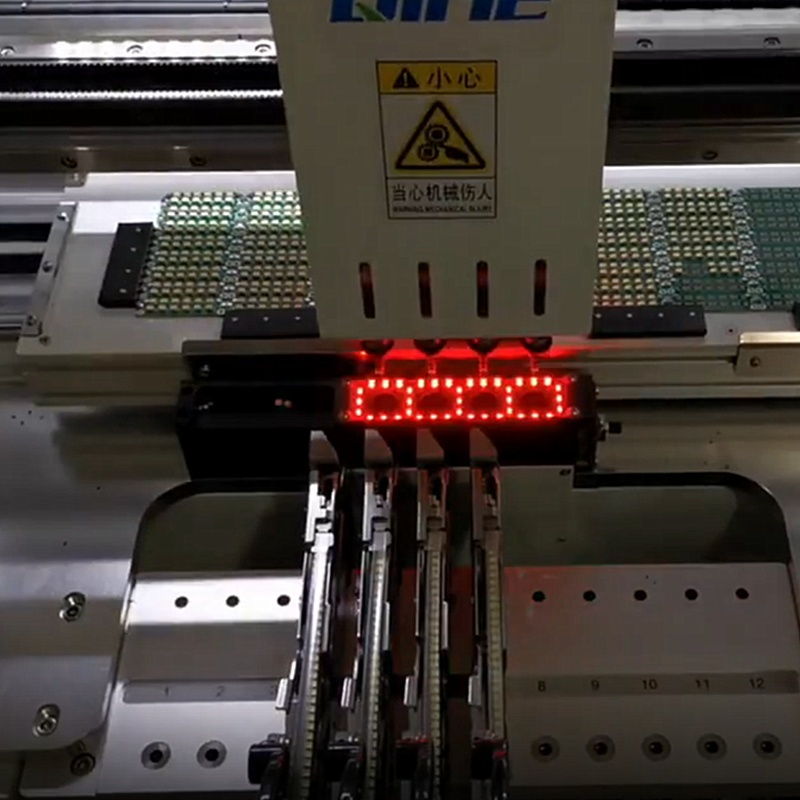

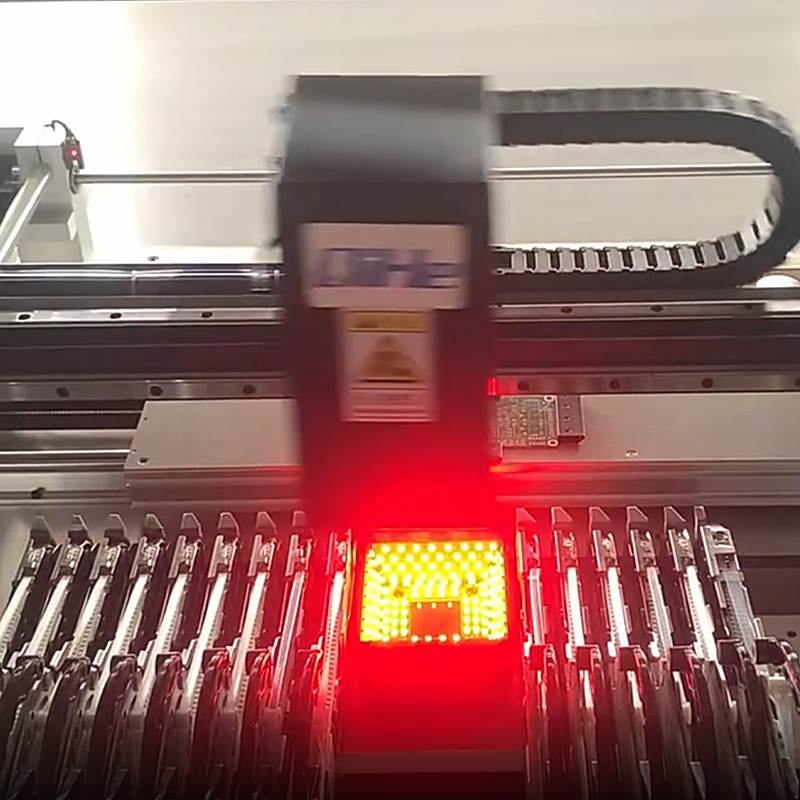

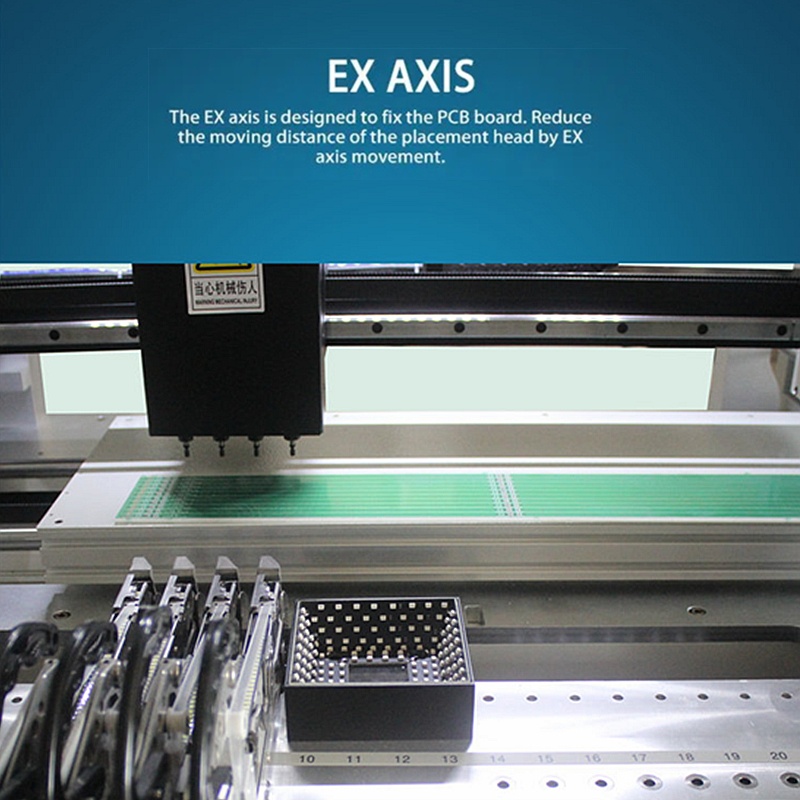

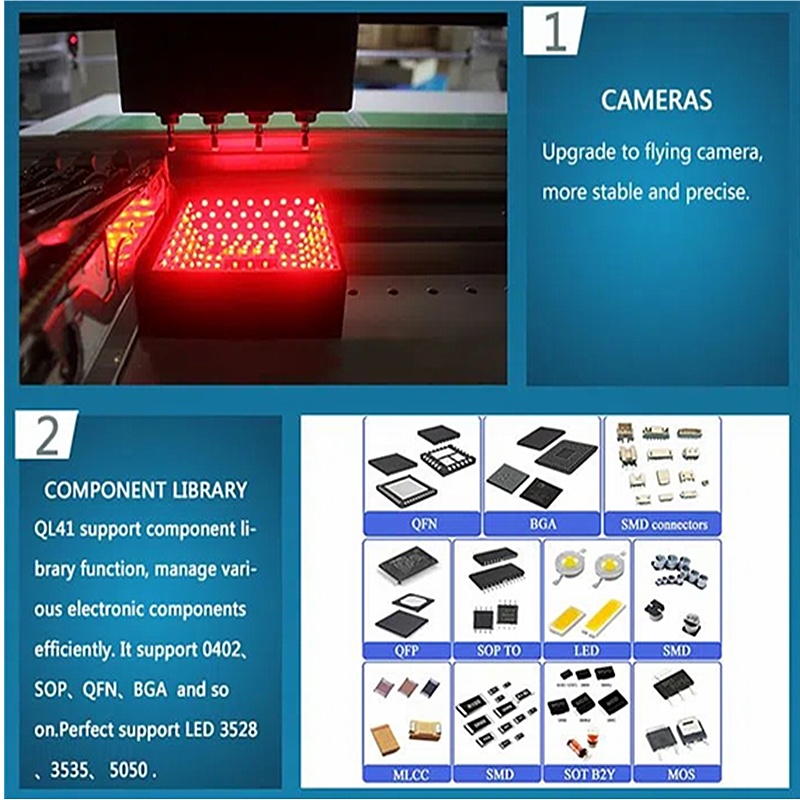

QL41 has 1 Flying cameras. 4 up-looking cameras correspond to 4 nozzles, Used to correct angular deviation and positional deviation. One down-looking camera used to detect circuit board placement. The EX-axis is designed to lay up the circuit board. In the process of mounting, the ex axis moves, driving the circuit board to move, so that the shortest mount distance.

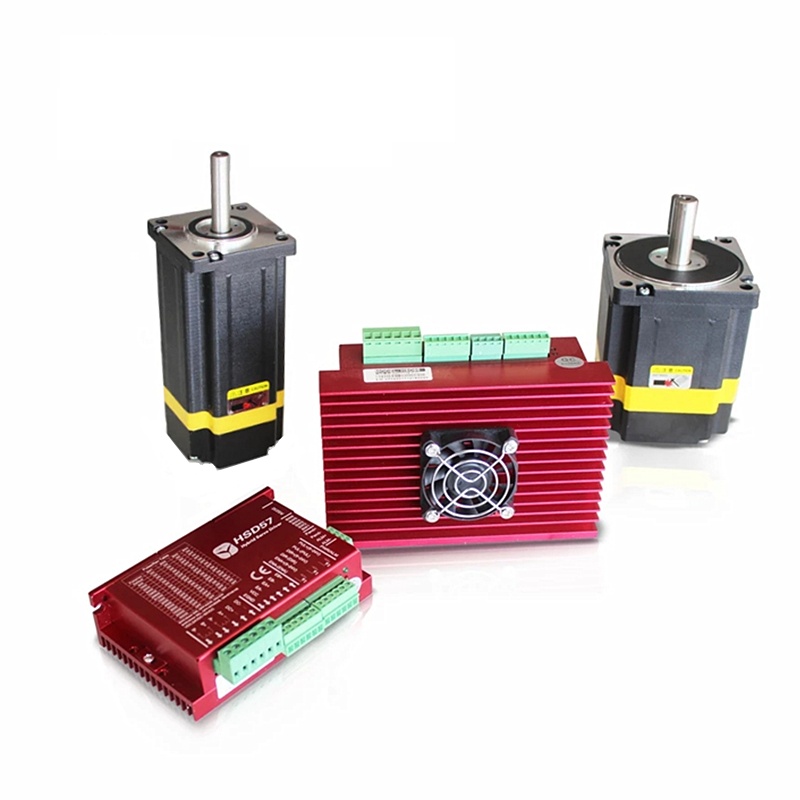

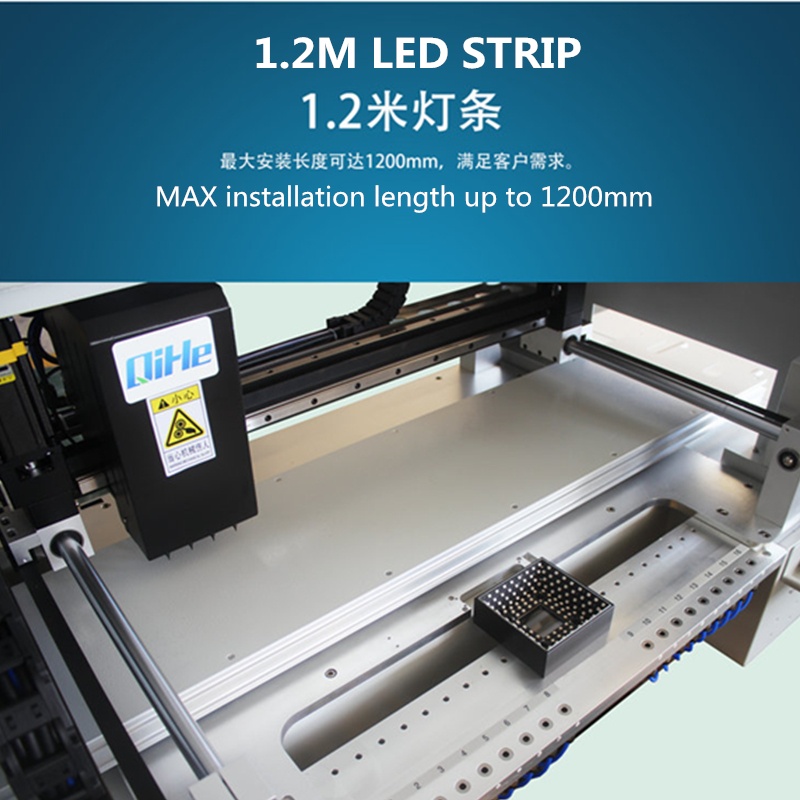

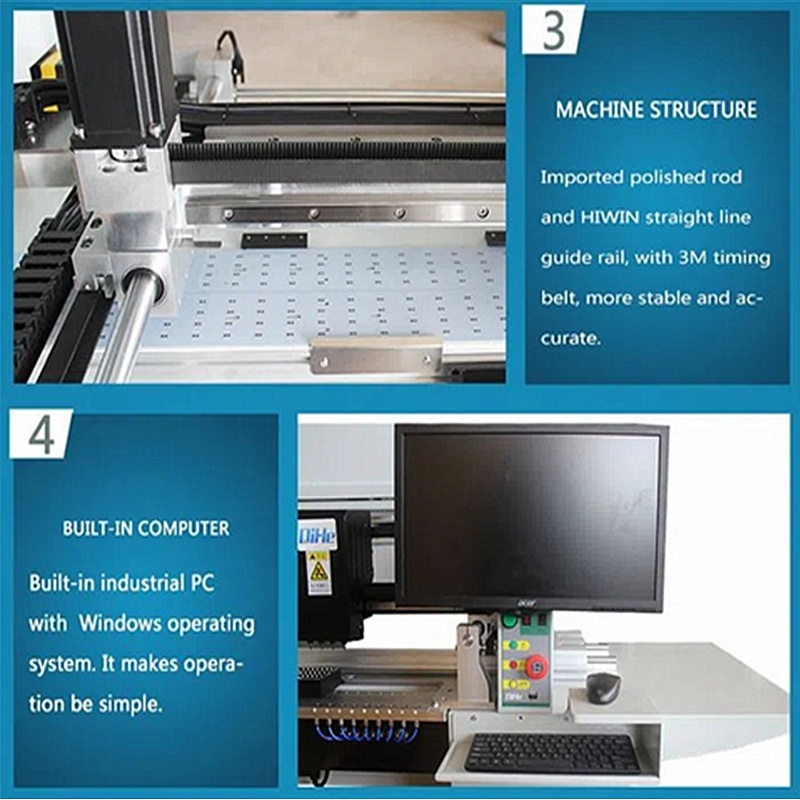

QL41 can mount 1.2m PCB. Design of slide block and belt structure of guideway, More stable performance and smoother operation. High-voltage dosed-bop motor design, automatic detection and correction of lost step.



The QL41 software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.



The QL41 machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands)



QL41 Part List:

1) Pick and Place Machine QL41: 1 set

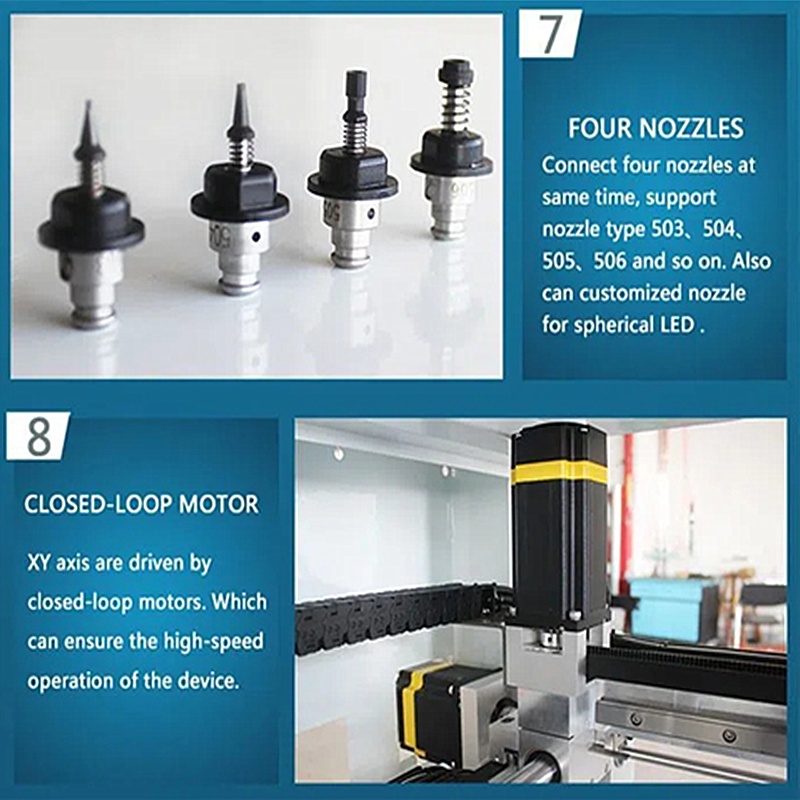

2) 3 types of nozzle: Total 6pcs (503type-2pcs,504type -2pcs,505type -2pcs)

3) Power cord: 1pcs

4) Grease: 1pc

5) M5 hex screwdriver: 1 set

6) M4 hex screwdriver: 1 set

7) Computer screen: 1pc

8) Display screen bracket: 1 set

9) Mouse: 1pc

10) Keyboard: 1pc

11) Keyboard drag: 1 set

12) Screw: several

13) Handle: 1pcs

14) User manual: 1pc

15) Magnet: 5pcs

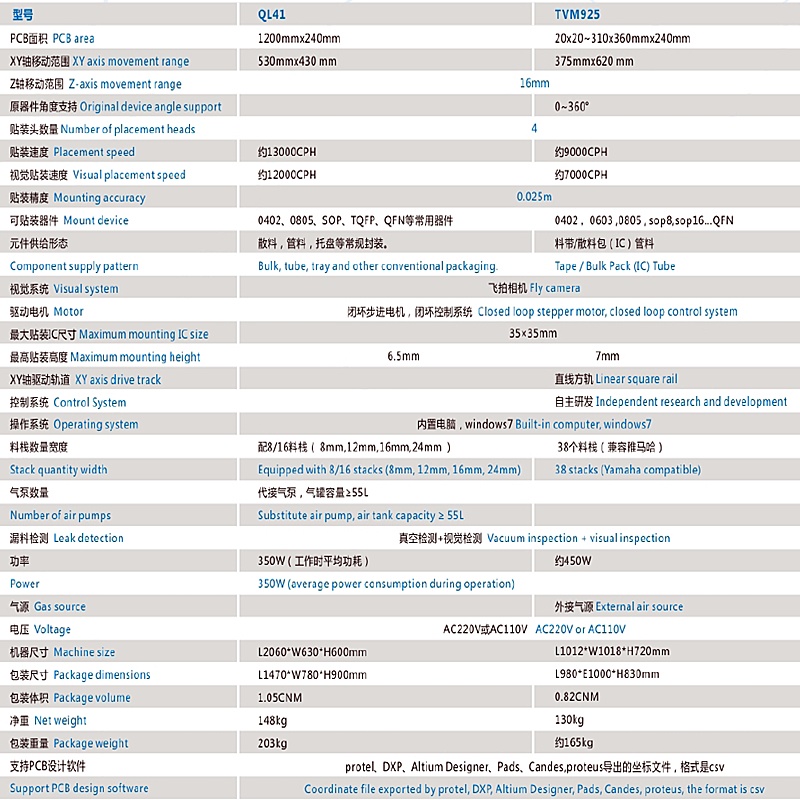

Specification

Model

QL41

Max applicable PCB

1200*240mm

Max XY Moving area

530*430mm

Max Z Moving area

15mm

Placement head quantity

4

Positioning accuracy

0.025mm

Max mounting capability

12000pcs/h Without vision/ 8000pcs/h With vision

Applicable components

0402,0603,0805,sop8,sop16…QFN

Components supply

Tape reel, bulk package(IC)tubes

Motor control scheme

Stepping Motor, Closed – loop Control system

Tape width

8mm, 12mm, 16mm, 24mm

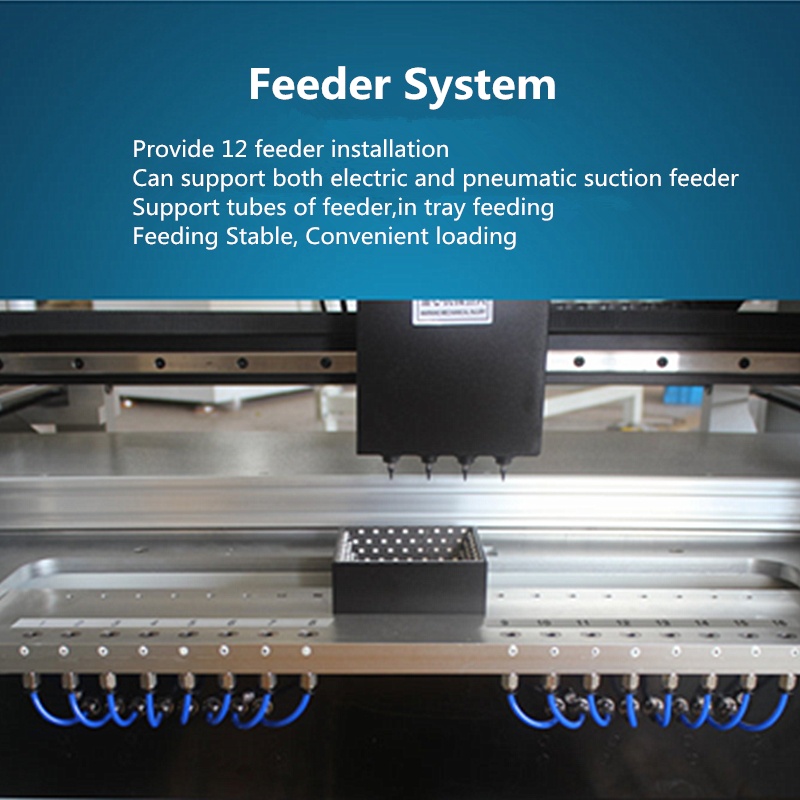

Feeders

12 (YAMAHA Feeder is available)

Machine dimension

L1340xW660xH600mm

Visual camera

1 Flying Camera

Visual camera(down)

Automatic identify the mark point

Visual camera(up)

Automatic adjust the offset

Vacuum pump quality

External air pump

Power supply

AC220V/AC110V

Average working Power

350W

Net weight

131KG

Packing size

0.95CBM
