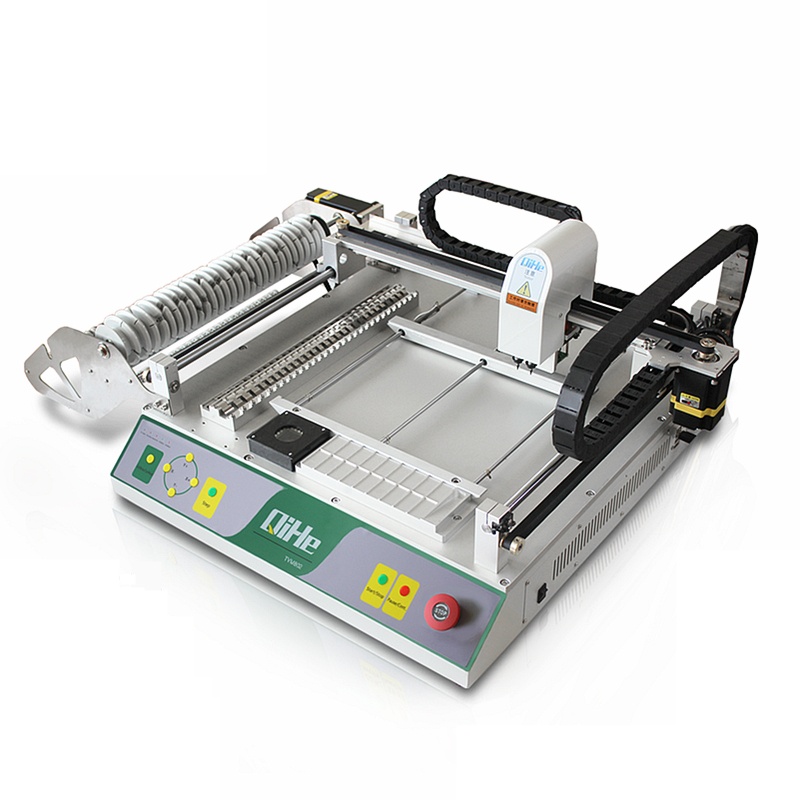

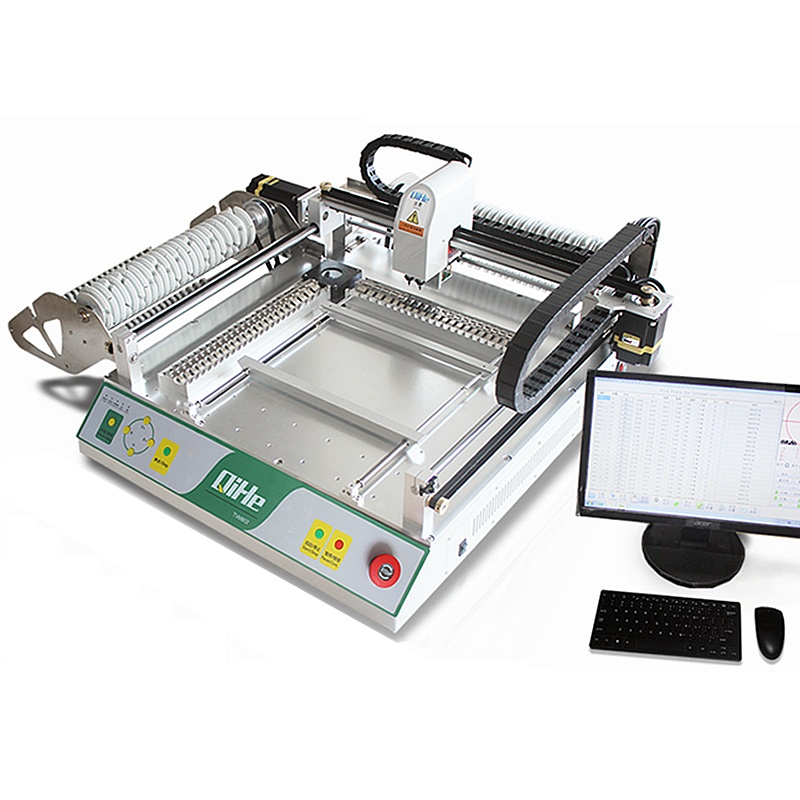

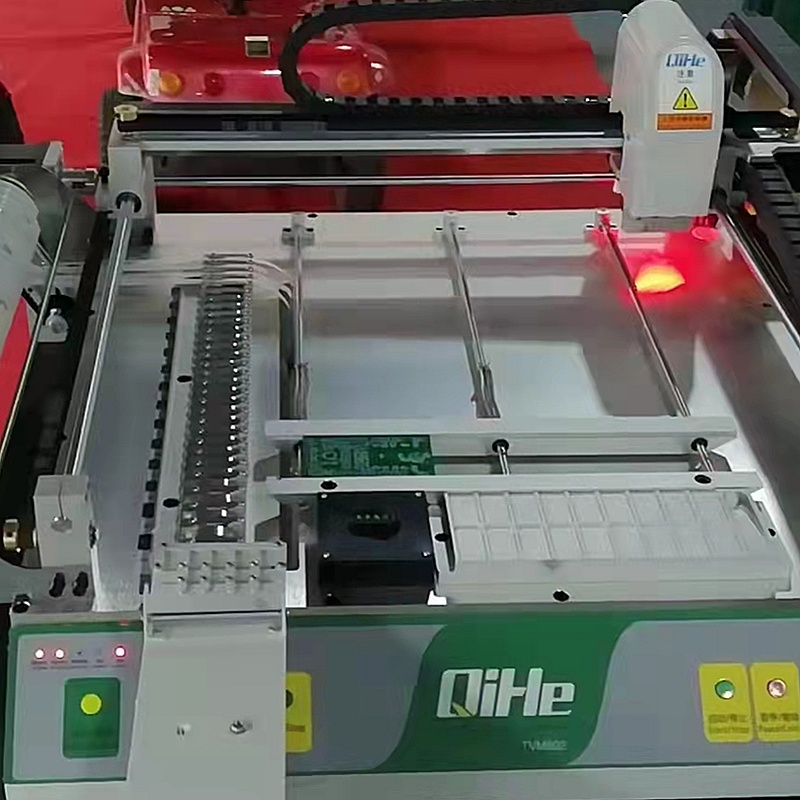

Full Automatic double-headed Pick Place Machine With 2 Cameras Visual system TVM802 SMT Machine For LED Production Line Small PCB Assembly Line

Full Automatic double-headed Pick Place Machine With 2 Cameras Visual system TVM802 SMT Machine For LED Production Line Small PCB Assembly Line

item ID: 65810
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$7000 USD$4077 (% off)
Payment

Product Detail

Product Tags

Full Automatic double-headed Pick Place Machine With 2 Cameras Visual system TVM802 SMT Machine For LED Production Line Small PCB Assembly Line

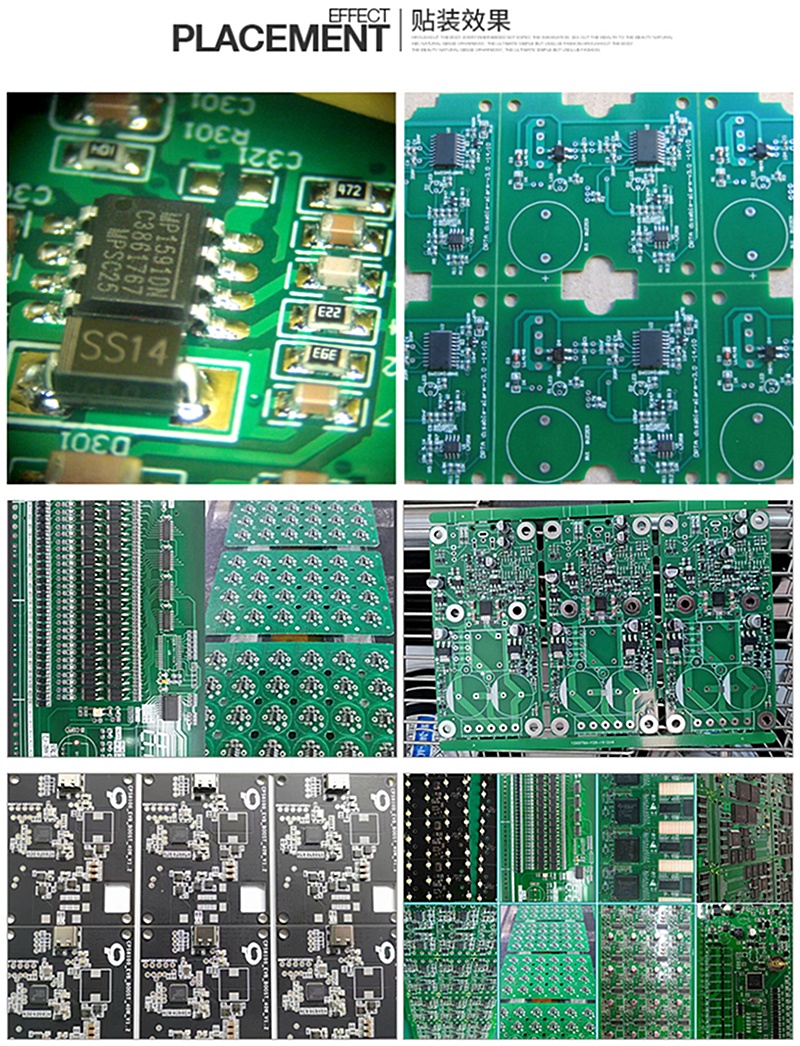

TVM802 With Visual SMT Machine For LED PCB BGA Production Line

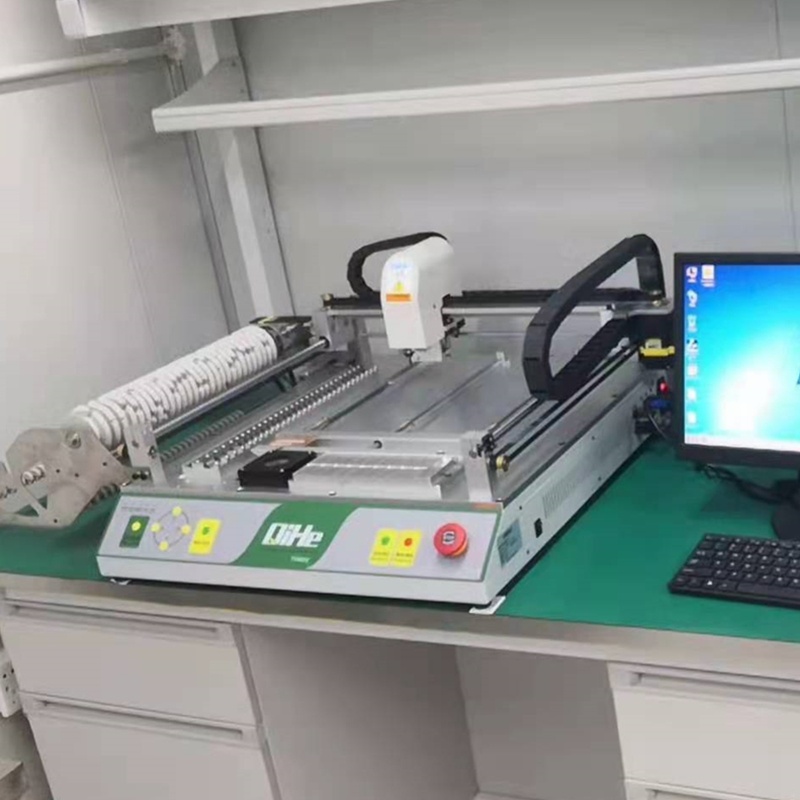

Note: This link not include computer, you can directly use your own computer with windows7 system

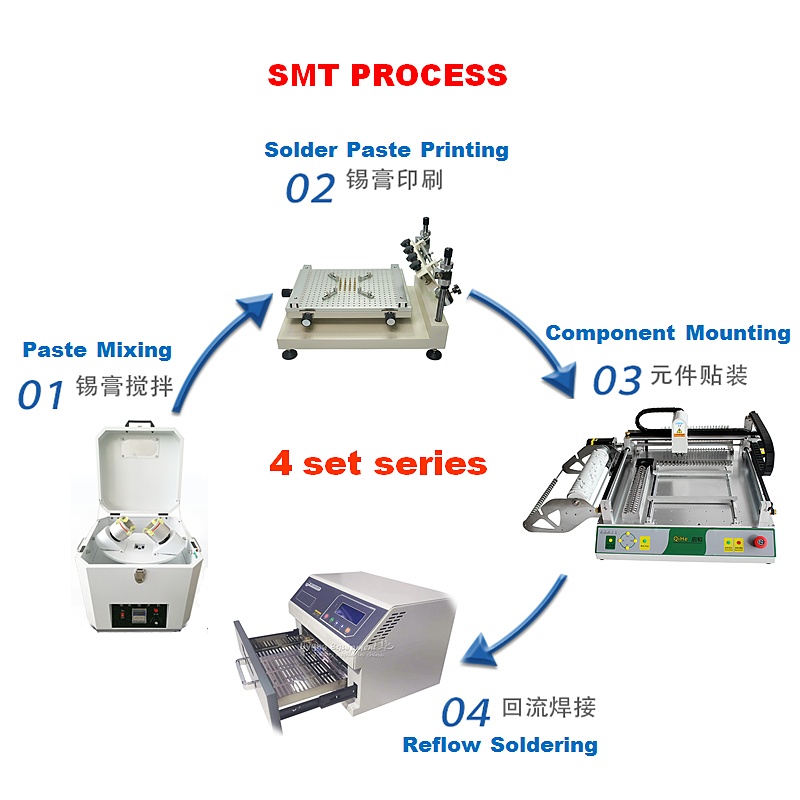

QIHE Small SMT production line

1.1 Equipment Introduction

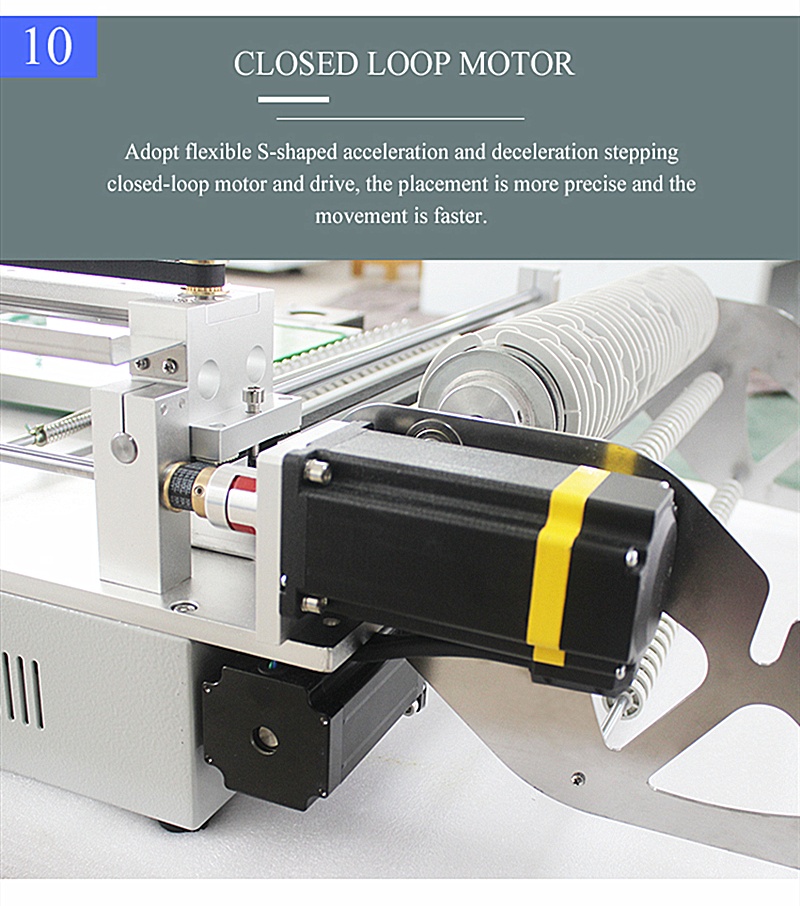

While the first generation of type TVM802 and the second generation of type TVM802A, TVM802B equipment makes great achievements, our research team aims to develop faster and more precise products, now promotes the third generation of type TVM803 equipment, which is built-in industrial computer, 80Vhigh voltage drive and S acceleration curve control . The equipment is the first of its kind in the domestic market and takes the absolute leading position in the same industry.



1.2 Hardware Features

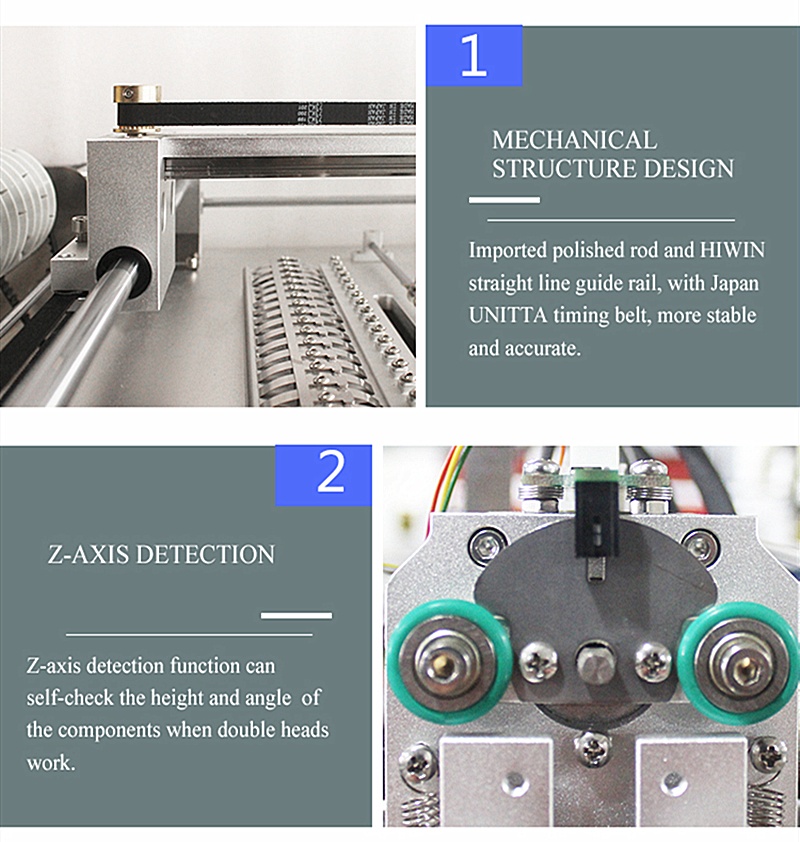

The boundary dimension of TVM802A /TVM802AX is 875mm*640mm*310mm, TVM802B /TVM802BX size is 875mm*940mm*310mm. It mainly consists of a work head, top and bottom visual systems, work table, feeder etc. Power supply AC220 or AC110V, Power should be 150W.



1.3 Software Features

The software is independently developed by our company, with independent intellectual property rights, have Chinese and English interface, and easy operation.

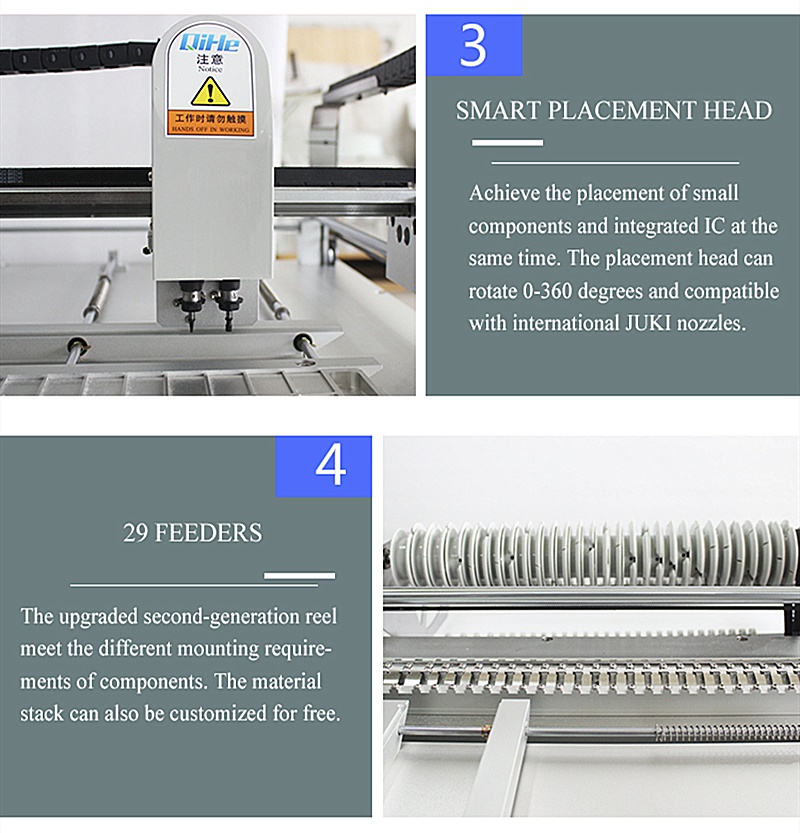

1.4 Nozzle Specification

This equipment is designed into double-head design, every suction heads are equipped with different types of nozzles is universal JUKI nozzle. There are No. 1, No. 2, No.3 , No. 4 nozzles available. Under normal condition, No. 1 suction nozzle is the smallest, while the No. 4 suction nozzle is the biggest.

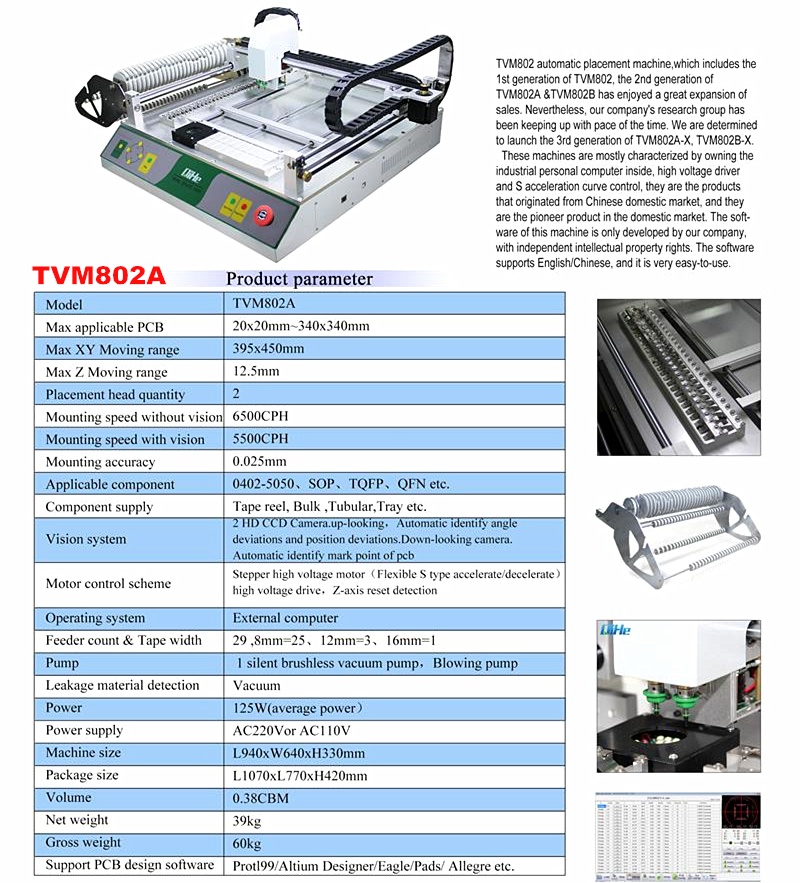

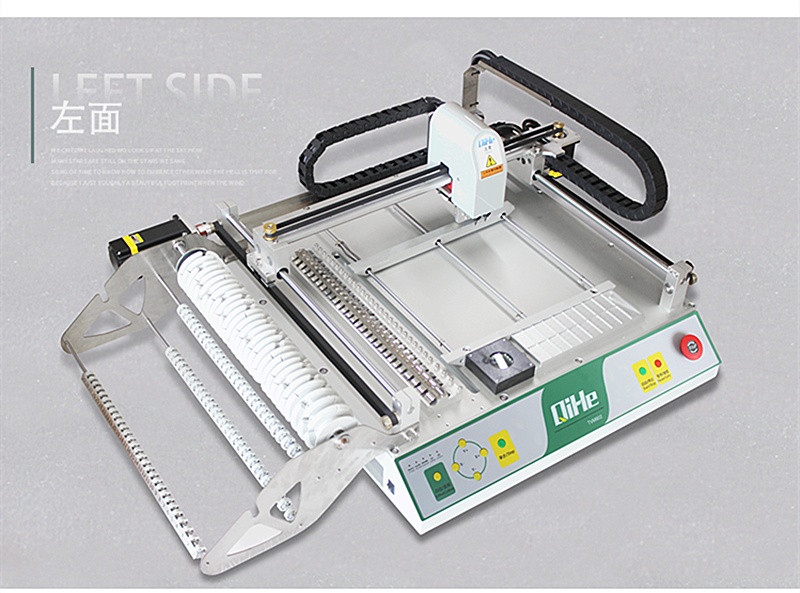

TVM802A Intrduction

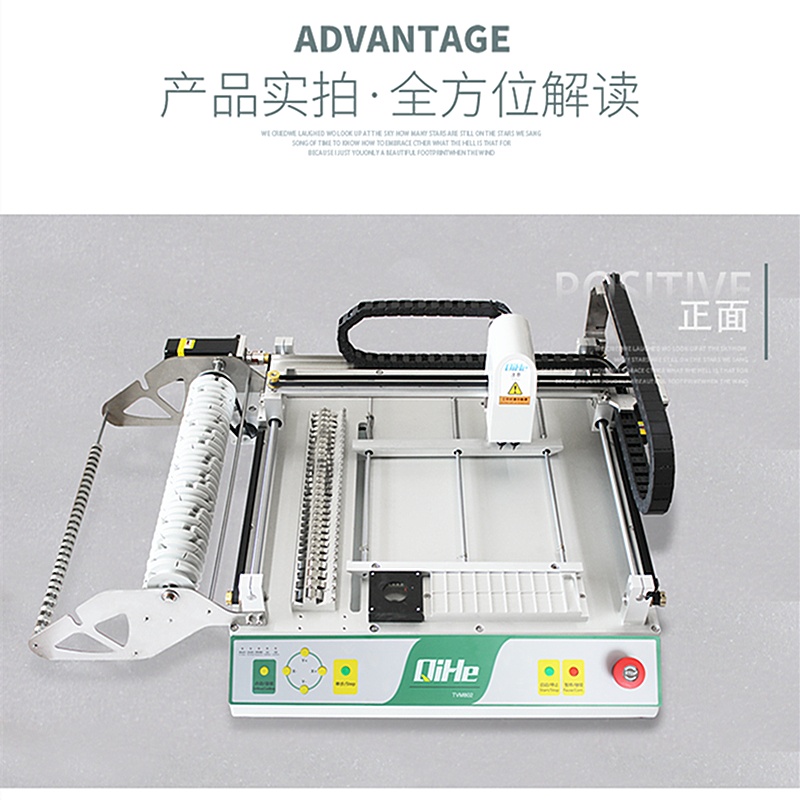

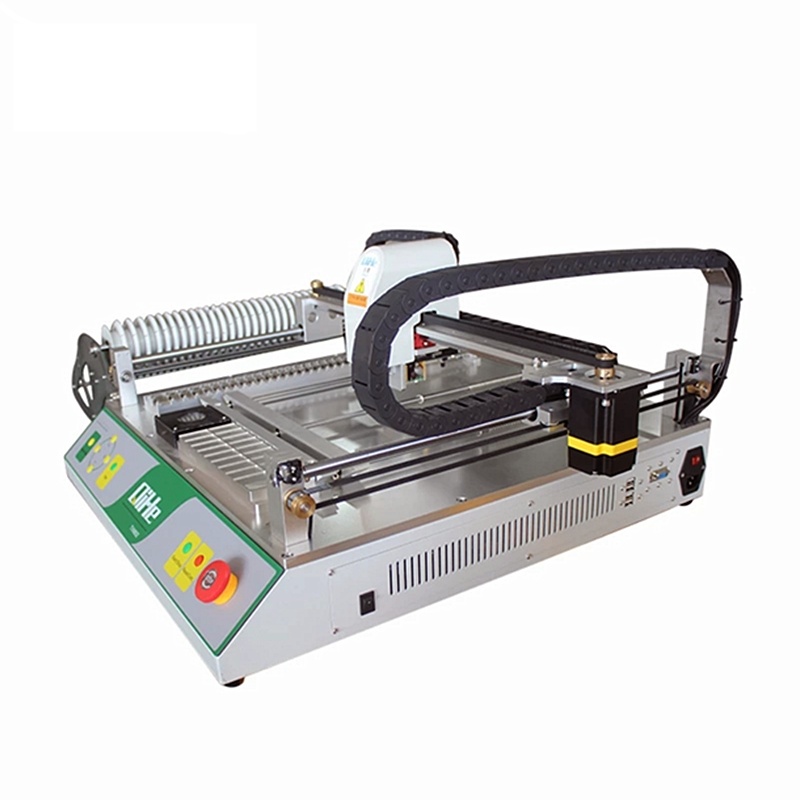

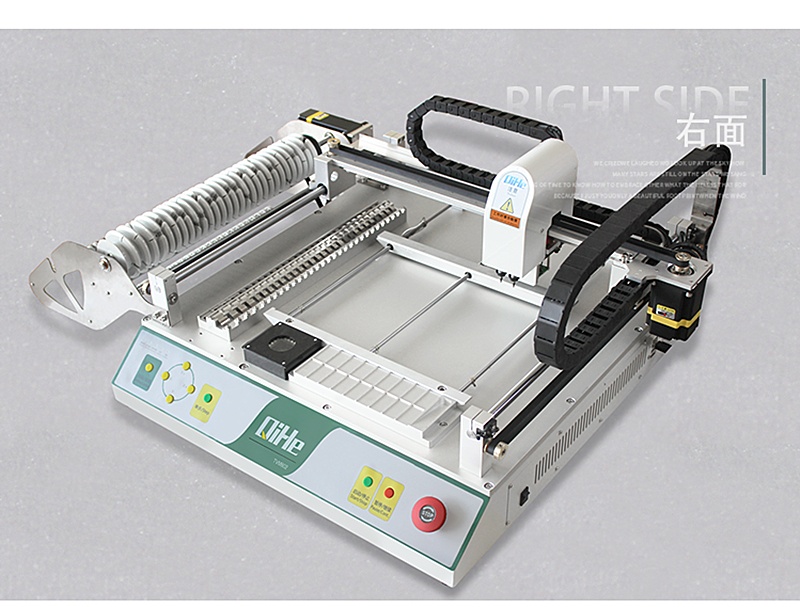

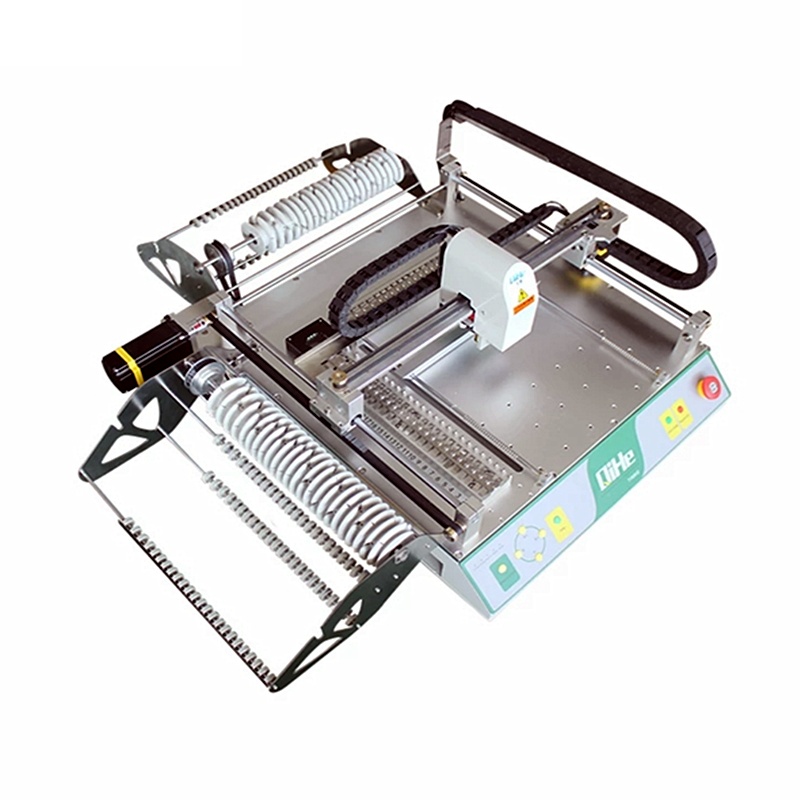

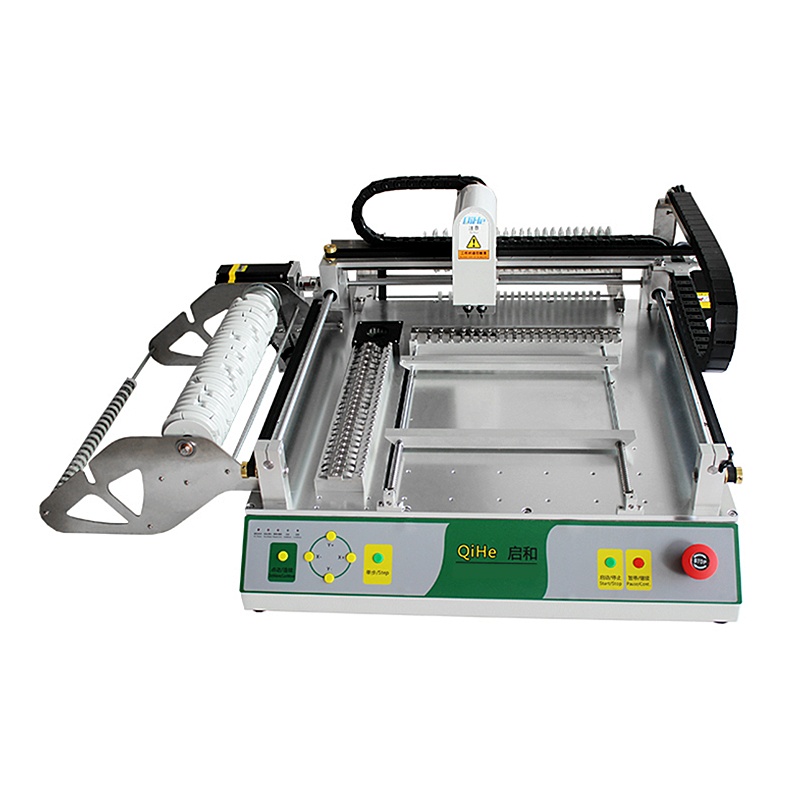

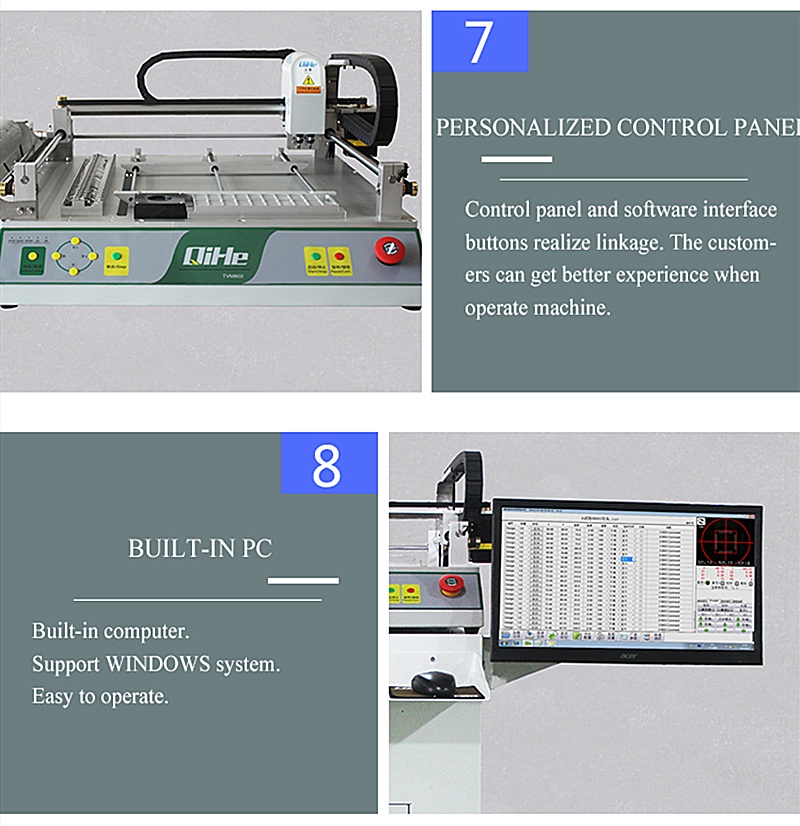

TVM802A automatic visual pick and place machine has upper and bottom visual system, can automatic to locate and identify the PCB and the center of components.



TVM802A Feature

1. intelligent double vision

2. 29pcs standard reel feeders

3. upgrade HIWIN square slide rails

4. newly second-generation roll feeder



The TVM802 software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.



The TVM802 machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.

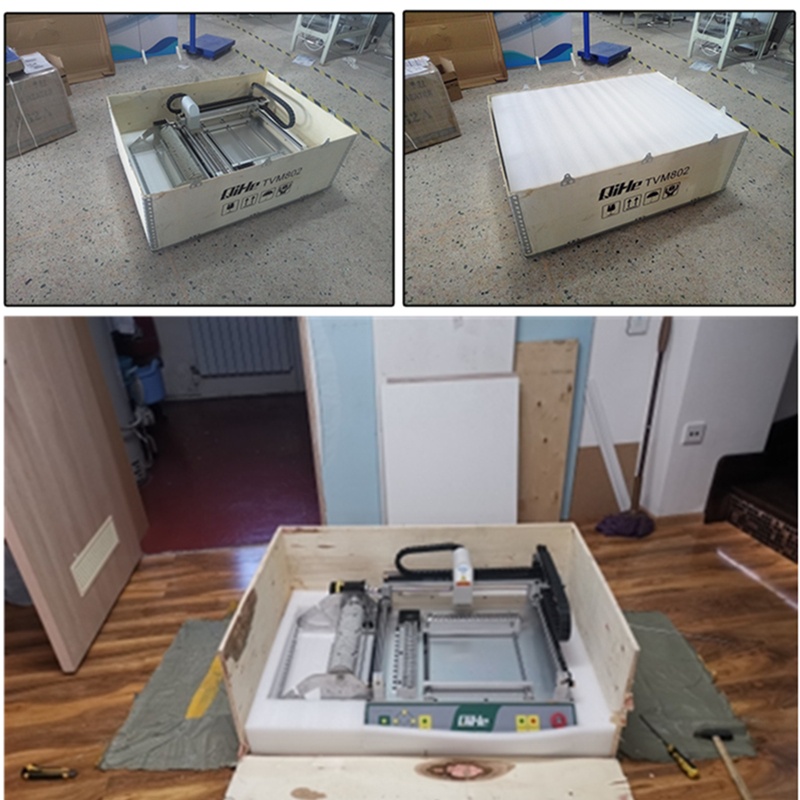

TVM802A Packing List:

1) Pick And Place Machine TVM802A: 1 Set (110V/220V)(Need to prepare external PC by yourself)

2) 4 Types Of Nozzle: Totally 4pcs  (Version: No.1-1pc, No.2-1pc, No.3-1pc, No.4-1pc)

3) Power Cord: 1pc

4) Network Wire: 1pc

5) USB Wire (Video Cable) : 1pc

6) Magnetic Needle: 1pc

7) 2.0mm Hex Screwdriver: 1 Set

8) Grease: 1pc

9) 4G USB flash drive: 1 Set

10) User Manual: 1pc

11) Test PCB: 1pc

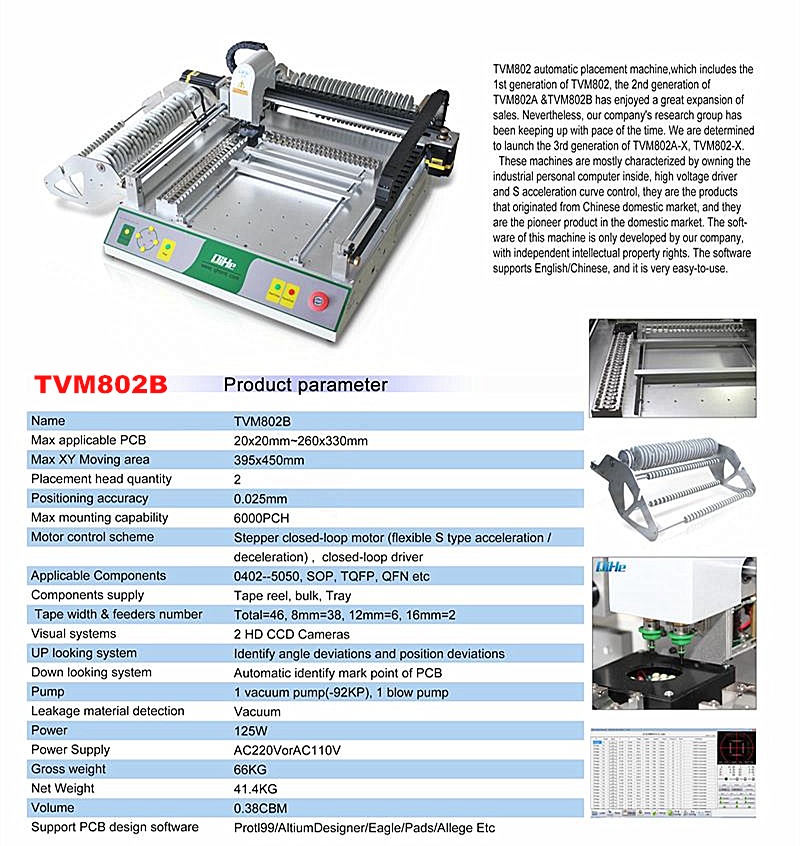

TVM802B Intrduction

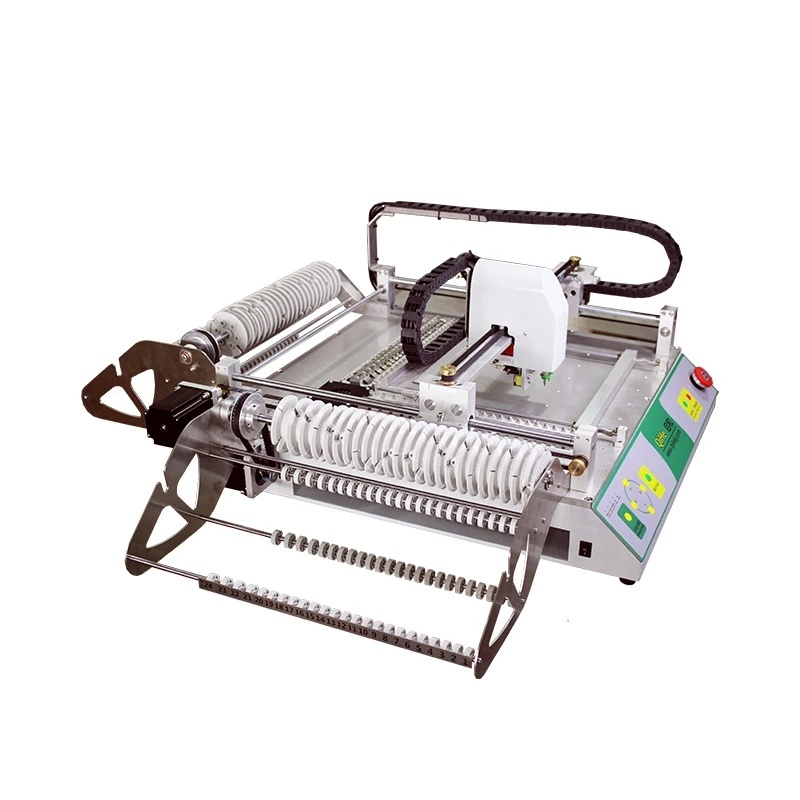

TVM802B improve on the basic of TVM802A, meet the need of more reel feeders. With high performance and high dependabillty.



TVM802B Feature

1. intelligent double vision

2. 46pcs standard reel feeders

3. upgrade HIWIN square slide rails

4. newly second-generation roll feeder



TVM802B packing list:

1) Pick and Place Machine TVM802B: 1 set (110V/220V)(Need to prepare external PC by yourself)

2) 4 types of nozzle: Total 4pcs (No.1-1pc,No.2-1pc,No.3-1pc,No.4-1pc)

3) Power cord: 1pc

4) Network wire: 1pc

5) USB wire (video cable): 1pc

6) Magnetic Needle: 2pc

7) 2.0mm hex screwdriver: 1 set

8) 4.0mm hex spanner: 1pc

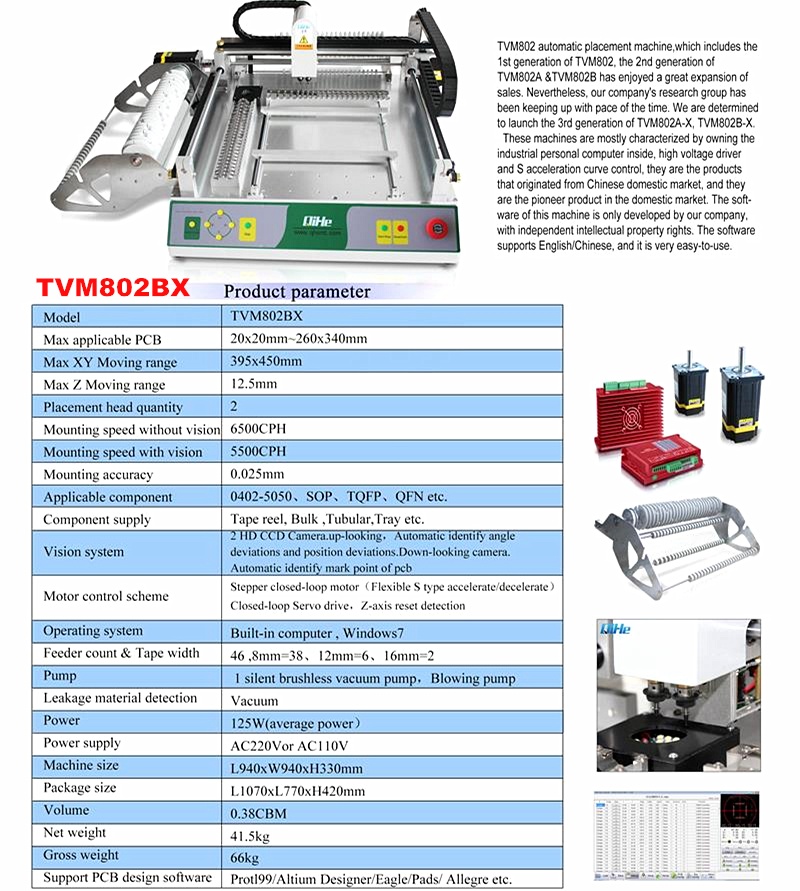

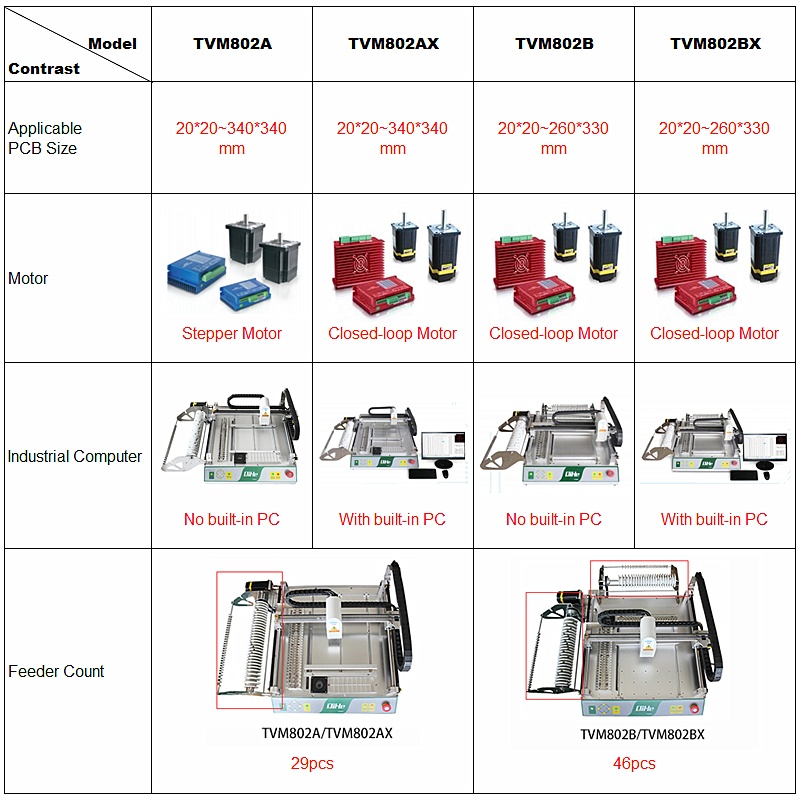

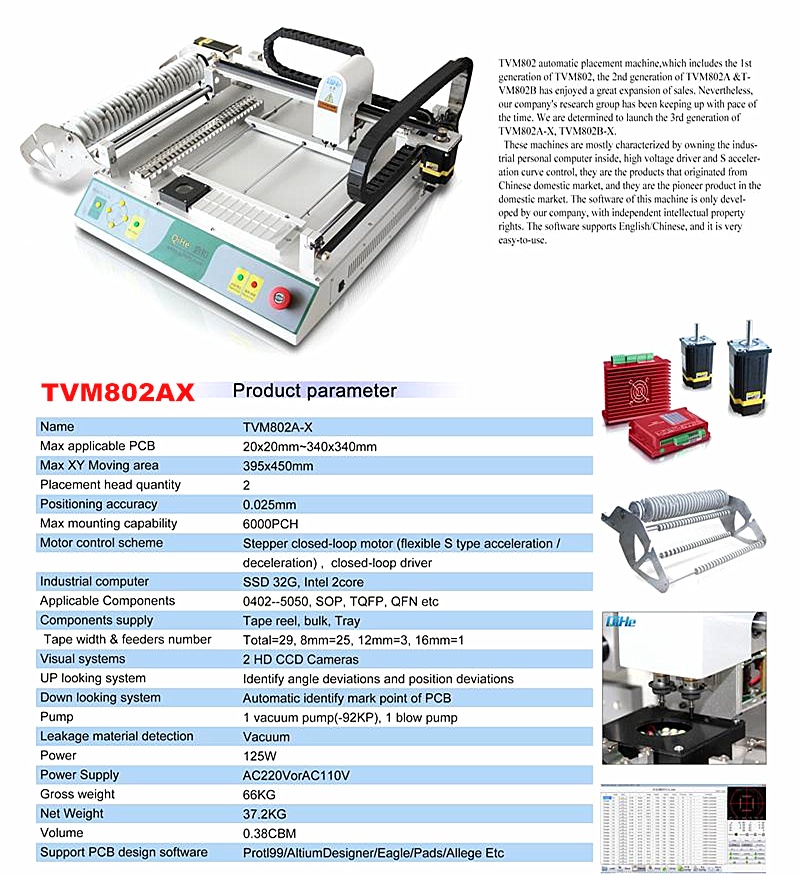

 Name

 TVM802A

TVM802B

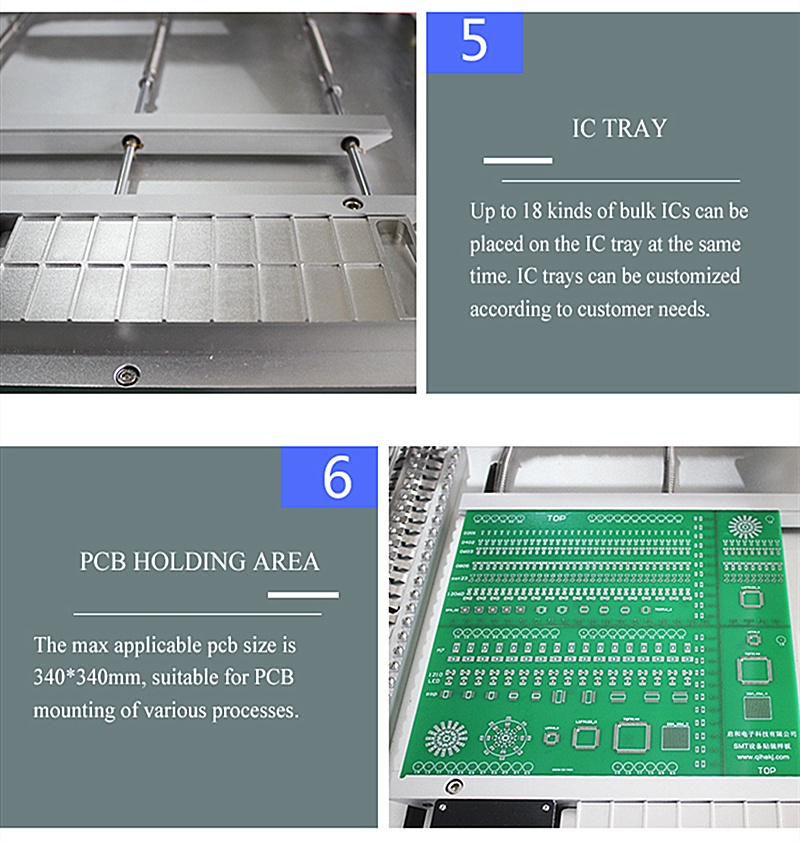

 Max applicable PCB

 20*20mm—340*340mm

20*20mm—-260*330mm

 Max XY Moving area

 395*450mm

395*450mm

 Placement head quantity

 2

2

 Positioning accuracy

 0.025mm

0.025mm

 Max capability

 5500 pcs/h

5500 CPH

 Applicable Components

 0402–5050, SOP, TQFP, QFN Ect

0402–5050,SOP,TQFP,QFN  etc

 Feeders number

 total=29  8mm=25, 12mm=3, 16mm=1

total=46  8mm=38,12mm=6,16mm=2

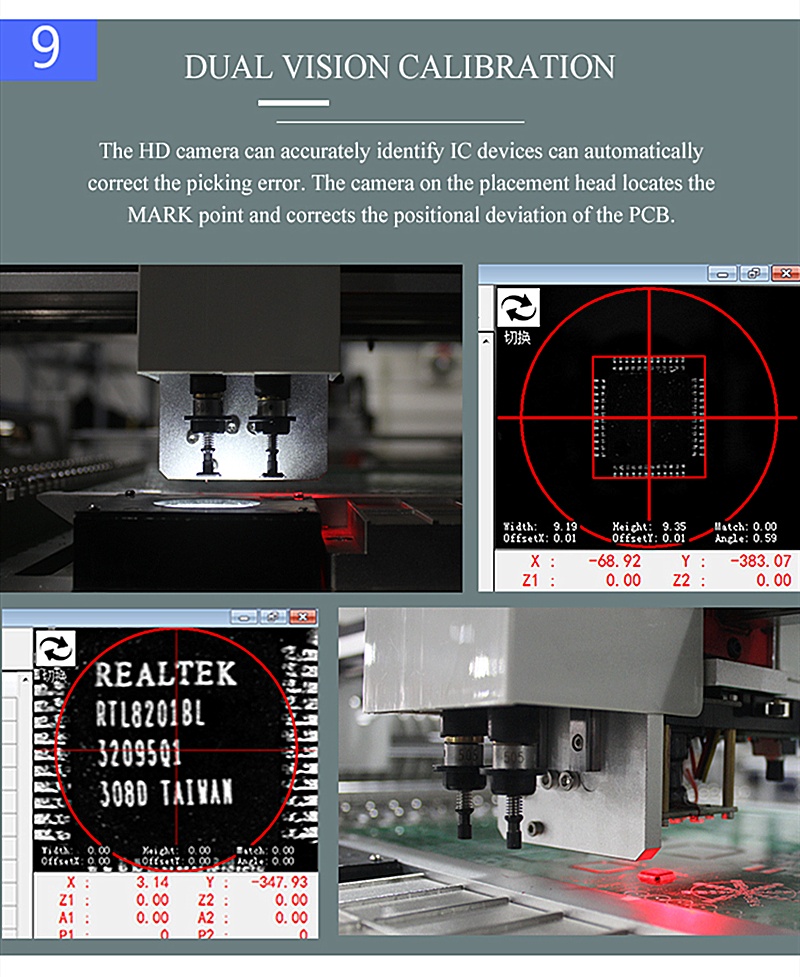

 Visual system

 2 HD CCD Cameras

 2 HD CCD Cameras

 UP Visual system

 Automatic identify the centre of components

Identify angle deviations and position deviations

 Down Visual system

 Automatic identify mark

Automatic identify mark point of PCB

 Vacuum pump quantity

 3 (Built-in)

1 vacuum pump(-92KP), 1 blow pump

 Vacuum pump

 2-92KPA (Mute type pump) and 1 positive pump

2 -92KPA (Mute type pump) and 1 positive pump

 Power

 125W

125W

 Power Supply

 AC220V / AC 110V

AC220V/AC110V

 Gross Weight

 60kg

56kg

 Net Weight

 35kg

39.5kg

 Volume

 0.38 CBM

0.38

 Support software

 Protl99/AltiumDesigner/Eagle/Pads/Allege Ect

Protl99/Altium Designer/Eagle/Pads/ Allegro
