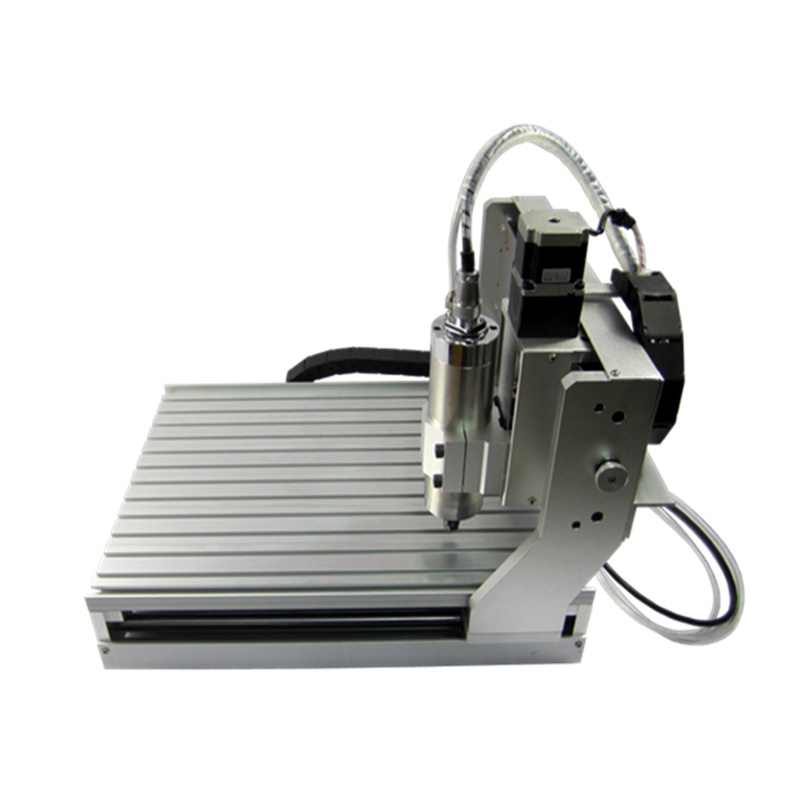

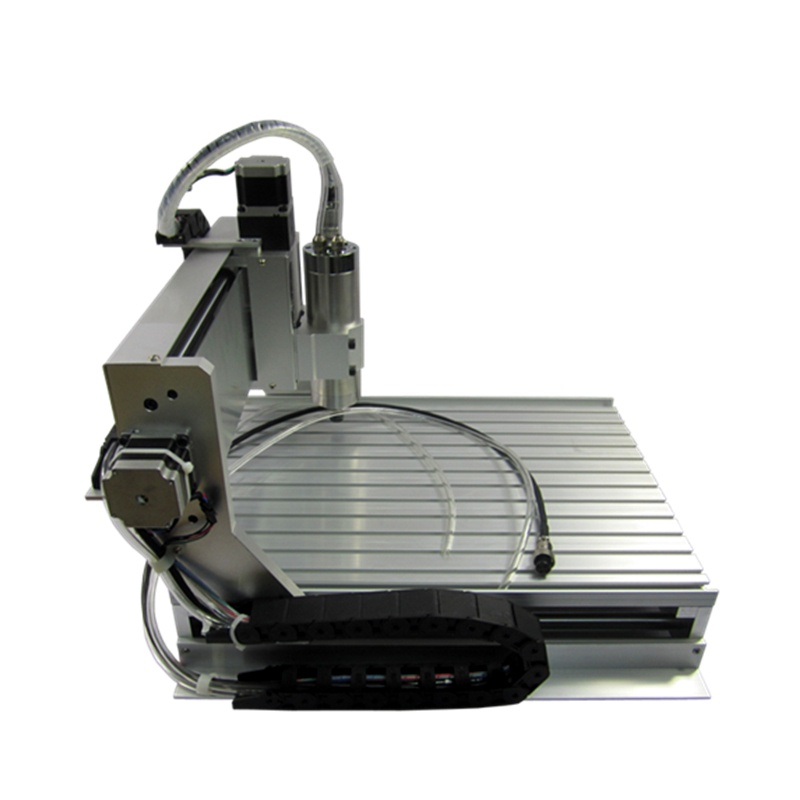

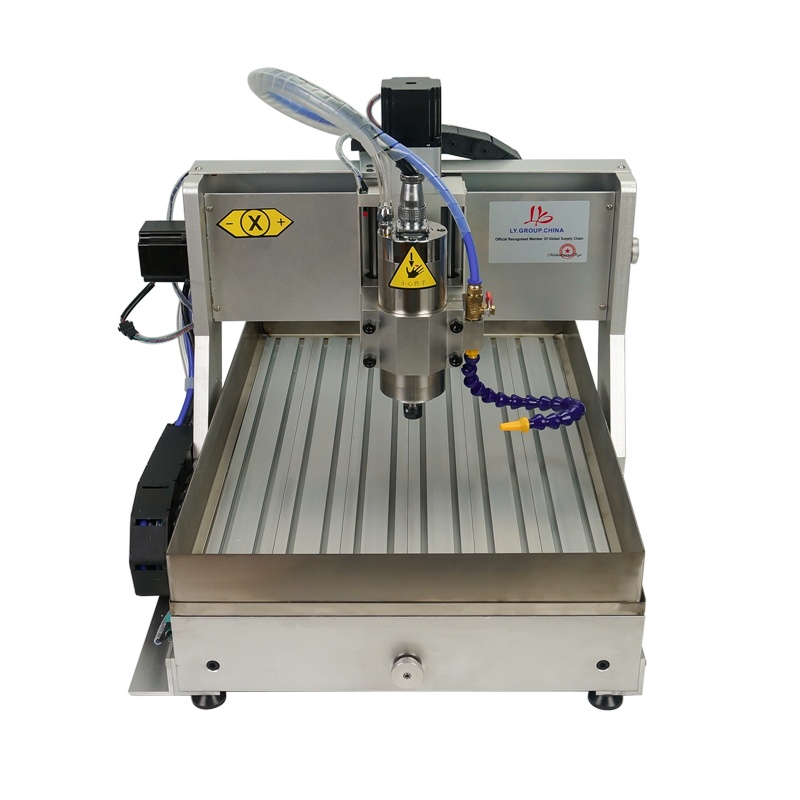

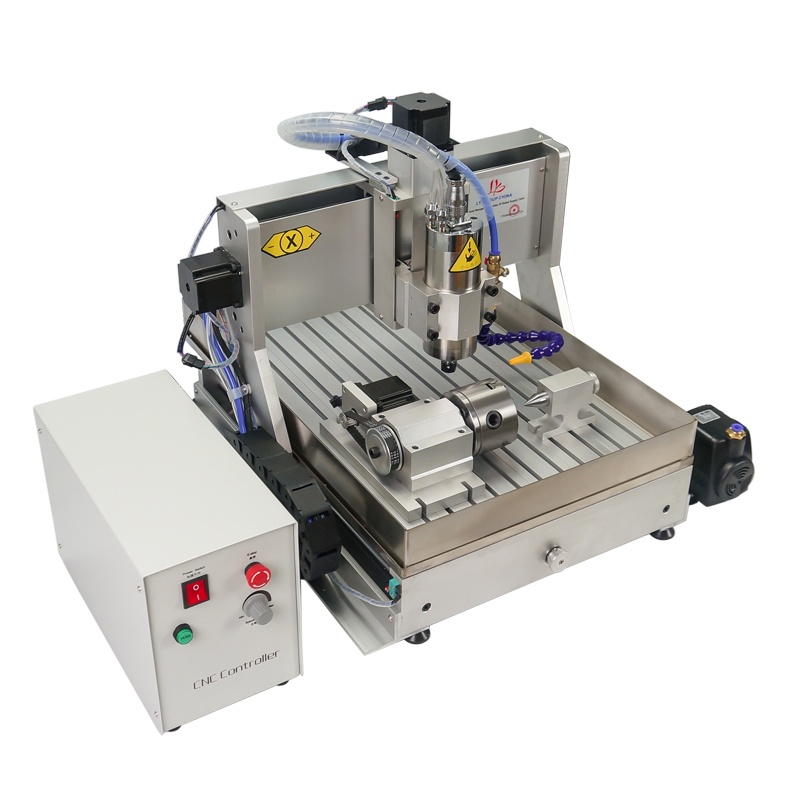

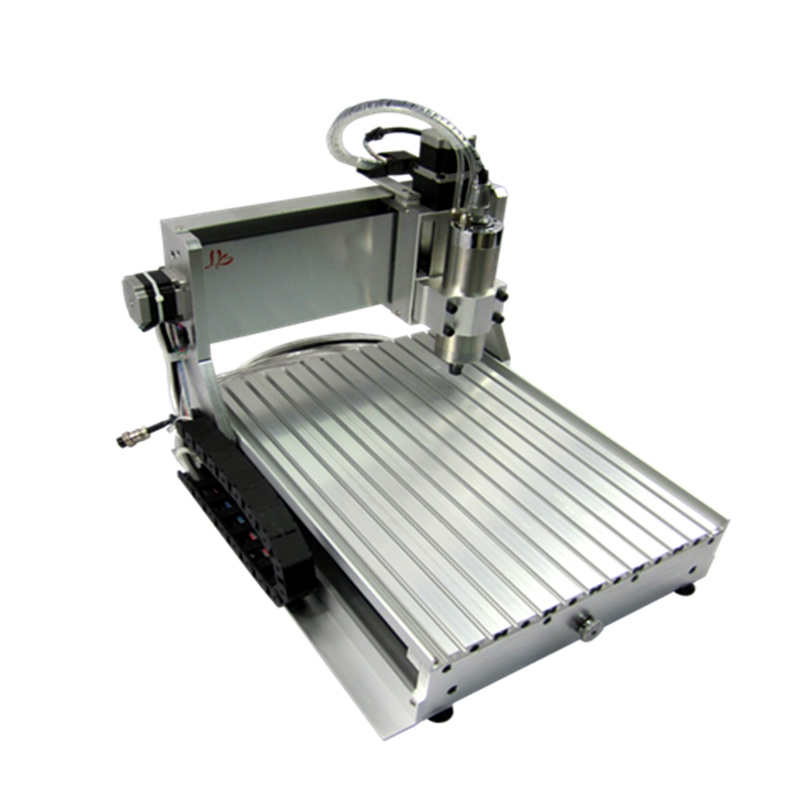

CNC 4 axis Router 3040 Engraving Machine USB Ball Screw Milling Machine for Wood Aluminum Copper Metal working

CNC 4 axis Router 3040 Engraving Machine USB Ball Screw Milling Machine for Wood Aluminum Copper Metal working

item ID: 72338
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$2000 USD$1209 (% off)
Payment

Product Detail

Product Tags

CNC 4 axis Router 3040 Engraving Machine USB Ball Screw Milling Machine for Wood Aluminum Copper Metal working

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.



Model and Technical Parameters

MODEL         3040Z-VFD1.5KW
Attribute 3axis-LPT 3axis-USB 4axis-LPT 4axis-USB
Axis 3axis 3axis 4axis 4axis

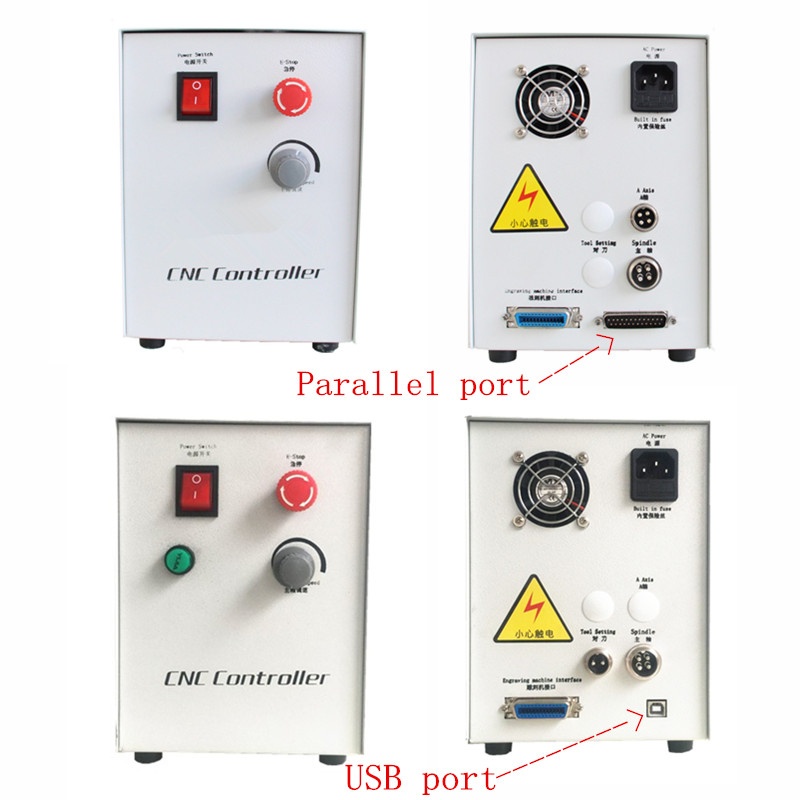

Interface LPT port USB port LPT port USB port
Limit switch Yes yes Yes Yes
Tool auto-checking Yes yes Yes Yes
Spindle Motor: 1.5KW 1.5KW 1.5KW 1.5KW
Type of screw Ball screw Ball screw Ball screw Ball screw
Weigh 46 46 52 52

Machine Dimensions:

600X510X480mm

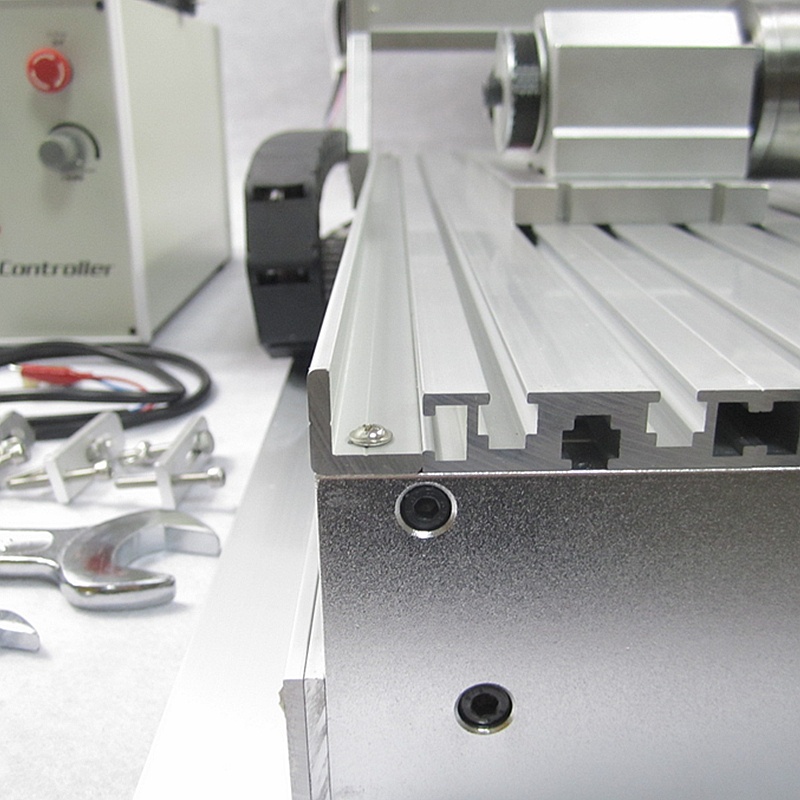

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

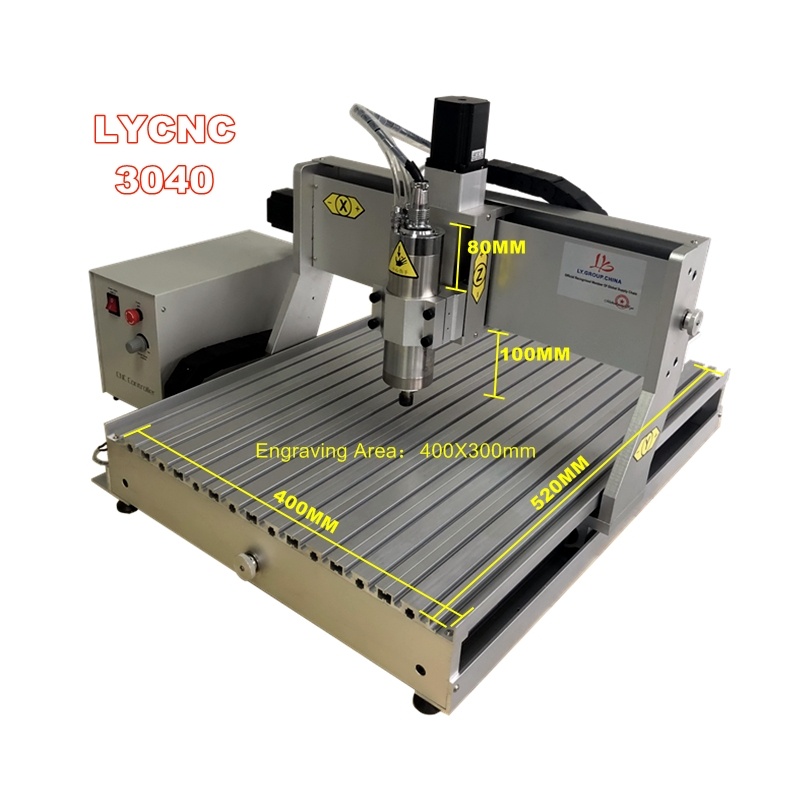

Engraving area:

400X300mm

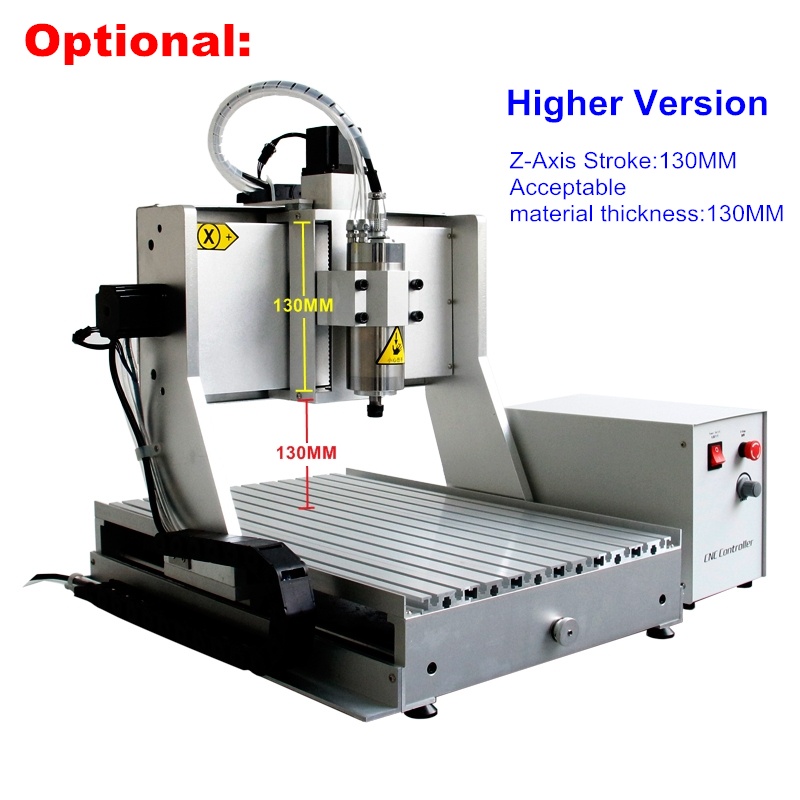

Z-Axis Stroke:

80mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

≤100mm

Rail type:

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw:

Ball screw 1605, Pitch 4mm

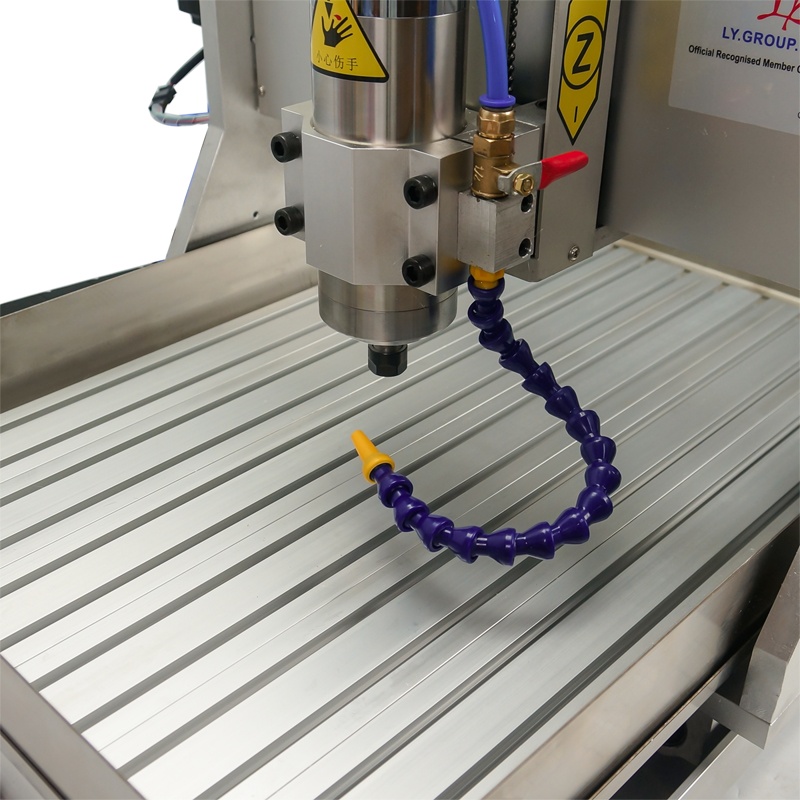

Spindle motor: 1.5KW VFD water cooling spindle , 0-24000r/min

Collet type:

ER11,1/8″(3.175mm) Collet

Stepper motor and drive:

two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.

Maximum operating speed:

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

0.03mm

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

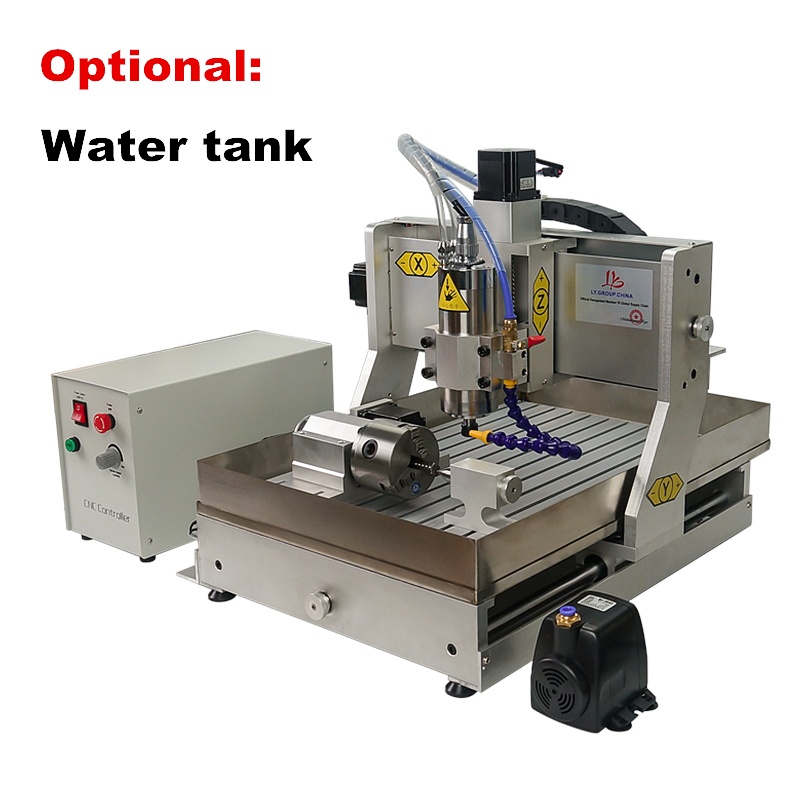

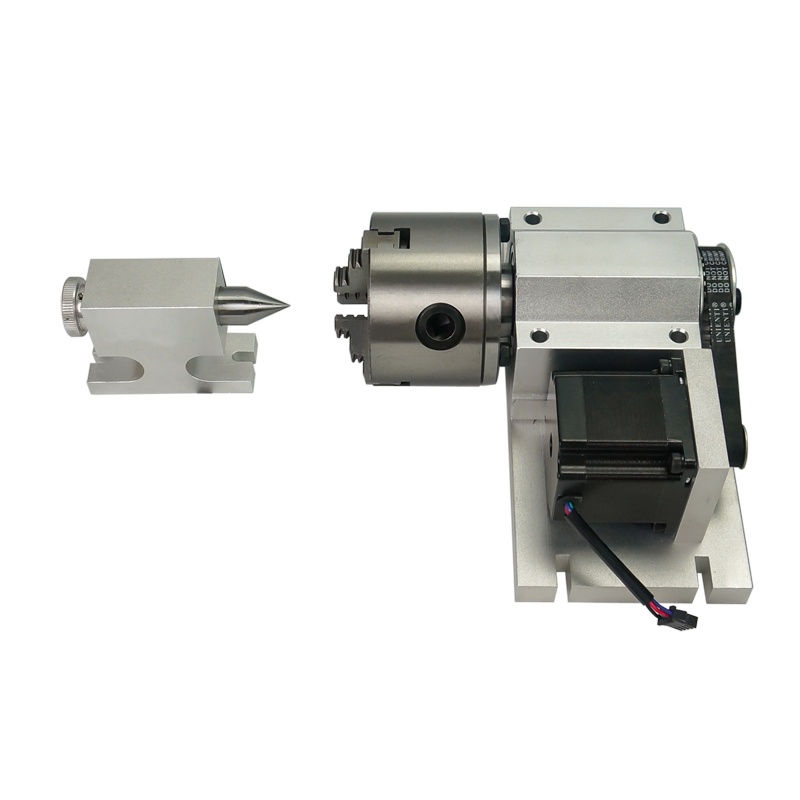

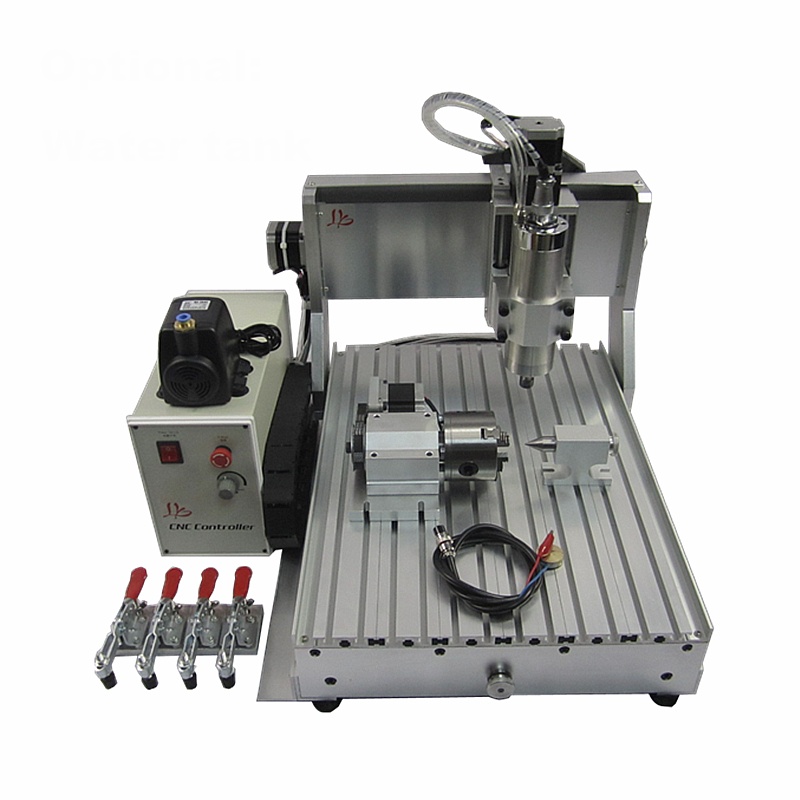

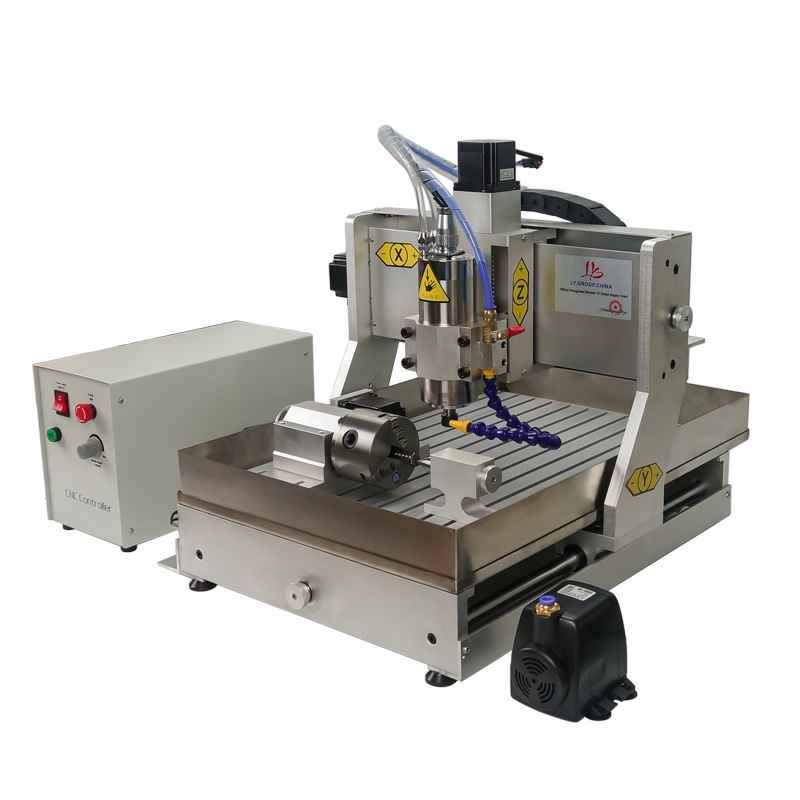

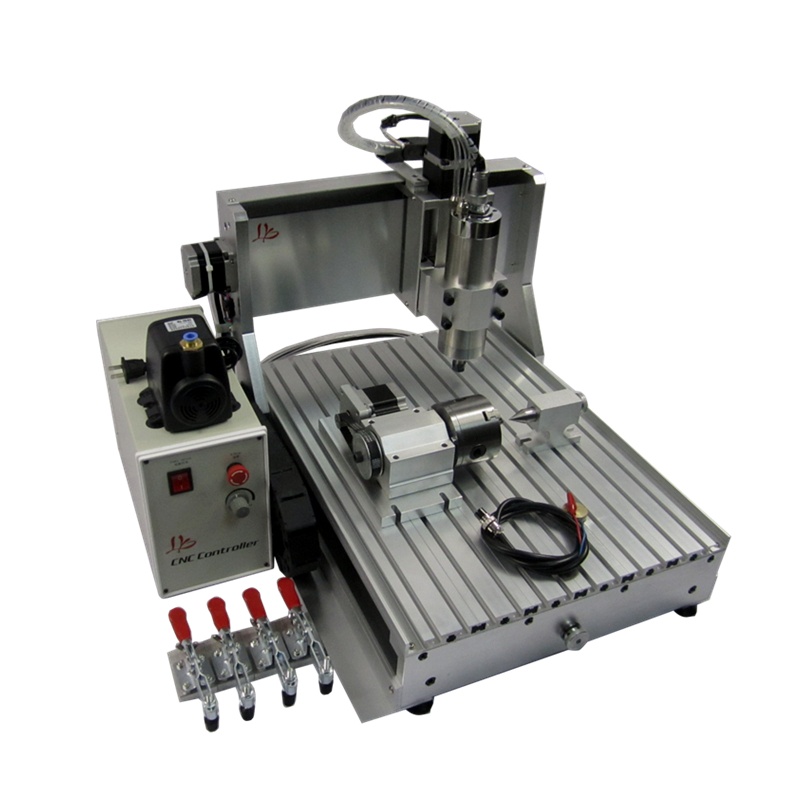

Rotation Axis (4th Axis)

Description:

Chuck Size: 80mm self-centering chuck

Center height: H = 49mm

Clamping diameter: 80mm or less

Deceleration mode: synchronous wheel / belt

Deceleration ratio: 3:1

Stepper motor: 57 type  two phase 4 line

Positioning accuracy: 0.075 °
