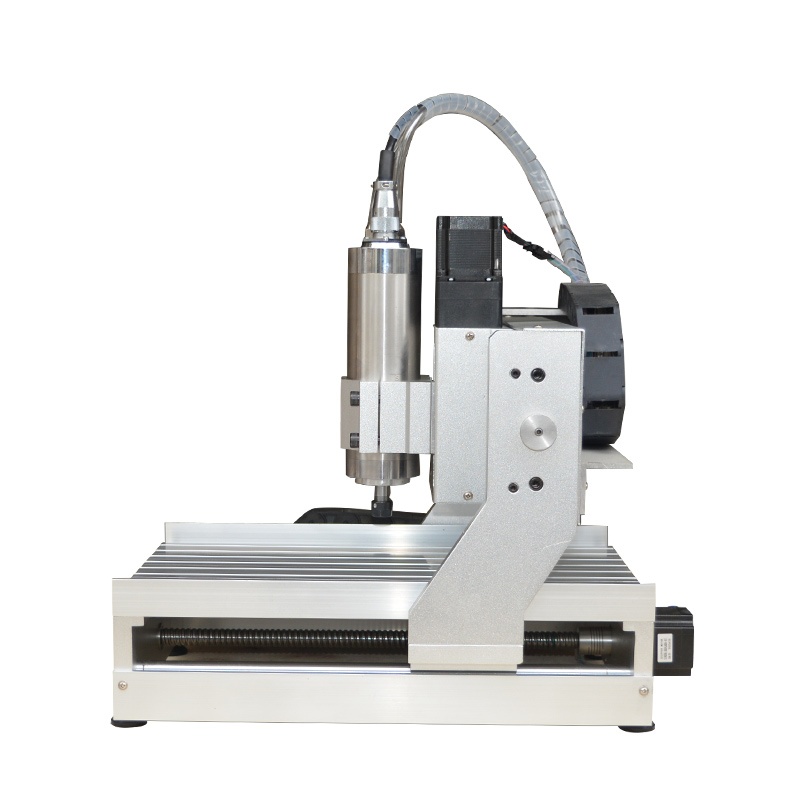

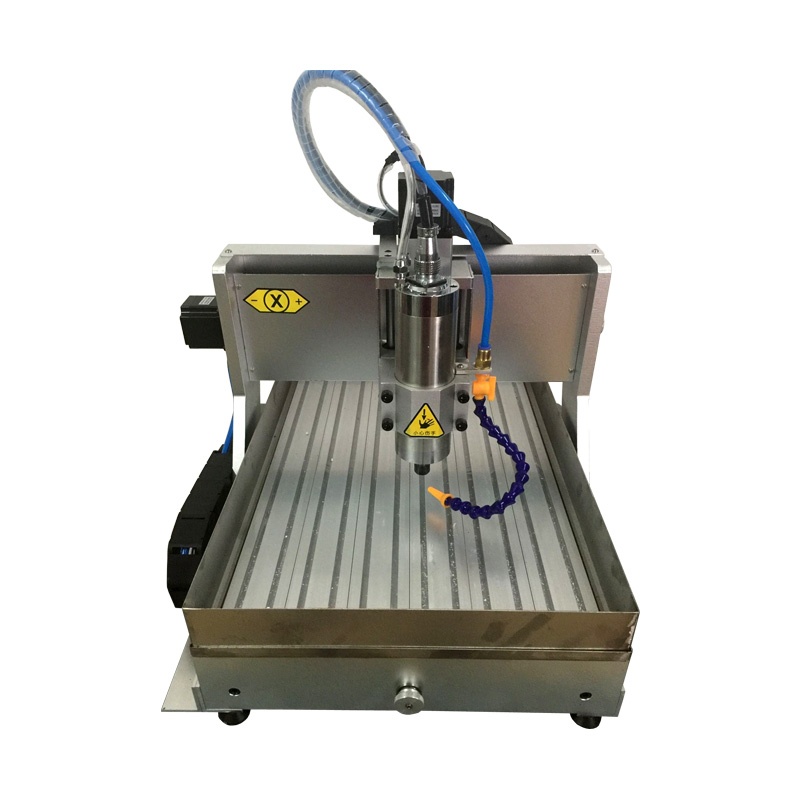

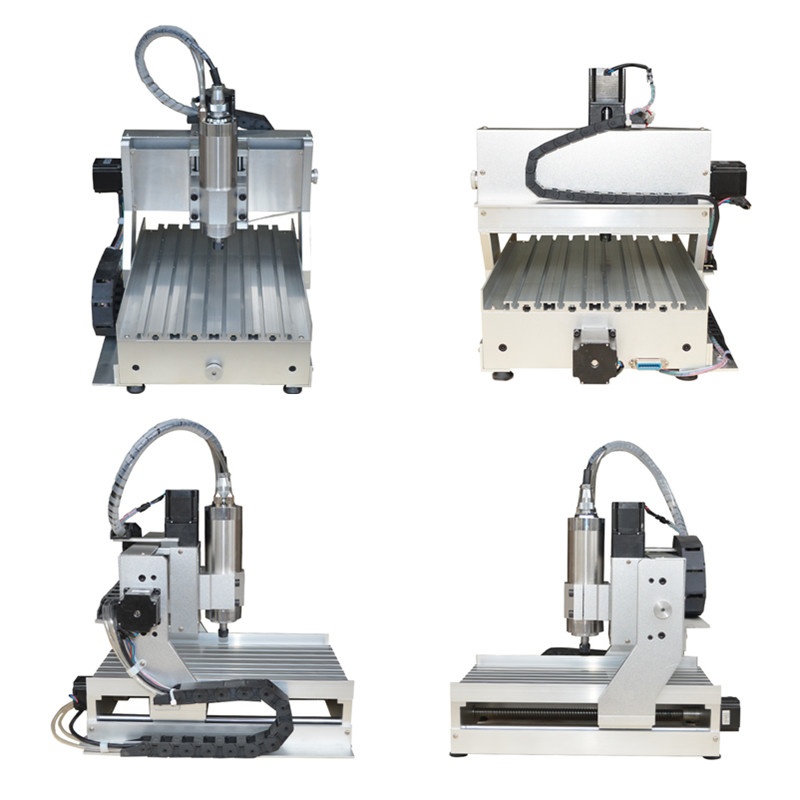

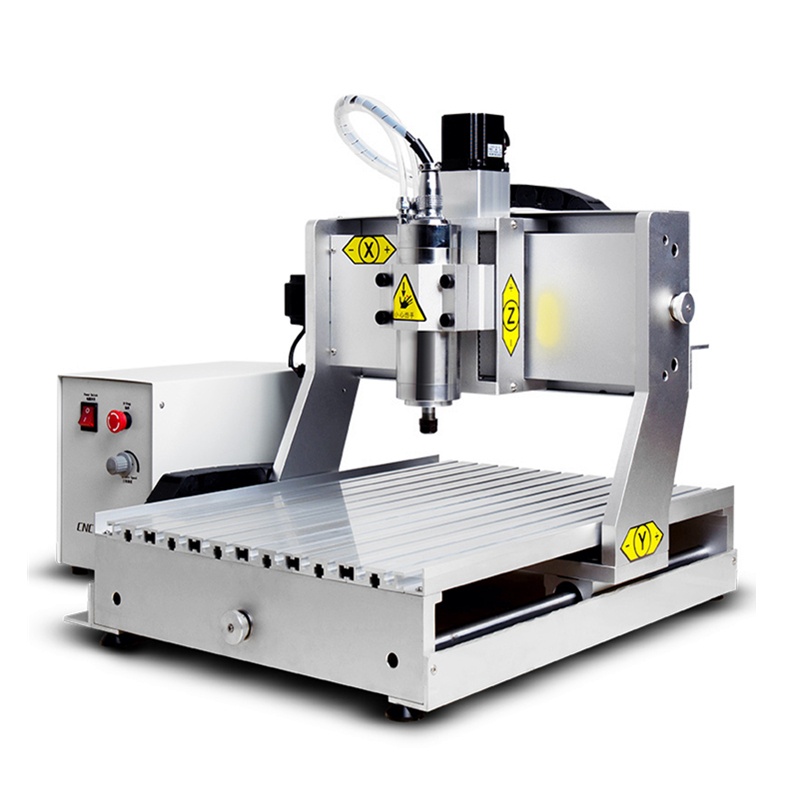

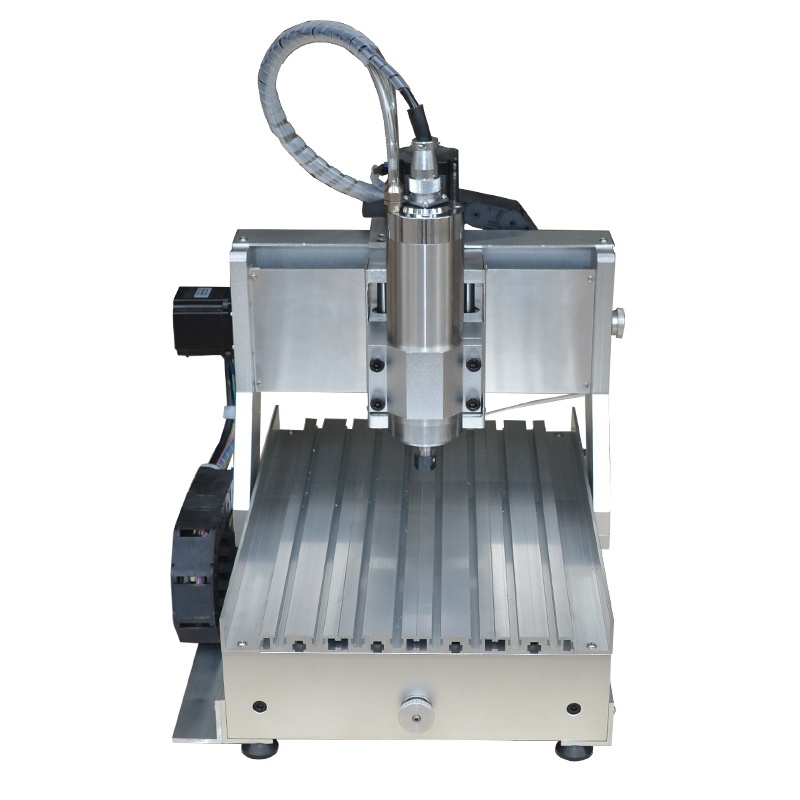

Mini CNC Router Machine 3020Z 1.5KW 1500W VFD Spindle for wood metal working

Mini CNC Router Machine 3020Z 1.5KW 1500W VFD Spindle for wood metal working

item ID: 71580
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$1800 USD$1028 (% off)
Payment

Product Detail

Product Tags

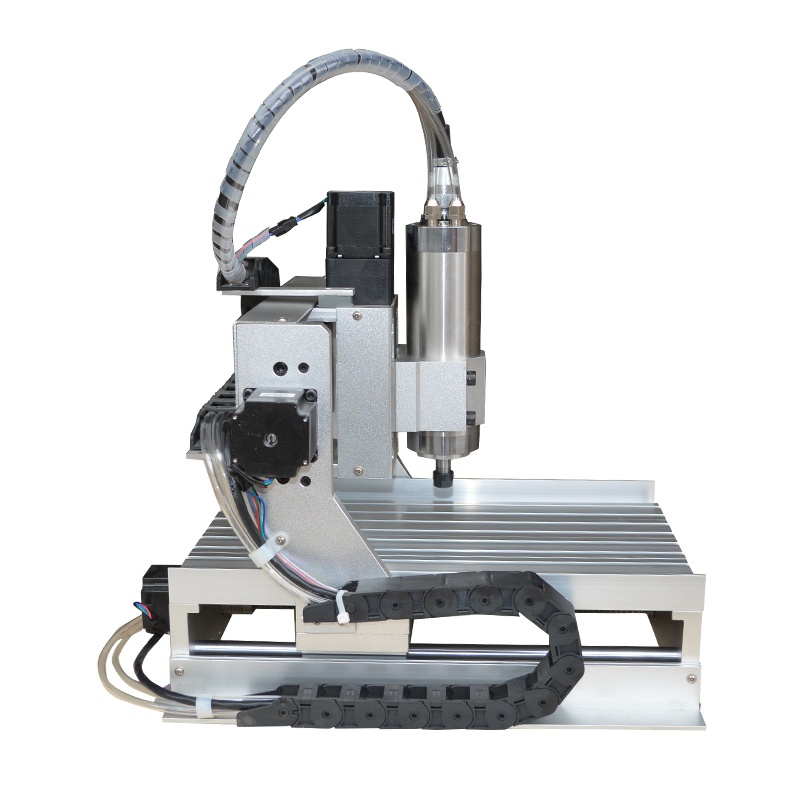

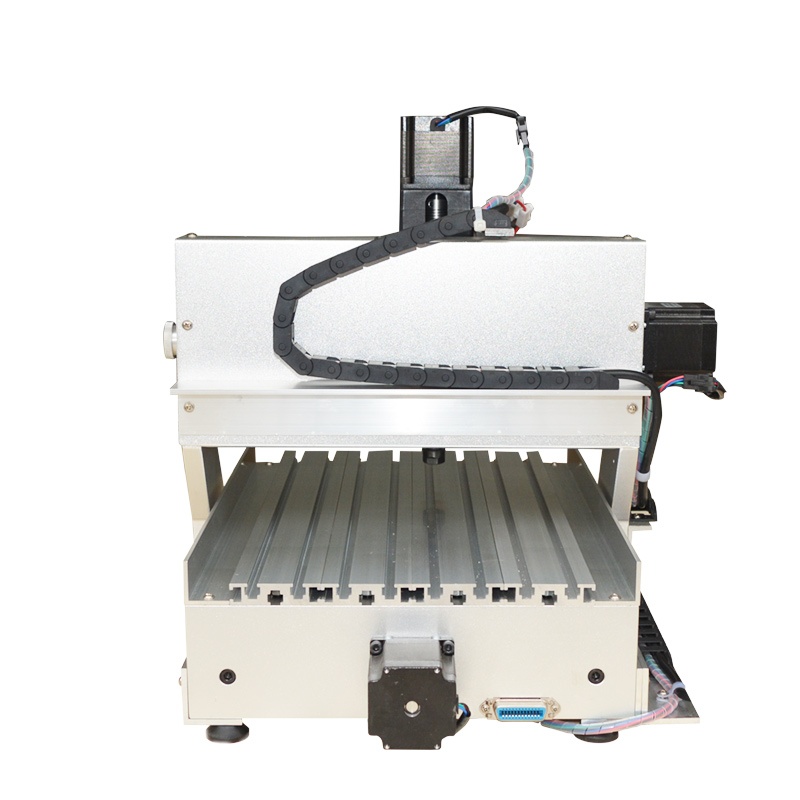

Mini CNC Router Machine 3020Z 1.5KW 1500W VFD Spindle for wood metal working

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.



Model and Technical Parameters

MODEL         3020Z-VFD1.5KW

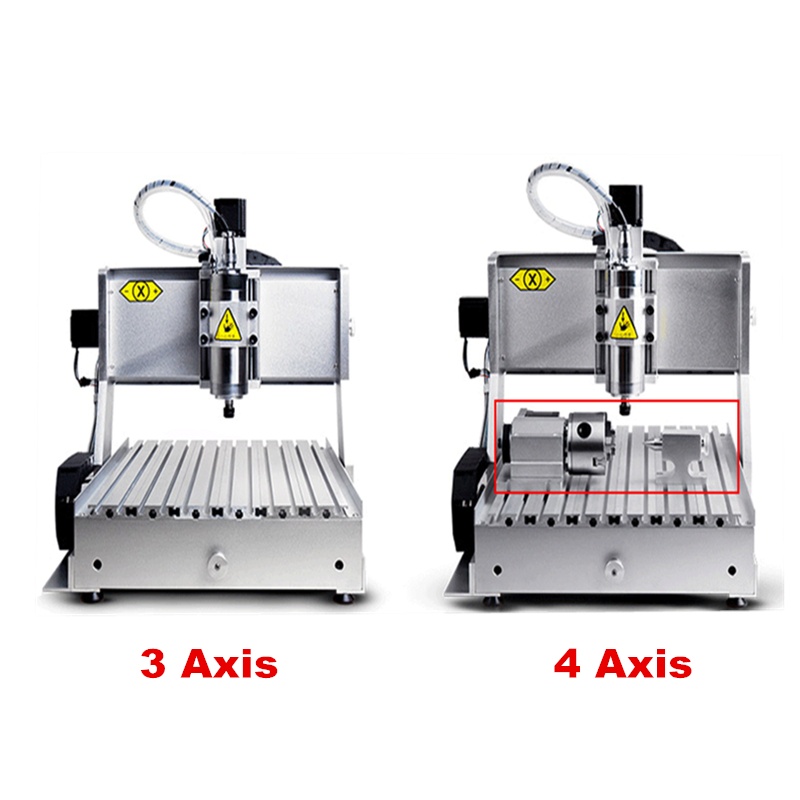

Attribute 3axis-LPT 3axis-USB 4axis-LPT 4axis-USB
Axis 3axis 3axis 4axis 4axis

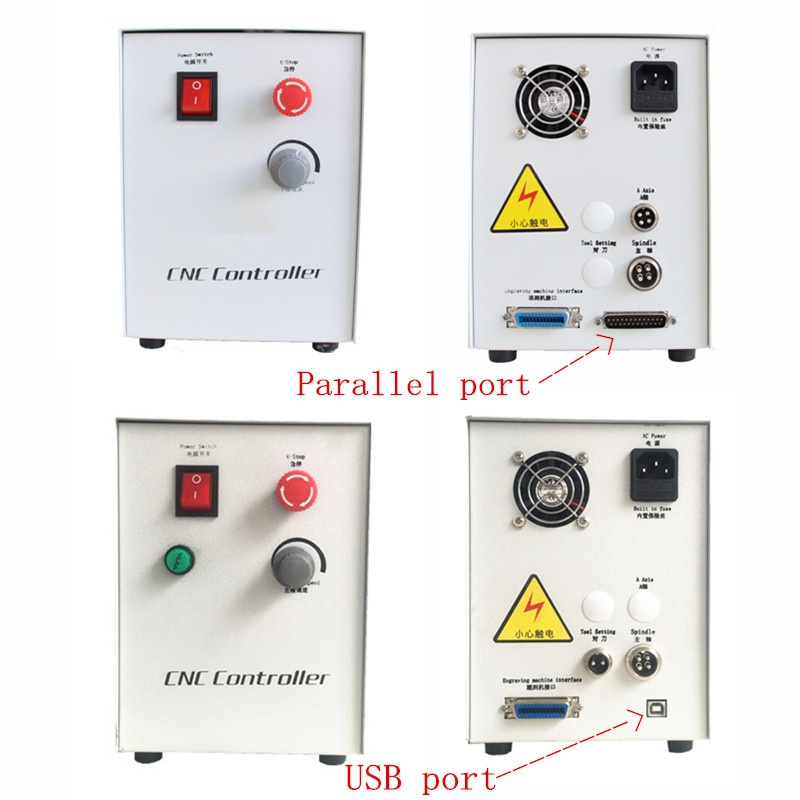

Interface LPT port USB port LPT port USB port
Limit switch Yes yes Yes Yes
Tool auto-checking Yes yes Yes Yes
Spindle Motor: 1500W 1500W 1500W 1500W
Type of screw Ball screw Ball screw Ball screw Ball screw
Weigh 38 38 44 44

Machine Dimensions:

490X420X425mm

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

300X200mm

Z-Axis Stroke:

60mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

≤60mm

Rail type:

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw:

Ball screw 1605, Pitch 4mm

Spindle motor: 1.5KW VFD water cooling spindle , 0-24000r/min

Collet type:

ER11,1/8″(3.175mm) Collet

Stepper motor and drive:

two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.

Maximum operating speed:

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

0.03mm

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

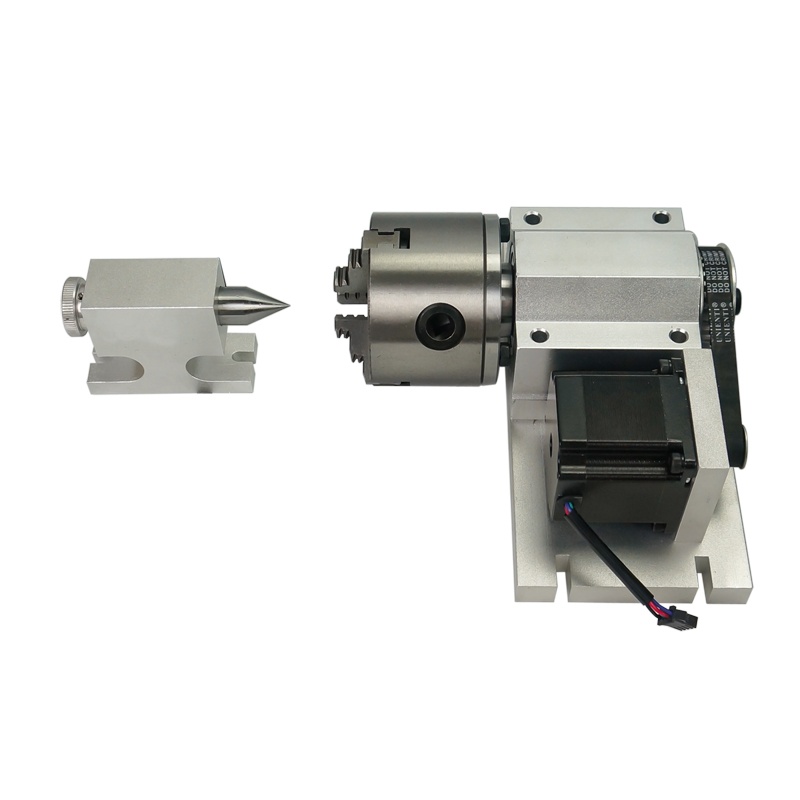

Rotation Axis (4th Axis)

Description:

Chuck Size: 80mm self-centering chuck

Center height: H = 49mm

Clamping diameter: 80mm or less

Deceleration mode: synchronous wheel / belt

Deceleration ratio: 3:1

Stepper motor: 57 type  two phase 4 line

Positioning accuracy: 0.075 °
